Multi stimuli response of a single surfactant presenting a rich self-assembly behavior

Abstract

This work reports on the multi stimuli sensitivity of a cholic acid derivative in a buffer. The molecules self-organize in single walled tubules at room temperature and pH 8.0–9.5. By increasing the pH to 10.0–12.0, these tubules open up and form scrolls, which transform by aging into different tubular structures. A further evolution from scrolls or tubules into ribbons is induced by increasing the temperature. Moreover, a transition into rolled lamellae can be triggered by adding NaCl. All transitions are reversible and accompanied by drastic molecular rearrangements, manifested by spectroscopic and imaging techniques. Such rich multi stimuli responsiveness is usually accomplished by block copolymers or peptides and seldom by pure surfactants. The reported surfactant provides in addition an uncommon variety of structures. The sharpness of the spectroscopic response suggests that the system could be employed in physico-chemical sensors with a rather narrow dynamic range.

---

Introduction

Self-assembly stimuli responsive materials are supramolecular structures able to undergo reversible structural transitions of the aggregates in response to one or more external stimuli. This property is widely required in many applications since it offers the possibility to predict, drive and program the behaviour of the aggregates in different environments.¹ Therefore, the development of such systems has a tremendous potential for application in complex processes such as drug delivery,^2–4 sensing and biomolecule identification.⁵ Conventional triggers for stimuli sensitive systems are pH, temperature and electrolyte concentration, while more sophisticated approaches are also achieved by exploiting electrical potential,⁶ light,^7–10 magnetic field,¹¹ chemomechanical feedbacks¹² and enzyme activity.^13,14 The building blocks of these systems are generally polymers,¹⁵ peptides^16,17 and surfactants.¹⁸

Bile salts are peculiar biological surfactants (Fig. 1). They show an unconventional self-assembly, which cannot be easily rationalized based on common geometric rules for surfactants.¹⁹ Indeed, due to the presence of a rigid steroidal backbone they present low conformational degrees of freedom and are expected to pack in ordered aggregates.

Fig. 1 Molecular structure of the cholic acid (top) and its derivative, HNaphC (bottom).

Their aggregation numbers generally decrease with increasing hydroxylation degrees and can be often tuned by changing parameters such as pH, added electrolyte and temperature, leading to the formation of a variety of aggregate morphologies, e.g., globular or rod-like micelles and tubules.^20–24 For tubules some interesting stimuli responsive features have been also shown in pure solutions or mixtures.^25,26 Recently, interest in the synthesis of bile salt derivatives for applicative purposes has risen. For example, cholaphanes and cholapods have been prepared and applied as carbohydrate and anion receptors.²⁷ Bile salt-based molecular umbrellas,²⁸ linear dendritic copolymers²⁹ as well as pegylated,³⁰ drug loaded^31,32 or oxo derivatives³³ have been used for drug delivery. Amine or ammonium containing bile acid derivatives have shown antimicrobial activity,^34,35 whereas protein stabilizing capability has been demonstrated by sugar-substituted derivatives.³⁶ Finally, the introduction of aromatic residues were found to enhance the ability of bile salts to disperse carbon nanotubes.³⁷

Bile salt derivatives exhibit different self-assembly behaviours compared to their precursors.^38–43 They reveal efficient gelation properties^44,45 and present appealing stimuli dependent aggregation, especially in derivatives containing hydrophobic residues.^46,47 One such derivative, the naphthoilamine-substituted cholic acid (HNaphC, Fig. 1), is investigated in this work. The study is aimed at exploring the effect of different parameters (pH, salt concentration, temperature and ageing) on its self-assembly in order to highlight possible multi responsive features. A previous work demonstrated that this molecule forms supramolecular tubules in water, which transform into twisted ribbons upon pH increase via an unconventional opening mechanism.⁴⁷ Tubular structures are widely used, for example, as nano-containers or to align nanomaterials. The stimuli responsiveness of the tubular system can constitute a significant advantage in applications as it allows a control on their opening–closure and therefore, on inclusion–release of materials. Stimuli multi responsive features enable a reversible and particularly versatile control of these processes.

Results and discussion

The effect of pH

The self-assembly of HNaphC was first investigated by recording circular dichroism (CD) and UV spectra in buffered aqueous solutions at different pH values. The spectra demonstrate relevant structural changes upon pH variations. The signal evolutions are summarized by molar ellipticity and molar extinction values at representative wavelengths where they show the most significant changes (Fig. 2). In both cases drastic jumps around a transition pH range of 9–10 are observed. The whole set of spectra are reported in the ESI (Fig. S1 and S2†). Scattered light intensity measurements demonstrate that a slight increase of the aggregation number occurs during the transition upon increasing the pH (Fig. S3†).

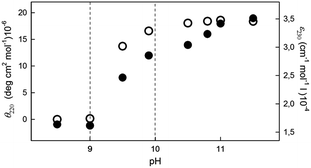

Fig. 2 pH effect: CD and UV measurements: values of the molar ellipticity [θ] at 220 nm (θ₂₂₀, left axis, black circles) and of the extinction, ε, at 230 nm (ε₂₃₀, right axis, white circles) of a 1.0 mM HNaphC in carbonate/bicarbonate buffer.

A typical UV absorption spectrum of non-aggregated HNaphC (in methanol) presents three main absorptions at around 230, 280 and 330 nm related to the π–π* transitions of the naphthoilamine residue. In bicarbonate buffered aqueous solution (pH ≈ 8.5) the HNaphC aggregation occurs, which induces hypochromic effects on the main peak (Fig. S1a†). In the same conditions CD is characterized by a negative band around 215–220 nm (Fig. S1b†). Increasing the pH to 9.5 results in a drastic change in both the UV and the CD spectra: increased intensity of the former, and formation of conservative bisignate Cotton effects at 295 and 230 nm for the latter (Fig. S1c†). Further pH increase affects the intensities of the opposite bands of the low wavelength bisignate Cotton effect. The whole behavior suggests that a transition occurs between supramolecular structures at low and high pH values.

Very similar UV and CD spectrum profiles and evolutions have been reported in a buffer-free system.⁴⁷

Using cryogenic electron transmission microscopy (cryo-TEM) we imaged the change in structure and morphology around the transition pH. The vitrification process used in cryo-TEM sample preparation allows for direct structural investigation of aggregates in solution without drying or crystallization effects, which may disturb their morphology. Below the transition pH (pH = 8.5) the micrographs show single wall tubules, 60 nm in diameter, with a narrow polydispersity (Fig. 3a). Structures that are not completely formed reveal that tubules are built by helically wrapped ribbons (Fig. 3a, inset).^48,49 Above the transition pH (pH = 10.6, 11.6 and 12.3) both single wall tubules and scrolls are imaged (Fig. 4a–c), the scroll fraction increasing with pH (Fig. 4e). Cryo-TEM micrographs of 24 h aged samples show that a transformation of scrolls into single walled tubules 60–70 in diameter, occurs (Fig. 4d). A sheet merging mechanism of overlapping layers in a scroll has been proposed for such scroll-to single-wall tubule transition.^24,43

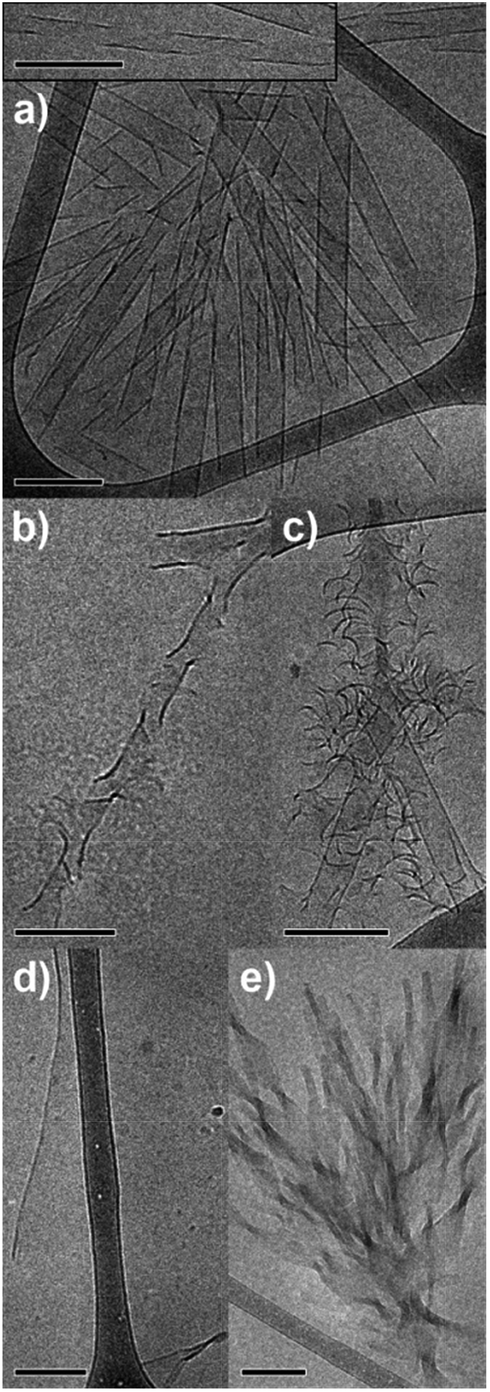

Fig. 3 pH effect: cryo-TEM micrographs of HNaPhC 1.0 mM in buffer at pH 8.5 showing fully (a) and partially (inset (a)) formed tubes, helically-wrapping of ribbons and their opening (b and c). At pH 9.6 the micrographs demonstrate flat structures (d) and twisted ribbons (e). Bar = 200 nm.

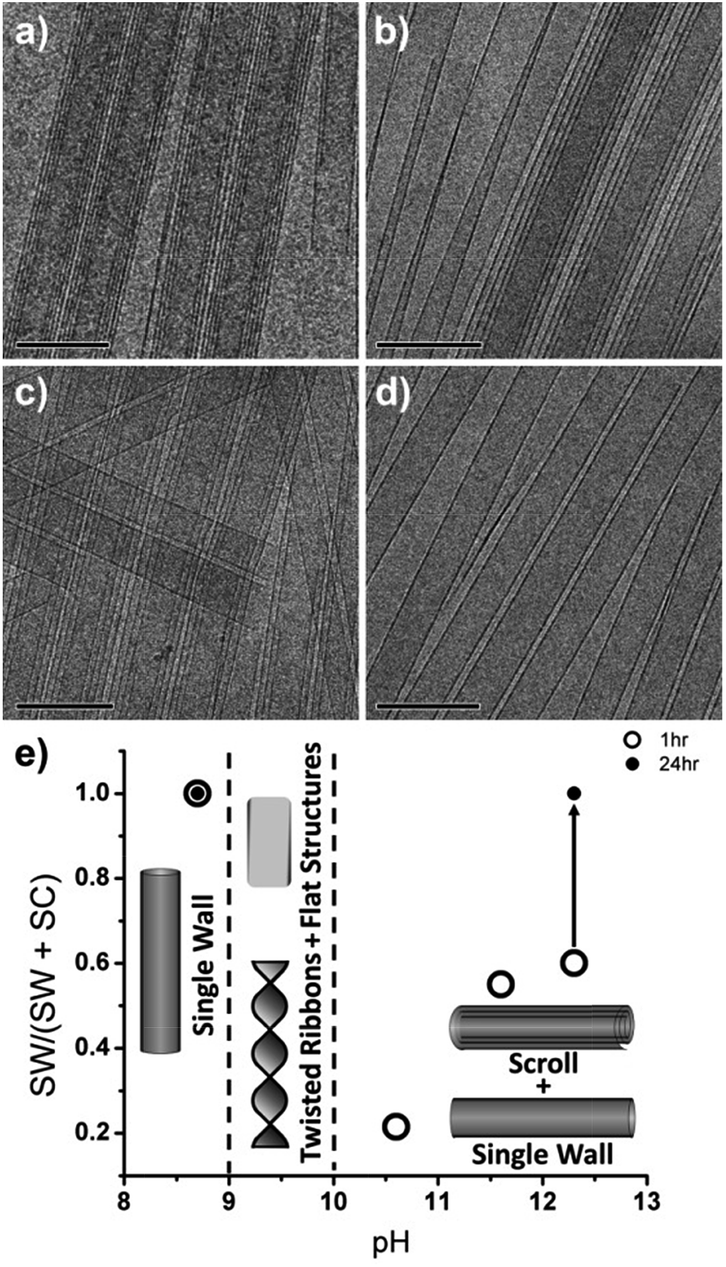

Fig. 4 pH effect: cryo-TEM images of as-prepared HNaphC 1 mM in buffer at pH values of 10.6 (a), 11.6 (b), 12.3 (c) and 24 h aged, at pH 12.3 (d). Bar = 200 nm. Schematic report of the tube percentage at different pH values (abscissa) and time (e). White and black circles represent cryo-TEM image analysis of samples imaged after 1 h and 24 h aged, respectively. The ratio single wall tube (SW) number/total number of aggregates, expressed as SW and scrolls (SC), is shown in the ordinate.

The samples at the extreme pH values (8.5 and 12.3) were also characterized by small angle X-ray scattering (SAXS). The scattering curves were fitted to a tubular morphology⁵⁰ (Fig. 5), assuming external and internal diameters of 55 and 59 nm (pH = 8.5) and 68 and 72 nm (pH = 12.3), within estimated uncertainties of ±2 nm. These values are in excellent agreement with the diameters obtained by cryo-TEM image analysis (Table S1†).

Fig. 5 pH effect: SAXS experimental data (black dots) and form factor fitting to hollow cylinder (red curves) performed on HNaPhC 1 mM in carbonate/bicarbonate buffer. Inner and outer diameters are 55 and 59 nm at pH 8.5 (a) and 78 and 72 nm at pH 12.3 (b).

Cryo-TEM unambiguously detects a pH-induced single wall tubules-to-scrolls structural transition around the transition pH. Intermediate structures point out that these tubules open up by releasing groups of curved layers similar to leaves (Fig. 3b and c), in agreement with a mechanism previously reported.⁴⁷ Moreover at pH = 9.6 we find both twisted ribbons (Fig. 3e) and thin flat sheets (Fig. 3d, darker regions), which are most probably the building blocks of the scrolls.

We note that the presence of buffer affects the high pH structure. Indeed, in its absence twisted ribbons are formed,⁴⁷ rather than scrolls (Fig. 4e).

The peculiar molecular structure of the derivative induces the formation of aggregates with complex interacting geometries, stabilized by a delicate interplay between both geometrically constrained interactions (hydrogens bonds and π–π stacking⁵¹) and non-directional forces (hydrophobic forces). By decreasing the pH, the protonation of the carboxylic group is expected to trigger the transition by regulating the electrostatic repulsions and the formation of possible hydrogen bonds between the carboxylates. The used buffer likely affects the specific interactions in the self-assembly of the derivative as it determines the formation of scrolls rather than twisted ribbons (formed in its absence) at high pH. The available results do not make it possible to propose a detailed mechanism for these interactions. The kosmotropic features of carbonate could contribute to the buffer effect.

The effect of NaCl concentration

The addition of NaCl to HNaphC samples results in increased turbidity (Fig. 6), suggesting growth of the aggregate size.

Fig. 6 NaCl effect: solutions of HNaPhC 1 mM in buffer at pH 8.5 with NaCl 0, 3, 5, 10, 20, 40 and 100 mM (from left to right).

The phenomenon is also revealed in UV spectra as an increased background of the entire wavelength range, which extends the chromophore's absorption tail (Figs. S4a and S5a†). Moreover, a significant decrease in the main UV band intensity and a remarkable change in the CD spectra occur upon NaCl addition (Fig. S4 and S5†).

Both the changes in the UV and the CD spectra insinuate the onset of yet another structural transition with salt concentration and its evolution (Fig. 7).

Fig. 7 Salt effect: turbidity, ε_T, expressed as ε at 340 nm (a), extinction due to absorption at 235 mm, ε_A, expressed as the difference between ε at 235 and ε_T (b), and the molar ellipticity, [θ], at wavelengths of 243 (θ₂₄₃) and 219 nm (θ₂₁₉) (c) for samples in buffer at pH 8.5 (right axis, white circles) and 12.3 (left axis, black circles).

Based on the UV profiles, both the turbidity (expressed as molar extinction, ε_T, on the tail of the UV curve at 340 nm) and the extinction, ε_A, related to the absorption of the main band (235 nm) are plotted as a function of NaCl concentration (Fig. 7a and b). Both plots suggest that most of the structural transition occurs within the 0–10 mM NaCl concentration range (roughly 10–30 mM Na⁺ concentration considering the buffer contributions). A similar pattern is found by following the evolution of the CD ellipticity at representative fixed wavelength of 243 and 219 for the samples at pH 8.5 and 12.3, respectively (Fig. 7c).

In order to verify the reversibility of the salt effect we removed the salt from the aggregates in samples at the highest NaCl concentrations by centrifugation and we re-dispersed the aggregates in buffer at pH = 8.5 and 12.3. The CD measurements of these samples showed the original spectrum before the addition of salt (Fig. S6†), proving the reversibility of the salt-induced transformation. It also demonstrates that most of the added NaCl is not included in the aggregates and it is eliminated with the supernatant. Cryo-TEM micrographs of HNaphC samples in 20 mM NaCl show the presence of lamellae, often edge-rolled, and forming truncated cones, ∼0.5 μm in diameter at the transversal section (Fig. 8).

Fig. 8 Salt effect: (a) cryo-TEM images of rolled aggregates in HNaphC 1 mM in buffer in the presence of NaCl 20 mM at pH = 12.0, bar = 200 nm; (b) scheme of the salt induced transition.

We believe that the added salt screens the electrostatic repulsions between the charged head groups, leading to the structural transition. Kosmotropic effects of the added salts could also influence the transition.

The effect of temperature

Samples heated to 55 °C (pH = 12.3) show a transition from tubule (Fig. 5c) to ribbon-like structures (Fig. 9).

Fig. 9 Temperature effect: (a) cryo-TEM micrographs of ribbons in 1 mM HNaphC in buffer at 55 °C (pH 12.3), arrows indicate twists in a narrow ribbon, bar = 200 nm; (b) scheme of the temperature induced transition.

The temperature effect is also manifested by measuring the molar ellipticity and the extinction coefficient at 233 and 220 nm, respectively (Fig. 10). Both these parameters present a step change at 35–40 °C.

Fig. 10 Temperature effect: molar ellipticity at 223 nm, θ₂₂₃ (left axis, black circles), and molar extinction at 233 nm, ε₂₃₃ (right axis, white circles), in 1 mM HNaphC in buffer. The up-scan DSC thermogram is reported in the inset.

In detail, the UV spectra of 1.0 mM HNaPhC at pH 12.3 remain unchanged up to 30 °C, whereas further temperature increase produces a remarkable intensity drop in the 200–300 nm range, which is completed above 40 °C (Fig. S7a†). Accordingly, the CD spectra do not significantly changes up to 30 °C (Fig. S7b†), above which it drastically drops. Cooling the sample back to 25 °C, both UV and CD original curves reappear, demonstrating the reversibility of the transformation and the possibility to toggle between the two different molecular packings.

The transition is also detected by differential scanning calorimetry (DSC), which shows a broad endothermic peak in the 40–50 °C range (Fig. 10 inset).

Static and dynamic light scattering (SLS and DLS) measurements at increasing temperature also confirm the transition, showing a decrease in the scattered light intensities and hydrodynamic radii, starting from the transition temperature (Fig. S8†).

Within the complex framework of intermolecular interactions provided by HNaphC, thermal response could be due to an increase in the strength of hydrophobic interactions during heating that involves both the naphthoilamine residue and the hydrophobic face of the rigid group.

Experimental

Materials

HNaphC was obtained by reacting the 2-naphthoyl chloride with the 3β-amino derivative of cholic acid. Details on the synthesis were reported elsewhere.⁴⁷

Solutions of HNaphC were prepared by solubilizing the powder in aqueous solvents. Starting from a sample containing sodium or potassium bicarbonate 10 mM (initial pH = 8.5), the pH value was progressively increased by adding sodium or potassium hydroxide up to a pH of 12.3. Samples with NaCl (Carlo Erba) ranging from 5 mM to 100 mM are also prepared to study the electrolyte concentration effect on the self-assembly.

In order to test the reversibility of the transition with electrolyte concentration, centrifugation on samples both at pH 8.5 and 11.5 with NaCl 100 mM was performed at 5000 rpm for 5 minutes. After removing the supernatant, the precipitate was re-dispersed in buffer solution at the same initial pH, obtaining homogenous solutions.

CD and UV measurements

The UV absorbance spectra were recorded on a Cary/1E spectrophotometer and reported in molar extinction coefficient ε. CD spectra were recorded on a JASCO model 715 and reported in molar ellipticity θ. The spectra were recorded in the range of wavelength (λ) 200–350 nm and the temperature was controlled by a Peltier unit, with an accuracy of 0.02 °C. Quartz cuvettes with path lengths ranging from 0.1 to 1 mm were employed, depending on the signal intensity. The reported spectra are results of four scans and solvent baseline correction.

SAXS measurements

SAXS measurements were performed on a Ganesha SAXS system. The instrument has a Pilatus detector and a Genix 3D X-ray source and it uses a X-ray wavelength, λ, of 1.54 Å. All the scattering curves, recorded within the range of 0.01 < q < 0.4 Å⁻¹ (q = 4π sin(θ)/λ, where 2θ is the scattering angle), were corrected for solvent and capillary contributions.

For very long tubular scattering particles, the SAXS spectra can be interpreted on the basis of the following theoretical expression of the intensity for infinitely long hollow cylinder:⁵⁰

where D_o and D_i are the outer and inner diameters of the tube, respectively, and J_n(x) is the n order Bessel function of the first kind. The average in this equation is considered with respect to a distribution of diameters. In our calculations a Gaussian distribution with a 10% standard deviation was considered. In the fit we observed that the calculated scattering curves with this polydispersity show deeper minima than the experimental data, and that a larger polydispersity allowed for a better fit. However, larger percentages were not used because a partial smearing of the experimental form factor minima is expected to be due to other effects, such as a continuous rather than discontinuous cross section profile of the electron density, as considered in the fit equation.

Cryo-TEM measurements

Cryo-TEM images were collected using a FEI Tecnai 12 G2 (equipped with a Gatan 794 CCD camera) operating at 120 kV. The samples were prepared using a controlled environment vitrification system. A drop of the sample was deposited on a Cu TEM grid, coated with a holey carbon film (Lacey substrate 300 mesh, Ted Pella, Ltd.) at 25 °C. The grid was blotted to remove excess fluid, resulting in a thin film (20–300 nm) of the solution suspended over the grid's holes. The samples were vitrified by rapid plunging into liquid ethane at its freezing point, then transferred to a cryo holder (Gatan model 626) and examined at −178 °C.

SLS and DLS measurements

A Brookhaven instrument constituted by a BI-2030AT digital correlator with 136 channels and a BI-200SM goniometer was used for static and dynamic light scattering (SLS and DLS, respectively). The light source was a Uniphase solid-state laser system model 4601 operating at 532 nm. The temperature was controlled within 0.5 °C by a circulating water bath. The data were collected at a fixed angle of 90°.

DSC measurements

DSC measurements were carried out using a VP-DSC differential scanning calorimeter (MicroCal, Northampton, MA.). Approximately 0.5 mL of sample and water (as standard sample) were injected to the sample and reference cells (made from tantalum alloy), respectively. The sample was equilibrated for 20 min at 20 °C before starting the measurements. Two up-scan measurements in the range of 20–80 °C with scan rate of 60 °C h⁻¹ were carried out. After the first up-scan the temperature was decreased to 20 °C and it was equilibrated for 120 min before starting the second up-scan. Both first and second up-scans gave similar thermograms. To collect and analyze DSC data, Origin software supplied by the manufacturer was used.

Conclusions

We report a multi stimuli responsiveness of a cholic acid derivative to pH, salt concentration, temperature and ageing. Manipulating these external stimuli dictates different self-assembled structures: SW tubules, scrolls, ribbons or rolled lamellae. The transitions between these structures are reversible and entail chromophore rearrangement. The multi stimuli responsiveness of the tubular system offers advantages in applications, allowing versatile opening–closure manipulation in inclusion–release of materials.

Such rich and varied multi (four) stimuli responsiveness is sometimes provided by block copolymers,^52–55 peptide chains⁵⁶ or surfactant based mixtures,^57–60 but it is uncommon for a single surfactant system. The few cases of pure surfactant systems reported in the literature^4,61,62 involve the formation of different and generally less ordered aggregates, like micelles or gels. Finally, the structural transitions take place within a rather narrow range of the triggering stimulus: 1 pH unit, few kelvins, and 10 mM of salt concentration, demonstrating a significant change in UV and CD. Therefore, this system could be employed in physico-chemical sensors with a rather narrow dynamic range.

Acknowledgements

We thank Prof. Karin Schillén for valuable discussion and collection of DSC data. ESMI Project is acknowledged for financial support (E131100452).

Notes and references

1. R. Yerushalmi, A. Scherz, M. E. v. d. Boom and H.-B. Kraatz, J. Mater. Chem., 2005, 15, 4480–4487.
2. S. Mura, J. Nicolas and P. Couvreur, Nat. Mater., 2013, 12, 991–1003.
3. X.-Y. Hu, K. Jia, Y. Cao, Y. Li, S. Qin, F. Zhou, C. Lin, D. Zhang and L. Wang, Chem.–Eur. J., 2015, 21, 1208–1220.
4. L. Milanesi, C. A. Hunter, N. Tzokova, J. P. Waltho and S. Tomas, Chem.–Eur. J., 2011, 17, 9753–9761.
5. C. L. Yeung, P. Iqbal, M. Allan, M. Lashkor, J. A. Preece and P. M. Mendes, Adv. Funct. Mater., 2010, 20, 2657–2663.
6. H. Kim, S.-M. Jeong and J.-W. Park, J. Am. Chem. Soc., 2011, 133, 5206–5209.
7. J.-F. Gohy and Y. Zhao, Chem. Soc. Rev., 2013, 42, 7117–7129.
8. Q. Yan, Y. Xin, R. Zhou and Y. Yina, Chem. Commun., 2011, 47, 9594–9596.
9. S. Halmy, F. A. Leibfarth, S. Oh, J. E. Poelma, C. J. Hawker and J. R. de Alaniz, J. Am. Chem. Soc., 2014, 136, 8169–8172.
10. Q. Qi, J. Qian, S. Ma, B. Xu, S. X.-A. Zhang and W. Tian, Chem.–Eur. J., 2015, 21, 1149–1155.
11. J. Thévenot, H. Oliveira, O. Sandre and S. Lecommandoux, Chem. Soc. Rev., 2013, 42, 7099–7116.
12. A. Grinthal and J. Aizenberg, Chem. Soc. Rev., 2013, 42, 7072–7085.
13. A. J. Harnoy, I. Rosenbaum, E. Tirosh, Y. Ebenstein, R. Shaharabani, R. Beck and R. J. Amir, J. Am. Chem. Soc., 2014, 136, 7531–7534.
14. R. J. Williams, A. M. Smith, R. Collins, N. Hodson, A. K. Das and R. V. Ulijn, Nat. Nanotechnol., 2009, 4, 19–24.
15. M. A. C. Stuart, W. T. S. Huck, J. Genzer, M. Müller, C. Ober, M. Stamm, G. B. Sukhorukov, I. Szleifer, V. V. Tsukruk, M. Urban, F. Winnik, S. Zauscher, I. luzinov and S. Minko, Nat. Mater., 2010, 9, 101–113.
16. D. W. P. M. Löwik, E. H. P. Leunissen, M. van den Heuvel, M. B. Hansen and J. C. M. van Hest, Chem. Soc. Rev., 2010, 39, 3394–3412.
17. E. G. Bellomo, M. D. Wyrsta, L. Pakstis, D. J. Pochan and T. J. Deming, Nat. Mater., 2004, 3, 244–248.
18. P. Brown, C. P. Butts and J. Eastoe, Soft Matter, 2013, 9, 2365–2374.
19. J. N. Israelachvili, D. J. Mitchell and B. V. Ninham, J. Chem. Soc., Faraday Trans. 2, 1979, 72, 1525–1568.
20. D. Madenci and S. U. Egelhaaf, Curr. Opin. Colloid Interface Sci., 2010, 15, 109–115.
21. C. Leggio, L. Galantini, E. Zaccarelli and N. V. Pavel, J. Phys. Chem. B, 2005, 109, 23857–23869.
22. A. A. D'Archivio, L. Galantini and E. Tettamanti, J. Phys. Chem. B, 2000, 104, 9255–9259.
23. L. Galantini, E. Giglio, A. Leonelli and N. V. Pavel, J. Phys. Chem. B, 2004, 108, 3078–3085.
24. P. Terech, A. De Geyer and A. Y. Talmon, Adv. Mater., 2002, 14, 495–498.
25. X. Zhang, J. Zou, K. Tamhane, F. F. Kobzeff and J. Fang, Small, 2010, 6, 217–220.
26. X. Zhang, T. Bera, W. Liang and J. Fang, J. Phys. Chem. B, 2011, 115, 14445–14449.
27. P. R. Brotherhood and A. P. Davis, Chem. Soc. Rev., 2010, 39, 3633–3647.
28. V. Janout and S. L. Regen, Bioconjugate Chem., 2009, 20, 183–192.
29. J. Luo, K. Xiao, Y. Li, J. S. Lee, L. Shi, Y.-H. Tan, L. Xing, R. H. Cheng, G.-Y. Liu and K. S. Lam, Bioconjugate Chem., 2010, 21, 1216–1224.
30. F. Le Dévédec, D. Fuentealba, S. Strandman, C. Bohne and X. X. Zhu, Langmuir, 2012, 28, 13431–13440.
31. S. Patil, S. Patil, S. Gawali, S. Shende, S. Jadhav and S. Basu, RSC Adv., 2013, 3, 19760–19764.
32. K. Margulis-Goshen, M. C. di Gregorio, N. V. Pavel, L. Abezgauz, D. Danino, J. Vázquez Tato, V. H. Soto Tellini, S. Magdassi and L. Galantini, Phys. Chem. Chem. Phys., 2013, 15, 6016–6024.
33. L. Yang, H. Zhang, M. Mikov and I. G. Tucker, Mol. Pharmaceutics, 2009, 6, 448–456.
34. H. M. Willemen, L. C. P. M. de Smet, A. Koudijs, M. C. A. Stuart, I. G. A. M. Heikamp-de Jong, A. T. M. Marcelis and E. J. R. Sudholter, Angew. Chem., Int. Ed., 2002, 41, 4275–4277.
35. C. Li, A. S. Peters, E. L. Meredith, G. W. Allman and P. B. Savage, J. Am. Chem. Soc., 1998, 120, 2961–2962.
36. Q. Zhang, X. Ma, A. Ward, W.-X. Hong, V.-P. Jaakola, R. C. Stevens, M. G. Finn and G. Chang, Angew. Chem., Int. Ed., 2007, 46, 7023–7025.
37. M. Gubitosi, J. V. Trillo, A. Alfaro Vargas, N. V. Pavel, D. Gazzoli, S. Sennato, A. Jover, F. Meijide and L. Galantini, J. Phys. Chem. B, 2014, 118, 1012–1021.
38. L. Travaglini, A. D'Annibale, K. Schillén, U. Olsson, S. Sennato, N. V. Pavel and L. Galantini, Chem. Commun., 2012, 48, 12011–12013.
39. L. Travaglini, M. Gubitosi, M. C. di Gregorio, N. V. Pavel, A. D'Annibale, M. Giustini, V. H. Soto Tellini, J. Vázquez Tato, M. Obiols-Rabasa, S. Bayati and L. Galantini, Phys. Chem. Chem. Phys., 2014, 16, 19492–19504.
40. F. Meijide, J. V. Trillo, S. de Frutos, L. Galantini, N. V. Pavel, V. H. Soto, A. Jover and J. Vázquez Tato, Steroids, 2012, 77, 1205–1211.
41. J. V. Trillo, F. Meijide, A. Jover, V. H. Soto, S. de Frutos, M. C. di Gregorio, L. Galantini and J. Vázquez Tato, RSC Adv., 2014, 4, 5598–5606.
42. L. Travaglini, A. D'Annibale, M. C. di Gregorio, K. Schillen, U. Olsson, S. Sennato, N. V. Pavel and L. Galantini, J. Phys. Chem. B, 2013, 117, 9248–9257.
43. M. Gubitosi, L. Travaglini, A. D'Annibale, K. Schillén, U. Olsson, N. V. Pavel, J. Vázquez Tato, M. Obiols-Rabasa, S. Sennato and L. Galantini, Langmuir, 2014, 30, 6358–6366.
44. M. C. di Gregorio, N. V. Pavel, J. Miragaya, A. Jover, F. Meijide, J. Vázquez Tato, V. H. Soto Tellini and L. Galantini, Langmuir, 2013, 29, 12342–12351.
45. P. Terech, S. Dourdain, U. Maitra and S. Bhat, J. Phys. Chem. B, 2009, 113, 4619–4630.
46. L. Galantini, C. Leggio, A. Jover, F. Meijide, N. V. Pavel, V. H. Soto Tellini, J. Vázquez Tato, R. Di Leonardo and G. Ruocco, Soft Matter, 2009, 5, 3018–3025.
47. M. C. di Gregorio, N. V. Pavel, A. Jover, F. Meijide, J. Vázquez Tato, V. H. Soto Tellini, A. Alfaro Vargas, O. Regev, Y. Kasavi, K. Schillén and L. Galantini, Phys. Chem. Chem. Phys., 2013, 15, 7560–7566.
48. L. Ziserman, H.-Y. Lee, S. R. Raghavan, A. Mor and D. Danino, J. Am. Chem. Soc., 2011, 133, 2511–2517.
49. T. Shimizu, M. Masuda and H. Minamikawa, Chem. Rev., 2005, 105, 1401–1444.
50. C. V. Teixeira, H. Amenitsch, T. Fukushima, J. P. Hill, W. Jin, T. Aida, M. Hotokka and M. Linden, J. Appl. Cryst., 2010, 43, 850–857.
51. E. Gazit, FASEB J., 2002, 16, 77–83.
52. A. Klaikherd, C. Nagamani and S. Thayumanavan, J. Am. Chem. Soc., 2009, 131, 4830–4838.
53. J. Dong, Y. Wang, J. Zhang, X. Zhan, S. Zhu, H. Yang and G. Wang, Soft Matter, 2013, 9, 370–373.
54. E. Krieg, E. Shirman, H. Weissman, E. Shimoni, S. G. Wolf, I. Pinkas and B. Rybtchinski, J. Am. Chem. Soc., 2009, 131, 14365–14373.
55. J. Zhuang, M. R. Gordon, J. Ventura, L. Li and S. Thayumanavan, Chem. Soc. Rev., 2013, 42, 7421–7435.
56. P. Fatás, J. Bachl, S. Oehm, A. I. Jiménez, C. Cativiela and D. D. Díaz, Chem.–Eur. J., 2013, 19, 8861–8874.
57. C. B. Minkenberg, L. Florusse, R. Eelkema, G. J. M. Koper and J. H. van Esch, J. Am. Chem. Soc., 2009, 131, 11274–11275.
58. L. Jiang, K. Wang, F. Ke, D. Liang and J. Huang, Soft Matter, 2009, 5, 599–606.
59. W. Miao, L. Qin, D. Yang, X. Jin and M. Liu, Chem.–Eur. J., 2015, 21, 1064–1072.
60. J. Zhao, Y.-M. Zhang, H.-L. Sun, X.-Y. Chang and Y. Liu, Chem.–Eur. J., 2014, 20, 15108–15115.
61. X. Li, Y. Yang, J. Eastoe and J. Dong, ChemPhysChem, 2010, 11, 3074–3077.
62. F. Wang, A. Klaikherd and S. Thayumanavan, J. Am. Chem. Soc., 2011, 133, 13496–13503.

---

Footnote

† Electronic supplementary information (ESI) available: Supplementary figures reporting: UV and CD curves of HNaphC solutions as a function of pH, UV and CD curves of HNaphC solutions as a function of NaCl concentration at two different pHs, UV and CD curves of HNaphC solutions proving the reversibility of the NaCl induced transition, UV and CD curves of HNaphC solutions as a function of temperature, SLS and DLS measurements on HNaphC solutions as a function of pH and temperature. Table reporting cryo-TEM image data analysis. See DOI: 10.1039/c5ra01394a

---
