Raman spectroscopic studies and DFT calculations on NaCH₃CO₂ and NaCD₃CO₂ solutions in water and heavy water

Abstract

Sodium acetate and sodium acetate-d₃ solutions in water and heavy water were studied using Raman spectroscopy over a wide concentration range and from low wavenumbers (40 cm⁻¹) up to 4200 cm⁻¹. In the terahertz region the broad breathing mode Na–O at 189 cm⁻¹ was detected as well as a broad shoulder at 245 cm⁻¹ of the restricted translation band of acetate–water. Fundamental modes of CH₃CO₂⁻(aq) and acetate-d₃, CD₃CO₂⁻(aq), were assigned and discussed according to pseudo C_s symmetry. The vibrational isotope effect of the CH₃/CD₃ group was observed and the Teller-Redlich product rule confirmed the assignments. Additionally, band assignments of CH₃CO₂⁻ and CD₃CO₂⁻ in heavy water were reported and discussed. By changing from H₂O to D₂O, relatively strong H-bonding between the oxygen atoms of acetate causes a change in the vibrational energy levels of the dissolved acetate. The symmetric stretching mode of the CO₂ group for CH₃CO₂⁻ in water and heavy water was obtained at 1413.5 cm⁻¹ and 1418.6 cm⁻¹ respectively and for CD₃CO₂⁻ in water and heavy water, the symmetric stretch was obtained at 1407.5 cm⁻¹ and 1412.4 cm⁻¹, respectively. Coupling of the intramolecular acetate bands is fairly extensive and therefore DFT calculations were carried out on discrete acetate–water (heavy water) clusters. The clusters with the general stoichiometry CH₃CO₂⁻·nH₂O·mH₂O (n = 1–5, m = 1) and n the number of first shell water molecules and m the second shell were considered and calculations at the B3LYP 6-311++G(3df,2pd) level were performed. The frequency calculations on CH₃CO₂⁻·5H₂O and CD₃CO₂⁻·5H₂O clusters supported the assignments of the fundamental modes. The geometrical parameters such as bond length and bond angles of acetate in solution state were obtained. The influence of acetate on the O–H stretching band of water was measured as a function of concentration in order to determine the influence of the methyl group on the structure of water. No enhancement of the water structure around the nonpolar methyl group could be detected nor the existence of dangling νO–H bonds at ∼3670 cm⁻¹. In NaCF₃CO₂ solutions, however, dangling νO–H bonds could be observed at ∼3670 cm⁻¹ caused by the hydrophobic CF₃ group. Finally, the nature of the ion pairs formed between Na⁺ and acetate were discussed in NaCH₃CO₂(aq) and in concentrated solutions no contact ion pairs could be detected.

---

1. Introduction

Interest in the study of aqueous carboxylates and carboxylic acids originates from their importance as constituents in biomolecules such as amino acids, fatty acids and surfactants.^1,2 Nuclear magnetic resonance (NMR) experiments revealed a hydration number of 5–6 water molecules for the carboxylate group R–CO₂⁻ (ref. 3) while X-ray diffraction studies on divalent transition metal acetates gave a hydration number for acetate in the range between 3.0–6.1.⁴ An X-ray study on NaCH₃CO₂(aq)⁵ and a neutron diffraction (ND) investigation⁶ on NaCH₃CO₂ in D₂O reported a hydration number of 4. Ab initio molecular orbital calculations indicated relatively strong H-bonds between CH₃CO₂⁻ oxygen atoms and first shell water molecules.^7,8 Molecular dynamics (MD) simulations demonstrated, furthermore, that the first-shell waters are either loosely or tightly bound to their CH₃CO₂⁻ oxygen atoms leading to a fluctuation in the hydration number ranging from 2–5.⁹ Dielectric relaxation spectroscopic (DRS) measurements on NaCH₃CO₂(aq) aimed at the hydration, dissociation and ion-pair formation were recently reported.^10,11 A combined Raman and infrared spectroscopic investigation on NaCH₃CO₂(aq) was undertaken and for NaCH₃CO₂ solutions, it was established that even up to very high concentrations, the acetate forms solvent separated ion pairs with Na⁺ instead of contact ion pairs and in addition vibrational band assignments of CH₃CO₂⁻(aq) were supported by comparison with DFT frequencies.¹²

In this study, we have expanded our work on acetate in aqueous solution to investigate acetate-d₃, CD₃CO₂⁻(aq), by including the vibrational deuterium isotope effect of the C–H bands (Teller-Redlich product rule) as one central point of interest. It became clear, however, that the acetate bands of the hydrated ion were also affected by changing the solvent from water to heavy water even though the CH₃CO₂⁻ ion possesses no exchangeable hydrogen at room temperature in its molecular structure. (The same holds true for CD₃CO₂⁻ which does not possess exchangeable deuterium.) This deuterium solvent effect observed for the acetate and acetate-d₃ is the second point of interest in this investigation. Furthermore, the influence of the acetate on the broad O–H stretching band of water and the formation of ion-pairs in NaCD₃CO₂(aq) and NaCH₃CO₂(aq) will be dealt with as well. Raman and infrared spectra of NaCH₃CO₂ and NaCD₃CO₂ were measured in solution of water and heavy water over a very broad concentration range. Raman spectra were measured to low frequencies at ∼40 cm⁻¹, the terahertz spectral region, which is of current interest studying electrolyte solutions.¹³

Theoretical frequency calculations assisted in assigning the spectrum of the hydrated acetate and acetate-d₃ ions, CH₃CO₂⁻(aq) and CD₃CO₂⁻(aq) respectively. Geometrical parameters such as bond length and bond angles were obtained by applying DFT calculations. These parameters have been reported first in the gas phase and then with a polarizable continuum (PC) solvation sphere applying a PC model (PCM) in order to simulate the hydration effect.¹² Theoretical simulations on selected discrete hydration complexes of acetate with water have been carried out. The chosen cluster approach takes into account the directional nature of the H-bonds formed in aqueous solution. DFT frequency calculations on clusters of light acetate, CH₃CO₂⁻·5H₂O and CH₃CO₂⁻·5D₂O, as well as on fully deuterated acetate, CD₃CO₂⁻·5H₂O and CD₃CO₂⁻·5D₂O were undertaken. This simple cluster stoichiometry with 5 waters/heavy waters supported the assignments of the intramolecular modes. The different nature of H-bonds formed between acetate and water compared to the ones formed in heavy water (D-bond strength) cannot be addressed by the PC model.

2. Experimental section

2.1. Preparation of the solutions

A NaCH₃CO₂ stock solution was prepared from dried anhydrous NaCH₃CO₂ (99.5% extra pure; Merck, Darmstadt, Germany) with triply distilled water free of CO₂ by weight. The stock solution was 5.022 mol L⁻¹ (6.506 mol kg⁻¹, R_w = 8.51). Further NaCH₃CO₂ solutions were prepared: 3.262 mol L⁻¹ (3.822 mol kg⁻¹, R_w = 14.52), 2.184 mol L⁻¹ (2.425 mol kg⁻¹, R_w = 22.94), 1.209 (1.280 mol kg⁻¹, R_w = 43.53), 0.810 (0.842 mol kg⁻¹, R_w = 66.17), 0.161 (0.162 mol kg⁻¹, R_w = 341.80), and 0.0325 mol L⁻¹ (0.0328 mol kg⁻¹, R_w = 1702.71). The solutions of sodium acetate react alkaline a dn the pH value of a 0.161 mol L⁻¹ solution at 23 °C = 8.8. The acetate solutions were sealed in plastic, air tight bottles in order to prevent the uptake of CO₂ from air. The solution densities were determined with a pycnometer of 5.000 mL volume at 23 ± 0.1 °C. From the solution densities and the concentrations in mol L⁻¹, the concentrations in mol kg⁻¹ were calculated and from the latter, the R_w – values were determined. R_w – values represent the number of moles of water per one mole of salt.

Three NaCH₃CO₂ solutions in heavy water (99.9% D; Merck, Darmstadt, Germany) were prepared from dried anhydrous NaCH₃CO₂ and heavy water by weight. The following solutions were prepared: 3.944, 0.790 and 0.262 mol L⁻¹.

Sodium acetate-d₃, NaCD₃CO₂, (Aldrich; 99% D) solutions in water were prepared with a concentration at 2.936 mol L⁻¹ (3.377 mol kg⁻¹, R_w = 16.44) 1.468 mol L⁻¹ (1.572 mol kg⁻¹, R_w = 35.29) and 0.294 mol L⁻¹ (0.298 mol kg⁻¹, R_w = 185.92).

A sodium acetate-d₃, NaCD₃CO₂ (Aldrich; 99% D) solution in heavy water was prepared with a concentration of 2.792 mol L⁻¹ and 0.972 mol L⁻¹.

Six aqueous NaCF₃CO₂ (Sigma-Aldrich; 99%) solutions were prepared from dried anhydrous NaCF₃CO₂ and water by weight. The following solutions were prepared: 3.554 mol L⁻¹ (R_w = 12.24), 2.865 mol L⁻¹ (R_w = 15.94), 1.424 mol L⁻¹ (R_w = 35.73), 0.850 mol L⁻¹ (R_w = 61.98) and 0.427 mol L⁻¹ (R_w = 126.78). A hydrous NaCF₃CO₂ melt was also prepared at 9.35 mol L⁻¹ (R_w = 2.48).

2.2. Raman spectra

Raman spectra were measured in the macro chamber of a T 64000 Raman spectrometer from Jobin Yvon in a 90° scattering geometry at (23 ± 0.1) °C. The solutions have been measured in high precision quartz cuvettes from Hellma Analytics (Müllheim, Germany) which were sealed with an air tight stopper. The spectra were excited with the 487.98 nm line of an Ar⁺ laser at a power level of ∼1100 mW at the sample. After passing the spectrometer in subtractive mode, with gratings of 1800 grooves per mm, the scattered light was detected with a cooled CCD detector.^14,15I_VV and I_VH spectra were obtained with fixed polarisation of the laser beam by rotating the polarizer at 90° between the sample and the entrance slit to give the scattering geometries: I_VV = I(Y[ZZ]X) = 45α′² + 4γ′² and I_VH = I(Y[ZY]X) = 3γ′². The isotropic spectrum, I_iso, was then constructed:

I_iso = I_VV − 4/3I_VH (1)

The depolarization ratio, ρ, was determined according to:

ρ = I_VH/I_VV = 3γ′²/(45α′² + 4γ′²) (2)

The polarization analyser was calibrated with CCl₄ before each measuring cycle and adjusted if necessary (for details see ref. 14).

The wavenumber positions have been checked with Neon lines and the peak positions for bands with smaller band width (full width at half height; fwhh) have been determined with an error of ±0.5 cm⁻¹ and broader bands fwhh ≥ 25–30 cm⁻¹ with a precision of ±1 cm⁻¹. In dilute solutions, the signal to noise ratio (S/N) was excellent for the spectra at >450.

Band intensities have been determined by fitting the bands using Gaussian–Lorentzian product functions on baseline corrected spectra. Relative band intensities for CH₃CO₂⁻(aq), and CH₃CO⁻(D₂O) as well as for CD₃CO₂⁻(aq) and CD₃CO₂⁻(D₂O) were presented so that the strongest mode was set to 100 and the band intensities of the other modes relative to this value. Details of the band fitting procedure of the baseline corrected Raman-bands were described elsewhere.¹⁶

Spectra in R-format (Bose–Einstein correction) were obtained. The isotropic spectrum, R_iso was then constructed similar to eqn (2): R_iso = R_VV − 4/3R_VH. The isotropic R-spectra have been used to characterize the restricted translation band of water and restricted translation band of water and acetate (O–H⋯O*). A more detailed description of the Raman measurements and the construction of the spectra in R-format is given in ref. 14 and 17.

2.3. Density functional theory calculations

For the purpose of modeling the vibrational frequencies the DFT calculations were performed employing the B3LYP functional with a triple-ζ basis set 6-311++G(3df,2pd) from the Gaussian 03 program suite.¹⁸ The geometry of the acetate ion was then optimized and frequency calculations allowed the assignments of the fundamental modes. Proper description of anions with electrons which are located, on average, relatively far from the nuclei, require diffuse orbitals and polarization basis sets. The optimization procedure led to the result that the geometry of the CH₃CO₂⁻ with the dihedral angle φ = 0° is stable and possesses no imaginary frequency. DFT frequency calculations were performed for this stable configuration in the gas phase and in addition in the presence of the solvent (water) by placing the solute within the solvent.¹⁹ The latter was modelled as an isotropic and homogeneous continuum characterized by its dielectric properties. The frequencies were calculated with a floating cavity (a set of interlocking spheres attached to the solute atoms). The electrostatic solute–solution interaction was calculated introducing an apparent charge distribution spread on the cavity surface. The PC model implemented in the GAUSSIAN package was used as described in ref. 19.

A second approach, the discrete cluster approach, was applied in order to model the solvent effects of H₂O and D₂O taking into account the directionality of the hydrogen bonds between acetate and water and heavy water. The different strength of H-bonds formed between acetate and water was compared to the ones formed in heavy water, the deuterium bond strength. Acetate–water clusters, with an increasing number of water molecules from 1 to 6 water molecules were optimized with the cluster stoichiometry CH₃CO₂⁻·nH₂O·mH₂O (n = 1–5, m = 1) with n the number of first shell water molecules and m the second shell water. The H-bonding of the water molecules occurs around the oxygen atoms of the –CO₂ group (the CH₃ group is effected much weaker through hydrophobic interaction). No symmetry constraints were employed for the cluster calculations. The calculated structures were minima on the potential energy surface (PES) confirmed by frequency calculations to ensure that the structures were local minima. Once a local minimum was found, the structure was perturbed and re-optimized to see if a lower energy local minimum could be found. The second derivative of the energy with respect to the nuclear positions then allows the calculation of the frequencies.

3. Results and discussion

From here on the paper is organized as follows: first, the structures and symmetries of acetate–water clusters are presented with particular focus on the cluster with 5 water molecules. Then, a brief discussion of the terahertz frequency region is given, including the spectral influence of the Na⁺(aq) and the restricted translation modes of acetate and water. This is then followed by an examination and assignment of the Raman spectroscopic intramolecular acetate bands in aqueous solutions on CH₃CO₂⁻ and CD₃CO₂⁻ using the DFT frequencies of the discrete cluster with 5 water molecules to guide in the assignments. Next, the aqueous solvent isotope effects in light and heavy water for CH₃CO₂⁻ and CD₃CO₂⁻ are presented and discussed. A description of the influence of the acetate on the O–H band of water is given including the hydrophobic effect of the methyl group. Finally, the different ion-pairs of acetate with Na⁺ formed in these solutions are briefly presented.

3.1. Symmetry of the CH₃CO₂⁻ ion and acetate–water clusters

The conformer of the CH₃CO₂⁻ gas phase ion with the dihedral angle φ = 0° is by 11 cal mol⁻¹ more stable than the conformer, φ = 29° (ref. 12) (both structures possess C_s symmetry). The structure of the gas phase ion (bond lengths and angles) for φ = 0° resulted in a non-equivalence of the two oxygen atoms of the –CO₂ group (Fig. 3, ref. 12). Because of the slight energy difference between the two conformers in comparison with the thermal energy quantum kT (576 cal mol⁻¹ at 290 K), the calculated frequencies of the two conformers differ nominally from each other and are within the band width of the observed acetate bands.

Applying the PC method to account for the hydration effect in aqueous solution resulted in good frequency values for CH₃CO₂⁻(aq)¹² but it is unable to account for the directionality of the H-bonds between acetate and H₂O. Modeling the influence of solvation (i.e. hydration) by applying a structureless PC around the species will not result in calculable frequency changes by going from water to heavy water as a solvent. Water at 25 °C has a ε-value of 78.54 while D₂O possesses ε = 78.06. Such a small difference in ε cannot explain the change of the acetate frequencies using PCM.

The acetate–water cluster with 5 waters (CH₃CO₂⁻·5H₂O) which will be discussed in greater detail resembles a realistic model for the hydrated acetate ion. The directional nature of the H-bonds for the cluster structure for CH₃CO₂⁻·5H₂O is shown in Fig. 1 and the geometrical parameters in Table 1. The CH₃CO₂⁻ in this cluster possesses a dihedral angle of 14.7° which leads to symmetry C₁. Including the CH₃CO₂⁻·5H₂O cluster, six cluster models of acetate with increasing number of water molecules (see Experimental section) were optimized and for completeness all results are presented in Table S1† and the structures in Fig. S1.†

Fig. 1 DFT model of the CH₃CO₂⁻·5H₂O cluster. The numbering of the acetate ions (atoms 1–7: C-atoms: 1, 2; O-atoms: 3, 4 and H-atoms 5–7) is the same as for the gas phase cluster given in ref. 12; the oxygen atoms of the five water atoms are labelled 8, 11, 14, 17 and 20. The H-atoms of these water molecules (atoms 9–22) are labelled accordingly.

Table 1 Geometrical parameters for the cluster CH₃CO₂⁻·5H₂O; bond lengths a_ij (in Å), angles α_ijk and dihedral angle d₄₂₁₅ of the CH₃CO₂⁻ ion (see Fig. 1) derived from DFT calculations (B3LYP/6-311++G(3df,2pfd))^a

Parameter	CH3CO2^−in vacuo	CH3CO2^− + solvation sphere	CH3CO2^−·5H2O
a n.a. = not applicable.
a 1,2	1.561	1.533	1.526
a 2,3	1.253	1.261	1.269
a 2,4	1.2525	1.259	1.250
a 1,5	1.091	1.088	1.087
a 1,6	1.093	1.091	1.089
a 1,7	1.093	1.091	1.092
α 3,2,4	128.84°	125.40°	125.03°
α 5,1,6	109.51°	109.30°	110.55°
α 5,1,7	109.51°	109.30°	108.88°
α 6,1,7	107.03°	107.04°	107.18°
d 4,2,1,5	0°	0°	14.71°
a 3,12	n.a.	n.a.	2.032
a 3,18	n.a.	n.a.	1.947
a 3,21	n.a.	n.a.	1.780
a 4,9	n.a.	n.a.	1.756
a 4,15	n.a.	n.a.	2.016
a 3,11			2.967
a 3,17			2.886
a 3,20			2.762
a 4,8			2.741
a 4,14			2.907

---

From the results of the discrete cluster calculations, it is clear that with an increasing number of water molecules hydrating the oxygen atoms of the –CO₂ moiety, the following takes place: shortening of the C–C bond distances, change of the dihedral angle ≠ 0° (loss of C_s symmetry) and the change of the C–O bond lengths of the two C–O bonds leading to a slightly longer bond and one slightly shorter. The acetate water cluster with one water molecule, CH₃CO₂⁻·H₂O still possesses C_s symmetry and the water molecule binds in a bifurcated fashion to the two oxygen atoms of the –CO₂ moiety. The DFT calculations led to a symmetrical geometry and an energy minimum on the PES was obtained (Fig. S1†). However, this is not a realistic model for structural and energetic reasons.²⁰ Bifurcated bound water molecules with acetate would lead to an artificially narrow restricted translation band at ca. 216 cm⁻¹ (DFT result) which is clearly in conflict with the observed broad restricted translation mode of water bound to acetate.¹² For the cluster with n = 2, CH₃CO₂⁻·2H₂O, the water molecules hydrating the acetate ion form two relatively strong H-bonds with each water molecule yielding slightly different H-bond lengths (Fig. S1 and Table S1†). Due to asymmetric binding of the water molecules, clusters with n > 2 cause the CH₃CO₂⁻ ion to be distorted (φ ≠ 0°) and its symmetry is, strictly speaking, C₁ (C_s with small deviations). The cluster with four water molecules reflects a realistic snapshot of the hydration process which was demonstrated by MD calculations.⁹ The cluster with six H₂O molecules represents an example of a cluster with 5 waters in the first sphere and the sixth water in the second sphere. From a variety of structural investigations^3–6 and theoretical calculations,^7–9 however, it became evident that the –CO₂ group is hydrated by ∼5 water molecules. The geometry optimized CH₃CO₂⁻·5H₂O cluster was used to calculate the second derivative of the energy, with respect to the nuclear positions, in order to yield frequencies of the acetate ion and the water molecules of the first hydration sphere.

The result of the CH₃CO₂⁻·5H₂O cluster model describes the hydrated acetate ion in solution quite well (Fig. 1). The numbering of the atoms of the acetate ion is the same as in ref. 12 and thus allows comparison of the parameters with the ones presented in Table 1 (ref. 12). A recent DRS study¹⁰ reported two strong H-bonds with two H₂O molecules with the acetate and a total hydration number of ∼11 at infinite dilute solution. Five of 11 water molecules weakly and strongly interact with the oxygen atoms of the –CO₂ unit while the other six water molecules surround the CH₃ group forming a weakly interacting cluster structure (hydrophobic interaction).^7,10 The PC method does not take into account the directional forces of the H-bonds formed between water and the –CO₂ moiety of acetate and is not helpful in this context. Although the frequencies derived from the PC model are satisfactory and useful for the assignments of the fundamental modes of CH₃CO₂⁻, certain modes deviate quite noticeably from the measured frequencies. The discrete cluster model presented offers a remedy for this problem.

The geometrical parameters of the CH₃CO₂⁻·5H₂O cluster model compared with those of the unhydrated acetate ion (Table 1) reveal that the C–C bond distance shortens, the C–O bond distances differ in bond length quite noticeably, and a dihedral angle at 14.7° results in a loss of the symmetry plane and, subsequently, a loss in symmetry (C₁).

3.2. The terahertz frequency region of the Na-acetate solutions

Aqueous solutions of NaCH₃CO₂ are strongly dissociated in dilute solutions forming Na⁺(aq) and CH₃CO₂⁻(aq) but ion pair formation should be taken into account in concentrated solutions. In NaCH₃CO₂ solutions, the ion pairs formed are of the outer-sphere and outer–outer-sphere type with water molecules interposed between Na⁺ and CH₃CO₂⁻. The types of ion pairs change significantly with concentration. Completely hydrated Na⁺ and CH₃CO₂⁻ are formed in very dilute solutions. In more concentrated solutions, outer–outer-sphere ion-pairs form and in the most concentrated ones ion pairs with one water molecule interposed between Na⁺ and CH₃CO₂⁻ are formed. The question arises as to whether direct ion pairs are formed in these solutions and this will be discussed in Section 3.4.

A comparison of the Raman spectra in R-format in the terahertz frequency region are given in Fig. 2 for NaCH₃CO₂ in water and heavy water while the ones for NaCD₃CO₂ are given in Fig. 3. The Na⁺ ion in aqueous solution is hydrated and a very broad band at ∼189 cm⁻¹ (isotropic scattering, 185 cm⁻¹ in the polarized scattering; Fig. 2 upper panel) was detected.^12,21 A neutron scattering study combined with Raman spectroscopic measurements²¹ revealed an isotropic band at 185 cm⁻¹ which is quite close to our value. A Na⁺-tetra- or -penta-hydrate has to be assumed because our high level DFT cluster calculations revealed that the Na⁺-hexahydrate is not stable while tetra and penta-aqua Na⁺ clusters are. Both clusters give a quite similar ν₁Na–O stretching band at 196 and 192 cm⁻¹ respectively. For the deuterated Na⁺tetra- and penta-clusters, the peak frequencies were calculated at 186 cm⁻¹ and 178 cm⁻¹ respectively in good accord with the measured peak position at 178 cm⁻¹ in the polarized scattering and at 180 cm⁻¹ in the isotropic scattering for NaCH₃CO₂(D₂O) (Fig. 2, lower panel)‡. The calculated frequencies are quite close together and cannot be used to determine which cluster is prevalent. Most of the values for the first hydration number were given at 5 and an internuclear distance Na–O with 2.34 Å.^22,23 Our DFT frequency calculations on [Na(OH₂)₄]⁺ and [Na(OH₂)₅]⁺ led to stable structures while [Na(OH₂)₆]⁺ gave no stable structure. Recent MD modelling confirmed that the Na⁺-hexa-hydrate is only one of the possible hydrated species along with the tetra- and penta-hydrates.^22–25

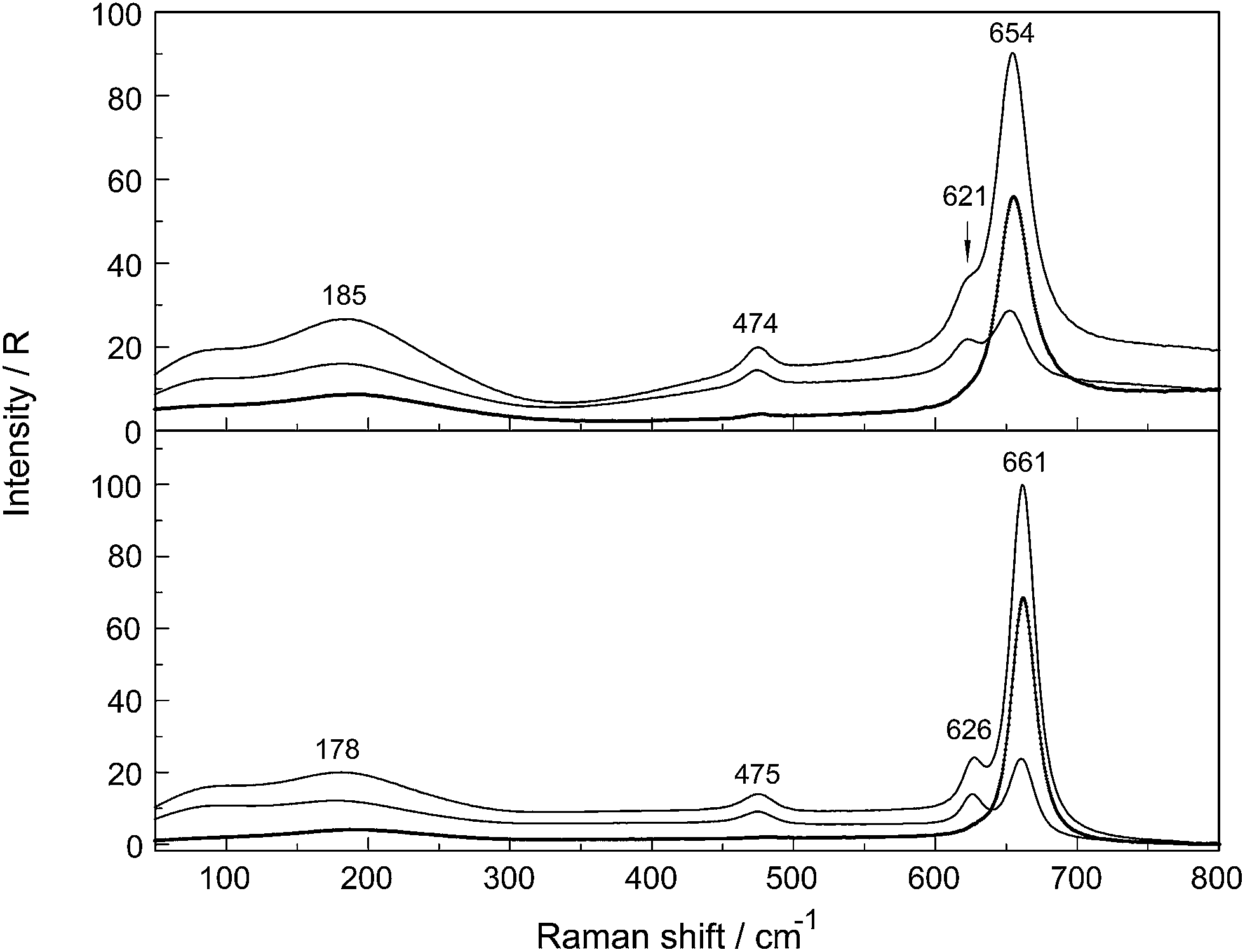

Fig. 2 Comparison of the Raman scattering profiles in R-format: polarized, depolarized and isotropic (presented as a thick, dark line) of NaCH₃CO₂(aq). Upper panel: 2.183 mol L⁻¹ solution in water and lower panel: 3.944 mol L⁻¹ solution in heavy water. Note, that the deformation mode, δCO₂, for CH₃CO₂⁻(aq) appears at 654 cm⁻¹ and for CH₃CO₂⁻(D₂O) at 661 cm⁻¹.

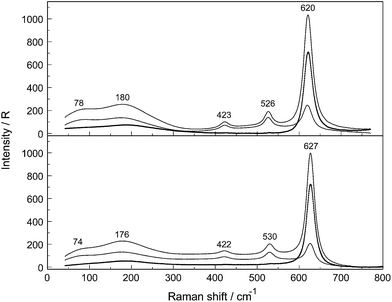

Fig. 3 Comparison of the Raman scattering profiles in R-format: polarized, depolarized and isotropic (presented as a thick, dark line) of NaCD₃CO₂(aq). Upper panel: 2.936 mol L⁻¹ solution in water and lower panel: 2.792 mol L⁻¹ solution in heavy water. Note, that the deformation mode δCO₂ for CH₃CO₂⁻(aq) appears at 620 cm⁻¹ and for CD₃CO₂⁻(D₂O) at 627 cm⁻¹.

In addition to the Na–O stretching mode at 189 cm⁻¹ a broad band contribution at 245 cm⁻¹ appeared (Fig. 2, upper panel) and was assigned to the restricted translation band, ν_sO–H⋯O, reflecting the strong H-bonds between both oxygen atoms of the –CO₂⁻ group and H₂O.¹² This restricted translational mode, determined by acetate water hydrogen bonds, becomes less important with dilution and in dilute acetate solutions this mode appears as a weak polarized band at 175 cm⁻¹ due to O⋯H–O bonds between the water molecules. In NaCH₃CO₂ solution in heavy water a similar restricted translation band, ν_sO–D⋯O, reflecting the D-bonds between oxygen atoms of the –CO₂⁻ group and D₂O appears at 233 cm⁻¹ (see Fig. S2†). A weak polarized band due to O⋯D–O bonds between the heavy molecules appears at 169 cm⁻¹ in neat D₂O(l).

The cluster with five water molecules (Fig. 1) reveals bond distances of O_OAc--⋯O_H2O (O⋯H–O nearest-neighbor distances of the H-bond) from 2.741 Å to 2.967 Å (Table 1). These are in good agreement with the experimental values between 2.77 and 2.95 from X-ray diffraction studies on concentrated divalent transition metal acetates⁴ and with a value at 2.78 Å from later measurements on an aqueous 8 mol% NaCH₃CO₂ solution.⁶ Recent neutron scattering data support the X-ray diffraction values and the radial distribution curves of the two C⋯O and O⋯O distances, calculated with MD simulations, show peaks at 3.4 Å and 2.7 Å, respectively.⁹ It should be noted that the CH₃ group has little effect on the geometry of the hydration shell which reveals that the radial distribution curves for HCO₂⁻⋯HOH is comparable with that for CH₃CO₂⁻⋯HOH. The cluster model with five water molecules shows frequencies at 206 and 219 cm⁻¹ which are slightly lower than the peak position of the broad shoulder observed at ∼245 cm⁻¹.

3.3. Fundamental frequencies of CH₃CO₂⁻ and CD₃CO₂⁻ – vibrational spectroscopic results on CH₃CO₂⁻(aq) and CD₃CO₂⁻(aq)

The acetate cluster with five water molecules forming single H-bonds with the two oxygen atoms of the –CO₂ group represents a realistic cluster modelling the acetate in water (see Section 3.1.). The second derivative of the energy with respect to the nuclear positions then allowed the calculation of the frequencies for the {CH₃CO₂⁻·5H₂O} model. Comparison of the DFT frequencies of CH₃CO₂⁻ in the gas phase with ones in solution show the strong effect of hydration on acetate in solution state especially the pronounced frequency shifts of the –CO₂ group, such as both stretching modes, ν_s and ν_as of the CO₂ group, the deformation mode of the –CO₂ moiety, δCO₂, and the rocking mode (ρ). This is reinforced by comparing the measured frequencies of the acetate in water and heavy water showing changes in the fundamental modes with respect to peak positions and intensities. In other words, the acetate modes will change despite the fact that the molecule does not contain exchangeable H(D) in its structure. The cluster model with five water molecules which take into account the directionality of the H-bonds enables modelling of the deuterium effect of the solvent followed by change from H₂O to D₂O. The DFT frequencies for CH₃CO₂⁻·5H₂O(D₂O) and CD₃CO₂⁻·5H₂O(D₂O) clusters are presented in Tables 2 and 3. The vibrational modes are mixed on the PES and therefore assignment of the normal modes is difficult. However, DFT frequencies are an excellent guide in assigning the fundamental modes of acetate in solution of water and heavy water.

Table 2 Raman band parameters of CH₃CO₂⁻(aq) and CH₃CO₂⁻(D₂O), assignments and DFT frequencies (data from dilute NaCH₃CO₂ in water and heavy water)^a

CH3CO2^−(aq)					CH3CO2^−(D2O)					Numbering of modes and symmetry	Assignment
ν max/cm^−1	fwhh/cm^−1	Integr. intensity	Depol. ratio	B3LYP 6-311++(3df,2pd) cluster	ν max/cm^−1	fwhh/cm^−1	Integr. intensity	Depol. ratio	B3LYP 6-311++(3df,2pd) cluster
a n.d. not detected. * bands severely overlapped. ^+ average wavenumber from two equally contributing fundamentals due to coupling of the solute modes with the ones of water.
n.d.	—	—	—	65.9^+	n.d.	—	—	—	64.1^+	ν 15(a′′)	τCO2
474	21	0.254	0.70	483.1	474	23	0.442	0.70	469.6	ν 10(a′)	ρCO2
620.7	21.3	0.262	0.75	617.6^+	626.8	16	0.439	0.75	621.2	ν 14(a′′)	ωCO2
654.2	25.9	2.375	0.346	658.0	661.5	20	4.138	0.340	662.5^+	ν 9(a′)	δCO2
928.4	11.4	9.874	0.054	926.0^+	927.2	11.4	25.80	0.054	925.2	ν 8(a′)	νC–C
1021.5	26.5	0.231	0.70	1032	1022	26.5	0.691	0.74	1031.6	ν 7(a′)	ρCH3
1052	27	0.032	0.75	1064	1053	27	0.054	0.7	1064.5	ν 13(a′′)	ωCH3
1347.6	11	1.884	0.367	1367	1349.5	11	4.259	0.367	1367.5	ν 6(a′)	δCH3
1413.5*	24.6	15.07	0.26	1418.6	1417.8*	22	33.50	0.26	1420.2	ν 5(a′)	ν sCO2
1426*	26	0.297	0.5	1468.3	1429*	28	1.926	0.5	1468.5	ν 4(a′)	δ sCH2
1440*	18	0.297	0.75	1485.8	1444*	17	2.003	0.75	1485.8	ν 12(a′′)	δ asCH2
1556	44	1.238	0.62	1612.0	1563	42	4.248	0.60	1615.7	ν 3(a′)	ν asCO2
2935.5	22.5	100.0	0.005	3032.9	2936.0	21.5	100.0	0.008	3032.9	ν 2(a′)	ν sCH3
2984	23.5	3.666	0.74	3094.0	2983	24	4.391	—	3094.1	ν 11(a′′)	ν asCH3
3014	34.6	4.832	0.7	3124.7	3016	35	4.006	n.d.	3124.8	ν 1(a′)	ν asCH3

---

Table 3 Raman band parameters of CD₃CO₂⁻(aq) and CD₃CO₂⁻(D₂O), assignments and DFT frequencies (data from dilute NaCD₃CO₂ in water and heavy water)^a

CD3CO2^−(aq)					CD3CO2^−(D2O)					Numbering of modes and symmetry	Assignment
ν max/cm^−1	fwhh/cm^−1	Integr. intensity	Depol. ratio	B3LYP 6-311++(3df,2pd)	ν max/cm^−1	fwhh/cm^−1	Integr. intensity	Depol. ratio	B3LYP 6-311++(3df,2pd)
a n.d.: not detected. * bands severely overlapped.
n.d.	—	—	—	39.4^+	n.d.	—	—	—	38.8^+	ν 15(a′′)	τCO2
422.5	28.5	1.31	0.71	412.4	421.0	28.5	1.10	0.72	425.2	ν 10(a′)	ρCO2
526.5	19.5	1.48	0.75	531.6^+	529.5	24	1.60	0.75	529.3	ν 14(a′′)	ρCO2
621.0	23.5	12.06	0.17	619.8^+	627.0	21.5	14.02	0.17	619.0	ν 9(a′)	δCO2
834.1	15.0	1.534	0.70	839.3	834.5	10	1.483	0.71	837.8	ν 8(a′)	ρCD3
885.2	14.1	29.43	0.037	876.6	882.8	11	35.73	0.038	884.0	ν 7(a′)	νC–C
937	15	0.216	0.73	940.6	936	15	0.245	0.73	939.0	ν 13(a′′)	ρCD3
1035*	21	0.5	0.6	1059.1	1035*	20	0.4	0.50	1059.0	ν 6(a′)	δCD2
1043*	38	4.93	0.74	1067.8	1042*	40	5.87	0.754	1067.8	ν 12(a′′)	δCD2
1086.4	11.4	19.54	0.042	1096.8	1085.8	11.4	20.87	0.042	1096.4	ν 5(a′)	δCD2
1407.5	17.5	57.50	0.240	1412.4	1410.5	18.2	62.36	0.240	1414.3	ν 4(a′)	ν sCO2
1546.5	62	12	0.52	1603.0	1551.5	46	9.585	0.52	1606.4	ν 3(a′)	ν asCO2
2112.5	13.4	100	0.006	2178.4	2112.5	13.4	100.0	0.006	2178.4	ν 2(a′)	ν sCD3
2188	18.4	63.97	—	2288.1	2188	18.4	51.23	0.74	2288.1	ν 11(a′′)	ν asCD3
2265	62	37.20	—	2318.0	2231	20.5	4.94	—	2318.0	ν 1(a′)	ν asCD3

---

Because of the small deviation from C_s symmetry, acetate is treated as having pseudo C_s symmetry. The 15 normal modes of the CH₃CO₂⁻ ion of the gas phase structure with φ = 0° belong to the point group C_s and span the representation: Γ_vib(C_s) = 10a′(Ra, i.r.) + 5a′′(Ra, i.r.). All modes are Raman and i.r. active and the modes with the character a′ are partially polarized while the ones with symmetry a′′ are depolarized.

Stretching band parameters are concentration dependent especially for bands of the –CO₂ group such as ν_sCO₂ and ν_asCO₂ and therefore extrapolation to concentration zero resulted in the band parameters of infinitely dilute solution. The Raman spectroscopic data for aqueous NaCH₃CO₂ and NaCD₃CO₂ are summarized in Tables 2 and 3, respectively, and representative Raman spectra of CH₃CO₂⁻(aq) and CD₃CO₂⁻(aq) are presented in Fig. 4 and 5 respectively. For assignment purposes, the CH₃CO₂⁻ spectra in D₂O have been measured in order to observe the antisymmetric stretching mode of the –CO₂ group undisturbed from the broad deformation band of water at 1641 cm⁻¹ as well as the CH₃ stretching modes which are overlapped by the very broad O–H stretching profile of water. CD₃CO₂⁻ spectra in H₂O and in D₂O were measured. The Raman data for NaCH₃CO₂ and NaCD₃CO₂ solutions in heavy water are also given in Tables 2 and 3, respectively.

Fig. 4 Overview Raman spectrum of an aqueous solution of NaCH₃CO₂ (5.022 mol L⁻¹). All scattering orientations are given: polarized, depolarized and isotropic which is presented as a thick, dark line. Left panel: Raman bands of CH₃CO₂⁻(aq) in the wavenumber range form 200–1800 cm⁻¹. Right panel contains spectra in the wavenumber range from 2400–4000 cm⁻¹. Along with the νC–H modes of CH₃CO₂⁻(aq) the very broad O–H stretching band of water is given.

Fig. 5 Overview Raman spectrum of a 2.936 mol L⁻¹ NaCD₃CO₂ solution in water. All Raman scattering profiles are given: polarized, depolarized and isotropic which is presented as a thick, dark line). Left panel: Raman bands of the CD₃CO₂⁻(aq). Right panel: along with the νC–D modes of CD₃CO₂⁻(aq) the very broad O–H stretching band of water is given.

Inspection of the spectra in Fig. 4 and 5 and the data in Tables 2 and 3 indicates that there are two distinct vibrational regions for the acetate and acetate-d₃. Regions from 400–1700 cm⁻¹ and from 2800–3100 cm⁻¹ for CH₃CO₂⁻ were identified and from 400–1700 cm⁻¹ and from 1900–2400 cm⁻¹ for CD₃CO₂⁻.

Discussion of the fundamental modes for CH₃CO₂⁻ and CD₃CO₂⁻ in H₂O. The normal mode with the lowest frequency at 15.1 cm⁻¹ is a pure torsional motion of the CO₂ group, ν₁₅(a′′) and could not be observed experimentally. Three bands were observed in the region from 400–700 cm⁻¹ the origin of which can be reasonably attributed to the rocking and deformational modes of the –CO₂ group. For CH₃CO₂⁻(aq), the slightly polarized mode at 474 cm⁻¹ represents a rocking mode of the –CO₂ group, ν₁₀(a′) couples quite severely with an out-of-plane deformation mode of the CH₃ group (Fig. 2, upper panel). For acetate-d₃, CD₃CO₂⁻(aq), this rocking mode of the –CO₂ group, ν₁₀(a′), appears at lower frequencies namely at 422.5 cm⁻¹ (Fig. 3, upper panel). The Raman mode, ν₁₄(a′′) at 620.7 cm⁻¹ for CH₃CO₂⁻(aq) is depolarized and assigned to an out-of-plane rocking mode of the –CO₂ group which is strongly coupled with an out-of-plane deformation mode of the CH₃ group. For CH₃CO₂⁻(D₂O), the mode, ν₁₄(a′′) is shifted to lower wavenumbers and appears at 526.5 cm⁻¹ (Fig. 3, upper panel). The deformation mode of the –CO₂ moiety, CH₃CO₂⁻(aq), ν₉(a′), quite strongly polarized, shows at 654.2 cm⁻¹ and the mode for CD₃CO₂⁻(aq) appears at 620.5 cm⁻¹. The strongest Raman band at 928.4 cm⁻¹ for CH₃CO₂⁻(aq) (Fig. 6 upper panel) is assigned to the C–C stretch, ν₈(a′), which is strongly polarized but occurs at lower frequencies (885 cm⁻¹) in acetate-d₃ (Fig. 7, upper panel). In CD₃CO₂⁻(aq) the νC–C mode is numbered ν₇(a′), however, because the rocking mode of the CH₃ group is shifted due to the deuterium isotope effect to 834.1 cm⁻¹ (Fig. 7, upper panel).§ In the Raman scattering for CD₃CO₂⁻(aq), a weakly polarized band of low intensity appears at 834.1 cm⁻¹ and is assigned to a rocking mode of the CD₃ group numbered ν₈(a′). For the undeuterated acetate in aqueous solution, this mode appears at 1021.5 cm⁻¹ as a weak band and is numbered ν₇(a′). This large frequency shift is due to the deuterium isotope effect upon substituting D for H. The second librational band of the CH₃ group of CH₃CO₂⁻(aq), ν₁₃(a′′) occurs at 1052 cm⁻¹. In the spectrum for acetate-d₃ in aqueous solution, ν₁₃(a′′) shows at 937 cm⁻¹. Large vibrational deuterium isotope effects also occur for the bands, ν₆(a′), ν₄(a′) and ν₁₂(a′′) for CH₃CO₂⁻(aq) at 1347.6 cm⁻¹, 1426 cm⁻¹ and 1440 cm⁻¹ respectively. The modes at 1347.6 cm⁻¹, 1426 cm⁻¹, and 1440 cm⁻¹ are assigned to bending modes of the CH₃ group (Table 2, Fig. 3 and 6). Considering the same bands for acetate-d₃ dissolved in H₂O results in the following band positions: at 1086.4 cm⁻¹, 1035 cm⁻¹ and 1043 cm⁻¹ respectively (Table 3). The Raman band at 1413.2 cm⁻¹ is at ρ = 0.26 quite polarized and assigned to the stretching mode, ν₅(a′), of the CO₂ unit. This mode is strong in the Raman effect and in infrared. However, the symmetric stretch of the CO₂ group, ν₅(a′) appears as an asymmetric band due to accidental overlap with the deformation modes of the CH₃ group (Fig. S2†). The symmetric stretch of the –CO₂ group for CD₃CO₂⁻(aq), now numbered as ν₄(a′) is strong in Raman and appears as a quite narrow symmetrical band (lift of accidental band overlap) because both deformation modes of the CD₃ group shifted to much lower frequencies due to the deuterium isotope effect and appear as one broad band at ∼1044 cm⁻¹ (accidental overlap of δ_s and δ_as; Table 3, Fig. 5 and 7). Two bands at 1426 and 1440 cm⁻¹, the aforementioned deformation modes of the CH₃ group, are overlapped almost entirely by the symmetric stretch of the –CO₂ group and the band appears asymmetric (Fig. 6 and S2†). The Raman band at 1556 cm⁻¹ is the strongest mode in infrared but fairly weak in Raman and has been assigned to the asymmetric stretch of the CO₂ group in the spectrum for CH₃CO₂⁻(aq), numbered, ν₃(a′). In CD₃CO₂⁻(aq), ν₃(a′) occurs as a broad and fairly weak band at 1547 cm⁻¹. (For this mode the numbering is the same for the light and the heavy isotopomer.) In the Raman spectra of aqueous solutions, this mode is overlapped by the deformation band of water at 1641 cm⁻¹ which is broad, quite polarized (ρ = 0.14) and shows the non-coincidence effect between the isotropic and anisotropic Raman scattering band positions. For CD₃CO₂⁻(D₂O), the asymmetric stretch of the CO₂ group occurs at 1546.5 cm⁻¹ as a weak band free of the overlap from the deformation mode of the water at 1641 cm⁻¹ (shift of the deformation band of heavy water to 1206 cm⁻¹; Fig. 7).

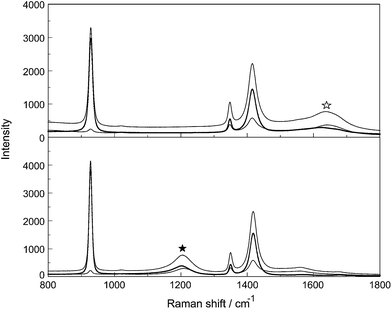

Fig. 6 Comparison of the Raman scattering profiles (polarized, depolarized and isotropic scattering, which is shown as a thick, dark line) of NaCH₃CO₂ solutions in water and heavy water. Upper panel: 1.209 mol L⁻¹ solution in water; lower panel: 0.790 mol L⁻¹ solution in heavy water. Note, the deformation mode, δH₂O, for water at 1641 cm⁻¹ (upper panel, open star) and at 1206 cm⁻¹ for D₂O, the deformation mode of heavy water in the lower panel (black star).

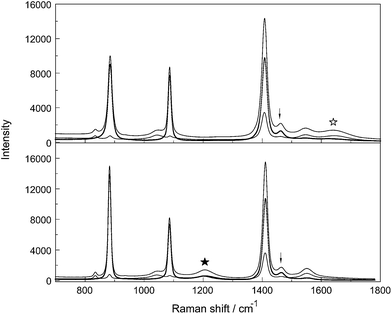

Fig. 7 Comparison of the Raman scattering profiles (polarized, depolarized and isotropic scattering; isotropic scattering shown as a thick, dark line) of NaCD₃CO₂ solutions in water and heavy water. Upper panel: 2.936 mol L⁻¹ solution in water. Lower panel: 2.792 mol L⁻¹ solution in heavy water. Note the deformation mode δH₂O for water at 1641 cm⁻¹ (upper panel, open star) and at 1206 cm⁻¹ for δD₂O of heavy water in the lower panel (black star). The arrow at 1463 cm⁻¹ (fwhh = 24 cm⁻¹; indicates the band which is due to an accidental overlap of several combination bands appearing as a relatively strong band (ν₆ + ν₁₀ = 1458 cm⁻¹, ν₈ + ν₉ = 1455 cm⁻¹, ν₁₃ + ν₁₄ = 1464 cm⁻¹; all combinations have a′ symmetry).

The C–H stretching modes are somewhat decoupled from the rest of the vibrational modes and lie above 2900 cm⁻¹ for the C–H bands and 2100 cm⁻¹ for the C–D bands (Fig. 2 and 3, left panels). Three bands at 2935.5 cm⁻¹, the strongest mode in Raman, ν₂(a′) and the much weaker bands at 2984 and 3014 cm⁻¹, numbered ν₁₃(a′′) and ν₁(a′) respectively, are assigned to the stretching bands of the CH₃ group. The ν₂(a′), the ν_sCD₃ mode in CD₃CO₂⁻(aq) shows a large frequency shift due to the changes in masses from H to D and the corresponding fundamental frequency decreases by the factor , the square root of the ratio of masses. The ν_sCD₃ mode in CD₃CO₂⁻(aq) appears at 2112.5 cm⁻¹ and the ratio ν_sCD₃/νCH₃ has an experimental value of 0.719, compared with the theoretically expected value of 0.707. The discrepancy is attributed to the fact that the C–H/C–D vibrations are not strictly harmonic and may be further complicated by Fermi resonance.²⁶ One other fact is remarkable, namely, that the peak position of ν₂(a′) C–H at 2935.5 cm⁻¹ hardly changes with increasing concentration. However, the fwhh broadens with increasing NaCH₃CO₂ concentration by only a few wavenumbers. The fwhh of ν₂(a′) C–H for a 5.02 mol L⁻¹ NaCH₃CO₂ solution is 23.1 cm⁻¹ and decreases in width with concentration and is ∼21 cm⁻¹ for a solution at zero concentration. (It is noteworthy that a severe broadening and a small wavenumber shift occurs in La(CH₃CO₂)₃(aq)²⁷). This fact shows that the C–H bonds are barely influenced by hydration which is believed to be due to the hydrophobic interaction effect. Calculations on CH₄(aq) suggests that the methyl group will only contribute ca. 1 kcal mol⁻¹ to ΔH_hydr. at 25 °C (ref. 8, page 305).

The Teller-Redlich product rule^28,29 proved to be useful for the assignments of the fundamental modes of the isotopomers. This rule was used to check the assignments of the CH₃CO₂⁻ ion and its deuterated analog, CD₃CO₂⁻. For the two species a′ and a′′ of the point group C_s the following formulae apply:

and for all frequencies the following formula applies:

The symbol ν_i(ν_d,i) denotes the frequencies of the ion (deuterated ion), the index I numerates the 10 and 5 normal vibrations of the a′ and a′′ species, respectively. M(M_d) are the total masses of the ions, I_x, I_y, I_z (I_dx, I_dy, I_dz) are the moments of inertia about the x, y, and z axes through the center of mass, m_i(m_d,i) denote the masses of the atoms of the ions. (The x, y axes were chosen lying in the symmetry plane, the z axis perpendicular to it.)

The theoretical results for the product of frequency quotients obtained from DFT calculations are: , , and .

Inserting the measured Raman frequencies (see Tables 2 and 3), we obtain:

, , and in reasonable agreement with the theoretical values. Because the torsional vibrations ν₁₅(ν_d,15) with the lowest frequency values could not be measured, the quotient of the theoretical values was used instead, (ν_d,15/ν₁₅)_exp = (ν_d,15/ν₁₅)_th = 0.62.

H₂O/D₂O solvent isotope effect on acetate. Turning to the problem concerning the aqueous solvent isotope effect, the direct comparison of the spectroscopic data of acetate in water and heavy water {CH₃CO₂⁻(aq) and CH₃CO₂⁻(D₂O)} are contrasted in Table 2 and the ones for acetate-d₃ {CD₃CO₂⁻(aq) and CD₃CO₂⁻(D₂O)} in Table 3. Comparative Raman spectra of CH₃CO₂⁻(aq) and CD₃CO₂⁻(D₂O) are presented in Fig. 6 and the ones for the Raman spectra of CD₃CO₂⁻(aq) and CD₃CO₂⁻(D₂O) in Fig. 7. In general, one expects a solvent change from D₂O to H₂O should not cause a shift of the acetate fundamental modes or should lead to a slight shift to lower frequencies. Inspection of the vibrational modes of acetate in D₂O and H₂O in Table 2 and acetate-d₃ in Table 3 revealed a surprising result, namely, that although in D₂O some vibrational modes are not shifted at all or shifted only to slightly lower wavenumbers, certain bands shift noticeably to higher wavenumbers compared with the bands measured in light water. In other words, the change from water to heavy water as a solvent markedly influences the vibrational energy levels of dissolved acetate ions.

The frequencies for the CO₂ group increase by changing from H₂O to D₂O for both acetate species namely CH₃CO₂⁻ and CD₃CO₂⁻. For example, for CH₃CO₂⁻(aq) and CH₃CO₂⁻(D₂O) the deformation mode, δCO₂ appears at 654.2 cm⁻¹ for the former and at 661.5 cm⁻¹ for the latter, while ν_sCO₂ occurs at 1413.5 cm⁻¹ and at 1418.2 cm⁻¹, respectively. The same is true for ν_asCO₂ which occurs at 1556 cm⁻¹ in water and at 1563 cm⁻¹ in heavy water (data in Table 2). For acetate-d₃, CD₃CO₂⁻, in water and heavy water, δCO₂ appears at 621 cm⁻¹ for the former and at 627 cm⁻¹ for the latter while ν_sCO₂ occurs at 1407.5 cm⁻¹ and at 1410.5 cm⁻¹, respectively. The antisymmetric stretch, ν_asCO₂, for acetate-d₃ in water and heavy water occurs at 1546 cm⁻¹ and 1552 cm⁻¹, respectively (Table 3). The acetate cluster model with 5 water molecules reflects the H₂O–D₂O solvent isotope effect quite well. These DFT frequencies for CH₃CO₂⁻ and CD₃CO₂⁻ in water and heavy water are presented in Tables 2 and 3, respectively. This change of water to heavy water simply means that the deformation mode and the symmetric stretch of the CO₂ group get stiffer in heavy water. This may be due to a simple mass effect but the different hydrogen bond strength versus the deuterium bond strength may also play a role. The main reason for this effect comes from the (anharmonic) coupling of the solvent with the solute. Buckingham studied the H-bond strength versus D-bond strength by quantum mechanical calculations many years ago and found that in aqueous systems, the D-bond strength is slightly stronger than the H-bond strength.³⁰ The aqueous solvent isotope effect for acetate (and other Na-salts of aliphatic carboxylic acids) was first reported from a combination of heats of transfer measured by calorimetry and free energies of transfer obtained from emf measurements.³¹ The negative value at −34 cal mol⁻¹ for the transfer free energy, ΔG⁰_d←w, going from water to heavy water indicates that this process occurs spontaneously.³¹ A great variety of electrolytes and non-electrolytes was reported and summarized in ref. 32 and attempts to explain this phenomenon were put forward applying Gurney's potential.

3.4. The influence of acetate on the O–H stretching band of water

The influence of the solute, NaCH₃CO₂, on the water spectrum, especially in the O–H stretching region, should allow conclusions about the hydrophobic hydration of the apolar CH₃ group of the acetate with H₂O. The Raman O–H band profile of NaCH₃CO₂(aq) at 5.022 mol L⁻¹ (R_w = 8.5) is displayed in Fig. 4, left panel and the infrared absorption spectrum from 400 to 4000 cm⁻¹ of an aqueous 2.184 mol L⁻¹ NaCH₃CO₂ solution (R_w = 22.9) with the one of neat water are presented in Fig. S3.† The complete concentration band profiles of three dilute to moderately concentrated aqueous NaCH₃CO₂ solutions are given in Fig. S4† together with the difference spectra of the OH band profiles of the dilute acetate solutions from which the water contributions were subtracted (see Fig. S5†). In the neat liquid, the isotropic O–H profile the water O–H band may be fitted with three Gaussian bands, two very broad and strong band contributions at 3211 cm⁻¹ and 3405.6 cm⁻¹ (also called the double band) and a shoulder at ∼3625 cm⁻¹ which is also relatively broad (fwhh ∼ 125 cm⁻¹). The band contribution at 3625 cm⁻¹ is assigned to the weakly H-bonded H₂O molecules of the water H-bond network while the band at 3211 cm⁻¹ is assigned to represent the tetrahedrally H-bonded water molecules.^33,34 The isotropic O–H Raman band profile of water of a concentrated NaCH₃CO₂ solution was fitted into three Gauss band contributions, as well, positioned at 3292 cm⁻¹, 3455.5 cm⁻¹ and a shoulder at ∼3618 cm⁻¹ (fwhh = 120 cm⁻¹). Except for the shift of the two broad and strong band contributions at 3211 and 3406 cm⁻¹ for the isotropic O–H band profile, the shoulder at higher wavenumbers is almost unchanged (Fig. 8). A band from dangling H-bonds reported recently at 3672 cm⁻¹ (ref. 35) showing a relatively narrow band width at 34 cm⁻¹ could not be observed for the H-bonds around the methyl group in acetate solutions. The similarity of bulk water at higher wavenumbers in the O–H profile suggests that the water molecules (∼6 water¹⁰) are “clathrate-like” which means three out of four H-bonds are tangential oriented to the CH₃ surface and one toward the bulk (Fig. 2 of ref. 36). The water structure around the small hydrophobic CH₃ group is quite similar to the bulk water except for a somewhat slower water–water H-bond exchange kinetic which is only slightly retarded with respect to the bulk water.³⁶ From theoretical and experimental methods, it turns out that the small CH₃ group (in contrast to long alkyl chains) does not noticeable change the water structure, its connectivity, nor its H-bond strength.^36,37 In other words, no enhanced hydrophobic hydration can be found around the methyl group of acetate. Furthermore, no signs of dangling O–H bands at ∼3670 cm⁻¹ could be observed. However, in contrast to the NaCH₃CO₂(aq) in spectra of aqueous NaCF₃CO₂ solutions (see Fig. S6†), measured for comparison, from the dilute to concentrated solution stage a polarized band at 3671 cm⁻¹ (fwhh = 34 cm⁻¹) clearly indicates “dangling” OH bonds (see our results in Fig. S7†). These dangling OH bonds represent water molecules of the hydrophobic shell surrounding the strongly hydrophobic CF₃ group and are quite similar to the ones in a water air or a water oil interface.^38,39

Fig. 8 Concentration profiles of the isotropic scattering of NaCD₃CO₂(aq): from top to bottom: (A) 2.936 mol L⁻¹, (B) 1.468 mol L⁻¹, 0.294 mol L⁻¹. The open star denotes the scattering contribution of the deformation mode of water and the mode denoted by the arrow indicates the combination band at 1463 cm⁻¹. The bands at 1408 and 1547 cm⁻¹ are due to the symmetric stretch of the –CO₂ group while the mode at 885 cm⁻¹ are the stretching mode of C–C and the mode at 621 cm⁻¹ is due to the rocking mode of the –CO₂ group. (The strong mode at 1086 cm⁻¹ is due to the CD₃ deformation mode.)

3.5. Na⁺-acetate ion pairs

The question of the ion pairs formed in Na⁺ acetate solutions was addressed in our previous publication.¹² However, the solutions of acetate-d₃ in aqueous solution and heavy water may be used and studied again to shed light on this question. Raman bands of the CO₂ group are significant markers for ion pair formation in solution. In conjunction with earlier DRS results, the nature of ion pairs in NaCH₃CO₂(aq) as a function of concentration may be highlighted. DR spectroscopy, a method used to yield information about the character of the ion pairs, reported a sequence of different species: outer–outer-sphere ion pairs, outer-sphere ion pairs but only a small number of contact ion pairs. The latter, if formed in solution should lead to large changes of the acetate bands in NaCH₃CO₂(aq) or a split of the modes into bound or “free” acetate which means non-associated. The formation of contact ion pairs/complexes formed in aqueous solutions was followed but no contact ion pairs could be verified. The advantage of studying the per-deuterated acetate ion, NaCD₃CO₂(aq), is that the symmetric stretching mode, ν_sCO₂, at 1407.5 cm⁻¹ may be observed undisturbed. In NaCH₃CO₂(aq), however, the symmetric stretch is obscured by the accidental overlap with two CH₃ deformation modes as discussed above in Section 3.3. The νC–C mode and also ν_sCO₂ impress as narrow and symmetrical bands in CD₃CO₂⁻(aq) (Fig. 8) and this indicates that no contact ion pairs of the form Na⁺·CH₃CO₂⁻ (Na⁺·CD₃CO₂⁻) are formed because bands of the bound acetate will lead to separated bands or visible shoulders separate from the bands of the “free”, hydrated acetate ion. DRS investigations of acetate solutions, however, favored the formation of small amounts of contact ion pairs between Na⁺ and CH₃CO₂⁻,¹⁰ while in a subsequent paper the existence of such ion pairs was denied.¹¹ Examples of divalent and even trivalent metal ion acetato complexes have been published over the years.^40,41

4. Conclusions

Solutions of the sodium salts of CH₃CO₂⁻ and CD₃CO₂⁻ in water and heavy water were studied by Raman and infrared spectroscopy over a broad concentration range and in the wavenumber range from 40 cm⁻¹ to 4200 cm⁻¹. In the terahertz region the breathing mode of [Na(OH₂)_n]⁺ (n = 4, 5) was characterized at 189 cm⁻¹ and the restricted translation mode of CH₃CO₂⁻⋯HOH a broad shoulder at 245 cm⁻¹ (see also ref. 12). The acetate/acetate-d₃ spectra were assigned according to pseudo C_s symmetry. Characteristic modes for acetate and acetate-d₃ were identified. The two stretching modes of the CO₂ group, ν_s and ν_as, at 1413.5 cm⁻¹ and 1556 cm⁻¹ respectively at 1407.5 cm⁻¹ and 1547 cm⁻¹ are characteristic. The stretching mode, νC–C for CH₃CO₂⁻(aq), appears at 928.4 cm⁻¹ and the same stretching mode for CD₃CO₂⁻(aq) at 885.2 cm⁻¹. In solutions of heavy water, however, the νC–C mode appears at 927.2 cm⁻¹ and 882.8 cm⁻¹ respectively. The vibrational isotope effect of the –CH₃ (–CD₃) group was observed and application of the Teller-Redlich product rule confirmed the frequency assignments.

Coupling of the intramolecular modes are fairly extensive and therefore DFT cluster calculations on CH₃CO₂⁻·5H(D)₂O and CD₃CO₂⁻·5H(D)₂O were carried out in order to compare the measured spectra with the calculated ones. The geometrical parameters, such as bond length and bond angles of the acetate in solution state, were given.

The possibility of dangling νO–H bonds was discussed for aqueous NaCH₃CO₂ solutions. No evidence for such bonds could be found over the complete concentration range in these solutions in the infrared and Raman spectroscopy. However, in NaCF₃CO₂(aq) dangling νO–H bands were observed at 3670 cm⁻¹. A deuterium solvent isotope effect was observed for the intramolecular acetate and acetate-d₃ bands in water and heavy water. Finally, the formation process and the nature of the ion pairs formed between Na⁺ and acetate were discussed and it became clear that no contact ion pairs exist even in concentrated NaCH₃CO₂/NaCD₃CO₂ solutions.

References

1. B. Hess and N. F. A. van der Vegt, Proc. Natl. Acad. Sci. U. S. A., 2009, 106, 13296–13300.
2. J. S. Uejio, C. P. Schwartz, A. M. Duffin, W. S. Drisdell, R. C. Cohen and R. J. Saykally, Proc. Natl. Acad. Sci. U. S. A., 2008, 105, 6809–6812.
3. I. D. Kuntz, J. Am. Chem. Soc., 1971, 93, 514–516.
4. R. Caminiti, P. Cucca, M. Monduzzi, G. Saba and G. Crisponi, J. Chem. Phys., 1984, 81, 543–551.
5. H. Naganuma, Y. Kameda, T. Usuki and O. Uemura, J. Phys. Soc. Jpn., 2001, 70(suppl. A), 356–358.
6. Y. Kameda, M. Sasaki, M. Yaegashi, K. Tsuji, S. Oomori, S. Hino and T. Usuki, J. Solution Chem., 2004, 33, 733–745.
7. G. D. Markham, M. Trachtman, C. L. Bock and C. W. Bock, J. Mol. Struct., 1998, 455, 239–256.
8. G. D. Markham, C. L. Bock and C. W. Bock, Struct. Chem., 1997, 8, 293–306.
9. A. Payaka, A. Tongraar and B. M. Rode, J. Phys. Chem. A, 2010, 114, 10443–10453.
10. H. M. A. Rahman, G. Hefter and R. Buchner, J. Phys. Chem. B, 2012, 116, 314–323.
11. H. M. A. Rahman and R. Buchner, J. Mol. Liq., 2012, 176, 93–100.
12. W. W. Rudolph, D. Fischer and G. Irmer, Dalton Trans., 2014, 43, 3174–3185.
13. I. A. Heisler and S. R. Meech, Science, 2010, 327, 857–860.
14. W. W. Rudolph and G. Irmer, Appl. Spectrosc., 2007, 61, 1312–1324.
15. W. W. Rudolph, D. Fischer and G. Irmer, Appl. Spectrosc., 2006, 60, 130–144.
16. W. W. Rudolph, Z. Phys. Chem., 1996, 194, 73–90.
17. W. W. Rudolph, M. H. Brooker and C. C. Pye, J. Phys. Chem., 1995, 99, 3793.
18. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, J. A. Montgomery Jr, T. Vreven, K. N. Kudin, J. C. Burant, J. M. Millam, S. S. Iyengar, J. Tomasi, V. Barone, B. Mennucci, M. Cossi, G. Scalmani, N. Rega, G. A. Petersson, H. Nakatsuji, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, M. Klene, X. Li, J. E. Knox, H. P. Hratchian, J. B. Cross, V. Bakken, C. Adamo, J. Jaramillo, R. Gomperts, R. E. Stratmann, O. Yazyev, A. J. Austin, R. Cammi, C. Pomelli, J. W. Ochterski, P. Y. Ayala, K. Morokuma, G. A. Voth, P. Salvador, J. J. Dannenberg, V. G. Zakrzewski, S. Dapprich, A. D. Daniels, M. C. Strain, O. Farkas, D. K. Malick, A. D. Rabuck, K. Raghavachari, J. B. Foresman, J. V. Ortiz, Q. Cui, A. G. Baboul, S. Clifford, J. Cioslowski, B. B. Stefanov, G. Liu, A. Liashenko, P. Piskorz, I. Komaromi, R. L. Martin, D. J. Fox, T. Keith, M. A. Al-Laham, C. Y. Peng, A. Nanayakkara, M. Challacombe, P. M. W. Gill, B. Johnson, W. Chen, M. W. Wong, C. Gonzalez, and J. A. Pople, Gaussian 03, Revision C.02, Gaussian, Inc., Wallingford CT, 2004.
19. M. Cossi, G. Scalmani, N. Rega and V. Barone, J. Chem. Phys., 2002, 117, 43–54.
20. M. Meot-Ner and L. Wayne Sieck, J. Am. Chem. Soc., 1986, 108, 7525–7529.
21. Y. Kameda, K. Sugarwara, T. Usuki and O. Uemura, Bull. Chem. Soc. Jpn., 1998, 71, 2769–2776.
22. S. Varma and S. B. Rempe, Biophys. Chem., 2006, 124, 192–199.
23. R. Mancinelli, A. Botti, F. Bruni, M. A. Ricci and A. K. Soper, J. Phys. Chem. B, 2007, 111, 13570–13577.
24. S. S. Azam, T. S. Hofer, B. R. Randolf and B. M. Rode, J. Phys. Chem. A, 2009, 113, 1827–1834.
25. A. Bankura, V. Carnevale and M. L. Klein, J. Chem. Phys., 2013, 138, 014501–014510.
26. D. C. McKean, Spectrochim. Acta, Part A, 1973, 29, 1559–1574.
27. W. W. Rudolph and G. Irmer, unpublished results, TU Bergakademie Freiberg 2010.
28. G. Herzberg, Molecular spectra and molecular structure, II. Infrared and Raman spectra of polyatomic molecules, Van Nostrand Reinhold Company, New York, 1945, p. 231.
29. O. Redlich, Z. Phys. Chem., Abt. B, 1935, 28, 371–382.
30. A. D. Buckingham and L. Fan-Chen, Int. Rev. Phys. Chem., 1981, 1, 253–269.
31. H. Snell and J. Greyson, J. Phys. Chem., 1970, 74, 2148–2152.
32. G. Jancso and W. A. Van Hook, Chem. Rev., 1974, 74, 689–750 p. 736.
33. B. Auer, R. Kumar, J. R. Schmidt and J. L. Skinner, Proc. Natl. Acad. Sci. U. S. A., 2007, 104, 14215–14220.
34. B. M. Auer and J. L. Skinner, J. Chem. Phys., 2008, 128, 224511.
35. P. N. Perera, K. R. Fega, C. Lawrence, E. J. Sundstrom, J. Tomlinson-Phillips and D. Ben-Amotz, Proc. Natl. Acad. Sci. U. S. A., 2009, 106, 12230–12234.
36. M. Montagna, F. Sterpone and L. Guidoni, J. Phys. Chem. B, 2012, 116, 11695–11700.
37. J. Teixeira and A. Luzar, Physics of Liquid Water. Structure and Dynamics in Hydration Processes in Biology, ed. M. C. Bellissent-Funel, IOS Press, Ohmsha, NATO-Science Series, Series A, Life Science-305, 1999, pp. 35–68.
38. N. Ji, V. Ostroverkhov, C. S. Tian and Y. R. Shen, Phys. Rev. Lett., 2008, 100, 096102.
39. F. G. Moore and G. L. Richmond, Acc. Chem. Res., 2008, 41, 739–748.
40. G. B. Deacon and R. J. Phillips, Coord. Chem. Rev., 1980, 33, 227–250.
41. J. E. Tackett, Appl. Spectrosc., 1989, 43, 483–489.

---

Footnotes

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra01156f

‡ For the B3LYP/6-311++G(3df,2pd) level of theory lower DFT frequencies were obtained for the cluster [Na(H₂O)₆]⁺. However, this value is insecure because one imaginary frequency was obtained (saddle point).

§ Note, that the numbering of the bands for CD₃CO₂⁻ is different from the one for CH₃CO₂⁻ because of the large isotope shift of the C–D modes (compare fundamental modes in Tables 2 and 3).

---
