Haizhen Liua,
Chen Wu*a,
He Zhoua,
Tian Chena,
Yongan Liua,
Xinhua Wang*ac,
Zhaohui Dongb,
Hongwei Gea,
Shouquan Lic and
Mi Yana
aState Key Laboratory of Silicon Materials, School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China. E-mail: xinhwang@zju.edu.cn; chen_wu@zju.edu.cn; Fax: +86-571-87952716; Tel: +86-571-87952716
bZhejiang Metallurgical Research Institute, Hangzhou 310017, China
cKey Laboratory of Advanced Materials and Applications for Batteries of Zhejiang Province, Zhejiang University, Hangzhou 310027, China
First published on 12th February 2015
MgH2 possesses a high hydrogen capacity and excellent reversibility. However, the high thermal stability and slow sorption kinetics retard its practical application as an on-board hydrogen storage material. In this work, AlH3 and CeF3 were introduced into Mg-based materials for the purpose of improving both the thermodynamic and the kinetic properties of MgH2. DSC-TG analysis shows that the onset hydrogen desorption temperature of MgH2 can be synergistically reduced by 86 °C through the co-addition of 0.25AlH3 and 0.01CeF3. Isothermal desorption measurements demonstrate that the co-addition of AlH3 and CeF3 significantly enhances the hydrogen desorption kinetics of MgH2 with the absence of the induction period in the initial stage and the acceleration of the hydrogen desorption process. In addition, this co-doped MgH2 shows very good cycling stability at 300 °C with a 1 h capacity of 3.5 wt% and a 3 h capacity of 4.5 wt%. Structural analysis by XRD measurements indicates that during the hydrogen desorption process, MgH2 may react with Al (generated from the in situ decomposition of AlH3) to form Mg solid solution and Mg17Al12, which contribute to the thermodynamic improvement of the Mg-based material. In addition, MgH2 may also react with CeF3 to form MgF2 and CeH2–3, which act both as hydrogen diffusion gateways and as an impediment to the grain growth of MgH2 during hydrogen sorption cycling, thus improving the hydrogen desorption kinetics and the cycling stability of MgH2. Finally, it was found that the presence of AlH3 kinetically helps CeF3 to exert its positive effect on the hydrogen desorption properties of MgH2. This work provides a method for simultaneously tailoring the thermodynamic and kinetic properties of MgH2 by the synergistic addition of metal hydride and rare earth fluoride.
Mixing or alloying MgH2/Mg with metals is one strategy used to overcome these problems.4–14 Among the various metals, metallic aluminium (Al) has been studied to improve the hydrogen sorption properties of MgH2.5,7,15,16 Zaluska et al.17 suggested that Al may not only act as a heat-transfer medium, but also be involved in the hydrogen sorption reactions of MgH2. In our previous work,18,19 we utilised aluminium hydride (AlH3) as an Al source in place of metallic Al to significantly reduce the hydrogen desorption temperature of MgH2. It was demonstrated that in the Mg–Al–H system, AlH3 is much better than metallic Al in terms of its ability to improve the hydrogen desorption properties of MgH2. This superiority was ascribed not only to the brittleness of AlH3, but also to the fact that AlH3 undergoes decomposition to form oxide-free Al* upon heating. Its brittleness makes it easier for AlH3 to mix well with MgH2 to ensure uniform elemental distributions by short-term milling. The oxide-free Al* may benefit the reaction kinetics since it is of high chemical activity. However, the hydrogen desorption kinetics of the Mg–Al–H system suffers from a severe decline when subjected to cycling.20 It was indicated that this kinetic decline is due to grain growth or particle agglomeration during the hydrogen sorption process.
Mixing with transition metal halides is another strategy that has been employed to successfully improve the hydrogen sorption kinetics of Mg-based materials.21–29 It was suggested that many halides may react with MgH2, and the resulting products impede the grain growth of MgH2, thus improving the kinetics of MgH2. However, while these metal halides can affect the kinetics of MgH2, they hardly change the thermodynamics of MgH2. It is true that improved kinetics are essential for fast hydrogen uptake and release; however, the thermodynamic destabilisation of MgH2 is also highly desired because a lower stability means that MgH2 is able to start releasing hydrogen at a lower temperature.
In the present work, to achieve the simultaneous enhancement of the thermodynamics and kinetics of MgH2, AlH3 as the destabilizing agent and a transition metal fluoride (cerium fluoride, CeF3) as the accelerating agent were introduced together into Mg-based materials by ball milling. The following results show that AlH3 can thermodynamically destabilise MgH2, while CeF3 can kinetically accelerate the release of hydrogen. In addition, it is interesting that the co-addition of AlH3 and CeF3 can synergistically enhance the desorption properties of MgH2; the co-doped MgH2 shows fast desorption kinetics and very good cycling stability at 300 °C. Moreover, CeF3 was reported by Jin et al.21 to have little influence on the hydrogen desorption of MgH2. However, in the present work, CeF3 was found to significantly reduce the desorption temperature of MgH2, especially in the presence of a small amount of AlH3.
Phase structures were determined by powder X-ray diffraction (XRD) using a PANalytical X-ray diffractometer (X'Pert Pro) with Cu Kα radiation. During sample transfer and measurement, the samples were sealed with amorphous membranes to avoid exposure to air.
Nonisothermal hydrogen desorption was studied by differential scanning calorimetry (DSC) and thermogravimetry (TG) analysis (Netzsch, STA449F3). The samples were heated from room temperature to 500 °C at a rate of 10 °C min−1. During the heating process, argon was flowed at 50 mL min−1 to prevent sample oxidation.
Isothermal desorption was carried out on a lab-built Sieverts-type apparatus. Before the desorption measurement, the sample holder was evacuated under vacuum. The samples were then rapidly heated to 300 °C and held at this temperature for the collection of desorption curves. Prior to the next desorption cycle, the dehydrogenated sample was rehydrogenated at 300 °C and 5 MPa H2 for 1 h.
Field emission scanning electron microscopy (SEM; FEI SU 70) was used to study the morphologies of the samples.
Fig. 1 contains the DSC curves of the samples with a heating rate of 10 °C min−1. The DSC curves show that the peak desorption temperature of the as-milled MgH2 is 388 °C, which is reduced to 375 (or 354 °C) when it is mixed with 0.25AlH3 (or 0.01CeF3). A further reduction to 346 °C can be achieved by the co-addition of 0.25AlH3 and 0.01CeF3, indicating a synergistic enhancement effect.
![]() | ||
Fig. 1 DSC curves of the as-milled MgH2 (a), MgH2 + 0.25AlH3 (b), MgH2 + 0.01CeF3 (c), and MgH2 + 0.25AlH3 + 0.01CeF3 (d) samples. |
Fig. 2 shows the TG curves of the samples. The weight loss of each sample during heating is indicated in the figure with the theoretical weight loss included in parentheses. The onset desorption temperature of the as-milled MgH2 is 350 °C, which is reduced to 292 °C (or 301 °C) when it is mixed with 0.25AlH3 (or 0.01CeF3). Further reduction of the onset desorption temperature to 264 °C can be achieved by the co-addition of 0.25AlH3 and 0.01CeF3. This desorption temperature of the co-doped MgH2 is 86 °C lower than that of the as-milled MgH2. Similar to the DSC results, the onset desorption temperature of the co-doped MgH2 is the lowest among the samples studied. These DSC-TG results jointly demonstrate that AlH3 and CeF3 have synergistic effects on the hydrogen desorption temperature of MgH2.
![]() | ||
Fig. 2 TG curves of the as-milled MgH2 (a), MgH2 + 0.25AlH3 (b), MgH2 + 0.01CeF3 (c), and MgH2 + 0.25AlH3 + 0.01CeF3 (d) samples. |
The hydrogen desorption kinetics of the samples are investigated by isothermal desorption at 300 °C, and the fractional hydrogen desorption curves are displayed in Fig. 3. It is observed that the as-milled MgH2 releases a very small amount of hydrogen after desorption at 300 °C for 3 h. This can also be confirmed by the XRD pattern of the desorption product (Fig. S2, ESI†), which shows that the majority of MgH2 is still present in the desorption product. The hydrogen desorption of AlH3-doped MgH2 first accelerates in the initial 30 min and then slows in the following stage. As for the CeF3-doped MgH2, the hydrogen desorption first undergoes an induction period in the initial 20 min and then proceeds with fast kinetics. However, it is interesting that with the co-addition of AlH3 and CeF3, the induction period is absent, and the desorption proceeds rapidly with a speed as high as that of the CeF3-doped MgH2. In addition, the extent of hydrogen desorption for the co-doped MgH2 is over 90%, which is the highest among the samples studied.
![]() | ||

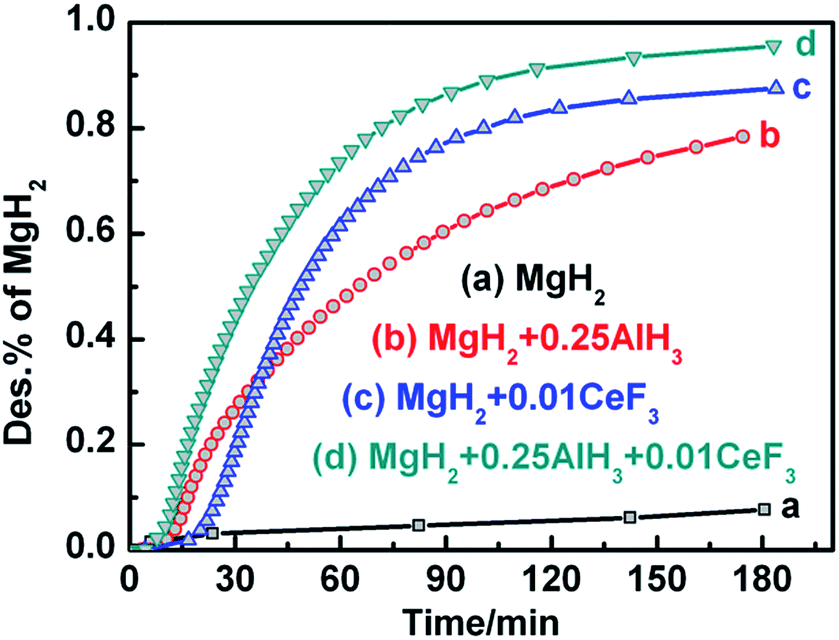

Fig. 3 Isothermal hydrogen desorption curves of the as-milled samples plotted as fractional desorption of MgH2 in the sample vs. time. The desorption temperature is 300 °C. |
Fig. S2 (ESI†) shows the XRD patterns of the isothermal desorption products of each sample. The desorption product of the MgH2 + 0.25AlH3 sample mainly contains Mg17Al12, Mg, and some un-decomposed MgH2, while the product of the MgH2 + 0.01CeF3 sample mainly contains Mg and some traces of un-decomposed MgH2. However, no CeF3-relevant phases are detected; this may be due to the low addition content of CeF3. As for the MgH2 + 0.25AlH3 + 0.01CeF3 sample, its product mainly contains Mg17Al12 and Mg phases, and no un-decomposed MgH2 is detected, suggesting that MgH2 is fully decomposed by the co-addition of 0.25AlH3 and 0.01CeF3. A diffraction peak located at 2Theta = 27°–28° is suspected of belonging to CeH2–3 phase. Although the CeF3-relevant phases cannot be detected here, the XRD results at least demonstrate that only partial MgH2 decomposition occurs in the AlH3-doped and CeF3-doped MgH2 samples, but almost full decomposition occurs in MgH2 co-doped with AlH3 and CeF3.
Combining the kinetic results with the structural analysis, we conclude that the co-addition of AlH3 and CeF3 synergistically improves the desorption kinetics and the desorption extent of MgH2.
The cycling desorption properties of MgH2 co-doped with AlH3 and CeF3 were studied by measuring the isothermal desorption curves at 300 °C for 10 cycles (Fig. 4a). As can be seen, the desorption kinetics first accelerates at the second cycle and then is maintained for the following cycles. Fig. 4b shows that the capacity of 1 h desorption first increases in the initial three cycles and then is maintained at a value of ca. 3.6 wt% with the exception of a slight decrease at cycle eight. The capacity of 3 h desorption is mainly maintained at a value of ca. 4.5 wt%. These cycling desorption measurements indicate that the cycling desorption stability of MgH2 co-doped with AlH3 and CeF3 is extremely good.
It has been shown in Fig. S2 (ESI†) that due to the low addition amount, we cannot detect any CeF3-relevant phase by XRD in either of the as-milled samples (Fig. S1†) or in the desorption product (Fig. S2 (ESI†)). In order to facilitate the detection of the CeF3-relevant phases using XRD, the content of CeF3 was increased, and two series of samples, i.e., MgH2 + mCeF3 (m = 0.01, 0.02, and 0.05) and MgH2 + 0.1AlH3 + nCeF3 (n = 0.01, 0.02, and 0.05), were prepared by ball milling. Their XRD patterns are shown in Fig. S3 (ESI†). It can be seen that the as-milled samples are mainly the physical mixtures of the starting materials. CeF3 is detected in the as-milled samples (see Fig. S3d–i (ESI†)) and does not react with MgH2 or AlH3 during ball milling. Scherrer's equation33 was utilised to estimate the grain sizes of MgH2 in the samples, which are indicated in the figure. The grains of MgH2 can be refined from 43–44 nm to 38–40 nm by the addition of 0.01CeF3, and further refinement to 25–28 nm can be achieved by the addition of 0.05CeF3. That is to say, CeF3 addition is likely to refine the grains of MgH2.
The XRD patterns of the desorption products of MgH2 + 0.1AlH3, MgH2 + 0.05CeF3, AlH3 + 0.1CeF3, and MgH2 + 0.1AlH3 + 0.02CeF3 are presented in Fig. 5. The desorption product of the MgH2 + 0.1AlH3 sample contains Mg, Mg17Al12, and un-decomposed MgH2, which means that MgH2 reacted with Al to form Mg17Al12. Mg, a small amount of un-decomposed MgH2, MgF2, and CeH2–3 exist in the desorption product of the MgH2 + 0.05CeF3 sample; this suggests that CeF3 may have reacted with MgH2 during the desorption process to form MgF2 and CeH2–3. The desorption product of the AlH3 + 0.1CeF3 sample indicates that AlH3 prefers to decompose by itself and does not react with CeF3 during the desorption process since CeF3 remains unreacted in the sample before and after desorption. As for the MgH2 + 0.1AlH3 + 0.02CeF3 sample, a mixture of Mg, Mg17Al12, MgF2, CeH2–3, and some traces of un-decomposed MgH2 exist in the desorption product. These products suggest that on the one hand, Al (formed from the decomposition of AlH3) reacts with MgH2 to form Mg17Al12; on the other hand, CeF3 also reacts with MgH2 to form MgF2 and CeH2–3. From the inset in Fig. 5, it is observed that the diffraction peak of Mg in the desorption products of MgH2 + 0.1AlH3 and MgH2 + 0.1AlH3 + 0.02CeF3 has shifted to higher angles, which indicates that some Al atoms have dissolved into the crystal structure of Mg, forming an Al-doped Mg solid solution (denoted as Mgss(Al)).
![]() | ||
Fig. 5 XRD patterns of the desorption products of the selective samples. The hydrogen desorption measurements were carried out isothermally at 300 °C for 3 h. |
Based on the above phase analysis of the desorption products of each sample, we can conclude that after hydrogen desorption, Al (formed from the decomposition of AlH3) reacted with MgH2 to form an Mg solid solution (Mgss(Al)) and Mg17Al12 according to eqn (1) and (2):
MgH2 + Al* → Mgss(Al) + H2 | (1) |
MgH2 + Al* → Mg17Al12 + H2 | (2) |
Meanwhile, CeF3 reacted with MgH2 to form MgF2 and CeH2–3 following eqn (3). CeH2–3 is a nonstoichiometric metal hydride.
MgH2 + CeF3 → MgF2 + CeH2–3 | (3) |
The formations of Mg solid solution and Mg17Al12 indicate that the thermal stability of MgH2 may have been reduced by the addition of AlH3 since several theoretical studies have reported that the stability of MgH2 can be changed by doping with Al. Shang et al.7 used first-principles calculations to study the stability of MgH2 with metal doping and found that the formation heat of MgH2 can be reduced from −75.99 kJ mol−1 H2 for pure MgH2 to −28.36 kJ mol−1 H2 for MgH2 doped with 20 mol% Al. Another theoretical calculation by Kelkar et al.15 showed a reduction of 9.3 kJ mol−1 H2 for the heat of formation of MgH2 with the addition of 6.25 mol% Al. The Mg17Al12 alloy was reported to have better hydrogen desorption/absorption properties than the pure Mg/MgH2 materials. Bouaricha et al.5 prepared Mg17Al12 alloy by ball milling elemental Mg and Al. They found that Mg17Al12 shows improved hydrogen sorption properties compared to pure Mg and can be reversibly hydrided into MgH2 and Al under conditions of 400 °C and 38 bar H2. It was ascertained that the hydrogenation of Mg17Al12 proceeds in two steps:5,34,35 first, Mg17Al12 is hydrided into Mg2Al3 and MgH2; then, Mg2Al3 is further hydrided into MgH2 and Al in the second step. These reactions are totally reversible. Crivello et al.35 demonstrated that the presence of Al in the Mg17Al12 materials leads to an increase of their plateau pressures, which means that Al can destabilise MgH2 by forming Mg–Al alloys. Therefore, MgH2 was thermodynamically destabilised by AlH3 in the present work, and this may have contributed to the absence of the induction period in the isothermal desorption curves of AlH3-doped MgH2 in Fig. 3. As the isothermal desorption was carried out by quickly heating the sample to 300 °C (within 10–15 min) followed by holding at this temperature, which is very close to the practical heating condition, the destabilised AlH3-doped MgH2 can start to release hydrogen at a lower temperature than MgH2 without AlH3 addition, which results in the absence of the induction period.
With respect to the formation of MgF2, it was suggested that MgF2 may benefit the initial activation of MgH2 during the hydrogen desorption process.36 As for CeH2–3, some studies have reported the formation of this rare earth hydride from either the as-milled MgH2–Ce composite or the hydrogenation product of Mg–Ni–Ce alloys.12,27,37,38 However, the CeH2–3 in the present work was generated from the reaction between MgH2 and CeF3. Transition metal fluorides like CeF3 are generally very fine, which leads to a more uniform distribution of CeH2–3 on the particle surfaces or the grain boundaries of MgH2. CeH2–3 may act as a “hydrogen pump” that helps deliver hydrogen atoms from/to the MgH2/Mg matrix during the hydrogen desorption–absorption process, thus improving the hydrogen sorption kinetics of MgH2 (Fig. 3). On the other hand, CeH2–3/MgF2 layers can also impeded the grain growth or coarsening of MgH2 during the cycling sorption process. These two factors are the main cause of the improvement in the desorption kinetics (Fig. 3) and the extremely good cycling stability (Fig. 4) of MgH2.
A schematic diagram displaying the structural evolutions of AlH3 and CeF3 during the sample preparation and hydrogen desorption processes can be seen in Fig. S4 (ESI†). A brief description of the evolutions is given below. First, the MgH2–AlH3–CeF3 composite is prepared by ball milling the starting materials of MgH2, AlH3 and CeF3. After milling, the particle sizes of the starting materials decrease because both of the hydrides are brittle materials. Meanwhile, CeF3 may cover the particle surfaces of MgH2 and AlH3. MgH2 and AlH3 particles also contact closely with each other during milling. Then, during the hydrogen desorption process (i.e. at the heating stage), AlH3 first decomposes to form the oxide-free Al*, and this freshly formed Al* further reacts with MgH2 to form the Mg solid solution (Mgss(Al)) and Mg17Al12, thus thermodynamically improving the desorption properties of MgH2. On the other hand, CeF3 also reacts with MgH2 to form MgF2 and CeH2–3, which distribute surrounding the Mg–Al phase particles and act both as an impediment to the grain growth of Mg–Al phases and as hydrogen diffusion gateways. In this way, the MgF2/CeH2–3 layers kinetically improve the desorption properties of MgH2. In a word, this schematic diagram shows a picture of how the thermodynamics and kinetics of MgH2 are tailored by the co-addition of AlH3 and CeF3. The synergistic effect is believed to contribute to the reduction of desorption temperature, the absence of a desorption induction period, the acceleration of desorption kinetics and the extremely good cycling stability.
Finally, we carried out the thermal decompositions of the MgH2 + mCeF3 and MgH2 + 0.1AlH3 + nCeF3 samples by DSC analysis (Fig. 6). It is found in Fig. 6a–c that the peak desorption temperatures of the MgH2 + mCeF3 samples generally locate at about 360 °C, even when the amount of added CeF3 is increased. A study by Jin et al. also showed that the desorption temperature of MgH2 doped with 1 mol% CeF3 is only slightly reduced by less than 20 °C; this reduction is even less than that seen in the present work (about 30 °C). However, Fig. 6d–f show that in the presence of 0.1AlH3, the peak desorption temperature of MgH2 can be further reduced if the amount of added CeF3 is increased. A reduction of about 70 °C is achieved for the MgH2 + 0.1AlH3 + 0.05CeF3 sample compared to the pure MgH2 (Fig. 1a).
![]() | ||
Fig. 6 DSC curves of (a–c) MgH2 + mCeF3 (m = 0.01, 0.02, and 0.05) and (d–f) MgH2 + 0.1AlH3 + nCeF3 (n = 0.01, 0.02, and 0.05) samples. |
To preliminarily study the role of AlH3 in the MgH2 + 0.1AlH3 + 0.05CeF3 sample, we analysed the morphologies of the as-milled MgH2 with or without AlH3 addition. Fig. 7 shows the SEM images of the pure MgH2 sample and the MgH2 + 0.25AlH3 sample after ball milling. It is seen that the particles of the as-milled MgH2 + 0.25AlH3 sample are generally smaller than those of the as-milled pure MgH2 sample, which suggests that AlH3 addition leads to the particle refinement of MgH2. This may imply that more MgH2 particle surfaces come into contact with the excess CeF3. The increased contact means that more MgF2/CeH2–3 phases acting as hydrogen diffusion gateways are generated, thus further reducing the desorption temperature of MgH2. It should be noted that this temperature reduction may originate from the kinetic enhancement rather than the destabilisation effect. Thus, hydrogen desorption analyses of the samples were carried out by DSC measurements with a relatively fast heating rate of 10 °C min−1. Such a heating rate may lead to hysteresis in the DSC curves if the reaction kinetics are not fast enough. The Mg-based materials with added AlH3 may possess more MgF2/CeH2–3 phases acting as hydrogen diffusion gateways, resulting in better kinetic properties. Therefore, the addition of AlH3 in the present work is believed to have kinetically helped CeF3 to affect the Mg-based materials. All in all, in addition to thermodynamically destabilising MgH2, AlH3 may also kinetically help CeF3 to affect MgH2. However, the exact role of AlH3 should be carefully studied in detail by other analytic techniques.
