One-step synthesis of a copper-based metal–organic framework–graphene nanocomposite with enhanced electrocatalytic activity

Abstract

A copper-based metal–organic framework–graphene nanocomposite (Cu-MOF–GN) (i.e. Cu₃(BTC)₂, BTC = 1,3,5-benzene-tricarboxylate) was prepared by a facile one-step method for the first time. Unlike the conventional strategies, in this procedure graphene oxide was reduced to GN by an endogenous reducing agent produced by dimethylformamide, which was used as solvent in the synthesis of Cu-MOF. The nanocomposite exhibited high stability due to the hydrogen bonding, π–π stacking and Cu–O coordination between Cu-MOF and GN. Owing to the synergetic effect of Cu-MOF and GN, the Cu-MOF–GN nanocomposite showed high electrocatalytic activity. When it was used for constructing H₂O₂ and ascorbic acid sensors, it presented good performance. Thus, the Cu-MOF–GN nanocomposite has potential applications in the electrochemical field.

---

1. Introduction

As a leading class of porous materials, metal–organic frameworks (MOFs), formed by metal ions or metal ion clusters and bridging organic linkers, have many unique properties such as a crystalline ordered structure, large surface area, high thermal stability, extra high porosity and open metal sites.^1–5 Over the past decades, many researchers have focused on their applications in gas storage and separation.^6–9 Recently, the utilizations of MOFs in electrochemical field attracted tremendous attention.^10–15 This is due to the electroactivity of metal ions and ligands used in MOFs, which could provide a pathway for electrons.^16–20 For example, Zhang et al. reported the electrocatalytic oxidation of H₂O₂ at a Cu-based MOF modified electrode, which was related to the reversible redox reaction of Cu^III(OH)-MOF/Cu^II(H₂O)-MOF couple.²¹ Jia et al. discussed the electrocatalytic cycle mechanism of a Cu-based MOF for the dimethyl carbonate synthesis.²² A Fe-based MOF modified platinum disk electrode for the oxidation of hydroxide to O₂ was developed by Babu et al.,²³ concerning the reversible reduction of Fe(III).

However, the practical electrochemical applications of single-phase MOF materials are still restricted due to their inferior electronic conductivity, low mechanical stability and poor electrocatalytic ability.²⁴ To solve this problem, an efficient strategy is to introduce some highly conductive and mechanically durable materials into MOFs, such as metal nanocrystals, conductive polymers, carbon nanostructures.^25–27 Obviously, the MOF-carbon composites are preferred among them because of the high conductivity, low cost, high catalytic activity and stability of carbon materials. Some researchers have made efforts in this regard. For instance, Cu-MOF–macroporous carbon (MPC)/GCE,²⁴ Cu-MOF–multiwalled carbon nanotube (MWCNTs)/GCE,²⁸ Fe-MOF–pyridine functionalized graphene (G-dye)/GCE,²⁹ carbon black–Fe–MOF/GCE³⁰ and some carbon paste electrodes^31,32 were reported as electrochemical sensor. Deservedly, due to the unique characteristics of graphene (GN),³³ the MOF–GN composites also have been widely studied. Nevertheless, these materials suffer from the complicated synthesis process, mainly including two steps: the reduction of graphene oxide (GO) with proper reducing reagents and the binding of MOF and GN. For example, Wang et al.³⁴ reported a Cu-MOF–EGR (electrochemically reduced graphene)/GCE electrode for acetaminophen (ACOP) and dopamine (DA) detection, which was prepared by a three-step strategy: the synthesis of Cu-MOF through a solvothermal method, the mixing of Cu-MOF and GO by stirring and sonication, and the reduction of GO by cyclic voltammetry. Jahan et al.²⁹ also reported a complicated work to obtain the satisfactory sensor based on oxygen reduction reaction (ORR). It mainly involved the synthesis of G-dye and linking metalloporphyrin nodes through G-dye to form the hybrid Fe-MOF–GN. The experiment conditions were harsh and the cumbersome process might bring some potential drawbacks such as the structure collapse of MOF due to long time of ultrasonication and high reduction potential of GO. So it is urgent to develop a simple and efficient method to fabricate MOF–GN composites. To the best of our knowledge, one-step synthesis of MOF–GN composites, without intermediate separation steps, has not been reported to date.

In this work, we present a facile one-step method for synthesizing Cu-MOF–GN nanocomposites for the first time. In this method, dimethylformamide (DMF) was used as endogenous reducing agent to reduce GO and as solvent in the synthesis of Cu-MOF. The obtained Cu-MOF–GN nanocomposites were stable and electric conductive. Taking full advantage of the Cu-MOF–GN nanocomposites we constructed H₂O₂ and ascorbic acid (AA) sensors. The sensors exhibited sufficiently good performance. This indicates that the as-prepared Cu-MOF–GN nanocomposites have promising applications in electrochemical field.

2. Experimental

2.1. Reagents and materials

Cu(NO₃)₂·3H₂O, Na₂HPO₄·12H₂O, NaH₂PO₄·2H₂O, H₂O₂, DMF, AA and ethanol were purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China); GO was obtained from Xianfeng Reagent Co. Ltd. (Nanjing, China); 1,3,5-benzene-tricarboxylic acid (H₃BTC) was purchased from Aladdin Chemistry Co., Ltd. (Shanghai, China). The support electrolyte was 0.1 M phosphate buffer solution (PBS, pH = 7.0), which was prepared with Na₂HPO₄·12H₂O and NaH₂PO₄·2H₂O.

2.2. Apparatus

Cyclic voltammetry and chronoamperometric experiments were performed with a CHI 832C electrochemical workstation (CH Instrument Company, Shanghai, China). A conventional three-electrode system was employed. The working electrode was a modified glassy carbon electrode (diameter: 3 mm), and the auxiliary and reference electrodes were a platinum wire and a saturated calomel electrode (SCE), respectively. The scanning electron microscope (SEM) images were obtained using field emission SEM (ZEISS, Germany). Transmission electron microscopy (TEM) image was obtained by using a JEM-2100 transmission electron microscope with an accelerating voltage of 200 kV. X-ray diffraction data (XRD) were recorded with a PANalytical X'Pert Pro diffractometer (Holland) using Cu Kα radiation (40 kV, 40 mA) with a Ni filter. The Fourier transform infrared (FT-IR) absorption spectra were recorded with a model Nexus-670 spectrometer (Nicolet, USA). Energy dispersive X-ray spectroscopy (EDX) was performed using a Hitachi X-650 SEM (Hitachi Co., Japan).

2.3. Synthesis of Cu-MOF, Cu-MOF–GN and GN

A 0.1205 g (0.50 mmol) Cu(NO₃)₂·3H₂O was dissolved in 20 mL DMF and 0.1042 g (0.50 mmol) H₃BTC was dissolved in 15 mL DMF. Then they were mixed in a 50 mL round-bottom flask. The mixture was treated by refluxing at 153 °C for 12 h. The obtained blue powder was separated by centrifugation and washed with ethanol and then dried at 80 °C under vacuum.

The Cu-MOF–GN nanocomposite was synthesized by dispersing GO powder in the well-dissolved Cu(NO₃)₂/H₃BTC mixture. The resulting suspension was subsequently subjected to the same synthesis procedure as that for Cu-MOF. The amount of GO was changed to make it consisted of 60, 70, 80 or 90 wt% of the final material. As the GO was transferred to GN after the reaction, the resulting composites were denoted as Cu-MOF–GN-1, Cu-MOF–GN-2, Cu-MOF–GN-3, and Cu-MOF–GN-4, respectively.

The GN was prepared by the same procedure for Cu-MOF–GN except not adding Cu(NO₃)₂·3H₂O and H₃BTC.³⁵

2.4. Preparation of sensors

Prior to modification, the bare GCE was polished with slurry alumina (1.0, 0.3 and 0.05 μm, respectively), and then washed thoroughly with ultra-pure water with the aid of ultrasonication. To prepare the modified electrodes, 5 mg of the as-obtained sample was dispersed into 1 mL DMF to give homogeneous suspension. Then 4 μL suspension was dip-coated onto the cleaned GCE and the electrode was then dried at room temperature. Thus, the Cu-MOF–GN-1/GCE, Cu-MOF–GN-2/GCE, Cu-MOF–GN-3/GCE Cu-MOF–GN-4/GCE, Cu-MOF/GCE and GN/GCE modified electrodes were obtained, respectively.

2.5. Electrochemical measurements

Cyclic voltammograms (CVs) of the sensors were recorded in 0.1 M PBS (pH 7.0) containing 5 mM H₂O₂ or 3 mM AA. The potential ranged from 0.6 to −0.8 V and −0.3 V to 0.4 V, respectively. The scan rate was 50 mV s⁻¹. For the chronoamperometric measurements the applied potentials were −0.35 V for H₂O₂ and −0.02 V for AA. The response currents were measured when adding H₂O₂ or AA under magnetic stirring (Scheme 1).

Scheme 1 Schematic diagram of the preparation of Cu-MOF–GN and its application to the determination of H₂O₂ and AA.

3. Results and discussion

3.1. Morphological and structural characterization

To clarify the composite state of Cu-MOF and GN, we performed SEM and TEM measurements. Fig. 1A showed the SEM image of the as-synthesized Cu-MOF particles. The particles were irregular and the size of most crystals was about 1 μm. Fig. 1B displayed the typical wrinkled sheet structure of GN. The GN exhibited excellent dispersibility and stability because DMF could serve as an effective stabilizer of graphene sheets.^35,36 Fig. 1C presented the SEM image of Cu-MOF–GN-3. Owing to the cooperative interaction of hydrogen bonding, π–π stacking and Cu–O coordination between Cu-MOF and GN, the Cu-MOF crystals homogeneously grew on the GN host. However, the crystalline order of the Cu-MOF decreased after loading. Moreover, the Cu-MOF crystals agglomerated to some extent and the edges of the crystallites tended to be less sharp as the result of the interference of GN. It is partly due to the restriction effect caused by the carbon skeleton of GN on the growth of Cu-MOF crystallites.^24,37 The hybrid of wrinkled graphene layer and the bulk MOF could be observed more clearly through the TEM image in Fig. 1D.

Fig. 1 SEM images of Cu-MOF (A), GN (B), and Cu-MOF–GN-3 (C). TEM image of Cu-MOF–GN-3 (D).

In order to confirm the full conversion of GO to GN without any additional reductants and the perfect binding between GN and Cu-MOF, power XRD, XPS and FT-IR were carried out further.

As can be seen in Fig. 2A, a feature diffraction peak of GN located at 25° was observed, but no diffraction peak belongs to GO (located at 10°) was detected (curve a), indicating that GO was reduced by DMF thoroughly.³⁸ This characteristic peak and those peaks, which were correspond to (200), (220), (222), (400), (331), (333), (420) and (442) of the octahedral geometry of Cu-MOF (curve b), still remained in Cu-MOF–GN-3 except part overlapping (curve c). Other Cu-MOF–GN-x composites with different mass ratio between Cu-MOF and GN showed similar diffraction peaks (Fig. S1†), and all their XRD patterns were in line with the simulated patterns of Cu-MOF,³⁹ suggesting that the crystallinity of the Cu-MOF had not been disrupted by the incorporation of GN. In addition, the diffraction peaks of GN enhanced gradually with the content of GN increased in the composite. This indicated that Cu-MOF–GN-x nanocomposites were successfully synthesized.

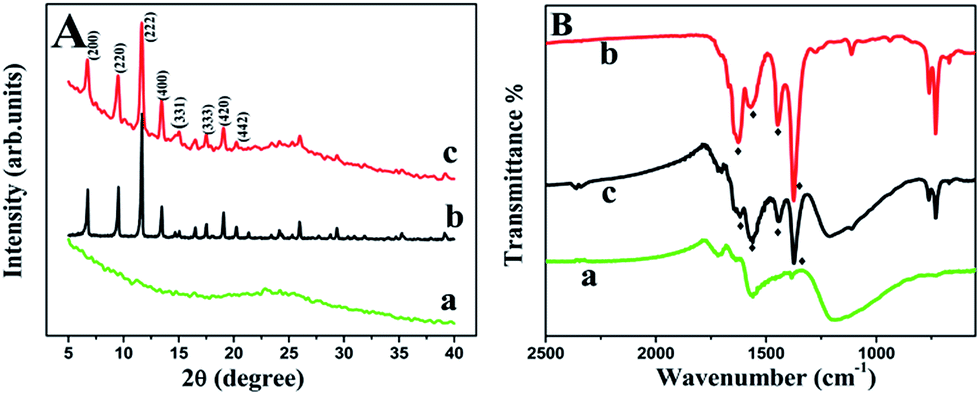

Fig. 2 XRD patterns (A) and FT-IR spectra (B) of GN (a), Cu-MOF (b) and Cu-MOF–GN-3 (c).

The reduction level of GN was evaluated further by X-ray photoelectron spectroscopy (XPS) (Fig. S2†). The increased C/O ratio and significantly decreased peaks of C–O and C=O revealed the extinction of oxygen containing groups and the generation of GN. Moreover, the intensity of peak located at 284.4 eV (sp² carbon) was greatly enhanced compared with that located at 285.3 eV (sp³ carbon), showing the complete reduction from GO to GN.⁴⁰ It is worth noting that a small N peak centered at 399.5 eV appeared in the XPS of GN (Fig. S2B†), which was supposed to come from N in DMF according to the XPS-peak-differentiating analysis (Fig. S2E†).⁴¹ That was due to the adsorption of DMF onto GN.³⁵

The changed FT-IR spectra for before and after hybridization gave more consolidated information about the transformation from GO to GN and the formation of composite. As expected, the absorption peak of C=O stretching vibration (at 1725 cm⁻¹) decreased dramatically and the peak of C–O–C (epoxy group) stretching vibration (at 1062 cm⁻¹) disappeared (Fig. S3A†), showing the full reduction. As seen in Fig. 2B, the FT-IR spectrum of Cu-MOF showed four absorption bands at 1626, 1570, 1447, 1375 cm⁻¹, respectively, and Cu-MOF–GN-3 held a rather similar structure to that of Cu-MOF, indicating that the synthesized composites were incorporated with Cu-MOF successfully. The intensity ratio of the absorption peak at 1570 cm⁻¹ to 1626 cm⁻¹ increased with the proportion of GN increasing (Fig. S3B†), which further confirmed that Cu-MOF–GN was synthesized by the proposed one-step method.

In addition, the EDS of Cu-MOF–GN-3 nanocomposite was shown in Fig. S4.† Carbon, oxygen, and copper elements appeared, indicating the existence of Cu-MOF. The nitrogen element was considered to come from the adsorbed DMF on the surface of GN as stated above.

3.2. Thermal stability and electrochemical property of Cu-MOF–GN

As the most concerned properties, thermal stability and electrocatalytic activity have been tested. Herein, the thermal stability of GN, Cu-MOF and Cu-MOF–GN-3 were examined by thermogravimetric analysis (TGA) (Fig. 3A) under a N₂ atmosphere. As a result, GN showed less than 4% weight loss near 100 °C, attributable to the removal of water molecules physically adsorbed onto GN. Then the mass loss gradually took place with the increase of temperature. This phenomenon was consistent with the report.³⁵ Cu-MOF began to lose weight below 100 °C due to the elimination of the adsorbed water. Notably, it lost 20 wt% up to 100 °C because of the high adsorbed amount of water by the porous Cu-MOF. From 150 to 230 °C a small weight loss appeared due to the adsorption of DMF. When the temperature was up to 320 °C, a sharp decrease in the weight occurred, suggesting the decomposition of the ligand in Cu-MOF. The TGA curve of Cu-MOF–GN-3 showed the expected thermal behavior. It exhibited about 5 wt% loss up to 100 °C, which was much lower than that of the Cu-MOF because of the decrease of porosity as the incorporation of GN. The sharp weight loss also occurred at 320 °C. These changes were quite consistent with the combined thermal decomposition behaviors of Cu-MOF and GN. This indicated that the composite prepared by this one-step method exhibited equivalent stability with that prepared by other methods.^34,42

Fig. 3 (A) TGA curves of GN (a), Cu-MOF (b) and Cu-MOF–GN-3 (c); (B) EIS of different modified electrodes in a 0.1 M KCl solution containing 5.0 mM K₃Fe(CN)₆/K₄Fe(CN)₆ and from 0.1 Hz to 100.0 kHz; (C) CVs of Cu-MOF–GN-3/GCE in PBS (pH = 7.0) containing 0 (a) and 5 mM (b) H₂O₂. (D) CVs of different electrodes in 0.1 M PBS (pH = 7.0) with 5 mM H₂O₂.

Electrochemical impedance spectroscopy (EIS) was used to estimate their electronic conductivity which was closely related to their electrochemical property. As can be seen in Fig. 3B, bare GCE exhibited a semicircle part at high frequency, after being modified with inferior electronic conductivity of Cu-MOF, the diameter of the semicircle significantly increased. On the contrary, the diameter of the semicircle of the GN modified electrode markedly decreased because of its good electronic conductivity. Similarly, the diameter of the semicircle of Cu-MOF–GN-3/GCE was also very small, indicating that Cu-MOF–GN-3 had good conductivity due to GN introducing. The composite could make the electron transfer easier than that of Cu-MOF. The conductivity of Cu-MOF–GN-x changed slightly with composition ratio of GN. The determined charge transfer resistances (R_cts) for Cu-MOF–GN-1, Cu-MOF–GN-2, Cu-MOF–GN-3 and Cu-MOF–GN-4 were 23.6, 18.9, 9.2 and 3.8 Ω respectively. Obviously, the values of R_ct reduced with increasing the content of GN, indicating that the electron transfer ability of Cu-MOF has been greatly improved by adding GN.

The electrochemical properties of the Cu-MOF–GN nanocomposites were studied further by cyclic voltammetry with small probe molecules (i.e. H₂O₂ and AA). As can be seen in Fig. 3C, in blank PBS solutions, the Cu-MOF–GN-3/GCE electrode produced a clear cathodic peak at −0.3 V and a anodic peak at −0.07 V (curve a). A pair of redox peak with similar shape and position had been observed at Cu-MOF/GCE too (Fig. 3D), the redox peak could be considered to come from the redox of copper ion in Cu-MOF.³⁴ After H₂O₂ was added, the cathodic peak at −0.3 V increased greatly, displaying the good catalytic property of Cu-MOF–GN-3 toward H₂O₂.

The outstanding electrocatalytic property of Cu-MOF–GN-3/GCE was confirmed further by comparing the response current of H₂O₂ at different electrodes (Fig. 3D). Obviously, H₂O₂ did not produce obvious peak at bare GCE. At Cu-MOF/GCE electrode, a small current peak could be seen at about −0.25 V, owning to the redox of copper ion. This process relied on the ingress of electrolyte ions into the Cu-MOF solid lattice through fast internal diffusion.²⁸ Besides, Cu-MOF and GN also exhibited catalytic effect to H₂O₂. Nevertheless, the most sensitive response of H₂O₂ was observed at Cu-MOF–GN-3/GCE. This could be ascribed to the good conductivity of Cu-MOF–GN and the synergetically catalytic effect of Cu-MOF and GN.³⁴

Similarly, Cu-MOF–GN-3/GCE showed better electrocatalytic activity to AA, this could be seen from the increased peak current and the negatively shifted peak potential compared with that at GCE (Fig. S5†). The oxidation peak potential of AA at Cu-MOF–GN-3/GCE was around −0.02 V.

3.3. Sensing application

3.3.1. Optimization of experimental variables. The composition and modifying amount of Cu-MOF–GN often have great impact on the sensing property of ultimate modified electrode. So these factors were optimized.

As can be seen in Fig. S6A,† Cu-MOF–GN-3 contained 80 wt% GN was better than others for the electrochemical reduction of H₂O₂. The peak currents obtained at Cu-MOF–GN-1, Cu-MOF–GN-2, Cu-MOF–GN-3 and Cu-MOF–GN-4 were 226.4, 242.8, 282.3 and 251.3 μA, respectively. The increased current with increasing GN content could be ascribed to the improved conductivity of composites. But increasing the proportion of GN in nanocomposites further would result in decreasing of response current, owning to the weakened electron mediating action of Cu-MOF. So Cu-MOF–GN-3 nanocomposite was selected for preparing modified electrode.

Increasing the volume of Cu-MOF–GN-3 suspension, the peak current of H₂O₂ increased gradually up to 4.0 μL, then it decreased (Fig. S6B†). This was related to the change of electrode surface area and electron transfer resistance. When the amount of Cu-MOF–GN-3 was too much, the electrode area kept almost unchanged but the resistance increased due to the thickness of Cu-MOF–GN-3 growing. Therefore, 4.0 μL of Cu-MOF–GN-3 suspension was adopted for preparing modified electrode.

The detection potential was optimized too (Fig. S6B†). The response current increased with the operating potential changing from −0.25 V to −0.35 V, but further decreasing the potential, the respond current also decreased. In this case, −0.35 V was chosen.

3.3.2. Amperometric measurement of H₂O₂ and AA. Under the optimized conditions, the chronoamperometric curves of H₂O₂ at Cu-MOF–GN-3/GCE were recorded (Fig. 4). The current increased upon the increase of H₂O₂ concentration, and the linear range was 10–11 180 μM. The linear regression equation was I_p (μA) = 0.05773c (μM) + 15.03 (R² = 0.995) with a sensitivity of 57.73 μA mM⁻¹. The limit of detection (LOD, S/N = 3) was 2 μM and the current response of Cu-MOF–GN-3/GCE generally reached a steady-state level within 3 s after adding H₂O₂. Compared with other H₂O₂ sensors, the Cu-MOF–GN-3/GCE offered wide linear range and good sensitivity (Table S1†).

Fig. 4 Amperometric response curves of Cu-MOF–GN-3/GCE upon successive addition of H₂O₂ at −0.35 V. Left inset: the amperometric response of low concentration of H₂O₂. Right inset: response time and the relationship between H₂O₂ concentration and current signal for Cu-MOF–GN-3/GCE.

Simultaneously, under the same conditions for H₂O₂ except detection potential, the chronoamperometric curves of AA at Cu-MOF–GN-3/GCE were recorded (Fig. 5). The current increased upon the increase of AA concentration, and the linear range was 0.5–6965.5 μM. The linear regression equation was I_p (μA) = 0.01825c (μM) + 2.896 (R² = 0.993). The limit of detection (LOD, S/N = 3) was 20 nM. Compared with other AA sensors, Cu-MOF–GN-3/GCE offered acceptable performance (Table S2†).

Fig. 5 Amperometric response curves of Cu-MOF–GN-3/GCE upon successive addition of AA at −0.02 V. Left inset: the amperometric response of low concentration of AA.

3.3.3. Selectivity, reproducibility and stability. Under the selected detection potential (−0.35 V for H₂O₂ and −0.02 V for AA), Cu-MOF–GN-3/GCE exhibited excellent selectivity to H₂O₂ and AA. When 100-fold of D-fructose, sucrose, α-lactose, AA and 50-fold uric acid (UA) were added to 0.1 mM H₂O₂, the current signal almost kept unchanged. This should be ascribed to the low detection potential. Similarly, 100-fold of D-fructose, sucrose, α-lactose, glucose, 50-fold dopamine and 0.5-fold UA had no obvious impact on the current response of 5 μM AA.

The repeatability and reproducibility of the developed sensor were evaluated by amperometric determination of 0.1 mM H₂O₂ and 5 μM AA, respectively. Seven Cu-MOF–GN-3/GCEs were prepared independently by the same way, and the relative standard deviations (RSDs) of the current response were 4.8% (n = 7) (Fig. S7†) and 5.1% (n = 7) for H₂O₂ and AA, respectively. Seven successive measurements using one electrode gave RSDs of 3.5% (n = 7, for H₂O₂) and 4.4% (n = 7, for AA). That indicated that the electrode had good reproducibility and repeatability.

The good stability could be confirmed further by comparing the XRD patterns before and after electrochemical measurement. As can be seen in Fig. S8,† the peaks of the resultant were in conformity with those of original Cu-MOF–GN, suggesting that the structure of Cu-MOF–GN-3 had not been damaged during the electrochemical detection. The abundant carbon material (such as GN) seems to act as a strong fixing agent of MOF, which was beneficial to the stability of the crystalline structure of MOF during the electrochemical detection.^32,42–44

The storage stability of the sensor was also examined. When the Cu-MOF–GN-3/GCE was stored in a centrifuge tube at 4 °C in a refrigerator for 15 days, the response current for H₂O₂ retained 96.7% of its initial value, after a month of storage, it still retained 91.5%. These reflected the long-term stability of Cu-MOF–GN-3/GCE.

4. Conclusions

In this study, we have demonstrated for the first time a simple one-step method to synthesis Cu-MOF–GN nanocomposites. The composite was applied to construct sensor for the electrochemical determination of H₂O₂ and AA. The electrochemical experiments showed that the incorporation of GN greatly enhanced the conductivity, stability and electrocatalysis of CuMOF. The sensor showed excellent electrochemical response, wide linear range and long-term stability. The study would expand the potential applications of MOF-carbon nanocomposite in electrochemical fields.
