One-pot synthesis of α-iodoketones from alcohols using ammonium iodide and Oxone® in water

Marri Mahender Reddya, Peraka Swamyab, Mameda Nareshab, Kodumuri Srujanaa, Chevella Durgaiaha, Tumula Venkateshwar Raoa and Nama Narender*ab
aI&PC Division, CSIR-Indian Institute of Chemical Technology, Hyderabad 500 007, India. E-mail: narendern33@yahoo.co.in; Fax: +91-40-27160387/27160757; Tel: +91-40-27191703
bAcademy of Scientific and Innovative Research, India

Received 10th December 2014 , Accepted 15th January 2015

First published on 15th January 2015


Abstract

A novel protocol for the synthesis of α-iodoketones from alcohols has been developed. Using water as the reaction medium, ammonium iodide and Oxone® was proven to be an efficient reagent system for this reaction and afforded the corresponding α-iodoketones in moderate to good yields. The generality of this reaction was demonstrated with various secondary alcohols such as benzylic alcohols and aliphatic alcohols (acyclic and cyclic).


Strong efforts have been made in the field of green chemistry to accept methods that are step economic, produce fewer by-products and use less energy and less toxic chemicals.1 In particular, the use of water as a solvent for organic synthesis has become popular and received substantial interest because water is a green and abundant natural resource which can be easily obtained.2 Moreover, tandem reactions have also become powerful tools for performing several chemical reactions in only one operation often yielding products with significantly increased molecular complexity from simple starting materials.3 The main advantages of tandem reactions are reduction of overall steps by avoiding isolation of often highly reactive intermediates, and the minimization of waste compared to stepwise reactions, the amount of solvents, reagents, adsorbents and energy can be dramatically decreased.

It is hard to envision organic chemistry without organo-halogen compounds because the halo-substituted organic compounds are widely used as intermediates in carbon–carbon, carbon–oxygen and carbon–nitrogen bond formation reaction. Moreover, iodinated compounds are generally used in medical diagnostics as contrast agents or radioactively-labelled markers.4 α-Iodoketones are among the most versatile intermediates in organic synthesis and their high reactivity makes them prone to react with large number of nucleophiles to provide a variety of useful compounds.5 As the iodine atom has poor electrophilic nature, the selective introduction of iodine into organic molecules has received significant attention among the scientific community.6 Most of the known methods of preparing α-iodoketones proceed indirectly by oxidative iodination of olefins,7 electrophilic iodination of ketone derivatives (enol ethers, and acetates)8 or by halogen interchange of bromo compounds with sodium iodide.9 Due to the difficulties in the synthesis and purification of enol silyl ethers and acetates, in recent years various modified reagents have been discovered for the synthesis of α-iodoketones from carbonyl compounds using different iodonium donating systems.10–22 However, most of these methods have one or more drawbacks, such as use of expensive, hazardous or toxic reagents, tedious work-up procedures and high reaction temperatures. Therefore, the development of an efficient, environmentally friendly, atom economic (100% with respect to iodine) and selective procedure for the direct synthesis of α-iodoketones is still desirable.

Synthesis of α-iodoketones from alcohols instead of ketones in a single step is a challenging task. Recently, Barluenga et al. reported the α-iodoketones from alcohols under acidic condition.23 However, main disadvantage of this method is the use of strong mineral acid. From the green chemical point of view there is a need to reduce the chemical waste and promote simple synthetic methods involving readily available, inexpensive and less toxic reactants to synthesize α-iodoketones selectively. To contribute to the development of an environmentally benign organic chemistry, we are focusing our research on the replacement of the volatile common organic reaction media with water (green solvent). As part of our ongoing research programme to develop ‘greener’ methods for halogenation,24 earlier we have reported a method for the α-iodination of carbonyl compounds using NH4I–Oxone® system25 and to the best of our knowledge there are no reports for the synthesis of α-iodoketones from alcohols using NH4I and Oxone®. Herein, we report a novel and environmentally benign procedure for the direct synthesis of α-iodoketones from alcohols using NH4I and Oxone® in water without employing any catalyst.

Initially, we investigated suitable reaction conditions for the synthesis of α-iodoketones using 1-phenylethanol as the model substrate with NH4I–Oxone® reagent system and the results are described in Table 1. Several solvents (H2O, CH3OH, EtOH, iso-propanol, tert-butanol, acetone, CH3CN, ethyl acetate, THF, CHCl3, CH2Cl2, CCl4 and hexane) were investigated and results revealed that the reaction proceeded only in polar protic solvents (Table 1). The best results were obtained when water was used as a solvent among others in terms of reaction yields and time (Table 1, entries 4–16). Next, we examined the temperature effect on this reaction, by varying the reaction temperature from RT to 70 °C a gradual improvement of reaction yield (23–72%) was observed (Table 1, entries 1–4). The above results showed that the optimum reaction conditions to get the highest yield for this reaction are 1-phenylethanol (1 mmol), NH4I (1.1 mmol) and Oxone® (1.1 mmol) in water (10 ml) at 70 °C.

Table 1 Optimization of reaction conditionsa

image file: c4ra16130k-u1.tif

Entry Solvent Time (h) Yieldb (%)
a Reaction conditions: substrate (2 mmol), NH4I (2.2 mmol), Oxone® (2.2 mmol), solvent (10 ml).b Products were characterized by 1H NMR, mass spectra and quantified by GC.c RT.d 50 °C.e 60 °C.f 70 °C.g Reflux temperature.
1 H2O 48c 23
2 H2O 24d 35
3 H2O 14e 41
4 H2O 3.5f 72
5 CH3OH 24g 20
6 EtOH 24g
7 iso-Propanol 24g
8 tert-Butanol 24g
9 Acetone 24g
10 CH3CN 24g
11 AcOEt 24g
12 THF 24g
13 CHCl3 24g
14 CH2Cl2 24g
15 CCl4 24g
16 Hexane 24g



With the optimized conditions in hand, the scope and limitations of the method was explored (Scheme 1) with a variety of secondary alcohols (benzylic and aliphatic secondary alcohols) and the results are summarized in Table 2. 1-Phenylethanol produced the corresponding α-iodoproduct in high yield (Table 2, entry 1). In order to determine the influence of substitution on aromatic ring of 1-phenylethanol on the reaction path with this reagent system, we studied the reaction with different substitutions (Table 2, entries 2–6). Moderately activating group present on aromatic ring of 1-phenylethanol i.e. 1-(4-methylphenyl)ethanol provided lower yield (10%) (Table 2, entry 2). Whereas, highly activated 1-phenylethanol i.e. 1-(3-methoxyphenyl)ethanol gave a complex mixture of unidentified products, which contained virtually no α-iodoproduct (Table 2, entry 3). Halo substituted 1-phenylethanols such as 1-(4-bromophenyl)ethanol and 1-(4-fluorophenyl)ethanol were gave the corresponding α-iodinated products in 40% and 25% yields, respectively (Table 2, entries 4 and 5). Highly deactivated 1-(4-nitrophenyl)ethanol also furnished lower yield of the corresponding product (Table 2, entry 6). Interestingly, 1-phenylpropanol showed good reactivity with this reagent system and yielded the corresponding α-iodoproduct in good yield (66%) within 1 h (Table 2, entry 7).


image file: c4ra16130k-s1.tif

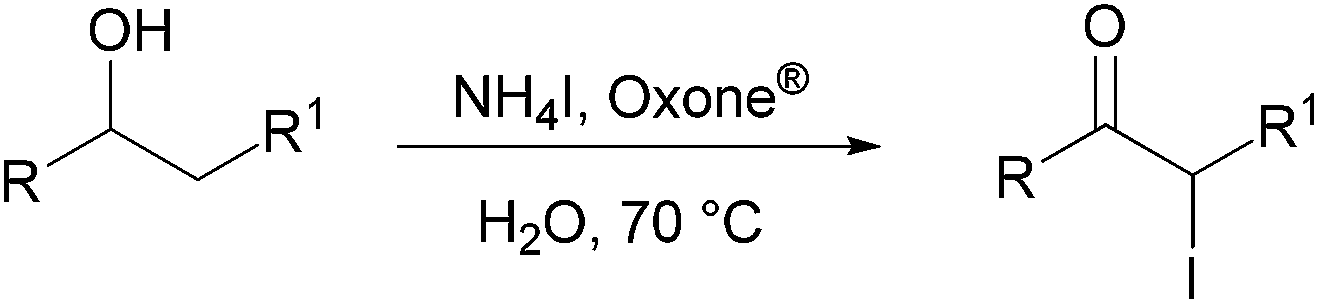

Scheme 1 Synthesis of α-iodoketones.
Table 2 Synthesis of α-iodoketones from alcoholsa

image file: c4ra16130k-u2.tif

Entry Substrate Time (h) Product Yieldb (%)
a Reaction conditions: substrate (2 mmol), NH4I (2.2 mmol), Oxone® (2.2 mmol), water (10 ml), 70 °C.b Products were characterized by 1H NMR, mass spectra and quantified by GC.
1 image file: c4ra16130k-u3.tif 3.5 image file: c4ra16130k-u4.tif 72
2 image file: c4ra16130k-u5.tif 24 image file: c4ra16130k-u6.tif 10
3 image file: c4ra16130k-u7.tif 6 image file: c4ra16130k-u8.tif
4 image file: c4ra16130k-u9.tif 20 image file: c4ra16130k-u10.tif 40
5 image file: c4ra16130k-u11.tif 9 image file: c4ra16130k-u12.tif 25
6 image file: c4ra16130k-u13.tif 24 image file: c4ra16130k-u14.tif 15
7 image file: c4ra16130k-u15.tif 1 image file: c4ra16130k-u16.tif 66
8 image file: c4ra16130k-u17.tif 24 image file: c4ra16130k-u18.tif 77
9 image file: c4ra16130k-u19.tif 24 image file: c4ra16130k-u20.tif 72
10 image file: c4ra16130k-u21.tif 24 image file: c4ra16130k-u22.tif 78
11 image file: c4ra16130k-u23.tif 24 image file: c4ra16130k-u24.tif 79
12 image file: c4ra16130k-u25.tif 24 image file: c4ra16130k-u26.tif 89
13 image file: c4ra16130k-u27.tif 24 image file: c4ra16130k-u28.tif 80


Further, we investigated the efficiency of this method with aliphatic alcohols. In case of cyclic alcohols such as, cycloheptanol and cyclooctanol were reacted under the similar conditions to afford corresponding α-iodoproducts in 61% and 55% yields, along with α,α′-diiodoproducts in 16% and 17% yields, respectively (Table 2, entries 8 and 9). Notably, the acyclic alcohols, such as 2-nonanol, 2-octanol and 3-octanol were rendered the mixture of α-iodinated products (two monoiodinated regiomers and α,α′-diiodoproducts) in >77% yield (Table 2, entries 10–13). For example, 2-nonanol delivered the 1-iodo-2-nonanone, 3-iodo-2-nonanone and 1,3-diiodo-2-nonanone in 19%, 38% and 21% yields, respectively (Table 2, entry 10). 4-Phenyl-2-butanol was also provided the mixture of α-iodinated products in 80% yield (Table 2, entry 13).

In a blank experiment, no reaction occurred between acetophenone and NH4I without Oxone® (oxidant) under similar reaction conditions. Thus the role played by the Oxone® is justified. In absence of NH4I also we did not observe any reaction between Oxone® and alcohol. Based on the above experimental observations and literature reports,23,25,26 we propose a probable reaction mechanism for the formation of α-iodoketones from alcohols is shown in Scheme 2. It is assumed that the IΘ(NH4I) is oxidized with Oxone® to generate the I(HOI) in situ. I(HOI) plays multiple roles in this reaction. First, it acts as the oxidizing agent to convert alcohol into ketone via intermediate A. Then, Oxone® oxidizes the generated IΘ(NH4I) to I(HOI), which (I(HOI)) acts as iodinating agent and further reacts with enol form of carbonyl compound to afford the corresponding α-iodinated product.


image file: c4ra16130k-s2.tif
Scheme 2 The probable reaction mechanism for the formation of α-iodoketones from alcohols.

Conclusions

In conclusion, we have developed an efficient and green protocol for the synthesis of α-iodoketones directly from secondary alcohols using NH4I and Oxone® without metal or mineral acid catalyst in aqueous media. Various secondary alcohols, such as benzylic alcohols and aliphatic alcohols (acyclic and cyclic) can be oxidized-iodinated by this reagent system under mild conditions and affording the corresponding α-iodoproducts in moderate to good yields. Remarkably, the process conducted in water (green solvent) and offers several advantages, such as commercial availability of the reagents, simple reaction conditions, high atom economy (100% with respect to iodine), good yields, easier setup/work-up procedures and environmentally friendly nature makes our method more valuable from preparative point of view.

Experimental section

General procedure for the synthesis of α-iodoketones: Oxone® (2.2 mmol) was slowly added to a well stirred solution of NH4I (2.2 mmol) and alcohol (2 mmol) in water (10 ml) and the reaction mixture was allowed to stir at 70 °C. After disappearance of the alcohol (reaction was monitored by TLC) or after the appropriate time, the organic product mixture was extracted with DCM (3 × 25 ml). The organic layer was washed with 5% aqueous sodium thiosulfate solution (10 ml) and dried over anhydrous Na2SO4. The solvent was removed in vacuo and the residue was purified by column chromatography over silica gel using n-hexane-ethyl acetate as eluent to give desired products. All the products were identified by their 1H NMR, 13C NMR and mass spectra.

Acknowledgements

We thank the CSIR Network project CSC-0125 for financial support. M.M.R., M.N. and Ch.D acknowledge the financial support from CSIR, India in the form of fellowships. P.S. and K.S. acknowledge the financial support from UGC, India in the form of fellowship.

Notes and references

  1. (a) P. Anastas, R. Kazlauskas and G. Sheldrake, Green Chem., 2006, 8, 677–678 RSC; (b) P. Anastas and N. Eghbali, Chem. Soc. Rev., 2010, 39, 301–312 RSC.
  2. (a) T. Maegawa, A. Akashi, K. Yaguchi, Y. Iwasaki, M. Shigetsura, Y. Monguchi and H. Sajiki, Chem.–Eur. J., 2009, 15, 6953–6963 CrossRef CAS PubMed; (b) K. Aplander, O. Hidestal, K. Katebzadeh and U. M. Lindstrom, Green Chem., 2006, 8, 22–24 RSC; (c) C. J. Li and L. Chen, Chem. Soc. Rev., 2006, 35, 68–82 RSC; (d) K. Kumaravel and G. Vasuki, Curr. Org. Chem., 2009, 13, 1820–1841 CrossRef CAS; (e) N. Yan, C. Xiao and Y. Kou, Coord. Chem. Rev., 2010, 254, 1179–1218 CrossRef CAS PubMed; (f) R. N. Butler and A. G. Coyne, Chem. Rev., 2010, 110, 6302–6337 CrossRef CAS PubMed.
  3. (a) C. J. Chapman and C. G. Frost, Synthesis, 2007, 1–21 CAS; (b) R. J. K. Taylor, M. Reid, J. Foot and S. A. Raw, Acc. Chem. Res., 2005, 38, 851–869 CrossRef CAS PubMed; (c) K. C. Nicolaou, D. J. Edmonds and P. G. Bulger, Angew. Chem., Int. Ed., 2006, 45, 7134–7186 CrossRef CAS PubMed; (d) L. F. Tietze, Chem. Rev., 1996, 96, 115–136 CrossRef CAS PubMed; (e) L. F. Tietze and U. Beifuss, Angew. Chem., Int. Ed. Engl., 1993, 32, 131–163 CrossRef; (f) E. Fernandez, A. Polo, A. Ruiz, C. Clavera and S. Castillon, Chem. Commun., 1998, 1803–1804 RSC; (g) M. Arun Kumar, P. Swamy, M. Naresh, M. Mahender Reddy, C. N. Rohitha, S. Prabhakar, A. V. S. Sarma, J. R. Prem Kumar and N. Narender, Chem. Commun., 2013, 49, 1711–1713 RSC; (h) M. Mahender Reddy, M. Arun Kumar, P. Swamy, M. Naresh, K. Srujana, L. Satyanarayana, A. Venugopal and N. Narender, Green Chem., 2013, 15, 3474–3483 RSC.
  4. (a) F. Bellina, A. Carpita and R. Rossi, Synthesis, 2004, 2419–2440 CAS; (b) J. Hassan, M. Sevignon, C. Gozzi, E. Schulz and M. Lemaire, Chem. Rev., 2002, 102, 1359–1470 CrossRef CAS PubMed; (c) M. J. Welch and C. S. Redvanly, Hand book of Radiopharmaceuticals, Radiochemistry and Applications, Wiley, Chichester, 2003 Search PubMed; (d) M. Sovak, in Radiocontract Agents, Handbook of Experimental Pharmacology, Springer, Berlin, 1993, p. 73 Search PubMed.
  5. A. W. Erian, S. M. Sherif and H. M. Gaber, Molecules, 2003, 8, 793–865 CrossRef CAS PubMed.
  6. (a) Y. Sasson, Formation of Carbon–Halogen Bonds (Cl, Br, I), in The Chemistry of Functional Groups, Supplement D2, The Chemistry of Halides, Pseudo Halides and Azides, Part 2, ed. S. Patai and Z. Rappoport, Wiley, Chichester, 1995, pp. 535–620 Search PubMed; (b) J. Barluenga, Pure Appl. Chem., 1999, 71, 431–436 CAS.
  7. (a) R. D. Ascoli, M. D. Auria, L. Nucciarelli, G. Piancatelli and A. Seettri, Tetrahedron Lett., 1980, 21, 4521–4522 CrossRef; (b) G. Cardillo and M. Shimizu, J. Org. Chem., 1977, 42, 4268–4270 CrossRef CAS; (c) R. D. Evans and J. H. Schauble, Synthesis, 1986, 727–730 CrossRef CAS.
  8. (a) R. C. Cambie, R. C. Hayward, J. L. Jurlina, P. S. Rutledge and P. D. Woodgate, J. Chem. Soc., Perkin Trans. 1, 1978, 1, 126–130 RSC; (b) C. Djerassi, C. J. Grossman and G. A. Thomas, J. Am. Chem. Soc., 1955, 77, 3826–3829 CrossRef CAS; (c) G. M. Rubottom and R. C. Mott, J. Org. Chem., 1979, 44, 1731–1734 CrossRef CAS; (d) A. D. Cort, J. Org. Chem., 1991, 56, 6708–6709 CrossRef; (e) C. Djerassi and C. T. Lenk, J. Am. Chem. Soc., 1953, 75, 3493–3495 CrossRef CAS.
  9. (a) Y. D. Vankar and G. Kumaravel, Tetrahedron Lett., 1984, 25, 233–236 CrossRef CAS; (b) G. Rosenkranz, O. Mancera, J. Gatica and C. Djerassi, J. Am. Chem. Soc., 1950, 72, 4077–4080 CrossRef CAS.
  10. M. S. Yusubov, R. Y. Yusubova, T. V. Funk, K.-W. Chi, A. Kirschning and V. V. Zhdankin, Synthesis, 2010, 3681–3685 CrossRef CAS PubMed.
  11. J. Iskra, S. Stavber and M. Zupan, Tetrahedron Lett., 2008, 49, 893–895 CrossRef CAS PubMed.
  12. G. Stavber, J. Iskra, M. Zupan and S. Stavber, Adv. Synth. Catal., 2008, 350, 2921–2929 CrossRef CAS.
  13. I. Pravst, M. Zupan and S. Stavber, Tetrahedron, 2008, 64, 5191–5199 CrossRef CAS PubMed.
  14. J. S. Yadav, G. Kondaji, M. S. R. Reddy and P. Srihari, Tetrahedron Lett., 2008, 49, 3810–3813 CrossRef CAS PubMed.
  15. H. M. Meshram, P. N. Reddy, P. Vishnu, K. Sadashiv and J. S. Yadav, Tetrahedron Lett., 2006, 47, 991–995 CrossRef CAS PubMed.
  16. G. Yin, M. Gao, N. She, S. Hu, A. Wu and Y. Pan, Synthesis, 2007, 3113–3116 CAS.
  17. J. Pavlinac, M. Zupan and S. Stavber, Org. Biomol. Chem., 2007, 5, 699–707 CAS.
  18. M. L. N. Rao and D. N. Jadhav, Tetrahedron Lett., 2006, 47, 6883–6886 CrossRef CAS PubMed.
  19. M. A. Khalilzadeh, A. Hosseini, M. Shokrollahzadheh, M. R. Halvagar, D. Ahmadi, F. Mohannazadeh and M. Tajbakhsh, Tetrahedron Lett., 2006, 47, 3525–3528 CrossRef CAS PubMed.
  20. J. C. Lee, J. Y. Park, S. Y. Yoon, Y. H. Bae and S. J. Lee, Tetrahedron Lett., 2004, 45, 191–193 CrossRef CAS PubMed.
  21. S. Stavber, M. Jereb and M. Zupan, J. Chem. Soc., Chem. Commun., 2002, 488–489 RSC.
  22. D. Yang, Y. L. Yan and B. Lui, J. Org. Chem., 2002, 67, 7429–7431 CrossRef CAS PubMed.
  23. J. Barluenga, M. Marco-Arias, F. Gonzalez-Bobes, A. Ballesteros and J. M. Gonzalez, Chem. Commun., 2004, 2616–2617 RSC.
  24. (a) K. V. V. Krishna Mohan and N. Narender, Synthesis, 2012, 15–26 Search PubMed; (b) M. Arun Kumar, C. N. Rohitha, M. Mahender Reddy, P. Swamy and N. Narender, Tetrahedron Lett., 2012, 53, 191–195 CrossRef PubMed; (c) P. Swamy, M. Arun Kumar, M. Mahender Reddy and N. Narender, Chem. Lett., 2012, 41, 432–434 CrossRef CAS; (d) M. Arun Kumar, C. N. Rohitha and N. Narender, Tetrahedron Lett., 2012, 53, 1401–1405 CrossRef PubMed; (e) M. Arun Kumar, M. Naresh, C. N. Rohitha and N. Narender, Synth. Commun., 2013, 43, 3121–3129 CrossRef; (f) M. Naresh, M. Arun Kumar, M. Mahender Reddy, P. Swamy, N. Jagadeesh Babu and N. Narender, Synthesis, 2013, 1497–1504 CAS; (g) M. Naresh, P. Swamy, M. Arun Kumar, M. Mahender Reddy, K. Srujana and N. Narender, Tetrahedron Lett., 2014, 55, 3926–3933 CrossRef CAS PubMed.
  25. M. Mahender Reddy, M. Arun Kumar, P. Swamy and N. Narender, Tetrahedron Lett., 2011, 52, 6554–6559 CrossRef PubMed.
  26. (a) R. E. Montgomery, J. Am. Chem. Soc., 1974, 96, 7820–7821 CrossRef CAS; (b) H. W. You and K.-J. Lee, Synlett, 2001, 105–107 CAS.

Footnote

Electronic supplementary information (ESI) available: Characterization data and copies of 1H and 13C NMR spectra. See DOI: 10.1039/c4ra16130k
