Synthesis, characterization and DFT study of oxorhenium(V) complexes incorporating quinoline based tridentate ligands

Abstract

Two tridentate quinoline based Schiff base ligands HL¹ and HL² were prepared by condensation of salicylaldehyde and 2-hydroxy naphthaldehyde with 8-aminoquinoline, respectively in excellent yield. These ligands react with [ReOCl₃(OPPh₃)(SMe₂)] in a ratio of 1 : 1 in acetone to form mononuclear trans-dichloro oxo complexes of general formula [Re^VO(L)Cl₂]. Here L⁻ is the deprotonated form of 2-((quinolin-8-ylimino) methyl)phenol (HL¹) or 1-[(quinolin-8-ylimino)methyl]naphthalene-2-ol (HL²). The elemental analysis and ESI mass spectroscopic measurements ensure the formation of the desired complexes. The molecular structure of mer-[Re^VO(L¹)Cl₂] was confirmed by single-crystal X-ray diffraction. The complexes were also characterized by different spectroscopic techniques and electrochemical methods. The ground state geometry, NMR and absorption of Re(V) complexes were examined by DFT and TDDFT methods. The natural transition orbital (NTO) and spin density difference map analysis reveal the nature of the excitations. It was also found that the complexes act as a catalyst for oxidation of cis-cyclooctene to the corresponding epoxide by tert-butyl hydroperoxide (TBHP). The NMR and ESI mass spectroscopic analysis ensure the formation of the desired product which was obtained from catalysis.

---

Introduction

The coordination chemistry of high valent rhenium has attracted current attention.¹ This is mainly due to the fact that the high-valent oxorhenium complexes are of great importance as oxidation catalysts and because of their capability to transfer an oxygen atom (OAT) to suitable organic substrates^2–11 as well as their β-emitting isotopes (¹⁸⁶Re and ¹⁸⁸Re) used as therapeutic and diagnostic agents in nuclear medicine.^12–21

The stability and reactivity of such compounds is governed by the close envioronment^22,23 about the metal ion and the small change in the ligand architecture can strongly influence its chemistry. The above state of development has prompted us to search new oxorhenium complexes as a part of our general programme on oxorhenium chelates using N, N, O coordinating ligands.^24–26

In this paper we describe the syntheses of complexes of types Re^VO(NNO)Cl₂, using two types of O, N, N-coordinating Schiff base ligands. The structures of the complex, as well as their properties, were probed using X-ray diffraction, spectroscopic and electrochemical techniques. The catalytic property of the complexes was also scrutinized.

In recent years, with the enhancement of the density functional theory (DFT) and especially the improvement of time-dependent density functional theory (TDDFT).²⁷ properties of both ground- and excited-states for medium-sized metal complexes can be calculated at the first-principle level with good accuracy.^28,29 In order to get better insight into the geometry and the electronic structure geometry optimizations of the ground was carried out by means of DFT calculations. We also calculate and analyze the singlet state natural transition orbitals (NTOs) derived from TDDFT results and compare them with the ground state molecular orbitals (MOs). The computational modeling of the NMR parameter is also of abiding interest, and such calculation at DFT has emerged as a promising approach for the prediction of nuclear shielding and coupling constants of NMR active nuclei.³⁰ Thus, we have computed the proton and carbon NMR chemical shifts and also the ¹H–¹H spin–spin coupling constant using the gauge-independent atomic orbital (GIAO)-DFT method, which is aimed at providing the definitive characterization of the complexes.

Experimental section

Materials

[ReOCl₃(Me₂S)(OPPh₃)]³¹ were prepared as reported in the literature. cis-Cyclooctene and tert-butyl hydroperoxide (tBuOOH) 5.0–6.0 M in n-decane used was purchased from Aldrich Chemical Co. All of the solvents were purified by standard procedures. All the chemicals and solvents were analytically pure and used without further purification. All of the reactions were carried out under a dinitrogen atmosphere.

Physical measurements

UV-Vis spectra were recorded on a Perkin-Elmer LAMBDA 25 spectrophotometer. IR spectra were obtained with a Perkin-Elmer L-0100 spectrophotometer. ¹H NMR spectra were measured on Bruker FT 300 MHz spectrometer with tetramethylsilane (TMS) as an internal reference. The atom-numbering scheme used for ¹H NMR was same as that used in the crystallography. Electrospray ionization mass spectrometry (ESI-MS) spectra were obtained on a Micromass Qtof YA 263 mass spectrometer. Magnetic susceptibilities were measured on a PAR-155 vibrating-sample magnetometer. Elemental analyses (C, H, N) were performed on Perkin-Elmer 2400 series II analyzer and electrochemical measurements were recorded on a CHI 620A electrochemical analyzer using platinum electrode under nitrogen atmosphere. Tetraethylammonium perchlorate (TEAP) was used as a supporting electrolyte and potentials were referenced to the Standard Calomel Electrode (SCE) without junction correction. The cyclic voltammograms were recorded with a scan rate of 50 mV s⁻¹ with iR compensation in all cases.

Computational details

The geometrical structures of the ground-state of the selected complexes were optimized by the DFT³² method with B3LYP exchange correlation functional³³ approach. The geometry of the complexes was fully optimized in solution phase without any symmetry constraints. There was a good agreement between the theoretical and experimental structures. On the basis of the optimized ground state geometry structure, the absorption property in acetonitrile (CH₃CN) media was calculated by time-dependent density functional theory (TDDFT)³⁴ approach associated with the conductor-like polarizable continuum model (CPCM).³⁵ We computed the lowest 40 singlet–singlet transition and results of the TD calculations were qualitatively very similar. The TDDFT approach had been demonstrated to be reliable for calculating spectra properties of many transition metal complexes.³⁶ Due to the presence of electronic correlation in the TDDFT (B3LYP) method it can yield more accurate electronic excitation energies. Hence TDDFT had been shown to provide a reasonable spectral feature for our complex of investigation.

In the calculation, the quasirelativistic pseudo potentials of Re atoms proposed by Hay and Wadt³⁷ with 14 valence electrons (outer-core [(5s²5p⁶)] electrons and the (5d⁶) valence electrons) were employed, and a “double-ξ” quality basis set LANL2DZ was adopted as the basis set for Re atoms. For H we used 6-31(g) basis set and the 6-31+G(d)³⁸ basis set for C, N, O, and Cl atoms for the optimization of the ground state geometries.

In addition, the ¹H and ¹³C NMR properties of the complexes were calculated with the magnetic field perturbation method with the GIAO algorithm³⁹ with the NMR = spin–spin keyword incorporated in the Gaussian 09W program. In calculation, the 6-311+G(2d,p) basis set was employed for all atoms other than rhenium. The relative chemical shift of a given nucleus X in the molecule was defined as δ^calc_X [ppm] = σ^calc_X − σ^ref_X where TMS was used as a reference molecule optimized at the same level of theory.^39b,40a In order to account for the solvent effect, we used the integral equation-formalism polarizable continuum model (IEFPCM) method.^40b,c

Finally to understand the nature of excited states involved in absorption and emission processes natural transition orbital (NTO) analysis had been performed for all complexes. This approach provides the most compact representation of the electronic transitions on terms of an expansion into single particle orbitals by diagonalizing the transition density matrix associated with each excitation.⁴¹ The spin density difference map calculations were also performed to explain their optical properties. Figures showing MOs, NTOs and the difference density plots were prepared by using the GaussView 5.1 software. All the calculations were performed with the Gaussian 09W software package.⁴² GaussSum 2.1 program⁴³ was used to calculate the molecular orbital contributions from groups or atoms.

Crystallographic studies

The single crystal suitable for X-ray crystallographic analysis of the complex [Re^VO(L¹)Cl₂], 1 was obtained by slow evaporation of acetone solution of the complex. The X-ray intensity data were collected on Bruker AXS SMART APEX CCD diffractometer (MoK_α, λ = 0.71073 Å) at 293 K. The detector was placed at a distance 6.03 cm from the crystal. Total 606 frames were collected with a scan width of 0.3° in different settings of φ. The data were reduced in SAINTPLUS⁴⁴ and empirical absorption correction was applied using the SADABS package.⁴⁴

Metal atom was located by Patterson Method and the rest of the non-hydrogen atoms were emerged from successive Fourier synthesis. The structures were refined by full matrix least-square procedure on F². All non-hydrogen atoms were refined anisotropically. All calculations were performed using the SHELXTL V 6.14 program package.⁴⁵ Molecular structure plots were drawn using the Oak Ridge thermal ellipsoid plot (ORTEP).⁴⁶ Relevant crystal data are given in Table 1.

Table 1 Crystal data and structure refinement parameters for complex 1

1
a R1 = Σ∣∣Fo∣ − ∣Fc∣∣/Σ∣Fo∣.b wR2 = [Σ[w(Fo^2 − Fc^2)^2]/Σ[w(Fo^2)^2]]^1/2.
Formula	C16H11Cl2N2O2Re
Mr	520.38
Crystal system	Triclinic
Space group	P1̄
a/Å	7.2210 (1)
b/Å	9.5214 (2)
c/Å	12.2908 (2)
α/°	74.277 (1)
β/°	84.604 (1)
γ/°	68.143 (1)
V/Å^3	754.93 (2)
Z	2
Dcalcd/mg m^−3	2.289
μ/mm^−1	8.412
θ/°	1.45–27.53
T/K	293 (2)
Reflns collected	3456
R1,^a wR2^b [I > 2σ(I)]	0.0322, 0.0565
GOF on F^2	1.000

---

Synthesis of complexes

The complexes [Re^VO(L¹)Cl₂] and [Re^VO(L²)Cl₂] were prepared by using a general method with [ReOCl₃(Me₂S) (OPPh₃)] as starting materials. Details are given here for a representative case (1 and 2).

[Re^VO(L¹)Cl₂], 1. A solution of HL¹ (30 mg, 0.12 mmol) in acetone was added under stirring at room temperature to a solution of [ReOCl₃(Me₂S)(OPPh₃)] (78 mg, 0.12 mmol) in acetone (25 ml). The solution became immediately red and the resulting mixture was stirred for 10 h, with precipitation of a dark brown solid observed slowly over the course of the reaction. The product was collected by suction filtration and washed with acetone and then with ether. The solid was allowed to dry in vacuum. The dark brown colored solid mass was dissolved in hot acetonitrile. On slow evaporation of the resulting solution dark red colored crystals were obtained. Yield: 45 mg (72%). Elemental anal. calcd for C₁₆H₁₁N₂O₂Cl₂Re: C, 36.93; H, 2.13; N, 5.38. Found: C, 37.05; H, 2.20; N, 5.48. ESI-MS (CH₃CN): m/z 486.94 [M − Cl + H]⁺. IR (cm⁻¹, KBr): 1606, 1528, 1512, 1404, 1152, ν (Re=O) 963, 826, 762, 327, and 307 cm⁻¹. UV-vis [CH₃CN; λ_max, nm (ε, M⁻¹ cm⁻¹)]: 451 (2740), 358 (4513), 259 (10 537), 229 (19 373). ¹H NMR_exptl {300 MHz, DMSO-d₆, δ (ppm), J (Hz)}: 8.7 (H15, d, J = 5.1), 8.3 (H7, s), 8.2 (H9, d, J = 7.6), 7.8 (H2, d, J = 8.3) 6.7–8.7 (10H, ArH). ¹H NMR_theor {δ (ppm), J (Hz)}: 10.4 (H15, d, J = 6.1), 7.8 (H7, s), 6.7 (H9, d, J = 8.0), 6.9 (H2, d, J = 8.7) 6.5–10.4 (10H, ArH). ¹³C NMR_exptl {500 MHz, CDCl₃, δ (ppm)}: 145.45 (C=N), 104.7–149.9 (15C, ArC). ¹³C NMR_theor {δ (ppm)}: 143.6 (C=N), 103–149.1 (19C, ArC). E_pa (Re^VI/Re^V couple): 1.44 V (irr), E_pc (ligand reduction couple): −0.38 V (irr).

[Re^VO(L²)Cl₂], 2. A solution of HL² (36 mg, 0.12 mmol) in acetone was added under stirring at room temperature to a solution of [ReOCl₃(Me₂S)(OPPh₃)] (78 mg, 0.12 mmol) in acetone (25 ml). The solution became immediately red and after a few minutes a red solid appeared. It was filtered off, washed with acetone and ether and allowed to dry in vacuum. Yield: 50 mg (74%). Elemental anal. calcd. for C₂₀H₁₃N₂O₂Cl₂Re: C, 42.11; H, 2.30; N, 4.91. Found: C, 42.23; H, 2.30; N, 5.01. ESI-MS (CH₃CN): m/z 535.04 [M − Cl]⁺; 501.08 [M − Cl₂ + H]⁺. IR_exptl (cm⁻¹, KBr): 1592, 1533, 1368, ν (Re=O) 962, 832, and 764 cm⁻¹. UV-vis [CH₃CN; λ_max, nm (ε, M⁻¹ cm⁻¹)]: 456 (9134), 375 (5247), 318 (5452), 256 (18 778), 230 (24 804). ¹H NMR_exptl {300 MHz, DMSO-d₆, δ (ppm), J (Hz)}: 9.5 (H19, d, J = 5.3), 8.3 (H11, s), 8.2 (H13, d, J = 8.9), 7.6 (H2, d, J = 7.5) 7.6–9.5 (12H, ArH). ¹H NMR_theor {δ (ppm), J (Hz)}: 10.5 (H19, d, J = 6.3), 7.8 (H11, s), 7.1 (H13, d, J = 9.7), 6.6 (H2, d, J = 8.0) 6.6–10.5 (12H, ArH). ¹³C NMR_exptl {500 MHz, CDCl₃, δ (ppm)}: 143.16 (C=N), 105.6–148.3 (19C, ArC). ¹³C NMR_theor {δ (ppm)}: 143.6 (C=N), 103–148.9 (19C, ArC). E_pa (Re^VI/Re^V couple): 1.07 V (irr), E_pc (ligand reduction couple): −0.44 V (irr).

Catalytic epoxidation reactions

The catalytic reactions were performed under an atmosphere of nitrogen. The reaction vessel was immersed into an oil bath, and a solution of (1 mmol) of cis-cyclooctene (R) dissolved in 5 ml of CHCl₃ and catalyst (10 μmol) were added, and the mixture was heated to 50 °C. During this time the colour of the solution was red. To start the reaction ^tBuOOH 5.0–6.0 M in n-decane (363 μl, 2 mmol) was added by syringe to the heated solution at once. Suddenly the colour of the solution changes red to colourless. Then the reaction vessel removed from the oil bath as soon as possible. A small amount of manganese dioxide added to destroy excess TBHP, and the mixture was filtered over a small pad of Celite and column was done to obtain the pure product (RO) using 5% ethylacetate in hexane. ¹H NMR and ESI mass spectroscopic measurements confirm the epoxidation of cis-cyclooctenethe was well performed by our Re(V) complexes. ¹H NMR_exptl {300 MHz, CDCl₃, δ (ppm)}: 2.3 (H1, m), 2.1 (H2, m), 1.8–1.9 (m, H3, H8), 1.4–1.6 (9H). ESI-MS (CH₂Cl₂): m/z 127.04 [RO + H]⁺.

Results and discussion

Synthesis

Two tridentate ligands HL¹ and HL² (general abbreviation, HL) used in this work are given in Chart 1 where L¹ and L² are the deprotonated form of the ligands. The two Schiff base ligands [Chart 1] were prepared according to the literature procedure^47,48 The ligands were used as a monoanionic N, N, O coordinating agents for the preparation of the Re(V) complexes (Scheme 1).

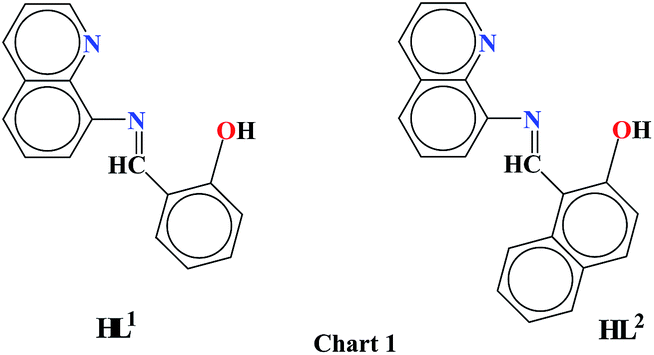

Chart 1

Scheme 1 Schematic representation for the synthesis of the complexes.

The stoichiometric reaction of [ReOCl₃(Me₂S)(OPPh₃)] with HL¹ and HL² in a ratio of 1 : 1 in acetone afforded the brown coloured complex, [Re^VO(L¹)Cl₂], and red colored species of formula [Re^VO(L²)Cl₂], respectively in excellent yields (Scheme 1). The elemental analysis and ESI mass spectroscopic measurements confirm the formation of the synthesized complexes. (see Experimental section).

Crystal structure

The molecular structures of complexes [Re^VO(L¹)Cl₂], 1 was determined by single-crystal X-ray diffractometry. The complex crystallizes in P1̄ space group. The selected bond distances and angles for 1 are listed in Table 2, and the molecular views are shown in Fig. 1.

Table 2 Selected bond lengths (Å) and angles (°) for 1

Bond lengths (Å)
Re1–N1	2.177(4)	Re1–O2	1.934(3)	C7–N1	1.318(5)
Re1–N2	2.123(4)	Re1–Cl1	2.3853(13)
Re1–O1	1.675(3)	Re1–Cl2	2.3653(14)
Bond angles (°)
Cl1–Re1–Cl2	169.44(5)	N1–Re1–Cl2	87.91(10)	N2–Re1–Cl2	90.19(11)
O1–Re1–O2	113.07(15)	N1–Re1–N2	74.47(14)	O1–Re1–Cl1	93.45(13)
N1–Re1–O1	162.08(15)	N2–Re1–O1	88.07(16)	O1–Re1–Cl2	96.27(13)
N1–Re1–O2	84.58(13)	N2–Re1–O2	158.73(14)	O2–Re1–Cl1	87.03(11)
N1–Re1–Cl1	84.08(10)	N2–Re1–Cl1	94.27(11)	O2–Re1–Cl2	85.03(11)

---

Fig. 1 ORTEP plot and atom labeling scheme of 1. Hydrogen atoms are omitted for clarity.

In the complex 1, the ligand (HL¹) behaves as O, N, N coordinating monoanionic ligand. The geometry around the Re(V) metal center is distorted octahedral and this is characterized by Cl1–Re1–Cl2 bond angle of 169.44(5) for 1. The ligand coordinates in a tridentate meridional mode, while the oxo groups are trans to the imino nitrogen (N1) atoms completing the basal plane. The chlorine atoms occupy the apical positions of the octahedron and are thus trans to each other. A limited number of trans dichloro oxorhenium(V) with a tridentate N₂O coordinating ligand is reported in the literature.⁴⁹

It is believed that the meridional binding mode.⁵⁰ of three chlorine atoms in the starting material [ReOCl₃(OPPh₃)(SMe₂)]³¹ helps to achieve the rare Re^V trans-dichloro oxo complexes. In the complex 1, N2–Re1–O2 angle being 158.73(14), significantly deviated from the value of 180°. The rhenium oxygen bond Re1–O1 was observed at 1.675(3), confirming a triple-bond character.⁵¹ The Re1–O2 is found at 1.934(3). The pyridyl N2–Re1 bond is shorter than the imino N1–Re1 bond, which is in agreement with the trans influence induced by O1. Both apical chloro ligands display bond distances to the central metal similar to those reported in the literature.^52–55a

IR spectra

The IR spectra of the complexes were recorded in a KBr disk. The characteristic IR data were given in the Experimental section. Both the complexes show one Re=O stretching frequency in the range 962–963 cm⁻¹. The C=N stretching frequency were observed 1606 cm⁻¹ and 1592 cm⁻¹ in complex 1 and 2 respectively.

NMR spectra

The complexes are diamagnetic corresponding to the 5d_xy² configuration and display well resolved ¹H and ¹³C NMR spectra in DMSO-d₆ solution.^55b,c The NMR spectra were assigned by considering chemical shift values, spin–spin intensity, and spin–spin-coupling patterns. The signals of the protons close to the O, N, N coordinating atoms are all shifted downfield with respect to those of the free ligands.

H15 (for complex 1) and H19 (for complex 2) are observed as a doublet in the range 8.7–9.5 ppm. The azo methine proton H7 (for complex 1) and H11 (for complex 2) are observed as a singlet at 8.3 ppm. For complex 1, H9 is observed at ∼6.7 ppm as a doublet. Whereas H13 is observed at ∼7.6 ppm as a doublet in case of complex 2. All the aromatic protons span in the range ∼6.7–8.7 ppm in complex 1, whereas, in complex 2 all the aromatic protons span in the range ∼7.6–9.5 ppm.

The experimentally observed values are well-correlated with calculated values. The correlation diagram between the calculated and experimental ¹H NMR chemical shift is given in ESI (Fig. S1†) and ⁿJ_H,H coupling constants for complex 1 and 2 is shown in Fig. 2(a). ¹³C NMR spectra of the complexes were also recorded, and the assigned peaks are given in the Experimental section. The imine carbon was observed near about 143 ppm and the aromatic carbon span in the region 150–103 ppm. The calculated NMR spectral chemical shifts agree well with the experimental data. The experimental and calculated NMR data are given in the Experimental section. The correlation between the experimental and calculated ¹³C NMR chemical shift of 2 is shown in Fig. 2(b) as a representative case.

Fig. 2 (a) Linear correlation between the experimental and calculated ⁿJ(H,H) of 1 () and 2 (). (b) Linear correlation between the experimental and calculated ¹³C NMR chemical shifts of 2.

Geometry optimization, electronic structure

The complexes are diamagnetic; thus the geometry optimizations of two complexes were done in their singlet spin state. The molecular structures of [Re^VO(L¹)Cl₂] and [Re^VO(L²)Cl₂] have been fully optimized in their singlet spin states. Main optimized geometrical parameters of 1 and 2 are given in Table 3. The optimized structures of the complexes 1 and 2 at singlet state are shown in Fig. 3. The modeled geometries possess a distorted octahedral arrangement around the Re(V) center. The geometry used for the ground state optimization is based on crystal structure parameter for complex 1, but we are unable to grow the single crystal suitable for X-ray structure determination in case of complex 2. Therefore the significant bond distances and angles of the optimized geometry of the complexes in solution phase are compared with the crystal structure parameter of 1.

Table 3 Selected optimized geometrical parameters for 1 and 2 in the ground state at B3LYP levels

Bond lengths (Å)
	1		2
Re1–N1	2.189	Re1–N1	2.164
Re1–N2	2.124	Re1–N2	2.121
Re1–O1	1.718	Re1–O1	1.721
Re1–O2	1.942	Re1–O2	1.939
Re1–Cl1	2.445	Re1–Cl1	2.457
Re1–Cl2	2.451	Re1–Cl2	2.447
C7–N1	1.328	C11–N1	1.338
Bond angles (°)
	1		2
Cl1–Re1–Cl2	169.66	Cl1–Re1–Cl2	170.56
O1–Re1–O2	115.36	O1–Re1–O2	116.21
N1–Re1–O1	161.78	N1–Re1–O1	162.02
N1–Re1–O2	82.78	N1–Re1–O2	81.75
N1–Re1–Cl1	84.35	N1–Re1–Cl1	86.86
N1–Re1–Cl2	86.84	N1–Re1–Cl2	85.28
N1–Re1–N2	75.35	N1–Re1–N2	75.62
N2–Re1–O1	86.57	N2–Re1–O1	86.44
N2–Re1–O2	157.96	N2–Re1–O2	157.28
N2–Re1–Cl1	93.47	N2–Re1–Cl1	89.87
N2–Re1–Cl2	89.51	N2–Re1–Cl2	93.23
O1–Re1–Cl1	94.70	O1–Re1–Cl1	94.45
O1–Re1–Cl2	95.34	O1–Re1–Cl2	94.62
O2–Re1–Cl1	87.02	O2–Re1–Cl1	86.91
O2–Re1–Cl2	86.50	O2–Re1–Cl2	86.78

---

Fig. 3 Optimized molecular structures of 1 and 2 at ground state. (Re: Cyan, N: Blue, O: Red, C: Grey, H: White.).

As depicted in Fig. 3, there is distorted octahedral coordination geometry around the rhenium center. The crystal structure data of 1 (Table 2) is in good agreement with optimized parameters and the slight discrepancy (maximum deviation 0.08 Å for Re1–Cl2 bond distance) comes from the crystal lattice distortion existing in real molecules. The optimized geometries of the complexes do not show significant differences in the coordinate sphere around the metal center. It reveals that the ligands bind in a similar fashion in the complexes.

The isodensity plot from HOMO−3 to LUMO+3 for 1 is shown in Fig. 4 (same plot for 2 is given in ESI (Fig. S2†)). The partial frontier molecular orbital compositions and energy levels of 1 are listed in Table 4 while that for 2 is given in ESI (Table S1†).

Fig. 4 Isodensity plots of frontier orbitals of [Re^VO(L¹)Cl₂].

Table 4 Frontier molecular orbital composition (%) in the ground state for 1

Orbital	Energy (eV)	Contribution (%)					Main bond type
		Re	Cl	=O	Aromatic system	Imine
L+5	−1.3967	1	1	0	97	1	π*(L^1)
L+4	−1.4294	53	32	4	8	3	d(Re) + p(Cl)
L+3	−2.2019	6	0	0	75	18	π*(L^1)
L+2	−2.9459	53	1	18	25	3	d(Re) + π*(O) + π*(L^1)
L+1	−3.0974	17	1	6	57	18	d(Re) + π*(L^1)
LUMO	−3.5358	52	7	22	13	7	d(Re) + π*(O) + π*(L^1)
HOMO	−6.0698	50	18	1	28	4	d(Re) + p(Cl) + π(L^1)
H−1	−6.6777	2	6	1	80	10	π(L^1)
H−2	−7.2429	6	22	0	69	3	p(Cl) + π(L^1)
H−3	−7.9158	0	9	1	90	1	π(L^1)
H−4	−7.9694	0	47	4	45	4	p(Cl) + π(L^1)
H−5	−8.0802	0	41	7	46	6	p(Cl) + π(L^1)

---

The HOMO (H) and H−1 are lying 0.60 and 0.73 eV for complex 1 and complex 2, respectively. In both the complex, the electron density in HOMO mainly reside on aromatic moiety (in the range 28–53%) and metal d orbital (in the range 35–50%) along with some chlorine p orbital (10–18%). In case of complex 1, the electron density mainly in H−1 reside on ligand moiety (80%) while for complex 2, H−1 mainly composed of ligand moiety (59%) and metal d orbital (22%) and some chlorine p orbital (17%). In case of 2 the HOMO is less stabilized by an amount ∼1.52 eV compared to 1. For complex 1 the energy difference between HOMO and LUMO (L) occurs at 2.53 eV while for complex 2 the same occurs at 2.29 eV and this energy gap is minimum for 2 and maximum for 1. In complex 1 and complex 2 the H−2 is lying ∼1.17 eV and 0.88 eV, respectively below the HOMO. For complex 1, H−2 is mainly composed of ∼69% ligand π orbital and 22% of p(Cl) orbital while for complex 2 predominant contribution arises from ligand π orbital. The HOMO−3 and HOMO−4 are almost degenerate (energy difference ∼0.05 eV in 1 and ∼0.31 eV in 2). LUMO+1 and LUMO+2 are lying in the range 0.43–0.44 and 0.58–0.72 eV, respectively, above the LUMO for the complexes. The electron densities of LUMO, LUMO+1, and LUMO+2 are mainly distributed between the metal d orbitals and the ligand frame. LUMO+3 is completely delocalized over the ligand moiety.

Absorption spectral properties

The absorption spectra of the complexes were recorded in acetonitrile (CH₃CN) solution at room temperature and display four well resolved peaks for 1. Complex 2 displays five well resolved peaks. For complex 1 these are observed at 451, 358, 259 and 229 nm while that for complex 2 occurs at 456, 375, 318, 256 and 230 nm. The band within the range 375–456 nm can reasonably assigned to the classical d–d transition and ILCT transition. The absorption band in the region 318–358 nm are believed to be of LMCT in origin. The band near 259 nm (for complex 1) and 256 nm (for complex 2) are mainly ILCT character along with a little MLCT character. The highest energy bands with maxima in the region 229–230 nm for complexes are mainly admixture of ILCT character along with a little LMCT character. These assignments were supported by theoretical calculations (from spin density plot and also from NTO analysis). The position of bands and the corresponding Δε values are given in the Experimental section.

Fig. 5 illustrates the experimental spectrum for complex 1 and 2. The calculated absorption energies associated with their oscillator strengths, the main configurations and their assignments as well as the experimental result of 1 is given in Table 5 while that for 2 is given in ESI (Table S2†).

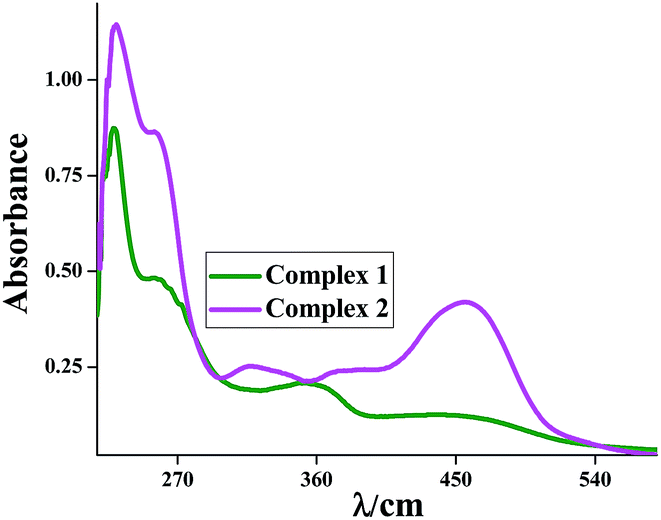

Fig. 5 Experimental absorption spectra of 1 and 2 in acetonitrile solution.

Table 5 Main calculated optical transition for the complex 1 with composition in terms of molecular orbital contribution of the transition, vertical excitation energies and oscillator strength in acetonitrile

Excitation	Composition	E (eV)	Oscillator strength (f)	λtheo (nm)	Assign	λexp (nm)
1	HOMO−1 → LUMO (78%)	2.4855	0.0892	498.84	LMCT/ILCT/LLCT	451
	HOMO−1 → LUMO+1 (5%)				LMCT/ILCT/LLCT
	HOMO → LUMO+1 (10%)				d–d/ILCT/LLCT
	HOMO → LUMO+2 (3%)				d–d/ILCT/LLCT
2	HOMO−2 → LUMO (3%)	2.8450	0.0427	435.79	LMCT/ILCT/LLCT
	HOMO−1 → LUMO (2%)				LMCT/ILCT/LLCT
	HOMO−1 → LUMO+1 (28%)				LMCT/ILCT/LLCT
	HOMO−1 → LUMO+2 (60%)				LMCT/ILCT/LLCT
3	HOMO−7 → LUMO (4%)	3.5886	0.0154	345.49	LMCT/ILCT/LLCT	358
	HOMO−6 → LUMO (8%)				LMCT/ILCT/LLCT
	HOMO−5 → LUMO (7%)				LMCT/ILCT/LLCT
	HOMO−4 → LUMO (57%)				LMCT/ILCT/LLCT
	HOMO−3 → LUMO (11%)				LMCT/ILCT/LLCT
	HOMO−2 → LUMO+1 (3%)				LMCT/ILCT/LLCT
	HOMO−2 → LUMO+2 (2%)				LMCT/ILCT/LLCT
4	HOMO−9 → LUMO+1 (25%)	4.8163	0.0109	257.43	LMCT/ILCT/LLCT	259
	HOMO−9 → LUMO+2 (58%)				LMCT/ILCT/LLCT
	HOMO−8 → LUMO+1 (4%)				LMCT/ILCT/LLCT
	HOMO → LUMO+6 (5%)				MLCT/ILCT/LLCT
5	HOMO−12 → LUMO (52%)	4.9805	0.0022	248.94	LMCT/ILCT/LLCT	229
	HOMO−12 → LUMO+1 (3%)				LMCT/ILCT/LLCT
	HOMO−11 → LUMO (4%)				LMCT/ILCT/LLCT
	HOMO−10 → LUMO+1 (29%)				LMCT/ILCT/LLCT
	HOMO → LUMO+7 (2%)				ILCT/LLCT

---

Fig. 6 shows the accompanying electron density redistributions in complex 1 and complex 2. From spin density plot we can conclude that the absorption bands in the region 375–456 nm have mixed d–d and ILCT character.

Fig. 6 Difference electron density upon excitation from the ground state (S₀) to allowed singlet states (50 singlet to singlet excitations) for complexes 1 and 2 determined with TD-DFT (B3LYP/CPCM-CH₃CN) calculations. Turquoise and purple colors show regions of decreasing and increasing electron density, respectively.

In order to analyze the nature of absorption, we performed an NTO analysis based on the calculated transition density matrices.⁴¹ This method offers the most compact representation of the transition density between the ground and excited states in terms of an expansion into single-particle transitions (hole and electron states for each given excitation).

Here we refer to the unoccupied and occupied NTOs as “electron” and “hole” transition orbitals, respectively. Note that NTOs are not the same as virtual and occupied MO pairs from the ground state calculations. Fig. 7 illustrates the natural transition orbitals (NTOs) for complex 1 while the same for complex 2 is given in ESI (Fig. S3†).

Fig. 7 Natural transition orbitals (NTOs) for the complex 1 illustrating the nature of optically active singlet excited states in the absorption bands 451, 358, 259 and 229 nm. For each state, the respective number of the state, transition energy (eV), and the oscillator strength (in parentheses) are listed. Shown are only occupied (holes) and unoccupied (electrons) NTO pairs that contribute more than 25% to each excited state.

Based on our TDDFT NTOs analysis the bands in the lowest energy region 451 nm (for complex 1) and 375–456 (for complex 2) can be characterized as an admixture of classical d–d transition and ILCT transition. As illustrated in Fig. 7, optical excitations occur from the occupied (hole) transition orbitals to the unoccupied (electron) transition orbitals. In case of lowest energy bands for both the complexes the hole NTOs are localized on the Re center along with π orbitals of ligands (t_2g–π) while the electron NTOs are also delocalized over the Re center and π*orbital of the ligand moiety (t_2g–π*).

Electrochemical studies

Cyclic voltammetry was performed for both the complexes in dry acetonitrile solution at room temperature under nitrogen atmosphere with tetraethylammonium perchlorate (TEAP) as the supporting electrolyte using a Pt electrode as working electrode and the potentials are referenced to the saturated calomel electrode (SCE) without junction correction. The representative spectra of complex 1 and 2 are given in ESI (Fig. S4 and S5†).

Both the complexes exhibit a single ligand centered reduction wave and a metal centered oxidation wave (Re^VI/Re^V), both of which are electrochemically irreversible in nature. Both the complexes exhibited irreversible oxidations wave at ∼1.44 V for 1 and ∼1.07 V for 2, which can be assigned to one-electron oxidations Re^V → Re^VI. The oxidation potential of complex 2 is lesser than the oxidation potential of complex 1. This result arises may be due to the presence of naphthalene ring in case of complex 2. Due to presence of naphthalene ring electron density at metal increases, rendering the complex 2 more easy to oxidize. It is also concluded from here the cathodic shift in case of complex 2 compared to the complex 1 can be attributed to the destabilization of the HOMO of the complex 2. Both the complexes show irreversible reductions wave at ∼−0.39 V for 1 and ∼−0.44 V for 2 where the L² is more difficult to reduce.

Catalytic epoxidations

Our interest in epoxidation reactions employing Re(V) compounds^56–58 led us to explore compounds 1 and 2 as catalysts in the epoxidation of cis-cyclooctene with tert-butyl hydroperoxide (TBHP) as the oxidant. Rhenium(V) compounds are potentially ideal catalysts as they are conveniently prepared and are easy to handle in ambient conditions. In particular, the latter would be advantageous over Re(VII) systems that tend to be more difficult to handle.

Typically, the catalyst (1 equiv.) and cis-cyclooctene (R) (100 equiv.) were mixed in chloroform and heated to 50 °C, whereupon the catalyst slowly dissolved. The oxidant (TBHP in 5.0–6.0 M in n-decane, 200 equiv.) was then added, which initiated the reaction. After addition of the peroxide a color change from red to colourless was apparent. A small amount of manganese dioxide added to destroy excess TBHP, and the mixture was filtered over a small pad of Celite and column chromatography was done to obtain the pure product using 5% ethylacetate in hexane. ¹H NMR and ESI mass spectroscopic measurements confirm the epoxidation of cis-cyclooctene (Scheme 2) was well performed by our Re(V) complexes. The analysis of this product (RO) by ¹H NMR and ESI mass spectra revealed a clean catalytic reaction. In particular, 2-tert-butoxycyclooctanol is absent, a possible side product resulting from ring opening of the epoxide by nucleophilic attack of the formed tert-butanol. However, the catalytic performance of compounds is not comparable to the that of, for example, MTO.^59,60 Whether the mechanism involves a Re(VII) or a Re(V) species is unclear because we were not able to isolate any pure rhenium compounds after the epoxidation reactions. Herrmann and co-workers have shown that the catalytically active species in epoxidations with MTO involves the 7-coordinate bisperoxorhenium(VII) complex [ReO₂(O₂)₂(H₂O)].⁶¹ In contrast, the catalytically active species in the few epoxidations involving other than rhenium(VII) compounds is less clear, but oxidation to a rhenium(VII) peroxo species is suggested.^62,63 Thus, for the formation of the active catalyst, the complex 1 and complex 2 may be oxidized to the [ReO₃ (L¹)] and [ReO₃ (L²)], respectively.

Scheme 2 Catalytic epoxidation of cyclooctene. Conditions: 1 mol% Re(V) catalyst 1–2, 1 equiv. of cyclooctene (R), 2 equiv. of ^tBuOOH (5.5 M in decane), 50 °C, CHCl₃.

The ¹H NMR data and ESI mass values are given in the Experimental section. The ¹H NMR and ESI mass spectrum of the product which was obtained by the catalytic reaction are given in the ESI (Fig. S6 and S7†).

From mass and ¹H NMR spectral studies it reveals that the epoxidation of cis-cyclooctene was take place. To get a better understanding, here we also performed UV-vis study to establish the mechanistic path. In UV-vis study we can easily measure the formation of catalytic active species. Both of the complexes showed similar pattern in UV-vis study of the catalytic process; here compound 2 was taken as a representative case. The whole process was carried out using chloroform as a solvent. The stock solution was prepared with the help of 0.2 μmol of compound 2 (1 equiv.), 20 μmol of cis-cyclooctene (100 equiv.), and 2 g of chloroform were mixed in a quartz cuvette, which was placed into a spectrometer equipped with a holder thermostat controlled at 50 °C. In order to increase the rate of the diluted reaction, excess oxidation reagent was added (800 μmol of TBHP, 3000 equiv.). Immediately after addition of TBHP the first UV-vis spectrum was measured, and thereafter, every 10 min additional spectra were acquired for up to 5 h. Fig. 8 shows UV-vis spectra between 300 and 550 nm. The spectrum (black color) shows a strong absorption at 455 nm was representative spectra of isolated compound 2. In addition with cis-cyclooctene and TBHP with the catalyst drastic changes in UV-vis spectra was observed. The absorption intensity at 455 nm undergoes some blue shift at 424 nm and a new band appeared at 365 nm. We carried out time dependent UV-vis spectra on this mixture with 10 min interval of time and it was observed that both of the absorption intensity of the new peaks undergoes decreases with time. As shown in inset of Fig. 8(a) depicted that the rate of decreasing of absorption intensity was faster in initial part of the investigation and becomes saturated near at 80 min which implies that the ending point of the reaction. These result suggested that some intermediate catalytic species was generated.

Fig. 8 Catalytic epoxidation of cyclooctene, 1 mol% catalyst 2, 1 equiv. of cyclooctene, 30 equiv. of TBHP; (a) UV-vis spectra measured every 10 min. The insert shows the absorbance at 365 nm.

A literature survey was carried out to determine the nature of the formed intermediate catalytic compound. It seems reasonable to assign the UV-vis absorption at 365 nm which may be arise due to formation of the catalytic species rhenium trans-dioxo compound, as comparable complexes absorb in the same wavelength range ([Re(O)₂(py)₄]⁺) λ_max = 331 nm,⁶⁴ [Re(O)₂(4-MeOPy)₄]⁺ and [Re(O)₂(4-pyrrolidinopyridine)₄]⁺ λ_max = 334 nm,⁶⁵ [Re(O)₂(acyclic tetraamine)]⁺ λ_max = 350 nm,⁶⁶ [Re(O)₂(tridentate O₂ ligand)] λ_max = 300–350 nm.⁶⁷

Conclusion

In summary, we have synthesized monomeric Re(V) complexes with two different tridentate Schiff base ligands. The complexes are characterized by different spectroscopic techniques, elemental analysis and X-ray structure determination. The present work investigated the ground state geometry, NMR, and absorption properties of two Re(V) complexes by DFT and TDDFT methods. From our calculation results, we have characterized all of the low-lying electronic states as admixture of ILCT, MLCT and LLCT in character. The nature of the transitions was also supported by Spin density difference map and natural transition orbital (NTO) analysis. Catalytic property of both the complexes was also scrutinized.
