DOI: 10.1039/C4RA15072D (Paper) RSC Adv., 2015, 5, 23450-23463

Synthesis of bismuth oxyiodides and their composites: characterization, photocatalytic activity, and degradation mechanisms†

Wenlian William Lee*bc, Chung-Shin Lud, Chung-Wei Chuanga, Yen-Ju Chena, Jing-Ya Fua, Ciao-Wei Siaoa and Chiing-Chang Chen*a
aDepartment of Science Application and Education, National Taichung University of Education, Taichung 403, Taiwan. E-mail: ccchen@mail.ntcu.edu.tw; Tel: +886-4-2218-3406; Fax: +886-4-2218-3560
bDepartment of Occupational Safety and Health, Chung-Shan Medical University, Taichung 402, Taiwan. E-mail: wllee01@gmail.com
cDepartment of Occupational Medicine, Chung-Shan Medical University Hospital, Taichung 402, Taiwan
dDepartment of General Education, National Taichung University of Science and Technology, Taichung 404, Taiwan

Received 29th November 2014 , Accepted 23rd February 2015

First published on 24th February 2015

Abstract

Bismuth oxyiodides have been prepared using controlled hydrothermal methods. The products are characterized by SEM-EDS, XRD, XPS, FTIR, PL, EPR, and DRS. It is illustrated that BiOI, Bi4O5I2, Bi7O9I3, Bi5O7I, and BiOxIy/BiOpIq composites can be selectively synthesized through a facile solution-based hydrothermal method. UV-Vis spectra display the bismuth oxyiodide materials as indirect semiconductors with an optical bandgap of 1.86–3.316 eV. The photocatalytic efficiency of the powder suspension is evaluated by measuring the Crystal Violet (CV) concentration. This is the first study to demonstrate the superior activities of BiOI, Bi4O5I2, Bi7O9I3, Bi5O7I, and BiOxIy/BiOpIq composites as promising visible-light-responsive photocatalysts. The quenching effects of various scavengers and EPR indicate that the reactive O2˙− plays a major role and ˙OH and h+ play a minor role. The Bi7O9I3/Bi5O7I composite shows the highest photocatalytic activity reaching a maximum rate constant of 0.2225 h−1, which is 6 times higher than that of BiOI and Bi7O9I3 and 4 times higher than that of Bi5O7I.

1. Introduction

As current energy and environmental problems are the two most important topics in human life, a novel approach to overcome these problems is an imperative affair. Heterogeneous photocatalysis for solar energy conversion and environmental remediation has fomented extensive interests in the past decade. For the practical applications of photo-catalysis, an environmentally powerful and cheap photocatalyst is an important constituent.1 Among various photocatalytic materials, TiO2 is researched the most; however, it can only be activated by UV light irradiation, which contains less than 5% of the solar spectrum.2 Accordingly, preparing novel visible-light-responsive photocatalysts3,4 and searching their photocatalysis activities are of great interest and potential rewards.5

Recently, the development of visible-light-sensitive photocatalysts has received considerable attention as an alternative of wastewater treatment. An effective and simple strategy to improve the photocatalytic activity of a photocatalyst is the incorporation of a heterostructure (or composite), because heterojunctions (or composites) have great potential for tuning the desired electronic properties of composite photocatalysts and efficiently separating the photogenerated electron–hole pairs.6–14

In recent years, as a new family of advantageous photocatalysts, bismuth oxyhalides (BiOX, X = Cl, Br, and I)15,16 have shown unusual photocatalytic activities because their uniquely layered structure features an internal static electric field vertical to each layer that may cause more effective separation of photogenerated charge carriers. It is found that the BiOI sample shows higher photocatalytic activity than BiOBr and BiOCl materials do for the photocatalytic degradation of methyl orange organic pollutants. Among the bismuth oxyhalides,17 bismuth oxyiodides have obtained remarkable interest in recent years because of their suitable band gaps, stability, and relatively superior photocatalytic activites.18–20

The Xiao group synthesized BiOI by ethanol–water mixed solvent methods, which demonstrated excellent photocatalytic ability and good stability during phenol photodegradation under visible-light irradiation.16 Lei et al. showed the synthesis of flower-like BiOI structures by a solution route at room temperature, and the BiOI construction showed higher photocatalytic efficiency toward methylene blue, methyl orange, and rhodamine B under visible-light irradiation.21 BiOI had a small band gap and a strong absorption in the visible light region, and thus showed excellent photocatalytic activity under sun-light irradiation.22 Aside from BiOI (Bi[thin space (1/6-em)]:[thin space (1/6-em)]I = 1[thin space (1/6-em)]:[thin space (1/6-em)]1 or O[thin space (1/6-em)]:[thin space (1/6-em)]I = 1[thin space (1/6-em)]:[thin space (1/6-em)]1), other I-poor bismuth oxyiodides, including Bi4O5I2,23 Bi7O9I3,24 and Bi5O7I,25,26 have also been described. Since the valence band for bismuth oxyiodides mostly contained I 5p and O 2p orbitals, while the conduction band was based on the Bi 6p orbital,27 it could be demonstrated that the I-poor bismuth oxyiodides had a band-gap energy higher than BiOI but lower than Bi2O3;28,29 hence, these materials might be used as visible-light responsive photocatalysts. More importantly, the structure and composition of the bismuth oxyiodides strongly influenced their electronic, optical, and oxidizing abilities and other physicochemical properties, proposing an opportunity to acquire novel photocatalysts for effective degradation of environmental and toxic pollutants. However, the synthesis methods, characterization, and evaluated properties of a series of bismuth oxyiodides remained rare until recently.

Recently, BixOyBrz,30 BiOI/ZnO,31 BiOI/TiO2,32 BiOI/g-C3N4,33 BiOI/BiPO4,34 and BiOI/graphene35 composites have been synthesized in order to improve the photocatalytic activity of the materials. It is well-known that porous and hollow solids have excellent adsorptive properties that possess numerous applications in catalysis. Regardless of these advances, the differences in desired geometry for bismuth oxyiodide porous and hollow shape materials with high photocatalytic efficiency remain to be searched to meet the ever-increasing demand.

Cationic triarylmethane dyes have found use as colorants in industry and as antimicrobial agents.36 Recent reports showed that they might also be used as targetable sensitizers in the photo-destruction of specific cellular components (or cells).37 The binding of CV to DNA was probably ionic, as opposed to intercalative, and it persisted to be so stably bound to double-stranded DNA that, with its conversion to the colorless carbinol form, it was used for assessing the binding of other molecules to DNA.38 However, great troubles arose due to the thyroid peroxidase-catalyzed oxidation of the triarylmethane class of dyes because the reactions might produce various N-de-alkylated primary and secondary aromatic amines, with structures similar to aromatic amine carcinogens.39

CV dye degradations were studied using several systems that generated active species, including BixAgyOz,40 Bi2WO6,41 TiO2,42 ZnO,43 BiOCl/BiOBr,44 and BaTiO3.45 In most cases, the reaction mechanisms, kinetics, and efficiency were well known. However, the efficiencies and mechanisms of BiOxIy/BiOpIq-assisted photocatalytic degradation of triarylmethane dye under visible light irradiation have never been reported.

To the best of our knowledge, the photocatalytic degradation of organic pollutants by BiOxIy/BiOpIq has not been published in the literature. These studies synthesize BiOI, Bi4O5I2, Bi7O9I3, Bi5O7I, and BiOxIy/BiOpIq composites and research their photocatalytic activity for degrading CV in aqueous solutions under visible-light irradiation.

2. Experiment

2.1 Materials

CV dye (TCI), Bi(NO3)3·5H2O, p-benzoquinone (Alfa Assar), sodium azide (Sigma), ammonium oxalate (Osaka), isopropanol (Merck) and KI (Katayama) were obtained and used without any further purification. 5,5-Dimethyl-1-pyrroline N-oxide (DMPO) was purchased from Sigma-Aldrich. Reagent-grade NaOH, HNO3, CH3COONH4, and HPLC-grade methanol were purchased from Merck. The de-ionized water used in this research was purified with a Milli-Q water ion-exchange system using a resistivity of 1.80 × 107 Ω cm.

2.2 Synthesis of bismuth oxyiodide

5 mmol Bi(NO3)3·5H2O and 5 mL 4 M HNO3 were added in a 100 mL flask. With continuous stirring, 2 M NaOH was added dropwise to adjust the pH value to 1–14, and then, when a white precipitate was formed, 2 mL 3 M KI was also added dropwise. The solution was then stirred continuously for 30 min and delivered into a 30 mL Teflon-lined autoclave, which was heated to 130–280 °C for 12 h and then naturally cooled to room temperature. The resulting precipitate was collected by filtration, washed with deionized water and acetone to remove any possible ionic-species in the precipitate, and then dried at 60 °C overnight. Depending on the Bi(NO3)3·5H2O/KI molar ratio (Bi[thin space (1/6-em)]:[thin space (1/6-em)]I = 5[thin space (1/6-em)]:[thin space (1/6-em)]1, 5[thin space (1/6-em)]:[thin space (1/6-em)]2, 5[thin space (1/6-em)]:[thin space (1/6-em)]5, 5[thin space (1/6-em)]:[thin space (1/6-em)]10, 5[thin space (1/6-em)]:[thin space (1/6-em)]25), pH value, and reaction temperature, the BiOxIy/BiOpIq composites were prepared and marked as shown in Tables 1 and 2; the as-prepared samples were named from B5I2-1-130 to B5I25-14-280.
Table 1 Codes of bismuth oxyiodide prepared under different hydrothermal conditions. (Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, pH = 1–14, temp = 130–280 °C, time = 12 h)
pH value Temperature (°C)
130 180 230 280
1 B5I2-1-130 B5I2-1-180 B5I2-1-230 B5I2-1-280
2 B5I2-2-130 B5I2-2-180 B5I2-2-230 B5I2-2-280
3 B5I2-3-130 B5I2-3-180 B5I2-3-230 B5I2-3-280
4 B5I2-4-130 B5I2-4-180 B5I2-4-230 B5I2-4-280
5 B5I2-5-130 B5I2-5-180 B5I2-5-230 B5I2-5-280
6 B5I2-6-130 B5I2-6-180 B5I2-6-230 B5I2-6-280
7 B5I2-7-130 B5I2-7-180 B5I2-7-230 B5I2-7-280
8 B5I2-8-130 B5I2-8-180 B5I2-8-230 B5I2-8-280
9 B5I2-9-130 B5I2-9-180 B5I2-9-230 B5I2-9-280
10 B5I2-10-130 B5I2-10-180 B5I2-10-230 B5I2-10-280
11 B5I2-11-130 B5I2-11-180 B5I2-11-230 B5I2-11-280
12 B5I2-12-130 B5I2-12-180 B5I2-12-230 B5I2-12-280
13 B5I2-13-130 B5I2-13-180 B5I2-13-230 B5I2-13-280
14 B5I2-14-130 B5I2-14-180 B5I2-14-230 B5I2-14-280

Table 2 Codes of bismuth oxyiodide prepared under different hydrothermal conditions. (Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]25–5[thin space (1/6-em)]:[thin space (1/6-em)]1, pH = 1–14, temp = 280 °C, time = 12 h)
Bi/I molar ratio pH
1 4 7 10 13 14
5[thin space (1/6-em)]:[thin space (1/6-em)]1 B5I1-1-280 B5I1-4-280 B5I1-7-280 B5I1-10-280 B5I1-13-280 B5I1-14-280
5[thin space (1/6-em)]:[thin space (1/6-em)]2 B5I2-1-280 B5I2-4-280 B5I2-7-280 B5I2-10-280 B5I2-13-280 B5I2-14-280
5[thin space (1/6-em)]:[thin space (1/6-em)]5 B5I5-1-280 B5I5-4-280 B5I5-7-280 B5I5-10-280 B5I5-13-280 B5I5-14-280
5[thin space (1/6-em)]:[thin space (1/6-em)]10 B5I10-1-280 B5I10-4-280 B5I10-7-280 B5I10-10-280 B5I10-13-280 B5I10-14-280
5[thin space (1/6-em)]:[thin space (1/6-em)]25 B5I25-1-280 B5I25-4-280 B5I25-7-280 B5I25-10-280 B5I25-13-280 B5I25-14-280

2.3 Characterization

The products were further characterized. XRD was measured on a MAC Science, MXP18 X-ray diffractometer with Cu Kα radiation, and operated at 40 kV and 80 mA. EPR spectra were detected using a Bruker EMX-10/12 electron paramagnetic resonance spectrometer. FE-SEM-EDS measurements were performed with a field-emission microscope (JEOL JSM-7401F) at an acceleration voltage of 15 kV. HRXPS measurement was conducted with ULVAC-PHI XPS. Cryogenic cathodoluminescence (CL) measurements were obtained using a JEOL JSM7001F microscope. DR UV-vis spectra measurements were conducted using a Shimadzu UV-2100S spectrophotometer. The HPLC-MS system consisted of a Waters 1525 binary pump, a 717 plus autosampler, a 2998 photodiode array detector, and a ZQ2000 micromass detector.

2.4 Photocatalytic reaction

Photocatalytic activities of bismuth oxyiodides were studied by degrading CV under visible-light irradiation of a 150 W Xe arc. The light intensity was fixed on 32.1 W m−2 when the reactor was placed 30 cm away from the light source. The aqueous suspension of CV (100 mL, 10 ppm) and the given amount of catalysts were placed in a Pyrex flask. The pH value of the suspension was adjusted by adding either NaOH or HNO3 solution. Before the irradiation, the suspension was magnetically stirred in the dark to approach an adsorption/desorption equilibrium between the dye and the catalyst surface under ambient air-equilibrated conditions. At the given irradiation time intervals, a 5 mL aliquot was collected and centrifuged to withdraw the catalyst. The supernatant was analyzed by HPLC-MS after re-adjusting the chromatographic conditions to make the mobile phase congruous with the working conditions of the mass spectrometer.

3. Results and discussion

3.1 Characterization of as-prepared powders

3.1.1 XRD analysis. The X-ray diffraction data of the as-prepared bismuth oxyiodide with different hydrothermal parameters are displayed in Fig. 1 and 2 and Fig. S1–S3 (ESI†). Tables 3 and 4 list the results of the XRD measurements. The XRD patterns clearly demonstrate the existence of pure phase and the coexistence of different phases. All the bismuth oxyiodide samples using the hydrothermal method described at different molar ratio, reaction temperature, and pH present the BiOI (JCPDS 73-2062), Bi4O5I2,19 Bi7O9I3,20 and Bi5O7I (JCPDS 40-0548), α-Bi2O3 (JCPDS 41-1449), and BiOxIy/BiOpIq composite phase.
image file: c4ra15072d-f1.tif

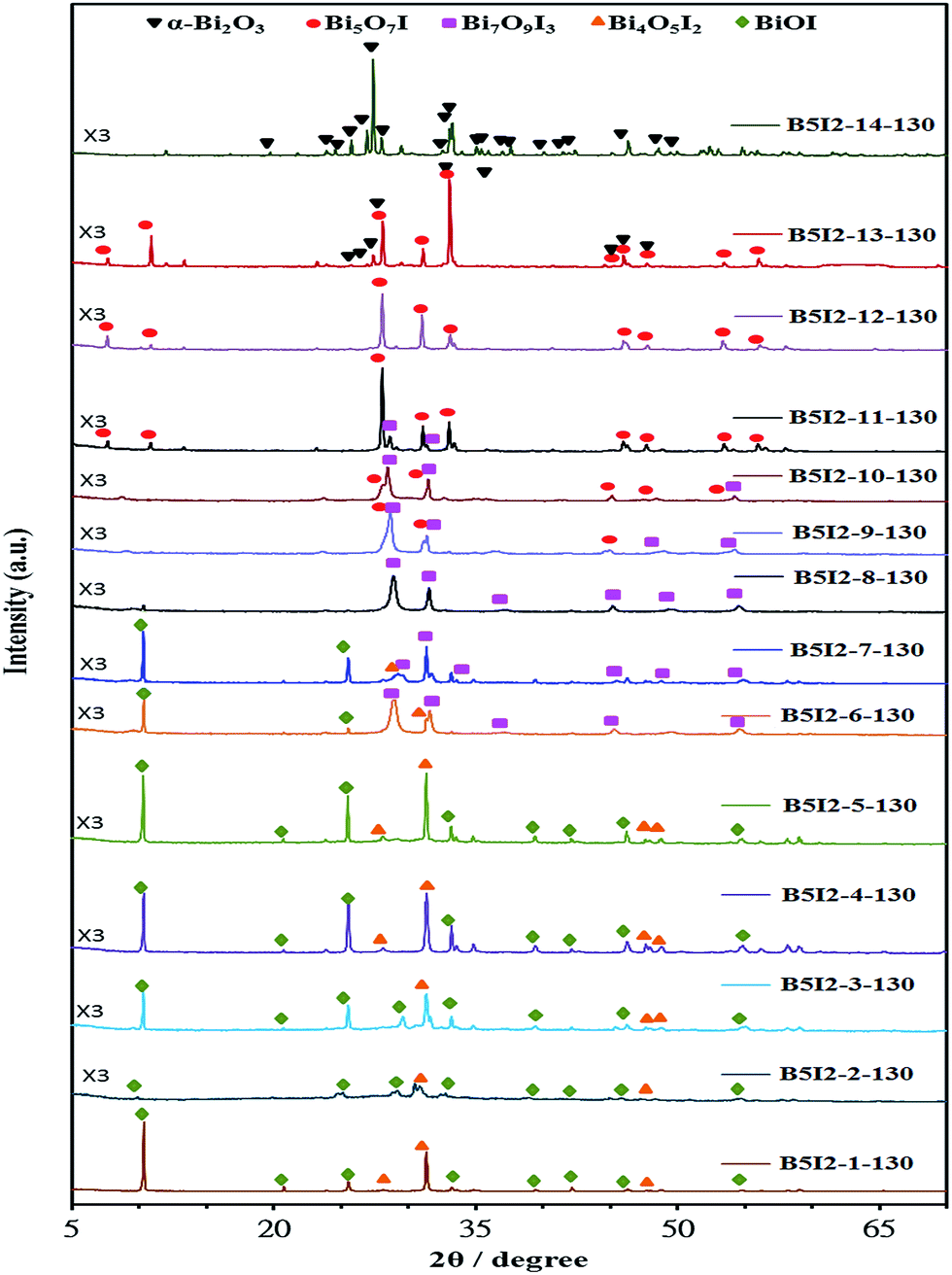

Fig. 1 XRD patterns of as-prepared bismuth oxyiodide samples under different pH values, at reaction temperature 130 °C and reaction time 12 h. (Molar ratio Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2).

image file: c4ra15072d-f2.tif
Fig. 2 XRD patterns of as-prepared bismuth oxyiodide samples under different pH values, at reaction temperature 280 °C and reaction time 12 h. (Molar ratio Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2).
Table 3 Crystalline phase changes of bismuth oxyiodide nanosheets prepared under different reaction conditions. (image file: c4ra15072d-u1.tif BiOI; image file: c4ra15072d-u2.tif Bi4O5I2; image file: c4ra15072d-u3.tif Bi7O9I3; image file: c4ra15072d-u4.tif Bi5O7I; image file: c4ra15072d-u5.tif α-Bi2O3)
image file: c4ra15072d-u6.tif

Table 4 Crystalline phase changes of bismuth oxyiodide prepared under different reaction conditions. (image file: c4ra15072d-u7.tif BiOI; image file: c4ra15072d-u8.tif Bi4O5I2; image file: c4ra15072d-u9.tif Bi7O9I3; image file: c4ra15072d-u10.tif Bi5O7I; image file: c4ra15072d-u11.tif α-Bi2O3)
image file: c4ra15072d-u12.tif

The pH of a hydrothermal reaction is usually accepted to have great influence on determining the morphologies and composition of the final products.21 Controlled experiments have been conducted to study the influence of pH on the reaction. In these experiments, pH played a key role, and temperature and molar ratio played a minor role in controlling the composition and anisotropic growth of crystals. From the results summarized in Table 3, the controllable morphologies and crystal phases of bismuth oxyiodides could be completed by simply changing some growth parameters, including temperature and pH. BiOI was obtained at pH = 1–7 and temp = 130 °C, pH = 1–6 and temp = 180 °C, pH = 1–5 and temp = 230 °C, and pH = 1–2, temp = 280 °C; Bi4O5I2 was obtained at pH = 1–6 and temp = 130 °C, pH = 1–5 and temp = 180–230 °C, and pH = 1–2, temp = 280 °C; Bi7O9I3 was obtained at pH = 6–11 and temp = 130–180 °C, pH = 4–11 and temp = 230 °C, and pH = 2–11 and temp = 280 °C; Bi5O7I was obtained at pH = 9–13 and temp = 130 °C, pH = 8–13 and temp = 180–230 °C, and pH = 7–13 and temp = 280 °C; and, Bi2O3 microstructures were obtained at higher base concentration (pH = 13) under synthetic conditions. From the results summarized in Table 4, the controllable morphologies and crystal phases of bismuth oxyiodides could be completed by simply changing some growth parameters, including pH and molar ratio. BiOI was obtained at pH = 1–7 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]25, 5[thin space (1/6-em)]:[thin space (1/6-em)]10, pH = 1–4 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]5, and pH = 1 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]1, 5[thin space (1/6-em)]:[thin space (1/6-em)]2, and pure phase BiOI at pH = 1 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]10, 5[thin space (1/6-em)]:[thin space (1/6-em)]25; Bi4O5I2 was obtained at pH = 4–7 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]25, 5[thin space (1/6-em)]:[thin space (1/6-em)]10, pH = 1–7 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]5, and pH = 1 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]1, 5[thin space (1/6-em)]:[thin space (1/6-em)]2; Bi7O9I3 was obtained at pH = 7–14 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]25, 5[thin space (1/6-em)]:[thin space (1/6-em)]10, pH = 7–13 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]5, and pH = 4–10 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, 5[thin space (1/6-em)]:[thin space (1/6-em)]1; Bi5O7I was obtained at pH = 10–14 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]25, 5[thin space (1/6-em)]:[thin space (1/6-em)]10, 5[thin space (1/6-em)]:[thin space (1/6-em)]5, pH = 10–13 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, and pH = 4–13 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]1; and, Bi2O3 microstructures were obtained at higher base concentration (pH = 13–14 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]1, 5[thin space (1/6-em)]:[thin space (1/6-em)]2, and pH = 14 and molar ratio = 5[thin space (1/6-em)]:[thin space (1/6-em)]5) under synthetic conditions.

The production of bismuth oxyiodides included the hydrolysis of BiI3 to form basic Bi(OH)3 and subsequent substitution of I− by OH−. For the substitution processes, although the precipitates were washed thoroughly with deionized water, the initial pH values of the reaction systems were different and increased with the increase of the precipitation pH values (Table 3). As the OH− substitution process proceeded involving the release of I−, which resulted in a rise of the pH value of the reaction system, the substitution extent was induced with the increase of the precipitation pH value. From the above considerations, the iodine contents in the as-prepared bismuth oxyiodides decreased gradually and the compositions of bismuth oxyiodides changed from tetragonal BiOI to monoclinic Bi5O7I, then to α-Bi2O3. Besides, the initial molar ratio (Bi/I) of the reaction systems was different and increased with the increase of the precipitation pH values (in Table 4). As the OH− substitution process proceeded involving the release of I−, which resulted in an increase of the pH value of the hydrothermal reaction system, the substitution extent was induced with the increase of the precipitation pH value. At high molar ratio with all the above considerations, the iodine contents in the as-prepared bismuth oxyiodides decreased gradually and the compositions of the bismuth oxyiodides changed from tetragonal BiOI to monoclinic Bi5O7I, then to α-Bi2O3. But, at low molar ratio, the iodine contents in the as-prepared bismuth oxyiodides decreased gradually and the compositions of the bismuth oxyiodides changed from tetragonal BiOI to monoclinic Bi5O7I.

The possible processes for the formation of bismuth oxyiodides are explained as follows [eqn (1)–(8)]:


Bi(OH)3(s) + I− → BiOI(s) + H2O + OH− (1)

Bi3+ + 3I− → BiI3(s) (2)

BiI3(s) + 2OH− → BiOI(s) + 2I− + H2O (3)

4BiOI(s) + 2OH− → Bi4O5I2(s) + 2I− + H2O (4)

7Bi4O5I2(s) + 2OH− → 4Bi7O9I3(s) + 2I− + H2O (5)

3Bi7O9I3(s) + 2OH− → 7Bi3O4I(s) + 2I− + H2O (6)

5Bi3O4I(s) + 2OH− → 3Bi5O7I(s) + 2I− + H2O (7)

2Bi5O7I(s) + 2OH− → 5Bi2O3(s) + 2I− + H2O (8)

These equations revealed that BiOI was formed at the beginning of the hydrothermal reaction, and then OH− gradually substituted I− in the basic conditions, which resulted in the reduced content of I− in the samples. Increasing the pH to gradually acquire BiOI, Bi4O5I2, Bi7O9I3, Bi5O7I, and α-Bi2O3, the higher the pH value appeared the lower the I− content in the samples, until the content of I− in the products was fully replaced by OH− and finally resulted in the formation of α-Bi2O3 under strong basic conditions. However, pure BiOI was the exclusive phase at pH 1, molar ratio 5[thin space (1/6-em)]:[thin space (1/6-em)]10 and 5[thin space (1/6-em)]:[thin space (1/6-em)]25. A competitive relationship typically existed between the hydroxide and iodide ions in basic solution. By controlling the pH of the hydrothermal reaction, different compositions of bismuth oxyiodides were acquired.

It was found that, with the increase of hydrothermal temperature (or molar ratio (Bi/I)) ranging from 130 to 280 °C (or 5[thin space (1/6-em)]:[thin space (1/6-em)]25 to 5[thin space (1/6-em)]:[thin space (1/6-em)]1), a gradual change in the crystal phase of the reflection peaks took place slightly, which showed a generation in the crystal phase from BiOI to α-Bi2O3 at different reaction temperature.

3.1.2 SEM-EDS analysis. Bismuth oxyiodides were synthesized with Bi(NO3)3·5H2O and KI by the hydrothermal method at 130–280 °C for pH = 1–14. The surface compositions and morphologies of the samples were observed by FE-SEM-EDS (Fig. 3 and Table 5). The FE-SEM image displayed that the morphologies of the samples acquired at different pH values turned from irregular particles to irregular thin-sheets and thin-plates and then became irregular rods (Fig. 3). These samples showed irregular nanoplate and nanosheet shapes with a lateral size of several micrometers and a thickness between 5 and 40 nm. Samples B5I2-10-280 and B5I2-11-280 exhibited a rod-like irregular shape with a lateral size of several micrometers.
image file: c4ra15072d-f3.tif
Fig. 3 SEM images of bismuth oxyiodide prepared by the hydrothermal autoclave method at different pH values. (Molar ratio Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, hydrothermal conditions: pH = 1–14, temp = 280 °C, time = 12 h).
Table 5 Physical and chemical properties of bismuth oxyiodide
  EDS element atomic ratio (%) Energy gap (eV)
Bi O I
B5I2-1-280 28.60 71.10 0.28 3.136
B5I2-2-280 29.77 65.15 5.08 1.860
B5I2-3-280 26.22 69.96 3.82 2.112
B5I2-4-280 22.98 70.20 6.82 1.908
B5I2-5-280 25.46 73.81 0.74 2.589
B5I2-6-280 25.05 66.02 8.92 2.226
B5I2-7-280 31.34 59.07 9.59 2.064
B5I2-8-280 25.70 70.69 3.61 2.348
B5I2-9-280 32.03 58.19 9.78 2.441
B5I2-10-280 38.83 53.31 7.86 2.174
B5I2-11-280 27.64 70.70 1.66 2.904
B5I2-12-280 30.28 65.06 4.66 2.371
B5I2-13-280 29.79 66.42 3.80 2.526
B5I2-14-280 33.63 66.20 0.17 2.600

From Table 5, the EDS results demonstrated that the main elements of these samples were iodine, bismuth, and oxygen under different pH values. The Bi/I atomic ratios of the bismuth oxyiodide samples were within the range of 1.13–197.82, which corresponded to BiOI/Bi4O5I2, BiOI/Bi4O5I2/Bi7O9I3, Bi7O9I3/Bi5O7I, Bi5O7I/α-Bi2O3, and α-Bi2O3 phase, compared to the stoichiometric ratio (Bi[thin space (1/6-em)]:[thin space (1/6-em)]I = 1, 2, 2.3, 5, ∞), and could be selectively synthesized through a hydrothermal method. The possible processes for the synthesis of bismuth oxyiodides were described as eqn (1)–(8). The EDS result demonstrated that the possible processes for the synthesis of bismuth oxyiodides were explained as eqn (1)–(8), which were consistent with the previous result by XRD analyses.

3.1.3 XPS analysis. XPS was used for examining the purity of the synthesized bismuth oxyiodides, and the spectra are displayed in Fig. 4 and 5. Fig. 4 and 5 display the total survey spectra of Bi 4f, I 3d, O 1s, and C 1s XPS of the four samples. The characteristic binding energy value of ∼157.6 eV for Bi 4f7/2 (Fig. 4(b)) showed a trivalent oxidation state for bismuth. An additional spin–orbit doublet with a binding energy of 155.7 eV for Bi 4f7/2 was also revealed in all samples, suggesting that certain parts of bismuth existed in the (+3 − x) valence state. This showed that the trivalent bismuth partially reduced to the lower valence state by the hydrothermal method. A similar chemical shift of approximately 2.4–2.6 eV for Bi 4f7/2 was also published by Liao et al.46 They summarized that Bi(+3−x) formal oxidation state could most probably be ascribed to the sub-stoichiometric forms of Bi within the Bi2O2 layer, and the formation of the low oxidation state resulted in the oxygen vacancy in the crystal lattice. However, it was supposed in this study that the Bi(+3−x) formal oxidation state could most likely be ascribed to the sub-stoichiometric forms of Bi at the outer site of the particles, and the formation of the low oxidation state resulted in the oxygen vacancy in the crystal surface. The binding energies of ∼629.4 eV and ∼617.9 eV were attributed to I 3d5/2 and 3d3/2 respectively, which could be pointed to I at the monovalent oxidation state. Fig. 5 shows the total survey spectra of Bi 4f, I 3d, and O 1s XPS of the three pure bismuth oxyiodides and one α-Bi2O3 sample. From Fig. 5, the observation of the transition peaks involved in the Bi 4f, I 3d, O 1s, and C 1s orbitals demonstrated that the catalysts were composed of the elements of C, O, Bi, and I.
image file: c4ra15072d-f4.tif
Fig. 4 High-resolution XPS spectra of bismuth oxybromide prepared by the hydrothermal autoclave method at 130, 180, 230, 280 °C, 12 h, pH = 12. (a) Total survey; (b) Bi 4f; (c) O 1s; (d) I 3d.

image file: c4ra15072d-f5.tif
Fig. 5 High-resolution XPS spectra of bismuth oxyiodide prepared by the hydrothermal autoclave method. (a) Total survey; (b) Bi 4f; (c) O 1s; (d) I 3d.

In the pure BiOI, Bi7O9I3, and Bi5O7I samples, two sets of peaks centered at 160.9 eV, 156.1 eV and 163.2 eV, 158.8 eV, could be characteristic of the Bi(+3−x) and Bi3+ formal oxidation state of Bi 4f5/2 and Bi 4f7/2, and pure α-Bi2O3, only two strong peaks centered at 163.7 and 158.2 eV, could be characteristic of the Bi 4f5/2 and Bi 4f7/2, revealing that the main chemical states of the bismuth element in the samples were trivalent.

3.1.4 FT-IR analysis. To investigate the chemical composition and chemical bonding of composites, a FT-IR investigation was carried out. Fig. 6 shows the FT-IR spectra produced under different bismuth oxyiodides, where the strong absorption was mainly located in the 400–700 cm−1, as a result of the stretching vibrations of Bi–O, Bi–O–I, and Bi–O–Bi in bismuth oxyiodides.47 At the same time, the v(C–O) at 1386 cm−1 and v(C–O) at 1462 cm−1 corresponded to the very weak characteristic peaks of CO32−.
image file: c4ra15072d-f6.tif
Fig. 6 UV-vis absorption spectra of the different bismuth oxyiodide catalysts.

Therefore, it could be concluded that the samples were composed of bismuth oxyiodides. Besides, no impurity or solvent residue absorption peak or absorption band was detected.

3.1.5 UV-vis diffuse reflectance spectroscopy. The UV-vis adsorption spectra of the prepared samples are displayed in Fig. 7 and Fig. S4, S5 (ESI†). Their corresponding band gap energy was estimated, which was close to 1.860–3.136 eV (Table 5). Under visible light irradiation, compared to P25, bismuth oxyiodides showed pronounced light absorbance abilities at λ > 400 nm, suggesting their potential photocatalytic activity. The steep shape and strong absorption in the visible-light region attributed the visible-light absorption to the intrinsic band gap transition between the valence band and the conduction band, rather than the transition from the impurity levels.48 The difference of band gap energy in the synthesized bismuth oxyiodide could be attributed to their individual composition with various characteristics. Based on Tables 5 and 6, the photocatalytic activities were not mainly attributed to the different absorption abilities of visible light due to the different band gap energy.
image file: c4ra15072d-f7.tif

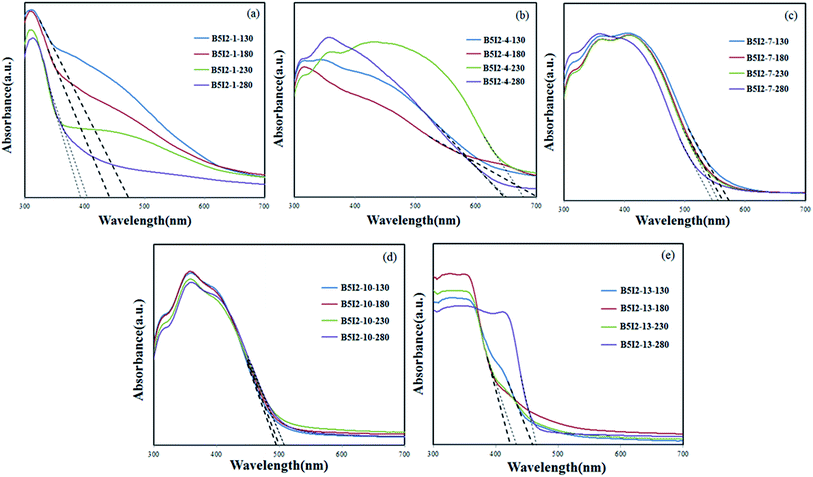

Fig. 7 UV-vis absorption spectra of the prepared bismuth oxyiodide catalysts under different pH values and reaction temperature. (Molar ratio Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, reaction time 12 h).
Table 6 The pseudo-first-order rate constants for the degradation of CV with bismuth oxyiodide photocatalysts under visible light irradiation
pH value Temperature (°C)
130 180 230 280
k (h−1) R2 k (h−1) R2 k (h−1) R2 k (h−1) R2
1 0.0025 0.9719 0.0017 0.9508 0.0011 0.9513 0.0036 0.6597
2 0.0033 0.9685 0.0037 0.9758 0.0041 0.9884 0.0058 0.8928
3 0.0070 0.9715 0.0028 0.9533 0.0015 0.9564 0.0217 0.9615
4 0.0014 0.9761 0.0021 0.9542 0.0071 0.9735 0.0362 0.9775
5 0.0058 0.9565 0.0015 0.9679 0.0026 0.9601 0.0120 0.9131
6 0.0594 0.9614 0.0593 0.9663 0.0789 0.9790 0.1950 0.9769
7 0.0651 0.9552 0.0238 0.9775 0.0435 0.9511 0.2225 0.8881
8 0.0243 0.9518 0.0205 0.9707 0.0301 0.9520 0.0421 0.9512
9 0.0858 0.9640 0.0577 0.9640 0.0621 0.9690 0.1432 0.9660
10 0.0377 0.9742 0.0220 0.9742 0.0165 0.9748 0.1079 0.9765
11 0.0342 0.9768 0.0361 0.9768 0.0049 0.9620 0.0133 0.9064
12 0.0166 0.9686 0.0174 0.9686 0.0124 0.9604 0.0569 0.9327
13 0.0094 0.9788 0.0134 0.9788 0.0095 0.9671 0.0352 0.9423
14 0.0012 0.9603 0.0035 0.9603 0.0024 0.9578 0.0034 0.9177

3.1.6 BET surface areas. The BET of the bismuth oxyiodides was about 0.08–7.20 m2 g−1, respectively. This nanoplate and nanosheet structure could provide efficient transport paths for reactants and more active sites for the photocatalytic reaction. The structure was also advantageous for efficient photo-energy reaping and introducing the separation of electron–hole pairs, thus encouraging the photocatalytic ability.

It is understood that the size of nanoparticles has a significant effect on the photo-catalytic properties because of the variation of surface area, number of active sites and so forth.49 The smaller particle size of nanoparticles would cause a larger surface area (more active sites) to improve the photocatalytic ability. Besides, the band-gap energy is also related to the photocatalytic ability.50 A lower band-gap has a positive effect on the photocatalytic ability because a lower source energy is needed for stimulating a photocatalytic reaction. This means that less energy is needed for activating the nanoparticles to generate excited electron–hole pairs and then induce photocatalytic reactions. In this study, the particle sizes of bismuth oxyiodides were a little higher than those of P25-TiO2; however, the result of band-gap was the opposite. It suggested that the higher photocatalytic ability of bismuth oxyiodides than P25-TiO2 could be attributed to a lower band-gap, which would promote the generation of more excited electron–hole pairs to enhance the photocatalytic ability.

3.2 Evaluation of photocatalytic ability

3.2.1 Photocatalytic ability. The photocatalytic ability of the samples was evaluated by degrading CV (or SA) under visible light (or UV) irradiation with 0.5 g L−1 photocatalyst added. The degradation ability as a function of reaction time is displayed in Fig. 8 and Fig. S6, S7 (ESI†). In the absence of photocatalysts, CV (or SA) could not be degraded under visible (or UV) light irradiation. The removal efficiency was improved significantly in the presence of bismuth oxyiodides. After 24 h irradiation, bismuth oxyiodides revealed superior photocatalytic activities, with a CV removal efficiency up to 99.9%. The UV-vis adsorption spectra of the prepared samples (Fig. 7 and Fig. S4, S5 (ESI†)) corresponding band gap energy were estimated, which were close to 1.860–3.136 eV (Table 5). Under visible light irradiation, compared to P25, bismuth oxyiodides showed pronounced light absorbance abilities at λ > 400 nm, suggesting their potential photocatalytic activities. The steep shape and strong absorption in the visible-light region attributed the visible-light absorption to the intrinsic band gap transition between the valence band and the conduction band, rather than the transition from the impurity levels. Therefore, compared to UV irradiation, bismuth oxyiodides showed superior photocatalytic performance under visible light irradiation.
image file: c4ra15072d-f8.tif
Fig. 8 Photocatalytic degradation of CV and SA by the resulting bismuth oxyiodide catalysts and the control experiments under simulated visible light irradiation. (a) CV; (b) SA; (c) pH = 1–14. (Molar ratio Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, temp = 280 °C, time = 12 h).

To further understand the reaction kinetics of CV photocatalytic degradation, the apparent pseudo-first-order model41 described in the equation ln(Co/C) = kt was used in the photocatalytic experiments. By using the first-order linear fit of the data from Tables 6 and 7, the k value of B5I2-7-280 (Bi7O9I3) was acquired as the maximum degradation rate of 2.225 × 10−1 h−1, and this value was considerably higher than that of the other samples. The activity of Bi7O9I3/Bi5O7I was higher than those of P25-TiO2, BiOI, Bi4O5I2, Bi7O9I3, Bi5O7I, and α-Bi2O3.

Table 7 The pseudo-first-order rate constants for the degradation of CV with bismuth oxyiodide photocatalysts under visible light irradiation
Bi/I molar ratio pH
1 4 7 10 13 14
k (h−1) R2 k (h−1) R2 k (h−1) R2 k (h−1) R2 k (h−1) R2 k (h−1) R2
5[thin space (1/6-em)]:[thin space (1/6-em)]1 0.0070 0.7369 0.0029 0.9272 0.0074 0.8010 0.0399 0.9453 0.0224 0.9566 0.0118 0.9590
5[thin space (1/6-em)]:[thin space (1/6-em)]2 0.0056 0.3908 0.0380 0.9738 0.2052 0.8800 0.1041 0.9748 0.0323 0.9329 0.0033 0.9175
5[thin space (1/6-em)]:[thin space (1/6-em)]5 0.0521 0.9358 0.0620 0.9797 0.0553 0.8581 0.0740 0.9123 0.0281 0.9413 0.0095 0.9314
5[thin space (1/6-em)]:[thin space (1/6-em)]10 0.0462 0.9036 0.1295 0.9327 0.1170 0.9576 0.1063 0.9187 0.0318 0.9835 0.0205 0.8412
5[thin space (1/6-em)]:[thin space (1/6-em)]25 0.0411 0.9613 0.0861 0.9439 0.0738 0.9648 0.1162 0.9147 0.0320 0.9682 0.0150 0.8981

The superior photocatalytic activity of bismuth oxyiodide composites might be attributed to its efficient use of visible light and the high separation efficiency of the electron–hole pairs with its hierarchical structure. The Bi7O9I3/Bi5O7I composite with the largest SBET did exhibit the highest photocatalytic ability among all the samples, suggesting that changes in the photocatalytic ability were associated with the BET surface area.

In the absence of photocatalysts, CV could not be degraded under visible light irradiation; the superior photocatalytic ability of bismuth oxyiodides could be attributed to its efficient use of visible-light and the highly effective separation of electron–hole pairs within its samples.

The evaluated durability of the Bi7O9I3/Bi5O7I composite was measured by recycling the used catalyst. After each cycle, the catalyst was collected by centrifugation. No apparent loss was observed in the photocatalytic ability when CV was degraded in the third cycle; even during the sixth run, the decrease in the photocatalytic efficiency was 1.5% (Fig. 9(a)). The used Bi7O9I3/Bi5O7I composite was also measured using XRD, and no detectable difference was shown between the as-prepared and the used samples (Fig. 9(b)); thus, the Bi7O9I3/Bi5O7I composite had high photo-stability.


image file: c4ra15072d-f9.tif
Fig. 9 (a) Cycling runs and (b) XRD patterns acquired before and after the photocatalytic degradation of CV in the presence of B5I2-7-280.

The degradation efficiency as a function of reaction time is illustrated in Fig. S6 and S7 of the ESI.† The removal efficiency was enhanced significantly in the presence of BiOpBrq/BiOmIn catalysts. After 48 h irradiation, BiOpBrq/BiOmIn showed superior photocatalytic performance, with CV removal efficiency up to 99%. To further understand the reaction kinetics of CV degradation, the apparent pseudo-first-order model21,51 expressed by the ln(Co/C) = kappt equation was applied in this experiments. Via the first-order linear fit from the data of Fig. S6 and S7† shown in Table 3, kapp of BB1I2-4-110-12 was obtained at the maximal degradation rate of 5.285 × 10−1 h−1, greatly higher than the others composites. Therefore, the Bi4O5Br2/BiOI composite showed the best photocatalytic activity. The result showed that the Bi4O5Br2/BiOI composite was a much more effective photocatalyst than the others. The superior photocatalytic ability of BiOpBrq/BiOmIn might be ascribed to its efficient utilization of visible light and the high separation efficiency of the electron–hole pairs with its composites.

The durability of the Bi4O5Br2/BiOI (BB1I2-4-210-12) composite was evaluated through recycling of the used catalyst. There was no apparent loss of photocatalytic activity in removing crystal violet in the fifth cycle, and even in the tenth run, the declination in photocatalytic activity was less than 3% (Fig. 8(a)). The used Bi4O5Br2/BiOI was also examined by XRD, and there was no detectable difference between the as-prepared and the used samples (Fig. 8(b)). Therefore, it could be deduced that the Bi4O5Br2/BiOI composite had good photostability.

3.2.2 Photoluminescence spectra. PL spectra were used for searching the recombination rate of the photogenerated electron–hole pairs.52 To research the separation capacity of the photo-generated carriers in the heterostructures, the PL spectra of bismuth oxyiodides were detected; the results are displayed in Fig. 10. A strong emission peak appeared at approximately 620 nm for bismuth oxyiodides, and it might have been acquired from the direct electron–hole recombination of band transitions. However, the characteristic emission peak at approximately 620 nm nearly vanished for bismuth oxyiodides, showing that the recombination of photogenerated charge carriers was greatly inhibited. The efficient separation of charge might increase the lifetime of charge carriers and enhance the efficiency of interfacial charge transfer to the adsorbed photocatalysts, thus improving the photocatalytic ability.46 The low relative PL intensity of band B5I2-7-280 photocatalysts, as illustrated in Fig. 10, suggested the possession of the lowest recombination rate of electron–hole pairs, resulting in the higher photocatalytic ability, as illustrated in Fig. 8, Tables 6 and 7. Under visible light irradiation, the photocatalytic activities followed the order Bi7O9I3 > Bi7O9I3/Bi5O7I > BiOI/Bi4O5I2/Bi7O9I3 > Bi7O9I3/Bi2O3 > BiOI/Bi4O5I2, which was mainly attributed to the recombination rate of electron–hole pairs. Therefore, it showed that the recombination rate of electron–hole pairs was the major factor in the photocatalytic degradation of CV dye.
image file: c4ra15072d-f10.tif
Fig. 10 Photoluminescence spectra of bismuth oxyiodide under hydrothermal conditions. (Hydrothermal conditions: molar ratio Bi(NO3)3/KI = 5[thin space (1/6-em)]:[thin space (1/6-em)]2, pH = 1–14, temp = 280 °C, time = 12 h).

3.3 Photodegradation mechanisms of CV

Various primary active species, such as hydroxyl radicals (HO˙), photogenerated hole (h+), superoxide radicals (O2−˙) and singlet oxygen (1O2), could be created during the photocatalytic degradation processes in the UV-vis/bismuth oxyiodide system.10 Ye and his co-workers revealed that the rhodamine photodegradation by BiOI under visible-light was dominated by O2−˙ and h+ oxidation being the main active species.53 Xiao et al. proposed that the hydroxyl radicals and direct holes were the primary reactive species in the benzotriazole degradation by BiOBr spheres under simulated solar light irradiation.20 Ge and Zhang investigated the pathway for generating active oxygen radicals (O2−˙ and ˙OH) on the surface of In(OH)xSy for the degradation of RhB.54 Wang’s group showed that highly efficient visible-light-driven sodium pentachlorophenate removal with Bi3O4Br could be attributed to the effective separation and the transfer of photoinduced charge carriers in Bi3O4Br with narrower band-gap and more negative conduction band position, which favored the photogenerated electrons trapping with molecular oxygen to produce O2−˙.55 Yu et al. proposed that the ˙OH radical was generated by multistep reduction of O2−˙.56 The generation of O2−˙ radicals could not only inhibit the recombination of photoinduced charge carriers, but also advantage the dechlorination of the chlorinated phenol derivative. The HO˙ radical might only be generated via an e− → O2−˙ → H2O2 → ˙OH pathway. Meanwhile, ˙OH radicals were generated by multistep reduction of O2−˙ in the system. In a valence band of Bi(III), holes formed by photoexcitation were regarded as Bi(V).57

The standard redox potential of Bi5+/Bi3+ was more negative than that of OH˙/OH−.58 Accordingly, photogenerated holes on the surface of bismuth oxyhalides were not supposed to react with OH−/H2O to form ˙OH, suggesting that the decomposition of rhodamine59 and bisphenol-A60 could be attributed to a direct reaction with the photogenerated holes or with superoxide radicals (generated by the excited electron) or both species. Zhu et al. revealed that photocatalytic reactions in the presence of nitrogen gas and the radical scavenger suggested ˙OH and O2−˙ being two main actives in the whole degradation process.61 According to earlier studies,62 the dominant active oxygen species generated in direct oxidation and photocatalytic reactions were 1O2 and ˙OH radicals, respectively. Moreover, in this visible-light-induced semiconductor system, hydroxylated compounds were also separated and identified for the photocatalytic degradation of Ethyl Violet63 and CV. On the basis of above mentions, it was proposed that the probability for the formation of ˙OH radicals should be much lower than that for O2−˙ radicals. However, the ˙OH radical was an extremely strong, non-selective oxidant, which led to the partial or complete mineralization of several organic compounds.

To evaluate the effect of the active species during photocatalytic degradation, a series of quenchers were added to scavenge the relevant active species. ˙OH, O2˙−, 1O2, and h+ were examined by adding 1.0 mM isopropanol (a quencher of ˙OH),64 1.0 mM benzoquinone (a quencher of O2˙−),65 1.0 mM sodium azide (a quencher of 1O2),66 and 1.0 mM ammonium oxalate (a quencher of h+),67 respectively.

As shown in Fig. 11(a), the degradation efficiency of isopropanol quenching decreased more than that of ammonium oxalate, and the degradation efficiency of benzoquinone quenching decreased more than that of isopropanol, but the photocatalytic degradation of CV was not affected by the addition of sodium azide. In brief, the quenching effects of various scavengers revealed that the reactive O2˙− played a major role, and ˙OH or h+ played a minor role in the CV degradation. Fig. 11(b) and (c) show that no EPR signal was examined when the reaction was accomplished in the dark, while the signals with intensity corresponding to the characteristic peak of DMPO-OH and DMPO-O2− adducts23 were shown during the reaction process under visible light irradiation. Besides, the intensity gradually increased with the prolonged reaction time, proposing that the O2˙− (major active species) and the ˙OH (minor active species) were generated in the presence of bismuth oxyiodides and oxygen under visible light irradiation.


image file: c4ra15072d-f11.tif

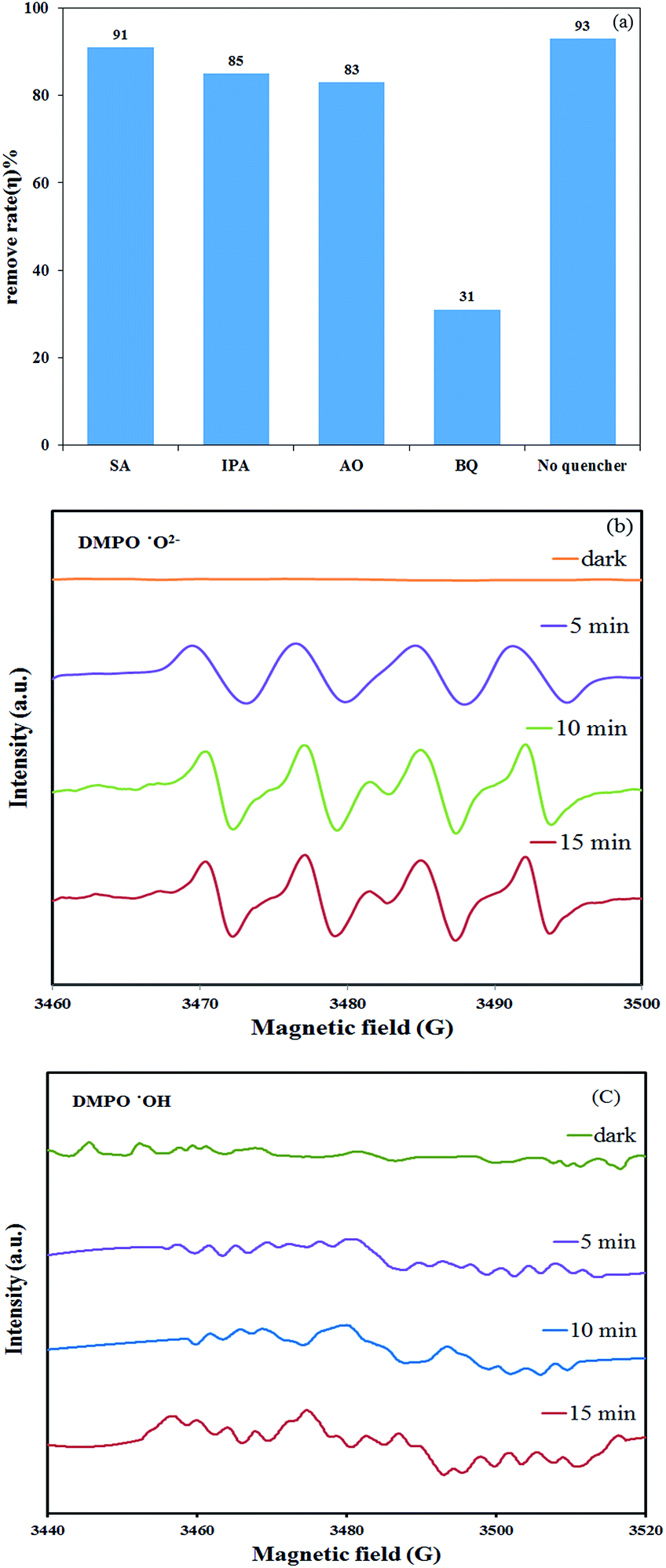

Fig. 11 (a) The dye concentration during photo-degradation as a function of irradiation time observed in bismuth oxyiodides under the addition of different scavengers: SA, IPA, AQ, and BQ; (b) (c) DMPO spin-trapping EPR spectra for DMPO-O2− and DMPO-OH under visible light irradiation with bismuth oxyiodides.

Chen’s group proposed68 that Pt/TiO2 gathered less negative species on catalyst surfaces, which declined reaction rates, than pure TiO2 did in an acidic environment. The ˙OH radicals were produced subsequently, as also expressed in eqn (9)–(14).


O2−˙ + H+ + e− → HOO˙ (9)

HOO˙ + H2O → ˙OH + H2O2 (10)

O2−˙ + 2H+ → H2O2 (11)

H2O2 + e− → ˙OH + OH− (12)

h+ + OH− → ˙OH (13)

h+ + H2O → ˙OH + H+ (14)

These cycle reactions continuously happened when the system was exposed to visible-light irradiation. Finally, after several cycles of photo-oxidation, the photocatalytic degradation of CV by the generated oxidant species could be shown by eqn (15) and (16):


CV + OH˙ → degraded compounds (15)

CV+˙ + OH˙ → degraded compounds (16)

It was reported that a mechanism of dye sensitized degradation exhibited in the degradation of dye.61,68,69 This photocatalytic degradation was also ascribed to the photodegradation of CV by the photocatalytic route of CV photosensitized bismuth oxyiodides. CV absorbing a visible photon was promoted to an excited electronic state CV*, from which an electron could be transferred into the conduction band of photocatalysts.


CV + hν → CV* (17)

CV* + BiOxIy → CV+ + BiOxIy(e−) (18)

O2 + e− → O2−˙ (19)

Once the electron reached the conduction band of bismuth oxyiodides, it induced the formation of active oxygen species, which caused the degradation of CV dye. It was clear that, except for the photodegradation of CV by the route of bismuth oxyiodide-mediated and photosensitized processes, another type of photocatalytic route accounted for the enhanced photocatalytic activity. Both the photosensitized and photocatalytic processes proceeded concurrently (Fig. 12). However, in photosensitized and photocatalytic reaction conditions, O2˙− radicals were generated by the reaction of photogenerated and photosensitized electron with oxygen gas on the photocatalyst surface, and ˙OH radicals were also generated by the reaction of O2˙− radicals with H+ ion and hole h+ with OH− ion (or H2O). The ˙OH radical was produced subsequently, as expressed in eqn (9) to (14).


image file: c4ra15072d-f12.tif

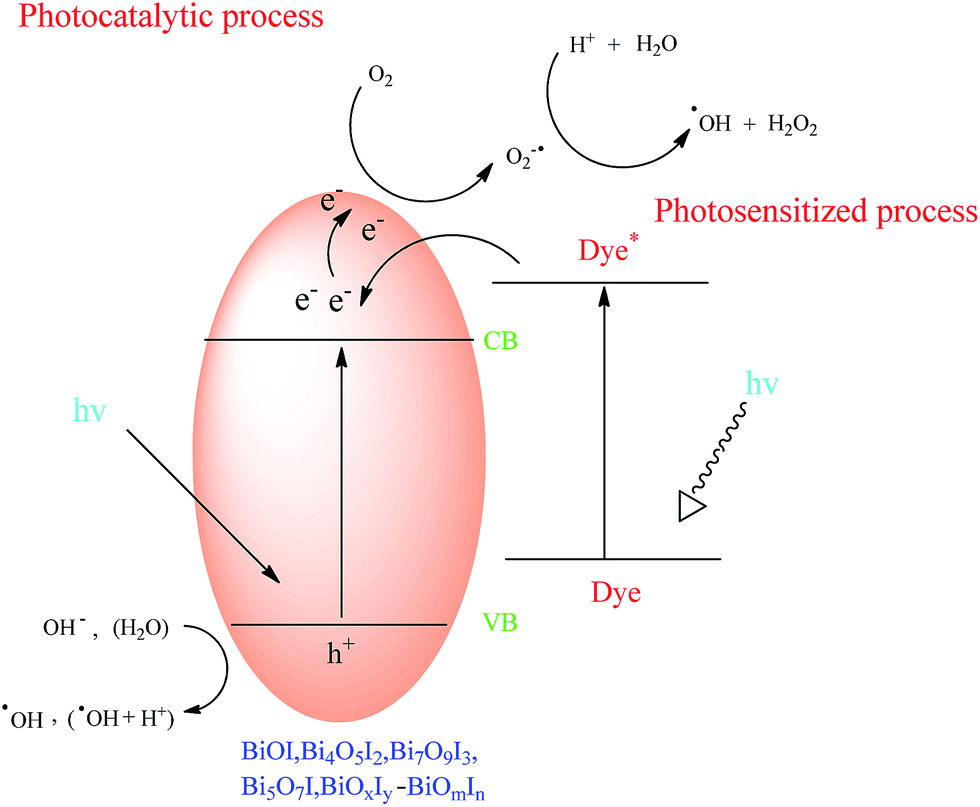

Fig. 12 The band structure diagram of bismuth oxyiodide photocatalysts and the possible charge separation processes.

Under visible irradiation, temporal variations occurring in the solution of CV dye during the degradation process were detected by the HPLC-PDA-MS. Given the CV irradiation up to 24 h at pH 4, the chromatograms were displayed in Fig. S8 of the ESI† and recorded at 580, 350, and 300 nm, and nineteen intermediates were separated and identified, with a retention time under 50 min. The CV dye and its related intermediates were marked as species A–J, a–f, and α–γ. Except for the initial CV dye (peak A), the peaks initially increased before the subsequent decrease, indicating the generation and transformation of the intermediates.

The maximum absorption of the spectral bands shifted from 588.9 nm (spectrum A) to 542.0 nm (spectrum J), from 377.8 nm (spectrum a) to 340.3 nm (spectrum f), and from 311.2 nm (spectrum α) to 281.2 nm (spectrum γ) in Fig. S9 of the ESI.† The maximum adsorption in the UV-vis spectral region of each intermediate is listed in Table S1 (ESI†). They were separated and identified as A–J, a–f, and α–γ, respectively corresponding to the peaks A–J, a–f, and α–γ in three chromatographs (Fig. S8 of ESI†). These shifts of the absorption band were supposed to result from the generation of a series of N-de-methylated intermediates. From these results, several groups of intermediates could be differentiated. The intermediates were further identified using the HPLC-ESI-MS, and the relevant mass spectra are shown in Fig. S10 and Table S1 of the ESI.† The molecular ion peak appeared in the acid form of the intermediates using HPLC-ESI-MS. The detailed data of intermediates are described in the appendix A.

In previous reports,63,69,70 the N-de-alkylation processes were preceded by the generation of a nitrogen-centered radical while the oxidative degradation was preceded by the formation of a carbon-centered radical in the photocatalytic degradation of triarylmethane dye. In the experimental results, the dye degradation mechanism was tentatively proposed, described in Fig. S11–S13.† The excited dye injected an electron into the conduction band of the photocatalysts, where it was scavenged by O2 gas to form O2−˙ radicals. De-methylation of CV occurred mostly by attack by the active species, which was a perfect nucleophilic reagent, on the N-methyl portion of CV. Further, O2−˙ radicals subsequently reacted with H2O to generate ˙OH radicals and the other active species. The probability for the generation of ˙OH radicals should be much lower than that for O2−˙ radicals. The ˙OH radical was an extremely strong, non-selective oxidant, which led to the partial or complete mineralization of several organic compounds. All the above active species drove the degradation or mineralization of the dye molecule. All the intermediates identified in these two studied topics had the same results under visible light irradiation. It was doubtless that the major oxidant was ˙OH radicals, not O2−˙ radicals.

4. Conclusions

In the current process, the controllable crystal phases and morphologies of bismuth oxyiodides could be accomplished by simply changing some growth parameters, including molar ratio (Bi/I), pH value, and reaction temperature. The results demonstrate that a series of changes in the compounds happen at different hydrothermal conditions, expressed as BiOI → Bi4O5I2 → Bi7O9I3 → Bi5O7I → α-Bi2O3. The bismuth oxyiodide catalysts are of different phases, which degrade nearly 100% of CV from the solution after 24 h under visible light irradiation, and the high activity can be attributed to their relatively efficient utilization of visible light. Both the photosensitized process and the photocatalytic process proceed concurrently for the CV degradation, whereas the photocatalytic process is the only process in the SA degradation. O2−˙ radicals are the main active species, and ˙OH radicals (or h+) are the minor active species in the photocatalytic process. In the photocatalytic and photosensitized processes, N-demethylation and the cleavage of the conjugated CV dye structure occur during the degradation with bismuth oxyiodides as the catalyst. The reaction mechanisms for vis/bismuth oxyiodides proposed in this research should offer some notion for the applications to the decoloration of dyes.

Acknowledgements

This research was supported by the Ministry of Science and Technology of the Republic of China (NSC-101-2113-M-142-001-MY3).

Notes and references

  1. S. Malato, P. Fernández-Ibáñez, M. I. Maldonado, J. Blanco and W. Gernjak, Catal. Today, 2009, 147, 1–59 CrossRef CAS PubMed.
  2. M. A. Shannon, P. W. Bohn, M. Elimelech, J. G. Georgiadis, B. J. Marinas and A. M. Mayes, Nature, 2008, 452, 301–310 CrossRef CAS PubMed.
  3. W. W. Lee, W. H. Chung, W. S. Huang, W. C. Lin, W. Y. Lin, Y. R. Jiang and C. C. Chen, J. Taiwan Inst. Chem. Eng., 2013, 44, 660–669 CrossRef CAS PubMed.
  4. Z. Chen, W. Wang, Z. Zhang and X. Fang, J. Phys. Chem. C, 2013, 117, 19346–19352 CAS.
  5. J. Xu, W. Meng, Y. Zhang, L. Li and C. Guo, Appl. Catal., B, 2011, 107, 355–362 CrossRef CAS PubMed.
  6. M. Q. Yang, N. Zhang, M. Pagliaro and Y. J. Xu, Chem. Soc. Rev., 2014, 43, 8240–8254 RSC.
  7. N. Zhang, Y. Zhang and Yi-J. Xu, Nanoscale, 2012, 4, 5792–5813 RSC.
  8. M. Q. Yang and Y. J. Xu, Phys. Chem. Chem. Phys., 2013, 15, 19102–19118 RSC.
  9. C. Han, M. Q. Yang, B. Weng and Y. J. Xu, Phys. Chem. Chem. Phys., 2014, 16, 16891–16903 RSC.
  10. N. Zhang, X. Fu and Y. J. Xu, J. Mater. Chem., 2011, 21, 8152–8158 RSC.
  11. Y. Zhang, N. Zhang, Z. R. Tang and Y. J. Xu, Chem. Sci., 2012, 3, 2812–2822 RSC.
  12. Z. Chen, N. Zhang and Y. J. Xu, CrystEngComm, 2013, 15, 3022–3030 RSC.
  13. Y. Zhang, Z. R. Tang, X. Fu and Y. J. Xu, ACS Nano, 2010, 4, 7303–7311 CrossRef CAS PubMed.
  14. N. Zhang, M. Q. Yang, Z. R. Tang and Y. J. Xu, ACS Nano, 2014, 8, 623–633 CrossRef CAS PubMed.
  15. H. Cheng, B. Huang and Y. Dai, Nanoscale, 2014, 6, 2009–2026 RSC.
  16. X. Xiao and W. D. Zhang, J. Mater. Chem., 2010, 20, 5866–5870 RSC.
  17. Y. Huo, J. Zhang, M. Miao and Y. Jin, Appl. Catal., B, 2012, 111–112, 334–341 CrossRef CAS PubMed.
  18. L. Ye, J. Chen, L. Tian, J. Liu, T. Penga, K. Deng and L. Zan, Appl. Catal., B, 2013, 130–131, 1–7 CAS.
  19. X. Chang, J. Huang, C. Cheng, Q. Sui, W. Sha, G. Ji, S. Deng and G. Yu, Catal. Commun., 2010, 11, 460–464 CrossRef CAS PubMed.
  20. X. Xiao and W. D. Zhang, RSC Adv., 2011, 1, 1099–1105 RSC.
  21. Y. Lei, G. Wang, S. Song, W. Fan, M. Pang, J. Tanga and H. Zhang, Dalton Trans., 2010, 39, 3273–3278 RSC.
  22. X. Zhang, Z. H. Ai, F. L. Jia and L. Z. Zhang, J. Phys. Chem. C, 2008, 112, 747–753 CAS.
  23. X. Xiao, C. Xing, G. He, X. Zuo, J. Nana and L. Wang, Appl. Catal., B, 2014, 148–149, 154–163 CrossRef CAS PubMed.
  24. X. Xiao, R. Hao, X. Zuo, J. Nan, L. Li and W. Zhang, Chem. Eng. J., 2012, 209, 293–300 CrossRef CAS PubMed.
  25. Q. C. Liu, D. K. Ma, Y. Y. Hu, Y. W. Zeng and S. M. Huang, ACS Appl. Mater. Interfaces, 2013, 5, 11927–11934 CAS.
  26. S. Sun, W. Wang, L. Zhang, L. Zhou, W. Yin and M. Shang, Environ. Sci. Technol., 2009, 43, 2005–2010 CrossRef CAS.
  27. W. L. Huang and Q. S. Zhu, J. Comput. Chem., 2009, 30, 183–190 CrossRef CAS PubMed.
  28. X. Xiao, C. Liu, R. Hu, X. Zuo, J. Nan, L. Li and L. Wang, J. Mater. Chem., 2012, 22, 22840–22843 RSC.
  29. X. Xiao, R. Hu, C. Liu, C. Xing, C. Qian, X. Zuo, J. Nan and L. Wang, Appl. Catal., B, 2013, 140–141, 433–443 CrossRef CAS PubMed.
  30. S. T. Huang, Y. R. Jiang, S. Y. Chou, Y. M. Dai and C. C. Chen, J. Mol. Catal. A: Chem., 2014, 391, 105–120 CrossRef CAS PubMed.
  31. J. Jiang, X. Zhang, P. Sun and L. Zhang, J. Phys. Chem. C, 2011, 115, 20555–20564 CAS.
  32. J. Wang, Y. Yu and L. Zhang, Appl. Catal., B, 2013, 136–137, 112–121 CrossRef CAS PubMed.
  33. C. Chang, L. Zhu, S. Wang, X. Chu and L. Yue, ACS Appl. Mater. Interfaces, 2014, 6, 5083–5093 CAS.
  34. Y. Liu, W. Yao, D. Liu, R. Zong, M. Zhang, X. Ma and Y. Zhu, Appl. Catal., B, 2015, 163, 547–553 CrossRef CAS PubMed.
  35. H. Huang, K. Liu, Y. Zhang, K. Chen, Y. Zhang and N. Tian, RSC Adv., 2014, 4, 49386–49394 RSC.
  36. D. F. Duxbury, Chem. Rev., 1993, 93, 381–433 CrossRef CAS.
  37. T. Inoue, K. Kikuchi, K. Hirose, M. Iiono and T. Nagano, Chem. Biol., 2001, 8, 9–15 CrossRef CAS.
  38. R. Bonnett and G. Martinez, Tetrahedron, 2001, 57, 9513–9547 CrossRef CAS.
  39. B. P. Cho, T. Yang, L. R. Blankenship, J. D. Moody, M. Churchwell, F. A. Bebland and S. J. Culp, Chem. Res. Toxicol., 2003, 16, 285–294 CrossRef CAS PubMed.
  40. K. Yu, S. Yang, C. Liu, H. Chen, H. Li, C. Sun and S. A. Boyd, Environ. Sci. Technol., 2012, 46, 7318–7326 CrossRef CAS PubMed.
  41. W. L. W. Lee, J. S. Lin, J. L. Chang, J. Y. Chen, M. C. Cheng and C. C. Chen, J. Mol. Catal. A: Chem., 2012, 361–362, 80–90 CrossRef CAS PubMed.
  42. F. Chen, P. Fang, Y. Gao, Z. Liu, Y. Liu and Y. Dai, Chem. Eng. J., 2012, 204–206, 107–113 CrossRef CAS PubMed.
  43. S. Ameen, M. S. Akhtar, M. Nazim and H. S. Shin, Mater. Lett., 2013, 96, 228–232 CrossRef CAS PubMed.
  44. S. T. Huang, Y. R. Jiang, S. Y. Chou, Y. M. Dai and C. C. Chen, J. Mol. Catal. A: Chem., 2014, 391, 105–120 CrossRef CAS PubMed.
  45. W. L. W. Lee, W. H. Chung, W. S. Huang, W. C. Lin, W. Y. Lin, Y. R. Jiang and C. C. Chen, J. Taiwan Inst. Chem. Eng., 2013, 44, 660–669 CrossRef CAS PubMed.
  46. Y. H. Liao, J. X. Wang, J. S. Lin, W. H. Chung, W. Y. Lin and C. C. Chen, Catal. Today, 2011, 174, 148–159 CrossRef CAS PubMed.
  47. M. N. Novokreshchenova, Y. Yukhin and B. B. Bokhonov, Chem. Sustainable Dev., 2005, 13, 563–568 CAS.
  48. J. Zhang, F. Shi, J. Lin, D. Chen, J. Gao, Z. Huang, X. Ding and C. Tang, Chem. Mater., 2008, 20, 2937–2941 CrossRef CAS.
  49. W. C. Lin, W. D. Yang and S. Y. Jheng, J. Taiwan Inst. Chem. Eng., 2012, 43, 269–274 CrossRef CAS PubMed.
  50. L. Manna, E. C. Scher and A. P. Alivisatos, J. Cluster Sci., 2002, 13, 521–532 CrossRef CAS.
  51. W. D. Wang, F. Q. Huang and X. P. Lin, Scr. Mater., 2007, 56, 669–672 CrossRef CAS PubMed.
  52. K. Ishibashi, A. Fujishima, T. Watanabe and K. Hashimoto, Electrochem. Commun., 2000, 2, 207–210 CrossRef CAS.
  53. L. Ye, J. Chen, L. Tian, J. Liu, T. Peng, K. Deng and L. Zan, Appl. Catal., B, 2013, 130–131, 1–7 CAS.
  54. S. Ge and L. Zhang, Environ. Sci. Technol., 2011, 45, 3027–3033 CrossRef CAS PubMed.
  55. J. Wang, Y. Yu and L. Zhang, Appl. Catal., B, 2013, 136–137, 112–121 CrossRef CAS PubMed.
  56. C. Yu, C. Fan, J. C. Yu, W. Zhou and K. Yang, Mater. Res. Bull., 2011, 46, 140–146 CrossRef CAS PubMed.
  57. H. Fu, C. Pan, W. Yao and Y. Zhu, J. Phys. Chem. B, 2005, 109, 22432–22439 CrossRef CAS PubMed.
  58. S. Kim and W. Choi, Environ. Sci. Technol., 2002, 36, 2019–2025 CrossRef CAS.
  59. S. K. Sanaa, U. Vladimir, F. Sveta, P. Inna and S. Yoel, Appl. Catal., B, 2012, 117–118, 148–155 Search PubMed.
  60. X. Xiao, R. Hao, M. Liang, X. Zuo, J. Nan, L. Li and W. Zhang, J. Hazard. Mater., 2012, 233–234, 122–130 CrossRef CAS PubMed.
  61. X. Zhu, J. Zhang and F. Chen, Appl. Catal., B, 2011, 102, 316–322 CrossRef CAS PubMed.
  62. K. Yu, S. Yang, C. Liu, H. Chen, H. Li, C. Sun and S. A. Boyd, Environ. Sci. Technol., 2012, 46, 7318–7326 CrossRef CAS PubMed.
  63. W. W. Lee, J. S. Lin, J. L. Chang, J. Y. Chen, M. C. Cheng and C. C. Chen, J. Mol. Catal. A: Chem., 2012, 361–362, 80–90 CrossRef CAS PubMed.
  64. L. S. Zhang, K. H. Wong, H. Y. Yip, C. Hu, J. C. Yu, C. Y. Chan and P. K. Wong, Environ. Sci. Technol., 2010, 44, 1392–1398 CrossRef CAS PubMed.
  65. M. C. Yin, Z. S. Li, J. H. Kou and Z. G. Zou, Environ. Sci. Technol., 2009, 43, 8361–8366 CrossRef CAS PubMed.
  66. G. Li, K. H. Wong, X. Zhang, C. Hu, J. C. Yu, R. C. Y. Chan and P. K. Wong, Chemosphere, 2009, 76, 1185–1191 CrossRef CAS PubMed.
  67. S. G. Meng, D. Z. Li, M. Sun, W. J. Li, J. X. Wang, J. Chen, X. Z. Fu and G. C. Xiao, Catal. Commun., 2011, 12, 972–975 CrossRef CAS PubMed.
  68. H. J. Fan, C. Lu, W. L. W. Lee, M. R. Chiou and C. C. Chen, J. Hazard. Mater., 2011, 185, 227–235 CrossRef CAS PubMed.
  69. Y. Li, H. Zhang, X. Hu, X. Zhao and M. Han, J. Phys. Chem. C, 2008, 112, 14973–14979 CAS.
  70. Y. R. Jiang, H. P. Lin, W. H. Chung, Y. M. Dai, W. Y. Lin and C. C. Chen, J. Hazard. Mater., 2015, 283, 787–805 CrossRef CAS PubMed.

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c4ra15072d
This journal is © The Royal Society of Chemistry 2015
Click here to see how this site uses Cookies. View our privacy policy here.
