Synthesis of covalently bonded graphene oxide–iron magnetic nanoparticles and the kinetics of mercury removal

Abstract

Synergistically combined nanomaterials have been applied in various fields in materials science to improve the properties of nanocomposites. However, limited studies focus on the ability of such composites for water treatment. A graphene oxide (GO)–iron oxide (Fe₃O₄) magnetic nano-particle composite (GOMNP) was synthesized and used to study the Hg²⁺ adsorption kinetics from aqueous solution at various temperatures. GO was attached to magnetic nanoparticles via the amine group of 3-aminopropyltriethoxysilane which was attached the surface of Fe₃O₄. The GOMNP nano-composite had a Hg²⁺ adsorption capacity of 16.6 mg g⁻¹. IR spectra analysis showed that hydroxyl and carboxylate functional groups were mainly responsible for Hg²⁺ adsorption. Adsorption of Hg²⁺ by the GOMNP obeyed different adsorption mechanisms at varying adsorption temperatures. The Elovich kinetics model described the Hg²⁺ adsorption data better than any of the other three models tested. The GOMNP nano-composite is thus a promising nanosorbent for Hg²⁺ removal from aqueous solutions.

---

1. Introduction

The adverse impact of mercury (Hg) on biota is well documented. It has been known to cause dysfunctional organs in humans such as in the digestive, reproductive, cardiovascular and nervous systems, kidney, brain and eye.^1,2 At minute concentrations of more than 6 ppb, mercury is considered very toxic.^2,3 Hg occurs in the environment mainly in the form of methyl mercury, and in this and its other environmental forms it is not essential for plants or animals.¹ Soils and sediments are usually its final sink, and when in the environment elemental Hg is easily methylated and it can be readily absorbed by biota in this methylated form, thus accumulating in humans via the food chain.^1,4,5 A vivid example of mercury poisoning was seen in the Minamata incidence in the 1950s in Japan.

Recent studies have reported increasing cases of Hg in the environment⁶ and in humans⁵ especially in Asia due to the recent boom in industrial activities in this region. Anthropogenic emissions are either from intentional uses or as byproduct of other activities. At present, coal combustion represents a substantial source of Hg to the environment,⁷ and about half of current emissions are from Asia. Other sources include industrial processes such as cement and chlor-alkali productions, and mining applications, including artisanal and small-scale gold mining.⁶ Hg in the environment finds its way into water and subsequently to soil where it is readily absorbed by aquatic organisms such as fishes and plants, respectively. Hence, reducing the quantity of mercury in effluents before discharge is necessary to reduce the amount of Hg that gets into the environment, and subsequent accumulation in biota.

The unique structural and functional properties associated with graphene oxide (GO), such as its high mechanical strength (>1060 GPa), theoretical surface area (about 2600 m² g⁻¹), and the presence of hydroxyl and carboxylic groups are important characteristics that make graphene oxide containing materials suitable for environmental applications.⁸ For instance some authors have employed these properties for adsorption of biphenol A⁹ and arsenic,^10,11 while others have employed the unique chemical and physical properties of iron magnetic nanoparticles together with other materials in the removal of some toxic substances from solution.^8,12,13 Iron magnetic nanoparticles have the ease of being removed from solution by magnetization. Iron magnetic nanoparticles synergistically combined with other nanomaterials have very promising capacities for water treatment.

With the foregoing in mind, the aim of this study was to covalently combine GO and iron magnetic nanoparticles into one chemical entity at reduced temperature, and employ this new material in the removal/adsorption of Hg²⁺ from aqueous solution. The adsorption data was explained kinetically.

2. Material and methods

2.1 Preparation of GO and synthesis of the APS–Fe₃O₄ hybrid nanoparticles

The chemical exfoliation of natural flake graphite was carried out by modified Hummers' method in which a very long oxidation period was combined with a multi-cycle purification process⁸ (see ESI†).

Fe₃O₄ nanoparticles (FNPs) were prepared using the chemical co-precipitation method by mixing 3.0 mL of 1 M FeCl₃ and 1.0 mL of 2 M FeCl₂ (ratio 2 : 1) solution in a 100 mL beaker containing a magnetic stirring bar. This mixture was continuously stirred under nitrogen while slowly adding 1.0 M aqueous NaOH solution. The initial brown precipitate then turned to a black precipitate (magnetite) while still adding NaOH. The stirrer was turned off and the magnetic stirring bar removed with a strong magnet. The magnetite formed was allowed to settle and the supernatant decanted. The solid was then washed with water and then ethanol accompanied by magnetic decanting after each washing. This is the iron oxide magnetic nanoparticles (FMNP).

0.3 g of the synthesized FMNP was then dispersed in 20 mL ethanol by sonication. 3 mL (3-aminopropyl)-trimethoxysilane (APS) was added to the solution with continued sonication for 10 min, and then incubated at 60 °C for 4 h. Enough N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC) was added to make 100 mM and the solution sonicated for 5 min. The APS reaction is similar to that adopted by He et al.¹⁴

2.2 Synthesis of GO–Fe₃O₄ nanoparticles

GO magnetic nanoparticles (GOMNP) was synthesized from various concentrations of GO solutions. Solutions containing known amounts of GO were prepared in water and sonicated for 5 min (ESI – Table S1†). Specific volume of these solutions were added to the APS–Fe₃O₄ mixture above to obtain the final ‘x’ mg mL⁻¹ GO concentration (‘x’ refers to GO concentration which could either be 0.5 or 1.0 mg mL⁻¹; thus representing FMNP : GO concentration ratios of 2 : 1 and 1 : 1, respectively) (Table S1†). These concentration ratios are denoted as GOMNP-1 and GOMNP-2, respectively. The solutions were mixed, sonicated for 10 min and incubated at 65 °C for 8 h. The GOMNP particles were then separated by magnetization, washed with water and ethanol thrice, and then freeze dried. Three control pots were set up containing: (a) all reagents but EDC (GOMNP); (b) only FMNP and APS (APS–FMNP); and, (c) FMNP and GO only (GOMNP-0). These were to ascertain the success of the FMNP–APS and FMNP–APS/GO reactions (Table S1†).

2.3 Instrumental characterizations

The GOMNP particles were characterized by Spectrum One Fourier transform infrared (FTIR) spectrometer (PerkinElmer Instruments Co. Ltd., USA), Pyris Diamond Thermogravimetric/differential thermal analyzer (PerkinElmer Instruments Co. Ltd., USA), Renishaw inVia Raman spectrometer (Renishaw plc, UK), Philips X'Pert PRO X-ray diffraction instrument (PANalytical B.V., Netherlands), and Micromeritics ASAP 2020 M + C accelerated surface area and porosimetry analyzer (Micromeritics Instrument Corporation, USA). Mercury adsorptions were monitored using Varian 710-ES ICP optical emission spectrometer (ES – S2†).

2.4 Mercury adsorption

Batch equilibrium adsorption procedure¹⁵ was used to determine the Hg²⁺ adsorption kinetics of GOMNP. The adsorptions were done at pH 5.0 ± 0.2 for three temperatures – 20, 30 and 40 °C, in the time range of 5 to 180 minutes using a mercury solution concentration of 50 mg L⁻¹ and 20 mg of the GOMNP-1 each time. The Hg²⁺/GOMNP-1 mixtures were incubated by shaking at the desired temperature in a temperature controlled shaker during the course of the adsorption experiment. The tubes were withdrawn from the shaker at the appropriate time interval, GOMNP-1 in solutions was separated and the Hg²⁺ concentration in the supernatant determined.

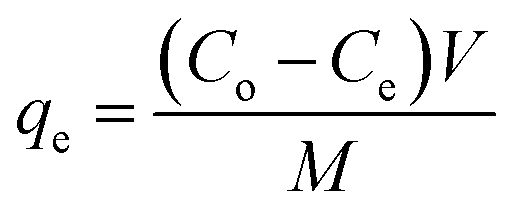

The quantity of Hg adsorbed in each case was calculated using eqn (1).

where q_e, C_o and C_e are the amount of Hg adsorbed (mg g⁻¹), the initial and final Hg concentrations in the solution (mg L⁻¹), respectively; and V (mL) and M (g) are the volume of solution and mass of GOMNP-1 used for each adsorption, respectively.

The simplified linear equations of Lagergren pseudo-first-order – PFO (eqn (2)), pseudo second-order – PSO (eqn (3)) rate models as well as the Elovich (eqn (4)) and intra-particle diffusion¹⁶ (eqn (5)) kinetics models were used to describe the adsorption data.

q_t = k_i(t^1/2) + C (5)

where q_e and q_t are Hg adsorbed (mg g⁻¹) at equilibrium and at time t, respectively; and k₁ (min⁻¹) and k₂ (g μg⁻¹ min⁻¹) are the rate constants of the PFO and PSO, respectively. The q_e and rate constants were calculated from the slope and intercept of the plots of log (q_e − q_t) vs. t; and vs. t for PFO and PSO, respectively, α is the initial adsorption rate (mg g⁻¹ min⁻¹) and β is the desorption constant (g mg⁻¹) during any one experiment, and C (μg g⁻¹) values indicate the thickness of the boundary layer of Hg²⁺ ion adsorbed, and k_i (mg g⁻¹ min^−1/2) is intra-particle diffusion rate constant of the control stage.

3. Results and discussion

3.1 Characterization

The schematic synthesis of the iron magnetic nanoparticles (FMNP) and GO composite is shown in Fig. 1. The FMNP particles were first synthesized and then reacted with 3-aminopropyltriethoxysilane (APS), and subsequently GO sheets were attached via the amine group on the APS. This was similar to the modification reaction carried out by He et al.¹⁴ Fig. 2a shows the IR spectra of GO and the various modified GO–MNPs. The characteristic peaks of pristine GO for hydroxyl groups, –C=O bond of the amide-I, carboxylate vibrations, and –C–O band of carboxylic acids were observed at 3436, 1627, 1421, and 1068 cm⁻¹, respectively.⁸ The IR spectra of various modified GOMNP were different from that of GO as shown in Fig. 2a suggesting that the treatment conferred new functional groups unto the GO. In addition to the observed peaks of pristine GO, distinct peaks originating after the treatments were observed in the GOMNP as well as the APS–FMNP. The hydroxyl and amide I band stretch of C=O were observed at around 3436 and 1628 cm⁻¹, respectively. However, the GO band at 1068 cm⁻¹ disappeared with the appearance of three new bands at 890, 1051 and 1129 cm⁻¹ indicating the presence of Si–O from APS in the newly formed structure. The band around 1330 cm⁻¹ was attributed to –CH₂– scissor of the aliphatic propyl chain of the APS while additional bands around 1491 and 1566 cm⁻¹ was assigned to the amine –C–N– and –NH bend linking APS and GO.¹⁵ The peak close to 600 cm⁻¹ was ascribed to absorption by the Fe–O bond of the iron oxide. These bands indicate a covalent linkage between GO and the FMNP.¹⁷

Fig. 1 Schematic synthesis of GOMNP.

Fig. 2 (a) IR spectra of the various synthesized materials; (b) TGA of the GOMNP materials; (c) Raman spectra of GO, APS–FMNP, and GOMNP; (d) magnetic separation from solution test (i) GOMNP-0, (ii) GOMNP and (iii) GOMNP-1.

TGA curves of GO, and the various FMNP modifications are shown in Fig. 2b. The curve for FMNP showed little weight loss – about 3% below 250 °C. Comparing the FMNP with the pristine GO, it was observed that GO showed a far lower thermal stability and much higher weight loss losing about 60% of its original weight before 380 °C. This weight loss was due to moisture loss at the initial temperature, and later on the pyrolysis and decomposition of the labile oxygen-containing functional groups such as –CO, –OH and –COOH attached to GO resulting in the loss of CO, CO₂ and steam. Further weight loss, which was steady (∼5%) occurred thereafter in the temperature range of about 400 to 800 °C, and this may be attributed to removal of more stable functional groups at higher temperatures. However, modification of the GO with FMNP reduced the weight loss. The weight loss was between 15 to 25% depending on the effectiveness of the reaction between GO and FMNP. The higher the quantity of GO attached to FMNP, the more the weight loss. Though magnetic separation test result (Fig. 2d) showed that it is possible to react APS–FMNP and GO to obtain GOMNP, comparison of the TGA data of GOMNP, GOMNP-1, and GOMNP-2 showed that higher quantity of GO (up to 5% more) can be attached to FMNP in the presence of EDC; thus, more GO was linked per gram FMNP in the presence of EDC.

Raman spectroscopy is another method for the identification of the presence of carbonaceous materials as well as iron oxide phase in a compound because of the varying vibrational fingerprints of magnetite, maghemite and hematite. Raman spectra of the GO and the modified GOMNPs showed the presence of the added carbonaceous materials in the GOMNPs (Fig. 2c). GO and GOMNP-1 displayed the well known D- and G-bands associated with GO materials at around 1354 and 1600 cm⁻¹, respectively. The D peaks were attributed to the presence of condensed benzene regions in the graphene structure, while the G peaks were evidence of sp² bonded carbon that is present in planar sheet configurations which includes sp² C=C stretch vibrations.⁸ The spectra of APS–FMNP and GOMNP showed additional peak at 670 cm⁻¹ which corresponds to that of magnetite. The BET surface areas and porosities of GO, FMNP and GOMNP-1 were determined as 56, 125 and 214 m⁻² g⁻¹, respectively; and adsorption average pore diameters of 4.8, 13.7, and 13.1 nm, respectively (ESI – Fig. S1†). The observed increases in surface area of these new materials were attributed to the rigid nature of the FMNP particles which reduces stacking of the GO sheets; and hence increases the surface area.

To ascertain whether the magnetic property of the FMNP were transferred to GOMNP by the FMNP attachment to the GO surface via the amine group of the 3-aminopropyltriethoxysilane (APS), GOMNP, GOMNP-0 and GOMNP-1 were subjected to magnetic separation test. If the GO sheets are attached to the FMNP, separation will be perfect in the presence of external magnetic field. After 20 min, it was observed that GOMNP and GOMNP-1 were separated as shown in Fig. 2d. However, the GOMNP-0 (Fig. 2d(i)) remained unseparated just like before the application of the external magnetic field and no clear solution was observed indicating that GO–magnetic hybrid particles were not formed like in the GOMNP and GOMNP-1. For GOMNP (Fig. 2d(ii)) partial separation was observed, while GOMNP-1 (Fig. 2d(iii)), on the other hand, showed a complete separation. This was an indication that the FMNPs were attached to the GO and were separated along with the GO sheets. GO were covalently attached to the FMNP via amide bonds which were formed between the amine group of APS and the carboxylic group of the GO sheets. He et al.¹⁴ have reported a similar reaction using APS.

3.2 Adsorption kinetics of mercury

Batch equilibrium adsorption procedure was used to study the Hg²⁺ adsorption kinetics of GOMNP-1 at pH 5.0 ± 0.2 and at 20, 30, and 40 °C using Hg²⁺ concentration of 50 mg L⁻¹ and 20 mg of GOMNP-1 in the time range of 5 to 180 minutes. Adsorption kinetics study is important because it gives information on the rate of the adsorption of a particular sorbate under a set of prescribed conditions. Preliminary investigations conducted to compare the Hg²⁺ adsorption capacity of pristine GO and GOMNP-1 showed that GO has Hg²⁺ adsorption capacity of 2.9 mg g⁻¹ while GOMNP-1 has over 5 fold higher adsorption capacity. The adsorption time curve (Fig. 3a(i)) showed that Hg²⁺ adsorption equilibria were fast and this was reached within 120 minutes. Similar fast adsorption results have been reported in literature for graphene based materials.^10,17,18 The difference in adsorption capacities of GO and GOMNP-1 is an indication that in addition to the adsorption sites on the GO sheets provided by the presence of the carboxylic (–COO) and hydroxyl (–OH) functional groups, the FMNP particles magnetic acted as sorbent for Hg²⁺ in solution. The significant difference in the Hg²⁺ adsorption capacities of both GO and GO/FMNP composites is also testimony to the success of attaching GO to the FMNP particles. Fig. 3a(i) also showed that increase in Hg²⁺ solution temperature from 20 to 40 °C did not lead to a corresponding increase in adsorption capacity, but that adsorption capacity is inversely proportional to the temperature. The adsorption trend is 20 °C > 30 °C > 40 °C. The negative effect of temperature on the adsorption of Hg²⁺ by the GOMNP-1 material may be an indication that the process occurs mainly by physisorption and is exothermic. Vidic and Siler² and Olson et al.⁷ have also reported similar temperature effect on Hg²⁺ adsorption. This observation could be explained thus: Hg metal is liquid and volatile at room temperature; increasing the adsorption medium temperature increases the kinetic energy of the molecules in solution and subsequently the molecules moves away from the adsorption surfaces, and hence the observed reduction in adsorption with increase in temperature.

Fig. 3 (a)(i) Effect of time on Hg²⁺ adsorption by GOMNP-1; (a)(ii) non-linear curves of the intra-particle diffusion kinetics model at the various temperatures studied; (b) IR spectra of Hg²⁺ loaded and pristine GOMNP; (c) XRD patterns of GO, FMNP, pristine GOMNP-1, and GOMNP-1 loaded with Hg²⁺.

The Hg²⁺ adsorption data at 20, 30, and 40 °C was fitted to four kinetics models: the pseudo-first order, pseudo-second order, Elovich and intra-particle diffusion kinetics models (Table 1). These models were used to describe the adsorption as well as predict the adsorption mechanism(s) involved in the uptake of Hg²⁺ by GOMNP-1. Data from Table 1 indicated that the Lagergren pseudo-first order kinetics described the adsorption better than the Lagergren pseudo-second order kinetics model as revealed by the correlation coefficients (r²) values. However, none of these models were able to predict the adsorption capacity of the GOMNP-1 material, nor could they be used to confidently predict the adsorption mechanism that controlled the adsorption process of Hg²⁺ on GOMNP-1.

Table 1 Adsorption kinetics model parameters at 20, 30, and 40 °C

Kinetics model	Model parameters	Temperatures
		20 °C	30 °C	40 °C
a Values are less than 0.001.
Pseudo-first-order	qe (mg g^−1)	2.76	2.08	1.67
	k1 (min^−1)	0.007	0.002	0.002
	r^2	0.909	0.720	0.869
Pseudo-second-order	qe (mg g^−1)	—^a	—	—
	k2 (g mg^−1 min^−1)	—	—	—
	r^2	0.922	0.522	0.154
Elovich	qe (mg g^−1)	16.61	16.43	16.33
	β	7.87	10.75	10.00
	r^2	0.950	0.851	0.990
Intra-particle diffusion	C (mg g^−1)	16.17	16.12	16.00
	ki	0.04	0.03	0.03
	r^2	0.990	0.800	0.917

---

The r² values of the Elovich kinetics model on the other hand showed that the adsorption data fitted the model better than the pseudo-first order and pseudo-second order kinetics models. The Elovich model was able to predict the adsorption capacity of the GOMNP for the sorbate. This adsorption model which originated from chemical reaction kinetics suggested that there was some degree of boundary layer control between the Hg²⁺ ions and the GOMNP-1 surface active adsorption sites since the curves does not pass through the origin (ESI – Fig. S2(a), (b) and (c)†). This boundary layer control is related to the rate determining mechanism and involved valence electron forces through sharing of electrons between the Hg²⁺ and GOMNP-1 surface active adsorption sites.¹⁹

The adsorption kinetic data were further processed to determine whether intra-particle diffusion was the rate limiting step of the adsorption and to find rate parameters for the model (Table 1 and Fig. 3a(ii)). The r² values of the intra-particle diffusion model were all relatively better than those of other studied models (>0.800) and the C (μg g⁻¹) values of this model, an indication of the boundary layer thickness of Hg²⁺ on the adsorbent surface, showed that the Hg²⁺ removal process was mainly surface phenomenon (adsorption) occurring by physisorption. This conclusion was reached because the quantity of Hg²⁺ on the adsorbent surface significantly correlated to the experimental values. At lower temperature (20 °C), the r² value of the pseudo-second-order kinetics was higher than that of the pseudo-first-order kinetics. The high r² values of intra-particle diffusion and pseudo-second-order kinetics models support the assertion that the overall rate of the adsorption process was controlled by more than one-step as observed from the non-linear curves of Fig. 3a(ii). However, as ambient temperature increased, the adsorption mechanism changed; the r² values of the intra-particle diffusion model at higher temperatures (20 and 30 °C) were close to unity and also significantly higher than those of both the pseudo-first and second-order kinetics. This indicated that as temperature increased the intra-particle diffusion was the predominant rate determining step of Hg²⁺ adsorption on the GOMNP-1 surface. This was evident in the shapes of the intra-particle diffusion model curves in Fig. 3a(ii) at 30 and 40 °C. Hence, different kinetics mechanisms control Hg²⁺ at different solution temperatures.

The infra-red spectra of the Hg²⁺-loaded and unloaded GOMNP-1 were compared (Fig. 3b). It was observed that the Hg²⁺-loaded GOMNP-1 spectra showed shifts in spectra peaks (especially for the carboxylate and hydroxyl groups) as well as new spectra bands. The amide-I band at 1628 shifted to 1632 cm⁻¹, while the hydroxyl vibration at 1491 cm⁻¹ shifted to 1442 cm⁻¹. However, there was a peak split at 3436 cm⁻¹ resulting into two new peaks observed at 3324 and 3551 cm⁻¹. These peaks were attributed to the adsorption of Hg²⁺ on the hydroxyl functional group. These peak shifts and new bands associated with hydroxyl vibrations and amide-I bands, have been attributed to the counter ions changes associated with these functional groups anions after the adsorptions of Hg²⁺; and are indications of the role played by these functional groups on the GOMNP-1 surface.

The crystal phase compositions of the pristine FMNP, GO, GOMNP-1 as well as the Hg²⁺ loaded GOMNP-1 were studied by powder X-ray diffraction (Fig. 3c). The analysis of X-ray patterns revealed structural changes that occurred after specific reactions/adsorption. GO (Fig. 3c) showed a strong peak around 2θ = 12° and a weak broad peak around 23°. Both peaks indicated the presence of functional groups containing oxygen which was formed during the strong graphite oxidation process.²⁰ The pristine GOMNP-1 XRD diffractions (Fig. 3c) showed the characteristic peaks associated with the presence of pure spinal structures of Fe₃O₄ (Fig. 3c) at 2θ values of 30.1, 35.5, 43.1, 53.6, 57.1 and 62.7°, with the respective indices of (220), (311), (400), (422), (511), and (440), as well as the GO diffraction bands discussed earlier. These observations above indicated that the formation of the GOMNP-1 did not result in phase change of Fe₃O₄. As similarly observed in the IR spectra, there was a shift in the diffraction pattern of the GOMNP-1 after Hg²⁺ adsorption (Fig. 3c). All FMNP and GO 2θ observed bands were also present in the Hg²⁺-loaded GOMNP-1. However, the GO diffraction band around 2θ = 23° became broadened. This was attributed to the presence of Hg²⁺ which caused a distortion in the crystal structure of the GOMNP-1 within that band area; and since that band area has been attributed to GO; this suggested that Hg²⁺ adsorptions occurred on the GO sheets.

Comparisons of GOMNP-1 Hg²⁺ adsorption capacity, q_e, to those of GO modified with metal/metal oxide in literature (Table 2) showed that the GOMNP-1 had a better q_e value.

Table 2 Comparison of Hg²⁺ adsorption q_e on GOMNP-1 with GO modified with metal/metal oxide

Adsorbent	qe (mg g^−1)	Reference
GOMNP	16.6	Present study
RGO–MnO2	9.0	(Sreeprasad et al., 2011)^17
RGO–Ag	9.0	(Sreeprasad et al., 2011)^17
GO	2.9	Present study

---

4. Conclusion

The kinetics of Hg²⁺ adsorption by graphene oxide–iron oxide magnetic nano-particles composite (GOMNP) was investigated. Iron oxide magnetic nano-particles was attached to the graphene oxide (GO) using 3-aminopropyltriethoxysilane at a considerably low temperature. The GO–magnetic nanoparticles composite has over 5-fold higher adsorption capacity than the pristine GO sheets. Increase in temperature had a negative effect on the adsorption of Hg²⁺ by the composite: 20 °C > 30 °C > 40 °C. The Elovich kinetics model described the Hg²⁺ adsorption better than pseudo first and second order kinetics models. Hg²⁺ adsorption kinetics mechanism at 20 °C is predominantly the pseudo-second order kinetics while at higher temperatures the mechanism was predominantly intra-particle diffusion. IR spectra analysis showed that hydroxyl and carboxylate functional groups were mainly responsible for Hg²⁺ adsorption. XRD diffraction patterns also confirmed the involvement of GO functional groups in the adsorption. GOMNP is thus a promising nanosorbent for Hg²⁺ removal from aqueous solutions.

Acknowledgements

The financial support of the National Science Foundation of China (Grants no. 91023001 and 60911130231) and the Chinese Academy of Sciences (Knowledge Innovation Program, Grant no. KJCX2-YW-H21) is acknowledged. We also acknowledge the supports of Chief S.L. Edu/Chevron Research grant (Nigeria Conservation Foundation) Nigeria, and the World Academy of Sciences (TWAS), Trieste Italy and the Chinese Academy of Sciences (CAS), China for the award of CAS-TWAS Postgraduate Fellowship (FR number: 3240255024) to P. N. Diagboya; late Rebecca A. Okoh, and Victor P. O. Okoh Department of Estate Management, Yaba College of Technology, Lagos Nigeria.

References

1. Y. S. Hong, Y. M. Kim and K. E. Lee, J Prev Med Public Health, 2012, 45, 353–363.
2. R. D. Vidic and D. P. Siler, Carbon, 2001, 39, 3–14.
3. WHO (World Health Organization), Guidelines for Drinking-Water Quality, World Health Organization, Geneva, 4th edn, 2011, ch. xxiii, p. 541.
4. Y. D. Jing, Z. L. He and X. E. Yang, Chemosphere, 2007, 69, 1662–1669.
5. S. R. Shin and A. L. Han, Korean J Fam Med., 2012, 33, 320–325.
6. E. M. Sunderland and N. E. Selin, Environ. Health, 2013, 12, 2.
7. E. S. Olson, S. J. Miller, R. K. Sharma, G. E. Dunham and S. A. Benson, J. Hazard. Mater., 2000, 74, 61–79.
8. P. N. Diagboya, B. I. Olu-Owolabi, D. Zhou and B. H. Han, Carbon, 2014, 79, 174–182.
9. J. Xu, L. Wang and Y. Zhu, Langmuir, 2012, 28, 8418–8425.
10. V. Chandra, J. Park, Y. Chun, J. W. Lee, I. C. Hwang and K. S. Kim, ACS Nano, 2010, 4, 3979–3986.
11. A. K. Mishra and S. Ramaprabhu, Desalination, 2011, 282, 39–45.
12. S. R. Kanel, D. Nepal, B. Manning and H. Choi, J. Nanopart. Res., 2007, 9, 725–735.
13. I. N. Savina, C. J. English, R. L. Whitby, Y. Zheng, A. Leistner and S. V. Mikhalovsky, et al., J. Hazard. Mater., 2011, 192, 1002–1008.
14. F. He, J. Fan, D. Ma, L. Zhang, C. Leung and H. L. Chan, Carbon, 2010, 48, 3139–3144.
15. P. N. Diagboya, B. I. Olu-Owolabi and K. O. Adebowale, J. Environ. Manage., 2014, 146, 42–49.
16. B. I. Olu-Owolabi, P. N. Diagboya and K. O. Adebowale, J. Environ. Manage., 2014, 137, 1–9.
17. T. S. Sreeprasad, S. M. Maliyekkal, K. P. Lisha and T. Pradeep, J. Hazard. Mater., 2011, 186, 921–931.
18. V. Chandra and K. S. Kim, Chem. Commun., 2011, 47, 3942–3944.
19. B. I. Olu-Owolabi, P. N. Diagboya and W. C. Ebaddan, Chem. Eng. J., 2012, 195–196, 270–275.
20. C. Wu, Q. Cheng, S. Sun and H. B. Han, Carbon, 2012, 50, 1083–1089.

---

Footnote

† Electronic supplementary information (ESI) available: Further information on the synthesis of GO–MNP; descriptions of materials and methods used; BET diagram; and the Elovich kinetics isotherms at 20, 30, and 40 °C. See DOI: 10.1039/c4ra13126f

---
