Modelling and analysis of the effect of different parameters on a parabolic-trough concentrating solar system

M. K. Islam *a, M. Hasanuzzaman a and N. A. Rahim ab
aUM Power Energy Dedicated Advanced Centre (UMPEDAC), Level 4, Wisma R&D, University of Malaya, 59990 Kuala Lumpur, Malaysia. E-mail: khairulbuet@siswa.um.edu.my; khairulbuet02@gmail.com; Fax: +60-3-22463257; Tel: +60-3-22463246
bRenewable Energy Research Group, King Abdulaziz University, Jeddah 21589, Saudi Arabia

Received 22nd October 2014 , Accepted 15th April 2015

First published on 15th April 2015


Abstract

Concentrating solar power technologies are potential energy-harvesting systems. This paper simulates and analyzes the design of a parabolic-trough concentrating solar system. Optimum measurements are sought for the receiver, and collector performance is investigated using three heat transfer fluids, namely, ammonia, nitrogen, and carbon dioxide. Receiver parameters are optimized to achieve the maximum thermal efficiency of the collector. The concentration ratio, collector aperture area, and mass flow rate of the fluids significantly influenced the collector's efficiency and the heat removal factor.


1. Introduction

Increase in population and wealth have led to greater energy consumption. Soaring oil prices, limited non-renewable resources, increased environmental awareness, and abundant renewable resources have drawn attention from all nations to take initiatives in utilizing renewable energy.1–6 Solar power is among the renewable energy sources with the most potential. Solar energy can be intercepted and focused onto small receiving areas that can be exploited by a concentrating system. A concentrating system is beneficial for its low cost design, as well as the availability of components such as mirrors, receiver tubes, and compatible integration with fossil fuel technologies to form a hybrid system. A parabolic trough collector is one of the concentrating systems capable of generating electricity on a large scale,7 as well as heating applications.8 Parabolic trough collectors provide higher concentration levels compared to flat plate collectors.9 System performance, which depends on design and material, is significantly influenced by factors such as mirror reflectivity, receiver absorptivity, heat transfer fluid and flow rate, tracking mechanism, and incident angle, among others.10 Numerous studies on parabolic trough system that include its design and performance have been conducted. The least squares support vector machine method using numerical simulation demonstrated considerable success in modeling and optimizing the parabolic trough system.11 Three-dimensional numerical simulation is similarly feasible and reliable in modeling parabolic trough systems.12 According to Schmidt et al., the concentration ratio of receivers, which is notably high in a spherical receiver, suits paraboloidal reflectors with point focus and 90° rim angle.13 Semi-cavity and modified cavity receivers investigated in a 65° rim angle paraboloidal dish indicate 70–80% steam conversion efficiency at 450 °C.14 In a recent analytical model development for the optimum length of nanofluid-based volumetric solar receivers, the temperature in the steam power cycle reached up to 400 °C.15,16 An integrated combined-cycle solar power system using parabolic trough technique performs better than a conventional combined-cycle gas turbine power plant.17 A concentrating system can produce steam to generate power through water (directly) or intermediate fluids. Intermediate heat transfer fluids significantly affect collector performance.18,19 The concentrating mechanism can attain different concentration levels and can be operated at various fluid temperatures. Fluid temperature rises once concentration ratio is increased, which heightens thermodynamic efficiency.20 A parabolic trough concentrating solar system (PTCSS) can be designed for low/medium/high temperature applications. A smooth 90° rim angle fibreglass-reinforced parabolic trough collector for hot-water generation is designed and developed by.9 A study on the design and construction of five parabolic trough solar collectors with various rim angles in a low-enthalpy process indicated 67% maximum efficiency and around 110 °C can be gained at 90° rim angle.21 Another parabolic trough system with aperture 0.8 m, length 1.25 m, and rim angle 90° is developed with fiberglass as the reflector and copper tube as the solar ray absorber; it generates 75 °C hot water.9 To measure the performance coefficient of a refrigeration and cooling unit suitable for remote areas, a parabolic trough of aperture 1.26 m, aperture-to-length ratio 0.58, and rim angle 90° are used in a particular research; it generated a maximum of 120 °C.22 A solnova solar power station with 833 m2 aperture 150 m long parabolic collector generates 400 °C fluid temperature to produce power steam.23 An analytical analysis on air-based cavity receiver for parabolic trough collector showed that it could achieve temperatures above 600 °C.24 A pressurized air solar receiver is developed to generate power via gas turbine.25 Recently, CO2 has been considered as heat transfer fluid, and a number of research have been conducted on CO2 based receiver.26–29 A study on supercritical and transcritical CO2 based central receiving system showed promising results.26 However, the solar concentrating system has innate potentials in tropical regions where the higher diffusion of solar irradiation results in a higher temperature.30 The application of PTCSS is feasible for absorption of refrigeration, hydrogen production, cooling of photovoltaic cells, and electricity generation.31–34

This article is novel because of the development of a solar receiver for a parabolic trough concentrating solar system using carbon dioxide, nitrogen, and ammonia as heat transfer fluids, which are the basis of the comparative performance analysis. We aimed for this process because most studies have been conducted on liquid based solar receivers. However, liquid heat transfer fluids are limited in scaling and operating temperature ranges, whereas gases possess no such limitation. However, limited studies are made on gas-based receivers for concentrating system. To the best of the authors' knowledge, very few research have been done solely on CO2 and on air-based receivers for parabolic trough collector. Moreover, no comparative performance analysis of the receiver for parabolic trough collector have been conducted using various gases. This paper aims to accomplish a comparative performance analysis and to optimize the receiver size of a parabolic trough concentrating solar system based on the carbon dioxide, nitrogen, and ammonia.

2. Methodology

2.1 Parabolic trough concentrating solar system

Parabolic trough is a kind of solar thermal collector, which is straight in one dimension, curved as a parabola in another, and constructed from polished metal mirror. Solar irradiation falling on the mirror is concentrated on the receiver along the focus line. The receiver tube contains a heat transfer fluid, which is heated to a high temperature by the concentrated solar irradiation. The hot fluid can be used for industrial and private purposes: electricity production, space heating, and hot water supply, among others. Fig. 1 illustrates the system.
image file: c4ra12919a-f1.tif

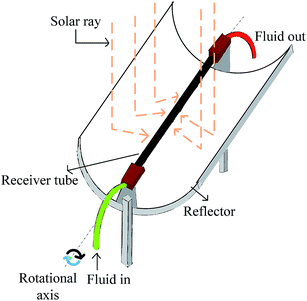

Fig. 1 Parabolic trough concentrating solar system.

2.2 Optical modeling

A parabolic trough system is oriented along the north–south horizontal axis at latitude 3.116° north of the equator and latitude 101°39′59″ east of the prime meridian of Kuala Lumpur to track the sun's movement from east to west. Its incidence angle, θ can be calculated by using the following equation.35,36

image file: c4ra12919a-t1.tif(1)
where θZ, δ, and ω denote for zenith angle, declination, and hour angle, respectively.

The zenith angle can be calculated as:


θZ = cos−1[cos[thin space (1/6-em)]ϕ[thin space (1/6-em)]cos[thin space (1/6-em)]δ[thin space (1/6-em)]cos[thin space (1/6-em)]ω + sin[thin space (1/6-em)]ϕ[thin space (1/6-em)]sin[thin space (1/6-em)]δ](2)
and declination as:

image file: c4ra12919a-t2.tif(3)
where n is the day of the year.

(τα)b is the product of transmittance–absorptance for the beam radiation which can be calculated as.36


image file: c4ra12919a-t3.tif(4)
where α, ρd, and τ denote the absorptance of the receiver, the cover reflectance for diffuse radiation, and the transmittance of the glass cover.

2.3 Parabolic trough system design

The basic design parameters of a parabolic trough system are rim angle, trough aperture, and receiver size. The incident radiation at the rim of the collector (where the mirror radius Rr is maximum) establishes the rim angle. Rim angle plays a major role in the focal distance and image or the receiver size. Incident radiations emanating from the sun generally falls on the trough parallel. The trough focuses all the rays to the focal point and constructs a focal line. The receiver is placed concentrically along the focal line. Fig. 2(a) is a schematic diagram of the parabolic trough.
image file: c4ra12919a-f2.tif

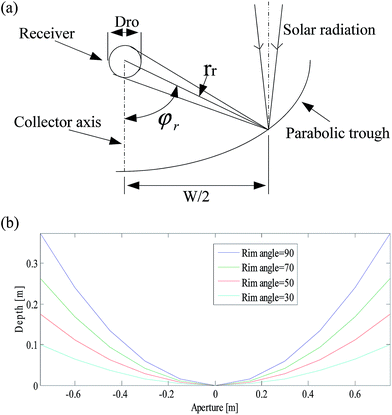

Fig. 2 (a) Schematic diagram of a parabolic trough system. (b) Profile of parabolic trough at various rim angles.

A parabolic trough system can be designed using the following equation:


y = ax2(5)
where, image file: c4ra12919a-t4.tif.

image file: c4ra12919a-t5.tif(6)
where f, W and φr denote the focus, width, and rim angle of the trough, respectively.

The focal point can be calculated by eqn (6).35 Trough profiles for the same aperture at various rim angles are as shown in Fig. 2(b). Fig. 3 plots focus-to-aperture ratio versus rim angle, where the increased rim angle is shown to decrease the focus-to-aperture ratio. Low focus-to-aperture ratio minimizes the spread of the reflected beam, resulting in less slope and reduced tracking errors. The concentration ratio is maximum at rim angle 90°, which37 provides a optimum intercept factor and a depth equal to the focal length. This study considers a 1.5 m wide parabolic trough (an aluminum sheet with silver electroplating) and a 90° rim angle. The trough curvature length is calculated on eqn (7).35


image file: c4ra12919a-t6.tif(7)
where TCL is curvature length of the trough and Hp is the latus rectum of the parabola.


image file: c4ra12919a-f3.tif
Fig. 3 Ratio of focus-to-aperture versus rim angle.

Afterwards, the receiver size is calculated on eqn (8).


image file: c4ra12919a-t7.tif(8)
where CR is the concentration ratio, W is width of the trough, and Dr is the receiver diameter.

A simulation procedure is followed in designing an optimum receiver size. A concentration ratio (CR) is first assumed and then changed to calculate a different receiver diameter. Thermal analyses are then performed on different receiver sizes. The optimum receiver size is determined according to the collector maximum thermal efficiency, as calculated through eqn (9).35,36


image file: c4ra12919a-t8.tif(9)
where ηC, Qu, Ib, and Aa denote collector thermal efficiency, useful heat gain, direct beam irradiation, and collector aperture area, respectively.

Useful heat (Qu) gain can be calculated as:35,36


Qu = FR[SAaArUL(TfiTa)](10)
where FR, S, Aa, Ar, UL, Tfi, and Ta refer to heat removal factor, absorbed radiation, collector aperture area, receiver area, heat loss coefficient, fluid temperature at inlet, and ambient temperature, respectively.

The solar energy flux absorbed by the receiver is calculated as:35,36


S = IbρCγ(τα)b(11)
where ρC, γ, (τα)b, and denote concentrator reflectance, intercept factor, transmittance–absorptance product for beam radiation, and incidence angle modifier, respectively.

Incidence angle modifier can be calculated as:


= 1 − 6.74 × 10−5θ2 + 1.64 × 10−6θ3 − 2.51 × 10−8θ4(12)

Collector heat removal factor (FR) significantly influence PTCSS performance, which can be calculated as:35,36


image file: c4ra12919a-t9.tif(13)
where mf, Cp, UL, Aro, and F′ respectively denote fluid mass flow rate, specific heat capacity, heat loss coefficient, receiver outer area, and collector efficiency factor.

Collector efficiency factor, F′ (which depends on the convective heat transfer coefficient, hf besides the parabolic trough system dimensions) is calculated as:35,36


image file: c4ra12919a-t10.tif(14)
where Dro, Dri, and Kr respectively denote the outer and inner diameters, as well as the thermal conductivity of the receiver.

The heat transfer coefficient, hf for fluids from receiver wall surface to fluids can be calculated by the following equation.38


image file: c4ra12919a-t11.tif(15)
where Nuf and Kf refer to the Nusselt number and thermal conductivity of the fluid.

Nusselt number (Nuf) can be calculated by standard tube flow equations. For laminar tube flow Nuf is given as:39


Nuf = 4.364(16)
where Ref ≦ 2300.

For turbulent flow, Nuf is as follows:38,40


Nuf = 0.023Ref0.8Prf0.4(17)
where 2300 < Ref < 1.25 × 105 and 0.6 < Prf < 100.or

Nuf = 0.0214(Ref0.8 − 100)Prf0.4(18)
where 104 < Ref < 5 × 106 and 0.5 < Prf < 1.5.

Here, Re is Reynolds number, Pr is Prandtl number, and subscript f is the fluid. Free convection occurs over the glass-cover tube. Free convective heat transfer is calculated as:41


image file: c4ra12919a-t12.tif(19)
where 10−5< GrPr < 1012.

Grashof number, Gr is given as:


image file: c4ra12919a-t13.tif(20)
where β, Dg, and ν denote the thermal conductivity temperature coefficient, glass tube diameter, and fluid kinematic viscosity, respectively.

A simulation program written in MATLAB optimizes the receiver size. The simulation uses three types of fluids, namely, ammonia, nitrogen, and carbon dioxide. The optimization procedure is outlined in the flow chart below (Fig. 4).


image file: c4ra12919a-f4.tif
Fig. 4 Outline of the procedure for optimizing the receiver size.

3. Results and discussion

The design optimization and overall system performance were investigated based on parameters that included the system thermal efficiency, useful heat gain, concentration ratio, heat removal factor, and mass flow rate of the heat transfer fluid. The speed of the three heat transfer fluids (ammonia, nitrogen, and carbon dioxide) was 18m s−1. The effects of the CR and receiver diameter on the collector efficiency are presented in Fig. 5(a) and (b).
image file: c4ra12919a-f5.tif
Fig. 5 (a) Effect of concentration ratio on collector efficiency. (b) Effect of receiver sizes on collector efficiency.

Fig. 5(a) shows the initial increase of the collector efficiency across all the thermo fluids as CR increased, followed by its decrease when the maximum efficiency was reached at CR = 8.9. The maximum collector efficiency with each fluid occurred at CR = 8.9. Furthermore, Fig. 5(b) shows rising collector efficiency with increasing receiver diameter, which reach the maximum at 51.8 mm (at CR = 8.9). The maximum efficiencies of ammonia, nitrogen, and carbon dioxide were 67.05%, 66.81%, and 67.22%, respectively. These values decreased when the receiver diameter increased. Both figures demonstrate similar increasing/decreasing rates.

Fig. 6(a) and (b) respectively present the effects of concentration ratio and receiver size on useful heat gain. These show that heat gain initially increases as CR or receiver size heightens before reaching the maximum value when CR was 10.8. Afterwards, the heat gain decreased although CR or receiver size increased. Both figures demonstrate that not all fluids affect useful heat gain. At CR = 10.8, the collector efficiencies for ammonia, nitrogen, and carbon dioxide were 64.43%, 64.02%, and 64.67% respectively, which are all lower than the maximum efficiencies.


image file: c4ra12919a-f6.tif

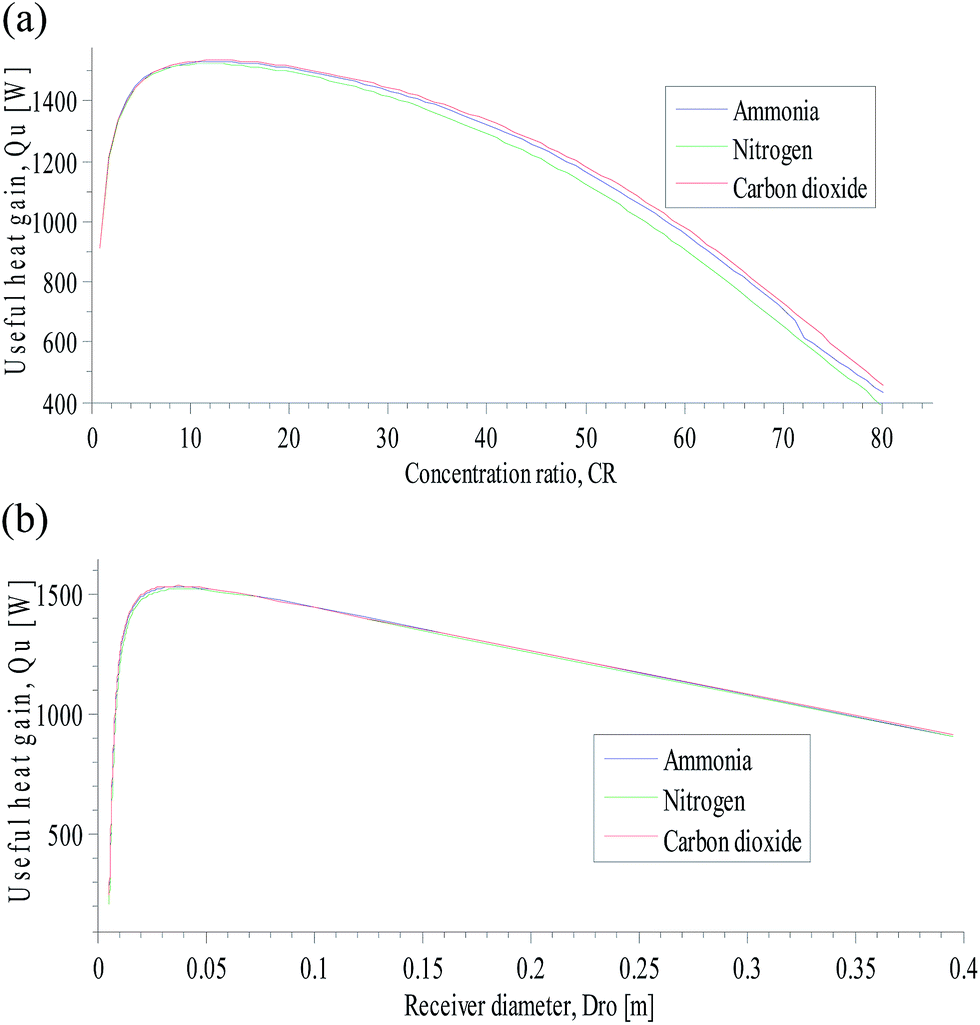

Fig. 6 (a) Effect of concentration ratio on useful heat gain. (b) Effect of receiver sizes on useful heat gain.

A co-relation between heat removal factor and collector efficiency was observed. Heat removal factor is a dimensionless parameter that indicates the thermal energy transfer characteristic of the collector and the effect of fluid convective heat transfer on the collector thermal performance. Fig. 7 shows collector efficiency increasing linearly with rising heat removal factor. Among the heat removal factors of 0.9206, 0.9184, and 0.9150 (for carbon dioxide, ammonia and nitrogen respectively), collector efficiency diminished across all the fluids. Collector efficiencies for carbon dioxide, ammonia, and nitrogen, are found to be maximum against the above mentioned heat removal factors at 67.22%, 67.05%, and 66.81%, respectively.


image file: c4ra12919a-f7.tif
Fig. 7 Effect of heat removal factor on collector efficiency.

Fig. 8 shows the effect of receiver size on heat removal factor. Furthermore, it demonstrates an increasing heat removal factor when receiver size increased. However, the value is almost constant for all fluids at or over the receiver diameter 51.8 mm. Heat removal factor is a function of fluid mass flow rate. Fig. 9 shows its effect on heat removal factor. The heat removal factor of each fluid increased as the fluid mass flow rate rose. The increasing rates are similar across all the fluids, up until a 0.91 heat removal factor. After that the increase rates start varying slowly. Upon reaching the maximum values (i.e., 0.928 at 0.119 kg s−1 for ammonia, 0.927 at 0.102 kg s−1 for carbon dioxide, and 0.925 at 0.146 kg s−1 for nitrogen), the heat removal factors suddenly dropped and slowly decreased after minimal increases. The collector efficiency factor is mainly responsible for changing the heat removal factor. With increasing fluid mass flow rate, the collector efficiency factor increases up to 0.933, suddenly falls to 0.926, and then slowly decreases. Diminishing rates differed across all the fluids. The decrease rate for ammonia was higher compared to the other two fluids. Also notable was the difference of the maximum mass flow rates among the fluids because of the changing diameters of the receiver and fluid density.


image file: c4ra12919a-f8.tif
Fig. 8 Effect of receiver size on heat removal factor.

image file: c4ra12919a-f9.tif
Fig. 9 Effect of fluid mass flow rate on heat removal factor.

Fig. 10 shows an increasing collector efficiency when fluid mass flow rate increased with a maximum (67.22%, 67.05% and 66.81%) at the mass flow rates of 0.0491 kg s−1, 0.0192 kg s−1, and 0.0362 kg s−1 for carbon dioxide, ammonia, and nitrogen, respectively. Afterwards, efficiency decreased when the mass flow rate increased, with differing decrease rates (higher in ammonia than in nitrogen or carbon dioxide). Heat removal factor is a function of mass flow rate, specific heat, heat loss coefficient, receiver outer area, and collector efficiency factor. Furthermore, a relation among heat removal factor, heat gain, collector aperture area, receiver size, and collector efficiency is noted as well. Fluid mass flow rate increases as receiver size rises. Increases in receiver size, decreases the aperture area which causes the decrement of heat gain. Thus, although increment of heat removal factor influences collector efficiency positively, the continuous decrement of aperture area decreases heat gain, and collector efficiency could ultimately increase up to the heat removal factors of 0.9206, 0.9184, and 0.9150 (for carbon dioxide, ammonia, and nitrogen, respectively). Here, it is also notable that change of mass flow rate is not the same for all fluids. Thus, at the same aperture area of 2.836 m2, different mass flow rates (0.0491 kg s−1, 0.0192 kg s−1, and 0.0362 kg s−1, for carbon dioxide, ammonia, and nitrogen, respectively) provide maximum collector efficiencies such as 67.22%, 67.05%, and 66.81%.


image file: c4ra12919a-f10.tif

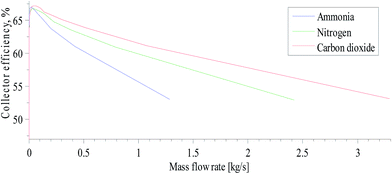

Fig. 10 Effect of fluid mass flow rate on the collector efficiency.

4. Conclusion

The influence of parameters such as heat removal factor, collector efficiency factor, mass flow rate, and collector aperture area on collector thermal efficiency were investigated. Three fluids, namely, carbon dioxide, ammonia, and nitrogen, were used for the analysis. The optimum receiver size (diameter) (producing the highest efficiency) was found at 51.8 mm for the concentrator of 1.5 m aperture and 2 m length. Maximum collector efficiencies are 67.22%, 67.05% and 66.81% at the same aperture area 2.836 m2 occurred with different mass flow rates 0.0491 kg s−1, 0.0192 kg s−1, and 0.0362 kg s−1 for carbon dioxide, ammonia, and nitrogen, respectively.

Acknowledgements

The authors acknowledge the financial support of the High Impact Research Grant (HIRG) scheme (Project no. UM.C/HIR/MOHE/H-16001-00-D000032, Campus Network Smart-Grid System for Energy Security) for this research.

References

  1. M. A. Abdullah, A. P. Agalgaonkar and K. M. Muttaqi, Climate change mitigation with integration of renewable energy resources in the electricity grid of New South Wales. Australia, Renewable Energy, 2014, 66, 305–313 CrossRef PubMed.
  2. M. Hasanuzzaman, N. A. Rahim, M. Hosenuzzaman, R. Saidur, I. M. Mahbubul and M. M. Rashid, Energy savings in the combustion based process heating in industrial sector, Renewable Sustainable Energy Rev., 2012, 16(7), 4527–4536 CrossRef PubMed.
  3. D. Kaya, Renewable energy policies in Turkey, Renewable Sustainable Energy Rev., 2006, 10, 152–163 CrossRef PubMed.
  4. F. Ahmed, A. Q. Al Amin, M. Hasanuzzaman and R. Saidur, Alternative energy resources in Bangladesh and future prospect, Renewable Sustainable Energy Rev., 2013, 25, 698–707 CrossRef PubMed.
  5. M. Schroeder, Utilizing the clean development mechanism for the deployment of renewable energies in China, Appl. Energy, 2009, 86(2), 237–242 CrossRef PubMed.
  6. R. Saidur, T. C. Meng, Z. Said, M. Hasanuzzaman and A. Kamyar, Evaluation of the effect of nanofluid-based absorbers on direct solar collector, Int. J. Heat Mass Transfer, 2012, 55, 5899–5907 CrossRef CAS PubMed.
  7. F. Lippke, Direct steam generation in parabolic trough solar power plants: numerical investigation of the transients and the control of a once through system, J. Sol. Energy Eng., 1996, 118, 9–14 CrossRef.
  8. S. Kalogirou, Parabolic trough collectors for industrial process heat in Cyprus, Energy, 2002, 27, 813–830 CrossRef CAS.
  9. A. V. Arasu and T. Sornakumar, Design, manufacture and testing of fiberglass reinforced parabola trough for parabolic trough solar collectors, Sol. Energy, 2007, 8(10), 1273–1279 CrossRef PubMed.
  10. K. S. Reddy and K. R. Kumar, Solar collector field design and viability analysis of stand-alone parabolic trough power plants for Indian conditions, Energy Sustainable Dev., 2012, 16(4), 456–470 CrossRef PubMed.
  11. Q. Liu, M. Yang, J. Lei, H. Jin, Z. Gao and Y. Wang, Modelling and optimizing parabolic trough solar collector systems using the least squares support vector machine method, Sol. Energy, 2012, 86(7), 1973–1980 CrossRef PubMed.
  12. Z. D. Cheng, Y. L. He, F. Q. Cui, R. J. Xu and Y. B. Tao, Numerical simulation of a parabolic trough solar collector with nonuniform solar flux conditions by coupling FVM and MCRT method, Sol. Energy, 2012, 86(6), 1770–1784 CrossRef PubMed.
  13. G. Schmidt, P. Schmid, H. Zewen and S. Moustafa, Development of a point focusing collector farm system, Sol. Energy, 1983, 31, 299–311 CrossRef.
  14. N. D. Kaushika and K. S. Reddy, Performance of a low cost solar paraboloidal dish steam generating system, Energy Convers. Manage., 2000, 41, 713–726 CrossRef.
  15. A. Veeraragavan, A. Lenert, B. Yilbas, S. Al-Dini and E. N. Wang, Analytical model for the design of volumetric solar flow receivers, Int. J. Heat Mass Transfer, 2012, 55(4), 556–564 CrossRef CAS PubMed.
  16. A. Fernández-García, E. Zarz, L. Valenzuel and M. Pérez, Parabolic-trough solar collectors and their applications, Renewable Sustainable Energy Rev., 2010, 14(7), 1695–1721 CrossRef PubMed.
  17. A. R. Montes, M. Muñoz and J. M. Martínez-Val, Performance analysis of an integrated solar combined cycle using direct steam generation in parabolic trough collectors, Appl. Energy, 2011, 88(9), 3228–3238 CrossRef PubMed.
  18. Z. D. Cheng, Y. L. He, F. Q. Cui, R. J. Xu and Y. B. Tao, Numerical simulation of a parabolic trough solar collector with nonuniform solar flux conditions by coupling FVM and MCRT method, Sol. Energy, 2012, 86(6), 1770–1784 CrossRef PubMed.
  19. M. M. Billah, M. M. Rahman, U. M. Sharif, N. A. Rahim, R. Saidur and M. Hasanuzzaman, Numerical analysis of fluid flow due to mixed convection in a lid-driven cavity having a heated circular hollow cylinder, Int. Commun. Heat Mass Transfer, 2011, 38(8), 1093–1103 CrossRef PubMed.
  20. R. V. D. Barlev and P. Stroeve, Innovation in concentrated solar power, Sol. Energy Mater. Sol. Cells, 2011, 95(10), 2703–2725 CrossRef PubMed.
  21. O. A. Jaramillo, E. Venegas-Reyes, J. O. Aguilar, R. Castrejon-Garcia and F. Sosa-Montemayor, Parabolic trough concentrators for low enthalpy processes, Renewable Energy, 2013, 60, 529–539 CrossRef CAS PubMed.
  22. N. H. Abu-Hamdeh, K. A. Alnefaie and K. H. Almitani, Design and performance characteristics of solar adsorption refrigeration system using parabolic trough collector: Experimental and statistical optimization technique, Energy Convers. Manage., 2013, 74, 162–170 CrossRef CAS PubMed.
  23. SPS, www.nrel.gov/csp/solarpaces/project_detail.cfm/projectID=25, (accessed june 2013).
  24. P. Matarrese, A. Gaetano, S. Airaghi, D. Montorfano, M. C. Barbato, G. Ambrosetti and A. Pedretti, Performance analysis of a novel air-based cavity receiver, Energy Procedia, 2014, 49, 438–446 CrossRef PubMed.
  25. P. Pozivil, V. Aga, A. Zagorskiy and A. Steinfeld, A pressurized air receiver for solar-driven gas turbines, Energy Procedia, 2014, 49, 498–503 CrossRef PubMed.
  26. R. Chacartegui, J. M. Munoz de Escalona, D. Sanchez, B. Monje and T. Sanchez, Alternative cycles based on carbon dioxide for central receiver solar power plants, Appl. Therm. Eng., 2011, 31(5), 872–879 CrossRef CAS PubMed.
  27. D. J. Chapman, D. A. Arias, An assessment of the supercritical carbon dioxide cycle for use in a solar parabolic trough power plant, Proceedings of SCCO, Power Cycle Symposium 2009.
  28. Z. Ma, C. S. Turchi, Advanced supercritical carbon dioxide power cycle configurations for use in concentrating solar power systems, Supercritical CO2 Power Cycle Symposium 2011.
  29. S. Rajinesh, A. M. Sarah, S. R. Andrew and A. J. Peter, Dynamic characteristics of a direct-heated supercritical carbon-dioxide Brayton cycle in a solar thermal power plant, Energy, 2013, 50, 194–204 CrossRef PubMed.
  30. S. Pramuang and R. H. B. Exell, Transient test of a solar air heater with a compound parabolic concentrator, Renewable Energy, 2005, 30(5), 715–728 CrossRef CAS PubMed.
  31. M. T. Lee, M. Werhahn, D. J. Hwang, N. Hotz, R. Greif, D. Poulikakos and C. P. Grigoropoulos, Hydrogen production with a solar steam methanol reformer and colloid nanocatalyst, Int. J. Hydrogen Energy, 2010, 35, 118–126 CrossRef CAS PubMed.
  32. M. Hammad and S. Habali, Design and performance study of a solar energy powered vaccine cabinet, Appl. Therm. Eng., 2000, 20(18), 1785–1798 CrossRef CAS.
  33. A. Akbarjadeh and T. Wadowski, Heat pipe based cooling system for photovoltaic cells under concentrated solar radiation, Appl. Therm. Eng., 1996, 16(1), 81–87 CrossRef.
  34. K. Kaygusuz, Prospect of concentrating solar power in Turkey: the sustainable future, Renewable Sustainable Energy Rev., 2011, 15(1), 808–814 CrossRef PubMed.
  35. J. A. Duffie and W. Beckman, Solar engineering of thermal processes, John Wiley & Sons, Inc., New york, 2nd edn, 1991 Search PubMed.
  36. S. A. Kalogirou, Solar energy engineering: processes and systems, Elsevier's Science & Technology, UK, 2009 Search PubMed.
  37. V. Arora, A.S.T., Development and Performance Characteristics of a Low-Cost Parabolic Solar Collector, International Conference on Power and Energy Systems (ICPES 2012), 2012, 56, pp. 80–84.
  38. Y. Cengel, Heat and mass transfer-a practical approach, Tata Mcgraw-Hill, 3rd edn, 2007 Search PubMed.
  39. R. K. Shah and A. L. London, Laminar flow: forced convection in ducts, Academic Press, New york, 1978 Search PubMed.
  40. V. Gnielinski, New equations for heat and mass transfer in turbulent pipe and channel flow, Int. Chem. Eng., 1976, 16, 359–368 Search PubMed.
  41. S. W. Churchill and H. H. S. Chu, Correlating equations for laminar and turbulent free convection from a horizontal cylinder, Int. J. Heat Mass Transfer, 1975, 18, 1049–1053 CrossRef.
