Amine- and blocked isocyanate-terminated polyurethane dendrimers: integrated synthesis, photophysical properties and application in a heat curable system

Abstract

A highly efficient, scalable, three step divergent synthesis of blocked isocyanate-terminated polyurethane dendrimers up to fourth generation (G4) has been developed avoiding the formation of free isocyanate. Amine-terminated polyurethane dendrimers were obtained as complementary functional materials in the second step. The blocked isocyanate moiety possessing easily cleavable blocking agents facilitated the dendrimer construction. Heat-curable adhesives based on G2 dendrimers tested on aluminum plates showed tensile shear strength of 2.41 MPa.

---

Introduction

Overcoming their laborious synthesis, dendrimers have emerged as a very important class of organic and polymeric materials in the last two decades.¹ Although some research on dendrimers has been carried out, quantitative synthesis of dendrimers with less synthetic effort is still attractive.² The globular shape of dendrimers provided a large surface area that can be decorated with different functional groups and chromophore for different applications; the application area includes semiconductor,³ molecular lens,⁴ organic light emitting diodes (OLEDs),^2b,5 catalyst,⁶ crosslinking processe⁷ and variety of biological applications.⁸ Amine-terminated dendrimers are used as encapsulating agents for variety of drug molecules and such dendrimer-encapsulated drug delivery systems are used to cure disease like cancer,⁹ hypertension,¹⁰ thromposis,¹¹ pupil dialator,¹² antibacterial,¹³ antiparasite¹⁴ and anti-inflammatory.¹⁵ Blocked polyisocynates are a class of raw material used to produce single-component polyurethane products like powder coatings, heat setting adhesives etc.¹⁶ in which completely arresting of reactivity of isocyanate group is inevitable.

Polyurethanes are generally prepared by a hydrogen addition reaction of an isocyanate with an alcohol. There are many methods available for generation of isocyanate monomers,¹⁷ but all the methods are cumbersome and some of the methods are not quantitative. It is obvious that quantitative conversion of chosen functional group into desired group is extremely important in the construction of dendrimers, or otherwise, the molecules would show defects.

Though polyurethanes are an important class of materials, their dendritic (including hyperbranched) molecules have been studied very poorly.^17b,18 There are only two reports^17b,18f which deal with perfect polyurethane dendrimer up to third generation. The reason may lie in the fact that the creation of isocyanate functionality in quantitative yield at each generation growth is very difficult with existing methods. Moreover, isocyanates are highly sensitive to moisture and hence difficult to handle. In this article, we break this challenge by designing a highly efficient method by which isocyanate groups were generated in a direct way in the form of blocked isocyanate with easily cleavable blocking agent via a non-isocyanate route. This route mainly involved conversion of amine functional group into blocked isocyanate group using 4-chlorophenychloroformate and urethane interchange reaction between blocked isocyanate and hydroxy building block; use of 4-chlorophenychloroformate facilitated easy construction of dendrimers terminated with –NH₂ and blocked –NCO groups up to fourth generation.

Result and discussion

Synthesis

The facile synthesis of core was started with 3,5dinitroaniline. To obtain the core in a smooth way, the amine group was first converted into blocked isocyanate group by reacting it with 4-chlorophenyl chloroformate. Subsequent reduction and repetition of reaction with chloroformate yielded the symmetrical blocked triisocyanate core 2 with 98% yield (Scheme 1). Selection of phenyl chloroformate with chlorine substituent at 4-position is a vital key aspect in this design. The usual practice in the reaction of amine with chloroformate is the addition of mild base like pyridine or triethylamine to scavenge the HCl byproduct formed. Such approach was found to affect the yield too in the present work. The reason may be the activation of C=O group of chloroformate by the chlorine substituent in the benzene ring which leads to strong association of reagent with base. Hence, the availability of reagent for nucleophilic substitution reaction is reduced. Thus, this reaction was carried out by us without the addition of base. In this synthesis, the intermediate 1 and core 2 were purified simply by wash with petroleum ether.

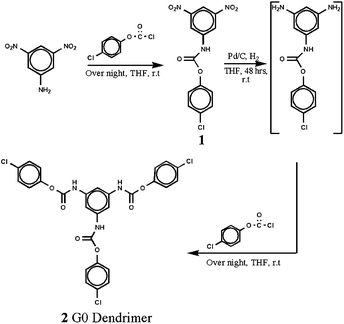

Scheme 1 Synthesis of core.

The structure of 1 and 2 was unambiguously confirmed using different spectroscopy techniques. In the ¹H NMR spectrum, the core 2 showed a singlet at δ 10.4 for three urethane –NH protons in addition to signals for aromatic protons. In the ¹³C NMR spectrum, the urethane carbonyl carbon of compound 2 appeared at δ 151.3 in addition to six aromatic carbons. In the mass spectrum (HR-MS), the core 2 showed molecular ion peak at m/z equal to 584.9. The structure of the compound 2 was further confirmed from nitrogen content estimation.

Building block (4) with protected amine at 3,5-position and benzylic –OH at 1-position was prepared from 3,5-diaminobenzoic acid in 2 steps as described in the Scheme 2. The intermediate 3 and building block 4 were extracted with ether and ethyl acetate respectively and were not subjected to column purification as they showed single spot in TLC; the overall yield was 98%. The structure of 3 and 4 was unambiguously confirmed using different spectroscopy techniques and nitrogen content estimation. In the ¹H NMR spectrum, the building block 4 showed a singlet at δ 11.4, δ 5.4 and δ 4.5 for two amide –NH protons, one –OH protons and two aliphatic protons respectively in addition to two signals for aromatic protons. In the ¹³C NMR spectrum, the amide carbon and aliphatic carbon of compound 4 appeared at δ 154.5 and δ 62.4 respectively in addition to four aromatic carbons. In the mass spectrum (HR-MS), the building block 4 showed molecular ion peak at m/z equal to 329.53.

Scheme 2 Synthesis of building block.

We designed a synthetic strategy adopting the concept of blocked isocyanate chemistry for the synthesis of polyurethane dendrimers. Blocked isocyanate is an adduct usually obtained from aromatic isocyanate and phenol. The –NHCOO– group of a blocked isocyanate is thermally weak and at elevated temperature it de-blocks into isocyanate (–NCO) and blocking agent (HO–). Then, the regenerated isocyanate could react with a co-reactant containing aliphatic hydroxyl functional group to form urethane with thermally more stable bonds.¹⁹ Dendrimer construction in the present work involved only three steps. In the first step, blocked triisocyanate core 2 (G0 dendrimer) was reacted with building block 4 containing hydroxyl group. The core was prepared in such a way that it contained 4-chlorophenol as blocking agent. The chlorine substituent at para-position to the urethane group will reduce the electron density significantly at the phenolic oxygen and labialize the bond between the nitrogen atom of the isocyanate moiety and oxygen atom of blocking agent moiety. This was reflected in the experiment, with the blocking agent cleaved off easily at 80 °C in DMF and hence urethane interchange reaction between core and building block proceeded smoothly; 90% of the reaction was completed within 2 hours and the conversion was fully completed within 8 hours. In the second step, the deprotection of amine at the periphery of the intermediate 5 obtained in 94% yield resulted in first generation amine-terminated urethane dendrimer 6. The condition employed for this conversion did not at all affect the existing urethane linkages and the yield was 95%. In the third step, the amine-terminated urethane dendrimer 6 was simply treated with 4-chlorophenyl chloroformate to obtain blocked isocyanate-terminated urethane dendrimer 7 in quantitative yield. It is worth mentioning here that, in this three step synthesis, we obtained two types of dendrimers (6,9,12 and 15) and (7,10,13 and 16) with utilizable two different functional groups and none of the compounds obtained in this reaction sequence required column purification; they were purified simply by re-precipitation in THF by addition of petroleum ether. Both types of dendrimers have potential applications in cross-linking processes especially in polyurethane products. This easy-to-conduct synthetic strategy is illustrated in the Scheme 3 (Fig. 1).

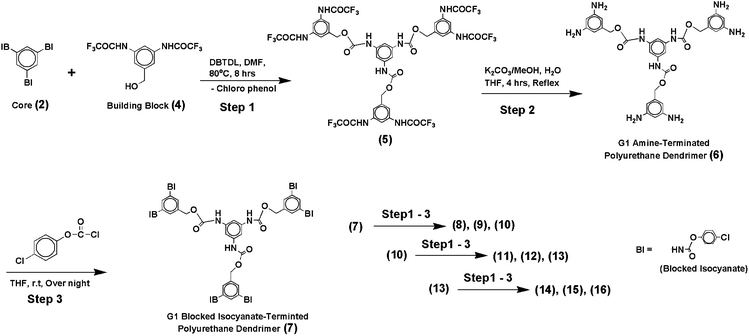

Scheme 3 Synthesis of polyurethane dendrimers up to fourth generation.

Fig. 1 Structure of G4 polyurethane dendrimer.

The ¹H-NMR spectrum of G4 amine-terminated dendrimer 15 is given in Fig. 2 as a representative for 6, 9, 12 and 15. Since all the urethane linkages present in 15 are identical, the urethane protons have resonance only at δ 9.7. The large number of free –NH₂ present as terminal groups have resonance strongly at δ 4.55. Because of the presence of free amines in the terminal ring, the adjacent aromatic protons of two different types appear separately at high field with proportional intensities. The integration values of different type of protons including urethane –NH and free amine agree well with the expected values and confirm the defect-free structure of the amine-terminated dendrimer.

Fig. 2 ¹H NMR Spectra of (a) amine-terminated and (b) blocked isocyanate-terminated G4 polyurethane dendrimer.

The ¹H-NMR spectrum of G4 blocked isocyanate-terminated dendrimer 16 is also given in Fig. 2 as a representative for 7, 10, 13 and 16. It shows sharp and distinctly separated signals for relatively large number of aliphatic, aromatic and urethane –NH protons. The free amine observed in the spectrum of previous case is completely disappeared here due to its complete conversion into blocked isocyanates groups. Unlike the case of amine terminated dendrimer 15, the –NH protons of terminal blocked isocyanate groups and inner urethane linkages of dendrimer 16 are not identical and appear separately at δ 10.4 and δ 9.8 respectively.

The MALDI-TOF MS spectrum of the same dendrimer showed only one peak with 100% intensity at m/z value of 14 952.5 which is exactly corresponding to [M + Na]⁺ (Fig. 3). The excellent agreement between the integration values of different types of protons (including –NH protons) observed in ¹H-NMR spectrum and absence of any peaks in MALDI-TOF MS spectrum corresponding to incompletely converted products during the iterative process unambiguously confirm the structure and high purity of the dendrimer obtained in quantitative yield. Analysis of ¹H-NMR spectra and MALDI-TOF MS spectra of other dendrimers reveals that those dendrimers [i.e., G1(7), G2(10) and G3(13)] are also structurally perfect and highly pure.

Fig. 3 MALDI-TOF MS spectra of blocked isocyanate-terminated polyurethane dendrimer.

SEC-MALLS analyses

As we obtained remarkably good MALDI-TOF MS spectra which confirm the defect free structure of dendrimers, it was decided to support these data. Size exclusion chromatography combined with multi angle laser light scattering (SEC-MALLS) technique is an ultimate tool to be used to determined absolute molar mass and polydispersity index (PDI) of the dendrimers. Thus, all the blocked isocyanate-terminated dendrimers were analyzed using SEC-MALLS and the results are given in Fig. 4 and Table 1. All the SEC traces are unimodel and molecular weight (M_n) data are also found comparable to the theoretical values. The unimodel chromatogram with narrow distribution clearly supports the MALDI-TOF MS spectra of the dendrimers.

Fig. 4 SEC-MALLS chromatograms of G1–G4 blocked isocyanate terminated polyurethane dendrimers.

Table 1 Molecular weight data of blocked isocyanate-terminated dendrimers

Dendrimers	Theoretical molecular weight (g mol^−1)	SEC-MALLS molecular weight (Mn) (g mol^−1)	PDI
a dn/dc = 0.161. b dn/dc = 0.159. c dn/dc = 0.161. d dn/dc = 0.161.
G1 dendrimer (7)	1543	2274^a	1.03
G2 dendrimer (10)	3455	3524^b	1.22
G3 dendrimer (13)	7280	6576^c	1.03
G4 dendrimer (16)	14 929	14 610^d	1.00

---

Photoluminescence study

The absorption and emission spectra of dendrimers are given in Fig. 5. The intensity of absorption and emission become strong as the number of generation increased. This generation dependent photoluminescence reflects the highly globular geometry of higher generation dendrimer and enhanced energy transfer with in the molecule. Similar hyperchromic effect on poly(aryl-ether-urea) dendrimers has been reported from our laboratory.²⁰

Fig. 5 UV-visible and fluorescence spectra of blocked isocyanate-terminated polyurethane dendrimers.

In addition, λ_max (abs) and λ_max (flu) were also increased (oxochromic) as the generation number increased, however the increment is found to be low. The absorption and emission bands were broad and without any vibrational structure. This is attributed to the decreased planarity of the molecules due to the large steric interaction with in the molecule.²¹ All the dendrimer showed strong visible fluorescence in the 524 nm to 535 nm range on excitation with 350 nm light or 470 nm light because of the presence of strongly absorbing phenyl rings (Table 2). A significantly high Stokes shift of 67 nm to 72 nm was absorbed between absorption and emission maxima. These results confirm the better performance of larger dendrimers as antennae to receive photons.

Table 2 Absorption and fluorescence maxima of blocked isocyanate-terminated polyurethane dendrimers

Dendrimers	λ max (abs)^a (nm)	λ max (flu)^a (nm)
a All the spectra were recorded in DMF at a concentration of 1 × 10^−6 M. b Excitated with 350 nm light. c Exciated with 470 nm light.
G1 dendrimer (7)	457	524^b
G2 dendrimer (10)	457	534^b
G3 dendrimer (13)	463	531^c
G4 dendrimer (16)	463	535^c

---

Solubility

Solubility of the dendrimers was determined by dissolving the compound (5 mg mL⁻¹) in different highly polar and relatively less polar solvents. All the blocked isocyanate-terminated dendrimers were found highly soluble in solvents like DMF and NMP and found partially soluble in THF. Compared to THF, solubility of these dendrimers was poor in acetone and very poor in ethyl acetate. It was found that solubility was increased with increasing the generation number. Also, it was found that when compared to blocked isocyanate dendrimers, solubility of amine-terminated dendrimers was less in these solvents.

Heat-cured adhesives

Since both type of dendrimers reported in this work possess reactive end functional groups, they could be used as potential candidates, more particularly, in crosslinking process. In this study, heat-setting single-component polyurethane adhesives based on G2 amine- and blocked isocyanate-terminated dendrimers were formulated and tested on aluminum plates (Fig. 6, Table 3). During the curing process, urethane linkages will be formed in the case of adhesive formulated with blocked OCN– dendrimer. Whereas in the case of Adhesive-2, urea linkages will be formed between H₂N-dendrimer and blocked polyisocyanate in which urethane linkages are already present. The adhesive based on blocked isocyanate dendrimer was found to withstand tensile shear strength of 2.41 MPs. This values is sufficient to join and seal aluminum and ceramic parts, thus, valuable heat-curable single component adhesive-sealant could be produced using this formulation. The low adhesive strength of formulation based on amine-terminated dendrimer (Adhesive-2) is due to use of N-methylaniline blocked polyisocyanate as co-reactant in which the blocking agent could not be cleaved off as easily as 4-chlorophenol since the deblocking temperature of former is close to unsubstituted phenol.¹⁹ Indeed, it is possible to improve the performance of Adhesive-2 even better than the Adhesive-1 by changing the blocked polyisocyanate used.

Fig. 6 Tensile Shear test profile of heat-cured adhesive based on G2 blocked isocyanate-terminated dendrimer.

Table 3 Heat-setting adhesive sealant: formulation and performance

Adhesive no.	Ingredients (g)		Tensile shear strength (MPa)
a Equivalent weight 1000 g mol^−1. b Bonding agent. c N-Methylaniline blocked polyisocyanate (eq. wt 1421 g mol^−1).
1	G2-blocked isocyanate-terminated dendrimer	0.456	2.41
	Poly(polytetrahydrofuran carbonate) diol^a	1.520
	Dibutyltin dilaurate	0.004
	Silquest A 187^b	0.020
2	G2-amine-terminated dendrimer	0.176	0.93
	Blocked polyisocyanate^c	1.800
	Dibutyltin dilaurate	0.004
	Silquest A 187^b	0.020

---

Conclusions

In conclusion, a simple and highly efficient method for quantitative synthesis of amine- and blocked isocyanate-terminated polyurethane dendrimers up to fourth generation has been developed. Purification of core, building block and dendrimers required only washing or re-precipitation. The defect-free structures of dendrimers were confirmed using ¹H NMR and MALDI-TOF MS spectra and SEC-MALLS. All the dendrimer showed strong visible fluorescence in the 524 nm to 535 nm range. Heat-setting adhesive based on blocked isocyanate-terminated G2 dendrimer formulated for this study shown tensile shear strength of 2.41 MPa. This value is sufficient to join and seal aluminum and ceramic parts, thus, the dendrimers reported herein could be scale-up for new product development.

Experimental

Materials

3,5-Dinitroaniline (TCI), 4-chlorophenyl chlorformte (Alfa aesar), 3,5-diaminobenzoic acid (Sigma-Aldrich), trifluoroacetic anhydride (Alfa aesar), dibutyltin dilaurate (Sigma-Aldrich) and 1 M borane–THF (Acros) were used as received. Dimethylformamide (Merck) and tetrahydrofuran (Merck) were purified using standard procedures.

Measurements

FT-IR spectra were reordered by the KBr pellet method on a ABB MB3000 instrument. UV-visible spectra were recorded on Techcomp, UV2301 II spectrophotometer. Fluorescence spectra were recorded on HORIBA JOBINYVON Fluoromax-4 spectrofluorometer. High resolution mass spectra were recorded using a Q-TOF-Mass Spectrometer. NMR spectra were recorded on a Bruker AV 500 (¹H NMR: 500 MHz; ¹³C NMR 125 MHz) or a Bruker AV 400 (¹H NMR: 400 MHz; ¹³C NMR 100 MHz) or a Bruker AV 300 (¹H NMR: 300 MHz; ¹³C NMR 75 MHz). Chemical shift values (δ) were given in ppm and were calibrated on residual non-deutrated solvent peaks (CDCl₃: ¹H NMR: 7.26 ppm, ¹³C NMR: 77.0 ppm; DMSO-d₆: ¹H NMR: 3.43, 2.54 ppm, ¹³C NMR: 39.5 ppm) as internal standard. MALDI-TOF MS spectra were recorded by positive mode on a Bruker Ultra flex instrument using dithranol as matrices. The absolute molecular weight of dendrimers were determined using SEC-MALLS at 60 °C (SEC: Shimadzu LC-20AD, Shimadu DGU-20 A3R and two numbers of PL gel 5 µm MIXED-C column. MALLS: Wyatt mini DAWN TREOS and Wyatt Optilab rEx). DMF containing 0.1mol L⁻¹ of lithium bromide was used as eluents. Specific refractive index increment (dn/dc) for each dendrimers was determined separately in the same solvent used for SEC experiments and used for molecular weight calculation. The nitrogen content of the compounds was estimated using KELPLUS (Pelicon) nitrogen estimation system.

Synthesis of 4-chlorophenyl 3,5-dinitrophenylcarbamate (1). To a stirred solution of 1.0 g (5.45 mmol) of 3,5 dinitroaniline dissolved in 100 mL of dry THF was added calculated amount (with 5% excess) of 4-chlorophenylchloroformate dissolved in 50 mL of dry THF. The addition rate was such that it took 1.5 h for complete transfer. After the addition was over, the stirring was continued for overnight. Excess THF was removed under vacuum at room temperature. The crude product was extracted with ethyl acetate (3 × 100 mL). The organic layer was dried over anhydrous sodium sulfate. Removal of solvent under vacuum at room temperature yielded white colored product 1 and the product was dried under vacuum to constant weight. Yield 1.82 g (99%). M.p: 180–183 °C, IR (KBr, cm⁻¹) 3276 (–NH stretching), 1715 (C=O), 1594 (C–O–Ar). ¹H NMR (400 MHz, DMSO-d₆): δ 11.23 (s, 1H), 8.71 (s, 2H), 8.50 (s, 1H), 7.52 (d, J = 8.12, 2H), 7.35 (d, J = 8.64, 2H). ¹³C NMR (100 MHz, DMSO-d₆): δ 151.46, 148.83, 148.38, 141.02, 130.15, 129.47, 123.74, 117.82, 112.17. Calcd: [M]⁺ m/z = 337.67. Found: HR-MS = 337.08. Nitrogen content for C₁₃H₈ClN₃O₆: calcd: 12.44%; found: 12.12%.

Synthesis of core (2). In a 100 mL flask, 1 g (2.96 mmol) of 4-chlorophenyl 3,5-dinitrophenyl carbamate (1) was dissolved in 50 mL of dry THF. To this solution, 0.07 g of 10% Pd–C catalyst was added and stirred under hydrogen atmosphere at room temperature for 48 h. Pd–C catalyst was removed by filtering the reaction mixture through Celite-540 filtering aid at dark atmosphere and the filtrate was transferred into a 250 mL three necked flask. To this filtrate, a solution of 0.9 mL (6.43 mmol) of 4-chlorophenylchloroformate dissolved in 50 mL of dry THF was added. The addition rate was such that it took 1.5 h for complete transfer. After the addition was over, the stirring was continued for overnight. Excess THF was removed under vacuum at room temperature. The crud product was extracted with mixture of ethyl acetate and brine solution (3 × 100 mL each). The organic layer was dried over anhydrous sodium sulfate. Removal of the ethyl acetate under vacuum at room temperature yielded white colored product and the product was dried under vacuum to constant weight. M.p: 118–120 °C, yield (99%). IR (KBr, cm⁻¹) 3317 (–NH stretching), 1756 (C=O Carbamate), 1201 (C–O–Ar). ¹H NMR (500 MHz, DMSO-d₆): δ 10.39 (s, 3H), 7.53–7.29 (ArH, 15H), ¹³C NMR (125 MHz, DMSO-d₆): δ 151.27, 149.27, 139.23, 129.51, 129.26, 123.83. Calcd: [M]⁺ m/z = 586.81. Found: HR-MS = 584.91. Nitrogen content for C₂₇H₁₈Cl₃N₃O₆: calcd: 7.16%; found: 6.94%.

Synthesis of precursor for building block (3). To a solution of 3,5-diaminobenzoic acid (2 g, 13.14 mmol) in dry THF (100 mL) was added trifluoroacetic anhydride (8 g, 38.09 mmol) at 0 °C under nitrogen atmosphere and stirred at this temperature for 10 min, subsequently at 30 °C for 6 h. The reaction mixture was extracted with diethyl ether. The organic layer was washed with water (3 × 100 mL), dried over anhydrous sodium sulfate and filtered. The residue obtained after removal of the solvent was recrystallized from acetonitrile and dried under reduced pressure at 120 °C to give pale brown plates. Yield (94%), M.p: 152–154 °C, IR (KBr, cm⁻¹) 3533 (–OH stretching) 3279 (–NH stretching), 1720 (amide C=O), 1620 (acid –OH), 1205 (–CF₃). ¹H NMR (400 MHz, DMSO-d₆): δ 11.57 (s, 2H), 8.43 (s, 1H), 8.14 (s, 2H), ¹³C NMR (100 MHz, DMSO-d₆): δ 166.19, 154.92, 154.55, 137.14, 132.11, 118.58, 114.13. Calcd: [M]⁺ m/z = 344.17. Found: HR-MS = 344.02. Nitrogen content for C₁₁H₆F₆N₂O₄: calcd: 8.14%; found: 7.98%.

Synthesis of building block (4). 2 g (5.81 mmol) of compound 3 was dissolved in 70 mL of dry THF, cooled to 0 °C and then treated with 17 mL of 1 M BH₃·THF (equal to 5.81 mmol of BH₃). After stirred for 3 h, the reaction was quenched with MeOH (60 mL). The mixture was concentrated under reduced pressure, diluted with 60 mL of MeOH and re-concentrated under reduced pressure repeatedly for three times. The crude product was extracted with ethyl acetate and the organic layer was dried over anhydrous sodium sulfate and filtered. Removal of solvent under vacuum yielded pale grey colored product and the product was dried under vacuum to constant weight. Yield (94.3%), M.p: 102–104 °C, IR (KBr, cm⁻¹) 3533 (–OH stretching) 3279 (–NH stretching), 1720 (amide C=O), 1620.¹H NMR (500 MHz, DMSO-d₆): δ 11.38 (s. 2H), 8.14 (s, 1H), 7.66 (s, 2H), 5.39 (t, 1H), 4.35 (dd, J = 5, 2H), ¹³C NMR (125 MHz, DMSO-d₆): 154.74, 139.62, 136.65, 116.90, 115.99, 112.02, 62.42. Calcd: [M]⁺ m/z = 330.18. Found: HR-MS = 329.53. Nitrogen content for C₁₁H₈F₆N₂O₃: calcd: 8.48%; found: 8.21%.

Synthesis of G1 dendrimer with protected amine-end groups (5). 1 g (1.76 mmol) of core 2 and calculated amount of building block 4 were taken in a two-necked 100 mL flask and were dissolved in 10 mL of dry DMF. To this solution was added 0.02 g of DBTDL. The reaction was carried out in an oil bath maintained at 80 °C for overnight. Then, the reaction mass was added drop-wise into 100 mL of water. The precipitate was filtered, dried under vacuum and then re-precipitated in dry THF by the addition of petroleum ether. M.p: 128–130 °C, yield (94.7%). IR (KBr, cm⁻¹) 3293 (–NH stretching), 1722 (C=O), 1564 (C–O–R), 1206 (–CF₃) ¹H NMR (500 MHz, DMSO-d₆): δ 11.52 (s, 6H), 9.86 (d, J = 14.7, 3H), 8.18 (s, 3H), 7.60–7.34 (m, 9H), 5.19 (s, 6H), ¹³C NMR (75 MHz, DMSO-d₆): 154.81, 154.32, 142.30, 136.77, 134.99, 129.95, 115.49, 113.76, 112.31, 64.65. Calcd: [M]⁺ m/z = 1191.15. Found: HR-MS = 1191.81. Nitrogen content for C₄₂H₂₇F₁₈N₉O₁₂: calcd: 10.58%; found: 10.41%.

Synthesis of G2, G3, and G4 dendrimers with protected amine-end groups (8, 11 and 14). The synthetic procedure adapted for these syntheses is similar to that adapted for the synthesis of G1 dendrimer with protected amine-end groups 5 except that 0.5 g of corresponding blocked isocyanate-terminated derminated was dissolved in 10 mL of dry DMF.

G2 dendrimers with protected amine-end groups (8). Yield (91.5%). IR (KBr, cm⁻¹) 3293 (–NH), 1724 (C=O), 1564 (C–OR), 1206 (–CF₃). ¹H –NMR (500 MHz, DMSO-d₆): δ 11.52 (s, 12H), 9.89 (s, 9H), 8.18 (s, 12H), 7.60 (s, 12H), 7.46–7.34 (m, 6H), 5.19 (s, 18H), ¹³C NMR (75 MHz, DMSO-d₆): 155.29, 154.80, 154.32, 153.82, 136.61, 134.48, 129.16, 127.49, 117.64, 116.08, 113.81, 112.83, 62.40.

G3 dendrimers with protected amine-end groups (11). Yield (93.6%). IR (KBr, cm⁻¹) 3293 (–NH) 1721 (C=O), 1564 (C–O–R), 1206 (–CF₃). ¹H NMR (500 MHz, DMSO-d₆): δ 11.48 (s, 24H), 9.76 (s, 21H), 8.74 (d, 24H, J = 2.4), 8.53 (t, 12H, J = 2.8), 7.65–7.35 (m, 30H), 6.72 (s, 42H), ¹³C NMR (75 MHz, DMSO-d₆): 163.35, 147.92, 141.16, 139.22, 127.52, 126.12, 117.71, 116.63, 102.14, 101.26, 63.66.

G4 dendrimers with protected amine-end groups (14). Yield (91.5%). IR (KBr, cm⁻¹) 3293 (–NH), 1721 (C=O), 1564 (C–O–R), 1206 (–CF₃). ¹H NMR (500 MHz, DMSO-d₆): δ 11.48 (s, 48H), 9.76 (s, 45H), 8.74 (s, 48H), 8.53 (s, 124H), 7.65–7.35 (m, 66H), 6.72 (m, 90H), ¹³C NMR (75 MHz, DMSO-d₆): 163.65, 147.92, 141.16, 139.22, 127.52, 126.12, 117.71, 116.63, 102.14, 101.26, 63.66.

Synthesis of G1 amine-terminated polyurethane dendrimer (6). 1 g (0.84 mmol) of compound 5 was taken in a 250 mL two-necked flask and it was dissolved in 100 mL of dry THF. To this solution was added 10 mL of 2 wt% solution of potassium carbonate prepared in 9 : 1 mixture of water–methanol. The reaction mixture was reflexed for 4 h. After completion of the reaction, the reaction mixture was concentrated under vacuum at 50 °C. The resultant paste was washed repeatedly with water to yield fine product in brown color. Yield (91.6%), M.p: 186–188 °C, IR (KBr, cm⁻¹) 3371 (–NH₂ stretching), 1713 (C=O), 1589 (C–O–R). ¹H NMR (300 MHz, DMSO-d₆): δ 9.63 (s, 3H), 7.33 (s, 3H), 5.82 (s, 6H), 5.77 (s, 3H), 4.83 (s, 6H), 4.75 (s, 12H), ¹³C NMR (75 MHz, DMSO-d₆): 153.63, 139.49, 138.16, 136.00, 117.14, 116.49, 114.43, 113.07, 64.84. Nitrogen content for C₃₀H₃₃N₉O₆: calcd: 20.48%; found: 20.18%.

Synthesis of G2, G3 and G4 amine-terminated polyurethane dendrimers (9, 12 and 15). The synthetic procedure adapted for these syntheses is similar to that adapted for synthesis of amine-terminated G1 polyurethane dendrimer 6 except that the THF solution was warmed slightly to dissolve the trace amount of G3 or G4 dendrimer not undergo dissolution.

G2 amine-terminated dendrimer (9). Yield (92.4%). IR (KBr, cm⁻¹) 3371 (–NH₂), 1713 (C=O), 1589 (C–O–R) ¹H NMR (500 MHz, DMSO-d₆): δ 6.63 (s, 6H), 7.33 (s, 3H), 7.04 (s, 3H), 7.14 (s, 6H), 5.82 (s, 12H), 5.77 (S, 6H), 5.19 (s, 18H), 5.25 (s, 24H), ¹³C NMR (75 MHz, DMSO-d₆): 154.81, 154.32, 136.77, 134.99, 132.63, 129.95, 127.94, 117.58, 115.49, 113.76, 112.31, 64.65.

G3 amine-terminated dendrimers (12). Yield (89.6%). IR (KBr, cm⁻¹) 3379 (–NH₂), 1713 (C=O), 1589 (C–O–R). ¹H NMR (500 MHz, DMSO-d₆): δ 9.68 (s, 21H), 7.52–7.49 (m, 9H), 7.38–7.30 (m, 21H), 5.75 (s, 24H), 5.49 (s, 12H), 4.99 (s, 42H), 4.56 (s, 48H), ¹³C NMR (75 MHz, DMSO-d₆): 154.30, 136.72, 134.92, 132.61, 129.93, 127.90, 117.62, 115.44, 113.72, 112.29, 64.62.

G4 amine-terminated dendrimers (15). Yield (95.4%). IR (KBr, cm⁻¹) 3379 (–NH₂), 1713 (C=O), 1589 (C–O–R). ¹H NMR (500 MHz, DMSO-d₆): δ 9.68 (s, 45H), 7.50 (s, 21H), 7.33 (s, 42H), 5.75 (s, 48H), 5.49 (s, 24H), 4.99 (s, 90H), 4.56 (s, 96H), ¹³C NMR (75 MHz, DMSO-d₆): 154.36, 136.78, 134.96, 132.62, 129.91, 127.86, 117.64, 115.40, 113.76, 112.31, 64.66.

Synthesis of G1, G2, G3 and G4 blocked isocyanate-terminated polyurethane dendrimers (7, 10, 13 and 16). The synthetic procedure adapted for these syntheses is similar to that adapted for compound 1 except that 0.5 g of corresponding amine was dissolved in 150 mL of dry THF in the cases of G2, G3, G4 dendrimers and the curd products were washed with water, dried under vacuum and then re-precipitated in THF by the addition of petroleum ether.

G1 dendrimer (7). Yield (97.8%), M.p: 226–228 °C, IR (KBr, cm⁻¹) 3302 (–NH stretching), 1728 (C=O), 1620 (C–O–R). ¹H NMR (400 MHz, DMSO-d₆): δ 10.36 (s, 6H), 9.73 (s, 3H), 7.45–7.22 (m, 27H), 6.77 (s, 6H), 5.05 (s, 6H), ¹³C NMR (75 MHz, DMSO-d₆): 156.28, 151.26, 149.28, 139.23, 129.50, 129.26, 129.08, 123.82, 122.29, 116.88, 104.47, 67.47. Calcd: [M + Na]⁺ m/z = 1565.1. Found: MALDI-TOF-MS [M + Na]⁺ = 1564.4. Nitrogen content for C₇₂H₅₁Cl₆N₉O₁₈: calcd: 8.17%; found: 8.04%.

G2 dendrimer (10). M.p > 240 °C (chared). Yield (98.7%). IR (KBr, cm⁻¹) 3302 (–NH stretching), 1728 (C=O), 1558 (C–O–R). ¹H NMR (500 MHz, DMSO-d₆): δ 10.36 (s, 12H), 9.73 (s, 9H), 9.74 (s, 9H) 7.74–7.42 (m, 24H), 7.32 (s, 3H), 6.77–6.75 (m, 18H), 5.05 (s, 18H), ¹³C NMR (125 MHz, DMSO-d₆): 154.77, 154.47, 153.03, 139.60, 139.50, 138.74, 136.93, 121.91, 117.16, 116.79, 114.49, 113.00, 64.84. Calcd: [M + Na]⁺ m/z = 1565.1. Found: MALDI-TOF-MS [M + Na]⁺ = 3477.9.

G3 dendrimer (13). Yield (97.4%). IR (KBr, cm⁻¹) 3302 (–NH stitching), 1728 (C=O), 1558 (C–O–R). ¹H NMR (500 MHz, DMSO-d₆): δ 10.44 (s, 24H), 9.66 (s, 18H), 8.11 (s, 21H), 7.72–7.46 (m, 99H), 6.70 (s, 42H), 4.81 (s, 48H), ¹³C NMR (75 MHz, DMSO-d₆): 156.22, 151.16, 149.27, 139.21, 129.53, 129.26, 129.10, 123.84, 122.27, 116.90, 104.44, 67.48. Calcd: [M + Na]⁺ m/z = 7302.1. Found: MALDI-TOF-MS [M + Na]⁺ = 7302.3.

G4 dendrimer (16). Yield (92.6%). IR (KBr, cm⁻¹) 3302 (–NH stretching), 1728 (C=O), 1558 (C–O–R). ¹H NMR (400 MHz, DMSO-d₆): δ 10.44 (s, 48H), 9.97 (s, 45H), 8.11 (s, 45H), 7.72–7.46 (m, 195H), 6.70 (s, 90H), 4.81 (s, 90H), ¹³C NMR (75 MHz, DMSO-d₆): 156.22, 151.31, 149.26, 139.21, 129.52, 129.24, 129.09, 123.84, 122.27, 116.90, 104.46, 67.48. Calcd: [M + Na]⁺ m/z = 14 952.8. Found: MALDI-TOF-MS [M + Na]⁺ = 14 952.5.

Preparation and testing of polyurethane adhesive

A heat-setting polyurethane adhesive formulation containing the ingredients as mentioned in Table 3 was prepared in a 50 mL flask. To make this formulation as a homogenous mixture, initially all the ingredients were dissolved in 10 of THF and then the solvent was removed using rotatory evaporator at 35 °C. The adhesive paste was applied on surface cleaned aluminum plates with application area 22 mm × 23 mm and then cured in an oven maintained at 125 °C for 6 h and post-cured at 80 °C for 8 h. The tensile shear strength of the adhesive was tested on an UTM (Instron) with cross-head speed of 100 mm min⁻¹. Three tests were performed for an average value.
