Chromogenic and fluorogenic chemosensors for hydrogen sulfide: review of detection mechanisms since the year 2009

Jianfang Li a, Caixia Yin *a and Fangjun Huo *b
aInstitute of Molecular Science, Shanxi University, Taiyuan 030006, China. E-mail: yincx@sxu.edu.cn; Fax: +86-351-7011022; Tel: +86-351-7011022
bResearch Institute of Applied Chemistry, Shanxi University, Taiyuan 030006, China. E-mail: huofj@sxu.edu.cn; Fax: +86-351-7018329; Tel: +86-351-7018329

Received 6th October 2014 , Accepted 18th November 2014

First published on 19th November 2014


Abstract

The development of probes for the biologically important gas hydrogen sulfide (H2S) has been an active area of research in recent years. This review summarizes recent work on the recognition mechanisms used by chromogenic and fluorogenic sensors and their applications in the detection of H2S. Several types of recognition mechanisms have been reported, including cleavage of the alcoxyl (R–O) bond, cleavage of the S–O bond, reduction of the azide group, the reduction of nitro groups to amines, the replacement of a copper complex and double bond addition reactions. In all instances the reactions are accompanied by changes in color and/or emission. These recognition mechanisms are important and straightforward procedures for use in the design of highly selective colorimetric or fluorimetric probes for the detection of H2S in living cells.


Jianfang Li is studying for a master's degree at the Institute of Molecular Science at Shanxi University. She received her BSc in chemistry at Shanxi University in 2009.

Caixia Yin obtained her doctoral degree in chemistry at Shanxi University in 2005. She is now a professor in the Key Laboratory of Chemical Biology and Molecular Engineering of the Ministry of Education, Institute of Molecular Science at Shanxi University, specializing in inorganic chemistry. Her current research interests are molecular recognition and sensor chemistry.

Fangjun Huo obtained his doctoral degree in chemistry at Shanxi University in 2007. He is now an associate professor in the Research Institute of Applied Chemistry at Shanxi University, specializing in organic chemistry. His current research interests are sensors and supramolecular chemistry.


1. Introduction

Hydrogen sulfide (H2S) is a colorless gas with a pungent taste. Exposure to this flammable gas, which has a distinctive odor of rotten eggs, can trigger irritation of the eyes and respiratory tract.1 H2S is emitted from various industries, such as mining, smelting, sugar beet, the manufacture of carbon disulfide and organophosphate pesticides, as well as industries producing leather, sulfur dyes, paints and animal glue. H2S is also emitted from places of organic decomposition such as swamps, sewers, septic tanks and sewage settling ponds. People who work in these locations for a long time are therefore at risk of poisoning by the gas.

Once inhaled, H2S is rapidly absorbed by the lungs and this may lead to unconsciousness with attendant neurological sequelae, or even to death. The gas has also been associated with deaths from cardiovascular causes.2 However, recent studies have challenged this traditional view of H2S as a toxin and have shown that some animals can also produce H2S in a controlled fashion,3 suggesting that this reactive sulfur species is important in maintaining normal physiology.4 H2S may be produced by non-enzymatic processes, including release from sulfur stores and the metabolism of polysulfides.5,6

A variety of disease phenotypes have been associated with inadequate levels of H2S, including Alzheimer's disease,7 impaired cognitive ability in patients deficient in cystathionine beta synthase8 and hypertension in cystathionine γ lyase knockout mice.9 In addition, excessive H2S production in vital organs may be responsible for the pathogenesis of other diseases such as diabetes.10–12 These studies established H2S as an essential physiological mediator and cellular signaling species,13,14 but our understanding of H2S chemistry and its far-ranging contributions to physiology and pathology is still in its infancy.

The multitude of physiological functions in which H2S is involved requires the development of useful methods for its detection. To date, several detection methods have been developed for H2S, including gas chromatography,15,16 electrochemical analysis,17,18 colorimetric and/or fluorescent methods19–22 and metal nanoparticle sensors.23 These methods are useful for monitoring hydrogen sulfide in environmental samples, such as air, water, sediments and sludge.24 Among these detection methods, colorimetric and/or fluorescent probes have been developed rapidly as a result of their excellent properties and simplicity, especially turn-on fluorescent probes, which not only have high sensitivity, selectivity and ease of application,25,26 but also have a high signal-to-noise ratio.27,28 In addition, detection with these probes always involves fluorescent or ultraviolet emissions, which can be detected visually without instrumentation. Many fluorescent imaging probes29–39 for H2S detection have been developed. All these probes use one of the following mechanisms: (1) cleavage of the alcoxyl (R–O) bond; (2) cleavage of the S–O bond; (3) the reduction of azides; (4) the reduction of nitro groups to amines; (5) the replacement of copper complexes; or (6) a double bond addition reaction.

Pandey et al.2 reviewed H2S gas sensors based on the type of material and/or sensing principle. Lin and Chang5 reported fluorescent probes for imaging H2S in biological systems. Yu et al.40 reviewed the synthesis and design strategies of probes. Our review focuses on the recognition mechanism in the detection of H2S.

2. Recognition mechanisms for H2S

2.1. Cleavage of the alcoxyl (R–O) bond

A representative reaction involving the cleavage of the R–O bond is the thiolysis of dinitrophenyl ether, which is often used to protect tyrosine in the synthesis of peptides. The dinitrophenyl protective group is removed using thiols as the thionyl agents under basic conditions.41,42 H2S is a small gas molecule and has a pKa value of about 6.9,43 whereas typical free thiols in cells (e.g. glutathione and cysteine) have higher pKa values of about 8.5.44,45 Therefore, based on significant differences such as size and the pKa value at physiological pH, the thiolysis of the dinitrophenyl ether reaction can be used to detect H2S over biologically abundant glutathione and cysteine46 (Scheme 1).
image file: c4ra11870g-s1.tif
Scheme 1 Strategy for the design of fluorescent probes based on cleavage of the R–O bond.

Cao et al.46 designed and synthesized a near-infrared (NIR) H2S probe (1), a unique type of fluorescent turn-on probe for H2S based on the chemistry of dinitrophenyl ether (Fig. 1). Free probe 1 was essentially non-fluorescent in 50 mM PBS buffer (pH 7.0) with 3 mM cetyltrimethylammonium bromide and 10% ethanol. However, on the addition of NaHS (note that NaHS or Na2S is the source of H2S), the fluorescence intensity of the probe increased significantly (an 18-fold fluorescence enhancement), giving a strong emission at 708 nm in the NIR region, which is favorable for fluorescent imaging studies.36 The detection limit was 5 × 10−8 M (S/N = 3) and the probe was used for biological imaging in living cells.


image file: c4ra11870g-f1.tif
Fig. 1 Reaction of probe 1 with NaHS.

Liu and Feng47 reported a probe based on 3-hydroxyflavone excited state intramolecular proton transfer (ESIPT) (2), which was able to rapidly detect H2S in both aqueous solution and in biological serum samples with high selectivity and sensitivity. Free probe 2 in pH 7.4 PBS buffer (20 μM) was light yellow and was itself not fluorescent; the addition of HS led to emission at 538 nm with a color change from light yellow to deep yellow. However, other anions, including the thiol group, did not cause any significant change in the emission of probe 2. The optical changes of probe 2 in the presence of HS suggested that HS specifically triggered the thiolysis of dinitrophenyl ether and simultaneously released 4′-dimethylamino-3-hydroxyflavone (Fig. 2), which is a known visible light excitable ESIPT dye with a high fluorescence quantum yield.


image file: c4ra11870g-f2.tif
Fig. 2 Reaction of probe 2 with HS. Color changes of probe 2 (20 μM) solution after the addition of NaHS (200 μM) (a) under room light and (b) under 365 nm light. Reprinted with permission from Org. Biomol. Chem., 2014, 12, 438–445. Copyright 2014, Royal Society of Chemistry.

Sayed et al.48 reported the synthesis and sensing features of fluorescent probe 3 (Fig. 3) based on quinoline for the detection of H2S in water and living cells. The addition of HS induced the hydrolysis of the ether with a subsequent 345-fold enhancement of emission. Other competitor ions, such as OH, F, Cl, Br, I, N3, CN, SCN, AcO, CO32−, PO43−, SO42−, SO32−, S2O32−, H2O2, Cys, Me–Cys, Hcy, GSH and lipoic acid, had no obvious effect. The selectivity toward HS was ascribed to the HS induced hydrolysis of the 2,4-dinitrophenyl ether moiety, which yielded the highly fluorescent 8-hydroxyquinoline group.48–50 Probe 3 is non-toxic and can selectively and sensitively detect the HS anion in HeLa cells. The good detection limit (60 nM) and excellent solubility in HEPES–DMSO (99[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) indicated that 3 was a useful probe for hydrogen sulfide.


image file: c4ra11870g-f3.tif
Fig. 3 Structure of probe 3.

Two new colorimetric and fluorescent turn-on probes (4 and 5) were developed by Wei et al.51 that detected H2S based on the thiolysis of the 7-nitrobenz-2-oxa-1,3-diazole (NBD) ether bond (Fig. 4 and 5), which was based on previous reports.52,53 Both 4 and 5 showed no obvious fluorescence in PBS buffer (pH 7.4). The addition of H2S resulted in a 1000-fold enhancement in fluorescence for 4 and a 77-fold enhancement in fluorescence for 5. The difference in fluorescence enhancement for the two probes is related to the molecular structure. The electron-withdrawing oxygen moiety in 4 enhances the reactivity of the electrophilic NBD ether and increases the stability of the phenol anions, which results in a three-fold faster H2S reactivity for 4 than for 5 under physiological conditions, accompanied by a stronger fluorescence enhancement for 4. The fluorescent turn-on response can be observed visually under a 365 nm UV lamp. At the same time, the color of 4 changes from colorless to red at 490 nm, whereas 5 emits at an NIR wavelength of 662 nm after reaction with H2S. The high selectivity to H2S helps visualization by the naked eye.


image file: c4ra11870g-f4.tif
Fig. 4 Reaction of probe 4 with H2S.

image file: c4ra11870g-f5.tif
Fig. 5 Reaction of probe 5 with H2S.

2.2. Cleavage of the S–O bond

Some workers have reported that the fluorescence of the fluorophores can be efficiently quenched when electron-withdrawing groups such as dinitrobenzenesulfonyl are bonded with the fluorophores;54–57 cleavage of these groups will release the fluorophores and recover the fluorescence. Using this general approach, several elegant H2S probes have been developed based on the cleavage of the dinitrophenyl ether or dinitrobenzenesulfonyl group as a result of the nucleophilic properties of H2S (Scheme 2).
image file: c4ra11870g-s2.tif
Scheme 2 Summary of strategies for the design of fluorescent probes based on cleavage of the S–O bond.

Yang et al.58 developed a probe (6) for the sensitive detection of the sulfide anion based on its nucleophilic properties in aqueous solution. In 25% v/v aqueous acetone, the probe itself had an absorption peak at about 453 nm and no obvious fluorescence in the emission spectrum. On mixing with the sulfide anion in 25% v/v aqueous acetone, both the fluorescence and absorbance of the reaction solution dramatically increased as a result of the efficient removal of the 2,4-dinitrobenzenesulfonyl group of 6 and the release of fluorescein (Fig. 6). Based on the obvious color change, the probe can be used for the visual detection of sulfide anions.


image file: c4ra11870g-f6.tif
Fig. 6 Reaction of probe 6 with H2S.

Fu et al.59 designed a probe (7) for sensing HS that had a strongly red-emitting styryl-containing BODIPY and a 2,4-dinitrobenzenesulfonyl unit, known as an electron acceptor that is able to quench fluorescence by electron transfer.60–62 The optical response of probe 7 to various species was investigated in acetone (10 μM). A red shift of about 10 nm of the absorption band can be seen in the UV-visible spectrum. On the addition of HS, probe 7 was cleaved and dinitrobenzenesulfonyl was released, leading to significantly enhanced fluorescence (Fig. 7). Probe 7 can permeate cell membranes and could potentially detect HS in living cells.


image file: c4ra11870g-f7.tif
Fig. 7 Reaction of probe 7 with HS.

Zheng et al.57 designed a fluorescent turn-on probe (8) to selectively detect H2S based on the nucleophilic properties of S2−. The probe had obvious fluorescence in pH 7.4 HEPES-buffered water. In the presence of competitor ions (F, Cl, Br, I, CO32−, NO3, S2O32−, SO32−, HSO3 and SO42−), only the addition of S2− resulted in the appearance of a new peak at 518 nm in the emission spectra; this was enhanced up to 340-fold. The enhancement of the fluorescence was ascribed to the cleavage of the strong electron-withdrawing dinitrobenzenesulfonate ester group from probe 8 and the release of the fluorescein fluorophore (Fig. 8). The probe has low cytotoxicity and can permeate the cell membrane to monitor sulfide anions in live cells.


image file: c4ra11870g-f8.tif
Fig. 8 Reaction of probe 8 with S2−.

2.3. Reduction of azides

On the basis of the ability of H2S to reduce azides, it is possible to design and synthesize fluorescent probes for the biological messenger molecule H2S based on an ESIPT fluorescence control mechanism and ICT-induced blue or red shifts in the emission spectrum63–65 by controlling the electron-donating ability of different substituent groups (Scheme 3).
image file: c4ra11870g-s3.tif
Scheme 3 Summary of strategies for the design of fluorescent probes based on the reduction of azides.

Yu et al.65 reported a colorimetric and ratiometric fluorescent probe (9) with a selective response to H2S. The probe was based on heptamethine cyanine with a chemically responsive azide unit (Cy–N3). Fig. 9 shows the detection mechanism of the probe. When the azides were reduced to amines by H2S, an NIR fluorescence maximum appeared at 750 nm (F = 0.12), accompanied by a color change from blue to green. Probe 9 had an excellent selectivity for H2S among a series of anions and its detection limit was 0.08 μM. The probe could permeate cells and was able to sense different levels of intracellular H2S.


image file: c4ra11870g-f9.tif
Fig. 9 Reaction of probe 9 and H2S.

Zheng et al.66 reported PI–N3 (Fig. 10) as a fluorescent chemosensor for H2S based on a phenanthroimidazole dye. The free probe 10 showed a maximum absorption band at 358 nm and a relatively weak fluorescence (Φ = 0.030) in pH 7.4, 25 mM PBS buffer–ethanol (7[thin space (1/6-em)]:[thin space (1/6-em)]3 v/v) at ambient temperature. The enhancement in fluorescence intensity on the addition of NaHS to probe 10 was approximately 20-fold (Fig. 9). Unfortunately, the detection limit for probe 10 was 0.879 μM, which is inferior to other reported probes such as probe 9 (0.08 μM). To examine the specificity of probe 10 for H2S, species such as N3, ClO, Cl, F, H2O2, CO32−, HCO3, HPO42−, NO2, OAc, S2O32−, SO42− and citrate were introduced; these species had almost no fluorescence response within 5 min. However, cellular thiols such as GSH and cysteine had a <8.0-fold enhancement in fluorescence, which may interfere with the detection of HS. The sensing process was confirmed by both NMR spectrometry and mass spectrometry. This method was also suitable for monitoring changes in the levels of H2S in living cells as a result of cell permeability.


image file: c4ra11870g-f10.tif
Fig. 10 Structure and fluorescence titration of probe 10 with sulfide ions. Reprinted with permission from Org. Biomol. Chem., 2012, 10, 9683–9688, Copyright 2012, Royal Society of Chemistry.

Zhou et al.24 reported a fluorescent probe (11) (Fig. 11) based on the NBD fluorophore combined with a azide group. The absorption spectrum showed that the addition of NaHS resulted in a red shift of the absorption peak from 396 to 468 nm, which produced a colorimetric change from pale yellow to deep yellow. The free probe 11 is weakly fluorescent as a result of the quenching effect of the azido group; with the addition of NaHS, the fluorescence intensity increased up to 16-fold. MCF-7 cells were incubated with 11 to image H2S and the detection limit was 680 nM.


image file: c4ra11870g-f11.tif
Fig. 11 Structure of probe 11.

The fluorescence probe 12 (Fig. 12), based on 8-aminopyrene-1,3,6-trisulfonate, was designed and used for the detection of H2S by Hartman and Dcona.67 The presence of the electron-rich azide dramatically quenches the fluorescence of 12. However, after the reduction of the azides to amines by H2S, the fluorescence of the solution showed a seven-fold enhancement. The probe could detect H2S in serum samples and HS was easily quantifiable by fluorescence when its concentration was between 2 and 100 μM.


image file: c4ra11870g-f12.tif
Fig. 12 Structure of probe 12.

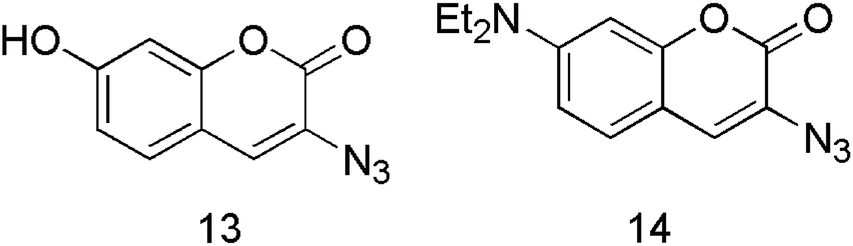

Two coumarin-based probes 13 and 14 (Fig. 13) were designed by Li et al.68 The optical response of probes 13 and 14 to various species was investigated in 100 mM sodium phosphate buffer (pH 7.4, 0.05% DMF). The free probes had no or very weak fluorescence. Because of the stronger electron-donating ability of –NEt2 than that of –OH, probe 14 showed a larger fluorescence enhancement after reduction by H2S. The quantum yields significantly increased from (0.16 ± 0.013)% and (0.58 ± 0.02)% to (0.66 ± 0.015)% and (10.93 ± 0.15)%, respectively. Li et al.68 also showed the selectivity of the two probes among species including cysteine, glutathione, thiophenol, 4-chlorophenyl thiophenol, 2-amino thiophenol, NaSCN and NaHSO3. It was also confirmed that the recognition mechanism was the reduction of azides to amines controlled by the strong ICT effects. Both probes 13 and 14 could be used to determine H2S in biological samples.


image file: c4ra11870g-f13.tif
Fig. 13 Structure of probes 13 and 14.

A naphthalimide derivative as a fluorescent turn-on probe (15) for H2S detection was reported by Montoya and Pluth69 (Fig. 14). Probe 15 is weakly fluorescent in its unreacted state; on the addition of H2S, 15 was efficiently converted to a fluorescent amine (Φ = 0.096 ± 0.001) with a turn-on fluorescent response. These changes were attributed to the reduction of azides to amines, which was confirmed by both NMR spectrometry and mass spectrometry. To demonstrate the selectivity of probe 15, other reactive sulfur, oxygen and nitrogen species (RSONS), including cysteine, glutathione, alpha-lipoic acid, NO, H2O2, SO32− and S2O32− were examined. All these species showed no obvious change in their fluorescence spectra under the same conditions. Probe 15 was used to study the physiological roles of endogenous H2S and a detection limit of 5–10 μM was obtained.


image file: c4ra11870g-f14.tif
Fig. 14 Structure of probe 15.

Lippert et al.70 designed and synthesized two azide-caged rhodamine analogues as fluorescent probes 16 and 17 (Fig. 15) for the sensitive detection of H2S. The fluorescence properties of these two probes were tested in 20 mM HEPES-buffered solutions (pH 7.4). There was no absorption feature in the visible region as a result of the closed lactone conformation of the two probes. On the addition of HS, both the probes showed new absorption bands in the visible region and there was a significant enhancement in the fluorescence intensities (Φ = 0.51 and 0.60). The change in fluorescence was due to the products of the reactions between 16 and 17 with HS; the corresponding rhodamine dye structures were confirmed by 1H-NMR and liquid chromatography-mass spectrometry analyses. These probes were able to sense different levels of H2S in HEK293T cells using confocal microscopy.


image file: c4ra11870g-f15.tif

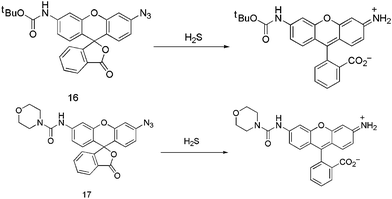

Fig. 15 Reaction of probes 16 and 17 with H2S.

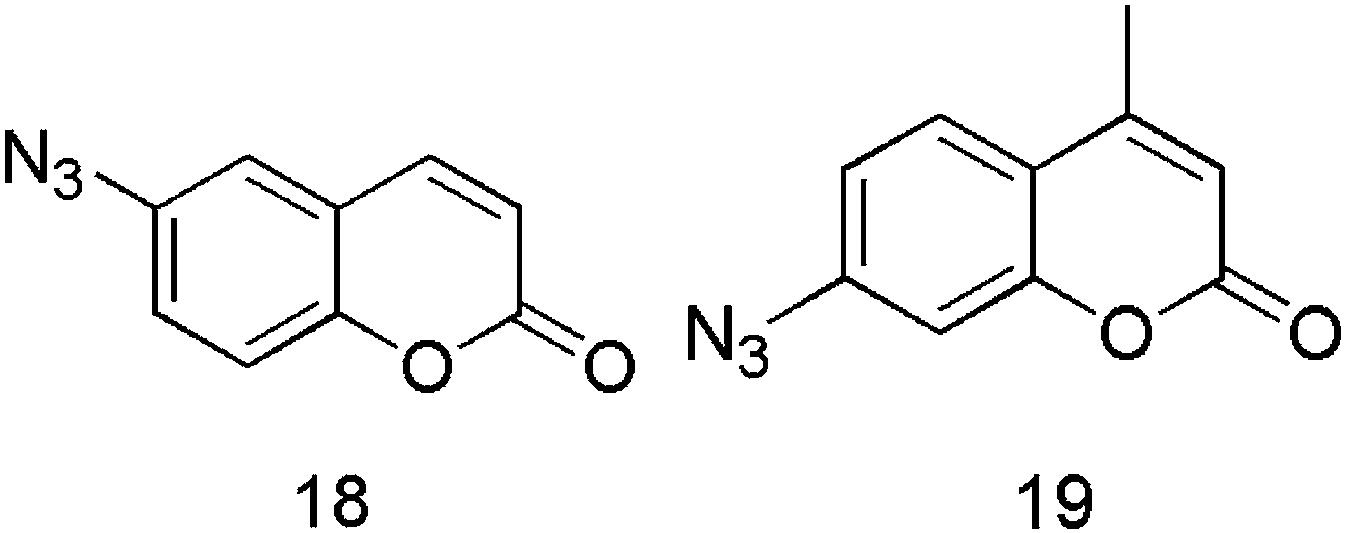

Chen et al.71 synthesized two chemoprobes 18 and 19 (Fig. 16) for the detection of H2S based on the coumarinyl moiety. Neither of these probes showed fluorescence when they were free. On the addition of 100 μM NaHS to a solution of 19, there was a strong enhancement in fluorescence at 445 nm, which reached 40–90-fold after 50 min. Probe 18, unlike 19, had a weak response to 100 μM H2S and had a low selectivity over other species, which indicated that 18 was not a good probe for the detection of H2S. The pH variation of 19 was evaluated and it was found that it increased up to 170-fold in pH 7.9 buffer after reaction with H2S. Imaging of H2S was achieved in the cardiac tissues of normal and atherosclerotic rats.


image file: c4ra11870g-f16.tif
Fig. 16 Structure of probes 18 and 19.

The benzopyran derivative 20 (Fig. 17) reported by Sun et al.72 was used for the fluorescence turn-on detection of H2S. On the addition of H2S, a color change from yellow to orange red was observed as a result of a large red shift of 90 nm in the absorption band to 505 nm. At the same time, a strong fluorescence enhancement at 670 nm appeared (λex = 520 nm), as a result of the reduction of the azido group of 20 to a fluorescent amino group. Probe 20 was successfully used to image H2S in living mice. Although the probe had excellent selectivity for H2S over a wide pH range of 2.5–10, the water solubility (PBS buffer/DMSO 1[thin space (1/6-em)]:[thin space (1/6-em)]1) could be improved for better imaging in living systems.


image file: c4ra11870g-f17.tif
Fig. 17 Structure of probe 20.

Bailey and Pluth73 reported two reaction-based chemiluminescent sulfide sensors, 21 and 22, with strong luminescence responses toward H2S. Both 21 and 22 completely converted each azide to the corresponding amine (Fig. 18) after the addition of H2S and the products were confirmed by 1H-NMR spectrometry. The response of 21 and 22 to biologically relevant RSONS was also tested. Probes 21 and 22 showed a 128-fold and 45-fold enhancement, respectively, in the turn-on response to H2S and high selectivity for H2S over reactive oxygen and nitrogen species. However, 21 showed a poor selectivity over cysteine-derived reductants, whereas 22 has a high selectivity. The detection limits were 0.7 ± 0.3 and 4.6 ± 2.0 μM, respectively.


image file: c4ra11870g-f18.tif

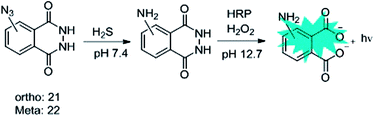

Fig. 18 Reaction of probes 21 and 22 with H2S.

Jiang et al.74 reported a turn-on fluorescent probe (23) (Fig. 19) for H2S imaging in living cells based on an ESIPT mechanism. This probe consisted of a p-aminobenzyl moiety and 2-(20-hydroxyphenyl)-benzothiazole. When the azido group was reduced to an amino group, the p-aminobenzyl moiety could self-immolate to release the ESIPT chromophore 2-(20-hydroxyphenyl)-benzothiazole, with a corresponding remarkably ratiometric fluorescence signal. Control experiments in the presence of other reactive species showed that 23 exhibited good selectivity for H2S. This probe was able to sense H2S in HeLa cells using confocal fluorescence microscopy imaging. The detection limit was 2.4 μM under the test conditions.


image file: c4ra11870g-f19.tif
Fig. 19 Upper panel: structure of probe 23. Lower panels: fluorescence microscopy results for imaging of H2S with probe 23 (5 μM) in HeLa cells. (A) Fluorescent image of HeLa cells incubated with probe 23 for 60 min and (B) bright-field image of HeLa cells in (A). Fluorescent images (top row) and bright-field images (lower row) of HeLa cells incubated with probe 23 for 30 min followed by incubation with different concentrations of NaHS for another 30 min: (C and D) 20 μM; (E and F) 50 μM; (G and H) 100 μM. Ex = 330 nm and Em = 450–600 nm. Reprinted with permission from Talanta, 2014, 12, 1122–126, 2014 Elsevier B.V. All rights reserved.

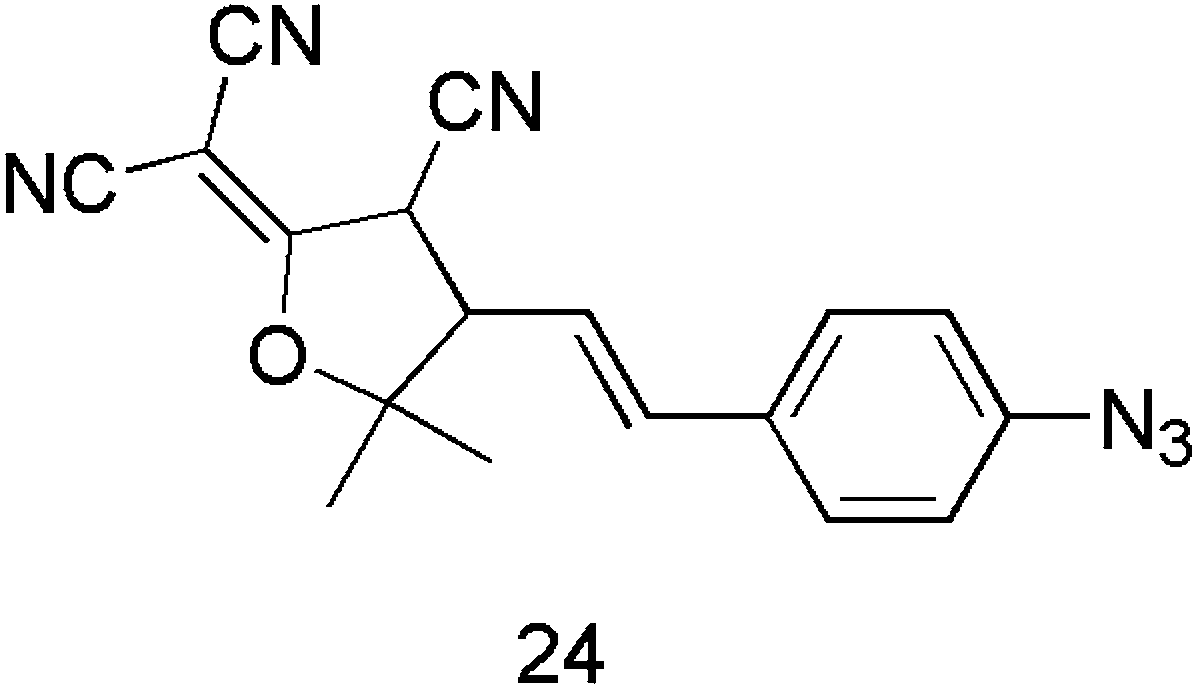

Chen et al.75 reported a red emission fluorescent probe (24) (Fig. 20) for H2S based on the reduction of azides with H2S. Because of its long excitation and emission wavelengths, dicyanomethylenedihydrofuran was selected as the fluorophore. After incubation with H2S, the azide of this probe was reduced to form a highly fluorescent amine-derived compound. The fluorescence enhancement at 619 nm was up to 55-fold. The sensing mechanism was confirmed by both 1H-NMR and 13C-NMR spectrometry. Probe 24 had low toxicity toward HUVEC cells and could be used to detect H2S in living cells. Despite the excellent selectivity, the time-dependent fluorescence response assay showed that the reaction was complete within 60 min, which is very long. In addition, the water solubility needs to be improved.


image file: c4ra11870g-f20.tif
Fig. 20 Structure of probe 24.

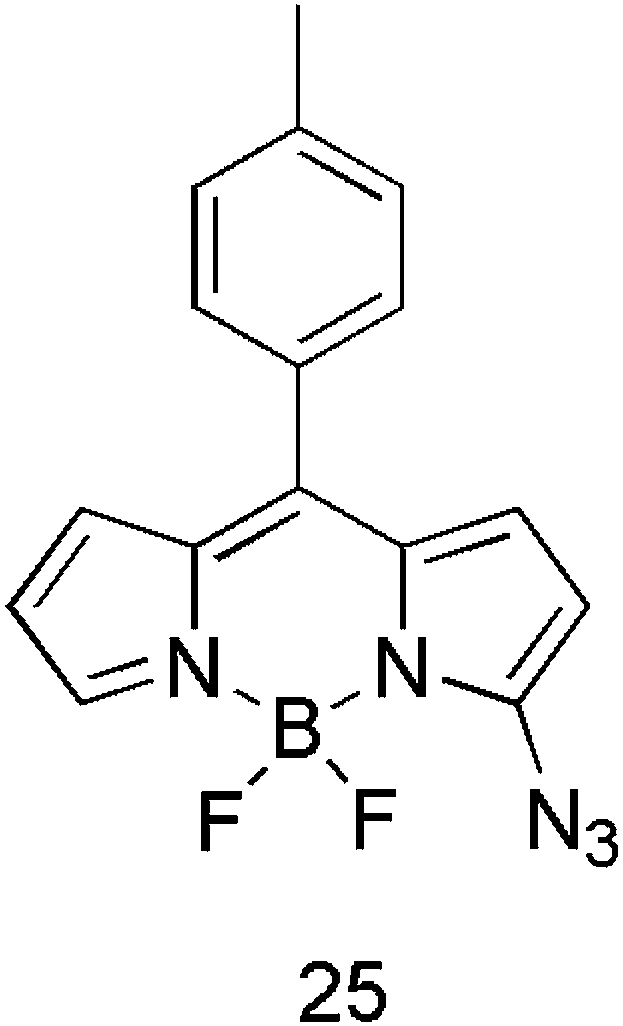

A BODIPY azide-based colorimetric and fluorescence probe (25) (Fig. 21) for the selective and sensitive detection of H2S was reported by Saha et al.76 This probe was not fluorescent as a result of the quenching effect of the electron-rich azido group. The BODIPY azide could be reduced to a BODIPY amide by H2S with a turn-on fluorescent response. The probe was used to detect H2S in HeLa cells. The probe had high solubility in water and could measure H2S in serum samples with a 28-fold increase in fluorescence. The detection limit was 265 nM. It was found that probe 25 could be used to determine fluctuating concentrations of H2S in biological systems.


image file: c4ra11870g-f21.tif
Fig. 21 Structure of probe 25.

Sun et al.77 reported a polymeric fluorescent sensor (26) (Fig. 22) for the detection of H2S in PBS–CH3CN (1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v, pH 7.4). The intensity of fluorescence increased with increasing Na2S concentration. Na2S induced a three-fold increase in the fluorescence intensity of probe 26. Probe 26 also showed selectivity for H2S among other biological anions. Confocal microscopy images of HeLa cells incubated with 26 indicated that the probe could be used for the detection of H2S in vivo. The mechanism of the response of 26 to H2S was the reduction of the sulfonyl azide to sulfonamide in the presence of Na2S, as confirmed by IR and 1H-NMR spectrometry.


image file: c4ra11870g-f22.tif
Fig. 22 Structure of probe 26.

2.4. Replacement of copper complexes

Complexes of a dye and metal(s) have been designed for sensing anions; the coordinated metal(s) strongly interact with anions and the compounds formed can be detected.78–82 Copper complexes can be used to sensitively detect thiols such as cysteine and glutathione over other amino acids in aqueous media.83–85 The recognition mechanism is based on metal–anion affinity, which has also been used as another method of sensing anions.86–90 Here we focus on the copper complex, in which copper is released when H2S binds to the Cu2+ center (Scheme 4).
image file: c4ra11870g-s4.tif
Scheme 4 Summary of strategies for the design of fluorescent probes based on replacement of copper complexes.

Boron dipyrromethene–Cu2+ (27) is a suitable probe for detecting H2S in HEPES buffer solution (50 mM, pH 7.4, 5% DMSO).85 After the addition of H2S, the color of the solution of 27 turns from orange to pink. This indicates the capability of probe 27 to detect HS by the release of Cu2+ and the formation of compound 271 in aqueous solution (Fig. 23). The detection limit for HS was 1.67 × 10−7 M under the same experimental conditions. Probe 27 did not show any significant change in absorption spectra with the addition of excess amounts of other anions such as F, Cl, Br, I, SO42−, SO32−, NO3, HCO3, H2PO4, N3, NO2, SCN and CN, indicating the excellent selectivity of 27 over other competitive anions. Unfortunately, probe 27 has almost no fluorescence response to HS, which hinders the application of the probe in vivo.


image file: c4ra11870g-f23.tif
Fig. 23 Reaction of probe 27 with H2S.

Zhang and Jin91 reported another copper complex of an azo dye (28) for the detection of H2S based on a displacement method. The association constant between compound 281 and Cu2+ (Kass = 1.82 × 104) was much smaller than that of Cu2+ and S2− (Kass = 7.87 × 1035), showing that Cu2+ was easily captured by S2− and free compound 281 was released from the complex. When Cu2+ was grabbed by S2− from 28, the color of the solution changed from pink to yellow. Probe 28 retained a sensing response to H2S in the presence of most competing anions. The 1H-NMR signal and the absorption spectrum indicated a displacement reaction mechanism (Fig. 24).


image file: c4ra11870g-f24.tif
Fig. 24 Reaction of probe 28 and Na2S.

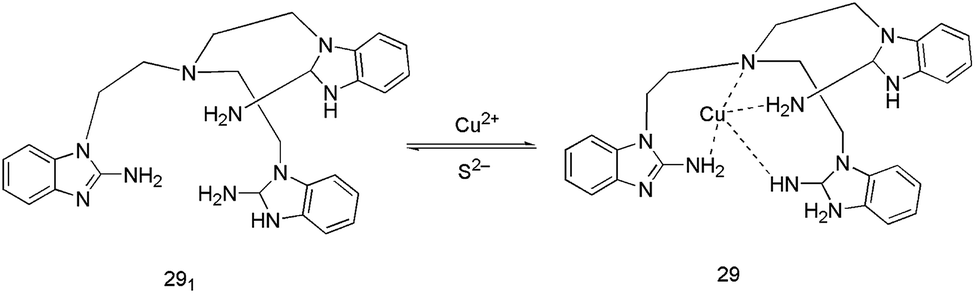

A benzimidazole-based tripodal fluorescence derivative 291 has been shown to capture Cu2+ to form complex 29, which was used to detect H2S.92 Probe 29 consists of a benzimidazole-based tripodal ligand which binds with Cu2+ ions to induce quenching of the fluorophore. The copper complex 29 releases Cu2+ after reaction with S2−, resulting in both the absorption and fluorescence spectra returning to the initial state. Copper complex 29 could be used to detect hydrogen sulfide and may be a retrievable fluorescence sensor for H2S (Fig. 25).


image file: c4ra11870g-f25.tif
Fig. 25 Reaction of probe 29 with S2−.

A hetero-bimetallic Ru(II)–Cu(II) complex 30 was used for the detection of H2S.93 Compound 301 is a highly luminescent Ru(II)–bipyridine complex, which has a strong fluorescence (λex = 456 nm, λem = 612 nm). The fluorescence of 301 could be 99% quenched after reaction with 1.0 molar equiv. of Cu2+ ions through an electron-transfer or energy-transfer mechanism to form the Ru(II)–Cu(II) complex 30. Complex 30 has a very high sensitivity for the detection of sulfide in 100% aqueous solutions. On the addition of S2−, the fluorescence intensity of the system gradually increases to the initial value as a result of the formation of stable CuS species (Fig. 26). Probe 30 was used to detect H2S in various wastewater samples.


image file: c4ra11870g-f26.tif

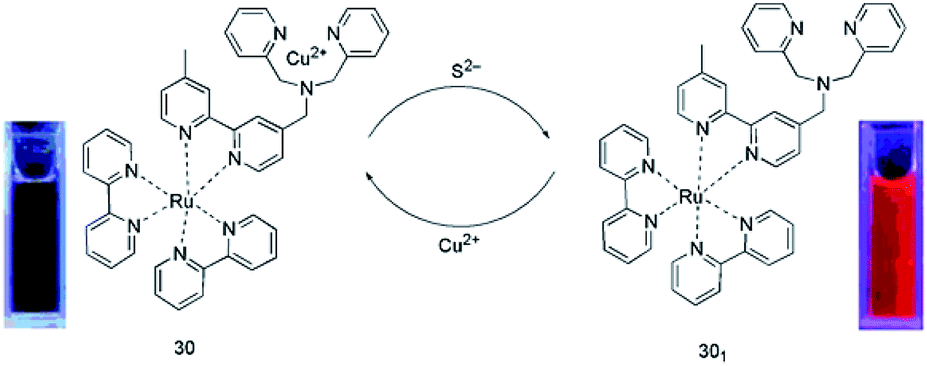

Fig. 26 Reaction of probe 30 with S2−.

A new sulfide-selective chemo-signaling system based on a Cu2+ complex of a fluorescein derivative was reported by Choi et al.94 Probe 31 had no fluorescence, which is attributed to the effective binding of Cu2+ in the three nitrogen coordination pocket of compound 311, which induces a strong affinity between Cu2+ and the dipicolylamine binding moiety. On the addition of S2−, the emission intensity of 31 at 517 nm increased quickly with increasing amounts of S2− as a result of the release of free compound 311 (Fig. 27). The detection limit was 420 nM in 100% water solution. The combination of good photochemical properties, perfect water solubility, a good detection limit and excellent selectivity makes this probe an effective tool for the detection of sulfides.


image file: c4ra11870g-f27.tif

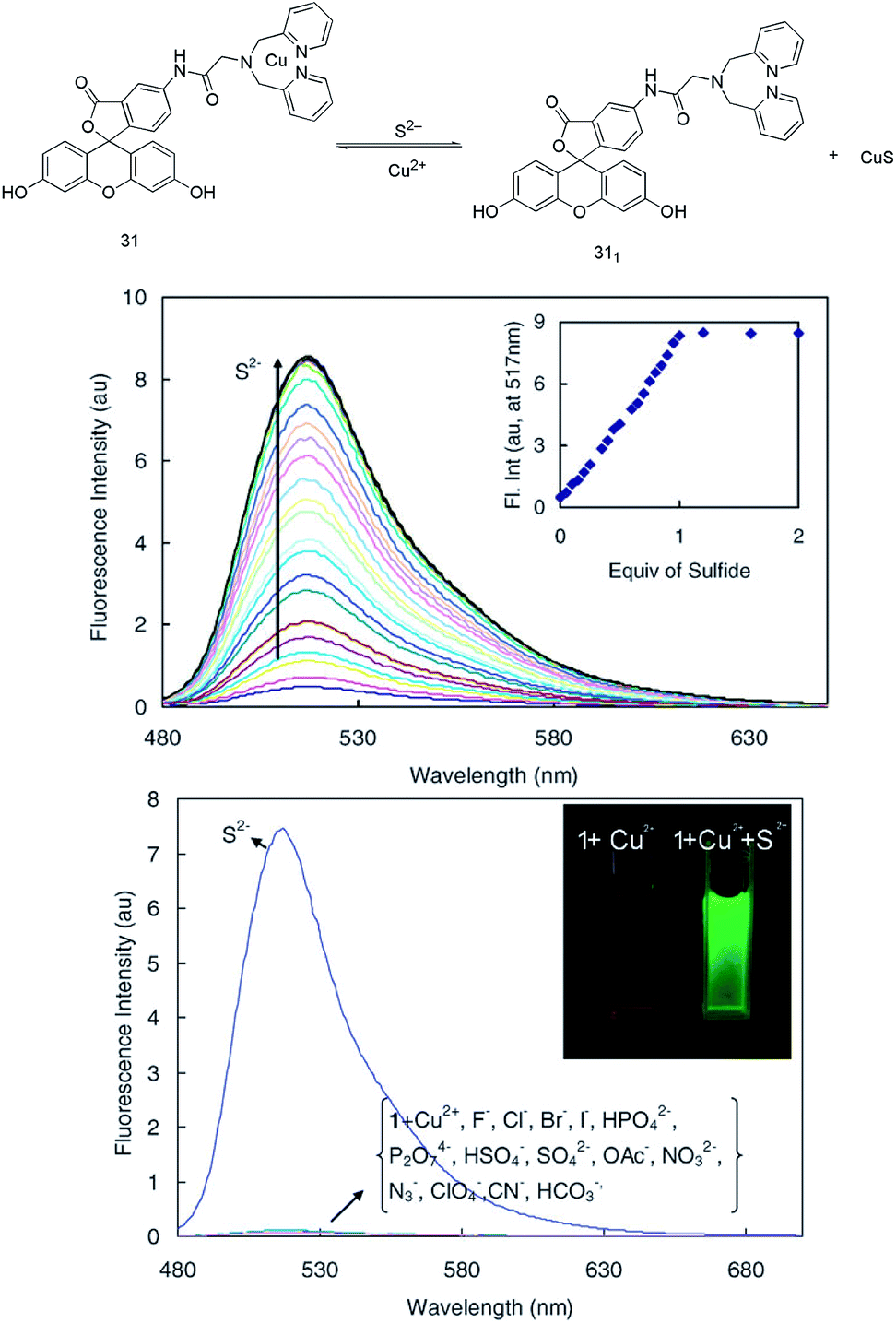

Fig. 27 Upper panel: reaction of probe 31 and S2−. Lower panel: fluorescence titration (left) of compound 311 with sulfide ions and emission spectra (right) of probe 31 with different species. Reprinted with permission from Chem. Commun., 2009, 7390–7392, Copyright 2008, Royal Society of Chemistry.

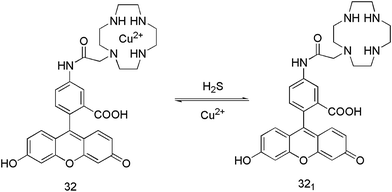

Another copper complex fluorescence sensor 32 (Fig. 28) was reported by Sasakura et al.95 for the selective detection of H2S. Probe 32 is not fluorescent because the paramagnetic Cu2+ center has a significant quenching effect on fluorophores. Cu2+ is captured by S2− from the aza-macro-cyclic ring when H2S binds to the Cu2+ center, resulting in a 50-fold enhancement in fluorescence. Probe 32 has a fast response to H2S within seconds and exhibited a high selectivity over other species in the detection of H2S. Copper complex 32 was shown to be appropriate for the fluorescence imaging of cellular H2S.


image file: c4ra11870g-f28.tif
Fig. 28 Reaction of probe 32 with H2S.

Probe 33 was designed by Hou et al.96 as a probe for H2S in PBS–CH3CN (1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) at pH 7.2. The addition of Cu2+ led to compound 331 displaying a visible pink to yellow color change and green fluorescence quenching. Density functional theory (DFT) and ESI-MS analysis proved the formation of the copper complex 33 in a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 stoichiometry (Fig. 29). Probe 33 is highly selective for the detection of H2S. When S2− is added to a solution of 33, the fluorescence of the system returns as CuS is formed. Chemosensor 33 can image H2S in HeLa cells.


image file: c4ra11870g-f29.tif
Fig. 29 Reaction of probe 33 with S2−.

Hou97 et al. reported a probe (34) based on fluorescein for the detection of hydrogen sulfide. On the addition of Cu(II), the fluorescence intensity of 341 showed a 28-fold quenching with a small blue shift of the absorption band. The formation of 34 in a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 stoichiometry was confirmed by DFT calculations. It is remarkable that copper complex 34 has a high selectivity and specificity for the recognition of hydrogen sulfide. With increasing additions of H2S to 34, the fluorescence intensity of the system gradually enhances (25–30-fold) until the initial states are recovered. This phenomenon suggests the release of Cu2+ from 34 and the formation of CuS (Fig. 30). Probe 34 was used to monitor H2S in live-cell imaging.


image file: c4ra11870g-f30.tif
Fig. 30 Upper panel: reaction of probe 34 with H2S. Lower panel: confocal fluorescence images in HepG2 cells (Zeiss LSM 510META confocal microscope, 40× objective lens). (a) HepG2 cells without adding indicator; (b) fluorescence image of HepG2 cells incubated with 341 (10 μM); (c) dark-field and (d) bright-field images of cells supplemented with 10 μM 341 in growth media for 60 min at 37 °C and then incubated with 15 μM CuCl2 for 30 min at 37 °C. Cells incubated with 341 and CuCl2 and (e) 200 μM and (f) 400 μM NaHS for another 30 min. Reprinted with permission from Dalton Trans., 2012, 41, 5799–5804. Copyright 2012, Royal Society of Chemistry.

A highly selective fluorescent probe (35) for the detection of sulfide that could be regenerated was reported by Wu et al.98 With the addition of Cu2+, the fluorescence of compound 351 was gradually quenched until a non-fluorescent stable copper complex 35 was formed at (I0I)/I0 × 100% = 98%. On the addition of S2− to the solution of 35, compound 351 will be completely regenerated and the fluorescence (both the intensity and the maximum emission peak) of the system will return (Fig. 31). The non-fluorescent stable copper complex 35 is highly reactive to sulfide and has a high selectivity for S2− in aqueous solution. The copper ions were captured by S2−, resulting in the regeneration of compound 351, as confirmed by 1H-NMR, matrix-assisted laser desorption ionization time-of-flight mass spectrometry and single-crystal X-ray diffraction data.


image file: c4ra11870g-f31.tif

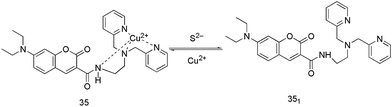

Fig. 31 Reaction of probe 35 with S2−.

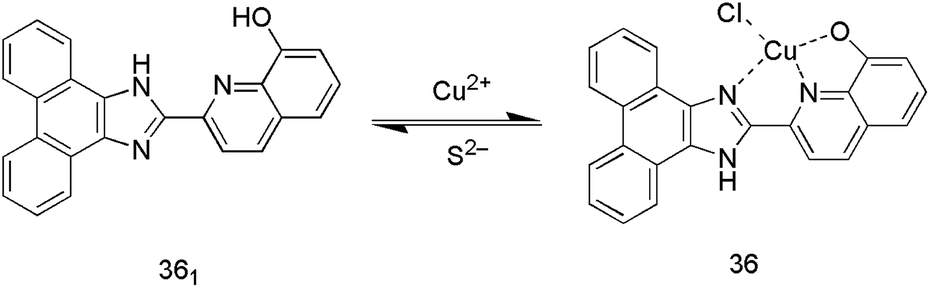

A displacement method for detecting H2S in aqueous media based on copper complex 36 was reported by Wang et al.99 The fluorescence of compound 361 can be efficiently quenched by paramagnetic Cu2+ as a result of complexation with a large red shift (80 nm) in the absorption spectrum between 360 and 440 nm, which indicates that compound 361 binds with Cu2+. The addition of sulfide induced a significant enhancement in fluorescence (20-fold) at 445 nm, ascribed to the release of the free compound 361 (Fig. 32). To investigate the selectivity of copper complex 35 to sulfide, representative species, including the anions Cl, Br, I, AcO, N3, CO32−, NO2, H2O2, ClO, NO, S2O32−, SO32− and ascorbic acid, were introduced; these species did not generate the same response. Therefore copper complex 36 can be used as a highly selective probe for the detection of S2−. Complex 36 can also be used to detect sulfide in living cells as it can permeate the cell membrane and has a low toxicity.


image file: c4ra11870g-f32.tif
Fig. 32 Reaction of probe 36 with S2−.

Tang et al.100 reported a novel benzimidazole derivative that exhibited highly selective and successive recognition of Cu2+ and sulfide anions in 100% water solution. Compound 371 has a strong fluorescence emission (λex = 338 nm, λem = 475 nm) in water at pH 6.0, whereas the addition of an appropriate amount of Cu2+ will cause complete fluorescence quenching [(I0I)/I0 × 100 = 99%]. The time-of-flight electrospray ionization high-resolution mass spectrum and IR spectrum indicate that the stoichiometric ratio in copper complex 37 is 1[thin space (1/6-em)]:[thin space (1/6-em)]1. It is worth noting that on the addition of 1.0 equiv. of S2− to the solution of 37, the fluorescence of the system was completely regenerated at 475 nm in both intensity and shape as a result of the release of Cu2+ (Fig. 33). This probe has excellent selectivity toward S2− in aqueous solution and is highly reactive to sulfide with a fast response (30 s). Probe 36 was used for the detection of S2− in real water samples.


image file: c4ra11870g-f33.tif
Fig. 33 Reaction of probe 37 with S2−.

A selective fluorescent sensor for S2− based on a 2-methylquinoline derivative was designed by Gao et al.101 Compound 381 can bind with Cu2+ along with significant fluorescence quenching (Φ = 0.059) and a color change from colorless to yellow. These changes are attributed to the formation of copper complex 38, as confirmed by DFT calculations. In particular, the addition of S2− leads to total regeneration of the fluorescence and a color change. This indicated that Cu2+ was released from 38, as confirmed by XRD measurements and electrospray ionization mass spectrometry analysis (Fig. 34). However, other anions and various forms of sulfate did not generate the same changes. Therefore 38 may be a retrievable and highly selective fluorescent sensor for detecting sulfide. The detection limit of this probe for S2− was 9.49 × 10−7 M.


image file: c4ra11870g-f34.tif
Fig. 34 Reaction of probe 38 with S2−.

Guo et al.102 reported a selective fluorescent chemosensor (39) based on a rhodamine B derivative. In the presence of Cu2+, the spirocyclic structure of compound 391 opens and binds with Cu2+ to form 39, resulting in a color change from colorless to clear pink and a seven-fold enhancement in fluorescence. Adding S2− to a solution of 39 will totally regenerate compound 391 with fluorescence quenching and restoration of the color of the system (Fig. 35). This shows that Cu2+ released from complex 39 was captured by S2− to produce CuS. Control experiments in the presence of other common amino acids revealed that 39 exhibited good selectivity for S2−. The detection limit of this probe for S2− was 2.43 × 10−8 M. This probe allows visual detection as a result of the color change and turn-on fluorescence response. The disadvantage is that the water solubility could be better, although the detection limit is excellent.


image file: c4ra11870g-f35.tif
Fig. 35 Reaction of probe 39 with S2−.

Chemosensor 40 was reported by Huang et al.103 as a suitable probe for H2S. Compound 401 showed a strong fluorescence (λex = 360 nm) as a result of a disubstituted polyacetylene (P2)-bearing cyclen moiety on the side chains, whereas the addition of Cu2+ led to the complete quenching of the fluorescence of the compound as a result of the formation of copper complex 40 (Fig. 36). The quenched fluorescence could recover to more than 62% of the original intensity of free 401 after the addition of increasing concentrations of sulfide anions to a solution of 40. No fluorescence change was observed with the addition of other anions. These results indicated that 40 had a high selectivity to detecting the sulfide anion. Probe 40 was used for the detection of S2− in real water samples and the detection limit was 2.0 × 10−7 M.


image file: c4ra11870g-f36.tif
Fig. 36 Reaction of probe 40 with S2−.

Tang et al.104 reported a simple quinoline-derived thiosemicarbazone as a colorimetric and fluorescent sensor for the relay recognition of Cu2+ and sulfide in aqueous solution. Compound 411 tightly binds to Cu2+ through a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 interaction and a deprotonation process with a color change from colorless to yellow. The fluorescence of compound 411 is quenched after binding to Cu2+ due to the formation of copper complex 41 (Fig. 37). Subsequent to the addition of S2− to the solution of 41, the fluorescence of the system is enhanced and restored to the initial emission properties of free 411 and the absorption spectrum is also restored. Experimental results with competing ions revealed that only S2− leads to the regeneration of free compound 411. The detection limit of this probe for S2− was 7.2 × 10−7 M.


image file: c4ra11870g-f37.tif
Fig. 37 Reaction of probe 41 with S2−.

Qu et al.105 reported a red fluorescent turn-on probe for hydrogen sulfide. Compound 421, containing a phenanthrene-fused dipyrromethene structure, had a fluorescence emission at 600 nm. After binding with Cu2+, a red shift and fluorescence quenching (75% quenching, Φ = 0.002) were observed as a result of the formation of copper complex 42 (Fig. 38). These changes were mainly associated with compound 421 to Cu2+ charge transfer transitions associated with the Cu2+ center. As expected, the Cu–42 solution had very weak fluorescence. On the addition of HS to the solution of 42, the fluorescence intensity of the mixture increased dramatically until the intensity and shape of the emission band were totally restored. The fluorescence intensity of 42 changed little after the addition of excess amounts of common inorganic anions and other biothiols. Compound 42 can permeate cells and responds to intracellular HS anions.


image file: c4ra11870g-f38.tif
Fig. 38 Reaction of probe 42 with HS.

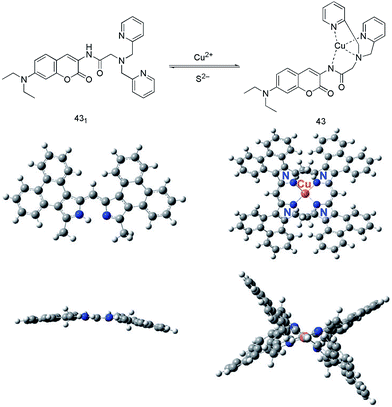

Coumarin derivative 431 containing a di-2-picolylamine moiety was developed as a probe for Cu2+ and S2− by Hou et al.106 On the addition of Cu2+, the fluorescence of compound 431 at 500 nm was completely quenched as a result of the formation of 43 (Fig. 39). As a result of the low solubility constant (ksp = 6.3 × 10−36) of CuS, free 431 is released after the addition of S2− to the solution of 43, resulting in a dramatic enhancement in fluorescence. However, almost no change was observed in the fluorescence intensity of 43 after the addition of excess competing anions. This probe was able to sense different levels of H2S in HeLa cells using confocal microscopy imaging. The detection limit was 1.3 × 10−7 M.


image file: c4ra11870g-f39.tif
Fig. 39 Upper panel: reaction of probe 43 with S2−. Lower panel: calculated energy-minimized structures of 431 (left) and 43 (right). Reprinted with permission from Chem. Commun., 2013, 49, 7510–7512. Copyright 2013, Royal Society of Chemistry.

Lou et al.107 reported a displacement-based sensing method using Cu2+-based receptors for sulfide anion recognition. After binding with Cu2+, the strong fluorescence of compound 441 was completely quenched with a color change from yellow-green to almost colorless as a result of the formation of copper complex 44. The subsequent addition of S2− to the solution of 44 fully restored the fluorescence of 441 as a result of the release of free 441 and the formation of CuS (Fig. 40). The fluorescent intensity recovered to more than 73% of the original intensity of 441. Probe 44 has a high selectivity for S2− over other anions.


image file: c4ra11870g-f40.tif
Fig. 40 Upper panel: reaction of probe 44 with S2−. Lower panel: fluorescence emission response profiles of 441 + Cu2+. Inset: fluorescence emission spectra of 441 (5 μM) in H2O–CH3OH (3[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v, Britton–Robinson buffer, pH 7.1) after the addition of Cu2+ (2.7 × 10−6 mol L−1) and turn-on by S2− (9.0 × 10−6 mol L−1, photo J). The concentrations of the different anions were 9.0 × 10−5 mol L−1. Excitation wavelength (nm) = 451. Reprinted with permission from Analyst, 2011, 136, 684–687, Copyright 2011, Royal Society of Chemistry.

2.5. Reduction of nitro groups

The nitro group is considered to be a strong quencher of fluorophores and can be reduced by Na2S to produce the corresponding amino group, which provides a way of designing and synthesizing new types of fluorescent probe for H2S detection (Scheme 5).67
image file: c4ra11870g-s5.tif
Scheme 5 Summary of strategies for the design of fluorescent probes based on reduction of the nitro group.

Wu et al.108 reported colorimetric and ratiometric fluorescent probes 45–47 based on an ICT strategy for the detection of H2S. The reaction of probe 45 with H2S in DMF triggered the chemo-selective reduction of the nitro group to the amine with a color change from red to green. However, on the addition of H2S, the fluorescence intensity of the probe decreased at 602 nm and a concomitant increase at 482 nm (λex = 397 nm) with a blue shift of 120 nm was observed. Probe 45 has an excellent selectivity compared with other species. The detection limit for H2S was 2.5 μM. With one more double bond than probe 45, probe 46 showed similar ultraviolet and fluorescent properties. Probe 46 had excellent selectivity for H2S over other RSONS and anions, but more equivalents of H2S were needed to establish the reaction. Probe 47 could not react with H2S and almost no fluorescence change was found (Fig. 41–43).


image file: c4ra11870g-f41.tif

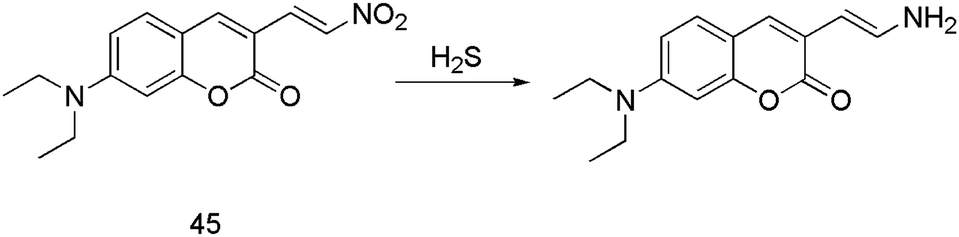

Fig. 41 Reaction of probe 45 with S2−.

image file: c4ra11870g-f42.tif
Fig. 42 Reaction of probe 46 with S2−.

image file: c4ra11870g-f43.tif
Fig. 43 Structure of probe 47.

Bae et al.109 reported a phenylseleno-nitrobenzoxadiazole derivative (48) for the colorimetric signaling of hydrogen sulfide. The reduction of the nitro group of the nitrobenzoxadiazole framework to an amino group by H2S resulted in a pronounced color change from yellow to pink. The mechanism of this reaction was the reduction of the nitro group to an amine (Fig. 44), which was confirmed by 1H-NMR spectrometry. It was proved that probe 48 has excellent selectivity compared with other species. Applications to tap water and simulated wastewater have rarely been reported, but the detection limit of 48 in 50% aqueous DMSO solution was determined to be 2.1 × 10−6 M. If the water solubility and detection limit could be improved, this could be a useful probe with potential for cell imaging.


image file: c4ra11870g-f44.tif
Fig. 44 Reaction of probe 48 with H2S.

Wang et al.110 designed a turn-on NIR fluorescent probe (49) (Fig. 45) based on reduction of the nitro group for the intracellular detection of H2S. Using a heptamethine cyanine dye with m-nitrophenol, the fluorescence of the cyanine platform was quenched by an electron-transfer process between the modulator and the fluorophore. After the nitro group had been reduced to an amino group by H2S, probe 49 showed an increase in fluorescence intensity with a slight blue shift. This probe also showed remarkable turn-on fluorescence for H2S in the presence of other biologically relevant species. Probe 49 was used to detect intracellular H2S in RAW264.7 cells.


image file: c4ra11870g-f45.tif
Fig. 45 Reaction of probe 49 with H2S.

2.6. Double bond addition reaction

Nucleophilic HS adds quickly to an electron-poor C[double bond, length as m-dash]C double bond (Scheme 6). Zhao et al.111 reported a highly selective colorimetric probe (50) (Fig. 46) for the fast and quantitative detection of hydrogen sulfide. Probe 50 itself has an absorption band at 527 nm under simulated physiological conditions (20 mM PBS, pH 7.4). However, when Na2S was gradually added to a solution of 50, the absorption intensity significantly decreased and the color of the solution turned from red to colorless. To investigate the selectivity, probe 50 was incubated with various biological species. The results showed that probe 50 has an excellent selectivity for H2S over other analytes, including Cys and GSH.
image file: c4ra11870g-s6.tif
Scheme 6 Summary of strategies for the design of fluorescent probes based on the double bond addition reaction.

image file: c4ra11870g-f46.tif

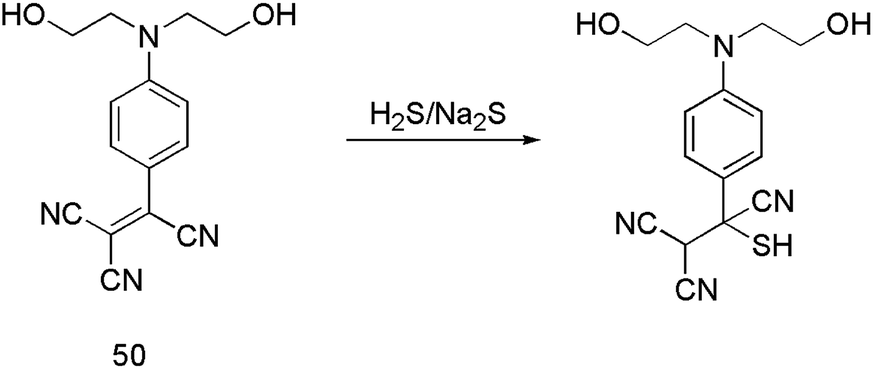

Fig. 46 Reaction of probe 50 with H2S.

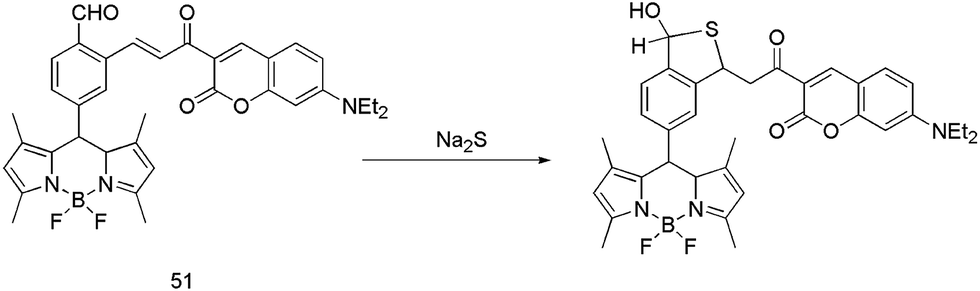

Qian et al.112 reported a sensitive and selective fluorescent probe (51) (Fig. 47) for H2S detection based on a BODIPY–coumarin platform. Free 51 has a very weak fluorescence at 512 nm (λex = 458 nm). After incubation with H2S for 20 min, probe 51 displayed a significant enhancement in fluorescence at 512 nm (ε = 1.69 × 104 M−1 cm−1, Φ = 0.19, >26-fold), whereas other representative biological thiols and amino acids in PBS buffer induced negligible optical changes in 51 under similar conditions. The sensing mechanism was confirmed by high-resolution mass spectrometry. This probe was used to detect H2S in fresh mouse blood plasma and for imaging H2S in live cells. The fluorescence response is complete within 20 min, which needs to be improved to realize the fast, accurate and real-time detection of intracellular H2S.


image file: c4ra11870g-f47.tif
Fig. 47 Reaction of probe 51 with Na2S.

Liu et al.113 reported a fluorescent probe (52) (Fig. 48) for the detection of H2S based on a flavylium derivative. Free probe 52 has an NIR emission peak at 690 nm. The addition of H2S to a solution of 52 leads to a decrease in fluorescence based on the selective nucleophilic attack of H2S on the electrically positive benzopyrylium moiety. Probe 52 has excellent selectivity for H2S over other analytes. This probe detected H2S in HeLa cells and in human serum samples by preliminary confocal laser scanning microscopy and the detection limit was 0.14 μM (S/N = 3).


image file: c4ra11870g-f48.tif
Fig. 48 Reaction of probe 52 with H2S.

3. Conclusion

We have summarized recent reports on the recognition mechanisms for H2S and their applications in the detection of H2S. The reported examples can be classified according to their mechanism of reaction (Table 1), such as the cleavage of alcoxyl (R–O) bonds, the cleavage of S–O bonds, the reduction of azides, the reduction of nitro groups, the replacement of the copper complex and double bond addition reactions. The cleavage of the alcoxyl (R–O) bond occurs with probes containing dinitrophenyl ether. The cleavage of the S–O bond takes place mainly with probes containing electron-withdrawing groups, such as dinitrobenzenesulfonyl. The reduction of azides and nitro groups to amines is based on the reduction ability of hydrogen sulfide. The replacement of the copper complex is based on the higher stability of CuS than the copper complex. The double bond addition reaction is mainly a result of the fast H2S nucleophilic addition to the double bond in nearly neutral medium. Many of the examples can be used for cell imaging as a result of cell permeability and low toxicity.24,46,59,66,68–72,75–77,95–97,99,105,106,110,113 The recognition process of many probes is accompanied by color changes that can be monitored visually.24,47,51,58,65,70,72,76,85,91,92,96,97,99,101,102,104,107–109,111,113 We hope that this review will help with the design of highly selective simple colorimetric or fluorimetric turn-on probes for the detection of H2S in living cells.
Table 1 References for recognition mechanism for the detection of hydrogen sulfide
Type of reaction Cell imaging Chromogenic reaction Fluorogenic reaction
Cleavage of alcoxyl (R–O) bond 46 47, 51 46–51
Cleavage of S–O bond 57 56 55–57
Reduction of azide 24, 64, 66–70, 73–75 24, 63, 68, 70, 74 24, 63–75
Replacement of copper complex 93–95, 97, 103, 104 83, 89, 90, 94, 95, 97, 99, 100, 102, 105 90–105
Reduction of nitro groups to amine 108 106, 107 106–108
Double bond addition reaction 111 109, 111 109–111


Acknowledgements

This work was supported by the National Natural Science Foundation of China (nos 21102086, 21472118), the Shanxi Province Science Foundation for Youths (nos 2012021009-4 and 2013011011-1), the Shanxi Province Foundation for Returnee (no. 2012-007), the Taiyuan Technology Star Special (no. 12024703), the Program for the Top Young and Middle-aged Innovative Talents of Higher Learning Institutions of Shanxi (no. 2013802), the Talents Support Program of Shanxi Province (no. 2014401) and Chinese Academy of Sciences Key Laboratory of Analytical Chemistry for Living Biosystems Open Foundation (no. ACL201304).

Notes and references

  1. C. L. Evans, Q. J. Exp. Physiol. Cogn. Med. Sci., 1967, 52, 231–248 CAS.
  2. S. K. Pandey, K. H. Kim and K. T. Tang, TrAC, Trends Anal. Chem., 2012, 32, 87–99 CrossRef CAS PubMed.
  3. P. Kamoun, Amino Acids, 2004, 26, 243–254 CrossRef CAS PubMed.
  4. C. Szabo, Nat. Rev. Drug Discovery, 2007, 6, 917–935 CrossRef CAS PubMed.
  5. V. S. Lin and C. J. Chang, Curr. Opin. Chem. Biol., 2012, 16, 595–601 CrossRef CAS PubMed.
  6. G. A. Benavides, G. L. Squadrito, R. W. Mills, H. D. Patel, T. S. Isbell, R. P. Patel, V. M. Darley-Usmar, J. E. Doeller and D. W. Kraus, Proc. Natl. Acad. Sci. U. S. A., 2007, 104, 17977–17982 CrossRef CAS PubMed.
  7. K. Eto, T. Asada, K. Arima, T. Makifuchi and H. Kimura, Biochem. Biophys. Res. Commun., 2002, 293, 1485–1488 CrossRef CAS.
  8. R. S. Beard Jr and S. E. Bearden, Am. J. Physiol.: Heart Circ. Physiol., 2011, 300, H13–H26 CrossRef PubMed.
  9. G. Yang, L. Wu, B. Jiang, W. Yang, J. Qi, K. Cao, Q. Meng, A. K. Mustafa, W. Mu, S. Zhang, S. H. Snyder and R. Wang, Science, 2008, 322, 587–590 CrossRef CAS PubMed.
  10. Y. Kaneko, Y. Kimura, H. Kimura and I. Niki, Diabetes, 2006, 55, 1391–1397 CrossRef CAS PubMed.
  11. L. Wu, W. Yang, X. Jia, G. Yang, D. Duridanova, K. Cao and R. Wang, Lab. Invest., 2009, 89, 59–67 CrossRef CAS PubMed.
  12. X. Feng, Y. Chen, J. Zhao, C. Tang, Z. Jiang and B. Geng, Biochem. Biophys. Res. Commun., 2009, 380, 153–159 CrossRef CAS PubMed.
  13. N. Krishnan, C. Fu, D. J. Pappin and N. K. Tonks, Sci. Signaling, 2011, 4, ra86 CrossRef PubMed.
  14. L. Li, P. Rose and P. K. Moore, Annu. Rev. Pharmacol. Toxicol., 2011, 51, 169–187 CrossRef CAS PubMed.
  15. J. Radford-Knoery and G. A. Cutter, Anal. Chem., 1993, 65, 976–982 CrossRef CAS.
  16. P. R. Brub, P. D. Parkinson and E. R. Hall, J. Chromatogr. A, 1999, 830, 485–489 CrossRef.
  17. N. S. Lawrence, J. Davis, L. Jiang, T. G. J. Jones, S. N. Davies and R. G. Compton, Electroanalysis, 2000, 12, 1453–1460 CrossRef CAS.
  18. B. Spilker, J. Randhahn, H. Grabow, H. Beikirch and P. Jeroschewski, J. Electroanal. Chem., 2008, 612, 121–130 CrossRef CAS PubMed.
  19. E. Fischer, Chem. Ber., 1883, 16, 2234–2236 CrossRef.
  20. M. M. F. Choi, Analyst, 1998, 123, 1631–1634 RSC.
  21. L. M. Siegel, Anal. Biochem., 1965, 11, 126–132 CrossRef CAS.
  22. T. K. J. Edison, M. P. Y. Cristiana, B. R. Arlete, S. M. Itamar and T. F. Telma, Polym. Int., 2011, 60, 951–956 CrossRef.
  23. N. Mahapatra, S. Datta and M. Halder, J. Photochem. Photobiol., A, 2014, 275, 72–80 CrossRef CAS PubMed.
  24. G. D. Zhou, H. L. Wang, Y. Ma and X. Q. Chen, Tetrahedron, 2013, 69, 867–870 CrossRef CAS PubMed.
  25. Y. S. Xie, P. C. Wei, X. Li, T. Hong, K. Zhang and H. Furuta, J. Am. Chem. Soc., 2013, 135, 19119–19122 CrossRef CAS PubMed.
  26. Y. S. Xie, Y. B. Ding, X. Li, C. Wang, J. P. Hill, K. Ariga, W. B. Zhang and W. H. Zhu, Chem. Commun., 2012, 48, 11513–11515 RSC.
  27. Y. B. Ding, X. Li, T. Li, W. H. Zhu and Y. S. Xie, J. Org. Chem., 2013, 78, 5328–5338 CrossRef CAS PubMed.
  28. B. Chen, Y. B. Ding, X. Li, W. H. Zhu, J. P. Hill, K. Ariga and Y. S. Xie, Chem. Commun., 2013, 49, 10136–10138 RSC.
  29. W. Xuan, C. Q. Sheng, Y. Cao, W. He and W. Wang, Angew. Chem., Int. Ed., 2012, 51, 2282–2284 CrossRef CAS PubMed.
  30. B. H. Zhang, F. Y. Wu, Y. M. Wu and X. S. Zhan, J. Fluoresc., 2010, 20, 243–250 CrossRef CAS PubMed.
  31. H. J. Peng, Y. F. Cheng, C. F. Dai, A. L. King, B. L. Predmore, D. J. Lefer and B. Wang, Angew. Chem., Int. Ed., 2011, 50, 9672–9675 CrossRef CAS PubMed.
  32. S. K. Das, C. S. Lim, S. Y. Yang, J. H. Han and B. R. Cho, Chem. Commun., 2012, 48, 8395–8397 RSC.
  33. C. R. Liu, J. Pan, S. Li, Y. Zhao, L. Y. Wu, C. E. Berkman, A. R. Whorton and M. Xian, Angew. Chem., Int. Ed., 2011, 50, 10327–10329 CrossRef CAS PubMed.
  34. C. R. Liu, B. Peng, S. Li, C. M. Park, A. R. Whorton and M. Xian, Org. Lett., 2012, 14, 2184–2187 CrossRef CAS PubMed.
  35. Y. Qian, J. Karpus, O. Kabil, S. Zhang, H. Zhu, R. Banerjee, J. Zhao and C. He, Nat. Commun., 2011, 2, 495–501 CrossRef PubMed.
  36. S. Chen, Z. J. Chen, W. Ren and H. W. Ai, J. Am. Chem. Soc., 2012, 134, 9589–9592 CrossRef CAS PubMed.
  37. A. R. Lippert, G. C. Van de Bittner and C. J. Chang, Acc. Chem. Res., 2011, 44, 793–804 CrossRef CAS PubMed.
  38. M. C. Y. Chang, A. Pralle, E. Y. Isacoff and C. J. Chang, J. Am. Chem. Soc., 2004, 126, 15392–15393 CrossRef CAS PubMed.
  39. B. C. Dickinson and C. J. Chang, J. Am. Chem. Soc., 2008, 130, 9638–9639 CrossRef CAS PubMed.
  40. F. B. Yu, X. Y. Han and L. X. Chen, Chem. Commun., 2014, 50, 12234–12249 RSC.
  41. T. Y. Liu, Z. C. Xu, D. R. Spring and J. N. Cui, Org. Lett., 2013, 15, 2310–2313 CrossRef CAS PubMed.
  42. J. L. Wang and W. Y. Lin, Biomaterials, 2013, 34, 7429–7436 CrossRef CAS PubMed.
  43. J. C. Mathai, A. Missner, P. Kügler, S. M. Saparov, M. L. Zeidel, J. K. Lee and P. Pohl, Proc. Natl. Acad. Sci. U. S. A., 2009, 106, 16633–16638 CrossRef CAS PubMed.
  44. M. P. Lutolf, N. Tirelli, S. Cerritelli, L. Cavalli and J. A. Hubbell, Bioconjugate Chem., 2001, 12, 1051–1056 CrossRef CAS PubMed.
  45. C. N. Salinas and K. S. Anseth, Macromolecules, 2008, 41, 6019–6026 CrossRef CAS.
  46. X. W. Cao, W. Y. Lin, K. B. Zheng and L. W. He, Chem. Commun., 2012, 48, 10529–10531 RSC.
  47. Y. Liu and G. Q. Feng, Org. Biomol. Chem., 2014, 12, 438–445 CAS.
  48. S. E. Sayed, C. de la Torre, L. E. Santos-Figueroa, E. Pérez-Payá, R. Martínez-Máñez, F. Sancenón, A. M. Costero, M. Parraae and S. Gilae, RSC Adv., 2013, 3, 25690–25693 RSC.
  49. S. Shaltiel, Biochem. Biophys. Res. Commun., 1967, 29, 178–183 CrossRef CAS.
  50. R. Philosof-Oppenheimer, I. Pechtz and M. Fridkin, Int. J. Pept. Protein Res., 1995, 45, 116–121 CrossRef CAS PubMed.
  51. C. Wei, Q. Zhu, W. W. Liu, W. B. Chen, Z. Xi and L. Yi, Org. Biomol. Chem., 2014, 12, 479–485 CAS.
  52. L. A. Montoya, T. F. Pearce, R. J. Hansen and L. N. Zakharov, M. D. Pluth, J. Org. Chem., 2013, 78, 6550–6557 CrossRef CAS PubMed.
  53. M. D. Hammers and M.D. Pluth, Anal. Chem., 2014, 86, 7135–7140 CrossRef CAS PubMed.
  54. W. Y. Lin, L. L. Long and W. Tan, Chem. Commun., 2010, 46, 1503–1505 RSC.
  55. W. Jiang, Q. Q. Fu, H. Y. Fan, J. Ho and W. Wang, Angew. Chem., Int. Ed., 2007, 46, 8445–8448 CrossRef CAS PubMed.
  56. W. Jiang, Y. T. Cao, Y. Liu and W. Wang, Chem. Commun., 2010, 46, 1944–1946 RSC.
  57. F. Y. Zheng, M. Wen, F. Zeng and S. Z. Wu, Polymer, 2013, 54, 5691–5697 CrossRef CAS PubMed.
  58. X. F. Yang, L. Wang, H. M. Xu and M. L. Zhao, Anal. Chim. Acta, 2009, 631, 91–95 CrossRef CAS PubMed.
  59. L. Fu, F. F. Tian, L. Lai, Y. Liu, P. D. Harvey and F. L. Jiang, Sens. Actuators, B, 2014, 193, 701–707 CrossRef CAS PubMed.
  60. X. D. Jiang, J. Zhang, X. Shao and W. Zhao, Org. Biomol. Chem., 2012, 10, 1966–1968 CAS.
  61. J. Shao, H. Sun, H. Guo, S. Ji, J. Zhao, W. Wu, X. Yuan, C. Zhang and T. D. James, Chem. Sci., 2012, 3, 1049–1061 RSC.
  62. Y. Tang, H. R. Yang, H. B. Sun, S. J. Liu, J. X. Wang, Q. Zhao, X. M. Liu, W. J. Xu, S. B. Li and W. Huang, Chem.–Eur. J., 2013, 19, 1311–1319 CrossRef CAS PubMed.
  63. A. P. de Silva, H. Q. Gunaratne, T. Gunnlaugsson, A. J. Huxley, C. P. McCoy, J. T. Rademacher and T. E. Rice, Chem. Rev., 1997, 97, 1515–1566 CrossRef CAS PubMed.
  64. Z. R. Grabowski, K. Rotkiewicz and W. Rettig, Chem. Rev., 2003, 103, 3899–4032 CrossRef PubMed.
  65. F. Yu, P. Li, P. Song, B. S. Wang, J. Z. Zhao and K. Han, Chem. Commun., 2012, 48, 2852–2854 RSC.
  66. K. B. Zheng, W. Y. Lin and L. Tan, Org. Biomol. Chem., 2012, 10, 9683–9688 CAS.
  67. M. C. T. Hartman and M. M. Dcona, Analyst, 2012, 137, 4910–4912 RSC.
  68. W. H. Li, W. Sun, X. Q. Yu, L. P. Du and M. Y. Li, J. Fluoresc., 2013, 23, 181–186 CrossRef CAS PubMed.
  69. L. A. Montoya and M. D. Pluth, Chem. Commun., 2012, 48, 4767–4769 RSC.
  70. A. R. Lippert, E. J. New and C. J. Chang, J. Am. Chem. Soc., 2011, 133, 10078–10080 CrossRef CAS PubMed.
  71. B. F. Chen, W. Li, C. Lv, M. M. Zhao, H. W. Jin, H. F. Jin, J. B. Du, L. R. Zhang and X. J. Tang, Analyst, 2013, 138, 946–951 RSC.
  72. W. Sun, J. L. Fan, C. Hu, J. F. Cao, H. Zhang, X. Q. Xiong, J. Y. Wang, S. Cui, S. G. Sun and X. J. Peng, Chem. Commun., 2013, 49, 3890–3892 RSC.
  73. T. S. Bailey and M. D. Pluth, J. Am. Chem. Soc., 2013, 135, 16697–16704 CrossRef CAS PubMed.
  74. Y. Jiang, Q. Wu and X. J. Chang, Talanta, 2014, 121, 122–126 CrossRef CAS PubMed.
  75. T. Chen, Y. Zheng, Z. C. Xu, M. Zhao, Y. N. Xu and J. N. Cui, Tetrahedron Lett., 2013, 54, 2980–2982 CrossRef CAS PubMed.
  76. T. Saha, D. Kand and P. Talukdar, Org. Biomol. Chem., 2013, 11, 8166–8170 CAS.
  77. K. Sun, X. L. Liu, Y. Y. Wang and Z. Q. Wu, RSC Adv., 2013, 3, 14543–14548 RSC.
  78. Z. Q. Guo, W. H. Zhu and H. Tian, Macromolecules, 2010, 43, 739–744 CrossRef CAS.
  79. S. K. Kim, D. H. Lee, J. I. Hong and J. Yoon, J. Acc. Chem. Res., 2009, 42, 23–31 CrossRef CAS PubMed.
  80. X. D. Lou, Y. Zhang, Q. Q. Li, J. G. Qin and Z. Li, Chem. Commun., 2011, 47, 3189–3191 RSC.
  81. R. Martinez-Manez and F. Sancenon, Chem. Rev., 2003, 103, 4419–4476 CrossRef CAS PubMed.
  82. M. E. Moragues, R. Martinez-Manez and F. Sancenon, Chem. Soc. Rev., 2011, 40, 2593–2643 RSC.
  83. H. S. Jung, J. H. Han, Y. Habata, C. Kang and J. S. Kim, Chem. Commun., 2011, 47, 5142–5144 RSC.
  84. C. C. Zhao, Y. Zhou, Q. N. Lin, L. Y. Zhu, P. Feng, Y. L. Zhang and J. A. Cao, J. Phys. Chem. B, 2011, 115, 642–647 CrossRef CAS PubMed.
  85. X. F. Gu, C. H. Liu, Y. C. Zhu and Y. Z. Zhu, Tetrahedron Lett., 2011, 52, 5000–5003 CrossRef CAS PubMed.
  86. X. D. Lou, J. G. Qin and Z. Li, Analyst, 2009, 134, 2071–2075 RSC.
  87. S. Rochat and K. Severin, Chem. Commun., 2011, 47, 4391–4393 RSC.
  88. J. S. Wu, R. L. Sheng, W. M. Liu, P. F. Wang, J. J. Ma, H. Y. Zhang and X. Q. Zhuang, Inorg. Chem., 2011, 50, 6543–6551 CrossRef CAS PubMed.
  89. L. Zhang, X. Lou, Y. Yu, J. Qin and Z. Li, Macromolecules, 2011, 44, 5186–5193 CrossRef CAS.
  90. D. P. Pluth, M. R. Chan, L. E. McQuade and S. J. Lippard, Inorg. Chem., 2011, 50, 9385–9392 CrossRef PubMed.
  91. D. Q. Zhang and W. S. Jin, Spectrochim. Acta, Part A, 2012, 90, 35–39 CrossRef CAS PubMed.
  92. C. Kar and G. Das, J. Photochem. Photobiol., A, 2013, 251, 128–133 CrossRef CAS PubMed.
  93. R. Zhang, X. J. Yu, Y. J. Yin, Z. Q. Ye, G. L. Wang and J. L. Yuan, Anal. Chim. Acta, 2011, 691, 83–88 CrossRef CAS PubMed.
  94. M. G. Choi, S. Cha, H. Lee, H. L. Jeon and S. K. Chang, Chem. Commun., 2009, 47, 7390–7392 RSC.
  95. K. Sasakura, K. Hanaoka, N. Shibuya, Y. Mikami, Y. Kimura, T. Komatsu, T. Ueno, T. Terai, H. Kimura and T. Nagano, J. Am. Chem. Soc., 2011, 133, 18003–18005 CrossRef CAS PubMed.
  96. F. P. Hou, L. Huang, P. X. Xi, J. Cheng, X. F. Zhao, G. Q. Xie, Y. J. Shi, F. J. Cheng, X. J. Yao, D. C. Bai and Z. Z. Zeng, Inorg. Chem., 2012, 51, 2454–2460 CrossRef CAS PubMed.
  97. F. P. Hou, J. Cheng, P. X. Xi, F. J. Chen, L. Huang, G. Q. Xie, Y. J. Shi, H. Y. Liu, D. C. Bai and Z. Z. Zeng, Dalton Trans., 2012, 41, 5799–5804 RSC.
  98. X. J. Wu, H. D Li, Y. H. Kan and B. Z. Yin, Dalton Trans., 2013, 16302–16310 RSC.
  99. J. L. Wang, L. P. Long, D. Xie and Y. W. Zhan, J. Lumin., 2013, 139, 40–46 CrossRef CAS PubMed.
  100. L. J. Tang, M. J. Cai, Z. L. Huang, K. L. Zhong, S. H. Hou, Y. J. Bian and R. J. Nandhakumar, Sens. Actuators, B, 2013, 185, 188–194 CrossRef CAS PubMed.
  101. C. J. Gao, X. Liu, X. J. Jin, J. Wu, Y. J. Xie, W. S. Liu, X. J. Yao and Y. Tang, Sens. Actuators, B, 2013, 185, 125–131 CrossRef CAS PubMed.
  102. D. Guo, Z. P. Dong, C. Luo, W. Y. Zan, S. Q. Yan and X. J. Yao, RSC Adv., 2014, 4, 5718–5725 RSC.
  103. Y. F. Huang, D. X. Ou, C. Wang, C. Huang, Q. Q. Li and Z. Li, Polym. Chem., 2014, 5, 2041–2049 RSC.
  104. L. J. Tang, P. Zhou, Q. Zhang, Z. L. Huang, J. Zhao and M. J. Cai, Inorg. Chem. Commun., 2013, 36, 100–104 CrossRef CAS PubMed.
  105. X. Y. Qu, C. J. Li, H. C. Chen, J. Mack, Z. J. Guo and Z. Shen, Chem. Commun., 2013, 49, 7510–7512 RSC.
  106. J. T. Hou, B. Y. Liu, K. Li, K. K. Yu, M. B. Wu and X. Q. Yu, Talanta, 2013, 116, 434–440 CrossRef CAS PubMed.
  107. X. D. Lou, H. L. Mu, R. Gong, E. Q. Fu, J. G. Qin and Z. Li, Analyst, 2011, 136, 684–687 RSC.
  108. M. Y. Wu, K. Li, J. T. Hou, Z. Huang and X. Q. Yu, Org. Biomol. Chem., 2012, 10, 8342–8347 CAS.
  109. J. Bae, M. G. Choi, J. Choi and S. K. Chang, Dyes Pigm., 2013, 99, 748–752 CrossRef CAS PubMed.
  110. R. Wang, F. B. Yu, L. X. Chen, H. Chen, L. J. Wang and W. W. Zhang, Chem. Commun., 2012, 48, 11757–11759 RSC.
  111. Y. Z. Zhao, X. H. Zhu, H. Kan, W. Z. Wang, B. C. Zhu, B. Du and X. L. Zhang, Analyst, 2012, 137, 5576–5580 RSC.
  112. Y. Qian, B. Y. Yang, Y. N. Shen, Q. R. Du, L. Lin, J. Lin and H. L. Zhu, Sens. Actuators, B, 2013, 182, 498–503 CrossRef CAS PubMed.
  113. J. Liu, Y. Q. Sun, J. Y. Zhang, T. Yang, J. B. Cao, L. S. Zhang and W. Guo, Chem.–Eur. J., 2013, 19, 4717–4722 CrossRef CAS PubMed.

This journal is © The Royal Society of Chemistry 2015
Click here to see how this site uses Cookies. View our privacy policy here.
