DFT study of CO oxidation on Cu2O–Au interfaces at Au–Cu alloy surfaces

D. Liuab, Y. F. Zhu*a and Q. Jiang*a
aKey Laboratory of Automobile Materials (Jilin University), Ministry of Education, School of Materials Science and Engineering, Jilin University, Changchun 130022, China. E-mail: yfzhu@jlu.edu.cn; jiangq@jlu.edu.cn; Fax: +86-431-5095876
bState Key Laboratory of Meta-stable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, China

Received 21st September 2014 , Accepted 18th November 2014

First published on 19th November 2014


Abstract

Although Au–Cu alloy nanoparticles on inert substrates show high activity for catalyzing CO oxidation, the corresponding catalytic mechanism is not clear. To clarify the mechanism of this alloy catalysis method, CO oxidation reactions on Au–Cu alloy surfaces with different surface oxidation states are studied via density functional theory simulations. The simulation results indicate that on AuCu(111) and Cu2O/Au3Cu(111), CO and O2 cannot move together for reactions since they are adsorbed on separate Cu sites. On Cu2O–Au/Au3Cu(111), O2 prefers to be located at the Cu hollow sites near Cu2O–Au interfaces. When CO diffuses to its neighboring Au sites, they can easily combine to generate CO2, for which the reaction barriers are no more than 0.42 eV. The Au and Cu synergetic effect for catalyzing CO oxidation can be realized on Cu2O–Au interfaces at Au–Cu nanoparticle surfaces.


Introduction

Gold was regarded as an inert metal until Haruta et al. found that Au nanoparticles dispersed on oxide substrates, such as TiO2 and Fe2O3, show high catalytic activity for low temperature CO oxidation.1 On bulk gold surfaces, O2 adsorption is weak and corresponding oxygen dissociation barriers are higher than 1 eV,2,3 which makes further CO oxidation impossible. When CO and O2 react on Au/TiO2 catalysts, O2 molecules are strongly adsorbed on the Au nanoparticle–TiO2 substrate circumferential interfaces.4,5 Via this interfacial adsorption mode, activated O2 molecules can easily react with the CO molecules adsorbed on neighboring Au sites.4,5 However, this synergetic effect in catalysis relies on the type of substrates. The catalytic activity for CO oxidation of the Au/SiO2 catalyst is significantly reduced because inert SiO2 substrates cannot offer the strong adsorption for O2 molecules.6

Alloying with a second metal is an effective way to obtain active Au-based binary nanoparticles on inert supports. Recently, Au, Cu and Au–Cu binary nanoparticles (dimensional sizes of 2–5 nm) on inert SBA-15 mesoporous silica substrates have been synthesized for catalyzing CO oxidation.7 Cu/SBA-15 is inactive below 100 °C and Au/SBA-15 only possesses moderate activity at room temperature. However, CO conversion remains at 100% from room temperature (RT) to 300 °C on Au–Cu/SBA-15. In addition, the turnover frequencies of CO oxidation on Au–Cu/SBA-15 are three times larger than those on Au/MCM-41 mesoporous silica.8 When a large amount of H2 is introduced, the CO conversion rates on Au–Cu/SBA-15 reach 60–80% at RT. As the reaction temperature increases to 80 °C (operational temperature for H2 fuel cells), the CO conversion rates are still 50–70%, whereas the corresponding values only are 20% and 0% for Au/SBA-15 and Cu/SBA-15.

Structural changes in Au–Cu nanoparticles (Au/Cu atomic ratio 1/1) during the catalytic process of CO oxidation are observed via in situ techniques.9 The Au–Cu binary particles obtained by calcination have a gold core and a CuxO shell. To obtain active Au–Cu particles, a subsequent reduction treatment is carried out in H2 at 550 °C. After this reduction treatment, Cu cations are reduced to alloy with the interior Au atoms and the structure of particles reverts to the Au3Cu intermetallic phase. When the reduced Au–Cu nanoparticles are used to catalyze CO oxidation in the temperature range of RT to 300 °C, their Au3Cu structure hardly changes. In situ XANES results indicate that some Cu atoms are oxidized from Cu0 to Cu+ and Cu2+, whereas Cu2O and CuO structures are absent in XRD measurements.

These Cu cations may come from surface oxidation during the catalytic process. The reaction temperature for CO oxidation is much lower than that for nanoparticle calcination.7 At this moderate temperature range (RT to 300 °C), Au–Cu nanoparticles are not totally covered by CuxO oxide layers and there are still Au sites on their surfaces. Infrared spectroscopy measurements indicate that after O2 introduction, CO adsorption on Au sites of Au–Cu nanoparticles is decreased dramatically, whereas CO adsorption on Cu sites of these particles remains unchanged.9 However, the presence of gold improves the oxidation resistance of copper. Extended X-ray absorption fine structure (EXAFS) measurements show that there are one and a half oxygen neighbors for each Cu cation on average on the surface of the Au–Cu nanoparticles,10 which proves that Cu2O constitutes the majority of the surface oxides. Cu2O is an incomplete oxide, on which O2 can be adsorbed.

It has been reported that Cu2O layers can grow epitaxially on the surface of Au–Cu particles with small lattice mismatch.11 In addition, Cu2O–Au in-plane coherent interfaces can also be formed along the close-packed crystal directions.11,12 After the surface oxidation of Au–Cu nanoparticles, coherent linear interfaces are generated between the Cu2O and Au surface layers. The CO oxidation reactions may just occur on these Cu2O–Au interfaces.13,14

In this work, CO + O2 reactions on Cu2O–Au interfaces at surfaces of the Au3Cu alloy are simulated by the density functional theory (DFT) method. In addition, the bond length, charge transfer (CT) and partial density of states (PDOS) of some adsorption and reaction states during the catalytic process are also analyzed for understanding the essence of these chemical reactions. For comparison, the adsorption status and further possible reaction of CO + O2 on AuCu and Cu2O/Au3Cu alloy surfaces are investigated to explain why unoxidized and totally oxidized Au–Cu nanoparticles are inert for CO oxidation.

Simulation details

In the first-principles DFT15,16 simulations, the DMol3 module17,18 was used for the geometric optimization, reaction process imitation and analysis of CT and PDOS. We employed the generalized gradient approximation (GGA) with the Perdew–Burke–Ernzerhof functional (PBE)19 to describe exchange and correlation effects. During the geometric optimization process, the energy convergence, maximum force and maximum distance were 5.0 × 10−4 eV, 0.1 eV Å−1 and 5.0 × 10−3 Å, respectively. In the electronic settings, to reduce the computational cost, the DFT semi-core pseudo-potentials (DSPP) method20 was used to replace core electrons by a single effective potential and introduce some degree of relativistic correction into the core. The self-consistent field (SCF) tolerance value was 3.0 × 10−4 eV and the double numerical plus d-functions (DND) were chosen as the basis set.17 To speed up convergence, a thermal smearing of 0.1 eV was applied to the orbital occupation. The calculations were spin unrestricted. In the simulation of searching for transition states (TS), the calculation initially performed a linear synchronous transit (LST)21 maximum, which was followed by energy minimization in directions conjugated to the reaction pathway. TS approximation obtained via LST/optimization was then used to perform a quadratic synchronous transit (QST) maximization to determine the transitional states more accurately. The convergence tolerance of the root mean square (RMS) force was 0.15 eV Å−1 and the maximum number for a QST step was set as 5. For the CT properties, atom charges would be calculated via the Hirshfeld population analysis.22 For PDOS calculations, the empty bands were chosen as 12.

The Au–Cu nanoparticles with dimensional sizes of 2–5 nm usually have polyhedral constructions, such as cubo-octahedrons, icosahedrons and decahedrons.23,24 For these small particles, close-packed facets still occupy the majority of surfaces.25,26 The atom arrangement of these facets is the same as that of bulk (111) surfaces. Therefore, four layers of (111) slabs with periodicity of (4 × 6) were built for representing the surfaces of nanoparticles [the in-plane lattice directions are 〈110〉]. When the slabs were used for the geometric optimization and modeling reaction processes, the underneath two atomic layers were fixed to simulate the interior of Au–Cu alloys. A vacuum of 18 Å was added along the normal directions of the slabs. K-points were chosen as 3 × 2 × 1, for which the actual spacing is 0.03, 0.03 and 0.04 Å−1 in the three lattice directions. First, two extreme cases are considered. When Au–Cu nanoparticles (Au/Cu atomic ratio 1/1) undergo no Cu oxidation and Au surface enrichment, the atom packing of their surface facets should be similar to AuCu(111), which is shown in Fig. 1(a). However, when all Cu atoms in Au–Cu nanoparticles are oxidized and enriched at surfaces via calcination at high temperature, the atom packing of their surface facets should be similar to CuO(111) and Cu2O(111). In contrast to inert CuO surfaces, Cu2O surfaces possess active sites for adsorbing reactants.27 The geometric structure of Cu2O(111) is shown in Fig. 1(b). Differentiating the oxidization states, there are two Cu cation sites at Cu2O(111) surfaces: the oxygen coordinatively saturated (CuCSA) and unsaturated (CuCUS) surfaces.28 Under the Cu surface atom layer, there are two oxygen atom sub-surface layers; one layer binds with CuCSA sites and the other binds with CuCUS sites.


image file: c4ra10881g-f1.tif
Fig. 1 Geometric configurations of (a) AuCu(111) surfaces, (b) Cu2O(111) surfaces, (c) Cu2O/Au3Cu(111) surfaces and (d) Cu2O–Au/Au3Cu(111) surfaces.

As mentioned above, AuCu nanoparticles maintain the Au3Cu structure when they are only partially oxidized. In this case, part of their surface is a single layer of Cu2O oxide growing on the Au3Cu core. Cu2O/Au3Cu(111) represents this epitaxial system, which is shown in Fig. 1(c). In Cu2O/Au3Cu(111), the oxygen atom sub-surface layer connecting with CuCUS sites is absent since Au–O bonding is forbidden.9,10 However, the oxygen atom sub-surface layer connected with CuCSA sites can be thermodynamically stabilized via binding with Cu atoms in the Au3Cu alloy. Because of this oxygen deficiency on Cu2O/Au3Cu interfaces, the surface CuCUS sites would change to oxygen uncoordinated ones, which are defined as CuUNC. This surface oxide structure is similar to the construction of an Ag2O oxide layer on Ag surfaces.29 Although the geometric structures of surface oxides are similar to those of corresponding bulk oxides, their electronic properties may be quite different because the surface oxides seem like periodic on-surface and sub-surface oxygen adsorption on metal surfaces. The oxygen adsorption and Cu2O surface oxide formation on Cu(111) and their electronic properties have been studied in detail via DFT-GGA simulations.30,31 Therefore, it is appropriate to investigate the Cu2O surface oxide on Au3Cu(111) by the same method.

There are four types of coherent interfaces between Cu2O and Au on Au3Cu(111), which differentiate the boundary Cu and O sites (Fig. 2). For all of them, the in-plane linear interfaces are designed to lie along the close-packed 〈110〉 direction according to experimental results.11,12 CuCSA sites can always connect with Au sites on interfaces because they occupy three quarters of the whole Cu surface atom layer. There are no Au–O bonds at Cu2O–Au interfaces, which means that interfacial CuCSA sites lose one coordinated oxygen atom and are converted to new oxygen coordinatively unsaturated sites (CuNCUS). In Fig. 2(a and b), CuUNC and CuNCUS sites are both on Cu2O–Au interfaces. The difference between them is that the sub-surface oxygen is located near interfaces for the former and the on-surface oxygen is located near interfaces for the latter. In Fig. 2(c and d), only CuNCUS sites are on the Cu2O–Au interfaces and the difference between them is as the same as that in Fig. 2(a and b). The total cohesive energy difference between these slabs and that of Cu2O/Au3Cu(111) and Au/Au3Cu(111), ΔEslab, derives from the generation of Cu2O–Au interfaces. It is impossible to describe the interfacial energy of linear Cu2O–Au interfaces in units of Joules per square meter. Therefore, the interfacial energy, γin, is calculated in electron volts per atom, and is calculated via the formula image file: c4ra10881g-t1.tif, where Nin is the total number of atoms at the Cu2O–Au interfaces in a slab. γin ≈ 0.65 eV per atom for Cu2O–Au interfaces in Fig. 2(a and b) and γin ≈ 0.70 eV per atom for Cu2O–Au interfaces in Fig. 2(c and d). The γin values are similar to the surface energy values of Au(111).32 The high γin values of Cu2O–Au interfaces may be due to the lattice oxygen deficiency of the CuNCUS sites. Nevertheless, if the Cu2O–Au interfaces do not form, the edges of Au and Cu2O are exposed to surfaces where the surface energy values are extremely large. To catalyze CO oxidation at Cu2O–Au interfaces, active CuUNC sites are necessary. Because of the higher γin values and absence of CuUNC sites, the Cu2O–Au interfaces in Fig. 2(c and d) are excluded. In Fig. 2(b), on-surface oxygen atoms are adjacent to interfaces, which may hinder the adsorption of reactants. Therefore, the Cu2O–Au/Au3Cu(111) slab with both CuUNC and CuNCUS sites on Cu2O–Au interfaces and sub-surface oxygen atoms adjacent to Cu2O–Au interfaces [Fig. 2(a)] are chosen as the catalytic substrate for the CO oxidation reaction, which is also shown in Fig. 1(d).


image file: c4ra10881g-f2.tif

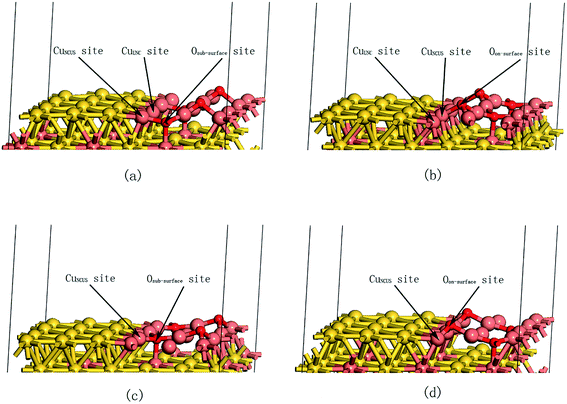

Fig. 2 The four possible geometric configurations of Cu2O–Au/Au3Cu(111). (a) CuUNC and CuNCUS sites on interfaces and Osub-surface site near interfaces; (b) CuUNC and CuNCUS sites on interfaces and Oon-surface site near interfaces; (c) CuNCUS site on interfaces and Osub-surface site near interfaces; (d) CuNCUS site on interfaces and Oon-surface site near interfaces.

Results and discussion

The adsorption status and reaction of CO oxidation on AuCu and Cu2O/Au3Cu(111)

The stable and meta-stable adsorption positions of reactants CO, O2 and O on AuCu and Cu2O/Au3Cu(111) are shown in Fig. 3 and the corresponding adsorption energy values, Ead, are listed in Table 1. In general, CO is vertically adsorbed on the top sites of metal surface atoms, whereas O is adsorbed in the hollow sites of metal surfaces. O2 is adsorbed on metal surfaces in three states: top-bridge-top (tbt), top-hollow-bridge (thob), and bridge-hollow-bridge (bhob).33 For fcc and hcp hollows, the thob state can be sub-divided into the top-fcc-bridge (tfb) and top-hcp-bridge (thb) states. Similarly, the bhob state can be sub-divided into the bridge-fcc-bridge (bfb) and bridge-hcp-bridge (bhb) states. In addition, the Au and Cu sites should be distinguished for Au–Cu alloy surfaces.
image file: c4ra10881g-f3.tif
Fig. 3 Possible adsorption positions of reactants O2, CO and O on (a) AuCu(111) and (b) Cu2O/Au3Cu(111) surfaces.
Table 1 Ead values of reactants CO, O2 and O on AuCu(111), Cu2O/Au3Cu(111) and Cu2O–Au/Au3Cu(111)
AuCu(111) Cu2O–Au/Au3Cu(111)
Reactants Positions States Ead (eV) Reactants Positions States Ead (eV)
CO-I Cu Top −0.83 CO-I Au Top −0.28
CO-II Au Top −0.32 CO-II CuNCUS Top −1.03
O2-I Cu2 Tilted tbt −0.39 CO-III CuUNC Top −0.75
O2-II AuCu2 tfb-Au top −0.19 O2-I Cu3 tfb-CuUNC top −0.44
O2-III AuCu2 thb-Au top −0.13 O2-II Cu3 tfb-CuNCUS top −0.73
O-I AuCu2 fcc hollow −4.40 O2-III Cu3 tfb-CuCSA top −0.49
O-II AuCu2 hcp hollow −4.27 O2-IV Cu3 bhb-CuUNC top −0.40
O-III Au2Cu fcc hollow −3.84 O2-V Au2Cu tfb-CuUNC top −0.05
O-IV Au2Cu hcp hollow −3.73 O2-VI AuCu2 thb-Au top −0.21
Cu2O/Au3Cu(111) O-I Cu3 fcc hollow −4.25
CO-I CuUNC Top −1.12 O-II AuCu2 hcp hollow −4.26
O2-I Cu3 tfb-CuUNC top −0.49 O-III Au2Cu (CuUNC) fcc hollow −3.97
O2-II Cu3 tfb-CuCSA top −0.29
O2-III Cu3 bhb-CuUNC top −0.24 O-IV Au2Cu (CuNCUS) fcc hollow −4.00
O-I Cu3 fcc hollow −4.04


In Fig. 3(a), CO can be adsorbed on the Au site of AuCu(111) (CO-II) with Ead = −0.32 eV. In comparison, CO binds strongly to the Cu site (CO-I) due to its low adsorption energy of Ead = −0.83 eV. The most stable O2 adsorption position is the Cu2 bridge (O2-I). In this adsorption state, although the two oxygen atoms bind separately with two Cu sites, the O–O bond is not parallel to the Cu2 bridge (the angle of interaction is about 40°), which differs from the tbt state. Therefore, this new adsorption state is the tilted tbt state. For this stable O2 adsorption position, Ead = −0.39 eV. When O2 is placed on the AuCu2 or Au2Cu hollows, it will spontaneously move to the Cu2 bridge. The only exceptions are O2 adsorption on AuCu2 hollows in the tfb-Au top and thb-Au top states (O2-II and O2-III). For these two meta-stable adsorption states, the Ead values are −0.19 and −0.13 eV, respectively. In addition, O2 adsorption on the Au2 bridge is endothermic. The O atom adsorption is much stronger than that of O2 molecules because the atomic oxygen has lost the strong O–O bond. The most stable adsorption position for oxygen atoms is the AuCu2 fcc hollow (O-I) with Ead = −4.40 eV. Other meta-stable O adsorption positions are AuCu2 hcp, Au2Cu fcc and hcp hollows (O-II, O-III and O-IV), for which Ead values are −4.27, −3.84 and −3.73 eV, respectively. In Fig. 3(b), CO can only be adsorbed on the CuUNC site of Cu2O/Au3Cu(111) (CO-I) with Ead = −1.12 eV. The most stable O2 adsorption position is the Cu3 fcc hollow site (O2-I). In the tfb-CuUNC top state, Ead reaches −0.49 eV. At the same adsorption position, the other two meta-stable adsorption states are tfb-CuCSA top and bhb-CuUNC top (O2-II and O2-III), for which the Ead values are −0.29 and −0.24 eV, respectively. Similar to the CO adsorption, O can only be adsorbed on the Cu3 fcc hollow (O-I) with Ead = −4.04 eV.

The possible reaction mechanism of CO oxidation on unoxidized AuCu alloy surfaces is shown in Fig. 4. According to the reactant adsorption results, O2 can be meta-stably adsorbed on the Cu2 bridge of AuCu(111) in the tilt tbt state. Even if O2 molecules are adsorbed at AuCu2 hollows in the tfb-Au top and thb-Au top states, they can easily diffuse to the Cu2 bridge with a small diffusion barrier of Edb = 0.15 eV. In Fig. 4(a–c), when the O2 molecule on the Cu2 bridge is dissociated to form two O atoms, it needs to overcome the reaction barrier of Erb = 0.74 eV. The direct O2 dissociation on AuCu(111) is not easy. Considering the direct reaction of O2 with CO, they must be co-adsorbed on the neighboring surface sites. At the ordered AuCu alloy surfaces, the Au and Cu sites are next to each other. However, CO prefers to bind with the Cu site of AuCu(111). To react with O2 on the Cu2 bridge, CO must move to the Au site between them, as shown in Fig. 4(d–f). A reaction barrier of Erb = 0.81 eV is calculated for this movement, which means that CO undergoes desorption and re-adsorption during this process. When CO is adsorbed on the Au site with O2 on its neighboring Cu2 bridge, their co-adsorption energy increases to Ead = −0.88 eV as shown in Fig. 4(f) [Ead = −1.22 eV for the initial state (IS)]. Owing to this meta-stable adsorption state, the reaction tends to be reversible and the corresponding Erb is only 0.44 eV. Therefore, on AuCu(111) surfaces, it is difficult for CO on the Cu site to move close to O2 on the Cu2 bridge for further reactions. In addition, O2 molecules can still dissociate into O atoms on AuCu(111) because the corresponding Erb value is similar to that of O2 dissociation on Pt(111).33 According to Fig. 4(c), after O2 dissociation, the two atoms are located at the AuCu2 and Au2Cu hollows. The AuCu2 fcc hollow is the most stable position for O adsorption. O atoms adsorbed on the other three sites can easily diffuse to the AuCu2 fcc hollow with small Edb values of 0.02–0.25 eV. In Fig. 4(g–i), to react with the O atom on the AuCu2 fcc hollow, CO on the Cu site must move to the Au site between them. The Erb for this reaction is as high as 0.81 eV, whereas Erb of the reverse reaction is only 0.35 eV. Therefore, even if O2 is dissociated to O atoms on AuCu(111), they still hardly react with CO molecules.


image file: c4ra10881g-f4.tif
Fig. 4 Illustration of (a)–(c) O2 dissociation reaction, (d)–(f) CO + O2 reaction and (g)–(i) CO + O reaction on AuCu(111) surfaces.

Because the surface energy of Au is smaller than that of Cu,32 gold atoms are usually enriched at the unoxidized Au–Cu alloy surfaces.34 The Au surface enrichment has been neglected in this AuCu(111) slab. If the Au enrichment is considered, some local parts of the AuCu alloy surface may show an ordered Au3Cu atom arrangement, for which the neighbors of Cu sites are only Au sites. On this Au3Cu surface layer, Cu2 bridges and AuCu2 hollows are absent. O2 adsorption on the Au2Cu hollows and AuCu bridges is very weak because the corresponding Ead values are higher than −0.10 eV. The gold surface enrichment leads to weaker O2 adsorption, which cannot change the fact that CO oxidation is impossible on unoxidized Au–Cu alloy surfaces. In addition, the simulation of CO oxidation on Cu/Au(100) surfaces has been performed by the DFT-GGA method.35 The Erb of the CO + O reaction on Cu/Au(100) reaches 0.6 eV,35 which is a relatively high value. Therefore, the catalysis of CO oxidation using Au–Cu alloys is still difficult even if Cu is totally segregated to their unoxidized surfaces.

The possible reaction mechanism of CO oxidation on the Cu2O surface oxide of Au–Cu alloys is shown in Fig. 5. One of the most common CO oxidation reaction mechanisms on reducible oxides or metal-support interfaces is that the oxides provide their lattice oxygen to react with CO.36 Based on this consideration, the possibility of the CO reaction with the on-surface oxygen of Cu2O/Au3Cu(111) is investigated first. In Fig. 5(a–c), the transitional state of this CO + Oon-surface reaction was not observed via our simulations. The difficulty for CO reactions with lattice oxygen may be due to the strong bonding between the on-surface oxygen anions and the Cu cations underneath. If an on-surface oxygen anion is removed from Cu2O/Au3Cu(111), there is an energy cost of 5.71 eV. For comparison, oxygen atom adsorption on Cu(111) has been also calculated, for which Ead = −4.91 eV. The lattice Cu–O bonds in Cu2O surfaces are stronger than the adsorption bonds of oxygen atoms on Cu surfaces. Although oxygen adsorption bonds are weaker, the Erb value of the CO + O reaction on Cu(111) is calculated to be as high as 0.80 eV. Based on this result, the Erb value of the CO + Oon-surface reaction on Cu2O/Au3Cu(111) should be higher than 0.80 eV. In addition, considering the Eley–Rideal mechanism, the possibility of the gas phase CO molecule reaction with the on-surface oxygen of Cu2O/Au3Cu(111) is studied. Similarly, no transitional state is observed. Therefore, the direct reaction of CO with the lattice oxygen of the Cu2O surface oxide is impossible.


image file: c4ra10881g-f5.tif
Fig. 5 Illustration of (a)–(b) CO + Oon-surface reaction, (c)–(e) O2 dissociation reaction and (f) CO + O2 reaction on Cu2O/Au3Cu(111) surfaces.

According to the reactant adsorption results, O2 can be adsorbed meta-stably on the Cu3 fcc hollow of Cu2O/Au3Cu(111) in the tfb-CuUNC top state. Even if O2 molecules are meta-stably adsorbed on the Cu3 fcc hollow in the tfb-CuCSA top state and the Cu3 hcp hollow in the bhb-CuUNC top state, they can easily change to the most stable adsorption state with small diffusion barriers of Edb = 0.18 and 0.03 eV, respectively. In Fig. 5(c–e), when O2 on the Cu3 fcc hollow is dissociated to form two O atoms, it needs to overcome the reaction barrier Erb = 0.90 eV. The direct dissociation of O2 on Cu2O/Au3Cu(111) is not possible. When CO and O2 are co-adsorbed on the Cu2O oxide, they cannot be neighbors, as shown in Fig. 5(f). To react with O2 on the Cu3 fcc hollow, CO on the CuUNC site must move to the CuCSA site between them. However, when CO is placed on the inert CuCSA site, it spontaneously leaves Cu2O/Au3Cu(111). In addition, the movement of O2 to the neighboring sites of CO is impossible because O2 cannot undergo exothermic adsorption once it has left the CuUNC site. CO and O2 have no opportunity to meet directly and react on Cu2O/Au3Cu(111). As mentioned above, Cu2O/Au(111) represents the surfaces of the calcined Au–Cu particles. Moreover, the surface structures of Cu2O/Au(111) and Cu2O/Au3Cu(111) should be similar because Au and Au3Cu have the same crystal structure and similar lattice constants. These simulation results can explain why the calcined Au–Cu nanoparticles are inert for CO oxidation.

Moreover, the O2 dissociation and CO oxidation on Cu2O(111) have also been studied using the same DFT-GGA method.27,37 The results show that reaction barriers for the direct O2 dissociation, the CO reaction with the lattice oxygen, and the direct CO reaction with O2, are all higher than 1 eV.27,37 Therefore, CO oxidation reactions cannot be carried out on both the surface Cu2O oxides of Au–Cu alloys and bulk Cu2O oxides.

Adsorption status and reactions of CO oxidation on Cu2O–Au/Au3Cu(111)

The stable and meta-stable adsorption positions of reactants on Cu2O–Au/Au3Cu(111) are shown in Fig. 6 and the corresponding adsorption Ead values are listed in Table 1. In Fig. 6(a), the possible O2 adsorption positions near or on Cu2O–Au interfaces are given. As mentioned above, the most stable O2 adsorption position on Cu2O/Au3Cu(111) is the Cu3 fcc hollow site, at which Ead is −0.49 eV in tfb-CuUNC top state [O2-I in Fig. 3(b)]. On Cu2O–Au/Au3Cu(111), O2 also prefers to be located at the Cu3 fcc hollow site near Cu2O–Au interfaces. When O2 is adsorbed in the tfb-CuUNC top state (O2-I), its Ead value is only −0.44 eV. However, in the tfb-CuNCUS top state (O2-II), Ead for O2 adsorption can reach −0.73 eV. On Cu2O/Au3Cu(111), CuUNC is the only active Cu site, which offers strong adsorption for O2. On Cu2O–Au/Au3Cu(111), CuUNC and CuNCUS are both active Cu sites. When O2 is located at the Cu3 fcc hollow site near Cu2O–Au interfaces in the tfb-CuNCUS top state, CuUNC and CuNCUS may simultaneously offer strong adsorption for O2, which induces a significant decrease in Ead. O2 can also be meta-stably adsorbed on the Cu3 fcc hollow site in the tfb-CuCSA top state (O2-III), for which Ead = −0.48 eV. On the Cu3 hcp hollow, O2 is meta-stably adsorbed in the bhb-CuUNC top state with Ead = −0.40 eV (O2-IV). In addition, O2 can also be located on only the Cu2O–Au interfaces. On the AuCu2 hcp hollow, O2 is meta-stably adsorbed in the thb-Au top state (O2-VI), for which Ead = −0.21 eV. On the Au2Cu fcc hollow, where the Cu belongs to the CuUNC sites (O2-V), O2 is weakly adsorbed in the tfb-CuUNC top state because the corresponding Ead value is only −0.05 eV. The adsorption positions of CO and O on Cu2O–Au/Au3Cu(111) are shown in Fig. 6(b). CO can be meta-stably adsorbed on the Au site (CO-I) with Ead = −0.28 eV. On the CuNCUS and CuUNC sites (CO-II and CO-III), the CO adsorption is stronger due to the low Ead values of −1.03 and −0.75 eV, respectively. The most stable O adsorption position is the AuCu2 hcp hollow (O-II), on which Ead = −4.26 eV is determined. On the Cu3 fcc hollow (O-I), the O adsorption is slightly weaker with Ead = −4.25 eV. In addition, O atoms can be adsorbed meta-stably on the Au2Cu fcc hollows at CuNCUS and CuUNC sites (O-IV and O-III) and the corresponding Ead values are −4.00 and −3.97 eV, respectively.
image file: c4ra10881g-f6.tif
Fig. 6 Illustration of possible adsorption positions of reactants (a) O2 and (b) CO and O on Cu2O–Au/Au3Cu(111) surfaces.

Diffuse reflectance infrared Fourier transform (DRIFT) and FT-IR results indicate that although CO adsorption on Cu sites is stronger than that on Au sites of Au–Cu nanoparticles, the corresponding CO adsorption amount on the former is far less than that on the latter.9 This may be because surface Cu sites are deficient before the reactions are carried out. Au enrichment on unoxidized Au–Cu alloy surfaces occurs34 because the surface energy of Au is smaller than that of Cu.32 Before the introduction of CO and O2, Au sites occupy the majority of the surface of the reduced Au–Cu nanoparticles. Therefore, at the beginning of catalytic reactions, CO can bind more readily with Au sites. In the presence of oxygen, Au–Cu nanoparticles are partially oxidized and Cu2O–Au interfaces are formed between local Cu2O and Au surface layers. According to this model of reactant adsorption, O2 prefers to be located at the Cu hollow sites near the Cu2O–Au interfaces. The diffusion of CO on Au surfaces is very easy. When CO diffuses to the Au sites near the Cu2O–Au interfaces and encounters O2 there, they can combine to generate CO2.

The CO oxidation reaction on Cu2O–Au/Au3Cu(111) can represent this interface catalytic process, which is shown in Fig. 7. First, O2 is stably adsorbed on the Cu3 fcc hollow near the interfaces in the tfb-CuNCUS top state. When O2 molecules are in other meta-stable adsorption states, they can easily change to the most stable state with small diffusion barriers of 0.03–0.15 eV. Although the O2 adsorption on Cu2O–Au/Au3Cu(111) is strong enough, it still cannot be directly dissociated because the corresponding dissociation barrier is as high as 1.04 eV. When CO diffuses to the Au site next to the Cu2O–Au interfaces, it still has no electronic interaction with O2. This co-adsorption state can be recognized as the IS of CO oxidation reactions, which is shown in Fig. 7(a). Subsequently, CO moves to the neighboring Au site of O2, which only requires a small reaction barrier of Erb = 0.35 eV to be overcome. In Fig. 7(c), when CO binds with the Au site near interfaces, it leans towards to the O2 molecule. In this meta-stable intermediate state (MS), the co-adsorption energy of CO and O2 reaches −1.17 eV, which is lower than that of IS of Ead = −1.02 eV. Therefore, there is already weak interaction between CO and O2 in the MS. CO and O2 then move together to form the meta-stable intermediate product O–O–CO, through which the O–O bond can be activated and easily dissociated.2 The reaction barrier of this combination process is only Erb = 0.35 eV. In Fig. 7(e), Ead has reduced to −1.73 eV after the formation of O–O–CO, which means that a strong bond is generated between CO and O2. In this intermediate state, the O–O bond has been activated, which is beneficial for further reactions. In Fig. 7(e and f), the transformation of O–O–CO to CO2 and O is easy with Erb = 0.07 eV. After the CO2 product molecule desorbs, the remaining O atom is adsorbed on the stable AuCu2 hcp hollow. When another CO molecule diffuses to a neighboring Au site, the molecules can combine to generate CO2 with a moderate reaction barrier of Erb = 0.42 eV, as shown in Fig. 7(h–j). In summary, CO oxidation reactions can be easily carried out on Cu2O–Au interfaces at Au3Cu surfaces.


image file: c4ra10881g-f7.tif
Fig. 7 Illustration of (a)–(g) CO + O2 reaction and (h)–(j) CO + O reaction on Cu2O–Au/Au3Cu(111) surfaces.

Cu2O–Au/Au3Cu(111) can only represent Cu2O–Au interfaces located on facets of Au–Cu nanoparticles. In addition to facets, there are still some surface atoms on the edges and vertices of Au–Cu binary particles24 and Cu2O–Au interfaces may pass through them. It has been demonstrated that these under-coordinated nanoparticle sites can accelerate heterogeneous catalysis.38 On Au–Cu binary nanoparticles, the CO and O2 molecules adsorbed on edges and vertices should have lower Ead values than those adsorbed on facets. Via this enhanced reactant adsorption, O2 activation and further CO oxidation may become easier. In future work, we intend to consider CO oxidation on Au–Cu clusters with different surface oxidation states, which can represent the surfaces of these binary nanoparticles more realistically.

CT of O2 adsorption and PDOS analysis of CO oxidation on Cu2O–Au/Au3Cu(111)

An important premise for CO oxidation on Cu2O/Au3Cu(111) is that O2 prefers to be located at the Cu sites near Cu2O–Au interfaces rather than those inside the Cu2O layers. To explain this preference for reactant adsorption, the CT and bond length of O2 adsorption at the most stable positions of Cu2O/Au3Cu(111) and Cu2O–Au/Au3Cu(111) are analyzed, which is shown in Fig. 8. When adsorption bonds are generated between O2 molecules and the underlying Cu2O surfaces, charges are transferred from the substrates to the reactants and the Coulomb forces between them would determine the bond strength.39 The inter-atomic Coulomb forces are proportional to the absolute value of the product of the positive and negative charges of the atoms and inversely proportional to the bond length. In Fig. 8(a and b), the Cu sites of the Cu2O surfaces are all positively charged without reactant adsorption. At the interior of the Cu2O surfaces, the CT values of the CuUNC and CuCSA sites are 0.06 and 0.18, respectively. For the corresponding interfacial CuUNC and CuCSA sites, the CT values are almost unchanged. The CT value of the CuNCUS sites decreases to 0.09 compared with that of CuCSA sites, which is caused by the coordinate oxygen unsaturation of the CuNCUS sites. In Fig. 8(c and d), after O2 is adsorbed on both Cu2O/Au3Cu(111) and Cu2O–Au/Au3Cu(111), the average CT values of reactants are −0.16 and −0.18, respectively. O2 can obtain more charge from the Cu sites near Cu2O–Au interfaces. Nevertheless, the sum of the charge product of the three Cu–O adsorption bonds is similar for O2 adsorption on Cu2O/Au3Cu(111) and Cu2O–Au/Au3Cu(111). In contrast, the sum of the bond length of the three Cu–O adsorption bonds calculated is 6.24 Å for O2 adsorption on Cu2O/Au3Cu(111) and 6.17 Å for O2 adsorption on Cu2O–Au/Au3Cu(111). The difference comes from the CuNCUS–O bond, which has a bond length of only 1.96 Å. When O2 is adsorbed on the interfacial Cu3 fcc hollow in the tfb-CuUNC and tfb-CuCSA states, the bond lengths of the CuNCUS–O bond are 2.06 and 2.09 Å, respectively. This difference in bond length proves our previous assumption that the interfacial CuNCUS sites could offer enhanced adsorption for O2 in the tfb-CuNCUS state. Therefore, Cu–O adsorption bonds near the Cu2O–Au interfaces have similar absolute values of the charge product but shorter adsorption bond lengths compared with those at the interior of Cu2O surfaces, which causes their large Coulomb forces and low adsorption energy values.
image file: c4ra10881g-f8.tif

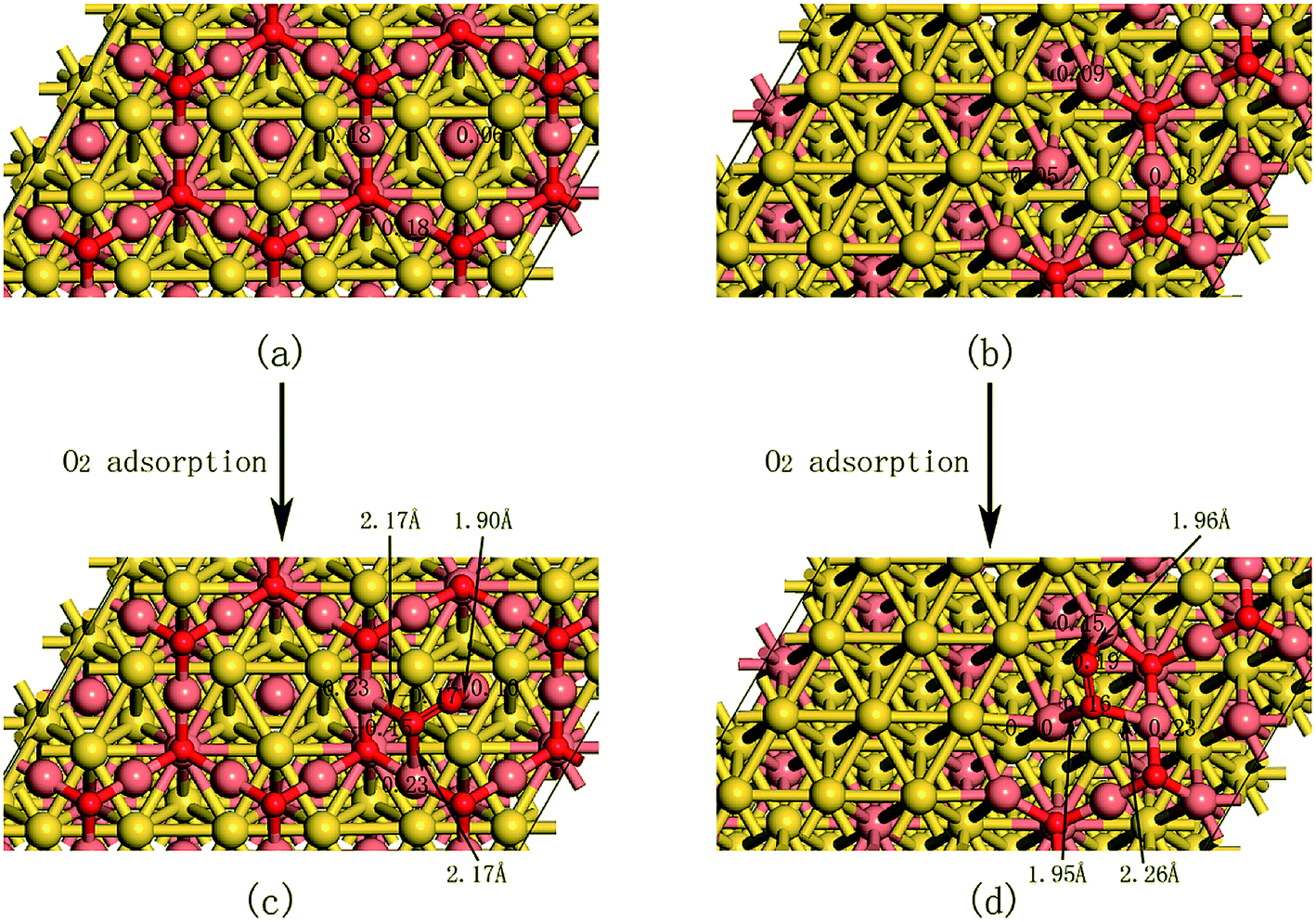

Fig. 8 CT of Cu sites on (a) Cu2O/Au3Cu(111) surfaces and (b) Cu2O–Au/Au3Cu(111) surfaces. CT of O2 molecules and its connecting Cu sites and bond length of Cu–O adsorption bonds when O2 is stably adsorbed on (c) Cu2O/Au3Cu(111) surfaces and (d) Cu2O–Au/Au3Cu(111) surfaces.

The increase in charge transfer can only ensure the preference of O2 adsorption near Cu2O–Au interfaces. The O2 activation and eventual dissociation requires the supplementary role of CO. The O–O bond of O2 is generated via extensive orbital hybridization of the 2p electrons. When CO reacts with O2, the orbital hybridization of the O–O bond may decrease and eventually disappear. To clarify the effect of CO assistance on the O2 activation and dissociation, the PDOS changes in the 2p electrons of the reactants during the CO oxidation on Cu2O–Au/Au3Cu(111) are analyzed, which is shown in Fig. 9. First, 2p electrons of C and O, 3d electrons of Cu, and 5d electrons of Au in all slabs have no spin polarization. In Fig. 9(a), the 2p hybridization peak of CO lies at a lower energy level than that of O2 in IS because the C–O bond is stronger than the O–O bond. In the first transitional state (TS1), CO has been desorbed from the Au site, which induces the movement of its hybridization peak to a higher energy level. In Fig. 9(c), the hybridization peak of CO is substantially broadened and weakened in the first meta-stable intermediate state (MS1). At the lower energy end of the valence bands, PDOS of CO and O2 are both slightly increased, which proves the weak interaction of the reactants. Under the influence of CO, the hybridization peak of O2 also decreases. In the second transitional state (TS2), the original hybridization peak of CO almost disappears. However, the simultaneous increase in PDOS of CO and O2 becomes more pronounced. In Fig. 9(e), large hybridization peaks are produced between the 2p electrons of CO and O2 because of the formation of O–O–CO. Before the reaction reaches the meta-stable intermediate state (MS2), the PDOS shapes of the two O atoms belonging to the O2 molecule are similar. In MS2, PDOS of the O atom connecting the Cu2O substrates is significantly reduced at the main hybridization peak (energy level of −6.70 eV). In the meta-stable intermediate product, O–O–CO, the electronic hybridization of this O atom only occurs for the O–O bond. Therefore, the reduced participation of its 2p electrons in hybridization indicates that the O–O bond in O–O–CO is weaker compared with that of the original O2 molecule. In the third transitional state (TS3), PDOS of this O atom is decreased further at the main hybridization peak, which indicates that the O–O bond is almost broken. In Fig. 9(g), the extensive hybridization of the 2p electrons only happens among the other three C and O atoms, which confirms the complete dissociation of O2 and formation of CO2 in the final state (FS).


image file: c4ra10881g-f9.tif
Fig. 9 PDOS of CO and O2 during their reaction on Cu2O–Au/Au3Cu(111) surfaces. (a)–(g) correspond to the reaction states shown in Fig. 7(a–g). The black solid and red short dashed lines represent the C and O atoms in CO, respectively. The blue short dashed and dotted line represents the O atom in O2, which would form the C–O bond with CO. The green and dashed dotted line represents the O atom in O2, which would remain on substrates after the production of CO2.

Discussion of the reaction mechanisms of CO oxidation on Au–Cu nanoparticles

The reaction mechanism of CO oxidation on Au–Cu nanoparticles can be explained based on our simulation results. In contrast to the Cu alloy, O2 adsorption and CO oxidation on Au nanoparticles only occurs at vertex sites.40 However, these under-coordinated sites occupy a very small proportion of the nanoparticle surface,25,26 which reduces the probability of O2 adsorption and further reactions with CO. Oxidation resistance experiments indicate that at 110 °C, the transformation of Cu nanoparticles to Cu2O and CuO aggregates only requires several tens of minutes.40 Inert CuO surfaces cannot provide effective adsorption for reactants. CO oxidation cannot be carried out on Cu2O surfaces because their active CuCUS sites are far apart. The oxidation rates of Au–Cu alloy nanoparticles are much lower than those of pure Cu ones.41 To catalyze CO oxidation on Au–Cu nanoparticles, CO molecules are first adsorbed on their surface Au sites. Owing to the introduction of O2, some Cu atoms of the particles are oxidized to form numerous local Cu2O surface oxide layers. Simultaneously, coherent interfaces are generated between Cu2O and the unoxidized Au layers. O2 activation and CO oxidation can occur on these Cu2O–Au interfaces. For traditional nanogold catalysts, interfaces between Au and oxide substrates are used for O2 activation and CO oxidation. However, for these Au–Cu binary nanoparticles, CO and O2 can directly react on surfaces, and this does not depend on the substrates. Considering the catalyst design for CO oxidation reactions, O2 cannot be activated and dissociated on pure Au and Pt nanoparticles. In contrast, Cu, Rh, Ni, Ru, and Co nanoparticles are easily oxidized and lose their surface active sites for O2 adsorption. Via alloying techniques, binary nanoparticles can avoid being completely oxidized and offer active sites for O2 adsorption and further CO oxidation.

Conclusions

On AuCu(111), CO is stably adsorbed on the top of the Cu site and O2 prefers to be located at the Cu2 edge in the tilted-tbt state. The O2 dissociation barrier on the unoxidized AuCu alloy surface is as high as 0.74 eV. Because CO and O2 are adsorbed on the separate Cu sites, they cannot readily combine to generate CO2 on AuCu(111). On Cu2O/Au3Cu(111), CO is strongly adsorbed on the top of the CuUNC site and O2 prefers to be located at the Cu3 fcc hollow in the tfb-CuUNC top state. CO cannot react with the lattice oxygen of the Cu2O surface oxides. The direct O2 dissociation on oxidized Au3Cu alloy surfaces is difficult because of the high dissociation barrier value of 0.90 eV. The reaction of CO + O2 on Cu2O/Au3Cu(111) is impossible as the reactants cannot move together in adsorption states. On Cu2O–Au/Au3Cu(111), O2 prefers to be located near Cu2O–Au interfaces rather than inside the Cu2O surfaces. CO can be adsorbed on Au surfaces, moderately. When CO diffuses to the Au site near Cu2O–Au interfaces, it can easily react with O2 due to the small reaction barriers of 0.07–0.35 eV. After this reaction, the remaining O atom on the AuCu2 hcp hollow can also react with CO on the neighboring Au site and the corresponding reaction barrier is 0.42 eV. The Hirshfeld population and bond length analysis indicate that O2 near Cu2O–Au interfaces can obtain more charge, transferred from the substrates and shorter Cu–O adsorption bonds, which causes its lower adsorption energy value. In addition, PDOS results show that the electronic hybridization of the O–O bond in O2 weakens and eventually disappears after it combines with CO to form O–O–CO and CO2 + O.

Acknowledgements

We acknowledge support by the National Key Basic Research and Development Program (Grant no. 2010CB631001), and the High Performance Computing Center (HPCC) of Jilin University for supercomputer time.

Notes and references

  1. M. Haruta, T. Kobayashi, H. Sano and N. Yamada, Chem. Lett., 1987, 2, 405–408 CrossRef.
  2. Z. P. Liu, P. Hu and A. Alavi, J. Am. Chem. Soc., 2002, 124, 14770–14779 CrossRef CAS PubMed.
  3. Y. Xu and M. Mavrikakis, J. Phys. Chem. B, 2003, 107, 9298–9307 CrossRef CAS.
  4. I. X. Green, W. Tang, M. Neurock and J. T. Yates Jr, Science, 2011, 333, 736–739 CrossRef CAS PubMed.
  5. D. Widmann and R. J. Behm, Angew. Chem., Int. Ed., 2011, 50, 10241–10245 CrossRef CAS PubMed.
  6. S. D. Lin, M. Bollinger and M. A. Vannice, Catal. Lett., 1993, 17, 245–262 CrossRef CAS.
  7. X. Liu, A. Wang, X. Wang, C. Y. Mou and T. Zhang, Chem. Commun., 2008, 27, 3187–3189 RSC.
  8. M. Okumura, S. Nakamura, S. Tsubota, T. Nakamura, M. Azuma and M. Hartua, Catal. Lett., 1998, 51, 53–58 CrossRef CAS.
  9. X. Liu, A. Wang, L. Li, T. Zhang, C. Y. Mou and J. F. Lee, J. Catal., 2011, 278, 288–296 CrossRef CAS PubMed.
  10. J. C. Bauer, D. Mullins, M. Li, Z. Wu, E. A. Payzant, S. H. Overbury and S. Dai, Phys. Chem. Chem. Phys., 2011, 13, 2571–2581 RSC.
  11. K. Koga and D. Zubia, J. Phys. Chem. C, 2008, 112, 2079–2085 CAS.
  12. C. H. Kuo, T. E. Hua and M. H. Huang, J. Am. Chem. Soc., 2009, 131, 17871–17878 CrossRef CAS PubMed.
  13. J. Yin, S. Shan, L. Yang, D. Mott, O. Malis, V. Petkov, F. Cai, M. S. Ng, J. Luo, B. H. Chen, M. Engelhard and C. J. Zhong, Chem. Mater., 2012, 24, 4662–4674 CrossRef CAS.
  14. A. Wang, X. Y. Liu, C. Y. Mou and T. Zhang, J. Catal., 2013, 308, 258–271 CrossRef CAS PubMed.
  15. P. Hohenberg and W. Kohn, Phys. Rev., 1964, 136, B864–B871 CrossRef.
  16. W. Kohn and L. J. Sham, Phys. Rev., 1965, 140, A1133–A1138 CrossRef.
  17. B. Delley, J. Chem. Phys., 1990, 92, 508–517 CrossRef CAS PubMed.
  18. B. Delley, J. Chem. Phys., 2000, 113, 7756–7764 CrossRef CAS PubMed.
  19. J. P. Perdew, K. Burke and M. Ernzerhof, Phys. Rev. Lett., 1996, 77, 3865–3868 CrossRef CAS.
  20. B. Delley, Phys. Rev. B: Condens. Matter Mater. Phys., 2002, 66, 155125 CrossRef.
  21. T. A. Halgren and W. N. Lipscomb, Chem. Phys. Lett., 1977, 49, 225–232 CrossRef CAS.
  22. F. L. Hirshfeld, Theor. Chim. Acta, 1977, 44, 129–138 CrossRef CAS.
  23. B. Pauwels, G. Van Tendeloo, E. Zhurkin, M. Hou, G. Verschoren, L. Theil Kuhn, W. Bouwen and P. Lievens, Phys. Rev. B: Condens. Matter Mater. Phys., 2001, 63, 165406 CrossRef.
  24. T. J. Toai, G. Rossi and R. Ferrando, Faraday Discuss., 2008, 138, 49–58 RSC.
  25. L. Deng, W. Hu, H. Deng, S. Xiao and J. Tang, J. Phys. Chem. C, 2011, 115, 11355–11363 CAS.
  26. F. Baletto and R. Ferrando, Rev. Mod. Phys., 2005, 77, 371–417 CrossRef CAS.
  27. R. Zhang, H. Liu, H. Zheng, L. Ling, Z. Li and B. Wang, Appl. Surf. Sci., 2011, 257, 4787–4794 CrossRef CAS PubMed.
  28. A. Önsten, M. Göthelid and U. O. Karlsson, Surf. Sci., 2009, 603, 257–264 CrossRef PubMed.
  29. C. I. Carlisle, D. A. King, M. L. Bocquet, J. Cerdá and P. Sautet, Phys. Rev. Lett., 2000, 84, 3899–3902 CrossRef CAS PubMed.
  30. Y. Xu and M. Mavrikakis, Surf. Sci., 2001, 494, 131–144 CrossRef CAS.
  31. A. Soon, M. Todorova, B. Delley and C. Stampfl, Phys. Rev. B: Condens. Matter Mater. Phys., 2006, 73, 165424 CrossRef.
  32. Q. Jiang, H. M. Lu and M. Zhao, J. Phys.: Condens. Matter, 2004, 16, 521–530 CrossRef CAS.
  33. Y. Xu and M. Mavrikakis, J. Am. Chem. Soc., 2004, 126, 4717–4725 CrossRef CAS PubMed.
  34. H. J. Kang, R. Shimizu and T. Okutani, Surf. Sci., 1982, 116, L173–L178 CrossRef CAS.
  35. A. Hussain, J. Phys. Chem. C, 2013, 117, 5084–5094 CAS.
  36. H. Y. Kim, H. M. Lee and G. Henkelman, J. Am. Chem. Soc., 2011, 134, 1560–1570 CrossRef PubMed.
  37. B. Z. Sun, W. K. Chen and Y. J. Xu, J. Chem. Phys., 2010, 133, 154502 CrossRef PubMed.
  38. I. V. Yudanov, A. V. Matveev, K. M. Neyman and N. Rösch, J. Am. Chem. Soc., 2008, 130, 9342–9352 CrossRef CAS PubMed.
  39. B. Hammer and J. K. Norskov, Adv. Catal., 2000, 45, 71–129 CAS.
  40. Y. Gao, N. Shao, Y. Pei, Z. Chen and X. C. Zeng, ACS Nano, 2011, 5, 7818–7829 CrossRef CAS PubMed.
  41. Z. Xu, E. Lai, Y. Shao-Horn and K. Hamad-Schifferli, Chem. Commun., 2012, 48, 5626–5628 RSC.
