Efficient green-red piezofluorochromism of bisanthracene-modified dibenzofulvene

Guo-Feng Zhanga, Matthew P. Aldred*a, Ze-Qiang Chena, Tao Chena, Xianggao Meng*b and Ming-Qiang Zhu*a
aWuhan National Laboratory for Optoelectronics, School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan, Hubei 430074, China. E-mail: mqzhu@hust.edu.cn; mpaldred@hotmail.com; Fax: +862787793419; Tel: +862787793419
bKey Laboratory of Pesticide and Chemical Biology of Ministry of Education, College of Chemistry, Central China Normal University, Wuhan, Hubei 430079, China. E-mail: mengxianggao@mail.ccnu.edu.cn

Received 9th September 2014 , Accepted 27th November 2014

First published on 27th November 2014


Abstract

A general approach for the synthesis of dibenzofulvene-based derivatives is demonstrated. The bisanthracene modified dibenzofulvene (F-DAn) exhibits efficient piezofluorochromic properties with the fluorescence reversibly altered between green (536 nm) and red (620 nm) under external stimuli.


In recent decades, photochromism, electrochromism and piezo-chromism, in which the respective external stimuli are light, applied charge and pressure, have received increasing attention due to the potential applications in sensors, smart windows, information displays and memory devices.1 More specifically, piezofluorochromic materials are able to undergo reversible changes in colour and fluorescence via mechanical grinding/pressure without further modifying the chemical structures. Recently, molecular species, i.e. small organic molecules,2 organometallics3 and liquid crystals4 have been shown to exhibit such piezofluorochromic properties. Within the small organic molecule category, the derivatives of stilbenes,2a–c dibenzofulvenes,2d–e fluorenones,2f anthracenes,2g–i pyrenes,2j–k and perylenes2l–m have shown evident changes in fluorescence under pressure or stress in which the emission colour is reversibly altered from blue to green; green to yellow or blue to yellow. In most reports, heteroatoms, i.e. N or O, are involved in these fluorophores. The heteroatoms can not only provide the sites of intermolecular C–H⋯X (N, O) interactions, but also contribute to the intramolecular charge transfer (ICT) that induces the red-shifting of the maximum emission peaks (λem), which is vital to construct materials with piezofluoro-chromism.1f Nevertheless, so far, it is seldom reported that the fluorescence of fluorophores can be reversibly altered between green and red emission, especially for only aromatic hydrocarbon materials without heteroatoms.

Fluorophores with aggregation-induced emission (AIE) features commonly exhibit propeller-like structures and enhanced emission owing to the restriction of the intramolecular rotation (RIR) in the solid-state.5 AIE-active fluorophores are promising candidates for materials that exhibit piezofluorochromism thanks to their loose packing mode in the solid state.1f Very recently, we utilized a novel and versatile strategy to synthesize AIE-active fluorophores via Corey–Fuchs reaction and Suzuki coupling.6 In this report, we demonstrate a facile synthetic pathway to dibenzofulvene derivatives to construct materials with piezofluorochromic properties without heteroatoms.

Different from the previous reports regarding the synthesis of dibenzofulvene derivatives,2d–e we have exploited the Corey–Fuchs reaction and subsequent Suzuki coupling6 to afford F-DN1, F-DN2 and F-DAn with decent yields. The detailed synthetic route (Scheme S1) and procedures are described in ESI section, and the final compounds were characterised by NMR, MALDI-TOF-MS, and X-ray crystallography with satisfactory results. We have utilized dibenzofulvene as the core component (Fig. 1a) on the basis of the unique properties of piezochromism and the formation of unique microstructures. Dibenzofulvene which is modified by bisanthracene units (F-DAn) exhibits self-assembly ability and efficient piezofluoro-chromism, which can be reversibly changed between green and red fluorescence after alternate grinding and solvent fuming process (Fig. 1d).


image file: c4ra10067k-f1.tif
Fig. 1 (a) The structures of dibenzofulvene derivatives. Fluorescence imaging of F-DAn: (b) bright field and (c) fluorescence imaging under UV irradiation; scale bar: 200 μm; (d) photos showing the piezofluorochromism of F-DAn under alternating grinding and solvent fuming stimuli.

As shown in Fig. 2a, the maximum UV-vis absorption peaks (λabs) of F-DN1, F-DN2 and F-DAn in dilute THF solution (10−5 M) are located at 349 nm, 361 nm and 405 nm, respectively. The λem of F-DN1, F-DN2 and F-DAn in the powder form are located at 468 nm, 531 nm and 536 nm (Fig. 2b). All three compounds exhibit weak fluorescence in the 10−5 M THF solution. From the THF–water solvent mixture experiments (Fig. 2c and S4), we can observe that the PL intensity gradually increases as the water fraction is increased. The PL intensity of these three materials in the “aggregate” state, i.e. 90% water content, is dramatically enhanced. Therefore, F-DN1, F-DN2 and F-DAn display AIE properties. The AIE-effect (Fig. 2d), termed as αAIE = I/I0 (I = resulting PL intensity after gradual water addition, I0 = PL intensity in 10−5 M THF solution at 0% water content), of F-DN1, F-DN2 and F-DAn are 50.2, 62.8 and 56.0, respectively, with negligible difference in AIE-efficiency. The spectral changes in emission for different THF–water mixtures (Fig. S4) are probably due to morphological transition and/or agglomeration.7 Generally, the AIE effect is dependent on the structural balance of the core components (i.e. double bonds or silole units for TPE-based or silole-based AIE-active materials, respectively or thiophene ring) and the peripheral aromatic rotating units surrouding this central moieties. As shown in Fig. 1d, the AIE effect values are 50.2 (F-DN1); 62.8 (F-DN2) and 56.0 (F-DAn), respectively. Due to the similar bulkiness in volume of the peripheral aromatic units (α-naphthalene, β-naphthalene and anthracene) around the unsaturated core, the AIE effect of the associated compounds are comparable.


image file: c4ra10067k-f2.tif
Fig. 2 (a) The UV-vis absorption spectra in THF solution (10−5 M) and (b) PL emission spectra in powder form of F-DN1, F-DN2 and F-DAn. (c) PL intensity of F-DAn in THF–water solvent mixtures (10−5 M) with different water content (excitation wavelength: 405 nm). (d) The AIE-effect (αAIE = I/I0) vs. water fraction (%) of F-DN1, F-DN2 and F-DAn.

In addition to its AIE property, F-DAn exhibits efficient piezofluorochromism (Fig. 1d), and the fluorescence can be reversibly changed between green and red fluorescence under alternating grinding and solvent fuming procedures. To further validate this unique property, the changes in the PL spectra after grinding and subsequent solvent fuming were recorded, and the results indicate that the reversible conversions can be cycled for many times between green fluorescence (536 ± 2 nm) and red fluorescence (620 ± 7 nm) (Fig. 3a and b). From this transformation, we have demonstrated that F-DAn is a promising piezofluorochromic material with good reversibility, large red shifts in λem (>80 nm) and distinct emission colours in which the fluorescence quantum yield between these two states changes dramatically from 0.63 (green state) and 0.11 (red state). Powder X-ray diffraction (PXRD) pattern of the solvent fumed F-DAn sample displays several defined peaks (Fig. 3c), indicative of the crystalline state. On the contrary, the ground F-DAn shows more ill-defined diffraction peaks with a more diffuse pattern that is more reminiscent of an amorphous material. Furthermore, the 1H-NMR spectra of the ground sample and the solvent fumed samples of F-DAn are identical to each other (Fig. S5), implying that the chemical structure of F-DAn is constant before and after mechanical grinding. The fluorescence lifetime of F-DAn changes from 1.6 ns to 2.5 ns after grinding (Fig. S6), which is probably associated with the formation of exciplex and/or the dimer.2d,8 It takes about 6 min for the transformation between the polycrystalline state and the amorphous state in one cycle. Therefore, the mechanism of emission changes of F-DAn before and after grinding is due to the transition between the crystalline and amorphous states, which is accompanied by intramolecular and intermolecular changes. With respects to F-DN1 (Fig. 3d) and F-DN2 (Fig. S7b), both of them exhibit piezofluorochromism with changes in the λem of about 20 nm via alternating grinding and solvent fuming operations. The changes in the λem are accompanied again with the transformation from the crystalline state to amorphous state (Fig. S8).


image file: c4ra10067k-f3.tif

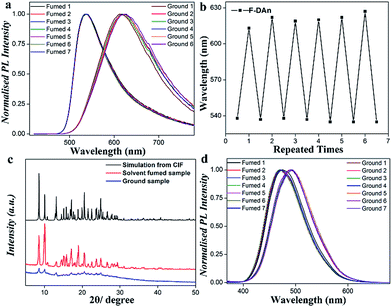

Fig. 3 (a) The PL emission spectra of fumed and ground F-DAn. (b) Cycling behaviors of the emission showing efficient reversibility. (c) Powder X-ray diffraction (PXRD) patterns of the ground and solvent fumed F-DAn samples. (d) The PL emission spectra of fumed and ground F-DN1.

To further understand the piezofluorochromism and probe the structural features and intermolecular packing modes in these dibenzofulvene derivatives, single crystal formation via solution evaporation process using DCM and methanol were obtained for F-DN1 and F-DAn. However, single crystal of F-DN2 proved to be difficult to obtain. The ORTEP structures of F-DN1 and F-DAn are shown in Fig. 4 and S9 to S10. Both of F-DN1 and F-DAn reveal a propeller-like structure, which is consistent with the optimized structure obtained from DFT calculations using B3LYP/6-31G(d) basis set in Gaussian 09 program (Fig. S11). For F-DN1, calculations from PLATON9 show no classical π⋯π interactions. Two kinds of C–H⋯π interactions with the distances of 2.72 Å (H18⋯CgC29–C34) and 2.94 Å (H23⋯CgC19–C24, Cg denotes a centroid defined by some specified atoms) can be observed (Fig. 4c). With respect to F-DAn, the anthracence blades in F-DAn are perpendicular with each other, and the dihedral angles of the anthracence rings is 95.5°. Besides C–H⋯π interaction with the distances of 2.73 Å (H4⋯CgC37–C42), two weak π⋯π interactions with the distances of 3.91 Å (CgC1–6⋯CgC8–14), and 3.99 Å (CgC30–C35⋯CgC37–C42) are observable. As depicted in Fig. 4d and S12, F-DAn single crystals are grown prominently long the [010] axis, in which the π⋯π interactions, labeled with purple colour, are crossed. More interestingly, it seems like the whole crossed π⋯π stacks between the contiguous anthracence rings are formed into two pillars, in which the two pillars are connected with multiple C–H⋯π interactions (labeled with green lines). The non-contacted dibenzofulvene rings are aligned at the periphery, and separated by these anthracence pillars (Fig. S12). Probably due to the weak interactions in the crystal of F-DAn, intriguing piezofluorochromism can be observed via simple grinding and fuming procedures.


image file: c4ra10067k-f4.tif

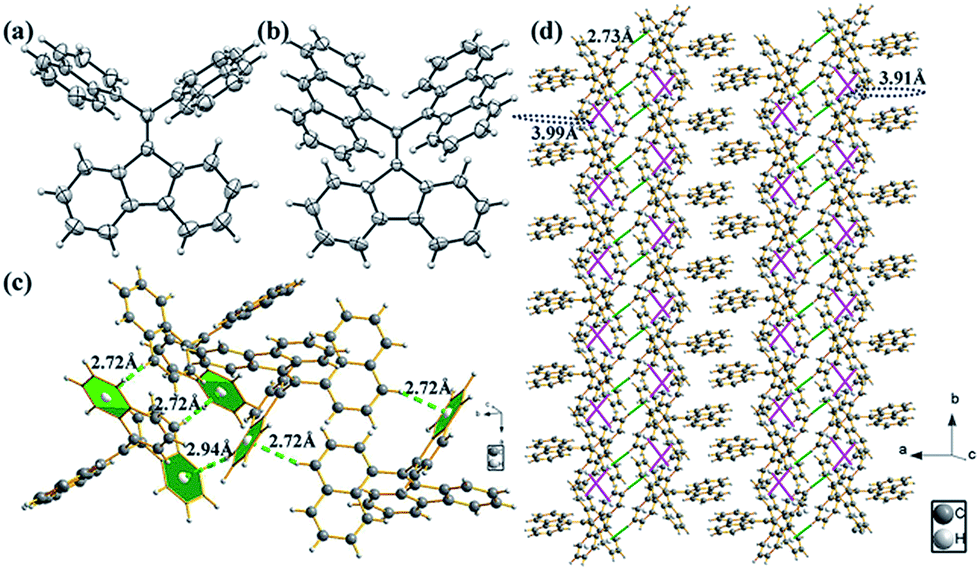

Fig. 4 The ORTEP drawings of (a) F-DN1; (b) F-DAn; part of the molecular packing mode (c) F-DN1; (d) F-DAn. The C–H⋯π interactions are shown in the green dotted lines, and the π⋯π interactions are shown as purple dotted lines.

In conclusion, we have demonstrated a general and facile synthetic strategy to afford dibenzofulvene derivatives via Corey–Fuchs reaction and subsequent Suzuki coupling reactions. The weak intermolecular interactions in F-DAn are probably accountable for this piezofluorochromism with a bathochromic shift of λem (>80 nm) reversibly altered between green and red emission under external stimuli, which is seldom reported. More importantly, we elucidate that aromatic hydrocarbon materials without any electron-withdrawing groups and heteroatoms can be served as promising candidates for piezofluorochromic materials.

Acknowledgements

This work was supported by the NSFC (21174045, 21474034), 973 Program of China (2013CB922104). We also thank Analytical and Testing Center of Huazhong University of Science and Technology.
