Regioselective synthesis of fullerene multiadducts via tether-directed 1,3-dipolar cycloaddition

Abstract

The regioselective synthesis of fullerene multiadducts was achieved from commercially available reagents in one pot over two steps. The configuration of the isolated regioisomers was determined using various NMR methods, UV-vis spectroscopy and electrochemical analysis with the structure of one isomer confirmed by single crystal X-ray analysis. Interesting variation in regioselectivity was observed when different amino acid reagents were used in the reactions. Theoretical calculations and additional experiments, such as deuterium exchange, led to a proposed mechanism for the regioselective product formation.

---

Introduction

Regiochemistry of fullerenes can be complex given the large number of carbon centres that can participate in reactions.^1,2 An effective strategy is to control the regiochemistry using a tether between two reactive head groups.^3,4 This is known as the tether-directed remote functionalization approach which was first demonstrated by Breslow et al.⁵ in mimicking highly selective enzymatic reactions on steroid compounds. This tether approach has been demonstrated in regio- and stereoselective fullerene functionalizations.^6,7 Tethers reported include simple arenes, porphyrins, crown ethers as well as chiral Tröger base units.² These previous studies investigated the scope of the tether-directed functionalization strategy but did not look into the application of the materials produced.

A central research theme in our group has been the development of organic electronic materials with particular emphasis on thin film solar cells. Bisadducts of fullerenes have been widely incorporated in solar cell devices but isomeric mixtures are commonly used. There has only been a few attempts to isolate single bisadduct isomers and investigate their performance in devices.^8,9 In one case, a single isomer of indene-C₇₀ bisadduct (IC₇₀BA) was obtained by careful chromatographic separation.¹⁰ This single isomer showed significant device performance improvement compared to samples containing isomeric mixtures. However, chromatographic isolation of bisadduct isomers is extremely inefficient in terms of product yield and time required for the processing. There has been a few recent studies on the use of tether-directed functionalization to produce fullerene materials for solar cell applications.^11–13 In particular, our group has developed a one-pot synthesis of a single C₆₀ bisadduct isomer from commercially available phenyl-C₆₁-butyric acid methyl ester (PC₆₁BM).¹⁴ With the relatively short propyl tether and the azomethine ylide reactive head group, one major product was isolated and subsequently identified as the cis-1 C₆₀ bisadduct derivative, N-methyl PC₆₁PF (Fig. 1). This pure isomer material showed enhancement in performance compared to the isomer mixtures and the original PC₆₁BM material.

Fig. 1 Chemical structure representation of bisadduct derivatives discussed in this work and an illustration of possible C₆₀ bisadduct regioisomer configurations.

This positive outcome gave us incentive to develop a series of related compounds with different substitution on the pyrrolidine nitrogen (Fig. 1). Interestingly, the substituent variations had significant effects on the regioselectivity of the 1,3-dipolar cycloaddition (Fig. 2). Different products were isolated when N-hexylglycine and N-phenylglycine was used instead of N-methylglycine. In a large proportion of examples, 1,3-dipolar cycloaddition to fullerenes occurred at the [6,6] bonds, namely the C=C bonds between two six-membered rings. This can result in 8 possible regioisomers for C₆₀ fullerene bisadducts (Fig. 1). With the appropriate tether length, one can limit the 1,3-dipolar cycloaddition to the cis-hemisphere only. The cis-1 configuration was the most favoured in the case of the N-methyl PC₆₁PF compound. Therefore, it was intriguing to observe regiochemistry variations for the N-hexyl and N-phenyl compounds even though the propyl tether was unchanged.

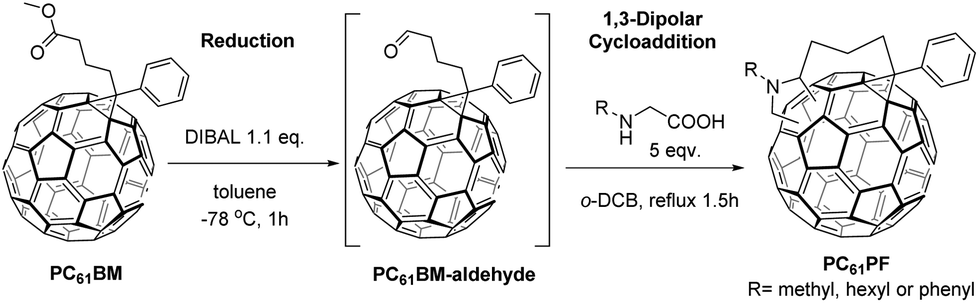

Fig. 2 One-pot two-step synthesis of PC₆₁PF derivatives.

In this study, our efforts in the elucidation of the regioisomer configuration of the isolated products are presented. Through computations and experiments, reaction mechanisms for the product outcomes are proposed. It is noteworthy that these tether-directed reaction resulted in fused ring structures, containing 3, 5, 6 and 7-membered rings, rarely observed in the literature.

Results and discussion

Synthesis and configuration identification

Two new C₆₀ bisadducts, N-hexyl PC₆₁PF and N-phenyl PC₆₁PF, were synthesized and fully characterized (Fig. 1). As with the previously reported N-methyl PC₆₁PF, the hexyl and phenyl analogues were synthesized from PC₆₁BM in a one-pot-two-step reaction (Fig. 2). PC₆₁BM was treated with the reducing reagent, diisobutylaluminium hydride (DIBAL), to give the aldehyde intermediate. Without isolation, the aldehyde intermediate was heated with N-hexylglycine or N-phenylglycine in 1,2-dichlorobenzene (o-DCB) at 180 °C to form the N-hexyl and N-phenyl PC₆₁PF respectively. It was apparent immediately from thin layer chromatography analysis that the N-hexylglycine and N-phenylglycine gave different product distributions.

The crude product of N-hexyl PC₆₁PF was purified by silica chromatography and two major fractions were isolated, N-hexyl PC₆₁PF-1 and N-hexyl PC₆₁PF-2, in yields of 9% and 14% respectively. The purity of the two hexyl samples were examined by HPLC analysis with Cosmosil Buckyprep-D column and found to be 95% and 99% for fraction 1 and 2 respectively (Fig. S22†). According to the ¹H NMR spectrum, both fractions contained three distinct proton resonances characteristic to the pyrrolidine moiety, confirming the formation of the fulleropyrrolidine unit. However, the N-hexyl PC₆₁PF-2 fraction showed two additional singlet resonance at 5.65 and 5.45 ppm compared to N-hexyl PC₆₁PF-1. This observation corresponded to the mass spectrometry data where N-hexyl PC₆₁PF-2 was two mass units heavier than N-hexyl PC₆₁PF-1.

Full ¹H NMR assignment of the two fractions was achieved using two-dimensional NMR analysis techniques shown in Fig. 3 and 4. The heteronuclear multiple-bond correlation (HMBC) spectrum of N-hexyl PC₆₁PF-1 showed the C₁₅ carbon coupled with both H₅ and H_2b protons (Fig. 3). This coupling was observed for the N-methyl PC₆₁PF compound with known cis-1 regioisomer configuration. This strongly indicated cis-1 configuration for the N-hexyl PC₆₁PF-1 fraction. With two extra proton signals, the HMBC spectrum of N-hexyl PC₆₁PF-2 was more difficult to analyse (Fig. 4). There were clear HMBC coupling signals for H₁₈ to C₁₂ and C₁₃ as well as H₁₇ to C₅ and C₁₄, but no coupling with C₁₅ and C₁₆. This suggested that C₁₇ and C₁₈ were next to C₁₃ and C₁₄ but not directly adjacent to C₁₅ and C₁₆. In addition, H₁₇ and H₁₈ did not couple to each other. In light of these NMR experiments, a possible configuration of N-hexyl PC₆₁PF-2 was shown in Fig. 4 with the pyrrolidine ring and the two additional protons occupied both the cis-1 and cis-2 position, designated as cis-1,2 hence forth.

Fig. 3 ¹H, ¹³C and HMBC NMR spectrum of N-hexyl PC₆₁PF-1 with resonances assigned for the key atoms in discussion.

Fig. 4 ¹H, ¹³C and HMBC NMR spectrum of N-hexyl PC₆₁PF-2 with resonances assigned for the key atoms in discussion.

Single crystals of N-hexyl PC₆₁PF-2 were obtained by recrystallization from chloroform and subsequent X-ray crystallography experiment on the crystals revealed the relative configuration of the sample. The fused ring structure containing the pyrrolidine substituent was in agreement with the NMR assignments where the pyrrolidine ring and the two additional protons were in the cis-1,2 configuration (Fig. 4 and 5). Surprisingly, the crystallography data indicated the enantiomeric pairs in the crystal existed in a dimerized state (Fig. 5). The dimerization reaction probably proceeded through a photo-activated [2 + 2] cycloaddition driven by the close packing in the crystal structure.¹⁵ It is important to note that there was no evidence of the covalently linked dimer in mass spectrometry experiments prior to the crystallography analysis with the sample kept in ambient light conditions.

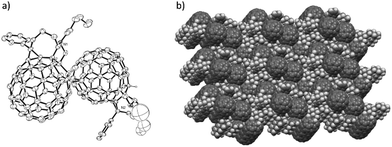

Fig. 5 Single crystal X-ray structure representation of N-hexyl PC₆₁PF-2 dimer crystals grown from chloroform: (a) space filling model and (b) packing diagram in single crystal, where CHCl₃ solvent molecules have been omitted for clarity.

The crude product of N-phenyl PC₆₁PF was purified by flash chromatography with one major fraction isolated in a yield of 14%. Some PC₆₁BM stating material and aldehyde intermediate were recovered but the majority of reaction mixture consisted of insoluble material that could not be identified. The purity of the N-phenyl PC₆₁PF sample was 77% by HPLC analysis (Fig. S22†). The three distinctive proton resonances of the pyrrolidine moiety were clearly observed at the chemical shift of 5.82, 5.47 and 5.35 ppm in the ¹H NMR spectrum. As with the hexyl compounds, key structure assignments of N-phenyl PC₆₁PF was achieved using two-dimensional NMR analysis (Fig. 6 and S13–15†). Due to overlapping resonances, it was not possible to identify the regioisomer configuration for N-phenyl PC₆₁PF in NMR experiments.

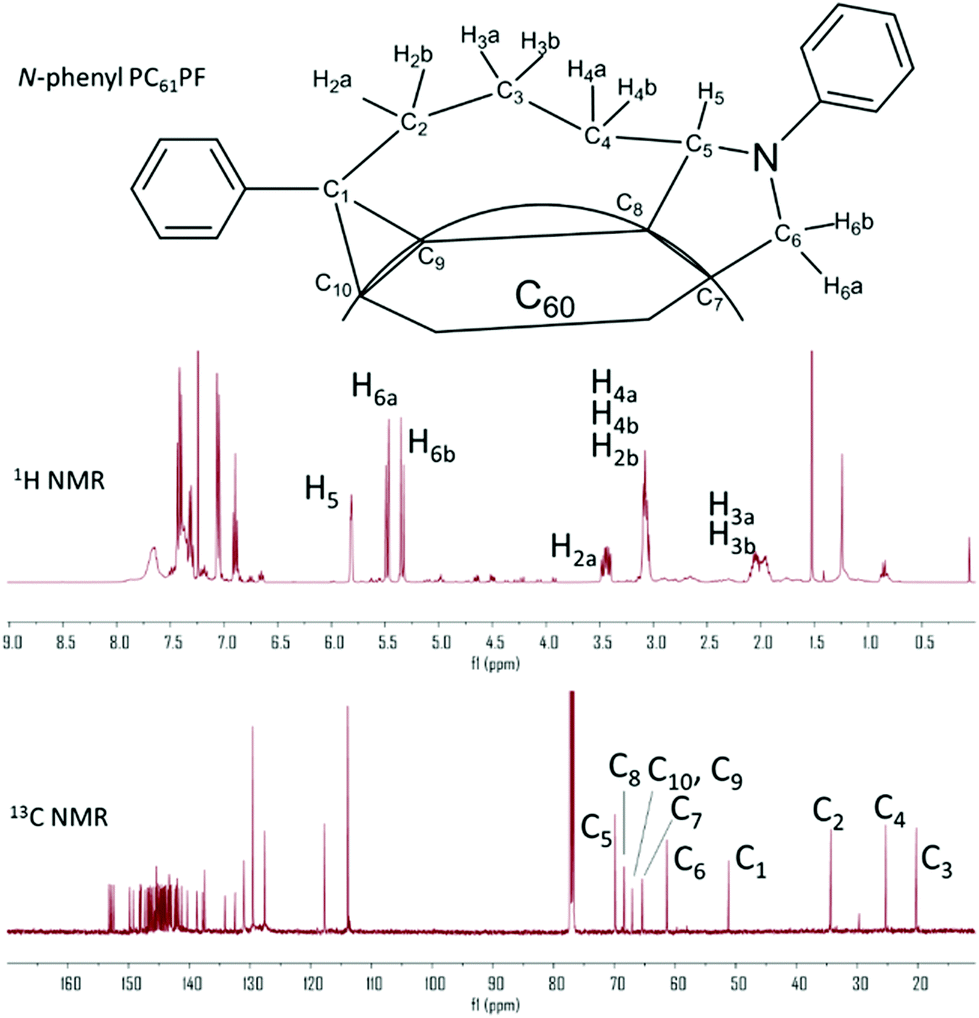

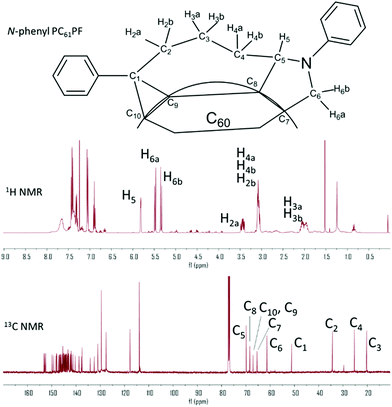

Fig. 6 ¹H and ¹³C spectrum of N-phenyl PC₆₁PF with resonances assigned for the key atoms in discussion.

It is well-established that the isomeric configuration of fullerene bisadducts can be identified by comparing the UV-Vis spectrum of materials with known configuration.⁶ This is because the absorption bands of fullerene derivatives are closely related to the conjugated surface of the molecules. As shown in Fig. 7, the spectrum of N-hexyl PC₆₁PF-1 and N-phenyl PC₆₁PF contained a peak at 430 nm. Other C₆₀ bisadducts of known cis-1 configuration, for example N-methyl PC₆₁PF¹⁴ and C₆₀-benzyne bisadduct,¹ have similar spectral features. This provided support for the NMR analysis of the N-hexyl PC₆₁PF-1 compound and hinted at the cis-1 configuration for N-phenyl PC₆₁PF. Notably, the UV-vis spectrum of N-hexyl PC₆₁PF-2 was different to that of N-hexyl PC₆₁PF-1 and N-phenyl PC₆₁PF with a peak at 442 nm (Fig. 7 and Table 1). Cyclic voltammetry was carried out to estimate the lowest unoccupied molecular orbital (LUMO) energy level of each PC₆₁PF material (see ESI for details, Fig. S23†). The half-wave potential of the first reduction process (E^red_1/2) were measured against the internal ferrocene standard and the LUMO energy can be calculated from this data (Table 1).¹⁶ The N-hexyl PC₆₁PF-1 sample has higher electron affinity with E_LUMO at −3.67 eV than N-hexyl PC₆₁PF-2 with E_LUMO at −3.58 eV. This corresponds to the increased substitution for N-hexyl PC₆₁PF-2. The chemical structure of the isolated regioisomers, assigned using the characterisation data, are shown in Fig. 8. In the next section, calculations and discussion on the mechanism of product formation will provide support to the various characterisation techniques presented thus far.

Fig. 7 UV-Vis spectrum of PC₆₁PF compounds.

Fig. 8 Chemical structures of N-hexyl PC₆₁PF-1, N-hexyl PC₆₁PF-2 and N-phenyl PC₆₁PF.

Table 1 Summary of characterization data for PC₆₁PF compounds

	Purity^a (%)	Configuration	UV-vis λmax ^b (nm)	E ^red1/2 ^c (eV)	E LUMO ^d (eV)
a Calculated by HPLC analysis. b Absorption coefficient (×10^3 M^−1 cm^−1) in brackets. c Half-wave reduction potential from cyclic voltammetry. d E LUMO = −(E^red1/2 + 4.8) eV.
N-Hexyl PC61PF-1	95	cis-1	430 (5.8)	−1.13	−3.67
N-Hexyl PC61PF-2	99	cis-1,2	442 (6.0)	−1.22	−3.58
N-Phenyl PC61PF	77	cis-1	431 (8.8)	−1.25	−3.55

---

Density functional theory (DFT) calculations

The unusual cis-1,2 configuration for N-hexyl PC₆₁PF-2 was examined in DFT calculations to support our experimental observations. The proposed reaction pathway leading to the observed products is discussed below (Fig. 9). One can consider the azomethine ylide as the starting point of discussions. For N-hexyl PC₆₁PF-1 and N-phenyl PC₆₁PF, the cis-1 product can be formed by 1,3-dipolar cycloaddition in one step. On the other hand, the insertion of two additional protons for N-hexyl PC₆₁PF-2 with cis-1,2 configuration probably involved at least two steps. In detail, the 1,3-dipolar cycloaddition proceeded first to form the pyrrolidine ring on the [5,6] bond followed by protonation to give the cis-1,2 product. Therefore, there must be an intermediate between the transition state of the cycloaddition step and the transition state of the protonation step. Using this model and applying DFT at B3LYP-D3 level^17,18 with 6-311G basis set and polarization function (d,p), the relative energy of the azomethine ylide starting point, transition states, possible intermediates and final products were calculated (Fig. 10 and Table S1†).^19,20

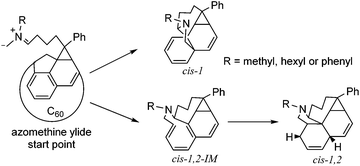

Fig. 9 Proposed reaction pathway for PC₆₁PF products with cis-1 and cis-1,2 configuration.

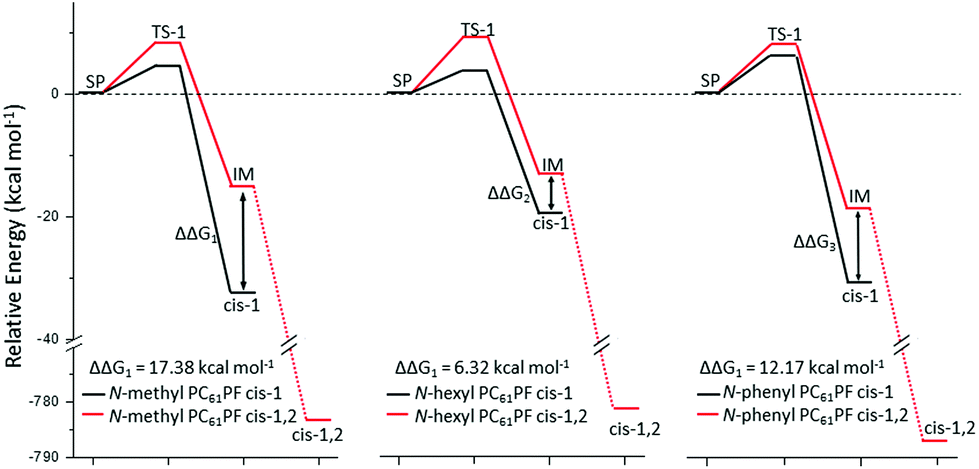

Fig. 10 Relative energy of starting point, transition states, intermediates and products of PC₆₁PF compounds with cis-1 and cis-1,2 configuration from DFT calculations.

Since the product energy of PC₆₁PFs in cis-1,2 configuration were much lower than both the intermediates cis-1,2-IM^21,22 and the products of cis-1, the formation of the cis-1,2 product can be considered as irreversible (Fig. 10). On the other hand, an equilibrium may exist between cis-1 and cis-1,2-IM species. From the calculated Gibbs free energy difference (ΔΔG) values between cis-1 and cis-1,2-IM, relative equilibrium constant (K) values can be obtained using the equations:

where R is the gas constant and T is the reaction temperature. With ΔΔG₁ of N-methyl PC₆₁PF larger than ΔΔG₂ of N-hexyl PC₆₁PF (Fig. 10), the corresponding K for the methyl species was much smaller (K₁ = 4.1 × 10⁻⁹) than the hexyl species (K₂ = 8.9 × 10⁻⁴). The consequence of this difference was that a much greater proportion of the hexyl species would exist in the cis-1,2-IM form compared to the methyl at equilibrium, leading to a greater chance of formation of the cis-1,2 product for the hexyl. This corresponded to the N-hexyl PC₆₁PF-1 and N-hexyl PC₆₁PF-2 compounds that were isolated. A steric argument can be invoked for the outcome of the calculated ΔΔG values. The significantly higher energy of the hexyl cis-1 species can be attributed to the steric bulk of the hexyl group compared to the methyl group (Fig. S26†). The steric effect of the hexyl moiety in cis-1,2-IM configuration was not as significant resulting in similar energies for the hexyl and methyl cis-1,2-IM species.

Although the phenyl group should have stronger steric effect than hexyl, cis-1,2 product was not observed for N-phenyl PC₆₁PF. The DFT calculation revealed a relatively large ΔΔG₃ for the phenyl compounds (Fig. 10). This meant that only a small concentration of cis-1,2-IM of N-phenyl PC₆₁PF existed at equilibrium (K₃ = 1.3 × 10⁻⁶), resulting in less cis-1,2 product compared to hexyl species. A possible reason could be that the phenyl group was able to stablize the cis-1 product by sharing the electron density with the pyrrolidine moiety. According to the DFT optimized molecular models, the orientation of the phenyl ring relative to the pyrrolidine ring was very different for the cis-1 and cis-1,2-IM species. Only the optimised geometry of cis-1 showed electronic stabilization effect of the phenyl group. In the cis-1,2-IM species, steric hinderance between the phenyl group and the H₄ proton resulted in an orientation of the phenyl ring relative to the pyrrolidine ring that did not favor electronic stabilization (Fig. S27†).

Deuterium exchange experiments and proposed mechanism

To gain further insight into the reaction mechanism, deuterium exchange experiments were performed. The reactions to form the hexyl compounds were carried out as before except with the addition of deuterium oxide in the reaction mixture of the 1,3-dipolar cycloaddition step (see Experimental section for details). The ¹H NMR spectrum showed that deuterium exchange occurred at two protons (H_4a and H_4b) in N-hexyl PC₆₁PF-1 and four (H_4a, H_4b, H₁₇ and H₁₈) in N-hexyl PC₆₁PF-2 (Fig. S16 and S17†). The exchanges at the H_4a and H_4b proton could be simply attributed to the keto–enol tautomerisation of the aldehyde starting material. The deuterium exchange at H₁₇ and H₁₈ for the N-hexyl PC₆₁PF-2 material provided information on the source of those protons (Fig. 11). It was noteworthy that the percentage of deuterium exchange at H₁₅ and H₁₈ were both around 80% by integration. The following is a descirption of the proposed reaction mechanism for the formation of the cis-1 and cis-1,2 products taking into account all experimental data and calculations.

Fig. 11 The proposed mechanism for the formation of PC₆₁PF compounds in either cis-1 or cis-1,2 configuration.

The mechanism of formation of the cis-1 product proceeded via 1,3-dipolar cycloaddition of azomethine ylide to cis-1 bond of the C₆₀ derivative (Fig. 11). This reaction, known as the Prato reation, is commonly observed in the literature but usually proceeds without regioselectivity.^23,24 In order to achieve the cis-1,2 product outcome, the 1,3-dipolar cycloaddition would be required to occur at the [5,6] bond between the cis-1 and cis-2 positions (Fig. 11).^21,22 This open cage intermediate cis-1,2-IM would then be converted to the close cage intermediate via a hydride transfer reaction. Further protonation would lead to the cis-1,2 product. It is feasible that the hydride source is from the fullerene aldehyde substrate leading to a fullerene amide by-product. This proposal is in agreement with the observed product yields. A reaction with deuterated DIBAL reagent was performed in an attempt to gather further evidence for the proposed mechanism (see ESI, Fig. S18†). In agreement with the azomethine ylide formation mechanism, the H₅ proton on the pyrrolidine ring was deuterated. However, deuteration was not observed for either the H₁₇ or H₁₈ on the fullerene surface. It was found that the acidity of H₁₇ and H₁₈ was such that there was facile proton exchange under the reaction conditions (Fig. S19†). Attempts were made to identify intermediates and by-products from the reaction mixture using mass spectrometry. While some relevant fragments were observed, these experiments did not provide conclusive evidence for the proposed reaction mechanism.

Conclusions

The regioselective synthesis of three fullerene derivatives was presented. Starting from commercially available PC₆₁BM, the multi-adducts were obtained via reduction of the methyl ester followed by 1,3-dipolar cycloaddition of the azomethine ylide in one pot. While the yields were moderate, intriguing regioselectivity variations were observed when different amino acid reagents were used. With a range of NMR methods, UV-Vis spectroscopy and electrochemical analysis, it was possible to confidently assign the configurations of the isolated regioisomers N-hexyl PC₆₁PF-1 (cis-1), N-hexyl PC₆₁PF-2 (cis-1,2) and N-phenyl PC₆₁PF (cis-1). The relative configurations for N-hexyl PC₆₁PF-2 was confirmed by single crystal X-ray analysis. Mechanism for the product formation was proposed with the aid of DFT calculations and deuterium exchange experiments.

Acknowledgements

This work was made possible by support from the Australian Renewable Energy Agency which funds the project grants within the Australian Centre for Advanced Photovoltaics. WWHW is supported by an Australian Research Council Future Fellowship (FT130100500). Responsibility for the views, information, or advice herein is not accepted by the Australian Government. We thank Dr Lars Goerigk for providing advice on the DFT calculations.
