Gold-catalyzed allene cycloisomerization for pyrrole synthesis: towards highly fluorinated BODIPY dyes

Abstract

A novel synthetic strategy toward highly fluorinated BODIPY dyes with exceptional photostabilities relying on sustainable gold catalysis has been developed. A key to the tailored pyrrole precursors is the gold catalysis performed in ionic liquids as the reaction medium, allowing a facile recycling of the catalysts. The dyes prepared are well-matching with the spectral windows of popular rhodamine dyes and possess high brightness while showing a distinctly higher photostability than the rhodamines especially in aprotic solvents.

---

Introduction

Sustainable metal catalysis has attracted general attention during the last few years. Meanwhile also for gold catalysis powerful sustainable methods are known.¹ The use of ionic liquids (ILs) or micelles as the reaction medium enables the stabilization of catalysts, preventing their undesired reduction to metallic gold. Previously, the unique stability and recyclability of these catalyst solutions were demonstrated.²

Novel sustainable synthetic routes are often a key to success in advancing compounds of a certain class of specialty chemicals, for instance with unprecedented substitution patterns or improved reaction yields. In this regard, boron–dipyrromethene (BODIPY) dyes as one of the fastest growing classes of dyes³ are very attractive targets. The popularity of BODIPY dyes is rooted in their outstanding absorption and fluorescence properties and high photo- and chemical stabilities, having resulted in a wide variety of applications. Besides bioimaging,⁴ fluorescent indicators,⁵ photodynamic therapy,⁶ and organic photovoltaics,⁷ highly fluorinated BODIPYs have been recently found to constitute a very promising class of multifunctional labeling agents.⁸ One of the bottlenecks for novel BODIPYs is the availability of tailor-made pyrroles which constitute their core building blocks.

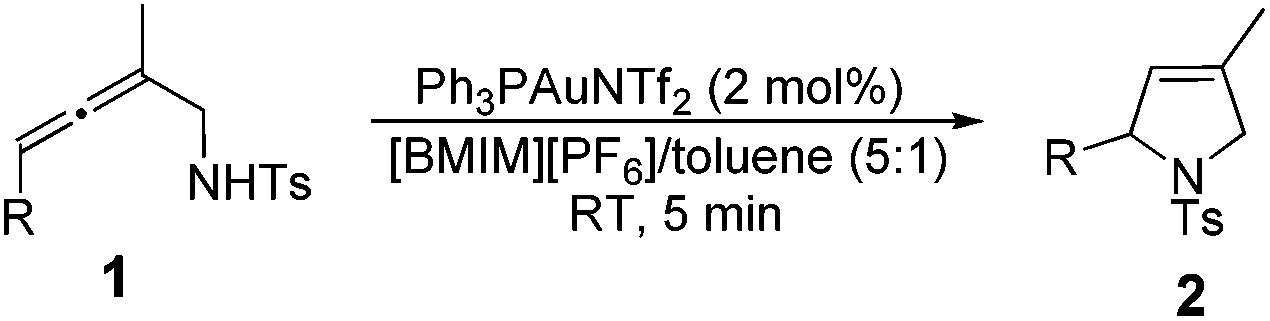

The expertise of our groups in sustainable metal catalysis² and the development of high-performance dyes⁹ prompted us to embark on a collaborative approach toward new fluorinated BODIPY dyes 4 by gold-catalyzed cycloisomerization of α-aminoallenes 1 to 2,5-dihydropyrroles 2 in ionic liquids (Scheme 1). Although fluorinated BODIPYs possess many promising features, only a very limited number of fluorinated BODIPYs is known in the literature.^8,10 Furthermore, the synthesis of pyrroles by cyclization reactions allows extensive structural variation and represents a valuable alternative compared to common strategies.¹¹

Scheme 1 Synthesis of BODIPY dyes.

Results and discussion

The cycloisomerization was carried out in ionic liquids (Tables 1–3). Different gold catalysts and ionic liquids were examined for this purpose (Scheme 2).

Scheme 2 Gold catalysts and ionic liquids used in this work.

Table 1 Influence of ionic liquids on the gold-catalyzed cycloisomerization of α-aminoallene 1a

Entry	Ionic liquid	A (mol%)	T (°C)	t (h)	Conv.^a (%)
a Conversion was determined by ^1H-NMR spectroscopy.
1	[BMIM][PF6]	1	25	24	100
2	[BMIM][PF6]	2	25	2	100
3	[BMIM][PF6]	2	60	0.25	100
4	[BMIM][HSO4]	2	60	0.25	100
5	[EMIM][HSO4]	2	60	1	100
6	[BMIM][HSO4]	—	60	24	0
7	[EMIM][HSO4]	—	60	24	0
8	[BMIM][BF4]	2	25	24	0
9	[EMIM][BF4]	2	25	24	0

---

Table 2 Influence of the gold catalyst on the cycloisomerization of α-aminoallene 1a in [BMIM][PF₆]

Entry	[Au]	Additive	t	Conv.^a (%)
a Conversion was determined by ^1H-NMR spectroscopy. b Toluene (ca. 20 vol%) was added. c Reaction temperature of 50 °C.
1	A	—	2 h	100
2	AuBr3	—	48 h	30
3	Ph3PAuNTf2	—	1 h	100
4^b	Ph3PAuNTf2	—	5 min	100
5	Ph3PAuCl	AgSbF6	1 h	100
6	Ph3PAuCl	—	24 h	0
7	B	AgSbF6	30 min	100
8	B	—	24 h	0
9^b	B	AgSbF6	5 min	100
10^c	B	AgSbF6	10 min	100
11	—	AgSbF6	24 h	20

---

Table 3 Recycling of the catalyst/solvent system

Entry	Allene	Run	Yield^a (%)
a Isolated yield. b 12% of 1a was recovered.
1	1a	1	91
2	1a	2	91
3	1a	3	98
4	1a	4	95
5	1a	5	80^b
6	1b	1	90
7	1b	2	92

---

The cyclization conditions were optimized with allene 1a and cationic gold catalyst A (Table 1). Best results were achieved with [BMIM][PF₆] and [BMIM][HSO₄].

With 1 mol% of catalyst A in [BMIM][PF₆], complete conversion was observed after 24 h, while 2 mol% led to a shorter reaction time of 2 h (entries 1 & 2). The acidic ILs [BMIM][HSO₄] and [EMIM][HSO₄] were used at 60 °C to attain a lower viscosity. Short reaction times of 15 min and 1 h were obtained (entries 4 & 5), which are comparable to [BMIM][PF₆] at the same temperature (entry 3). The acidic ILs do not mediate the cycloisomerization in the absence of the gold catalyst (entries 6 & 7).^12,13 In [BMIM][BF₄] and [EMIM][BF₄] no reaction was observed after 24 h at RT (entries 8 & 9). This may be due to a limited solubility of the gold catalyst in these more hydrophilic ionic liquids.

Allene 1a and ionic liquid [BMIM][PF₆] were used for screening the gold catalyst (Table 2). Except for AuBr₃ (entry 2), all catalysts examined gave short reaction times between 30 min and 2 h (entries 1, 3, 5 & 7). Both precatalyst B and Ph₃PAuCl were transformed into the corresponding cationic gold species with AgSbF₆. Without the addition of a silver salt no reaction was observed (entries 6 & 8), whereas the silver salt alone induces only a very slow cyclization (entry 11). Beside the possibility of warming up (entry 10), the addition of a certain amount of toluene to form a solvent film led to decreased reaction times of 5 min (entries 4 vs. 3, 9 vs. 7). This acceleration is probably caused by the two-phasic character of the reaction mixture. While the catalyst/solvent system is a viscous solution, the allene is a solid and affords an emulsion during the reaction. The toluene seems to act as a phase-transfer agent. These conditions were chosen for recycling experiments (Table 3).

Previous investigations with AuBr₃ in [BMIM][PF₆] showed an extremely low catalyst leaching using hexane as an extraction solvent.^2a The pyrrolines 2 are not soluble in nonpolar solvents like hexane. Unfortunately, polar solvents like Et₂O cause a dramatic catalyst leaching. Therefore, the recycling was tested for 1a with toluene as the extraction solvent and Ph₃PAuNTf₂ as the gold catalyst. Excellent reactivity was observed over four runs (Table 3, entries 1–4). In all runs, the reactions were stopped after 5 min, leading to quantitative conversions and high yields. A loss of reactivity was observed in the fifth run (entry 5), causing a lower yield of 80% (12% of allene 1a were also recovered). Allene 1b was cyclized under similar conditions with 90% yield in 5 min (entry 6). A second run was carried out with a similar result (entry 7).

The cyclization products are converted into pyrroles using KOtBu in THF (Scheme 1).¹⁴ According to common strategies, these were directly used in the BODIPY synthesis.^10a In contrast to the literature method, however, oxidation times were extended and a second complexation step was employed, finally providing the dyes in good yields of 68 and 70%.

The molecular structures of 4a,b were determined by single-crystal X-ray diffraction analysis and the corresponding molecular configurations are shown in Fig. 1. Selected crystallographic data and structure refinement parameters are listed in Table S1.† The observed geometric parameters of all crystal structures are generally comparable to those of other BODIPYs.¹⁵4a crystallizes in a monoclinic space group and 4b in a triclinic space group with similar crystal packing. There are no significant interactions like hydrogen bonds or π–π interactions in the crystal lattice of both dyes. Only a weak π–π interaction occurs in 4a with a plane-to-plane distance of 4.34 Å between the same pyrrole rings (N1, C1, C2 ,C3, C4) of two neighbouring pyrromethene fragments of the BODIPY core.

Fig. 1 ORTEP representation of 4a (left) and 4b (right) with atomic labeling shown with 30% probability displacement ellipsoids.

The BODIPY skeleton formed by three conjugated heterocyclic rings is almost planar, with an rms deviation of 0.1260 and 0.1016 for 4a and 4b. Due to steric repulsion of the methyl groups attached to C1 and C7, the pentafluorophenyl moiety is strongly twisted out of the BODIPY mean plane, with dihedral angles of 88.35(05)° for 4a and 76.73(10)° for 4b, which is as expected more pronounced than for 1,7-H- and 3,5-diaryl-substituted dyes.^10e,15c An overlay of the two molecular configurations shows the differences in molecular conformation, i.e., the arrangement of the substituents attached at C3 and C5 (Fig. S1†). Whereas in 4b the two phenyl rings are almost parallel with a dihedral angle of 28.09(22)°, the angle amounts to 86.24(07)° in 4a. Because the arrangement of the molecules is head-to-tail, the short contacts from the pentafluorophenyl ring to the phenyl rings at C3,5 lead to a bowl-like conformation of 4a (Fig. 2). Such a bowl-type arrangement of head-to-tail aligned 3,5,8-phenyl-substituted BODIPYs has also been very recently reported by Wakamiya.^15c

Fig. 2 Short contacts in 4a lead to a bowl-like conformation.

The spectroscopic properties of 4a and 4b are comparable with very little dependence on the solvent. The spectral envelopes shown in Fig. 3 resemble classical BODIPY features. The high fluorescence quantum yields (Φ_f > 0.85), long fluorescence lifetimes (τ_f ∼ 5.5 ns) and high absorption coefficients (ε_λmax ∼ 50000 M^–1 cm^–1), independent of solvent polarity and proticity, distinguish the dyes as bright emitters (comprehensive spectroscopic data of 4a,b are shown in the ESI†). Compared to their parent dye, 8-pentafluorophenyl-1,7,3,5-tetramethyl-BODIPY that carries methyl groups instead of the trifluoromethylphenyl residues on the 3,5-positions,⁸ the absorption maxima are shifted by ca. 40 nm and the absorption bands are significantly broadened. The Stokes shifts are increased from ca. 300 to 1000 cm^–1. In view of the color rules for BODIPY π-system substitution,¹⁶ these changes can be attributed to the extension of the fluorophores’ π-system with the additional trifluorophenyl moieties and their enhanced rotational freedom. The comparatively small spectral differences between 4a and 4b despite the introduction of two additional CF₃ groups in the first one are tentatively ascribed to the enhanced steric hindrance in the case of 3,5-phenyl substitution on the BODIPY core.¹⁷ That results in considerable (average) torsion angles around the C1–C1′ bond 〈θ_{C2–C1–C1′–C2′}〉 = 39° for 4a and 38° for 4b (for the atom numbering pattern, see Scheme 1, bottom panel) and hence reduced electronic coupling between the BODIPY core and phenyl rings, diminishing the electron withdrawing effect of these substituents. These experimental findings are well reflected by quantum chemical calculations employing the density functional theory (DFT) method, revealing differences in the S₁←S₀ transition in the gas phase of only ca. 5 nm (Table S2, ESI†). The latter are also the only oscillator-strong transitions in the 350–500 nm region for both dyes, involving HOMO and LUMO which are both centered almost exclusively on the 3,5-diphenyl-dipyrrin fragments for 4a,b (Fig. S2, ESI†). Furthermore, with the corresponding triplet transitions being shifted for ca. 1.25 eV, the theoretical studies fully support the favorable spectroscopic properties found experimentally.

Fig. 3 Absorption and fluorescence spectra of 4a (black) and 4b (red) in ethanol; the corresponding spectra of rhodamine 101 (blue) are included for comparison.

Dyes 4a and 4b absorb and emit in the green visible range, matching well the spectral region of prominent rhodamine dyes such as rhodamine 101, 6G, B or TRITC¹⁸ and fitting perfectly to the output of green laser sources (e.g., the prominent 532 or 543 nm lasers, Fig. 3). Compared to rhodamines the zwitterionic yet net uncharged BODIPYs are commonly well soluble in organic solvents across the entire polarity range,^3,19 broadening the areas of applications and offering potent alternatives to the search for hydrophobic rhodamine derivatives.²⁰ The most important feature of the newly synthesized fluorinated BODIPYs 4a,b with regard to application is their excellent photostability, in particular when used in aprotic solvents. Fig. 4 exemplarily combines the photobleaching curves of 4a,b and rhodamine 101 upon irradiation at 532 nm.

Fig. 4 Photobleaching curves for irradiation at 532 nm (1 W laser power) in acetonitrile (4a: orange, 4b: blue, rhodamine 101: red) and ethanol (4a: magenta, 4b: green, rhodamine 101: black).

Conclusions

In the work presented here, two highly fluorinated and photo-stable BODIPY dyes with excellent spectroscopic properties have been prepared via gold catalysis in ionic liquids. While the use of sustainable gold catalysis is often strictly limited to the applied system, the possibility of recycling the catalyst solution was extended to more challenging allenes. Here, [BMIM][PF₆] was found to be an excellent solvent system for gold catalysis and recycling. The fluorinated dyes possess an enormous potential for further applications such as functional group labeling or the staining of lipophilic compartments, for instance in cell imaging. Current work in our laboratories is directed toward both the synthesis of other functional BODIPYs and the application of the title dyes.
