Asymmetric induction by retgersite, nickel sulfate hexahydrate, in conjunction with asymmetric autocatalysis

Abstract

Retgersite, nickel sulfate hexahydrate, forms a chiral crystal with space group P4₁2₁2 or P4₃2₁2. A chiral crystal of nickel sulfate hexahydrate was found to act as a chiral initiator of asymmetric autocatalysis, affording highly enantiomerically enriched pyrimidyl alkanols with the corresponding absolute configurations.

---

The origin of biological homochirality is of great interest to the scientific community and several possible origins of homochirality have been proposed.¹ Chiral inorganic crystals are considered to be one possible origin of homochirality because the inorganic minerals are considered to have existed widely on Earth before the emergence of life.^2,3 Metal sulfates are one of the most abundant minerals on Earth, and the sulfate and metal ions are symmetric achiral ions.

Retgersite, nickel sulfate hexahydrate, is a naturally occurring mineral and exhibits enantiomorphism. Nickel sulfate forms various hydrate salts such as hexahydrate and heptahydrate depending on the crystallization conditions. The relatively stable α-form of hexahydrate has a chiral structure. The hexahydrate crystal 1, crystallized at 31.5–53.3 °C,⁴ has a bright blue-green colour and has absorption bands in the visible light region; the optical properties of the crystal have been studied, including the chiral optical properties such as ORD and CD.⁵ The absolute structure, analyzed by X-ray and ORD spectra, of 1 was first reported in 1987 and the detailed chiral optical properties of the crystal were studied recently by Asahi et al.⁶ The chiral optical properties of the chiral crystal of achiral nickel sulfate have thus attracted broad interest. However, to the best of our knowledge, usage of the chirality of NiSO₄·6H₂O in chemical reactions has not been realized. In this paper, we report asymmetric induction using chiral crystals of nickel sulfate hexahydrate in conjunction with asymmetric autocatalysis (Scheme 1).

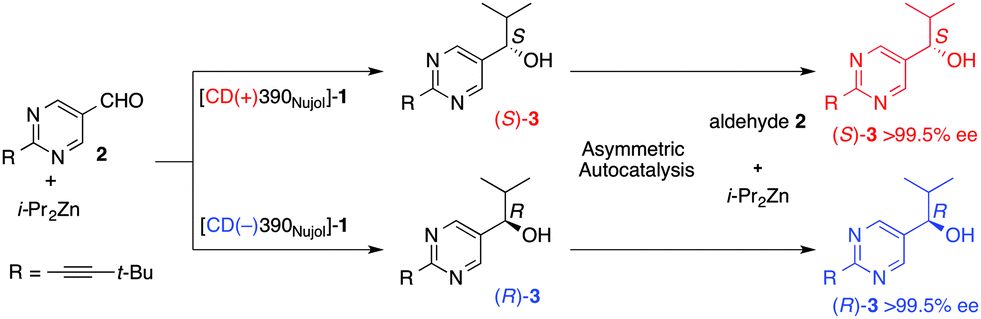

Scheme 1 Asymmetric induction by chiral nickel sulfate hexahydrate and asymmetric autocatalysis.

Asymmetric autocatalysis is the reaction in which the product acts as an asymmetric catalyst for the reaction to form a product with the same structure and absolute configuration. We have been studying the asymmetric autocatalytic reaction of the pyrimidyl alkanols with amplification of enantiomeric excess.^7–9 By using asymmetric autocatalysts, we have reported that various inorganic¹⁰ and organic¹¹ crystals act as chiral triggers for the asymmetric autocatalysis. Herein, we report that the chiral nickel sulfate hexahydrate crystal triggers asymmetric autocatalysis.

The chiral single crystal of nickel sulfate hexahydrate was obtained by recrystallization. NiSO₄·6H₂O 1 (25 g) was dissolved in distilled water (33 mL) at 70 °C and was kept for 12 h and water was allowed to evaporate for 2–3 d at above 31.5 °C in a Petri dish to give a crystal of NiSO₄·6H₂O 1 of ca. 2 cm size (Fig. 1). The solid state CD spectrum was measured with the powdered crystal of 1 in Nujol. Although the base line of the obtained CD spectrum was not flat due to the anisotropy of the crystal powders, a distinguishable signal was observed around the 390 nm region (Fig. 2b). The chirality of the crystal was determined by the CD spectrum in the 390 nm region and confirmed by the X-ray single crystal diffraction analysis using the Flack parameter (Fig. 2a).^12,13 The P4₁2₁2 crystal exhibits the negative Cotton effect at 390 nm, and the P4₃2₁2 crystal exhibits the opposite positive Cotton effect at 390 nm.^5,6

Fig. 1 (a) Single crystal of NiSO₄·6H₂O 1; (b) ground powder-like crystal of NiSO₄·6H₂O 1.

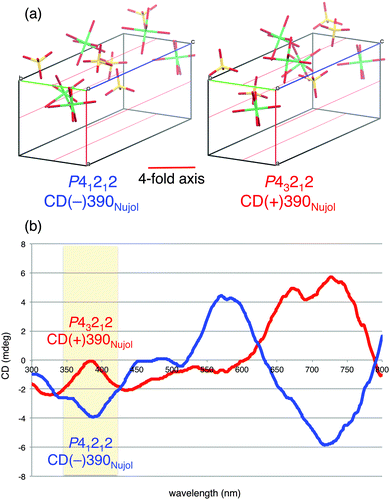

Fig. 2 (a) Crystal structure of NiSO₄·6H₂O; (b) CD spectrum of the NiSO₄·6H₂O (powder, Nujol mull).

Using these chiral crystals of NiSO₄·6H₂O 1 as chiral initiators, asymmetric autocatalysis of diisopropylzinc (i-Pr₂Zn) and pyrimidine-5-carbaldehyde 2 was performed.¹⁴ Thus, the chiral crystal of NiSO₄·6H₂O 1 was ground with agate and mortar, then it was mixed immediately with pyrimidine-5-carbaldehyde 2 and used in the reaction before the progress of the dehydration of the crystal. By adding i-Pr₂Zn slowly, addition reaction was performed in combination with asymmetric autocatalysis with amplification of enantiomeric excess (ee). After purification, the enantiomeric excess of the formed pyrimidyl alkanol 3 was determined by HPLC using a chiral column.

The results are summarized in Table 1. As shown in entry 1, (S)-pyrimidyl alkanol 3 was obtained in the presence of a chiral crystal of NiSO₄·6H₂O with the positive Cotton effect at 390 nm [CD(+)390_Nujol]. On the other hand, (R)-3 was obtained in the presence of a chiral crystal of NiSO₄·6H₂O with the negative Cotton effect [CD(−)390_Nujol] (entry 2). Although the yields and ees were not so high probably due to the heterogeneous conditions with the existence of crystallization water, the sense of enantioselectivity exhibits good reproducibility for the several different crystal samples. It should be noted that the ee of the formed alkanol 3 was amplified to be nearly enantiomerically pure (>99.5% ee) during the subsequent asymmetric autocatalysis (entries 1 and 2).

Table 1 Asymmetric autocatalysis initiated by NiSO₄·6H₂O 1

Entry	Crystal 1	Pyrimidyl alkanol 3		Amplification of ee by asymmetric autocatalysis^c
	CD390 nmNujol	Yield (%)	ee^d (%)	Yield (%)	ee^d (%)	Configuration
a Reaction conditions: molar ratio, 1 : 2 : i-Pr2Zn = 16 : 1 : 3 in toluene at 0 °C, and additional 2 : i-Pr2Zn = 2 : 4 and 8 : 16 were added stepwise. b Reaction conditions: molar ratio, 1 : 2 : i-Pr2Zn = 32 : 1 : 9 in toluene at 0 °C, and additional 2 : i-Pr2Zn = 2 : 12 and 8 : 48 were added stepwise. c Asymmetric autocatalytic reaction with the obtained alkanol after removing NiSO4·6H2O. d The ee value was determined using HPLC on a chiral stationary phase. HPLC conditions: CHIRALPAK IB (4.6 mm ∅ × 250 mm), 5% 2-propanol in hexane, 1.0 mL min^−1, 254 nm, r.t., retention time (min) 10.3 for (S)-3, 13.9 for (R)-3. e After additional 2 to 5 rounds of asymmetric autocatalytic reaction.
1^a	(+)	27	3	77	50 (>99.5)^e	S
2^a	(−)	28	3	72	37 (>99.5)^e	R
3^a	(+)	81	9	72	28	S
4^a	(+)	27	2	78	76	S
5^a	(+)	27	5	74	95	S
6^a	(−)	37	6	80	91	R
7^b	(+)	14	4	85	53	S
8^b	(−)	30	4	73	68	R

---

We have demonstrated, by using asymmetric autocatalysis of pyrimidyl alkanols, that the chiral natural mineral of retgersite NiSO₄·6H₂O induces the chirality of the chiral organic compound with high ee. These results suggest that common inorganic sulfate minerals on Earth may be considered to be the origin of chirality of the chiral organic compounds.

Acknowledgements

This work has been financially supported by the Grant-in-Aid for Scientific Research from the Promotion of Science (JSPS KAKENHI grant numbers 26810026 & 15H03781) and the MEXT-Supported Program for the Strategic Research Foundation at Private Universities, 2012–2016.

Notes and references
