A novel aminotriazole-based NHC complex for the design of gold(I) anti-cancer agents: synthesis and biological evaluation†

T. V. Serebryanskaya *^ac, A. A. Zolotarev ^b and I. Ott *^a
^aInstitute of Medicinal and Pharmaceutical Chemistry, Technische Universität Braunschweig, Beethovenstrasse 55, 38106 Braunschweig, Germany. E-mail: ingo.ott@tu-bs.de
^bInstitute of Earth Sciences, Saint Petersburg State University, University Emb. 7/9, 199034 Saint Petersburg, Russian Federation
^cInstitute of Chemistry, Saint Petersburg State University, Universitetsky Pr. 26, 198504 Stary Petergof, Russian Federation. E-mail: t.serebryanskaya@chem.spbu.ru

Received 28th April 2015 , Accepted 12th May 2015

First published on 13th May 2015

Abstract

A novel gold(I) complex based on an aminotriazole N-heterocylic carbene ligand represents a promising scaffold for the design of anticancer bioorganometallics. The complex triggered cytotoxic effects in HT-29 and MDA-MB-231 cancer cells, inhibited the activity of the enzyme thioredoxin reductase and showed an effective and fast cellular accumulation.

Besides their frequent and successful application in chemical catalysis, N-heterocyclic carbene (NHC) ligands represent a conveniently tunable and very fruitful platform for the design of new biologically active metal complexes and, in particular, highly potent gold(I)-based antiproliferative agents.¹ The high biological activities of many gold NHC complexes have been established and their impact on cellular biochemistry and enzyme activities has been studied.² Based on convenient access through standard synthetic methods, the majority of the biologically studied complexes contain NHC ligands obtained from imidazole or benzimidazole, while the biological properties of other types have been explored less intensively. Accordingly, this now triggers an increasing demand for the extension of the structural diversity of the coordinated NHC ligands. Recent examples where this issue has been addressed include bioactive 1,2,3-triazoles,³ heteroleptic pyrazoles,⁴ N/S–NHC complexes⁵ or several metal–NHC-(bio)conjugates.^2i,3,6 With the aim of extending the structure–activity relationships of the gold(I)–NHC pharmacophore, we present here the synthesis and biological evaluation of a novel aminotriazole-based NHC gold(I) complex, namely bis(1-tert-butyl-4-(tert-butylamino)-1,2,4-triazol-5-ylidene) gold(I) perchlorate (3 in Scheme 1).

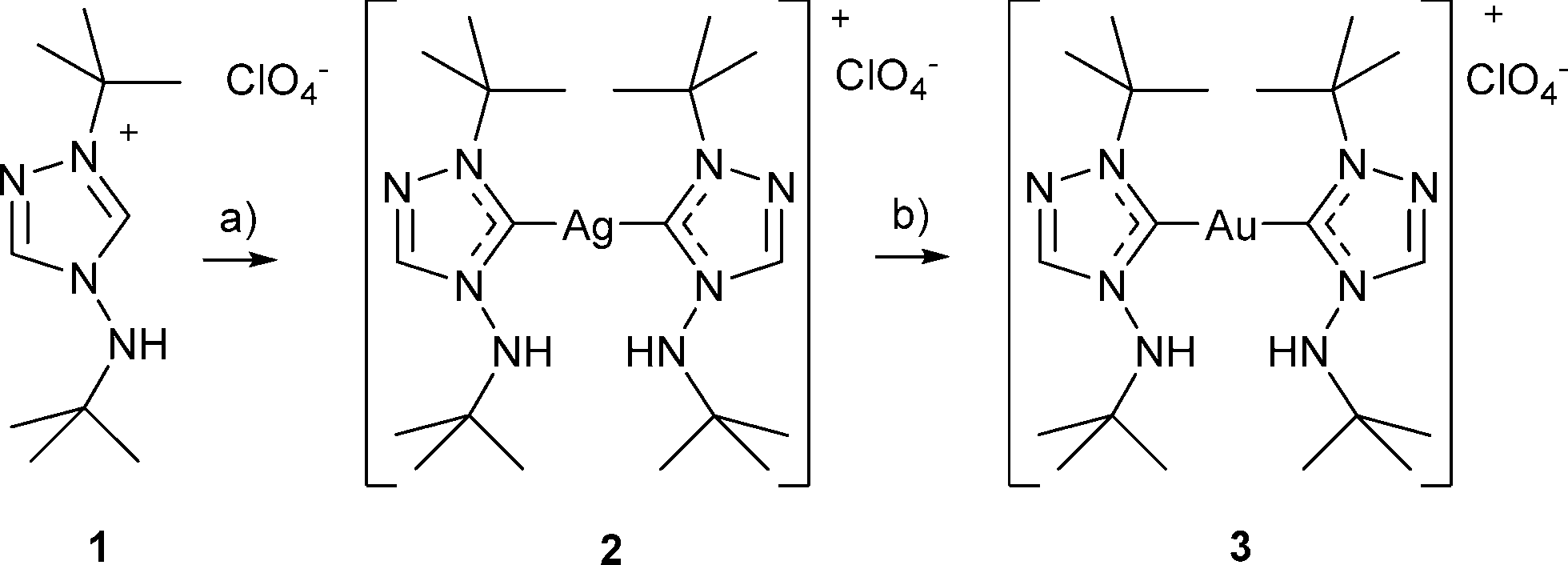

	Scheme 1 Synthesis of triazole-based silver(I) and gold(I) NHC complexes; a) Ag₂O, K₂CO₃; b) (CH₃)₂SAuCl.

The 1,2,4-triazolium perchlorate 1 was synthesized by excessive tert-butylation of 4-amino-1,2,4-triazole in acidic media according to a previously reported method.⁷ NHC complexes 2 and 3 were obtained using a modified silver(I) oxide procedure proposed by Wang and Lin⁸ (see Scheme 1).

According to the literature,^1f,9 azolium salts containing weakly coordinating counterions such as PF₆⁻, BF₄⁻, or ClO₄⁻ often do not react directly with Ag₂O and the presence of an additional base such as NaOH is required. Some reports claim that a source of halide (for instance, trialkylammonium chloride) is also necessary for the reaction to proceed.^1f,9 Due to this fact, a modification of the method by Wang and Lin has been recently proposed by Monkowius et al. allowing the smooth generation of Ag(NHC)₂Y (Y = PF₆, SF₆, or ClO₄) from the corresponding imidazolium salt, using AgCl and an excess of KOH.^9b Referring to the established equilibrium between (NHC)AgX and [Ag(NHC)₂]AgX₂ in solution, the authors argued that AgCl was required as a source of chloride ion and postulated the formation of the (NHC)AgCl species as intermediates. Later, this procedure has been also applied for the synthesis of two homoleptic silver(I) carbene complexes derived from 1,2,4-triazolium perchlorate salts.¹⁰

Similar to the above mentioned results, we found that the triazolium salt 1 does not react with Ag₂O in CH₂Cl₂solution. However, the addition of other bases such as K₂CO₃ or Na₂CO₃ enabled the generation of the NHC complex. Particularly, treatment of 1 with Ag₂O in the presence of 2 equiv. of K₂CO₃ in dry CH₂Cl₂ resulted in the formation of 2 with a good yield (88%). Complex 2 was isolated and characterized by elemental analysis, IR and NMR (¹H and ¹³C) spectroscopy.‡ The preparation of single crystals of 2 was impossible due to its sensitivity to light. For this reason, 2 was kept in the dark and utilized for the synthesis of the gold(I) complex in a timely manner. Gold(I) NHC complex 3 was obtained from 2 using the standard transmetallation procedure^1g and (CH₃)₂SAuCl was the source of gold. Its composition and structure was confirmed by elemental analysis, HRESI mass spectrometry, IR and NMR (¹H and ¹³C) spectroscopy, and single crystal X-ray analysis.§ The results of the elemental analyses and HRESI MS are in good agreement with the proposed structures. The ESI⁽⁺⁾ mass spectrum of 3 exhibits one intensive peak corresponding to the [Au(NHC)₂]⁺ion. Coordination of the NHC ligand was confirmed by the ¹H and ¹³C NMR spectra of the complexes (see Fig. S1–S4 in the ESI†). Particularly, the ¹H NMR spectra of 2 and 3 lack the signal of the C(5)H proton that is observed at 9.74 ppm in the spectrum of the triazolium salt 1.⁷ The formation of the metal–carbon bond also leads to a significant (up to 38 ppm) downfield shift of C(5) resonances in comparison with the spectrum of the precursor salt (145.3 ppm). The ¹³C NMR spectrum of 3 displays a singlet resonance at 183.2 ppm, whereas in the spectrum of silver(I) complex 2 the carbenecarbon appears as a doublet of doublets due to fully resolved coupling to both silver isotopes [¹J(¹³C–¹⁰⁷Ag) = 190.3 Hz; ¹J(¹³C–¹⁰⁹Ag) = 219.5 Hz], which can be quite rarely observed experimentally.^1f,9a Besides, the C(3) triazole endocyclic carbon also appears as a doublet due to ³J(C–^107/109Ag) coupling (5.9 Hz). The observed chemical shifts and ¹J(C–^107/109Ag) coupling constants fall in the range previously described for [Ag(NHC)₂]⁺ complexes.^1f,9a,10,11

Complexes 2 and 3 exhibit almost identical mid-IRspectra indicating their similar structures. For instance, the spectra of both complexes display intensive broad bands at ca. 1100 and 620 cm⁻¹ assigned to ν_as(ClO₄) stretching and δ(ClO₄) deformation vibrations, respectively, of the uncoordinated perchlorate ion.¹² Thermal stability of 3 was additionally studied by TG/DSC analysis. The complex was found to be stable up to 220–230 °C, its melting at 228–229 °C being followed by a two-step endothermal decomposition at 250–270 °C. The molecular and crystal structure of 3 was additionally confirmed by single crystal X-ray study, however only with low resolution (see Fig. S5 and Tables S1–S3†).

Many gold(I)-based NHC complexes, both neutral and cationic, are known as effective tumor cell growth inhibitory and pro-apoptotic agents that are able to trigger cell deathvia inhibition of the enzyme thioredoxin reductase (TrxR), induce reactive oxygen speciesformation, and cause antimitochondrial activities and other antitumoral effects.^{1a,2a–d,g,h,k} In order to evaluate the key biological properties of the aminotriazole NHC complex 3, we determined its antiproliferative effects in two selected cancer cell lines (namely, HT-29 colon carcinoma and MDA-MB-231 breast adenocarcinoma) and its effectivity as an inhibitor of TrxR.

Complex 3 demonstrated good cytotoxic effects in both cell lines with IC₅₀ values in the low micromolar range (2.1 ± 0.0 μM in the HT-29 and 1.0 ± 0.0 μM in the MDA-MB-231 cells). This is in good agreement with previous studies using imidazole and benzimidazole-based cationic [Au(NHC)₂]⁺ complexes in the same assay, which afforded IC₅₀ values in a comparable range.¹³ The precursor triazolium perchlorate 1 was used as a negative control and, as expected, showed no antiproliferative activity in concentrations up to 100 μM. Complex 3 also showed moderate TrxR inhibition activity with an IC₅₀ value of 1.2 ± 0.6 μM as measured in the DTNB reduction assay, again comparable with the other [Au(NHC)₂]⁺ complexes.¹³ Importantly, TrxR is considered to be one of the most important biological targets of Au^I-based drugs.^{2a,c,d,13a,14}

Cellular gold uptake was assessed using high resolution continuum source atomic absorption spectroscopy (HR CS AAS) and measured in the HT-29 cells exposed to 2.0 μM (approx. IC₅₀ value) or 10 μM of 3 for a period of 1, 4 or 8 h. The results of the experiment are given in Fig. 1 as nanomole of Au per milligram of protein. The respective values of intracellular molar gold concentrations were obtained based on certain biophysical parameters of the HT-29 cells.¹⁵ According to the results, complex 3 led to very high cellular gold levels of up to 450 μM upon incubation with 10 μM, corresponding to an approximately 45-fold cellular accumulation with respect to the extracellular medium. Since levels after 1 and 4 hours were comparable, it can be concluded that the complex was quickly taken up by the cells. This was followed by decreased cellular gold levels after 8 h, and this effect was in particular highly pronounced with the concentration close to the IC₅₀ value of cytotoxicity (2.0 μM). In general, the values are within the same order of magnitude as observed recently with a cationic biscarbene NHC complex, which had reached cellular gold levels (in the MCF-7 breast adenocarcinoma cells) in the range of 1.0–1.5 nmol mg⁻¹ at an exposure concentration of 3.0 μM.^13a However, in these previous experiments, stable gold levels were observed.

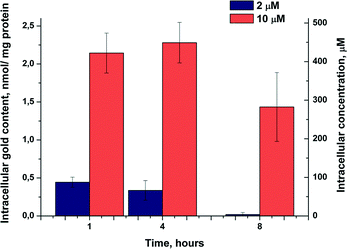

	Fig. 1 Cellular gold content of HT-29 cells exposed to 2.0 μM or 10 μM of gold(I) complex 3.

Conclusions

Complex 3 was synthesized via the silver(I) oxide route and was fully characterized using spectroscopic and structural methods. According to the results of the biological evaluation, it showed marked antiproliferative activity against HT-29 and MDA-MB-231 tumor cell lines with IC₅₀ values in the low micromolar range (1–2 μM) and good to moderate activity as inhibitor of TrxR. Cellular uptake studies showed a fast and efficient accumulation in HT-29 cells that was followed by decreased gold concentrations after 8 h. This pattern could be attributed to the fast uptake related to the cationic charge and lipophilic nature of 3 and a subsequent excretion of gold, which might be the consequence of active transport processes or metabolism. Of note, the enhanced excretion of gold is less evident at higher concentration above the IC₅₀ value of cytotoxicity (10 μM) when cell homeostasis is strongly affected by the toxic effects.

The aminotriazole moiety of 3 is of particular interest since it displays certain possible advantages for metallodrug development. First, with its N-amino group it represents a comparably hydrophilic NHC core that could be used in the design of novel bioactive gold bioorganometallics and might overcome common solubility issues. Secondly, it could also be speculated that this NH group next to the NHC might facilitate additional interactions with the molecular targets of the complex. And thirdly, in comparison with the much more frequently studied imidazole-based carbenes, NHC ligands based on other heterocycles, particularly 1,2,4-triazole derivatives, may show altered electronic properties and donor ability.¹⁶

Concerning the structure–activity relationships, the following conclusions can be drawn: 1) the expected impact of the gold center was clearly established as 3 was active against tumor cell growth in contrast to the metal free 1, and 2) the mode of drug action of 3 is likely dominated by the combination of the gold-based inhibition of TrxR and the antimitochondrial effects related to the cationic nature of the compound, as it has also been observed with other complexes of this general type.^1a,2b,g,13a

Acknowledgements

The postdoctoral fellowships for T. V. S. by the DAAD (Deutscher Akademischer Austauschdienst) and Saint Petersburg State University (grant 12.50.1560.2013) is gratefully acknowledged. The HRESI MS and X-ray diffraction studies were performed at the Center for Chemical Analysis and Materials Research and at the Research Center for X-ray Diffraction Studies of St. Petersburg State University.

Notes and references

(a) L. Oehninger, R. Rubbiani and I. Ott, Dalton Trans., 2013, 42, 3269 RSC; (b) F. Cisnetti and A. Gautier, Angew. Chem., Int. Ed., 2013, 52, 11976 CrossRef CAS PubMed; (c) A. Gautier and F. Cisnetti, Metallomics, 2012, 4, 23 RSC; (d) W. Liu and R. Gust, Chem. Soc. Rev., 2013, 42, 755 RSC; (e) L. Mercs and M. Albrecht, Chem. Soc. Rev., 2010, 39, 1903 RSC; (f) J. C. Lin, R. T. Huang, C. S. Lee, A. Bhattacharyya, W. S. Hwang and I. J. Lin, Chem. Rev., 2009, 109, 3561 CrossRef CAS PubMed; (g) K. M. Hindi, M. J. Panzner, C. A. Tessier, C. L. Cannon and W. J. Youngs, Chem. Rev., 2009, 109, 3859 CrossRef CAS PubMed; (h) M. N. Hopkinson, C. Richter, M. Schedler and F. Glorius, Nature, 2014, 510, 485 CrossRef CAS PubMed.
(a) A. Pratesi, C. Gabbiani, E. Michelucci, M. Ginanneschi, A. M. Papini, R. Rubbiani, I. Ott and L. Messori, J. Inorg. Biochem., 2014, 136, 161 CrossRef CAS PubMed; (b) X. Cheng, P. Holenya, S. Can, H. Alborzinia, R. Rubbiani, I. Ott and S. Wölfl, Mol. Cancer, 2014, 13, 221 CrossRef PubMed; (c) P. Holenya, S. Can, R. Rubbiani, H. Alborzinia, A. Jünger, X. Cheng, I. Ott and S. Wölfl, Metallomics, 2014, 6, 1591 RSC; (d) R. Rubbiani, L. Salassa, A. de Almeida, A. Casini and I. Ott, ChemMedChem, 2014, 9, 1205 CrossRef CAS PubMed; (e) T. Zou, C. T. Lum, C.-N. Lok, W.-P. To, K.-H. Low and C.-M. Che, Angew. Chem., Int. Ed., 2014, 53, 5810 CrossRef CAS PubMed; (f) T. Zou, C. T. Lum, S. S.-Y. Chui and C.-M. Che, Angew. Chem., Int. Ed., 2013, 52, 1 CrossRef PubMed; (g) J. L. Hickey, R. A. Ruhayel, P. J. Barnard, M. V. Baker, S. J. Berners-Price and A. Filipovska, J. Am. Chem. Soc., 2008, 130, 12570 CrossRef CAS PubMed; (h) E. Schuh, C. Pflüger, A. Citta, A. Folda, M. P. Rigobello, A. Bindoli, A. Casini and F. Mohr, J. Med. Chem., 2012, 55, 5518 CrossRef CAS PubMed; (i) B. Bertrand, L. Stefan, M. Pirrotta, D. Monchaud, E. Bodio, P. Richard, P. Le Gendre, E. Warmerdam, M. H. de Jager, G. M. Groothuis, M. Picquet and A. Casini, Inorg. Chem., 2014, 53, 2296 CrossRef CAS PubMed; (j) L. Boselli, I. Ader, M. Carraz, C. Hemmert, O. Cuvillier and H. Gornitzka, Eur. J. Med. Chem., 2014, 85, 87 CrossRef CAS PubMed; (k) A. Nandy, S. K. Dey, S. Das, R. N. Munda, J. Dinda and K. D. Saha, Mol. Cancer, 2014, 13, 57 CrossRef PubMed; (l) M. Baron, S. Bellemin-Laponnaz, C. Tubaro, M. Basato, S. Bogialli and A. Dolmella, J. Inorg. Biochem., 2014, 141, 94 CrossRef CAS PubMed.
S. D. Köster, H. Alborzinia, S. Can, I. Kitanovic, S. Wölfl, R. Rubbiani, I. Ott, P. Riesterer, A. Prokop, K. Merz and N. Metzler-Nolte, Chem. Sci., 2011, 3, 2062 RSC.
(a) H. Sivaram, J. Tan and H. V. Huynh, Dalton Trans., 2013, 42, 12421 RSC; (b) H. Sivaram, J. Tan and H. V. Huynh, Organometallics, 2012, 31, 5875 CrossRef CAS.
A. Gutiérrez, M. C. Gimeno, I. Marzo and N. Metzler-Nolte, Eur. J. Inorg. Chem., 2014, 2512 CrossRef PubMed.
(a) A. Meyer, L. Oehninger, Y. Geldmacher, H. Alborzinia, S. Wolfl, W. S. Sheldrick and I. Ott, ChemMedChem, 2014, 9, 1794 CAS; (b) J. K. Muenzner, B. Biersack, H. Kalie, I. C. Andronache, L. Kaps, D. Schuppan, F. Sasse and R. Schobert, ChemMedChem, 2014, 9, 1195 CrossRef CAS PubMed.
S. V. Voitekhovich, A. S. Lyakhov, L. S. Ivashkevich, V. E. Matulis, Y. V. Grigoriev, P. N. Gaponik and O. A. Ivashkevich, Tetrahedron, 2012, 68, 4962 CrossRef CAS PubMed.
H. M. J. Wang and I. J. B. Lin, Organometallics, 1998, 17, 972 CrossRef CAS.
(a) J. C. Garrison and W. J. Youngs, Chem. Rev., 2005, 105, 3978 CrossRef CAS PubMed; (b) M. Kriechbaum, J. Hölbling, H.-G. Stammler, M. List, R. J. F. Berger and U. Monkowius, Organometallics, 2013, 32, 2876 CrossRef CAS.
J. Turek, Z. Růžičková and A. Růžička, Inorg. Chem. Commun., 2014, 48, 103 CrossRef CAS PubMed.
J. Turek, I. Panov, P. Svec, Z. Ruzickova and A. Ruzicka, Dalton Trans., 2014, 43, 15465 RSC.
K. Nakamoto, Infrared and Raman Spectra of Inorganic and Coordination Compounds. Part B: Applications in Coordination, Organometallic and Bioinorganic Chemistry, John Wiley & Sons, Inc, Hoboken, New Jersey, 2009 Search PubMed.
(a) R. Rubbiani, S. Can, I. Kitanovic, H. Alborzinia, M. Stefanopoulou, M. Kokoschka, S. Monchgesang, W. S. Sheldrick, S. Wolfl and I. Ott, J. Med. Chem., 2011, 54, 8646 CrossRef CAS PubMed; (b) R. Rubbiani, E. Schuh, A. Meyer, J. Lemke, J. Wimberg, N. Metzler-Nolte, F. Meyer, F. Mohr and I. Ott, Med. Chem. Commun., 2013, 4, 942 RSC.
(a) A. Bindoli, M. P. Rigobello, G. Scutari, C. Gabbiani, A. Casini and L. Messori, Coord. Chem. Rev., 2009, 253, 1692 CrossRef CAS PubMed; (b) A. Casini, C. Gabbiani, F. Sorrentino, M. P. Rigobello, A. Bindoli, T. J. Geldbach, A. Marrone, N. Re, C. G. Hartinger, P. J. Dyson and L. Messori, J. Med. Chem., 2008, 51, 6773 CrossRef CAS PubMed; (c) S. Gromer, L. D. Arscott, C. H. Williams, R. H. Schirmer and K. Becker, J. Biol. Chem., 1998, 273, 20096 CrossRef CAS PubMed.
I. Ott, H. Scheffler and R. Gust, ChemMedChem, 2007, 2, 702 CrossRef CAS PubMed.
(a) D. J. Nelson and S. P. Nolan, Chem. Soc. Rev., 2013, 42, 6723 RSC; (b) T. Droege and F. Glorius, Angew. Chem., Int. Ed., 2010, 49, 6940 CrossRef CAS PubMed.

Footnotes

† Electronic supplementary information (ESI) available: materials and methods, examples of NMR spectra, crystallographic results, Fig. S1–S5 and Tables S1–S3. See DOI: 10.1039/c5md00185d

‡ Synthesis of bis(1-tert-butyl-4-(tert-butylamino)-1,2,4-triazol-5-ylidene)silver(I) perchlorate (2); 0.50 mmol (116 mg) of Ag₂O, 1.0 mmol (296 mg) of 1 and 2 mmol (138 mg) of anhydrous K₂CO₃ were suspended in 20 mL of dry CH₂Cl₂. The suspension was stirred under nitrogen atmosphere at RT for 48 h. Then unreacted Ag₂O was filtered off, and the filtrate was evaporated to dryness. The off-white crystalline residue of 2 was kept in the dark. Yield: 266 mg (88%). Anal. Calc. for C₂₀H₄₀AgClN₈O₄: C, 40.04; H, 6.72; N, 18.68. Found: C, 40.28; H, 6.91; N, 18.63%. ¹H NMR [400 MHz, CDCl₃, δ (ppm)]: 8.32 (s, 1H, C(3)H); 5.99 (s, 1H, NH); 1.75 (s, 9H, ^tBu); 1.22 (s, 9H, ^tBu). ¹³C NMR [100 MHz, CDCl₃, δ (ppm), J (Hz)]: 179.5(dd, ¹J(C, ¹⁰⁹Ag) = 219.5, ¹J(C, ¹⁰⁷Ag) = 190.3, C(5)); 143.1 (d, ³J(C, Ag) = 5.9, C(3)); 61.4 (s, C(CH₃)₃); 55.7 (s, C(CH₃)₃); 30.9 (s, CH₃ from ^tBu); 28.1 (s, CH₃ from ^tBu). FT-IR (ν, cm⁻¹): 3287 (vs), 3156 (m), 3135 (m), 3095 (w), 2968 (vs), 2932 (s), 2906 (s), 2872 (s), 1550 (m), 1467 (s), 1412 (s), 1395 (s), 1366 (s), 1303 (m), 1259 (w), 1229 (m), 1205 (s), 1113 (sh), 1067 (vs br), 971 (m), 932 (w), 874 (s), 821 (w), 772 (w), 713 (s), 648 (s), 622 (vs), 592 (s), 543 (w), 463 (m).

§ Synthesis of bis(1-tert-butyl-4-(tert-butylamino)-1,2,4-triazol-5-ylidene)gold(I) perchlorate (3); 0.41 mmol (247 mg) of 2 and 0.40 mmol (118 mg) of (SMe₂)AuCl were dissolved in 20 mL of dry CH₂Cl₂. The solution was stirred under nitrogen atmosphere at RT for 24 h. Then the reaction mixture was filtered, and the filtrate was evaporated to dryness to give colorless crystalline product 3. Single crystals of 3 were obtained from CH₂Cl₂/hexane (1 : 1, v/v). Yield: 252 mg (91%). Anal. Calc. for C₂₀H₄₀AuClN₈O₄: C, 34.84; H, 5.85; N, 16.26. Found: C, 35.04; H, 5.72; N, 16.19%. HRMS (ESI⁺, 100 V, CH₂Cl₂, m/z): 589.3040 [Au(NHC)₂]⁺, (calcd. 589.3041). DSC/TG: 228–229 °C (mp); 257 °C (T_max, endothermal dec.). ¹H NMR [400 MHz, CDCl₃, δ (ppm)]: 8.38 (s, 1H, C(3)H); 5.95 (s, 1H, NH); 1.84 (s, 9H, ^tBu); 1.24 (s, 9H, ^tBu). ¹³C NMR [100 MHz, CDCl₃, δ (ppm), J (Hz)]: 183.2(s, C(5)); 142.9 (s, C(3)); 62.8 (s, C(CH₃)₃); 56.2 (s, C(CH₃)₃); 31.2 (s, CH₃ from ^tBu); 28.1 (s, CH₃ from ^tBu). FT-IR (ν, cm⁻¹): 3287 (s), 3138 (m), 3103 (w), 2969 (s), 2935 (m), 2907 (m), 2874 (m), 1553 (m), 1470 (s), 1413 (s), 1397 (s), 1367 (s), 1307 (m), 1261 (w), 1230 (m), 1203 (s), 1116 (sh), 1067 (vs br), 978 (m), 934 (w), 872 (s), 821 (m), 773 (w), 713 (m), 653 (s), 620 (vs), 592 (s), 547 (w), 465 (m).
