Flow-synthesis of carboxylate and phosphonate based metal–organic frameworks under non-solvothermal reaction conditions

Abstract

A continuous flow reactor was developed for the synthesis of porous metal–organic frameworks (MOFs) under mild reaction conditions. Commodity hardware was used to assemble the device, giving it a great degree of flexibility in its configuration. The use of paraffin to encapsulate reactions and also ultrasonic treatment were employed to prevent clogging of the reactor. Reactor design was optimised through studies of the synthesis of zirconium carboxylate framework UiO-66. Synthesis of the aluminium carboxylate CAU-13 was also performed, to demonstrate the versatility of the device. Finally the reactor was used to synthesise a new cadmium phosphonate framework, bearing the STA-12 network.

---

Introduction

Metal–organic frameworks (MOFs) are composed of organic linkers which join metal ions or clusters, to form networks with potential porosity.¹ The wide diversity of attainable topologies and the possibility of tuning properties through the addition of functional groups to the linkers make permanently porous MOFs candidate materials for applications such as gas storage,² gas separation,³ drug-delivery⁴ or heat-transformation.⁵ Such applications would however require the preparation of large quantities of material⁶ and many MOF syntheses are only reported as small scale batch reactions. The upscaling of such batch reactions can be problematic, requiring much time to be expended on re-optimising the reaction conditions. One method to produce larger quantities would be to use a continuous flow reactor.⁷ Flow reactors are frequently utilized within the field of organic synthesis,⁸ especially for the synthesis of peptide & saccharide oligomers, but also for continuous production of high-value pharmaceuticals.⁹ In inorganic chemistry they have been extensively used for the synthesis of metal chalcogenide and oxide nanoparticles,^10,11 and flow synthesis of MOFs has only been demonstrated for a select range of frameworks (Table S1.1†).^7,12–17 HKUST-1, which readily forms under a wide range of parameters, has been synthesised in flow under both mild (p ∼ ambient; T = 60 °C)¹² and more severe (p = 250 bar; T = 100–400 °C)¹³ reaction conditions. Syntheses in flow of other widely studied frameworks, including CPO-27,¹³ MIL-53(Al),⁷ MIL-88B(Fe)¹⁷ and UiO-66,^15,16,18 have been reported relatively recently. It should be noted that, with the exception of MIL-88B(Fe) and HKUST-1, all other flow synthesis studies were performed under solvothermal reactions conditions, i.e. at temperatures above the boiling point of the reaction solvent and thus under increased pressure. Furthermore, to date there has only been one report of a new MOF synthesised in a flow reactor, Ce₅(BDC)_7.5(DMF)₄.¹⁹

Herein we describe the development of a flow reactor for the synthesis of MOFs under mild reaction conditions and its application to the synthesis of the known frameworks, UiO-66²⁰ ([Zr₆O₄(OH)₄(BDC)₆], BDC = 1,4-benzenedicarboxylate) and CAU-13²¹ ([Al(OH)(CDC]·1.5H₂O, CDC = trans-1,4-cyclohexane-dicarboxylate). In addition we were also able to prepare a new metal phosphonate, [Cd₂(H₂O)₂L]·xH₂O (H₄L = N,N′-piperazinebis(methylenephosphonic acid), which is a new member of the STA-12 family of compounds.²²

Experimental

X-ray crystallography

Initial characterisation was performed using a Stoe Stadi P diffractometer fitted with an xy-stage, in transmission geometry using Cu K_α1 radiation and with data collected by an image plate detector. Powder X-ray diffraction (PXRD) patterns for Pawley fitting and Rietveld refinement were measured with a Stoe Stadi P diffractometer in transmission geometry using Cu K_α1 radiation and with data collected using a Mythen detector.

Data analysis for all three compounds was performed using the TOPAS-Academic V5 suite.²³ The PXRD patterns of all three compounds were indexed and subsequently Pawley fits were performed to confirm the unit cell parameters as obtained from the indexing routine. For STA-12(Cd), the profile parameters, unit cell and space group were used as the starting point for a Rietveld refinement. STA-12(Mn)²² was used as the initial model for the refinement, with Mn²⁺ replaced by Cd²⁺. Restraints were applied to all coordinative bonds around the Cd²⁺ ion and also to all bonding distances within the organic ligand. After several cycles of refinement of the framework, all pore water molecules were removed and new positions were determined from Fourier difference maps. Occupancies of these sites were then refined. In the final cycles of refinement, framework and water positions were refined together with isotropic displacement parameters.

Physical measurements

Infrared spectra were recorded on a Bruker ALPHA-P A220/D-01 FTIR spectrometer fitted with an ATR unit, over the spectral range 4000–400 cm⁻¹. Thermogravimetric analysis was carried out using a NETSCH STA 429 CD analyser with a heating rate of 4 K min⁻¹ and under flowing air (flow rate 75 ml min⁻¹) or a TA Instruments TGA Q500 with a heating rate of 5 K min⁻¹ and under flowing air (60 ml min⁻¹). Elemental analysis was performed using a EuroVector EuroEA elemental analyser. NMR spectroscopy was performed using a Bruker DRX 500 spectrometer. Scanning Electron Micrographs were collected using an FEI Quanta FEG 600 electron microscope, whilst N₂ sorption isotherms were recorded at 77 K with a BELSORP-max apparatus (BEL Japan Inc.).

Results & discussion

Design of the flow reactor

The flow reactor was designed to be easy to set up whilst having sufficient flexibility to allow a wide variety of reaction parameters to be investigated, including molar ratios and heating method (ESI S3†). The device is built up from two syringe pumps, which contain respectively the metal salt and the organic linker in solution (Fig. 1 and S3.1†). In cases where the amount of precipitate causes the reactor to block, a third pump can be added, to pump a transport medium (e.g. paraffin) to encapsulate the reaction as droplets in flow.²⁴ Additionally an ultrasonic probe can be used to both improve mixing and also to prevent clogging of the reactor.

Fig. 1 Schematic of the flow reactor in a two pump configuration, showing the hotplate and oil bath in which the coil of PTFE tube forming the reactor is immersed.

Solutions are combined by pumping along PTFE tubing to mixers, which in the simplest form of the system are either three way Y-connectors or four way X-connectors. From these mixers, the solution flows into the reactor itself, a coil of PTFE tubing immersed in an oil bath for heating. The length and internal diameter of this tube, in combination with the total pumping rate, determine the reaction time, whilst the molar ratio of the reaction is determined by varying the pumping rate of each pump individually (ESI S3†).

Zirconium terephthalate UiO-66

Zr-based UiO-66 ([Zr₆O₄(OH)₄(BDC)₆]) is one of the most intensively studied MOFs and thus was selected for the initial test of the reactor. Initial reaction conditions were chosen to mimic the reported batch syntheses (ZrCl₄ : H₂BDC = 1 : 1, 120 °C, 24 h).²⁵ The first attempts utilised a two syringe pump set-up, with one pump loaded with ZrCl₄ in DMF and a second containing H₂BDC in DMF (Table 1). However, this design led to precipitates forming in the tube and clogging of the reactor. The design was then modified to add a third syringe containing either DMF or paraffin as a transport medium to prevent clogging.²⁴ Amounts of solid obtained with the additional DMF were found to be too low, whilst with paraffin, although more solid was recovered, isolation of the UiO-66 product could only be achieved by repeated washing steps with dichloromethane or toluene, which resulted in significantly lower yields. BET surface area values were also found to be significantly lower than literature values (Table 2). The reactor configuration was therefore changed again, back to a two pump set-up, with an ultrasonic probe fitted which improves mixing of the reagents and most importantly prevents clogging of the reactor (Table 1). Following optimisation of the synthesis conditions, highly-crystalline, phase pure UiO-66 could be obtained using a molar ratio of 1 : 3 (Zr⁴⁺ : H₂BDC) at 120 °C in just 45 min.

Table 1 Summary of the reaction conditions tested for the synthesis of UiO-66, using the two syringe (top), three syringe (middle) and two syringe with ultrasonic probe (bottom) reactor configurations

Reactor volume/ml	ZrCl4 flowrate/ml min^−1	H2BDC flowrate/ml min^−1	Transport^a flowrate/ml min^−1	Temp./°C	Time/min	Ultra sound
						Cycle	Amplitude
a A transport medium in addition to the reaction solvent, used to prevent clogging of the reactor. b This reaction produced the most crystalline and phase pure UiO-66, which is further analysed in this work. This is equivalent to a reaction ratio of 1 : 3 (ZrCl4 : H2BDC).
16.87	0.094	0.281	—	120	45	—	—
16.80	0.070	0.210	—	120	60	—	—
14.45	0.040	0.120	0.161 (Para.)	120	45	—	—
16.83	0.047	0.140	0.187 (DMF)	130	45	—	—
16.87^b	0.094	0.281	—	120	45	0.25	100%
16.80	0.070	0.210	—	120	60	0.25	100%

---

Table 2 Comparison of the synthesis conditions and specific surface areas (a_BET) of UiO-66 samples prepared in this work with reported syntheses in batch and flow reactions

Flow/batch	Zr : BDC : HCl	Temp./°C	Time/min	a BET/m^2 g^−1	Ref.
a This is the maximum aBET expected for the ‘ideal’ framework.
Batch	1 : 1 : 0	120	1440	1187	20
Batch	2 : 1 : 2	220	1200	1105^a	27
Flow	1 : 1 : 0	130	10 + 2 days	1186	15
Flow	1 : 1 : 1	140	15	1059	16
Flow	1 : 3 : 0	120	45	1263	This work

---

Characterisation

The phase purity of the UiO-66 material was confirmed by Pawley fitting of the laboratory powder X-ray diffraction (PXRD) data. A good fit to the data was obtained, however in addition to the expected UiO-66 reflections, two symmetry forbidden reflections were also observed (Fig. 2). These have been attributed to lower symmetry defect rich regions incorporated within the perfect UiO-66 structure.^26,27

Fig. 2 Pawley fit of UiO-66 obtained from a flow reactor in a two-syringe configuration. Cell refined to a = 20.7367(4) Å (space group: Fm3̄m; R_wp = 5.59%, χ² = 3.644), consistent with reported lattice parameters.²⁰ Green arrows indicate forbidden reflections.

Given the low reaction temperature, the presence of defects in flow reactor prepared UiO-66 is unsurprising. Evidence for their presence is also found from TGA, EDX and adsorption experiments. TGA data (Fig. S4.3†) found a cluster : linker ratio of 1 : 3.5, significantly lower than the ideal 1 : 6 ratio of perfect UiO-66.²⁷ Defects have previously been linked to lower thermal stability of UiO-66, however TGA data (Fig. S4.3†) indicate our material is stable to in excess of 400 °C. Samples of the material were activated for adsorption measurements (220 °C, p < 10⁻² kPa, 12 h) and these were found by elemental analysis to still contain nitrogen, which may indicate that missing linker sites are partially occupied by DMF molecules.²⁵ Chloride ions occupying these sites have also been suggested, and EDX measurements indicate the presence of up to two chloride ions per zirconium in our sample.²⁷ The presence of defects in the structure influences the BET surface area (1263 m² g⁻¹), which is significantly higher than the surface area of the defect-free compound (1125 m² g⁻¹) (Fig. 3).²⁷

Fig. 3 N₂ adsorption and desorption isotherms measured at 77 K on samples of UiO-66 produced in a two-pump (ultrasonic probe; green & red traces) and three-pump (paraffin transport; orange & blue traces) flow reactor.

We also provide a comparison of the surface areas of other flow reactor prepared UiO-66 materials (Table 2). The presence of defects is potentially beneficial for applications in catalysis.²⁸

Aluminium cyclohexanedicarboxylate CAU-13

To demonstrate the versatility of the flow reactor set-up for the preparation of a variety of different MOFs, the synthesis of CAU-13 ([Al(OH)(CDC]·1.5H₂O) was investigated.²¹ The reported batch synthesis of CAU-13 is performed using a 1 : 1 AlCl₃·6H₂O : H₂CDC molar ratio, and a 4 : 1 (vol.) DMF : water mixture, which is heated at 130 °C for 12 hours. As these conditions would lead to a build-up of pressure, the synthesis was modified to use pure DMF as the solvent (Table S5.1†). A two syringe pump set-up was again chosen. One syringe was loaded with a 0.5 M AlCl₃·6H₂O in DMF solution and a second with a 0.5 M H₂CDC and 4.5 M acetic acid in DMF solution. Acetic acid was added to act as a modulator, to favour the formation of the –{Al–O–Al–O}– chains. Using a temperature of 130 °C and a reaction time of 20 min, it was possible to prepare microcrystalline CAU-13.

Characterisation

Phase purity was confirmed by Pawley fitting of the PXRD pattern (Fig. 4), with CAU-13 crystallizing in its open form. TGA and elemental analysis results were consistent with the reported CAU-13 composition and the BET surface area was slightly higher than reported (measured: 401 m² g⁻¹; reported: 378 m² g⁻¹) (Fig. 5 and ESI S5.7†).

Fig. 4 Pawley fit of CAU-13 obtained from a flow reactor in a two-syringe configuration. Cell refined to a = 6.6111(4) Å, b = 9.4498(6) Å, c = 9.4652(5) Å, α = 107.652(4)°, β = 107.690(6)° and γ = 93.185(5)° (space group: P1̄; R_wp = 4.71%, χ² = 1.080), consistent with reported lattice parameters.²¹

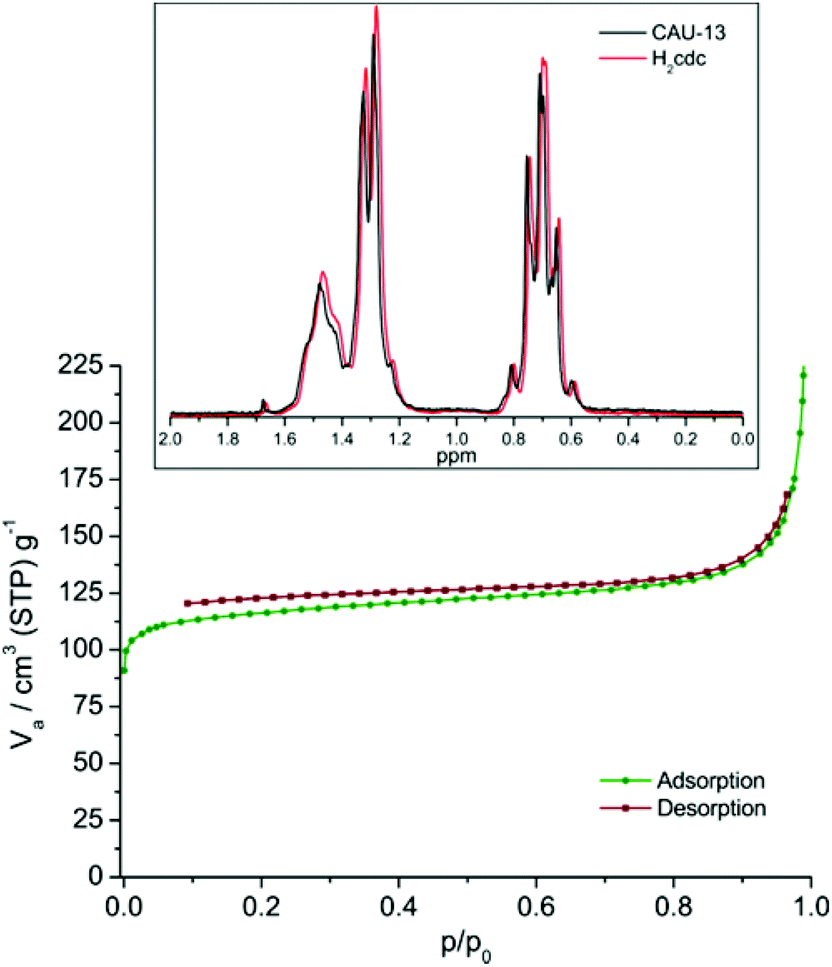

Fig. 5 N₂ adsorption isotherm measured for CAU-13 – a_BET = 401 m² g⁻¹. Inset shows the solution state ¹H NMR spectrum of CAU-13; only resonances attributable to H₂cdc were identified and thus no acetic acid was incorporated.

To determine whether this slight increase in BET surface area was due to the presence of defect sites, occupied by acetic acid modulator from the synthesis, a sample of CAU-13 was digested in base and analysed by solution state NMR. No additional resonances were observed in the spectra (Fig. 5) and thus no additional acetic acid molecules are thought to be incorporated, in agreement with the elemental analysis.

Synthesis scaling

Once the reaction is running, the space time yield for syntheses of UiO-66 and CAU-13 is 428 kg m⁻³ d⁻¹ (yield: 194 mg, 87%) and 3049 kg m⁻³ d⁻¹ (yield: 615 mg, 53%), respectively. Although in this study only product amounts of 200–600 mg per synthesis were obtained, this set-up can be used, in principle, for obtaining larger amounts by running the flow synthesis in a steady state for a longer period of time.

Cadmium phosphonate STA-12(Cd)

Beyond optimization and scaled up synthesis, the flow reactor set-up is well suited for the discovery of new compounds. STA-12 is a porous metal phosphonate framework, obtained with a wide range of divalent metal cations (e.g. Mg, Mn, Fe, Co, Ni),²² however it remains unknown with Cd. STA-12 is usually synthesized with a metal to ligand ratio of 2 : 1 and using reaction conditions of 160–220 °C for 18–72 h in water. Alternative reaction conditions were needed for the synthesis using the flow reactor, as under these hydrothermal conditions, high pressures would be developed. At lower temperature however, the linker, N,N′-piperazinebis(methylenephosphonic acid) (H₄L), is insoluble in water. To overcome this problem, H₄L was neutralized with KOH to form its soluble sodium salt. A 0.1 M aqueous solution of this was loaded into one syringe of a two syringe pump set-up, whilst the other syringe was charged with a 0.1 M metal solution. Reaction conditions, determined from studies of the known compounds STA-12(Co) and STA-12(Ni), were carried out by screening the reaction temperature, time and metal to linker ratios (ESI S6, Table S6.1 and S6.2†).^20,26 The best conditions are a reaction temperature of 70 °C and a M : L ratio of 1 : 2 for STA-12(Co) and 1 : 1 for STA-12(Ni). For the synthesis of STA-12(Cd) the parameters of STA-12(Ni) were chosen and an aqueous solution of Cd(AcO)₂·2H₂O was used. The reaction time was varied between 5–20 min by controlling the total pumping rate (Table S6.3†). Crystallinity increases with greater residence time (up to 15 min – Fig. 6).

Fig. 6 Samples of STA-12(Cd) prepared in the flow reactor with reaction times increasing from 5 to 20 minutes. Dashed box indicates the (140) reflection, which narrows with increasing reaction time, indicating an increase in particle size.

Characterisation

The final product was analysed by PXRD and the structure was confirmed by Rietveld refinement (Fig. 7, left); the final refinement gave R_wp = 6.43%, R_Bragg = 1.56% and χ² = 1.141 (Table S6.4†). STA-12(Cd) was refined in a trigonal unit cell in the space group R3̄ and unit cell parameters of a = b = 27.4100(8) Å c = 6.7279(2) Å. The structure consists of helical Cd²⁺ phosphonate chains, parallel to the c-axis, bridged by piperazinyl linker units, which coordinate the Cd²⁺ ions through the N atoms (Fig. 7, right). The structure differs slightly from previously reported STA-12 frameworks in that the piperazinyl ring plane is in the c-direction, whereas in other structures it is perpendicular.²² STA-12(Cd) is porous to N₂ (Fig. S6.8†), with a pore volume of 0.08 cm³ g⁻¹ and a BET surface area of 134 m² g⁻¹. N₂ uptake is lower than the Co²⁺ and Ni²⁺ compounds, which is partly attributed to the greater mass of the framework forming cation.

Fig. 7 Rietveld plot of STA-12(Cd) (left) obtained from flow reactor and the structure determined (right). The final cycle of refinement gave R_wp = 6.43%, R_Bragg = 1.56% and χ² = 1.141.

Conclusions

We have developed a highly flexible and easy to set up flow reactor system for the preparation of porous MOFs under mild (i.e. sub-solvothermal) conditions, using commodity hardware. Using this device we have demonstrated the synthesis of three MOFs: two reported metal carboxylate compounds (UiO-66 and CAU-13) and a new porous metal phosphonate (STA-12(Cd)), the structure of which was confirmed by Rietveld refinement. All three compounds are porous to N₂ gas, and UiO-66 shows a higher than expected BET surface area, attributed to defects, which may make it interesting for catalytic applications. The flow reactor design should allow simple and cheap scale-up of the syntheses of all three MOFs, making its development significant for industrial applications of this class of compounds.
