Tetraguanidino-functionalized phenazine and fluorene dyes: synthesis, optical properties and metal coordination

Abstract

In this work the first phenazine derivatives with guanidino substituents were prepared and their structural and electronic properties studied in detail. The guanidino groups decrease the HOMO–LUMO gap, massively increase the quantum yield for fluorescence and offer sites for metal coordination. The yellow-orange colored 2,3,7,8-tetraguanidino-substituted phenazine shows intense fluorescence. The wavelength of the fluorescence signal is strongly solvent dependent, covering a region from 515 nm in Et₂O solution (with a record quantum yield of 0.39 in Et₂O) to 640 nm in water. 2,3-Bisguanidino-substituted phenazine is less fluorescent (maximum quantum yield of 0.17 in THF), but exhibits extremely large Stokes shifts. In contrast, guanidino-functionalized fluorenes emit only very weakly. Subsequently, the influence of coordination on the electronic properties and especially the fluorescence of the phenazine system was analysed. Coordination first takes place at the guanidino groups, and leads to a blue shift of the luminescence signal as well as a massive decrease of the luminescence lifetime. Luminescence is almost quenched completely upon Cu^I coordination. On the other hand, in the case of Zn^II coordination the fluorescence signal remains strong (quantum yield of 0.36 in CH₃CN). In the case of strong zinc Lewis acids, an excess of metal compound leads to additional coordination at the phenazine N atoms. This is accompanied by significant red-shifts of the lowest-energy transition in the absorption and fluorescence spectra. Pentanuclear complexes with two phenazine units were isolated and structurally characterized, and further aggregation leads to chain polymers.

---

Introduction

Amino-substituted phenazines and fluorenes are important dyes. Hence the phenazine derivative mauveine (Perkin's dye, which actually was shown to be a mixture of several compounds which differ in the number of methyl groups) was the first commercialized synthetic dye.¹ Although its last commercial use (coloring of British stamps) ended in 1901, mauveine was of great importance for the development of the modern chemical industry.² Other known phenazine dyes include safranin and Neutral red. All these compounds feature amino substituents. The amino functions increase the electron density on the aromatic system and the quantum yield of fluorescence by suppressing nonradiative relaxation processes. There are also other applications that make phenazines attractive for modern chemistry, spanning from organic electronics (phenazines have been integrated in solar cell³ and organic light emitting diode (OLED)⁴ devices) to sensors (e.g. pH⁵ or metal sensing^6,7) and pharmaceutical purposes (especially DNA intercalation). Fluorenes are attractive building blocks in polymers, and polyfluorenes are electrically conductive and electroluminescent.⁸ Hence fluorenes and polymers including fluorene units are intensively applied in OLED devices.⁹ Fluorene and triphenylene derivatives have been integrated into porous covalent organic frameworks with distinct optical and electronic properties.^10,11

The influence of metal coordination on the optical properties of fluorophores was intensively studied in the past.^12,13 Photoluminescent sensors based on the photo-induced electron transfer (PET) mechanism were built by linking fluorophors (through a spacer) to ionophores, which are responsible for metal coordination.^14,15 In its bound state, the ionophore usually forms a chelating complex with the metal ion. For example, for zinc sensing,¹³ the ionophore often contains pyridyl groups.¹⁶ In classical PET probes, the HOMO energy of the free (uncoordinated) ionophore (e.g. “formed” by N donor atom lone pairs) is slightly higher than the relevant orbital energy of the fluorophore, so that intramolecular electron transfer (through the spacer) upon photoexcitation of the fluorophore leads to fluorescence quenching. In the bound (metal coordinated) ionophore the HOMO energy is then drawn down below the fluorophore orbital energy, leading to strong fluorescence. This is termed CHEF (chelation enhanced fluorescence) effect. On the other hand, coordination of transition metals with unpaired electrons such as Cu²⁺ (like coordination of heavy metal ions) generally leads to fluorescence quenching.¹⁷

In this work we report the first phenazine and fluorene derivatives with guanidino substituents, namely 2,3,7,8-tetrakis(tetramethylguanidino)-phenazine (1) and 2,3,6,7-tetrakis(tetramethylguanidino)-fluorene (2). The guanidino groups, which outperform in several aspects the amino groups, fulfil several tasks. They massively increase the quantum yield for fluorescence in the phenazine derivative. In addition, they increase the solubility in organic solvents and also in aqueous solutions, and prohibit, at least to some extent, aggregation processes which could lead to quenching of the fluorescence. Many previous experiments with guanidino-substituted aromatic compounds by our group showed that the guanidino groups increase significantly the HOMO energy and decrease the HOMO–LUMO gap. Last but not least, they offer sites for metal coordination. In this work, the coordination chemistry and optical properties (absorption and emission spectra) will be addressed in particular.

Neutral guanidines as well as guanidinates were shown to be excellent ligands, which were applied in coordination chemistry for manifold purposes.¹⁸ Cu^I complexes of tripodal tris(2-guanidinylethyl)amine ligands were used for the preparation of end-on bonded superoxo-complexes which exhibit a rich chemistry.¹⁹ Other guanidine ligands were used as catalysts, e.g. in lactide polymerization²⁰ or Heck-type reactions.²¹ Generally only the imino-N atom of the guanidine binds to the metal, since the lone-pairs on the amino N atoms are engaged in π-interactions. However, in exceptional cases the amino group also binds to the metal, leading to additional hemilabile metal–ligand bonding which is of interest for catalytic applications.²² A detailed analysis of the guanidine-metal bonding on the basis of a experimental charge-density study revealed σ- as well as π-bonding contributions, in line with the observed elongation of the C=N imino bond upon coordination.²³ Our group recently established guanidino-functionalized aromatic compounds (GFAs) as a new class of strong organic electron donors.^24,25 The Lewis-structures of two representatives, namely 1,2,4,5-tetrakis(tetramethylguanidino)benzene, 3,²⁶ and 2,3,5,6-tetrakis(tetramethylguanidino)pyridine, 4,²⁷ are shown in Scheme 1. According to cyclic voltammetric (CV) experiments, both compounds exhibit a similar electron-donor capacity with an E_1/2 value (in CH₂Cl₂) of −0.76 V versus Fc/Fc⁺ (Fc = ferrocene) for two-electron oxidation. On the other hand, 4 but not 3 could be used in photochemical reductive C–C coupling reactions.²⁸ We have analysed in some detail the effect of alkylation of the pyridine N atom on the electronic properties of 4. Alkylation leads to a red-shift of the lowest-energy electronic transition (LUMO ← HOMO excitation). We show in this work that coordination at the N atoms of the phenazine core of compound 1 also changes the electronic properties.

Scheme 1 The new GFA compounds 1 and 2 and the previously reported GFAs 3 and 4.

Results and discussion

Synthesis and structural characterization

The new GFA 1 was synthesized in a three step reaction starting with 1,2,4,5-tetraamino-benzene. Heating an aqueous solution of 1,2,4,5-tetraamino-benzene·4HCl in the presence of NaOAc (sodium acetate) and under a stream of compressed air gave deep purple-colored 2,3,7,8-tetraamino-phenazine-trihydrochloride, a reaction which was already previously described.²⁹ Then this compound was reacted with activated tetramethyl-urea (the “Vilsmeier” salt 2-chloro-1,1,3,3-tetramethylformamidinium chloride, [ClC(NMe₂)₂]Cl) to yield 1 in the form of an orange-colored solid. Deeply orange-colored crystals suitable for a single-crystal X-ray diffraction analysis were obtained from Et₂O solutions. We also synthesized the corresponding bisguanidine 1,2-bis(tetramethylguanidino)-phenazine, 5 (see Scheme 3), from 1,2-diamino-phenazine (also an orange-colored solid at ambient conditions). The amino precursor to compound 2, namely 2,3,6,7-tetraminofluorene-tetrahydrochloride, was synthesized according to the literature (with minor modifications, see Experimental details) starting with 2,7-dinitrofluorene (see Scheme 2).³⁰ Guanidinylation was again achieved with activated tetramethyl-urea in the presence of NEt₃. The structures of compounds 1, 2 and 5, as derived from single-crystal X-ray diffraction, are visualized in Fig. 1. The imino C=N bond distances adopt characteristic average values of 1.300 Å in 1, 1.293 Å in 2 and 1.317 Å in 5. These values generally increase upon metal coordination (see below). According to ¹H NMR studies the guanidino groups are highly flexible,³¹ so that at room temperature all 48 methyl protons in 1 and 2 and all 24 methyl protons of 5 exhibit the same chemical shift.

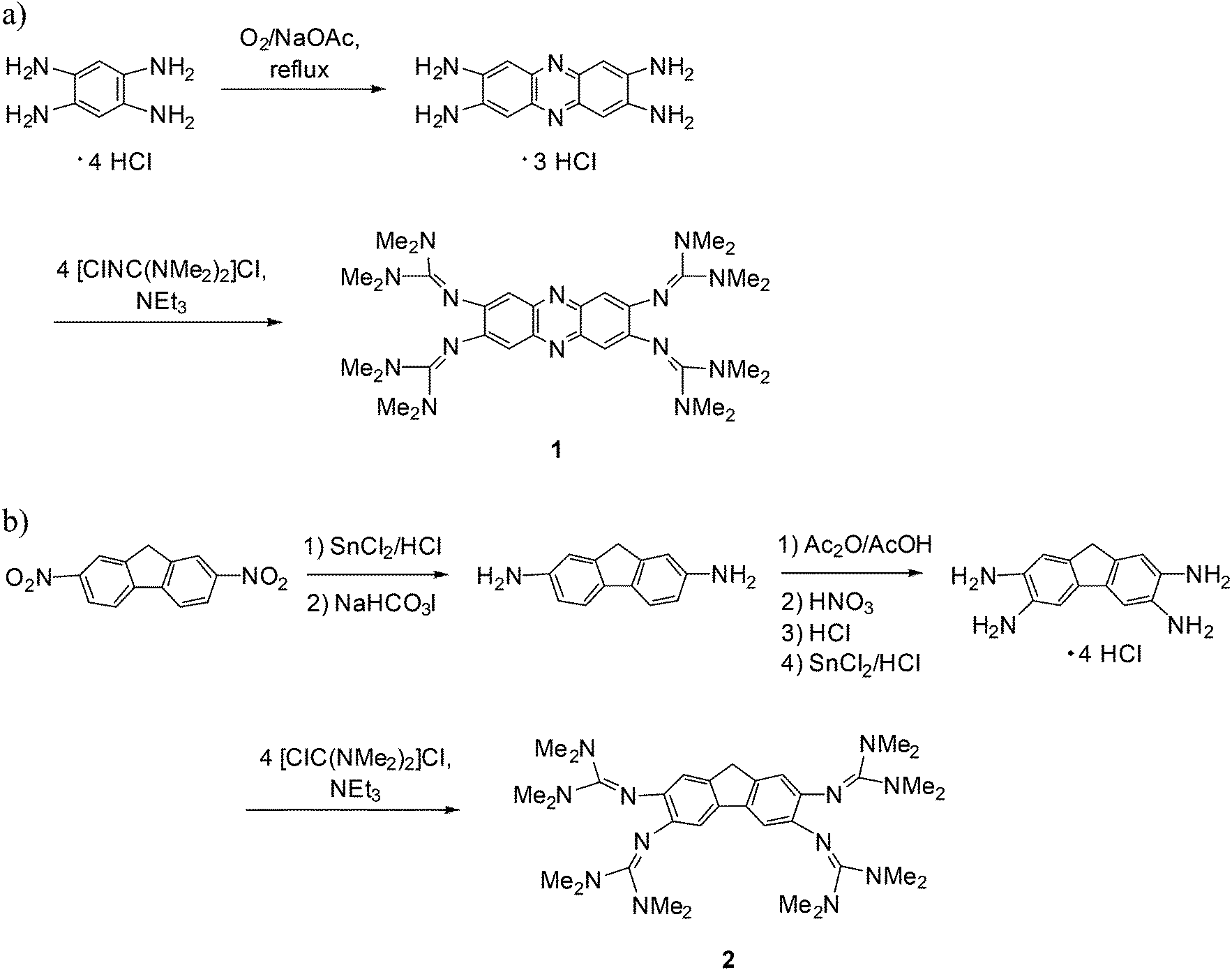

Scheme 2 Synthesis of the new compounds 1 and 2.

Scheme 3 Lewis structure of the new bisguanidine 5.

Fig. 1 Molecular structures of (a) the phenazine derivative 1 and (b) the corresponding bisguandine 5, as well as (c) the fluorene derivative 2. Vibrational ellipsoids drawn at the 50% probability level. Hydrogen atoms omitted for sake of clarity. Selected structural parameters (bond distances in Å, bond angles in °): For 1: N1–C1 1.395(4), N1–C7 1.302(4), N2–C7 1.390(4), N3–C7 1.363(4), N4–C2 1.403(4), N4–C12 1.298(4), N5–C12 1.382(4), N6–C12 1.390(4), N7–C4 1.346(4), N7′–C5 1.354(4), C1–C2 1.457(5), C1–C6 1.382(4), C2–C3 1.371(5), C3–C4 1.426(4), C4–C5 1.435(4), C5–C6 1.417(4), C1–N1–C7 121.4(3), C2–N4–C12 119.0(3). For 5: N1–C1 1.382(4), N1–C13 1.321(4), N2–C13 1.361(4), N3–C13 1.357(4), N4–C12 1.389(4), N4–C18 1.312(4), N5–C18 1.372(4), N6–C18 1.379(4), N1⋯HO1 2.039(4), N7⋯HO2 2.059(3), C1–N1–C13 121.6(3), C12–N4–C18 122.5(3). For 2: N1–C1 1.412(3), N1–C14 1.293(3), N2–C14 1.381(3), N3–C14 1.382(3), N4–C2 1.406(3), N4–C19 1.299(3), N5–C19 1.391(3), N6–C19 1.367(3), N7–C7 1.408(3), N7–C24 1.287(3), N8–C24 1.375(3), N9–C24 1.390(3), N10–C8 1.412(3), N10–C29 1.291(3), N11–C29 1.381(3), N12–C29 1.394(3), C1–N1–C14 119.85(18), C2–N4–C19 119.79(17), C7–N7–C24 123.12(17), C8–N10–C29 121.27(17).

We also measured CV curves to study the redox activity of the new compounds. Fig. S1 (see ESI†) displays the CV curve for compound 1. It contains four oxidation waves, centered at −0.12, 0.08, 0.38 and 0.63 V vs. Fc/Fc⁺ (Fc = ferrocene), showing that the compound could be oxidized at a lower potential than ferrocene. Three reduction waves of different intensity appear at −0.39, −0.23 and 0.24 V. The curve shows that the guanidino groups indeed turn phenazine into an electron donor. On the other hand, they clearly indicate a non-reversible redox behaviour, in contrast to the fully reversible oxidation processes for compounds 3 and 4.^26,27 On the basis of this result, the further discussion focuses on the optical properties rather than the redox-chemistry.

Optical properties

Next we studied the optical properties of the two new GFA compounds 1 and 2 and of bisguanidine 5. Compound 1 turned out to be soluble in several organic solvents and also water, yielding yellow-orange colored solutions. The electronic absorption spectrum of an aqueous solution of 1 is shown in Fig. 2. It contains strong bands at 229, 300 (with a shoulder at 311), 432 and 484 nm. Due to the high basicity of guanidines, a large portion of the molecules is protonated. Addition of HCl to the solution leads to a decrease of the 484 nm band, and an increase of the 432 nm band. Upon addition of 12 equivalents of HCl the 484 nm band is extinguished (see Fig. 2a). On the other hand, addition of NaOH leads to the increase of the band at higher wavelength (the maximum shifts slightly from 484 nm to 493 nm) at the expense of the 432 nm band (Fig. 2b). On the basis of these results we assign the 484 nm band to the unprotonated compound, and the band at 432 nm to the protonated species. The corresponding emission spectra are shown in Fig. 3. Without acid or base addition, the fluorescence quantum yield in water is 0.02. HCl addition leads to fluorescence quenching, and NaOH addition to a massive increase of the fluorescence signal. Hence only the unprotonated, but not the protonated species shows fluorescence. The emission maximum after addition of 10 eq. of HCl is reached at λ_max = 634 nm, leading to a substantial Stokes shift of 4510 cm⁻¹.³² Since the compound offers two different sites for protonation (the N atoms in the phenazine heterocycle and the imino N atom of the guanidino group), we studied protonation in some more detail. Addition of an ammonium salt (NH₄)X (X = PF₆ or BF₄) led to twofold protonation. Crystals of the salt [1H₂](BF₄)₂ were grown and the structural elucidation showed protonation exclusively at the guanidino groups (see Fig. S2 in the ESI†). On the other hand, quantum chemical calculations (B3LYP/6-311G**) predict a preference for the proton to bind to the N atom of the heterocycle. Hence the Gibbs free energy change (at 298 K, 1 bar) for tautomerization of 1H⁺ in the gas-phase according to Scheme 4 was calculated to be −23 kJ mol⁻¹. Similar results were previously obtained for 2,3,5,6-tetrakis(tetramethylguanidino)pyridine, for which protonation at the pyridine N atom is favoured by −24 kJ mol⁻¹ (ΔG value at 298 K, 1 bar).²⁷

Fig. 2 Effect of added HCl (a) and NaOH (b) on the electronic absorption spectra of an aqueous solution of compound 1.

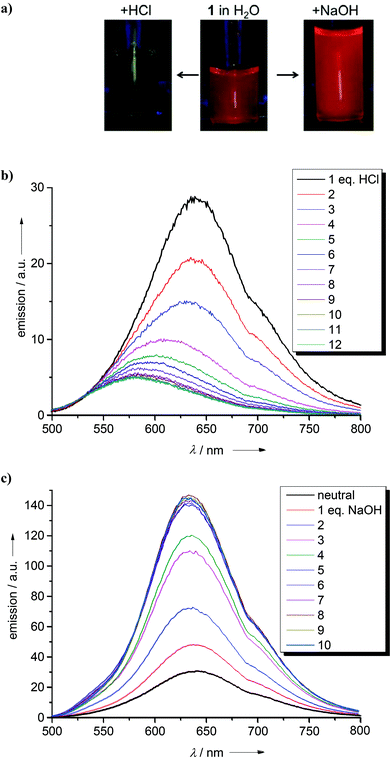

Fig. 3 Effect of added HCl (a) and NaOH (b) on the electronic emission spectra of an aqueous solution of compound 1.

Scheme 4 The two tautomeric forms of 1H⁺ (which presumably are in equilibrium in solution). The structure on the right is more stable in the gas-phase according to quantum chemical calculations, but protonation experiments gave only evidence for protonation at the guanidino groups.

Subsequently we studied the influence of different solvents on the absorption and emission spectra. In Fig. 4a, the light emitted from several solutions, excited with UV light, is visualized. It can be seen that the emission intensity and also the wavelength vary. The intensity is particularly high in Et₂O, for which we determined a quantum yield of fluorescence of 0.39. To the best of our knowledge, this is the highest quantum yield measured for a molecular simple phenazine derivative. For comparison, Safranine O exhibits a quantum yield of 0.06 in H₂O and 0.29 in EtOH,³³ and dipyrido[3,2-a:2′,3′-c]phenazine of 0.009 in CH₂Cl₂.³⁴Fig. 4b shows the absorption and emission spectra (excited at 480 nm) of 1 in CH₃CN and Et₂O. The emission maximum is reached at 515 nm, being thus strongly blue-shifted by more than 100 nm with respect to aqueous solution. The absorption maximum for the corresponding electronic transition is located at 484 nm, at the same position than in H₂O, and thus the Stokes shift in Et₂O solution (2130 cm⁻¹) is much smaller than in aqueous solutions of the compound. For comparison, Fig. 4b also includes the UV/Vis spectrum of unsubstituted phenazine in CH₃CN. The decrease of the HOMO–LUMO gap by the guanidino groups manifests itself in a massive red-shift of the lowest-energy band (located around 363 nm in phenazine, but 484 nm in 1). Table 1 gives an overview over the wavenumbers for absorption and emission and the Stokes shifts in several solvents.

Fig. 4 (a) Photos showing the emission of solutions of compound 1 in different organic solvents. (b) Electronic absorption and emission spectra for solutions of compound 1 in CH₃CN and in Et₂O solution. (c) Calculated HOMO and LUMO energies (B3LYP/6-311G**) of 1 relative to unsubstituted phenazine.

Table 1 Comparison of absorption and emission wavelengths (in nm) and Stokes shifts (in cm⁻¹) for 1, [1(ZnCl₂)₂], 5 and [5(ZnCl₂)₂] and different solvents

Compound	Solvent	λ max, abs	λ max, em	Stokes shift^32
a Only the lowest-energy band is listed.
1	Et2O	302, 444s, 464	515	2130
	CH2Cl2	311, 487	546	2220
	CH3CN	221, 309, 484	568	3060
	H2O	229, 300, 311s, 432, 484	640	5040
	pH ≫ 7	493^a	634	4510
	pH ≪ 7	432^a	583	6000
[1(ZnCl2)2]	CH3CN	228, 316, 458, 484	506	898
	CH2Cl2	228, 319, 459, 486	512	1050
[(1)2(ZnCl2)5]	CH2Cl2	581^a	599	517
5	Et2O	277, 433	568	5490
	CH3CN	233, 276, 393	599	8750
	THF	227, 278, 435	588	5980
[5(ZnCl2)2]	CH3CN	231, 283, 302, 424, 442	514	3170
	THF	231, 286, 304, 425, 445	498	2390

---

At this stage, it appeared to us attractive to compare the optical properties of compound 1 bearing four guanidino groups with that of compound 5 bearing only two guanidino groups. Fig. S3 in the ESI† shows photos of the emission from solutions of 5 in different solvents, excited with UV light, and some representative absorption and emission spectra. Especially intense emission signals were observed in Et₂O and THF. However, the quantum yields of 0.11 determined in Et₂O and 0.17 in THF are smaller than for 1. The lowest-energetic band in the absorption spectrum of 5 (at 393 nm in CH₃CN, 433 nm in Et₂O and 435 nm in THF) is blue-shifted with respect to 1, but still red-shifted with respect to unsubstituted phenazine (363 nm in CH₃CN). This fits with the expectations of a significantly higher HOMO energy in 1 compared with 5. The wavenumber of the emission maximum (568 nm in Et₂O, 599 nm in CH₃CN and 588 nm in THF) is much larger for 5. This leads to large Stokes shifts of 5490 cm⁻¹ in Et₂O, 8751 cm⁻¹ in CH₃CN and 5982 cm⁻¹ in THF. Compound 1 has an average fluorescence lifetime of 4.6(2) ns in CH₃CN, compared to 7.6(6) ns of compound 5 (see Table 2 and Fig. S4†). Interestingly, the average lifetimes are nearly independent of the excitation wavelength in CH₃CN.

Table 2 Comparison of quantum yield Φ, Stokes shifts (in cm⁻¹) and lifetime (in ns) for 1, [1(ZnCl₂)₂], 5 and [5(ZnCl₂)₂] in CH₃CN solutions

Compound	Φ	Stokes shift/cm^−1	Lifetime/ns
1	0.22	3060	4.6(2)
[1(ZnCl2)2]	0.36	898	1.8(4)
5	0.15	8750	7.6(6)
[5(ZnCl2)]	0.08	3170	1.3(5)

---

Finally, we studied the absorption and emission spectra of compound 2. As example, Fig. 5 shows the spectra recorded for a CH₃CN solution. The lowest-energetic electronic transition occurred at 371 nm. The fluorescence signal was only weak (quantum yield below 0.01), with the maximum of emission at 428 nm and a long tail towards higher energies.

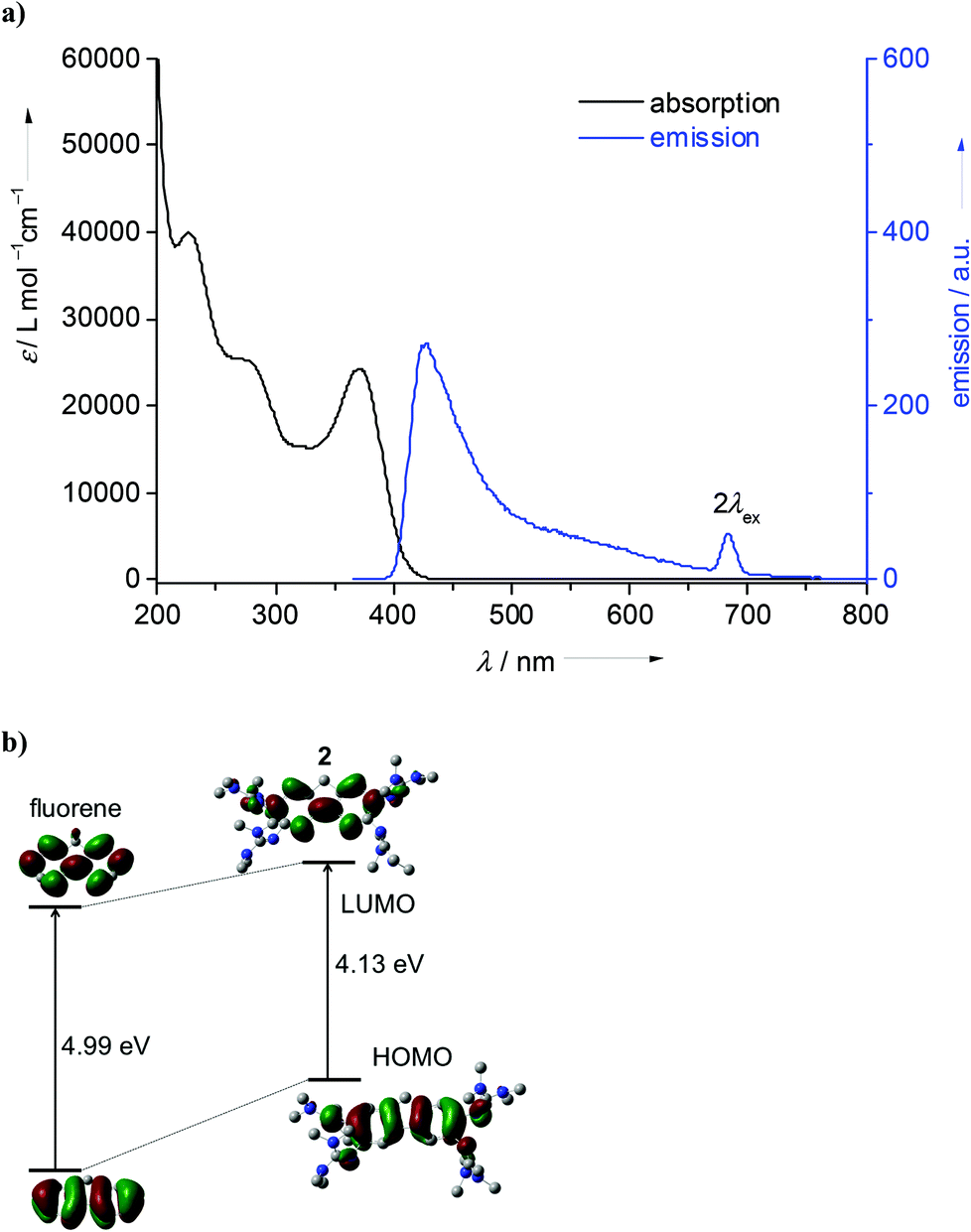

Fig. 5 (a) Electronic absorption and emission spectra for 2 in CH₃CN solution. (b) Calculated HOMO and LUMO energies (B3LYP/6-311G**) of 2 relative to unsubstituted fluorene.

Quantum chemical calculations were carried out to analyse in more detail the influence of the guanidino groups on the shape and energies of the HOMO and LUMO orbitals of phenazine and fluorene. The isodensity surfaces for these orbitals are visualized in Fig. 4c and 5b. It can be seen that the guanidino groups contribute to the HOMO, especially in the case of 1. As expected, they cause a significant increase of the HOMO energies and a less strong increase of the LUMO energy. Consequently, the HOMO–LUMO gap shrinks from 3.66 eV in phenazine to 3.24 eV in 1 and from 4.99 eV in fluorene to 4.13 eV in 2. The decrease of the HOMO–LUMO gap is in line with the observed colour changes and the difference in the lowest-energetic transitions detected in the absorption spectra (484 nm for 1 and 371 nm for 2 in CH₃CN solution). It will be shown below that this band can indeed be assigned to the HOMO–LUMO excitation.

Coordination chemistry

Next we analysed the effect of metal coordination (especially d¹⁰ metal ions) on the optical properties of the new phenazine derivatives. We started our work by comparing the luminescence of a solution of 1 upon addition of various metal salts, and observed quenching of the luminescence signal upon addition of Cu^I salts, but a blue-shift of the signal in the presence of Ag^I or Zn^II salts. To find out more about the coordination of these metals, we carried out more directed experiments. The reaction between compound 1 and 2 eq. of CuI yielded the complex [1(CuI)₂] in a moderate yield of ca. 50%. The lowest energy band in the absorption spectrum (see Fig. S5 of the ESI†) occurred at 493 nm in CH₃CN. This band has a shoulder at 465 nm, which we assign to excitation into an excited vibronic level (due to the difference of 1222 cm⁻¹ and the similar intensity ratios in all experiments). In CH₂Cl₂, the band maximum shifts only slightly to 501 nm. An extremely weak luminescence signal (too weak to determine its quantum yield) was observed at 533 nm in CH₃CN and 519 nm in CH₂Cl₂. Hence the coordination of two Cu^I units caused a sharp decrease of the luminescence signal of compound 1 to almost vanishing point. This is surprising since Cu^I is a d¹⁰ metal ion (like Zn^II and Ag^I), which normally does not lead to luminescence quenching. Often luminescence quenching by Cu^I is explained by disproportionation of Cu^I in solution into Cu^II and Cu. However, our results clearly show coordination of Cu^I. We strictly avoided air contact, so that oxidation of Cu^I to Cu^II could be excluded. In this case, we could not exclude the participation of a triplet state.

Reaction of 1 with two equivalents of ZnCl₂ gave a product which could be identified as the dinuclear complex [1(ZnCl₂)₂]. Fig. 6a displays its structure from single-crystal X-ray diffraction experiments. Again, the absorption spectrum of this complex showed little difference to that of free 1, with the lowest-energetic band measured at 484 nm in CH₃CN and 486 nm in CH₂Cl₂. However, in sharp contrast to the copper complex, the fluorescence signal remained strong. A quantum yield for fluorescence of 0.36 was measured in CH₃CN solution. The quantum yield of free 1 in CH₃CN solution amounts to only 0.22 (see Table 2). The increase of the quantum yield upon zinc coordination might point to the presence of a PET mechanism in free 1, which is removed upon coordination (see the discussion in the Introduction). The emission maximum of [1(ZnCl₂)₂] was reached at 506 nm in CH₃CN and 512 nm in CH₂Cl₂, being significantly blue-shifted with respect to free 1 (568 nm). The Stokes shift decreases upon coordination in CH₃CN from 3060 cm⁻¹ (free 1) to 898 cm⁻¹. At the same time, the average fluorescence lifetime of [1(ZnCl₂)₂] in acetonitrile (1.8(4) ns) is drastically shorter than for 1 (4.6(2) ns) underlining the strong influence of coordination on the optical properties (see Table 2).

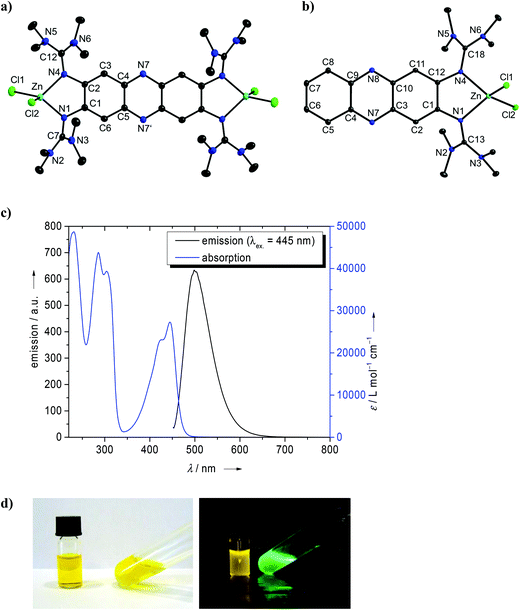

Fig. 6 Molecular structures of (a) [1(ZnCl₂)₂] and (b) [5(ZnCl₂)]. Vibrational ellipsoids drawn at the 50% probability level. Hydrogen atoms omitted for sake of clarity. Selected structural parameters (bond distances in Å, bond angles in °): For [1(ZnCl₂)₂]: Zn–Cl1 2.2238(9), Zn–Cl2 2.2582(8), Zn–N1 2.035(2), Zn–N4 2.039(2), N1–C1 1.408(3), N1–C7 1.342(3), N2–C7 1.338(4), N3–C7 1.356(4), N4–C2 1.409(3), N4–C12 1.334(3), N5–C12 1.344(3), N6–C12 1.359(3), N7–C4 1.351(3), N7′–C5 1.349(3), C1–C2 1.448(4), C1–C6 1.377(4), C2–C3 1.372(4), C3–C4 1.422(4), C4–C5 1.432(4), C5–C6 1.422(4). For [5(ZnCl₂)]: Zn–Cl1 2.2306(8), Zn–Cl2 2.2473(7), Zn–N1 2.031(2), Zn–N4 2.034(2), N1–C1 1.397(3), N1–C13 1.345(3), N2–C13 1.355(3), N3–C13 1.338(3), N4–C12 1.398(3), N4–C18 1.351(3), N5–C18 1.352(3), N6–C18 1.337(3), Cl1–Zn–Cl2 113.49(3), N1–Zn–N4 81.74(8). (c) Absorption and emission spectra measured for [5(ZnCl₂)] in THF solutions. (d) Photos showing the color arising from light absorption and that arising from light emission for [5(ZnCl₂)] solutions in THF. For comparison, each photo also shows the uncoordinated ligand 5. It could be seen that coordination only slightly influences the absorption of light, while the emission is strongly changed.

The corresponding mononuclear complex [5(ZnCl₂)] was also synthesized (see Fig. 6b). As for [1(ZnCl₂)₂], coordination leads to an increase of the imino C=N bond lengths (1.321(4)/1.312(4) Å in 5 and 1.345(3)/1.351(3) Å in [5(ZnCl₂)]). The metal atom is in plane with the phenazine core. Also in this case, the absorption spectrum is similar to that of the free ligand 5, and the lowest-energy band showed at 442 nm in CH₃CN and 445 nm (with a shoulder at 425 nm) in THF solutions. On the other hand, the emission spectrum clearly differs from that of the free ligand. Hence the maximum of emission is reached at 498 nm in THF and 514 nm in CH₃CN solutions (see Fig. 6c). The large Stokes shift observed for free 5 (8750 cm⁻¹ in CH₃CN) is greatly reduced upon zinc coordination (3169 cm⁻¹ for CH₃CN) (see also the data in Table 1). To highlight this difference, Fig. 6d compares the absorption and emission colours. The average fluorescence lifetime of [5(ZnCl₂)₂] in CH₃CN (1.3(5) ns) is also significantly reduced with respect to free 5 (7.6(6) ns).

When further ZnCl₂ was added to a solution of [1(ZnCl₂)₂] in CH₂Cl₂, the colour of the solution gradually changed from yellow to purple. In Fig. 7a, the UV/Vis spectra recorded for an experiment in which a concentrated solution of ZnCl₂ in CH₃CN was step-wise added to a CH₂Cl₂ solution of [1(ZnCl₂)₂] (c = 1.28 × 10⁻⁵ mol l⁻¹) is displayed, and the colour changes upon ZnCl₂ addition are shown underneath (Fig. 7b). The yellow-colored solution turned to intense purple upon addition of 2 eq. of ZnCl₂. In the UV/Vis spectra, the band at 486 nm with a shoulder at 459 nm decreased and gave way for an intense absorption at 581 nm and another one at 543 nm. The relative intensities of the two new absorptions varied and therefore they should belong to (at least) two different species in solution. In the case of solutions with low concentrations of [1(ZnCl₂)₂] (c = 0.64 × 10⁻⁵ mol l⁻¹, see Fig. S6 in the ESI†), more equivalents of ZnCl₂ were necessary to decrease the 486/459 nm band, pointing to an aggregation equilibrium. The obvious inference is that the excess ZnCl₂ binds to the N atoms of the phenazine core and connects the [1(ZnCl₂)₂] complex units to oligomeric chains or rings (see Scheme 5). Aggregation-induced changes in the optical properties of metal complexes were also observed in other cases.³⁵ Indeed we were able to synthesize the complex [(1)₂(ZnCl₂)₅] by reaction of 1 with 2.5 eq. of ZnCl₂. Purple-colored crystals of this compound were grown from a CH₂Cl₂–Et₂O solvent mixture. Fig. 8 shows the molecular structure of [(1)₂(ZnCl₂)₅] as derived from single-crystal X-ray diffraction. As expected, two [1(ZnCl₂)₂] complex units are linked via a ZnCl₂ unit. The Zn–N bond distances within the [1(ZnCl₂)₂] units (in average 2.034 Å long) are shorter than the Zn–N bonds which link the [1(ZnCl₂)₂] units together (2.099 Å in average). This result indicates that the latter bonds are weaker, in line with the observed equilibrium (see Scheme 5).

Fig. 7 (a) Absorption spectra for addition of a ZnCl₂ solution in CH₃CN (1 μL = 0.2 eq.) to a 1.2811 × 10⁻⁵ mol l⁻¹ solution (3 mL) of [1(ZnCl₂)₂] in CH₂Cl₂. (b) Photos showing the color changes upon ZnCl₂ addition.

Scheme 5 Formation and aggregation of the [1(ZnCl₂)₂] units via ZnCl₂.

Fig. 8 Molecular structure of [(1)₂(ZnCl₂)₅]. Vibrational ellipsoids drawn at the 50% probability level. Hydrogen atoms omitted for sake of clarity. Selected structural parameters (bond distances in Å, bond angles in °): Zn1–N1 2.036(4), Zn1–N4 2.037(3), Zn1–Cl1 2.2079(15), Zn1–Cl2 2.2466(13), Zn2–N10 2.025(5), Zn2–N7 2.037(4), Zn2–Cl3 2.2268(16), Zn2–Cl4 2.2411(17), Zn5–N63 2.093(4), Zn5–N13 2.104(4), Zn5–Cl10 2.2375(13), Zn5–Cl9 2.2462(14), N1–C13 1.340(6), N4–C18 1.343(6), N7–C23 1.343(7), N10–C128 1.134(17), N1–Zn1–N4 82.74(14), N1–Zn1–Cl1 116.34(12), N4–Zn1–Cl1 107.03(10), N1–Zn1–Cl2 111.30(11), N4–Zn1–Cl2 116.89(11), Cl1–Zn1–Cl2 117.63(6), N10–Zn2–Cl4 126.36(15), N7–Zn2–Cl4 105.17(13), Cl3–Zn2–Cl4 113.89(6), N10–Zn2–N7 82.64(18), N10–Zn2–Cl3 103.87(17), N7–Zn2–Cl3 122.87(11), N63–Zn5–N13 107.68(15), N63–Zn5–Cl10 118.86(11), N13–Zn5–Cl10 97.03(11), N63–Zn5–Cl9 98.59(11), N13–Zn5–Cl9 120.09(10), Cl10–Zn5–Cl9 115.69(6).

Quantum chemical calculations (B3LYP/def2-SV(P)) were carried out to obtain some preliminary information about the Gibbs free energy changes associated with the coordination of ZnCl₂ to compound 1. For the first step, reaction of 1 with two equivalents ZnCl₂ to give the dinuclear complex [1(ZnCl₂)₂], a ΔG value (at 298 K, 1 bar) of −365 kJ mol⁻¹ was calculated. For the second step, reaction of two [1(ZnCl₂)₂] complex units with ZnCl₂ to give the pentanuclear complex [(1)₂(ZnCl₂)₅], we calculated a gas-phase Gibbs free energy change of −162 kJ mol⁻¹. The calculated ΔG values neglect solvent effects, which are likely to be significant, especially in the case of ZnCl₂. On the other hand, the difference in the Gibbs free energy changes between the first and the second step is in full agreement with the experimental results. According to Scheme 5, further aggregation might lead to a chain oligomer or polymer of the composition [1(ZnCl₂)₃]_n. Indeed, we observed the formation of a solid material for addition of a large excess of ZnCl₂ (the precipitation started upon addition of four equivalents for a CH₂Cl₂ solution of [1(ZnCl₂)₂] with c = 1.28 × 10⁻⁵ mol l⁻¹, and of ten equivalents for the lower concentration (c = 0.64 × 10⁻⁵ mol l⁻¹). In preliminary experiments, we recorded a diffuse reflectance measurement of this solid embedded in a BaSO₄ matrix. This spectrum (see Fig. S7 in the ESI†) displays electronic absorptions around 305, 455 and 545 nm (the latter as a shoulder and with a tail towards larger wavenumbers). The position of the 545 nm band fits quite well with the absorption at 543 nm measured in the solution spectra. In summary we explain the spectra shown in Fig. 7a as follows: the 486 nm band clearly belongs to [1(ZnCl₂)₂], the 581 nm should belong to [(1)₂(ZnCl₂)₅] and the 543 nm band is tentatively assigned to higher aggregates [1(ZnCl₂)₃]_n.

When the experiment was repeated with ZnBr₂ in place for ZnCl₂, we observed a similar reaction pattern. On the other hand, with ZnMe₂ the reaction stopped at the stage of the dinuclear complex; aggregation was not observed. The Lewis acidity of ZnMe₂ is obviously not high enough for additional coordination at the phenazine N atoms. We also carried out some quantum chemical calculations (again B3LYP/def2-SV(P)), which are fully consistent with the experimental results. Hence reaction between 1 and two eq. of ZnMe₂ to give [1(ZnMe₂)₂] is still mildly exergonic by −28 kJ mol⁻¹, but further reaction of two eq. of [1(ZnMe₂)₂] with ZnMe₂ is endergonic by +41 kJ mol⁻¹ (at 298 K, 1 bar). Hence only strong Lewis acidic metals are capable to form the aggregates.

In Fig. 9a, the absorption spectra of free 1, [1(ZnCl₂)₂] and of a mixture of [1(ZnCl₂)₂] together with 2 eq. of ZnCl₂, all dissolved in CH₂Cl₂, are compared. In Fig. 9b and 9c the TD-DFT spectra calculated with B3LYP/def2-SV(P) and BP/def2-SV(P), respectively, for the three species 1, [1(ZnCl₂)₂] and [(1)₂(ZnCl₂)₅] are shown. The calculations (see Tables S1 and S2 and Fig. S8–S10 in the ESI† for details) show that the lowest-energetic transition of 1 (observed at 487 nm in CH₂Cl₂ and calculated at 441 nm (B3LYP)/503 nm (BP)) and of [1(ZnCl₂)₂] (observed at 486 nm and calculated at 462 nm (B3LYP)/540 nm (BP)) can be assigned to more or less pure HOMO–LUMO excitations. The calculated spectra also predict correctly a red-shift of the lowest-energetic electronic transition upon formation of [(1)₂(ZnCl₂)₅]. In the case of [(1)₂(ZnCl₂)₅], a number of orbitals contribute to the lower energy electronic transitions (see Table S1, Fig. S8 and S9 in the ESI†). The experimentally observed red-shift of 95 nm from [1(ZnCl₂)₂] to [(1)₂(ZnCl₂)₅] compares with a calculated one of ca. 40 nm (B3LYP)/48 nm (BP). In summary, the calculations fully support our assignment.

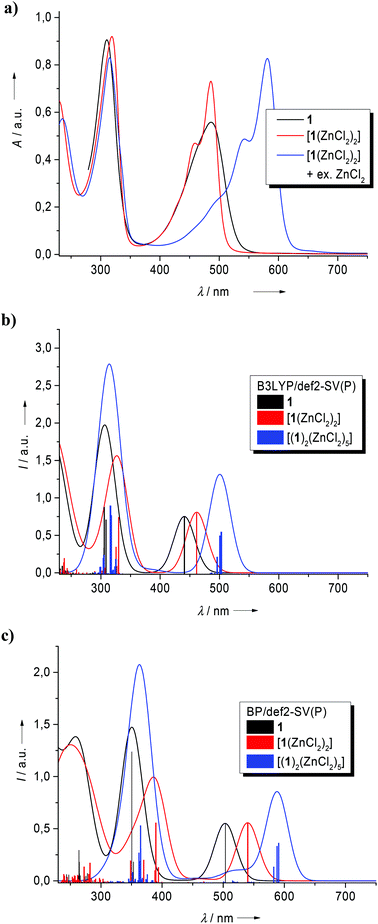

Fig. 9 (a) Comparison between the experimentally obtained absorption spectra of 1, [1(ZnCl₂)₂] and a mixture of [1(ZnCl₂)₂] with a large excess of ZnCl₂. (b) and (c) Simulations of the absortion spectra of 1, [1(ZnCl₂)₂] and [(1)₂(ZnCl₂)₅] on the basis of TD-DFT calculations with (b) B3LYP/def2-SV(P) and (c) BP/def2-SV(P).

A number of additional measurements were made to obtain further information about the aggregation equilibrium. Due to the distinct color changes upon aggregation, we predominantly relied on UV/Vis spectroscopy as analytical technique. However, it should be noted that aggregation is also visible with other techniques. For example, in the aromatic region in the ¹H NMR spectrum of CD₂Cl₂ solutions, a signal at δ (ppm) = 6.89 can be assigned to [1(ZnCl₂)₂] and two signals at δ (ppm) = 7.04 and 6.71 to [(1)₂(ZnCl₂)₅]. Higher aggregates are responsible for signals at δ (ppm) = 8.65 and 6.11. 2D HSQC experiments (HSQC = Heteronuclear Single Quantum Coherence) proved all these signals to arise from C–H protons, but a more detailed assignment was not possible.

The complex [(1)₂(ZnCl₂)₅]) was dissolved in different solvents. The colour of the solution varied between yellow (in THF) and pinc (in CHCl₃) (see Fig. 10b). The reason for the different colors can be found in differences in the degree of aggregation. Hence THF could compete successfully with [1(ZnCl₂)₂] in coordinating to ZnCl₂, and consequently the solution mainly consist of [1(ZnCl₂)₂]. We observed that an initially pink-colored solution in THF in minutes changed colour to yellow, showing that THF not only prohibits aggregation, but also could break up the aggregates. On the other hand, CHCl₃ solutions mainly consist of aggregates; the band due to [1(ZnCl₂)₂] at 486/459 nm is relatively small. Additional experiments were carried out in which the concentrations were varied for all three solvents (see Fig. S11 in the ESI†). These experiments show that the percentage of aggregates increases with increasing concentration (as already discussed for CH₂Cl₂), in line with the presence of an equilibrium. The effect of temperature on the relative band intensities turned out to be much weaker, and only slight variations were observed in the temperature region −60–(+20) °C in CH₂Cl₂ solution.

Fig. 10 (a) Photo showing the color of solutions of [(1)₂(ZnCl₂)₅] in CH₃CN, THF, CH₂Cl₂ and CHCl₃. (b) Comparison between the UV/Vis spectra of [(1)₂(ZnCl₂)₅] (a 2 : 1 mixture of [1(ZnCl₂)₂] and ZnCl₂) in three different solvents (THF, CH₂Cl₂ and CHCl₃), showing the equilibrium between [1(ZnCl₂)₂] and the aggregates.

Finally, we inspected the fluorescence properties of aggregate mixtures. Fig. 11 displays the fluorescence signals measured for a solution of [(1)₂(ZnCl₂)₅] in CH₂Cl₂. Two fluorescence signals were detected, one at 506 nm, which belongs to the dinuclear complex [1(ZnCl₂)₂], and another one at 599 nm. Measurements with different excitation wavelengths (see Fig. 11) clearly showed that the 581 nm absorption is the corresponding band of this species in the UV/Vis spectrum, and therefore the fluorescence signal at 599 nm could be assigned to the complex [(1)₂(ZnCl₂)₅] (Stokes shift of 517 cm⁻¹). We could qualitatively state that coordination at the phenazine N atoms greatly reduces the fluorescence quantum yield, although the absolute quantum yield for [(1)₂(ZnCl₂)₅] cannot be determined due to the equilibrium. The oligomeric or polymeric [1(ZnCl₂)₃]_n is fluorescence silent, and therefore the 543 nm band in the absorption spectra has no equivalent in the emission spectra. Our results show that the electronic and optical properties of the new fluorescent dye 1 could be greatly influenced by coordination.

Fig. 11 Fluorescence spectra for [(1)₂(ZnCl₂)₅] in CH₂Cl₂ solution, excited with light of different wavelengths.

Conclusions

Guanidino groups could be effectively used to tune the optical properties of aromatic compounds. They are a valuable alternative to the traditionally employed amino groups, which they outperform in several aspects. The guanidino groups decrease the HOMO–LUMO gap, increase the fluorescence quantum yield, and offer sites for metal coordination. In this work we show that substitution of phenazines with guanidino groups leads to highly fluorescent dyes. The absorption and emission spectra were studied in detail in several solvents. The Stokes shifts vary with the solvent and shifts of 2130–8750 cm⁻¹ were measured. Especially remarkable are the Stokes shifts of 5040 cm⁻¹ for 1 in H₂O and of 8750 cm⁻¹ for 5 in CH₃CN. The quantum yield for fluorescence reaches a record value of 0.39 for 1 dissolved in Et₂O. In contrast to the highly-fluorescent guanidino-functionalized phenazines, the guanidino-substituted fluorene 2, which was also synthesized in this work, shows little fluorescence. The bisguanidino-phenazine 5 also is a strongly fluorescent dye, but the fluorescence quantum yield is lower than for 1. We note that the extremely large Stokes shifts measured for 5 (up to 8750 cm⁻¹) together with the relatively low wavenumber of the lowest-energetic transition in the UV/Vis spectrum might qualify the compound for applications in electroluminescent devices (see the discussion in ref. 34).

The influence of coordination at the guanidino groups of the phenazine systems on the optical properties was subsequently analyzed. Cu^I coordination leads to luminescence quenching. By contrast, coordination with ZnCl₂ leads to intensively fluorescent metal complexes. Both the dinuclear complex [1(ZnCl₂)₂] and the mononuclear complex [5(ZnCl₂)] were structurally characterized. While little changes were observed in the absorption spectra upon coordination, the Stokes shifts decrease significantly. Also, the fluorescence lifetimes of 1 and 5 in CH₃CN are dramatically reduced by coordination of ZnCl₂. The measured lifetimes are independent of the excitation wavelength which makes these compounds highly interesting for further spectroscopic studies. For the strong Lewis basic compound 1, an excess of ZnCl₂ initiates aggregation in the course of which the dinuclear [1(ZnCl₂)₂] complex units are connected by ZnCl₂. The degree of aggregation is strongly solvent dependent. Aggregation is accompanied by a color change from yellow to purple, and the UV/Vis spectra displays lower-energetic bands. We were able to structurally characterize the compound [(1)₂(ZnCl₂)₅], in which two [1(ZnCl₂)₂] units are connected via a ZnCl₂ bridge. In ongoing work we are extending our studies to other guanidino-substituted fluorescent dyes.

Experimental details

If not stated otherwise, the reactions were carried out under Ar atmosphere using Schlenk techniques. Solvents were dried prior to use by standard methods, and preserved over 4 Å molecular sieves. NMR spectra were measured with Bruker Avance II 400 or Bruker Avance DPX AC200 NMR machine. Elemental analyses were carried out at the Microanalytical Laboratory of the University of Heidelberg. IR spectra were recorded with a Biorad Excalibur FTS 3000 spectrometer. UV/Vis measurements were recorded with a Varian Cary 5000 UV/Vis/NIR spectrophotometer. Fluorescence measurements were recorded with a Varian Cary Eclipse machine. Fluorescence quantum yields were obtained by using flouresceine in 0.1 M NaOH as standard (Φ = 0.82).³⁶ Fluorescence lifetimes were determined with a PicoQuant FluoTime 100 Compact Fluorescence Lifetime spectrometer. Fluorescence excitation was performed with a 280 nm pulsed LED at 10 MHz repetition rate. Electrochemical studies were carried out at r.t. using an EG&G model 273A potentiostat/galvanostat. The auxiliary electrode was a platinum wire and the working electrode was a glassy carbon disk. The reference electrode was an aqueous Ag/AgCl in 3 M KCl electrode. A Bruker ApexQe FT-ICR (ESI) machine was used for mass spectrometry.

2,3,7,8-Tetrakis(tetramethylguanidino)phenazine, 1 (in three steps)

1. Step (2,3,6,7-tetraamino-phenazine): this compound was prepared as described in the literature.²⁹ Briefly, 1,2,4,5-tetraamino-benzene-tetrahydrochloride (1.338 g, 4.712 mmol) were dissolved in 30 mL destilled water. Then 3.091 g sodium acetate (37.69 mmol) were added. The reaction mixture was heated to reflux, while passing compressed air though the solution. After 5h, the reaction mixture was cooled to room-temperature, during which time a deep purple colored solid precipitated. The solid was separated by filtration, washed with water and dried under vacuum. Yield: 0.733 g (2.097 mmol, 89%). Elemental analysis for 2·(2,3,6,7-tetraamino-phenazine)·3HCl, C₂₄H₂₇Cl₃N₁₂ (349.65): calcd C 48.86, H 4.61, N 28.49; found C 48.27, H 4.63, N 27.71. ¹H NMR (200 MHz, d₆-DMSO): δ (ppm) = 5.47 (s, 8 H, NH₂), 6.78 (s, 4 H, H_ar). MS (ESI⁺): m/z = 241.4 u ([M + H]⁺, 100%).

2. Step (2-chloro-1,1,3,3-tetramethylformamidinium chloride, [ClC(NMe₂)₂]Cl): oxalylchloride (0.965 ml, 11.25 mmol, 1.428 g) was added drop-wise to a solution of 0.270 mL (2.250 mmol, 0.261 g) 1,1,3,3-tetramethyl-urea in 10 mL CHCl₃. The pale yellow reaction mixture was heated to reflux for a period of 16h, and then allowed to cool to room temperature. Subsequently the solvent was removed under vacuum and the solid residue washed three times with 19 mL portions of Et₂O. Finally the activated urea was dried under vacuum and directly used for the subsequent guanidinylation reaction.

3. Step (2,3,7,8-tetrakis(tetramethylguanidino)phenazine, 1): 0.745 ml (5.400 mmol) NEt₃ were added to a solution of 0.133 g (0.45 mmol) 2,3,7,8-tetramino-phenazine·1.5HCl in 5 mL CH₃CN. To this suspension, a solution of 0.385 g (2.250 mmol) 2-chloro-1,1,3,3-tetramethylformamidinium chloride in 10 mL CH₃CN was added. Subsequently the reaction mixture was stirred for a period of 5 h at a temperature of 60 °C, leading to the precipitation of a brown-colored solid. After removal of the solvent under vacuum, the pale-brown solid was dissolved in destilled water. Upon addition of 25% NaOH solution, an orange-brown solid precipitated, which was extracted with CHCl₃. The CHCl₃ solution was dried over K₂CO₃ before the solvent was removed under vacuum. Yield of crude product: 0.199–0.227 g (0.314–0.359 mmol, 70–80%). Recrystallization from toluene at −18 °C afforded the orange-colored solid product in a yield of up to 74%. Deep-orange colored crystals were obtained from Et₂O solutions at room temperature. Solutions of the compound are yellow-orange colored. Elemental analysis for C₃₂H₅₂N₁₄ (632.85): calcd C 60.73, H 8.28, N 30.99; found C 60.12, H 7.63, N 30.33. ¹H NMR (600.13 MHz, CD₃CN): δ (ppm) = 6.78 (s, 4 H, H_ar), 2.72 (s, 48 H, Me). ¹³C NMR (150.92 MHz, CD₃CN): δ (ppm) = 160.34 (C_guanidin), 150.25 (C_ar), 141.34 (C_ar), 114.05 (C_ar-H), 39.97 (Me). MS (ESI⁺): m/z = 633.3 u ([1 + H]⁺, 100.0%), 317.3 u ([1 + 2H]²⁺, 99.24%), 272.4 u ([1 − 2NMe₂]²⁺, 14.77%). MS (FAB⁺): m/z = 633.5 u ([1 + H]⁺. UV/Vis (CH₃CN, c = 1.58 × 10⁻⁵ mol l⁻¹, d = 0.5 cm): λ_max (ε, in L mol⁻¹cm⁻¹) = 222 (3.6228 × 10⁴), 309 (5.6556 × 10⁴), 480 (3.5612 × 10⁴) nm. UV/Vis (H₂O, c = 1.1503 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 229 (5.7353 × 10⁴), 300 (5.6211 × 10⁴), 432 (2.0927 × 10⁴), 484 (1.6961 × 10⁴) nm. Fluorescence (CH₃CN, λ_ex = 480 nm): λ_max,em = 568 nm. Fluorescence (H₂O, λ_ex = 484 nm): λ_max,em = 640 nm. Quantum yield: Φ (H₂O) = 0.02, Φ (CH₃CN) = 0.22 and Φ (Et₂O) = 0.39. IR (CsI): [small nu, Greek, tilde] = 3042w, 3001w, 2991w, 2930m, 2884m, 2794w, 1571s, 1508m, 1478m, 1433s, 1422s, 1379s, 1358m, 1333m, 1314w, 1266m, 1234m, 1189s, 1142s, 1106w, 1060m, 1019s, 932w, 923w, 907m, 867m, 855m, 794w, 777m, 741m, 718m, 676w, 669w, 654w, 597m, 583m, 530w, 457w cm⁻¹. Crystal data for 1, C₃₂H₅₂N₁₄: M_r = 632.88, 0.40 × 0.25 × 0.20 mm³, monoclinic, space group P2(1)/c, a = 774.7(2), b = 15.440(3), c = 15.074(3) Å, α = 90.00°, β = 96.68(3)°, γ = 90.00°, V = 1790.80 ų, Z = 2, d_calc = 1.174 Mg m⁻³, Mo Kα radiation (graphite monochromated, λ = 0.71073 Å), T = 100 K, θ_range 2.65 to 28.5°. Reflections measd. 8641, indep. 4477, R_int = 0.0445. Final R indices [I > 2σ(I)]: R₁ = 0.059, wR₂ = 0.153.

2,3,6,7-Tetrakis(tetramethylguanidino)fluorene, 2 (in five steps)

1. Step (2,7-diamino-fluorene): 2.000 g (7.806 mmol) of 2,7-dinitrofluorene were added to a suspension of 14.11 g (74.40 mmol) SnCl₂ in 48 mL Et₂O. After addition of 30 mL concentrated HCl solution the suspension was heated under stirring for a period of 4 h to reflux. 2,7-diamino-fluorene·2HCl precipitated in the form of a pale-yellow colored solid, which was separated from the solution by filtration and subsequently washed three times with 10 mL portions of concentrated HCl solution. ¹H NMR (200 MHz, d₆-DMSO): δ (ppm) = 7.92 (d, 2 H, ¹J = 8.2 Hz, H_4/5ar), 7.47 (s, 2 H, H_1/8ar), 7.28 (d, 2 H, ¹J = 8.2 Hz, H_3/6ar), 4.00 (s, 2 H, CH₂). ¹³C NMR (150 MHz, d₆-DMSO): δ (ppm) = 121.95 (C_4/5ar), 121.08 (C_1/8ar), 120.02 (C_3/6ar), 36.36 (CH₂). MS (FAB⁺): m/z = 196.5 u ([M]⁺, 100%). MS (ESI⁺): m/z = 197.2 u ([M + H]⁺, 100%). The 2,7-diamino-fluorene·2HCl was dissolved in H₂O and a saturated NaHCO₃ solution was added until a pH value of 8 was reached. The yellow precipitate of 2,7-diamino-fluorene was separated by filtration, dried under vacuum and used in the next step without further purification. ¹H NMR (200 MHz, d₆-DMSO): δ (ppm) = 7.25 (d, 2 H, ¹J = 8.0 Hz, H_4/5ar), 6.68 (s, 2 H, H_1/8ar), 6.49 (d, 2 H, ¹J = 8.0 Hz, H_3/6ar), 4.87 (br s, 4 H, NH₂), 3.57 ppm (s, 2 H, CH₂).

2. Step (2,7-diacetamidofluorene): 1.532 g (7.806 mmol) of 2,7-diaminofluorene were suspended in 135 mL glacial acetic acid. Then 45 mL acetic anhydride were added. Under an Ar atmosphere the solution was heated to reflux for a period of 30 min, then cooled back to room temperature and poured onto ice. The milky white precipitate of 2,7-diacetamidofluorene was separated by filtration and dried under vacuum. A yield of 75% referring to 2,7-dinitrofluorene was obtained. ¹H NMR (200 MHz, d₆-DMSO): δ (ppm) = 9.94 (s, 2 H, NH), 7.86 (s, 2 H, H_1/8ar), 7.68 (d, 2 H, ¹J = 8.2 Hz, H_3/6ar), 7.48 (d, 2 H, ¹J = 8.2 Hz, H_4/5ar), 3.85 (s, 2 H, CH₂), 2.06 (s, 6 H, CH₃).

3. Step (3,6-dinitro-2,7-diaminofluorene): 1.703 g (6.073 mmol) 2,7-diacetamidofluorene were suspended in 40 mL CH₂Cl₂. After addition of 35 mL glacial acetic acid the mixture was cooled to −10 °C, and a −10 °C cold solution of 17.5 mL fuming nitric acid in 50 mL CH₂Cl₂ drop-wise slowly added, keeping the temperature below −5 °C. The color of the reaction mixture changes first from white to deep-green. After complete addition of the HNO₃–CH₂Cl₂ solution it slowly bleached and an orange-colored precipitate formed. After stirring for an additional 10 min the solution was poured on ice. The yellow-colored precipitate was separated by filtration and washed with some H₂O, yielding 67% of 3,6-dinitro-2,7-diacetamidofluorene. ¹H NMR (200 MHz, d₆-DMSO): δ (ppm) = 10.30 (s, 2 H, NH), 8.73 (s, 2 H, H_4/5ar), 7.89 (s, 2 H, H_1/8ar), 4.21 (s, 2 H, CH₂), 2.11 (s, 6 H, CH₃). MS (EI⁺): m/z = 370.1 u ([M]⁺, 52%), 279.1 u ([2,7-diacetamido-fluorene – H]⁺, 100%). Then 0.500 g (1.351 mmol) of 3,6-dinitro-2,7-diacetamidofluorene were suspended in 150 mL acetone. After addition of 30 mL concentrated HCl solution, the mixture was heated for 7 h to a temperature of 75 °C, leading to a color change from orange to deep-red. The reaction mixture was allowed to cool back to room temperature and then poured on ice. The deep-red colored precipitate was separated by filtration and dried under vacuum, yielding 78% of 3,6-dinitro-2,7-diaminofluorene. ¹H NMR (200 MHz, d₆-DMSO): δ (ppm) = 8.41 (s, 2 H, H_ar), 7.54 (br s, 4 H, NH₂), 7.09 (s, 2 H, H_ar), 3.96s, 2 H, CH₂).

4. Step (2,3,6,7-tetraminofluorene): 4.5 mL concentrated HCl solution was added to a suspension of 0.148 g (0.516 mmol) of 3,6-dinitro-2,7-diaminofluorene in 15 mL EtOH. The pale-yellow colored precipitate of 2,3,6,7-tetramino-fluorene·4HCl was separated by filtration, washed three times with 4 mL portions of concentrated HCl solution and dried under vacuum to obtain 2,3,6,7-tetramino-fluorene·4HCl in a yield of 58%. ¹H NMR (200 MHz, d₃-CD₃CN): δ (ppm) = 7.90 (s, 2 H, H_4/5ar), 7.62 (s, 2 H, H_3/6ar), 4.08 (s, 2 H, CH₂). MS (HR-ESI): m/z = 226.12128 u ([M]⁺, 100%).

5. Step (2,3,6,7-Tetrakis(N,N,N′,N′-tetramethylguanidino)fluorene, 2): 0.546 g (5.400 mmol) NEt₃ were added to a solution of 0.102 g (0.450 mmol) 2,3,6,7-tetraminofluorene-tetrahydrochloride in 5 mL CH₃CN. This suspension was cooled at 0 °C. To this suspension, a solution of 0.385 g (2.250 mmol) of 2-chloro-1,1,3,3-tetramethylformamidinium chloride in 8 mL CH₃CN was added. The reaction mixture was stirred for a period of 2 h at a temperature of 0 °C, leading to the precipitation of a brown-colored solid. After removal of the solvent under vacuum, the light-brown solid was dissolved in 10% HCl solution. Upon the addition of 25% NaOH solution, the aqueous solution was extracted with Et₂O (4 × 15 mL), and the organic phases were dried over KCO₃. The solvent was removed under vacuum, and the crude product as yellow-brown solid was dried under vacuum. The purification was carried out by sublimation at 210–220 °C and the white solid was obtained. Yield: 0.162 g (0.261 mmol, 58%). Elemental analysis for C₃₃H₅₄N₁₂ (618.86): calcd C 64.05, H 8.79, N 27.16; found C 63.57, H 8.89, N 26.25. ¹H NMR (600 MHz, CD₃CN): δ (ppm) = 6.63 (s, 2 H, H_4ar), 6.51 (s, 2 H, H_1ar), 3.55 (s, 2 H, CH₂), 2.64 (s, 58 H, CH₃). ¹³C NMR (150 MHz, CD₃CN): δ (ppm) = 159.01 (s, C_guanidin), 143.88 (s, C_2/3ar), 143.13 (s, C_2/3ar), 136.47 (s, C_5/6ar), 136.30 ppm (s, C_5/6ar), 118.57 ppm (s, C_1ar), 111.98 ppm (s, C_4ar), 36.32 ppm (s, CH₂), 39.76 ppm (s, CH₃). MS (HR-ESI): m/z = 1237.92446 u ([2M + H]⁺, 4.90%), 619.46635 u ([M + H]⁺, 100%), 310.23695 u ([M+2H]²⁺, 32.0%). UV/Vis (CH₃CN, c = 1.0341 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 371 (2.431 × 10⁴), 319 (1.529 × 10⁴), 269 (2.546 × 10⁴, shoulder), 226 (3.990 × 10⁴) nm. Fluorescence (CH₃CN, λ_ex = 342 nm): λ_max,em = 428 nm. IR (CsI): [small nu, Greek, tilde] = 2999w, 2924m, 2886m, 2803w, 1612s, 1601s, 1587s, 1549m (shoulder), 1497m, 1476w, 1460m, 1437w, 1423m, 1406w, 1371s, 1333w, 1325w, 1277m, 1261m, 1233m, 1215m, 1190w, 1173w, 1165m, 1138s, 1107w, 1092w, 1063m, 1018s, 1001s, 955w, 939w, 920m, 858m, 833w, 800m, 789m, 735w, 671w, 637m, 579w, 505w cm⁻¹. Crystal data for 2·CH₃CN, C₃₅H₅₇N₁₃: M_r = 659.94, 0.35 × 0.20 × 0.15 mm³, triclinic, space group P1̄, a = 7.8850(16), b = 13.540(3), c = 18.573(4) Å, α = 103.13(3)°, β = 90.59(3)°, γ = 92.60(3)°, V = 1928.6(7) ų, Z = 2, d_calc = 1.136 Mg m⁻³, Mo Kα radiation (graphite monochromated, λ = 0.71073 Å), T = 100 K, θ_range 2.25 to 27.71°. Reflections measd. 31 289, indep. 8875, R_int = 0.0820. Final R indices [I > 2σ(I)]: R₁ = 0.0673, wR₂ = 0.1721.

2,3-Bis(tetramethylguanidino)phenazine, 5

722 mg (7.14 mmol) of NEt₃ was added to a suspension of 300 mg of 2,3-diaminophenazine (1.43 mmol) in 4 mL CH₃CN. Then a solution of 1.22 g (7.14 mmol) of 2-chloro-1,1,3,3-tetramethylformamidinium chloride in 8 mL CH₃CN was slowly drop-wise added over a period of 10 min. The reaction mixture, which turns deep-brown, was stirred for a period of 3 h at a temperature of 50 °C. After the mixture has cooled back to room-temperature, the solvent was removed in vacuum and the remaining deep-brown colored solid re-dissolved in water. The product was then precipitated by addition of 25% NaOH solution, and subsequently extracted 5 times with 15 mL portions of CHCl₃. The organic phase was dried over K₂CO₃, and then the solvent removed to yield 337 mg (58%) crude product as brown-colored solid. The crude product was re-dissolved in CH₃CN and the yellow-colored insoluble side product of the reaction was removed by filtration, before the solvent was removed from the filtrate under vacuum. In this way one obtains 121 mg (0.30 mmol, total yield 21%) orange-colored clean product. Elemental analysis for C₂₂H₃₀N₈ (406.53): calcd C 65.00, H 7.44, N 27.56; found C 64.72, H 7.15, N 27.49. ¹H NMR (400 MHz, CD₃CN): δ (ppm) = 2.75 (s, 25 H, CH₃), 6.84 (s, 2 H, CH_5ar), 7.60 (q, J = 3.39 Hz, 2 H, H_ar), 7.96 (q, J = 3.39 Hz, 2 H, H_ar). ¹³C NMR (400 MHz, CD₃CN): δ (ppm) = 40.15 (CH₃), 113.05 (CH_5ar), 128.13 (CH_ar), 129.48 (CH_ar). Four quaternary C atoms were not detected. IR (CsI): [small nu, Greek, tilde] = 2927 w (ν(C–H)), 1577 vs. (ν(CC)), 1510m (C–H def), 1437 vs. (C–H def), 1383m (C–H def), 1233 w, 1133m, 1019m, 891 w, 757 w (C_ar–H def), 595 w, 505 w cm⁻¹. MS (DART): m/z = 407.26683 ([M + H]⁺, 100.0%). [C₂₂H₃₁N₈]⁺, calcd 407.26662, [M + H]⁺ (100.0%), found 407.26683, diff. −0.2 mmu. UV/Vis (CH₃CN, c = 1.28 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 233 (3.63 × 10⁵), 276 (5.32 × 10⁵), 393 (1.58 × 10⁵) nm. UV/Vis (Et₂O, c = 1.18 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 277 (3.91 × 10⁵), 433 (1.77 × 10⁵) nm. Fluorescence (CH₃CN, λ_ex = 233 nm): λ_max,em = 599 nm; Fluorescence (THF, λ_ex = 447 nm): λ_max,em = 588 nm. Quantum yield: Φ (THF) = 0.17, Φ (CH₃CN) = 0.15, Φ (Et₂O) = 0.11. Crystal data for 5·2H₂O, C₂₂H₃₄N₈O₂: Mr = 442.57, 0.50 × 0.50 × 0.45 mm³, monoclinic, space group P2/c, a = 15.900(3), b = 9.2100(18), c = 16.379(3) Å, β = 94.82(3)°, V = 2390.0(8) ų, Z = 4, d_calc = 1.230 Mg m⁻³, Mo Kα radiation (graphite monochromated, λ = 0.71073 Å), T = 100 K, θ_range 2.21 to 30.04°. Reflections measd. 13 359, indep. 6949, R_int = 0.0323. Final R indices [I > 2σ(I)]: R₁ = 0.0910, wR₂ = 0.2642.

[1(CuI)₂]: Compound 1 (0.0669 g, 0.1058 mmol) were dissolved in 8 mL CH₂Cl₂. Then 2 equivalents of CuI (0.0403 g, 0.2116 mmol) were added. The dark red reaction mixture was stirred for a period of 1 h at room temperature. Subsequently the solvent was removed under vacuum. The dark red precipitate was washed with Et₂O (3 × 5 mL), and dried under vacuum. The solid was re-dissolved in CH₂Cl₂ and upon addition of Et₂O precipitated as a clean product. The product was filtrated and dried under vacuum. Yield: 0.055 g (0.0539 mmol, 51%). Elemental analysis for C₃₂H₅₂Cu₂I₂N₁₄ (1013.75): calcd C 37.91, H 5.17, N 19.34; found C 37.65, H 5.06, N 19.18. MS (HR-ESI⁺): m/z = 823.29278 u ([1 + CuI + H⁺]⁺, 20.5%), 950.129723 u ([1 + CuI + I⁻ + H⁺]⁺, 14.7%). MS (FAB⁺): m/z = 588.4 ([1 − NMe₂]⁺, 21.2%), 633.5 u ([1 + H⁺]⁺, 9.6%), 696.1 u ([1 + Cu⁺]⁺, 17.3%), 824.0 u ([1 + CuI+2H⁺]⁺, 13.5%), 1012.7 u ([M⁺]⁺, 9.6%). UV/Vis (CH₃CN, c = 0.9081 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 226 (6.2067 × 10⁴), 243 (5.7190 × 10⁴), 317 (7.4615 × 10⁴), ca. 465 (3.4082 × 10⁴, shoulder), 493 nm (5.9110 × 10⁴) nm. UV/Vis (CH₂Cl₂, c = 1.3024 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 321 (8.8200 × 10⁴), ca. 474 (4.2945 × 10⁴, shoulder), 501 (7.2754 × 10⁴) nm. Fluorescence signals almost extinguished by CuI coordination. Fluorescence (CH₂Cl₂, λ_ex = 460 nm): λ_max,em = ca. 519 nm. Fluorescence (CH₃CN, λ_ex = 465 nm): λ_max,em = ca. 533 nm. IR (CsI): [small nu, Greek, tilde] = 3047w, 3005w, 2936m, 2890m, 2793w, 1574s, 1515s, 1451s, 1417s, 1401s, 1325m, 1263m, 1232w, 1199m, 1157m, 1142m, 1108w, 1064w, 1026m, 958w, 917w, 905w, 855w, 810w, 796w, 785w, 740w, 733w, 714w, 696w, 668w, 610m, 502w cm⁻¹.

[ 1 (ZnCl₂)₂]: 0.0256 g (2 eq., 0.1878 mmol) of ZnCl₂ was dissolved in 2 mL CH₃CN and added dropwise to a solution of 0.0594 g (0.0939 mmol) of 1 in 2 mL CH₃CN. The reaction mixture was stirred for a period of 2 h at room temperature. The solvent was removed to obtain an orange solid that was re-dissolved in 1.5 mL CH₂Cl₂ and filtered to remove the insoluble rest. Upon addition of Et₂O the product precipitates as a crystalline orange solid. The product was filtered, washed three times with 1 mL portions of Et₂O and dried under vacuum. Upon recrystallization from CH₂Cl₂ crystals of [1(ZnCl₂)₂] were obtained. Yield 0.0450 mg (0.0498 mmol, 53%) product. Elemental analysis for C₃₂H₅₂Cl₄N₁₄Zn₂ (905.42): calcd C 42.45, H 5.79, N 21.66; found C 42.16, H 5.66, N 21.26. ¹H NMR (600 MHz, CD₃CN): δ (ppm) = 6.89 (s, 4 H, H_ar), 3.03 (s, 24 H, Me), 2.84 (s, 24 H, Me). ¹³C NMR (150 MHz, CD₃CN): δ (ppm) = 166.23 (s, C_guan), 145.49 (s, C_q,ar), 141.51 (s, C_q,ar), 113.02 (s, C_ar–H), 41.21 (s, Me), 40.52 (s, Me). ¹H NMR (600 MHz, CD₂Cl₂): δ (ppm) = 6.88 (s, 4 H, H_ar), 3.06 (s, 24 H, Me), 2.90 (s, 24 H, Me). ¹³C NMR (150 MHz, CD₂Cl₂): δ (ppm) = 165.74 (s, C_guan), 144.61 (s, C_q,ar), 141.09 (s, C_q,ar), 112.55 (s, C_ar–H), 41.17 (s, Me), 40.38 (s, Me). UV/Vis (CH₃CN, c = 1.1486 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 228 (5.8829 × 10⁴), 316 (7.6583 × 10⁴), 458 (3.7518 × 10⁴), 484 (5.7725 × 10⁴) nm. UV/Vis (CH₂Cl₂, c = 1.4137 × 10⁻⁵ mol l⁻¹, d = 0.5 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 228 (5.3921 × 10⁴), 319 (6.9684 × 10⁴), 459 (3.5629 × 10⁴), 486 (5.4647 × 10⁴) nm. Fluorescence (CH₃CN, λ_ex = 484 nm): λ_max,em = 506 nm. Fluorescence (CH₂Cl₂, λ_ex = 486 nm): λ_max,em = 512 nm. Quantum yield: Φ(CH₃CN) = 0.36. IR (CsI): [small nu, Greek, tilde] = 3049w, 3009w, 2935m, 2895w, 2799w, ca. 1615m shoulder, 1565s, 1522s, 1452s, 1420s, 1408s, 1400s, 1329m, 1261m, 1234w, 1193m, 1162m, 1144w, 1110w, 1065w, 1035m, 1027m, 957w, 919w, 907w, 861w, 810w, 789w, 740w, 735w, 715w, 707w, 611w, 575w, 561w, 506w, 503w, 492w, 473w cm⁻¹. Crystal data for [1(ZnCl₂)₂]·2CH₂Cl₂, C₃₆H₆₀Cl₁₂N₁₄Zn₂: M_r = 1245.12, 0.30 × 0.30 × 0.20 mm³, monoclinic, space group P2(1)/c, a = 13.162(3), b = 13.499(3), c = 16.472(3) Å, β = 108.30(3)°, V = 2778.63 ų, Z = 2, d_calc = 1.488 Mg m⁻³, Mo Kα radiation (graphite monochromated, λ = 0.71073 Å), T = 100 K, θ_range 4.4 to 60.1°. Reflections measd. 16 059, indep. 8111, R_int = 0.0482. Final R indices [I > 2σ(I)]: R₁ = 0.045, wR₂ = 0.128.

[ 5 (ZnCl₂)]. 0.010 g (1 eq., 0.0738 mmol) of ZnCl₂ was added to a solution of 0.030 g (0.0738 mmol) of 5 in 5 mL CH₃CN. The reaction mixture was stirred for a period of 4 h at room temperature. The solvent was partially removed under vacuum before the solution was stored at +4 °C for several days. The needle shaped crystals which were formed in the solution were filtered off and washed three times with Et₂O and n-hexane. The remaining yellow solid was dried under vacuum. Upon recrystallization from CH₃CN crystals of [5(ZnCl₂)] were obtained. Elemental analysis for C₂₂H₃₀Cl₂N₈Zn, (542.81): calcd C 48.68, H 5.57, N 20.64; found C 48.36, H 5.50, N 21.16. ¹H NMR (400 MHz, CD₃CN): δ (ppm) = 2.88 (br. s., 12 H), 3.06 (br. s., 12 H), 6.99 (s, 2 H), 7.70 (q, J = 3.39 Hz, 2 H), 8.04 (q, J = 3.64 Hz, 2 H). ¹³C NMR (400 MHz, CD₃CN): δ (ppm) = 112.57 (CH_5ar), 129.42 (CH_ar), 129.77 (CH_ar), 143.02 (C_q), 143.65 (C_q), 147.78 (C_q). IR (CsI): [small nu, Greek, tilde] = 2932 w (ν(C–H)), 1571m (C=C val), 1530m (C–H def), 1453s (C–H def), 1405s (C–H def), 1340m, 1232m, 1163m, 1036m, 897w, 816w, 762w (C_ar–H def), 603w, 503w cm⁻¹. MS (HR-FAB): m/z = 540.1262 ([M]⁺, 80.0%). [C₂₂H₃₀N₈ZnCl₂]⁺ calcd 540.1262, [M]⁺ (80.0%); found 540.1262, Diff.: 0.0 mmu. UV/Vis (CH₃CN, c = 1.18 × 10⁻⁵ mol l⁻¹, d = 1 cm): λ_max (ε, in L mol⁻¹ cm⁻¹) = 231 (3.34 × 10⁵), 283 (3.79 × 10⁵), 302 (3.40 × 10⁵), 424 (2.02 × 10⁵), 442 (2.31 × 10⁵) nm. Fluorescence (THF, λ_ex = 445 nm): λ_max,em = 498 nm. Fluorescence (CH₃CN, λ_ex = 302 nm): λ_max,em = 514 nm. Quantum yield: Φ(CH₃CN) = 0.08. Crystal data for [5(ZnCl₂)]·CH₃CN, C₂₄H₃₃Cl₂N₉Zn: M_r = 583.86, 0.50 × 0.50 × 0.50 mm³, monoclinic, space group P2(1), a = 10.558(2), b = 23.182(5), c = 22.678(5) Å, β = 90.44(3)°, V = 5550.40(8) ų, Z = 8, d_calc = 1.397 Mg m⁻³, Mo Kα radiation (graphite monochromated, λ = 0.71073 Å), T = 100 K, θ_range 1.8 to 60.2°. Reflections measd. 32 157, indep. 32 131, Final R indices [I > 2σ(I)]: R₁ = 0.039, wR₂ = 0.101.

[( 1 )₂(ZnCl₂)₅]: To 0.0362 g (2.5 eq., 0.2656 mmol) of ZnCl₂ in CH₂Cl₂ was added a solution of 0.0672 g (0.1062 mmol) of 1 in 8 mL CH₂Cl₂. The reaction mixture was stirred for a period of 2 h at a temperature of 45 °C until it became dark red. After the mixture had cooled back to room temperature, the solvent was partially removed. To this concentrated solution was added 8 mL Et₂O. The mixture was stored at 0 °C to get a crystalline red precipitate. The solid was filtrated, washed with Et₂O and n-hexane and dried under vacuum. Purple crystals were obtained from a CH₂Cl₂–Et₂O mixture. Yield: 0.0289 g (0.0149 mmol, 28%). Elemental analysis for C₆₄H₁₀₄Cl₁₀N₂₈Zn₅ (1947.13): calcd C 39.48, H 5.38, N 20.14; found C 38.72, H 5.91, N 20.30. Crystal data for [(1)₂(ZnCl₂)₅]·4.7CH₂Cl₂, C_68.70H_113.40Cl_19.40N₂₈Zn₅: M_r = 2346.25, 0.35 × 0.30 × 0.30 mm³, triclinic, space group P1̄, a = 17.629(4), b = 18.298(4), c = 18.587(4) Å, α = 90.87(3)°, β = 104.98(3)°, γ = 108.66(3)°, V = 5455.9(19) ų, Z = 2, d_calc = 1.428 Mg m⁻³, Mo Kα radiation (graphite monochromated, λ = 0.71073 Å), T = 100 K, θ_range 2.48 to 27.52°. Reflections measd. 45 548, indep. 24 658, R_int = 0.0342. Final R indices [I > 2σ(I)]: R₁ = 0.0633, wR₂ = 0.1829.

X-ray crystallographic study

Suitable crystals were taken directly out of the mother liquor, immersed in perfluorinated polyether oil and fixed on top of a cryo loop. Measurements were made with a Nonius-Kappa CCD diffractometer with low-temperature unit using graphite-monochromated Mo Kα radiation. The temperature was set to 100 K. The data collected were processed using the standard Nonius software.³⁷ All calculations were performed using the SHELXT-PLUS software package. Structures were solved by direct methods with the SHELXS-97 program and refined with the SHELXL-97 program.^38,39 Graphical handing of the structural data during solution and refinement was performed with XPMA.⁴⁰ Atomic coordinates and anisotropic thermal parameters of non-hydrogen atoms were refined by full-matrix least-squares calculations. CCDC-1016464 (1), 1016465 (2), 1034621 ([1(ZnCl₂)₂]), 1016466 ([5(ZnCl₂)]), 1016467 (5·2H₂O), 1016468 ([1H₂](BF₄)₂), and 1016832 ([(1)₂(ZnCl₂)₅]) contain the supplementary crystallographic data for this paper..

Details of the quantum chemical calculations

The density functional calculations on the uncoordinated compounds and protonated 1 were carried out with the B3LYP functional⁴¹ and the 6-311G** basis set.⁴² The GAUSSIAN⁴³ program package was used. To speed up the investigation for the different complexes, the calculations, including the TD-DFT calculations, were performed with the smaller def2-SV(P) basis set⁴⁴ in combination with the BP86^41a,45 and B3LYP functionals. The structures were optimized with the BP86 functional, using the resolution of the identity (RI) approximation and the appropriate auxiliary SV(P) basis set.⁴⁶ Then final energies were obtained with the B3LYP functional using thermodynamic contributions from the BP86 results. These calculations used the TURBOMOLE⁴⁷ program package.

A comparison of the structures (Table S2 in the ESI†) and the HOMO–LUMO gap of compound 1 shows that in the case of the structure the usage of a different basis set and functional and in the case of the HOMO–LUMO gap the usage of a different basis set has only a minor impact on the calculated quantities. Within the B3LYP/6-311G** calculations the HOMO–LUMO gap amounts to 3.24 eV, whereas within the B3LYP/def2-SV(P) calculations it amounts to 3.16 eV.

Acknowledgements

The authors thank the Deutsche Forschungsgemeinschaft (DFG) for continuous financial support.
