The nature of the silicaphilic fluorescence of PDMPO

Mithun Parambath a, Quentin S. Hanley a, Francisco J. Martin-Martinez b, Tristan Giesa b, Markus J. Buehler b and Carole C. Perry *a
aSchool of Science and Technology, Nottingham Trent University, Nottingham, NG11 8NS, UK. E-mail: Carole.Perry@ntu.ac.uk
bDepartment of Civil and Environmental Engineering, Massachusetts Institute of Technology, USA

Received 27th August 2015 , Accepted 4th December 2015

First published on 10th December 2015


PDMPO (2-(4-pyridyl)-5-((4-(2-dimethylaminoethylaminocarbamoyl)methoxy)phenyl)oxazole), has unique silica specific fluorescence and is used in biology to understand biosilicification. This ‘silicaphilic’ fluorescence is not well understood nor is the response to local environmental variables like solvent and pH. We investigated PDMPO in a range of environments: using UV-vis and fluorescence spectroscopy supported by computational data, (SPARC, molecular dynamics simulations, density functional theory calculations), dynamic light scattering and zeta potential measurements to understand the PDMPO–silica interaction. From absorption data, PDMPO exhibited a pKa of 4.20 for PDMPOH22+ to PDMPOH+. Fluorescence emission measurements revealed large shifts in excited state pKa* values with different behaviour when bound to silica (pKa* of 10.4). PDMPO bound to silica particles is located in the Stern layer with the dye exhibiting pH dependent depolarising motion. In aqueous solution, PDMPO showed strong chromaticity with correlation between the maximum emission wavelength for PDMPOH+* and dielectric constant (4.8–80). Additional chromatic effects were attributed to changes in solvent accessible surface area. Chromatic effects were also observed for silica bound dye which allow its use as a direct probe of bulk pH over a range far in excess of what is possible for the dye alone (3–5.2). The unique combination of chromaticity and excited state dynamics allows PDMPO to monitor pH from 3 to 13 while also reporting on surface environment opening a new frontier in the quantitative understanding of (bio)silicification.


1. Introduction

There is considerable interest in the unique fluorescence of PDMPO (2-(4-pyridyl)-5-((4(2-dimethylaminoethylaminocarbamoyl)methoxy)phenyl)oxazole) in the presence of silica and its resulting use as a silica probe.1 PDMPO has been widely used to study new silica deposition. Examples include: precipitation of silica in diatoms,2,3 silica deposition in Equisetum arvense,4 observation of the skeletal growth patterns in Polycystine radiolarians,4 and identifying silica transporters in silicifying organisms5 such as Bolidophyceae and Parmales.6 There have been many attempts to develop probes for studying the molecular properties of silica using a variety of molecules including rhodamine B,7 rhodamine 19,7 rhodamine 101,7 rhodamine 123,8 bis(cyclopentadienyl) titanium dichloride,9 and fluorescein coupled via 3-aminopropyl triethoxysilane,10 but these alternatives have a range of problems such as low accumulation efficiency and insolubility in aqueous solution. PDMPO has proven to be a very effective tracer during biosilicification and has seen wide application in silica related studies.

PDMPO is an oxazole dye developed to study intracellular pH changes inside acidic organelles.11 A further class of oxazole dyes derived from 2,5-diphenyloxazole are known to exhibit unique solvatochromic and electron transfer properties.12 These dyes are weakly basic amines that selectively accumulate in cellular compartments with low internal pH making them valuable tools to investigate the biosynthesis and pathogenesis of lysosomes.13 Oxazole dyes can freely permeate cell membranes and concentrate in acidic organelles and PDMPO has been used to study pH at high hydrostatic pressure.14 Shimizu et al. first demonstrated a “silica-philic” fluorescence from PDMPO at 510 nm and noted its unique properties as a silica tracer.1 Although PDMPO–silica interactions are being used by scientists,1,3–5,15–17 there are gaps in our understanding. Specifically: the mechanism of the PDMPO–silica interaction is unknown; the spectroscopic details are unclear leading to difficulty selecting optimal excitation and emission wavelengths; the process creating “silicaphilic” fluorescence in PDMPO is unknown; the location of PDMPO on silica is not known; and while proposals have been made to use PDMPO to study silica polymerisation, experimental results to date were not specific enough to correlate PDMPO behaviour with the degree of oligomerization.

This study investigates the unique fluorescence of PDMPO in the presence of silica. We began by identifying the possible protonation states of PDMPO and estimated their pKa's by computational methods. To support the experimental results, we performed Density Functional Theory (DFT) calculations to characterize the reactivity and protonation of the different species under study. The Fukui function was used to explain the behaviour of putative protonation sites. Additionally, the solvent accessible surface area (SASA), which is closely related to chromatic effects on fluorescence, was estimated from DFT and molecular dynamics (MD) simulations. We used these considerations to inform a set of experiments investigating the ground and excited state behaviour of PDMPO beginning in aqueous solutions, proceeding through a range of solvents, and finishing with silica materials (Stöber particles (50 nm)). These data provide a clear understanding of the silica dye interaction and provide a significant analytical framework for application of this technique in biology and chemistry.

2. Materials and methods

2.1 Materials

PDMPO (LysoSensor™ yellow/blue DND-160, 1 mM in dimethylsulfoxide) was obtained from Life Technologies. Chemicals for preparation of citrate and phosphate buffers, ammonia solutions, tetraethoxysilane (TEOS), coumarin 153, tryptophan, HPLC grade water, were obtained from Sigma Aldrich. Other solvents (water, methanol, ethanol, acetone, acetonitrile, dimethylsulfoxide, chloroform) were purchased from Fisher Scientific. When required, solutions were prepared in HPLC grade water.

2.2 Predictive modelling of speciation

Predictive chemical modelling of the pH dependent chemical forms of PDMPO and the associated pKa's was performed using the web version of SPARC.18 The SPARC computational approach is based on the combination of well-established structure activity relationships,19 linear free energy relationships20 and perturbed molecular orbital theory21 to estimate pKa. The SPARC method of pKa determination has been tested on 3685 compounds to estimate 4300 ionization pKa's and their overall RMS deviation from measured values was 0.37.18

2.3 Computational methods

Density functional theory (DFT) calculations optimizing the molecular geometries and calculations of the electronic structure of the pH relevant PDMPO species were performed using the ORCA package22 with the B3LYP/6-31G* level of theory.23,24 The reactivity of the PDMPO species was characterized using the Fukui function dual descriptor within the framework of conceptual DFT.25

Molecular dynamics (MD) simulations were performed to minimize the molecules using 1 nanosecond simulations with the LAMMPS MD software26 in an isochoric–isothermal ensemble at 300 K using the CVFF force field and a time step of 0.1 fs. The partial charges on the atoms were taken from DFT calculations (ChelPG model) and ions added to neutralize the system.

The solvent accessible surface area (SASA) of the system was calculated from the molecular dynamics trajectory and the minimized DFT structures using the SASA tool in VMD27 using an indenter of 1.4 Å.

2.4 Absorbance spectroscopy

All spectroscopy experiments were carried out in 0.1 M phosphate at pH ≥ 5 and citrate pH ≤ 5 buffers with some experiments in the range pH 4–6 carried out in both buffers to ensure no effect of buffer identity on the fluorescence behaviour observed. To correct for small variations in concentration and some interference from DMSO the spectra were normalised relative to the isobestic point (352 nm) and analysis restricted to 250–450 nm. Absorption spectroscopy was carried out in a dual beam spectrometer (JASCO V-670) in 1 cm quartz cuvettes over a pH range 2.5–12.01 with all samples prepared in 0.1 M buffer with PDMPO added to give a concentration of 4.0 × 10−5 M.

2.5 Fitting pKas to spectroscopic data

The DATAN software tool developed by Kubista et al.,28,29 was used to calculate spectral profiles, concentrations and equilibrium constants by utilizing equilibrium expressions that are related to the components. In this study, all the recorded absorbance data and fluorescence data were assembled into data matrices and introduced to the DATAN programme29 to obtain pure spectra for the individual species, concentration profiles and acidity constants of the dye in absorbance and fluorescence modes.

2.6 Fluorescence spectroscopic properties of PDMPO

Fluorescence measurements were carried out in 96-well plates (Nunc optical bottom plates (164588)) using a commercial microplate reader (M200 pro; Tecan). Corrected spectra were computed over the range 300–678 nm using standard methods30 relative to tryptophan in water (300–428 nm with 400 nm excitation) and coumarin 153 in methanol (486–678 nm with 402 nm excitation) with interpolated values between 428 and 486 nm. The effect of acid/base on the fluorescence emission of protonated/non-protonated states of the dye (1.0 × 10−7 M) was studied in buffers with pH ranging from 2.3 to 14. The wavelength for excitation was chosen as 360 nm for maximum response which is close to the isobestic point (352 nm) of the PDMPOH22+ to PDMPOH+ transition of the dye.

2.7 Solvatochromic properties of PDMPO

The effect of solvent polarity on the fluorescence emission of the dye (1.0 × 10−7 M) was studied in protic solvents (water, ethanol, acetone), polar aprotic solvents (DMSO and acetonitrile), and non-polar solvents (chloroform) having a range of dielectric constants. A series of binary mixtures of ethanol and water (pH 7.0) and acetonitrile in water containing 0.1 μM PDMPO was used to measure its behaviour in protic solvents over a range of dielectric constants.

2.8 Fluorescence emission of PDMPO on silica

Silica nanoparticles (SNPs) were prepared using a modified Stöber process.31 Briefly, synthesis involved mixing two solutions (A and B) previously prepared with particle size adjusted by varying the concentration of ammonia in solution A. For 50 nm silica particles: solution A was prepared by taking 21.6 ml of 0.2 M ammonium hydroxide (NH4OH) in distilled deionized water (ddH2O) and adding ethanol to make up the volume to 80 ml in ethanol. Solution B was prepared by diluting 22.3 ml of TEOS in ethanol to 76.6 ml. Freshly prepared solutions were heated to 50 °C, mixed then stirred at 4000 rpm for 2 hours at the same temperature before allowing them to mature at room temperature for 1 day. Ethanol was removed by rotary evaporation at 50 °C, the sample centrifuged at 4000 rpm for 10 minutes and the particles washed with ethanol then distilled water and freeze dried.

Solutions containing the dye at 0.1 μM were prepared in 0.1 M buffers (pH 1.8 to 13.8). Silica nanoparticles (50 nm diameter, final concentration: 1 mg ml−1) were suspended in buffer solutions, incubated for 30 minutes at 25 °C on a plate shaker at 10 rpm before measuring changes in the fluorescence emission spectrum. An excitation wavelength of 360 nm was used to collect fluorescence emission spectra for all silica PDMPO interactions.

2.9 PDMPO–silica interactions

Experiments were conducted in 0.1 M buffer (pH 1.8 to 13.8) with PDMPO (0.1 μM) and silica particles (50 nm) at a nominal concentration of 1 mg ml−1. Zeta potential and dynamic light scattering (DLS) measurements were carried out at 25 °C. The hydrodynamic diameter (Dh) of Stöber particles in the presence and absence of PDMPO was calculated as an average of five independent measurements.

Concentration dependent effects of the dye were studied using a constant amount of SNP (50 nm diameter, 1 mg ml−1), varying the amount of dye present (0.1 μM to 800 μM). In a typical experiment (e.g. for 10 μM dye) 500 μg of SNP was added to 495 μl buffer (phosphate at pH ≥ 5 and citrate at pH ≤ 5), sonicated for 1 hour and 5 μl of 1.0 mM dye was added and shaken vigorously. Samples were left to equilibrate for 30 minutes at 25 °C on a shaker at 10 rpm before performing zeta potential measurement followed immediately by fluorescence emission measurements.

The fluorescence anisotropy of the dye in combination with silica was measured using SNPs (50 nm diameter, 1 mg ml−1) in 0.1 M Buffer (pH 1.8 to 14.0) with PDMPO (0.1 μM). Steady state anisotropies were measured using a Tecan F200 with excitation filter 360/35 nm and emission filter 540/35 nm. The PMT gain setting was 40 and the G factor 1.256.

2.9.1 pH dependent behaviour of PDMPO adsorbed on silica. Silica particles (50 nm diameter, 10 mg ml−1) were used and pH measurements performed in buffer (0.1 M) in the presence of 1 μM PDMPO. pH was measured before and after spectroscopic measurements. As for other experiments, samples were left to equilibrate for 30 minutes at 25 °C on a shaker at 10 rpm. For fluorescence measurements the dye was excited at 360 nm.
2.9.2 Fitting peak positions and relative areas. Spectra were decomposed by least squares minimisation of a two component Gaussian model after conversion to wavenumber. Parameters fitted were: peak position (μ), peak width (σ), and scale (conversion factor to arbitrary fluorescence units).

3. Results

3.1 Computational speciation studies

To understand the effect of pH on the ground states of PDMPO, pKas were estimated computationally to provide an interpretive framework for subsequent UV-vis spectroscopic studies. The possible species are represented in Scheme 1. Although convention gives that the first proton lost from a compound gives rise to pK1, in this study we chose to omit the first two acidity constants from our discussions of the dye as they have no physical meaning in normal aqueous solutions. The SPARC computation predicted one neutral and four protonated states. Of these, three species are important above pH 1.2 (highlighted; Scheme 1); these are PDMPOH22+ (predicted pKa1 4.87, protonation of the pyridine group and terminal amine), PDMPOH+ (predicted pKa2 6.78, protonation of terminal amine), and the neutral species, PDMPO.
image file: c5cp05105c-s1.tif
Scheme 1

Chemical species identified by SPARC and their estimated pKas. Highlighted species are important in aqueous solution; the others are destroyed by acid hydrolysis. To reinforce the SPARC results, the Fukui function was used to estimate possible protonation sites and donor–acceptor behavior between the pyridine moiety and the phenyl ether group (Fig. 1) for the three highlighted species in Scheme 1. The Fukui function describes how electron density changes in response to an increase or a decrease in the number of electrons in a molecule. The function is able to predict the preferred site for either a nucleophilic or electrophilic attack and is sometimes used to rationalize chemical reactivity principles such as the hard and soft acids and bases principle (HSAB), and therefore to understand protonation.32 The localization of the Fukui function in PDMPO (Fig. 2c) indicates that the nitrogen in the pyridine and the oxygen of the phenyl ether part of the molecule have opposite behavior.


image file: c5cp05105c-f1.tif
Fig. 1 Representation of the dual descriptor for the Fukui function. Green indicates regions that may undergo electrophilic attack (basic regions). Purple indicates regions that may undergo nucleophilic attack (acidic) (a) PDMPOH22+ (b) PDMPOH+ (c) PDMPO.

image file: c5cp05105c-f2.tif
Fig. 2 Absorption spectra of PDMPO (40 μM) in 0.1 M buffers: (a) spectra recorded over the range pH 1.6 to 12.8; (b) spectra of PDMPOH22+ and PDMPOH+ recovered by DATAN analysis; (c) calculated mole ratio of PDMPOH22+ and PDMPOH+ compared to those predicted by the resulting Ka; (d) absorbance at 331 nm (nominally PDMPOH+) and 382 nm (PDMPOH22+) above pH 6 there is no change in absorbance at 331 nm.

While the nitrogen is suitable for protonation (green in Fig. 1c), the oxygen becomes electrophilic (purple in Fig. 1c). This is consistent with the donor–acceptor design of the molecule. The calculated HOMO–LUMO energy gap decreased with increasing protonation (PDMPO (3.83 eV), PDMPOH+ (3.58 eV) and PDMPOH2+ (2.66 eV) in broad agreement with experiment, see below.

3.2 Absorbance properties of PDMPO

The absorption spectra of PDMPO were measured in buffered solutions and normalised to an estimated isobestic point of 352 nm (Fig. 2a). DATAN analysis recovered only two of the species predicted by SPARC (nominally PDMPOH22+, PDMPOH+) (Fig. 2b) with their concentrations and associated pKa (Fig. 2c). The recovered pKa (4.20) was in reasonable agreement with SPARC predictions (4.87) and previous reports.33 The absence of a pKa for PDMPOH+/PDMPO indicated the absorption spectra are dominated by protonation of the pyridine group and the protonation state of the amine side chain has negligible effect.

This was confirmed in the raw data (Fig. 2d) which showed no change in the absorbance at 331 nm above pH 6. This analysis left two species (Fig. 2b) with λmax values at 382 nm (ε = 3.84 × 104 M−1 cm−1) and 331 nm (ε = 1.67 × 104 M−1 cm−1). Although protonation of the amine side chain has no role in the absorbance behaviour of the dye, it can affect the binding interaction of the dye with silica (see below). For clarity, the recovered species with λmax at 331 nm will be referred to as PDMPOH+, however, at high pH significant amounts of the neutral species will be present. Attempts were made to determine the ground state pKa of PDMPO in the presence of silica. These measurements were unfeasible due to the requirement for low concentrations of the dye and the high scattering of the nanoparticulate solutions.

3.3 Fluorescence spectroscopic properties of PDMPO in aqueous solutions

Emission spectra of PDMPO in buffered aqueous solutions revealed pH dependent behaviour (Fig. 3a) with two distinct peaks over the pH range studied. DATAN analysis of the spectra (Fig. 3b and c) suggested 3 forms with estimated excited state pKa*s of 4.2 and 13.7. The ground state pKa1 and first excited state pKa* appear to be the same (4.20) however, work with similar dyes in this class26 indicates they undergo excited state proton transfer from water to dye*. The “species” dominating between 4.2 and 13.7 (Fig. 3c) is a rate determined mixture of the protonated and deprotonated pyridine forms with a yield dependent on [H2O]. As the pH approaches pKw, the concentration of water decreases significantly due to formation of hydroxide ion and proton transfer becomes less favourable. The second recovered pKa*s (13.7) we ascribe to pKw rather than the actual pKa* (PDMPOH22+*/PDMPOH+*) which is unobservable. To estimate pKa* (PDMPOH22+*/PDMPOH+*) we applied the Förster equation24 which gave a value of 12.6. We believe our pH dependent spectroscopic determination is more definitive and better matches the expectations from work on similar molecules30 that also found pKa*s near 14.
image file: c5cp05105c-f3.tif
Fig. 3 (a) Fluorescence emission of PDMPO from pH 2.3 to 14.0 using 360 nm excitation. (b) Spectra recovered from DATAN analysis suggested two forms, PDMPOH22+* and PDMPOH+* with the behaviour between pH 4.2 and 13.7 due to excited state dynamics in the presence of water (see text for details). (c) Calculated molar ratios returned by DATAN suggest two pKa*s (4.2 and 13.7). The first of these corresponds to the point where ground state PDMPOH+ first appears while the second, pKw, masks pKa1* which is at least 9.5 pKa units greater than pKa1 see text for details).

Similar to the absorbance behaviour, there was no evidence the ammonium group on the side chain influences the excited state and the recovered species with a peak at 454 nm will be referred to as PDMPOH+*. This analysis leaves two excited state forms, PDMPOH22+* (protonated pyridine group; λmax,em = 544 nm) and PDMPOH+* (neutral pyridine group; λmax,em = 454 nm), which exist in three pH regions: (i) pH < 4.2 (dominated by PDMPOH22+*); pH 4.2–13.7 (PDMPOH+* and PDMPOH22+* in a kinetically defined ratio); and 13.7 (PDMPOH+* and PDMPOH22+* in a kinetically defined ratio); and pH > 13.7 (dominated by PDMPOH+*) (Scheme 2). The slight blue shift in the emission maxima between pH 4.2 and 13.7 is consistent with a slight change in solvent accessible surface area between the neutral and singly protonated states (Table 1). The Lippert–Mataga equation34 relates solvatochromism to the solvent accessible surface area S which we estimated calculated from DFT and MD. The energy difference between the ground state and the excited state scales with 1/S3. The calculated surface areas for the three species are shown in Table 1. The decrease in the more protonated species is in agreement with the observed blue shift in the fluorescence spectrum. The DATAN analysis found only a single species between pH 4.3 and 13.7 which represents the average of several forms. This results in a slight blue shift from the singly protonated species which was otherwise unobservable.


image file: c5cp05105c-s2.tif
Scheme 2 Excited state behaviour of PDMPOH22+* and PDMPOH+* in aqueous solution. Excitation of PDMPOH+ leads to competition for PDMPOH+* between extraction of a proton from water (represented by kH2O) and direct deactivation of the excited state (represented by the sum of the radiative (kr) and non-radiative (knr) rate constants). The mixed form (pH 4.2 to 13.7) results from competition kinetics between direct return to ground state PDMPOH+ and excited state proton transfer from water to PDMPOH+* forming PDMPOH22+* followed by return to the ground state. A constant ratio is observed due to a constant value for kH2O[H2O].
Table 1 Solvent accessible surface area (SASA) for the three PDMPO species calculated from DFT and MD simulations
PDMPO PDMPOH+ PDMPOH22+
DFT MD DFT MD DFT MD
SASA (Å2) 656.5 665.9 ± 8.6 651.8 659.9 ± 6.9 649.2 655.7 ± 10.5


3.4 PDMPO fluorescence in the presence of silica

In contrast to aqueous phase fluorescence, DATAN analysis of PDMPO (Fig. 4a–c) in the presence of 50 nm silica particle retrieved similar spectroscopic species (Fig. 4a) but with a single pKa (10.4) (Fig. 4b and c) which we ascribe to pKa1*. The photoinduced proton transfer observed without silica particles is absent indicating the excited states do not have access to water in this environment (Scheme 3). However, the spectra of both PDMPOH22+* and PDMPOH+* forms exhibit a marked pH dependent silica mediated chromaticity (Fig. 4a). The protonated pyridinium form (PDMPOH22+*; λmax,em > 500 nm) undergoes a blue shift as pH is increased up to pH ca. 9.3. The neutral pyridinium form (PDMPOH+*; λmax,em < 460 nm) undergoes a red shift as pH is increased from ca. 9.7 to 14. Further insight into the PDMPO–silica interaction was obtained by measuring the fluorescence anisotropy of PDMPO on silica particles from pH 2–14 (Fig. 4d). From pH 2.6–5.2, fluorescence anisotropy increases consistent with the ground state pKa1 (4.2). It reaches a plateau between pH 5.2 and 8.2 indicating rotational diffusion more consistent with a larger particle. Above 8.2, the anisotropy decreases but remains slightly above that of the free dye up to pH 14. This high pH transition on silica is consistent with the work of Ong et al.35 who observed a high pH species using second harmonic generation methods.
image file: c5cp05105c-f4.tif
Fig. 4 PDMPO fluorescence over the range pH 2.6 to 14.0 in the presence of 50 nm silica particles with excitation at 360 nm: (a) fluorescence emission spectra of PDMPO in the presence of silica; (b) calculated pure fluorescence spectra of PDMPOH22+* and PDMPOH+* in the presence of silica from DATAN; (c) calculated molar ratio (recovered pKa1* = 10.4); (d) pH dependent fluorescence anisotropy of PDMPO in the presence and absence of 50 nm silica particles.

image file: c5cp05105c-s3.tif
Scheme 3 Excited state behaviour of PDMPO in the presence of silica. In the presence of silica, the excited state pKa* is clearly visible and there is no evidence for excited state proton transfer from water. The ground state pKa (4.2) is assumed from the behaviour in the absence of SNPs.

These data imply that at the high and low pH regimes there is single point binding of PDMPO via the side chain amine group giving the fluorogenic portion of the molecule the ability to undergo rotational diffusion. At intermediate pH the pyridine group is protonated and a transition to two point binding on the silica surface occurs resulting in hindered rotation. Under the experimental conditions used there is no evidence (Fig. 4c) that PDMPO is released from the surface, as there is no sign of the kinetically defined intermediate forms observed in aqueous solution (Fig. 4c).

To further understand PDMPO interactions with 50 nm diameter silica nanoparticles, the surface charge (ζ) and hydrodynamic diameter (Dh) of the particles were measured before and after interaction with the 0.1 μM PDMPO (over a wide range of pH (1.0–12.0)) (Fig. 5a and b). The hydrodynamic diameter of the silica particles did not change significantly following interaction/adsorption of PDMPO over the pH range studied (Fig. 5a) implying that the dye does not extend beyond the Stern layer of the silica nanoparticles.


image file: c5cp05105c-f5.tif
Fig. 5 (a) Effect of pH on the hydrodynamic diameter (Dh) of Stöber particles with and without addition of PDMPO. (b) Effect of silica PDMPO interactions on zeta potential in the pH range 1.0 to 12.0. (c) Dose dependent decrease in emission ratio 527 nm/454 nm upon dye saturation on SNP surface (50 nm) (■) and dose dependent decrease in zeta potential with increase in PDMPO concentration at pH 7.02 for SNP of diameter 50 nm and concentration 1 mg ml−1 (◀). The zeta potential of the silica (50 nm) alone was −30 mV.

Addition of PDMPO did result in partial neutralization of the particles between pH 4.0 and 9.5. This region coincides with the high anisotropy region suggesting that the first point of attachment via the amine residue is to both neutral silanol and siloxide groups while the second point of attachment via protonated pyridine brings a charge into the Stern-layer.

Further, PDMPO was added to 50 nm silica particles at neutral pH at a concentration of 1 mg ml−1 and the concentration of PDMPO adjusted over the range 0.1 to 800 μM (Fig. 5c). Increasing the PDMPO concentration resulted in the appearance of fluorescence consistent with aqueous PDMPO (unbound) and saturation of ζ. This indicates that when PDMPO fluorescence is used with silica the concentration should be as low as possible (0.1–5 μM) to maximise silicaphilic emission and minimize neutralization of the charge on the silica particles. Under ideal conditions, the amount of PDMPO should be ≤10% of the quantity required for full monolayer formation.

3.5 Solvent effects on PDMPO fluorescence

Although the spectra recovered by DATAN on silica and in the aqueous phase were nearly identical, there are pH dependent shifts in λmax,em of the two key forms of PDMPO on silica. These were most noticeable at low and intermediate pH. To understand this behaviour, PDMPO was studied in a range of solvents and solvent mixtures (Fig. 6). PDMPO exhibited positive solvatochromism with the position of the neutral peak shifting over the range from 418 nm (chloroform, εr = 4.8) to 454 nm (water, εr = 80.7) (Fig. 6a). The position of the peak gives an estimate of the local dielectric constant (Fig. 6a and d) which when applied to 50 nm silica particles suggests the dielectric constant within the Stern layer surrounding the particles is close to that of water. Measurement of the spectroscopic response in water–acetonitrile and water–ethanol mixtures allowed us to assess the effects of dielectric constant on the form having a positively charged pyridine group and the distribution of neutral and positively charged pyridine forms as the availability of protons from water decreases.
image file: c5cp05105c-f6.tif
Fig. 6 PDMPO solvatochromism: (a) corrected emission spectra of neutral PDMPO in chloroform, acetone, DMSO, methanol and acetonitrile. Solvatochromism of PDMPO as the composition of solvent varied from 0 to 100% (v/v) for acetonitrile (b) and ethanol (c) and peak position with solution dielectric constant for these solutions (d).

Although solvatochromism is a complex phenomen involving many interactions,36 these experiments yielded two conclusions. (i) PDMPO gave a clear solvatochromic shift in the neutral pyridine forms as the dielectric constant varied (Fig. 6d). Similar solvatochromism has been seen in other molecules and DFT studies suggest excited state dipole moments contribute to this.37 (ii) The yield of the neutral and PDMPOH+* forms increased as the percentage of water decreased (Fig. 6b and c), even at pH 3.0, data not shown. These data are consistent with the interpretation presented in Scheme 2 and indicate that PDMPO is more sensitive to solvent than many other fluorescent probes.28 These effects indicate that, in addition to pH, PDMPO reports on local dielectric constant and accessibility of water.

3.6 Indirect determination of pH using PDMPO–silica interactions

The data in Fig. 4a and c suggest that below pH 8 PDMPO fluorescence cannot be used to monitor pH in the presence of silica as there is no applicable pKa*. However, chromatic and ratiometric indicators (Fig. 7) show strong correlation with bulk pH in the presence of silica particles suspended in solution over the pH range 3–13. The silica mediated shifts in PDMPO fluorescence emission maxima (Fig. 7a) arising from pH we ascribe to changes in dielectric constant at the silica surface.
image file: c5cp05105c-f7.tif
Fig. 7 Chromatic and ratiometric effects of pH on PDMPO in the presence (■) and absence (○) of silica nanoparticles: (a) chromatic shift in PDMPOH+* in the presence of silica allows estimation of pH and (b) ratiometric (log(PDMPOH2+2*/PDMPOH+*)) estimation of pH in the presence of silica. Solid lines indicate useful regions for estimation of pH. Dotted lines are to guide the eye.

This makes PDMPO chromaticity a proxy for bulk pH which extends the range over which this dye can sensibly be used to monitor pH (Fig. 7). The chromatic effects mask changes in the emission ratio during DATAN analysis (Fig. 7b). There is a continuous change in the ratio of the two forms over the entire range studied. At the lowest pH, the basic form is not present and the ratio is affected by the Raman band of water which appears near the most shifted wavelengths for the basic form of the dye. Above pH 3–4 (the most useful pH's for silica studies) the behaviour of the ratio of the two forms appears to be mediated by silica in a way that affects both the ground and excited state. The dye alone shows more typical pH dependent behaviour with rapid changes consistent with the ground state pKa (4.2). As the pH increases, the ratio for the free dye is nearly constant until pKw is approached. This region is not seen in the silica bound dye. The free and silica bound forms coincide above pH 11. There is short plateau near pH 10 for the silica bound dye which is believed to be due to the excited state pKa. Sigma values from PDMPOH+ and wavelength shift for PDMPOH22+ can also be used as rough pH indicators (ESI). PDMPO is thus a unique molecule for interrogating pH and surface behaviour in the presence of silica. This response extends well beyond the range expected based on pKas in the absence of chromaticity.

4. Discussion

4.1 Nature of PDMPO absorbance and fluorescence

PDMPO is a probably the most common fluorescent dye used today to monitor silica deposition during biomineralization28,29 and track the movement of lysosomes13 inside living cells. Nonetheless, the spectroscopic properties of the dye have been poorly understood until now. This study represents a significant advance in our understanding of both the aqueous and the silicaphilic fluorescence of PDMPO. The behaviour of PDMPO is similar to that of the fluorescent dyes 4-PYPO, 4-PYMPO, 4-PYMPOM, 2-PYMPO, 2-QUIMPO, 2-PYMPO-CO2Me, and 2-PYMPO-CH2OH.30 Photophysical properties of PDMPO most closely resemble that of the 4-PYMPO series, with pKa1 4.2 and 4.3 for PDMPO (current study) and PYMPO respectively.38 We have shown for the first time that the fluorescence behaviour of the dye in aqueous solution above pH 4.2 involves photo-induced proton transfer from water and/or the amine group to PDMPO which is disrupted when PDMPO binds to silica. While photo-induced proton transfer has been reported in the 4-PYMPO series of dyes, the disruption of this proton transfer by silica particles in aqueous solution has not been observed. The extensive chromaticity of PDMPO in the presence and absence of silica has not been previously documented nor has this been used previously as a proxy for bulk solution pH over the pH range 3–13. Similar chromaticity and/or disruption of photo-induced proton transfer in the presence of silica has not been reported for 4-PYMPO and related dyes, however, many will exhibit similar behaviour and screening related compounds for desirable silicaphilic fluorescence is likely to be fruitful.

4.2 What is the nature of the silicaphilic behaviour of PDMPO?

In the presence of silica, pKa1* shifts 6.2 pKa units and the photoinduced proton transfer observed in aqueous solution is disrupted. This indicates stabilisation of PDMPOH+ through interaction with the silica surface and the absence of reactive water within its ‘local’ environment suggesting PDMPO does not extend beyond the Stern layer. PDMPO does not change the hydrodynamic diameter of the particles at any pH giving further evidence PDMPO is located within the Stern layer. This provides a model (Fig. 8) similar to ones arising from experiments investigating the interaction of cationic particles with39 large unilamellar vesicles (LUV). Since the silicaphilic response of the dye reports on the surface of the silica particles themselves, the concentration of the dye is critical. We suggest that dye concentrations be less than 10% of surface coverage to minimise fluorescence emission from the bulk solution.
image file: c5cp05105c-f8.tif
Fig. 8 Preferential location of PDMPO in the Stern layer.

4.3 How does the dye bind to silica?

The silicaphilic behaviour of PDMPO gives considerable insight into PDMPO–silica interactions. The fluorescence anisotropy data suggest that at all pH values below ca. 12 the molecule is attached to the surface via either single point (low anisotropy) or multipoint modes (high anisotropy). Studies of electrostatically vs. tethered covalently bound dyes have shown the importance of electrostatic interactions in influencing the anisotropy of fluorophores on the silica surface.32 Our results confirm this while also making clear the role of pH on the charge states controlling the silica–dye interaction. We observed increases in the fluorescence anisotropy of PDMPO on silica above pKa1 which can only be explained by a change in the interaction resulting in more restrictive binding. We rationalise this with a two point binding model of PDMPO on silica (Fig. 9). We observed PDMPO partially neutralizing the surface charge of silica particles but only within a specific pH range (4.0–9.5) coinciding with the region of high fluorescence anisotropy. This indicates the pyridinium form is stabilised by interaction with negatively charged silica resulting in a proton being taken from the bulk solution. This proton is shared between a siloxide group and the pyridinium moiety on PDMPO leading to 2 point binding of PDMPO, loss of rotational diffusion (high anisotropy), and partial neutralisation of the silica surface. All the data reported here were taken at pH values above the point of zero charge for silica (ca. 2) and therefore all silica samples carry silanol and siloxide groups with their relative proportions changing with pH. In all cases, adsorption of the dye can be attributed to electrostatic interaction mediated by protons between negatively charged silica surfaces and the dye. As the dye is held in close proximity to the silica surface, it is highly sensitive to pH dependent changes in local dielectric constant which gives rise to the observed shifts in emission maxima.
image file: c5cp05105c-f9.tif

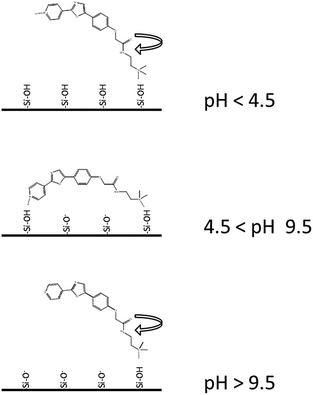

Fig. 9 pH dependent binding of PDMPO on silica surface the arrow represents depolarising motion.

4.4 PDMPO–silica interactions: an indirect measure of solution pH

The data presented in Fig. 7 show that PDMPO interacting with silica can be used as a probe of bulk pH over a wide pH range (ca. 3–13). However, the relevant ground and excited state pKas (4.2 and 10.4) are insufficient to cover such a wide range of pH. Outside of these regions, the chromatic behaviour serves as a proxy for pH. It is clear that the presence of silica is critical and the data show that there is a relationship between pH and local dielectric constant when silica is present. Unpicking the various contributions to the observed behaviour remains to be done.

5. Conclusions and future work

PDMPO has been widely used in vivo to study new silica deposition. Examples include: precipitation of silica in diatoms,2,3 silica deposition in Equisetum arvense,4 identifying silica transporters in silicifying organisms5 such as Bolidophyceae and Parmales.6 The more detailed understanding provided by the current study opens up many new applications. The ability to directly report on pH within biological organelles over an unprecedented range with a single dye will allow us to monitor the formation of silica more effectively, both in vitro and in vivo. This will extend our knowledge of the fundamentals of silica formation in the laboratory and in organisms, such as diatoms and may allow us to follow silica formation in the silica deposition vesicle which has not been possible. It will also allow us to probe individual silica structures within composites of mixed silica structures produced by silicifying organisms including single celled organisms such as diatoms and multicellular plants and animals such as sponges. PDMPO may also be used more widely to quantitatively investigate biophysical interactions of silica at solid liquid interfaces, colloid stabilization, and the assembly of silica thin films and to study electrostatic interactions between polyelectrolytes on thin films made of silica.
