Hindered rotational physisorption states of H₂ on Ag(111) surfaces

Abstract

We have investigated the physisorption states of H₂ on Ag(111) surfaces. To clarify the accurate adsorption properties of H₂ on Ag(111), we performed first-principles calculations based on spin-polarized density functional theory (DFT) with the semiempirical DFT-D2 method and the newly-developed exchange functional with the non-local correlation functional vdW-DF2 (rev-vdW-DF2). We constructed exhaustive potential energy surfaces, and revealed that non-negligible out-of-plane potential anisotropy with a perpendicular orientation preference exists even for H₂ physisorption on planar Ag(111), as predicted by previous results of resonance-enhanced multiphoton ionization spectroscopy and temperature-programmed desorption experiments. Therefore, the molecular rotational ground states of ortho-H₂ split into two energy levels in the anisotropic potential. The obtained adsorption energy and the number of bound states, including the zero-point energies and the rotational energy shift, agree with diffractive and rotationally mediated selective adsorption scattering resonance measurements. The origin of the potential anisotropy on Ag(111) is a combination of the London dispersion interaction and the virtual transition of the metal electron to the unoccupied molecular state.

---

1. Introduction

One of the most important topics in surface science is to understand the behavior of hydrogen molecules on various surfaces. Hydrogen molecules appear in various catalytic reactions. Many experimental studies using high-resolution electron-energy-loss spectroscopy (HREELS),^1,2 molecular beam scattering,^3–8 and temperature-programmed desorption (TPD)^9,10 have attempted to clarify the nature of physisorption states on various surfaces. However, there is little detailed information regarding hydrogen molecule behavior on various surfaces, including charge transfer, diffusion, hindered rotation, and physical bonding. This is because hydrogen molecules are difficult to directly observe because they are relatively inert and have weak molecule–surface interactions, which necessitate quite high energy resolution for unambiguous detection. Even with theoretical studies, it has been difficult to describe the physisorption states accurately. However, recent developments in theoretical techniques^11–14 and computational power allow accurate description of these physisorption systems. In addition, resonant ionization experiments can achieve rotational-state-selective observation of hydrogen molecules on various surfaces.^15,16 Thanks to these developments in theoretical and experimental techniques, we can achieve a full understanding of hydrogen molecule physisorption states using both theoretical and experimental methods.

Hydrogen also receives attention because of its minimal mass. Hydrogen systems have been investigated as they represent the most distinctive examples which show significant quantum effects. In fact, the quantum effects of hydrogen have been reported in various phenomena, such as tunneling effects in H₂ dissociative adsorption and hydrogen recombination reactions.¹⁷ Furthermore, recent nuclear reaction analyses have directly observed zero-point vibration of hydrogen adsorbed onto Si and Pt surfaces.¹⁸ With its importance in catalysis and quantum mechanics, understanding the behavior of hydrogen on the surface is one of the most interesting topics in the condensed matter and physical chemistry fields.

In addition, understanding the rotational states of hydrogen molecules is important for the adsorption properties. Hydrogen molecules on surfaces have hindered rotational states in the anisotropic potential, while free rotational states appear in the gas phase. The adsorption energy in hindered rotational states changes from those in free rotational states because of the rotational energy difference between the gas phase and adsorption states. Despite its importance, the potential anisotropy and its molecular axis orientation preference are still controversial for physisorption systems. The conventional theory of the physisorption interaction, which consists of the attractive van der Waals interaction and the Pauli repulsion, leads to almost no potential anisotropy or a slight parallel preference toward the surface in the case of inert diatomic molecules on noble surfaces. In contrast, recent theoretical studies on multi-reference configuration interactions have reported that a non-negligible perpendicular preference exists in cases of H₂ on Cu(100)¹⁹ and Ag(100)²⁰ surfaces. Such a non-negligible perpendicular preference of H₂ on Ag(111) has also been experimentally observed in resonant ionization experiments.²¹ Therefore, further studies are required to clarify the orientational preference and the origin of potential anisotropy of hydrogen molecules on noble surfaces.

In this study, we performed a first-principles investigation of H₂ molecular adsorption onto Ag(111) surfaces by calculating the relevant potential energy surface (PES). We focused on H₂/Ag(111) systems to compare our theoretical studies with previous experimental results.^4,21 Although results have been reported for H₂ on high symmetry adsorption sites,^22,23 we performed exhaustive studies with a finer grid of adsorption sites. We also performed quantum mechanical computations of hydrogen nuclei with these PES results to take into account quantum effects and hindered rotation. From the computational results, we obtained accurate physisorption states of H₂ on Ag(111) surfaces.

2. Computational methods

We performed total energy calculations based on spin-polarized DFT, using the generalized gradient approximation with the revised Perdew–Burke–Ernzerhof functional for the exchange–correlation energy,²⁴ which is implemented in the plane-wave and projector-augmented wave method code, the Vienna Ab initio Simulation Package (VASP 5.3.3).^25–30 To include the van der Waals interaction, we adopted the semiempirical DFT-D2 method reported by Grimme.¹¹ In addition, we also adopted the second version of van der Waals density functional (vdW-DF2)³¹ as the nonlocal correlation functional. We used the newly developed exchange functional reported by Hamada¹⁴ with vdW-DF2 (rev-vdW-DF2). We applied a 600 eV cutoff to limit the plane-wave basis set without compromising the computational accuracy. A 7 × 7 × 1 Monkhorst–Pack special k-point grid³² for the first Brillouin zone sampling and a Gaussian smearing model of σ = 0.05 eV were used. The computed equilibrium gas phase H₂ bond lengths using DFT-D2 and rev-vdW-DF2 are 0.747 and 0.750 Å, respectively. The Ag substrate was simulated as a slab of four fcc 2 × 2 Ag(111) layers. The supercell was constructed with a 15.5 Å vacuum separation between slabs to reduce the interaction between slabs. Our model with a single H₂ molecule on a 2 × 2 Ag(111) surface corresponds to a surface coverage of 0.25 monolayers. The adsorption energy difference between results obtained from simulations using 2 × 2 and 3 × 3 Ag(111) surfaces is 1 meV. Lattice constants for this system were initially set based on the theoretically predicted equilibrium lattice constant of 4.24 Å with DFT-D2 and 4.10 Å with rev-vdW-DF2, obtained using a 15 × 15 × 15 k-mesh on the primitive one-atom fcc unit cell for bulk Ag. The corresponding lateral and interlayer Ag–Ag distances for DFT-D2 and rev-vdW-DF2 are 3.00 and 2.90 Å, respectively. For reference, the bulk Ag lattice constant obtained using powder diffraction experiments (JCPDS Card No. 04-783) is 4.0862 Å. To determine the optimized Ag(111) surface structure, we performed preliminary calculations in which the top two layers were relaxed until the forces on each atom were smaller than 0.02 eV Å⁻¹. The supercell lattice vectors are held fixed during the relaxation. Because the H₂ mass is much less than Ag, we expect a large difference in the time scales associated with surface relaxation and H₂ adsorption dynamics. Thus, as a first step, we neglected surface relaxation.

We investigated the PES for H₂ adsorption and diffusion by calculating the total energy of H₂/Ag(111) systems as a function of the H₂ center-of-mass positions. In Fig. 1, we show the H₂ adsorption configurations on the 2 × 2 Ag(111) surface. To obtain an accurate PES, we adopted a 12 × 12 × 23 grid for H₂ adsorption configurations. We considered H₂ adsorbed from 2.6 to 7.0 Å from the surface. The step sizes for parallel and perpendicular directions to the surface are 0.5 and 0.2 Å, respectively. These step sizes are sufficiently small so that the accuracy of the calculated PES is ensured. All energies are potential energies with respect to the infinitely separated slab and H₂.

E₀ = E_Ag(111) + E_H2. (1)

Fig. 1 Adsorption sites for potential energy calculations of H₂ on Ag(111) surfaces.

In these calculations, we set the electric dipole correction layer in the vacuum area to compensate for the electric dipole interactions between repeated slabs.³³ Electron transfer is obtained by taking the difference in the electron density distribution between two configurations – isolated and adsorbed onto the substrate – using Bader charge analysis.³⁴

3. Results and discussion

First, we investigated the potential energy and potential anisotropy of H₂ on four high-symmetry adsorption sites with the H–H axis oriented parallel and perpendicular to the surface. The computed DFT-D2 and rev-vdW-DF2 results are collected in Table 1. For reference, we also present the results obtained using the conventional PBE functional. The four high-symmetry adsorption sites considered are the top site, the bridge site, the fcc-hollow site, and the hcp-hollow site. At first, we point out that the most stable H₂ center-of-mass height from the surface z over all adsorption configurations considered herein is 3.6 and 3.8 Å with DFT-D2 and rev-vdW-DF2, respectively. We found that the most stable H₂ adsorption configuration with DFT-D2 is 3.8 Å above the surface at the fcc-hollow sites with the H₂ bond oriented normal to the surface. Conversely, the most stable H₂ adsorption configuration with rev-vdW-DF2 is 3.6 Å above the surface at the top site normal to the surface. From Table 1, we can also see that the corresponding potential energies for DFT-D2 and rev-vdW-DF2 are 38.1 and 39.8 meV, respectively. In comparison with the results obtained using the conventional PBE functional which does not include the van der Waals interaction accurately, both DFT-D2 and rev-vdW-DF2 can improve the potential energies of molecularly adsorbed H₂ on Ag(111) surfaces. Though DFT-D2 corrected the potential energies by simple semiempirical dispersion terms, DFT-D2 gives similar results with rev-vdW-DF2 which includes the nonlocal correlation functional. The electron transfer from Ag(111) surfaces to H₂ is only 0.01 e, which indicates that H₂ physisorbs on Ag(111) surfaces. The H₂ bond length r in the most stable H₂ adsorption configuration becomes 0.747 and 0.752 Å with DFT-D2 and rev-vdW-DF2, respectively. In subsequent calculations used to construct the corresponding PES, we fixed the H₂ bond length at these values. From the calculated exhaustive PES, we find that the potential energy difference between each adsorption site on Ag(111) surfaces is smaller than 1.3 meV with DFT-D2 and 0.1 meV with rev-vdW-DF2, which corresponds to the diffusion barrier height for in-plane diffusion on Ag(111). These values are negligibly small, so we conclude that H₂ can diffuse without any barrier on Ag(111) surfaces under finite temperature conditions. In addition, as we mentioned, the adsorption height from the surface z over all adsorption configurations does not change. From these data, we can say that the adsorption properties do not change during diffusion processes.

Table 1 Calculated adiabatic potential energies and the most stable H₂ center-of-mass height from the surface z for H₂ at high-symmetry sites on Ag(111) surfaces. The results of DFT-D2, rev-vdW-DF2, and PBE computations are shown. ⊥ and ∥ indicate the molecular axis perpendicular and parallel to the surfaces, respectively

		Potential energy (meV)				z (Å)
		Top	Bridge	fcc-hollow	hcp-hollow
DFT-D2	⊥	−36.8	−37.7	−38.1	−38.1	3.8
	∥	−30.9	−30.1	−30.3	−30.3	3.8
rev-vdW-DF2	⊥	−39.8	−39.7	−39.7	−39.7	3.6
	∥	−35.3	−33.8	−33.4	−33.3	3.6
PBE	⊥	−10.1	−10.7	−10.8	−10.8	3.8
	∥	−5.9	−4.9	−5.1	−5.0	3.8

---

We also focused on the hindered rotational states of H₂ on Ag(111) surfaces. From Table 1, we can see that the corresponding potential anisotropy at the most stable adsorption heights vary from 6.7 to 9.2 meV with DFT-D2 and from 4.6 to 6.4 meV with rev-vdW-DF2.

Here, we calculated the molecular rotational wave function in the anisotropic potential. We defined the angle θ as the angle between the molecular axis and the surface normal. The φ rotation is not hindered in H₂/Ag(111) systems, thus, we could define the φ angle as the angle between the molecular axis and an arbitrary reference axis parallel to the surface. In the case of H₂ hindered rotation with out-of-plane potential anisotropy on Ag(111) surfaces, we calculated the wave functions of the hindered rotational states using the following Hamiltonian H_R:³⁵

V_a(z) = V_⊥(z) − V_∥(z), (3)

where ℏ, I, and V_a(z) are the reduced Planck constant, the reduced mass of H₂, and the value of the out-of-plane potential anisotropy obtained from our DFT calculations, respectively. We adopted the potential anisotropy at the most stable adsorption configurations. The corresponding potential anisotropy values with DFT-D2 and rev-vdW-DF2 are −7.8 and −4.5 meV, respectively. As mentioned, such non-negligible orientation preference of H₂ normal to the surface has also been reported in other non-corrugated surface systems, for example, H₂/Cu(100),¹⁹ H₂/Ag(100),²⁰ and H₂/Ag(110)³⁶ systems. We used a spherical harmonics basis to solve the Schrödinger equation with the Hamiltonian for the hindered rotational states H_R. We considered azimuthal quantum numbers of 0 to 20. From the obtained wave functions, we found that the hybridization of the spherical harmonics basis between deferent rotational states is less than 0.1%. The H₂ rotational constant, ℏ²/2I, which corresponds to 7.3 meV, is large owing to the small mass. Therefore, the rotational energy levels are well discretized, which leads to less hybridization of the rotational motion wave functions. In addition, according to the symmetry requirement for exchange of nuclei, the molecular rotational states of H₂ are strongly coupled with the nuclear spin states. Thus, the molecular rotational states can hybridize only in odd or even azimuthal rotational quantum numbers. From these points, we can assume that the molecular rotational motion wave function can be still treated as spherical harmonics even in the anisotropic adsorption potential on Ag(111) surfaces.

To compare our theoretical results with the previously reported experimental results, we expressed the potential energy with the isotropic and anisotropic terms using a Legendre polynomial. We define the potential energy as follows:

V(z, θ) = V₀(z) + V₂(z) P₂(cos θ), (4)

where V₀(z) and V₂(z) are the isotropic and anisotropic potential terms, respectively. P₂(cos θ) is the second-order Legendre polynomial. From eqn (4), we can see that one-third of the anisotropic potential contributes to the isotropic potential energy. Thus, the isotropic potential energy, which corresponds to the potential energy of the molecular rotational ground states, includes the adsorption energy shift caused by the potential anisotropy. In addition, because H₂ is the lightest molecule, we take into account the zero-point energy. We assumed that H₂ is bound only in the direction perpendicular to the surfaces. Therefore, we calculated only the corresponding zero-point energy of the H₂–Ag(111) vibration along the surface-normal direction. We calculated the adsorption energy Ṽ₀(n), which includes the zero-point energy and H₂–Ag(111) vibrational energy, from the Hamiltonian H_v as follows:

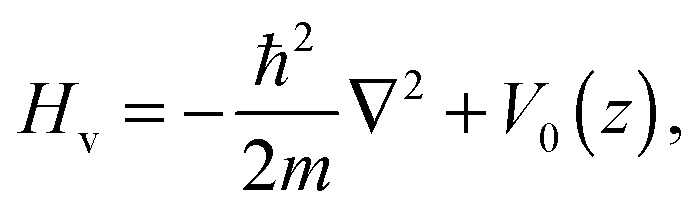

Ṽ₀(n) = 〈n|H_v|n〉, (7)

where |n〉 and m are the wave function of the n-th H₂–Ag(111) vibrational state in the isotropic potential V₀(z) and the total mass of H₂, respectively. In this paper, we adopted the Morse potential function for the potential energy curve fitting. Thus, we could obtain |n〉 and Ṽ₀(n) analytically. We show Ṽ₀(n) for various vibrational states n in Table 2. We also show results obtained for D₂ to illustrate the isotope effect. The bound states of H₂ and D₂ exist up to n = 5 and 7, respectively. The isotropic adsorption energy is equivalent to the adsorption energy of para-H₂ and ortho-D₂ in the rotational ground states. DFT-D2 and rev-vdW-DF2 predict zero-point energies of 4.6 and 5.8 meV, respectively. These values correspond to about 15% of the isotropic potential energy depth. Thus, we conclude that the zero-point energies cannot be neglected. Focusing on the isotope effect, the zero-point energy of D₂ is 3.3 and 4.2 meV with DFT-D2 and rev-vdW-DF2, respectively. The zero-point energy ratios between H₂ and D₂ for both methods are slightly smaller than , which is generally considered as the conventional isotope effect. This originates from anharmonicity of the adsorption potential. The activation barriers for the in-plane diffusion with zero-point energy exist at the bridge site with both methods. The corresponding diffusion barrier heights are 0.2 meV with DFT-D2 and 1.1 meV with rev-vdW-DF2. These values are still negligibly small. Therefore, we posit that H₂ can diffuse freely on Ag(111) surfaces under finite temperature conditions. In Table 2, we also show experimental results of resonance enhanced multiphoton ionization spectroscopy with temperature-programmed desorption (REMPI-TPD)²¹ and diffractive selective adsorption and rotationally mediated selective adsorption (DSA-RMSA) scattering resonance measurements.⁴ The value of Ṽ₀(n) obtained from REMPI-TPD is −26 meV. In addition, we can also compare our DFT results of the H₂–Ag(111) vibrational excited states with the results of selective adsorption experiments. As we mentioned, the H₂–Ag(111) vibrational states of H₂ and D₂, which mean the bound states of H₂/Ag(111) systems, exist up to n = 5 and 7 with both DFT methods, respectively. These values are consistent with the DSA-RMSA results. Each H₂–Ag(111) vibrational energy is also in good agreement with the corresponding experimental results. From these data, we assess that both DFT-D2 and rev-vdW-DF2 reproduce well the accurate physisorption states.

Table 2 Calculated adsorption energies of H₂ and D₂ on Ag(111) surfaces. Isotropic terms Ṽ₀(n) and anisotropic terms Ṽ₂(n) are shown. Experimental results of REMPI-TPD²¹ and DSA-RMSA⁴ are also included for comparison

	Vibrational state n	Adsorption energy (meV)
		DFT-D2		rev-vdw-DF2		REMPI-TPD^21		DSA-RMSA^4
		Ṽ 0(n)	Ṽ 2(n)	Ṽ 0(n)	Ṽ 2(n)	Ṽ 0(n)	Ṽ 2(n)	Ṽ 0(n)
H2	0	−28.0	−5.2	−31.0	−3.1	−26	−5	−25.74
	1	−19.7	−4.9	−20.9	−2.7			−16.87
	2	−12.9	−4.4	−12.7	−2.1			−10.11
	3	−7.6	−3.9	−6.6	−1.7			−5.47
	4	−3.6	−3.4	−2.5	−1.3			−2.61
	5	−1.1	−2.7	−0.3	−0.8			−1.21
D2	0	−29.2	−5.0	−32.6	−3.1
	1	−23.2	−4.8	−25.1	−2.8			−20.97
	2	−17.8	−4.5	−18.5	−2.4			−15.25
	3	−13.1	−4.2	−12.9	−2.1			−10.09
	4	−9.1	−3.9	−8.3	−1.8			−6.57
	5	−5.9	−3.5	−4.8	−1.5			−3.97
	6	−3.3	−3.1	−2.2	−1.1			−2.39
	7	−1.5	−2.6	−0.6	−0.7			−1.13

---

In anisotropic adsorption potential, the adsorption energy has rotational azimuthal and magnetic quantum number dependence. As we mentioned, the H₂ rotational wave functions on Ag(111) surfaces still remain as spherical harmonics type functions. Thus, we treated the anisotropic term V₂(z)P₂(cos θ) as a perturbation to a free rotor. The contribution of the anisotropic term to the adsorption energy within first-order perturbation can be calculated as follows:³⁷

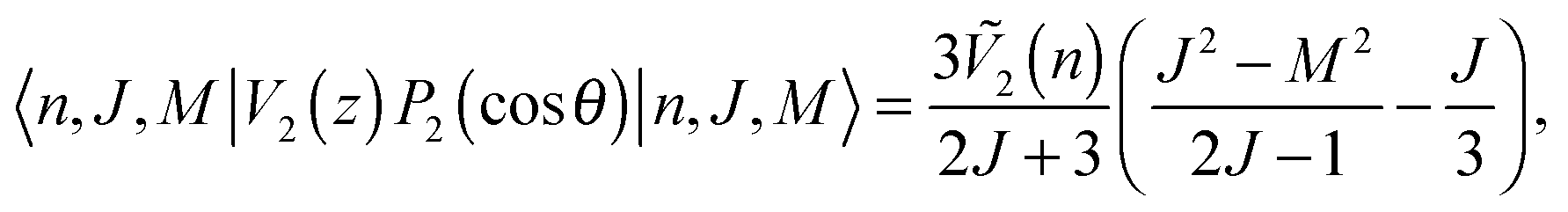

Ṽ₂(n) = 〈n|V₂(z)|n〉, (10)

where J and M are the rotational azimuthal and magnetic quantum numbers, respectively. The calculated Ṽ₂(n) values with DFT-D2 and rev-vdW-DF2 are −5.2 and −3.1 meV, respectively. These values correspond well with the experimental value of −5 meV obtained from REMPI-TPD measurements. For the molecular rotational ground states of para-H₂ (J = 0, m = 0), there is no energy shift due to the anisotropic term. Conversely, the molecular rotational ground states of ortho-H₂ (J = 1, m = 0, ±1), which originally degenerate in the isotropic potential, split into two energy levels. From eqn (9), we can see that the molecular rotational energy shifts with J = 1 and m = 0 with DFT-D2 and rev-vdW-DF2 are −2.1 and −1.2 meV, and with J = 1 and m = ±1 are 1.0 and 0.6 meV, respectively. We present the adsorption energies of H₂ and D₂ on Ag(111) surfaces with vibrational and rotational ground states in Table 3. We also show the results regarding ortho-D₂ (J = 0, m = 0) and para-D₂ (J = 1, m = 0, ±1), where the corresponding rotational constant ℏ²/2I is 3.7 meV. From Table 3, we found that the molecular rotational states with J = 1 and m = 0, which are p_z orbital type wave functions, are the molecular rotational ground states of ortho-H₂ and para-D₂ on Ag(111) surfaces. This is because H₂ and D₂ prefer to have their molecular axis normal to the surface.

Table 3 Calculated adsorption energies of H₂ and D₂ on Ag(111) surfaces with vibrational and rotational ground states. J and m are the rotational azimuthal and magnetic quantum numbers, respectively

	J	M	Adsorption energy (meV)
			DFT-D2	rev-vdw-DF2
H2	0	0	−28.0	−31.0
	1	0	−15.5	−17.6
		±1	−12.4	−15.8
D2	0	0	−29.2	−32.6
	1	0	−23.9	−26.5
		±1	−20.9	−24.7

---

We also discuss the origin of the potential anisotropy on Ag(111) surfaces. In the physisorption states, the van der Waals interaction is dominant. The main part of the attractive van der Waals interaction is the London dispersion interaction, which causes the nonlocal electron–electron correlation effect. In the case of H₂/noble surface systems, the potential anisotropy caused by the London dispersion interaction, which is obtained from the polarizability along and transverse to the molecular axis, prefers the end-on molecular orientation and is 7% of the isotropic potential term V₀(z).³⁸ We can then assume that the values of the potential anisotropy from the contribution of the London dispersion interaction at the most stable adsorption configurations are −2.5 and −2.7 meV with DFT-D2 and rev-vdW-DF2, respectively. However, the obtained potential anisotropy V_a(z) at the most stable adsorption configurations are −7.8 and −4.5 meV with DFT-D2 and rev-vdW-DF2, respectively. In addition, the repulsion caused by the electron overlap between H₂ and the surface generally prefers the diatomic molecule to be oriented parallel to the surface. Thus, the origin of the potential anisotropy cannot be understood only through London dispersion interactions. The other important cause of the potential anisotropy is the interaction of metal surface electron states with H₂ anti-bonding resonances.³⁶ The energy shift from this resonance interaction δε^u_m can be described in a second-order perturbation expression as follows:

where |m〉 and |u〉 are wave functions of the metal surface electron states and H₂ anti-bonding states, respectively. ε⁰_m, ε⁰_u, and ν_mol are one-electron of the metal surface electron states, H₂ antibonding states, and the attractive potential of H₂ nuclei, respectively. This term gives the energy gain from the virtual transition of the metal electron to the unoccupied molecular state. Here, we calculated δε^u_m using a simple two-level model. We described the wave functions of the Ag(111) surface electron using a nearly-free two-band model.³⁹ The wave functions of the H₂ anti-bonding orbitals consist of 1s orbitals of two hydrogen atoms that are orthogonal to each other.⁴⁰ From this calculation, we clarified that δε^u_m has the molecular axis orientation dependence. In the case of H₂/Ag(111) systems, this resonance interaction gives a perpendicular preference to the surface of about −10 meV with z = 3.6 Å and r = 0.75 Å. This is because the quite small product of the Fermi wave number of the surface electron and the bond length of H₂ in H₂/Ag(111) systems cancels the contribution of each H atom to the electron transfer in the parallel orientation.⁴¹ In addition, DFT calculations using the conventional PBE functional, which does not include the London dispersion interaction, indicate a preferred orientation perpendicular to the surface. From these points, even in the physisorption states, not only the London dispersion interaction and the repulsion term, but also the resonance interaction is important for the potential anisotropy.

4. Conclusions

In this paper, we investigated the physisorption states of H₂ on Ag(111) surfaces using first-principles calculations based on spin-polarized DFT. To include the van der Waals interaction, we adopted the semiempirical DFT-D2 and van der Waals density functional (rev-vdW-DF2) methods. First, we constructed exhaustive potential energy surfaces of H₂ on Ag(111) surfaces. The calculated adsorption energy of H₂ on Ag(111) surfaces, which includes the zero-point energy, is in good agreement with the results of DSA-RMSA experiments. The diffusion barrier of H₂ on Ag(111) surfaces is negligible. We also clarified that the non-negligible out-of-plane potential anisotropy, which has a perpendicular preference to the surface, exists even on non-corrugated Ag(111) surfaces, as has been observed by REMPI-TPD experiments. We clarified that the molecular rotational ground states of ortho-H₂ split into two energy levels in the anisotropic potential. From these points, we conclude that both semiempirical dispersion interaction terms and non-local correlation functionals can improve upon the description of the physisorption states of H₂/Ag(111) systems. Finally, we revealed that the origin of the potential anisotropy on Ag(111) surfaces is a combination of the London dispersion interaction and the virtual transition of the metal electron to the unoccupied molecular state.

Acknowledgements

This work was supported by Japan Science and Technology Agency (JST) through the Strategic International Research Cooperative Program “Theoretical modeling and simulations of the structural, electronic and dynamical properties of surfaces and nanostructures in materials science research” and the Ministry of Education, Culture, Sports, Science and Technology (MEXT) through the Grant-in-Aid for Scientific Research on Innovative Areas Program (2507-26108502). Calculations were executed using computer facilities of the Information Initiative Center (Hokkaido University) and the ISSP Super Computer Center (the University of Tokyo). The authors are thankful to R. Brako of Rud̅er Bošković Institute for helpful discussions.

References

1. M. Gruyters and K. Jacobi, Chem. Phys. Lett., 1994, 225, 309.
2. K. Svensson and S. Andersson, Phys. Rev. Lett., 1997, 78, 2016.
3. H. Hoinkes, Rev. Mod. Phys., 1980, 52, 933.
4. C. f. Yu, K. B. Whaley, C. S. Hogg and S. J. Sibener, Phys. Rev. Lett., 1983, 51, 2210.
5. C. f. Yu, K. B. Whaley, C. S. Hogg and S. J. Sibener, J. Chem. Phys., 1985, 83, 4217.
6. S. Andersson, L. Wilzén and M. Persson, Phys. Rev. B: Condens. Matter Mater. Phys., 1988, 38, 2967.
7. S. Andersson, L. Wilzén, M. Persson and J. Harris, Phys. Rev. B: Condens. Matter Mater. Phys., 1989, 40, 8146.
8. S. Andersson and M. Persson, Phys. Rev. B: Condens. Matter Mater. Phys., 1993, 48, 5685.
9. L. Amiaud, J. H. Fillion, S. Baouche, F. Dulieu, A. Momeni and J. L. Lemaire, J. Chem. Phys., 2006, 124, 094702.
10. S. Iwata, Y. Sato, K. Nakai, S. Ogura, T. Okano, M. Namura, A. Kasuya, K. Tohji and K. Fukutani, J. Phys. Chem. C, 2007, 111, 14937.
11. S. Grimme, J. Comput. Chem., 2006, 27, 1787.
12. M. Dion, H. Rydberg, E. Schröder, D. C. Langreth and B. I. Lundqvist, Phys. Rev. Lett., 2004, 92, 246401.
13. J. Klimeš, D. R. Bowler and A. Michaelides, Phys. Rev. B: Condens. Matter Mater. Phys., 2011, 83, 195131.
14. I. Hamada, Phys. Rev. B: Condens. Matter Mater. Phys., 2014, 89, 121103(R).
15. K. Fukutani, K. Yoshida, M. Wilde, W. A. Diño, M. Matsumoto and T. Okano, Phys. Rev. Lett., 2003, 90, 096103.
16. N. Watanabe, Y. Kimura, A. Kouchi, T. Chigai, T. Hama and V. Pirronello, Astrophys. J., Lett., 2010, 714, L233.
17. W. A. Diño, H. Kasai and A. Okiji, Prog. Surf. Sci., 2000, 63, 63.
18. K. Fukutani, A. Itoh, M. Wilde and M. Matsumoto, Phys. Rev. Lett., 2002, 88, 116101.
19. G. Cilpa and G. Chambaud, Surf. Sci., 2007, 601, 320.
20. G. Cilpa, M. Guitou and G. Chambaud, Surf. Sci., 2008, 602, 2894.
21. T. Sugimoto and K. Fukutani, Phys. Rev. Lett., 2014, 112, 146101.
22. Y. Kunisada, H. Nakanishi, W. A. Diño and H. Kasai, J. Vac. Soc. Jpn., 2012, 55, 115.
23. Y. Kunisada and H. Kasai, J. Phys. Soc. Jpn., 2013, 82, 023601.
24. B. Hammer, L. B. Hansen and J. K. Nørskov, Phys. Rev. B: Condens. Matter Mater. Phys., 1999, 59, 7413.
25. G. Kresse and J. Hafner, Phys. Rev. B: Condens. Matter Mater. Phys., 1993, 47, 558.
26. G. Kresse and J. Hafner, Phys. Rev. B: Condens. Matter Mater. Phys., 1994, 49, 14251.
27. G. Kresse and J. Furthmüller, Comput. Mater. Sci., 1996, 6, 15.
28. P. E. Blöchl, Phys. Rev. B: Condens. Matter Mater. Phys., 1994, 50, 17953.
29. G. Kresse and J. Furthmüller, Phys. Rev. B: Condens. Matter Mater. Phys., 1996, 54, 11169.
30. G. Kresse and D. Joubert, Phys. Rev. B: Condens. Matter Mater. Phys., 1999, 59, 1758.
31. K. Lee, E. D. Murray, L. Kong, B. I. Lundqvist and D. C. Langreth, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 82, 081101.
32. H. J. Monkhorst and J. D. Pack, Phys. Rev. B: Condens. Matter Mater. Phys., 1976, 13, 5188.
33. J. Neugebauer and M. Scheffler, Phys. Rev. B: Condens. Matter Mater. Phys., 1992, 46, 16067.
34. G. Henkelman, A. Arnaldsson and H. Jonsson, Comput. Mater. Sci., 2006, 36, 354.
35. T. B. MacRury and J. R. Sams, Comput. Mol. Phys., 1970, 19, 337.
36. L. Wilzén, F. Althoff, S. Andersson and M. Persson, Phys. Rev. B: Condens. Matter Mater. Phys., 1991, 43, 7003.
37. S. Andersson and J. Harris, Phys. Rev. Lett., 1982, 48, 545.
38. J. Harris and P. J. Feibelman, Surf. Sci., 1982, 115, L133.
39. E. Ilisca, Phys. Rev. Lett., 1991, 66, 667.
40. Y. Takahashi, J. Phys. Soc. Jpn., 1977, 43, 1342.
41. A. Fukui, H. Kasai, H. Nakanishi and A. Okiji, Phys. Rev. B: Condens. Matter Mater. Phys., 2000, 61, 14136.

---
