Interplay between water uptake, ion interactions, and conductivity in an e-beam grafted poly(ethylene-co-tetrafluoroethylene) anion exchange membrane

Abstract

We demonstrate that the true hydroxide conductivity in an e-beam grafted poly(ethylene-co-tetrafluoroethylene) [ETFE] anion exchange membrane (AEM) is as high as 132 mS cm⁻¹ at 80 °C and 95% RH, comparable to a proton exchange membrane, but with very much less water present in the film. To understand this behaviour we studied ion transport of hydroxide, carbonate, bicarbonate and chloride, as well as water uptake and distribution. Water uptake of the AEM in water vapor is an order of magnitude lower than when submerged in liquid water. In addition ¹⁹F pulse field gradient spin echo NMR indicates that there is little tortuosity in the ionic pathways through the film. A complete analysis of the IR spectrum of the AEM and the analyses of water absorption using FT-IR led to conclusion that the fluorinated backbone chains do not interact with water and that two types of water domains exist within the membrane. The reduction in conductivity was measured during exposure of the OH⁻ form of the AEM to air at 95% RH and was seen to be much slower than the reaction of CO₂ with OH⁻ as the amount of water in the film determines its ionic conductivity and at relative wet RHs its re-organization is slow.

---

1. Introduction

Anion exchange membranes (AEM) are being investigated as an alternative to proton exchange membranes (PEM) in energy conversion devices such as fuel cells, electrolyzers, redox flow batteries, etc.^1,2 AEM fuel cells have potential advantages over PEM fuel cells for the direct oxidation of hydrocarbon fuels, such as reduced fuel cross-over, which improves performance with liquid fuels, and higher reaction kinetics at the electrodes under basic conditions, allowing the use of less expensive non-precious metal catalysts and more complex fuels.^3–5 As water is a reactant and the ultimate source of oxygen in the products of a direct fuel cell, the study of its transport in AEMs is crucial to their application. Compared to PEMs such as Nafion™, AEMs are still in need of improvements in terms of ionic and water transport, chemical stability, and mechanical properties to develop materials capable of practical fuel cell operations.⁶ To enable next generation AEMs, it is, therefore, important that the properties of the current AEMs under consideration for fuel cell applications be thoroughly studied.

One class of AEMs that has been found to have consistent and desirable properties are synthesized via grafting of cationic functional groups on to preformed polymer sheets, taking advantage of material properties of commercially available polymer films.^7–10 Radiation grafted AEMs based on poly(ethylene-co-tetrafluoroethylene) [ETFE] films were the first membranes formed by this synthetic method to demonstrate promising conductivities while maintaining good mechanical characteristics. In this report, we study water uptake properties and ionic transport performance of a quaternary ammonium ETFE radiation grafted polymer membrane (ETFE-g-PVBTMA) AEM, Fig. 1.^8,11 Previous characterization of this material has demonstrated that the hydration conditions significantly affect the anionic conductivity.¹²

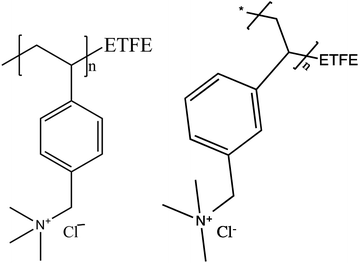

Fig. 1 Radiation grafted ETFE-g-PVBTMA membrane consisted of a mixture of both para and meta structures.

Sustained high ionic conductivity is a crucial material property for a competitive fuel cell electrolyte. The most important anion for ionic transport through AEMs is hydroxide (OH⁻) due to its basicity enabling fast anode kinetics, its small size¹³ and therefore, high ionic mobility in water as compared to other anions.¹⁴ However, rapid reaction of OH⁻ with atmospheric CO₂ makes conductivity measurement of the pure OH⁻ form of AEMs a major characterization challenge.¹ When the OH⁻ form of an AEM is exposed to atmospheric CO₂, the membrane counter-ions become a mixture of carbonate, bicarbonate, and residual OH⁻, which show reduced overall ionic conductivity.^10,15,16

Yanagi et al. observed a sharp decrease in OH⁻ ion concentration in a dynamic OH⁻ concentration measurement as a function of time at ambient conditions.¹⁷ For this reason, few studies reporting OH⁻ conductivity in AEMs can guarantee measurement of pure OH⁻ transport within the membrane, making comparison of results problematic. Many researchers report OH⁻ conductivity of membranes measured in water with ambient air exposure, while others report OH⁻ conductivity measured in various concentrations of hydroxide salt solutions.¹⁸ AEM fuel cells can also be operated with carbonate ions as the anion transported from cathode to anode. However, Ohmic losses will be higher due to the lower ion mobility of the larger anion and the reactivity of the catalysts at the electrodes will be reduced due to the reduced basicity. This situation is still an improvement over the formation of insoluble carbonate salt formation in alkali fuel cells with liquid electrolytes, which is detrimental to operation and requires operation without exposure to CO₂.^19,20

In this study the water absorption kinetics and structure in the membranes are elucidated through environmentally controlled FT-IR experiments. Analysis of peak intensity and position migration during hydration gives an understanding of the polymer structure interactions with water. The in-plane conductivity of the AEM was measured in different counter anionic forms including OH⁻ (with no exposure to CO₂) as a function of temperature and relative humidity. A dynamic in-plane conductivity study of the OH⁻ form of the membrane during reaction with atmospheric CO₂ was also conducted. We also report the self-diffusion coefficients of F⁻ ions in the material that give insights into the ionic channel tortuosity of the membrane. The similar ionic size of F⁻ and OH⁻ ions made F⁻ an acceptable model anion replacing OH⁻ in NMR self-diffusion studies.^21,22

2. Experimental

2.1 Materials

The detailed synthetic route of the polymeric membrane is published elsewhere.^7,8 The AEM was received in the Cl⁻ form and exchanged to other counter-ions as needed. The procedure for F⁻ exchange has been previously reported.²² Carbonate and bicarbonate forms of the samples were prepared by soaking membranes in 1 M aqueous solutions of sodium carbonate and sodium bicarbonate, respectively. Samples were rinsed repeatedly and then soaked in 18 MΩ cm deionized (DI) water for 12 h. The OH⁻ form of the membrane was prepared using a unique preparation and testing procedure designed to prevent exposure to atmospheric CO₂. Samples were converted to OH⁻ form while contained in a CO₂ free glovebox. The Cl⁻ form of the membranes were soaked in 1 M aqueous solution of KOH for 12 h, then rinsed and soaked with ultra high purity (UHP) N₂ purged DI water until the solution was stable at a neutral pH = 7.0. The sample was then loaded in an airtight cell inside the glovebox before it was taken to the conductivity measurement apparatus.

2.2 Chemical characterization

A Dynamic Vapor Sorption (DVS)-advantage instrument by Surface Measurement System™ was used to measure the sorption and desorption of water vapor by the AEM at 30 °C as function of relative humidity. The samples were equilibrated for 3.0 h at 0% RH to measure dry weight and then equilibrated for 1.5 h each at 20, 40, 60, 80 and 95% RH before further water uptake measurements. Experimental conditions were selected to mimic temperature and humidity conditions during FT-IR experiments. The liquid water uptake by the AEM in different anionic forms was studied by measuring the wet and dry membrane weight. The anion exchanged and rinsed membrane samples were kept in DI water for 24 h before wet weight measurements. The membrane samples were vacuum dried at 60 °C for 12 h before dry weight measurements.

Water uptake (WU) and λ (the number of water molecules per quaternary ammonium group) are calculated as: WU = 100% × (m_rh − m_dry)/m_dry and λ = WU/100/(IEC × MW_H2O) where m_rh is the mass of membrane at specific %RH and m_dry is the mass of membrane at 0% RH, and IEC is ion exchange capacity of the membrane (1.78 ± 0.02 meq g⁻¹ for this ETFE-g-PVBTMA AEM).¹¹

A FTIR spectroscopy (Nexus™470 FT-IR) was used for collection of IR spectra at a range of temperature and relative humidity (RH) conditions. A liquid N₂ cooled MCT detector in attenuated total reflection (ATR) mode was used to collect spectra with 256 scans and a resolution of 8 cm⁻¹. The RH of the test environment was controlled using a custom designed environmental control set up (Fig. S1, ESI†). Humidity was controlled inside the sample oven by adjusting the ratio of the flow of dry and water-saturated N₂ (N₂ bubbled through DI water) using mass flow controllers (MKS Instrument Inc.). The flow rate of each gas stream was controlled through Labview® software. The sample was heated in the ATR accessory (Specac, Inc.) while the humidity bottle and all gas flow lines were heated using a 4 channel E&M temperature controller.

Self-diffusion coefficients of anions (¹⁹F) were determined with a pulsed field gradient stimulated echo (PGSTE) NMR technique as described previously.²²

2.3 Quantum mechanical calculations of FT-IR spectra

Optimal geometries and infrared spectra of meta- and para-molecule configuration models of [benzyltrimethylammonium][Br] side groups of the polymer matrix were obtained by density functional theory methods (DFT). DFT calculations were performed on the basis of an all-electron DFT code using the DMol3 program as part of the Material Studio package with double numerical plus polarization basis set and a gradient-connected (GCA) BLYP functional. The internal modes were identified by animating the vibrational modes using the features available in the DMol3 package.^23,24

2.4 Conductivity measurements

The in-plane ionic conductivity of the membrane was measured with varied anionic counter-ions using electrochemical impedance spectroscopy (EIS). Impedance spectra were collected over a frequency range of 0.3 Hz–100 kHz using a 4-probe test cell with Pt electrodes connected to a VMP3potentiostat (BioLogic). In the standard experiments, test cells were placed in a TestEquity (Solatron 1007 H Model) environmental chamber to control the relative humidity and the temperature of the sample environment. The OH⁻ conductivity measurements were conducted under UHP N₂ gas flow at different temperature and RH using a BekkTech conductivity cell.²⁵ For the real time conductivity measurements collected during bicarbonate–carbonate formation, the pure form of OH⁻ membrane was exposed to CO_2(g) while impedance spectra were collected by switching from UHP N₂ to compressed air.

The impedance spectra collected using EIS were fit to the Randall circuit using EC-Lab software to obtain the membrane resistances. The conductivity (mS cm⁻¹) was calculated from the measured membrane resistance from: σ = l/Rwt where l is the distance between two electrodes (l = 4.25 mm), R is the resistance (Ω); w and t are the width and thickness of the membrane.

2.5 Small angle X-ray scattering (SAXS)

SAXS measurements were made at Advanced Photo Source, Argonne National Laboratory on beamline 12-ID-B as described previously.²⁶

3. Results and discussion

3.1 Studies on equilibrated samples

3.1.1 Ionic conductivity and water uptake. We exchanged the AEM from its native Cl⁻ form in to OH⁻, CO₃²⁻ and the HCO₃⁻ forms, in order to fully understand its ionic conductivity, and then measured the ionic conductivities at two RHs (80% and 95%) and from 30 °C to 90 °C, Fig. 2. The OH⁻ form had by far the highest conductivity values at each temperature and hydration level reaching a maximum of 132 ± 20 mS cm⁻¹ at 80 °C and 95% RH. At 60 °C and 95% RH, the OH⁻ form of the membrane had the conductivity value of 112 ± 20 mS cm⁻¹. The closest study, by Fang et al. performed on a similar chemistry AEM (cross-linked ETFE radiation grafted vinyl benzyl, ∼40–50 μm thick), reported a conductivity value of 57 mS cm⁻¹ at 60 °C measured in liquid water.²⁷ In fact, this conductivity performance approaches the proton conductivity performance of Nafion® 117 under similar experimental conditions of temperature and RH.²⁸ The AEM changed color from a light transparent brown color to dark black during OH⁻ conductivity measurements and during OH⁻ ion exchanged inside the glove-box. There was no evidence of chemical degradation when studied using IR as all the bands assigned to the chemical structure were still present after study at the same intensities (Fig. S2, ESI†); the differences in the IR spectra were due to bands associated with H₂O between the pre-test chloride and post test air exchanged hydroxide films.

Fig. 2 In-plane conductivity of the ETFE-g-PVBTMA AEM in HCO₃⁻, CO₃²⁻, Cl⁻ and OH⁻ forms as a function of temperature at constant relative humidities: 95% RH (first figure) and 80% RH (second figure).

Of the other anions studied HCO₃⁻ had a higher anionic conductivity than CO₃²⁻ and Cl⁻, Fig. 2. The in-plane conductivity in HCO₃⁻ forms of the AEM observed was slightly higher than the reported through-plane ionic conductivity of the membrane at similar temperature.¹¹ The Cl⁻ form membrane had the lowest ionic conductivity, however, 2.5 mS cm⁻¹ at 80% RH and 30 °C: this still represents a fairly mobile anion. The anionic conductivity of Cl⁻ being lower than both the CO₃²⁻ and the HCO₃⁻ is counter-intuitive as the hydration radius of Cl⁻ is smaller than that of both the other anions (Table 1).

Table 1 Ionic activation energies calculated by fitting the temperature dependency of conductivity using the Arrhenius equation. A linear regression analysis was performed to calculate errors on activation energy

Anions		OH^−	HCO3^−	CO3^2−	Cl^−
95% RH Ea (kJ mol^−1)		19 ± 2	29 ± 1	29 ± 2	24 ± 4
80% RH Ea (kJ mol^−1)		19 ± 3	27.3 ± 0.7	26.6 ± 0.7	32.6 ± 0.4
λ	Literature, anion solvation (in H2O, 27 °C)	4.0^13,31	6.9^32	8.7^32	6^29
	Measured (in membrane, 95% RH, 30 °C)	4.4 ± 0.1	3.5 ± 0.1	4.2 ± 0.1	3.7 ± 0.2
	Measured (in membrane, liquid water)	14 ± 2	15 ± 2	20 ± 4	19 ± 3
Hydrated radius (Å)		3.00^13	5.6^33	3.94^34,35	3.32^34

---

To get further insights into the differences in the anionic conductivities of the various anions in this AEM, we measured the water uptake from both vapor and liquid water. Water uptake for the Cl⁻ exchanged film is relatively easy to measure as it is not necessary to protect the film from atmospheric CO_2(g). The films swells little, and after steady water uptake with increasing RH obtains a λ value (number of waters per charge carrier) = 3.7 was obtained at 95% RH (Fig. 3). The λ values at both 80% and 95% RH are far lower than the 6, the commonly accepted hydration value for Cl⁻ in solution.²⁹ This explains the low anionic conductivity of Cl⁻ in these films when equilibrated with water vapor: insufficient water is present in the membrane to solvate the anion and so its mobility is impaired. The story is also the same for HCO₃⁻ and CO₃²⁻. When the films with these anions are equilibrated with water vapor, insufficient water is present in the AEM to solvate the anion, Table 1. The higher anionic conductivities of these anions when compared to Cl⁻ could be because they are in equilibrium with some OH⁻ anions in aqueous solution and that transport of OH⁻ is contributing to the overall ionic conductivity of the film. When λ was measured for the various films in liquid water the values where very much higher, 14 ± 2 for OH⁻, 15 ± 2 for HCO₃⁻, 20 ± 4, for CO₃²⁻, and 19 ± 3 for Cl⁻, Table 1. Clearly in liquid water the film is equilibrated with sufficient water to solvate the anions present in the film.

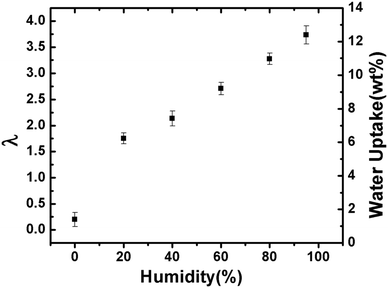

Fig. 3 λ values and gravimetric water uptake for the ETFE-g-PVBTMA AEM in the Cl⁻ form as a function of %RH at 30 °C.

The data presented in Fig. 2 show a slight non-linear dependence in the Arrhenius plot. This indicates that the data instead fit with Vogel–Tammann–Fulcher (VTF) behavior, in which polymer segmental motion enhances ion transport across the membrane.³⁰ However, the deviations for these data were small and when the data were fit to the Arrhenius equation and compared to a VTF fit, the E_a values obtained where within error, Table 1. The lowest E_a was observed in the OH⁻ form of the membrane, 19 kJ mol⁻¹ at both 95% and 80% RH. E_a for CO₃²⁻ and HCO₃⁻ conductivity were within 1 standard deviation of each other at both RHs studied, ca. 28 kJ mol⁻¹. For Cl⁻, we observed 24 and 33 kJ mol⁻¹ at 95% and 80% RH, respectively. OH⁻ anion in this AEM, when equilibrated with water vapor, does have sufficient water to be hydrated and so it is of no surprise that the E_a we measured was the lowest observed for the anions studied; this anion is also capable of conduction via an additional, Grotthuss hopping, mechanism. HCO₃⁻ and CO₃²⁻ have higher E_a values that are independent of RH, which could reflect their larger ionic radii or that ionic transport is dominated by a small amounts of OH⁻ anion present. Cl⁻ anions can only move by a vehicular mechanism, which leads to an E_a for conductivity, that is dependent on RH due to the water being available to solvate the anion decreasing with RH (and so hinder its movement).

3.1.2 Self-diffusion of fluoride ions in the membrane. The in-plane OH⁻ conductivity in this film seems unusually high, for a film with a modest IEC of <2 meq g⁻¹. Because the protons in OH⁻ species will exchange with water, it is not easy to study the diffusion of OH⁻ in aqueous systems: hence, we chose to investigate F⁻ diffusion as this anion is similar in size to OH⁻ and we thought this might lead to additional insights into ion transport in this AEM. The self-diffusion of F⁻ ions in the ETFE-g-PVBTMA AEM (Fig. 4) showed that the diffusion is not affected by increasing diffusion times (Δ). This suggests that the movement of anions is not confined and ions have a higher degree of freedom for diffusion.

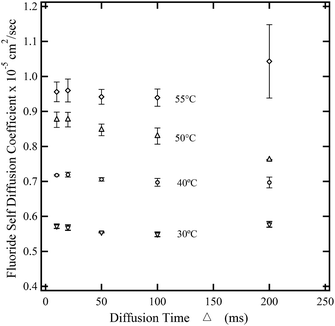

Fig. 4 Self diffusion coefficient of F⁻ ions through the AEM at 100% RH as a function of diffusion time (Δ).

If the mean squared displacement of the F⁻ ions is short, i.e., short Δ compared to the space available for diffusion, ions do not encounter the wall effects. As the Δ increases, the restrictions of the solid wall of the channel become more effective for ionic diffusion. At longer Δs, the diffusion coefficient reaches a constant value (D_∞) which is no longer time dependent.

Consider α = D_b/D_∞, where α reflects the degree of structured tortuosity of diffusion path exhibited by a specific diffusion pathways. For Δ > 100 ms, the diffusion is not time limited and we can assume D_Δ=200ms = D_∞. The calculated tortuosity value close to 1 indicates straight ionic channels. The hypothesis of straight ionic channels is compatible with the fabrication method of this AEM that used e-beams that were applied in a direction that was normal to the polymer sheet; this demonstrates a possible advantage of functionalizing membranes using the e-beam grafting method in the through plane direction.

Since the gradient is only applied in the z direction, displacement of F⁻ ions can be calculated using 〈z²〉 = 2Dt.³⁶ It is evident from the Fig. 5 that as Δ is increased, the total displacement increases fairly linearly showing a low restriction to F⁻ diffusion in the channels of the AEM. Certain ionic liquids have shown similar unrestricted behavior in extruded Nafion® 117 (N117).³⁷E_a for F⁻ self-diffusion at Δ = 100 ms was calculated using the temperature range 30 °C to 55 °C. The obtained activation energy value of 17.4 kJ mol⁻¹ is comparable to the activation energy of in-plane conductivity of membranes in the OH⁻ form and water diffusion in Nafion® N117.³⁸ The surface to volume ratio (S/V) of a cylindrical pore can be calculated by applying the Mitra equation of diffusion to time dependent diffusion experiments.³⁹ It was found that the S/V ratio varies largely from 0.012 to 0.042 μm⁻¹ with increasing temperature. This variability (deviation from Mitra equation) can be accounted for as the Mitra equation is valid only for small diffusion times, when the ions don't encounter the curvature or tortuosity of the AEM's channels. As stated earlier, the network of cavities and the tortuous path of the channel are responsible for the exact value of self-diffusion of F⁻ ions.

Fig. 5 Mean squared displacements for fluoride ions as a function of diffusion time.

3.1.3 FTIR water absorption study. The structure, polymer–polymer and polymer–H₂O interactions in the ETFE-g-PVBTMA membranes were studied by FT-IR ATR method in mid infrared. Selected spectra of membranes equilibrated at different RH up to 95% are shown in Fig. 6. The spectra are normalized to the peak at 1323 cm⁻¹ corresponding to the δ(CH) polymer backbone bending vibration, which is not affected by the H₂O–polymer interactions.

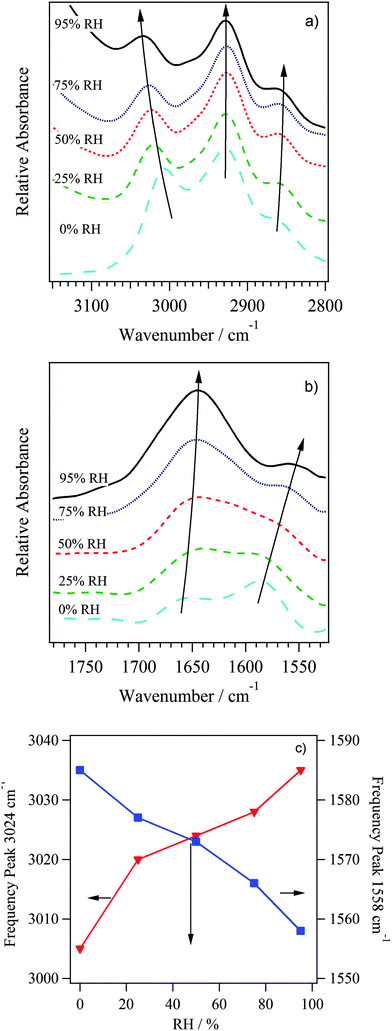

Fig. 6 FT-IR ATR spectra of ETFE-g-PVBTMA AEMs at selected RHs between 0–95%. The spectra are normalized to the polymer backbone δ(CH) peak at 1323 cm⁻¹ for presentation and analysis purposes.

The profiles of Fig. 6 are the result of overlapping of spectral features that are typical of water molecules embedded in membranes and the vibrational modes of polymer matrix. The vibrational modes of water molecules consist of stretching and bending vibrations respectively in the regions 3600–3100 cm⁻¹ and 1800–1500 cm⁻¹. The intensity of these modes increases with RH (as expected). Peaks in the regions 3100–2800 cm⁻¹ and lower than 1500 cm⁻¹ are associated with the host-polymer vibrational modes.

The spectra are assigned correlatively, and the polar side group assignment is confirmed by DFT calculations, which were performed as described in the experimental section. The DFT calculations included ETFE-g-PVBTMA side chains of both meta (m) and para (p) benzyl trimethyl ammonium groups as shown in Fig. 7. Peak assignments are summarized in Table 2.

Fig. 7 View of the meta (m) and para (p) molecular configurations of [benzyltrimethylammonium][Br] described in VTF models.

Table 2 Experimental ATR frequencies (cm⁻¹) and correlative band assignment of ETFE-g-PVBTMA AEM at different RHs. Selected calculated frequencies for the meta and para molecular models (shown in Fig. 7) and mode descriptions are reported for comparison

FT-IR ATR experimental frequencies^a	meta model		para model		Assignment^b	Ref.
	Calculated frequencies	Mode description	Calculated frequencies	Mode description
a Relative intensities are reported in parentheses; vs very strong; s strong; m medium; w weak; vw very weak; sh shoulder. b ν: stretching; δ: bending; r: rocking; sc: scissoring; ip: in-plane; oop: out-of-plane; a: antisymmetric mode; s: symmetric mode; hy: hydroxyl groups of water involved in hydrogen bonds; δ(H2O)n: bending associated to bulk water; δ(H2O)2: bending associated to water dimmers; [N^+]: referred to tri-methyl-ammonium group; [bkb]: vibration localized mainly on the carbon chain representing the polymer backbone; [ring]: vibration involving phenyl ring; δ[ETFE] bending of the fluorinated backbone; δ(C–CH2–N): bending of the angle between phenyl ring, CH2 bridging to N and N atom; [link]: referred to the C atom bridging phenyl side group to the main backbone.
3405(vs)					ν ^a(OH)	40
3240(sh)					ν ^hy(OH)	40
3024(w)	3027(21)	ν(CH3)[N^+]	3028(20)	ν(CH3)[N^+]	ν(CH3) [N^+]	41
2924(w)	2917(86)	ν(CH3)[N^+]	2905(107)	ν(CH3)[N^+]	ν ^a(CH2)	40
2858(vw)	2898(54)	ν(CH2)[N^+]	2872(79)	ν(CH2)[N^+]	ν ^s(CH2)	40
1643(w)					δ(H2O)n	42
1558(vw)					δ(H2O)2	42
1485(w)	1483(22)	{δ(CH2) + δ(CH3)}[N^+]	1482(16)	{δ(CH2) + δ(CH3)}[N^+]	{δ(CH2) + δ(CH3)}[N^+]	41
1454(m)	1454(14)	sc(CH2)[bkb]	1458(37)	{δ(CH2) + δ(CH3)}[N^+]	{δ(CH2) + δ(CH3)}[N^+]	41
1380(vw)	1385(6)	{δ(CH2) + δ(CH3)}[N^+]	1391(4)	{δ(CH2) + δ(CH3)}[N^+]	δ ^s(CH3)	41
	1379(6)	{δ(CH) + δ(CH2)}[bkb]	1382(3)	{δ(CH) + δ(CH2) }[bkb]
1323(w)	1305(11)	{δ(CC) + δ(CH) + δ(CH2)}[bkb] + δ(ring)	1315(16)	{ν(CC) + δ(CH)}^ip[ring] + {δ(CH) + δ(CH2) + ν(CC)}[bkb]	δ[ETFE] + ν(CC) + ν(CH) + δ(ring) + ν(CF)	43
1250(s)	1251(2.1)	{δ(CH2) + δ(CH3)}[N^+]	1249(1)	{δ(CH2) + δ(CH3)}[N^+]	ν(CC)	41
1242(sh)
1173(vs)	1178(38)	δ ^ip(CH)[ring] + ν(CC)[bkb]	1173(32)	{δ(CH) + ν(CC)}^ip[ring] + {ν(CC) + ν(CF)}[bkb] + δ(CH)[link]	δ(CH)[ring] + ν(CF2)	41
1115–1119(w)	1115(426)	ν(CF)	1116(4)	δ(CH3)[N^+]	δ(CH3)[N^+] + ν(CC) + ν(CF) + δ(CH)	41
1053(vs)	1053(0.1)	δ(NCH)[N^+]	1066(37)	{ν(CC) + ν(CF) + δ(CH)}[bkb]	ν(CN)[N^+]	41
976(w)	980(36)	δ ^oop(CH)[ring] + δ(C–CH2–N)	979(5)	{δ(CH2) + δ(CH3)}[N^+]	δ(C–CH2–N) + δ(CH3)[N^+]	41
935(vw)	941(74)	δ(CH)^oop[ring] + ν(CN) + ν(CF)	942(10)	δ(CH)^oop[ring]	δ(CCH)	41
887(vw)	888(5)	δ(CH)^oop[ring] + ν(CN) + r(CH2)[bkb]	890(20)	r(CH2)[bkb] + ν(CN)	r(CF2 + CC + CCC)	41
798(vw)	799(3)	{δ(CH) + δ(CC)}^oop[ring]	811(5)	δ(CH)^oop[ring]	δ(CCH)	41
741(vw)	751(24)	δ(CH)^oop[ring] + δ(CCC)^ip[ring] + r(CH2)[bkb]	748(9)	{δ(CH) + δ(CC)}^oop[ring] + ν(CN) + ν(CF)	δ(CCH)	41
690(vw)	687(2)	{δ(CH) + δ(CCC)}^oop[ring] + ν(CN) + ν(CF)	672(25)	{δ(CH) + δ(CCC)}^oop[ring] + ν(CN) + ν(CF)	δ[N^+(CH3)3]	41
652(vw)	636(18)	δ(CCC)^ip[ring]	643(1)	δ(CCC)^ip[ring]	δ(ring)	41
598(vw)	597(18)	sc(CF2)	620(3)	δ(CCC)^ip[ring]+ν(CF)	δ(CCF)	41
552(vw)	552(3)	δ(CF)	551(1)	sc(CF2) + r(CH2) + δ(CH)^oop[ring] + ν(CN)		41

---

The results indicate that as the concentration of water is raised, the peaks associated to the water domains embedded in materials and the stretching and bending modes of –CH₂–N(CH₃)₃ groups are both significantly influenced. These observations demonstrate: firstly, that the secondary structure of the backbone host polymer, in accordance with other studies,³⁰ is not influenced by the vapor–solid interactions and secondly, that the H₂O absorption process occurs by a number of processes such as insertion–diffusion and aggregation of H₂O molecules along the hydrophilic domains. These events are selective modulation of only the polar side groups of the host materials. Further confirmation is obtained by analyzing the dependence on RH% of the difference FT-IR ATR spectra shown in Fig. 6. These spectra are obtained by first normalizing the profile to the band at 1323 cm⁻¹ and then subtracting the RH = 0% spectrum from those recorded at RH > 0%. Note that the intensities of the ν(OH) stretching and δ(H₂O) bending modes that are associated with the water domains present in AEM, 3405 cm⁻¹ and 1640 cm⁻¹ respectively, both show the same behavior of ΔI versus RH (inset Fig. 8).

Fig. 8 Difference FT-IR ATR spectra of the ETFE-g-PVBTMA AEM at various RH. The inset shows the dependence on water activity of the maximum intensity of both the 3410 cm⁻¹ (red circles) and 1643 cm⁻¹ (blue triangles) bands.

In addition, Fig. 7 and 8 show the modes diagnostic of H₂O⋯TMA⁺ cation interactions, observed at 3023 cm⁻¹ and in the region from 1660 to 1500 cm⁻¹. The mode at 3023 cm⁻¹ is assigned to the ν(CH₃)[N⁺] stretching mode of the TMA⁺ groups (Fig. 9a). The two peaks at 1643 and 1558 cm⁻¹ (Fig. 9b) correspond to the bending vibrations of water molecules forming in bulk membranes: water aggregates [(H₂O)_n] and water dimer [(H₂O)₂]. In accordance with other studies on Nafion®, δ[(H₂O)₂] corresponds to the bending vibrations of water in dimer form.⁴² These water dimer molecules represent the water forming the solvation shell of the TMA⁺ groups. The dependence on RH of the ν(–N(CH₃)₃) and δ[(H₂O)₂] peak frequencies (Fig. 9c) show that these two modes are strictly correlated together, indicating that the –CH₃ groups of the TMA⁺ cations are directly interacting with a water molecule solvation shell that mostly consists of water dimers. Indeed, as RH increases, δ[(H₂O)₂] decreases due to a reduction of the bending constant force from the extension of inter-dimer interactions in TMA⁺ solvation shell. Conversely, the ν(–N(CH₃)₃) rises due to an increase of the force constant of the C–H bond. It is expected that the [(H₂O)₂] solvation shells are interconnected with bulk [(H₂O)_n] water aggregates.

Fig. 9 Detailed view of regions (a, b) that were highlighted in Fig. 8. (c) Shift in frequencies of ν(–N(CH₃)₃) and δ[(H₂O)₂] peaks with RH, demonstrating correlation.

Taken all together, vibrational studies allowed us to detect that: (a) the secondary structure of host polymer is not dependant on the RH; and (b) the overall water amount adsorbed in bulk membranes is distributed in two domains (water aggregates and water dimers) coordinating the polar side chains of host polymer; and (c) water dimers are interacting with host polymer through C–H⋯OH₂ interactions, where C–H belongs to –CH₃ groups of the quaternary ammonium groups.

3.1.4 SAXS. The SAXS of the AEM with chloride as the counter anion as a function of humidity and of the AEM after being boiled in 1 M KOH and being air exposed at 95% RH at 60 °C, are shown in Fig. 10. As the swelling is relatively low the differences in the scattering intensity are reactively subtle. A small amount of intensity increase can be seen at a low and high Q range corresponding to domains >25 nm and <8 nm, and so we assign these to the two different water domains identified from the IR study. In addition for the chloride containing film there is a shoulder at a Q corresponding to a d-spacing of 39 nm. The symmetry of the polymer backbone is close to spherical with a Porod slope of 3.8 for the chloride and 4.0 for the hydroxide, air exposed film.

Fig. 10 SAXS of the AEM with Cl⁻ as the counter ion, at 60 °C, 25% RH, 50% RH, 75% RH and 95% RH light to dark, and boiled in 1 M KOH, at 60 °C, 95% RH, blue squares.

3.2 Transient measurements on the AEM

3.2.1 Water uptake. A careful analysis of the mechanism of membrane water adsorption is performed following the I_b/I₀ ratio (Fig. 11) through time, where I_b and I₀ are the intensity of the band peaking at 3405 cm⁻¹ (ν(OH) vibrational mode) respectively for the sample at t and at t = ∞ s. In this study, FT-IR spectra were collected during a transition from dry to saturate flow of N₂ gas in contact with the AEM. Fig. 11 shows the absorbance ratio increasing exponentially as the membrane takes up water to reach its steady-state water content at the given conditions. These studies are of crucial importance in order to understand influence of the two above described water domains on the physico-chemical properties of membranes.

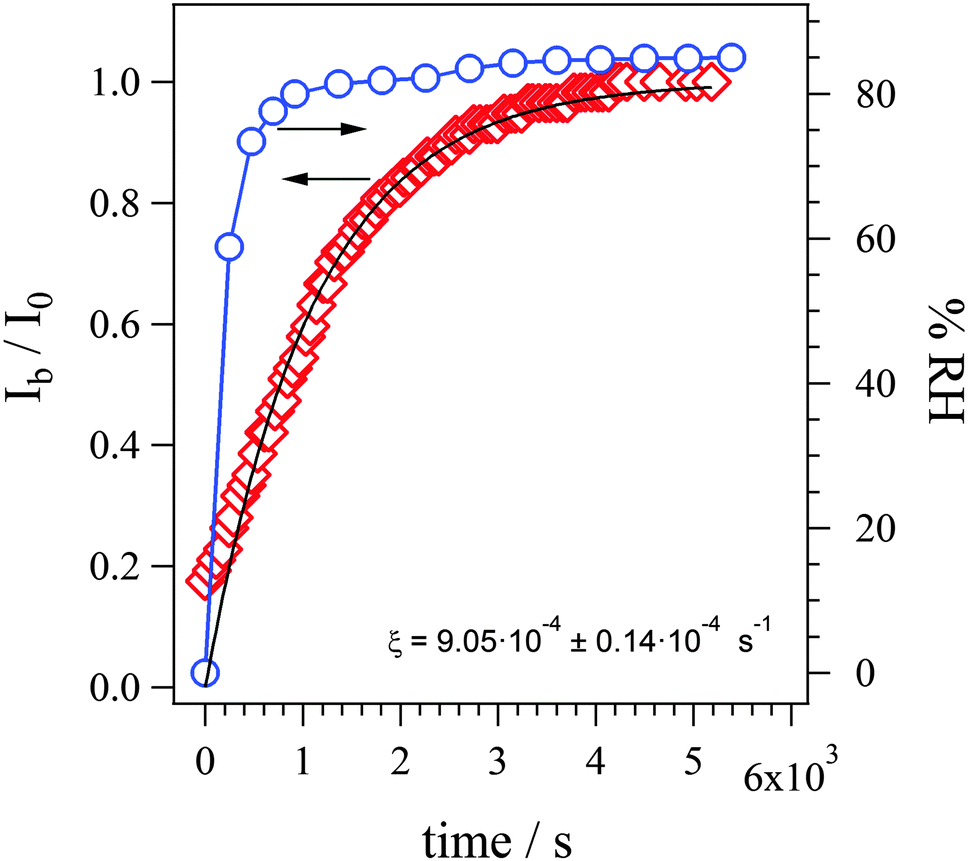

Fig. 11 Dependence with time of the I_b/I₀ intensity ratios (the intensity of the band at 3405 cm⁻¹, ν(OH) vibrational mode, respectively for the sample at t and at t = ∞ s) and of the percent relative humidity (blue circles). I_b and I₀ are intensity values measured at t = 0 and t = ∞ s, where t = 0 s is time of gas flow change from dry to saturated N₂. Fit line corresponds to eqn (10) that is derived in the main text below.

In order to visualize the behavior of Fig. 11, keeping in mind the conclusions in the above section from the FT-IR vibration assignments, the polymer membrane can be imagined as illustrated in Fig. 12.

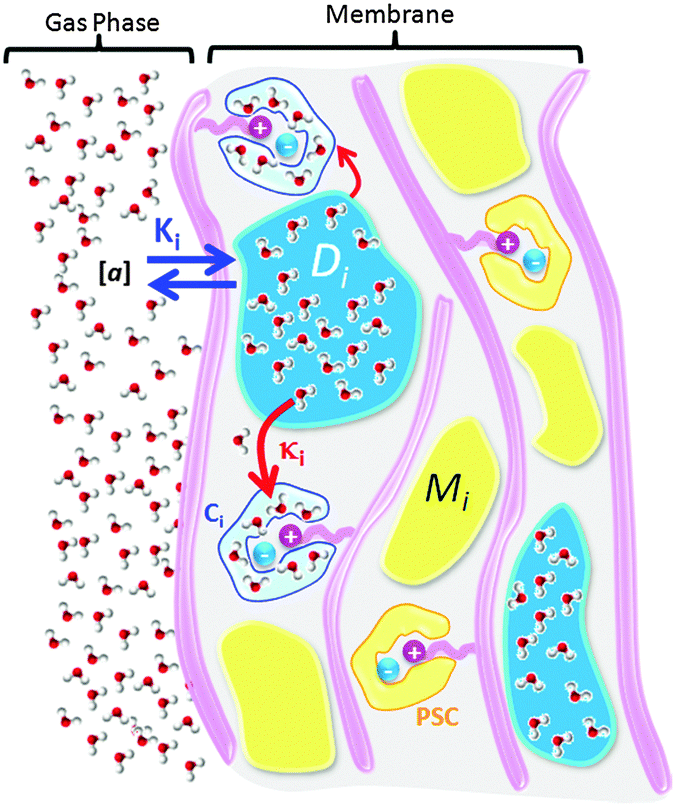

Fig. 12 Schematic illustration of water interactions with various domains in the AEM.

There are many sites (labeled M_i) in the bulk membrane that can potentially uptake water from the bulk gas environment with water activity, [a], forming domains of water aggregates (labelled D_i). Molecules forming D_i can then proceed to solvate cationic structures attached to the polymer chains, thus interacting with the salted site and forming a solvation shell (labelled C_i).

To understand the interactions between gas-phase water and the various domains present in the membrane, a formalism is developed as follows. At any time, there is a distribution of potential M_i domains, D_i aggregates, and C_i solvation shells. Thus, the process of absorption, diffusion, aggregation and solvation can be described for every ith site (i = 1, 2, 3…n) with the following reaction steps:

where, [a] indicates the activity of water in the gas phase, M_i is the ith potential site present in the membrane, D_i is the ith water aggregate in the bulk, and C_i is the domains of water solvating the side chains. K_i is the “binding” constant of the exchange of water exchange between D_i and the gas phase, while κ_i is the kinetics constant of the molecules solvating of the polar chains. These reactions describe water absorption as a two-step process. First water is absorbed reversibly by diffusion and aggregation into D_i domains and second by the irreversible solvation of molecules coordinated with the charged sites.

Furthermore, the overall reaction rate for the process described by eqn (1) can be written in terms of the disappearance of reactant:

If we consider the first step of the reaction for each site (1 ≤ i ≤ n) as a pre-equilibrium reaction for the process, then: Substituting eqn (3) into eqn (2), we obtain: Further, for each type of interacting site located in the membrane matrix, the following relationships must be fulfilled:where [M_i]⁰ is the initial concentration of ith type sites, [M]⁰ is the total concentration of sites f_i is the fraction of the ith sites, [M_i] is the concentration at equilibrium of the potential ith sites, and [D_i] is the concentration of the ith water aggregate in the bulk membrane at the equilibrium. The fractions of each type of site must satisfy the following condition:

Assuming that at different [a], the numbers of sites holding water are negligible as compared to the potential sites to be filled in the bulk (i.e. [D_i] ≪ [M_i]), we obtain:

with
and where

If we consider that the following relation for the water activity is also valid for each time:

[a]₀ = [a] + [a]_b (7)

where [a]₀ is the maximum value of water activity at time t = 0; [a]_b is the activity of water bonded to the matrix sites at time t, and [a] is the water activity of the gas phase. Substituting eqn (7) into eqn (6) and integrating, we obtain:

[a]_b = [a]₀{1 − e^ξt} (8)

It is evident that for t → ∞ [a]_b → [a]₀ = [a]_∞ where [a]_∞ is the maximum concentration that can be absorbed at time t → ∞.

Finally, eqn (8) can be defined in terms of experimental values by relating the intensity of FT-IR peaks to the water activity ([a]) with a Beer–Lambert law:

I = εl[a] (9)

By substituting eqn (9) into eqn (8) for each condition of [a], we obtain a direct description of our experimental data:

Here, I_b and I₀ are the intensity of ν(OH) peak at 3405 cm⁻¹ at t and t = ∞, respectively. The fitting results shown in Fig. 9 show that eqn (10) is very closely mimicking the experimental data, resulting in a rate constant of ξ = 9.05 ± 0.4 × 10⁻⁴ s⁻¹, which fully describes the water uptake processes in this AEM. This value is of the same order of magnitude as rate constants of water uptake seen in perfluorinated PEMs such as Nafion®.⁴⁴ This model allowed us to understand the role of the two kinds of absorption sites in the overall process of water uptake in the studied AEM and will allow future quantitative comparison of the water absorption dynamics between AEMs.

All together, the analyses of water absorption through FT-IR lead to conclusion that two types of water domains exist within the radiation-grafted AEM. In the first type of domain, water is solvating the polar groups, interacting closely with the side chains and influencing the vibration modes of the polymer-bound quaternary ammonium cations. This close binding of water is kinetically described by the kinetic constant (κ) in the model presented above. The FT-IR peak around 1580 cm⁻¹ is evidence of dimer pairs of water molecules. This peak shifts toward lower frequencies as RH increases thus demonstrating that the solvation shells of [(H₂O)₂)] pairs are directly correlated with the C–H stretch shift to higher frequencies of the quaternary ammonium methyl groups. As water is added, the dimers interact more strongly with the hydrogen atoms of the –CH₃ of the quaternary ammonium groups, thus increasing the C–H force constant and the methyl groups' C–H stretching frequency. This evidence allows us to hypothesize that dimer water molecules are closely interacting with the side chains through the TMA⁺ groups, forming the solvation shell. In the second type of domain, water exists in aggregates within the membrane bulk. The absorption of water into these aggregates is described by the equilibrium constant K. Evidence of these water aggregates appears as the FT-IR band at 1650 cm⁻¹, with behavior like bulk liquid water. As expected this peak does not shift in frequency with increased hydration of the membranes confirming that interactions of water molecules with the host polymer are negligible.

3.2.2 Carbon dioxide uptake. The conductivity of the OH⁻ form of the AEM shows an exponentially decreasing trend of conductivity with time of exposure to compressed air (Fig. 13). The initial conductivity value of ca. 112 mS cm⁻¹ at 60 °C and 95% RH decreased to a steady ca. 43 mS cm⁻¹ after 57 h of exposure to (CO₂ containing) air. The conductivity in the air-exposed OH⁻ form of AEM approached the conductivity of the HCO₃⁻ exchanged AEM. Yanagi and Fukuta also observed the similar reaction of OH⁻ to form HCO₃⁻ of a Tokuyama A201 AEM exposed to the presence of excess of CO₂.¹⁷

Fig. 13 In-plane conductivity versus time of an ETFE-g-PVBTMA AEM initially in the OH⁻ form when exposed to compressed air in a RH and temperature controlled environment. Dotted lines represent the ionic conductivity of the AEM in pure anion forms. All measurements performed at 60 °C and 95% RH. Solid red line corresponds to the fit of data with eqn (15).

Membrane degradation was not observed when comparing the FT-IR before and after the conductivity measurements, so the decrease in performance was attributed to the reaction of CO₂ and OH⁻ to form HCO₃⁻ and/or CO₃²⁻ anions according to the reactions (R1) and (R2).³²

OH⁻ + CO₂ → HCO₃⁻ (R1)

OH⁻ + HCO₃⁻ ↔ CO₃²⁻ + H₂O (R2)

The decrease in conductivity appears to follow the trend of a first order reaction, leading to the hypothesis that the reaction of OH⁻ anions predominantly proceeds through reaction (R1). This was tested by developing a kinetic model of the depletion of the concentration of OH⁻ in the membrane ([OH⁻]) and related this to measured conductivity (σ). Full derivation is included as ESI.†

The rate expression of (R1) leads to:

[OH⁻] = [OH⁻]⁰·e^−k·p_CO2t (11)

where [OH⁻] is the starting concentration (mol cm⁻³) of hydroxide ions in the membrane, k is the rate constant, p_CO2 is the partial pressure of CO₂ and t is time.

The conductivity of each ion can be defined using the Nernst–Einstein equation:

where σ⁰₁ and σ⁰₂ are constant terms for an ion conducting material at specific temperature and hydration conditions.

Knowing that the measured conductivity at any time (σ) is the sum of the conductivity of each ionic species present, we can use eqn (12) and (13) and a reactant balance to write:

σ = σ⁰₂·[OH⁻]₀ + (σ⁰₁ − σ⁰₂)[OH⁻] (14)

Finally, inserting eqn (11) and combining the constant terms, conductivity is defined as:

σ = a + b·e^−k_obst (15)

where, a = σ⁰₂·[OH⁻]₀, b = (σ⁰₁ − σ⁰₂)[OH⁻]⁰ and k_obs = k·p_CO2. Fitting the data in Fig. 12 to eqn (15) we find that k_obs = 1.063 × 10⁻⁵ ± 0.011 × 10⁻⁵ s⁻¹, a is 0.0405 ± 0.0002, and b is 0.0730 ± 0.0002. This model successfully captures the change of ionic conductivity during the reaction of OH⁻ anions, confirming that (R1), producing HCO₃⁻ anions, is the dominant reaction. The close matching of σ⁰₂ with the conductivity measured in AEMs directly exchanged to HCO₃⁻ form in solution is evidence that both samples contain predominately HCO₃⁻ anions.

Yanagi and Fukuta have shown that the ionic charge density of OH⁻ decreases when exposed to ambient conditions, reducing the ionic conductivity compared to pure OH⁻ form of a Tokuyama A201 AEM membrane. Their study observed the reaction of OH⁻ in the membrane with air to form the combination of CO₃²⁻ and HCO₃⁻ in <30 min.¹⁷ Previous researchers have assumed that exposure to CO₂ quickly reduces the conductivity of OH⁻ form AEMs to the values similar to the CO₃²⁻ and HCO₃⁻ forms.^45–47 The decrease in conductivity of the OH⁻ form of the AEM when exposed to air was slower in this study as compared to the OH⁻ conversion time seen in a previous ATR kinetic study in a poly(ethyleneimine) AEM.⁴⁵ This is almost certainly because of the re-organization of water in the film, the measurement performed at 95% RH and the film in the CO₃²⁻/HCO₃⁻ forms must loose water as compared to the hydroxide form, not surprisingly under such humid conditions, this proves to be slow process.

The ratio of the diffusion constants of the ions can also be written in terms of the experimental constants as:

where α is close to the ratio α₀ = D_0HCO3⁻/D_0OH = 0.23 in dilute aqueous solutions. It is not surprising that the ion concentrations in the membrane influence α away from the ideal.

4. Conclusions

The chemical and ionic conductivity characteristics of an electron-beamed radiation, ETFE-g-PVBTMA anion exchange membrane (AEM) were investigated to determine the effect of counter-ion species and the material's interaction with water. The method of fabrication of this film, e-beam irradiation normal to the plane of a rigid engineering plastic, followed by post functionalization, gives rise to a unique microstructure. In-plane conductivities were measured using EIS with the EFTE-g-PVBTMA membrane in HCO₃⁻, CO₃²⁻, Cl⁻ and OH⁻ anion forms. The stability of the AEM was tested by IR studies and no degradation was observed after OH⁻ conductivity measurements. The high OH⁻ conductivity (0.112 ± 0.020 S cm⁻¹ at 95% RH and 0.062 ± 0.003 S cm⁻¹ at 80% RH, both at 60 °C) shows a performance that approaches that of perfluorosulfonic acid proton-exchange membranes, such as Nafion™. This is because the material has limited swelling, but as we have shown the vapor equilibrated sample at 95% RH has just enough water, corresponding to a λ = 4 to enable rapid transport of OH⁻. Additionally the e-beam grafting synthesis technique results in the formation of straight, low tortuosity paths in the AEM, shown by the constant self-diffusion coefficient values of F⁻ ions in the AEM, measured over a range of diffusion times.

The analyses of water absorption using FT-IR led to the conclusion that the fluorinated backbone chains do not interact with water and that two major types of water domains exist within the AEM. In the first type of domain, water is solvating the polar (cationic) groups, interacting closely with the polymer side chains and influencing the vibration modes of the polymer bound quaternary ammonium cations. The shift towards lower frequencies of the peak related to [(H₂O)₂)] water dimer pairs (ca. 1580 cm⁻¹) as the RH was increased is correlated with the shift to the higher frequencies of the C–H stretch mode (ca. 1580 cm⁻¹) related to the methyl groups of the polymer bound quaternary ammonium cations. This close binding of water is described by the kinetic constant (κ) in the model derived in this paper. In the second type of domain, water exists in aggregates within the membrane bulk. The absorption of water into these aggregates is described by the equilibrium constant K in the derived model. Evidence of these water aggregates appears in FT-IR at 1650 cm⁻¹, with bulk liquid water like behaviour; i.e. no shift in peak frequency with changes in RH.

The reduction in conductivity was measured during exposure of OH⁻ form AEM to (CO₂ containing) air. The OH⁻ conductivity dropped with time and approached the conductivity value measured with a HCO₃⁻ AEM. The kinetic model derived for this conductivity decrease revealed that OH⁻ reacts primarily to create HCO₃⁻ ions, with a quasi 1st order reaction rate constant of 1.063 × 10⁻⁵ ± 0.011 × 10⁻⁵ s⁻¹. The calculated ratio of diffusion coefficients (α) of 0.35 matches closely to the ratio of the mobility of each ion in dilute aqueous solutions (α₀). This evidence is in agreement with other studies demonstrating that the overall conductivity of in ETFE radiation-grafted AEMs occurs by the ion exchange between delocalization bodies. In this case, the long-range charge exchange takes place through the water aggregates present in the AEM.

Acknowledgements

The authors would like to thank the Army Research Office for support of this research under the MURI program, grant W911NF-11-1-0462, and The Colorado School of Mines NMR facility funded by National Science Foundation under the an MRI grant CHE-0923537. The anion-exchange membranes were fabricated and characterized using funds from EPSRC Grant EP/I004882/1. This research used resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.
