CO₂-selective PEO–PBT (PolyActive™)/graphene oxide composite membranes

Abstract

CO₂-selective graphene oxide (GO) nano-composite membranes were prepared for the first time by embedding GO into a commercially available poly(ethylene oxide)–poly(butylene terephthalate) (PEO–PBT) copolymer (PolyActive™). The as-prepared GO membrane shows high CO₂ permeability (143 Barrer) and CO₂/N₂ selectivity (α = 73).

---

Graphene based membranes have been considered to be promising membrane materials for separation applications.^1–5 The two-dimensional graphene is intrinsically impermeable to gas molecules; however, a derivative of graphene (GO) having a variety of functional groups shows significant potential in membrane separation applications.^6–10 Besides gas separation other applications like dehydration by pervaporation¹¹ and proton conduction with chemically modified free-standing GO films have been proposed.¹² The GO can be easily obtained by chemical oxidation of two-dimensional graphite using oxidizing agents. Polar oxygenated graphene (GO) forms stable dispersions in water and can be assembled into thin films.⁷ GO films can be prepared using spin-coating, interfacial stitching, vacuum filtration, and direct evaporation methods.^13–16 Recently, high-performance GO membranes have been developed by filtering/spin coating of GO solution onto a porous support membrane.^1,3 It should be noted, however, that some of the published data should be considered with care. Kim et al. reported in Science¹ and later in Chemical Communications¹³ a CO₂-permeability of more than 8000 Barrer combined with a CO₂/N₂-selectivity of 20. This extraordinarily high permeability is based on a miscalculation. Taking the permeances and thickness of the GO-composite membrane a CO₂-permeability smaller 1 Barrer is found to be the correct result (see ESI†). Nevertheless, the fabricated GO membranes showed high gas permeances. However, engineering GO membranes on the commercial scale by the aforementioned techniques will be a challenge. Free-standing thin GO membranes are brittle, and a thick layered graphene membrane cannot be used in a practical application process. Also, the different fabrication process would lead to GO membranes having different GO laminates and separation properties.^1–3,8,13

On the other hand, polymer based gas separation membranes have emerged as an ideal candidate for use in large scale industrial separation applications. However, polymer based membranes have as a major drawback, the so-called permeability–selectivity trade off, i.e., either increase in permeability or decrease in selectivity or vice versa.¹⁷ In order to improve the membrane permeability, selectivity and stability for practical industrial applications the development of innovative membranes are required with process efficiency for industrial applications. To address this issue, various porous solid materials have been used as fillers, including zeolites, metal–organic frameworks, carbons, and silica.^18–20 Recently, GO nanosheets have been incorporated into polymer solutions to obtain selective transport channels for gas separation.^21,22 Since GO disperses excellently in aqueous media, most of the membranes were prepared using an aqueous solution. To disperse GO nanosheets into a polymer solution, the polymer should be soluble in an aqueous solution or in a water miscible solvent.

Here, we have succeeded in incorporating GO into a commercially available PEO–PBT copolymer (PolyActive™, PolyVation, NL) for membrane fabrication. PolyActive™ is a promising polymer for manufacturing CO₂-selective membranes. It has recently been fabricated into pilot scale modules for CO₂/hydrocarbon separation.²³ The copolymer contains 77 wt% of PEO (1500 g mol⁻¹) and 23 wt% of PBT, which possess O–C=O and C–O–C groups in the polymer backbone (Fig. S1, ESI†) and the copolymer is soluble in tetrahydrofuran (THF).²⁴ The advantage of the dissolution of PEO–PBT in THF is the miscibility with water. This allowed us to mix an aqueous GO-dispersion with the polymer solution without any phase separation or precipitation of the polymer during GO addition.

Membranes with various concentrations of GO (0.025%, 0.05%, 0.065%, 0.075%, 0.125%, 0.25, and 0.5%) were fabricated and denoted as PEO–PBT/GO-025, PEO–PBT/GO-050, PEO–PBT/GO-065, PEO–PBT/GO-075, PEO–PBT/GO-125, PEO–PBT/GO-250, and PEO–PBT/GO-500, respectively. Fig. 1a shows the photo-images of pure polymer solution and GO dispersed in PEO–PBT copolymer solution. The GO containing polymer solutions showed a very good dispersion of GO in THF/DI water 80 : 20 (w/w) mixture after sonication for 3 h. The GO nanosheets are heavily decorated by oxygen containing functional groups (hydroxyl, epoxide and carboxyl), which are responsible for hydrogen bonding interactions between GO–GO nanosheets and GO-polymer.²⁵ Fig. S2 (ESI†) shows the ATR-FTIR spectra for pure polymer and GO containing polymer membranes. The bands at 2874 cm⁻¹ (–CH₂), 1714 cm⁻¹ (–C=O), 1102 cm⁻¹ (C–O–C) and 726 cm⁻¹ (aromatic ring) represent the PEO–PBT polymer. Further discussion of the ATR-FTIR spectra can be found in the ESI.† Using the stable PEO–PBT/GO suspension, about 60 μm thick dense membranes were prepared by evaporating the solvent at room temperature from a Teflon Petri dish. Fig. 1b shows the digital photograph images of the pristine PEO–PBT membrane, the PEO–PBT/GO dense membrane and the thin film composite membrane fabricated on a polyacrylonitrile (PAN) support. The TEM image of the PEO–PBT/GO-065 membrane in Fig. 1c also confirms the good dispersion of GO nanosheets in the membrane matrix. Fig. S3 (ESI†) shows the Raman spectra of GO, pure PEO–PBT and PEO–PBT/GO membranes. The two well-known G and D bands were obtained for the synthesized GO nanosheets, which are characteristic of carbon materials. The G band located at ∼1580 cm⁻¹ corresponds to the vibration of sp²-hybridized carbon. The D band located at ∼1339 cm⁻¹ is due to the structural defects or reduced size of sp² domains. The intensity of the D band is related to the size of in-plane sp² domains.²⁶ Therefore, the intensity ratio of the D to the G band (I_D/I_G ratio) is usually considered as an indication for the relative disorder in the structure of the graphene sheets. Further discussion of the Raman spectra can be found in the ESI.† PEO–PBT membranes with various concentrations of GO nanosheets were prepared and single gas permeation measurements were performed for the dense membranes. Fig. S4 (ESI†) shows the constant volume/variable pressure apparatus for gas permeability measurements. Fig. 2 shows the gas permeability data for various GO containing PEO–PBT membranes and the permeability values are expressed in terms of Barrer (1 Barrer = 1 × 10⁻¹⁰ cm³(STP) cm cm⁻² s⁻¹ cmHg⁻¹).

Fig. 1 (a) Digital photographs of PEO–PBT/GO-0 and PEO–PBT/GO-065 solution dispersed in THF/DI water (80/20 w/w), (b) digital images of free-standing PEO–PBT/GO-0, PEO–PBT/GO-065 dense and C-PEO–PBT/GO-065 composite membranes, (c) TEM image of PEO–PBT/GO-065 membrane cross-section, (d) cross-sectional SEM images of C-PEO–PBT/GO-065 composite membrane.

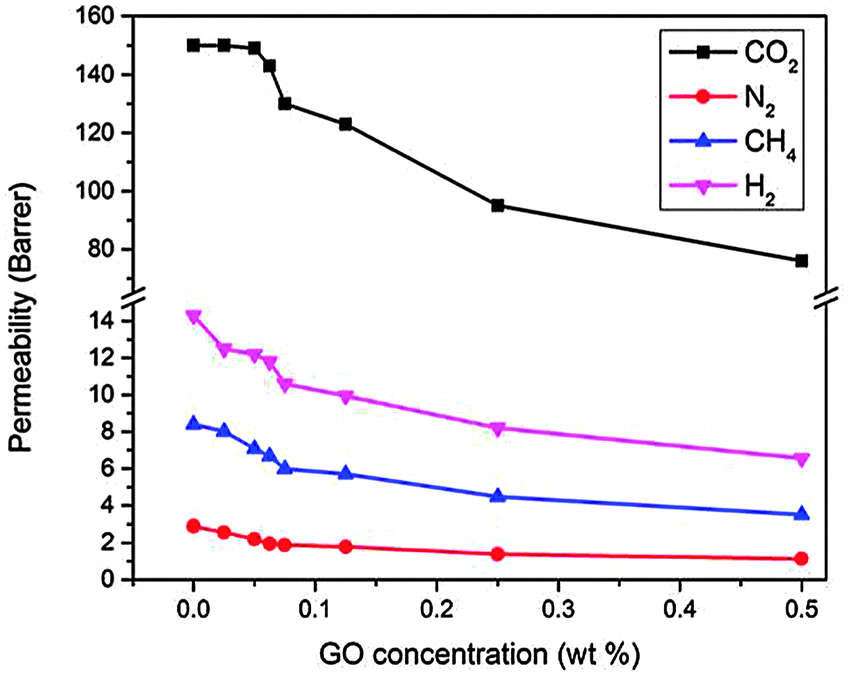

Fig. 2 Gas permeability of PEO–PBT/GO membranes as a function of various GO concentrations.

The CO₂ permeability of the pristine PEO–PBT membrane is 150 Barrer. Up to 0.05 wt% GO in the membrane the CO₂ permeability remained nearly a constant. The addition of more than 0.05% GO to PEO–PBT continuously decreased the CO₂ permeability (Table S1, ESI†). These results are in contrast to the results obtained with Pebax/GO mixed matrix membranes reported by Shen et al.²¹ It was shown that the pure Pebax membrane has 70 Barrer of CO₂ permeability and upon addition of 0.1 wt% of GO to the Pebax membrane, the CO₂ permeability increased from 70 Barrer to 100 Barrer. Further addition of GO from 0.1 to 0.5 wt% led to a decrease of the CO₂ permeability from 100 to 30 Barrer.

In our case the CO₂ permeability of the PEO–PBT/GO mixed matrix membrane initially showed a CO₂ permeability similar to the pristine PEO–PBT membrane. The CO₂ permeability of PEO–PBT/GO membranes decreased from 150 Barrer to 76 Barrer with an increase in the GO concentration from 0.05 to 0.5 wt% loadings. Moreover, the incorporation GO to the PEO/PBT membrane showed a decrease in gas permeability for other gases such as N₂, H₂ and CH₄. From Fig. 3 it can been seen that the CO₂/N₂ selectivity increased from 52 to 73 with an increase of the GO nanosheet concentration up to 0.0625%. This reveals that a small incorporation of GO nanosheets in the PEO–PBT membrane increases the CO₂/N₂ selectivity and a further increase in the GO nanosheet concentration maintains the CO₂/N₂ selectivity (α = 70) with decreasing gas permeability. The CO₂/CH₄ selectivity for the GO containing membrane was 21, which is higher than that of the pristine PEO–PBT membrane (α = 17). Even at a high loading of GO nanosheets (0.5 wt%) the CO₂/CH₄ gas selectivity did not change and the selectivity was maintained at 21 with decrease in permeability of both gases (CO₂ and CH₄). However, the interesting fact is that at about 0.065% loading of GO the mixed matrix membrane showed a CO₂/N₂ selectivity of 73 and a CO₂ permeability of 143 Barrer. By incorporating these data in the 2008 Robeson plot (Fig. 4), the gas permeability data surpass the upper bound curve at very low loadings of GO. Kim et al.¹³ reported the high permeance of gases for an ultrathin GO coated polymer support membrane and the permeance order of gases through the GO membranes was CO₂ > H₂ > CH₄ > O₂ > N₂. This permeance is not following the kinetic diameter of gases (CH₄ > N₂ > O₂ > CO₂ > H₂), revealing that the permeance of the gases are not based on the size sieving of gas molecules by GO nanosheets. In addition, Shen et al.²¹ reported that GO containing Pebax membranes allowed fastest transport of CO₂ and very low permeation of other gases. The gas permeability order of GO embedded Pebax membranes were CO₂ > H₂ > CH₄ > N₂. Moreover, the CO₂ permeability and selectivity of membranes are significantly enhanced with the increasing amount of GO nanosheets. In this study, the gas permeability order of the PEO–PBT/GO membrane was CO₂ > H₂ > CH₄ > N₂, which is similar to the gas permeability order reported by Kim¹³ and Shen et al.²¹ We noted in this study that the gas permeability of the PEO–PBT membrane also had the same permeability order as the pure GO membrane¹³ (Fig. S5, ESI†). It has been reported that the gas adsorption of GO followed the order of CO₂ > CH₄ > N₂ > H₂.³ The high CO₂ sorption capability of GO nanosheets is the main reason for the high CO₂ permeance. The permeability of a gas through the separation membranes is a product of gas diffusivity and solubility. Based on the solution-diffusion model the selectivity of the membranes can be expressed as:

where D is the gas diffusion coefficient and S is the gas solubility coefficient. In the case of PEO–PBT/GO membranes, the CO₂ permeability was not enhanced after the addition of GO, but the N₂ permeability decreased and this led to the increase in CO₂/N₂ selectivity. The permeability of other gases such as H₂ and CH₄ also decreased with increasing GO content. The GO nanosheets hinder the diffusion of the other gases N₂, H₂ and CH₄, which leads to an increase in CO₂/N₂, CO₂/H₂ and CO₂/CH₄ selectivity. Since GO has a strong affinity for CO₂, we anticipated that the increase in the GO concentration would lead to an increase in CO₂ permeability. In the GO embedded PEO–PBT membranes the molecular transport occurs through the polymer matrix and the interlayer spacing of GO nanosheets. The stacking of GO nanosheets in the polymer matrix plays a crucial role in the fast molecular transport. Based on our understanding of achieving high molecular transport, the GO nanosheets should be uniformly dispersed in the polymer matrix. We assume a random orientation of the nanosheets in the polymer matrix. Fig. 5 shows schematically the two extreme possible orientations of GO nanosheets in the polymer matrix and the pathways for gas diffusions.

Fig. 3 Ideal gas selectivity of PEO–PBT/GO membranes as a function of various GO concentrations.

Fig. 4 Relationship between CO₂ permeability and CO₂/N₂ selectivity (Robeson plot) for PEO–PBT/GO membranes. The upper bound curve and gas separation data were obtained from ref. 17 and 21 (CMS – carbon molecular sieve).

Fig. 5 Schematic illustration of possible GO nano-channels for gas transport in the PEO–PBT membrane.

The GO nanosheets can be oriented perpendicular and parallel to the membrane surface. The diffusion of gas molecules through perpendicular GO nanosheets passes through the interlayer spacing of GO nanosheets and is then hindered by other GO nanosheets oriented parallel to the membrane surface. The hindrance by the parallel oriented GO nanosheets reduces the speed of permeation of all gases. The gas molecules, which pass through the perpendicularly oriented GO nanosheets significantly control the permeation behaviour of gas molecules. This might explain why at high (0.5 wt%) loadings of GO nanosheets the permeability is reduced for all gases. The SEM images (Fig. S6, ESI†) of the top surface of the PEO–PBT/GO membrane shows a high GO aggregation for the 0.5 wt% GO PEO–PBT membrane. The AFM image (Fig. S7, ESI†) of the PEO–PBT/GO membrane further confirms the aggregation of GO in the membrane surfaces.

We demonstrated the preparation of defect-free thin film composite membranes by coating a PAN porous support membrane with the PEO–PBT/GO solution followed by solvent evaporation. Developing a defect-free thin film composite membrane with high gas permeability and high selectivity is a challenge. We succeeded in developing a defect-free thin film composite PEO–PBT/GO membrane by a simple dip-coating process, which can be up-scaled easily to produce commercial scale gas separation membranes. A 3 wt% PEO–PBT/GO solution was prepared by dissolving a copolymer in THF/DI water (80/20 w/w) and then a porous ultrafiltration PAN support membrane was dip-coated with the PEO–PBT/GO solution. Then, the membranes were dried at room temperature and their gas fluxes were measured. The gas flux and the selectivity are reported in Table S2 (ESI†). The selectivities of the thin film composite membranes were similar to those of the dense PEO–PBT/GO films. The gas permeation data prove the formation of defect free thin film PEO–PBT/GO composite membranes.

In summary, we have successfully prepared a PEO–PBT/GO mixed matrix membrane for the selective separation of CO₂. The PEO–PBT/GO membranes showed high CO₂ permeability and a CO₂/N₂ selectivity suitable for practical separation applications. The GO addition to the PEO–PBT membrane increased the CO₂/N₂ selectivity from 52 to 73, maintaining the same high permeability of a pristine PEO–PBT membrane. We also demonstrated the formation of defect-free thin film composite PEO–PBT/GO membranes by a simple dip coating procedure. The membrane formation by this method has a distinct advantage in terms of facile membrane fabrication for practical CO₂ capture applications.
