The reactions of TiCl₃, and of UF₄ with TiCl₃ in liquid ammonia: unusual coordination spheres in [Ti(NH₃)₈]Cl₃·6NH₃ and [UF(NH₃)₈]Cl₃·3.5NH₃

Abstract

TiCl₃ and NH₃ form octaammine titanium(III) chloride ammonia (1/6), [Ti(NH₃)₈]Cl₃·6NH₃, which is the first structurally characterized octaammine complex of a transition metal. An excess of TiCl₃ reacts with UF₄ in liquid NH₃ and forms octaammine fluorido uranium(IV) chloride ammonia (1/3.5), [UF(NH₃)₈]Cl₃·3.5NH₃. It shows a distorted threefold-capped trigonal-prismatic coordination sphere around U(IV).

---

In the recent decades uranium chemistry experienced a renaissance, as more “non-nuclear” uses of uranium compounds, for example, in small molecule activation,¹ or catalysis were investigated.^2,3 Also, the workup of radioactive wastes and actinoid containing nuclear fuels, the selective extraction of actinoids, as well as the understanding of their geological fate in the environment after an accident, requires a profound knowledge of actinoid species in solution.⁴ Single crystal X-ray structures would be of aid for the assessment of potential structural motifs in the solution chemistry of the actinoids. However, structural information from single crystal X-ray diffraction was often not available as olation and oxolation reactions occur with actinoids in aqueous solutions. These were believed to lead to “ill-defined structures and chemistry” and thus it remained crystallographically unexplored.⁴ The structural chemistry of actinoid complexes obtained from aqueous solutions is therefore rather poorly understood. Liquid ammonia is a solvent system similar to water,⁵ and it may serve as a model system to obtain crystalline actinoid species which are otherwise difficult or impossible to isolate from aqueous media. Liquid ammonia shows a much lower autoprotolysis and has a broader pH range which may allow easier access to products coming from protonation and deprotonation reactions. The literature on the coordination chemistry of uranium with only simple, inorganic, monodentate ligands, with the exception of the aqua ligand, is very scarce compared to the magnitude of literature of multidentate-binding organic ligands.^6–8 Uranium compounds may feature various coordination numbers,^8,9 often from six to eight, but also higher in the case of multidentate ligands, and even coordination numbers of twelve or more, for example in the borohydrides, are known.^10–12 A coordination number of nine for monodentate ligands is, however, rare and has, to the best of our knowledge, been reported only for the threefold capped trigonal prismatic cations of Ba²⁺,¹³ La³⁺,¹⁴ Sm³⁺,¹⁵ trivalent actinoids⁴⁷ and for uranium compounds with DMSO, DMF, or acetonitrile as ligands.^16–19 Our compound seems to be a rare example of such a threefold-capped trigonal-prismatic coordination sphere where only simple inorganic ligands are present on the uranium atom. We have previously investigated the reactions of UF₄ and UF₆ with anhydrous ammonia.²⁰ In our attempts to identify usable fluoride ion acceptors for the liquid ammonia system,^20–22 and in order to expand the chemistry of UF₄, we report herein the usage of titanium(III) chloride as a fluoride ion acceptor in anhydrous ammonia besides the unusual coordination spheres of U(IV) and Ti(III) in the resulting compounds.

The coordination chemistry of titanium has been extensively reviewed.^23,24 Titanium(III)-complexes of the formula types TiL₆³⁺, TiX₂L₄⁺ or TiX₆³⁻ show an octahedron-like coordination. In aqueous solution the hexaaqua-cation [Ti(H₂O)₆]³⁺ is known.²⁵ In a reaction of TiI₃ in liquid ammonia at room temperature, only a byproduct with the composition [(NH₃)₅Ti–O–Ti(NH₃)₅]I₄·NH₃ (octahedral coordination) was observed.²⁶ A square-antiprismatic coordination sphere for titanium has been reported for multidentate ligands, such as bidentate binding oxalate,²⁷ and tridentate binding C₁₆H₁₈N₄,²⁸ and in the Ti₈Bi₉²⁹ and TiMn₂P₁₂ (Ti(IV)) compounds.³⁰ For monodentate ligands, a Ti atom was observed in a metal–organic-framework compound which was coordinated by seven H₂O ligands and one hydroxide anion in a distorted square-antiprismatic manner.³¹ Octaammine complexes of other metal cations are also quite rare, and structural proof is only available in the case of the twofold capped trigonal prismatic cations [M(NH₃)₈]²⁺ (M = Ca, Sr, and Ba),^32–34 and the square-antiprismatic cation [Yb(NH₃)₈]³⁺.^14,35 During the synthesis of TiX₃·6NH₃ (X = Cl and Br) colorless-greyish compounds with the composition of TiBr₃·8NH₃ and TiCl₃·7NH₃ have been observed without the possibility of further characterization.³⁶ Other investigations in the TiCl₃/NH₃ system also showed that colorless-greyish TiCl₃·6NH₃ was always obtained as the only product.^37,38 In all these cases, the colorless appearing solids were allowed to warm to room temperature after removal of the excess liquid NH₃ and the compositions were then determined by elemental analyses.

Pure TiCl₃ reacts with anhydrous liquid ammonia at −40 °C to form colorless crystals of octaammine titanium(III) chloride ammonia(1/6), [Ti(NH₃)₈]Cl₃·6NH₃, the composition of which was elucidated using single-crystal X-ray analysis at low temperature (details available in Table S1, ESI†). The observed color is in agreement with reports on other Ti(III)–ammine complexes (see above) and pale blue colors may be easily overlooked as the moisture and temperature sensitive crystals had to be manipulated in dry, cold perfluoro-ether oil. The compound crystallizes in the monoclinic space group P2/c. The asymmetric unit contains a Ti(1) atom on the 2e position, which is coordinated by eight ammine ligands (N(1) to N(4) and symmetry equivalents) in the shape of a square antiprism (Fig. 1). Due to symmetry, the centers of both squares are 1.2619(7) Å away from the titanium atom and are tilted only by 1° towards each other. Hoffmann and coworkers analyzed the deviation from S₈-symmetry by measuring the angle between the metal–ligand bond and the S₈-axis.³⁹ In an ideal system this angle should be 59.22°. Kepert, however, showed that the ideal S₈-symmetry is slightly less stable compared to a marginally distorted arrangement of the ligands where the respective angle is 57.1°.⁴⁰ In the titanium compound the angles are observed with 57.1° (Ti(1)–N(1)–S₈-axis) and 56.2° (Ti(1)–N(2)–S₈-axis) and thus the coordination polyhedron is best described as distorted square-antiprismatic. The Ti–N-distances are observed in between 2.275(1) and 2.312(1) Å and are therefore slightly larger compared to the ones of the [(NH₃)₅Ti–O–Ti(NH₃)₅]I₄·NH₃ compound, for which Ti–N distances of 2.21(1) to 2.29 Å were reported.²⁶ This is of course due to the higher coordination number in [Ti(NH₃)₈]Cl₃·6NH₃. Other ammine complexes of the titanium group, for example M(NH₃)F₄ or [M(NH₃)₄F₄]·NH₃ (M = Zr and Hf), show similar M–N distances of 2.337(4), 2.29(2) Å, and 2.397(3), 2.383(8) Å, respectively.^41,42 In the [Yb(NH₃)₈]³⁺ cation the Yb–N distances were reported in the range of 2.4 to 2.5 Å.^14,35 Further selected atomic distances and angles of the crystal structure are available from Table S2 in the ESI† and from the caption of Fig. 1.

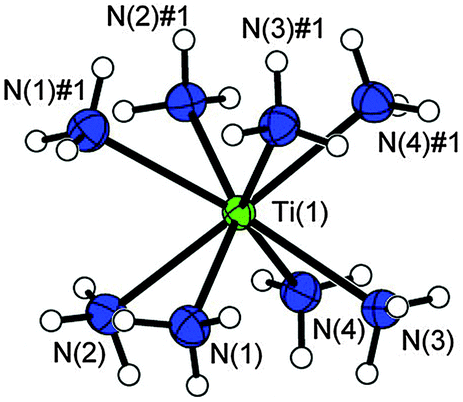

Fig. 1 Depiction of the [Ti(NH₃)₈]³⁺ cation of [Ti(NH₃)₈]Cl₃·6NH₃. Displacement ellipsoids are shown at the 70% probability level at 123 K, H-atoms isotropic with arbitrary radii. Symmetry transformations for the generation of equivalent atoms: #1 −x, y, −z + 1/2. Selected atomic distances [Å]: Ti(1)–N(1) 2.3115(12), Ti(1)–N(2) 2.3063(12), Ti(1)–N(3) 2.2902(12), Ti(1)–N(4) 2.2752(13).

The chlorine atoms Cl(1) and Cl(2) occupy the crystallographic sites 4g and 2f, respectively. With a Ti⋯Cl-distance of 4.1374(4) and 4.7104(2) Å there is no direct cation–anion contact. The chloride anions act as acceptors for N–H⋯Cl–hydrogen bonds, for details see the ESI.† The unit cell of the [Ti(NH₃)₈]Cl₃·6NH₃ compound is shown in Fig. 2. It is interesting to note that the compound presented here shows a Ti : N-ratio of 1 : 14, which has not been reported previously. Schläfer and coworkers report that TiCl₃·6NH₃ is obtained when ammonia is carefully pumped off from the reaction mixture of TiCl₃ in liquid ammonia at –54 °C for five to six weeks,³⁶ in our case we obtained the crystals of [Ti(NH₃)₈]Cl₃·6NH₃ under autogenous pressure at – 40 °C. As Schläfer and coworkers have obtained “only” TiCl₃·6NH₃,³⁶ it is plausible to assume that [Ti(NH₃)₈]Cl₃·6NH₃ can be converted to yield the respective compound. The decomposition of TiCl₃·6NH₃ has been studied in the temperature range from −40 to +450 °C.⁴³ At room temperature TiCl₃·6NH₃³⁷ as well as TiCl₃·5NH₃ were both reported to be stable.⁴³ TiCl₃·6NH₃ decomposes to TiCl₃·5NH₃ at +7 °C.⁴³ The crystals of [Ti(NH₃)₈]Cl₃·6NH₃ burst upon warming to temperatures higher than approximately −40 °C without autogenous pressure present. At room temperature TiCl₃·5NH₃ was obtained as evidenced by elemental analysis (calc.: N: 29.26%; H: 6.32%, det.: 29.83%, 6.231%).

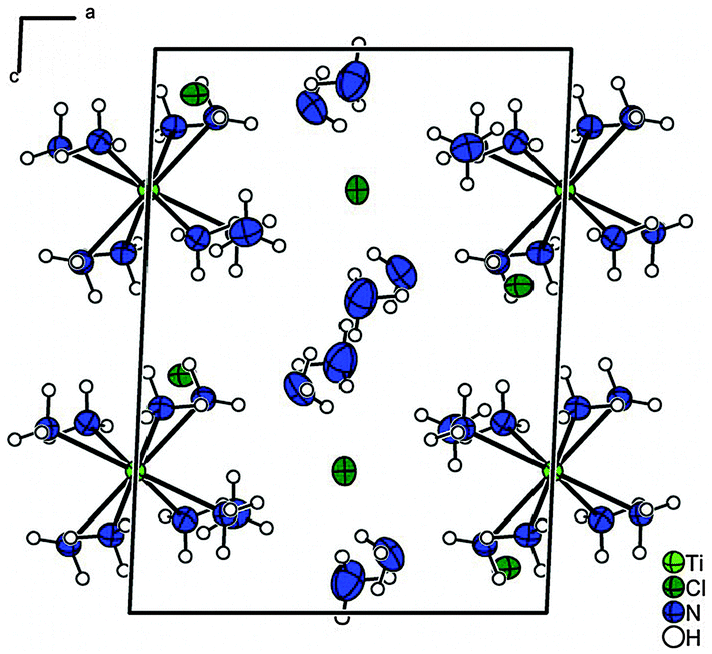

Fig. 2 The unit cell of the [Ti(NH₃)₈]Cl₃·6NH₃ compound. Displacement ellipsoids are shown at the 70% probability level at 123 K, H-atoms isotropic with arbitrary radii.

Aqueous solutions of Ti(III) are known to be violet/blue. Typically they show small extinction coefficients as the electronic d–d transition is forbidden. [Ti(NH₃)₈]³⁺ crystallizes in colorless crystals of [Ti(NH₃)₈]Cl₃·6NH₃, suggesting that it might show interesting electronic differences in comparison to the known Ti(III) compounds. Because the compound is not stable above ca. −40 °C, we could not obtain a UV/VIS spectrum. Instead, we investigated the spectroscopic properties of [Ti(NH₃)₈]³⁺ using ab initio quantum chemical methods high level coupled cluster calculations at the CC2/def2-TZVPP level of theory; for further computational details, see Experimental section. We first investigated the well-known Ti(III) complex [Ti(H₂O)₆]³⁺ as a reference case. A broad absorption band in the region around 500 nm has been reported in the most recent experimental UV/VIS spectrum, in agreement with computational results obtained with the DFT-B3LYP method.⁴⁴ The UV/VIS results predicted here are in good agreement with the experiment, showing an absorption band centered at 490 nm. The transition strength is very low (0.2 × 10⁻⁶ a.u.), as expected for a forbidden d–d transition. In the case of the [Ti(NH₃)₈]³⁺ complex, the predicted absorption wavelength is noticeably red-shifted to 711 nm. Therefore, the [Ti(NH₃)₈]³⁺ complex should absorb in the red regime of the spectrum, suggesting a pale blue complementary color that might be rather difficult to observe properly, e.g. from crystals in cooled perfluoro-ether oil. Also for [Ti(NH₃)₈]³⁺, the transition strength of the absorption is very small (0.2 × 10⁻⁷ a.u.). A comparison between the frontier orbitals of [Ti(H₂O)₆]³⁺ and [Ti(NH₃)₈]³⁺ shows that in both cases the HOMO is the Ti d_z² orbital, which is also in line with the previous results for [Ti(H₂O)₆]³⁺.⁴⁴ The other four d orbitals are ordered in two practically degenerate pairs. For [Ti(NH₃)₈]³⁺, the lower-lying pair of d-orbitals is composed of d_x²−y² and d_xy, but the 711 nm absorption involves the higher-energy d_xz and d_yz orbitals. This energy ordering for the square antiprismatic [Ti(NH₃)₈]³⁺ ion is reversed in comparison to the octahedral [Ti(H₂O)₆]³⁺ complex.⁴⁴ The square antiprismatic configuration of [Ti(NH₃)₈]³⁺ is non-centrosymmetric, but the d_z² → (d_xz/d_yz) transition is still symmetry-forbidden.

By comparing the radii/charge-ratios of Ti(III) and U(IV) for various coordination numbers (for C.N. 6: 0.14 and 0.17, respectively),⁴⁵ and in view of our experiment Ti³⁺ should be a slightly harder Lewis-acid and therefore prefer the bonding to “harder” F⁻-anions over “softer” ammine ligands. When UF₄ is reacted with TiCl₃ in liquid ammonia solution, the reaction may be described by eqn (1):

2 UF₄(am) + 2 TiCl₃(am) + 23 NH₃ → 2 [UF(NH₃)₈]Cl₃·3.5NH₃ + 2 “TiF₃”(am) (1)

The identity of the resulting titanium(III) compound could not be established besides numerous attempts and is therefore referred to as “TiF₃”. It is obtained in the form of a greyish precipitate of variable N, H, and F content, and is X-ray amorphous. Its IR spectrum shows that besides bound NH₃ molecules, NH₂⁻ and possibly NH²⁻ anions may also be present. The [UF(NH₃)₈]Cl₃·3.5NH₃ compound is obtained in the form of green crystals. The composition has been elucidated using single-crystal X-ray analysis (details in Table S1, ESI†). The atoms of the asymmetric unit of [UF(NH₃)₈]Cl₃·3.5NH₃ occupy only two crystallographic sites: the atoms U(1), F(1), N(1) to N(10), N(12), and Cl(1) to Cl(3) reside on the 8f position and the nitrogen atom N(11) occupies the 4e position. The uranium atom is coordinated by one fluorine atom and eight ammine ligands (N(1–8)) forming the octaammine fluorido uranium(IV) cation [UF(NH₃)₈]³⁺, shown in Fig. 3. The coordination polyhedron may be best described as a distorted, trifold-capped trigonal prism. The trigonal faces, which are formally formed by the atoms N(1), N(2), F(1) and N(4), N(5), N(7), respectively, are not parallel to each other but deviate by 5.24(8)°. The centers of these faces are 1.872(1) and 1.648(1) Å away from the U atom, respectively. The tetragonal planes show angles of 63.27(3), 58.37(4) and 58.38(4)° towards each other. They are capped by the ammine ligands N(6), N(8), and N(3) with distances of 1.755(2), 1.734(2), and 1.671(2) Å, to these planes, respectively. The nitrogen atoms of the tetragonal face deviate only by ±0.049(1) Å from the respective least-squares-planes.

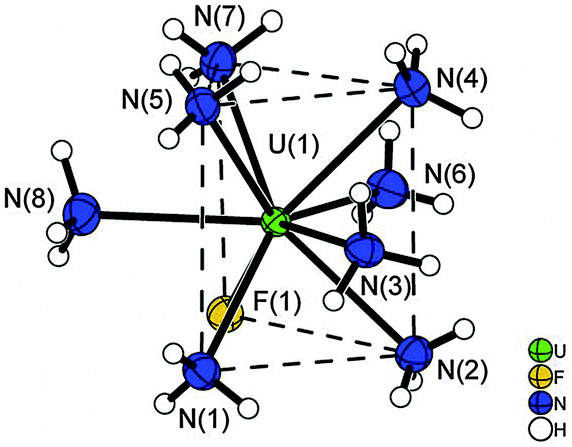

Fig. 3 The [UF(NH₃)₈]³⁺-cation of [UF(NH₃)₈]Cl₃·3.5NH₃. The imaginary edges of the trigonal prism are shown as dashed lines. Displacement ellipsoids are shown at the 70% probability level at 123 K, H-atoms isotropic with arbitrary radii. Selected atomic distances [Å]: U(1)–F(1) 2.1174(11), U(1)–N(1) 2.5599(17), U(1)–N(2) 2.5670(17), U(1)–N(3) 2.6302(16), U(1)–N(4) 2.6106(16), U(1)–N(5) 2.6094(17), U(1)–N(6) 2.5966(19), U(1)–N(7) 2.5590(16), and U(1)–N(8) 2.5875(17).

The U–N distances are observed in the range between 2.559(1) and 2.630(1) Å. They are comparable with distances reported for the [UF₄(NH₃)₄]·NH₃ compound with 2.618(5) Å,²⁰ where the U-atom is only eightfold coordinated. Despite the coordination number of nine, the U–F-distance is quite short with 2.117(1) Å compared to the respective distances reported for the [UF₄(NH₃)₄]·NH₃ (2.188(4) Å) and (N₂H₇)(NH₄)[UF₇(NH₃)] (2.200(2) to 2.336(2) Å) compounds, where the coordination number is only eight.²⁰ For the [UO₂F₂(NH₃)₃]₂·2NH₃ compound longer U–F-distances ranging from 2.217(2) to 2.241(2) Å have been observed.⁴⁶ So, the uranium(IV) cation seems to exert a strong pull towards the F⁻ anion. Selected atomic distances and angles of the crystal structure are available from Table S4 (ESI†) and the caption of Fig. 3. The short N⋯Cl-, N⋯F- and N⋯N-distances are indicative of the presence of the respective hydrogen bonds, for details see the ESI.†Fig. 4 shows the unit cell of the compound. Upon warming to room temperature an X-ray amorphous powder is obtained, the IR spectrum of which shows the presence of ammine ligands. As the compound cannot be separated from the titanium compounds, elemental analysis was not undertaken. Our compound seems to be a rare example of a mononuclear uranium complex with monodentate ligands showing coordination number nine,^4,47 and only a few other examples have been characterized, however with organic ligands such as dimethylformamide, acetonitrile, and dimethylsulfoxide.^16–19 As we could characterize such a U(IV) species with ligands similar to aqua ligands,⁴⁷ we expect that this result is important for actinoid speciation in aqueous solutions as well.

Fig. 4 Central projection of the unit cell of [UF(NH₃)₈]Cl₃·3.5NH₃. [UF(NH₃)₈]³⁺-cations are shown as grey polyhedra. Displacement ellipsoids of atoms not belonging to these polyhedra are shown at the 70% probability level at 123 K, H-atoms isotropic with arbitrary radii.

[Ti(NH₃)₈]Cl₃·6NH₃ so far has been the compound with the highest observed ammonia content in the TiX₃/NH₃ system (X = Cl and Br). It contains a square-antiprismatic octammine titanium(III) cation, which, to the best of our knowledge, represents the first example of this coordination number with monodentate homoleptic ligands on Ti. Also, the compound seems to be the first example of an octaammine complex of a transition metal. Interestingly, the titanium(III) compound appears colorless to the eye. As it is unstable towards the loss of ammonia above −40 °C, further analytic methods were hampered. Quantum chemical calculations show that the absorption in [Ti(NH₃)₈]³⁺ is clearly red-shifted in comparison to the absorption of the well-known [Ti(H₂O)₆]³⁺, resulting in a pale blue complementary color that might be difficult to observe with the naked eye.

Titanium(III)-chloride seems to be a fluoride ion acceptor usable for the liquid ammonia system. It is able to subtract three fluoride ions from UF₄ and green crystals of [UF(NH₃)₈]Cl₃·3.5NH₃ are formed as a product. The [UF(NH₃)₈]³⁺ cation is best described as a distorted, trifold-capped trigonal prism. Despite the coordination number of nine, the U–F-distance is quite short with 2.117(1) Å, thus showing the high Lewis-acidity of U(IV). The compound seems to be the first example of a mononuclear uranium(IV) complex of coordination number nine with inorganic monodentate ligands. Due to the similarity of the aqueous and the ammonia solvent systems, we believe that the existence of such a species in liquid ammonia is an important addition and aid for the knowledge and detection of actinoids in aqueous solutions. Possibly, the respective aquo complex [UF(H₂O)₈]³⁺ can also be detected in dilute aqueous solutions from which UF₄ or its hydrates do not precipitate yet.
