Borylstannylation of alkynes with inverse regioselectivity: copper-catalyzed three-component coupling using a masked diboron†

H. Yoshida *ab, Y. Takemoto a and K. Takaki a
aDepartment of Applied Chemistry, Graduate School of Engineering, Hiroshima University, Higashi-Hiroshima 739-8527, Japan. E-mail: yhiroto@hiroshima-u.ac.jp; Fax: +81-82-424-5494; Tel: +81-82-424-7724
bACT-C, Japan Science and Technology Agency, Higashi-Hiroshima 739-8527, Japan

Received 16th January 2015 , Accepted 3rd February 2015

First published on 3rd February 2015

Abstract

A variety of terminal alkynes are facilely convertible into cis-boryl(stannyl)alkenes with inverse regioselectivity to those of the previous borylstannylation by the copper-catalyzed three-component reaction using a masked diboron. The synthetic utility of the resulting boryl(stannyl)alkenes has been demonstrated by chemoselective coupling reactions.

Transition metal-catalyzed dimetallation of alkynes has commanded considerable attention1 because it provides a convenient and direct method for constructing regio- and stereo-defined dimetallated alkenes, whose carbon–metal bonds are utilizable for carbon–carbon bond-forming processes2 to give multisubstituted alkenes, which constitute an important class of biologically and pharmaceutically active molecules. One of the most valuable dimetallation reactions would be borylstannylation, in which the resulting hetero-dimetallic moieties can undergo chemoselective cross-coupling reactions (Suzuki–Miyaura3 and Migita–Kosugi–Stille coupling4) in tandem with high functional group compatibility under controlled reaction conditions. Since the pioneering work reported by Tanaka,5a borylstannylation has hitherto been achieved by direct insertion of alkynes into a B–Sn bond of borylstannanes under palladium catalysis.5 On the other hand, we have recently disclosed a different mode of the borylstannylation by a copper-catalyzed three-component coupling using a diboron and a tin alkoxide.6–8 Irrespective of the catalytic systems and the reaction modes, terminal alkynes exclusively accept the regioselective addition of the boryl group at the terminal carbon and the stannyl group at the internal carbon in a cis fashion to give (Z)-1-boryl-2-stannyl-1-alkenes (Scheme 1), and thus we have focused our attention on the reversal of regioselectivity, which increases structural diversity of vic-boryl(stannyl)alkenes and thereby broadens the synthetic utility of the borylstannylation. Herein we report that the use of a masked diboron9 in the copper-catalyzed three-component borylstannylation of terminal alkynes completely inverts the regioselectivity, and that this method provides a convenient and direct access to unprecedented hetero-dimetallated alkenes having masked boryl and stannyl moieties.10
image file: c5cc00439j-s1.tif
Scheme 1 Reported borylstannylation of terminal alkynes.

First we conducted the reaction of 1-octyne (1a) with a masked diboron ((pin)B–B(dan), pin: pinacolato, dan: naphthalene-1,8-diaminato11) and tributyltin methoxide in THF at room temperature in the presence of an N-heterocyclic carbene (NHC)-coordinated copper complex ((SIPr)CuCl), and found that the cis-borylstannylation took place with regioselectivity inverse to those of the previous borylstannylation (74% yield, 2a[thin space (1/6-em)]:[thin space (1/6-em)]2′a = 96[thin space (1/6-em)]:[thin space (1/6-em)]4), leading to the introduction of the boryl group at the internal carbon and the stannyl group at the terminal carbon (Table 1, entry 1). It is noteworthy that the B(dan) moiety was solely installed in the product, and a borylstannylation product having the B(pin) moiety was not formed at all. The regioselectivity for the formation of 2a was generally high with bulky ligands (SIMes, tBu-SIPr, IPr, IPr*12 and P(tBu)3) (entries 2–6), whereas the use of triphenylphosphine ((PPh3)3CuCl) led to the formation of regioisomeric mixtures (2a[thin space (1/6-em)]:[thin space (1/6-em)]2′a = 44[thin space (1/6-em)]:[thin space (1/6-em)]56, entry 7). In addition, the reaction with PCy3, used for the previous borylstannylation with bis(pinacolato)diboron,6a also afforded 2a preferentially (2a[thin space (1/6-em)]:[thin space (1/6-em)]2′a = 84[thin space (1/6-em)]:[thin space (1/6-em)]16, entry 8), which reveals that the choice of a diboron as well as a ligand is the key to achieving the present regioselectivity.13 Since an increase in the amount of tributyltin methoxide resulted in an increase in the yield with the highest regioselectivity (86% yield, entry 9), we selected the conditions for further studies.14

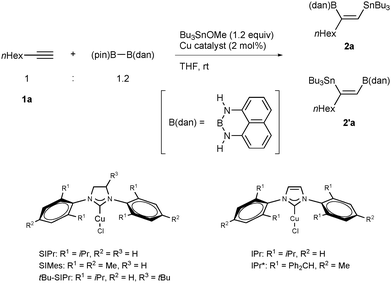

Table 1 Ligand effect on Cu-catalyzed borylstannylation of 1-octynea

image file: c5cc00439j-u1.tif
Entry Cu catalyst Time (h) Yieldb (%) 2a[thin space (1/6-em)]:[thin space (1/6-em)]2′ac
a General procedure: 1a (0.30 mmol, 1 equiv.), (pin)B–B(dan) (0.36 mmol, 1.2 equiv.), Bu3SnOMe (0.36 mmol, 1.2 equiv.), Cu catalyst (6.0 μmol, 2 mol%), THF (1 mL). b Isolated yield. c Determined using 1H NMR. d Ligand = 4 mol%. e Bu3SnOMe = 2 equiv.
1 (SIPr)CuCl 7 74 96[thin space (1/6-em)]:[thin space (1/6-em)]4
2 (SIMes)CuCl 2 81 90[thin space (1/6-em)]:[thin space (1/6-em)]10
3 (tBu-SIPr)CuCl 20 69 94[thin space (1/6-em)]:[thin space (1/6-em)]6
4 (IPr)CuCl 5 75 96[thin space (1/6-em)]:[thin space (1/6-em)]4
5 (IPr*)CuCl 11 80 96[thin space (1/6-em)]:[thin space (1/6-em)]4
6d P(tBu)3, CuCl 2 81 93[thin space (1/6-em)]:[thin space (1/6-em)]7
7 (PPh3)3CuCl 48 75 44[thin space (1/6-em)]:[thin space (1/6-em)]56
8d PCy3, CuCl 14 60 84[thin space (1/6-em)]:[thin space (1/6-em)]16
9e (SIPr)CuCl 10 86 96[thin space (1/6-em)]:[thin space (1/6-em)]4

With the optimum conditions in hand (Table 1, entry 9), the substrate scope of alkynes was next investigated (Table 2). Such aliphatic terminal alkynes as 1-hexyne (1b), 4-methyl-1-pentyne (1c) and 4-phenyl-1-butyne (1d) also underwent the borylstannylation with high degrees of regioselectivity to give 2b, 2c and 2d in 78, 81 and 74% yield (entries 1–3). The functional group compatibility of the reaction was sufficiently high, and thus a C–Br bond15 in 1e and a cyano group in 1f remained intact throughout the reaction (entries 4 and 5). The present regioselectivity was also observed by using enyne (1g) and phenylacetylene (1h) (entries 6 and 7), and furthermore the reaction of propargyl ethers (1i and 1j) or a THP-protected propargyl alcohol (1k) resulted in the exclusive formation of 2i–2k (entries 8–10). In addition, propargyl amine (1l) and trimethylsilylacetylene (1m) accepted the addition of the B(dan) moiety at their internal carbon with perfect regioselectivity (entries 11 and 12).16 The versatility of the borylstannylation was further expanded by application to 1,7-octadiyne17 (1n) and allenes18 (3a and 3b): both of the triple bonds were convertible regioselectively into the borylstannylalkenes in the former case, and the regio- and stereoselective reaction proceeded to provide (Z)-1-stannyl-2-boryl-2-alkenes (4a and 4b) as the single product, although the regioselectivity is similar to that of the previous borylstannylation with bis(pinacolato)diboron6b in the latter case (Scheme 2).

Table 2 NHC–Cu-catalyzed borylstannylation of terminal alkynesa

image file: c5cc00439j-u2.tif
Entry R Yieldb (%) 2[thin space (1/6-em)]:[thin space (1/6-em)]2′c Products
a General procedure: 1 (0.30 mmol, 1 equiv.), (pin)B–B(dan) (0.36 mmol, 1.2 equiv.), Bu3SnOMe (0.60 mmol, 2 equiv.), (SIPr)CuCl (6.0 μmol, 2 mol%), THF (1 mL). b Isolated yield. c Determined using 1H NMR.
1 nBu (1b) 78 94[thin space (1/6-em)]:[thin space (1/6-em)]6 2b, 2′b
2 iBu (1c) 81 99[thin space (1/6-em)]:[thin space (1/6-em)]1 2c, 2′c
3 Ph(CH2)2 (1d) 74 94[thin space (1/6-em)]:[thin space (1/6-em)]6 2d, 2′d
4 Br(CH2)2 (1e) 87 99[thin space (1/6-em)]:[thin space (1/6-em)]1 2e, 2′e
5 NC(CH2)3 (1f) 79 95[thin space (1/6-em)]:[thin space (1/6-em)]5 2f, 2′f
6 1-Cyclohexenyl (1g) 81 99[thin space (1/6-em)]:[thin space (1/6-em)]1 2g, 2′g
7 Ph (1h) 73 99[thin space (1/6-em)]:[thin space (1/6-em)]1 2h, 2′h
8 MeOCH2 (1i) 66 >99[thin space (1/6-em)]:[thin space (1/6-em)]1 2i
9 BnOCH2 (1j) 66 >99[thin space (1/6-em)]:[thin space (1/6-em)]1 2j
10 THPOCH2 (1k) 66 >99[thin space (1/6-em)]:[thin space (1/6-em)]1 2k
11 Et2NCH2 (1l) 69 >99[thin space (1/6-em)]:[thin space (1/6-em)]1 2l
12 Me3Si (1m) 75 >99[thin space (1/6-em)]:[thin space (1/6-em)]1 2m


image file: c5cc00439j-s2.tif
Scheme 2 Borylstannylation of a diyne and allenes.

Similarly to the previous copper-catalyzed borylstannylation with bis(pinacolato)diboron,6 generation of a borylcopper species, Cu–B(dan), from Cu–OMe and a masked diboron commences the reaction (Scheme 3, step A). Subsequent insertion of an alkyne into the Cu–B(dan) bond, which produces a β-borylalkenylcopper species (borylcupration, step B),19 followed by capturing with tin methoxide furnishes the product (step C).20 The formation of Cu–B(dan) (vs. Cu–B(pin)) can be rationally explained by selective interaction between the Lewis acidic B(pin) moiety of (pin)B–B(dan) and the methoxy moiety of Cu–OMe in step A, leading to the exclusive introduction of the masked boryl moiety across the triple bond of alkynes. The orientation of a borylcopper species in the borylcupration step entirely governs the regiochemical outcome of the borylstannylation (Scheme 4), and the mode of the borylcupration with Cu–B(dan) would simply be controlled by steric repulsion between a substituent on alkynes and a bulkier copper moiety as was the case with the hydroboration.10a Hence, the B(dan) moiety is solely installed into the internal carbon of terminal alkynes,21,22 which results in the inverse regioselectivity in the present borylstannylation.


image file: c5cc00439j-s3.tif
Scheme 3 A plausible catalytic cycle for borylstannylation.

image file: c5cc00439j-s4.tif

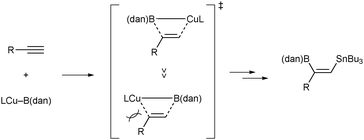

Scheme 4 Regioselectivity in the borylcupration.

Synthetic utility of the boryl(stannyl)alkenes was demonstrated by the chemoselective cross-coupling: a C–Sn bond of 2i was solely convertible into a C–C bond by the palladium-catalyzed Migita–Kosugi–Stille reaction to provide an 82% yield of 5 with a masked boryl moiety remaining intact (Scheme 5). Furthermore, the masking enabled the copper-mediated oxidative homocoupling to take place at the C–Sn bond selectively, affording 1,4-diboryl-1,3-butadienes (6–8) stereoretentively in high yield. Unmasking of the resulting 1,4-diboryl-1,3-butadiene, followed by the Suzuki–Miyaura reaction with 4-iodotoluene furnished 1,1,4,4-tetraarylbutadiene 9.


image file: c5cc00439j-s5.tif
Scheme 5 Transformation of borylstannylation products.

In conclusion, we have disclosed that the borylstannylation of terminal alkynes proceeds with inverse regioselectivity by the copper-catalyzed three-component reaction using a masked diboron, which gives us a convenient and potent approach to diverse cis-boryl(stannyl)alkenes bearing the masked boryl moiety at the internal carbons. Moreover, the synthetic versatility of the resulting boryl(stannyl)alkenes has been shown by the chemoselective coupling reactions depending on the difference in the reactivity between the masked boryl and the stannyl moieties. Further studies on copper-catalyzed borylation reactions using a masked diboron as well as on the details of the mechanism are in progress.
