Caught! Crystal trapping of a side-on peroxo bound to Cr(IV)

Abstract

A Cr(IV)η²–peroxo complex crystallizes from 33% aqueous H₂O₂. The complex is a likely intermediate in catalytic disproportionation of H₂O₂ proposed to occur through a single metal site mechanism in solution – and solid state.

---

The study of metal–dioxygen, peroxo and oxo adducts has attracted considerable attention as such metal-activated oxygen species have emerged as the common precursors and active oxidants in a wide range of biological and non-biological oxidation systems.^1–5 The majority of first row transition metals are represented as co-factors in enzymes and proteins. However, in spite of its rich redox chemistry, reasonable availability and oxophilicity, chromium is by large absent in the natural world. Instead, it is generally considered a cell toxin capable of causing damage to DNA and RNA, through both oxidative mechanisms and adduct formation.^6,7 Several molecular Cr(V)–oxo complexes have been reported in the literature over the last 40 years,^8–13 whereas only a handful Cr–dioxygen complexes have been identified. In all cases these compounds are derived from the reaction of Cr(II) precursors with O₂. An ion proposed to be a Cr(III)–superoxo complex [CrO₂(bipy)₂]²⁺ (bipy = 2,2′-bipyridine) was obtained by reacting coordinatively unsaturated [Cr(bipy)₂]²⁺ with O₂ in the gas phase.^14,15 Subsequently Theopold et al.¹⁶ structurally characterized a “side-on” Cr(III)–superoxo adduct generated from the reaction of [Cr^II(Tp^tBu,Me)NC₆H₅]⁺ (Tp^tBu,Me = hydrotris(3-tert-butyl-5-methylpyrazolyl)borate) with O₂ in diethylether. Recently Nam et al. have reported both an “end-on” Cr(III)–superoxo¹¹ and a “side-on” Cr(IV)–peroxo¹⁷ adduct supported by macrocyclic tetramethylcyclams of different ring sizes.

Molecular Cr–dioxygen species are relevant with respect to the biotoxicity of chromium, and are useful as structural mimics of more elusive metal–dioxygen adducts of the later transition metals. We have previously used amino-acid derived pyridine ligands, such as tpena⁻ (N,N,N′-tris(2-pyridylmethyl)ethylenediamine-N′-acetate), to generate reactive iron(IV)–oxo,^18,19 manganese(IV)–oxo complexes and putative O₂ adducts,^20,21 and a metal–oxidant (iodosylbenzene) adduct.²² The instability of such high-valent iron and manganese complexes makes their structural characterization especially difficult. The isolation of more stable structural analogues based on earlier first row transition metals is a potentially fruitful strategy for gleaning structural information on such intermediates.¹⁸ Here we describe the structural trapping of a catalytically competent Cr(IV)–peroxo adduct formed from the reaction of a Cr(III) precursor with H₂O₂.

[Cr^III(tpena)]²⁺ (1) is prepared in aqueous solution from the reaction of chromium(III)-nitrate with the sodium salt of the ligand, followed by crystallization as a diperchlorate salt. The X-ray crystal structure shows that tpena⁻ coordinates through all six donor atoms. The Cr(III) atom displays a particularly irregular octahedral geometry, Fig. S1 (ESI†), most notable being an extremely obtuse N1–Cr–N5 angle of 115.40(4)°. When 1 is dissolved, UV-Vis spectra (pH 4–8) show that aqueous solutions contain an equilibrium between 1, its “pseudo hydrate”, [Cr^III(tpenaH)OH]²⁺ (2) and the blue congener base [Cr^III(tpena)OH]⁺ (3), Scheme 1. Complex 3 is the base peak in ESI-MS spectra and this speciation is supported by cyclic voltammetry, vide infra. Addition of base drives the equilibrium towards 3. When 100 eq. of H₂O₂ are added to solutions of 1, a colour change from red to violet occurs over 30 min accompanied by the evolution of dioxygen²³ consistent with modest catalase activity. The solutions are EPR silent.

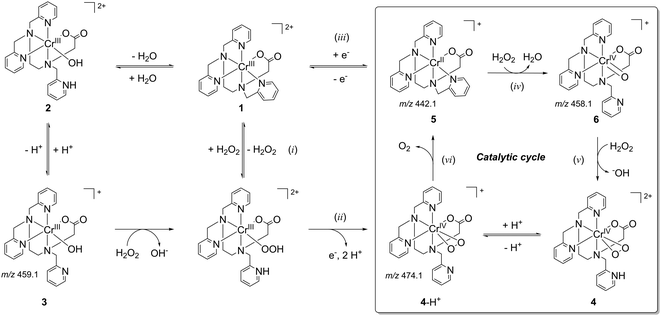

Scheme 1 Interrelationship between tpena⁻ complexes of Cr(II), Cr(III) and Cr(IV), including a mechanistic proposal for the catalytic decomposition of H₂O₂.

This observation, together with UV-Vis spectroscopy (λ, 539 nm; ε, 150 M⁻¹ cm⁻¹), Fig. 1, and electrospray ionization (ESI) mass spectra – which show the dominant presence of a Cr(tpena)–dioxygen adduct [CrO₂(tpena)]⁺ at m/z 474.1 (calcd 474.1), suggests either of the isomeric species: a triplet Cr(III)–superoxo system consisting of a Cr(III) center anti-ferromagnetically coupled to a O₂˙⁻ radical, or a triplet Cr(IV)–peroxo system. A Cr(III)–hydroperoxo adduct was ruled out, since this formulation would give rise to a simple 3/2 system presumably with a spectrum similar to that obtained for 1, Fig. S5 (ESI†). The presence of a band at 878 cm⁻¹ in the resonance Raman spectrum of the purple solutions, Fig. 2(a) and Fig. S8(b) (ESI†), (full spectrum) identifies the species unambiguously as a peroxo, rather than a superoxo complex.²⁴ Consistently the IR spectrum of an EPR silent solid precipitated with diethyl ether–dioxane shows a strong sharp absorption at 871 cm⁻¹ not seen in IR spectrum of 1, Fig. 2(b). The differences in the ligand vibrations at 1256, 1373 and 1669 cm⁻¹ suggest that a pyridine arm of the ligand has become uncoordinated and protonated as seen in the salts of [V^IVO(tpenaH)]²⁺ and [Fe^III₂O(tpenaH)₂]⁴⁺,^18,22 and the formulation [Cr^IVO₂(tpenaH)]²⁺ (4) could be proposed.

Fig. 1 Aqueous UV-Vis spectra of 4 mM 1 (red line), 3.7 mM 4 (violet line, generated in situ from 1 and 200 eq. H₂O₂) and 3.6 mM 3 (blue line, generated in situ from 1 and 50 eq. NaOH).

Fig. 2 (a) Frozen solution rRaman spectra of 9 mM 1 (black) and 4 (red) recorded at 77 K in CH₃CN (λ_ex = 514.5 nm, power = 65 mW). Asterisks denote solvent signals. (b) Solid state IR spectra of 1(ClO₄)₂ (black) and 4(ClO₄)₂ (red).

Single crystals of 4(ClO₄)₂(H₂O₂)₃(H₂O) were obtained only on a couple of occasions by placing the largest crystals of 1(ClO₄)₂(C₄H₈O₂)_0.5 available into aqueous 33% H₂O₂. Over the course of a day at 4 °C the starting material was replaced by plates of the purple peroxo complex. Bubbles of O₂ were observed to slowly emerge from both the solution and the surface of the crystals. The X-ray crystal structure, Fig. 3(a), shows that the peroxide is coordinated to a seven-coordinate Cr-centre in a side-on fashion, and charge balance dictates that the cation is a Cr(IV) species. As anticipated one methylpyridyl arm is uncoordinated and protonated. The distance between the O atoms of the O₂ moiety is 1.383(8) Å. The average Cr–L distances for 1 and 4 respectively are 2.040(1) Å and 2.014(6) Å supporting a higher oxidation for the chromium ion in 4. The +4 oxidation state is confirmed by a Bond Valence Sum (BVS) analysis that yields a BVS = 4.001.²⁵ A hydrogen-bonding motif is present in the crystal, with the cations linked together by the protonated dangling pyridyl arm of one molecule and the non-coordinated carbonyl oxygen of a neighbour (PyH⁺⋯⁻OOC, 1.904 Å), forming herringbone chains. The hydrogen-bonded chains stack regularly to form sheets parallel to the b-axis, forming the basis for a network of pores running along the c-axis. The pores are occupied by three co-crystallized H₂O₂ molecules per cation. The perchlorate ions H-bond predominantly to the substrate guest H₂O₂. The unusually large number of H₂O₂ molecules in the crystal lattice, and their disorder, suggest that these might be rather mobile guests. Thus we conclude that a “crystal trapping” of the reactive 4 is made possible because it is surrounded by substrate that is taken up in the solid state, selectively, from solution. A calculation of the pore dimensions after in silico removal of the H₂O₂ molecules reveals about 16% pseudo void space. These voids lie predominantly between internal lamellar surfaces with the coordinated peroxo ligands lining the surface of these sheets, Fig. 3(b). With such a spatial arrangement, it seems reasonable to assume that guest H₂O₂ molecules can creep between the sheets, while product O₂ is able to leave the crystals the same way by diffusion.

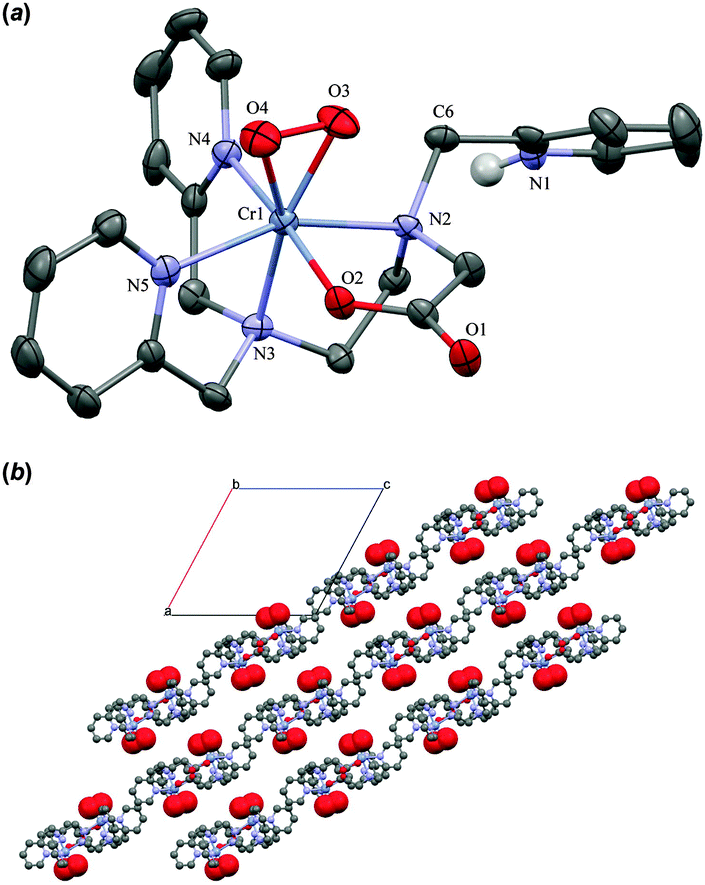

Fig. 3 (a) ORTEP plot of the cation in 4(ClO₄)₂(H₂O₂)₃(H₂O) showing 50% probability ellipsoids. (b) Ball-and-stick illustration of the crystal lattice defined by the chains of H-bonded 4 with the peroxide ligand as space filled spheres after in silico removal of H₂O₂, H₂O and ClO₄⁻. Viewed down the b-axis.

Deprotonated 4 (m/z 474.1, 4-H⁺) is present in ESI mass spectra obtained on both working solutions containing excess H₂O₂, and in the spectra of isolated 4(ClO₄)₂(H₂O₂)₄ redissolved in acetonitrile. These spectra furnish some hints about the mechanism of the catalytic H₂O₂ disproportionation, and the decomposition of 4 in the absence of substrate H₂O₂, respectively. The dominant ion in both spectra is [Cr^II(tpena)]⁺ (5; m/z 442.1, calcd 442.1). While 5 is accessible electrochemically (vide infra), it was present, only occasionally, as a minor ion in the spectra of 1 (complex 3 dominates the spectra of 1, Fig. S2, ESI†). These observations suggest that 5 is not predominantly formed via an ionization induced one-electron reduction of 1. Collision Induced Dissociation (CID) experiments on the 474.1 ion (4-H⁺) result in the loss of the mass equivalent of two oxygen atoms to directly generate 5. That no stepwise O atom loss occurs, strongly indicates that the O–O bond remains intact during this process¹⁴ and that this is the dominant route for generation of the observed Cr(II) species 5. Ions assigned to [Cr^IVO(tpena)]⁺ (m/z 458.1, calcd 458.1) and [Cr^VO(tpena)]²⁺ (m/z 229.1, calcd 229.1), and its ion pair, [Cr^VO(tpena)]ClO₄⁺ (m/z 557.1 calcd 557.1) and other high-valent O containing species appear only in the spectra of isolated 4(ClO₄)₂. These species might result from the inter- and intra-molecular O atom transfer from 4 to an unknown substrate or the ligand.²⁶ It is noteworthy that a greater number of ligand decomposition products are observed in Fig. 4(b). On the basis of the electronic and geometrical structure of 4, the gas phase experiments through which various Cr(II), Cr(IV)–peroxo, Cr(IV)–oxo, and Cr(V)–oxo species are observed, we propose in Scheme 1, a catalytic acid–base type cycle for the relatively slow disproportionation of H₂O₂. The cycle is similar to mechanisms proposed for heme catalases.²⁷ Indeed the possible involvement of a second coordination sphere basic pyridine to aid proton transfers is reminiscent of the role of the proximal histidine in peroxidases. The species labelled by a number have been detected, and a structural analogue for 6, [V^IVO(tpenaH)]⁺ is known.¹⁸ The direct observation of the O₂ release process step (vi) by CID suggests that the pro-catalyst 1 is not directly involved in the catalytic cycle, but requires reductive activation, by direct (i) + (ii) or indirect (iii) involvement by H₂O₂, before it can enter the cycle. Time-resolved UV-Vis spectroscopy indicates that the direct (i) + (ii) mechanism is the dominant activation pathway, since the time trace for the appearance of the λ_max at 553 nm due to the chromophore of 4 can be modelled satisfactorily with a 2-step mechanism (see ESI,† Fig. S7). The cyclic voltammogram of 1(ClO₄)₂ reveals the presence of 1 and 3 in neutral aqueous solutions, with reversible Cr^2+/3+ redox couples at E_1/2 = −885 mV and −1099 mV (vs. Ag/Ag⁺), Fig. S3 (ESI†), supporting the plausibility of the involvement of 5 in the catalytic cycle. The Cr(IV)–oxo species, 6, formed by a O atom transfer from H₂O₂ to 5 (iv) is expected to be a strong base which can deprotonate H₂O₂ and assist the substitution step (v),²⁸ perhaps with involvement of the dangling pyridine.

Fig. 4 (a) ESI mass spectrum of solution of 4 generated in situ from the reaction of 1 with 200 eq. H₂O₂ in H₂O. (b) ESI mass spectrum of 4(ClO₄)₂ dissolved in CH₃CN. Important assignments not in the text: m/z 490.1 [Cr^VI(O)(O₂)(tpena)]⁺ (or [Cr^IV(O₂)(tpenaO)]⁺), 366.1 ([Cr^III(tpenaO-CHC₅H₄N)]⁺), 350.1 ([Cr^III(tpena-CH₂C₅H₄N)]⁺).

In summary, we have isolated a rare example of a side-on Cr(IV)–peroxo adduct. This species is a catalytically competent species in solutions, and within crystals, for catalytic H₂O₂ dismutation. Its preparation involves the reaction of an unusually labile Cr(III) precursor and H₂O₂. This is an interesting contrast to the syntheses of the handful of other known Cr–O₂ (superoxo, peroxo) adducts which typically involves the reaction of Cr(II) complexes with O₂ – precisely the reverse of step (vi) in Scheme 1.
