Loanda R.
Cumba
ab,
Jamie P.
Smith
a,
Dale A. C.
Brownson
a,
Jesús
Iniesta
c,
Jonathan P.
Metters
a,
Devaney R.
do Carmo
b and
Craig E.
Banks
*a
aFaculty of Science and Engineering, School of Chemistry and the Environment, Division of Chemistry and Environmental Science, Manchester Metropolitan University, Chester Street, Manchester M1 5GD, UK. E-mail: c.banks@mmu.ac.uk; Web: http://www.craigbanksresearch.com Fax: +44 (0)161-247-6831; Tel: +44 (0)161-247-1196
bFaculdade de Engenharia de Ilha Solteira UNESP – Universidade Estadual Paulista, Departamento de Física e Química, Av. Brasil Centro, 56 CEP 15385-000, Ilha Solteira, SP, Brazil
cPhysical Chemistry Department and Institute of Electrochemistry, University of Alicante, 03690 San Vicente del Raspeig, Alicante, Spain
First published on 22nd January 2015
Recent work has reported the first electroanalytical detection of pindolol using reduced graphene oxide (RGO) modified glassy carbon electrodes [S. Smarzewska and W. Ciesielski, Anal. Methods, 2014, 6, 5038] where it was reported that the use of RGO provided significant improvements in the electroanalytical signal in comparison to a bare (unmodified) glassy carbon electrode. We demonstrate, for the first time, that the electroanalytical quantification of pindolol is actually possible using bare (unmodified) screen-printed graphite electrodes (SPEs). This paper addresses the electroanalytical determination of pindolol utilising RGO modified SPEs. Surprisingly, it is found that bare (unmodified) SPEs provide superior electrochemical signatures over that of RGO modified SPEs. Consequently the electroanalytical sensing of pindolol is explored at bare unmodified SPEs where a linear range between 0.1 μM–10.0 μM is found to be possible whilst offering a limit of detection (3σ) corresponding to 0.097 μM. This provides a convenient yet analytically sensitive method for sensing pindolol. The optimised electroanalytical protocol using the unmodified SPEs, which requires no pre-treatment (electrode polishing) or electrode modification step (such as with the use of RGO), was then further applied to the determination of pindolol in urine samples. This work demonstrates that the use of RGO modified SPEs have no significant benefits when compared to the bare (unmodified) alternative and that the RGO free electrode surface can provide electro-analytically useful performances.
Pindolol is also a drug which is widely used to combat hypertension in pregnancy, causing no harm to the fetus whilst significantly improving the renal functions of pregnant women.6 The drug has currently been highlighted in the field of antidepressants because the co-administration of pindolol with selective serotonin reuptake inhibitors (SSRIs) has been reported to enhance the increase of 5-HT transmission in cortical and limbic7 areas, in turn resulting in the symptomatic relief of depression. However, pindolol has lipophilic properties and is practically insoluble in water at basic pH.1,8 When administered in high doses it can mistakenly cause bronchodilation and tachycardia.9
Analytical techniques reported within the literature for the determination of pindolol include spectrofluorimetry,10 liquid chromatography-tandem mass spectrometry11 and high-performance liquid chromatography.12–14 Notably however, only one report for the electrochemical determination of pindolol exists within the literature;15 which is a potentially rapid, facile and low cost protocol for the monitoring of such a key analyte.
In the first (and only) report concerning the electrochemical detection of pindolol, Smarzewska and Ciesielski,15 stated that reduced graphene oxide (RGO) modified glassy carbon (GC) electrodes exhibit significantly increased peak currents towards the electrochemical oxidation of pindolol in comparison to bare (unmodified) GC electrodes.15 The approach, whilst noteworthy, requires a GC electrode to be polished and diligently modified with RGO prior to electrochemical measurements being performed, thus resulting in a potentially inefficient (speed), unreliable (repeatability) and erroneous procedure. We also note that the paper lacks sufficient morphological characterization of the RGO used, including analysis of the RGO after its deposition onto the supporting electrode surface.
When considering electrochemical sensing protocols, one electrochemical configuration which boasts a plethora of advantages as a sensing platform are screen-printed graphite electrodes (SPEs). These useful electrode configurations have attracted considerable attention in recent years due to efficiency, speed and low cost, as well as being portable, disposable and requiring no surface pretreatment or polishing.16–24 Much interest in the development of new and novel screen-printed electrode configurations prevail owing to the portability of the technology, something that arouses interest worldwide since the use of such electrodes allow analysis “in the field”.
In this paper we demonstrate, for the first time, that pindolol can be electrochemically quantified using SPEs at analytically relevant concentrations in both ‘ideal’ laboratory conditions and in urine samples. Furthermore, we critically compare the response of unmodified SPEs with that of RGO modified SPEs, questioning the use of the latter over that of the former.
Voltammetric measurements were carried out using a μ-AutolabIII (Eco Chemie, The Netherlands) potentiostat/galvanostat and controlled by Autolab GPES (General Purpose Electrochemical System) software version 4.9. All electrochemical measurements were performed at room temperature. A conventional three-electrode system was used where screen-printed graphite electrode (working electrode) with on-board graphite counter and Ag/AgCl reference electrodes. All potentials are referred to utilizing this reference electrode. All electrochemical experiments were performed at room temperature. Square wave parameters (frequency and amplitude) were optimised prior to experimentation.
Scanning electron microscope (SEM) images and surface element analysis were obtained with a JEOL JSM-5600LV model equipped with an energy-dispersive X-ray (EDX) microanalysis package. Raman Spectroscopy was performed using a Renishaw InVia spectrometer with a confocal microscope (×50 objective) spectrometer with an argon laser (514.3 nm excitation) at a very low laser power level (0.8 mW) to avoid any heating effects. X-ray Photoelectron Spectroscopy (XPS) measurements were performed with a Kratos Axis Ultra spectrometer using monochromatic Al K X-rays (1486.6 eV) (performed independently by CERAM40).
Independent characterisation of the RGO was performed using SEM, Raman and XPS analysis. Fig. 1A shows the SEM micrograph of RGO on a SiO2 plate whilst in Fig. 1B the RGO can be observed once modified upon a SPE. The characteristic flake-like-crumpled structure of RGO is evident in both SEM micrographs, with the apparent presence of both single and few-layered regions of RGO forming after solvent (carrier) evaporation due to natural coalescence, where additionally it is clear that the RGO becomes integrated with the supporting electrode surface in Fig. 1B.27Fig. 2 depicts Raman spectra of the commercially sourced RGO, which shows two distinct characteristics depending on where the RGO sample was probed. The Raman spectrum shown in Fig. 2A reveals two characteristic peaks at ca. 1580 and 2690 cm−1 that are due to the G and 2D (G′) bands of graphitic structures respectively.28–30 The highly symmetrical 2D (G′) peak indicates that the material is comprised of few-layer graphene (consistent with SEM images). Additionally, the intensity ratio of the G and 2D bands (G/2D = 1.50) indicates that the graphene sheets are indeed stacked and comprised of few-layer graphene domains, where the high intensity of the G band in relation to the 2D peak is characteristic of multi-layered graphene (but in this case does not display the characteristics of graphite).28–30 The presence of a D band at ca. 1350 cm−1 indicates a that the RGO has a number of structural defects on across its surface (limited basal plane crystal defects), which is as expected given the fabrication method.31 In contrast, although the Raman spectrum shown in Fig. 2B reveals a characteristic peak at ca. 1580 cm−1 which is due to the G band of graphitic structures, at ca. 2840 cm−1 a wave-like protrusion is evident from the baseline which is characteristic of graphene oxide.32,33 In this case, the presence of a D band at ca. 1350 cm−1 (which is of an intensity similar to the adjacent G band) is a further indication that graphene oxide is present (with a large number of structural defects on/across its surface (limited basal plane crystal defects due to the oxygenated material)).32,33 Given insights obtained from the SEM and Raman analysis presented above, it is clear that the commercially sourced RGO used herein consists of regions of both few-layer graphene and graphene oxide and thus is actually partially reduced graphene oxide, which is as expected and widely reported in the literature.32,33 The XPS spectrum shown in ESI Fig. 1† confirms the above inferences and thus the presence of partially reduced graphene oxide as determined through comparison to reports in the literature.27,34–36 ESI Table 1† lists the surface atomic composition of RGO in atomic percentage (at%), the total atomic percentage for carbon (C%) is 91.87 and for oxygen (O%) is 8.13.
Fig. 1 SEM images of (A) 2.0 μg of RGO immobilized upon a SiO2 plate and (B) 2.0 μg of RGO immobilized upon a SPE. |
Fig. 2 Raman spectra of the commercially obtained RGO. Spectra were recorded from various areas across the sample, the two shown are representative. |
To further explore the electrochemical response of pindolol, different electrode substrates were tested towards its electrochemical oxidation to allow for comparison with the response obtained using the SPEs. Fig. 4 depicts the voltammetric responses of the screen-printed graphite, boron doped diamond (BDD), glassy carbon (GC) and edge-plane pyrolytic graphite (EPPG) electrodes. These electrodes show clear and well defined voltammetric peaks, which are observed at +0.89 V (vs. Ag/AgCl) using a SPE, +0.88 V (vs. Ag/AgCl) for BDD, +0.95 V (vs. Ag/AgCl) for GC and +0.84 V (vs. Ag/AgCl) for EPPG. Analysis of the responses obtained using the explored electrode materials revealed the EPPG electrode to exhibit the highest current density (508.9 μA cm−2), whilst the BDD (397.9 μA cm−2), SPE (398.2 μA cm−2) and GC (383.9 μA cm−2) electrodes all reveal similar electrochemical performances with regard to current density (densities were calculated using the geometric area of the electrode surfaces). The effect of scan rate for each electrode substrate was explored where a plot of voltammetric peak height against the square-root of scan rate was constructed: EPPG: Ip/A = 2.048 × 10−4 A (V s−1)−0.5 + 1.750 × 10−5 A; R2 = 0.948, SPE: Ip/A = 6.657 × 10−5 A (V s−1)−0.5 + 5.246 × 10−6 A; R2 = 0.993, BDD: Ip/A = 7.557 × 10−5 A (V s−1)−0.5 + 2.156 × 10−6 A; R2 = 0.985, GC: Ip/A = 5.462 × 10−5 A (V s−1)−0.5 + 7.515 × 10−6 A; R2 = 0.936. In all instances there was a linear correlation which is indicative that the electrochemical oxidation of pindolol is governed by a diffusional process (as opposed, to say, an adsorbed process). Considering the electrochemical performance of the electrode materials (viz.Fig. 4) it can be concluded that although the EPPG electrode attained the greatest voltammetric signal in terms of the analytically important current density, the alleviation for the requirement of polishing offered by SPEs is of significant value, particularly given that the voltammetric signal obtained using the screen-printed sensor was comparable to that of the EPPG electrode. Consequently, work herein focuses upon the use of the SPEs.
Fig. 4 Cyclic voltammograms obtained in 1 mM pindolol/0.1 KCl (pH: 2, scan rate: 100 mV s−1, vs. Ag/AgCl) utilising the following electrodes: SPE, BDD, GC and EPPG. |
In attempts to further enhance the electroanalytical potential of the SPE configuration, modification of the graphite working electrode surface through the deposition of reduced graphene oxide (RGO) was next considered. RGO is an innovative material used to modify electrodes and it is widely reported to improve the electrochemical response in such cases.39–42 Furthermore, recent reports have suggested that the modification of carbon-based electrode substrates with RGO can yield an improved electroanalytical determination of pindolol15 utilizing square-wave voltammetry. Consequently, RGO was next used to explore the potential electrochemical improvements towards pindolol determination over unmodified (bare) SPEs as reported within the literature.15 The SPEs were modified as described in the Experimental section. Fig. 5 depicts the square wave voltammetric responses obtained in a 1.0 mM pindolol/0.1 M KCl solution using RGO modified SPEs, which are critically compared to that of a bare SPE. Fig. 5 depicts the analysis of the voltammetric peak potential (inserts in Fig. 5) and peak height as a result of increasing amounts (masses) of RGO where it can readily be observed that the initial voltammetric results become deteriorated with the voltammetric peak shifting to higher potentials and the peak current decreasing in magnitude. Comparison of a bare (unmodified) SPE with that of modified RGO SPEs reveals the response of the former to be optimal over that of the latter due to the largest voltammetric peak heights (analytical signal) and less facile potential being obtained; one then questions the need to use RGO at all. The origin of this poor response might be due to poor electrical wiring of the RGO upon the electrode surface or a repulsive interaction between reduced graphene oxide and pindolol.
Fig. 6 shows a Raman map of a RGO modified SPE, confirming uniform coverage of the electrode, indicating the responses observed in Fig. 6 can be attributed to the RGO and not the underlying electrode substrate or a combination of both. Through analysis of Fig. 5 it is clear that the modification of SPEs with RGO is not advantageous when compared directly to the performance of the unmodified (bare) alternative since the modified electrodes exhibit the electrochemical oxidation of pindolol at much higher (positive) potential regions whilst possessing weaker analytical signals (peak currents). Furthermore, the lengthy preparation of the electrode modification process in order to yield such negative results means that one can discard this type of electrode modification for further studies towards the electroanalytical oxidation of pindolol.
Fig. 6 Raman maps of a central area on the SPEs following modification with 2.0 μg RGO. Raman intensities are recorded at ca. 1580 cm−1. |
Having determined that the modification of the SPEs surface with RGO offered no significant or viable improvement in the electrochemical sensor with regard to pindolol determination, the electroanalytical performance of the unmodified screen-printed graphite electrode was next explored. Additions of pindolol were made over the concentration range of 10 μM–90 μM into a pH 2 buffer solution. Fig. 7 depicts the voltammetric signatures where analysis of the voltammetric peak height (current) reveals two linear responses (see inset of Fig. 7). The first is over the range 10 μM–20 μM, (IP/μA = 0.0526 A L mol−1 + 0.0029 μA; R2 = 0.9999 and N = 3) and the second from 30 μM to 90 μM, (IP/μA = 0.0321 A L mol−1 + 0.5614 μA; R2 = 0.9978 and N = 3); based on the first linear range a limit of detection (3σ) of 0.38 μM is possible and a percentage relative standard deviation (%RSD) of 5.74% resulting from the analysis of the voltammetric peak height.

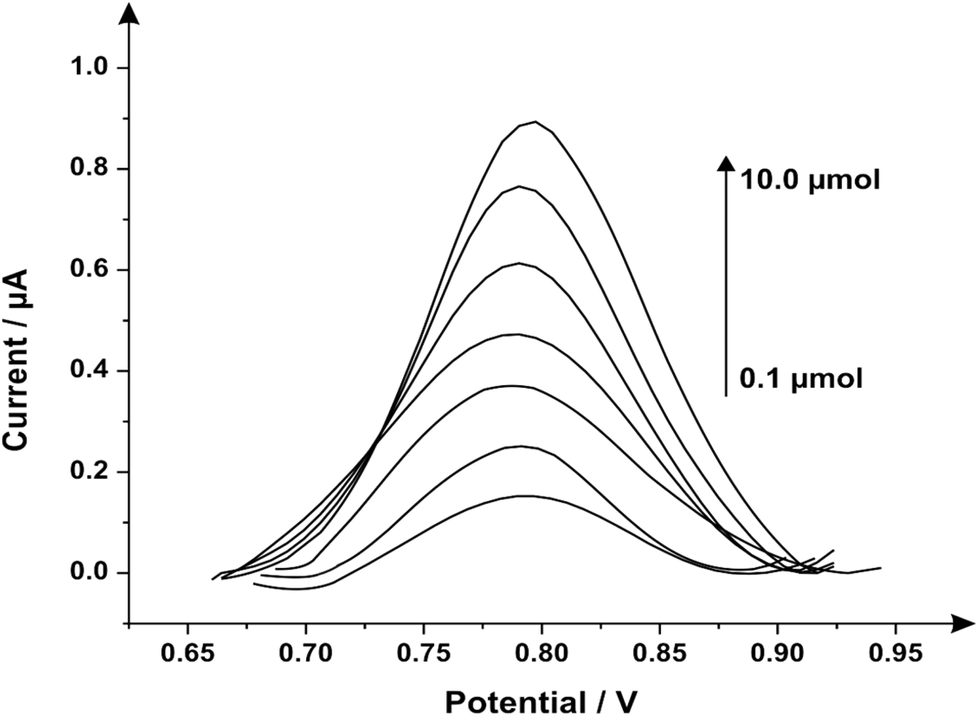

The square wave voltammograms obtained utilizing the SPEs through the additions of pindolol into a pH 2 buffer over the concentration range of 0.1 μM–10.0 μM are illustrated in Fig. 8. Additions of pindolol result in an increase in the current intensity of the respective oxidation peak and a small displacement of potential into anodic regions. The inserted graph (Fig. 8A) shows the linear calibration curve obtained from the voltammograms. A total of three consecutive measurements (N = 3) were used to construct a calibration curve over the linear range 0.1–10.0 μM with a limit of detection (3σ) found to be 0.097 μM (for more information and a summary, see Table 1). Whilst the limit of detection using SPEs is comparable with the previously reported method using RGO modified GC electrodes15 (0.026 μM using RGO modified GC versus 0.097 μM for GSPEs (in this work)), the SPEs are preferable since they do not require a pre-treatment step nor require modification for an improved electroanalytical response.
Linear concentration range (μmol L−1) | 0.1–10.0 |
Slope of calibration graph (A L mol−1) | 0.091 |
Intercept (A) | 0.0291 |
Correlation coefficient | 0.9996 |
Relative standard deviation (%RSD) | 2.19 |
LOD (μmol L−1) | 0.097 |
LOQ (μmol L−1) | 0.322 |
Concentration aliquots [μM] | Concentration found [μM] | Recovery [%] |
---|---|---|
0.1 | 0.185 | 185.0 |
0.3 | 0.390 | 130.0 |
0.5 | 0.582 | 116.4 |
0.7 | 0.778 | 111.1 |
1.0 | 1.135 | 113.5 |
2.0 | 2.310 | 115.5 |
10.0 | 10.80 | 108.0 |
13.0 | 13.30 | 102.3 |
15.0 | 15.50 | 103.3 |
17.0 | 17.00 | 100.0 |
20.0 | 21.10 | 105.5 |
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c4an02005g |
