Redox- and mechano-chromic response of metallopolymer-based elastomeric colloidal crystal films

Abstract

A novel and convenient route for the preparation of monodisperse ferrocene-containing core-interlayer-shell particles using emulsion polymerisation protocols is described. These metallopolymer-based particles can be used to produce highly ordered elastomeric opal films with fascinating distinct reflection colours. The present work additionally describes the combined addressability of both stimuli, redox-chemistry and mechanical stress. The obtained materials are interesting since application of the melt-shear process followed by crosslinking of the matrix provides access to large-area, mechano-responsive elastomeric opal films featuring an additional redox response. Both, basic synthesis aspects and first steps towards application in the field of stimuli-responsive sensing of respective materials are discussed.

---

Introduction

Recent efforts in the field of tunable colloidal crystals based on monodisperse organic or inorganic particles featuring a stimuli-responsive core–shell structure or a polymer matrix have led to fascinating stimuli-responsive materials. These materials are promising candidates for, e.g., opto-electronic sensing devices or as actuation systems.^1–7 By applying external triggers, i.e., by changing the solvent, temperature, ionic strength, light, or by applying an electrical field or mechanical stress, the lattice distances and/or the refractive index of these materials can be tremendously influenced. The response of such materials is accompanied by a remarkably fast change of the optical properties. A great advantage of colloidal crystal structures is their inexpensive and convenient bottom-up preparation resulting in a good optical performance with iridescent reflection colours caused by Bragg diffraction of visible light.^8–15 For example, a crystalline colloidal array of hydrogel-based photonic crystals has been applied as a sensor showing distinct diffraction colour changes when treated with different transition metal cations or by changing the pH value.¹⁶ Very recently, Zhao and co-workers reported the variation of the lattice distances in elastomeric polymeric opals in dependency of an applied voltage.¹²

However, manifold strategies were reported to obtain well-ordered and large-scaled 3D arrays based on colloidal spheres. Drying or spin coating of the particle dispersions are the most common and convenient methods thereof.^17–20 On the other hand, the so-called melt-flow technique allows the convenient preparation of perfectly ordered polymer and silica particles in elastomeric films. The process for the convenient preparation of large-area self-supporting opal films involves the compression of the monodisperse particles between the plates of a press.^21–23 The melt-shear technology allows the organization of such core–shell particles consisting of a rigid core and a soft, elastomeric shell into a highly ordered fcc lattice. The soft shell is a basic prerequisite for this process. Elastomeric polymer-based colloidal crystals, also referred to as opal films, show a reversible mechanochromic response while stretching with excellent colour changes due to a modification of the 111 (200) plane spacing.^24,25 Electrically addressable photonic band gap materials have garnered a great deal of attention in the last few years. Intrinsically conductive polymers such as polyaniline, polypyrrole or polythiophene could be used for this purpose.^26–28 Compared to those, reports about stimuli-responsive colloidal structures based on metallopolymers are rather scarce. A major breakthrough in synthesis pathways leading to manifold applications for ferrocene-containing polymers was achieved by Manners' discovery of the ring-opening polymerization of ansa-ferrocenophanes.^29–32 The most prominent example regarding metallopolymers and colloidal crystals was reported by Arsenault et al. The material properties investigated by this group was based on the redox-activity of poly(silaferrocenophane) (PFS) derivatives as matrix materials.^13,33 The optical Bragg diffraction of the embedded silica spheres can be varied by oxidizing the ferrocene moieties inducing an increase in the lattice distances.

Due to recent efforts in the synthesis of metal-containing polymers featuring the ferrocene motif in the side-chain, the first steps towards potential applications have been investigated in the last few years.^34–37 Within this contribution, we now expand the field of side-chain ferrocene-containing polymers to novel photonic band gap elastomeric films with combined redox- and mechanochromic properties. The controlled bottom-up synthesis of monodisperse redox-responsive particles featuring the ferrocene moieties in the particle shell is accessible using convenient one-pot emulsion polymerization protocols using 2-(methacryloyloxy)ethyl ferrocenecarboxylate (FcMA) as a comonomer with ethyl acrylate (EA). Dynamic light scattering (DLS) is used to prove the tremendous swelling behaviour of the polymer particles after chemical oxidation. Furthermore, the melt-shear technique can be applied to prepare large-scaled redox-responsive opal films which are investigated regarding their combined optical and mechano-optical properties. Our studies provide a convenient method to prepare reversibly and individually addressable well-ordered opal films with fascinating mechanical and redox properties. We expect these functional films to be promising candidates as next generation materials with potential applications in fields of optoelectronic and sensing devices.

Results and discussion

Free radical (co)polymerisation of FcMA

With regard to the goal of manufacturing a redox-responsive elastomeric opal film with all its advantages, the use of 2-(methacryloyloxy)ethyl ferrocenecarboxylate (FcMA) for the bottom-up synthesis of core–shell particles obtainable via emulsion polymerisation was investigated. First experiments for the free radical homo- and copolymerisation of the FcMA monomer were carried out to prove the suitability in emulsion polymerisation.

Ferrocene-containing monomers, particularly featuring an electron-rich ferrocene motif, are known for having issues in free radical polymerisation. The radical propagating chain is able to undergo a single electron transfer as evidenced by Georges and Hayes for the vinylferrocene (VFc) monomer.^38,39 The ability of FcMA to be (co)polymerised with monomers such as ethyl acrylate (EA) in a radical manner is essential for its use in emulsion polymerisation. Studies on polymerisation of the FcMA monomer via ATRP protocols have recently been reported.^34,40,41

However, more important for the successful manufacture of elastomeric opal films by a convenient melt-shear procedure concerns the resulting glass transition temperature (T_g) of the shell polymer which builds the matrix in the final opal film. Thus, the free radical copolymerisation of FcMA with ethyl acrylate (EA) is investigated beforehand in this work. Both, homopolymerisation of FcMA and copolymerisation with EA were conducted in solution with AIBN as a thermal initiator. The resulting polymers were characterised by using size-exclusion chromatography (SEC, Fig. S1†), DSC (Fig. 1) and NMR (Fig. S2†). The experiments succeeded with respect to reasonable molar masses and monomer ratios of FcMA and EA used in the corresponding copolymers (see ESI†). The T_g of the copolymer obtained (PFcMA_15%-co-PEA_85%) and the corresponding homopolymers (PFcMA and PEA)^22,34 are compared by using DSC measurements (Fig. 1) proving the successful copolymerization yielding a melt-flow processable ferrocene-containing polymer. Due to the moderate T_g of 11 °C for the shell polymer, the obtained film will also show elastomeric behaviour after appropriate matrix crosslinking.

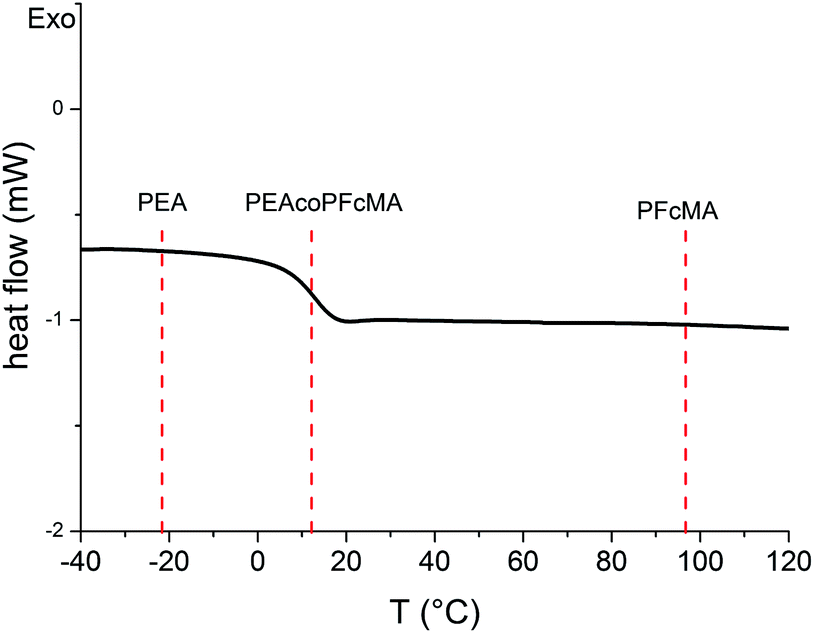

Fig. 1 DSC thermogram of synthesised P(FcMA-co-EA) and expected T_g values for PEA and PFcMA (M_w = 15 kDa) homopolymers.

Emulsion (co)polymerisation of the FcMA monomer

Since the monodispersity of core–shell particles is a basic prerequisite for colloidal crystallisation, the introduction of the FcMA monomer in emulsion polymerisation is a crucial step in order to produce a ferrocene-containing elastomeric opal film in the next step. Fig. 2A (top) shows schematically the stepwise bottom-up growth of the core-interlayer-shell (CIS) particles starting from hard PS core particles followed by the formation of a slightly crosslinked interlayer. In the final step, FcMA was copolymerized with EA to generate the soft, redox-responsive shell. Evidence for the desired monodispersity and the attainment of an appropriate particle diameter is given by TEM images (Fig. 2). Additionally, the growth was followed by dynamic light scattering (DLS) after each synthetic step (Fig. 2).

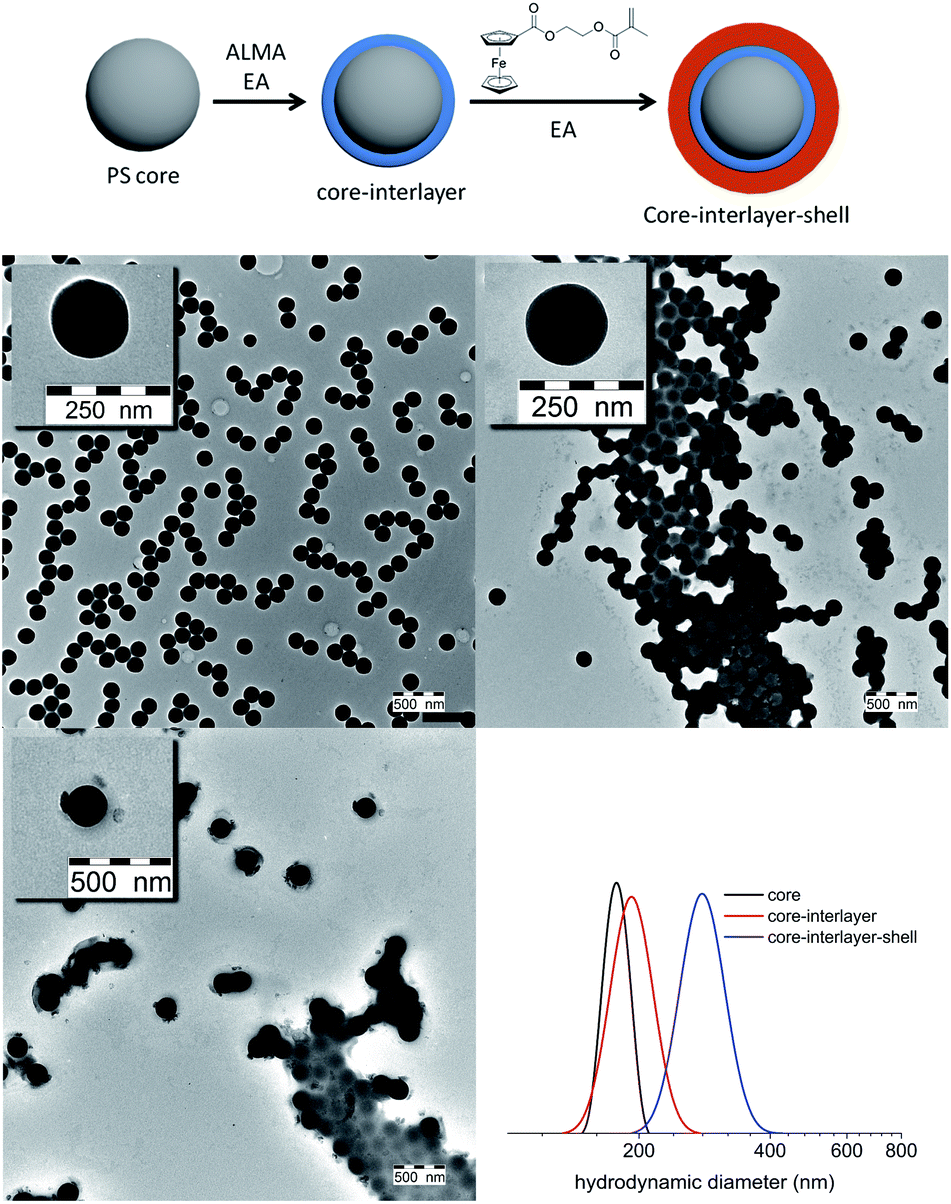

Fig. 2 Scheme of built-up particle architecture (top), TEM images of each stage of synthesis and the stepwise particle growth obtained by using DLS measurements.

The DSC measurement in Fig. S3† shows a T_g for the synthesized particles above the T_g of PEA, confirming the statistic incorporation of FcMA into the shell polymer. Furthermore, the T_g is still lower than the ambient temperature for the desired film properties. The second T_g above 110 °C can be assigned to the crosslinked PS cores.

Altogether, we were able to synthesize monodisperse CIS particles with redox responsive FcMA in the shell polymer and the obtained latex matches in all requirements for the manufacture of elastomeric opal films via the melt-shear procedure. Before we turn to the investigation of redox-responsive behaviour of the particles, the attempts for opal film preparation will be described in the next section.

FcMA containing elastomeric opal films

The next step after the successful synthesis of FcMA-containing CIS particles was fabrication of elastomeric opals via the melt-shear technique. Therefore, the FcMA-containing particles were precipitated and manufactured into elastomeric opal films in the melt-shear process based on previously described routes.^21,22 For elastomeric behaviour and, thus, for the mechanochromic response, benzophenone as an UV-active crosslink agent was homogeneously incorporated during the manufacturing process and the final film was irradiated by UV light.

The average particle diameters were chosen to be 176 ± 5 nm for the core and 269 ± 6 nm for the CIS particles respectively as determined by using DLS measurements (Fig. 2). These particle diameters correspond to a green reflection colour of the prepared films at normal light incidence (angle of light incidence θ = 90°) for the final multi-stimuli responsive material. The size of the redox-responsive CIS particles can be adjusted in the range of 150 to 500 nm. The obtained colours confirmed expectations ensuing from the determined particle size as can be calculated by using Bragg's law. The resulting film disk revealing diameters of about 15 cm show remarkably brilliant reflection colours which can be switched by changing the angle of view or by stretching the films to a defined strain ε. Photographs of the obtained opal film featuring the expected reflection colours are shown in Fig. 3A and B. In contrast, the non-ordered actual material prior to the applied melt-shearing process revealed a brownish yellow colour.

Fig. 3 Photographs of the obtained opal films at different angles of light incidence and the respective angles of view (A) at normal light incidence θ = 90°, (B): at θ = 45°, angle dependent UV/VIS reflection measurements (C) and UV/VIS reflection measurements at strains from ε = 0% to ε = 50% (D).

Additionally, the optical properties of the obtained films were characterised by UV/VIS spectroscopy to confirm the optical similarity of the new material to conventional elastomeric opals. Fig. 3C shows the typical blue shift when decreasing the angle of incidence from 90° to 30°. The blue shift induced by the strain up to 50% is depicted in Fig. 3D and can be assigned to the decreasing 111 lattice plane spacing of the colloidal crystal structure.

Chemical redox-response of FcMA-containing latex particles

In the next step, the redox-response of FcMA-containing CIS particles was studied to evaluate the possibility of redox-induced swelling of the particles inside the elastomeric colloidal crystalline structure. Therefore, the oxidation of CIS particles in aqueous media is supposed to cause significant swelling behaviour as illustrated in Fig. 4 comparable to previous results obtained for PFcMA-brushes immobilized using organic polystyrene particles.³⁴

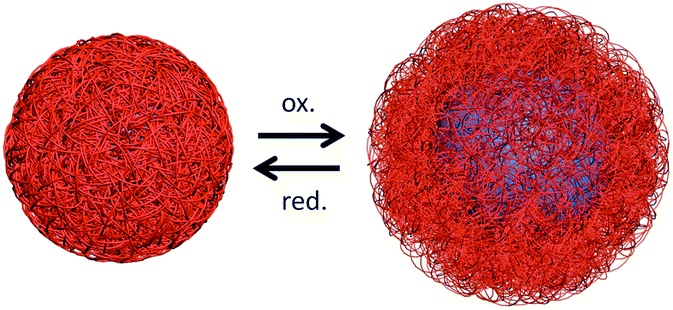

Fig. 4 Chemically induced redox-switching of the CIS particle diameter in an aqueous medium.

The polymer shell of CIS particles designed for the preparation of elastomeric opal films tended to peel off after oxidation (as evidenced by TEM measurements, Fig. S4†). This phenomenon is caused by the absence of any crosslinking agent in the soft polymer shell. Thus, it is worthy to note that a crosslinking of the polymer shell with allyl methacrylate (ALMA) was sine qua non for oxidation experiments, since only a few polymer chains were grafted to the interlayer. Concerning these aspects, emulsion polymerisation with a modified mechanism was conducted, resulting in latex particles whereas the shell polymer consists of 82% EA, 15% FcMA and 3% ALMA (experimental details are given in the ESI†).

Chemical oxidation of the obtained ferrocene-containing latex was carried out by treatment with FeCl₃ in water. Collaborative TEM studies revealed the stability of the PFcMA-containing latex after oxidation and subsequent reduction with ascorbic acid (Fig. 5). These results prove the feasibility of the PFcMA-containing particles to be reversibly addressable by the redox stimulus used.

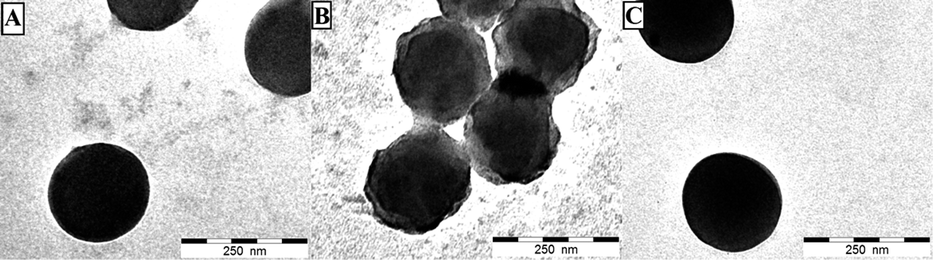

Fig. 5 TEM measurements of the original (A), the oxidised (B) and the reduced (C) particles. The corresponding diluted particle dispersions were drop-cast onto a carbon-coated copper grid.

DLS measurements of the particle dispersion before and after oxidation prove the successful redox-induced switching of the ferrocene/ferrocenium moieties (Fig. 6). The particle polydispersity was found to be 9.2% before oxidation and 15.3% after, calculated using a cumulant analysis. The correlation time τ is related to the translational diffusion coefficient D by D = 1/(τq²). The expected linear variation of 1/τ with q² was well represented by our data. By using the Stokes–Einstein relation a hydrodynamic radius R_h = k_BT/6πηD could be calculated, with k_B, T, and η as the Boltzmann constant, the absolute temperature, and the solvent viscosity, respectively. Oxidised PFcMA-containing particles show a tremendous increase of additional 24 nm of the hydrodynamic radius R_h suitable for intended swelling-induced optical changes for the novel opal films.

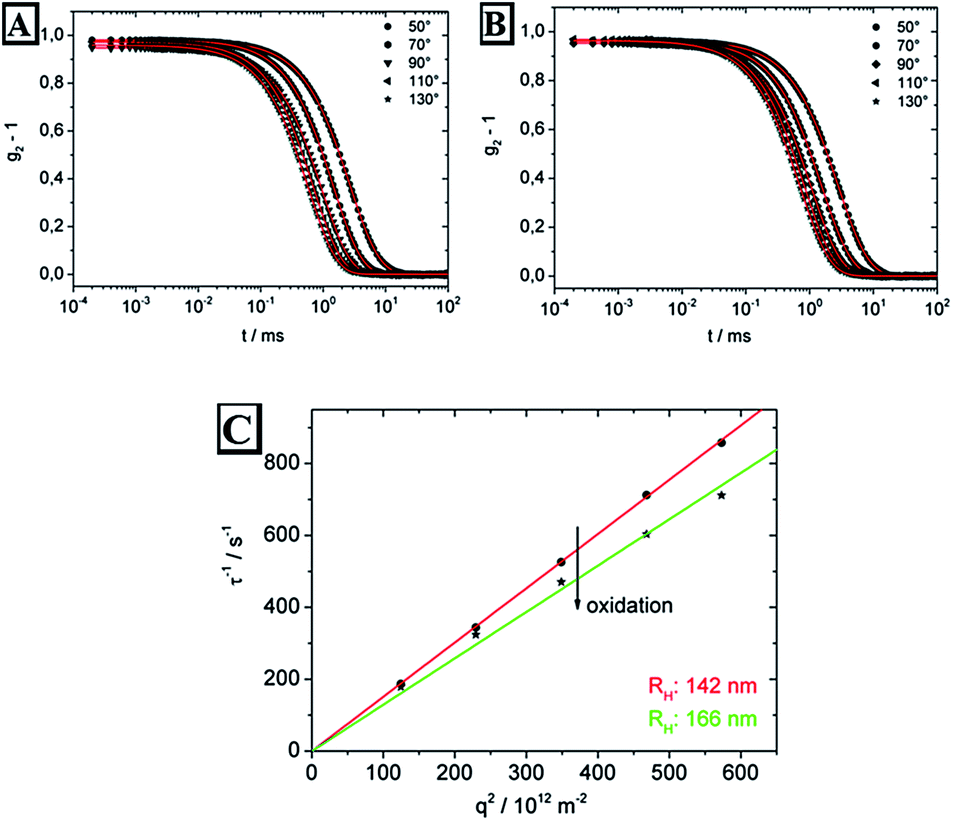

Fig. 6 Intensity autocorrelation functions for the original (A) and oxidised (B) PFcMA-containing particles in water at 2θ: 50–130°, measured at 20 °C. The solid lines represent the fit of the data using a cumulant analysis. (C) q² dependence of inverse relaxation times to determine the diffusion coefficient and the resultant hydrodynamic radii for different particles before and after oxidation. Prior to oxidation, the hydrodynamic radius could be determined to be 142 nm (284 nm diameter) and 166 nm (332 nm diameter) after oxidation. Errors for the hydrodynamic radii are less than 2%.

These results unambiguously prove the redox-induced swelling capability of CIS particles in water.

In summary, the redox properties of the CIS particles in water enabled a significant increase of the particle diameter after oxidation due to the oxidation of the ferrocene moieties. These oxidation protocols were applied for switching the opal film properties regarding their polarity and underlying lattice plane spacing accompanied by a significant change of reflection colours as described in the following sections.

Redox response of PFcMA-containing elastomeric opal films

Treatment of the opal film with FeCl₃ in THF caused a more homogeneous invasion of the oxidation agent into the film compared to the first attempts with FeCl₃ in water. The original film was capable of swelling in THF but not in water. Hence, oxidation had to be carried out in a good solvent for the particle shell. In the dry state, the film retains its original green reflection colour independent of the presence of an oxidation reagent used (Fig. 7). That means that in the bulk state, the chemically induced swelling was negligible.

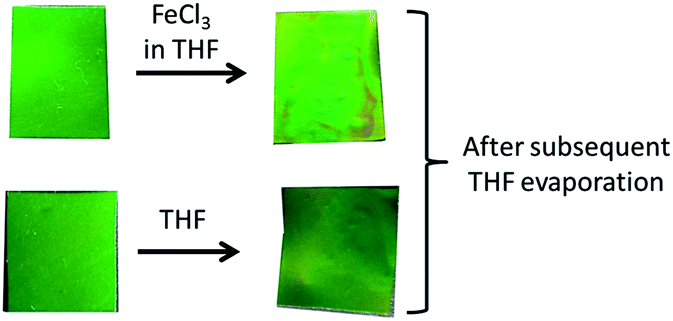

Fig. 7 Photographs of the PFcMA-containing elastomeric opal films before and after chemical oxidation followed by drying. The optical response in the presence of an oxidation reagent was negligible in the dry state. A blank test (treated with THF only) is given for comparison.

Interestingly, the dried opal film revealed a tremendous change of its reflection colour from initial green to red after treatment with water caused by the swelling of the oxidised matrix polymer (Fig. 8).

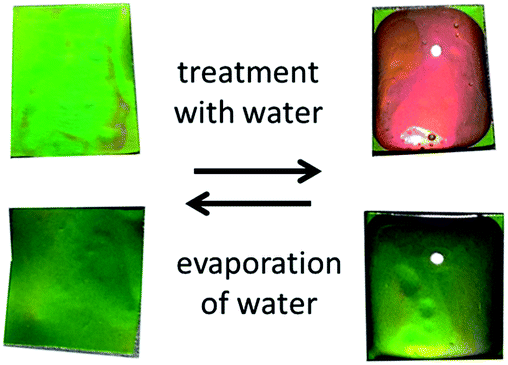

Fig. 8 Oxidised film and blank test treated with water.

The water induced colour change of the oxidised opal film is fully reversible, once the residual moisture is evaporated. Time dependence and reversibility are determined by UV/VIS reflection measurements. The shift of the Bragg peak dependent on time, and therefore, dependent on the swelling degree is demonstrated in Fig. 9.

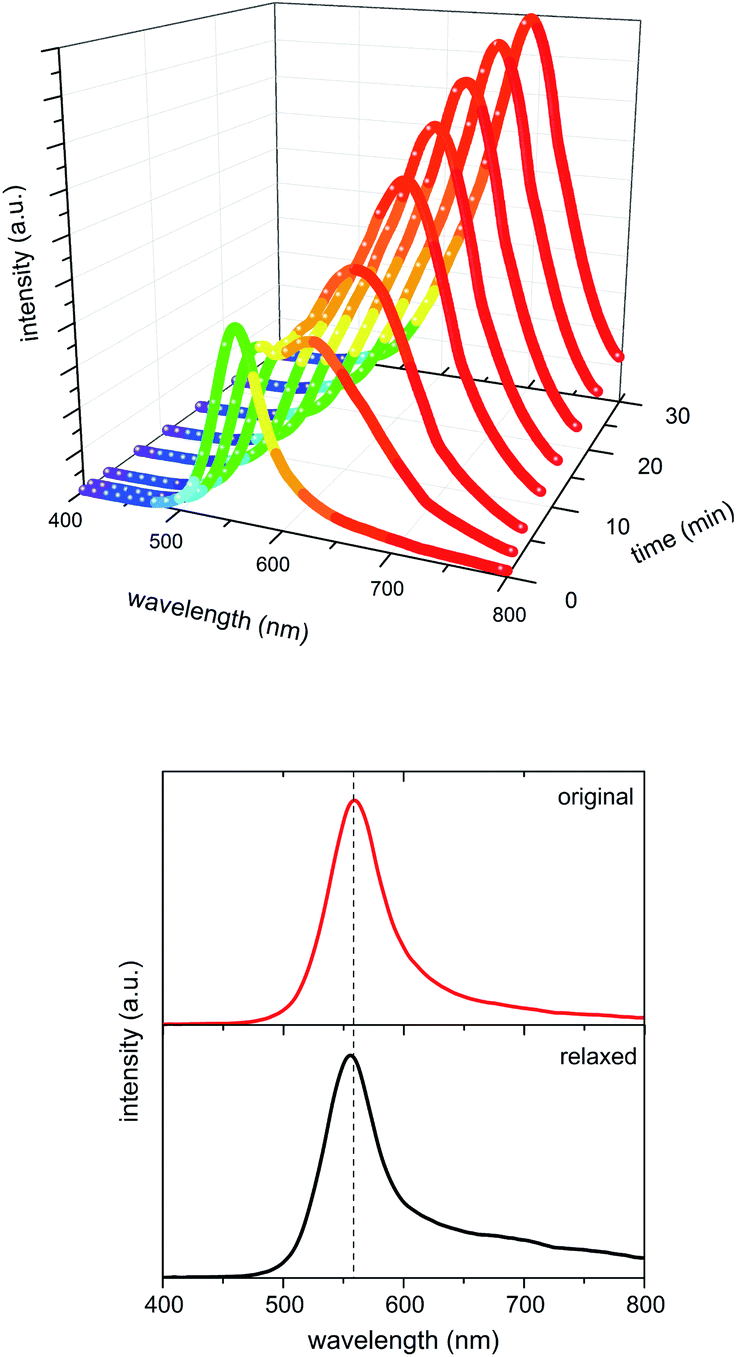

Fig. 9 Time dependent UV/VIS reflection measurements during water swelling of elastomeric opal films (top) and Bragg peaks of a film before swelling and after water evaporation (bottom).

The UV/VIS spectra shown in Fig. 9 (top) confirm a swelling induced reflection colour shift of slightly more than 100 nm, which means a change from green to red reflection colour under normal light incidence. It is clearly observable that the initial Bragg peak – corresponding to a green wavelength range – is decreasing immediately in the presence of water. A second signal appears at ∼600 nm and moves up to 690 nm upon further swelling.

Also, the spectra of the oxidised film prior to swelling and after water evaporation (Fig. 9 bottom) confirm the complete reversibility of the swelling process featuring the original stop band (shifted less than 5 nm) after relaxation. The 3D structure persisted due to the crosslinks of the matrix polymer.

Besides the convenient large-scalable opal film manufacture, the mechanical response of the film is an important advantage compared to other colloidal crystal materials. Concerning this aspect, the combination of redox and mechanical responses is of particular importance. Since the elasticity is due to matrix polymer crosslinking, the mechanochromic behaviour is still available in the oxidized and the swollen states. The individual addressability of combined stimuli is schematically depicted in Fig. 10.

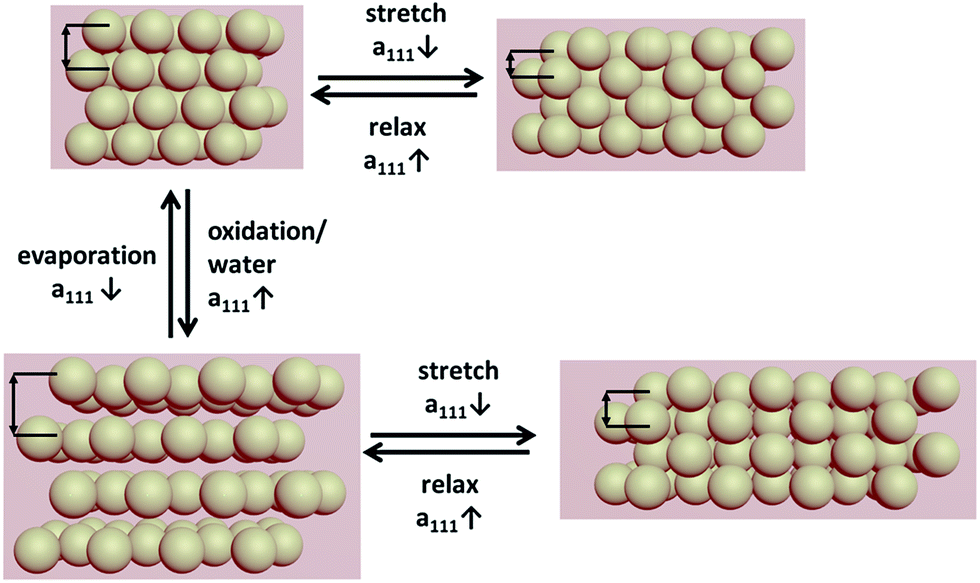

Fig. 10 Change of lattice plane spacing induced by swelling of the opal film after oxidation and strain induced deformation of the crystal lattice.

As shown in Fig. 10, the swelling process as well as the mechanical deformation of the elastomeric opal film leads to a change of lattice distances. This change is responsible for the resulting angle dependent reflection colour.

For the determination of the strain induced colour shift, the ferrocenium-containing film was swollen in water and fixed in a stretch gadget (see Fig. 11, top). The corresponding UV/VIS reflection measurements are shown in Fig. 11.

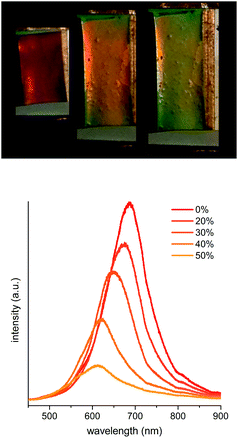

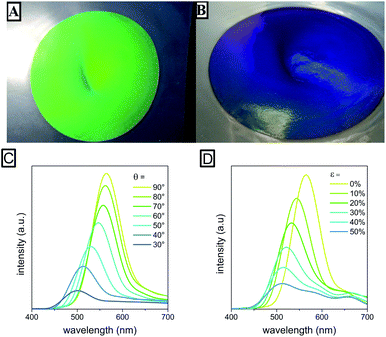

Fig. 11 (Top) Exemplary strain experiments of oxidized metallopolymer-based opal films (UV-crosslinked with 3 wt% benzophenone) under water. (Bottom) UV/VIS reflection measurements of the oxidised opal film in water dependent on applied strain.

The UV/VIS reflection spectra of swollen, oxidised films confirm the mechanocromic behaviour of this novel metallopolymer-based photonic crystal material.

Electric response of PFcMA-containing elastomeric opal films

For the first steps towards future applications of herein investigated redox-responsive elastomeric films in fields of sensing applications and display technologies, the electro-chemical response of the obtained opal films was investigated by cyclic voltammetry experiments. The corresponding cyclic voltammograms are given in Fig. 12. For these experiments the film was fixed on a conductive indium tin oxide (ITO) plate in the presence of tetrabutylammonium hexafluorophosphate as the electrolyte in acetonitrile.

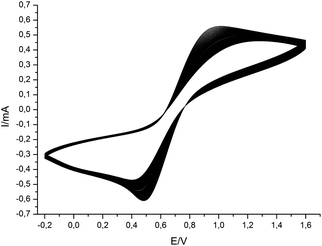

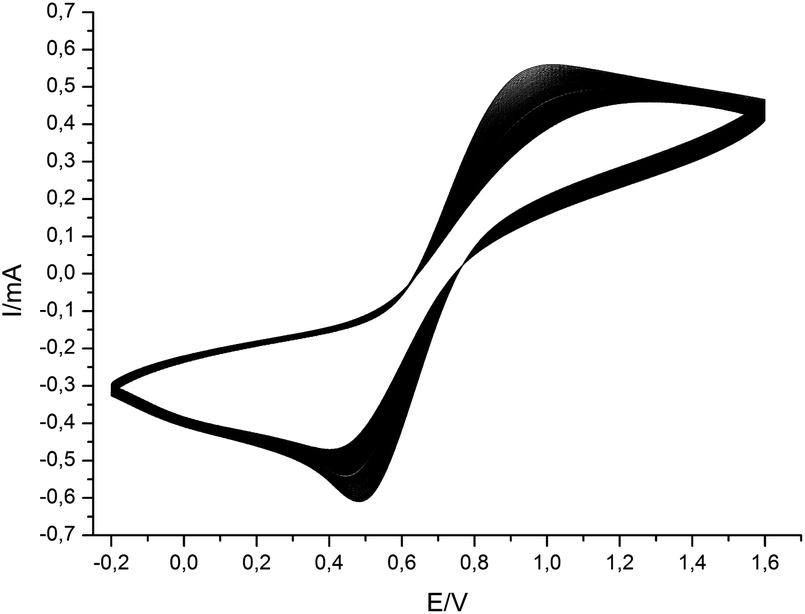

Fig. 12 Cyclic voltammograms of the ferrocene-containing elastomeric opal film fixed on an ITO slide. The applied potential was varied from −0.2 V to +1.6 V in 80 cycles in acetonitrile and tetrabutylammonium hexafluorophosphate (0.1 M) as the electrolyte.

The cyclic voltammograms show the typical redox signals for ferrocene-containing polymers with minima and maxima lying in between 400 and 900 mV as previously reported for the diluted polymers.³⁴ The endurance of the manufactured material during 80 iterations confirms the reversible redox responsiveness of ferrocene repetitive units in the opal film matrix. These first experiments unambiguously reveal the suitability for the as-prepared films to be repeatedly addressable by applying a current which gives rise to manifold future applications in the field of soft sensing.

Conclusions

The ferrocene-containing monomer 2-(methacryloyloxy)ethyl ferrocenecarboxylate (FcMA) was successfully radically polymerised leading to monodisperse metallopolymer-based stimuli-responsive particles featuring a core-interlayer-shell (CIS) architecture by applying convenient emulsion polymerisation protocols. These novel materials were excellent candidates for a feasible preparation of large-scaled elastomeric opal films by the so-called melt-shear technique featuring distinct iridescent reflection colours corresponding to Bragg's law. Essential for the successful film preparation– which was exclusively based on the particle architecture – was the narrow particle size distribution as well as an appropriate glass transition temperature of the CIS-building segments. For this purpose, parameters for copolymerising FcMA and ethyl acrylate (EA) monomers in solution and in emulsion polymerisation were thoroughly investigated and successfully adjusted to the process. The ferrocene-containing repetitive units revealed the intrinsic capability to change the particle polarity after oxidation accompanied by tremendous particle swelling which was investigated by using DLS measurements before and after chemical oxidation. The finally prepared ferrocene-containing elastomeric opal films were studied regarding their mechanochromic response showing brilliant and iridescent reflection colours corresponding to Bragg's law. The excellent redox-responsive behaviour for the particles in dispersion and for the elastomeric opal film was evidenced by DLS measurements and UV/VIS reflection spectroscopy, respectively. Moreover, we were able to confirm the typical mechanochromic behaviour of the obtained opal films in the dry state prior to and after oxidation. For this purpose, different strains for a water-swollen oxidised ferrocene-containing film were applied showing the individual addressability of both stimuli used, redox chemistry and mechanical stress. The fully reversible ferrocene reduction/oxidation cycles inside the prepared opal films were studied by cyclic voltammetry for at least 80 cycles. We expect herein prepared novel functional materials as interesting candidates for manifold sensing applications and future display technologies based on stimuli-responsive polymeric materials.
