Tunable photonic crystals with partial bandgaps from blue phase colloidal crystals and dielectric-doped blue phases

Mitja Stimulak and Miha Ravnik *
Faculty of Mathematics and Physics, University of Ljubljana, 1000 Ljubljana, Slovenia. E-mail: miha.ravnik@fmf.uni-lj.si

Received 21st February 2014 , Accepted 23rd June 2014

First published on 23rd June 2014


Abstract

Blue phase colloidal crystals and dielectric nanoparticle/polymer doped blue phases are demonstrated to combine multiple components with different symmetries in one photonic material, creating a photonic crystal with variable and micro-controllable photonic band structure. In this composite photonic material, one contribution to the band structure is determined by the 3D periodic birefringent orientational profile of the blue phases, whereas the second contribution emerges from the regular array of the colloidal particles or from the dielectric/nanoparticle-doped defect network. Using the planewave expansion method, optical photonic bands of the blue phase I and II colloidal crystals and related nanoparticle/polymer doped blue phases are calculated, and then compared to blue phases with no particles and to face-centred-cubic and body-centred-cubic colloidal crystals in isotropic background. We find opening of local band gaps at particular points of Brillouin zone for blue phase colloidal crystals, where there were none in blue phases without particles or dopants. Particle size and filling fraction of the blue phase defect network are demonstrated as parameters that can directly tune the optical bands and local band gaps. In the blue phase I colloidal crystal with an additionally doped defect network, interestingly, we find an indirect total band gap (with the exception of one point) at the entire edge of SC irreducible zone. Finally, this work demonstrates the role of combining multiple – by symmetry – differently organised components in one photonic crystal material, which offers a novel approach towards tunable soft matter photonic materials.


1 Introduction

Photonic crystals attract attention today as advanced optical materials because they can be used to control the flow-of-light.1–3 One of the key characteristics of the photonic crystals is the emergence of photonic bandgaps if illuminated by light, where light of distinct frequencies is reflected from some (local bandgap materials) or all directions (full bandgap materials).4,5 Today typically, materials are designed to achieve full bandgaps;6 however, also photonic crystals with only local band gaps show interesting applications, like for example a notable increase in the efficiency of solar cells, where the predicted enhancement reaches up to 30%.7 Search for ways to produce photonic crystals that are also cheap, easy to make, and have few structural defects is an important field of research in advanced optical materials science.8

There are multiple methods to fabricate photonic crystals. Roughly, they can be divided into two approaches: (i) the top down approach with the typical method of nanolithography9–13 and (ii) the bottom up approach typically based on the self-assembly of colloidal crystals.14–18 Various top-down photonic crystalline structures are fabricated today, including first-made complete band gap yablonovite,19 woodpile9 and recently also an inverted yablonovite,20 allowing for the manipulation of light in the infrared or visible spectrum. In the bottom up approach, the self-assembly is typically achieved by gravity sedimentation, vertical deposition, electrophoresis, spin coating, crystallization in physically confined cells and other methods.21 It is a promising route, but it can be affected by the formation of various structural defects, such as stacking faults and macroscopic cracks, which can emerge in the self organization of structures.22,23 These defects distort the flow-of-light; therefore, typically, multiple parameters are optimised to achieve optimal conditions for the self-assembly, including air pressure, humidity, temperature, and solvent.

Special types of photonic crystals are those which include solid24,25 or liquid crystalline birefringent components.26–31 For example, it was shown that highly birefringent photonic crystal fibers can be used for sensing applications, such as curvature,32 torsion33 and pressure sensors.34 The important generalization of the variety of produced photonic crystal structures is that their elementary band structure inherently originates from the symmetry of the material structure (e.g. FCC, BCC, diamond and others), making it the center-piece in the design of new materials.

Special liquid birefringent photonic crystals are cubic liquid crystalline blue phases.35–37 Blue phases (BP) form in highly chiral nematic liquid crystals, where depending on temperature and chirality, the rod molecules align into two distinct periodic three-dimensional orientational textures with body-centred cubic or simple cubic symmetry, called blue phase I (BPI) or blue phase II (BPII), respectively. These liquid crystalline phases appear in a temperature range between a chiral nematic phase and an isotropic liquid phase, and can be stable over a temperature range of 60 K and more, including room temperature, if doped by polymers38 or if using bi-mesogenic molecule based materials.39 Blue phases are explored in various photonic applications, including blue-phase cored optical fiber arrays,40 photonic materials with optically tunable band gaps,41 and as a three-dimensional photonic crystal for lasing.42 The detailed structure of blue phase photonic bands has also been already studied, finding distinct band structures with local and no complete bandgaps37,43 (see also Fig. 1A and B).


image file: c4sm00419a-f1.tif
Fig. 1 Photonic bands of no-particle blue phases and structures of blue phase colloidal crystals. Calculated photonic bands of (A) (no-particle) blue phase I and (B) (no-particle) blue phase II on the edge of the simple cubic irreducible Brillouin zone. Note that these results agree well with the band structures reported in ref. 37. (C) BP I colloidal crystals combine FCC symmetry of the particle lattice and BCC symmetry of the blue phase fluid. (D) BP II colloidal crystals combine BCC symmetry of the particles and SC symmetry of the fluid. Particle radius is r = 120 nm in (C) and (D). Yellow lines represent the network of −1/2 defect lines (disclinations). The purple lines show the variation of the optical axis of the birefringent blue phase in the given cross-section, corresponding to the eigenvectors of a dielectric tensor with the largest eigenvalue; equivalent also to the nematic director.

Recent research shows that the network of topological defects in blue phases provides a three-dimensional template of trapping sites for colloidal particles.44,45 It was demonstrated by numerical modeling that colloidal particles can be trapped in several stable lattices forming three-dimensional colloidal crystals, each characterized by different free energy per unit cell. It was also shown that colloidal particles with weak surface anchoring substantially increase the thermal stability range of the blue phases, for a factor of two and more. In BPI, the lowest free energy lattice of particles with homeotropic surface anchoring is FCC (Fig. 1c), whereas in BPII it is the BCC particle lattice (Fig. 1d). Importantly, the symmetries of these particle lattices are different from the inherent symmetries of the blue phase liquid: the BPI fluid with BCC symmetry stabilizes the FCC particle lattice, and the BPII fluid with SC symmetry stabilizes the BCC particle lattice. This interesting combination of symmetries brings forward the central idea of this manuscript, i.e. to create a single photonic crystal material which incorporates two underlying ’elementary’ material symmetries (in our case the symmetry of the particle lattice on one hand and the symmetry of the fluid birefringent profile on the other hand). Furthermore, the relevance of either of the symmetry components can be tuned and changed by simple material or system parameters. Indeed, in blue phase colloids, these parameters can be particle size, temperature, or refractive indices of the blue phase or the particles. An important distinction of blue phase-based colloidal crystals, e.g. compared to hard-core colloidal crystals, is that rheologically, they are an effective elastic material where the network of topological defect lines binds the structure.46 The second distinction is that blue phase-based materials are easily switchable with external electric fields at fast switching times, even sub milliseconds, where changes in the blue phase molecular alignment directly affect the optical properties.47,48

In this paper, we report on the optical properties of blue phase I and blue phase II colloidal crystals, identifying them as materials which have their photonic response conditioned by the interplay of two symmetries of the two material components, i.e. the particle lattice and the blue phase unit cells. We compare the photonic bands of the blue phase colloidal crystals with the photonic bands of (no-particle) blue phases and photonic bands of the FCC–BCC lattice of particles in isotropic background, showing that photonic bands and local band gaps can be easily tuned and even created by changing the size of the particles. The changes in the bands and the emergence of the local band gaps are shown to be a joint effect, caused – in different regions of the Brillouin zone – either by the lattice of the particles or by the birefringent profile of the blue phase. Particularly using larger particles leads to larger local band gaps. In the BPI FCC colloidal crystal, we also consider additional filling of the defect lines with another dielectric material, e.g. a polymer, having now a three-component system, which interestingly gives a total indirect band gap (except for one point) between the 7th and 8th band on the entire edge of the SC irreducible zone.

2 Model and method

Blue phases are anisotropic complex fluids with a spatially varying optical axis that follows the direction of the average molecular orientational order called the director. The director texture in blue phases can be thought to be made of stacked cylindrical tubes, called the double twist cylinders, which are permeated by a network of topological defects, where the average molecular order breaks and the material becomes locally isotropic. This complex molecular orientational ordering is typically described by a mesoscopic order parameter tensor Qij, which is calculated by free energy minimisation techniques and can well describe also the locally optically isotropic topological defect regions (for more on blue phases, please see ref. 35 and 36). The order parameter tensor Qij is related to the director ni and the nematic degree of order S as image file: c4sm00419a-t1.tif, where P is the biaxiality, e(1)i is the secondary director and e(2) = n × e(1).49,50 From the photonics perspective, the order parameter tensor Qij is directly related to the dielectric tensor of the materials εij as:

image file: c4sm00419a-t2.tif(1)
where εo and εe represent ordinary and extraordinary dielectric constants. Colloidal particles are typically optically isotropic, setting the dielectric tensor as:

εij = εpδij,(2)
where εp represents the dielectric constant of a particle and δij is the identity matrix. To calculate the photonic bands of blue phase colloids – as shown later in the paper –, we use our numerically pre-calculated profiles of the nematic order parameter tensor Qij, which we calculated in a separate numerical calculation reported in ref. 44. There, the calculations were based on the Landau-de Gennes free energy minimisation of nematic order parameter profile and the particle positions, assuming homeotropic (perpendicular) alignment of the nematic at the particle surfaces. The detailed structure of the blue phase and the particles was conditioned by the material parameters of blue phases, including cholesteric pitch p0, effective temperature γ, and surface anchoring strength at the particle walls W. For BPI colloids, we reported that the FCC blue phase colloidal crystal is generally the equilibrium structure with the lowest free energy, whereas in blue phase II it is generally the BCC colloidal crystal. As the input Qij tensor profile for the current study, we select typical representative blue phase colloidal crystals assembled from particles with homeotropic anchoring strength W = 1 × 10−4 J m−2 at pitch p0 = 0.566 μm and effective temperature γ = 3.375 in BPI and at p0 = 0.616 μm and γ = 2.755 in BPII. These parameters correspond to the equilibrium unit cell size of aBPI = 640 nm for BPI colloids and aBPII = 360 nm for BPII colloids, which is kept the same in all photonic band calculations. The particle size (radius) is varied in the range of r = 40 –120 nm (r/aBPI = 0.06–0.19; r/aBPII = 0.11–0.33), which corresponds to packing fractions of 0.004–0.11 in BPI colloids, and 0.01–0.31 in BPII colloids. For further details, including all numerical parameters used in the pre-calculation of the nematic order parameter tensor profile, please see ref. 44, 49 and 50. Finally, the pre-calculated nematic order parameter tensor profiles are transformed into the dielectric tensor according to eqn (1), which is then the elementary input for the bandgap calculations.

Optical properties of photonic crystals are usually described by band diagrams, representing photonic eigenstates at the edges of the irreducible Brillouin zone.6 Photonic states are given as a solution of Maxwell equations, subjected to assumptions about the material properties. In blue phase colloids, one can typically assume that the structures are stable in time, that there is no charge (ρ = 0), no current (j = 0) and that the material is magnetically isotropic (image file: c4sm00419a-t3.tif). We also assume the linear response of the material, giving linear relationships between the applied electric and magnetic field E(r, t) and H(r, t), and the response of the material image file: c4sm00419a-t4.tif, image file: c4sm00419a-t5.tif. Further, we assume no absorption losses of the material, which gives us a real, symmetric and positive definite dielectric tensor (image file: c4sm00419a-t6.tif). And finally, we are interested in the photonic response at primarily optical frequencies, taking the dielectric function not to depend on the frequency of the applied electric field.

Following classical references to obtain the master equation for calculations of photonic bands (e.g.ref. 6), the linearity of Maxwell equation allows us to separate space and time variable, by taking E(r, t) = E(r)eiωt and H(r, t) = H(r)eiωt. Then we can write Maxwell equations as:


∇ × Eiωμ0H = 0,(3)

image file: c4sm00419a-t7.tif(4)

∇·H = 0,(5)

image file: c4sm00419a-t8.tif(6)

We decouple the first two equations in a way that only the magnetic field strength H remains in the equation, finally writing:


image file: c4sm00419a-t9.tif(7)

This equation is the master equation for calculations of photonic bands, effectively, being an eigenvalue problem. In order to get photonic states, it has to be solved for distinct dielectric tensor profiles image file: c4sm00419a-t10.tif. The master equation can be formulated also as a function of the electric field E, but using the magnetic field H gives an eigenvalue problem with a Hermitian operator, which simplifies calculations.37

Blue phase colloidal crystals have periodic dielectric function; therefore, Bloch theorem and Fourier transformation are used to expand the magnetic field and the inverse of the dielectric tensor in reciprocal space:


image file: c4sm00419a-t11.tif(8)

image file: c4sm00419a-t12.tif(9)
where uk,n is the periodic Bloch function and hk,nG its Fourier coefficient, while image file: c4sm00419a-t13.tif is the tensor Fourier coefficient of the dielectric tensor.

Since ∇·H = 0, H is a transverse wave. This is incorporated directly into the master equation. At every point of reciprocal space we define two perpendicular unit vectors, [small xi, Greek, circumflex]1 and [small xi, Greek, circumflex]2, that are also perpendicular to vector (k + G). This is achieved by taking some arbitrary unit vector û, that is not parallel to (k + G) and making the following cross-products: image file: c4sm00419a-t14.tif and image file: c4sm00419a-t15.tif in every point of reciprocal space. Then one writes hG = [small xi, Greek, circumflex]1H1G + [small xi, Greek, circumflex]2H2G. This way the transversality is implicitly incorporated throughout the calculation. Effectively, one simplifies the problem, but the rank of eigenproblem is raised by a factor of two.

If we consider previous expansions in reciprocal space and transversality constraint we can simply solve the eigenvalue problem with standard algorithms that require O(n3) time and n2 space in memory, where n is the rank of the eigenvalue problem. This method is sometimes used,37 but it is very computer time-consuming for our resolution of the unit cell (typically 60 × 60 × 60 points). Instead, we rather use much more efficient iterative algorithm given in ref. 51: one takes some arbitrary initial vector h and multiply it by image file: c4sm00419a-t16.tif until convergence. Time complexity of this algorithm is O(n[thin space (1/6-em)]log[thin space (1/6-em)]n). As a result we get first n converged eigenvectors with corresponding eigenvalues-photonic states. Indeed, in our calculations we used both algorithms for solving the eigenvalue problem, finding full agreement between the two approaches.

To construct the photonic bands, we take wave vectors from the edge of the simple cubic (SC) irreducible Brillouin zone (as commonly done in the photonic literature1), following distinct paths and end points labelled G, X, M and R, where the different locations along the path correspond to different magnitudes and directions of the wave-vector k (see Fig. 2). For each chosen k, the corresponding eigenvalues are calculated, forming an ascending set of n eigenvalues. By grouping the eigenvalues and plotting them as a function of k, the band diagrams are generated. Typically, the bands are numbered in an ascending order, with the lowest band (close to the origin Γ point) staring as band 1.


image file: c4sm00419a-f2.tif

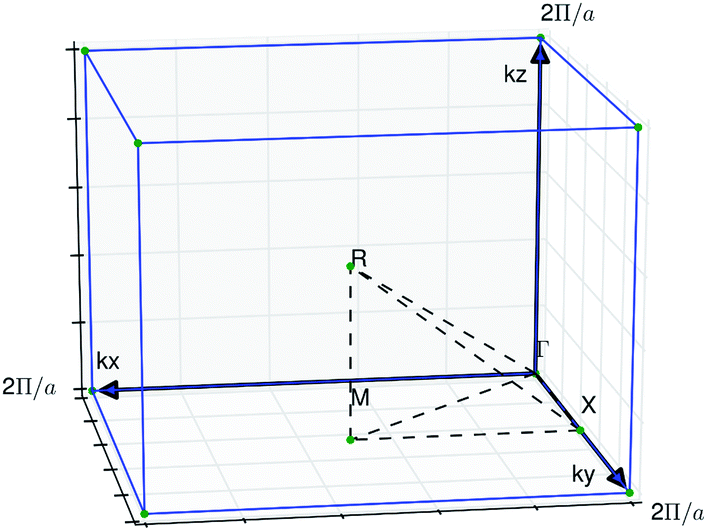

Fig. 2 Simple cubic Brillouin zone. The black dashed lines indicate wavevectors used for representing the photonic bands.

Blue phase colloidal crystals are newly predicted materials, not being (yet) demonstrated in experiments. Therefore, for the calculations, we had to choose the dielectric constant of both colloidal particles and the ordinary and extraordinary dielectric constants of the blue phase liquid crystal. We chose blue phase dielectric constants that are in the limits of realizable values, maximising on the dielectric anisotropy, to achieve stronger dielectric contrast. If not stated otherwise, we take εo = 3.6 and εex = 1.7. The dielectric constant of colloidal particles has to be chosen carefully. Some contrast between the particles and BP medium is desired, but not as much that background would appear isotropic compared to particles. That is why we choose the dielectric constant of particles to be εp = 5. For calculations of bands of particle crystals in isotropic background, we set the dielectric constant of the background fluid as εi,j(r) = (2εo + εe)/3δi,j. Finally, we should comment that the demonstrated results, of course, quantitatively strongly depend on the chosen material parameters, in particular on the dielectric constants (refractive indices), but qualitatively we find very similar photonic band responses also at other parameter values.

3 Photonic bands in blue phase I and blue phase II colloidal crystals

Photonic bands are calculated on the edges of the simple cubic (SC) irreducible Brillouin zone to allow for direct comparison between different configurations. Effectively, to identify the role of particles on one hand, and the (no-particle) blue phase in the blue phase colloidal photonic crystals, we separately calculate the photonic bands of three configurations (see Fig. 3 and 4): (i) colloidal crystal (FCC or BCC) in isotropic background, (ii) blue phase I or II with no particles, and (iii) the blue phase colloidal crystals (BPC). Indeed, photonic bands of the BP colloidal crystal appear as an effective combination of the blue phase and the crystal of colloidal particles in isotropic medium. For example, see the inset in Fig. 3 showing a distinct region of the Brillouin zone, where by adding the particles to the blue phase I a local band gap has opened: clearly, blue phase I has no local band gap in this region of the Brillouin zone but the particle lattice has, and the result is a combined photonic band. More specifically, the inset in Fig. 3 demonstrates a local relative gap of size Δω/ω = 0.02 at the point R for BPC I with 120 nm particles. As the second example of the photonic interplay between the blue phase and the particles, note that some photonic bands of the colloidal crystal in isotropic background are degenerate in distinct regions of the Brillouin zone (e.g. in the MΓR region at ωa/2πc ∼ 0.35–0.55), but become nondegenerate when combined into the blue phase colloidal crystal. An exactly similar effective combination of photonic bands and of similar widths, only in different regions of the Brillouin zone, is observed also in blue phase II colloidal crystals as shown in Fig. 4.
image file: c4sm00419a-f3.tif
Fig. 3 Photonic bands for structures from blue phase I FCC colloidal crystals. (A) Photonic bands computed on the edges of simple cubic (SC) irreducible Brillouin zone for: blue phase I with no particles (red), FCC blue phase I colloidal crystal with 120 nm particles (green), and FCC colloidal crystal in isotropic medium (blue). The inset shows opening of the local band gap in the BPC I crystal at point R of relative size Δω/ω ≈ 0.02, initiated by the FCC lattice of particles. The three considered structures: (B) blue phase I visualised as the isosurface of the constant nematic degree of order, (C) blue phase I FCC colloidal crystal, and (D) FCC colloidal crystal in isotropic background.

image file: c4sm00419a-f4.tif
Fig. 4 Photonic bands for structures from blue phase II BCC colloidal crystals. (A) Photonic bands computed on the edges of the simple cubic (SC) irreducible Brillouin zone for: blue phase II with no particles (red) – structure visualised in (B), blue phase II colloidal crystal with 120 nm colloid particles (green) – structure in (C), and BCC colloidal crystal in isotropic medium (blue) – structure in (D). The inset shows opening of the local band gap in the blue phase II colloidal crystal at point M of relative size Δω/ω ≈ 0.03 caused by the BCC lattice of particles.

Photonic bands of blue phase colloidal crystals can be tuned by changing the size of the colloidal particles, as shown in Fig. 5. Relatively small particles (r ∼ 40 nm) have an almost negligible effect on the band structure, which is determined by the birefringent profile of the blue phase; however, interestingly, if the particles are large enough they can cause opening of local band gaps. For particles of radius r = 80 nm, the local band gap (Δω/ω ≈ 0.006) opens at point R in the BPC I crystal, which for particles of size 120 nm the size further increases to Δω/ω ≈ 0.02. Also for the BPC II crystal we see that larger particles cause larger gaps, and there is a local gap of size Δω/ω ≈ 0.02 between the 4th and 5th band for 100 nm colloids in BPC II at point M and a gap of size Δω/ω ≈ 0.03 between the same bands for 120 nm colloids. The photonic bands of blue phase colloidal crystals are a combination of particle bands and blue phase bands that are conditioned by the limiting examples of either of them. For example, particles with the dielectric constant equal to the dielectric constant of the blue phase in the isotropic phase (image file: c4sm00419a-t17.tif) show almost no effect on photonic bands, because they effectively behave as isotropic blobs (defect regions) of the blue phase. However, qualitatively, if the dielectric constant of the particles is much larger than the eigenvalues of the anisotropic part of the blue phase dielectric tensor, the blue phase appears isotropic and optical properties of the BP crystal become the same as optical properties of a colloidal crystal in an isotropic medium with the symmetry of the particle lattice.


image file: c4sm00419a-f5.tif
Fig. 5 Photonic bands of blue phase I FCC colloidal crystals (left) and blue phase II BCC colloidal crystals for various particle radii. Note, how particle size tunes the photonic bands: small particles r ∼ 40 nm (red) have almost no effect on photonic bands, for medium-sized particles with radius r ∼ 80 nm in BPC I and r ∼ 100 nm in BPC II (green) a small band gap opens, whereas large r ∼ 120 nm (blue) particles cause a local band gap of relative size Δω/ω ≈ 0.02 in BPC I and Δω/ω ≈ 0.03 in BPC II.

Very recently functionalised blue phase materials are produced, where blue phase I and II defect networks are used to trap polymers38 and nanoparticles (<10 nm).45,52 Effectively, both polymers and nanoparticles fill the network of defect lines throughout the defect core, effectively replacing the blue phase material.53 Indeed, these materials could act as photonic crystals in an exactly analogous way as shown above for the blue phase colloidal crystals, with now blobs of polymers or clustered nanoparticles spread along the blue phase defect networks acting as effective colloidal particles.

We simulate such polymer or nanoparticle filled blue phases by assuming that defect lines are filled with a new dielectric material, up to cutoff thickness determined by the nematic degree of order S, as shown in Fig. 6b–e. Inside the defect-filled region, we assume the dielectric tensor to be isotropic, εi,j = 5δi,j, whereas outside, we take the dielectric tensor to be unperturbed blue phase II. Fig. 6a shows photonic bands calculated for blue phases II with its defect network filled up to different defect thickness cutoff. Experimentally, this would correspond to a different volume fraction of the polymer (or nanoparticle) dopant. The cutoff value S ≤ 0.1 corresponds to the polymer volume fraction of ∼0.06, S ≤ 0.2 to ∼0.23, S ≤ 0.25 to ∼0.36, and S ≤ 0.3 to ∼0.60. Indeed, we see that for small filling S ≤ 0.1 there is little effect on photonic bands; however, for S ≤ 0.3 the local band gap opens, exactly in an analogous way as demonstrated for blue phase colloidal crystals (Fig. 5). More quantitatively, the size of the band-gap for S ≤ 0.3 filled blue phase is similar to the band gap generated by r = 100 nm particles in blue phase II colloidal crystals. Clearly, this demonstrates that polymer-templated or nanoparticle templated blue phases could also act as photonic crystals with tunable band structure, with the degree of defect network filling being a possible tuning parameter.


image file: c4sm00419a-f6.tif

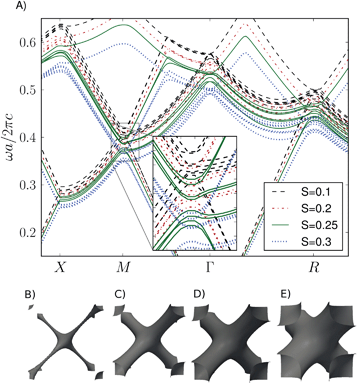

Fig. 6 Photonic crystals from defect-filled blue phase II. Network of defect lines in BP II is filled with an isotropic εi,idef = 5 dielectric material (e.g. polymers or nanoparticles) up to a different cutoff thickness given by the nematic degree of order S. (b–e) Blue phase II defect lines filled up to cutoff values of S: S = 0.1, 0.2, 0.25 and 0.3. Note that for S = 0.3 the local band gap opens at point M.

Trying to generate a full band-gap photonic crystal, we now combine the two approaches and assume a blue phase colloidal crystal, where – in addition – the defects are filled with polymers or nanoparticles. The effective filling of the blue phase defects relies on the processes of phase separation and particle dispersion in the complex blue phase fluid,52–58 which strongly depends on the used materials.59 Such combination creates a three-component photonic material with photonic bands subjected to the properties of (i) blue phase, (ii) particles and their FCC lattice, and (iii) the dielectric which fills the defect networks. In calculations, we assume an isotropic dielectric tensor of the defect network εi,idef = 4 filled up to S ≤ 0.25 cutoff, and the FCC colloidal crystal with particles of εi,ip = 5. Also, we assume that the interactions, i.e. surface anchoring, at the interfaces between the blue phase and the other two components are weak, meaning that there is no effect of the other two components on the birefringent profile of the blue phases. Interestingly, such three-component system creates an indirect total band gap between the 7-th and 8-th band of the whole edge of SC irreducible Brillouin zone, with the exception of one point on the line MΓ, as shown in Fig. 7. At this point bands seem to cross each other and no gap appears, not even for different combinations of the dielectric constants of the three components. The band structure of the dielectric defect filled blue phase I FCC colloidal crystal is further visualised in Fig. 8 where an electromagnetic field energy density (|H|2 + ε|E|2) for the 8th and 9th band at point Γ is presented. Similar to the one-dimensional case in the report by Joannopoulos et al. (page 48, ref. 6) we can see that the lower optical band corresponds to high energy density in regions of higher dielectric constant (colloid particles) and the upper band to regions of lower dielectric constant (background). Finally, this new structure of the photonic bands shows that blue phases offer further possibilities for engineering their photonic bands by doping them with multiple optically different guest components, including colloidal particles, polymers, and nanoparticles.


image file: c4sm00419a-f7.tif

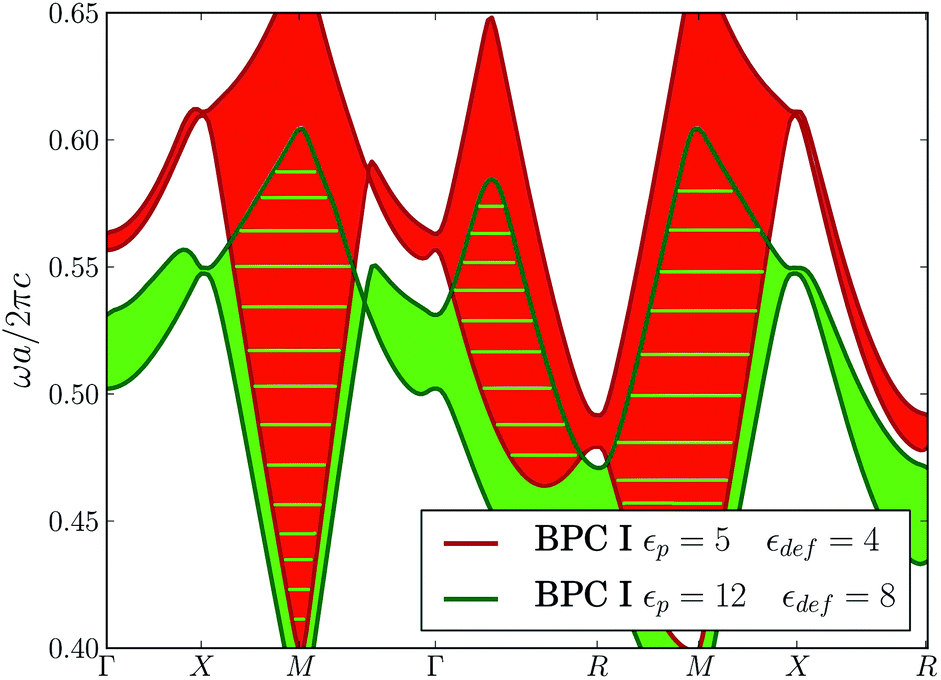

Fig. 7 Photonic crystals from a three-component material of blue phase I colloidal crystals with additionally dielectric-filled defect networks. Note the indirect total band gap between the 8-th and 9-th band, with the exception of one point, between M and Γ, where bands cross each other and there is no gap, not even when we increase the dielectric constant of both materials to unphysically large values εi,ip = 12 and εi,idef = 8.

image file: c4sm00419a-f8.tif

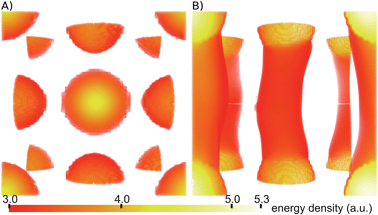

Fig. 8 Regions of a high electromagnetic field energy density (|H|2 + |εE|2) within the (real) unit cell of BPC I for the (A) 8th band and (B) 9th band calculated at point Γ. There exists a local band gap between these two bands. Energy in the 8th band is concentrated within dielectric particles, but in the 9th band high energy regions form cylindrical shapes through the unit cell. Units for the energy density are taken following ref. 60.

4 Conclusions

This work proposes soft matter photonic crystals which effectively join components with two different inherent symmetries into one photonic crystal material, creating a complex photonic crystal material with tunable photonic band structure. This combined photonic response is demonstrated by numerical modelling in blue phase colloidal crystals, where blue phase liquid crystalline fluid generates a periodic array of trapping sites for colloidal particles with the symmetry different from the symmetry of the blue phase itself. The relevance of either the particle component or the blue-phase-liquid component can be tuned by simple material parameters, including particle size, temperature, or refractive indices of blue phases or particles.

Using Bloch formalism combined with numerical solving of the eigen-equations, we calculate (i) the photonic bands of blue phase colloidal crystals, (ii) the photonic bands of (no-particle) blue phases, and (iii) photonic bands of FCC and BCC lattices of particles in isotropic background. Such comparison of bands reveals that photonic bands and local band gaps can be easily tuned and even created by changing the size of the particles, with larger particles generally leading to larger local band gaps.

To make a link towards related recent experiments, we consider also photonic bands of defect-doped blue phases, where defect cores of blue phases are assumed to be replaced with another dielectric material – like polymer or nanoparticle doped blue phases – also showing opening and tuning of local band gaps by e.g. dopant concentration or dielectric permittivity. For example, in blue phase II based materials, we get roughly equivalent gap size for blue phase defects filled with a dielectric dopant up to a nematic degree of order S = 0.3 cut-off and the blue phase colloidal crystal with particles of size r = 100 nm. As the second analogous material, we consider a three-component system of blue phase colloidal crystals, which have all the defect networks additionally doped with a different dielectric, finding a total indirect band gap (except for one point) between the 7th and 8th band on the entire edge of the SC irreducible zone.

Finally, the demonstrated results show that controlling and combining the symmetries of multiple components in soft matter could be used as a novel route towards tunable soft matter photonics.

Acknowledgements

Authors acknowledge the financial support from the SLO ARRS program P1-0099, SLO ARSS grant Z1-5441 and EU FP7 Marie Curie CIG grant FREEFLUID.
