Induced phagocytic particle uptake into a giant unilamellar vesicle

Abstract

Phagocytosis, the uptake and ingestion of solid particles into living cells, is a central mechanism of our immune system. Due to the complexity of the uptake mechanism, the different forces involved in this process are only partly understood. Therefore the usage of a giant unilamellar vesicle (GUV) as the simplest biomimetic model for a cell allows one to investigate the influence of the lipid membrane on the energetics of the uptake process. Here, a photonic force microscope (PFM) is used to approach an optically trapped 1 μm latex bead to an immobilized GUV to finally insert the particle into the GUV. By analysing the mean displacement and the position fluctuations of the trapped particle during the uptake process in 3D with nanometre precision, we are able to record force and energy profiles, as well as changes in the viscous drag and the stiffness. After observing a global followed by a local deformation of the GUV, we measured uptake energies of 2000 kT to 5500 kT and uptake forces of 4 pN to 16 pN for Egg-PC GUVs with sizes of 18–26 μm and varying membrane tension. The measured energy profiles, which are compared to a Helfrich energy model for local and global deformation, show good coincidence with the theoretical results. Our proof-of-principle study opens the door to a large number of similar experiments with GUVs containing more biochemical components and complexity. This bottom-up strategy should allow for a better understanding of the physics of phagocytosis.

---

1. Introduction

Phagocytosis represents a central cellular mechanism in order to engulf particles into the cell membrane. Besides many approaches and studies investigating receptor mediated phagocytosis,^1,2 only little is known about the bio-mechanical concepts used by cells to uptake particles such as bacteria, viruses, toxins or synthetic micro-containers.^3–5 Particle uptake by zipper- or trigger-mechanisms involves actin reorganization as well as local membrane deformation.^6–8 Although cell-mechanical concepts such as actin (de-)polymerization, myosin motor transport, membrane receptor clustering or filopodia activity are well-known,⁹ it is only partly clear which physical forces pull the particle to the inside of a cell. In particular, further insight is needed on how these forces are steered by bio-chemical factors such as various membrane proteins or by the ligands on the particle surface. If these forces remain too small, bacteria and toxins will not be internalized by the cell.

An approach to analyse the relevant forces and to estimate the role of phagocytic key players is to reduce the complexity of the phagocytic system through using biomimetic systems. The simplest biomimetic variant is a giant unilamellar vesicle (GUV),¹⁰ where the chemical and mechanical properties of the spherical lipid bilayer membrane can be controlled in various manners.^11–16 In order to engulf and internalize a particle, the spherical membrane of the GUV needs to be deformed significantly, as measured and modelled by several groups.^8,17–22

Among various experimental techniques for GUV manipulation,¹⁰ optical tweezers are especially advantageous due to their ability to apply 3D forces between femto-Newtons²³ and nano-Newtons²⁴ without mechanical contact. In this way Dietrich et al.¹⁷ demonstrated that it is possible to ingest 7–18 μm large spheres into GUVs by using double beam optical tweezers. Later, effects of particle adhesion, diffusion, and coupling with GUVs have been studied with single beam optical tweezers.¹⁰ In combination with a fast 3D tracking system such as back-focal plane (BFP) interferometry the thermal position fluctuations of the trapped particle^25,26 can be tracked nanometre precise at several 100 kHz – nearby living cells or in contact with them.²⁷ Using BFP-interferometry, also the position fluctuations of lipid membranes have been measured in a broad dynamic range to estimate membrane properties.²⁸

However, the measurement of force and energy profiles during the induced phagocytic uptake has not been achieved so far, which would enable a comparison to existing theories.

In the present study we describe the controlled internalization of a 1 μm small spherical particle into a GUV. Using 3D optical tweezers and 3D BFP-tracking, we were able to measure distance resolved forces and energies required for particle uptake. In parallel, we recorded the fluctuations of the particle on a μs time scale prior to binding, but also during uptake (in contact with the membrane) allowing us in both cases to extract the changes in viscosity and elasticity of the particle-GUV system. Our method allows a systematic comparison of energy profiles between GUV systems with different lipid compositions, but also comparisons to theoretical approaches.

2. Theoretical background and methods

2.1. Vesicle growth by electroformation

GUVs were prepared from egg phosphatidylcholine (Egg-PC) (Sigma-Aldrich), utilizing the method of electroformation.²⁹ Therefore the lipids were dissolved in chloroform resulting in a stock concentration of 0.5 mg ml⁻¹. In order to perform fluorescence microscopy, 1 mol% fluorescent lipid analogues (Bodipy FL-C5-HPC, Molecular Probes) were added to the stock solution. For electroformation, an ITO glass chamber was prepared using two facing ITO-coverslips that were coated with an 8 μl droplet of the stock solution.^14,30 The vesicle formation was accomplished in a 300 mOsm sucrose solution by applying an alternating electric field (3 V RMS, 10 Hz) for a period of 2 h. The frequency was subsequently reduced to 4 Hz for 1 h enhancing the detachment of the formed vesicles from the ITO glass chamber.

2.2. Reduction of membrane tension

In order to enable complete particle uptake, the membrane tension of the produced GUVs had to be reduced by decreasing their internal pressure. An intermediate evaporation of the GUV solution droplet during preparation induces an osmotic pressure difference, which subsequently vanishes through the flux of solution molecules from the interior of the vesicles to the extracellular space. A method to measure the membrane tension is GUV fluctuation spectroscopy,²⁸ where thermal membrane fluctuations are analysed by their power spectral densities (PSD).

2.3. Experimental setup

The phagocytic particle uptake enabled by the optical trap is sketched in Fig. 1a. A 1 μm polystyrene particle (Polysciences Inc.) is trapped by a focused laser beam (λ₀ = 1064 nm, NA = 1.2, water) at powers between 10 and 50 mW inside the chamber. The 3D position tracking of the particle relative to the trap center is achieved by BFP-interferometry at rates of 0.1–1 MHz using a quadrant photodiode (QPD).²⁷ The motion of the GUV is hindered by 20 μm large glass spheres (Microspheres PSi-20.0, Kisker). The chamber containing the GUV is moved by a 3D piezo stage (Tritor 102 CAP, Piezosystem Jena) in 80 nm steps over the distance y_p relative to the trap center.

Fig. 1 (a) Sketch of the experimental procedure for the induced phagocytic particle uptake into a GUV fixed to a microstructure (MS). (b) Stepwise GUV penetration. (c) Displacement of the particle from the trap centre in the x-(red), y-(green) and z-direction (blue). The arrow indicates the uptake.

2.4. Optical trapping and tracking

As sketched in Fig. 1a, the displacement b = (b_x,b_y,b_z) of the particle from the trap centre is used to determine the underlying forces and energies during the induced uptake process. The optical force F_opt,i (i = x,y,z) shows a linear behaviour for lateral displacements |b_i| < λ/4, where λ = 1064 nm/1.33 = 800 nm denotes the wavelength of the trapping laser light:

F_opt,i(b_i) ≈ −κ_ib_i (1)

The trap stiffness κ_i characterizes the strength of the optical trap in each direction and is determined by a Langevin calibration method.³¹

The corresponding optical energy W_opt,i(b_i) ≈ 1/2κ_ib_i² + W_i,0 results in a harmonic potential.

The 3D particle tracking is realized by interference of the unscattered laser light and light scattered at the particle. The resulting interference intensity in the BFP I(k_x,k_y,b), which depends on the particle position b, is recorded by using a QPD. The intensity profile I(k_x,k_y,b) is integrated over the four areas of the QPD, and provides four voltage signals S_n (n = 1,…,4). The linear composition of S_n defines the position signals S_x = ((S₁ + S₃) − (S₂ + S₄))/S₀, S_y = ((S₁ + S₂) − (S₃ + S₄))/S₀ and S_z = (S₁ + S₂ + S₃ + S₄)/S₀. S₀ is the sum signal without a scatterer. This operation is expressed by the function Q_i, which forms the signal triplet S_i (i = x,y,z) encoding the 3D particle position:

The detector sensitivity g_i relates the QPD signals S_i to the particle displacement b_i. For small displacements, |b_i| < λ/4 laterally and |b_i| < λ/2 axially, this relationship is linear. The three sensitivities g_i are obtained by the same Langevin calibration procedure in advance of each uptake experiment.

In the vicinity of the GUV, the interference pattern at the QPD may be altered by scattering of laser light at the GUV. This results in an additional intensity ΔI(k_x,k_y,d) and an additional sensitivity Δg_i(d), which depends on the distance d to the GUV: . It will be further discussed in Section 3.1. (for details, a manuscript is in preparation) that the change in sensitivity is small, i.e. |Δg_i(d → 0)| < 0.1|g_i| leading to a relative position tracking error of less than 10%.

2.5. Fluctuation analysis

Due to the high photon densities available with the coherent BFP tracking technique, even particle fluctuations in the range of a few nanometres (nm) and on the scale of microseconds (μs) can be resolved. A common method in order to obtain relevant information about the Brownian motion of the particle is given by the autocorrelation (AC) function:

AC_i(τ) ≔ 〈b_i(t)b_i(t + τ)〉 = 〈b_i(0)²〉e^−τ/τ_0,i = k_BT/κ_i exp(−τκ_i/γ_i). (3)

Here τ_0,i denotes the autocorrelation time, which can be obtained by an exponential fit to AC(b_i(t)). The zero-crossing of AC (τ_i = 0) can be related to the stiffness κ_i of the underlying potential by using the equipartition theorem 〈b_i(0)²〉 = k_BT/κ_i. On a microsecond time scale, where τ≪τ_0i, the AC function in eqn (3) can be Taylor expanded to a linear dependency:

Applying a linear fit function to AC_i(τ) for τ ≤ 0.1 τ_0,i allows one to determine the total stiffness κ_i and the total friction coefficient γ_i acting on the particle in all spatial directions. For the arrangement depicted in Fig. 1a, the two viscoelastic components are connected in parallel. Both the optical trap and the GUV-membrane represent damped oscillators with force constants κ_opt and κ_GUV and friction constants for the bead and GUV γ_b and γ_GUV such that

κ_i = κ_opt,i + κ_GUV,iγ_i = γ_opt,i + γ_GUV,i (5)

The fluctuation width Δb_i or variance Δb_i² = 〈b_i²〉 − 〈b_i²〉 can be obtained from the measured particle position histogram p(b_i) from a piece of trajectory b_i(t). After subtracting the mean value 〈b_i〉 the squared fluctuation width reads:

This expression is valid for all shapes of p(b_i) = p₀ exp(−(W_opt(b_i) + W_GUV(b_i,d))/k_BT)db_i, which obey Boltzmann statistics. Generally, it is defined by the harmonic trapping potential W_opt(b_i) as well as by the distance dependent potential W_GUV(b_i,d) generated by the presence of the GUV. In summary, the particle fluctuations can be characterised by the three fluctuation variables κ, γ and Δb, which all provide relevant information about the local environment of the particle.

2.6. Deformation model

The induced phagocytic particle uptake is accompanied by a successive deformation of the GUV until the engulfment is finally completed. This process can be mathematically described by a simple energy model considering the behaviour of the particle–GUV complex. The required deformation energy G_def of a lipid bilayer sheet with membrane tension σ is based on the Helfrich energy,³² which, neglecting Gaussian and spontaneous curvature effects, can be expressed as:here, the first term corresponds to the bending energy G_ben with the bending modulus K and the second term represents the stretching energy G_str. The contribution of adhesion energy is neglected in the following since it is not relevant to the utilized particle-vesicle system in our experiment (see Section 3.2). The membrane curvature 2H(x,y) = 1/R₁(x,y) + 1/R₂(x,y) can be expressed by the two principal radii of curvatures R₁ and R₂. If the GUV with radius R_g is spherical, then 2H_sp(x,y) = 2/R_g. In general, however, G_def has to be integrated over the arbitrarily deformed surface A_g of the GUV.

As sketched in Fig. 2a, the deformation of the GUV is comprised of a global (gl) and a local (lo) deformation:

G_def(h_gl, h_lo) = G^gl_def(h_gl) + G^lo_def(h_lo) (8)

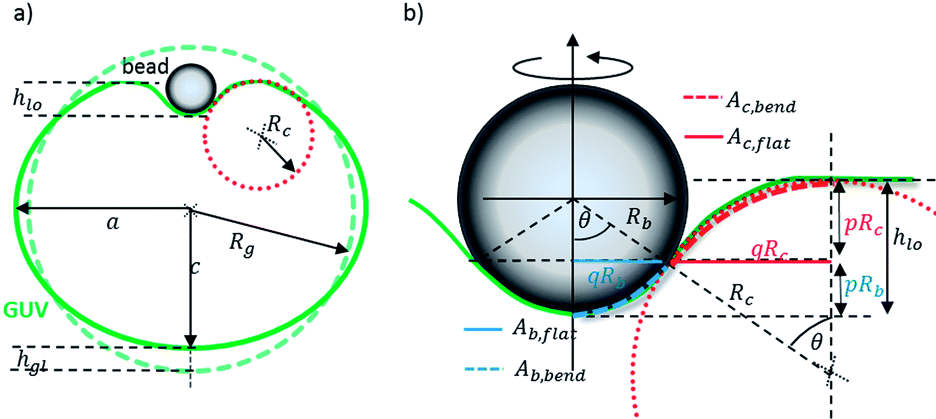

Fig. 2 Geometry used to model the deformation energy of the particle–GUV complex. (a) The particle induces a global and local deformation of the GUV profile. The global indentation is described by h_gl. (b) Local deformation: the particle gets wrapped by a spherical cap with area A_int. The height of the cap is pR_b and the height of circle segment is pR_c. The local indentation height is described by h_lo = p(R_b + R_c) = (1 − cos(θ))(R_b + R_c).

This energy increases with a global and a local indentation height, h_gl and h_lo, which are variables for the GUV deformation.

2.6.1. Global deformation energy. The global shape of the spherical vesicle is transformed into an oblate ellipsoid characterized by the two half-axes a and c < a (see Fig 2a). Whereas the short half-axis c ≔ R_g − h_gl is reduced by the global indentation height h_gl, the long axis a is increased according to

Eqn (9) is derived from the assumption that the GUV volume is conserved during the deformation process, i.e. R_g³ = a²c.

The area of the ellipsoid is A_ell = 2πa²(1 + (c/a)²(tan hε/ε)), where denotes the eccentricity. The increase in surface area is ΔA_gl(h_gl) = A_ell(h_gl) − A_sp(h_gl), with sphere surface A_sp = 4πR_g².

The global deformation energy G^gl_def can be further separated into components for stretching and bending:

G^gl_def(h_gl) = G^gl_str(h_gl) + G^gl_ben(h_gl) (10)

Using the mean curvature of an oblate ellipsoid 2H_ell(h_gl) = (c/a² + a/c²) the global bending energy with bending modulus K is

G^gl_ben(h_gl) = G^ell_ben(h_gl) − G^sp_ben(h_gl) = K/2[(2H_ell)²A_ell − (2H_sp)²A_sp] (11)

The global stretching energy, which is typically much smaller than the global bending energy, is proportional to the increase in surface area,

2.6.2. Local deformation energy. As pointed out further in Fig. 2b, the local deformation energy

G^lo_def(h_lo) = G^lo_str(h_lo) + G^lo_ben(h_lo) (13)

increases with the local indentation height h_lo. It can be separated into a convex spherical indentation with bead radius R_b and a concave toroidal indentation with radii R_c and q(R_b + R_c) where q = sin(θ).^33,34 We are interested in the increase in surface areas and in total curvature from a flat membrane to a bended membrane.

Therefore we use the wrapping height of the bead pR_b, p(θ) = 1 − cos(θ), and of the circle segment with wrapping height pR_c, which defines the local indentation height

h_lo = p(R_b + R_c) = (1 − cos(θ))(R_b + R_c) (14)

R _b + R_c represents the distance of the circle centres, and θ is the angle to the normal. q(R_b + R_c) is the normal projection and defines the flat circular area A_b,flat + A_c,flat = q²(R_b + R_c)²π that increases to A_b,bend + A_c,bend. A_b,flat = q²R_b²π is a circular area, and A_c,flat = q²((R_b + R_c)² − R_b²)π is the area of the surrounding ring.

The increase in local surface area due to the deformation with an indenting sphere of radius R_b is ΔA_sph ≈ A_b,bend − A_b,flat = π(pR_b)². The increase in local area due to the toroidal deformation is ΔA_tor ≈ A_c,bend − A_c,flat = πqR_c²(q + 2). The surface area of a torus between the polar angles [0;θ] is A_tor = 2πR_c² sin(θ) + 2πR_cR_tθ ≈ 2πR_cq(R_c + R_t) if θ < π/4. Here, R_c is the radius of the tube, and R_t is the radius of the torus ring. From eqn (14) we find p = h_lo/(R_b + R_c) and , which can be inserted into ΔA_tor(θ) and ΔA_sph(θ) to obtain the local stretching energy as a function of h_lo and R_bc = R_b + R_c

The local bending energy produced by the indentation of the bead is defined by the local curvature 2/R_b and the area A_b,bend = 2πR_b²p of the cap with height pR_b: G^sph_ben(θ) = K/2(2/R_b)²A_b,bend = 4πKp.

Similar to the approach of Deserno (eqn (31) in ref. 33), we calculate the curvature energy in the torus segment with opening angle θ. The energy as a function of the wrapping angle is simplified to .

Therefore, we estimate the local bending energy to be

The local and global deformation forces act in parallel, leading to the effect that the weaker global indentation distance is larger than the local one, such that h_lo = Zh_gl. Here, we approximate Z as the ratio Z = G^gl_def(h₀)/G^lo_def(h₀) of global and local deformation energies at a distinct distance, e.g. h₀ = 1 μm. Our approach assumes quadratic potentials G_def(h) and corresponds to the inverse addition of spring constants for serially coupled oscillators. In consequence we can write:

G_def(h) = G^lo_ben(Zh) + G^lo_str(Zh) + G^glo_ben(h) + G^glo_str(h) (17)

3. Experimental results

3.1. Influence of the GUV on bead trapping and tracking

Before facing the induced phagocytic uptake, the influence of the GUV membrane (as an additional scatterer) on particle trapping and BFP tracking has to be verified and discussed. Therefore we investigated the detector response of a single GUV using the experimental configuration sketched in Fig. 3a.^35,36 The location dependent detector response for a freely diffusing GUV with radius R_g ≈ 9.4 μm (measured by fluorescence microscopy) was recorded while performing a fast periodic displacement of the laser focus y_f with f_t = 400 Hz along the y-direction passing both vesicle edges y_le and y_re. The movement of the laser focus over the trap length of L_t = 28 μm is achieved using galvanometric scan mirrors.

Fig. 3 Influence of the GUV on the BFP tracking of the particle. (a) A sweeping laser focus determines the scattering signal from the GUV. (b) Interferometric detector responses S_g(y) from the edges of the GUV obtained by a complete focus scan of length L_t = 28 μm. (c) Detector responses S_g(y) from the right edge of the GUV membrane for different laser powers. The signals S_g(y) do not shift laterally. (d) Signal S_g(y) obtained from wave optical simulation.

The QPD-signal for the y-direction as a function of the focus position y_f is shown in Fig. 3b for a constant laser power. An asymmetric response S_g(y) within a range of about 3 μm of the vesicle edges is shaded in bright green.³⁷ As indicated, the distance between the zero-crossings can be used quite well to determine the vesicle radius R_g, which can also be read out from video microscopy. Within the vesicle (y_le < y_f < y_re), the focus positions lead to a vanishing influence on the detector response (shaded in green). If the focus is far enough from the vesicle edge, the QPD-signal drops to zero again (grey shaded area).

The plot in Fig. 3c presents the detector responses in the vicinity of the right vesicle edge y_re for a linearly varied laser power from 10–50 mW measured at a reference diode. The displacement b_y = y_f − y_0,r describes the distance of the focus position to the corresponding central zero-crossing of the detector response. The results clearly show that the shape and position of the signals S_g(y) do not change or shift laterally, although the laser power and thereby the optical forces are increased. In consequence, the optical forces on the GUV are negligible.

In the experiment, the position of the vesicle edge within the response function cannot be directly inferred. Therefore we performed a numerical simulation,³⁸ where the interference of focussed unscattered light and light scattered at a GUV (R_g = 8 μm) is recorded and read out by a QPD. Fig. 3d shows that the edge of the GUV corresponds to the zero-crossing of the signal S_g(y) at y_0,r.

The influence of the light scattered at the GUV on the signal of the trapped 1 μm polystyrene bead is relatively small. As shown in Fig. 3b–c, the maximum amplitude of the signal, S_max, at a laser power P = 50 mW is 0.1 V, whereas the maximum signal of the bead is 1.8 V. Although the scattered electric fields have to be added and not the interference intensities, the approximation to add simply the QPD signals is reasonable and helpful.^35,39 Based on this approach, the change in position signal ΔI(d), in detector sensitivity Δg(d) and in position δb is less than 0.1 V/1.8 V = 6%. In summary, light scattering at the GUV has a negligible influence on both optical forces and position tracking of the particle.

3.2. Process of contacting the GUV

The study of a phagocytic particle uptake using a biomimetic system is initiated by the contact process between the GUV and the particle. Here, the particle position fluctuations in the vicinity of the GUV, measured at 1 MHz in all three directions, allow for the interpretation of the interaction process.

The experimental procedure is shown in Fig. 4a. Here the unfixed GUV moves with the piezo-stage (PS) and is approached in 20 nm steps towards the trapped particle. At each position, 2 × 10⁵ particle positions are recorded over 200 ms. Assuming thermal equilibrium, the fluctuation width Δb_i (i = x,y,z) is a useful variable to characterize the interaction process. The plot in Fig. 4b reveals a slight decrease of the fluctuation width of the radial trajectory b_y(y_p = v_pt) upon contact at d = 0. It should be noted that the mean value of the displacements 〈b_y〉 (central red line) does not change more than ±5 nm upon contact with the unfixed GUV.

Fig. 4 GUV-particle contact process: (a) scheme for approaching the unfixed GUV to the trapped particle by a stepwise piezo-movement. (b) Displacement of the particle in the y-direction. The solid red curve represents the mean value over 10⁶ samples. The arrow indicates the contact process. (c) Change of the force constants κ_i in the x- (red), y- (green) and z-direction (blue) during the contact process. (d) Change of the friction constants γ_i in the x- (red), y- (green) and z-direction (blue) during the contact process.

However, this is different with the lateral and axial friction factors γ_i(d) and force constants κ_i(d), which increase with decreasing distance d to the GUV (see Fig. 4c and d). γ_i and κ_i were obtained by linear fits to the AC-functions as described by eqn (4). An optimization procedure revealed that the most reliable results for linear fits were obtained for fitting intervals of 35 μs corresponding to 35 points in the AC data curve recorded for each piezo position y_p. The total force constants (stiffness) were obtained through the constant part of the linear fit curve, κ = k_BT/AC(0), whereas the friction coefficients were obtained from the slope of the linear fit curve. In addition, κ was positively cross-checked through evaluating the fluctuation width Δb, thus κ = k_BT/Δb².

The most important effect visible in Fig. 4c is the smooth increase in κ_y in the radial y-direction, indicating that no binding of the particle to the GUV-membrane occurs. A particle binding process to an interface is characterized by an abrupt increase in κ^27,40 due to a sudden decrease in the fluctuation width of the particle. Therefore adhesion energies are not considered in our energy model as introduced in Section 2.6. Whereas the fluctuation width and thereby the force constants hardly change in tangential directions x and z, the friction experienced by the particle increases in all three directions. Remarkably, the friction factor γ and correspondingly the diffusion constant kT/γ change already prior to binding, and thus indicate a hydrodynamic coupling between the particle and GUV membrane.⁴⁰ For y_p > 2 μm, the bead is in closer contact with the GUV (the collision rate is increased) and the bead diffusion is influenced by the higher viscosity close to the lipid bilayer. Similar to the increase in γ close to a stiff wall, the increase in radial y-direction is larger than in tangential x, z-directions. This method may even allow distinguishing between different viscosities of the membrane due to different molecular compositions.

3.3. Induced phagocytosis

In this paragraph the phagocytic particle uptake induced by the optical trap is introduced. In the experiment, the uptake process is characterized by two parameters of the GUV: the vesicle radius R_g and the membrane tension σ. Both values are not known in advance, but methods in order to determine them are provided in the following.

3.3.1. Uptake force and energy profiles. The PFM setup³¹ allows the realization of induced phagocytic particle uptake while tracking the particle in 3D and observing the GUV-particle complex via fluorescence or brightfield microscopy. The extent of the GUV deformation can be extracted from the fluorescent images of the GUV–particle complex that are recorded for each piezo-position y_p. In Fig. 5a selected images from a video sequence of complete particle uptake are presented. For contrast enhancement, a Laplace filter has been applied to each single frame. The dot-like particle gets gradually engulfed by the GUV membrane until the particle pinches off into the intra-vesicular space. The deformation of the GUV appears in two different ways. First, it emerges on a global scale transforming the shape into a horizontally compressed and vertically stretched (oblate) ellipsoid. Second, an enforced wrapping process can locally be observed in the surrounding of the particle. The degree of global (elliptical) deformation is quantified by fitting ellipses to the edges of the GUV images in Fig. 5a. The resulting change in the length of both half-axes is plotted in Fig. 5b and is in good agreement with the expected theoretical behaviour described by eqn (9).

Fig. 5 Complete induced phagocytic particle uptake. (a) Time series of fluorescent images demonstrating the deformation of the GUV. (b) Change in the half-axes of the ellipsoidal GUV extracted from Fig. 5a. (c) Measured deformation force as a function of the piezo-movement. The numbers correspond to the images in Fig. 5a. F_teth is the tether force. (d) Measured deformation energy profiles for different GUVs. (e) Simulated deformation energy profiles as a function of the indentation height h for GUVs with R_g0 = 9 μm, R_g1 = 13 μm, K₀ = 10 k_BT, σ₀ = 30 k_BT μm⁻² = 0.12 × 10⁻³ pN nm⁻¹ and R_c = K₀/10 μm/k_BT. (f) Simulated uptake energies at uptake lengths h_ut = 1 + R_g/3 for different GUV radii R_g and Λ.

The 3D-tracking of the particle displacement from the trap centre allows for the determination of the 3D optical forces by integration of the potentials (see Section 2.4). The uptake force is dominated by the radial y-component, whereas the tangential directions make up a significantly smaller but still resolvable amount (not shown).

The deformation force profiles F_def(y_p) for four different vesicles shown in Fig. 5c in dependence of the piezo-position y_p reveals a nonlinear behaviour corresponding to the frames (1)–(3) until the internalization process is completed at the uptake force F_ut. Subsequently, the force drops off in the vicinity of frame (4), which corresponds to a relaxation process of the particle towards the trap centre. In frames (5) and (6) the particle reaches the equilibrium position accompanied by a non-vanishing force. Although badly visible in Fig. 5a, the remaining force likely belongs to a membrane tether indicating that the particle is not completely disrupted from the membrane and a tether is formed. The constant tether force is about F_teth ≈1.7 pN and can be calculated by for a known membrane tension and bending modulus.⁴¹

In Fig. 5c and d the measured profiles of the required forces and energies for complete particle uptake (ut) with maximum values G_ut and F_ut are displayed for different vesicle radii R_g. Vesicle sizes are determined by video microscopy. As illustrated, the required deformation energies for complete uptake vary between G_ut = 2000–5500 k_BT, whereas the forces range between F_ut = 4–16 pN (k_BT = 4 pN nm at T = 300 K). The required indentation height (piezo-movement y_p) for the complete particle ingestion, the uptake length h_ut, is between 4.2 μm and 5.5 μm.

Results from the model. In Fig. 5d we have used the energy model introduced in Section 2.6 to prove its correctness and compare it with the experimental results. Fig. 5e shows four simulated energy profiles for different GUVs, where one profile (red curve) is separated into the global (red dash-dotted line) and local (orange dotted line) component of the total GUV deformation. The curves cannot be added on the same length scale h since h_lo = Zh_gl where Z = 0.1 in this example (see eqn (17)). We used the same radii R_g0 = 9 μm and R_g1 = 13 μm as in the experiment. The membrane tension was assumed to be σ₀ = 30 k_BT μm⁻² = 0.12 pN μm⁻¹ = 0.12 × 10⁻⁸ dyn cm⁻¹ and the bending modulus K₀ = 10 k_BT,²⁸ such that F_teth = 8π(Kσ)^1/2 = 1.7 pN, which corresponds to the measured tether force. The radii for the two membrane curvatures for the local deformation were R_b = 0.5 μm for the bead and initially R_c = 2.5 μm for the torus tube. We than adapted the radius of curvature R_c to be proportional to K, such that R_c = K/10 μm/k_BT. However, the effect of R_c on G_def(h) was rather small. For the above mentioned parameters, deformation energies of up to 5500 k_BT are reached for a local indentation h_lo of up to 1 μm and a global indentation h_gl of also up to 3 μm, resulting in a total indentation h_lo + h_gl of up to 4 μm. According to our model the main energy contribution for small indentations (h < 1 μm) results from the local deformation of the GUV. By changing the ratio Λ² = (K/σ) between the bending modulus and the membrane tension, different local slopes of the energy curves can be obtained. The black curve displays a 4× decrease in σ, which results in an only slightly smaller energy profile, whereas a 4× decrease in K reduced the deformation energy significantly. In our case (σ₀ ≈ 30 k_BT μm⁻² and K₀ = 10 k_BT) the bending rigidity influences the deformation energy profile much less than the membrane tension. A 4× decrease of the bending tension σ₀ decreases the energy at h = 4 μm significantly. The 40% increase in GUV size (R_g0 → R_g1) leads to a 40% reduced deformation energy at h = 4.5 μm. From Fig. 5e we can estimate the uptake length h_ut to be about one third of the vesicle radius plus the diameter of the bead, such that G_def(h_ut) was assumed as the uptake energy G_ut in our model. The uptake length is the sum of the local and global indentation, h_ut = h_lo + h_gl = R_g/3 + 2R_b, where the particle is taken up and the free energy drops down. In Fig. 5f the overall increase of G_ut with the vesicle radius is displayed for different ratios of Λ = sqrt(K/σ) = 0.3, 0.5 and 0.9, which are all values for vesicles with the mean stiffness. For vesicles with a decreased bending modulus Λ = 0.3, the uptake energy rises strongly with the vesicle radius. Uptake energies and vesicle radii found in the experiment are marked by black circles. Generally, rupturing and a possible tether formation are not included in our model.

3.2.2. Elastic and viscous behaviour during uptake. Similar to the idea presented in Section 3.2, where we measured and analysed the particle fluctuations prior to contact with the GUV, we analyse now the change in fluctuations during the wrapping process. The analysis procedure is described in Section 2.5. Fig. 6a illustrates the elastic behaviour of the bead, which is characterized in all three directions by the change in stiffness κ_i(y_p) (see eqn (5)) as a function of the indentation height h ∼ y_p into the membrane of a fixed GUV. In Fig. 6b the viscous behaviour characterized by the friction coefficient γ_i(y_p) is displayed (i = x,y,z). The course of the fluctuation width Δb_i(y_p) is consistent with the results of the corresponding stiffness κ_i (not shown). The stiffness κ_z in the z-direction remains approximately constant for all y_p, i.e. Δκ_z ≈ 0, which means that the axial width of the fluctuations is not reduced by the membrane. However, in the other two directions, a smooth increase of tangential stiffness Δκ_x = κ_x − κ_opt,x to κ_m ≈ 40 pN μm⁻¹ at h_lo ≈ 2R_b and a steeper increase of the radial stiffness Δκ_y to κ_m can be observed.

Fig. 6 Analysis of particle fluctuations after contact, i.e. during the induced uptake process. Lines are mean values to the measured data (markers). (a) Stiffness change in the x-(red), y-(green) and z-direction (blue) for increasing indentation. (b) The three friction coefficients for increasing indentation using the identical color encoding.

Whereas the radial fluctuations are dominated by the membrane fluctuations and thereby define the steeper stiffness change Δκ_y, the reduced fluctuation volume of the trapped bead leads to a linear increase of Δκ_x, over the first micrometres. Only for a larger indentation of the bead at h_lo ≈ 2R_b, κ_x also approaches the value of κ_m.

The changes in viscous drag are relatively small in the two tangential directions, i.e. Δγ_xz(y_p)/Δγ_xz (y_p = 4 μm) < 0.25, as shown in Fig. 6b. The increase in radial friction is more pronounced: Δγ_y grows smoothly until y_p ≤ 3 μm and much stronger for y_p > 3 μm until the maximal value of Δγ_y (h_lo ≈ 2R_b) = γ_m is reached before the internalization of the particle. The maximal increase in friction γ_m ≈ pN ms μm⁻¹ corresponds to a relative increase of 70%.

3.3.3. Local and global effects on particle uptake. In the sections above and in our mathematical model we have pointed out that the forces F_def and energies G_def required to insert a particle into a GUV are controlled by global and local deformation effects. Those can be better visualized by normalizing the curves G_def(h) and in amplitude and in uptake length, here called relative piezo-movement β ∈ [0,1], as displayed in Fig. 7. In this way, the slopes of all curves can be well compared. β = 1 corresponds to the uptake length h_ut, i.e. the maximal indentation length, where the particle is taken up. We investigated four different GUVs made from Egg-PC. Fig. 7a shows their normalized energy profiles, which are characterized by a shallow energy increase likely due to a global, elliptical deformation of the GUVs, followed by a steeper increase likely due to a local deformation caused by the indenting particle. The black arrow to the left indicates the increasing GUV radius R_GUV together with an earlier and smoother increase in deformation energy, likely due to a stronger influence of global deformation. By averaging over local and global effects, the energy profile can be approximated to be quadratic, G_def,n(β) ≈ Cβ². Fig. 7b displays the corresponding normalized force profiles F_def,n(β), which, according to their slope, can be separated into ranges for global and local deformation. The latter comprises roughly 40% of the overall uptake length (β = 1).

Fig. 7 Normalized uptake curves for different vesicle sizes. The radii increase from right to left. The piezo-displacement is normalized to the uptake length s and thus called relative piezo-movement β. (a) The deformation is scaled to the respective uptake energy G_ut and (b) the deformation force is related to F_ut.

The characteristics of the induced uptake process are influenced by the properties of the GUV–particle complex. In the experiments, the vesicle radius R_g, the membrane tension σ and, less obvious, the bending modulus K can be varied.²⁸ As described in Section 2.2, the membrane tension σ has been reduced by the induced osmotic pressure difference in the sample. Due to the different GUV volumes, the resulting membrane tensions σ will also be different in each case.

3.3.4. Uptake energies and forces. Various purely physical parameters influence the uptake process as shown by our model, or vice versa, the uptake process can be characterized by mechanical parameters. Fig. 8a shows a comparison between measured uptake energies G_ut, uptake forces F_ut, membrane stiffnesses Δκ_m and membrane frictions Δγ_m for three of the four different Egg-PC vesicles. Whereas GUV no.1 and 2 have the same radius R_g ≈ 9 μm, their bio-mechanical properties are quite different. The membrane of vesicle no. 2 has a 4-fold higher radial stiffness (Δκ_m ≈ 38 pN μm⁻¹) and 2-fold higher radial friction Δγ_m obtained from the fluctuation analysis of the bead pressed into the GUV. At the same time we measured a 2-fold higher uptake force F_ut and a 2-fold higher uptake energy . Here, h designates the uptake length.

Fig. 8 Influence of mechanical parameters on the uptake process. (a) Comparison of uptake energy, uptake force, membrane stiffness and membrane friction for three different Egg-PC vesicles. (b) Histogram of the radial membrane fluctuations for vesicle no. 1 and 2 indicating different fluctuation widths Δb_y and membrane tensions σ. (c) Uptake energies relative to the product of the uptake force and GUV radius. (d) Uptake energies relative to the membrane stiffness. (e) Uptake energies relative to the friction coefficient. (f) Maximal friction coefficient relative to the membrane stiffness.

The dependency between the membrane tension σ and the membrane stiffness Δκ_m was further manifested by the results of Fig. 8b, where the radial GUV membrane fluctuations were measured directly in the centre of the focused laser (without bead) similar to the approach presented in ref. 28. Here, the membrane tension σ was estimated from the membrane fluctuation width Δb_y. Vesicle no. 2 (black curve in Fig. 5d) has the same size as vesicle no. 1 (blue curve), but reveals a 2-fold reduced fluctuation width Δb_y and a 4-fold increased membrane stiffness Δκ_m. As expected, a lower fluctuation width Δb_y results in a higher effective membrane tension σ. Considering the blue and the black uptake curves in Fig. 5d, the GUV with the lower σ results in a longer uptake length h and a reduced uptake energy E_ut.

These findings are generalized in Fig. 8c–f. Fig. 8c displays the linear relationship of the final uptake energy and the product of the uptake force and the vesicle radius. The uptake energy G_ut as a function of the uptake force times the uptake length, F_ut × h_ut, results in a non-linear relationship due to the non-linear force profiles (not shown).

It can be seen in Fig. 8d and e that the uptake energy is approximately proportional to the membrane stiffness Δκ_m and to the maximal lateral friction coefficient γ_m briefly before internalization of the particle. In consequence, also the friction coefficient and the membrane stiffness have to be linear to each other as displayed in Fig. 8f.

4. Discussion

The goal of the present study has been the development and manifestation of a novel optical manipulation and measurement technique to study phagocytosis in a simple biomimetic system such as a GUV. It was our aim to obtain precise energy and force profiles together with supplementary physical parameters during phagocytosis, which we induced by optical tweezers and recorded by interferometric 3D particle tracking. It was a further aim to better understand the measured profiles by using an elastic deformation model considering global and local deformation effects due to indentation of a 1 μm large bead.

4.1. BFP particle tracking near the membrane

The 1064 nm laser beam was focused by a NA = n sin α = 1.2 water immersion objective lens resulting in a focusing angle of nearly α = 64°. If the optical trapped 1 μm latex particle is brought into contact with GUVs, which are 18–27 μm in diameter, the focused laser light will also hit the GUV. A first question to answer was whether the light scattered at the GUV could alter the optical trap and the particle tracking precision in the back focal plane (BFP) of the detection lens. The effect can be understood by the three beam interference leading to an additional intensity ΔI(x,y,d) in the focus and in the BFP ΔI(k_x,k_y,d), which depends on the distance between the focus and the GUV. By inspecting Fig. 1c, one can see that the most significant changes in the particle position signals occur in the radial y-direction, thus reducing the dimensions of the problem. It is demonstrated in Fig. 3 that these signals indeed represent the 3D particle position with a negligible small error of less than 10%, since the bipolar position signal of the GUV membrane is significantly smaller in amplitude than the signal resulting from the latex bead. Furthermore, a change in the laser intensity did not result in a position change of the free-floating GUV, meaning that optical forces on the GUV are negligible.

4.2. Mathematical deformation model

Our model estimates the deformation energy G_def of a spherical lipid bilayer sheet, which can be separated into energy components for bending and stretching. These can be further separated into a global deformation, where the spherical GUV is transformed into an oblate spheroid and into the local deformation, where the indentation of the spherical bead leads to a small spherical deformation across the contact area of the bead and a toroidal deformation around this area. In both cases the change in membrane curvature as well as the change in membrane area had to be calculated. By using appropriate coordinate systems and variables, the expressions for these four energy terms could be reduced to handy expressions. Our approach is similar to that of Deserno et al.,³³ although they present results in a more generalized way (e.g. by Λ² = K/σ). The final energy profile G_def(h) predicted by our model is a function of the local and global indentation height h = h_lo + h_gl. The model considers the GUV radius (here R_g = 9 μm and 13 μm), the bead radius (R_b = 0.5 μm), the membrane bending modulus for Egg-PC (K₀ = 10 k_BT), a membrane tension σ₀ = 30 k_BT μm⁻² = 0.12 pN μm⁻¹ estimated from the measured tether force , and the radius of the concave toroidal curvature from the local indentation (R_c = 2.5 μm), which however hardly affects the results.

The experimental parameters used correspond to a low tension membrane where R_g ≈ Λ = 0.57 μm and with a reduced membrane tension [small sigma, Greek, tilde]₀ = R_b²σ₀/K₀ = (R_b/Λ)² = 0.77, which is close to those expected for cellular membranes.¹⁹

In the simulations both K and σ were varied by a factor of 4 to investigate the influence on the energy profile, which changes significantly more by reducing σ. In other words, the reduced membrane tension results in a longer uptake length which was also shown in the experiments, where vesicle no. 1 (blue curve) has a four times slower membrane stiffness Δκ_m relative to vesicle no. 2 (black curve). The strength of the model is that for reasonably estimated parameters K and σ, both the profile slope and the absolute deformation energies coincide well with the experiment. From Fig. 5d we could estimate the uptake length to be h_ut = R_g/3 + 2R_b, where the local indentation height 2R_b = 1 μm corresponds to complete wrapping of the particle. The global critical indentation height R_g/3 varies with the vesicle radius. The calculated energies G_ut = G_def(h_ut) at a typical uptake length of h_ut = R_g/3 + 1 μm are all in the range of some 1000 k_BT.

The simulated energy profile for a local deformation (orange curve in Fig. 5e), although plotted over the whole range of 5 μm, does not reach values larger than the particle diameter = 1 μm. According to our theoretical model, the required energy for an estimated uptake increases nonlinearly with the vesicle radius R_g as shown in Fig. 5f. The increase is smaller for larger ratios Λ² = K/σ.

The superposition of the local and global deformation energies confirm our mechanistic model and understanding that particle engulfment and uptake first lead to a global deformation followed by a local GUV deformation. The scale of the indentation lengths h_lo and h_gl are based on the harmonic approximation of the energy profiles, and use the concepts of serial connected spring constants, which add inversely. This serial connection of potential landscapes needs to be improved in the future if the energy profiles G_def(h) become more complicated. Useful next steps would be to include the energies for tether formation and membrane rupturing in our model. In summary, our model represents a valuable approach to validate the observation, which can be extended and improved as proposed by others.^19–21,34

4.3. Induced phagocytosis

The particle fluctuations in the vicinity of the membrane are recorded at the very high sampling rate of 1 MHz, enabling the investigation of the contact process between the particle and the GUV – before and after close contact with the membrane. As soon as the particle come into contact with the membrane, the particle's position fluctuations change both in amplitude and time, which can be analysed by the fluctuation width or the stiffness κ. In the case of sudden binding to the membrane, the fluctuation width changes instantaneously.^27,40 However, Fig. 4 reveals a smooth increase in κ in the radial direction, indicating that the particle is slowly pressed against the membrane leading to a slow decrease of the fluctuation width.

4.3.1. No adhesion energy. Since the particle did not bind to the membrane, no adhesion energy could be exploited to reduce the required uptake energy. A possible reason for this is that the particle has already been coated with lipids thus blocking a possible van der Waals interaction. This increase of the radial and tangential friction coefficient has been measured for the first time and resembles the behaviour of a particle in front of a stiff wall. Furthermore the increase in radial friction is consistent with the results obtained with other techniques such as optical dynamometry.^42,43 In future experiments the influence of adhesion energies should be estimated by approaching uncoated particles to the membrane.

4.3.2. Energetic steps during phagocytic uptake. We have demonstrated that the induced uptake of the particle into a GUV is initiated by a global deformation followed by a local deformation, which results in an initial smooth increase of the deformation energy followed by a steeper energy increase during local indentation. On a comparable indentation length, the first step requires less energy, but might give the (bio-mimetic) cell time to reach thermal equilibrium after reorganization of membrane (or cytoskeleton) structures. The second step of indentation, the stretching of the membrane, seems to require considerably more energy, until the particle is completely taken up. It is likely that this amount of energy is controlled by the lipid reorganization during the first step of membrane bending. A last energetic step can be observed during a sudden drop off in force and energy after a typical indentation length of about 20% of the GUV diameter. The process is visible by video microscopy and QPD tracking in parallel. Similar global and local deformations of the floppy GUV had been imaged and presented in previous studies.⁴⁴ However, it needs to be noted that the elastic GUV is squeezed between a large 20 μm glass bead and the 1 μm optical trapped bead leading to a global deformation of the GUV. In real cellular phagocytosis the effects of the global deformation are expected to be less relevant.

4.3.3. Membrane fluctuations as an indicator for phagocytic efficiency. For the first time it has become possible to measure energies and forces for a particle uptake into a GUV. These are in the range of 2000–5500 k_BT and 3–16 pN, respectively. Our values are significantly higher than those predicted by Deserno et al.,¹⁹ where uptake energies of 22 k_BT and 66 k_BT are provided for GUVs with a comparable reduced membrane tension [small sigma, Greek, tilde]₀ = 0.22 and [small sigma, Greek, tilde]₀ = 1, respectively. These values vary with the GUV size and the maximal membrane stiffness Δκ_m, which have been evaluated from the fluctuations of the membrane alone or with the bead attached (Fig. 8a and b). As shown by Betz²⁸ and confirmed by us in Fig. 8b, the membrane tension σ increases with the inverse membrane fluctuation width 1/Δb_y. In a proof-of-principle experiment we have demonstrated the increase of the membrane tension through 1/Δb_y with the membrane stiffness Δκ_m. However, further experiments and theoretical considerations have to be performed to understand the relationship between both quantities.

This increase of the uptake energy with the membrane tension has been theoretically predicted by several authors.^19,21,34 This prediction could be validated by the results shown in Fig. 8d, where uptake energies increase linearly with the membrane stiffness κ_i = k_BT/〈b_i²〉, which is the inverse squared fluctuation width 〈b_i²〉 of the fully wrapped bead briefly before penetration. The physical and quantitative dependency between this membrane fluctuation parameter and the membrane tension σ still need to be evaluated. Interestingly, the uptake energy can also be estimated by analyzing the wrapped particle fluctuations on a very short time scale, resulting in the linear dependency to the radial friction coefficient γ_m as shown in Fig. 8e. Motions of the wrapped particle are strongly damped before the final uptake. Although the linear slope shown in Fig. 8f, can be concluded from the other two figures, this result is also far from being obvious and might be helpful for future uptake experiments.

It should be mentioned that biological cell membranes are characterized by unique permeability and adaptive mechanical properties, which means that under physiological conditions biomembranes are on the melting point, which means that they are on the switch between the gel and liquid–crystalline phase.^45,46 The Egg-PC membranes we used have a relatively low melting point such that they are in the melted phase, such that no additional energy for melting is required. However, it remains an open question how the phase of the membrane influences their viscoelastic properties and the final uptake forces and energies.

Based on our experimental procedure and the present analysis, it should be possible to compare uptake energy profiles from different GUVs with more complex membrane compositions. Even systems with protein induced membrane deformations¹² could be compared allowing one to investigate phagocytosis on a macromolecular level.

5. Conclusion

We succeeded in inducing the phagocytic uptake of a particle into a giant unilamellar vesicle (GUV) by means of optical tweezers.

With increasing indentation length of the particle into the membrane, we measured membrane deformation energies that can be separated into two subsequent steps. We found uptake energies of 2000–5500 k_BT for GUVs with different sizes and membrane tensions. Adhesion energies between the particle and the GUV that could lower the uptake energies were blocked, facilitating the analysis of global and local deformation energies of the GUV. In principle, the above-mentioned uptake energies can be brought up by conformational transitions of membrane-bound proteins. These uptake energies can be lowered by avoiding a global deformation of the GUV, as it is likely the case for biological cells. But, and this keeps this field of research very exciting, the uptake energies can be purely delivered by accessible adhesion energies between the particle and the host artificial cell. Our experimental procedure and theoretical model presented in this study should be applicable to other experiments as well with step-wise increased complexity, thus enabling a bottom-up strategy to understand the physics of phagocytosis.
