Efficient C–H bond activations via O₂ cleavage by a dianionic cobalt(II) complex

Abstract

A dianionic, square planar cobalt(II) complex reacts with O₂ in the presence of acetonitrile to give a cyanomethylcobalt(III) complex formed by C–H bond cleavage. Interestingly, PhIO and p-tolyl azide react similarly to give the same cyanomethylcobalt(III) complex. Competition studies with various hydrocarbon substrates indicate that the rate of C–H bond cleavage greatly depends on the pK_a of the C–H bond, rather than on the C–H bond dissociation energy. Kinetic isotope experiments reveal a moderate KIE value of ca. 3.5 using either O₂ or PhIO. The possible involvement of a cobalt(IV) oxo species in this chemistry is discussed.

---

Introduction

An important challenge for the development of new catalytic oxidations is the utilization of O₂ from the air, as this reactant should enable the most atom-economical, cost effective and environmentally benign oxidations. In this context, the development of cobalt-based catalysts is particularly promising, since several types of homogeneous and heterogeneous cobalt catalysts are already known to utilize oxygen in oxidations of organic compounds.¹ Much of this chemistry is thought to proceed via peroxy intermediates that initiate the generation of organic radicals.² However, high-valent cobalt oxo intermediates have been postulated for certain oxidations, such as benzylic alcohol oxidation, amine oxidation, and epoxidation.¹ Despite abundant circumstantial evidence for cobalt-mediated O₂ cleavage, there has been no observation of a cobalt oxo species as the direct product of this type of O₂ activation. Notably, the generation of a cobalt(IV) oxo intermediate via O₂ cleavage would seem to be difficult given ligand field arguments,³ and the fact that numerous cobalt(II) complexes have been shown to reversibly bind O₂ to give superoxo or μ-peroxo complexes without O₂ cleavage.⁶

This contribution describes attempts to promote O–O bond cleavage in a μ-peroxo intermediate to access a high-valent oxo species, with use of a tetraanionic ligand. The tetraanionic ligand ^BrHBA-Et (Scheme 1) provides a strong ligand field that features hard donor atoms, and ligands of this type have been shown to support a number of metal complexes in high oxidation states.⁷ This approach has led to observation of clean C–H bond activations of acetonitrile and other hydrocarbons upon reaction of a dianionic cobalt(II) complex with O₂. Furthermore, the use of oxo- and imido-transfer agents is shown to produce reactive intermediates with similar characteristics, implying that putative cobalt(IV) oxo and imido complexes⁵ may be generated in these cases. Most importantly, this report describes a cobalt system that utilizes O₂ cleavage in promoting unusual C–H bond activations.

Scheme 1 Synthesis of [ⁿBu₄N]₂1, [ⁿMe₄N]₂1, and [ⁿBu₄N]₂3.

Results and discussion

Deprotonation of (^BrHBA-Et)H₄, N,N′-(ethane-1,2-diyl)bis(5-bromo-2-hydroxybenzamide), with four equivalents of KH in THF, followed by treatment with CoCl₂ and then salt metathesis with a tetraalkylammonium (ⁿBu₄N⁺ or Me₄N⁺) chloride gave the dianionic complexes [ⁿBu₄N]₂[(^BrHBA-Et)Co] ([ⁿBu₄N]₂1) and [Me₄N]₂[(^BrHBA-Et)Co] ([Me₄N]₂1) as orange, crystalline solids in 58% and 47% yields, respectively (Scheme 1). The complex [ⁿBu₄N]₂1 is a low spin, S = 1/2 Co(II) complex, as demonstrated by the solution magnetic moment (1.98 μ_B, 298 K). A rhombic signal in the 77 K X-band EPR spectrum (g₁ = 1.956, g₂ = 2.29, g₃ = 3.15) with hyperfine coupling to the I = 7/2 ⁵⁹Co nucleus (|A₁| = 81 MHz, |A₂| = 285 MHz, |A₃| = 300 MHz) is consistent with an (xy)²(z²)²(yz)²(xz)¹ or (xy)²(z²)²(xz)²(yz)¹ ground state (ESI, Fig. S3†). Single crystal X-ray diffraction revealed that [ⁿBu₄N]₂1 contains a nearly square planar cobalt center (sum of angles about Co = 360.2(4)°), with Co–N and Co–O bond distances that both average to 1.87 Å (Fig. 1). Cyclic voltammetry reveals a reversible one-electron redox event at E_1/2 = −0.22 V (vs. NHE) corresponding to the Co(II)/Co(III) couple (ESI, Fig. S6†). This redox couple is more negative than that for cobalt complexes supported by salen^8a (E_1/2 = +0.25 V vs. NHE), porphyrin^8b (E_1/2 = +0.68 V vs. NHE), corrole^8c (E_1/2 = +0.03 V vs. NHE), 1,1′-(ethane-1,2-diyl)bis(3-tert-butylurea)^4a (E_1/2 = −0.086 V vs. NHE), and 2,2′,2′-nitrilo-tris(N-isopropylacetamide)^4b (E_1/2 = +0.44 V vs. NHE) ligands.

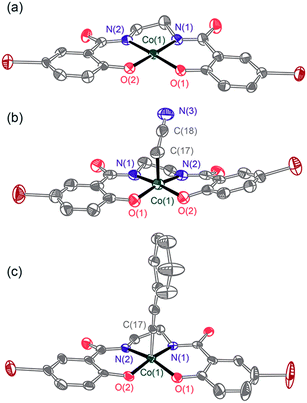

Fig. 1 ORTEP diagrams of (a) [ⁿBu₄N]₂1, (b) [ⁿBu₄N]₂3, and (c) [ⁿBu₄N]₂4. Thermal ellipsoids are drawn at 50%, and the solvent molecule, [ⁿBu₄N]⁺ cations, and hydrogen atoms are omitted for clarity.

The one-electron oxidation of [ⁿBu₄N]₂1 by AgCl in THF afforded the Co(III) complex [ⁿBu₄N][(^BrHBA-Et)Co] ([ⁿBu₄N]2), which gives a deep purple solution in acetonitrile (λ_max = 560 nm, ε = 6800 M⁻¹ cm⁻¹; 98% isolated yield). Solution magnetic moment measurements characterize [ⁿBu₄N]2 as having an S = 1 (2.88 μ_B, 298 K) ground state. X-ray crystallography (ESI, Fig. S1†) reveals that Co is in a nearly square planar geometry (sum of angles about Co = 360.5(2)°). The average Co–N and Co–O bond distances are contracted to 1.84 Å and 1.83 Å, respectively, relative to analogous values for [ⁿBu₄N]₂1. Presumably, the electron-rich nature of the ligand in [2]⁻ stabilizes the four-coordinate cobalt(III) center and substantially reduces its Lewis acidity. This geometry contrasts with that of most cobalt(III) compounds which prefer an octahedral coordination environment with a diamagnetic ground state.

Reaction of 0.25 equivalents of dry dioxygen with [ⁿBu₄N]₂1 in acetonitrile-d₃ resulted in a rapid color change from orange to dark brown, and generation of [ⁿBu₄N]₂3-d₂ in 88% yield by ¹H NMR spectroscopy with respect to [ⁿBu₄N]₂1. Use of excess dry dioxygen (1 atm) in the reaction with [ⁿBu₄N]₂1 in acetonitrile produced [ⁿBu₄N]₂3 in only 50% yield with respect to [ⁿBu₄N]₂1. This lower yield is probably due to oxidation of the cyanomethyl ligand of [ⁿBu₄N]₂3 by the excess O₂, to form [ⁿBu₄N]2 which was isolated from the reaction solution in 12% yield and identified by NMR spectroscopy. The complex [ⁿBu₄N]₂3, isolated as green crystals, was shown by X-ray crystallography to possess a cyanomethyl ligand (Fig. 1b). Thus, reaction of [ⁿBu₄N]₂1 with O₂ results in activation of the relatively strong C–H bond of acetonitrile (BDE_C–H = 96 kcal mol⁻¹, pK_a = 31.1 in DMSO).

Interestingly, reactions of [ⁿBu₄N]₂1 with oxo-transfer reagents also resulted in formation of [ⁿBu₄N]₂3. Thus, reaction of 0.5 of an equivalent of tetra-n-butylammonium periodate, [ⁿBu₄N]IO₄, with [ⁿBu₄N]₂1 in acetonitrile resulted in quantitative formation of [ⁿBu₄N]₂3 after 30 min (by ¹H NMR spectroscopy). A control experiment using potassium iodate (KIO₃) and 18-crown-6 with [ⁿBu₄N]₂1 in acetonitrile revealed no reaction over this time, demonstrating that all oxo-transfer reactivity is derived from the periodate anion. Similarly, reaction of 0.5 equivalents of PhIO with [ⁿBu₄N]₂1 gave [ⁿBu₄N]₂3 in 46% yield (by ¹H NMR spectroscopy). The lower yield for this reaction is attributed to its heterogeneous nature.

Notably, Valentine and co-workers have shown that iodosylbenzene is activated as an oxo-transfer reagent in the presence of both redox-active and non-redox-active metal ions (e.g., Co, and Zn), without the generation of an oxo ligand at the metal center. In these cases, iodosylbenzene undergoes Lewis-acid activation toward oxo-transfer to olefins (epoxidation) in the presence of metal salts in acetonitrile solvent, apparently with no activation of the latter.⁹ For comparison, a mixture of iodosylbenzene (1 equivalent), [ⁿBu₄N]₂1, and cyclohexene in acetonitrile gave no transformation of the olefin during complete conversion of [ⁿBu₄N]₂1, with formation of [ⁿBu₄N]₂3 in 46% yield, as monitored by ¹H NMR spectroscopy and gas-chromatography-mass-spectrometry (GC-MS). Thus, any intermediate formed by the interaction of iodosylbenzene with [ⁿBu₄N]₂1 seems to have low electrophilicity and is unreactive toward cyclohexene. This appears to reflect the observed, low Lewis acidity for the cobalt(II) center of [ⁿBu₄N]₂1, with its strongly donating ligand and dianionic nature. Thus, Lewis acid activation of iodosylbenzene seems unlikely with [ⁿBu₄N]₂1, and the highly reducing nature of this complex is more consistent with a redox event and oxo-transfer from iodosylbenzene. Thus, the observed reaction chemistry appears to suggest that a cobalt oxo intermediate forms upon reaction with O₂ or oxo-transfer reagents.

To investigate the nature of the C–H bond activation step, a competition experiment between toluene (BDE_C–H = 86 kcal mol⁻¹, pK_a = 41 in DMSO) and acetonitrile-d₃ as substrates (1 : 1 molar mixture) was performed using PhIO or O₂ as the oxidant. Significantly, [ⁿBu₄N]₂3-d₂ was the only organocobalt species observed by ¹H NMR spectroscopy, and no trace of a toluene-activated product was detected. By ²H NMR spectroscopy, the reaction mixture contained no detectable amounts of deuterated toluene products that might form via initial toluene activation, followed by metathesis with acetonitrile-d₃. In addition, a competition experiment involving 10 equivalents of 9,10-dihydroanthracene, a more acidic substrate (BDE_C–H = 78 kcal mol⁻¹, pK_a = 30 in DMSO),¹⁰ in acetonitrile-d₃ solvent produced anthracene (13%) and 9,10-anthraquinone (12%) using PhIO or O₂, respectively, as oxidant.¹¹ The formation of 9,10-anthraquinone with O₂ as the oxidant may result from reaction of ³O₂ with the 9-anthracenyl radical formed by initial C–H bond abstraction.¹² Thus, C–H bond activations in this system appear to be promoted by acidic character in the C–H bond. This was further indicated by reactions of [ⁿBu₄N]₂1 in acetonitrile with O₂ or PhIO in the presence of phenylacetylene (10 equivalents), which contains a very acidic but strong C–H bond (BDE_C–H = ∼133 kcal mol⁻¹, pK_a = 28 in DMSO).¹³ This reaction quantitatively (by ¹H NMR spectroscopy) forms the diamagnetic, green cobalt alkynyl complex [ⁿBu₄N]₂[(^BrHBA-Et)Co–C≡CPh] ([ⁿBu₄N]₂4, ν_C≡C = 2106 cm⁻¹). The structure of [ⁿBu₄N]₂4 was confirmed by X-ray crystallography (Fig. 1c). The strong preference for more acidic substrates suggests that in the C–H bond activation step, proton transfer may precede electron transfer (vide infra).

A kinetic isotope effect (KIE) for reaction of acetonitrile in the presence of [ⁿBu₄N]₂1 and O₂ was obtained from a competition experiment involving a 1 : 1 mixture of acetonitrile and acetonitrile-d₃. Quantification of the [ⁿBu₄N]₂3/[ⁿBu₄N]₂3-d₂ ratio by high-resolution electrospray mass spectrometry gave a KIE value of 3.3(2). Interestingly, the analogous reaction with PhIO as the oxidant provided a KIE value that is essentially identical, 3.6(2). This moderate primary KIE value is consistent with an early or late transition state for the C–H bond activation step, and heterolytic C–H bond cleavage. Coupled with the selectivities described above, these results suggest that a common intermediate is formed by reactions of PhIO or O₂ with [ⁿBu₄N]₂1, which activates C–H bonds by a heterolytic mechanism involving considerable proton-transfer character. Note that highly basic metal oxo complexes are expected to exhibit a moderate primary KIE in C–H bond activations.¹⁴

In an attempt to observe an intermediate in the O₂-mediated activation of acetonitrile, a 1 : 1 THF–MeCN solution of [ⁿBu₄N]₂1 at −63 °C was treated with O₂ (1 atm) and the reaction progress was followed by UV-vis spectroscopy. After 10 min, a new absorbance at ca. 400–450 nm, which decayed over the course of 1 h (t_1/2 ≈ 35 min), was observed (Fig. 2). EPR spectroscopy (X-band, 77 K; ESI, Fig. S4†) was used to characterize this intermediate, generated by addition of dry O₂ at room temperature to an n-butyronitrile solution of [ⁿBu₄N]₂1 in the EPR tube. This experiment allowed observation of a new S = 1/2 signal with hyperfine coupling to ⁵⁹Co (g₁ = 2.026, g₂ = 2.028, g₃ = 2.13, |A₁| = 57 MHz, |A₂| = 43 MHz, |A₃| = 85 MHz), the appearance of which after 30 seconds was accompanied by elimination of the signal for [ⁿBu₄N]₂1. After 10 minutes at room temperature, the intensity of the new signal diminished (to ∼10% of the original intensity, by integration of the EPR signal) with no appearance of new signals, consistent with the formation of EPR-silent products. However, when the solution was degassed by a freeze–pump–thaw cycle after acquisition of the first spectrum, the S = 1/2 signal diminished and the signal for [ⁿBu₄N]₂1 increased (ESI, Fig. S5†). This behavior is consistent with reversible O₂ coordination to the cobalt(II) center to form the η¹-superoxo complex [ⁿBu₄N]₂[(^BrHBA-Et)Co(O₂)], [ⁿBu₄N]₂5 (Scheme 2).⁴ In addition, analysis of the reaction mixture of [Me₄N]₂1 with O₂ in acetonitrile after approximately 10 seconds at room temperature by high-resolution ESI-MS revealed the presence of a dianion with m/z = 264.42, and an isotopic distribution consistent with the terminal cobalt(IV) oxo complex [ⁿBu₄N]₂[(^BrHBA-Et)CoO], [ⁿBu₄N]₂6 (ESI, Fig. S4†).

Fig. 2 UV-vis time trace of [ⁿBu₄N]₂1 reaction with 1 atm O₂ at −63 °C in 1 : 1 MeCN–THF. Orange trace is [ⁿBu₄N]₂1; purple trace is at t = 60 min; dashed-black trace is t = 10 min.

Scheme 2 Proposed mechanism for the formation of [3]²⁻ by the reaction of [1]²⁻ with O₂ or oxo-transfer reagents.

The observations of [ⁿBu₄N]₂5 and [ⁿBu₄N]₂6 implicate these species as potential intermediates that directly engage in C–H bond-cleavage reactions. However, the results described above are most consistent with involvement of the oxo complex [6]²⁻ in this chemistry. Firstly, metal superoxo complexes often exhibit much higher k_H/k_D values in intermolecular C–H bond activations (a range of k_H/k_D = 6.3 to 50 is typical).¹⁵ The substrate competition experiments are consistent with initial proton abstraction from a C–H bond, but the pK_a of hydrogen superoxide (pK_a = 12 in DMF)^16,17 suggests that such species should not be basic enough to accomplish such deprotonations. Furthermore, the observed reaction chemistry for O₂ closely parallels that observed with oxo-transfer reagents PhIO and IO₄⁻, suggesting a cobalt(IV) oxo species as a common intermediate. Thus, the reaction with O₂ presumably involves binding of cobalt(II) to the initially formed superoxo complex [5]²⁻, followed by O–O bond cleavage to generate the oxo complex [6]²⁻. This oxo complex is presumed to react with hydrocarbons via proton- and electron-transfers to produce hydroxide and the cobalt(III) complex [2]²⁻. This would generate the cyanomethyl radical NCCH₂˙, and rapid trapping of this species by [1]²⁻ would give [3]²⁻. The cobalt(III) hydroxide species, proposed as the direct product of a proton-coupled-electron-transfer to [6]²⁻, is expected to provide a second pathway to the [3]²⁻ product, via deprotonation of acetonitrile. This hypothesis is supported by the observed reaction of [2]²⁻ with (18-crown-6⊂K)OH in acetonitrile over 1 h, to give [3]²⁻ in quantitative yield.

The reaction of [ⁿBu₄N]₂1 with the oxo-transfer reagents PhIO and IO₄⁻ suggest the possibility of a putative cobalt(IV) oxo complex. Consistent with this hypothesis, [ⁿBu₄N]₂1 was observed to react with p-tolyl azide, a nitrene transfer reagent, in acetonitrile-d₃ to cleanly produce [ⁿBu₄N]₂3 and 1 equiv of toluidine-d₂ (by ¹H NMR and ²H NMR spectroscopy). This reaction is tentatively proposed to proceed via a cobalt(IV) imido species and a mechanism analogous to that proposed above for the cobalt(IV) oxo species (Scheme 3).

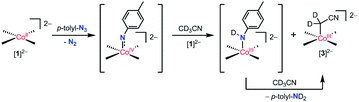

Scheme 3 Proposed mechanism for the formation of [3]²⁻ by the reaction of [1]²⁻ with tolyl azide.

Conclusions

In summary, the reaction of O₂ with [ⁿBu₄N]₂1 forms a cyanomethylcobalt(III) complex, [ⁿBu₄N]₂3, that results from an intermolecular C–H bond activation of acetonitrile. Oxo- and nitrene-transfer reagents are observed to induce the same reactivity, suggesting that cobalt(IV)-oxo and -imido species are key intermediates. Note that Schaefer and coworkers reported that, in the presence of O₂, a (salen)cobalt(II) species activates acetone to form a Co–C bond. No mechanistic details were provided, but this process may proceed via a cobalt-oxo intermediate that abstracts proton from acetone (which is about 7 orders of magnitude more acidic than acetonitrile).¹⁸ The well-behaved system described above is expected to provide opportunities to establish mechanistic details for O₂ activation by cobalt(II), and perhaps the microscopic reverse, O–O bond formation. Along these lines, future efforts will target kinetic and low-temperature spectroscopic studies to better characterize the intermediates resulting from O₂ activation.

Acknowledgements

This work was supported by the Director, Office of Science, Office of Basic Energy Sciences of the US Department of Energy under contract no. DE-AC02-05CH11231 and the National Institutes of Health (Grant GM 40392 to E.I.S.). R.G.H. acknowledges a Gerhard Casper Stanford Graduate Fellowship and the Achievement Rewards for College Scientist (ARCS) Foundation. The authors thank Dr Antonio Iavarone (QB3 Chemistry Mass Spectrometry Facility) for high-resolution ESI mass-spectrometry measurements, Apurva Pradhan for assistance with UV-vis measurements, and Dr John J. Curley for stimulating discussions.

Notes and references

1. (a) R. Chakrabarty, P. Sarmah, B. Saha, S. Chakravorty and B. K. Das, Inorg. Chem., 2009, 48, 6371–6379; (b) R. Chakrabarty, S. J. Bora and B. K. Das, Inorg. Chem., 2007, 46, 9450–9462; (c) S. L. Jain and D. Sain, Angew. Chem., Int. Ed., 2003, 42, 1265–1267; (d) B. L. Caetano, L. A. Rocha, E. Molina, Z. N. Rocha, G. Ricci, P. S. Calefi, O. J. de Lima, C. Mello, E. J. Nassar and K. J. Ciuffi, Appl. Catal., A, 2006, 311, 122–134; (e) Y. J. Song, M. Y. Hyun, J. H. Lee, H. G. Lee, J. H. Kim, S. P. Jang, J. Y. Noh, Y. Kim, S. Kim, S. J. Lee and C. Kim, Chem.–Eur. J., 2012, 18, 6094–6101; (f) J. D. Koola and J. K. Kochi, J. Org. Chem., 1987, 52, 4545–4553; (g) F. A. Chavez, J. M. Rowland, M. M. Olmstead and P. K. Mascharak, J. Am. Chem. Soc., 1998, 120, 9015–9027; (h) R. P. Hanzlik and D. Williamson, J. Am. Chem. Soc., 1976, 98, 6570–6573; (i) A. Sobkowiak and D. T. Sawyer, J. Am. Chem. Soc., 1991, 113, 9520–9523; (j) T. Penniyamurthy, B. Bhatia, M. M. Reddy, G. C. Maikap and J. Iqbal, Tetrahedron, 1997, 53, 7649–7670; (k) S. Fukuzumi, K. Okamoto, Y. Tokuda, C. P. Gros and R. Guilard, J. Am. Chem. Soc., 2004, 126, 17059–17066.
2. (a) R. A. Sheldon and J. K. Kochi, Metal-Catalyzed Oxidations of Organic Compounds, Academic Press, New York, 1981; (b) F. A. Chavez and P. K. Mascharak, Acc. Chem. Res., 2000, 33, 539–545.
3. J. R. Winkler and H. B. Gray, Struct. Bonding, 2012, 142, 17–28.
4. (a) P. L. Larsen, T. J. Parolin, D. R. Powell, M. P. Hendrich and A. S. Borovik, Angew. Chem., Int. Ed., 2003, 42, 85–89; (b) R. L. Lucas, M. K. Zart, J. Murkerjee, T. N. Sorrell, D. R. Powell and A. S. Borovik, J. Am. Chem. Soc., 2006, 128, 15476–15489.
5. (a) K. H. Hopmann and A. Ghosh, ACS Catal., 2011, 1, 597–600; (b) V. Lyakovskyy, A. I. Olivios Suarez, H. Lu, H. Jiang, P. X. Zhang and B. de Bruin, J. Am. Chem. Soc., 2011, 133, 12264–12273.
6. (a) J. R. Fritch, G. G. Christoph and W. P. Schaefer, Inorg. Chem., 1973, 12, 2170–2175; (b) W. P. Schaefer and R. E. Marsh, J. Am. Chem. Soc., 1966, 88, 178–179; (c) R. S. Gall, J. F. Rogers, W. P. Schaefer and G. G. Christoph, J. Am. Chem. Soc., 1976, 5135–5144; (d) C. Floriani and F. Calderazzo, J. Chem. Soc. A, 1969, 946; (e) J. P. Collman, R. R. Gagne, J. Kouba and H. Ljusberg-Wahren, J. Am. Chem. Soc., 1974, 96, 6800–6802.
7. (a) T. J. Collins, R. D. Powell, C. Slebodnick and E. S. Uffelman, J. Am. Chem. Soc., 1990, 112, 899–901; (b) F. Tiago de Oliveira, A. Chanda, D. Banerjee, X. Shan, S. Mondal, L. Que, Jr, E. L. Bominaar, E. Münck and T. J. Collins, Science, 2007, 315, 835–838; (c) F. C. Anson, T. J. Collins, R. J. Coots, S. L. Gipson and T. G. Richmond, J. Am. Chem. Soc., 1984, 106, 5037–5038; (d) F. C. Anson, T. J. Collins, T. G. Richmond, B. D. Santarsiero, J. E. Toth and B. G. R. T. Treco, J. Am. Chem. Soc., 1987, 2974–2979; (e) T. J. Collins, T. R. Nichols and E. S. Uffelman, J. Am. Chem. Soc., 1991, 113, 4708–4709.
8. (a) B. Ortiz and S.-M. Park, Bull. Korean Chem. Soc., 2000, 21, 405–411; (b) C. Shi and F. C. Anson, Inorg. Chem., 1998, 37, 1037–1043; (c) K. M. Kadish, J. Shen, L. Frémond, P. Chen, M. El Ojaimi, M. Chkounda, C. P. Gros, J.-M. Barbe, K. Ohkubo, S. Fukuzumi and R. Guilard, Inorg. Chem., 2008, 47, 6726–6737.
9. (a) R. B. VanAtta, C. C. Franklin and J. S. Valentine, Inorg. Chem., 1984, 23, 4121–4123; (b) W. Nam and J. S. Valentine, J. Am. Chem. Soc., 1990, 112, 4977–4979; (c) Y. Yang, F. Diederich and J. S. Valentine, J. Am. Chem. Soc., 1991, 113, 7195–7205.
10. F. G. Bordwell, J.-P. Cheng, G.-Z. Ji, A. V. Satish and X. Zhang, J. Am. Chem. Soc., 1991, 113, 9790–9795.
11. The remaining products were [ⁿBu₄N]₂3 and [ⁿBu₄N]₂ formed by the activation of acetonitrile.
12. J. O. Hawthorne, K. A. Schowalter, A. W. Simon, M. H. Wilt and M. S. Morgan, Oxidation of Organic Compounds, American Chemical Society, 1968, vol. 75, pp. 203–215.
13. Y.-R. Luo, Comprehensive Handbook of Chemical Bond Energies, Taylor & Francis, 2006.
14. T. H. Parsell, M.-Y. Yang and A. S. Borovik, J. Am. Chem. Soc., 2009, 131, 2762–2763.
15. (a) J. Cho, J. Woo and W. Nam, J. Am. Chem. Soc., 2010, 132, 5958–5959; (b) R. L. Peterson, R. A. Himes, H. Kotani, T. Suenobu, L. Tian, M. A. Siegler, E. I. Solomon, S. Fukuzumi and K. D. Karlin, J. Am. Chem. Soc., 2011, 133, 1702–1705; (c) J. P. Klinman, Chem. Rev., 1996, 2541–2561; (d) S. R. Prigge, B. A. Eipper, R. E. Mains and L. M. Amzel, Science, 2004, 304, 864–867; (e) Y.-M. Lee, S. Hong, Y. Morimoto, W. Shin, S. Fukuzumi and W. Nam, J. Am. Chem. Soc., 2010, 132, 10668–10670; (f) K.-B. Cho, H. Kang, J. Woo, J. P. Park, M. S. Seo, J. Cho and W. Nam, Inorg. Chem., 2014, 53, 645–652.
16. D.-H. Chin, G. Chiericato, E. J. Nanni Jr. and D. T. Sawyer, J. Am. Chem. Soc., 1982, 104, 1296–1299.
17. The pK_a values in DMF are comparable to values in DMSO. F. Maran, D. Celadon, M. G. Severin and E. Vianello, J. Am. Chem. Soc., 1991, 113, 9320–9329.
18. W. P. Schaefer, R. Waltzman and B. T. Huie, J. Am. Chem. Soc., 1978, 100, 5063–5067.

---

Footnote

† Electronic supplementary information (ESI) available: Experimental procedures, spectroscopic and electrochemical figures. CCDC 980872–980875. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4sc00108g

---
