Oxidative rearrangement of malondialdehyde: substrate scope and mechanistic insights

Xin Yua, Zheng Liub, Zilei Xiac, Zhigao Shenc, Xixian Pana, Hui Zhang*a and Weiqing Xie*b
aDepartment of Chemistry, School of Science & Instrumental Analysis and Research Center, Shanghai University, Shanghai 200444, China. E-mail: yehao7171@163.com
bState Key Laboratory of Bioorganic & Natural Products Chemistry, Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences, Shanghai 200032, China. E-mail: xiewq@sioc.ac.cn
cState Key Laboratory of Natural Medicines, Center of Drug Discovery, China Pharmaceutical University, Nanjing 210009, China

Received 26th September 2014 , Accepted 16th October 2014

First published on 16th October 2014


Abstract

A novel oxidative rearrangement of malondialdehyde was described. Under the effect of H2O2, malondialdehyde smoothly transferred to carboxylic acid with C–C bond cleavage in good to excellent yields. Mechanistic studies showed that this reaction proceeded via the formation of a 1,2-dioxolane intermediate, followed by concert C–C, O–O, C–H bond cleavage and a hydride shift.


Baeyer–Villiger oxidation is one of the most important transformations of ketones and aldehydes, which is widely employed in organic synthesis.1 This reaction provides a regioselective and stereospecific insertion of an oxygen atom to a C–C bond to produce an ester or lactone (Fig. 1). A two-step mechanism has been proposed based on mechanistic studies:2 (1) formation of Criegee intermediate II via addition of a peroxide to a carbonyl; (2) stereospecific skeletal rearrangement of a Criegee intermediate to lactone or ester III, which constitutes the rate-determining step. As the second step suffers from a relatively higher free energy barrier, the Criegee intermediate II could be intercepted by other reaction pathways before it undergoes skeletal rearrangement. In this regard, interrupted Baeyer–Villiger oxidation for formation of 1,2,4-trioxane through cyclization of Criegee intermediate is well documented.3–6 For example, Criegee intermediate with appendage hydroxyl could transfer to 1,2,4-trioxane via intramolecular acetalization.3 This reaction has been widely employed in synthesis of natural product (e.g. artemisinin) and pharmaceutical molecules with antimalarial activity.4 Criegee intermediate could also be trapped by intramolecular Michael addition to furnish 1,2,4-trioxane when a Michael acceptor is present.5 Bloodworth and co-workers developed cyclo-oxymercuration of Criegee intermediate with tethered alkene followed by reductive demercuration to prepare 1,2,4-trioxane.6
image file: c4ra11237g-f1.tif
Fig. 1 Pathway of Baeyer–Villiger oxidation and interrupted Baeyer–Villiger oxidations.

On the other hand, the removal of functional groups via C–C bond cleavage reactions plays a prominent role in organic synthesis.7 Since the first report of the decarbonylation of aldehydes mediated by stoichiometric amounts of Wilkinson's catalyst by Tsuji and Ohno in 1965,8a other reports described the catalytic decarbonylation of aldehydes at 200 °C with Wilkinson's catalyst or other rhodium-based catalysts.8b,8c Still other transition metal-based catalysts including Rh,8a–8j Ru,8k Ir8l and Pd8m–8s proved effective for the catalytic decarbonylation of aldehydes. Mechanistic studies showed that migratory extrusion of CO from metal acyl adduct is the rate-limiting step.8j Although the direct extrusion of carbonyl group with C–C bond cleavage proved useful in total synthesis,9 these decarbonylation procedures suffered from catalyst availability and cost, harsh reaction condition and sometimes, the need for CO scavengers. Herein, we discovered a novel oxidative decarbonylation of malondialdehyde mediated by H2O2 that avoided disadvantages of metal catalyzed decarbonylation reactions. The mechanistic studies also supported a tandem acetalization–fragmentation pathway of Criegee intermediate.

Serendipitously, we found that treatment of malondialdehyde 1a with H2O2 using phosphoric acid as catalyst led to carboxylic acid 2a as the sole product (Table 1, entry 3). This result was quite unexpected as both aldehydes were oxidized to carboxylic acids along with C–C bond cleavage under mild reaction condition (vide infra). Recognizing that this reaction provided quite novel reaction scenario for interrupting Baeyer–Villiger oxidation, we embarked on the reaction condition optimization for this reaction. To our interest, malondialdehyde 1a smoothly transferred to carboxylic acid 2a in 82% yield in 5 h even in the absence of any catalyst (Table 1, entry 1). This could be ascribed to be the self-catalyzed effect of the resulting carboxylic acids (vide infra). Although phosphoric acid was a good promoter for this reaction, employing chiral phosphoric acid did not lead to any noticeable enantioselectivity (Table 1, entry 4). Subsequently, various Brønsted acids were screened to find a suitable catalyst for this reaction (Table 1, entry 2–10). Carboxylic acids displayed no obvious accelerating effect (Table 1, entry 2 and 5) presumably due to the competitive self-catalyzed effect of resulting carboxylic acids. In contrast, addition of strong Brønsted acids (e.g. HCl, TfOH, Tf2NH) gave inferior results owing to lability of malondialdehyde to strong acid. Gratifyingly, camphorsulfonic acid provided optimal result, rendering the reaction completed in 1 h. In sharp contrast, Lewis acids,1 which facilitate Baeyer–Villiger oxidation using H2O2 as oxidant, slowed down the reaction and reduced yields were obtained even after extending reaction time (Table 1, entry 11 to 14). Other reaction condition optimization was also performed. For example, solvent screenings showed that ethyl acetate afforded best isolated yields than any other solvents (Table 1, entry 16, 17 and ESI). Comparable result could be obtained by reducing catalyst loading to 5 mol% (Table 1, entry 18). It should also be pointed out that the reaction is not sensitive to oxygen and moisture, and the reaction could be performed in open flask without rigorous exclusion of water.

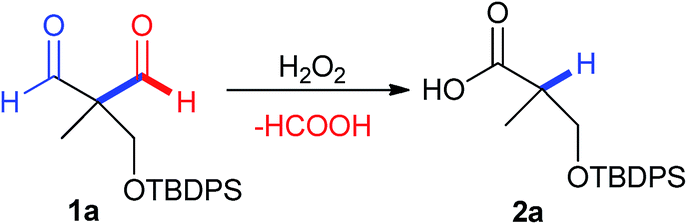

Table 1 Reaction condition optimization for oxidative decarbonylation of malondialdehyde 1aa

image file: c4ra11237g-u1.tif

Entry Catalyst (equiv.) Solvent Time (h) Yieldb (%)
a Reaction conditions: malondialdehyde 1a (0.2 mmol) with H2O2 (0.24 mmol) was carried out in the presence of catalytic acid (0.02 mmol) in solvent (2 mL) at rt.b NMR yields by using 1,4-dimethoxybenzene as internal standard. Isolated yields are shown in parentheses.c 0% ee.
1 CHCl3 5 82(80)
2 PhCOOH (0.1) CHCl3 12 62
3 [(C6H5)O]2PO2H (0.1) CHCl3 2 86
4 8H-R-TRIP (0.1) CHCl3 2 65c
5 CF3COOH (0.1) CHCl3 5 72
6 4-CH3(C6H4)SO3H (0.1) CHCl3 2 79
7 HCl (0.1) CHCl3 2 60
8 HBF4 (0.1) CHCl3 2 82
9 TfOH (0.1) CHCl3 2 55
10 dl-CSA (0.1) CHCl3 1 91
11 Ag(OTf) CHCl3 12 56
12 Zn(OTf)2 CHCl3 12 54
13 FeCl3 CHCl3 12 NR
14 Cu(OTf)2 CHCl3 6 72
15 dl-CSA (0.1) EA 1 97
16 dl-CSA (0.1) MeOH 1 75
17 dl-CSA (0.1) Acetone 2 86
18 dl-CSA (0.05) EA 1 97(93)


After establishing the optimal reaction condition, various malondialdehydes were prepared and subjected to the standard reaction conditions to test the substrate scope of this reaction. To our delight, most of malondialdehydes smoothly underwent oxidative decarbonylation reaction, leading to carboxylic acid in good to excellent yields in 1 h (Scheme 1). The reaction was found to be somewhat sensitive to steric hindrance and lower yields were obtained for those hindrance-encumbering malondialdehydes (Scheme 1, 2h, 2j and 2l). The reaction conditions were found to be compatible with various protecting groups. Besides the acid-tolerated protecting groups (Scheme 1, TBDPS of 2a and Bn of 2c), acid-labile protection group was also found to be intact under the reaction conditions (Scheme 1, Tr of 2d). 2-Phenyl-malondialdehydes bearing various electron-rich or electron-withdrawing groups were smoothly converted to phenylacetic acids in excellent yields (Scheme 1, 2m–2q). Easily oxidable functionalities such as alkene, alkyne could also survive under the reaction conditions (Scheme 1, 2i–2k, 2t and 2u). Additionally, this reaction was also easily scaled up and carboxylic acid 2b, 2s and 2t could be efficiently prepared in gram scale by following the standard procedure.

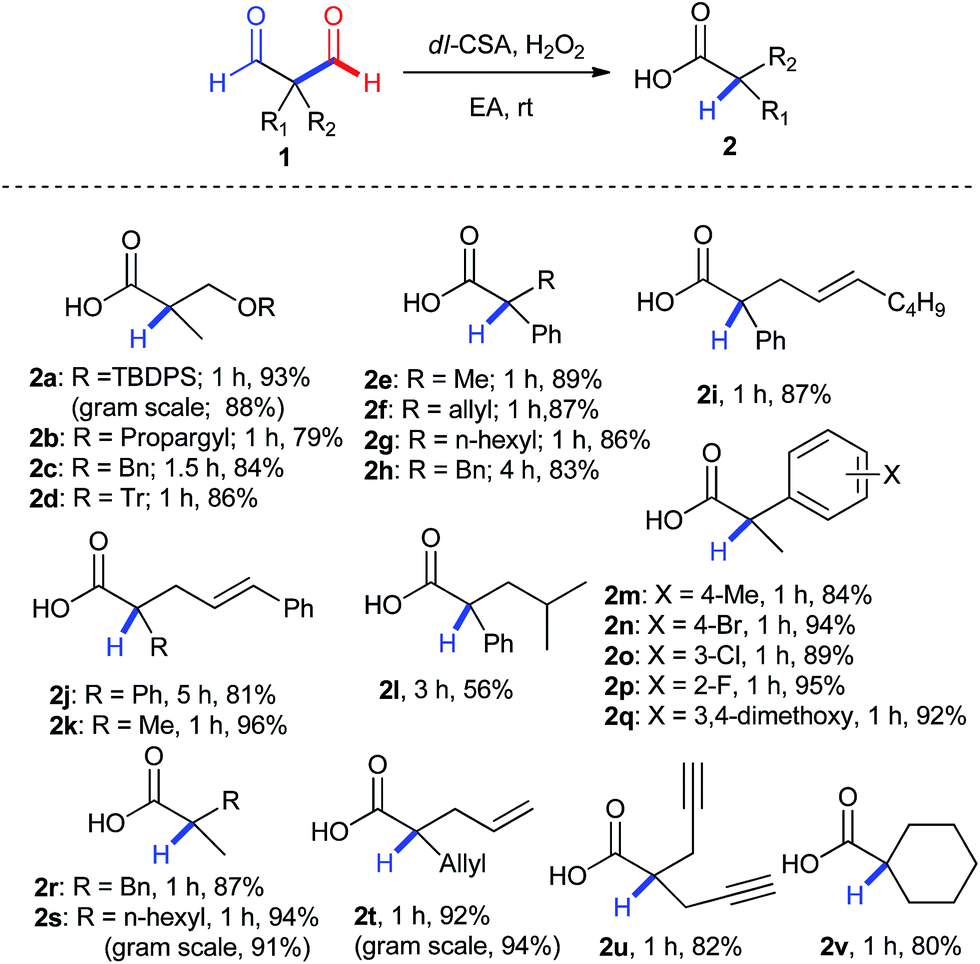

image file: c4ra11237g-s1.tif
Scheme 1 Substrate variation of oxidative decarbonylation of malondialdehyde.

Although H2O2 mediated C–C bond cleavage of 1,3-dicarbonyl compounds has been sporadically reported, mechanistic pathways of those reactions have not been fully studied to date.10 To gain insights into the reaction mechanism, the reaction progress was monitored by using 1H NMR spectroscopy in CDCl3 (see ESI). The diagram clearly showed that addition of catalytic CSA obviously accelerated the reaction and a self-catalytic effect of resulting carboxylic acids was also observed in the absence of catalyst. Analysis of 1H and 13C NMR spectra of reaction mixture also revealed the formation of formic acid in 50% yield, implying that both aldehydes were oxidized to carboxylic acids under the oxidative decarbonylation condition (Scheme 2, eqn (1)). To determine the source of α-proton of the resulting carboxylic acid, deuterated malondialdehyde 1e-d was also prepared and subjected to the standard reaction conditions (Scheme 2, eqn (2)). Interestingly, carboxylic acid 2e-d was obtained with completely deuterated on the α-position as judged by 1H NNR spectrum, indicating that one of the aldehyde protons shifted to the α-position during the course of oxidative decarbonylation reaction via a concert reaction pathway.


image file: c4ra11237g-s2.tif
Scheme 2 Mechanistic studies of the oxidative decarbonylation reaction.

To further elucidate the reaction pathway of the oxidative decarbonylation reaction, DFT calculations at the level of B3LYP/6-31g(d) in the gas phase were also performed by the Gaussian 09 programme.11 As depicted in Fig. 2, the calculation showed that unlike Baeyer–Villiger oxidation, the formation of Criegee intermediate I1 turned out to be the rate-limiting step of this reaction as transition state T1 suffered the largest free energy barrier (19.5 kcal mmol−1).2 Once the Criegee intermediate I1 formed, it quickly cyclized to 1,2-dioxolane I2 instead of formation of hydroxyaldehyde through Baeyer–Villiger transition state T-BV, as calculation showed that T2 (7.1 kcal mol−1 for cis-isomer and 6.3 kcal mol−1 for trans-isomer) suffered much lower free energy barrier than that of Baeyer–Villiger transition state T-BV (19.5 kcal mol−1). Once relatively stable intermediate I2 formed, fragmentation of I2 to carboxylic acids naturally took place as free energy barrier was 12.6 kcal mol−1 for cis-isomer and 15.8 kcal mol−1 for trans-isomer respectively, which could be easily overcome at room temperature. This could also explain why no signal of I2 was observed on 1H NMR spectrum of crude reaction mixture at room temperature (see ESI). It's also found by calculation that the fragmentation step was a concert process and transition state T3 underwent C–C, O–O and C–H bond cleavage with concurrent shift of hydride, which was antiperiplanar to the departure of formic acid (see ESI).

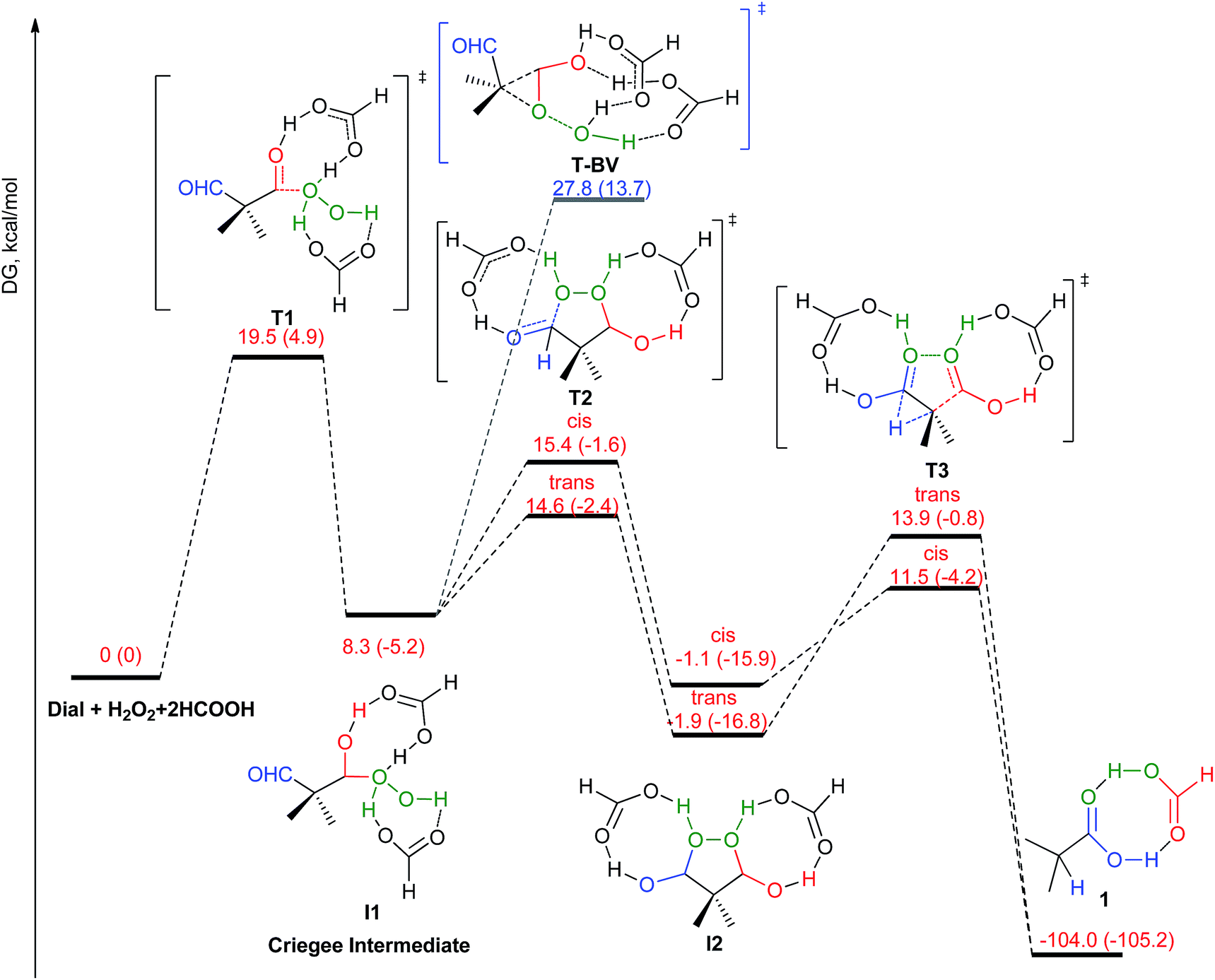

image file: c4ra11237g-f2.tif
Fig. 2 Reaction coordinate of the oxidative decarbonylation reaction. Gibbs free energies (enthalpies) are in kcal mol−1.

Based on the mechanistic studies and DFT calculations, we proposed a plausible mechanism for this novel interrupted Baeyer–Villiger oxidation (Scheme 3). Malondialdehyde 1 reacted with hydroperoxide to give Criegee intermediate I1 catalyzed by Brønsted acid. Rather than proceeding to the Baeyer–Villiger reaction pathway, Criegee intermediate I1 spontaneously underwent intramolecular acetalization between peroxide and the other aldehyde to deliver 1,2-dioxolane I2 with the aid of acid. Eventually, acid catalyzed fragmentation of 1,2-dioxolane I2 with concurrent cleavage of C–C, O–O and C–H bond and antiperiplanar shift of hydride led to carboxylic acid 2 and formic acid.

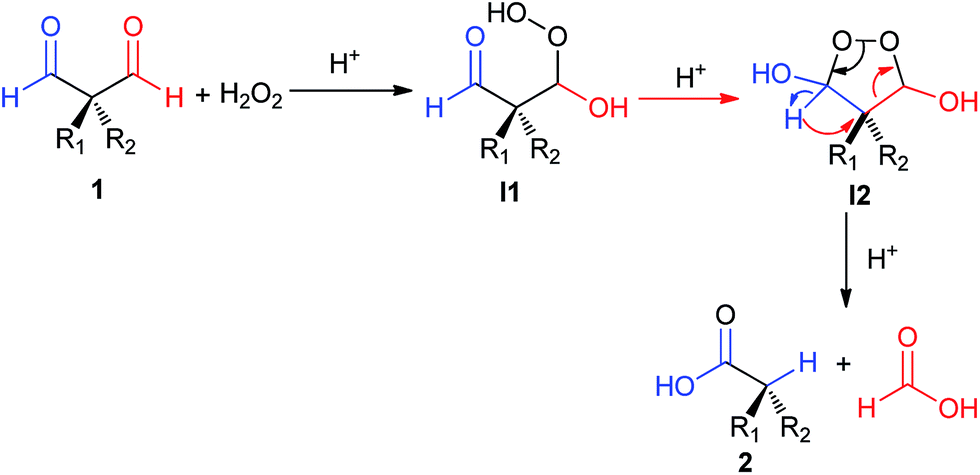

image file: c4ra11237g-s3.tif
Scheme 3 Proposed mechanism for the oxidative decarbonylation of malondialdehyde.

Conclusions

In summary, oxidative decarbonylation of malondialdehyde was efficiently achieved in good to excellent yields simply using H2O2 as oxidant. Deuterium experiment and DFT calculations showed that capture of Criegee intermediate via intramolecular acetalization with appendage aldehyde followed by concert C–C, O–O and C–H bond cleavage with concurrent migration of hydride was the reaction pathway. Currently, other type of interrupted Baeyer–Villiger oxidation based on tandem acetalization–fragmentation reaction of Criegee intermediate is actively explored in our laboratory.

Acknowledgements

We are grateful for financial support from the National Natural Science Foundation of China (grand no. 21202187, 21372239).

Notes and references

  1. For reviews see: (a) G. R. Krow, Comprehensive Organic Synthesis, Oxford, 1991, vol. 7, p. 671 Search PubMed; (b) G. R. Krow, Org. React., 1993, 43, 251 CAS; (c) G. Strukul, Angew. Chem., Int. Ed., 1998, 37, 1198 CrossRef; (d) M. Renz and B. Meunier, Eur. J. Org. Chem., 1999, 4, 737 CrossRef; (e) G.-J. ten Brink, I. W. C. E. Arends and R. A. Sheldon, Chem. Rev., 2004, 104, 4105 CrossRef PubMed.
  2. For mechanistic studies of Baeyer–Villiger oxidation, see: (a) S. L. Friess and A. H. Soloway, J. Am. Chem. Soc., 1951, 73, 3968 CrossRef CAS; (b) M. F. Hawthorne and W. D. Emmons, J. Am. Chem. Soc., 1958, 80, 6398 CrossRef CAS; (c) Y. Ogata and Y. Sawaki, J. Org. Chem., 1969, 34, 3985 CrossRef CAS; (d) B. W. Palmer and A. Fry, J. Am. Chem. Soc., 1970, 92, 2580 CrossRef CAS; (e) Y. Ogata and Y. Sawaki, J. Am. Chem. Soc., 1972, 94, 4189 CrossRef CAS; (f) M. A. Winnik and V. Stoute, Can. J. Chem., 1973, 51, 2788 CrossRef CAS; (g) M. A. Winnik, V. Stoute and P. Fitzgerald, J. Am. Chem. Soc., 1974, 96, 1977 CrossRef CAS; (h) Y. Itoh, M. Yamanaka and K. Mikami, J. Org. Chem., 2013, 78, 146 CrossRef CAS PubMed.
  3. For selected examples, see: (a) B. Kerr and K. J. McCullough, J. Chem. Soc., Chem. Commun., 1985, 9, 590 RSC; (b) C. Singh, Tetrahedron Lett., 1990, 31, 6901 CrossRef CAS; (c) P. M. O'Neill, M. Pugh, J. Davies, S. A. Ward and B. K. Park, Tetrahedron Lett., 2001, 42, 4569 CrossRef; (d) C. Singh, S. Pandey, G. Saxena, N. Srivastava and M. Sharma, J. Org. Chem., 2006, 71, 9057 CrossRef CAS PubMed; (e) S. Erhardt, S. A. Macgregor, K. J. McCullough, K. Savill and B. J. Taylor, Org. Lett., 2007, 9, 5569 CrossRef CAS PubMed; (f) M. Ravi, D. Anand, R. Maurya, P. Chauhan, N. K. Naikade, S. K. Shukl and P. P. Yadav, Synlett, 2013, 24, 0173 CAS; (g) J. F. B. Hall, R. A. Bourne, X. Han, J. H. Earley, M. Poliakoff and M. W. George, Green Chem., 2013, 15, 177 RSC.
  4. For reviews on artemisinin and its analogues, see the following: (a) D. L. Klayman, Science, 1985, 228, 1049 CAS; (b) Y. Tang, Y. Dong and J. L. Vennerstrom, Med. Res. Rev., 2004, 24, 425 CrossRef CAS PubMed; (c) C. W. Jefford, Drug Discovery Today, 2007, 12, 487 CrossRef CAS PubMed; (d) K. M. Muraleedharan and M. A. Avery, Drug Discovery Today, 2009, 14, 793 CrossRef CAS PubMed; (e) D. Chaturvedi, A. P. S. P. Goswami, N. C. Barua and P. G. Rao, Chem. Soc. Rev., 2010, 39, 435 RSC.
  5. (a) C. W. Jefford, D. Jaggi, S. Kohmoto, J. Boukouvalas and G. Bernardinelli, Helv. Chim. Acta, 1984, 67, 2254 CrossRef CAS; (b) C. W. Jefford, D. Jaggi, J. Boukouvalas and S. Kohmoto, J. Am. Chem. Soc., 1983, 105, 6497 CrossRef; (c) C. W. Jefford, S. Kohmoto, J. Boukouvalas and U. Burger, J. Am. Chem. Soc., 1983, 105, 6498 CrossRef; (d) D. M. Rubush, M. A. R. B. J. Morges, D. H. Thamm and T. Rovis, J. Am. Chem. Soc., 2012, 134, 13554 CrossRef CAS PubMed.
  6. (a) A. J. Bloodworth and A. Shah, J. Chem. Soc., Chem. Commun., 1991, 947 RSC; (b) J. E. Anderson, A. J. Bloodworth, J. Cai, A. G. Davies and N. A. Tallant, J. Chem. Soc., Chem. Commun., 1992, 1689 RSC; (c) J. Cai and A. G. Davies, J. Chem. Soc., Perkin Trans. 1, 1992, 3383 RSC; (d) A. J. Bloodworth and N. A. Tallant, J. Chem. Soc., Chem. Commun., 1992, 428 RSC; (e) J. E. Anderson, A. J. Bloodworth and A. Shah, J. Chem. Soc., Perkin Trans. 2, 1993, 1927 RSC; (f) A. J. Bloodworth and K. A. Johnson, Tetrahedron Lett., 1994, 35, 8057 CAS; (g) A. J. Bloodworth, T. Hagen, K. A. Johnson, I. LeNoir and C. Moussy, Tetrahedron Lett., 1997, 38, 635 CrossRef CAS.
  7. (a) J. F. Hartwig, Organotransition Metal Chemistry, from Bonding to Catalysis, University Science Books, New York, 2010 Search PubMed; (b) J. Tsuji, Organopalladium Chemistry for Organic Synthesis, Wiley, New York, 2002, vol. 2, p. 2648 Search PubMed.
  8. For Rh catalyzed reactions see: (a) J. Tsuji and K. Ohno, Tetrahedron Lett., 1965, 6, 3969 CrossRef; (b) K. Ohno and J. Tsuji, J. Am. Chem. Soc., 1968, 90, 99 CrossRef CAS; (c) D. H. Doughty and L. H. Pignolet, J. Am. Chem. Soc., 1978, 100, 7083 CrossRef CAS; (d) M. D. Meyer and L. I. Kruse, J. Org. Chem., 1984, 49, 3195 CrossRef CAS; (e) T. Shibata, N. Toshida and K. J. Takagi, Org. Chem., 2002, 67, 7446 CrossRef CAS; (f) R. K. Boeckman, J. Zhang and M. R. Reeder, Org. Lett., 2002, 4, 3891 CrossRef CAS PubMed; (g) T. Morimoto, K. Fuji, K. Tsutsumi and K. Kakiuchi, J. Am. Chem. Soc., 2002, 124, 3806 CrossRef CAS PubMed; (h) G. S. Weatherhead, G. A. Cortez, R. R. Schrock and A. H. Hoveyda, Proc. Natl. Acad. Sci. U. S. A., 2004, 101, 5805 CrossRef CAS PubMed; (i) M. Kreis, A. Palmelund, L. Bunch and R. Madsen, Adv. Synth. Catal., 2006, 348, 2148 CrossRef CAS; (j) P. Fristrup, M. Kreis, A. Palmelund, P. O. Norrby and R. Madsen, J. Am. Chem. Soc., 2008, 130, 5206 CrossRef CAS PubMed ; For Ru catalyzed reactions, see: ; (k) G. Domazetis, B. Tarpey, D. Dolphin and B. R. James, J. Chem. Soc., Chem. Commun., 1980, 939 RSC ; For Ir catalyzed reactions, see: ; (l) T. Iwai, T. Fujihara and Y. Tsuji, Chem. Commun., 2008, 6215 RSC ; For Pd catalyzed reactions, see: ; (m) J. O. Hawthorne and M. H. Wilt, J. Org. Chem., 1960, 25, 2215 CrossRef CAS; (n) J. Tsuji, K. Ohno and T. Kajimoto, Tetrahedron Lett., 1965, 6, 4565 CrossRef; (o) J. Tsuji and K. Ohno, J. Am. Chem. Soc., 1968, 90, 94 CrossRef CAS; (p) J. W. Wilt and W. W. Pawlikowski, J. Org. Chem., 1975, 40, 3641 CrossRef CAS; (q) S. Matsubara, Y. Yokota and K. Oshima, Org. Lett., 2004, 6, 2071 CrossRef CAS PubMed; (r) D. Ferri, C. Mondelli, F. Krumeich and A. Baiker, J. Phys. Chem. B, 2006, 110, 22982 CAS; (s) A. Modak, A. Deb, T. Patra, S. Rana, S. Maity and D. Maiti, Chem. Commun., 2012, 48, 4253 RSC.
  9. For recent applications in total synthesis, see: (a) T. Kato, M. Hoshikawa, Y. Yaguchi, K. Izumi, Y. Uotsu and K. Sakai, Tetrahedron, 2002, 58, 9213 CrossRef CAS; (b) R. K. Boeckman, J. Zhang and M. R. Reeder, Org. Lett., 2002, 4, 3891 CrossRef CAS PubMed; (c) S. M. Allin, S. L. James, M. R. J. Elsegood and W. P. Martin, J. Org. Chem., 2002, 67, 9464 CrossRef CAS PubMed; (d) M. G. Banwell, M. J. Coster, A. J. Edwards, O. P. Karunaratne, J. A. Smith, L. L. Welling and A. L. Willis, Aust. J. Chem., 2003, 56, 585 CrossRef CAS; (e) G. S. Weatherhead, G. A. Cortez, R. R. Schrock and A. H. Hoveyda, Proc. Natl. Acad. Sci. U. S. A., 2004, 101, 5805 CrossRef CAS PubMed; (f) J. P. Malerich, T. J. Maimone, G. I. Elliott and D. Trauner, J. Am. Chem. Soc., 2005, 127, 6276 CrossRef CAS PubMed; (g) M. Harmata and S. Wacharasindhu, Org. Lett., 2005, 7, 2563 CrossRef CAS PubMed; (h) A. Padwa and H. Zhang, J. Org. Chem., 2007, 72, 2570 CrossRef CAS PubMed; (i) H. Ueda, A. Takada and H. Tokuyama, Tetrahedron Lett., 2013, 54, 7115 CrossRef CAS.
  10. (a) C. Mannich, Chem. Ber., 1941, 74, 1007 CrossRef; (b) L. Ruzicka, Ed. Rey and A. C. Muhr, Helv. Chim. Acta, 1944, 27, 472 CrossRef CAS; (c) J. R. Billeter and K. Mieseher, Helv. Chim. Acta, 1946, 29, 859 CrossRef CAS; (d) J. Eichenberger, Helv. Chim. Acta, 1948, 31, 1663 CrossRef CAS PubMed; (e) G. B. Payne, J. Org. Chem., 1959, 24, 1830 CrossRef CAS; (f) G. B. Payne, J. Org. Chem., 1961, 26, 4793 CrossRef CAS; (g) W. Cocker and D. H. Grayson, J. Chem. Soc., Perkin Trans. 1, 1975, 1347 RSC.
  11. For detailed information of DFT calculation, see ESI..

Footnote

Electronic supplementary information (ESI) available: General experimental procedures, mechanical studies and spectroscopic date for the all compounds. See DOI: 10.1039/c4ra11237g
