Cellulose supported manganese dioxide nanosheet catalyzed aerobic oxidation of organic compounds

Ahmad Shaabani*, Zeinab Hezarkhani and Shabnam Shaabani
Faculty of Chemistry, Shahid Beheshti University, G. C., P. O. Box 19396-4716, Tehran, Iran. E-mail: a-shaabani@sbu.ac.ir

Received 24th September 2014 , Accepted 19th November 2014

First published on 19th November 2014


Abstract

Cellulose supported manganese dioxide nanosheets, as a heterogeneous bio-supported and green catalyst, were synthesized by soaking porous cellulose in a potassium permanganate solution. The prepared catalyst was used effectively for the oxidation of various types of alkyl arenes, alcohols and sulfides to their corresponding carbonyl and sulfoxide compounds, respectively in high yields using air as the oxidant at ambient pressure. The catalyst can be recycled and reused in five runs without any significant loss of efficiency. The mild reaction conditions for the oxidation of alcohols and sulfides, high yields, recyclability of the catalyst, and very easy workup procedure are other advantages of this catalyst.


1 Introduction

Oxidation reactions are among the most important transformations in synthetic chemistry, providing key methodologies to introduce and modify functional groups. The aerobic oxidation of alkyl arenes and alcohols to their corresponding carbonyl compounds is of significant importance in organic chemistry, both for fundamental research and industrial manufacturing.1 Reactions related to the production of sulfoxide containing compounds in organic chemistry, medicinal chemistry and drug metabolism are very important, too.2

Oxidation reactions have been traditionally performed using stoichiometric inorganic oxidants, which are relatively expensive, toxic, environmentally polluting. Also, they generate large amounts of by-products.3 Consequently, introducing green, biodegradable, recyclable, selective, and efficient aerobic oxidation systems for alkyl arenes, alcohols, and sulfides are of great importance for both economic and environmental reasons. Because of these reasons, different oxidation systems have been introduced; among them, manganese dioxide4 and manganese dioxide nanosheets5 are useful selective oxidizing reagents that are available for oxidation of organic compounds.

From both environmental and economic viewpoints, heterogeneous catalysts have attracted considerable interest for catalytic systems. Various materials have been employed as the support to produce heterogeneous catalytic systems, such as mesoporous silica,6 activated carbon,7 (bio)polymer8 and biomass.9 Recently, the direction of science and technology has been shifted to emphasis on environmentally friendly, sustainable resources and reusable catalytic processes. In this regard, natural biopolymers such as alginate,10 gelatin,11 starch,12 and chitosan13 derivatives are attractive candidates to be used as solid support for the catalysts. Among several heterogeneous bio-supports, cellulose and its derivatives, as a renewable resource, have unique properties, which make them attractive supports for catalytic applications.14

Manganese dioxide is a cheap, mild, low toxic, and selective reagent for the oxidation of a variety of functional groups, especially for the transformation of primary and secondary alcohols and alkyl arenes to the corresponding aldehydes and ketones. This catalyst has found an important place among the oxidants used in organic chemistry.4 MnO2, itself, is an aggregated heterogeneous catalyst whose catalytic activities have been underestimated because of a relatively low surface area (10–80 m2 g−1). Manganese dioxide nanostructures have large surface area and high catalytic activity.15 Using of cellulose as a support for MnO2 nanostructures produces the well distributed MnO2 on the surface of the cellulose with good dispersity;5 the obtained catalyst has better catalytic role than aggregated MnO2.

It is important to note, in the previous descriptions of MnO2 supported catalysts, procedure for separating manganese dioxide from solid supports such as kieselguhr,16 aluminum silicate,17 alumina,18 or silica,19 have not been reported. Our experiences with these reagents suggest that separation of the MnO2 from support, to reuse it, will not be easily achieved. We have, consequently, begun to investigate other strategies.20

The combination of MnO2 with cellulose produces a catalyst which effectively catalyses the aerobic oxidation of variety organic compounds. At the end of the catalytic oxidation process, the MnO2 is separable from cellulose by burning or chemical decomposing methods. Then, manganese dioxide can be used to regenerated potassium permanganate in a two stage process; involving air oxidation of MnO2 to potassium manganate(VI) in a concentrated potassium hydroxide solution followed by electrochemical oxidation.20a

In view of our general interest in aerobic oxidation reactions,21 cellulose-supported catalysts22 and KMnO4,23 herein we report a simple and convenient method for the aerobic oxidation of various types of primary and secondary benzylic hydrocarbons, alcohols and sulfides. The reaction condition is mild and the catalytic system includes MnO2 nanosheets on cellulose fibers (MnO2/cellulose) as a heterogeneous bio-supported catalyst. The introduced catalytic system is efficient, biodegradable, reusable, and uses the air at ambient pressure as the oxidant.

2 Materials and methods

2.1 General

All reagents were obtained from Aldrich or Merck and used without further purification. Mn(IV) determination was carried out on an FAAS (Shimadzu model AA-680 flame atomic absorption spectrometer) with a Mn hollow cathode lamp at 279.5 nm, using an air–acetylene flame. Thermogravimetric analysis (TGA) was carried out using STA 1500 instrument at a heating rate of 10 °C min−1 in air. Products were analyzed using a Varian 3900 GC. X-ray diffraction (XRD) pattern of product was recorded on a STOE STADI P with scintillation detector, secondary monochromator using Cu Kα radiation (λ = 0.1540 nm). Scanning electron microscopy (SEM) observations were carried out on an electron microscopy Philips XL-30 ESEM. All samples were sputtered with gold before observation.

2.2 Preparation of MnO2/cellulose

Five different procedures have been used to grow nanostructured MnO2 on the natural cellulose fibers:
2.2.1 Preparation of MnO2/cellulose 1 (method 1). To a magnetically stirred suspension of cellulose (1.00 g) in 20 mL of H2O, a 0.01 M solution of KMnO4 (120 mL) was added dropwise during 12 h at room temperature. The stirring was continued at room temperature for 72 h; the mixture was filtered and washed with CHCl3 (3 × 7 mL) and EtOH (3 × 10 mL), successively and dried under vacuum at 60 °C for 12 h to give MnO2/cellulose.
2.2.2 Preparation of MnO2/cellulose 2 (method 2). Cellulose (1.00 g) was added to 120 mL of solution of KMnO4 (0.01 M) during 12 h at room temperature. The mixture was stirred at room temperature for 72 h. Finally, the product was filtered and washed with CHCl3 (3 × 7 mL) and EtOH (3 × 10 mL), and dried under vacuum at 60 °C.
2.2.3 Preparation of MnO2/cellulose 3 (method 3). Manganese dioxide nanosheets on cellulose fiber was prepared from KMnO4 solution according to the report by Zhou and coworkers.5
2.2.4 Preparation of MnO2/cellulose 4 (method 4). In this procedure, first, a preheated solution of MnCl2 (0.02 M, 60 mL, 70 °C) was dropwise added to the solution of KMnO4 (0.01 M, 80.0 mL) at 60 °C to obtain active MnO2. After that, the mixture was filtered, washed with CHCl3 (3 × 7 mL) and EtOH (3 × 10 mL) and dried at 60 °C. Finally active MnO2 (0.11 g) was mixed with cellulose (1.00 g) by simple stirring to produce the desired MnO2/cellulose.
2.2.5 Preparation of MnO2/cellulose 5 (method 5). A mixture of cellulose (1.00 g) in 20 mL of H2O at 60 °C, a solution of KMnO4 (0.01 M, 80.0 mL) at 60 °C, and a solution of MnCl2 (0.02 M, 60 mL) at 70 °C were prepared, separately. In continue, the solutions of KMnO4 and MnCl2 were added dropwise to the mixture of cellulose for 12 h at 60 °C. The mixture was stirred at room temperature; after 24 h, it was filtered, and the residue washed successively with CHCl3 (3 × 7 mL) and EtOH (3 × 10 mL) and dried under vacuum at 60 °C.

The Mn(IV) content of the produced catalysts was determined using FAAS method. The amount of MnO2 in the MnO2/cellulose catalysts 1–5 was determined 6.19%, 7.03%, 8.59%, 9.01%, and 8.48%, respectively.

Thermogravimetric analysis (TGA) was used to analyze the contents of MnO2 in above mentioned MnO2/cellulose composites. In all of the TGA curves three stages could be observed. First stage occurred in the low temperature range (up to 200 °C). In this stage, the mass slowly decreased by 3.3%, 1.6%, 7.2%, 1.7% and 1.8% for MnO2/cellulose 1–5, respectively; it was related to the removal of adsorbed water on the surface in MnO2/cellulose 1–5 and part of the adsorbed oleic acid in MnO2/cellulose 5.5 In second stage, in the range of 200–400 °C, a large weight loss was observed which correspond to the decomposition of cellulose fibers and release of water from manganese oxide crystallites5,24 in MnO2/cellulose 1–5 and the complete removal of adsorbed oleic acid5,25 in MnO2/cellulose 5. In the third stage, in the range of 400–900 °C, the weight loss of about 0.8–3.9% for MnO2/cellulose 1–5 was observed, which is probably attributed to lattice oxygen.5,24,26 The amount of MnO2 in the MnO2/cellulose fiber composites is suggested to be 6.4%, 7.2%, 8.7%, 9.3%, and 8.6%, in MnO2/cellulose 1–5, respectively (Fig. 1), that corroborates the amount of MnO2 in the MnO2/cellulose catalysts 1–5 determined using FAAS method.


image file: c4ra11101j-f1.tif
Fig. 1 TG-DTA curves of MnO2 nanoparticle coated cellulose fibers (MnO2/cellulose 1 (a), MnO2/cellulose 2 (b), MnO2/cellulose 3 (c), MnO2/cellulose 4 (d), MnO2/cellulose 5 (e) and MnO2/cellulose 5 (f-a) and recovered MnO2/cellulose 5 (f-b)) in air.

TGA demonstrated that MnO2/cellulose was decomposed above 300 °C, which showed the relatively high thermal stability of this catalyst in air (Fig. 1f-a). Also, MnO2/cellulose recovered from the reaction has good thermal stability and was decomposed above 296 °C (Fig. 1f-b).

In addition to TGA, XRD pattern of cellulose fibers and MnO2/cellulose 5 was also employed to investigate the structure of the catalyst. Fig. 2 shows the XRD pattern of cellulose fibers and MnO2/cellulose fibers 5. A strong peak at 2θ = 22.56° and two weak peaks at 2θ of 5.01° and 15.07° can be ascribed to the cellulose.5,27 Four weak peaks at 2θ of 11.18°, 25.77°, 34.57°, and 64.44° are also observed that corresponded to manganese oxide nanosheets.5


image file: c4ra11101j-f2.tif

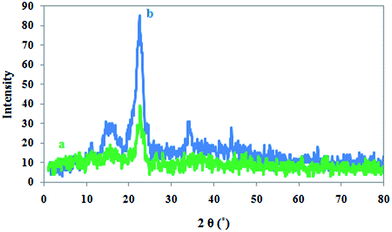

Fig. 2 XRD patterns of cellulose fibers (a) and MnO2 nanoparticle coated cellulose fibers obtained from method 5 (b).

The SEM analyses have been used to study the structure and morphology of the prepared MnO2 nanostructures coated on cellulose fibers (Fig. 3). The SEMs show good dispersity of MnO2 nanoparticles on cellulose fibers (Fig. 3a–f). Additionally, the energy dispersive spectroscopy (EDS) analysis, that determined the chemical composition of MnO2/cellulose composite, proves the presence of manganese in the MnO2/cellulose composite 5 (Fig. 3g).


image file: c4ra11101j-f3.tif
Fig. 3 SEM images of cellulose/MnO2 composites prepared from method 1 (a), 2 (b), 3 (c), 4 (d), and 5 (e and f) and EDS result for MnO2/cellulose 5 (g).

In the following section, the utility of the prepared catalysts has been examined, for aerobic oxidation of various organic compounds including alkyl arenes, alcohols, and sulfides.

2.3 Oxidation of alkyl arenes; general procedure

An alkyl arene (1 mmol) and MnO2/cellulose 5 (0.1 g, 10 mol%) were stirred in o-xylene (5 mL) under air blowing for several hours at 120 °C. The TLC method was used to investigate the progress of the reaction. After the filtration of the reaction mixture, analysis of the crude product has been done by GC method.

2.4 Oxidation of alcohols; general procedure

In a typical reaction, an alcohol (1 mmol) was added to a two-necked flask containing MnO2/cellulose 5 (0.1 g, 10 mol%), K2CO3 (0.5 mmol), and o-xylene (5 mL). The reaction mixture was stirred under air blowing for several hours at room temperature. The progress of the reaction was followed by thin layer chromatography (TLC). Upon completion, the reaction mixture was filtered and the filtrate was analyzed by GC method.

2.5 Oxidation of sulfides; general procedure

In a typical reaction, a sulfide (1 mmol), MnO2/cellulose 5 (0.1 g, 10 mol%), K2CO3 (0.5 mmol), and o-xylene (5 mL) have been stirred in a two-necked flask under air blowing. The reaction mixture was stirred at room temperature for several hours and the progress of the reaction was followed by GC method. Upon completion, the reaction mixture was filtered and the crude product analyzed by GC method. The yields were determined from the integrals of the GC analysis.

3 Results and discussion

To achieve a suitable catalytic system for aerobic oxidation, we examined various MnO2/cellulose catalysts 1–5 in the presence of K2CO3 as a base. Aerobic oxidation of benzyl alcohol was selected as a model reaction. Benzyl alcohol (0.1 g, 1.0 mmol), MnO2/cellulose (0.1 g), K2CO3 (0.07 g, 0.5 mmol) and o-xylene (5 mL) were added to a two-necked flask equipped with a air bubbling tube. Air was bubbled into the reaction mixture at a rate of 5 mL min−1. After completion of the reaction, as indicated by TLC method, MnO2/cellulose catalyst was separated by filtration and washed with acetone (2 × 5 mL), and EtOH (2 × 5 mL). The analysis of the crude product using GC method showed that only the aldehyde was produced selectively, and no acid product was observed.

The comparison of the results related to the use of catalyst prepared with the mentioned methods 1–5 revealed that the efficiency of MnO2/cellulose prepared by method 5 was higher than other MnO2/cellulose catalysts; the reaction yield was 99% after 7 h at room temperature. The order of activity of different MnO2/cellulose catalysts have been shown in Table 1 (Entries 2–6).

Table 1 Optimization of the reaction conditions for aerobic oxidation of alcoholsa
Entry Catalyst Amount of catalyst (MnO2 content/mol%) Solvent Base (mmol) Yieldb (%)
a Reaction conditions: benzyl alcohol (1.0 mmol), solvent (5 mL), air oxidant, room temperature, 7 h.b Yield determined by GC analysis.
1 Active MnO2 0.009 g (10) o-Xylene K2CO3 (0.5) 18
2 MnO2/cellulose 1 0.140 g (10) o-Xylene K2CO3 (0.5) 95
3 MnO2/cellulose 2 0.120 g (10) o-Xylene K2CO3 (0.5) 90
4 MnO2/cellulose 3 0.100 g (10) o-Xylene K2CO3 (0.5) 97
5 MnO2/cellulose 4 0.100 g (10) o-Xylene K2CO3 (0.5) 83
6 MnO2/cellulose 5 0.100 g (10) o-Xylene K2CO3 (0.5) 99
7 MnO2/cellulose 5 0.070 g (7.0) o-Xylene K2CO3 (0.5) 86
8 MnO2/cellulose 5 0.050 g (5.0) o-Xylene K2CO3 (0.5) 54
9 MnO2/cellulose 5 0.020 g (2.0) o-Xylene K2CO3 (0.5) 31
10 MnO2/cellulose 5 0.100 g (10) o-Xylene K2CO3 (0.4) 91
11 MnO2/cellulose 5 0.100 g (10) o-Xylene K2CO3 (0.3) 84
12 MnO2/cellulose 5 0.100 g (10) o-Xylene KOH (0.5) 51
13 MnO2/cellulose 5 0.100 g (10) o-Xylene 16
14 MnO2/cellulose 5 0.100 g (10) n-Hexane K2CO3 (0.5) 93
15 MnO2/cellulose 5 0.100 g (10) Toluene K2CO3 (0.5) 89
16 MnO2/cellulose 5 0.100 g (10) H2O K2CO3 (0.5) 7
17 MnO2/cellulose 5 0.100 g (10) MeOH K2CO3 (0.5) 5
18 MnO2/cellulose 5 0.100 g (10) EtOH K2CO3 (0.5) 5
19 MnO2/cellulose 5 0.100 g (10) CH2Cl2 K2CO3 (0.5) 47
20 MnO2/cellulose 5 0.100 g (10) THF K2CO3 (0.5) 14
21 MnO2/cellulose 5 0.100 g (10) CH3CN K2CO3 (0.5) 18


It is important to note that the aerobic oxidation of benzyl alcohol did not proceed efficiently without air blowing and the benzaldehyde was produced only about 6% after 12 h stirring at room temperature.

In order to find the best reaction conditions, optimization studies were performed with aerobic oxidation of benzyl alcohol, as a model substrate, in the presence of various amounts of MnO2/cellulose using K2CO3 in o-xylene as a solvent at room temperature. As indicated in Table 1, the present catalysts (MnO2 nanostructures on cellulose) have better catalytic role than aggregated active MnO2 (Entries 1–6). Percentage of MnO2 loading on cellulose affected the catalytic activity of MnO2/cellulose.5 The optimal MnO2 loading is 8.48% that related to MnO2/cellulose 5 (Table 1, Entries 2–6). Effect of various solvents was examined on the reaction yields, as well. Based on these experiments o-xylene was found as the prefered solvent (Table 1, Entries 6, 14–21). Also, different amount of the base was used to obtain the prefered amount of it. As it is clear from the Table 1 (Entries 6, 10, 11) the 0.5 mmol of the base is providing the best result.

As mentioned before, the efficiency of MnO2/cellulose 5 was higher than other MnO2/cellulose catalysts, therefore the selective oxidation of various alcohols to the corresponding aldehydes and ketones in the presence of MnO2/cellulose 5, as a catalyst, and K2CO3, as a base, in o-xylene at room temperature was studied (Table 2).

Table 2 Selective aerobic oxidation of various alcohols to corresponding aldehydes and ketonesa
Entry Alcohol Product Time (h) Yieldb (%)
a Reaction conditions: alcohol (1.0 mmol), MnO2/cellulose (0.1 g), K2CO3 (0.5 mmol), o-xylene (5 mL), air oxidant, room temperature.b Yield determined by GC analysis.
1 image file: c4ra11101j-u1.tif image file: c4ra11101j-u2.tif 7 99

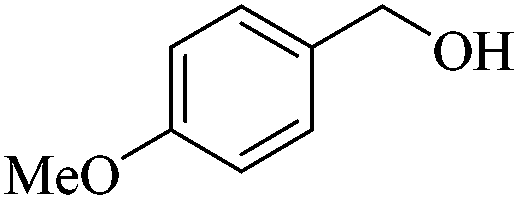

2 image file: c4ra11101j-u3.tif image file: c4ra11101j-u4.tif 7 90
3 image file: c4ra11101j-u5.tif image file: c4ra11101j-u6.tif 7 86

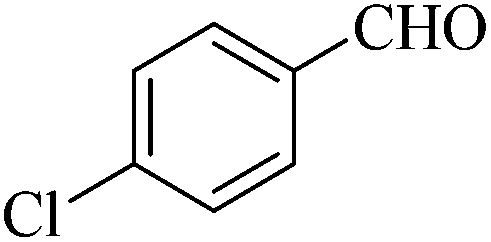

4 image file: c4ra11101j-u7.tif image file: c4ra11101j-u8.tif 7 91
5 image file: c4ra11101j-u9.tif image file: c4ra11101j-u10.tif 7 96
6 image file: c4ra11101j-u11.tif image file: c4ra11101j-u12.tif 7 98

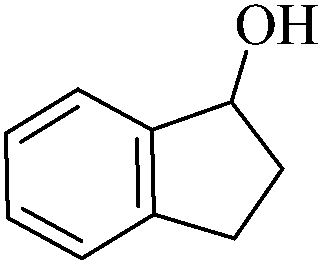

7 image file: c4ra11101j-u13.tif image file: c4ra11101j-u14.tif 8 98

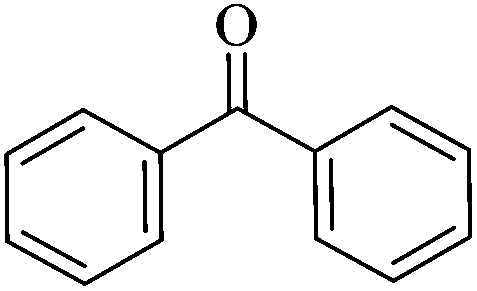

8 image file: c4ra11101j-u15.tif image file: c4ra11101j-u16.tif 6 96

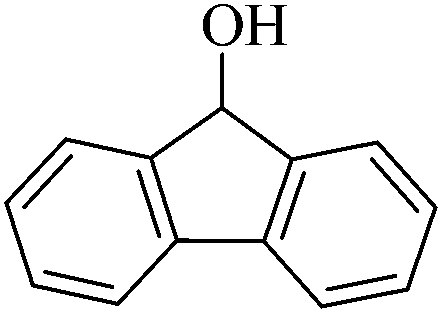

9 image file: c4ra11101j-u17.tif image file: c4ra11101j-u18.tif 8 92
10 image file: c4ra11101j-u19.tif image file: c4ra11101j-u20.tif 8 89
11 image file: c4ra11101j-u21.tif image file: c4ra11101j-u22.tif 15 77

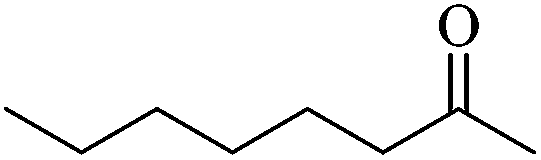

12 image file: c4ra11101j-u23.tif image file: c4ra11101j-u24.tif 15 79
13 image file: c4ra11101j-u25.tif image file: c4ra11101j-u26.tif 15 75
14 image file: c4ra11101j-u27.tif image file: c4ra11101j-u28.tif 15 78
15 image file: c4ra11101j-u29.tif image file: c4ra11101j-u30.tif 15 74

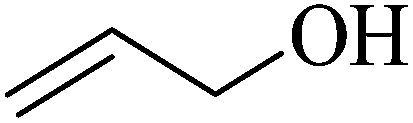

16 image file: c4ra11101j-u31.tif image file: c4ra11101j-u32.tif 15 75


In the next step, the oxidation of the alkyl arenes to related carbonyl compounds was studied. The results of the mentioned reaction is provided in the Table 3. The reaction was done at 120 °C under air blowing with good to high yields. In this case, such as the oxidation of the alcohols, the oxidation was proceeded selectively and no carboxylic acid product was produced during the reaction.

Table 3 Optimization of the reaction conditions for aerobic oxidation of arenes. Aerobic oxidation of various alkyl arenes to corresponding ketonesa,c
Entry Catalyst Amount of catalyst (MnO2 content/mol%) Solvent Base (mmol) Yieldb (%)
a Reaction conditions: indane (1.0 mmol), solvent (5 mL), air oxidant, ref., 13 h.b Yield determined by GC analysis.c Reaction conditions: alkyl arene (1.0 mmol), MnO2/cellulose (0.1 g), solvent (15 mL), air oxidant, 120 °C.
1 Active MnO2 0.009 g (10) o-Xylene 31
2 MnO2/cellulose 1 0.140 g (10) o-Xylene 81
3 MnO2/cellulose 2 0.120 g (10) o-Xylene 78
4 MnO2/cellulose 3 0.100 g (10) o-Xylene 85
5 MnO2/cellulose 4 0.100 g (10) o-Xylene 70
6 MnO2/cellulose 5 0.100 g (10) o-Xylene 89
7 MnO2/cellulose 5 0.100 g (10) n-Hexane 61
8 MnO2/cellulose 5 0.100 g (10) Toluene 80
9 MnO2/cellulose 5 0.100 g (10) H2O 4
10 MnO2/cellulose 5 0.100 g (10) MeOH 9
11 MnO2/cellulose 5 0.100 g (10) EtOH 6
12 MnO2/cellulose 5 0.100 g (10) CH2Cl2 13
13 MnO2/cellulose 5 0.100 g (10) THF 18
14 MnO2/cellulose 5 0.100 g (10) CH3CN 21
15 MnO2/cellulose 5 0.100 g (10) o-Xylene K2CO3 (0.5) 56
16 MnO2/cellulose 5 0.100 g (10) o-Xylene KOH (0.5) 42

Entry Alkyl arene Time (h) Solvent Yield of ketoneb (%)
17 image file: c4ra11101j-u33.tif 10 o-Xylene 91
18 image file: c4ra11101j-u34.tif 10 o-Xylene 89
19 image file: c4ra11101j-u35.tif 15 o-Xylene 81
20 image file: c4ra11101j-u36.tif 13 o-Xylene 82
21 image file: c4ra11101j-u37.tif 13 o-Xylene 87
22 image file: c4ra11101j-u38.tif 13 o-Xylene 89
23 image file: c4ra11101j-u39.tif 13 o-Xylene 94
24 image file: c4ra11101j-u40.tif 13 o-Xylene 87
25 image file: c4ra11101j-u41.tif 14 o-Xylene 88


To extend the scope of the prepared catalysts, the oxidation of the sulfides to the related oxygenated compounds has been studied as well. In this study, the MnO2/cellulose 5 catalyst was used. The obtained results have been presented in the Table 4. The reaction was proceed smoothly with good to high yields. Oxidation of sulfides with manganese dioxide is known to give only sulfoxides.20a This procedure used for the oxidation of sulfides to sulfoxides without any overoxidation to sulfones.

Table 4 Selectively aerobic oxidation of various sulfides to corresponding sulfoxides and sulfonesa

image file: c4ra11101j-u42.tif

Entry Sulfide Product Catalyst Time (h) Yieldb (%)
a Reaction conditions: sulfide (1.0 mmol), MnO2/cellulose (0.1 g), KMnO4 (0.4 g), o-xylene (5 mL), air oxidant, room temperature.b Yield determined by GC analysis.
1 image file: c4ra11101j-u43.tif image file: c4ra11101j-u44.tif MnO2/cellulose 5 4 95
image file: c4ra11101j-u45.tif MnO2/cellulose 5, KMnO4 2 94

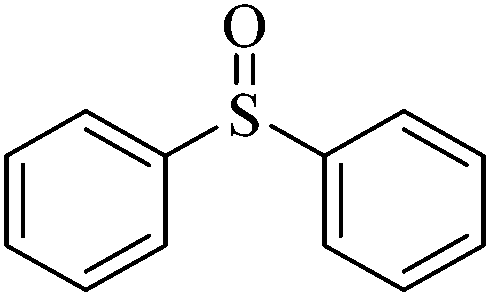

2 image file: c4ra11101j-u46.tif image file: c4ra11101j-u47.tif MnO2/cellulose 5 7 91
image file: c4ra11101j-u48.tif MnO2/cellulose 5, KMnO4 5 92
3 image file: c4ra11101j-u49.tif image file: c4ra11101j-u50.tif MnO2/cellulose 5 12 87
image file: c4ra11101j-u51.tif MnO2/cellulose 5, KMnO4 11 80
4 image file: c4ra11101j-u52.tif image file: c4ra11101j-u53.tif MnO2/cellulose 5 15 85
image file: c4ra11101j-u54.tif MnO2/cellulose 5, KMnO4 12 76
5 image file: c4ra11101j-u55.tif image file: c4ra11101j-u56.tif MnO2/cellulose 5 4.5 92
image file: c4ra11101j-u57.tif MnO2/cellulose 5, KMnO4 3 89
6 image file: c4ra11101j-u58.tif image file: c4ra11101j-u59.tif MnO2/cellulose 5 5.5 90

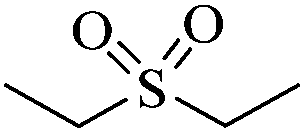

image file: c4ra11101j-u60.tif MnO2/cellulose 5, KMnO4 2 88
7 image file: c4ra11101j-u61.tif image file: c4ra11101j-u62.tif MnO2/cellulose 5 6 87
image file: c4ra11101j-u63.tif MnO2/cellulose 5, KMnO4 2.5 93


Both sulfoxides and sulfones are important intermediates in the synthesis of organic compounds.2a Based on the previous reports, the oxidation of the sulfides in the presence of potassium permanganate lead to the sulfone derivatives.20a Therefore, we used potassium permanganate and the prepared MnO2/cellulose 5 catalyst. The examination of the catalyst in the oxidation reaction of the sulfides showed that the desired product was obtained in good yields. To obtain the sulfone product, sulfide reactant in the presence of KMnO4 (0.4 g), and the catalytic amount of the MnO2/cellulose 5 (0.1 g, 10 mol%), was stirred at room temperature for 2–12 h, while bubbling the air into the reaction media. The reaction was proceeded effectively and selectively for the oxidation of sulfides to sulfones20a (Table 4).

In order to investigate the selectivity of aerobic oxidation of various organic compounds to the related products, we used mixed primary and secondary benzyl alcohols (Table 5, Entry 1) and alkylalcohols (Table 5, Entry 2) as the reactants. The reaction has been done in the presence of MnO2/cellulose 5 as a solid catalyst at room temperature during 7 and 15 h, respectively. The results have been presented in the Table 5. The analysis of the results revealed that at first step only one of the reactants undergoes oxidation reaction. The oxidation of the secondary functional group is favored based on the observed results. In both of the mentioned cases, after the completion of the oxidation of the reactant containing the secondary functional group, the oxidation of the primary alcohol was started. Using 2-ethylheptane-1,3-diol, a diol with both primary and secondary hydroxyl functional groups, only product 3-(hydroxymethyl)octan-4-one was obtained (Table 5, Entry 3). In this case, after 15 h, aldehyde formation was started, as well.

Table 5 Selectivity of aerobic oxidation of various alcoholsa
Entry Alcohol Product Time (h) Yieldb (%)
a Reaction conditions: any alcohol (1.0 mmol), MnO2/cellulose (0.1 g), K2CO3 (0.5 mmol), o-xylene (5 mL), air oxidant, room temperature.b Yield determined by GC analysis and the integrals of the 1H NMR.
1 image file: c4ra11101j-u64.tif image file: c4ra11101j-u65.tif 7 96

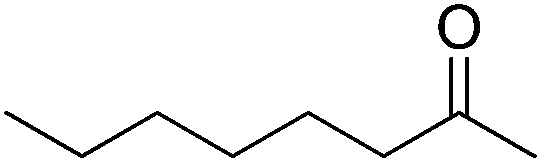

2 image file: c4ra11101j-u66.tif image file: c4ra11101j-u67.tif 15 75

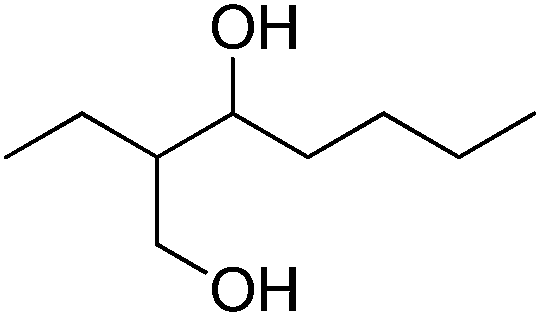

3 image file: c4ra11101j-u68.tif image file: c4ra11101j-u69.tif 15 81


Recyclability of the MnO2/cellulose was examined in the oxidation reaction of benzyl alcohol. For this reason, catalyst which was recovered from reaction by filtration was reused in the reaction after drying under vacuum at 60 °C. This procedure was carried out for five repetitive cycles; the same analysis was used for the oxidation of the arenes and sulfides. The results showed that only minor decreases in the reaction yields were observed (Fig. 4) and the activity of the catalyst was saved during successive uses.


image file: c4ra11101j-f4.tif
Fig. 4 Recycle of the catalyst for the oxidation of the alcohols, sulfides, and arenes. The catalyst was used in five successive runs after recycling.

The results of our investigation are compared with previous reports of oxidation by MnO2 (ref. 16, 17, 19 and 28–30) from yields and the reaction times viewpoints (Table 6). The results show that MnO2 impregnated on cellulose is the best oxidant reagent.

Table 6 Comparison of the results obtained from active MnO2, MnO2 on different supports and nano MnO2 impregnated on cellulose for the oxidation of benzyl alcohol
Entry Catalyst Conditions Molar ratio substrate to MnO2 Time (h) Yield (%) Ref.
1 Active MnO2 Solvent free/r.t. 1[thin space (1/6-em)]:[thin space (1/6-em)]0.08 48 77 28
2 Active MnO2 Toluene/O2/110 °C 1[thin space (1/6-em)]:[thin space (1/6-em)]0.8 4 85 29
3 MnO2/graphite CH2Cl2/ref. 1[thin space (1/6-em)]:[thin space (1/6-em)]2 10 92 30
4 MnO2/kieselguhr CH2Cl2/ref. 1[thin space (1/6-em)]:[thin space (1/6-em)]2 10 90 16a
5 MnO2/kieselguhr Solvent free/50–55 °C/grind 1[thin space (1/6-em)]:[thin space (1/6-em)]2 3 95 16b
6 MnO2/aluminum silicate CH2Cl2/ref. 1[thin space (1/6-em)]:[thin space (1/6-em)]3 12 96 17
7 MnO2/silica Solvent free/ref./microwave irradiations 1[thin space (1/6-em)]:[thin space (1/6-em)]5 0.3 88 19
8 Nano MnO2/cellulose 5 o-Xylene/air/r.t. 1[thin space (1/6-em)]:[thin space (1/6-em)]0.1 7 99 This work


4 Conclusion

Coordination of MnO2 nanosheets to cellulose fibers easily provides its immobilization. The distribution of MnO2 on the surface of cellulose fibers gave an active catalytic system with 8.48% loading of MnO2. Using MnO2/cellulose composite as a bio-supported heterogeneous catalyst, in the selective oxidation of various primary and secondary alcohols, alkyl arenes, and sulfides have several advantages such as excellent yield, easy workup procedure, recyclability of catalyst with no loss in its activity, use of inexpensive catalyst, and mild reaction conditions without using any expensive oxidants. The prepared catalyst showed high selectivity in the oxidation of the alcohols to the related aldehydes or ketones and no carboxylic acid was produced. Similar selectivity for the oxidation of alkyl arenes was also observable, which increases the utility of the prepared catalyst in complex systems. In addition, this catalyst can be used for the oxidation of sulfides to sulfoxides without any overoxidation to sulfones.

Acknowledgements

We gratefully acknowledge financial support from the Iran National Science Foundation (INSF), the Research Council of Shahid Beheshti University and Catalyst Center of Excellence (CCE) at Shahid Beheshti University.

References

  1. Handbook of Reagents for Organic Synthesis, Oxidizing and Reducing Agents, ed. S. D. Burke and R. L. Danheiser, John Wiley and Sons, Chichester, UK, 1999 Search PubMed.
  2. (a) The Chemistry of Sulphones and Sulphoxides, ed. S. Patai, Z. Rappoport and C. J. M. Stirling, John Wiley, New York, 1988 Search PubMed; (b) Organosulfur Chemistry II, ed. P. C. B. Page, Springer, Berlin, Germany, 1999 Search PubMed.
  3. (a) A. H. Haines, Methods for the Oxidation of Organic Compounds, Academic Press, London, 1985 Search PubMed; (b) Modern Oxidation Methods, ed. J. E. Backvall, Wiley-VCH, Weinheim, 2004 Search PubMed.
  4. (a) A. J. Fatiadi, Synthesis, 1976, 65–104 CrossRef CAS; (b) A. T. Soldatenkov, K. B. Polyanskii, N. M. Kolyadina and S. A. Soldatova, Chem. Heterocycl. Compd., 2009, 45, 633–657 CrossRef CAS PubMed; (c) R. J. K. Taylor, M. Reid, J. Foot and S. A. Raw, Acc. Chem. Res., 2005, 38, 851–869 CrossRef CAS PubMed.
  5. L. Zhou, J. He, J. Zhang, Z. He, Y. Hu, C. Zhang and H. He, J. Phys. Chem. C, 2011, 115, 16873–16878 CAS.
  6. A. I. Carrillo, L. C. Schmidt, M. L. Marin and J. C. Scaiano, Catal. Sci. Technol., 2014, 4, 435–440 CAS.
  7. A. E. Aksoylu, M. Madalena, A. Freitas, M. F. R. Pereira and J. Figueiredo, Carbon, 2001, 39, 175–185 CrossRef CAS.
  8. D. Klemm, B. Heublein, H. P. Fink and A. Bohn, Angew. Chem., Int. Ed., 2005, 44, 3358–3393 CrossRef CAS PubMed.
  9. M. F. Lengke, M. E. Fleet and G. Southam, Langmuir, 2007, 23, 8982–8987 CrossRef CAS PubMed.
  10. W. L. Wei, H. Y. Zhu, C. L. Zhao, M. Y. Huang and Y. Y. Jiang, React. Funct. Polym., 2004, 59, 33–39 CrossRef CAS PubMed.
  11. C. Crecchio, P. Ruggiero and M. D. R. Pizzigallo, Biotechnol. Bioeng., 1995, 48, 585–591 CrossRef CAS PubMed.
  12. K. Huang, L. Xue, Y. C. Hu, M. Y. Huang and Y. Y. Jiang, React. Funct. Polym., 2002, 50, 199–203 CrossRef CAS.
  13. E. Guibal, Prog. Polym. Sci., 2005, 30, 71–109 CrossRef CAS PubMed.
  14. R. J. Moon, A. Martini, J. Nairn, J. Simonsen and J. Youngblood, Chem. Soc. Rev., 2011, 40, 3941–3994 RSC.
  15. R. Nie, J. Shi, S. Xia, L. Shen, P. Chen, Z. Hou and F. S. Xiao, J. Mater. Chem., 2012, 22, 18115–18118 RSC.
  16. (a) J. D. Lou, J. Ge, X. N. Zou, C. Zhang, Q. Wang and Y. C. Ma, Oxid. Commun., 2011, 34, 361–365 CAS; (b) L. Y. Zhu, Z. Lou, J. Lin, W. Zheng, C. Zhang and J. D. Lou, Res. Chem. Intermed., 2013, 39, 4287–4292 CrossRef CAS.
  17. L. H. Huang, Y. C. Ma, C. Zhang, Q. Wang, X. Zou and J. D. Lou, Synth. Commun., 2012, 42, 3377–3382 CrossRef CAS.
  18. S. M. Maliyekkal, A. K. Sharma and L. Philip, Water Res., 2006, 40, 3497–3506 CrossRef CAS PubMed.
  19. S. R. Varma, R. K. Saini and R. Dahiya, Tetrahedron Lett., 1997, 38, 7823–7824 CrossRef.
  20. (a) A. Shaabani, P. Mirzaei, S. Naderi and D. G. Lee, Tetrahedron, 2004, 60, 11415–11420 CrossRef CAS PubMed; (b) A. Shaabani, P. Mirzaei and D. G. Lee, Catal. Lett., 2004, 97, 3–4 CrossRef.
  21. (a) A. Shaabani and A. Rahmati, Catal. Commun., 2008, 9, 1692–1697 CrossRef CAS PubMed; (b) A. Shaabani, E. Farhangi and A. Rahmati, Appl. Catal., A, 2008, 338, 14–19 CrossRef CAS PubMed.
  22. (a) A. Shaabani, A. Rahmati and Z. Badri, Catal. Commun., 2008, 9, 13–16 CrossRef CAS PubMed; (b) S. Keshipour, S. Shojaei and A. Shaabani, Cellulose, 2013, 20, 973–980 CrossRef CAS.
  23. (a) A. Shaabani and D. G. Lee, Tetrahedron Lett., 2001, 42, 5833–5836 CrossRef CAS; (b) A. Shaabani, A. Bazgir, F. Teimouri and D. G. Lee, Tetrahedron Lett., 2002, 43, 5165–5167 CrossRef CAS.
  24. X. Chen, Y. F. Shen, S. L. Suib and C. L. O'Young, Chem. Mater., 2002, 14, 940–948 CrossRef CAS.
  25. H. M. Chen and J. H. He, J. Phys. Chem. C, 2008, 112, 17540–17545 CAS.
  26. J. B. Fernandes, B. D. Desai and V. N. K. Dalal, J. Appl. Electrochem., 1985, 15, 351–363 CrossRef CAS.
  27. C. H. Kuo and C. K. Lee, Carbohydr. Polym., 2009, 77, 41–46 CrossRef CAS PubMed.
  28. J. D. Lou and Z.-N. Xu, Tetrahedron Lett., 2002, 43, 6149–6150 CrossRef CAS.
  29. A. Kamimura, H. Komatsu, T. Moriyama and Y. Nozaki, Tetrahedron, 2013, 69, 5968–5972 CrossRef CAS PubMed.
  30. J. D. Lou, X. L. Lu, L. H. Huang, Q. Wang and X. N. Zou, Synth. React. Inorg., Met.-Org., Nano-Met. Chem., 2011, 41, 1342–1345 CrossRef CAS.

This journal is © The Royal Society of Chemistry 2014
Click here to see how this site uses Cookies. View our privacy policy here.
