Fine tuning of the sheet distance of graphene oxide that affects the activity and substrate selectivity of a Pd/graphene oxide catalyst in the Heck reaction

Akinori Saitoa, Shun-ichi Yamamotob and Yuta Nishina*bc
aGraduate School of Natural Science and Technology, Okayama University, 3-1-1, Tsushimanaka, Kita-ku, Okayama 700-8530, Japan
bResearch Core for Interdisciplinary Sciences, Okayama University, 3-1-1, Tsushimanaka, Kita-ku, Okayama 700-8530, Japan. E-mail: nisina-y@cc.okayama-u.ac.jp
cPrecursory Research for Embryonic Science and Technology, Japan Science and Technology Agency, 4-1-8 Honcho, Kawaguchi, Saitama 332-0012, Japan

Received 16th September 2014 , Accepted 22nd October 2014

First published on 23rd October 2014


Abstract

The interlayer distance of graphene oxide (GO) in a Pd/GO composite could be tuned using cationic surfactants. The distance becomes larger when a large surfactant is used. The catalytic activity in Heck reactions dramatically improved using the surfactant-modified Pd/GO catalyst. Substrate selectivity could also be improved by adjusting the size of the surfactant to increase accessibility of substrates to the active catalytic centre.


Graphene oxide (GO), prepared by oxidation of graphite using potassium permanganate or another strong oxidizing reagent,1–4 has a large theoretical surface area of >2000 m2 g−1, derived from its 2-dimensional sheet structure with one-carbon atom thickness. A promising application of GO is to make graphene by reduction; however, it has been difficult to remove oxygen functional groups (–COOH, –OH, and C–O–C) completely.5 Recent advances in the efficient reduction of GO and its application as energy storage electrode materials6 has strongly attracted much attention. In addition, preparation of composite materials of GO with polymers,7 metals,8 and organic molecules9 has also been well developed. Among these applications, we have focused on the preparation of metal nanoparticle–GO composites and the application of catalysts in organic reactions. Palladium (Pd) is one of the most frequently used metals in catalysis,10 therefore, many Pd/GO composites have been prepared and used as a catalyst.11 GO is quite resistant to acidic and oxidative conditions, on the other hand, it tends to aggregate under high temperature, basic, and reductive conditions by elimination of its oxygen functional groups.12 The aggregation of GO dramatically reduces its surface area, therefore, the catalytic activity of a Pd/GO composite also decreases under harsh conditions. To prevent the aggregation of GO, functionalization with surfactants,13 esters,14 amides,9a,15 or silane coupling agents16 has often been proposed. Among these methods, functionalization with a surfactant is readily applicable to tune the sheet distance of GO.13a We have developed Pd/GO and Pd/graphene composites as efficient catalysts in Suzuki–Miyaura reactions and selective hydrogenation reactions.11d,17 Suzuki–Miyaura reactions can proceed under mild reaction conditions, therefore, significant aggregation of GO does not occur, maintaining the high catalytic activity.17a On the other hand, Heck reactions require higher reaction temperatures, leading to the aggregation of GO to decrease the catalytic activity (Table 1, entry 1), therefore, Pd on activated carbon (Pd/C) showed higher catalytic activity in the Heck reaction than Pd/GO.18 We applied surfactant-modification to a Pd/GO catalyst to improve catalytic activity,19 as well as substrate selectivity in Heck reactions.
Table 1 Screening of additivesa

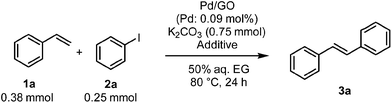

image file: c4ra10512e-u1.tif

Entry Additive Yieldb of 3a (%)
a Reaction conditions: styrene (1a, 0.38 mmol), iodobenzene (2a, 0.25 mmol), Pd/GO (Pd: 0.09 mol%), K2CO3 (0.75 mmol) and additive were mixed in 50% aq. ethylene glycol at 80 °C for 24 h.b Yields were determined by GC using dodecane as an internal standard.c Tetramethylammonium bromide.d Tetrabutylammonium bromide.e Hexadecyltrimethylammonium bromide.f Dimethyldipalmitylammonium bromide.g Sodium dodecyl sulfate.h 60 °C.i 100 °C.
1 29
2 TMABc (0.13 mmol) 30
3 TBABd (0.13 mmol) 42
4 C16TABe (0.13 mmol) 90
5 DMDPABf (0.13 mmol) 65
6 SDSg (0.13 mmol) 20
7 C16TAB (0.06 mmol) 74
8 C16TAB (0.19 mmol) 89
9 C16TAB (0.25 mmol) 83
10h C16TAB (0.19 mmol) 31
11i C16TAB (0.19 mmol) 84


Initially, sheet distance of Pd/GO20 and its surfactant-modified Pd/GO composites was analysed by X-ray diffraction (XRD) using Bragg's equation. A cationic surfactant (ammonium) with different lengths of alkyl chains was investigated. The interlayer distance of Pd/GO was 0.87 nm, slightly larger than the original GO (d = 0.86 nm). As the size of alkyl chain of ammonium ion increased, the distance also increased; tetramethylammonium (Pd/GO + TMAB, d = 0.92 nm), tetrabutylammonium (Pd/GO + TBAB, d = 1.00 nm), hexadecyltrimethylammonium (Pd/GO + C16TAB, d = 1.19 nm), dimethyldipalmitylammonium (Pd/GO + DMDPAB, d = 2.80 nm) (Fig. 1).

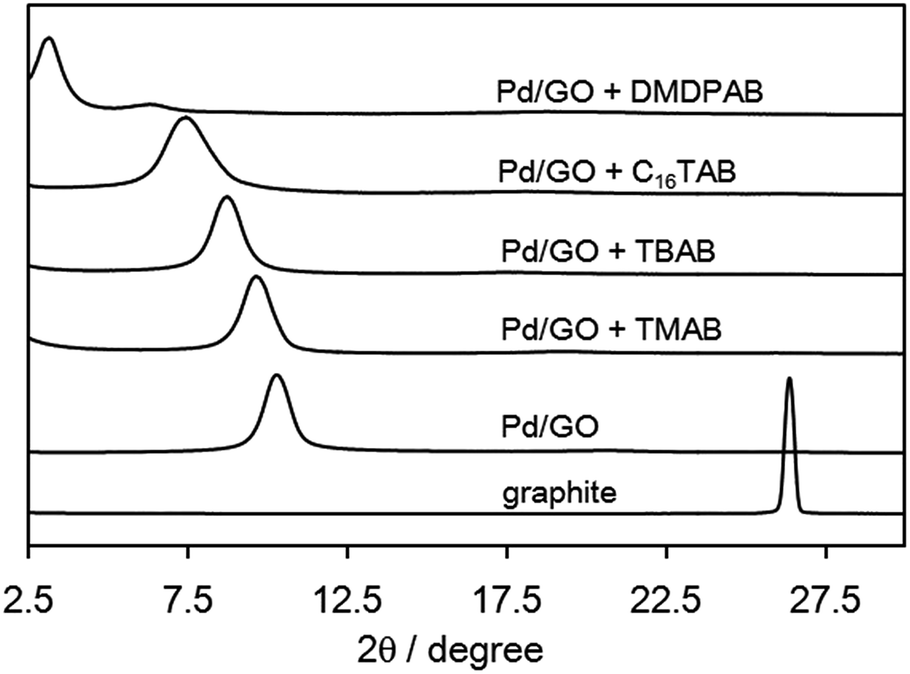

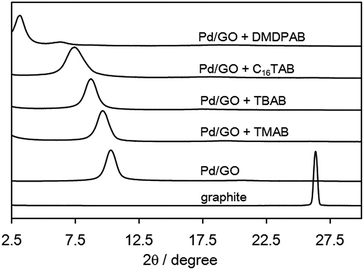

image file: c4ra10512e-f1.tif
Fig. 1 XRD spectra of Pd/GO with surfactants.

Having achieved the fine tuning of the sheet distance of Pd/GO composites by surfactant, we next investigated the catalytic activity in Heck reactions using styrene (1a) and iodobenzene (2a) as substrates. As a result of the screening of additives, hexadecyltrimethylammonium bromide (C16TAB) was optimum (Table 1, entries 2–6) and the required amount was 0.13 mmol for 0.25 mmol of 2a (Table 1, entries 4, and 7–9). When the reaction was performed at low temperature (60 °C), the yield of 3a dramatically decreased (Table 1, entry 10); on the other hand, the yield was almost the same when performed at 100 °C (Table 1, entry 11). As a Pd precursor, Pd(OAc)2 was found to be the best; PdCl2 and Pd(NO3)2 gave 3a in 41% and 44% yields, respectively. As a result of solvent screening, toluene, n-hexane, THF, and ethyl acetate did not provide the product at all. The optimum base was K2CO3, and other bases decreased the product yield; Na2CO3 (70%), Cs2CO3 (22%), AcONa (16%), and Et3N (3%). The catalytic activity was slightly decreased when reused; 1st recycle (84% yield), 2nd recycle (74% yield), and 3rd recycle (75% yield). The recovered catalyst was analyzed by Transmission Electron Microscope (TEM) and X-ray Photoelectron Spectroscopy (XPS) (Fig. S1 and S2), and leaching of Pd was measured by Inductively Coupled Plasma Mass Spectroscopy (ICP-MS). After the Heck reaction, Pd(0) species predominantly formed and partial aggregation of Pd particles were observed, while only 2.5 nmol of Pd (1.1% of the loaded Pd) was leached into the reaction solution.

Fourier-transfer infrared (FT-IR) spectroscopy (Fig. 2) and energy dispersive X-ray (EDX) spectroscopy of C16TAB-modified Pd/GO composites were measured to clarify the interaction between C16TAB and GO. FT-IR spectra showed no significant change other than the appearance of an alkyl group at 2740–2980 cm−1. When ionic interaction between ammonium and carboxylate occurs, the peak of C[double bond, length as m-dash]O bond at 1730 cm−1 shifts to a smaller wavenumber,13a therefore, the alkyl chain of C16TAB is supposed to interact with GO. EDX analysis showed the presence of Br (5.3 wt%), which also supports that ionic interaction did not occur between C16TAB and GO. From the EDX result of Br content, the surfactant-modified Pd/GO composite contained its 24 wt% of C16TAB.


image file: c4ra10512e-f2.tif
Fig. 2 FT-IR spectra of (a) Pd/GO with C16TAB, (b) Pd/GO, and (c) GO.

Next, the relationship between the additives that affect interlayer distance and the substrate size was investigated. We focused on C16TAB and DMDPAB as additives that increased sheet distance of GO to 1.19 nm and 2.80 nm, respectively. Non-substituted styrene (1a) gave 3a in 90% yield when C16TAB was added, while DMDPAB was less effective (Table 2, entry 1). The same tendency was observed when 4-chlorostyrene (1b) was used as the substrate (Table 2, entry 2). For larger substrates, such as 4-bromostyrene (1c), 4-methylstyrene (1d), and 4-tert-butylstyrene (1e), DMDPAB provided the product in higher yield (Table 2, entries 3–5). When 1-iodonaphthalene (2b) was used instead of iodobenzene (2a), the addition of DMDPAB also gave high yield (Table 2, entry 6). These results suggest that the substrate selectivity in Pd/GO catalysis can be tuned by changing the molecular size of the surfactant; when the size of 1 was smaller than 0.78 nm (1a and 1b), C16TAB showed better performance, on the other hand, DMDPAB was suitable for large-sized substrates (1c and 1d) (See, Fig. S4). Since Pd/C does not have sheet structure, the obvious size effect of the surfactant was not observed (Table 2, entries 7 and 8).

Table 2 The effect of additivesa

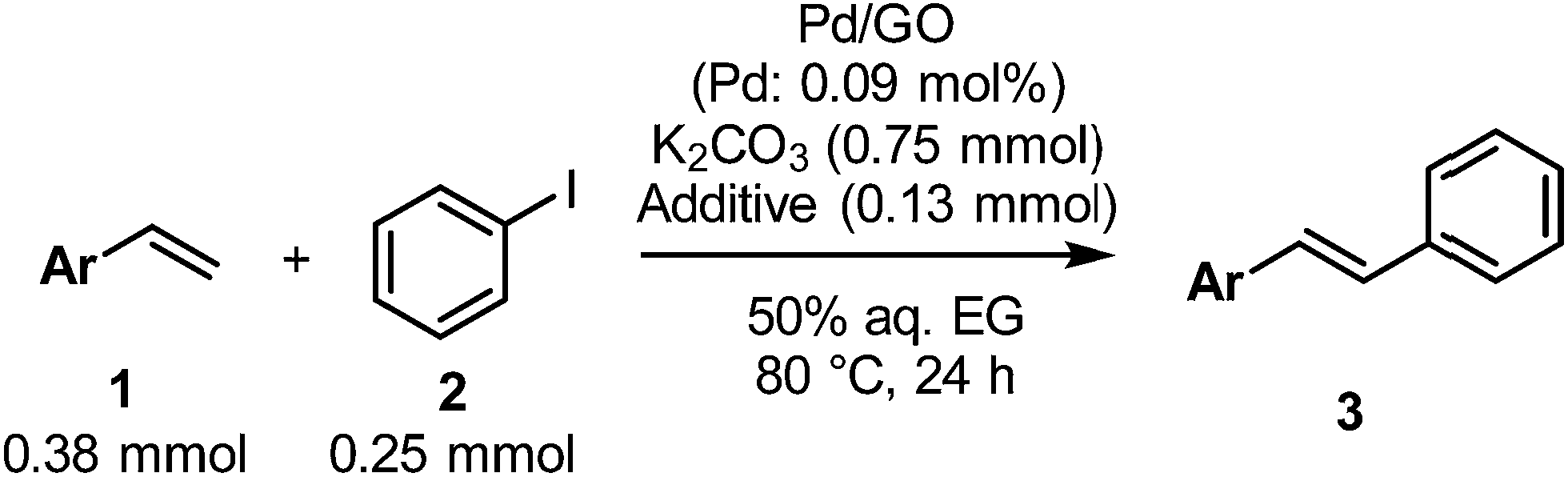

image file: c4ra10512e-u2.tif

Entry 1 2 Yieldb (%)
C16TABc DMDPABd
a Reaction conditions: alkene (1, 0.38 mmol), iodobenzene (2, 0.25 mmol), Pd/GO (Pd: 0.09 mol%), K2CO3 (0.75 mmol) and additive (0.13 mmol) were mixed in 50% aq. ethylene glycol at 80 °C for 24 h.b Yields were determined by 1H NMR (in CDCl3) using 1,1,2,2-tetrachloroethane as an internal standard.c C16TAB was used as the additive.d DMDPAB was used as the additive.e Isolated yield.f Pd/C was used as the catalyst instead of Pd/GO.g Yields were determined by GC using dodecane as an internal standard.
1 1a 2a 90 65

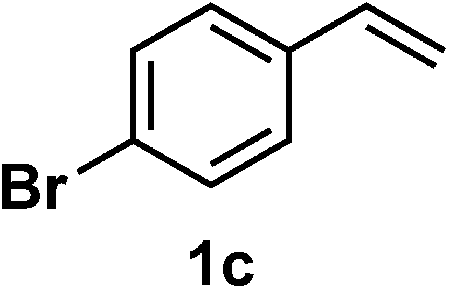

2 image file: c4ra10512e-u3.tif 2a 91 87
3 image file: c4ra10512e-u4.tif 2a 72 >99
4 image file: c4ra10512e-u5.tif 2a 60 88
5 image file: c4ra10512e-u6.tif 2a 47 95
6 1a image file: c4ra10512e-u7.tif 48e 71e
7f 1a 2a 96g 93g
8f 1a 2b 63g 66g


XRD measurement of Pd/GO mixed with styrenes provided more convincing evidence for the sheet distance effect. The molecular size of styrene (1a) and 4-tert-butylstyrene (1e) were estimated to be 0.72 nm and 0.96 nm, respectively (Fig. S4). The XRD spectra of Pd/GO intercalated by 1a and 1e showed two distinctive peaks; one between 2θ = 10.16° (○, the peak of Pd/GO) and 7.46° (△, the peak of Pd/GO + C16TAB), and the other between 2θ = 7.46° (△) and 3.16° (□, the peak of Pd/GO + DMDPAB), and the peak of Pd/GO + 1e showed low angle shift compared with that of Pd/GO + 1a (Fig. 3). These results suggest that the Heck reaction can occur inside of GO layers, although outerlayer reaction would also be involved.

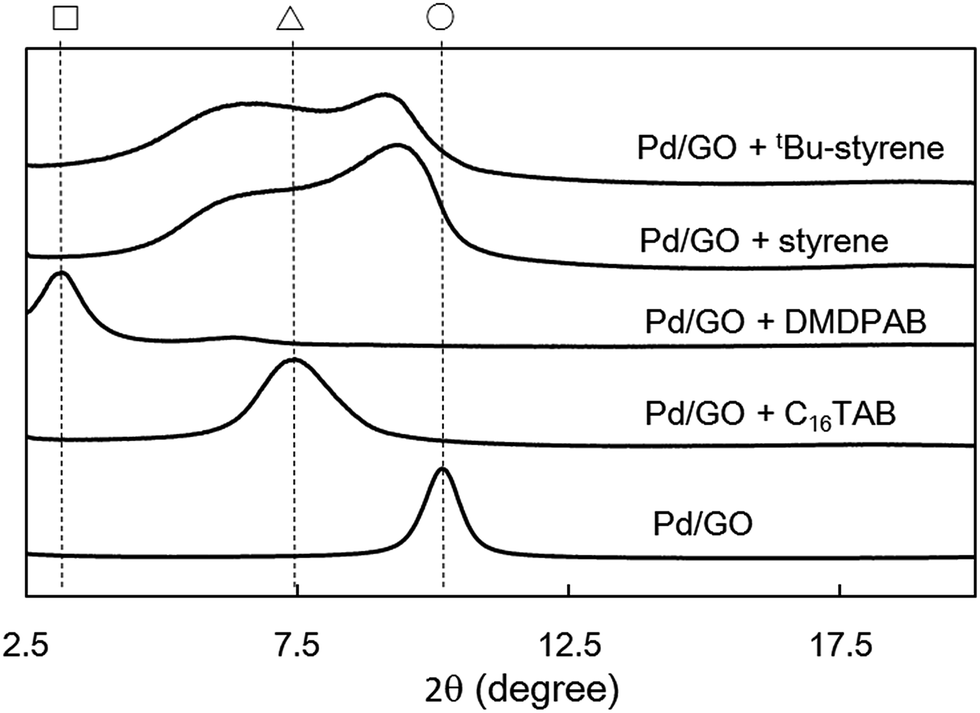

image file: c4ra10512e-f3.tif
Fig. 3 XRD spectra of Pd/GO with 1 or surfactants.

To confirm the effect of surfactant to tune substrate selectivity, we performed the three-component reaction, in which styrene (1a), 4-tert-butylstyrene (1e), and iodobenzene (2a) were employed (eqn (1)). When Pd/GO was used as a catalyst, the product ratio 3a/3e was 1.6, while Pd/C gave the product mixture with 3a/3e ratio of 1.1.


image file: c4ra10512e-u8.tif(1)

Conclusions

We have developed the surfactant-modified Pd/GO catalyst system for Heck reactions. The role of the surfactant is to increase the dispersibility of Pd/GO as well as to tune the interlayer distance of GO that affected the substrate selectivity. We are still facing a challenge to improve the selectivity by fine tuning of the size of the surfactant and applying the system to packed-bed reactor not only for Heck reaction, but also other metal-catalysed reactions.
