Organic–inorganic hybrid catalysts containing new Schiff base for environment friendly cyclohexane oxidation

Abstract

Organic and inorganic entities have been hybridized using 3-aminopropyltriethoxysilane (APTES) linker for the synthesis of three novel organic–inorganic hybrid catalysts [Cu(II), Co(II) and Ni(II)]. During the course of the synthesis, the static inorganic moiety was functionalized with versatile imine (C=N) groups. The prepared catalysts were characterized by spectral techniques (EDS, FT-IR, DR UV-Vis., ²⁹Si CP/MAS NMR, powder-XRD and ESR), thermal study (TG-DTG) and surface studies (SEM and AFM). The reported catalysts are significant because of their geometrical and dispersive surface properties. The synthesised catalysts were tested with cyclohexane oxidation reactions using H₂O₂, to make the catalytic system eco-friendly. Compared to the previously reported catalysts, the present catalysts have shown better cyclohexane conversion and selectivity, and are also cost effective. Among the three catalysts studied, Cu(II) catalyst showed the maximum conversion efficiency (44%) with product selectivity of 29% cyclohexanol and 71% cyclohexanone. Because of the combination of interesting structural properties and acceptable catalytic property with better selectivity and environment benign character along with a low cost, these hybrid catalysts could be the best future catalysts for cyclohexane oxidation.

---

Introduction

Schiff bases formed by the reaction of primary amines with aldehydes/ketones display borderline character between hard and soft Lewis bases, and also exhibit stability under diverse conditions.^1,2 In coordination chemistry, the role of Schiff bases as ligands is remarkable and widespread.^3–5 The fascinating fact is that the formation of Schiff base complexes with metal ions increases their applications, predominantly as catalysts for many reactions such as oxidation, cyclopropanation, polymerization, coupling, hydrogenation, etc.^6–9 Many Schiff base complexes belong to a typical class of homogeneous catalysts. However, quite often homogenous catalysts are not environment friendly due to the numerous problems associated with them, such as difficulties in catalyst recovery and product separation. Consequently, it is essential to find a new and effective route to eliminate these problems related with the homogeneous catalysts. The best way to overcome the aforementioned problems is providing a solid support for the homogeneous complexes.^10,11 Though many supports like alumina,¹² synthetic and bio-polymers,^13,14 zeolite and montmorillonite clay¹⁵ have been used to make an immobilized Schiff base metal complexes, SiO₂ has emerged as the pre-eminent and familiar solid support because of its high surface area, good accessibility, good mechanical and thermal stability, and flexible surface silanol groups.¹⁶ SiO₂-containing Schiff base complexes are also termed as distinctive organic–inorganic hybrid catalysts, where the inorganic moiety is static and organic entity is flexible. These hybrid catalysts are very exceptional due to their mixed properties of both homogeneous (mobile reactive centre) and heterogeneous catalysts (catalytic recovery and recyclability). 3-Aminopropyltriethoxysilane (APTES) is an extensively employed chemical agent to embed the organic entity on to the inorganic SiO₂ support via the functionalization of surface hydroxyl groups of SiO₂ gel. The addition of amino groups on the surface of SiO₂ gel can offer an opportunity to install a range of functional groups, often imine groups, on SiO₂ gel's surface.^17–19

Oxidation of cyclohexane to cyclohexanol and cyclohexanone through the inert C–H bond activation is the most desired organic transformation because it's products are applied as intermediates for the synthesis of commercially essential products such as nylon-6 and nylon-6,6′. Cyclohexanol and cyclohexanone are also used as solvents for lacquers, shellacs and varnishes; stabilizers and homogenizers for soaps and emulsions; and starting materials for manufacturing insecticides, herbicides and pharmaceuticals.^20–22 In industries, the current cyclohexane oxidation process in the presence of homogeneous boric cobalt salts requires a high temperature (150–170 °C) and pressure (115–175 psi) and yields only 4% conversion and poor product selectivity ratio (cyclohexanone–cyclohexanol). This industrial process is risky and environmentally hazardous reaction too.^22–24 These issues eventually made different research groups to search for novel catalysts for the oxidation of cyclohexane under milder conditions. In quest of environment friendly oxidant, H₂O₂ and molecular O₂ appear to be the preferable oxidants because they generate water as their by-product. However, high activation energy is required to break O–O double bond of molecular O₂ during the addition of an organic substrate, whereas the spin mismatch between the ground state of O₂ (triplet) and organic substrate (singlet) suppresses the use of O₂ as the oxidant. Moreover, O₂ involving organic reactions may also cause explosions.^25,26 Therefore, H₂O₂ would be the better oxidant than the molecular O₂.

In search of an improved catalytic system for the cyclohexane oxidation in presence of H₂O₂, variety of heterogeneous catalysts has been investigated. A few cases are Co(II) and Cr(VI) on poly(4-vinylpyridine-co-divinylbenzene) (4.64% conversion);²⁷ Fe(III) scorpionate complex on carbon materials (20.8% conversion)²⁸ and desilicated MOR zeolite (37.2% conversion)²⁹ in the presence of co-catalyst and co-oxidant; Au nanoparticles on carbon materials (3.6% conversion);³⁰ and chitosan supported Co(II) catalyst (26% conversion even after electron beam irradiation).³¹ To date, relatively superior cyclohexane conversion has been observed with SiO₂ supported catalysts. For instance, though Urus et al. have achieved 99.9% cyclohexane conversion under microwave reaction conditions, the poor selectivity reduces its usability.³² Whereas, the catalysts involving mesoporous SiO₂ supports such as MCM-41 (45.5% conversion with 51.9% cyclohexanol and 48.1% cyclohexanone selectivity)³³ and SBA-15 (71.1% conversion with 26% cyclohexanol and 74% cyclohexanone selectivity)³⁴ have shown sufficient cyclohexane conversion and better selectivity. However, tedious procedures, more chemicals and relatively high cost are required for the synthesis of mesoporous SiO₂ materials. These limitations may suppress the effective use of SiO₂ supported catalysts for cyclohexane oxidation. Thus, synthesizing a simple, low cost and effectual SiO₂ supported catalysts for cyclohexane oxidation with enhanced selectivity appears to be very essential. We have already reported a simple and low cost SiO₂ supported catalyst for adequate cyclohexane oxidation.³⁵

By considering the abovementioned facts and in continuation with our work, we have attempted to develop a new catalytic system with adequate catalytic ability and selectivity under mild and environmentally tolerable conditions for the cyclohexane oxidation. Therefore, a novel SiO₂-supported Schiff base ligand with its Cu(II), Co(II) and Ni(II) complexes were synthesized and their structural, thermal and morphological characterizations were also studied. Very importantly, the reported complexes were used as catalysts in the cyclohexane oxidation using H₂O₂ as an oxidant, and the stability of the catalysts were assessed in the successive catalytic run.

Experimental methods

Materials

All the chemicals were of AnalaR grade and used without further purification. APTES and 1,2-diphenylethanedione (DPED) were obtained from Himedia. SiO₂ gel, cyclohexane, acetonitrile, toluene, H₂O₂ and metal salts were purchased from E. Merck, India.

Synthesis of SiO₂ supported APTES (Si–NH₂)

The synthesis protocol for installing APTES on to SiO₂ was adapted from the earlier reported procedure.³² Typically, 50 g SiO₂ gel and 1 : 1 hydrochloric acid solution were mixed and refluxed for 6 h for the pre-treatment. This pre-treated SiO₂ gel was filtered off and rinsed with a sufficient amount of deionized water till the pH of the filtrate reached 7. It was then dried at 120 °C for 12 h under vacuum. In 100 ml toluene, a mixture of 20 g pre-treated SiO₂ gel and 20 ml APTES were mixed and refluxed for approximately 3 days. The resulting suspension was filtered off, washed with excess amount of toluene, ethanol and diethyl ether and dried at 100 °C under vacuum.

Synthesis of SiO₂ supported Schiff base (Si–NH₂–DPED)

A mixture of 5 g SiO₂–NH₂ and 5 mmol DPED was stirred in 100 ml water at 60 °C for 24 h. The obtained solid product was filtered, washed with excess amount of water and dried at 100 °C.

Synthesis of organic–inorganic hybrids [M(Si–NH₂–DPED)Cl₂]

2 g SiO₂–NH₂–DPED and 5 mmol metal chloride salt were mixed in 50 ml water. This mixture was then magnetically stirred at ambient temperature for 24 h. The final product was filtered, washed with excess amount of water and dried at 90 °C under vacuum.

Cyclohexane oxidation

Cyclohexane oxidation was carried out in a 25 ml flask equipped with magnetic stirrer using the following procedure: 0.05 g catalyst ([Cu(SiO₂–NH₂–DPED)Cl₂]/[Co(SiO₂–NH₂–DPED)Cl₂]/[Ni(SiO₂–NH₂–DPED)Cl₂]) was taken in 10 ml acetonitrile. Subsequently, 10 mmol of 30% H₂O₂ solution and 5 mmol of cyclohexane were added to the flask. This catalytic mixture was stirred at 70 °C under atmospheric pressure conditions for 12 h. Aliquots from the reaction mixture were taken at intervals of every 2 h up to 12 h for the product analysis. By the same reaction procedure, two separate blank catalytic experiments were also run, one without catalyst and another without oxidant. The product samples were analysed using Hewlett-Packard gas chromatograph (HP 6890) annexed with FID detector, a capillary column (HP-5), programmed oven with temperature range from 50 to 200 °C using nitrogen as the carrier gas with 0.5 cm³ min⁻¹ flow rate.

Instruments

FT-IR spectra of the compounds were recorded on a Jasco FT-IR 4100 spectrophotometer in the wave number region of 4000–400 cm⁻¹ with 2 cm⁻¹ resolution using KBr disks having 1% sample. DR UV-Vis. spectra were performed within 200–800 nm wavelength range on a Shimadzu UV-2600 double beam spectrophotometer, containing an integrating sphere attachment for solid samples. The solid-state ²⁹Si cross polarized magic angle spinning nuclear magnetic resonance (²⁹Si CP MAS NMR) spectral studies were performed for Si–NH₂–DPED and [Cu(Si–NH₂–DPED)Cl₂] by a Mercury Plus 300 MHz NMR spectrometer (VARIAN, USA) annexed with a 5 mm dual broad band probe. The thermal properties of the compounds were investigated up to 800 °C at a heating rate of 10 °C min⁻¹ under dynamic nitrogen atmosphere using Mettler Toledo star system. Powder X-ray diffraction (powder XRD) measurements were performed on an X-ray diffractometer (XPERT PRO PANalytical, Netherlands) for phase identification. The powder XRD patterns were obtained using CuKα radiation with a secondary monochromator (λ = 0.1540 nm) at 40 kV and 30 mA. X-band electron spin resonance (ESR) experiment of Cu(II) complex was performed on a JES-FA200 ESR spectrometer (JEOL, Japan) at 9.65 GHz micro wave frequency. Surface morphology of the compounds was assessed using a scanning electron microscope of JSM-SEM 6400 model at 15 kV accelerating voltage with 2 k× magnification range under liquid N₂ atmosphere. Atomic force microscopic (AFM) study of [Cu(SiO₂–NH₂–DPED)Cl₂] was performed on AFM XE 70, Park systems to analyse the particle distribution.

Results and discussion

Characterization of hybrid catalysts

The presence of expected elements in each synthesized compound of this study was identified and confirmed by their energy peaks. The EDS spectra of all the reported compounds are provided (see ESI†). The occurrence of metal ion peaks in the respective EDS spectrum suggests the successful formation of organic–inorganic hybrid catalysts.

Vibrational spectroscopy is the best scientific tool to thoroughly study the changes in SiO₂ during the chemical modifications. Fig. 1 shows representative FT-IR spectra of SiO₂ gel, Si–NH₂, Si–NH₂–DPED and the catalysts. In FT-IR spectrum of pure SiO₂ gel (Fig. 1(a)), the bands observed at 1094 and 798 cm⁻¹ were attributed to the characteristic anti-symmetric and symmetric stretches of Si–O–Si bond, respectively. The band at 462 cm⁻¹ could be due to the bending vibrations of O–Si–O units. A small shoulder at 978 cm⁻¹ is allocated to Si–OH stretching mode. The significant stretch of surface silanol groups (Si–O–H) is found at 3548 cm⁻¹ as a broad band.³⁶ All these characteristic bands were also present in the FT-IR spectra of all the modified forms of SiO₂, which indicates that SiO₂ framework is not affected even after the chemical modifications. In Fig. 1(b), a new continuous band attributed to –NH₂ stretch has emerged in the region of 3290–3000 cm⁻¹, confirming aminopropylation of SiO₂. It was further supported by the occurrence of stretching and bending vibrations of aliphatic –CH₂ groups at 2938 and 1495 cm⁻¹, respectively. The –OH stretch of silanol was shifted to a lower wave number region, which shows the grafting of APTES on to surface silanol groups.³⁷ In Fig. 1(c), the characteristic band of –NH₂ groups were found to be disappeared. It can be attributed to the reaction between Si–NH₂ and DPED. The new band at 1629 cm⁻¹ for a distinctive stretch of –C=N group, further confirms the reaction between Si–NH₂ and DPED. It was also confirmed by the significant aromatic –C=C– stretch, which emerges at 1474 cm⁻¹ as a medium band. In addition, an additional band is found at 1720 cm⁻¹ suggesting that one of the –C=O groups of DPED did not undergo Schiff base reaction. The FT-IR spectra of all the complexes are similar to that of Si–NH₂–DPED, except for the few changes. Considerably, such changes were the shifts in the stretching vibrations of –C=N and –C=O to a lower wave number. This proves the coordination of –C=N and –C=O groups with metal ions.^38–40 However, the significant M − O and M − N bonds were not visible in the FT-IR spectra of complexes because they might be hidden by the bending vibrations of O–Si–O units.

Fig. 1 FT-IR spectra of (a) SiO₂ gel, (b) Si–NH₂, (c) Si–NH₂–DPED, (d) [Cu(Si–NH₂–DPED)Cl₂], (e) [Co(Si–NH₂–DPED)Cl₂] and (f) [Ni(Si–NH₂–DPED)Cl₂].

The electronic absorption spectra of Si–NH₂–DPED and its complexes are depicted in Fig. 2. The UV-Vis. spectra of SiO₂ gel and Si–NH₂ are also individually provided (ESI†). Unlike for the SiO₂, the UV-Vis. pattern of Si–NH₂ showed a significant band below 400 nm, which may be due to the characteristic n–π* transition of the non-bonded electrons of –NH₂ groups. The electronic spectrum of the Schiff base, formed by the reaction between SiO₂–NH₂ and DPED (Fig. 2(a)), exhibited an additional band below 400 nm, which can be allotted to π–π* transition of the aromatic π-electrons. Emergence of this extra band apparently confirmed the formation of the Schiff base, Si–NH₂–DPED. However, the n–π* transition band was due to the existence of non-bonded electrons of C=N and C=O groups, and not due to the NH₂ groups. Moreover, the UV-Vis. spectra of complexes displayed the characteristic n–π* and π–π* transitions bands below 400 nm, but they slightly differ either in their position or intensity, which may be due to the coordination of the metals with Si–NH₂–DPED. The charge transfer transition (metal to ligand π-back bonding) may also contribute to these absorption bands (below 450 nm) observed in the electronic spectra of metal complexes. However, a new band appeared in the UV-Vis. spectra of all the complexes, which can be the characteristic of the d–d transition of the central metal ions. This band is very significant because it provides information about the geometry of the metal complexes. In Fig. 2(b), it is obvious that the [Cu(Si–NH₂–DPED)Cl₂] shows its d–d transition band at around 600 nm which is an indication of ²B_1g → ²A_1g transition, characteristic of square planar geometry. In the UV-Vis. spectra of [Co(Si–NH₂–DPED)Cl₂] (Fig. 2(c)) and [Ni(Si–NH₂–DPED)Cl₂] (Fig. 2(d)) this band appeared at 600 and 460 nm, respectively, because of ¹A_1g → ¹B_1g transition, which confirms the square planar geometry of the complexes.^41–43

Fig. 2 DR UV-Vis. spectra of (a) Si–NH₂–DPED, (b) [Cu(Si–NH₂–DPED)Cl₂], (c) [Co(Si–NH₂–DPED)Cl₂] and (d) [Ni(Si–NH₂–DPED)Cl₂].

²⁹Si CP MAS NMR spectroscopy was successfully employed in the characterization of SiO₂ based materials by studying the silicon environment in the materials. In general, two characteristic peaks were expected for the unmodified SiO₂ gel at ∼110 and ∼105 ppm which are the evidences of ((SiO)₄Si) sites and ((SiO)₃SiOH) silanol sites, respectively. The abundance of ((SiO)₄Si) sites in SiO₂ gel might make the peak at 110 ppm predominant;^{44 29}Si NMR spectra of Si–NH₂–DPED and its Cu(II) complex are separately shown (ESI†). The two expected characteristic peaks of SiO₂ gel are observed in the ²⁹Si NMR spectra of both Si–NH₂–DPED and its Cu(II) complex. However, the intensity of the peak at 105 ppm (characteristic of ((SiO)₃SiOH) sites) appears to be significantly low, which may be due to the successful modification of surface –OH groups with organic functional groups.⁴⁵ The appearance of a new significant peak noted at ∼65 ppm in the ²⁹Si NMR spectrum of Si–NH₂–DPED can be due to the formation of ((SiO)₃SiC) sites as the consequence of organic modification of surface –OH groups.^46–48 This peak is also found in ²⁹Si NMR spectrum of Cu(II) complex but with some changes in intensity and peak area. These changes may be ascribed to the coordination of Si–NH₂–DPED with Cu(II). Thus, the ²⁹Si NMR spectral data support the results obtained from FT-IR and UV-Vis spectral studies.

Powder XRD patterns of all the compounds were taken in a wide angle region (between the 2θ region of 10° and 80°). The XRD patterns of SiO₂, Si–NH₂, Si–NH₂–DPED and the complexes are presented in Fig. 3. SiO₂ exhibited a broad band centered at 2θ = 22°, characteristic of topological structure of SiO₂.⁴⁹ After the modification with APTES and DPED, this peak was found to have lost its intensity and sharpness. This may be due to the slight disorder in the topological structure of SiO₂ in its modified forms because of the immobilization of DPED and entry of metal ions on to the porous wall of SiO₂ or reduction in X-ray scattering contrast between the channel wall of silicate frame work and ligand/complex.^16,50 Some new intense peaks also appeared in the XRD pattern of Si–NH₂–DPED, and significantly these new peaks appear to be analogous with the characteristic peaks of DPED. This further supports the organo-functionalization of Si–NH₂ with DPED. Co(II) and Ni(II) complexes show similar XRD pattern like Si–NH₂–DPED, while Cu(II) complex does not. This may be due to the higher crystallinity of Cu(II) complex compared to the other two.

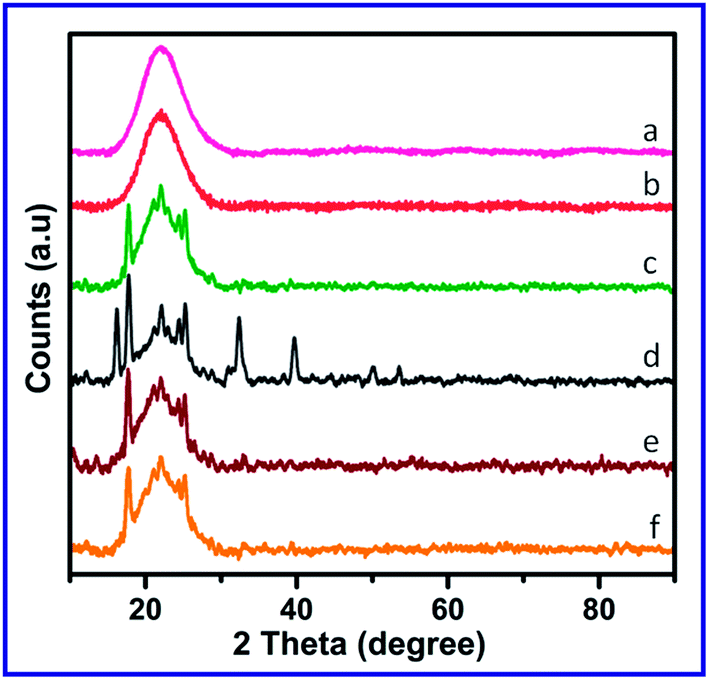

Fig. 3 Powder XRD patterns of (a) SiO₂ gel, (b) Si–NH₂, (c) Si–NH₂–DPED, (d) [Cu(Si–NH₂–DPED)Cl₂], (e) [Co(Si–NH₂–DPED)Cl₂] and (f) [Ni(Si–NH₂–DPED)Cl₂].

ESR spectroscopy has been established as the most excellent technique to explore the geometry of metal complexes, in particular Cu(II) complexes.^51–53 In the present study, ESR spectral study of Cu(II) complex was performed. The recorded ESR spectrum of Cu(II) complex is shown in Fig. 4. It reveals two g factors, g_‖ and g_⊥. The obtained spectrum provides evidence about the axial nature of Cu(II) complex. After comparison, the calculated g factors are found to have the order of g_‖ (2.223) > g_⊥ (2.094) > 2.0023, and this indicates the presence of unpaired electron in d_x² − d_y² orbital. This investigation suggest that the geometry was square planar, which is in agreement with the result obtained from UV-Vis. spectroscopy.⁵⁴ The lesser value of g_‖ as compared to 2.3 is a good evidence for the covalent character of Cu–ligand interaction, which was recommended by Kivelson and Niemon.⁵⁵

Fig. 4 X-band ESR spectrum of [Cu(Si–NH₂–DPED)Cl₂].

The following expression can be employed to compute the exchange coupling factor (G):

G = (g_‖ − 2)/(g_⊥ − 2)

It has already been proved that parallely aligned or slightly misaligned local axes have G value greater than 4.0, whereas, the G value will be less than 4.0 for remarkably misaligned local axes with considerable exchange coupling. In this case, the G value of Cu(II) complex is 4.9, thus the exchange coupling could be negligible.^56,57

The TG-DTG patterns of SiO₂, Si–NH₂, Si–NH₂–DPED and the complexes are illustrated in Fig. 5 and in particular, TG-DTG curves of SiO₂ and Si–NH₂ are provided separately (see ESI†). TG-DTG pattern of SiO₂ gel exhibited two decomposition peaks corresponding to the loss of physically adsorbed water molecules (0–100 °C, 2.94%) and dehydroxylation of surface silanol groups (370–800 °C, 1.4%). Though Si–NH₂ showed two similar decomposition peaks, the second one is higher (345–645 °C, 5.67%), and this may be due to the decay of APTES entity. TG-DTG curves (Fig. 6(a)) of Si–NH₂–DPED revealed a different outline compared to that of both SiO₂ and Si–NH₂; there was no loss of physically adsorbed water molecules, however two thermal decays are found. They are attributed to the loss of DPED moiety (100–355 °C, 22.90%) and the loss of APTES along with the dehydroxylation of surface silanols (355–655 °C, 16.52%). The massive weight loss between 100–355 °C clearly indicates the loading of organic entity (DPED) onto Si–NH₂. TG-DTG models of all the complexes are found to be similar to each other and show three mass loss steps. The initial step can be assigned to the desorption of physically adsorbed water molecules, second step is due to the loss of DPED and third step may be collectively due to the removal of APTES and dehydroxylation of surface silanols. In addition to this similarity, only Cu(II) complex shows weight gain above 580 °C which may be due to the oxidation reaction and this behaviour can be assigned to the crystalline character of Cu(II) complex.

Fig. 5 TG-DTG patterns of (a) Si–NH₂–DPED, (b) [Cu(Si–NH₂–DPED)Cl₂], (c) [Co(Si–NH₂–DPED)Cl₂] and (d) [Ni(Si–NH₂–DPED)Cl₂].

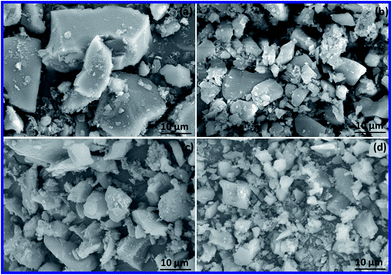

Fig. 6 SEM images of (a) Si–NH₂–DPED, (b) [Cu(Si–NH₂–DPED)Cl₂], (c) [Co(Si–NH₂–DPED)Cl₂] and (d) [Ni(Si–NH₂–DPED)Cl₂].

Changes in the surface properties of SiO₂ gel because of the series of chemical modifications were examined by SEM analysis. SEM images of SiO₂ and Si–NH₂ are displayed in ESI,† whereas that of Si–NH₂–DPED and its complexes are collectively portrayed in Fig. 6. The SEM photograph of SiO₂ gel exposes the lumpy shaped apparent surface. It is considerably evident that the particle size of the modified forms is smaller than that of the unmodified SiO₂ gel. Therefore, it is apparent that the modification of SiO₂ with APTES, DPED and metal ions can provide more efficient catalysts. In addition, the chemical modifications of SiO₂ with functional groups generally assist and enhance the adsorption of metal ions.^58,59 Because of the availability of the functional groups, metal ions can be adsorbed on SiO₂'s surface through coordination reaction. This coordination of the functional groups on silica would enhance the life span of metal ions on the surface of SiO₂. Consequently, this may increase the stability of the complexes in successive catalytic runs. The surface of the complexes is rougher than that of Si–NH₂–DPED as a consequence of the presence of metal ions. SEM images of all the complexes show well-dispersed metal ions, which means that adsorbed particles are not agglomerated. This surface behaviour of the organic–inorganic hybrids would help to achieve better catalytic ability.

2D and 3D AFM images of [Cu(Si–NH₂–DPED)Cl₂] were obtained, given as Fig. 7, to verify the dispersion and distribution of particles. They confirm that particles are properly arranged and dispersed; the particles appear like cones. They are not agglomerated and agree with the surface information obtained from the SEM images.

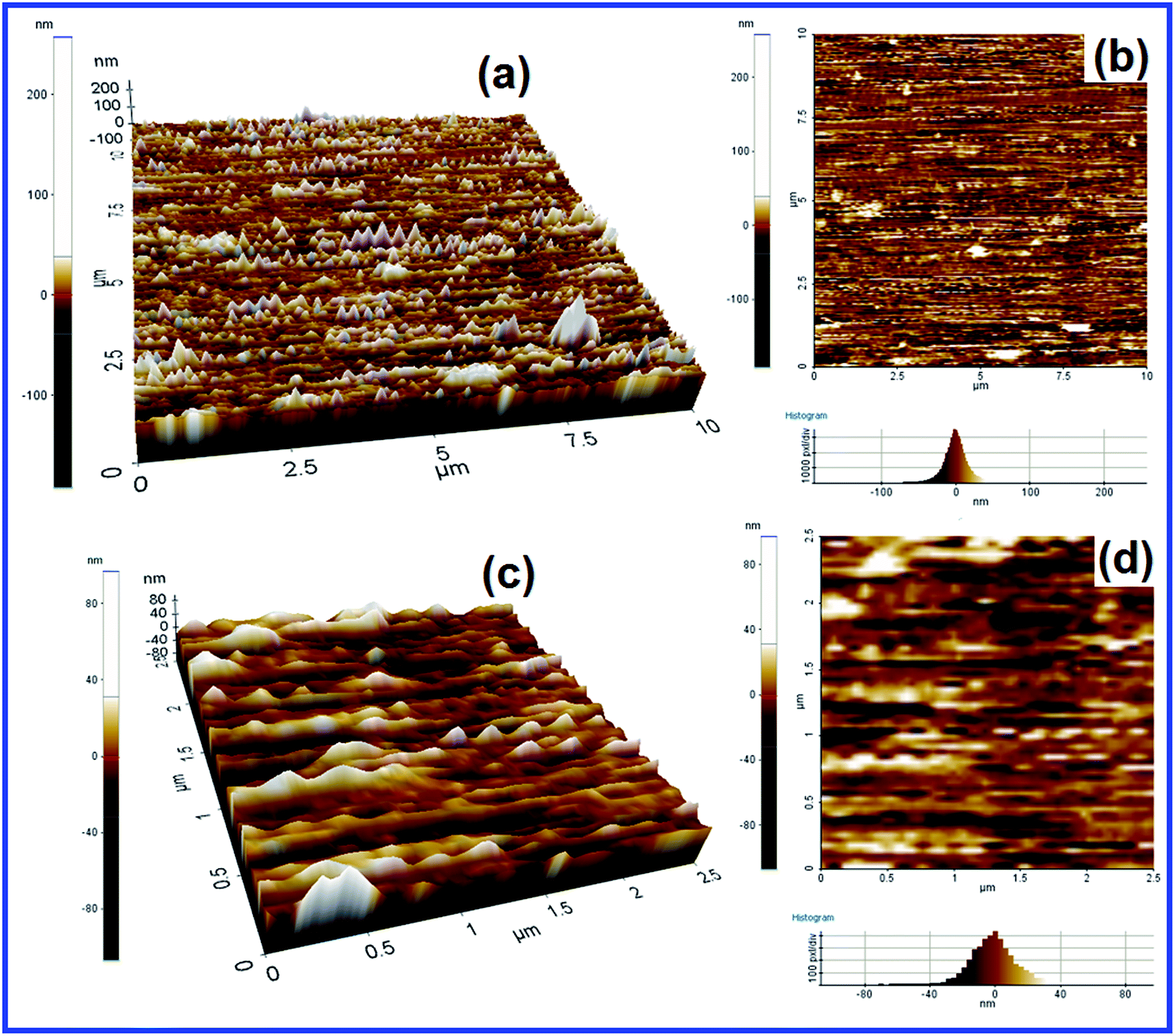

Fig. 7 2D (a) and 3D (b) AFM images (10 × 10 μm); 2D (c) and 3D (d) AFM images (2.5 × 2.5 μm) of [Cu(Si–NH₂–DPED)Cl₂].

Catalytic study

Catalytic activities of the reported catalysts ([Cu(Si–NH₂–DPED)Cl₂]/[Co(Si–NH₂–DPED)Cl₂]/[Ni(Si–NH₂–DPED)Cl₂]) were investigated by carrying out a model catalysis reaction, where cyclohexane was oxidized into cyclohexanol and cyclohexanone in the presence of H₂O₂. This model reaction catalysed by organic–inorganic hybrid catalysts with H₂O₂ is promising and desirable due to its industrial importance and environment friendly character. The product analysis was performed by gas chromatography technique. During product analysis, there was no cyclohexane conversion identified either in the absence of catalyst or oxidant. This proves the significance of catalyst and H₂O₂ in the cyclohexane oxidation. Similar to the catalyst, the role of solvents in catalysis were also found to be crucial because of their ability to convert different phases into a uniform and upholding mass transportation. The significance of solvents also includes their ability to change the reaction mechanism by disturbing reaction intermediates and amend the surface properties of catalysts and reaction path-ways.⁶⁰ In the literature, acetonitrile was established as a widely used and effective solvent.^31,34,61 Therefore, in our present study, all the catalytic runs were executed in acetonitrile. In all the experiments, the observed products were only cyclohexanone and cyclohexanol. No white precipitate was observed on cooling the product mixture and the absence of acid in the product mixture was confirmed by titrating against NaOH. These results clearly demonstrated the absence of adipic acid in the product mixture.

(i) Influence of temperature on catalytic study. Initially, cyclohexane oxidation by H₂O₂ was attempted at room temperature which resulted in significantly poor cyclohexane conversion. Perhaps this may be due to the inertness and strength of the saturated C–H bonds in cyclohexane. To overcome these limitations, temperature inside the catalytic system was increased by 10 °C up to 70 °C, to find out the optimum temperature for the reaction. The cyclohexane conversion increased steadily up to 60 °C, and a drastic increase was observed when the temperature was set at 70 °C. This temperature is close to the boiling point of cyclohexane (80 °C), thus, further increase of temperature beyond 70 °C could not cause any effective change in cyclohexane conversion. Therefore, 70 °C was set as the optimum temperature to supply sufficient energy in order to overcome the energy barrier associated with cyclohexane conversion. This examination was attempted with all the catalysts and the obtained results are illustrated in Fig. 8.

Fig. 8 Effect of temperature on cyclohexane oxidation catalysed by Cu(II), Co(II) and Ni(II) hybrid catalysts.

(ii) Influence of time on cyclohexane conversion. Catalytic efficacy of all the organic–inorganic hybrid catalysts was independently monitored for 12 h at 70 °C. The impact of the reaction time on the catalytic activity of catalysts was studied by analyzing the aliquots taken from the catalytic reaction mixture at a time interval of every 2 h. The results of this time-dependant catalytic study are given in Table S1 (see ESI†). From the table, it is very clear that cyclohexane conversion rapidly increased up to 8 h. However, after 8 h, the rate of increase in the cyclohexane conversion was slower, and no further increase was noticed after 12 h. The selectivity of the products at every 2 h was calculated. Initially, cyclohexanol was found to be the major product. However, cyclohexanone % was found to increase with the increase of time. The percentage of cyclohexanol and cyclohexanone obtained at various time intervals are portrayed in Fig. 9. It is clearly seen that cyclohexane was first oxidized into cyclohexanol and then subsequently oxidized into cyclohexanone. Therefore, if cyclohexanol is the desired product, then the reaction can be stopped after 6 h, and if cyclohexanone formation is preferred, the time of the reaction may be extended up to 12 h.

Fig. 9 Effect of time on selectivity of products obtained from cyclohexane oxidation catalysed by Cu(II), Co(II) and Ni(II) hybrid catalysts.

Among the three catalysts, [Cu(Si–NH₂–DPED)Cl₂] was found to show a higher catalytic efficacy compared to the other two. The cyclohexane conversion efficiencies of [Cu(Si–NH₂–DPED)Cl₂], [Co(Si–NH₂–DPED)Cl₂] and [Ni(Si–NH₂–DPED)Cl₂] were 44, 38 and 35%, respectively, at 70 °C for 12 h (see Table S1 in ESI†). From Fig. 9, we can conclude that [Cu(Si–NH₂–DPED)Cl₂] would be the better choice for the formation of cyclohexanol and [Ni(Si–NH₂–DPED)Cl₂] can be preferred for cyclohexanone. This study shows that better selectivity for cyclohexanol by [Cu(Si–NH₂–DPED)Cl₂] can be achieved only below 6 h of the reaction. This problem can be possibly eliminated by concurrently removing cyclohexanol from catalytic reaction mixture. The variation in product selectivity may depend on the surface morphology of the catalysts.

(iii) Catalytic recyclability. One of the main interesting characteristics of SiO₂-based organic–inorganic hybrid catalysts is their reusability in successive catalytic experiments. [Cu(Si–NH₂–DPED)Cl₂] was selected as a model hybrid catalyst for investigating catalytic reusability because it exhibited higher activity than the other two catalysts. Before carrying out the subsequent catalytic run, the selected catalyst was separated from the reaction mixture and washed with ethanol and ether. The stability of [Cu(Si–NH₂–DPED)Cl₂] was studied by performing five consecutive catalytic experiments without changing other reaction conditions. As revealed in Fig. 10, the catalytic efficiency of [Cu(Si–NH₂–DPED)Cl₂] remains almost same. Moreover, [Cu(Si–NH₂–DPED)Cl₂] caused 44% cyclohexane conversion in the first catalytic run and 40% conversion in the fifth catalytic run. Its cyclohexane conversion efficiency was dropped only by 4%. It clearly signifies the advantage of the reported heterogeneous organic–inorganic hybrid catalysts. This catalytic reusability study further suggests that Cu(II) ions are not leached out from [Cu(Si–NH₂–DPED)Cl₂]. FT-IR spectrum of used catalyst was also recorded and compared with the fresh catalyst. They were significantly comparable and no notable differences were observed.

Fig. 10 Catalytic reusability of [Cu(Si–NH₂–DPED)Cl₂]. Reaction conditions: 5 mmol cyclohexane, 10 mmol 30% H₂O₂, 0.05 g catalyst, 10 ml CH₃CN, 70 °C and 12 h.

We have already reported the similar kind of catalysts for cyclohexane oxidation but the support used was chitosan, not SiO₂. Our current study suggests that the SiO₂ based organic–inorganic hybrid catalysts are more effective than the chitosan based catalysts for the oxidation of cyclohexane.⁶² The reason may possibly be the well dispersive character of SiO₂ based catalysts than their chitosan supported analogues. These SiO₂ supported catalysts also appeared as good reusable catalysts than the corresponding chitosan supported catalysts.

Similar to the blank catalytic experiments without oxidant and catalyst, two other experiments were carried out to check the catalytic activity of SiO₂ gel and Si–NH₂–DPED under the identical conditions; no cyclohexane conversion was detected. It proves the inability of SiO₂ and Si–NH₂–DPED to oxidize cyclohexane. To study the mechanism of cyclohexane oxidation, UV-Vis. spectroscopy was used. For this mechanistic study, a mixture of H₂O₂, nitric acid and catalyst in acetonitrile was prepared and its electronic spectrum was recorded. A shoulder peak was identified between 410–420 nm in the UV-Vis. spectra of all the complexes. This can be attributed to the metal-peroxo species⁶³ and it further suggests that cyclohexane oxidation followed the peroxidative mechanism, as given in the ESI.†

Conclusions

Three organic–inorganic hybrid catalysts (Cu(II), Co(II) and Ni(II) complexes) were synthesized by embedding imine (C=N) functional groups on the SiO₂ gel surface with the help of APTES linker. The studied hybrid catalysts were characterized by spectral, thermal and surface analytical techniques. The catalytic activities of catalysts were studied in generic, facile and mild cyclohexane oxidation using H₂O₂ oxidant for an eco-friendly approach. The salient features of the study are that all the catalysts showed adequate catalytic activity as well as good selectivity at reasonable temperature and atmospheric pressure. Importantly, except cyclohexanone and cyclohexanol (KA oil), no other products were obtained at the end of the cyclohexane oxidation. Upon increasing the reaction time, cyclohexanone % was found to be increasing while the cyclohexanol % was decreasing. It is found that the cyclohexane is first oxidised to cyclohexanol which is subsequently oxidised to cyclohexanone. Therefore, by lengthening the reaction time, our present catalytic system would become more selective. Cu(II) hybrid catalyst exhibited superior catalytic efficiency than the Co(II) and Ni(II) catalysts. The reusability study confirmed the stability of organic–inorganic hybrid catalysts inside the catalytic reactions, and therefore our catalysts can be repeatedly used in the catalytic run without any major decrease in their catalytic efficacy. With the merits of H₂O₂ oxidant, better product selectivity, dispersive nature and reusability of catalysts, the present hybrid catalysts for cyclohexane oxidation would be effective and preferable for future catalysis. Currently, the electron beam impact on the structural and catalytic properties of these organic–inorganic hybrid catalysts is currently under study in our laboratory.
