Towards applications in catalysis: investigation on photocatalytic activities of a derivative family of the Keplerate type molybdenum–oxide based polyoxometalates

Yunshan Zhou*, Libo Qin, Chao Yu, Tian Xiong, Lijuan Zhang*, Waqar Ahmad and Hao Han
State Key Laboratory of Chemical Resource Engineering, Institute of Science, Beijing University of Chemical Technology, Beijing 100029, P. R. China. E-mail: zhouys@mail.buct.edu.cn; Fax: +86-10-64414640; Tel: +86-10-64414640

Received 28th July 2014 , Accepted 7th October 2014

First published on 8th October 2014


Abstract

The photocatalytic potential of a derivative family of the Keplerate type nano-porous Mo–O based polyoxometalates with general formula [Mo72VIMo60VO372(L)30(H2O)72]n (L = CH3COO, SO42−) (denoted Mo132) has been evaluated by a prototype photocatalytic decoloration reaction of aqueous rhodamine B. The Mo132 anions are found to be photocatalytically active centers, however they are unstable and subjected to decomposition in the solution form. The introduction of organic counter cations such as tetrabutylammonium (n-Bu4N+) and dioctadecyldimethylammonium (DODA+) can endow significant stability to the giant anions during the catalytic process. TOC changes and GC/MS measurements were done to identify the degradation products. Among the derivatives, compound 2 composed of n-Bu4N+ and Mo132 (L = CH3COO) has been found to be the most active one towards the photocatalytic decoloration of RhB solution. The analytical mechanism indicates that both OH radicals and 1O2 participate in the photo degradation process.


Introduction

Polyoxometalates (POMs) constitute an enormous class of inorganic clusters, which can be characterized by a fascinating variety of architectures, topologies and excellent physicochemical properties including strong Brønsted acidity, high proton mobility, fast multi-electron transfer, high solubility in various solvents and resistance to the hydrolytic and oxidative degradations in solutions.1,2 Bearing in mind that increasing the size and complexity of POMs can generate variable functionality of interest, the unique nano-sized porous POMs of Keplerate type with general formula [Mo72VIMo60VO372(L)30(H2O)72]n (L = CH3COO, SO42−, HCOO, et al.) (denoted Mo132, Scheme 1) have been designed and synthesized by the Müller's group.3,4 The Keplerates are composed of 72 MoVI and 60 MoV, that constitute a capsule of 2.9 nm, 20 {Mo9O9} pores and a cavity connected outside via 20 channels, these inner shells can be modified by various ligands such as CH3COO, HPO2−, PO43− and SO42−, which correspond to different anionic and cationic charges in the charge balance. So far, a variety of applications for such unique POMs have been found in fields like nano-separation chemistry,5 cell simulation,6 materials,7,8 magnetic,9 optical properties,10 water decontamination,11 environment related carbon dioxide picking and so on.12
image file: c4ra07700h-s1.tif
Scheme 1 Polyhedral representation of the structure of the anion [Mo72VIMo60VO372(L)30(H2O)72]n (L = CH3COO, SO42−, HCOO, …). Mo(VI) atoms are shown in blue and green, and Mo(V) atoms in red.

On the other hand, it is well known that polyoxometalates have been widely used as acids, reductant–oxidants, photochemical or electrochemical catalysts for industrial organic reactions13,14 because of their easily adjustable catalytic properties, high thermal stability, non-toxicity and environment friendly character. Being new members of polyoxometalates, the Keplerate type POMs have also been expected to function as catalysts. Indeed, interesting catalytic activities like reversible cleavage and methyl tert-butyl ether synthesis,15 regioselective Huisgen reactions,16 and selective oxidation of sulfides under confined conditions17 have already been reported. However, photocatalytic behaviour of the Keplerate type POMs, which as expected is very interesting and important both from a theoretical and practical view, still remains unexplored.

In this paper, the photocatalytic potential of the nano-porous Keplerates type POMs, namely, ((NH4)42[Mo72VIMo60VO372(CH3COO)30(H2O)72ca. 300H2ca. 10CH3COONH4 1 (ref. 3), (NH4)18(nBu4N)24[Mo72VIMo60VO372(H2O)72(CH3COO)30ca. 7CH3COONH4·ca. 173H2O 2 (ref. 18), (NH4)72[Mo72VIMo60VO372(SO4)30(H2O)72ca. 200H2O 3 (ref. 4), (NH4)44(n-Bu4N)28[Mo72VIMo60VO372(SO4)30(H2O)72ca. 210H2O 4 and (DODA)40(NH4)2[Mo72VIMo60VO372(CH3COO)30(H2O)72ca. 50H2O 5 (ref. 8)), were investigated via degradation of a rhodamine B(RhB) solution (difficult to degrade completely by conventional methods and also suspected to be carcinogenic), which is often used as a prototype to examine the catalytic behavior of a photocatalyst.

Experimental

Materials and instruments

All chemicals and reagents were of analytical grade and used without further purification. Commercially available photocatalyst TiO2 (Aladdin reagent, EP grade, average size 0.2–0.4 μm) was used as received. IR spectra were recorded on a MAGNA-IR 750 (Nicolet) spectrophotometer with KBr pellets in the 400–4000 cm−1 region. Thermogravimetric analyses were carried out on a NETZSCH STA 449C unit at a heating rate of 5 °C min−1 under air atmosphere. Elemental analyses for C, H and N were performed on a Perkin-Elmer 240C analytical instrument. Analyses for Mo were performed by the SPECTRO ARCOS type inductively coupled plasma spectrometer. UV-vis absorption spectra were recorded on a SHIMADZU UV-2550 spectrometer. GC/MS analyses were carried out on a Shimadzu GC/MS-QP2010 instrument equipped with a DB-5MS capillary column (30 m × 0.25 mm). The temperature program of the column was set as follows: at 60 °C, hold time = 1 min; from 60 to 250 °C, rate 20 °C min−1. The samples for GC/MS analyses were prepared as follows: After the catalysts were removed by centrifugation, the remaining aqueous solution was collected and evaporated to near dryness under reduced pressure; methanol (10 mL each time) was added and evaporated three times to remove water completely; finally, the remaining residue was dissolved in 0.5 mL of methanol. TOC determination of the samples (filtered through polycarbonate membranes with an average pore diameter of 15 nm) was performed on a Shimadzu TOC-5000A analyzer. Photoluminescence spectra were recorded on a Hitachi F-7000 fluorescence spectrophotometer with emission slit of 5 nm by using a 150 W xenon lamp as the light source. ICP analyses for Mo were conducted on a Spectro Arcos Eop Axial View Inductively Coupled Plasma Spectrometer.

During the catalytic reaction processes, all illumination processes were performed using a BYLAB UV-III UV light desktop equipped with a 12 W lamp (light intensity 13 μW cm−2) of irradiation wavelength 365 nm, except one experiment where a 250 W mercury lamp (light intensity 22 mW cm−2) was employed as a light source to test the influence of light intensity on the degradation effect. The light intensity was measured by a radiometer (FZ-A, Photoelectric instrument factory of Beijing Normal University, China).

Synthesis of the compounds

(NH4)42[Mo72VIMo60VO372(CH3COO)30(H2O)72ca. 300H2ca. 10CH3COONH4 (compound 1) was synthesized as described in literature.3 Elemental analysis (%) calcd: C 3.36, H 3.78, N 2.55, Mo 44.25; found: C 3.45, H 3.69, N 2.63, Mo 43.96. IR (ν/cm−1, KBr): 3424 (m), 3170 (m), 2958 (w, (νas(C–H)), 2862 (w, νs(C–H)), 1622 (m, ν(H2O)), 1546 (m, ν(COO)), 1441 (sh), 1403 (m, νs(COO), νas(NH4+)), 969 (m), 934 (w–m, Mo[double bond, length as m-dash]O), 855 (m), 792 (s), 723 (s), 629 (w), 568 (s) (Fig. S1).

(NH4)18(n-Bu4N)24[Mo72VIMo60VO372(CH3COO)30(H2O)72·ca. 7CH3COONH4·ca. 173H2O (compound 2) was prepared as described in literature.18 Elemental analysis (%) calcd: C 17.61, H 4.27, N 2.20, Mo 40.53; found: C 17.41, H 4.20, N 2.23, Mo 40.62. IR (ν/cm−1, KBr): 3430 (m), 3173 (m), 2968 (m, νas(C–H)), 2870 (m, νs(C–H)), 1623 (m, ν(H2O)), 1557 (m, ν(COO)), 1440 (sh), 1404 (m, νs(COO), νas(NH4+)), 978 (m), 951 (w–m) (Mo[double bond, length as m-dash]O), 855 (m), 801 (s), 732 (s), 633 (w), 576 (s) (Fig. S1).

(NH4)72[Mo72VIMo60VO372(SO4)30(H2O)72ca. 200H2O (compound 3) was synthesized as described in literature.4 Elemental analysis (%) calcd: H 3.03, N 3.64, Mo 45.72; found: H 2.96, N 3.54, Mo 45.64. IR (ν/cm−1, KBr): 3418 (s), 3172 (s), 1629 (m, ν(H2O)), 1440 (sh), 1401 (m, νas(NH4+)), 1185 (w), 1134 (w), 1041 (w, νas(SO42−), 966 (m), 849 (m), 795 (s), 720 (s), 630 (w), 567 (s) (Fig. S2).

(NH4)44(n-Bu4N)28[Mo72VIMo60VO372(SO4)30(H2O)72ca. 210H2O (compound 4) was prepared with the following procedure: a 15 mL aqueous solution of compound 3 (0.25 g) and a 15 mL aqueous solution of n-Bu4NBr (0.23 g) (molar ratio compound 3: n-Bu4NBr = 1[thin space (1/6-em)]:[thin space (1/6-em)]72), both having a pH of ca. 3 adjusted by using dilute CH3COOH (30%), respectively, were mixed together under fast stirring. After 20 min. of stirring, the resulting brown precipitates were filtered, washed with de-ionized water till the negative AgNO3 test and dried in air. Elemental analysis (%) calcd, C 15.75, H 5.15, N 2.95, Mo 37.07; found: C 15.78, H 4.28, N 2.81, Mo 37.15; IR (ν/cm−1, KBr): 3418 (s), 3172 (s), 2968 (νas(C–H)), 2878 (νs(C–H)), 1641 (m, ν(H2O)), 1461 (w), 1407 (m, ν(NH4+)), 1166 (w), 1119 (w), 1056 (w, νas(SO42−)), 972 (m), 855 (m), 792 (s), 729 (s), 633 (w), 570 (s) (Fig. S2).

(DODA)40(NH4)2[Mo72VIMo60VO372(CH3COO)30(H2O)72·ca. 50H2O (compound 5) was prepared according to the reference.8 Elemental analysis (%) calcd, C 42.49, H 7.99, N 1.32, Mo 28.35; found: C 42.55, H 7.89, N 1.23, Mo 28.42; IR (ν/cm−1, KBr): 3436 (s), 2932 (νas(C–H)), 2860 (νs(C–H)), 1659 (m, ν(H2O)), 1548 (m, ν(COO)), 1467 (w), 1410 (m, ν(NH4+), νs(COO)), 978 (m), 951 (sh), 852 (m), 801 (s), 732 (s), 630 (w), 573 (s) (Fig. S3).

The TG-DTA curve (Fig. S4) and thermogravimetric analysis for compound 4 are given in the ESI part.

Catalytic reaction

RhB was dissolved in deionized water to get a 2.0–6.0 mg L−1 solution and the desired pH was adjusted with dilute acetic acid or ammonia. Compounds 2, 4 and 5 were ground by using agate mortar. To 50 mL RhB solution with desired concentration in a 100 mL beaker, compounds 1–5 of desired amounts were added under stirring, respectively. Dark treatments for 15 min were performed to avoid the effect of adsorption of the dye before all the measurement. Reaction samples were taken at regular intervals to analyze the absorbance change of RhB (λmax = 554 nm) using a UV-vis spectrophotometer.

Absorbance and RhB concentration were governed by the Lambert–Beer law: A = log(I0/I) = εcl, where A: absorbance (measured in 1 cm quartz cells, cm−1); I0, I: intensity of light entering and leaving the optical cell, respectively; ε: extinction coefficient or absorptivity (L mg−1 cm−1); l: optical path length (cm); c: concentration of dye (mg L−1). The absorbance change of RhB (λmax = 554 nm) corresponded to the concentration changes of RhB, so the decoloration ratio (DC) was calculated by the equation: DC = [(A0At)/A0] × 100%, where A0 represents the absorbance before the reaction, and At the absorbance at a given time.

Results and discussion

Factors influencing the photocatalytic effect

In the preliminary experiments, compound 2 was used as a catalyst and it was found that RhB was remarkably degraded under UV irradiation as compared to other conditions (see Table 1). The results showed that UV irradiation and the catalyst are compulsory for the degradation of RhB.
Table 1 Preliminary RhB degradation results under various conditionsa
Batch Compound 2 UV light Sunlight Reaction time (h) Decoloration ratio (%)
a Symbols ✓ and ✗ mean that the item is present and absent, respectively. Reaction condition: 2.0 mg of compound 2, 50 mL of 2 mg L−1 RhB solution and pH = ca. 5.1.
No. 1 6 1.5
No. 2 6 3.1
No. 3 6 52.7
No. 4 6 92.2
No. 5 6 1.3


The effect of pH on photocatalytic decolorizing efficiency using compound 2 has been done and the RhB solution was completely decolored with a decoloration ratio of almost 100% under optimized conditions (pH 3–5) (Table 2). The experimental results strengthened the fact that acidic condition is favorable for the degradation of RhB molecules as for other polyoxometalates.19 However, at very low pH, brown colour was observed in the system indicating the dissolution of compound 2, which leads to easy decomposition of the anion, while at very high pH compound 2 is also apt to directly decompose.

Table 2 Effect of pH on photocatalytic decolorizing efficiency of 50 mL of 2.0 mg L−1 RhB solution over 2.0 mg of compound 2
Batch pH Equilibrium timeb (h) Decoloration ratio (%)
a 250 W mercury lamp was used as a light source instead of the BYLAB UV-III UV light desktop with a power 12 W and an irradiation wavelength of 365 nm.b Time when the degradation ratio remains unchanged.
No. 1 6.0 3.5 66.9
No. 2 5.0 4.0 92.2
No. 3 4.0 3.0 96.1
No. 4 3.5 6.0 100.0
No. 5a 3.5 <1.25 100.0
No. 6 3.0 1.5 85.6


The light intensity has significant influence on the decoloration results, as almost a 100% decoloration ratio was observed within 75 min (Table 2, Fig. 2) by using a 250 W mercury lamp, while the same 100% decoloration ratio was achieved after 6 h when a BYLAB UV-III UV light desktop with power of 12 W was used at irradiation wavelength of 365 nm under the same reaction condition.


image file: c4ra07700h-f1.tif
Fig. 1 UV-vis absorption spectral changes of RhB during the catalytic process (the arrow marks the increase of reaction time). Reaction condition: pH 3.5, 2.0 mg of compound 2 and 50 mL of 2 mg L−1 RhB solution.

image file: c4ra07700h-f2.tif

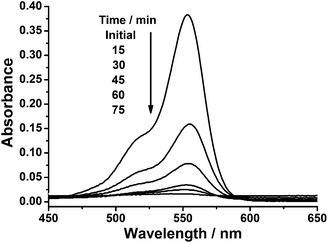

Fig. 2 UV-vis absorption spectral changes of RhB during the catalytic process using a 250 W mercury lamp as a light source. The arrow marks the increase of reaction time. Reaction condition: pH 3.5, 2.0 mg of the compound 2.

Additionally, it was also found that both the speed and the decoloration ratio of catalysis remarkably enhanced by increasing the dosage of catalyst (0.5–3.0 mg) for compound 2 (Fig. S5, Table 3) at optimal pH range (3.0–5.0).

Table 3 Effect of catalyst dosage of compound 2 on photocatalytic decolorizing efficiency with 50 mL of 2.0 mg L−1 RhB solution
Batch pH Dosage of catalyst Time (h) Decoloration ratio (%)
No. 1 3.5 0.5 6.0 22.0
No. 2 3.5 1.0 6.0 50.0
No. 3 3.5 1.5 6.0 88.0
No. 4 3.5 2.0 6.0 100.0
No. 5 3.5 3.0 3.5 99.8
No. 6 4.0 1.0 6.0 62.3
No. 7 4.0 2.0 6.0 100.0


Initial concentration of RhB also affects the decoloration ratio; the apparent exponential decay curves were obtained for 0.5–6 mg L−1 of the RhB solution when the degradation rate was plotted versus time (Fig. 3). It exhibits an optimum dye concentration (2.0 mg L−1) at pH 3.5 in the presence of 2.0 mg of compound 2. The decomposition rate slowed down with increasing concentration of RhB solution, and the decomposition ratio reached up to ca. 80% with long reaction time of 23 h by using 6.0 mg L−1 concentration of RhB solution. This phenomenon suggests that when initial dye concentration is beyond a threshold, effective light penetration is seriously hindered and competitive absorption starts to inhibit the photochemical formation.20 In other words, UV light cannot penetrate into the RhB containing solution when the concentration of RhB is too high. As a result, only a small percentage of POMs can absorb UV light, which leads to the lower decoloration ratio.


image file: c4ra07700h-f3.tif
Fig. 3 Effects of RhB concentration (50 mL) under pH 3.5 in the presence of 2.0 mg of compound 2.

The experimental results showed that when compound 1 (quite soluble in water) was added to the RhB solution, the concentration of RhB in solution was notably decreased with the passage of time, which was demonstrated by the decrease of the characteristic RhB peak at 554 nm. However, unlike compound 2, compound 1 was unstable and decomposed simultaneously during the catalysis process, which was recognized from the reduction of the characteristic absorption at 450 nm that is ascribed to the Keplerate type POM anion (Fig. 4a).3,4,7,8 After complete decomposition of compound 1, absorbance intensity of the characteristic RhB peak at 554 nm corresponding to the concentration of RhB did not change any more. A similar situation was observed for compound 3. As compared to compound 1, compound 3 decomposed more easily in water during the catalytic process due to its higher anionic charge, which was revealed by fast disappearance of the characteristic absorption at 450 nm that was ascribed to the Keplerate type POM anion (Fig. 4b). In contrast to compounds 1 and 3, the characteristic absorption of compounds 2 and 5 was not found in the reaction solution, indicating that they are quite insoluble in water. It can be deduced from the results that the {Mo132} anions in the compounds are the active centers under UV-irradiation to degrade RhB. However, the water-soluble compounds 1 and 3 were naturally unstable in the solution and could be decomposed completely within a certain period of time, this means that the Keplerate type {Mo132} anions need to be stabilized and protected in aqueous solution. In this context, combination of {Mo132} anions and n-Bu4N+ or DODA+ results in the formation of a new kind of heterogeneous catalysts, viz., compound 2, 4, and 5, where the organic cations endow remarkable stability of the anions because of their water-tolerant properties and hydrophobic interactions between the alkyl chains of n-Bu4N+ or DODA+ cations in the hybrid materials in the solid state as a reported in a case for the giant wheel system with DODA+ cations.21


image file: c4ra07700h-f4.tif
Fig. 4 UV-vis absorption spectral changes of RhB solution during the catalytic process with (a) compound 1 and (b) compound 3 as catalyst. The dash line represents UV-vis absorption spectra of compound 1 and compound 3, respectively. The arrow marks the increase of reaction time. Reaction condition: 50 mL of 2.0 mg L−1 RhB solution and pH 3.5.

Surprisingly, when the quite stable compound 5 was used as photocatalyst, the decoloration ratio of RhB was calculated to ca. 21% with quite a long reaction time of 23 h (Fig. S6) under the same conditions (50 mL of 2.0 mg L−1 RhB solution with pH 3.5, 2.0 mg of compound 5). Further, for comparison, commercially available TiO2 was used instead of compound 2 to degrade RhB, it was found that the decomposition ratio could reach ca. 76%, which is inferior to compound 2, within the 4 h reaction time under the same experimental conditions (Fig. S7).

On the other hand, considering that the [Mo72VIMo60VO372(SO4)30(H2O)72]72− bears (−)72 charges, which is larger than that of [Mo72VIMo60VO372(CH3COO)30(H2O)72]42−, it is interesting to consider the charge influence on the catalytic activities of their corresponding derivatives. Therefore, compound 4 (a derivative of compound 3) was tested for RhB solution decoloration under the same condition (50 mL of 2.0 mg L−1 RhB solution with pH 3.5, 2.0 mg of compound 4) as that for compound 2. It was found that when compound 4 was used as a catalyst the characteristic absorption of the RhB solution decreased to ca. 73% after 17 h stirring under UV light (Fig. S8). The adsorption site did not drift as in the case of compound 2. As compared to compound 2, compound 4 showed weak catalytic activities under the same condition.

Taken the above results into account, it is known that these three heterogenous catalysts showed the following order: compound 2 > compound 4 ≫ compound 5 in view of catalytic effect. The reason for the phenomena can be tentatively explained as follows: in the case of n-Bu4N+ as cations for {Mo132} anions, each [Mo72VIMo60VO372(SO4)30(H2O)72]72− anion has potential to combine more n-Bu4N+cations than each [Mo72VIMo60VO372(CH3COO)30(H2O)72]42 anion because of difference in the negative charge numbers, which causes the number of accessible catalytic active centers of compound 4 less than that of compound 2. This may be responsible for the lower catalytic effect of compound 4 because the anions in compounds 2 and 4 are nearly the same except their anionic charges due to different L in the [Mo72VIMo60VO372(L)30(H2O)72]n structures. Though the difference in the number of n-Bu4N+ cations in compounds 2 and 4 do not look so large, the decoloration results demonstrate that such small difference can influence the photochemical effect due to the large size of the n-Bu4N+. Therefore, it is speculated that the proper amount of n-Bu4N+ not only endow remarkable stability due to its hydrophobicity but also allow reactant molecules to access the catalytic centers because of the short alkyl chains and small steric hindrances, while excess amount of n-Bu4N+ surrounding the anion dissipate the advantage. In the case of compound 5, the anion is encapsulated tightly by amphiphile DODA+ with a straight alkyl chain at the anion surface8 which causes less approach to the catalytically active centers, so less catalytic effect was found for compound 5.

In summary, based on the above experimental results, it can be concluded that the compound 2 has the highest photocatalytic activities among the derivative's family, and the optimal condition for RhB degradation was determined as, 50 mL of 2.0 mg L−1 RhB solution, pH 3.5–4.0, dosage of compound 2 2.0–3.0 mg, and reaction time 3–6 h.

TOC measurement and identification of final products in the decoloration of RhB

The TOC changes in the RhB solution during the progress of photodegradation reflected the mineralization degree of the dye. The initial RhB solution contained about 1.85 ppm of TOC. In order to check the adsorption of RhB on the catalysts, the dye solution was stirred in the dark for 0.5 h under the following conditions: 50 mL of 2.0 mg L−1 RhB solution with pH 3.5, 2.0 mg of the compounds 2, 4 and 5, respectively. After adsorption of RhB over the three compounds reached an equilibrium, it was found that the TOC values of the bulk solution dropped to ca. 1.79 ppm showing that ca. 3% of RhB was adsorbed on the catalyst for each case.The TOC changes of RhB under UV-light irradiation using compound 2 as catalyst are shown in Fig. 5. The TOC removal of ca. 27.9% (from 1.79 to 1.29 ppm) was achieved after 6 h stirring when a complete decoloration of the dye solution (line a in Fig. 5) was finished. The TOC values decreased from 1.79 to 1.40 ppm after 17 h stirring when compound 4 was used as a catalyst, corresponding to a TOC removal of ca. 21.8%. While in the case of compound 5 as catalyst, the TOC was removed only by 4.5% (from 1.79 to 1.70 ppm) after 23 h stirring. Notably, when the intensity of UV light was enhanced by using a 250 W mercury lamp (light intensity 22 mW cm−2) instead of BYLAB UV-III UV light desktop with a power of 12 W (light intensity 13 μW cm−2), the TOC value dropped from 1.79 to 1.26 ppm, corresponding to 29.6% removal of TOC, within a much shorter time of 75 min (line b in Fig. 5) by using the compound 2 as catalyst. These results agreed quite well with the photocatalytic decolorizing efficiency of the catalysts obtained from the above UV-vis absorption spectral results.
image file: c4ra07700h-f5.tif
Fig. 5 Temporary changes of TOC during photodegradation of RhB (pH 3.5) using compound 2 by (a) the BYLAB UV-III UV light desktop with a power 12 W and an irradiation wavelength of 365 nm; (b) a 250 W high pressure mercury lamp.

It should be noted that the color of the RhB solution faded gradually upon its decomposition in the presence of the catalysts, and concomitantly, the characteristic absorbance peak of RhB at 554 nm gradually decreased without any peak shift (Fig. 1). This observation of no peak shift indicates that the opening of the benzene ring was the main process during the catalytic process.22 Further, the small peaks between 200 nm and 450 nm gradually decreased without a peak shift and finally disappeared, indicating that the fragments generated as a result of ring-opening degraded easily during the catalytic process with time.

GC/MS was used to analyze the final products and the corresponding concentrations of RhB degradation. The results (see Table 4) showed that the photodegradation of RhB in the presence of different catalysts under the UV light produced the same products with different concentrations. In this paper, four predominant products were analysed and some other products with smaller intensities were neglected. These products mainly came from the partially cleaved conjugated xanthene structure of RhB during the degradation reaction. It should be noted that the photodegradation products of RhB produced under different experimental systems may differ from each other, and a direct and simple comparison is not allowed.23,24

Table 4 Predominant products of the photodegradation of RhB and their amounts detected by GC/MS using compound 2 as a catalyst
Retention time (min) Detected product Relative product amount
1.42 image file: c4ra07700h-u1.tif 0.23
1.48 image file: c4ra07700h-u2.tif 1.00

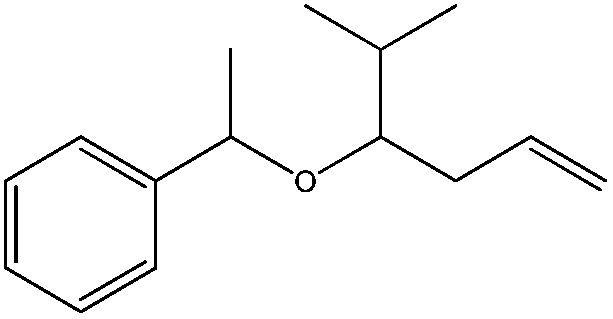

1.57 image file: c4ra07700h-u3.tif 0.36
1.64 image file: c4ra07700h-u4.tif 0.11


The understanding for the mechanism of catalytic reaction

Generally, it is accepted that under UV irradiation, excitation of the POM molecule induces an electronic transition from the highest occupied molecular orbital (HOMO) to the lowest unoccupied molecular orbital (LUMO). The excited state of POM (POM*) in a water solution can generate OH radicals25–27 which are extremely powerful oxidizing agents for organic substrates. The reduced POM (POM) produced from the POM* by abstracting an electron from the substrates can deliver the electron to electron acceptors28,29 such as O2, metal ions, and then change into the oxidized POM form again. In other words, the hydroxyl free radical mechanism was commonly involved in POMs-based photocatalysis.

So far, no literature has reported about photocatalytic activities and mechanisms for the Keplerate type Mo–O based polyoxometalates. Whether the hydroxyl free radicals were applied for this photocatalytic processes needs to be studied. As it is known that hydroxyl radicals involved in a photoreaction can be detected by the photoluminescence (PL) technique using terephthalic acid as a probe molecule because the hydroxyl radicals react readily with terephthalic acid to produce the highly fluorescent product 2-hydroxyterephthalic acid.30 The principle of this method is based on the PL signal of 2-hydroxyterephthalic acid at 425 nm. Moreover, the PL intensity of 2-hydroxyterephthalic acid is proportional to the concentration of ˙OH radicals which are produced from POMs catalysis. So, a similar procedure for the measurement of photocatalytic activity was carried out where just the RhB aqueous solution was replaced by aqueous solution of terephthalic acid (5 × 10−4 M) with NaOH solution (2 × 10−3 M). A gradual increase in PL intensity at about 425 nm (excited by 315 nm UV-light) was observed with increasing irradiation time for compounds 2, 4, and 5 (Fig. 6 and S9), while no PL increase was observed in the absence of UV light or in the absence of the compounds. This observation indicates that the catalysts indeed produce OH radicals under UV illumination. It was also observed that the PL intensity change was not linear vs. the irradiation time, and this can be ascribed to the fact that Mo132 catalyst is not stable in such a high basic condition and Mo132 catalyst may decompose gradually.


image file: c4ra07700h-f6.tif

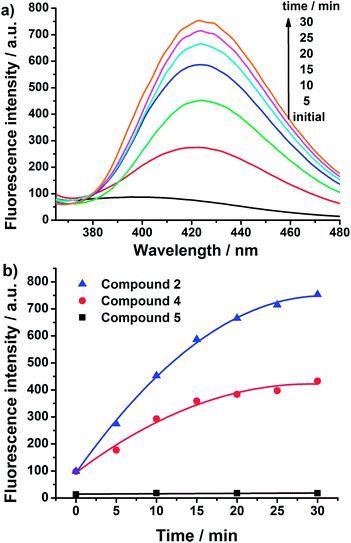

Fig. 6 Photoluminescence spectral changes of the compound 2 under UV light irradiation (a), and photoluminescence intensity changes at λmax = 425 nm vs. UV light irradiation time of the compound 2, 4 and 5. (b) in a 5 × 10−4 M basic solution of terephthalic acid (excitation light λ = 315 nm, voltage = 500 V, EX slit = 10 nm, EM slit = 10 nm).

Importantly, under the same condition, the PL intensities were different for the different compounds: the intensity for compound 2 > the intensity for compound 4 ≫ the intensity for compound 5 (Fig. 6 and S9). This result is quite consistent with their catalytic activities observed above.

In order to get more insight into the possible active species involved during the degradation process in the present study, isopropanol31 and KI32 (effective scavengers for OH radicals), benzoquinone33 (an effective scavenger for O2˙ radicals) were introduced into the reaction system under the same experimental conditions in separate experiments (Fig. 7), respectively. A little effect on the degradation rate of RhB upon addition of benzoquinone into the reaction system was found, suggesting that the O2˙ radicals were not the dominant active oxygen species in the present reaction system. Notably, the degradation rate of RhB upon addition of either isopropanol or KI into the reaction system decreased greatly, which further confirmed that the OH radicals were the active oxygen species, a result quite consistent with the PL measurement. In addition, it was found that addition of NaN3 (ref. 34) (an effective scavenger for both OH radicals and 1O2) led to a remarkable suppression in the photodegradation rate of RhB, indicating that besides OH radicals 1O2 also took part in the photo degradation process.


image file: c4ra07700h-f7.tif
Fig. 7 Plotted degradation kinetics of RhB under UV irradiation on addition of NaN3 (a), isopropanol (b), KI (c), benzoquinone (d), and no scavenger added (e). Reaction condition: 50 mL of 2 mg L−1 RhB solution, 2 mg of compound 2, 2 mmol L−1 of scavenger (i.e., NaN3, isopropanol, KI, benzoquinone).

Taking into account that the Keplerates consist of 12 pentagonal {(MoVI)Mo5VIO21(H2O)6} units and 30 linear {Mo2VO4(L)} linkers, we believe that the 12 pentagonal {(MoVI)Mo5VIO21(H2O)6} units of Keplerates having MoVI centers rather than 30 linear {Mo2VO4(L)} linkers are the active centers to generate OH radicals, because the oxidation state of the Mo species in the {Mo2VO4 (L)}unit is already (+)5.

Separation, stability and recovery of the catalyst

As compound 2 is found to be the most active one towards the photocatalytic decoloration of RhB solution under the obtained optimal condition, the recovery and reuse of compound 2 was tested. At the completion of the photocatalytic reaction, the suspensions were collected by filtration through a polycarbonate film with an average pore diameter of 15 nm and thoroughly washed with water to remove the RhB which was attached on the surface of catalyst. Then the catalyst was reused in the catalytic experiments. The catalytic activity of the recovered compound 2 for the decoloration of RhB was still satisfactory after 5 repeated experiments (Fig. 8). The slight reduction of decoloration ratio was owed to unavoidable loss of the catalyst during the repeating regeneration processes. The IR spectra of the catalyst did not show distinct changes after 5 repeated experiments (Fig. S10). Decomposition of compound 2 in solution under catalytic conditions was excluded by performing ICP analysis for Mo in the filtration after complete removal of the suspension on the completion of the photocatalytic reaction. These indicate unambiguously that compound 2 remained quite stable and its structure remained intact under the catalytic condition. Otherwise, the situation as illustrated in Fig. 4a would have taken place.
image file: c4ra07700h-f8.tif

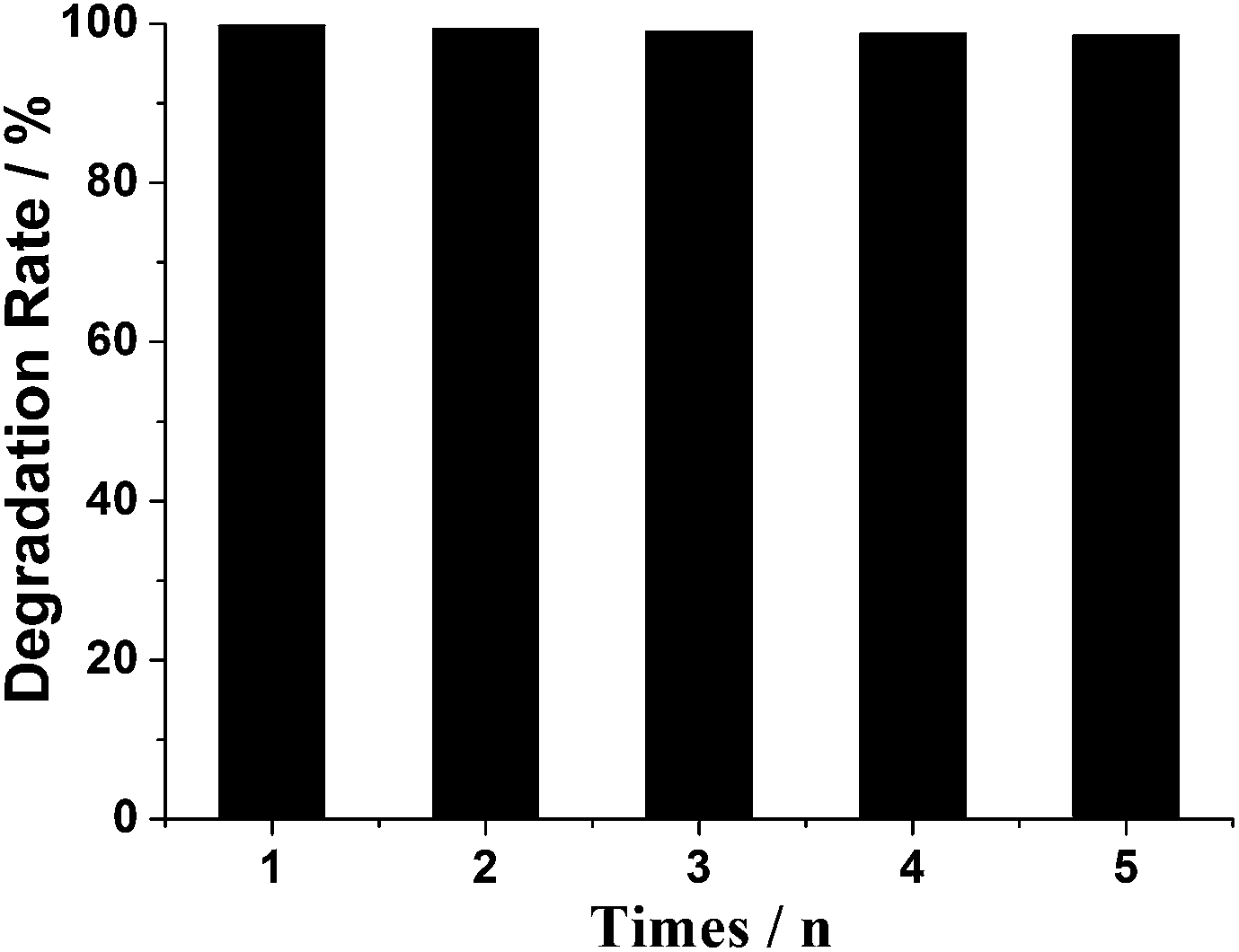

Fig. 8 The catalytic activity of recovered compound 2 versus cycling runs.

Conclusions

The photocatalytic activities of a derivative family of the Keplerate type nano-porous Mo–O based polyoxometalates with general formula [Mo72VIMo60VO372(L)30(H2O)72]n (L = CH3COO, SO42−) were evaluated for the first time by a prototype photocatalytic decoloration of an RhB solution. The Mo132 anions were found to be the active centers under UV irradiation to degrade RhB, while they were unstable in solution and need to be protected by organic cations endowing stability of the anions due to the resultant water-tolerant property and the hydrophobic interactions between the alkyl chains of cations in the hybrid materials in a solid state. An analytical mechanism indicates that both OH radicals and 1O2 participate in the photo degradation process. Compound 2 showed the highest photocatalytic activity due to the largest formation rate of hydroxyl radicals. It is expected that this study will open a new perspective for the Keplerate type nano-porous Mo–O based polyoxometalates with respect to possible applications in photocatalysis which is yet unexplored.

Acknowledgements

The financial support of the Natural Science Foundation of China, PCSIRT (no. IRT1205) and Beijing Engineering Center for Hierarchical Catalysts is greatly acknowledged. Prof. Xue Duan of Beijing University of Chemical Technology is greatly acknowledged for his kind support.

Notes and references

  1. C. L. Hill, Chem. Rev., 1998, 98, 1–387 CrossRef CAS PubMed .
  2. D. Long, R. Tsunashima and L. Cronin, Angew. Chem., Int. Ed., 2010, 49, 1736–1758 CrossRef CAS PubMed .
  3. A. Müller, E. Krickemeyer, H. Bögge, M. Schmidtmann and F. Peters, Angew. Chem., Int. Ed., 1998, 37, 3359–3363 CrossRef .
  4. A. Müller, E. Krickemeyer, H. Bögge, M. Schmidtmann, B. Botar and M. O. Talismanova, Angew. Chem., Int. Ed., 2003, 42, 2085–2090 CrossRef PubMed .
  5. A. Müller, S. K. Das, S. Talismanov, S. Roy, E. Beckmann, H. Bögge, M. Schmidtmann, A. Merca, A. Berkle, L. Allouche, Y. Zhou and L. Zhang, Angew. Chem., Int. Ed., 2003, 42, 5039–5044 CrossRef PubMed .
  6. A. Müller, D. Rehder, E. T. K. Haupt, A. Merca, H. Bögge, M. Schmidtmann and G. Heinze-Brückner, Angew. Chem., Int. Ed., 2004, 43, 4466–4470 CrossRef PubMed .
  7. D. G. Kurth, A. Chesne, D. Volkmer, M. Ruttorf, B. Richer and A. Müller, Chem. Mater., 2000, 12, 2829–2831 CrossRef CAS .
  8. D. Volkmer, D. G. Kurth, H. Schnablegger, P. Lehmann, M. J. Koop and A. Müller, J. Am. Chem. Soc., 2000, 122, 1995–1998 CrossRef CAS .
  9. P. Kögerler, B. Tsukerblat and A. Müller, Dalton Trans., 2010, 39, 21–36 RSC .
  10. L. Zhang, Y. Zhou and R. Han, Eur. J. Inorg. Chem., 2010, 17, 2471–2475 CrossRef .
  11. C. Schäffer, A. M. Todea, H. Bögge, O. A. Petina, E. T. K. Haupt and A. Müller, Chem.–Eur. J., 2011, 17, 9634–9639 CrossRef PubMed .
  12. S. Garai, E. T. K. Haupt, H. Bögge, A. Merca and A. Müller, Angew. Chem., Int. Ed., 2012, 51, 10528–10531 CrossRef CAS PubMed .
  13. I. V. Kozhevnikov, Chem. Rev., 1998, 8, 171–198 CrossRef PubMed .
  14. M. Sadakane and E. Steckhan, Chem. Rev., 1998, 98, 219–237 CrossRef CAS PubMed .
  15. S. Kopilevich, A. Gil, M. Garcia-Ratés, J. B. Avalos, C. Bo, A. Müller and I. A. Weinstock, J. Am. Chem. Soc., 2012, 34, 13082–13088 CrossRef PubMed .
  16. C. Besson, S. Schmitz, K. M. Capella, S. Kopilevich, I. A. Weinstock and P. Kögerler, Dalton Trans., 2012, 41, 9852–9854 RSC .
  17. N. V. Izarova, O. A. Kholdeeva, M. N. Sokolov and V. P. Fedin, Russ. Chem. Bull., Int. Ed, 2009, 58, 134–137 CrossRef CAS PubMed .
  18. Y. Zhou, Z. Shi, L. Zhang, S. Hassan and N. Qu, Appl. Phys. A: Mater. Sci. Process., 2013, 113, 563–568 CrossRef CAS .
  19. N. Lu, Y. H. Zhao, H. B. Liu, Y. H. Guo, X. Yuan, H. Xu, H. F. Peng and H. W. Qin, J. Hazard. Mater., 2012, 199–120, 1–8 CrossRef PubMed .
  20. I. Arslan-Alaton, Dyes Pigm., 2004, 60, 167–176 CrossRef CAS PubMed .
  21. S.-i. Noro, R. Tsunashima, Y. Kamiya, K. Uemura, H. Kita, L. Cronin, T. Akutagawa and T. Nakamura, Angew. Chem., Int. Ed., 2009, 48, 8703–8706 CrossRef CAS PubMed .
  22. T. Shiragami, S. Fukami, Y. J. Waka and S. Yanagida, J. Phys. Chem., 1993, 97, 12882–12887 CrossRef CAS .
  23. C. Chen, W. Zhao and P. Lei, Chem.–Eur. J., 2004, 10, 1956–1965 CrossRef CAS PubMed .
  24. P. Lei, C. Chen and J. Yang, Environ. Sci. Technol., 2005, 39, 8466–8474 CrossRef CAS .
  25. E. Androulaki, A. Hiskia, D. Dimotikali, C. Minero, P. Calza, E. Pelizzetti and E. Papaconstantinou, Environ. Sci. Technol., 2000, 34, 2024–2028 CrossRef CAS .
  26. A. Mylonas, A. Hiskia and E. Papaconstantinou, J. Mol. Catal. A: Chem., 1996, 114, 191–200 CrossRef CAS .
  27. T. Yamase and T. Kurozumi, J. Chem. Soc., Dalton Trans., 1983, 10, 2205–2209 RSC .
  28. A. Troupis, A. Hiskia and E. Papaconstantinou, New J. Chem., 2001, 25, 361–363 RSC .
  29. A. Troupis, A. Hiskia and E. Papaconstantinou, Angew. Chem., Int. Ed., 2002, 41, 1911–1914 CrossRef CAS .
  30. J. Yu, G. Dai and B. Cheng, J. Phys. Chem. C, 2010, 114, 19378–19385 CAS .
  31. G. T. Li, K. H. Wong, X. W. Zhang, C. Hu, J. C. Yu, R. C. Y. Chan and P. K. Wong, Chemosphere, 2009, 76, 1185–1191 CrossRef CAS PubMed .
  32. C. Karunakaran and R. Dhanalakshmi, Sol. Energy Mater. Sol. Cells, 2008, 92, 1315–1321 CrossRef CAS PubMed .
  33. C. Schweitzer and R. Schmidt, Chem. Rev., 2003, 103, 1685–1757 CrossRef CAS PubMed .
  34. S. Zhao, X. H. Wang and M. X. Huo, Appl. Catal., B, 2010, 97, 127–134 CrossRef CAS PubMed .
