Enhanced cycling stability of silicon anode by in situ polymerization of poly(aniline-co-pyrrole)

Abstract

The application of a silicon-based Li-ion battery anode is limited by the poor cycling stability associated with its large volume changes during the charging and discharging processes. Herein, we report a facile solution process to fabricate silicon composite anodes by encapsulating Si nanoparticles with in situ polymerized aniline and pyrrole copolymers. The copolymer matrix can accommodate the considerable volume changes of Si during the cycling process. Therefore, the as-prepared Si/poly(aniline-co-pyrrole) composite electrodes successfully achieve higher capacity and better cycling performance than the bare nano-Si anode. The specific capacity of the composite electrode retains 637 mA h g⁻¹ after 50 cycles.

---

Introduction

The grid-scale energy storage systems and electric vehicles require developing next generation lithium-ion batteries with high energy density and long cycle life.¹ Currently, the theoretical specific capacity of commercial graphite anode is 370 mA h g⁻¹;² thus, it does not meet the need of high energy storage devices. Silicon has been considered as a promising alternative anode material due to its high specific capacity (4200 mA h g⁻¹) and low delithiation potential (∼0.4 V versus Li/Li⁺).³ However, the active Si material will be damaged and lose contact with current collector because of the tremendous volume expansion during cycling (more than 300%).⁴ Furthermore, silicon is a semiconductor material and its bulk conductivity is as low as 6.7 × 10⁻⁴ S cm⁻¹.⁵ In recent years, silicon with a nanostructure has been extensively studied, and considerable progress has been made, such as nanoparticles,⁶ nanowires,⁷ nanotubes⁸ and nanofilms.⁹ In addition, Si/carbon¹⁰ and Si/metal¹¹ composite electrode showed good performance because the composite could accommodate the severe volume expansion. Although the electrochemical performance has improved greatly, the inherent volume change remains a challenge for the commercialization of silicon-based anodes.

Conducting polymers have various applications in electronics,¹² batteries¹³ and supercapacitors¹⁴ because of their good environmental stability. Recently, conducting polymer has been used to make a Si/conducting polymer composite anode, which showed improved cyclability and rate performance. For example, Cai et al.¹⁵ have synthesized the Si/polyaniline (PANI) composite anode, which showed stable cyclability and improved rate performance because the nest-like PANI enhanced the conductivity of the entire composite electrode and accommodated the large volume expansion of Si. Yao et al.¹⁶ reported that the poly(3,4-ethylenedioxythiophene) (PEDOT)-coated Si nanowire anode material was synthesized, and the improvement in cycling stability is attributed to the conductive coating, maintaining the mechanical integrity of the cycled Si material, along with preserving electrical connections between nanowires.

In this work, a novel Si/poly(aniline-co-pyrrole) (Si/PANI–PPy) composite anode material was prepared by an in situ chemical oxidation polymerization method. The copolymer matrix could act as an effective component that accommodates the considerable volume changes of Si during the cycling process. Therefore, the Si/PANI–PPy composite electrode achieved high capacity and stable electrochemical cycling.

Experimental

Preparation of the Si/PANI–PPy composite anode material

Si/PANI–PPy composite was synthesized by an in situ chemical oxidation polymerization method. The dopant was sodium p-toluenesulfonate, and the oxidant was ammonium persulfate ((NH₄)₂S₂O₈). The molar ratio of pyrrole to aniline was 1 : 1, the monomer to dopant was 3 : 1, and the monomer to oxidant was 1 : 3. Typically, Si nanopowder (Shanghai Chao Wei Nano Technology Co., Ltd.) was dispersed in an aqueous solution of sodium p-toluenesulfonate, pyrrole and aniline. The pH of the solution was adjusted to 2 by hydrochloric acid. Then, the aqueous solution of (NH₄)₂S₂O₈ was slowly added with continuous stirring. The reaction mixtures were then kept under the same conditions for 4 h at room temperature. The total dark green mass was filtered, and then washed thoroughly with distilled water to remove the ammonium persulfate to a large extent. Finally, the dark green mass was dried at 60 °C for 12 h under vacuum.

Material characterizations

The morphology of the as-prepared Si/PANI–PPy composite was observed using field emission scanning electron microscopy (Carl Zeiss Ultra Plus) and transmission electron microscopy (TEM, FEI TECNAI TF20). Fourier transform infrared (FTIR) spectra of the samples were measured on a Digilab Merlin FTS 3000 spectrometer in the transmission mode. Powder X-ray diffraction (XRD) patterns were obtained on a RigaKu D/max 2400 diffractometer with Cu K-alpha radiation. Thermogravimetric analysis (TGA) was taken on a PrekinElmer Pyris Diamond instrument at 10 °C min⁻¹ in air atmosphere.

Electrochemical measurements

CR2025 coin cells were assembled to test the electrochemical performance of the Si/PANI–PPy composite. The testing electrodes were prepared by coating slurry on a cooper foil substrate. The slurry consists of 70 wt% active material of Si/PANI–PPy, 20 wt% conducting additive of carbon black, and 10 wt% binder of sodium carboxymethyl cellulose (NaCMC). The cells were assembled in an Ar-filled glove box with a lithium foil as the counter electrode and a Celgard 2325 microporous film as the separator. The electrolyte was composed of 1 M LiPF₆ in ethylene carbonate (EC)/ethylmethyl carbonate (EMC)/dimethyl carbonate (DMC) (1 : 1 : 1 by volume, Shenzhen Capchem Technology Co., Ltd.) and 3 vol% vinylene carbonate (VC).

The galvanostatic charge–discharge measurement was performed at a current density of 50 mA g⁻¹ in the first two cycles and 100 mA g⁻¹ in the rest of cycles using a battery testing system (LANHE CT2001A, Wuhan LAND electronics Co., Ltd.) in the voltage range of 0.02–1.5 V (vs. Li/Li⁺). The capacity was calculated based on the entire Si/PANI–PPy composite as an active mass. Cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) measurements were performed on an electrochemical workstation (Autolab PGSTAT128N, Metrohm, Switzerland) at room temperature. The CV measurements were carried out in the voltage range of 0.02–1.5 V (vs. Li/Li⁺) at a scan rate of 0.1 mV s⁻¹. EIS measurements were measured with an alternating voltage of 5 mV over the frequency ranging from 10⁵ to 10⁻² Hz.

Results and discussion

Structure and morphology of the Si/PANI–PPy composite

The FTIR spectra of Si, PANI, PPy, PANI + PPy, PANI–PPy and Si/PANI–PPy composite are shown in Fig. 1. The characteristic peaks of PANI at 1584 and 1502 cm⁻¹ are assigned to the C=C stretching vibration of quinoid and benzenoid rings, respectively.¹⁷ The bands located at 1302, 1145 and 1240 cm⁻¹ belonged to C–N, C=N, and C–N⁺ (polaron structure of PANI), respectively.¹⁸ The bands at about 1041 and 834 cm⁻¹ are due to the aromatic C–H in-plane bending and the out-of-plane deformation in the 1,4-disubstituted benzene ring. In the spectrum of PPy, the characteristic C=C and C–N stretching vibration in the ring of PPy at 1544 and 1460 cm⁻¹, are clearly visible. The broad band from 1250 to 1100 cm⁻¹ with a maximum at 1173 cm⁻¹ is attributed to the breathing vibration of the pyrrole ring.¹⁸ The band at 1036 cm⁻¹ corresponds to the C–H in plane bending. The spectrum of the 1 : 1 PANI + PPy homopolymer mixture shows all of the characteristic bands of both PANI and PPy.

Fig. 1 The FTIR spectra of Si, PANI, PPy, PANI + PPy, PANI–PPy and Si/PANI–PPy composites.

For the spectrum of PANI–PPy, the bands are different from those of the 1 : 1 PANI + PPy homopolymer mixture. The quinonoid phenyl ring C=C stretch band of PANI at 1584 cm⁻¹ and the C=C stretching mode of PPy at 1544 cm⁻¹ have amalgamated to form a broader band from 1690 to 1530 cm⁻¹. A similar spectrum has also been reported,¹⁹ whereas in the spectrum of PANI + PPy, the corresponding peaks are the superposition of 1584 cm⁻¹ and 1544 cm⁻¹. Second, the para-substituted aromatic C–H out-of plane bending band of PANI at 834 cm⁻¹ has greatly diminished in the PANI–PPy FTIR spectrum, whereas in the spectrum of PANI + PPy, the corresponding peak is very strong. This observation is likely to be caused by the replacement of An units by Py units along the chains.²⁰ These observed differences support the view that, in addition to pyrrole–pyrrole and aniline–aniline linkages, aniline–pyrrole linkages are most likely to be present. The spectrum of Si/PANI–PPy shows all of the characteristic bands of both Si and PANI–PPy.

The XRD pattern of purchased Si is given in Fig. 2. The main diffraction peaks at 2θ = 28.4°, 47.2°, 56.1°, 69.1° and 76.3° can be indexed as the (111), (220), (311), (400) and (331) planes of cubic Si crystallites (JCPDS card no. 27-1402), respectively. It is clearly seen that the XRD pattern of PANI–PPy composite shows the characteristic of an amorphous profile with a broad peak centered at 2θ = 20.1°. Compared with the XRD pattern of Si, the pattern of Si/PANI–PPy composite has no significant differences, which also indicate that the PANI–PPy coatings are amorphous.

Fig. 2 The XRD patterns of the Si, PANI–PPy and Si/PANI–PPy composites.

Fig. 3 shows scanning electron microscopy (SEM) images of the original Si nanoparticles (SiNPs) and Si/PANI–PPy composite. Typically, the diameter of spherical Si nanoparticles was widely distributed from 20 to 160 nm (Fig. 3a). As the PANI–PPy was formed in the presence of the SiNPs, the SiNPs were embedded in the PANI–PPy copolymer. This is confirmed by the SEM image of the Si/PANI–PPy composite (Fig. 3b). The irregular profile of SiNPs indicates that it was coated by the PANI–PPy copolymer.

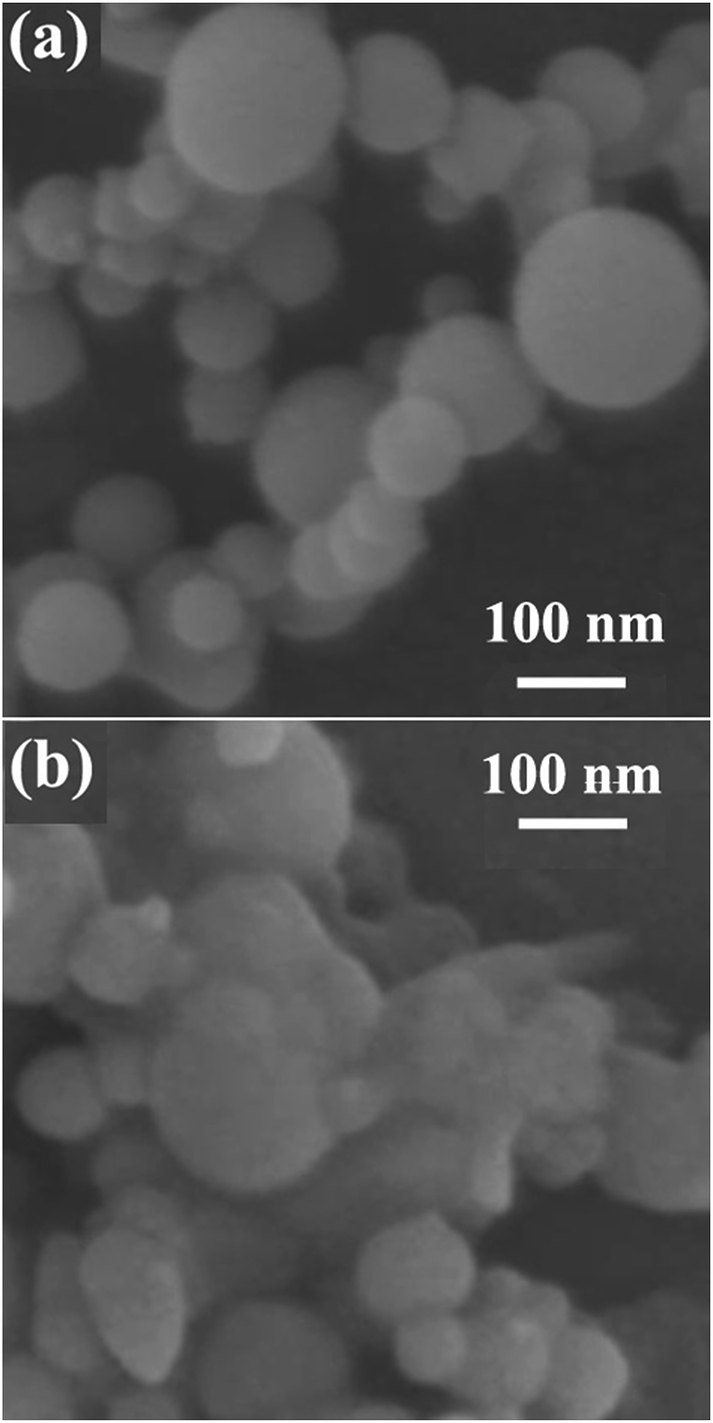

Fig. 3 The SEM images of Si nanoparticles (a) and Si/PANI–PPy composite (b).

To further confirm the structure of the Si/PANI–PPy composite, transmission electron microscopy (TEM) and scanning transmission electron microscopy (STEM) images are shown in Fig. 4. SiNPs appear to be embedded in the PANI–PPy copolymer matrix due to the in situ polymerization previously discussed, as shown in Fig. 4a. Fig. 4b shows a high angle annular dark field scanning transmission electron microscopy (HAADF-STEM) image of the Si/PANI–PPy composite, from which we can obviously see a bright sphere and gray region around it. In order to determine the composition, an elemental linescan analysis was performed as shown in Fig. 4c. Linescan results indicate that the center bright sphere was assigned to silicon. The Si nanoparticle was encapsulated in the darker surroundings, which were the PANI–PPy copolymer. As will be subsequently discussed, the superior electrochemical performance of the Si/PANI–PPy composite electrode can be attributed to the advantages offered by the unique microstructure.

Fig. 4 The TEM (a) and HAADF-STEM (b) images of the Si/PANI–PPy composite, along with the corresponding elemental linescan (c) from a single particle.

To determine the content of the PANI–PPy copolymer in the Si/PANI–PPy composite, thermogravimetric analysis (TGA) was carried out in air. Fig. 5 shows the TGA curves of different mass ratio Si/PANI–PPy composite samples along with those of the bare Si and the PANI–PPy powders. PANI–PPy in the Si/PANI–PPy composite will be burnt and release gas (weight loss), whereas Si in the composite will be oxidized to SiO₂ (weight gain). Therefore, it is very hard to identify the weight loss region, in which PANI–PPy is burnt. The measured content of PANI–PPy in the Si/PANI–PPy composite was based on the minimum value of the TGA curve. It was found that the amounts of PANI–PPy in the 1-Si/PANI–PPy, 2-Si/PANI–PPy, and 3-Si/PANI–PPy composites were 6.8 wt%, 14.7 wt%, and 27.5 wt%, respectively.

Fig. 5 The TGA curves of Si, PANI–PPy and different mass ratios of the Si/PANI–PPy composite.

Electrochemical properties of the Si/PANI–PPy composite anode

The lithium intercalation and extraction cyclic performance of the 1-Si/PANI–PPy, 2-Si/PANI–PPy, and 3-Si/PANI–PPy composite anodes were tested, and the results are shown in Fig. 6. The capacity values in this article were based on the mass of the Si/PANI–PPy composites. For the 1-Si/PANI–PPy, 2-Si/PANI–PPy, and 3-Si/PANI–PPy composites, the initial discharge capacity is 2529 mA h g⁻¹, 2137 mA h g⁻¹ and 1456 mA h g⁻¹, respectively. Over the 50 charge–discharge cycles, the capacity decreases to 470 mA h g⁻¹, 637 mA h g⁻¹ and 185 mA h g⁻¹, respectively. It can be seen that the PANI–PPy copolymer contents affect the specific capacity and cycling stability of the Si/PANI–PPy composite anodes. With the copolymer content increasing from 6.8 to 14.7 wt%, the specific capacity of composite anodes increased from 470 to 637 mA h g⁻¹. The improved performance could be attributed to the improved effect of accommodation with the increasing of the PANI–PPy copolymer. However, when the content of the copolymer increased to 27.5 wt%, the specific capacity reduced to 185 mA h g⁻¹. It was ascribed to the introduction of excessive copolymer, which reduced the capacity of the entire Si/PANI–PPy composite. The 2-Si/PANI–PPy sample, with the measured content of PANI–PPy is 14.7 wt%, exhibits the highest capacity and cycling stability.

Fig. 6 The cyclic performance of different mass ratio Si/PANI–PPy composite anodes measured at a current density of 50 mA g⁻¹ in the first two cycles and 100 mA g⁻¹ in the rest of cycles.

The voltage profiles of the bare Si and 2-Si/PANI–PPy electrodes in the first cycle are shown in Fig. 7. The charge–discharge curves of the 2-Si/PANI–PPy composite electrode exhibited essentially the same features as the bare Si electrode. It can be seen that a long, flat plateau around 0.1 V during the first discharge is observed, which was corresponding to crystalline Si reacted with Li to form amorphous Li_xSi.²¹ The delithiation of Li_xSi during the charge process formed a plateau, corresponding to delithiated amorphous silicon that was formed.²² The discharge capacities of bare Si and 2-Si/PANI–PPy composite electrode were 2963 and 2137 mA h g⁻¹ with initial coulombic efficiencies of 82.4% and 77.9%, respectively. These low coulombic efficiencies in the first cycle were ascribed to the formation of dead Li, which was not dealloyed during the charge process because of the disintegration of the electrode, resulting from large volume change and the solid–electrolyte interface (SEI) layer formation on the surface of the electrode.²³

Fig. 7 The voltage profiles of the bare Si and 2-Si/PANI–PPy electrodes in the first cycle measured at a current density of 50 mA g⁻¹.

The capacity retention curve and coulombic efficiency (CE) curve of 2-Si/PANI–PPy composite anode are given in Fig. 8. For comparison purposes, the cycling behavior of the bare Si is also shown in Fig. 8. For the bare Si and 2-Si/PANI–PPy composites, the initial discharge capacity is 2963 mA h g⁻¹ and 2137 mA h g⁻¹. Over the 50 charge–discharge cycles, the capacity decreases to 156 mA h g⁻¹ and 637 mA h g⁻¹, respectively. It can be clearly seen that, although the initial capacity of the 2-Si/PANI–PPy composite electrode is lower than that of the bare Si electrode, its cycling performance is much better than that of the bare Si. PANI–PPy can act as an effective component that accommodates the considerable volume changes during the cycling process. Therefore, PANI–PPy copolymer ensures the higher capacity and better cycling stability of the composite electrode.

Fig. 8 The cyclic performance of Si and 2-Si/PANI–PPy anodes measured at a current density of 50 mA g⁻¹ in the first two cycles and 100 mA g⁻¹ in the rest of cycles, along with the coulombic efficiency curve of 2-Si/PANI–PPy anode.

The CV curves of the 2-Si/PANI–PPy composite electrode are shown in Fig. 9. In the first cathodic branch, a broad cathodic peak observed between 0.6 and 0.8 V could be attributed to the formation of SEI film on the surface of the composite anode.²⁴ The peak disappears in the subsequent cycles. This phenomenon explains the low initial CE in the galvanostatic charging–discharging tests. Moreover, one additional cathodic peak appears near 0.17 V in the subsequent cycles, which corresponds to the formation of Li–Si alloys.²⁵ During the first lithium ion extraction process, two broad anodic peaks occur at around 0.35 and 0.52 V, corresponding to the phase transition from amorphous Li–Si alloys to amorphous Si.¹⁶ After further cycles, the anodic peaks become broader and stronger, which can be attributed mainly to the gradual breakdown of the crystalline silicon structure that depends on the migration rate of Li-ions into the silicon host and the rate of amorphous Li–Si alloy formation.²⁶

Fig. 9 The CV curves of the 2-Si/PANI–PPy half-cell measured at a scan rate of 0.1 mV s⁻¹ between 0.02 and 1.5 V (vs. Li/Li⁺).

Fig. 10 shows the rate capability of the 2-Si/PANI–PPy composite anode at various current densities. The capacity of the 2-Si/PANI–PPy anode decreased from 2137 mA h g⁻¹ to 699 mA h g⁻¹ over 40 cycles at a current density of 100 mA g⁻¹. At the current densities of 250, 500 and 1000 mA g⁻¹, the 2-Si/PANI–PPy anode could achieve capacities of 440, 201 and 95 mA h g⁻¹ after 40 cycles, respectively.

Fig. 10 The rate capability of the 2-Si/PANI–PPy composite anode.

The charge–discharge kinetics of the 2-Si/PANI–PPy composite anode was analyzed using electrochemical impedance spectroscopy (EIS). Fig. 11 shows the Nyquist plots of the cells with 2-Si/PANI–PPy composite anode. To maintain uniformity, the impedance analyses were performed at a charged potential of 1.5 V after three and 30 cycles. The 0 times cycle's electrode was tested at a potential of 1.5 V. All of the impedance spectra have similar features with a medium-to-high frequency depressed semicircle and an inclined low-frequency line. According to previous research, the inclined line in the low-frequency region represents the lithium diffusion impedance, whereas the depressed semicircle is attributed to the overlap between the SEI film and the interfacial charge transfer impedance.²⁷ The semicircle at high frequencies increased after three cycles in the case of 2-Si/PANI–PPy anode. This indicates that the total SEI and charge transfer resistances increase after three cycles. However, no obvious impedance increase was observed after 30 cycles, indicating limited growth of the SEI film during cycling.

Fig. 11 The Nyquist plots of the 2-Si/PANI–PPy composite anode measured with an alternating voltage of 5 mV from 10⁵ to 10⁻² Hz.

Conclusions

In summary, a facile solution process was developed to fabricate a silicon-based Li-ion battery anode by encapsulating SiNPs with in situ polymerized PANI–PPy copolymer. The copolymer matrix could act as an effective component that accommodates the considerable volume changes of Si during the cycling process. Therefore, the Si/PANI–PPy composite electrode achieved high capacity and stable electrochemical cycling. The specific capacity of the composite electrode retained 637 mA h g⁻¹ after 50 cycles. In addition, our described material design for silicon-based anodes may be extended to other battery electrode material systems that experience large volume changes during cycling, such as sulfur.

Acknowledgements

The research was financially supported by the Programme for Changjiang Scholars and Innovative Research Team in University (IRT1177), the Foundation of Northwest Normal University (NWNU-LKQN-13-5), and the Key Laboratory of Eco-Environment-Related Polymer Materials of Ministry of Education and Key Laboratory of Polymer Materials of Gansu Province.

Notes and references

1. (a) M. Armand and J.-M. Tarascon, Nature, 2008, 451, 652; (b) J. B. Goodenough and K. S. Park, J. Am. Chem. Soc., 2013, 135, 1167.
2. M. Yoshio, H. Wang, K. Fukuda, T. Umeno, N. Dimov and Z. Ogumi, J. Electrochem. Soc., 2002, 149, A1598.
3. (a) Y.-S. Hu, R. Demir-Cakan, M.-M. Titirici, J.-O. Müller, R. Schlögl, M. Antonietti and J. Maier, Angew. Chem., Int. Ed., 2008, 47, 1645; (b) U. Kasavajjula, C. Wang and A. J. Appleby, J. Power Sources, 2007, 163, 1003.
4. L. Y. Beaulieu, K. W. Eberman, R. L. Turner, L. J. Krause and J. R. Dahn, Electrochem. Solid-State Lett., 2001, 4, A137.
5. J. H. Ryu, J. W. Kim, Y.-E. Sung and S. M. Oh, Electrochem. Solid-State Lett., 2004, 7, A306.
6. Y. Xu, G. Yin, Y. Ma, P. Zuo and X. Cheng, J. Mater. Chem., 2010, 20, 3216.
7. B. Wang, X. Li, T. Qiu, B. Luo, J. Ning, J. Li, X. Zhang, M. Liang and L. Zhi, Nano Lett., 2013, 13, 5578.
8. H. Wu, G. Chan, J. W. Choi, I. Ryu, Y. Yao, M. T. McDowell, S. W. Lee, A. Jackson, Y. Yang, L. Hu and Y. Cui, Nat. Nanotechnol., 2012, 7, 310.
9. F. Xia, S. B. Kim, H. Cheng, J. M. Lee, T. Song, Y. Huang, J. A. Rogers, U. Paik and W. I. Park, Nano Lett., 2013, 13, 3340.
10. H. Li and H. Zhou, Chem. Commun., 2012, 48, 1201.
11. S. Guo, H. Li, H. Bai, Z. Tao and J. Chen, J. Power Sources, 2014, 248, 1141.
12. M. A. Bangar, W. Chen, N. V. Myung and A. Mulchandani, Thin Solid Films, 2010, 519, 964.
13. S. Y. Chew, Z. P. Guo, J. Z. Wang, J. Chen, P. Munroe, S. H. Ng, L. Zhao and H. K. Liu, Electrochem. Commun., 2007, 9, 941.
14. L. Pan, G. Yu, D. Zhai, H. R. Lee, W. Zhao, N. Liu, H. Wang, B. C.-K. Tee, Y. Shi, Y. Cui and Z. Bao, Proc. Natl. Acad. Sci. U. S. A., 2012, 109, 9287.
15. J.-J. Cai, P.-J. Zuo, X.-Q. Cheng, Y.-H. Xu and G.-P. Yin, Electrochem. Commun., 2010, 12, 1572.
16. Y. Yao, N. Liu, M. T. McDowell, M. Pasta and Y. Cui, Energy Environ. Sci., 2012, 5, 7927.
17. S. E. Mavundla, G. F. Malgas, D. E. Motaung and E. I. Iwuoha, J. Mater. Sci., 2010, 45, 3325.
18. J. Stejskal, M. Trchová, I. A. Ananieva, J. Janča, J. Prokeš, S. Fedorova and I. Sapurina, Synth. Met., 2004, 146, 29.
19. C. Zhou, J. Han, G. Song and R. Guo, J. Polym. Sci., Part A: Polym. Chem., 2008, 46, 3563.
20. V. Lim, E. Kang, K. Neoh, Z. Ma and K. Tan, Appl. Surf. Sci., 2001, 181, 317.
21. C. K. Chan, H. Peng, G. Liu, K. McIlwrath, X. F. Zhang, R. A. Huggins and Y. Cui, Nat. Nanotechnol., 2008, 3, 31.
22. M. N. Obrovac and L. J. Krause, J. Electrochem. Soc., 2007, 154, A103.
23. Y. M. Lee, J. Y. Lee, H.-T. Shim, J. K. Lee and J.-K. Park, J. Electrochem. Soc., 2007, 154, A515.
24. J. Tu, L. Hu, W. Wang, J. Hou, H. Zhu and S. Jiao, J. Electrochem. Soc., 2013, 160, A1916.
25. X.-y. Zhou, J.-j. Tang, J. Yang, J. Xie and L.-l. Ma, Electrochim. Acta, 2013, 87, 663.
26. (a) M. Green, E. Fielder, B. Scrosati, M. Wachtler and J. S. Moreno, Electrochem. Solid-State Lett., 2003, 6, A75; (b) Y.-X. Yin, S. Xin, L.-J. Wan, C.-J. Li and Y.-G. Guo, J. Phys. Chem. C, 2011, 115, 14148.
27. R. Ruffo, S. S. Hong, C. K. Chan, R. A. Huggins and Y. Cui, J. Phys. Chem. C, 2009, 113, 11390.

---
