Ruqi Chena,
Chaoqun Zhanga and
Michael R. Kessler*abcd
aDept. of Materials Science and Engineering, Iowa State University, Ames, IA, USA
bDept. of Mechanical Engineering, Iowa State University, Ames, IA, USA
cSchool of Mechanical and Materials Engineering, Washington State University, Pullman, WA, USA. E-mail: MichaelR.Kessler@wsu.edu
dAmes Laboratory, US Dept. of Energy, Ames, IA, USA
First published on 4th August 2014
Anionic waterborne polyurethane dispersions were prepared from ring-opening epoxidized linseed oil with glycol and hydrochloric acid followed by saponification, step-growth polymerization, and ionomerization. When the intermediate bio-based polyhydroxy fatty acid has an OH functionality of 4.8, the fatty acid can crosslink, and its carboxylic groups are able to provide surface charge for the stabilization of the resulting polymer in the water phase. Two novel anionic waterborne polyurethane dispersions, one with and one without additional castor oil, were successfully prepared and compared to a conventional control sample. Films from the polyurethane dispersions were obtained by casting the dispersions into molds and subsequently characterized by differential scanning calorimetry, dynamic mechanical analysis, ethanol absorption and uptake, thermogravimetric analysis, and tensile stress–strain tests. The castor oil containing polymer displayed a decrease in glass transition temperature, tensile strength, and Young's modulus, but an increase in elongation compared to the control sample. The sample without the castor oil behaved like a brittle, glassy material with higher Young's modulus and lower ductility because of its relatively high crosslinking density. This work proves the viability of incorporating vegetable-oil based polyhydroxy fatty acids as ionic segments into anionic waterborne polyurethane dispersions.
The distinct feature of waterborne PUDs is the presence of external or internal emulsifiers that provide stability to the hydrophobic polyurethane dispersed in the water phase. Internal emulsifiers, which are incorporated into the polymer network structure, are favored because the particle sizes in the resulting PUDs are smaller, leading to better stability. For anionic PUDs, dimethylol propionic acid (DMPA) is typically used as an internal emulsifier. DMPA serves as a chain extender in reaction with isocyanates, and its carboxylic acid group in ionic form provides surface charge to PU particles, stabilizing PUDs in the water phase.5 However, DMPA is not derived from bio-renewable resources so that the bio-content of the waterborne PUD system is limited.
Vegetable oils are potential starting materials to replace DMPA because they are triglycerides constituted of glycerol and three fatty acid chains, typically containing unsaturated carbon–carbon double bonds that are available for modifications. Hydroformylation,6,7 epoxidation followed by ring-opening,8–10 ozonolysis,11 and other methods can be employed to convert the double bonds into hydroxyl groups, which react with isocyanates to form urethane bonds. In addition, vegetable oil-based polyols can be saponified into polyhydroxy fatty acids12 which exhibit similar properties as DMPA as long as the average functionality of the hydroxyl exceeds 2.
In this work, epoxidized linseed oil (ELO) was ring-opened by glycol and HCl, followed by saponification into polyhydroxy fatty acid (FA). Oligomerization during the glycol ring-opening step created FAs with a number average molecular weight of 1147 g mol−1. The calculated average functionality of the hydroxyl group was 4.8 providing the FA with sufficient functionality to serve as a crosslinking agent. The presence of a carboxylic acid group also allowed the FA to be employed as an ionic segment. Two novel types of DMPA-free, waterborne PUDs were developed: CasFAD was obtained from castor oil, FA and isophorone diisocyanate (IPDI), while FAD was prepared from FA and IPDI. Both PUDs were stable and had particle sizes of 35.11 nm and 56.11 nm, respectively. The thermal and mechanical properties of the resulting PUD films were characterized and compared to those of CasPAD, which was obtained from castor oil, DMPA and IPDI. Literature research indicates that this is the first report on the substitution of DMPA by an internal emulsifier/ionic segment based on bio-renewable resources.13–19 This work proves the feasibility of using vegetable oil-based polyhydroxy fatty acids to create stable, anionic waterborne PUDs.
OH number (mg KOH per g) | fn | Acid number (mg KOH per g) | Viscosity (Pa s) at 40 °C | Mn | Mw | PDI |
---|---|---|---|---|---|---|
235.1 | 4.8 | 139.3 | 4.6 | 1147 | 2068 | 1.8 |
FA exhibited an average functionality of 4.8, ensuring the formation of a crosslinking structure in PU. In addition, its high acid number of 139.3 mg KOH per g was a key factor in this work, because the carboxylic group was neutralized into an ionic form, stabilizing the dispersion in the water phase. The presence of hydroxyl groups and carboxylic groups ensured high intermolecular hydrogen bonding, so that the prepared FAs exhibited a viscosity as high as 4.6 Pa s at 40 °C.
Fig. 2 shows FTIR spectra of FA and ELO. For FA, a new broad trough between 3600 cm−1 to 2500 cm−1 emerged, which was attributed to the overlapped signal from –OH stretching of the hydroxyl and carboxylic groups, confirming the presence of the desired functional groups.21 The peak at 823 cm−1, assigned to the epoxy group, disappeared for FA because of the ring-opening reactions.22 Additionally, carbonyl absorption peak at 1740 cm−1 for ELO shifted to 1725 cm−1 for FA, indicating the completion of saponification. These changes in the FTIR spectra confirmed the completion of oxirane ring reduction and saponification.
1H-NMR spectra of FA and ELO are shown in Fig. 3. Signal 1 (5.25 ppm) and signal 2 (4.0–4.4 ppm), which are attributed to the backbone glyceride structure, were not prominent for FA.23 This confirmed the cleavage of the triglyceride structure into fatty acid chains during the saponification step. Signal 3 (2.8–3.2 ppm) for ELO was attributed to epoxy groups, and e1 (2.9 ppm) in particular was attributed to the epoxy group anchored to the fatty acid arm with only one derivative group.9 The presence of e1 in FA indicated that a trace amount of the epoxy groups was not reduced. In addition, signal 4 (3.2–4.0 ppm) was mainly created by multiple forms of ethylene protons of glycol units in FA, indicating the complex nature of the ring-opened product. Also, signal 5 (2.3 ppm), assigned to the methylene group adjacent to the carboxyl group –CH2–COO–, did not significantly shift when ELO was converted to FA.24
PUD | Z-average size (nm) | Polydispersity index |
---|---|---|
CasPAD | 29.92 | 0.232 |
CasFAD | 35.15 | 0.221 |
FAD | 56.11 | 0.274 |
Fig. 7 depicts the temperature dependence of the storage modulus (E′) and the loss factor (tanδ) of the PUD films. The storage moduli of all films were similar at temperatures below 0 °C. After a dramatic drop in the value of E′, the materials entered into a rubbery stage from the glassy stage. A rubbery plateau was observed for CasPAD and CasFAD, while FAD yielded at elevated temperatures. The glass transition temperatures (obtained from the maximum of the tan
δ curve) and E′ at room temperature are summarized in Table 3. The difference between Tgs obtained from DSC and DMA are caused by the different nature of the two measurements. DSC measures the heat capacity change from frozen to unfrozen chains, while DMA measures the change in mechanical response of polymer chains to heating.28 All PUD films exhibited only one tan
δ peak, indicating the homogeneous nature of the PUs. The hard segment content of CasFAD was substantially lower than that of CasPAD (36.4% compared to 52.1%). The higher hard segment content contributed to the stiffness of the network structure, directly influencing both storage modulus and Tg.29 Comparing CasFAD and FAD, the OH number of the starting monomers directly influenced glass transition temperature and storage modulus. Higher OH numbers led to higher crosslinking densities so that less dangling chains acted as plasticizers in the network structure.
Hard segment content (wt%) | Tg (°C) DSC | Tg (°C) DMA | E′ at room temperature (MPa) | T10 (°C) | T50 (°C) | |
---|---|---|---|---|---|---|
CasPAD | 52.1 | 12.9 | 49.1 | 68.3 | 305.2 | 383.5 |
CasFAD | 36.4 | 5.9 | 29.4 | 19.0 | 302.5 | 379.1 |
FAD | 49.3 | 17.6 | 65.7 | 539.3 | 301.32 | 376.6 |
The thermal degradation profiles for the obtained PUDs are plotted in Fig. 8. In general, PUs exhibit three stages of thermal decomposition in air atmosphere.30 The first weight loss domain was observed between 200 and 300 °C and assigned to the dissociation of the labile urethane bonds.31 The dissociation of urethanes to isocyanates and alcohols, the formation of primary amines and olefins, and the formation of secondary amines were reported as three possible mechanisms by Wang et al.20 The weight percentage of IPDI in CasPAD and CasFAD, which determined the amount of urethane bonds, differed remarkably: CasPAD contained 27.3% IPDI, while CasFAD contained 23.7% IPDI. Consequently, CasFAD exhibited lower weight loss at 300 °C than CasPAD, and FAD underwent greater weight loss during the urethane bond decomposition stage than CasFAD. The second thermal degradation stage between 300 °C and 450 °C resulted from chain scission of the oil structure. The last stage, above 450 °C, was attributed to further thermo-oxidation of the PUs in air. The temperatures of 10% and 50% weight loss (T10 and T50) are summarized in Table 3. CasFAD exhibited better thermal resistance than CasPAD because of its lower content of labile urethane bonds.30 FAD showed better thermal resistance after urethane bond dissociation than CasFAD, attributed to higher crosslinking densities caused by higher OH numbers of the polyol component.5
Fig. 9 shows tensile stress–strain curves for all PUD films. Young's moduli, tensile strength at break, elongation at break, and toughness are summarized in Table 4. CasFAD exhibited lower tensile strength, lower Young's modulus, but higher ductility than CasPAD, which met expectation because of the lower hard segment content in CasFAD. CasFAD and CasPAD did not differ significantly in toughness (14.31 MPa and 11.76 MPa, respectively), while the toughness of FAD was substantially lower. Because FAD had a relatively higher content of carboxylic acid, the mechanical properties may have been compromised.32 In general, brittle materials exhibit low toughness, while ductile materials are tough.5
E (MPa) | σb (MPa) | εb (%) | Toughness (MPa) | |
---|---|---|---|---|
CasPAD | 13.6 | 5.5 | 381.7 | 14.31 |
CasFAD | 2.3 | 3.5 | 642.9 | 11.76 |
FAD | 77.4 | 6.8 | 19.3 | 0.83 |

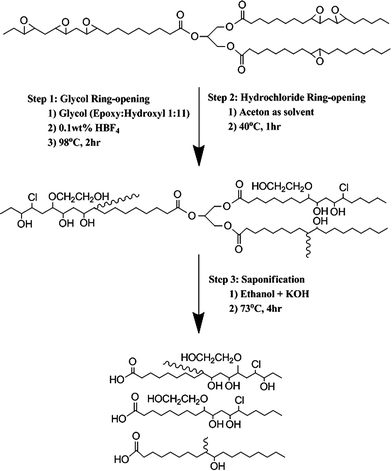

(1) Ring-opening of ELO with glycol: 100 g of epoxidized linseed oil (0.080 mol, of ELO was 1255 g mol−1 according to GPC data) was mixed with 200 g of glycol (3.2 mol) in a 500 ml round-bottom flask (molar ratio of epoxy
:
OH was approximately 1
:
11). After the addition of 0.1 wt% HBF4, the mixture was allowed to react at 98 °C for 2 h under constant stirring; the product was extracted using acetone, then washed with saturated NaCl solution, and the organic layer was used in the next step.
(2) Ring-opening of unreacted epoxide ring with HCl: 50 g of HCl was added to the acetone solution obtained in previous step and reacted at 40 °C for 1 h. Ethyl acetate was used to extract the polyol. Sodium bicarbonate and sodium chloride solution were used sequentially to wash the product until it was neutral. The organic layer was dried over MgSO4 and the solvent was removed subsequently. The effectiveness of the additional ring-opening reaction by HCl was reflected in the increase in OH numbers from 221.9 mg KOH per g to 229.2 mg KOH per g.
(3) Saponification of the polyol: 100 g of polyol was dissolved in ethanol and 50 g of potassium hydroxide was added to trigger saponification at 73 °C. The reaction proceeded for 4 h followed by the addition of HCl to neutralize the reactants until phase separation was observed. The fatty acid was extracted by ethyl acetate and washed three times with saturated NaCl solution. After drying over MgSO4, polyhydroxy fatty acid (FA) with dark brown color was obtained after removal of organic solvent by roto-evaporation. OH number titration, acid number titration, and rheological and GPC tests were performed to characterize the physical properties of the obtained FA and the results are summarized in Table 1. The preparation route for FA is illustrated in Scheme 1.
A modified synthesis route was therefore chosen and three different types of PUDs were synthesized and determined to be stable after no precipitate was detected within one week of sitting still.
(1) Castor oil – fatty acid PUD (CasFAD): castor oil (5.05 g) and IPDI (3.12 g) were introduced into a two-neck flask equipped with a mechanical stirrer. The flask was placed in an oil bath set at 78 °C and the mixture was stirred for 5 min to ensure homogeneity. Then, 2 drops of DBTDL were added to trigger polymerization. After 1 h, FA (3.30 g) in 25 ml MEK was poured into the pre-polymer and allowed to polymerize for another 4 h. Once the reaction was terminated the reactants were cooled to room temperature and TEA (2 equiv. per mole of COOH from FA) was added under vigorous stirring for 30 min. Finally, 150 ml water was used for the phase reversal and the organic solvent was removed under reduced pressure. The molar ratio of OH of castor oil to OH of FA to NCO of IPDI was 1:
1
:

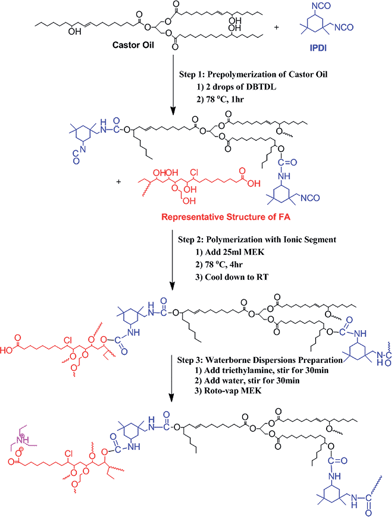

2. The synthesis route of CasFAD is shown in Scheme 2.
(2) Fatty acid PUD (FAD): the preparation process started with the solution polymerization of FA (8.71 g), IPDI (4.05 g) and DBTDL in 25 ml MEK for 4 h. The mixture gelled rapidly without solvent, which was attributed to the high reactivity and complicated composition of the FA. The subsequent procedural steps were identical to those taken in the preparation of CasFAD.
(3) Castor oil – DMPA PUD (CasPAD): the preparation method was similar to the one used to prepare CasFAD; however, DMPA was used instead of FA. It is worth mentioning that DMPA is not soluble in MEK so that DMPA was added in its powder form along with MEK.

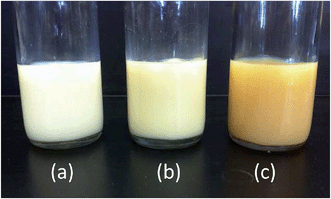

Fig. 1 shows the visual appearance of the obtained PUDs. With the increasing FA content, which had a dark brown color, the resulting PUDs turned darker. Polyurethane films were obtained by casting the PUD into a Teflon mold and allowing it to dry out at ambient temperature. Heat-drying was performed in a conventional oven at 80 °C overnight. The obtained PU films were cut into desired dimensions for specific characterizations.
Dynamic mechanical analysis (DMA) of the polyurethane films was carried out on a TA Instruments DMA Q800 dynamic mechanical analyzer using a film-tension mode of 1 Hz. Rectangular samples with a length of 15 mm and a width of 10 mm were used for the analysis. The samples were cooled and held isothermally for 3 min at −60 °C before raising temperature to 100 °C at a rate of 3 °C min−1. The glass transition temperatures (Tgs) of the samples were determined by the peaks of the loss modulus curve.
Thermogravimetric analysis (TGA) of the films was conducted on a TA Instrument Q50 (New Castle, DE). The samples were heated from room temperature to 650 °C at a rate of 20 °C min−1 in air with a flow rate of 60 ml min−1. The remaining weight was recorded as a function of temperature and plotted (see Fig. 8).
Differential scanning calorimetry (DSC) was performed on a TA Instrument Q20. The samples were weighed and placed in Tzero Hermetic pans and subsequently heated to 80 °C to eliminate their heat history. The samples were then cooled to −80 °C by manually adding liquid nitrogen to the chamber and re-heated to 80 °C at a programmed rate of 10 °C min−1. The second heating ramp was recorded and glass transition temperature was determined by the midpoint inflection method.
The tensile properties of the PU films were determined with an Instron universal testing machine (model 4502) with a crosshead speed of 100 mm min−1. Rectangular samples with the dimensions 50 mm × 10 mm (length × width) were prepared. At least three replicates were tested for each PU sample. The stress–strain curve was plotted and toughness, representing the ability of a material to absorb energy before fracture, was calculated as the integrated area beneath the curve.
