Effect of co-monomers' relative concentration on self-assembling behaviour of side-chain liquid crystalline elastomers

Abstract

This work deals with the design and characterization of a new series of liquid crystalline elastomers in the form of monodomain films, showing self-assembling behaviour, namely the nematic and the orthogonal smectic A phases. The procedure for the design and preparation of monodomain and polydomain polysiloxane-based side-chain liquid crystalline elastomers containing different concentrations of two mesogenic monomers and a constant density (about 15 mol%) of the crosslinker is reported. The phase diagram and mesomorphic behaviour of the new resulting liquid crystalline elastomers were determined by differential scanning calorimetry (DSC), polarizing optical microscopy (POM) and especially X-ray diffraction studies, which helped to clearly identify the smectic A phase. Among new liquid crystalline elastomer films, a specific concentration of co-mesogens gives an unconventional and fascinating system with a direct transition from the isotropic to smectic A phase. Results of the thermo-mechanic studies confirmed the shape-memory properties of these films, which have elastic properties optimal for applications as thermo-mechanic actuators.

---

1. Introduction

Liquid Crystalline Elastomers (LCEs) are soft materials having remarkable properties, such as thermo-elastic and thermo-mechanic ones, which are related to both the self-assembling properties of the mesogenic units and to the elastic response of the polymer network.¹ As a result, shape-memory behaviour of LCEs is observed when temperature crosses the transition from the isotropic to self-assembling state.² So far, a few technological applications based on LCEs have been proposed, from valves³ and tweezers⁴ to optical devices, such as tunable holographic gratings⁵ or Braille readers.^6–8 However, the interest in these partially ordered materials and their possible applications is gradually growing. For instance, in the recent years, several efforts have been spent in new synthetic procedures to produce main-chain⁹ and side-chain¹⁰ liquid crystalline elastomers, by incorporation of different mesogenic units^6,11 as well as different polymer backbones.^12,13 Among them, LCEs based on polysiloxane chains are probably the most studied and known. A particular type of polysiloxane-based LCEs is the so-called Liquid Single Crystal Elastomer (LSCE), which is a monodomain oriented LCE in the form of a thin film, first prepared by Finkelmann et al.¹⁴ who mastered an original design and preparation procedure based on a two-steps crosslinking; the second step being under controlled stretching.

Although most of these LSCEs exhibits a nematic (N) phase, stable over a wide temperature range,^1,15 several works have been devoted to the achiral orthogonal smectic A (SmA)^11,16–20 and to the tilted smectic C,^21,22 but also to chiral smectic C* (SmC*) elastomers.^23,24 According to two-step crosslinking procedure,¹⁴ nematic LSCE films are characterized by a specific macroscopic alignment of the local nematic director, n, along the stretching direction of the film (Scheme 1a). As for the smectic A LSCE films, the local phase director, n, as well as the rod-like mesogens are usually aligned along the stretching direction, while the polymer chains are aligned on average in the orthogonal direction (Scheme 1b). The particular structure and alignment of main components of smectic A LSCEs determine their strong anisotropic properties, such as elasticity^25,26 and rheology.^27,28

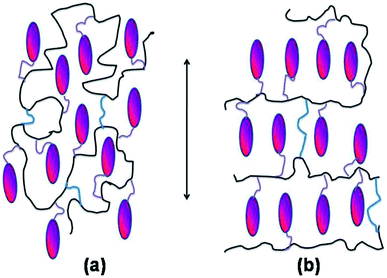

Scheme 1 Sketch of the structure and alignment of the basic constituents (rod-like mesogens, polymer chains and crosslinkers) in a nematic LSCE (a) and a typical smectic A LSCE (b). Black arrow indicates the stretching direction.

Several fascinating effects were observed on smectic A LCEs, much more pronounced than in low-molecular-weight smectic liquid crystals, such as the electroclinic effect,^29–31 i.e. tilting of mesogens with respect to the smectic layer normal induced by an applied electric field. In the case of achiral smectic A LCEs, a similar effect to the electroclinic one can be obtained without the application of external electric field, but, instead, by applying an external shear in the orthogonal direction with respect to the phase director. The applied shear produces a macroscopic deformation of the film, which corresponds to a tilt of the mesogenic units, as demonstrated by a recent X-ray study.³² The complex relationship between molecular structure and stress–strain behaviour in smectic LCEs stimulated several works, both theoretical and experimental ones.^33–38 Moreover, the mechanical and elastic properties as well as the spontaneous thermal contraction of these systems can, in principle, be tuned as a function of the chemical constituents and their relative concentrations.³⁵

Another peculiar phenomenon was observed at the nematic–smectic phase transition of several LCEs, the transition from an ordered to a disordered state of the system, can be associated to the sensitive changes in the elastic modulus and maximum elongation.³⁶ On contrary, very few researches are known about LSCE systems having a direct isotropic–smectic phase transition.^16,39

In this work, we are reporting the design and detailed characterization of two rod-like monomers, namely a nematogen, 4-methoxyphenyl 4-(but-3-en-1-yloxy) benzoate (M4) and a smectogen, 4-methoxyphenyl 4-(undec-10-en-1-yloxy) benzoate (M11), which were used to prepare several monodomain and polydomain polysiloxane-based side-chain LCE films (see Fig. 1). The mesomorphic behaviour and self-assembling properties of monomers themselves and of the prepared LCE system were studied by differential scanning calorimetry (DSC), polarized optical microscopy (POM), small angle and wide angle X-ray diffraction. Moreover, the thermo-mechanic behaviour and elastic modulus of the LCEs were also studied in view of new applications in actuator micro-systems.

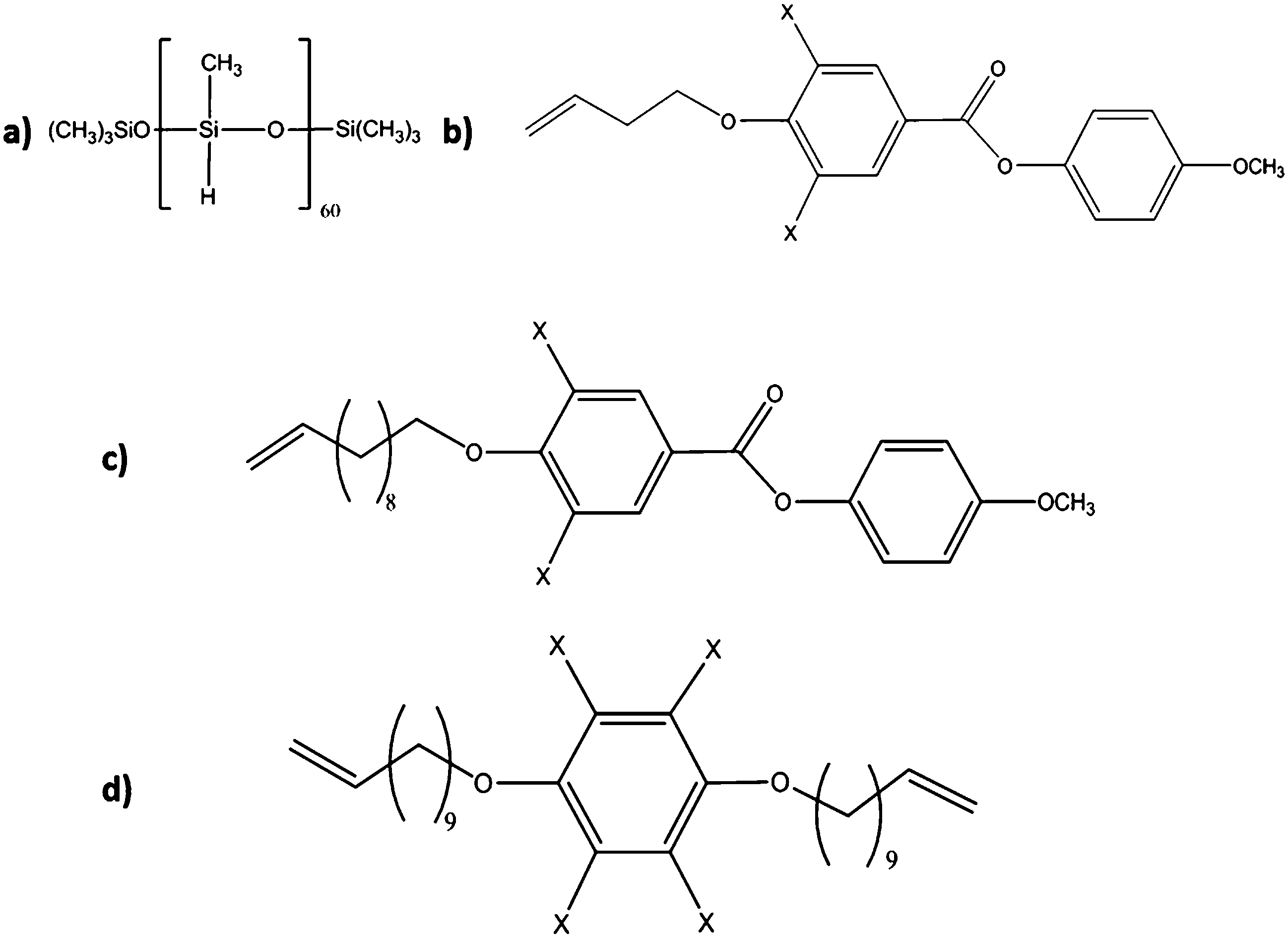

Fig. 1 Chemical constituents of the LCE films: (a) polymer chain; (b) nematogen M4; (c) smectogen M11 and (d) crosslinker V1. X stands for ¹H, i.e. for non-labelled compounds.

2. Experimental section

2.1 Synthesis of the mesogenic monomers

Synthesis of mesogens 4-methoxyphenyl 4-(but-3-en-1-yloxy) benzoate (M4) and 4-methoxyphenyl 4-(undec-10-en-1-yloxy) benzoate (M11) (see Fig. 1), have been carried out according to the synthetic route presented in ref. 40 and 41. Purification of the compounds was done by column chromatography on silica using 99.9% of CH₂Cl₂ and 0.1% acetone as a mobile phase followed by recrystallization from ethanol. The yield was 85% and 80% for the M4 and M11 compounds, respectively. After that the compounds with purity of 99.9% was obtained (checked by HPLC, which was carried out using a silica gel column Biosphere Si 100–5 μm, 4 × 250, Watrex with a mixture of 99.9% of toluene and 0.1% of methanol as an eluent, and detection of the eluting products by a UV-VIS detector λ = 290 nm).

The structures of all final compounds were confirmed by ¹H-NMR (300 MHz, Varian):

¹H-NMR of M4 (CDCl₃): 8.12 (d, 2H, ortho to –COO); 7.10 (d, 2H, ortho to –OCO); 6.90 (dd, 4H, ortho to –OR); 5.90 (m, 1H, =CH–); 5.20 (m, 2H, CH₂=); 4.10 (t, 2H, CH₂OAr); 3.81 (s, 3H, OCH₃); 2.59 (q, 2H, =CH–CH₂).

¹H-NMR of M11 (CDCl₃): 8.14 (d, 2H, ortho to –COO); 7.10 (d, 2H, ortho to –OCO); 6.90 (dd, 4H, ortho to –OR); 5.81 (m, 1H, =CH–); 4.98 (m, 2H, CH₂ = ); 4.00 (t, 2H, CH₂OAr); 3.81 (s, 3H, OCH₃); 2.05 (q, 2H, =CH–CH₂); 1.80 and 1.20 (m + m, 14H, CH₂).

The mesomorphic behaviour of M4 and M11 monomers was investigated by POM and DSC, and the summary of phase transitions and calorimetric data are reported in Table 1. On cooling from the isotropic phase, M4 monomer possesses the nematic phase only. However, M11 monomer possesses the orthogonal smectic A phase below the nematic phase.

Table 1 Sequence of phases, phase transition temperatures (°C) measured on cooling (5 K min⁻¹), melting points, m.p. (°C), clearing points, c.p. (°C) measured on heating (5 K min⁻¹), and related phase transition enthalpies [ΔH] (J g⁻¹) determined by DSC for the mesogenic monomers

	m.p.	c.p.	Phase		Phase		Phase		Phase
M4	77.6 [+102.9]	77.6 [+102.9]	Cr	15.5 [−70.5]	—		N	51.7 [−1.6]	Iso
M11	69.7 [+103.5]	73.4 [+2.0]	Cr	29.8 [−74.7]	SmA	44.4 [−2.3]	N	72.4 [−2.6]	Iso

---

2.2 Preparation of the liquid crystalline elastomers

The two-step crosslinking “Finkelmann procedure”¹⁴ has been followed in order to produce several monodomain side-chain LSCE films with various concentrations of M4 and M11, and by using a crosslinking density of about 15 mol%, which was found to be optimal based on previous studies.^42–44 The main components of these films are reported in Fig. 1 and the relative composition of the LSCE samples investigated in this paper is shown in Table 2.

Table 2 List of the LSCE samples with the relative percentage concentrations (mol%) of co-monomers (M4 and M11) and crosslinker V1 together with the results on sequence of phases, phase transition temperatures T (°C) measured on cooling (10 K min⁻¹), T_g (°C), and related phase transition enthalpies [ΔH] (J g⁻¹) as determined by DSC for all studied LCEs

LCE name	Co-monomer M4 [mol%]	Co-monomer M11 [mol%]	Crosslinker V1 [mol%]	Tg	Phase	T	Phase
LCE 80/05	80.0	5.0	15.0	−3.5 [0.33]	N	75.4 [−1.5]	Iso
LCE 65/20	66.3	19.3	14.5	−12.3 [0.42]	N	78.0 [−2.0]	Iso
LCE 50/35	50.0	35.0	15.0	−14.8 [0.43]	N	80.2 [−2.0]	Iso
LCE 40/45	38.2	47.6	14.9	−15.9 [0.59]	N	87.9 [−4.6]	Iso
LCE 34/52	33.6	51.4	15.0	−15.4 [0.41]	N	90.5 [−2.2]	Iso
LCE 17/68	17.0	68.0	15.0	−11.5 [0.56]	SmA	100.9 [−1.9]	Iso
LCE 05/80	4.7	81.1	14.2	9.0 [0.46]	SmA	120.4 [−6.6]	Iso

---

The synthesis of the flexible crosslinker, V1, is reported elsewhere.⁴⁵

The LSCE films were prepared as follows. A pre-polymerization mixture was prepared by adding to 2.5 ml of anhydrous toluene: the poly(methylhydrosilane) (2 mmol), the crosslinker V1 (c% mmol), the mesogen M4 (m4% mmol) and the mesogen M11 (m11% mmol), with 2c + m4 + m11 = 100% mmol. A solution of Pt–catalyst (COD from Wacker Chemie) in CH₂Cl₂ is added and the pre-polymerization mixture is finally filtered.

The mesomorphic behaviour of the LCE samples was explored by combining different experimental techniques, such as DSC, POM and X-ray scattering. The results of the study are summarized in Table 2 and discussed in Section 3.

The first step of the reaction is carried out in a special form under centrifugation (with a spinning rate from 4500 to 6000 rpm) at T = 333 K. After a period of centrifugation (typically 1–1.5 h), a partially crosslinked, gel-like film network of dimensions about 2 × 20 cm² and thickness of about 150 mm was obtained. The second step of reaction is performed by mechanically loading portions of the gel-like film with increasing weights (up to 2.5 g) at room temperature and then completing the crosslinking reaction in the oven at 338 K. During this second step, uniform uniaxial alignment of the films is reached with the local director oriented along the direction of the weight-controlled external stress. Monodomain stripes as well as polydomain samples were made for all LCE films and are indicated in Table 2. Polydomain samples were prepared without mechanically loading the gel films during the second crosslinking step.

2.3 Experimental techniques

Sequence of phases and phase transition temperatures of mesogens were determined on heating–cooling to/from the isotropic phase by identification of characteristic textures and their changes observed in the polarizing optical microscope (POM) NICON ECLIPSE E600POL. The LINKAM LTS E350 heating stage with TMS 93 temperature programmer was used for the temperature control, which enabled temperature stabilization within 0.1 K.

Phase transition temperatures and transition enthalpies of both mesogens and LCEs were evaluated from differential scanning calorimetry (DSC), Pyris Diamond, PerkineElmer 7, on cooling and heating the sample at a rate of 10 K min⁻¹. The sample (10 mg) hermetically sealed in aluminium pan was placed in a nitrogen atmosphere. The temperature was calibrated on extrapolated onsets of melting points of water, indium and zinc. The enthalpy change was calibrated on enthalpies of melting of water, indium and zinc. Several heating–cooling runs were performed showing a perfect reproducibility of the DSC curves.

Small-angle X-ray diffraction studies were conducted using Bruker NanoStar system (CuKα radiation, cross-coupled Goebel mirrors, three pinhole collimation system, MRI heating stage and Vantec-2000 area detector). XRD patterns in wide angle range were collected with Bruker GADDS system (CuKα radiation, Goebel mirror, point beam collimator system, modified Linkam heating stage, Vantec-2000 area detector). Samples of LCE were measured in transmission mode.

Thermo-mechanic measurements of the monodomain LCEs have been performed on a home-built computer-controlled setup comprising a temperature-controlled cell, a strain gauge, and a linear actuator for stretching the samples, which allowed for simultaneous measurement of temperature, force and sample length. The variations of the film length were recorded as a function of temperature at different heating–cooling rates by using a constant-force feedback loop with a minimal force of about 1 mN. The same apparatus has been used to measure the elastic modulus by stretching the LSCE films and simultaneously recording the applied stress.

3. Results and discussions

3.1 Mesomorphic behaviour of monomers

The mesomorphic behaviour of the samples M4 and M11 was investigated by means of DSC and POM techniques and the results are summarized in Table 1. Microphotographs of the characteristic textures obtained at different temperatures using POM for two monomers are shown in Fig. 2.

Fig. 2 Optical microphotographs of co-monomers: (a) nematic droplets at the iso–N phase transition (51 °C) for M4; (b) nematic marbled texture (45 °C) for M4; (c) phase transition from the nematic phase (on left) to the crystal phase with typical lancets (25 °C) for M4; (d) nematic texture with π disclination lines (70 °C) for M11; (e) fan shaped texture of the smectic A phase (40 °C) for M11; (f) texture after crystallization (25 °C) for M11. Width of the microphotographs is about 300 μm.

Compound M4 has a nematic phase stable over about 30° degrees and typical textures are reported in Fig. 2a and b, while the monomer M11 possesses the nematic phase (Fig. 2d and a) smectic A (Fig. 2e) phase at lower temperature. The transition to the crystal phase occurs at about 15 °C and 30 °C for monomers M4 and M11, respectively.

3.2 Mesomorphic behaviour of LCEs

The LCE samples prepared with different relative concentration of mesogens M4 and M11 are listed in Table 2. As previously mentioned, the samples were in the form of film, transparent in the case of monodomain samples, and opaque in the case of polydomain ones. The mesomorphic properties of all samples were first explored by DSC and the results are summarized in Table 2. For M4 and M11 monomers the reproducibility of the repeated heating–cooling cycles was very good indicating no the absence of polymerization. Excellent reproducibility of the DSC curves (Fig. 3) in consecutive heating–cooling cycles was obtained for all samples, evidencing high thermal stability of the prepared LCEs. Moreover, no difference between the monodomain and polydomain samples has been detected by DSC in the values of the phase transition temperatures, as expected.¹

Fig. 3 Examples of the DSC plots on heating–cooling runs (indicated by horizontal arrows) for monomer M11 (a) and LCE samples: LCE 40/45 (b) and LCE 05/35 (c). Phase transitions are indicated by vertical arrows.

Typical shape of DSC curves for LCE samples is shown on Fig. 3b and c. A peak corresponding to the isotropic–nematic phase transition and a step corresponding to the glass transition can be easily observed (Fig. 3b and c). For comparison, the DSC of one of the monomer, namely M11, is also reported (Fig. 4a). A first identification of the mesophases formed by LCEs was done by optical texture observations using POM which was not enough to determine the mesophase. As an example, typical textures obtained in POM on LCE 34/52 thin sample are shown in Fig. 4. The absence of homogeneous pattern in the isotropic phase (Fig. 4a) is due to the polydomain sample structure used for the purpose. Final determination of the mesophase nature came from X-ray diffraction (XRD) measurements performed for several samples.

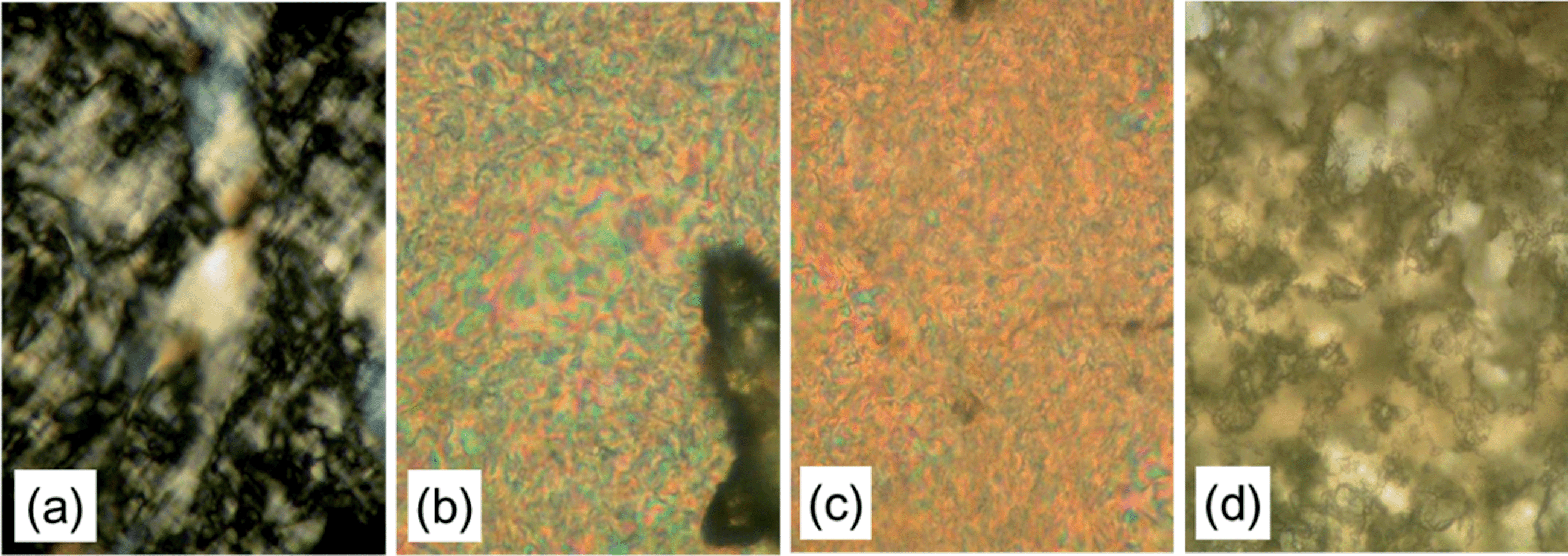

Fig. 4 Microphotographs of textures obtained on LCE 34/52 film: (a) at 95 °C; (b) at 87 °C; (c) at 60 °C; (d) about 0 °C. Width of the microphotographs is about 250 μm.

For liquid crystal elastomers with low concentration of M11 (below 50 mol%) exclusively a nematic phase was observed (see, for instance, in Fig. 5a and c), while those with high concentration of M11 (above 80 mol%) exhibited only the SmA phase (Fig. 5b and d). Here, both 2D XRD patterns (Fig. 5a and b) and the diffracted intensity vs. scattering angle (Fig. 5c and d) obtained by integration of above patterns over azimuthal angle are presented. These patterns clearly show two different phases, namely the nematic and smectic A ones. The X-ray diffraction patterns for both the SmA and nematic phases exhibit few harmonic of the low angle signal (Fig. 5), pointing to strongly non-sinusoidal electron density profile along the director, that is due to the presence of the siloxane polymer main chain between layers of mesogenic units.

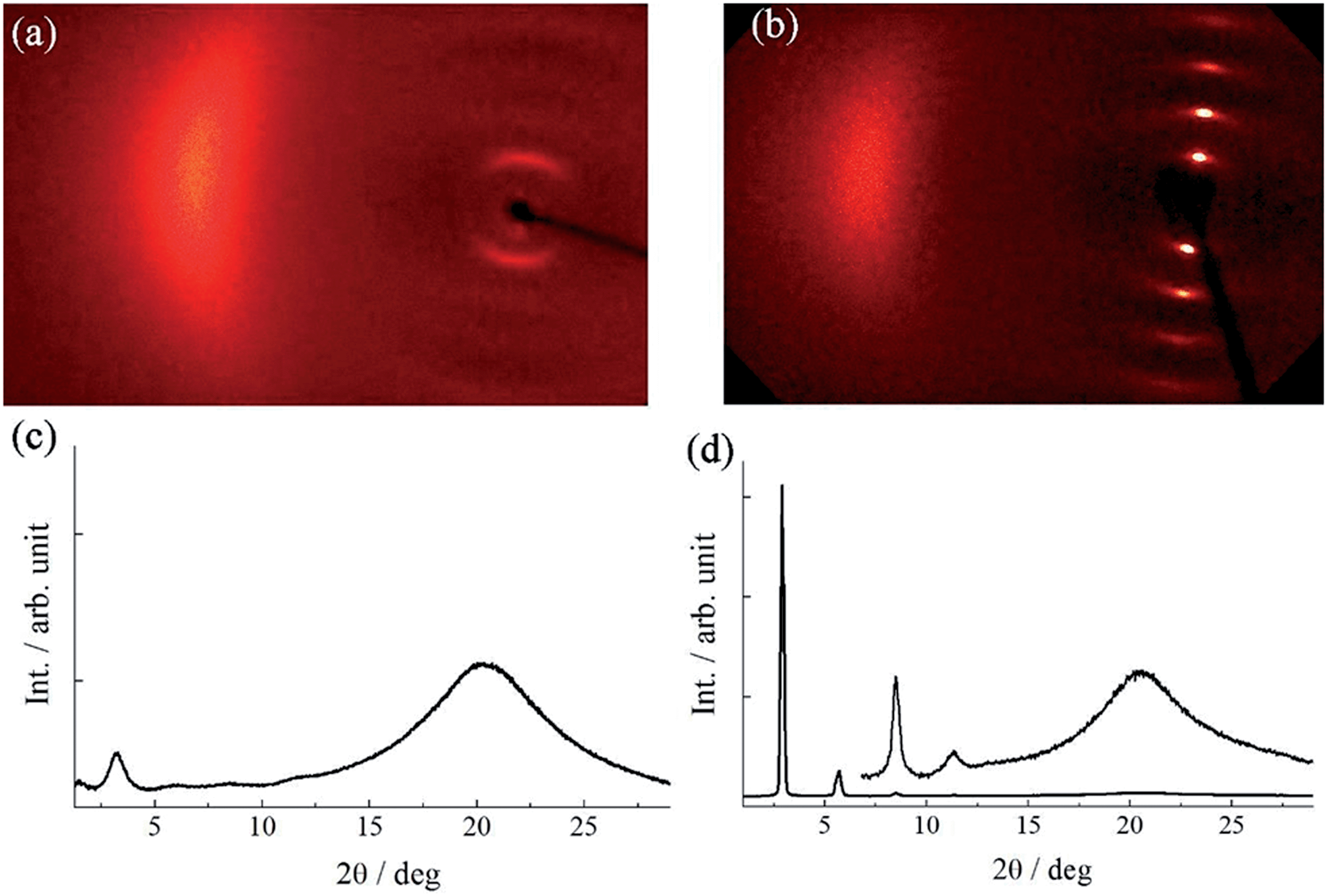

Fig. 5 2D XRD patterns recorded at room temperature for (a) nematic phase of LCE 50/35 and (b) SmA phase of LCE 17/80 elastomers. In (c) and (d) the related diffracted intensity vs. scattering angle obtained by integration of above patterns over azimuthal angle.

For LSCE samples with intermediate relative concentration of M4 and M11 (see, for instance, samples LCE 34/52 and LCE 40/45) the XRD proved the transition from the nematic to smectic A phase (Fig. 6), which was not observed by DSC and POM. DSC curves (Fig. 3b and c) clearly show the first high temperature transition (from isotropic to nematic), but no other phase transition has been observed. This is quite common especially for second order transitions.⁴⁶

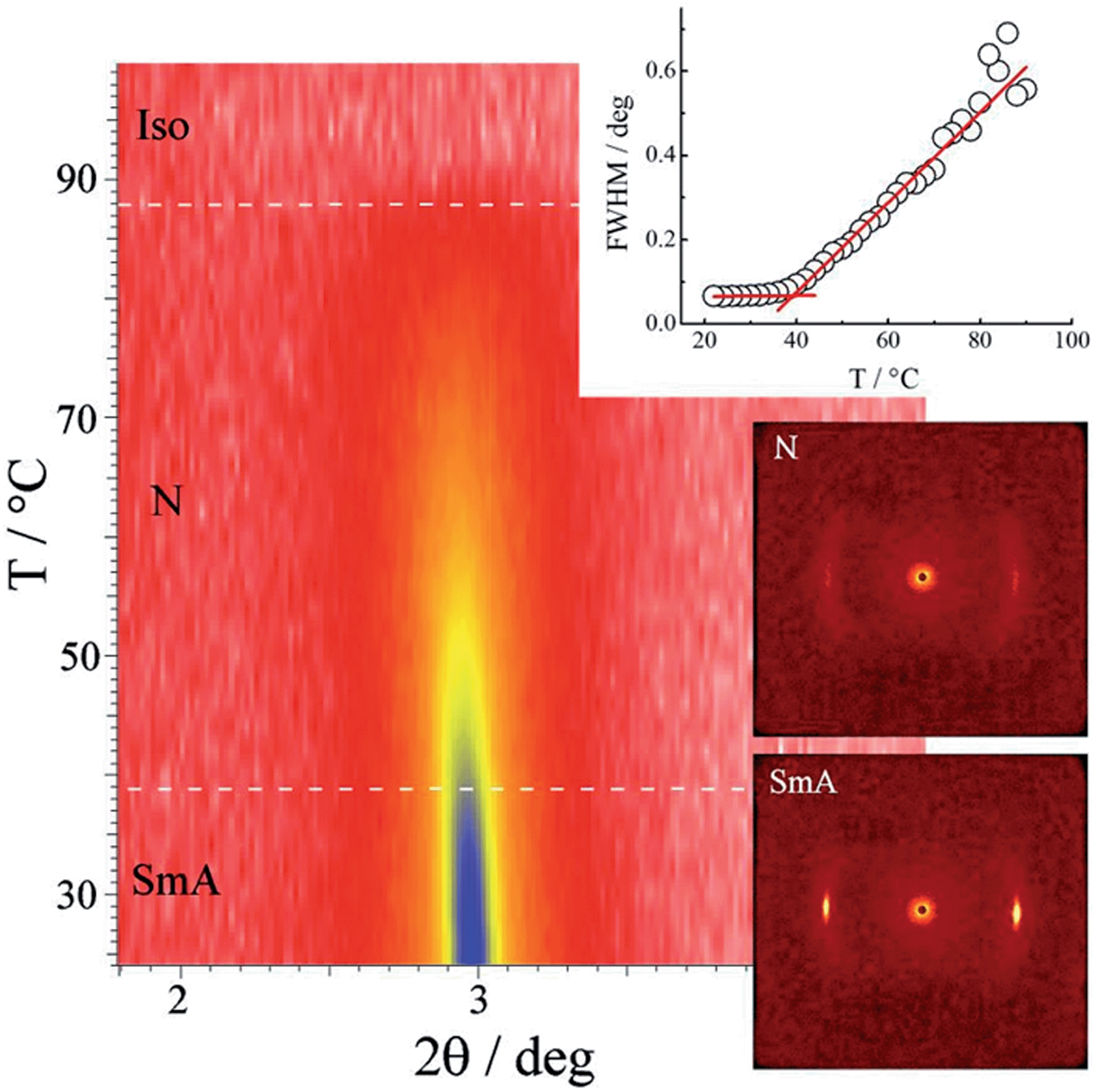

Fig. 6 Temperature evolution of SAXS pattern for LCE 34/52 monodomain sample. Diffracted intensity is coded with colour (red to yellow to blue). In the inset, on the top side, the spectral line width (FWHM) is reported as a function of temperature. Typical small angle XRD patterns in the nematic and SmA phases are also given on right bottom side.

Fig. 6 shows the small angle X-ray scattering 2D pattern as a function of temperature for the LCE 34/52 monodomain sample. It can be seen that the intensity of the signal (shown by the change of colours in Fig. 6) increases smoothly passing from the nematic to the SmA phase. However, the 2D small angle XRD patterns, shown in Fig. 6, on the right bottom side, clearly indicate the typical pattern of the nematic and SmA phases, respectively. In fact, while in the nematic phase, the larger peaks are rather diffuse, in the case of the SmA phase, there are two sharp spots, orthogonal with respect to the orientation of the sample, indicating the presence of a smectic order.

The occurrence of a transition between the nematic and the SmA phases is also confirmed by the temperature dependence of the spectral line-width (FWHM) of the diffraction peak, as reported in the inset, on the top side, in Fig. 6. The change in the slope of the FWHM allowed us to determine the temperature transition with more precision. Moreover, the X-ray diffraction patterns for both the SmA and nematic phases showed few harmonic of the low angle signal (Fig. 6), pointing to strongly non-sinusoidal electron density profile along the director, that is due to the presence of the siloxane polymer main chain between layers of mesogenic units.

The XRD experiments performed allowed to determine the temperature dependence of the distance d(T), which corresponds to the layer thickness in case of the SmA phase and to a mean intermolecular distance along director in case of the nematic phase (Fig. 7). It was observed that the d value is linearly dependent on M11 monomer concentration in a polymer. For elastomers forming exclusively the SmA phase, the layer spacing grows slightly on cooling, while for other samples it slightly decreases. Interestingly, at the transition from nematic to SmA phase no jump in d(T) curve has been found.

Fig. 7 Temperature dependence of the d value, which is layer spacing in smectic A phase (open symbols) and mean intermolecular distance along director in nematic phase (solid symbols) for elastomers with various concentration of mesogenic monomers: LCE 05/80 (black circles), LCE 17/68 (red squares), LCE 34/52 (green triangles), LCE 40/45 (blue circles), LCE 50/35 (orange squares). In the inset d value at room temperature plotted versus concentration of M11 co-monomer in LCE. Line is only a guide for eyes.

The N–SmA phase transition was accompanied by continuous narrowing of the diffraction signal at low angles, which reflects growing correlation length for lamellar ordering at second order transition. For monodomain elastomer samples the analysis of the azimuthal width of high angle diffraction signal allowed for determination of orientational order parameter (S) of the mesogenic units in the LCE.⁴⁷ For LCE 34/52, the obtained value S = 0.71 ± 0.05 is close to that observed for smectic the SmA phase of M11 monomer. Apparently, the polymerization process does not increase significantly the orientational order of mesogenic units.

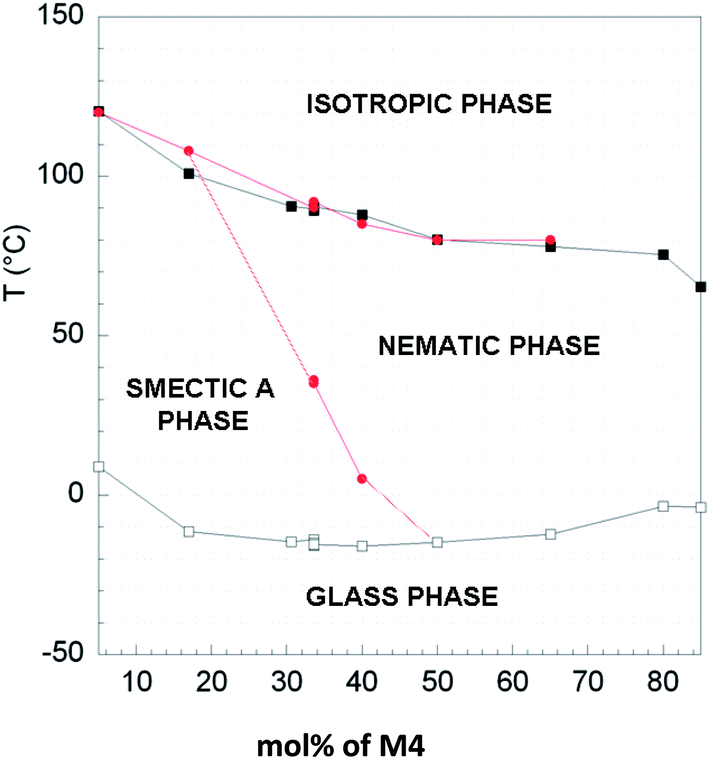

Based on experimental results shown above, a phase diagram for the studied elastomer system can be created, as reported in Fig. 8. The increase in M11 co-monomer concentration, results in an increase of the clearing temperature, from ∼65 °C, for elastomer with only M4 mesogen (data are from ref. 36), to ∼120 °C, for elastomer with 80 mol% of M11 co-monomer and 5 mol% of M4 co-monomer. The glass transition temperature exhibits a minimum for samples with 40 mol% of M4 (and 45 mol% of M11), and it is in almost all cases below 0 °C.

Fig. 8 Phase diagram of the series of LCE with variable mesogenic components. Red circles refer to data obtained from X-ray and black symbols were obtained from DSC. Full and empty black squares refer to the isotropic–mesophase and mesophase–glass transitions, respectively.

3.3 Thermo-mechanic and elastic properties of LCEs

For technological applications it is very essential to check the mechanical and elastic properties of the new LCE systems. Thermo-mechanical behaviour was investigated on the LCE samples in the form of thin monodomain films, as described in the Experimental Section. The elongation λ = L/L₀ − 1 of the LCE samples as a function of the temperature was greatly reproducible after several cycles and the temperature dependences of λ(T) are typical of LCE systems.¹ In LCE films possessing the nematic phase the maximum elongation was found for LCE 80/05, as reported in Fig. 9a, and it is about 55%.

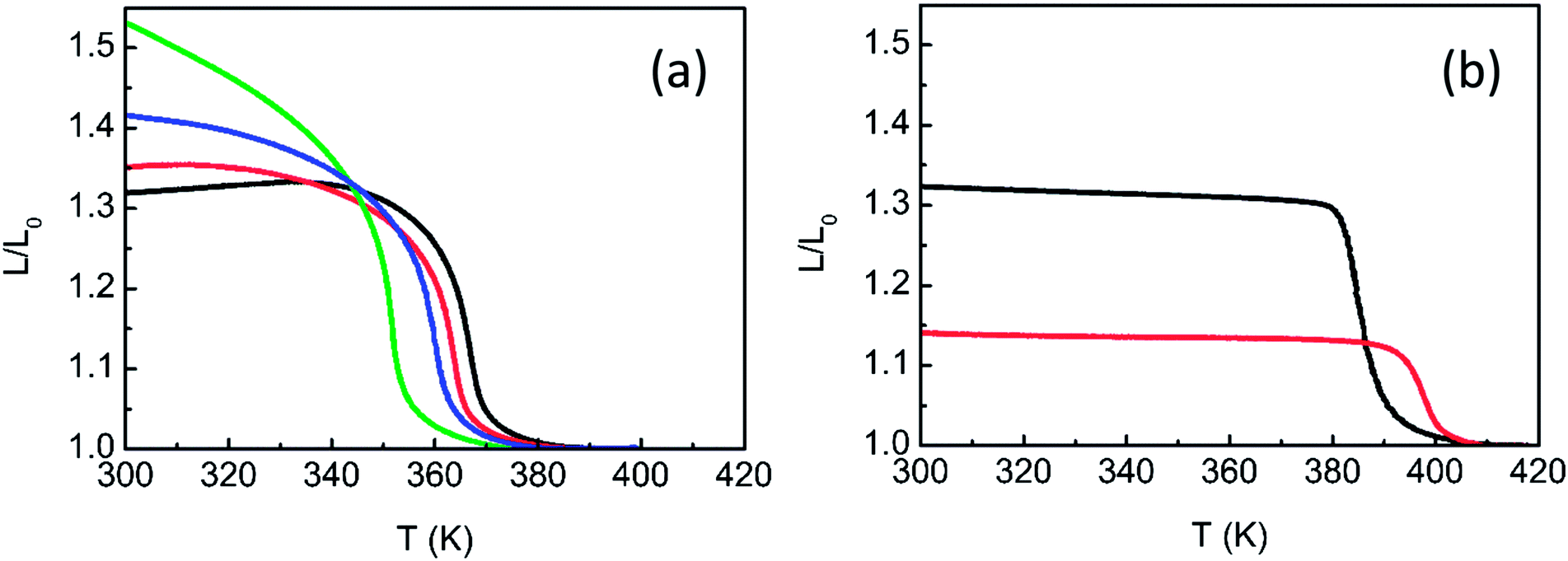

Fig. 9 Thermo-mechanic measurements on the monodomain LCE samples. (a) Samples showing the isotropic–nematic phase transition: LCE 34/52 (black), LCE 40/45 (red), LCE 50/35 (blue) and LCE 80/05 (green). (b) Samples showing the isotropic–smectic A phase transition: LCE 17/68 (black) and LCE 05/80 (red).

The increase of the relative concentration of M11 co-monomer shifts the nematic-isotropic transition to higher temperatures, as it has been already shown at the phase diagram (Fig. 8). However, it also results in a decreasing of the maximum elongation, which is a bit more than 30% in the LCE 34/52 sample (Fig. 9a).

In two cases, namely the LCE 34/52 and LCE 40/45 (black and red curves, respectively, in Fig. 9), the systems present also a transition between the nematic and the smectic A phases. From the thermo-mechanical point of view, any jump is observed at the transition. However, it can be clearly seen that the elongation remains constant, or decreases, within the SmA temperature range of stability, while in the case of the nematic phase, an increase of the elongation by decreasing the temperature is always observed (see for instance, blue and green curves in Fig. 9).

The thermo-mechanical behaviour of LCE films exhibiting the isotropic–smectic A phase transition is reported in Fig. 9b. In that case, the trends clearly have a more pronounced jump at the iso–SmA phase transition, reaching about the maximum elongation in few temperature degrees. In the case of LCE 17/68 the maximum elongation is quite high for the LCE system possessing the SmA phase, and is found to be about 33%.

Elastic modulus of the designed LCE systems has been measured by applying uniaxial mechanical stress parallel to the director axis (Fig. 10). By increasing the share of M11 co-monomer, the modulus rises from 230 kPa (a value typical for nematic LSCEs) to about 3 MPa that signifies an existence of smectic phase. In particular, the rubber elastic response of a nematic network is replaced by the enthalpy-elastic behaviour related to the long-range one-dimensional order of smectic layers.⁴⁸

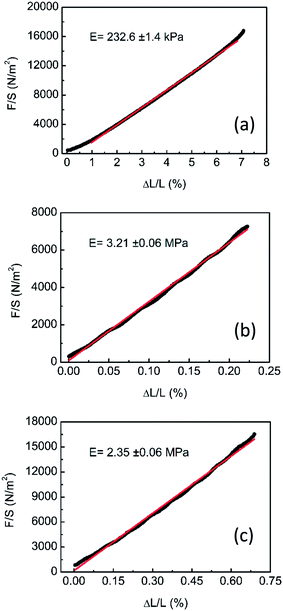

Fig. 10 Elastic modulus of selected monodomain LCE samples measured at room temperature. Stretching and compression were applied at a controlled value of the force. Experimental data are in black, fitting curves are in red: (a) LCE 50/35; (b) LCE 17/68; (c) LCE 05/80.

4. Conclusions

Series of new liquid crystalline elastomers (both the monodomain and polydomain) with siloxane backbone and two types of mesogens (co-monomers), differing in the length of terminal chains, attached to the main siloxane chain have been designed in order to investigate the effect of the chemical structure and relative concentrations of the two co-monomers on self-assembling behaviour. The systematic variation of relative concentration of shorter and longer co-monomers allows to find the specific concentration range for which the temperature induced nematic–smectic A phase transition has been detected. For all studied system it was possible to obtain macroscopic (few centimetres) monodomain samples in both nematic and SmA phases. In particular, we obtain that if the longer M11 co-monomer is present at higher concentration than 68 mol% (with respect to the M4 co-monomer) the new LCEs possess a direct isotropic to smectic A phase transition, while at lower concentration than 45 mol% only a nematic phase has been observed. In between, two mesophases exist and the N–SmA phase transition is of the second order, with a continuous increase of positional order of mesogens, as clearly seen by X-ray scattering studies.

The self-assembling behaviour of both co-monomers by themselves and the resulting elastomers were investigated by combining different experimental techniques, namely POM, DSC, SAXS and WAXS methods. Moreover, the thermo-mechanic and elastic properties of liquid crystalline elastomers in the form of monodomain films, both nematic and smectic ones, have been established in order to check the appropriateness of the preparation method and to explore the potential to use these new LCE materials for actuation devices.
