Efficient synthesis of new asymmetric tripodal ligands using microwave irradiation, and their crystal structures

Abstract

An efficient method for the synthesis of asymmetric tripodal ligands from aryl aldehydes and (2-hydro-xybenzyl-2-pyri-dylmethyl)amine was developed. It has the advantages of short reaction times, high yields and a simple methodology. The title ligands were characterized using a combination of ¹H NMR, ¹³C NMR, FT-IR and H RMS spectroscopies. The structures of some of the ligand were confirmed by single-crystal X-ray diffraction.

---

Nitrogen-rich tripodal ligands and their derivatives form stable complexes with a wide range of metal ions and their study continues to be of interest to researchers.¹ Their versatile coordination modes lead to diverse roles in biological, catalytic and photoactive applications. These ligands have been investigated for use as catalysts in the sequential oxidation and asymmetric alkylation of alcohols by Ru³⁺ complexes.² They have also been used as photochemotherapeutic agents in nuclear medicine, using Fe³⁺, Cu²⁺ or V⁴⁺ chelates;³ some of the ligands have been linked to suitable photosensitizer molecules, such as anthracenyl or ferrocene for activation by near FT-IR light, to enable greater tissue penetration.

Numerous complexes containing the basic N,N-bis-(2-pyridylmethyl)amine (DPA, Fig. 1) tripodal ligand has been included, and metal complexes containing this ligand have been synthesized, and metal complexes containing this ligand exhibit a wide variety of unusual physical and chemical properties.⁴ The denticity and donor types of these ligands determine the structures and reactivities of the corresponding metal complexes.⁵ Asymmetric substitution of the pyridyl units by a phenoxyl unit changes the reactive site,^5a and the selective introduction of substituents on different units enables fine control of the steric and electronic properties of the ligand. However, previously reported asymmetric methods suffer from drawbacks such as long reaction times, low yields, high temperature, and large numbers of side products. The development of a new and effective methods for introducing asymmetry into tripodal ligands using inexpensive and environmentally friendly reagents is therefore needed. To the best of our knowledge, there have been few reports on the synthesis of asymmetric nitrogen- and oxygen-rich tripodal ligands.^5a,6 Here, we focus on asymmetric tripodal ligands in which one ligand arm differs from the others, introducing the possibility of geometric isomers.

Fig. 1 Structures of DPA and HBPA.

Organic reactions assisted by microwave irradiation have attracted considerable attention in recent years.⁷ Modern scientific microwave equipment can be used to control many reaction parameters such as temperature, pressure and reaction times accurately. Numerous microwave-assisted organic reactions have been performed,⁸ including Michael additions, acylation and alkylation reactions, condensations, enzymatic catalysis, rearrangements, oxidations and reductions, and regioselective cycloadditions.

The commonest of the method for the tripodal ligand synthesis is alkylation of DPA with 9-(chloromethyl)anthracene, using triethylamine as base.⁹ Usually, a large excess of one reagent and a long reaction time are needed to ensure high yields and to avoid undesired by-products. However, the preparation of 9-(chloromethyl)anthracene is inconvenient and expensive, and silica gel column chroma-tography using CH₂Cl₂ as eluant is used for product purification.

Secondary amines react readily with aromatic aldehydes to form enamines, which can then be reduced with appropriate reductant; this is an atom economic reaction,¹⁰ and therefore is in line with the philosophy of green chemistry. We therefore used this reaction, with microwave irradiation as the heat source, to prepare new asymmetric tripodal ligands.

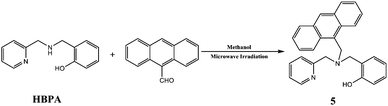

The desired product was isolated in high yield from the reaction using methanol (5 mL) as the solvent and NaBH₃CN as a reductant, under microwave irradiation (60 °C, 300 W initial power) for 15 time (Table 1, entry 1). Further investigation showed that increasing the temperature to 70 or 80 °C (Table 1, entries 2 and 3) did not significantly changes the yield. When the reaction time and power were reduced (5 min and 100 W), lower yields were obtained (Table 1, entries 4 to 7). The optimum reaction time and power for synthesizing 5 were therefore 15 min and 300 W, respectively. When NaBH₄ and NaBH(OAC)₃ was used as reductant under the same conditions, the product was not obtained (Table 1, entries 8 and 9). Additionally, increasing the material to 10 mmol or 20 mmol led to minor decrease in the yield (Table 1, entries 10 and 11). However, the yields were still satisfactory.

Table 1 The reaction of HBPA with 9-anthracene formaldehyde^a

Entry	Time (min)	Temp (°C)	Power (W)	Yield^f (%)
a Yield of isolated yields.b NaBHCN3 as a reductant.c NaBH4 as a reductant.d NaBH(OAC)3 as a reductant.e 10 mmol of materials for each other.f 20 mmol of material for each other.
1^b	15	60	300	97
2^b	15	70	300	97
3^b	15	80	300	97
4^b	5	60	300	NR
5^b	10	60	300	78
6^b	15	60	100	NR
7^b	15	60	200	56
8^c	15	60	300	NR
9^d	15	60	300	NR
10^b^,^e	15	60	300	95
11^b^,^f	15	60	300	94

---

Based on the above results and our intention to us a green approach in this study, we performed the reaction using a shorter reaction time and less solvents, an almost quantitative yield was obtained (Table 1, entry 1). Having established the optimum conditions for our reaction, a series of aromatic aldehydes were tested in tripodal ligand synthesis of aromatic aldehydes and (2-hydro-xybenzyl-2-pyri-dylmethyl)amine (HBPA) at 300 W in methanol (Table 2). Polycyclic aromatic aldehydes gave the corresponding products in high yields (Table 2, entries 3 to 7).

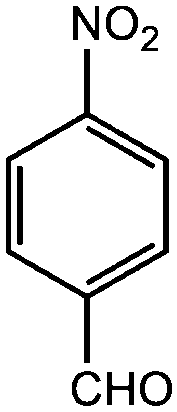

Table 2 The reaction of HBPA with some aromatic aldehyde^a

Entry	RCHO	Color	Time (min)	Yield^b (%)
a Conditions: HBPA (5 mmol), aromatic aldehyde (5 mmol), and methanol (5 mL).b Yield of isolated yields.
1		White	30	83
2		White	30	89
3		White	20	94
4		Yellow	15	93
5		Pale yellow	15	97
6		Pale white	15	96
7		Pale white	50	90

---

The asymmetric tripodal ligands were analyzed by ¹H and ¹³C NMR, FT-IR and HRM spectra (Fig. S4–S31 in the ESI†). Single crystals of the 3–5 suitable for X-ray diffraction, was obtained in 1 week by diethyl ether vapor diffusion into CHCl₃ solution. The molecular structures of 3–5 are shown in Fig. 2. Crystal data, structure refinement details, and hydrogen bond interaction are listed in Tables S1–S3 and Fig. S1–S3 in ESI.†

Fig. 2 X-ray crystal structure and intramolecular hydrogen of 3–5; ellipsoids are draw at 30% probability level and H atoms with arbitrary size.

The ligand structures belong to monoclinic space group, P2₁/c. All bond distances and angles are all within the normal ranges. There are two intramolecular hydrogen bonds, between the phenol and pyridine or the tertiary amine present in the crystal lattices: (a) phenol ring and corresponding tertiary amine (O1–H⋯N2 = 152.04°, 2.811 Å), and phenol ring and pyridyl ring (O1–H⋯N1 = 133.64°, 3.121 Å), in 3; (b) phenol ring and tertiary amine (O1–H⋯N2 = 152.04°, 2.811 Å and O1–H⋯N2 = 154.56°, 3.042 Å), and phenol ring and pyridyl ring (O1–H⋯N1 = 126.85°, 2.870 Å) in 4 and (c) phenol ring and tertiary amine (O1–H⋯N2 = 145.78°, 2.747 Å), and phenol ring and pyridyl (O1–H⋯N1 = 135.36°, 2.999 Å), in 5. These hydrogen bonding parameters are comparable to those reported for other tripodal ligands.¹¹ The dihedral angles in 3 between the naphthyl group (C15–C24) and either the pyridyl ring (C1–C5–N1) or the phenol ring (C8–C13–O1) are 66.33° and 84.31°, respectively. The dihedral angles in 4 between the quinolyl group (C15–C24) and either the pyridyl ring (C1–C5–N1) or the phenol ring (C8–C13–O1) are 82.96° and 71.97°, respectively. The dihedral angles of 5 between the anthryl group (C15–C28) and either the pyridyl ring (C9–C13–N1) or the phenol ring (C1–C5–O1) are 69.79° and 46.69°, respectively. The phenol ring (C8–C13–O1) and the pyridyl rings (C9–C13–N1) have dihedral angles of 34.29°, 19.35° and 13.31° in 3–5.

In summary, a fast, atom-economic, high-yielding process for asymmetric tripodal ligand synthesis under microwave irradiation is described. Various of aldehydes can be used and the products are obtained in good to excellent yields. In future work, the title ligands will be used in the synthesis of metal complexes and research into their applications.

Acknowledgements

We thank the Natural Science Foundation of China (Grant no. 21172037), SRFDPHEC (Grant no. 201135141001), and the Natural Science Foundation of Fujian, China (Grant no. 2011J0ss1040) for financial support.

Notes and references

1. (a) S. Kisslinger, H. Kelm, A. Beitat, C. Wurtele, H. J. Kruger and S. Schindler, Inorg. Chim. Acta, 2011, 374, 540; (b) M. Sarma, A. Kalita, P. Kumar, A. Singh and B. Mondal, J. Am. Chem. Soc., 2010, 132, 7846; (c) M. Royzen and J. W. Canary, Polyhedron, 2013, 58, 85; (d) B. K. Datta, C. Kar, A. Basu and G. Das, Tetrahedron Lett., 2013, 54, 771; (e) J. S. Hart, G. S. Nichol and J. B. Love, Dalton Trans., 2012, 41, 5785; (f) P. C. Faggi, P. Bonaccorsi, L. M. Scolaro and M. C. Aversa, Eur. J. Inorg. Chem., 2013, 2013, 3412.
2. (a) X. Chen, Q. Liu, H. B. Sun, X. Q. Yu and L. Pu, Tetrahedron Lett., 2010, 51, 2345; (b) M. Irene, P. Maurizio, R. Luca, D. Mellmann, M. B. Henrik and G. Luca, Dalton Trans., 2013, 42, 2495.
3. (a) U. Basu, I. Khan, A. Hussain, P. Kondaiah and A. R. Chakravary, Angew. Chem., Int. Ed., 2012, 51, 2658; (b) B. Balaji, K. Somyajit, B. Banik, G. Nagaraju and A. R. Chakravarty, Inorg. Chim. Acta, 2013, 400, 142; (c) T. K. Goswami, S. Gadadhar, B. Gole, A. A. Karande and A. R. Chakravarty, Eur. J. Med. Chem., 2013, 63, 800.
4. (a) S. S. Ashutosh and S. S. Sun, RSC Adv., 2012, 2, 9502; (b) L. Benhamou, H. Jaafar, A. Thibon, M. Lachkar and D. Mandon, Inorg. Chim. Acta, 2011, 373, 195; (c) D. H. Gibson, J. Wu and M. S. Mashuta, Inorg. Chim. Acta, 2006, 359, 309; (d) E. Palani, R. Palanisamy, H. Firasat and S. Malaichamy, RSC Adv., 2013, 3, 2171.
5. (a) A. Mukherjee, F. Lloret and R. Mukherjee, Inorg. Chem., 2008, 47, 4471; (b) M. S. Jesús, R. Bastida, A. Macías, H. Adams, D. E. Fenton, P. L. Paulo and L. Valencia, Polyhedron, 2010, 29, 2651; (c) A. Lucy, R. H. Mullice, L. P. Laye, N. J. B. Harding and J. A. Simon, New J. Chem., 2008, 32, 2140; (d) T. Cadenbach, E. Hevia, A. R. Kennedy, R. E. Mulvey, J. A. Pickrell and S. D. Robertson, Dalton Trans., 2012, 41, 10141; (e) T. Zhang, C. F. Chan, J. H. Hao, G. Law, W. K. Wong and K. L. Wong, RSC Adv., 2013, 3, 382.
6. (a) Y. Hayashi, T. Kayatani, H. Sugimoto, M. Suzuki, J. K. Inomata, A. Uehara, J. Y. Mizutani, T. Kitagawa and Y. Maeda, J. Am. Chem. Soc., 1995, 117, 11220; (b) J. W. Chen, X. Y. Wang, Y. G. Zhu, J. Lin, X. L. Yang, Y. Z. Li, Y. Lu and Z. J. Guo, Inorg. Chem., 2005, 44, 3422; (c) F. Li, M. Wang, P. Li, T. T. Zhang and L. C. Sun, Inorg. Chem., 2007, 46, 9364.
7. (a) M. A. Surati, S. Jauhari and K. R. A. Desai, Appl. Sci. Res., 2012, 4, 645; (b) V. R. Mudumala, C. S. R. Gangireddy and T. J. Yeon, RSC Adv., 2014, 4, 24089; (c) D. Vacchani and E. V. Eycken, Chem. Eur. J., 2013, 19, 1158; (d) M. Y. Liu, X. Wang, X. L. Sun and W. He, Tetrahedron Lett., 2014, 56, 2711; (e) W. Yin, Y. Ma, J. X. Xu and Y. F. Zhao, J. Org. Chem., 2006, 71, 4312; (f) W. g. Duan, C. H. Chen, L. B. Jiang and G. H. Li, Carbohydr. Polym., 2008, 73, 582; (g) M. Irene, P. Maurizio, R. Luca, D. J. Mellmann, M. B. Henrik and G. Luca, Dalton Trans., 2013, 42, 2495.
8. (a) L. Dimitris and G. K. Christoforos, RSC Adv., 2013, 3, 4496; (b) A. M. Sarotti, M. M. Joullié, R. A. Spanevello and A. G. Suárez, Org. Lett., 2006, 8, 5561; (c) D. D. Young, J. Nichols, R. M. Kelly and A. Deiters, J. Am. Chem. Soc., 2008, 130, 10048; (d) A. K. Greene and L. T. Scott, J. Org. Chem., 2013, 78, 2139; (e) S. Horikoshi and N. Serpone, Microwaves Org. Synth., 2013, 1, 377; (f) D. N. Pansare and D. B. Shinde, Tetrahedron Lett., 2014, 55, 1107.
9. (a) S. A. De-Silva, M. A. Whitener, D. E. Baron, A. Zavaleta, E. V. Isidor and O. Allam, Acta Crystallogr., 1998, C54, 1117; (b) H. Lee, H. S. Lee, J. H. Reibenspies and R. D. Hancock, Inorg. Chem., 2012, 51, 10904; (c) H. Woo, S. Cho, Y. Han, W. S. Chae, D. R. Ahn, Y. M. You and W. Nam, J. Am. Chem. Soc., 2013, 135, 4771; (d) M. Ganeshpandian, R. Loganathan, E. Suresh, A. Riyasdeen, M. A. Akbarsha and M. Palaniandavar, Dalton Trans., 2014, 43, 1203.
10. (a) B. M. Trost, Angew. Chem., Int. Ed., 1995, 34, 259; (b) J. Fan, Q. Y. Yang, G. J. He, X. G. Xie, H. Y. Zhu, Y. Jin and J. Lin, RSC Adv., 2014, 4, 28852.
11. (a) A. Neves, C. N. Verani, M. A. Brito, I. Vencato, A. Mangrich, G. Oliva, D. D. H. F. Souza and A. A. Batista, Inorg. Chim. Acta, 1999, 290, 207; (b) Y. C. Shimazaki, S. Huth, A. Odani and O. Yamauchi, Angew. Chem., Int. Ed., 2000, 39, 1666; (c) E. J. Song, J. Kang, G. R. You, G. J. Park, Y. Kim, S. J. Kim, C. Kim and R. G. Harrison, Dalton Trans., 2013, 42, 15514.

---
