Synthesis of corrole–fullerene dyads via [4 + 2] cycloaddition reaction

Chengjie Li a, Jie Zhangab, Xiujun Liua, Yongzhu Zhoua, Dongming Sunc, Ping Chengc, Bao Zhang*a and Yaqing Feng*ab
aSchool of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, P. R. China. E-mail: baozhang@tju.edu.cn; yqfeng@tju.edu.cn
bSynergetic Innovation Center of Chemical Science and Engineering, Tianjin 300072, P. R. China
cSchool of Environmental and Chemical Engineering, Shanghai University, Shanghai 200444, P. R. China

Received 16th July 2014 , Accepted 21st August 2014

First published on 21st August 2014


Abstract

Three corrole–fullerene dyads were prepared by treating anthracene-functionalized corroles with fullerene. Their structures were characterized by 1D- and 2D-NMR spectra and mass spectra. In the preliminary photo physical study of 3a by fluorescence spectroscopy, the excited corrole unit was quenched due to the introduction of fullerene. TD-DFT calculation theoretically indicated that the electron transfer occurs from the excited corrole to fullerene.


Natural tetrapyrrolic macrocycles are some of the most predominant pigments owing to their essential biological roles in life and life cycles, such as chlorophylls, heme, factor 430 and cobalamin.1 Among them, cobalamin is featured with a framework of corrin which resembles the porphyrin structure with absence of one meso-carbon and the presence of a saturated carbon-edge. The aromatic analogue of corrin is corrole. Thus, corrole is regarded as a structural link between porphyrin and corrin. Corroles were first prepared in the labs of A. W. Johnson as synthetic precursors of corrins.2,3 In the past 10 years, with the breakthrough on the efficient synthetic strategies of corrole,4–8 these new tetrapyrrolic macrocycle-based compounds have been receiving considerable attention. More and more applications of corrole derivatives have been discovered in catalysis,9 photochemical sensors,10 medicine11 and electron/energy transfer systems.12–14

On the other hand, inspired by the role of chlorophylls or bacteriochlorophylls in the natural photosynthesis as the main pigment to harvest light and donate energy/electron,15 many artificial photosynthetic reaction centers, using porphyrin as energy/electron donor, have been synthesized to mimic certain aspects of photosynthesis, and investigated carefully to understand the different factors in influencing the energy/electron transfer procedure.16 However, the requirement for improving the performance and increasing the variety of such donor–acceptor systems has promoted the use of other tetrapyrrolic macrocycles in the artificial photosynthetic reaction center. Keep this in mind, corrole, a tribasic aromatic tetrapyrrolic macrocycle, becomes one of the best electron/energy donor substitutes for porphyrin due to their interesting properties, e.g. low oxidation potentials, high fluorescence quantum yields, intense absorption throughout long wavelength area.17–20 As a choice of electron/energy acceptor, fullerene has been in control of this field due to the appropriate redox potential and small reorganization energy in electron-transfer reaction.21,22 Therefore, the combination of corrole and fullerene used for artificial photosynthetic reaction center is of great value to better understand the photo-induced electron/energy transfer reaction.

The artificial photosynthetic reaction centers using corrole as an energy/electron donor and fullerene as an energy/electron acceptor have emerged recently but still with few reports.17,23–28 In relation to our previous work on porphyrins29,30 and tetra-sulfolenocorrole which was treated with fullerene at high temperature to form the β-linked corrole–difullerene triad,25 we here describe the synthesis of meso-linked corrole–fullerene dyad by [4 + 2] cycloaddition reaction and the preliminary study of the corrole–fullerene dyads by UV-Vis and fluorescence spectroscopy and theoretical calculation (TD-DFT) as potential artificial photosynthetic reaction centers.

After several years efforts, various fullerene modification strategies have been developed.31 Cycloaddition reactions, e.g. cyclopropanation, and [3 + 2] and [4 + 2] cycloaddition reaction, proved to be one of the most efficient method to functionalize fullerene at 6,6-ring junctions.32,33 In our work, we selected anthracene as the reactive substrate to catch fullerene and furnish covalently linked corrole–fullerene dyad. A flexible OCH2 group was designed as a part of the donor–acceptor linkage to make the compound to have appropriate molecular arrangement in space. Scheme 1 shows the synthetic route for corrole–fullerene dyads by using aromatic aldehyde (Ald1) bearing an anthracene group and the corresponding dipyrromethane (1) as key components to construct the anthracene-functionalized corroles via ‘(2 + 1)-approach’. In detail, condensation of 1a with Ald1 in 2[thin space (1/6-em)]:[thin space (1/6-em)]1 ratio in the presence of TFA in CH2Cl2 at room temperature, and subsequent in situ oxidation of the obtained intermediate with dicyanodichloro-benzoquinone (DDQ), gave the corrole 2a as a deep green solid in 8% yield after chromatography purification and crystallization from CH2Cl2/n-hexane. By the same procedure as that described for the preparation of 2a, the analogous corroles 2b and 2c were obtained in 7–10% yield by using dipyrromethanes 1b and 1c, respectively (Scheme 1). Finally, a deoxygenated solution of corrole 2a and fullerene (7.5 mol eq.) in 1,2-dichlorobenzene was slowly stirred under darkness and the corresponding corrole–fullerene dyad 3a was then formed. Treatment of 2b or 2c with C60 was also performed, and 3b and 3c were obtained in a yield of 30–42%. However, these [4 + 2] cycloadducts are not stable at room temperature in solution and a reverse reaction of [4 + 2] cycloaddition was observed in the CDCl3 solution of 3b, which decomposed to 2b slowly (10 days). Meanwhile, a reference compound AnC60 has been synthesized in a yield of 60% (Scheme 2).


image file: c4ra07204a-s1.tif
Scheme 1 The synthetic route for the construction of corroles and corrole–fullerene dyads (i) NaBH4, THF, reflux, ∼2 h, 99%; (ii) 4-formylbenzoic acid, DCC, DMAP, CH2Cl2, 28 h, 82%; (iii) 28 mM TFA in CH2Cl2 10 h, then DDQ 2 h, 7–10%; (iv) o-dichlorobenzene, N2, 5 days, 35–46%.

image file: c4ra07204a-s2.tif
Scheme 2 The synthetic route of the reference compound AnC60.

The structures of 2a–c and 3a were established by analysis of 1D- and 2D-NMR spectroscopy. Table 1 summarizes partial chemical shifts of 2a and 3a in their 1H-NMR spectra. In the spectrum of 2a, one singlet at 2.66 ppm (the methyl group) was observed at high field as well as four sets of doublet at low field with the typical coupling constant (J = 4.0 Hz) for periphery pyrrolic hydrogens. The singlets of OCH2 and An10H (see Table 1 for the labeling of carbons in the compound) were found at 8.61 and 6.58 ppm, respectively. A comparison of the chemical shifts and the resonance patterns of OCH2 and An10H in compounds 2a and 3a were informative. When compared to the two singlets due to OCH2 and An10H in 2a, in the spectrum of 3a, the signal of OCH2 does not move significantly, while the other hydrogen (An10H) in 3a resonated at a higher chemical shift of 5.89 ppm. Furthermore, the singlet due to OCH2 in 3a becomes broader. These results suggested the vanishing of the de-shielding effect of the aromatic anthracene unit on An10H in 3a, which resulted from the loss of the aromaticity of anthracene unit after [4 + 2] cycloaddition reaction. Also, the broader OCH2 singlet in 3a indicated the existence of fullerene nearby.25,34 The above-mentioned spectrum changes were also observed when we compared the 1H-NMR spectra of Ald1 and AnC60 (Fig. S1 and S2).

Table 1 Partial chemical shift values of 2a and 3a
    2a (1H/13C) 3a (1H/13C) Ald1 (1H/13C) AnC60 (1H/13C)
image file: c4ra07204a-u1.tif An1&An8 8.61/124.4 7.95/124.9 8.43/123.5 7.75/124.0
An2&An7 7.68/127.1 7.56/127.6 7.61/126.8 7.49/127.2
An3&An6 7.56/125.4 7.56/127.6 7.52/125.0 7.54/127.2
An4&An5 8.10/129.4 7.85/126.0 8.07/129.0 7.83/125.8
An10 8.61/129.5 5.89/58.8 8.56/129.4 5.89/58.5
An11&An14 —/131.6 —/139.6 —/130.9 —/139.4
An12&An13 —/131.7 —/141.3 —/131.1 —/140.7
Unsaturated C of fullerene —/— —/74.6 —/— —/74.2
OCH2 6.58 (Sharp s.)/59.8 6.45 (Broad s.)/65.2 6.44 (Sharp s.)/59.5 6.35 (Broad s.)/65.3


Furthermore, HSQC spectrum of 3a shows the correlation between the singlet of An10H at 5.89 ppm and the carbon signal at 58.8 ppm (An10C), while in the HMBC spectrum of 3a, the singlet of An4H at 7.85 ppm correlated to the carbon which resonates at 58.8 ppm (An10C), the singlet of An10H at 5.89 ppm correlated to the carbon with a resonance at 74.6 ppm, i.e. the typical chemical shift value of an aliphatic quaternary carbon in a [4 + 2] cycloaddition reaction modified fullerene.35 In addition, similar 1H and 13C-chemical shift values were obtained for An1–10 in both corrole–fullerene dyad 3a and the model compound AnC60 (see Table 1). These observations in homo- and heteronuclear correlations in 3a and AnC60, including the methine carbon signal (An10C) and one quaternary carbon in fullerene as described above, strongly supported the assigned compound structure and demonstrated the formation of the corrole–fullerene dyad (see Fig. 1).


image file: c4ra07204a-f1.tif
Fig. 1 Key H–H and H–C couplings of 3a obtained from 2D NMR.

The corrole–fullerene compound 3a was further characterized by mass spectrum, which confirmed its molecular formula as C115H40N4O2 by a weak pseudo-molecular ion at m/z = 1509.3 [M + H]+(Fig. 2). Meanwhile, certain fragments were also picked up to identify the cleavage sites. For instants, the fragments at m/z = 720.0, 788.3 should be generated from the splitting of the newly formed bonds in the [4 + 2] reaction (Fig. 2 type A). This indicated the occurrence of retro-[4 + 2] cleavage. Also, the fragments at m/z = 553.1, 978.4 (+Na+) should be resulted from the cleavage of the bond between the carbonyl and benzo groups extended at the corrole 10-position (Fig. 2 type C). Besides, one fragment obtained from the breaking of the alkoxy bond (Fig. 2 type B) is found at m/z = 598.1. Meanwhile, the mass spectrum of 3b also shows similar type of cleavage (see Fig. S10).


image file: c4ra07204a-f2.tif
Fig. 2 The MALDI-TOF mass spectrum of corrole–fullerene dyad 3a (without matrix).

Next, the preliminary study on the photo physical properties of the corrole–fullerene dyad 3a was performed. The UV-Vis-spectra of 3a, its components 2a, Ald1 and reference compound AnC60 in CH2Cl2 are shown in Fig. 3. By comparing the spectra of Ald1 and 2a, it is found that the spectrum of 2a is essentially a combination of the absorptions of a normal corrole and an anthracene. The new sharp absorption at 257 nm and the “saw-teeth” absorption (330–400 nm) in the spectrum of 2a should be attributed to the absorption of anthracene group. When compared to the absorption spectrum of a typical corrole, 2a also shows a strong Soret band at 420 nm and three Q bands absorption in the range 500 to 700 nm. Further, the spectrum of 3a displays a slight difference than that of 2a with the disappearance of the anthracene's absorption (257 nm and “saw-teeth” part) and appearance of a broad absorption of fullerene (258.5 nm, 314.0 nm and a very weak one near 705 nm). However, the corrole–fullerene dyad 3a did not show some new absorption and its spectrum is the superposition of absorption of novel corrole and the reference component AnC60. This indicated no intramolecular electronic interaction between corrole and fullerene units in the ground state of 3a.


image file: c4ra07204a-f3.tif

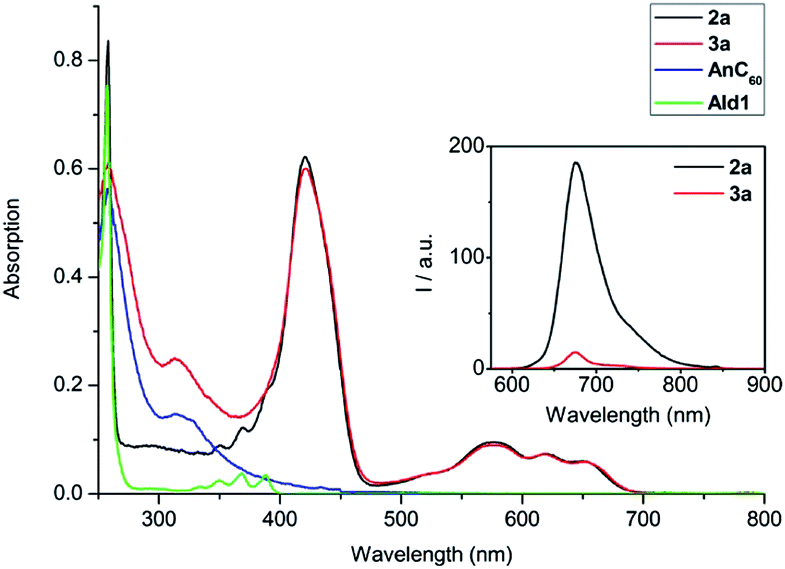

Fig. 3 UV-Vis spectra of Ald1, AnC60, 2a and 3a in CH2Cl2, and fluorescence emission spectra (inset) of 2a and 3a in CH2Cl2 (excited at 422 nm).

In the emission spectrum of 2a (Fig. 3, inset), the characteristic fluorescence of the corrole core is observed, which has been effectively quenched in that of 3a. Meanwhile, Fig. 4 shows the fluorescence decay curves of 2a and 3a in term of the corrole fluorescence scope. The time decay of corrole emission decreases significantly after introduction of fullerene, where the fluorescence lifetimes of 2a and 3a are found to be 2.57 ns and 0.75 ns, respectively. The decreasing of the fluorescence intensity and fluorescence lifetime of the corrole unit in 3a (about 3 times) with respect to those of the precursor 2a should be taken as a sign of efficient quenching of the photo-excited corrole by the closely attached fullerene moiety in 3a. Hence, a proposed photo-induced electron transfer should occur between corrole and fullerene as described in other corrole–fullerene conjugates.17


image file: c4ra07204a-f4.tif
Fig. 4 Fluorescence decay curves of 2a and 3a in CH2Cl2 (excitation at 366 nm, detection at 667 nm).

In order to further understand the electronic and geometrical structures of the corrole–fullerene dyad, ab initio quantum mechanical calculations were performed with TD-DFT variant hybrid density functional theory (B3LYP) in conjunction with the 6-31G (d) basis set as implemented in the Gaussian 09 program package.36 The distances of “center to center ” and “edge to edge”, calculated from the geometrical structure of 3a, are 15.8 Å and 10.2 Å, respectively (see the energy-optimized structure of 3a shown in Fig. S11). In addition, Fig. 5 shows the frontier highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) generated from theoretical calculation. The result is similar to those reported previously.17,27 The HOMO (−4.75 eV) locates on the corrole moiety, while the LUMO (−3.07 eV) resides totally on the fullerene cage of 3a. Furthermore, part of the HOMO is also observed on the meso-phenylene spacer of the dyad, suggesting considerable interaction between the donor and acceptor units. Thus, the calculated distribution of MO manifested the proposed intramolecular electron transfer from the excited corrole to the fullerene in gaining of charge-separated state corrole˙+–C60˙−.


image file: c4ra07204a-f5.tif
Fig. 5 The HOMO, LUMO, HOMO–LUMO gap and energy level of corrole–fullerene dyad 3a.

Conclusions

In conclusion, we reported the synthesis and characterization of novel corrole–fullerene dyad 3a–c. By tracing the fragments in mass spectrum, the possible decomposition route was deduced. Next, the preliminary photo physical properties of the corrole–fullerene dyad have been studied. Strong fluorescence quenching and fluorescence lifetime reducing of corrole core in 3a indicated that electron transfer could take place between excited corrole and fullerene. TD-DFT calculation was also employed to analyze the electronic and geometry structures. The desired distribution of MO theoretically confirmed that the dyad 3a has a strong propensity for intramolecular electron transfer from corrole to fullerene cage.

Acknowledgements

The work is supported by National Natural Science Foundation of China (no. 21076147), Natural Science Foundation of Tianjin (no. 10JCZDJC23700), National International S&T Cooperation Foundation of China (nO. 2012DFG41980) and Independent Innovation Foundation of Tianjin University (2013).

Notes and references

  1. A. R. Battersby, Nat. Prod. Rep., 2000, 17, 507–526 RSC.
  2. A. W. Johnson and I. T. Kay, Proc. R. Soc. London, Ser. A, 1965, 288, 334–341 CrossRef CAS.
  3. D. Mauzerall, Philos. Trans. R. Soc., B, 1976, 273, 287–294 CrossRef CAS.
  4. D. T. Gryko and B. Koszarna, Org & Biomol Chem, 2003, 1, 350–357 CAS.
  5. R. Paolesse, A. Marini, S. Nardis, A. Froiio, F. Mandoj, D. J. Nurco, L. Prodi, M. Montalti and K. M. Smith, J. Porphyrins Phthalocyanines, 2003, 7, 25–36 CrossRef CAS.
  6. B. Koszarna and D. T. Gryko, J. Org. Chem., 2006, 71, 3707–3717 CrossRef CAS PubMed.
  7. C. M. Lemon and P. J. Brothers, J. Porphyrins Phthalocyanines, 2011, 15, 809–834 CrossRef CAS.
  8. R. Paolesse, Synlett, 2008, 2215–2230 CrossRef CAS PubMed.
  9. H. Y. Liu, F. Yam, Y. T. Xie, X. Y. Li and C. K. Chang, J. Am. Chem. Soc., 2009, 131, 12890–12891 CrossRef CAS PubMed.
  10. L. Tortora, G. Pomarico, S. Nardis, E. Martinelli, A. Catini, A. D'Amico, C. Di Natale and R. Paolesse, Sens. Actuators, B, 2013, 187, 72–77 CrossRef CAS PubMed.
  11. H. Agadjanian, J. Ma, A. Rentsendorj, V. Valluripalli, J. Y. Hwang, A. Mahammed, D. L. Farkas, H. B. Gray, Z. Gross and L. K. Medina-Kauwe, Proc. Natl. Acad. Sci. U. S. A., 2009, 106, 6105–6110 CrossRef CAS PubMed.
  12. P. Salvatori, A. Amat, M. Pastore, G. Vitillaro, K. Sudhakar, L. Giribabu, Y. Soujanya and F. De Angelis, Comput. Theor. Chem., 2014, 1030, 59–66 CrossRef CAS PubMed.
  13. I. Aviv and Z. Gross, Chem. Commun., 2007, 1987–1999 RSC.
  14. S.-L. Lai, L. Wang, C. Yang, M.-Y. Chan, X. Guan, C.-C. Kwok and C.-M. Che, Adv. Funct. Mater., 2014, 24, 4655–4665 CrossRef CAS PubMed.
  15. I. McConnell, G. H. Li and G. W. Brudvig, Chem. Biol., 2010, 17, 434–447 CrossRef CAS PubMed.
  16. D. M. Guldi, Chem. Soc. Rev., 2002, 31, 22–36 RSC.
  17. F. D'Souza, R. Chitta, K. Ohkubo, M. Tasior, N. K. Subbaiyan, M. E. Zandler, M. K. Rogacki, D. T. Gryko and S. Fukuzumi, J. Am. Chem. Soc., 2008, 130, 14263–14272 CrossRef PubMed.
  18. M. Tasior, D. T. Gryko, M. Cembor, J. S. Jaworski, B. Ventura and L. Flamigni, New J. Chem., 2007, 31, 247–259 RSC.
  19. T. Ding, E. A. Aleman, D. A. Modarelli and C. J. Ziegler, J. Phys. Chem. A, 2005, 109, 7411–7417 CrossRef CAS PubMed.
  20. D. T. Gryko, J. Piechowska, J. S. Jaworski, M. Galezowski, M. Tasior, M. Cembor and H. Butenschon, New J. Chem., 2007, 31, 1613–1619 RSC.
  21. L. Echegoyen and L. E. Echegoyen, Acc. Chem. Res., 1998, 31, 593–601 CrossRef CAS.
  22. S. Fukuzumi, I. Nakanishi, T. Suenobu and K. M. Kadish, J. Am. Chem. Soc., 1999, 121, 3468–3474 CrossRef CAS.
  23. C. Chen, Y. Z. Zhu, Q. J. Fan, H. B. Song and J. Y. Zheng, Tetrahedron Lett., 2013, 54, 4143–4147 CrossRef CAS PubMed.
  24. K. Lewandowska, B. Barszcz, J. Wolak, A. Graja, M. Grzybowski and D. T. Gryko, Dyes Pigm., 2013, 96, 249–255 CrossRef CAS PubMed.
  25. C. J. Li, M. Fechtel, Y. Q. Feng and B. Krautler, J. Porphyrins Phthalocyanines, 2012, 16, 556–563 CrossRef CAS.
  26. L. S. H. P. Vale, J. F. B. Barata, C. I. M. Santos, M. G. P. M. S. Neves, M. A. F. Faustino, A. C. Tome, A. M. S. Silva, F. A. A. Paz and J. A. S. Cavaleiro, J. Porphyrins Phthalocyanines, 2009, 13, 358–368 CrossRef CAS.
  27. K. Lewandowska, B. Barszcz, A. Graja, B. Bursa, A. Biadasz, D. Wrobel, W. Bednarski, S. Waplak, M. Grzybowski and D. T. Gryko, Synth. Met., 2013, 166, 70–67 CrossRef CAS PubMed.
  28. G. Rotas, G. Charalambidis, L. Glatzl, D. T. Gryko, A. Kahnt, A. G. Coutsolelos and N. Tagmatarchis, Chem. Commun., 2013, 49, 9128–9130 RSC.
  29. X. J. Liu, C. J. Li, X. Peng, Y. Z. Zhou, Z. Zeng, Y. C. Li, T. Y. Zhang, B. Zhang, Y. Dong, D. M. Sun, P. Cheng and Y. Q. Feng, Dyes Pigm., 2013, 98, 181–189 CrossRef CAS PubMed.
  30. Z. Zeng, B. Zhang, C. J. Li, X. Peng, X. J. Liu, S. X. Meng and Y. Q. Feng, Dyes Pigm., 2014, 100, 278–285 CrossRef CAS PubMed.
  31. F. Diederich and C. Thilgen, Science, 1996, 271, 317–323 CAS.
  32. M. Prato, J. Mater. Chem., 1997, 7, 1097–1109 RSC.
  33. Y. Takaguchi, T. Tajima, K. Ohta, J. Motoyoshiya, H. Aoyama, T. Wakahara, T. Akasaka, M. Fujitsuka and O. Ito, Angew. Chem., Int. Ed., 2002, 41, 817–819 CrossRef CAS.
  34. B. Krautler, C. S. Sheehan and A. Rieder, Helv. Chim. Acta, 2000, 83, 583–591 CrossRef.
  35. K. Komatsu, Y. Murata, N. Sugita, K. Takeuchi and T. S. M. Wan, Tetrahedron Lett., 1993, 34, 8473–8476 CrossRef CAS.
  36. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, B. Mennucci, G. A. Petersson, H. Nakatsuji, M. Caricato, X. Li, H. P. Hratchian, A. F. Izmaylov, J. Bloino, G. Zheng, J. L. Sonnenberg, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, J. A. Montgomery, Jr, J. E. Peralta, F. Ogliaro, M. Bearpark, J. J. Heyd, E. Brothers, K. N. Kudin, V. N. Staroverov, R. Kobayashi, J. Normand, K. Raghavachari, A. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, N. Rega, J. M. Millam, M. Klene, J. E. Knox, J. B. Cross, V. Bakken, C. Adamo, J. Jaramillo, R. Gomperts, R. E. Stratmann, O. Yazyev, A. J. Austin, R. Cammi, C. Pomelli, J. W. Ochterski, R. L. Martin, K. Morokuma, V. G. Zakrzewski, G. A. Voth, P. Salvador, J. J. Dannenberg, S. Dapprich, A. D. Daniels, Ö. Farkas, J. B. Foresman, J. V. Ortiz, J. Cioslowski and D. J. Fox, Gaussian, Inc., Wallingford CT, 2009.

Footnotes

Electronic supplementary information (ESI) available: Experimental part and 1H NMR, MS, spectral details and DFT calculations. See DOI: 10.1039/c4ra07204a
These two authors contributed equally to this work.
