Carbon dioxide as a primary oxidant and a C1 building block†
Received
30th June 2014
, Accepted 10th September 2014
First published on 15th September 2014
Abstract
2,3-Dihydro-2,2,2-triphenylphenanthro[9,10-d]-1,3,2-λ5-oxazaphospholes react with carbon dioxide in an overall second order reaction at room temperature to give 3H-phenanthro[9,10-d]oxazol-2-ones and triphenylphosphine oxide in good yields. Nucleophilic attack of the phenolate on CO2 and formation of Ph3P
O was found.
Carbon dioxide chemistry (in particular, capture and conversion) has attracted much attention from the scientific community due to global warming associated with positive carbon accumulation.1 The most widely used chemical absorption technique for carbon capture and storage/sequestation would be essentially adopting amino-containing absorbents through formation of C–N bonds in terms of mechanistic considerations.2 However, extensive energy input in desorption and compression process would be a crucial barrier to realize it practically. On the other hand, CO2 is very attractive as an environmentally friendly feedstock to replace the hazardous phosgene route for making commodity chemicals, fuels, and materials from a standpoint of green chemistry, whereas the reactions involving CO2 are commonly carried out at high pressure, which may not be economically suitable and also pose safety concerns. The challenge is to develop catalysts that are capable of activating CO2 under low pressure (preferably at 1 bar), and thus incorporating CO2 into organic molecules catalytically or find new energy-rich reagents for these reactions.3 If we confine ourselves to reactions of CO2 with N- or O-nucleophiles these include mainly compounds such as ammonia,4 amines,5 azides,6 aziridines,7 inorganic oxides,8 a terminal P
O,9 alcohols10 and other various terminal oxide anions.11 With aziridines carbon dioxide react to give oxazolidinones12 or polyurethanes in the presence of a catalyst and the latter in its absence. However, in both cases elevated CO2 pressures and higher temperatures are required. Oxazolidinones can also be prepared from propargylalcohol and amines in ionic liquid at 25 bar CO2 pressure and CuCl as catalyst.13 Quinazolinediones are formed from aminobenzonitriles in excellent yields in water.14 CO2 would be a good and abundant C1 source for chemistry and its elimination from the atmosphere very desirable. Its reactions to valuable compounds are very limited, especially in industrial context, due to its low reactivity on the one side, and otherwise its high concentration in the atmosphere, which poses big environmental problems.
1,2-Quinones react with tertiary phosphines in a [4 + 1] electrocyclic reaction giving dioxaphosphole heterocyclic rings.15 Monoimines of 1,2-quinones (1a–d) give 1,3,2-oxazaphospholes (2) by the use of tertiary phosphines in good yields.16 Where the monoimines are unstable they can also be prepared from the corresponding quinones and triphenylphosphine in a sealed tube under ammonia. Electron-releasing groups on the quinones make the nucleophilic replacement of the C
O bond with NH3 to a C
NH functionality difficult or impossible (e.g. R = NMe2, OR).
1,3,2-Oxazaphospholes exhibit tautomerism as shown in Scheme 1 between the oxazaphosphole form (2) and the imino phosphorane form (3) dependent on the consistency or the solvent of solution (Scheme 1).17 Oxazaphospholes (2) seem to be stable in the solid form. In solution, however the tautomeric compounds of the iminophosphorane form (3) are also present. 31P NMR spectra in the range of 39–51 ppm are characteristic for 2 and those of the form 3 have a shift in the range from −23 to −8 ppm. In more basic solvents the oxazaphosphole form 2 is dominant. In solution they decompose readily in air due to dioxygen or moisture.
 |

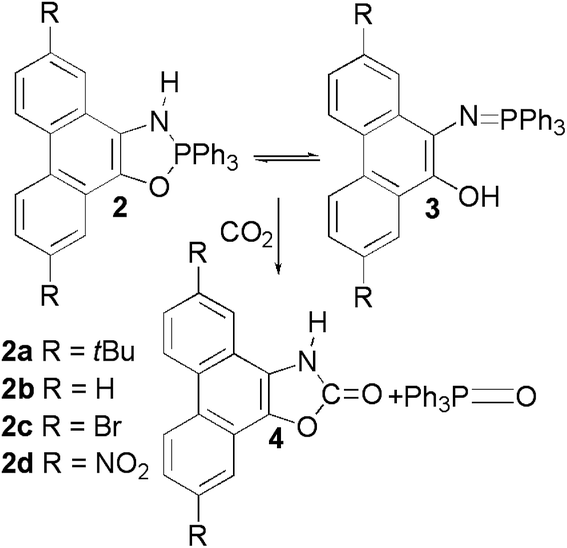

| Scheme 1 The tautomeric forms of 1,3,2-oxazaphospholes and their reaction with CO2. | |
2,3-Dihydro-2,2,2-triphenylphenanthro[9,10-d]-1,3,2λ5-oxaza-phospholes (2a,b) react with carbon dioxide in acetonitrile at room temperature slowly (24 h) and at reflux temperature in a fast reaction (2 h) to give 3H-phenanthro[9,10-d]oxazol-2-one (4a,b) in 78–85% yields (Scheme 1). The same reaction products can be obtained when the corresponding 9,10-phenanthrenequinone monoimines are used with a stoichiometric amount of triphenylphosphine and CO2. The endproducts crystallise from the solution and Ph3PO can be obtained from the filtrate purified by column chromatography using methanol as eluent. X-ray structure determination of 4b secured the structure with bond distances of C
O 1.196(7), C–N 1.378(8), and C–O 1.374(7) Å comparable to those found in similar molecules (Fig. 1).18 The other product formed (38%), compared with an authentic sample, was found to be triphenylphosphine oxide with ν(P
O) at 1191 cm−1 in the FTIR spectrum19 and a signal at 25.5 ppm in the 31P NMR spectrum.‡20
 |

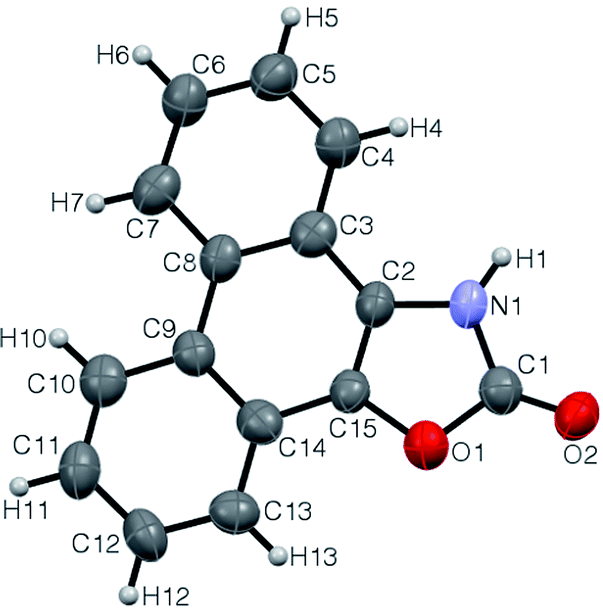

| Fig. 1 X-ray crystal structure of 3H-phenanthro[9,10-d]oxazol-2-one (4b). Red O, blue N, black C, white H. Selected bond distances (Å) and angles (°): C1–O2 1.196(7), C1–O1 1.374(7), C1–N1 1.378(8), C2–C15 1.350(8), C2–N1 1.391(7), C15–O1 1.402(7), O2–C1–O1 125.0(6), O2–C1–N1 129.0(6), O1–C1–N1 106.1(6), C15–C2–N1 106.0(6), N1–C2–C3 131.3(6), C2–C15–O1 109.4(5). | |
Kinetic measurements under pseudo first order condition (constant CO2 concentration, 1 bar) (Fig. 2) and with different 1,3,2-oxazaphosphole concentrations resulted in a second order overall rate eqn (1).
|
Reaction rate = k2 [1,3,2-oxazaphosphole][CO2]
| (1) |
 |
| Fig. 2 Time courses of the reactions of the initial 2,3-dihydro-2,2,2-triphenyl phenanthro[9,10-d]-1,3,2λ5-oxazaphosphole (2b) concentration with CO2. [2b]0 = 40 mM (^), 20 mM (◇), 10 mM (▲) by 1 bar of CO2 pressure. | |
The 2,7-dinitro and 2,7-dibromo derivatives (2c,d) did not react with CO2. However, the 2,7-di-tert-butyl derivative 2a resulted in a faster reaction to give 4a. Probably the nucleophilic power of their deprotonated forms of the iminophosphoranes (5c,d) do not reach the energy level necessary for the reaction (E°1/2 = 213 and 351 mV, respectively vs. Fc/Fc+). The elevated rate of the latter reaction is based on the enhanced nucleophilic character of the O-nucleophile formed by deprotonation of 3a due to the two tert-butyl electron-releasing groups. The addition of stoichiometric amount of triethylamine to the reaction mixture resulted also in faster reaction rate as a result of higher deprotonation of 3b (k2 = 6.81 ± 0.12 and k2Et3N = 28.69 ± 2.42 M−1 s−1). According to literature data, iminophosphoranes do not react with carbon dioxide.21 However, phenolates22 and also carbanions23 are potent nucleophiles. They react even with triplet dioxygen when their electron affinity lies below 20 kcal mol−1.24 That is in agreement mostly with those of the nucleophilic reactions on CO2.
Reaction of 3b with C18O2 (∼50
:
50 C16O2
:
C18O2) under similar conditions revealed that the carbonyl O-atom of 4b and the O-atom of triphenylphosphine oxide originates from the labeled C18O2. The 18O
:
16O ratio in both products based on GC-MS measurements are in a ratio of 45
:
55 and 43
:
57 respectively. The reaction product triphenylphosphine oxide have been identified by FTIR spectroscopy with the help of its ν(P
O) stretching frequencies of 1184 and 1152 cm−1, Δν = 32 cm−1 (calculated for P
18O 1184 cm−1, Δν = 32 cm−1), (P
16O and P
18O), 25.5 ppm in the 31P NMR spectrum. Mass spectrometric analysis of the reaction product indicated a molecular formula C18H1516OP (m/z [M]+: 278.28 and 280.28) for Ph3P
16O and Ph3P
18O. 3H-Phenanthro[9,10-d]oxazol-2-one (4b) showed in FTIR ν(C
16O and C
18O) 1752 and 1726 cm−1, Δν = 26 cm−1 (calculated for C
18O 1726 cm−1, Δν = 26 cm−1) and mass spectroscopic data of the molecular formula C15H9N16O2 (m/z [M]+: 235.24 and 237.24) for the 16O- and 18O-derivative (Fig. 3).
 |
| Fig. 3 The GC-MS spectrum of the reaction product of 2,3-dihydro-2,2,2-triphenylphenanthro[9,10-d]-1,3,2λ5-oxazaphosphole (4b) prepared with a ∼50 : 50 mixture of C16O2 : C18O2 at room temperature in acetonitrile. | |
The mechanism of the reaction (Scheme 2) can be interpreted as a nucleophilic attack of the deprotonated iminophosphorane (5) on the carbon atom of CO2 yielding a deprotonated semiester of carbonic acid 6, from which then the N
P bond of the iminophosphorane part of the molecule abstracts an oxygen atom to form triphenylphosphine oxide and the carbon atom of the O
C
O part closes with the imino N-atom of 6 to give the oxazol-2-one ring system 4a,b as endproduct (Route a). Route b, which is also in agreement with the kinetic data, is practically an aza-Wittig reaction.21 The iminophosphorane tautomer form 3 reacts with CO2 forming the four-membered ring compound 7,25 which decomposes to triphenylphosphine oxide and the isocyanate 8. This is followed with the intramolecular reaction of the isocyanate and the phenolic OH to end up in the oxazol-2-one (4). Both pathways may be operative, however the faster reaction rate when NEt3 is added seems to support Route a and no reaction of iminophosphoranes (3) with CO2 to form a four-membered ring is known from the literature. Recent results demonstrating a nucleophilic attack of an oxo anion are in agreement of this assumption.11
 |
| Scheme 2 Possible mechanism of CO2 fixation. | |
Kinetic investigations resulted in an overall second-order rate equation with k2 value of 6.81 ± 0.12 M−1 s−1. Due to the large activation energy (92 kJ mol−1) and the negative activation of entropy (−21 J mol−1 K−1) we can conclude that the rate-determining step involves a nucleophilic addition of the phenolate 5b on the carbon atom of CO2 or the formation of the four-membered ring 7. Labeling experiments straightforward support that the O-atom of triphenylphosphine oxide and that of the carbonyl group originates from carbon dioxide.
Conclusions
In summary, we have disclosed that carbon dioxide, having the most oxidized state of carbon, the biggest obstacle for its implementation in industrial processes as a raw material in its low energy level, acts as a primary oxidant and as a C1-building block. We have found that 1,3,2-oxazaphospholes react easily with carbon dioxide even at room temperature to oxazol-2-ones and triphenylphosphine oxide. This methodology serves as a useful alternative for the photochemical preparation of oxazol-2-ones starting from benzoin.25 In a coupled reaction triphenylphosphine is oxygenated to its oxide. The O-atoms of oxazol-2-ones and Ph3PO originates from CO2 proved by labeling experiments, and assumedly in a similar fashion like the Wittig reaction26 this is the driving force for the reaction. 1,3,2-Oxazaphospholes should be rich on energy and we believe that the deprotonated form of the iminophosphorane tautomer 3 attacks the carbon dioxide in a nucleophile manner. This argumentation opens a new type of energy rich phenolate nucleophiles which are able to react with CO2 in negative Gibbs free energy reactions.
Acknowledgements
This work was supported by a grant from The Hungarian Research Fund (OTKA) #K108489 and COST Actions CM1205, CM1201 and CM1003.
References
-
(a) M. Aresta, Carbon Dioxide as a Chemical Feedstock, Wiley-VCH, Weinheim, 2nd edn, 2010 Search PubMed;
(b) M. Aresta, Carbon Dioxide Recovery and Utilization, Kluver Academic Publisher, Dordrecht, 2010 Search PubMed;
(c) M. Aresta, A. Dibenedetto and A. Angelini, J. CO2 Util., 2013, 3–4, 65–73 CrossRef CAS;
(d) H. Arakawa, M. Aresta, J. N. Armor, M. A. Barteau, E. J. Beckman, A. T. Bell, J. E. Bercaw, C. Creutz, E. Dinjus, D. A. Dixon, K. Domen, D. L. DuBois, J. Eckert, E. Fujita, D. H. Gibson, W. A. Goddard, D. W. Goodman, J. Keller, G. J. Kubas, H. H. Kung, J. E. Lyons, L. E. Manzer, T. J. Marks, K. Morokuma, K. M. Nicholas, R. Periana, L. Que, J. Rostrup-Nielson, W. M. H. Sachtler, L. D. Schmidt, A. Sen, G. A. Somorjai, P. C. Stair, B. R. Stults and W. Tumas, Chem. Rev., 2001, 101, 953–996 CrossRef CAS PubMed;
(e) D. J. Darensbourg and M. W. Holtcamp, Coord. Chem. Rev., 1996, 153, 155–174 CrossRef CAS;
(f) D. H. Gibson, Chem. Rev., 1996, 96, 2063–2096 CrossRef CAS PubMed;
(g) P. T. Anastas and R. L. Lankey, Green Chem., 2000, 2, 289–295 RSC.
- Z.-Z. Yang, L.-N. He, J. Gao, A.-H. Liu and B. Yu, Energy Environ. Sci., 2012, 5, 6602–6639 CAS.
-
(a) T. Sakakura, J.-C. Choi and H. Yasuda, Chem. Rev., 2007, 107, 2365–2387 CrossRef CAS PubMed;
(b) I. Omae, Catal. Today, 2006, 115, 33–52 CrossRef CAS.
- J. H. Meessen, Urea, Ullmann's Encyclopedia of Industrial Chemistry, Wiley-VCH, Weinheim, 2010 Search PubMed.
-
(a) Y. P. Patil, P. J. Tambade, K. M. Deshmukh and B. M. Bhange, Catal. Today, 2009, 148, 355–360 CrossRef CAS;
(b) Y. Ishino and T. Mizuno, Tetrahedron, 2002, 58, 3155–3158 CrossRef;
(c) B. M. Bhanage, S. Fujita, Y. Ikushima and M. Arai, Green Chem., 2003, 5, 340–342 RSC;
(d) T. Sakakura, J. C. Choi and H. Yasuda, Chem. Rev., 2007, 107, 2365–2387 CrossRef CAS PubMed;
(e) M. Kodaka, T. Tomohiro and H. Okuno, J. Chem. Soc., Chem. Commun., 1993, 81–82 RSC;
(f) K. C. K. Swamy, N. N. K. Kumar, E. Balaraman and K. V. P. P. Kumar, Chem. Rev., 2009, 109, 2551–2651 CrossRef CAS PubMed;
(g) B. Ochiai, S. Inoue and T. Endo, J. Polym. Sci., Part A: Polym. Chem., 2005, 43, 6613–6618 CrossRef CAS;
(h) Y. L. Gu, Q. H. Zhang, Z. Y. Duan, J. Zhang, S. G. Zhang and Y. Q. Deng, J. Org. Chem., 2005, 70, 7376–7380 CrossRef CAS PubMed.
-
(a) X. Ariza, O. Pineda, F. Urpi and J. Vilarrasa, Tetrahedron Lett., 2001, 42, 4995–4999 CrossRef CAS;
(b) H. Kawanami, H. Matsumoto and Y. Ikushima, Chem. Lett., 2005, 34, 60–61 CrossRef CAS;
(c) A. W. Miller and S. T. Nguyen, Org. Lett., 2004, 6, 2301–2304 CrossRef CAS PubMed;
(d) A. Sudo, Y. Morioka, E. Koizumi, F. Sanda and T. Endo, Tetrahedron Lett., 2003, 44, 7889–7891 CrossRef CAS;
(e) M. Shi, J. K. Jiang, Y. M. Shen, Y. S. Feng and G. X. Lei, J. Org. Chem., 2000, 65, 3443–3448 CrossRef CAS PubMed;
(f) O. Ihata, Y. Kayaki and T. Ikariya, Macromolecules, 2005, 38, 6429–6434 CrossRef CAS;
(g) O. Ihata, Y. Kayaki and T. Ikariya, Angew. Chem., Int. Ed., 2004, 43, 717–719 CrossRef CAS PubMed;
(h) J. Seayad, A. M. Seayad, J. K. P. Ng and C. L. L. Chai, ChemCatChem, 2012, 4, 774–777 CrossRef CAS.
-
(a) O. Ihata, Y. Kayaki and T. Ikariya, Chem. Commun., 2005, 2268–2270 RSC;
(b) A. Sudo, Y. Morioka, F. Sanda and T. Endo, Tetrahedron Lett., 2004, 45, 1363–1365 CrossRef CAS.
-
(a) J. Johnston, J. Am. Chem. Soc., 1910, 32, 938–946 CrossRef CAS;
(b) J. Blamey, E. J. Anthony, J. Wang and P. S. Fennell, Prog. Energy Combust. Sci., 2010, 36, 260–279 CrossRef CAS.
- N. A. Piro and C. C. Cummins, J. Am. Chem. Soc., 2009, 131, 8764–8765 CrossRef CAS PubMed.
-
(a) I. Pintèr, J. Kovács and G. Tóth, Carbohydr. Res., 1995, 273, 99–108 CrossRef;
(b) Y. Ichikawa, Y. Matsukawa and M. Isobe, J. Am. Chem. Soc., 2006, 128, 3934–3938 CrossRef CAS PubMed;
(c) Y. Ichikawa, Y. Matsukawa, M. Tamura, F. Ohara, M. Isobe and H. Kotsuki, Chem.–Asian J., 2006, 1, 717–723 CrossRef CAS PubMed.
- J. S. Silvia and C. C. Cummins, Chem. Sci., 2011, 2, 1474–1479 RSC.
-
(a) M. Feroci, M. Orsini, G. Sotgiu, L. Rossi and A. Inesi, J. Org. Chem., 2005, 70, 7795–7798 CrossRef CAS PubMed;
(b) M. Costa, G. P. Chiusoli and M. Rizzardi, Chem. Commun., 1996, 1699–1700 RSC;
(c) M. Shi and Y. M. Shen, J. Org. Chem., 2002, 67, 16–21 CrossRef CAS PubMed.
-
(a) M. Shi and Y. M. Shen, J. Org. Chem., 2002, 67, 16–21 CrossRef CAS PubMed.
- J. Ma, B. Han, J. Song, J. Hu, W. Lu, D. Yang, Z. Zhang, T. Jiang and M. Hou, Green Chem., 2013, 15, 1485–1489 RSC.
-
(a) F. Ramirez, Acc. Chem. Res., 1968, 1, 168–174 CrossRef CAS;
(b) F. Ramirez, C. P. Smith, J. F. Pilot and A. S. Gulati, J. Org. Chem., 1968, 33, 3787–3794 CrossRef CAS;
(c) D. Hellwinkel, W. Blaicher, W. Krapp and W. S. Sheldrick, Chem. Ber., 1980, 113, 1406–1413 CrossRef CAS;
(d) K. Dimroth, Comprehensive Heterocyclic Chemistry, ed. A. R. Katritzky and C. W. Rees, Pergamon, Oxford, 1984, vol. 1, p. 494 Search PubMed;
(e) L. D. Quin, 1,4-Cycloaddition Reactions, ed. J. Hamer, Academic, New York, 1967, p. 47 Search PubMed.
- G. Speier and Z. Tyeklár, Chem. Ber., 1979, 112, 389–391 CrossRef CAS.
- H. B. Stegmann, R. Haller and K. Scheffler, Chem. Ber., 1977, 110, 3817 CrossRef CAS.
- B. Steiner, V. Langer and M. Koos, Carbohydr. Res., 2009, 344, 2079–2082 CrossRef CAS PubMed.
- L. Daasch and D. Smith, Anal. Chem., 1951, 23, 853–868 CrossRef CAS.
- L. Deakin, W. Levason, M. C. Popham, G. Reid and M. J. Webster, J. Chem. Soc., Dalton Trans., 2000, 2439–2447 RSC.
- F. Palacios, C. Alonso, D. Aparicio, G. Rubiales and J. s. M. de los Santos, Tetrahedron, 2007, 63, 523–575 CrossRef CAS.
- J. March, Advanced Organic Chemistry, Wiley-Interscience, New York, 4th edn, 1992 Search PubMed.
- F. G. Bordwell and M. J. Bausch, J. Am. Chem. Soc., 1986, 108, 1985–1988 CrossRef CAS.
- R. J. Schmitt, M. Bierbaum and C. H. DePuy, J. Am. Chem. Soc., 1979, 101, 6443–6445 CrossRef CAS.
-
(a) A. W. Johnson, W. C. Kahsa, K. A. O. Starzewsky and D. A. Dixon, in Ylides and Imines of Phosphorus, ed. W. Johnson, Wiley, New York, 1993, ch. 13 Search PubMed;
(b) T. Kawashima, T. Soda and R. Okazaki, Angew. Chem., Int. Ed., 1966, 35, 1096–1098 CrossRef;
(c) N. Kano, X. J. Hua, S. Kawa and T. Kawashima, Tetrahedron Lett., 2000, 41, 5237–5241 CrossRef CAS.
- P. A. Byrne and D. G. Gilheany, Chem. Soc. Rev., 2013, 42, 6670–6696 RSC.
Footnotes |
† Electronic supplementary information (ESI) available: Experimental details of synthesis and structural characterisation, kinetics, electrochemical and spectroscopic data. CCDC 956401. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4ra06462c |
‡ Crystallographic data for 4b: C60H36N4O8; Mr = 940.93; crystal size 0.14 × 0.06 × 0.02 mm3; monoclinic; C2/c; a = 41.056(1), b = 10.5170(5), c = 22.3769(9) Å; β = 118.092(2)°; V = 8523.8(6) Å3; Z = 8; ρcald = 1.466 g cm−1; μ = 0.099 mm−1; F(000) = 3904; T = 203(2) K; Kappa CCD area detector equipped with monochromated MoKα radiation (λ = 0.71073 Å); 7254 reflections measured (Θmax = 0.998°); 2499 independent reflexions; R1 = 0.0865; wR2 = 0.2074; GOF = 0.961. |
|
