A new route to nanoscale ceramics in asymmetric reaction fields of carbon nanospaces

Abstract

We fabricated nanoscale BaTiO₃ and its asymmetric crystal structure was obtained using an asymmetric reaction field in carbon nanospaces. The nano-crystal phases changed from symmetric to asymmetric crystals with decreasing crystallite size. The fabrication of an asymmetric crystal in a nanospace can be adapted for various ceramic fabrications.

---

The fabrication of nanoscale materials (nanomaterials) has attracted attention in fundamental and applied research, because nanomaterials have very different physical properties from those of single crystals and coarse-grained polycrystals.^1,2 The interfaces of nanomaterials are primarily responsible for their novel properties, based on high reactivities and large surface areas.^3–6 Control of these interfaces or the grain size is therefore necessary for the preparation of widely applicable nanomaterials.^7,8 Barium titanate (BaTiO₃), a perovskite-type material, is one of the most common electronic ceramic materials because it can be used in electro-optic devices, capacitors, and transducers. Nanoscale BaTiO₃ is expected to have novel structural and physical properties: grain-size dependence of structural transformations and lowering of the Curie temperature with decreasing grain size.^9–12 The design of nanoscale BaTiO₃ has contributed to significant developments in ferroelectrics and the miniaturization of electronic devices. Much attention has focused on the preparation of nanoscale BaTiO₃ by hydrothermal, solvothermal, sol–gel, and chemical precipitation methods instead of BaTiO₃ crystal preparation by high-temperature solid-state reactions.^13–17 Sol–gel and sol–gel solvothermal reactions have the advantage of uniform nanoscale crystal productions.^10,13,18,19 Here, we describe size-dependent nanocrystalline phases of BaTiO₃ and BaTiO₃ with an anomalous structure, prepared under asymmetric reaction fields in the nanospaces of activated carbon fibers (ACFs), which are known to have abundant carbon nanospaces, with strong molecular fields for adsorption, separation, storage, and chemical reactions.^20–22 A sol–gel solvothermal method was adopted for preparation of nanoscale BaTiO₃ confined in nanospaces of ACFs, because the subnanometer scale precursor by a sol–gel method could enter into those nanospaces.¹⁷

Crystalline-BaTiO₃ was prepared using a solid-state reaction by heating at 1473 K (see the Supplementary Information for details). The powder XRD pattern of crystalline-BaTiO₃ (Fig. 1a) showed a highly crystalline BaTiO₃ structure without any impurities, and matched previously reported patterns.^23,24 The crystallite size of crystalline-BaTiO₃ was 1270 nm, decided from the SEM images. Solid-state reactions at 1073 and 1173 K also produced BaTiO₃ crystals (micro-BaTiO₃) without impurities, but the peaks in the XRD patterns were wider than those for crystals prepared at 1473 K, as shown in Fig. 1b. The crystallite sizes for micro-BaTiO₃ preparation at 1073 and 1173 K were 94 and 110 nm, respectively, evaluated from the XRD peaks using the Scherrer equation.^25,26 The crystallite sizes of micro-BaTiO₃ were apparently smaller than that of crystalline-BaTiO₃. Thus, crystallite size could be controlled by the heating temperature in solid-state reactions. Fig. 1c shows XRD patterns of BaTiO₃ crystals (nano-BaTiO₃) prepared by a sol–gel method at 400 K using a Ti concentration of 50–400 mM. The crystal sizes of nano-BaTiO₃ were approximately 5 nm. The XRD pattern peaks of confined-BaTiO₃ were further broadened, as shown in Fig. 1d, because these BaTiO₃ crystals are nanoscale. The XRD patterns also included peaks from ACFs. The XRD pattern of ACF had broad peaks corresponding to the 002 and 10 layers of graphitic materials, with crystallite sizes of 1.8 and 4.1 nm, respectively, determined using the Scherrer equation. Thus, the in-plane size of graphitic unit was 4.1 nm, as shown in Fig. S2c.† The average crystallite sizes of crystalline, micro-, nano-, and confined-BaTiO₃ are summarized in Fig. 1e. BaTiO₃ confined in nanospaces gave crystals smaller than 3 nm under all preparation conditions. Specifically, the crystallite sizes were nearly 1 nm when the Ti concentrations were weaker than 50 mM. This is a result of confined effect in nanospaces. The unit sizes of these nanospaces were approximately 4.1 × 4.1 × 1.3 nm³ (a schematic image of confined-BaTiO₃ is shown in Fig. S2†). The BaTiO₃ crystals were therefore smaller than 3.6 nm when the crystals were prepared in nanospaces, despite the same preparation method. In other words, the crystal sizes of confined-BaTiO₃ were restricted to less than 3.6 nm, although the preparation method was the same as for nano-BaTiO₃, with crystallite sizes of 5 nm. The crystal sizes of nanoscale ceramics can therefore be controlled by choosing nanospaces of appropriate sizes.

Fig. 1 XRD patterns of crystalline-BaTiO₃ (a), micro-BaTiO₃ (b), nano-BaTiO₃ (c), and confined-BaTiO₃ (d). XRD patterns of crystalline-BaTiO₃ and ACF are shown for comparison. All peaks were assigned to BaTiO₃ crystals. Broad patterns originating from ACF were also present in the XRD patterns of confined-BaTiO₃. (e) Average crystallite sizes of crystalline-, micro-, nano-, and confined-BaTiO₃, determined from main peaks using Scherrer equation. Average crystallite size of crystalline-BaTiO₃ evaluated from SEM observations was used as a standard.

The BaTiO₃ crystals were observed using TEM and SEM, as shown in Fig. 2 and S3.† BaTiO₃ crystals prepared by a solid-state reaction at 1173 K, a sol–gel solvothermal reaction using a Ti concentration of 50 mM, and a sol–gel solvothermal reaction in nanospaces using a Ti concentration of 50 mM were used as crystalline-, micro-, nano-, and confined-BaTiO₃, respectively. Crystalline- and micro-BaTiO₃ were cuboid or polyhedral, but nano- and confined-BaTiO₃ were roughly spherical. Electron diffraction showed spot patterns for crystalline-BaTiO₃, spot and ring patterns for micro-BaTiO₃, and only ring patterns for nano- and confined-BaTiO₃. These patterns are roughly typical of tetragonal-phase BaTiO₃. Energy-dispersive spectroscopy mapping showed that these particles consist of Ba, Ti, and O (Fig. S3†). For confined-BaTiO₃, Ba, Ti, and O were also found in the ACFs. The particle size distributions in Fig. 2e were calculated from more than 200 particles of each type of BaTiO₃ crystal in TEM images, assuming spherical particles. The particle sizes were approximately 800 ± 520, 110 ± 65, 3.3 ± 1.3, and 1.8 ± 0.6 nm for crystalline-, micro-, nano-, and confined-BaTiO₃, respectively, calculated on the assumption of a Gaussian distribution; the average sizes were 1060, 137, 3.6, and 2.1 nm, respectively. The obtained particle sizes correspond well to the crystallite sizes from XRD analysis in Fig. 1e. The particle sizes were also evaluated from the Brunauer–Emmett–Teller surface areas obtained from N₂ adsorption isotherms, and assuming spherical particles, as shown in Fig. S4.† The average particle sizes were 750, 150, 3.1, and 3.6 nm for crystalline-, micro-, nano-, and confined-BaTiO₃, respectively. The particle sizes evaluated from TEM, SEM, and N₂ adsorption isotherms agree well with the crystallite sizes obtained using XRD for the corresponding crystals, as shown in Fig. S4d† (details are shown in Fig. S5†). The crystal sizes obtained using XRD were therefore supported by particle size evaluation using TEM, SEM and N₂ adsorption isotherms.

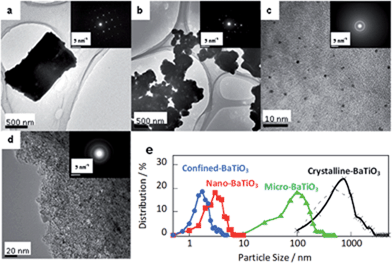

Fig. 2 TEM images of crystalline-BaTiO₃ (a), micro-BaTiO₃ (b), nano-BaTiO₃ (c), and confined-BaTiO₃ (d). Electron diffraction patterns are inserted in each image. All electron diffraction patterns have peaks from BaTiO₃. The electron diffraction patterns changed from spots to ring patterns with decreasing BaTiO₃ particle size. (e) Particle size distributions of BaTiO₃ obtained from 200 to 300 particles. Dashed curve represents particle size distribution of crystalline-BaTiO₃ evaluated from BaTiO₃ particles in SEM images. Particle sizes of crystalline-, micro-, nano-, and confined-BaTiO₃ were 800 ± 520, 110 ± 65, 3.3 ± 1.3, and 1.8 ± 0.6 nm, respectively.

The peak positions of the XRD profiles were slightly shifted to lower angles when the crystal size decreased (Fig. 1 and S5†). The lower angle shifts of the peak positions indicated that the corresponding lattice spaces were expanded. The relationships between crystallite size and lattice space are shown in Fig. 3a. The (222) and (220) layers rarely changed in crystalline- and micro-BaTiO₃ (crystallite size less than 90 nm), whereas the (200) layer of micro-BaTiO₃ expanded by 0.4% to give a cubic form, as discussed later. All the lattice spaces of nano-BaTiO₃ (crystallite size between 5 and 30 nm) expanded by nearly 1%, and the (222) and (220) layers expanded significantly in confined-BaTiO₃ (crystallite size less than 3 nm), although the (200) layer rarely changed to that of nano-BaTiO₃. These results suggest that BaTiO₃ nanocrystals such as nano- and confined-BaTiO₃ form anomalous phases or crystal structures. The crystal structures of representative BaTiO₃ crystals, which were the same as those used in the TEM observations, were determined by fitting simulated XRD patterns to the experimental ones (Fig. S6†). Crystalline-, micro-, nano-, and confined-BaTiO₃ have the tetragonal phase with the P4/mmm space group, cubic phase with the Pm3m space group, tetragonal phase with the P4/mmm space group, and trigonal phase with the R3m space group, respectively. The peak widths were corrected using the Scherrer equation based on the experimental crystallite sizes. The peak positions for all BaTiO₃ crystals coincided with each other in experimental and simulated XRD patterns. The crystalline-BaTiO₃ (size 1000 nm) had a tetragonal phase (a = b = 0.3995 nm and c = 0.4037 nm), corresponding to reported values.^27,28 The crystal structure of micro-BaTiO₃ (100 nm in size) was transformed to the cubic phase (a = b = c = 0.401 nm). Structural transformations from tetragonal to cubic phases with decreasing crystallite size have also been reported elsewhere.²⁹ However, nano-BaTiO₃ (size 5–30 nm) had a tetragonal phase, like crystalline-BaTiO₃, but larger crystal parameters (a = b = 0.40 nm and c = 0.42 nm). The confined-BaTiO₃ (size 1–3 nm) was assigned a trigonal phase (a = b = c = 0.41 nm and γ = 88°). The trigonal phase is usually observed below 200 K for BaTiO₃ crystals.^30–32 A novel trigonal structure was therefore observed at room temperature for nanoscale BaTiO₃. The appearance of the trigonal structure could be the result of two effects: nanosized crystal formation and an asymmetric reaction field in carbon nanospaces.

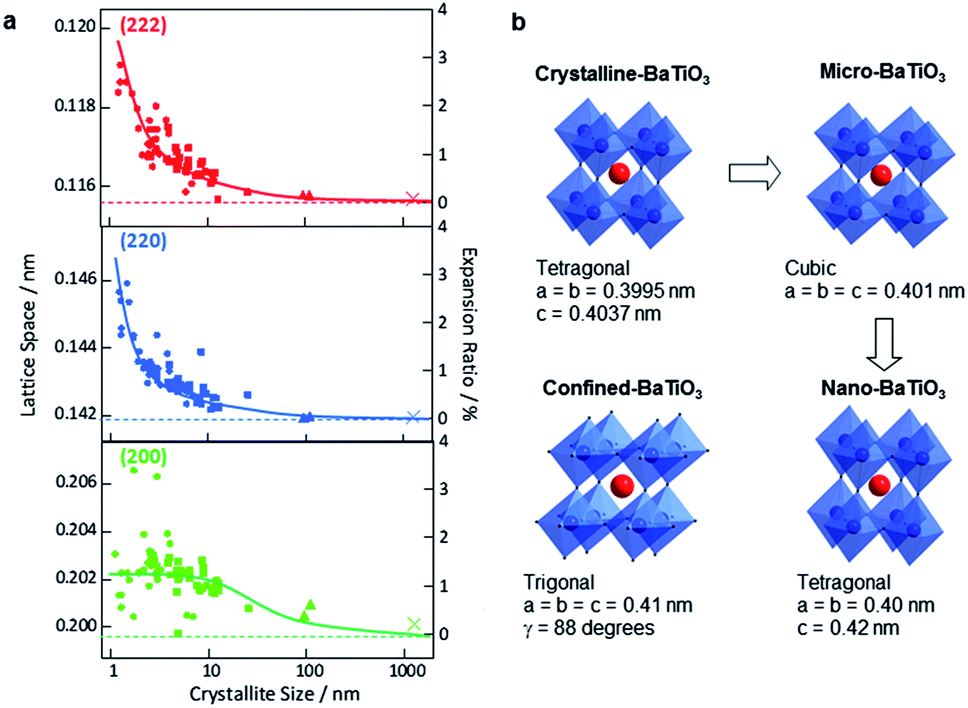

Fig. 3 (a) Lattice spaces of (222), (220), and (200) planes and expansion ratios to BaTiO₃ in the cubic phase as function of crystallite size. The unit cell size of cubic BaTiO₃ is 0.3996 nm. ●: confined-BaTiO₃, ■: nano-BaTiO₃, ▲: micro-BaTiO₃, and ×: crystalline-BaTiO₃. Dashed lines represent lattice spaces in cubic phase of BaTiO₃. Significant increases in lattice space sizes were observed with decreasing crystallite size for (222) and (220) directions, whereas approximately 1% expansion in the (200) direction was observed for crystallites smaller than 100 nm. (b) Structure dependence on crystallite size of BaTiO₃. Crystalline-, micro-, nano-, and confined-BaTiO₃ have tetragonal, cubic, tetragonal, and trigonal phase structures, respectively.

The BaTiO₃ crystal structures were also examined using Raman spectroscopy (Fig. 4).^29,31,33 Crystalline-BaTiO₃ has the typical BaTiO₃ peaks in the tetragonal phase: ν₁(LO) = 720 cm⁻¹, ν₁(TO) = 520 cm⁻¹, ν₂(LO, TO) = 307 cm⁻¹, and ν₄(LO) = 267 cm⁻¹. The peaks for the ν₁(TO) and ν₄(LO) modes are unchanged for micro-BaTiO₃, whereas those for the ν₁(LO) and ν₂(LO, TO) modes decrease significantly, suggesting a cubic phase in micro-BaTiO₃. Some Raman activities of the peaks for the ν₁(LO) and ν₂(LO, TO) modes decrease as a result of Ti disorder in the nominal cubic phase. For nano-BaTiO₃, only the sharp peak for the ν₃(TO) mode is observed. Confined-BaTiO₃ has no obvious peaks in the Raman spectrum. However, after removal of ACFs by combustion at 673 K for 48 h, a small sharp peak for the ν₃(TO) mode and broad peaks for the ν₄(LO), ν₁(TO), and ν₁(LO) modes⁹ appear. These peaks are assigned to the trigonal phase of the BaTiO₃ crystal and verify the presence of BaTiO₃ crystals in the carbon nanopores. The BaTiO₃ crystals of nano- and confined-BaTiO₃ had unique Raman spectral features; these peaks could not be simply assigned to bulk crystal phases, but the trigonal phase was expected for confined-BaTiO₃.

Fig. 4 Evaluation of BaTiO₃ crystal phases using Raman spectroscopy.

Conclusions

Our studies demonstrate the preparation of extremely small BaTiO₃ crystals, with a crystallite size of approximately 1 nm. The crystal phase exhibits structural diversity even at room temperature, from tetragonal to cubic, tetragonal, and trigonal phases, with decreasing crystal size, associated with anomalous expansion of lattice spaces. The appearance of an anomalous trigonal phase of BaTiO₃ confined in carbon nanospaces is the result of nanocrystallization in an asymmetric reaction field in these nanospaces and anomalous stabilization of the BaTiO₃ nanocrystals, because the trigonal phase is only observed below 200 K in typical BaTiO₃ crystals. Carbon nanospaces provide a strong asymmetric reaction field; therefore, asymmetric structures appear as a result of symmetry collapse, leading to a cryogenic phase in this case. These findings are the first demonstration of the preparation of extremely small perovskite-type nanoceramics and structural diversity with decreasing crystallite size, and anomalous lattice expansion.^9,33–35 This method for nanocrystal preparation and nanostructuration could be used to synthesize various ceramics. Further studies on the piezoelectric properties and photorefractive effects are necessary to assess the performance of nanoscale asymmetric BaTiO₃.

TEM observations were performed at the Chemical Analysis Center, Chiba University. This research was supported by a JSPS KAKENHI Grant Number 26706001 and Research Fellowships from the Futaba Electronics Memorial Foundation, Foundation for the JGC-S Scholarship Foundation, Promotion of Ion Engineering, and Murata Science Foundation.

Notes and references

1. B. S. Guiton and P. K. Davies, Nat. Mater., 2007, 6, 586–591.
2. P. M. Rorvik, T. Grande and M. A. Einarsrud, Adv. Mater., 2011, 23, 4007–4034.
3. H. Goesmann and C. Feldmann, Angew. Chem., Int. Ed., 2010, 49, 1362–1395.
4. E. Roduner, Chem. Soc. Rev., 2006, 35, 583–592.
5. Y. Wang, J. Zhang and Y. Zhao, Nano Lett., 2007, 7, 3196–3199.
6. I. Szlufarska, A. Nakano and P. Vashishta, Science, 2005, 309, 911–914.
7. Z. Shen, Z. Zhao, H. Peng and M. Nygren, Nature, 2002, 417, 266–269.
8. I.-W. Chen and X.-H. Wang, Nature, 2000, 404, 168–171.
9. Z. Zhao, V. Buscaglia, M. Viviani, M. T. Buscaglia, L. Mitoseriu, A. Testino, M. Nygren, M. Johnsson and P. Nanni, Phys. Rev. B: Condens. Matter Mater. Phys., 2004, 70, 024107.
10. M. H. Frey and D. A. Payne, Phys. Rev. B: Condens. Matter Mater. Phys., 1996, 54, 3158–3168.
11. Y.-I. Kim, J. K. Jung and K.-S. Ryu, Mater. Res. Bull., 2004, 39, 1045–1053.
12. S.-G. Kwon, K. Choi and B.-I. Kim, Mater. Lett., 2006, 60, 979–982.
13. S. O'. Brien, L. Brus and C. B. Murray, J. Am. Chem. Soc., 2001, 123, 12085–12086.
14. T. M. Stawski, S. A. Veldhuis, O. F. Göbel, J. E. Ten Elshof and D. H. A. Blank, J. Am. Ceram. Soc., 2010, 93, 3443–3448.
15. Y. Mao, S. Mao, Z.-G. Ye, Z. Xie and L. Zheng, Mater. Chem. Phys., 2010, 124, 1232–1238.
16. X. Zhu, J. Wang, Z. Zhang, J. Zhu, S. Zhou, Z. Liu and N. Ming, J. Am. Ceram. Soc., 2008, 91, 2683–2689.
17. T. M. Stawski, S. A. Veldhuis, R. Besselink, H. L. Castricum, G. Portale, D. H. A. Blank and J. E. ten Elshof, J. Phys. Chem. C, 2011, 115, 20449–20459.
18. Y. V. Kolen'ko, K. A. Kovnir, I. S. Neira, T. Taniguchi, T. Ishigaki, T. Watanabe, N. Sakamoto and M. Yoshimura, J. Phys. Chem. C, 2007, 111, 7306–7318.
19. M. Veith, S. Mathur, N. Lecerf, V. Huch, T. Decker, H. P. Beck, W. Eiser and R. Haberkorn, J. Sol-Gel Sci. Technol., 2000, 17, 145–158.
20. P. Simon and Y. Gogotsi, Nat. Mater., 2008, 7, 845–854.
21. S. Sircar, T. Golden and M. Rao, Carbon, 1996, 34, 1–12.
22. G. Che, B. B. Lakshmi, E. R. Fisher and C. R. Martin, Nature, 1998, 393, 346–349.
23. Y. Zhang, L. Wang and D. Xue, Power Technol., 2012, 217, 629–633.
24. D. Liu, Y. Yan and H. Zhou, J. Am. Ceram. Soc., 2007, 90, 1323–1326.
25. A. Patterson, Phys. Rev., 1939, 56, 978.
26. H. Borchert, E. V. Shevchenko, A. Robert, I. Mekis, A. Kornowski, G. Grübel and H. Weller, Langmuir, 2005, 21, 1931–1936.
27. J. Harada, T. Pedersen and Z. Barnea, Acta Crystallogr., Sect. A: Cryst. Phys., Diffr., Theor. Gen. Crystallogr., 1970, 26, 336–344.
28. W.-S. Cho, J. Phys. Chem. Solids, 1998, 59, 659–666.
29. M. B. Smith, K. Page, T. Siegrist, P. L. Redmond, E. C. Walter, R. Seshadri, L. E. Brus and M. L. Steigerwald, J. Am. Chem. Soc., 2008, 130, 6955–6963.
30. G. Kwei, A. Lawson, S. Billinge and S. Cheong, J. Phys. Chem., 1993, 97, 2368–2377.
31. C. Perry and D. Hall, Phys. Rev. Lett., 1965, 15, 700–702.
32. P. W. Forsbergh Jr, Phys. Rev., 1949, 76, 1187.
33. V. Buscaglia, M. T. Buscaglia, M. Viviani, L. Mitoseriu, P. Nanni, V. Trefiletti, P. Piaggio, I. Gregora, T. Ostapchuk, J. Pokorný and J. Petzelt, J. Eur. Ceram. Soc., 2006, 26, 2889–2898.
34. S. Lin, T. Lü, C. Jin and X. Wang, Phys. Rev. B: Condens. Matter Mater. Phys., 2006, 74, 134115.
35. X. Wang, X. Deng, H. Wen and L. Li, Appl. Phys. Lett., 2006, 89, 162902–162903.

---

Footnote

† Electronic supplementary information (ESI) available: Schematic image of preparation of BaTiO₃, characterization of confined-BaTiO₃, microscopic images of BaTiO₃, N₂ adsorption isotherms of BaTiO₃ samples at 77 K, those XRD patterns, simulated XRD patterns, and Raman Spectroscopy. See DOI: 10.1039/c4ra05311g

---
