Copper-mediated aerobic oxidative cleavage of α,β-unsaturated ketones to 1,2-diketones

Zheng Li*, Junjun Yin, Gong Wen, Tianpeng Li and Xiaoli Shen
College of Chemistry and Chemical Engineering, Northwest Normal University, Lanzhou, Gansu 730070, P. R. China. E-mail: lizheng@nwnu.edu.cn

Received 4th June 2014 , Accepted 14th July 2014

First published on 16th July 2014


Abstract

The copper-mediated aerobic oxidative cleavage of α,β-unsaturated ketones to synthesize 1,2-diketones by using potassium acetate as a catalyst and sodium iodide as a promoter in acetic acid is described. The protocol has the advantages of using inexpensive and non-toxic raw materials, high yield and simple work-up procedure.


Introduction

It is known that 1,2-diketones are important synthetic building blocks1 and have attracted the attention of many organic chemists, especially for use as precursors to some compounds such as α-hydroxy ketones2 and heterocyclic compounds.3 They have also shown interesting applications as photoinitiators4 and corrosion inhibitors.5

The reported synthetic methods for 1,2-diketones (Scheme 1), for example 1,2-diaryl-1,2-diones, included: (1) the C–H oxidation of 1,2-diarylethanes using graphite oxide (GO);6 (2) the oxidation of stilbenes using GO;6 (3) the oxidation of 1,2-diarylethynes using DMSO catalyzed by Pd–Cu;7 (4) the oxidation of deoxybenzoins using iodine and DMSO catalyzed by CuO;8 (5) the aerobic oxidation of benzoins catalyzed by zinc;9 (6) the aerobic oxidation of 2-bromo-1,2-diarylethan-1-ones catalyzed by ruthenium complexes;10 (7) the oxidation of 1,2-diaryl-1,2-dibromoethanes using DMSO;11 and (8) the oxidation of hydrobenzoins using t-BuOOH (TBHP) catalyzed by vanadium complexes, etc.12


image file: c4ra05307a-s1.tif

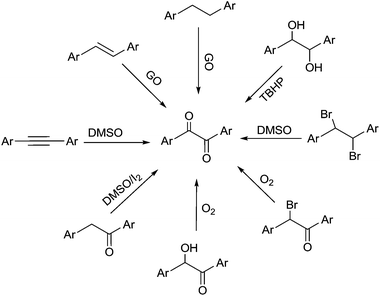

Scheme 1 The general synthetic methods for 1,2-diketones.

The recent research showed that 1,2-diketones could also be synthesized by oxidative cleavage of 1,3-diketones using different oxidants (Scheme 2).13


image file: c4ra05307a-s2.tif
Scheme 2 Synthesis of 1,2-diketones by oxidative cleavage.

It is worthy to mention that McKillop reported a method to 1,2-diketones from chalcones using thallium(III) nitrate as a oxidant in perchloric acid medium (Scheme 3).14 However, this method required highly toxic thallium salt as a strong oxidizing agent in strong acid medium, meanwhile only middle yield was afforded in refluxing condition. Therefore, it is necessary to find new methods for 1,2-diketones. Herein, we report the copper-mediated aerobic oxidative cleavage of α,β-unsaturated ketones to synthesize 1,2-diketones under mild conditions.


image file: c4ra05307a-s3.tif
Scheme 3 Synthesis of 1,2-diketones from chalcones.

Results and discussion

Initially, the investigation was selected chalcone (1a) as substrate. The reactions were ever conducted under the condition of sodium iodide as a promoter and potassium acetate as a catalyst under refluxing condition in acetic acid. However, the corresponding product benzil (2a) was not observed (Table 1, entry 1). In the later research, it was found that the reaction could efficiently give 2a using some copper salts as mediators. The use of copper chloride, copper sulfate and copper acetate gave relatively low efficiency, while copper chloride was almost inactive (Table 1, entries 2–4). However, the reaction was effective under the condition of copper nitrate pentahydrate as a mediator to afford 2a in high yield (Table 1, entry 5). The possible reason is that copper nitrate pentahydrate may have dual functions in the reaction, in addition to copper as a mediator, nitrate as a oxidant as well as air. It was also noteworthy to mention that the absence of either of sodium iodide or potassium acetate in the reaction system could cause the obvious decrease of the reaction yield (Table 1, entries 6 and 7).
Table 1 The effect of mediators on the yield of 1a to 2aa

image file: c4ra05307a-u1.tif

Entry Mediator Promoter Catalyst Yieldb (%)
a Reaction condition: 1a (1 mmol), mediator (1.1 mmol), NaI (1.1 mmol), KOAc (0.2 mmol) in 10 mL of HOAc at 100 °C for 9 h.b Isolated yields.
1 None NaI KOAc 0
2 CuCl2 NaI KOAc 5
3 CuSO4 NaI KOAc 21
4 Cu(OAc)2 NaI KOAc 34
5 Cu(NO3)2·5H2O NaI KOAc 83
6 Cu(NO3)2·5H2O None KOAc 51
7 Cu(NO3)2·5H2O NaI None 47


The solvents also played an important role in the reaction of 1a to 2a. The reaction in many solvents such as water, 1,4-dioxane, toluene and methylene chloride was not occurred, while the reaction in ethanol or acetonitrile only gave unidentified by-products in low yield by comparison with corresponding product using TLC. However, acetic acid was an efficient solvent for the reaction to afford the corresponding product in 83% yield. In fact, the role of acetic acid in the reaction is both as solvent and as acidic medium.

Based on the above promising findings, a series of α,β-unsaturated ketones were attempted for aerobic oxidative cleavage to synthesize 1,2-diketones using copper nitrate pentahydrate as a mediator, sodium iodide as a promoter and potassium acetate as a catalyst in acetic acid (Scheme 4 and Table 2). It was found that α,β-unsaturated ketones bearing both electron-donating (CH3, CH3O) and electron-withdrawing (Cl, F, NO2) groups on aromatic rings could participate in reactions. However, the former afforded the desired 1,2-diketones in slightly higher yield than the latter.


image file: c4ra05307a-s4.tif
Scheme 4 The aerobic oxidative cleavage of α,β-unsaturated ketones to 1,2-diketones.
Table 2 The copper-mediated aerobic oxidative cleavage of α,β-unsaturated ketones to 1,2-diketonesa

image file: c4ra05307a-u2.tif

Entry R1 R2 Yieldb (%) Mp (°C) (lit.)
a Reaction condition: α,β-unsaturated ketone (1 mmol), Cu(NO3)2·5H2O (1.1 mmol), NaI (1.1 mmol), KOAc (0.2 mmol) in 10 mL of HOAc for 9 h.b Isolated yields.
1 C6H5 C6H5 83 83–84 (94–95)7
2 4-CH3C6H4 4-CH3C6H4 78 82–83
3 C6H5 4-CH3OC6H4 86 49–50
4 C6H5 4-CH3C6H4 71 82–83 (96)7

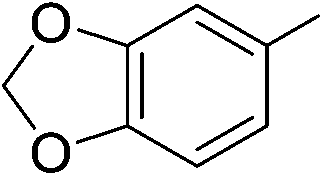

5 image file: c4ra05307a-u3.tif C6H5 88 96–98
6 image file: c4ra05307a-u4.tif 4-CH3C6H4 82 102–103
7 4-FC6H4 4-CH3OC6H4 75 62–64
8 4-FC6H4 C6H5 72 50–51
9 4-ClC6H4 4-CH3OC6H4 68 118–120
10 2-ClC6H4 4-CH3OC6H4 75 90–92
11 2-ClC6H4 4-CH3C6H4 73 66–67
12 4-ClC6H4 4-CH3C6H4 82 116–117
13 2-ClC6H4 4-ClC6H4 70 80–82
14 2,4-Cl2C6H3 4-ClC6H4 66 82–83
15 C6H5 4-ClC6H4 73 66–67
16 4-NO2C6H4 C6H5 61 131–132 (141)7


A plausible mechanism for the aerobic oxidative cleavage of α,β-unsaturated ketones is presented in Scheme 5. The initial step of the reaction involves the formation of epoxide A from α,β-unsaturated ketone 1 under air. Then A is attacked by I in acetic acid to get B and C. C is further oxidized to D under air. Then I of D is replaced by hydroxy from water to α-hydroxy dicarbonyl compound E, followed by a further oxidation to tricarbonyl compound F under air. The carbonyl of F is coordinated with Cu(II) to form a Cu(II) complex G, which undergoes a 1,2-Wagner-Meerwein-type rearrangement of a carbonyl group with an electron pair to the electrophilic carbon resulting in the formation of intermediate H.13,15 The subsequent (or simultaneous) liberation of carbon monoxide and Cu(II) from intermediate H results in the final product 1,2-diketone 2.


image file: c4ra05307a-s5.tif
Scheme 5 Proposed mechanism for the formation of 1,2-diketones.

Conclusions

In summary, an efficient method has developed for the aerobic oxidative cleavage of α,β-unsaturated ketones to synthesize 1,2-diketones using copper nitrate pentahydrate as a mediator, sodium iodide as a promoter and potassium acetate as a catalyst in acetic acid. The protocol has advantages of using inexpensive and non-toxic raw materials, high yield and simple work-up procedure.

Experimental

IR spectra were recorded using KBr pellets on an Alpha Centauri FTIR spectrophotometer. 1H NMR and 13C NMR spectra were recorded on a Mercury-400BB instrument using CDCl3 as solvent and Me4Si as internal standard. Elemental analyses were performed on a Vario El Elemental Analysis instrument. Melting points were observed in an electrothermal melting point apparatus. α,β-Unsaturated ketones were prepared according to literature procedure.16

The general procedure for the preparation of 1,2-diketones

To a stirred mixture of copper nitrate pentahydrate (1.1 mmol), sodium iodide (1.1 mmol), potassium acetate (0.2 mmol) in 10 mL of acetic acid, α,β-unsaturated ketone (1 mmol) was added. Then the reaction system was stirred under air at 100 °C for 9 h. After the completion of the reaction, the mixture was cooled to room temperature, diluted with ethyl acetate and washed with saturated sodium carbonate solution. The resulting organic phase was dried over anhydrous magnesium sulfate, and concentrated under reduced pressure. The residue was isolated by column chromatography using petroleum ether and ethyl acetate (100[thin space (1/6-em)]:[thin space (1/6-em)]1) as eluent to give pure product. The final product can also be further recrystallized from petroleum ether to give purer product. The analytical data for products are given below.

Benzil

Yellow solid (174.3 mg, 83% yield); Mp: 83–84 °C; IR (KBr, cm−1) ν 3064, 1662, 1589, 1449; 1H NMR (400 MHz, CDCl3): δ 7.98 (d, J = 7.6 Hz, 4H, ArH), 7.64–7.68 (m, 2H, ArH), 7.49–7.53 (m, 4H, ArH); 13C NMR (100 MHz, CDCl3): δ 194.5, 134.8, 133.0, 129.9, 129.0. Anal. calcd for C14H10O2: C, 79.98; H, 4.79. Found: C, 79.76; H, 4.77%.

1,2-Di(p-tolyl)ethane-1,2-dione

Yellow solid (185.6 mg, 78% yield); Mp: 89–92 °C; IR (KBr, cm−1): ν 3053, 2917, 2849, 1664, 1601; 1H NMR (400 MHz, CDCl3): δ 7.78 (d, J = 8.0 Hz, 4H, ArH), 7.22 (d, J = 8.0 Hz, 4H, ArH), 2.35 (s, 6H, CH3); 13C NMR (100 MHz, CDCl3) δ 194.5, 146.0, 130.7, 130.0, 129.7, 21.9. Anal. calcd for C16H14O2: C, 80.65; H, 5.92. Found: C, 80.78; H, 5.94%.

1-(4-Methoxyphenyl)-2-phenylethane-1,2-dione

Yellow solid (206.4 mg, 86% yield); Mp: 49–50 °C; IR (KBr, cm−1): ν 2918, 2848, 1668, 1599, 1508, 1454; 1H NMR (400 MHz, CDCl3) δ 7.94–7.96 (m, 4H, ArH), 7.63–7.65 (m, 1H, ArH), 7.50 (d, J = 7.6 Hz, 2H, ArH), 6.97–6.99 (m, 2H, ArH), 3.89 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 194.8, 193.1, 165.0, 134.7, 133.2, 132.3, 129.9, 128.9, 126.1, 114.4, 55.6. Anal. calcd for C15H12O3: C, 74.99; H, 5.03. Found: C, 75.11; H, 5.01%.

1-Phenyl-2-p-tolylethane-1,2-dione

Yellow solid (159.1 mg, 71% yield); Mp: 82–83 °C; IR (KBr, cm−1): ν 3054, 2926, 2854, 1674, 1603, 1449; 1H NMR (400 MHz, CDCl3) δ 7.88 (d, J = 8.0 Hz, 2H, ArH), 7.78 (d, J = 8.4 Hz, 2H, ArH), 7.54–7.58 (m, 1H, ArH), 7.40–7.44 (m, 2H, ArH), 7.22 (d, J = 8.0 Hz, 2H, ArH), 2.35 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3): δ 194.7, 194.2, 146.1, 134.7, 133.1, 130.6, 130.0, 129.8, 129.7, 128.9, 21.9. Anal. calcd for C15H12O2: C, 80.34; H, 5.39. Found: C, 80.25; H, 5.41%.

1-(Benzo[d][1,3]dioxol-5-yl)-2-phenylethane-1,2-dione

Yellow solid (223.5 mg, 88% yield); Mp: 96–98 °C; IR (KBr, cm−1): ν 3082, 2918, 2849, 1659, 1595, 1488, 1444; 1H NMR (400 MHz, CDCl3) δ 7.96 (d, J = 8.4 Hz, 2H, ArH), 7.63–7.67 (m, 1H, ArH), 7.48–7.52 (m, 4H, ArH), 6.87 (d, J = 8.8 Hz, 1H, ArH), 6.09 (s, 2H, CH2); 13C NMR (100 MHz, CDCl3) δ 194.5, 192.7, 153.4, 148.6, 134.7, 133.1, 129.8, 128.9, 127.8, 108.3, 108.2, 106.8, 102.2. Anal. calcd for C15H10O4: C, 70.86; H, 3.96. Found: C, 70.94; H, 3.97%.

1-(Benzo[d][1,3]dioxol-5-yl)-2-p-tolylethane-1,2-dione

Yellow solid (219.8 mg, 82% yield); Mp: 102–103 °C; IR (KBr, cm−1): ν 3082, 1664, 1658, 1599, 1488, 1447; 1H NMR (400 MHz, CDCl3) δ 7.85 (d, J = 8.0 Hz, 2H, ArH), 7.46–7.49 (m, 2H, ArH), 7.30 (d, J = 8.0 Hz, 2H, ArH), 6.86 (d, J = 8.8 Hz, 1H, ArH), 6.08 (s, 2H, CH2), 2.43 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 194.2, 192.9, 153.3, 148.6, 146.0, 130.2, 129.9, 129.6, 129.1, 127.8, 108.3, 108.2, 102.2, 21.9. Anal. calcd for C16H12O4: C, 71.64; H, 4.51. Found: C, 71.51; H, 4.49%.

1-(4-Fluorophenyl)-2-(4-methoxyphenyl)ethane-1,2-dione

Yellow solid (193.5 mg, 75% yield); Mp: 62–64 °C; IR (KBr, cm−1): ν 3074, 2917, 2847, 1660, 1599, 1506; 1H NMR (400 MHz, CDCl3) δ 8.00–8.03 (m, 2H, ArH), 7.95 (d, J = 9.0 Hz, 2H, ArH), 7.16–7.20 (m, 2H, ArH), 6.98 (d, J = 9.0 Hz, 2H, ArH), 3.89 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 192.9, 192.5, 167.8, 165.3, 165.0, 132.6, 132.5, 132.3, 129.6, 125.8, 116.3, 116.1, 114.3, 55.6. Anal. calcd for C15H11FO3: C, 69.76; H, 4.29. Found: C, 69.83; H, 4.30%.

1-(4-Fluorophenyl)-2-phenylethane-1,2-dione

Yellow solid (164.2 mg, 72% yield); Mp: 50–51 °C; IR (KBr, cm−1): ν 3071, 1665, 1593, 1503, 1448; 1H NMR (400 MHz, CDCl3) δ 8.01–8.04 (m, 2H, ArH), 7.97–7.98 (m, 2H, ArH), 7.66–7.69 (m, 1H, ArH), 7.50–7.54 (m, 2H, ArH), 7.17–7.22 (m, 2H, ArH). 13C NMR (100 MHz, CDCl3) δ 194.0, 192.7, 168.0, 165.5, 134.9, 132.8, 132.7, 132.6, 129.9, 129.5, 129.0, 116.5, 116.2. Anal. calcd for C14H9FO2: C, 73.68; H, 3.98. Found: C, 73.77; H, 3.99%.

1-(4-Chlorophenyl)-2-(4-methoxyphenyl)ethane-1,2-dione

Yellow solid (186.7 mg, 68% yield); Mp: 119–120 °C; IR (KBr, cm−1): ν 3082, 1658, 1599, 1488, 1447; 1H NMR (400 MHz, CDCl3) δ 7.91–7.95 (m, 4H, ArH), 7.48 (d, J = 8.8 Hz, 2H, ArH), 6.98 (d, J = 8.8 Hz, 2H, ArH), 3.89 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 193.3, 192.4, 165.1, 141.3, 132.4, 131.6, 131.2, 129.3, 125.9, 114.4, 55.6. Anal. calcd for C15H11ClO3: C, 65.59; H, 4.04. Found: C, 65.69; H, 4.03%.

1-(2-Chlorophenyl)-2-(4-methoxyphenyl)ethane-1,2-dione

Yellow solid (205.9 mg, 75% yield); Mp: 90–92 °C; IR (KBr, cm−1): ν 3068, 3007, 2935, 2843, 1666, 1595, 1570, 1508; 1H NMR (400 MHz, CDCl3) δ 8.02 (d, J = 8.8 Hz, 2H, ArH), 7.87–7.90 (m, 1H, ArH), 7.50–7.54 (m, 1H, ArH), 7.41–7.44 (m, 2H, ArH), 7.01 (d, J = 8.8 Hz, 2H, ArH), 3.90 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 193.8, 190.7, 164.7, 134.3, 134.1, 133.8, 132.6, 132.1, 130.5, 127.2, 125.5, 114.2, 55.6. Anal. calcd for C15H11ClO3: C, 65.59; H, 4.04. Found: C, 65.48; H, 4.05%.

1-(2-Chlorophenyl)-2-p-tolylethane-1,2-dione

Yellow solid (188.7 mg, 73% yield); Mp: 66–67 °C; IR (KBr, cm−1): ν 3066, 1665, 1598, 1439; 1H NMR (400 MHz, CDCl3) δ 7.89–7.95 (m, 3H, ArH), 7.51–7.56 (m, 1H, ArH), 7.41–7.45 (m, 2H, ArH), 7.34 (d, J = 8.0 Hz, 2H, ArH), 2.45 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 193.7, 191.8, 145.7, 134.4, 133.9, 132.1, 130.5, 130.3, 130.0, 129.6, 127.3, 21.9. Anal. calcd for C15H11ClO2: C, 69.64; H, 4.29. Found: C, 69.53; H, 4.30%.

1-(4-Chlorophenyl)-2-p-tolylethane-1,2-dione

Yellow solid (212.0 mg, 82% yield); Mp: 116–117 °C; IR (KBr, cm−1): ν 3092, 3064, 1662, 1600, 1483; 1H NMR (400 MHz, CDCl3) δ 7.91 (d, J = 8.4 Hz, 2H, ArH), 7.86 (d, J = 8.0 Hz, 2H, ArH), 7.48 (d, J = 8.0 Hz, 2H, ArH), 7.31 (d, J = 8.0 Hz, 2H, ArH), 2.44 (s, 3H, CH3); 13C NMR (100 MHz, CDCl3) δ 193.5, 193.2, 146.4, 141.4, 131.5, 131.2, 130.4, 130.0, 129.8, 129.3, 21.9. Anal. calcd for C15H11ClO2: C, 69.64; H, 4.29. Found: C, 69.70; H, 4.28%.

1-(2-Chlorophenyl)-2-(4-chlorophenyl)ethane-1,2-dione

Yellow solid (195.3 mg, 70% yield); Mp: 80–82 °C; IR (KBr, cm−1): ν 3083, 1672, 1585, 1439; 1H NMR (400 MHz, CDCl3) δ 7.99 (d, J = 8.4 Hz, 2H, ArH), 7.89 (d, J = 8.4 Hz, 1H, ArH), 7.51–7.57 (m, 3H, ArH), 7.42–7.47 (m, 2H, ArH); 13C NMR (100 MHz, CDCl3) δ 193.0, 190.3, 140.9, 134.4, 133.6, 133.5, 131.7, 131.2, 130.5, 130.1, 129.0, 127.1. Anal. calcd for C14H8Cl2O2: C, 60.25; H, 2.89. Found: C, 60.31; H, 2.88%.

1-(4-Chlorophenyl)-2-(2,4-dichlorophenyl)ethane-1,2-dione

Yellow solid (206.9 mg, 66% yield); Mp: 82–83 °C; IR (KBr, cm−1): ν 3074, 1661, 1581, 1469; 1H NMR (400 MHz, CDCl3) δ 7.97 (d, J = 8.4 Hz, 2H, ArH), 7.85 (d, J = 8.0 Hz, 1H, ArH), 7.52 (d, J = 8.4 Hz, 2H,ArH), 7.43–7.46 (m, 2H, ArH); 13C NMR (100 MHz, CDCl3) δ 192.1, 190.2, 141.4, 140.7, 134.7, 132.9, 132.2, 131.5, 130.6, 130.4, 129.4, 128.0. Anal. calcd for C14H7Cl3O2: C, 53.63; H, 2.25. Found: C, 53.50; H, 2.26%.

1-(4-Chlorophenyl)-2-phenylethane-1,2-dione

Yellow solid (178.5 mg, 73% yield); Mp: 66–67 °C; IR (KBr, cm−1): ν 1668, 1585, 1485, 1449; 1H NMR (400 MHz, CDCl3) δ 7.84–7.90 (m, 4H, ArH), 7.58–7.62 (m, 1H, ArH), 7.41–7.47 (m, 4H, ArH); 13C NMR (100 MHz, CDCl3) δ 194.7, 194.2, 146.1, 134.7, 133.1, 130.6, 130.0, 129.8, 129.7, 128.9. Anal. calcd for C14H9ClO2: C, 68.73; H, 3.71. Found: C, 68.68; H, 3.70%.

1-(4-Nitrophenyl)-2-phenylethane-1,2-dione

Yellow solid (155.6 mg, 61% yield); Mp: 131–132 °C; IR (KBr): ν 3108, 1663, 1597, 1527, 1448; 1H NMR (400 MHz, CDCl3) δ 8.36 (d, J = 8.8 Hz, 2H, ArH), 8.18 (d, J = 8.8 Hz, 2H, ArH), 7.99 (d, J = 7.2 Hz, 2H, ArH), 7.70–7.74 (m, 1H, ArH), 7.54–7.58 (m, 2H, ArH); 13C NMR (100 MHz, CDCl3) δ 192.8, 192.0, 151.2, 137.3, 135.4, 132.4, 130.9, 130.0, 129.2, 124.1. Anal. calcd for C14H9NO4: C, 65.88; H, 3.55, N, 5.49. Found: C, 65.94; H, 3.56, N, 5.51%.

Acknowledgements

The authors thank the National Natural Science Foundation of China (21162024) and Key Laboratory of Eco-Environment-Related Polymer Materials for Ministry of Education for the financial support of this work.

Notes and references

  1. (a) J. Méndez-Andino and L. A. Paquette, Org. Lett., 2000, 2, 1263–1265 CrossRef; (b) E. P. Balskus, J. Mendez-Andino, R. M. Arbit and L. A. Paquette, J. Org. Chem., 2001, 66, 6695–6704 CrossRef CAS PubMed; (c) O. Bortolini, G. Fantin, M. Fogagnolo, P. P. Giovannini, V. Venturi, S. Pacifico and A. Massi, Tetrahedron, 2011, 67, 8110–8115 CrossRef CAS PubMed; (d) A. Hense, S. V. Ley, H. M. I. Osborn, D. R. Owen, J. F. Poisson, S. L. Warriner and K. E. Wesson, J. Chem. Soc., Perkin Trans. 1, 1997, 2023–2031 RSC; (e) B. M. Trost and G. M. Schroeder, J. Am. Chem. Soc., 2000, 122, 3785–3786 CrossRef CAS; (f) S. Samanta and C. G. Zhao, Tetrahedron Lett., 2006, 47, 3383–3386 CrossRef CAS PubMed.
  2. (a) R. Hayakawa, T. Sahara and M. Shimizu, Tetrahedron Lett., 2000, 41, 7939–7942 CrossRef CAS; (b) J. V. Sinisterra, F. Molinary, A. R. Alcántara and D. P. Domínguez, Acc. Chem. Res., 2010, 43, 288–299 CrossRef PubMed; (c) P. P. Giovannini, G. Fantin, A. Massi, V. Venturi and P. Pedrini, Org. Biomol. Chem., 2011, 9, 8038–8045 RSC; (d) T. Koike, K. Murata and T. Ikariya, Org. Lett., 2000, 2, 3833–3836 CrossRef CAS PubMed.
  3. (a) A. Cabrera, B. P. Sharma, M. Ayala, L. Rubio-Perez and M. Amézquita-Valencia, Tetrahedron Lett., 2011, 52, 6758–6762 CrossRef CAS PubMed; (b) S. E. Wolkenberg, D. D. Wisnoski, W. H. Leister, Y. Wang, Z. Zhao and C. W. Lindsley, Org. Lett., 2004, 6, 1453–1456 CrossRef CAS PubMed.
  4. (a) B. Husár, S. Commereuc, I. Lukác, S. Chmela, J. M. Nedelec and M. Baba, J. Phys. Chem. B, 2006, 110, 5315–5320 CrossRef PubMed; (b) T. Corrales, F. Catalina, C. Peinado and N. S. Allen, J. Photochem. Photobiol., A, 2003, 159, 103–114 CrossRef CAS.
  5. B. I. Ita and O. E. Offiong, Mater. Chem. Phys., 2001, 70, 330–335 CrossRef CAS.
  6. H. P. Jia, D. R. Dreyer and C. W. Bielawski, Tetrahedron, 2011, 67, 4431–4434 CrossRef CAS PubMed.
  7. A. Gao, F. Yang, J. Li and Y. J. Wu, Tetrahedron, 2012, 68, 4950–4954 CrossRef CAS PubMed.
  8. M. Lian, Q. Li, Y. P. Zhu, G. D. Yin and A. X. Wu, Tetrahedron, 2012, 68, 9598–9605 CrossRef CAS PubMed.
  9. P. Muthupandi and G. Sekar, Tetrahedron Lett., 2011, 52, 692–695 CrossRef CAS PubMed.
  10. Y. J. Su, L. R. Zhang and N. Jiao, Org. Lett., 2011, 13, 2168–2171 CrossRef CAS PubMed.
  11. D. Villemin and M. Hammadi, Synth. Commun., 1995, 25, 3145–3148 CrossRef CAS.
  12. S. Verma, J. L. Bras, S. L. Jain and J. Muzart, Appl. Catal., A, 2013, 468, 334–340 CrossRef CAS PubMed.
  13. (a) A. Stergiou, A. Bariotaki, D. Kalaitzakis and I. Smonou, J. Org. Chem., 2013, 78, 7268–7273 CrossRef CAS PubMed; (b) L. Huang, K. Cheng, B. Yao, Y. Xie and Y. Zhang, J. Org. Chem., 2011, 76, 5732–5737 CrossRef CAS PubMed; (c) N. Tada, M. Shomura, H. Nakayama, T. Miura and A. Itoh, Synlett, 2010, 1979–1983 CAS; (d) C. Zhang, P. Feng and N. Jiao, J. Am. Chem. Soc., 2013, 135, 15257–15262 CrossRef CAS PubMed; (e) Y. Yuan and H. Zhu, Eur. J. Org. Chem., 2012, 329–333 CrossRef CAS.
  14. A. McKillop, B. P. Swann and E. C. Taylor, Tetrahedron Lett., 1970, 11, 5281–5284 CrossRef.
  15. L. Ruan, M. Shi, N. Li, X. Ding, F. Yang and J. Tang, Org. Lett., 2014, 16, 733–735 CrossRef CAS PubMed.
  16. D. S. Breslow and C. R. Hauser, J. Am. Chem. Soc., 1940, 62, 2385–2388 CrossRef CAS.

Footnote

Electronic supplementary information (ESI) available: Copies of IR, 1H and 13C NMR spectra of all compounds. See DOI: 10.1039/c4ra05307a

This journal is © The Royal Society of Chemistry 2014
