Unexplored analytics of some novel 3d–4f heterometallic Schiff base complexes

Partha Pratim Chakrabartyab, Sandip Saha*a, Kamalika Sen*b, Atish Dipankar Janac, Debarati Deyd, Dieter Schollmeyere and Santiago García-Grandaf
aDepartment of Chemistry, Acharya Prafulla Chandra College, New Barrackpur, Kolkata-700131, India. E-mail: sandipsaha2000@yahoo.com
bDepartment of Chemistry, University of Calcutta, 92 APC Road, Kolkata 700009, India. E-mail: kschem@caluniv.ac.in
cDepartment of Physics, Behala College, Parnasree, Kolkata 700 060, India
dDepartment of Chemistry and Environment, Heritage Institute of Technology, Chowbaga Road, Anandapur, Kolkata 700107, India
eInstitut fur Organische Chemie, Universit at Mainz, Duesbergweg 10-14 55099, Mainz, Germany
fDepartamento de Química Físicay Analítica, Universidad de Oviedo, C/Julián Clavería 8, 33006 Oviedo, Spain

Received 14th May 2014 , Accepted 14th August 2014

First published on 18th August 2014


Abstract

Three heterometallic Schiff-base complexes of Cu having Pr, Nd and Sm as the heteroatoms have been synthesized. The compounds have also been characterized by their IR spectra and CHN analysis. The single crystal structures of these compounds have been studied from the X-ray crystallographic data. To the best of our knowledge the article describes the possibility of application of these compounds in the field of species dependent anion sensing for the first time. Amongst a number of anionic species, certain sulphur species were found to have greater reactivity towards a Schiff-base complex as they can incur probable changes in the molecular complexity. The S2O82−and S2O32− species could modify the spectral features of the Schiff-base complex containing Nd as the heteroatom. This particular complex was found to exhibit changes in its absorbance and fluorescence spectral features upon interaction with the anionic species S2O82−and S2O32−. The results give a strong platform for the Schiff base complexes for their analytical applications.


Introduction

In the past two decades, a great number of acyclic and compartmental hexadentate Schiff base ligands derived from the condensation of 3-methoxy/ethoxy salicylaldehyde with diaminoalkanes have been used for synthesis of heterodinuclear 3d–4f metal complexes.1–5 They have also been well documented due to their potential applications in the field of magnetism,6–10 luminescence11 and asymmetric catalysis.12 Hexadentate Schiff base with two different cores afford a straightforward route to synthesize heterodinuclear 3d–4f complexes. This is due to the fact that these Schiff bases contain an inner site with N- and O-donor chelating centers suitable for complexation with d-block ions (ionic radii 0.75–0.6 Å). In addition the outer coordination sites with four O-donors are larger than the inner one and are able to incorporate large oxophilic ions, such as 4f lanthanide ions (ionic radii 1.06–0.85 Å).13 A large number of 3d–4f complexes have been synthesized using Schiff bases with acyclic diaminoalkanes such as ethylene diamine or propane diamine or compartmental type Schiff bases with cyclohexane-1,2-diamine or orthophenylene diamine.14,15 Among the different diaminoalkanes 1,2-propane diamine has rarely been used along with 3-methoxy/ethoxy salicylaldehyde to synthesize these types of 3d–4f heterometallic complexes. To the best of our knowledge only one Fe–Gd complex was reported using the hexadentate Schiff base obtained by the 1[thin space (1/6-em)]:[thin space (1/6-em)]2 condensation of 1,2-propane diamine and 3-methoxy salicylaldehyde.16

The synthesized compounds having practical applications are most welcome to the chemical world as they impart solutions to solving different chemical problems. Speciation analysis and anion sensing are widely popular problems in the world of analytical sciences. Little attention has been paid to solve the speciation of different anions which play vital roles in biological and environmental systems. Presence of halides in living cells induces changes in the conformation of steady state cells, anion exchange, active transport and electrodiffusion.17 Nitrates present in natural water at higher concentrations are generally associated with human activities and can cause adverse health effects on animals, human beings and plants. The toxicity of high nitrate concentrations arises from the capability of the human body to reduce it in the stomach or in the lower intestine to nitrite, which leads to methemoglobinemia.18,19 Inorganic arsenates and arsenites are well known for their chronic toxicities. Sulphate is an important anion involved in many physiological processes, having numerous biosynthetic and pharmacological functions.20 It is involved in a variety of activation and detoxification processes. Sulfate ions are important for proper cell growth and development of living organisms. It is involved in synthesis of cell matrix and maintenance of cell membrane. Sulfites are used as food preservatives or enhancers. Sulfites occur naturally in wines and are commonly introduced to arrest fermentation at a desired time. High sulfite content in the blood and urine of babies can be caused by molybdenum cofactor deficiency disease which leads to neurological damage and early death unless treated.21 Thiosulfate occurs naturally and is produced by certain biochemical processes. It is worthy for its use to halt bleaching in the paper-making industry. Sodium thiosulfate, is widely used in photography.22 Perdisulphates are used as food additives and it is used in organic chemistry as an oxidizing agent. It takes also an important role as initiator for emulsion polymerization.23 The presence of these sulphur species therefore affects many systems of practical importance. Speciation of such anions and their sensing has been rarely examined. Report on chemical speciation of sulfur in heavy petroleums, using X-ray absorption near-edge structure (XANES) spectroscopy is available. This was used for approximate quantitation of different classes of sulfur-containing compounds (e.g., sulfur, sulfides (including disulfides and polysulfides as a group), thiophenes, sulfoxides, sulfones, sulfinic acids, sulfonic acids, and sulfate) in a series of petroleums and petroleum source rocks.24 Speciation of sulphur as S2−, S42− and S62− in lithium batteries were performed using operand X-ray absorption spectroscopy.25 Analytical procedures for the determination of selected species of sulphur were proposed for natural water samples using the catalytic, chromatographic, ion-selective methods and absorption spectrometry.26 Anion sensing using different chemical compounds is an upcoming field. Quite a few numbers of reports can be found in the literature.27 However, in the present scenario, speciation based anion sensing solely based on chemical methods is still lacking and the large potential class of metal-Schiff base complex is highly unexplored for this purpose. In this report we have studied the possibility of application of the newly synthesized heterometallic Schiff base complexes in species dependent anion sensing of sulfur containing anions using spectral methods.

Experimental section

Materials

The lanthanide salts Pr(NO3)3·6H2O, Nd(NO3)3·6H2O, Sm(NO3)3·6H2O and solvents were purchased from Sigma-Aldrich and were used as received. All other chemicals used were of analytical grade.

Apparatus

IR spectra were recorded using KBr pellets within the range 4000–400 cm−1 on a Perkin-Elmer Spectrum 65 FTIR Spectrometer. Elemental analyses were carried out using a Heraeus CHN-O-Rapid elemental analyzer. Horiba Jobin Yvon Fluorocube 01-NL and 291 nm Horiba nanoLED, IBH DAS-6 decay analysis software were used for Time Correlated Single Photon Counting (TCSPC) Lifetime Spectroscopy. The UV visible spectra were obtained using an Agilent 8453 diode array spectrophotometer. Total independent data for compound 1 was collected on a STOE IPDS2T diffractometer equipped with a graphite monochromator Mo Kα radiation (λ = 0.71073 Å). Total independent data for compounds 2 and 3 were collected on a Bruker Smart Apex II CCD Area Detector equipped with a graphite monochromator Cu Kα radiation (λ = 1.54184 Å).

Synthesis

Synthesis of the ligands. The Schiff base ligands H2L (Scheme 1) was synthesized by refluxing 1,2-propane diamine (0.074 mL, 1 mmol) and 3-ethoxy salicylaldehyde (0.332 g, 2 mmol) in methanol (10 mL) for two h. The ligand was not isolated; instead the resulting yellow methanolic solution was subsequently used for complex formation in every case.
image file: c4ra04531a-s1.tif
Scheme 1

A clear solution of Cu(CH3COOH)2·H2O (0.199 g, 1 mmol) in methanol (10 mL) was added to a 10 mL methanolic solution of the ligand, and the mixed solution was refluxed for two hours. The resulting green colored complex was isolated and characterized by IR and CHN analysis. This complex was further used for the 3d–4f heterometallic compound preparations.

Synthesis of complexes [Cu(L2−)Pr(NO3)3] (1), [Cu(L2−)Nd(NO3)3(CH3OH)] (2), Cu(L2−)Sm(NO3)3(H2O)] (3). Prepared Cu-complex (0.1124 g, 0.25 mmol) was dissolved in to 10 mL acetone and mixed with 10 mL methanolic solution of praseodymium nitrate (0.113 g, 0.25 mmol) for complex 1, neodymium nitrate (0.1095 g, 0.25 mmol) for complex 2, and samarium nitrate (0.113 g, 0.25 mmol) for complex 3 with constant stirring for 2 h. The brown solution was filtered. On slow evaporation the dark brown block shaped single crystals of the complex 1–3 was separated out in a few days. The crystals were filtered and washed with methanol and dried in air.

Complex [CuL−2]·CH3OH: yield 65%. Anal. cacld for C23H31CuN2O5: C: 51.67; H: 6.52; N: 5.85%. Found: C: 51.00; H: 7.0; N: 5.90%. IR (KBr pellets, cm−1): ν(CH3OH) 3400, ν(C[double bond, length as m-dash]N) 1631.

Complex 1: yield 65%. Anal. cacld for PrCuC21H27CuN5O14: C: 32.42; H:3.49; N:9.00%. Found: C: 33.0; H: 3.60; N: 8.60%. IR (KBr pellets, cm−1): ν(C[double bond, length as m-dash]N) 1634, ν(NO3) 1384.

Complex 2: yield 65%. Anal. cacld for NdCuC22H28CuN5O14: C: 33.32; H: 3.55; N: 8.82%. Found: C: 33.31; H: 3.60; N: 8.83%. IR (KBr pellets, cm−1): ν(CH3OH) 3400, ν(C[double bond, length as m-dash]N) 1632, ν(NO3) 1384.

Complex 3: yield 65%. Anal. cacld for SmCuC21H22N5O14: C: 32.29; H:2.83; N: 8.97%. Found: C: 32.80; H: 2.90; N: 8.72%. IR (KBr pellets, cm−1): ν(H2O) 3392, ν(C[double bond, length as m-dash]N) 1629, ν(NO3) 1384.

X-ray crystal structure determination of complex 1–3

Crystal data for the compound 1–3 are given in Table 1. The structure of the complex was solved by SIR 97 (ref. 28) for compounds 1–3. The structure refinement was also performed by full-matrix least squares based on F2 with SHELXL-2014.29 All non-hydrogen atoms were refined anisotropically. The C-bound H atoms were constrained to ideal geometry and were included in the refinement in the riding model approximation. Data for molecular geometry, intermolecular interactions and pictures were produced using Platon-2009 (ref. 30) and ORTEP3.2 (ref. 31) programs. All three structures possess structural disorder for the diamino moiety of the produced ligand.
Table 1 Crystal data and refinement parameters
  Complex 1 Complex 2 Complex 3
Crystal data
Formula Pr Cu C21H27 Cu N5 O14 Nd Cu C22H28 Cu N5 O14 Sm Cu C21H26 N5 O14
Formula weight 777.92 794.27 786.36
Crystal system Monoclinic Monoclinic Monoclinic
Space group P21/c (no. 14) P21/c (no. 14) P21/c (no. 14)
a, b, c [Å] 9.1341(8), 21.0076(12), 14.4523(14) 9.2033(5), 20.5226(10), 15.6347(12) 9.0452(6), 21.2587(14), 14.5234(14)
α, β, γ [°] 90, 94.088(7), 90 90, 92.680(6), 90 90, 91.628(8), 90
V3] 2766.1(4) 2949.8(3) 2791.6(4)
Z 4 4 4
D (calc) [g cm−3] 1.872 1.786 1.866
μ (CuKα) [mm ] 2.588 14.833 17.266
F(000) 1549 1580 1552
Crystal size [mm] 0.06 × 0.09 × 0.46 0.19 × 0.26 × 0.30 0.15 × 0.19 × 0.26

Data collection
Temperature (K) 193 293 293
Radiation [Å] MoKα 0.71073 CuKα 1.54184 CuKα 1.54184
Theta Min–Max [°] 2.4, 28.0 3.6, 70.8 3.7, 71.0
Dataset −12:10; −27:27; −19:19 −10:11; −24:25; −13:19 −10:11; −17:25; −15:17
Tot., Uniq. Data, R(int) 26837, 6667, 0.169 18842, 5563, 0.120 10976, 5205, 0.113
Observed data [I > 2.0 σ(I)] 3912 3268 2418

Refinement
Nref, Npar 6667, 443 5563, 401 5205, 391
R, wR2, S 0.0805, 0.2390, 1.03 0.0610, 0.1214, 0.99 0.0797, 0.1773, 1.00
Max. and Av. Shift/Error 0.00, 0.00 0.00, 0.00 0.24, 0.01
Min. and Max. Resd. Dens. [E3] −1.88, 1.49 −0.60, 0.62 −0.89, 0.92


Preparation of reagent for anion sensing studies using spectral methods

10 mM methanolic solutions of the Cu-Schiff base complex, complex 1, complex 2 and complex 3 were prepared separately. 10 mM solutions of NaNO3, NaNO2, NaF, NaCl, NaBr, NaI, Na2SO4, Na2SO3, Na2S2O3, Na2S2O8, NaAsO2, Na2HAsO4·7H2O were each prepared by weighing. 0.5 mL solutions of different anionic species were added to 2.5 mL methanolic solution of complex 1, complex 2 and complex 3. Absorbance and fluorescence spectral measurements were done with the solutions of the complexes as well as with added anionic species.

Time Correlated Single Photon Counting (TCSPC) Lifetime Spectroscopy

Fluorescence lifetimes of Schiff base, Schiff base-Cu complex, complex 2, and S2O82− and S2O32− treated complex 2 were determined by the method of time correlated single-photon counting (TCSPC) using a nanosecond diode laser as the light source at 291 nm. The IBH DAS-6 decay analysis software was used to deconvolute the fluorescence decays.

Results and discussion

Crystal structure descriptions

The X-ray crystal structures of the three complexes show that all the complexes are diphenoxo-bridged dinuclear neutral complexes of copper(II) and lanthanides(III) (Pr, Nd and Sm). ORTEP representations of 1–3 along with atom labels are shown in Fig. 1, 2 and 3 respectively. The selected bond lengths and angles are listed in Tables S1–S3.
image file: c4ra04531a-f1.tif
Fig. 1 The ORTEP diagram with 30% ellipsoidal probability and atom numbering scheme for complex 1 (the disorder of the diamino-propane moiety of the ligand has been omitted for clarity).

image file: c4ra04531a-f2.tif
Fig. 2 The ORTEP diagram with 30% ellipsoidal probability and atom numbering scheme for complex 2 (the disorder of the diamino-propane moiety of the ligand has been omitted for clarity).

image file: c4ra04531a-f3.tif
Fig. 3 The ORTEP diagram with 30% ellipsoidal probability and atom numbering scheme for complex 3 (the disorder of the diamino-propane moiety of the ligand has been omitted for clarity).

The inner salen-type N2O2 cavity is occupied by copper(II), while lanthanide(III) is present in the open and larger O4 compartment of the dinucleating hexadentate ligand L2−. The copper(II) centre in the compound 2 and 3 are penta coordinated by the two imine nitrogen atoms, two bridging phenoxo oxygen atoms and one oxygen atom in the apical position coming from methanol molecule for compound 2 and the same oxygen atom coming from water molecule for compound 3. Thus copper(II) centre adopts an approximate square-pyramidal coordination environment for these two compounds. In contrast, copper(II) centre is tetra-coordinated by two imine nitrogen atoms and two bridging phenoxo atoms and thus adopts an approximate square-planar coordination environment in 1. The lanthanide(III) center is ten-coordinated with two bridging phenoxo oxygen atoms, two ethoxy oxygen atoms, and two oxygen atoms of each of the three chelating nitrates in all three compounds.

In 1, the nitrate ion as well as the central propane diamine part of the ligand is disordered over two positions (Fig. 1). Various similar bond distances of all the complexes have been jotted down in Table 2 for an easy comparison. In 1, the Cu–O bond distances fall in the range 1.904(8)–1.926(8) Å and Cu–N bond distances are 1.886(11) Å and 1.923(11) Å, respectively. The Pr–Oligand distances remain in the range 2.424(7)–2.653(9) Å and the Pr–Onitrate distance fall in the range 2.616(9)–2.626(17) Å. Similarly in 2, the observed Cu–O bond distances vary in the range 1.912(7)–2.346(11)Å and Cu–N bond distances are 1.897(9)Å and 1.913(10) Å, respectively. The Nd–Oligand distances are in the range 2.411(6)–2.554(8) Å and the Nd–Onitrate distance are observed between 2.471(9)–2.533(9) Å. In 3, the Cu–O bond distances fall in the range 1.893(11)–1.901(10) Å and Cu–N bond distances are 1.903(14) Å and 1.930(15) Å, respectively. The Sm-Oligand distances are observed between 2.566(13)−2.653(9) Å and the Sm–Onitrate distances fall in the range 2.465(18)−2.515(15) Å. A systematic variation is not observed for the Ln–O(nitrate) bond distances in three Cu(II)–Ln(III) complexes. In the compounds 1 and 2, the Ln–O(phenoxo) bond distances are shorter than the bond lengths involving ethoxy and nitrate oxygen atoms but this trend is not observed for compound 3 (see Table 2).

Table 2 A summary of the geometrical parameters of the complexes 1–3
Complex Cu(II)–O distance range (Å) Cu(II)–N distance range (Å) Ln–O distance range (Å) Cu⋯Ln distance range (Å) Dihedral angle between the bridging cores (δ, °)
1 (Ln = Pr) 1.904(8)–1.926(8) 1.886(11), 1.923(11) 2.424(7)–2.653(9) 3.485 3.8(5)
2 (Ln = Nd) 1.912(7)–2.346(11) 1.897(9), 1.913(10) 2.411(6)–2.554(8) 3.487 8.7(4)
3 (Ln = Sm) 1.901(10)–1.893(11) 1.930(15), 1.903(14) 2.465(18)–2.515(15) 3.451 5.5(6)


Intermolecular copper⋯lanthanide distances are 3.485 Å, 3.487 Å and 3.451 Å, for 1–3 respectively. These distances are again indicating that 3d–4f dinuclear cores are not well separated and these systems are not discrete dinuclear cores as the copper⋯lanthanide separations are less than 7 Å.15 Thus we can consider the planarity of these complexes which give some idea about the stability of these complexes in solution. The extent of planarity of the internal cores can be understood from the dihedral angles (δ) between the CuO(phenoxo)2 and LnO(phenoxo)2 planes. The dihedral angle between the plane consisting of Cu1–O10–O23 and Pr1–O10–O23 is 3.8(5)° where O10 and O23 are bridging phenoxo O atoms in 1. The dihedral angle between the plane consisting of Cu1–O1–O2 and Nd1–O1–O2 is 8.7(4)° where O1 and O2 are bridging phenoxo O atoms in 2. The dihedral angle between the plane consisting of Cu1–O2–O3 and Sm1–O2–O3 is 5.5(6)° where O2 and O3 are bridging phenoxo O atoms in 3 (Table 2). From these values, it is indicated that the bridging moeity is more twisted in 2 compared to 1 and 3.15 This renders the complex more susceptible to changes upon addition of foreign ions in solution.

Spectral studies for anion sensing analysis

The UV/Vis spectra of the Schiff base ligands and their complexes were recorded at 300 K in methanol medium. The observed bands in the absorbance spectrum are listed in Table 3, and the spectrum of the complex in CH3OH medium is shown in Fig. 4. The spectrum of the free ligand exhibits two inter ligand charge-transfer (CT) bands with λmax 227 nm which can be attributed to π–π* transition.32 The λmax of 261 nm is attributed to n–π* transition. The Cu(L2−)·CH3OH complex also shows a peak at 225 nm for π–π* transition and the other two distinct peaks at 280 and 360 nm are observed for n–π* and LMCT transitions. Complex 1 and 3 at same concentration with Schiff base-Cu complex show similar absorption peaks but with higher intensities i.e., 225 nm peak for n–π* transition, 280 nm peak for π–π* transition and 360 nm peak for LMCT transition. Complex 2 with Nd as the hetero atom behaves in a different way with new positions of absorption peaks. For complex 2, the absorption maxima are found at 225 nm for π–π* transition, 263 nm peak for n–π* transition and 350 nm peak for LMCT transition. This indicates a slightly different nature of the complex containing Nd as the heteroatom.
Table 3 The observed bands in the absorbance spectrum of the Schiff base ligand and its complexes at 300 K in methanol medium
Complex Wavelength (nm) and ε (M−1 cm−1)
π–π* n–π* LMCT
H2L 227 (1140) 261 (670)
Cu (L2−)·CH3OH 225 (3130) 280 (1820) 360 (1100)
Complex 1 225 (3710) 280 (3200) 360 (1100)
Complex 2 225 (3130) 263 (670) 350 (1200)
Complex 3 225 (3710) 280 (3200) 360 (1100)



image file: c4ra04531a-f4.tif

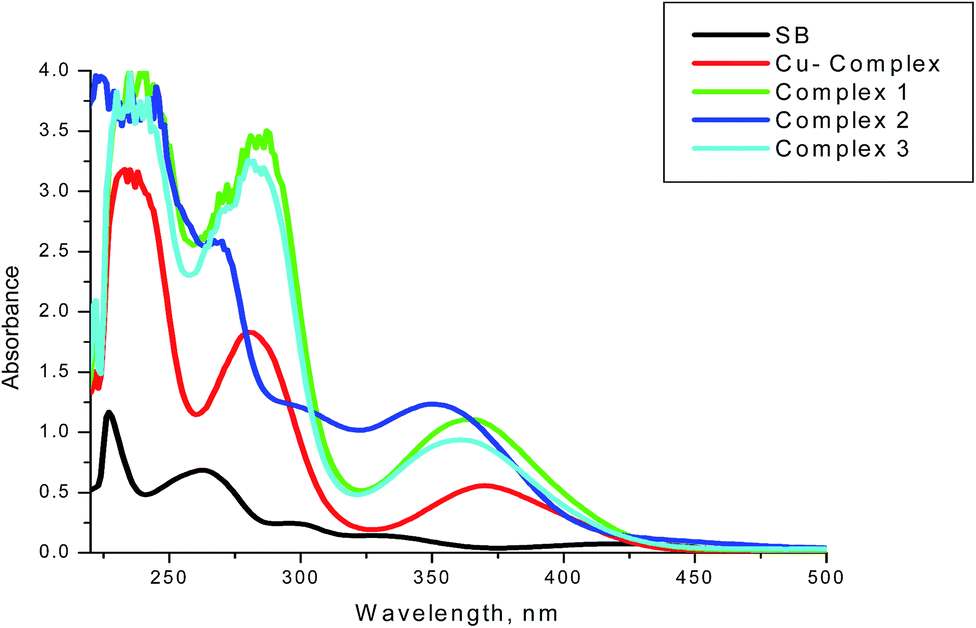

Fig. 4 Absorption spectra of the Schiff base and its mono-metallic and hetero-metallic complexes.

All the five compounds were excited at 350 nm to study their fluorescence emission properties. Only the Schiff base was found to be highly fluorescent and upon metal complexation there was a huge loss of emission intensity (Fig. 5). Metal complexation induces rigidity to the structure and prohibits delocalization of labile electrons in the molecule and hence the observed loss of emission intensity.33 Upon addition of different anionic species to complexes 1–3, the absorption spectra with complexes 1 and 3 containing Pr and Sm as the hetero-atoms respectively show negligible changes (Fig. 6 and 8). However, complex 2 with Nd as the heteroatom (Fig. 7) shows maximum changes in the absorption spectral properties only in presence of S2O82− and S2O32−. This indicates that there are some structural changes in this particular complex in presence of these sulphur species.34 With slowly increasing concentrations of S2O82− ions in a solution of complex 2, the absorption maximum of 350 nm first suffers a red shift and then a new peak at 335 nm arises with a subsequent reduction of the first peak (at 385 nm) (Fig. 9). Perdisulphate being a highly oxidizing species (eqn (11)) interacts with the π electron system of the ligand surrounding the metal core which affects the optical properties of the ligand.35 Spectral changes of a solution of complex 2 were also observed with increasing concentrations of S2O32− (Fig. 10). A red shifted absorbance spectrum with higher S2O32− concentrations indicates sensitivity of complex 2 for this particular species also.36 This is again due to the positive oxidation potential of this particular species in solution (eqn (12)) compared to the low negative values of the other anionic species. S2O32− species is therefore also responsible to create changes in the structural environment of compound 2 and thus affect its optical properties. The appearance of new absorbance peak at 335 nm (Fig. 9) and the red shift (Fig. 10) with S2O82− and S2O32− respectively may be due to the formation of new species of neodymium in the complex.37 In presence of SO42− and SO32− there are no observable spectral changes excepting the dilution effect (Fig. 11 and 12). The fluorescence emission of the complex 2 also enhances in presence of the anions S2O82− and S2O32− (Fig. 13 and 14) indicating that the complex suffers specific changes in the fluorophore environment in presence of these two particular species. There are hardly any changes of emission spectra in presence of SO42− and SO32− species (figure not shown). Fig. 15 shows the emission life times of the fluorescence active compounds, i.e., the Schiff base ligand itself (4.378 ns), Cu-Schiff base complex (2.55 ns), complex 2 in presence of S2O82− (1.13 ns) and in presence of S2O32− (0.25 ns). The results are again indicative towards formation of different geometrical orientation which is responsible for the existence of different fluorescence active species. All these observations may also be explained on the basis of the redox potentials of these anionic species and hence their possibility to break down the hetero-metallic complex in their presence.


AsO2 + 2H2O + 3e ⇆ As + 4OH E° = −0.68 V (1)

AsO43− + 2H2O +2e ⇆ AsO2 + 4OH E° = −0.71 V (2)

F2 + 2e ⇆ 2F E° = −2.87 V (3)

Cl2(g) + 2e ⇆ 2Cl E° = −1.358 V (4)

Br2(aq) + 2e ⇆ 2Br E° = −1.087 V (5)

I2 +2e ⇆ 2I E° = −0.535 V (6)

NO2 + H2O + e ⇆ NO+2OH E° = −0.46 V (7)

2NO3 + 2H2O + 2e ⇆ N2O4 + 4OH E° = −0.85 V (8)

2SO32− + 2H2O + 2e ⇆ S2O42− + 4OH E° = −1.12 V (9)

SO42− + H2O + 2e ⇆ SO32− + 2OH E° = −0.92 V (10)

S2O82− + 2e ⇆ 2SO42− E° = +2.01 V (11)

S2O32− + 6H+ + 2e ⇆ 2S + 3H2O E0 = 0.465 V (12)


image file: c4ra04531a-f5.tif
Fig. 5 Fluorescence spectra of the Schiff base and its mono-metallic and hetero-metallic complex excited at 350 nm.

image file: c4ra04531a-f6.tif

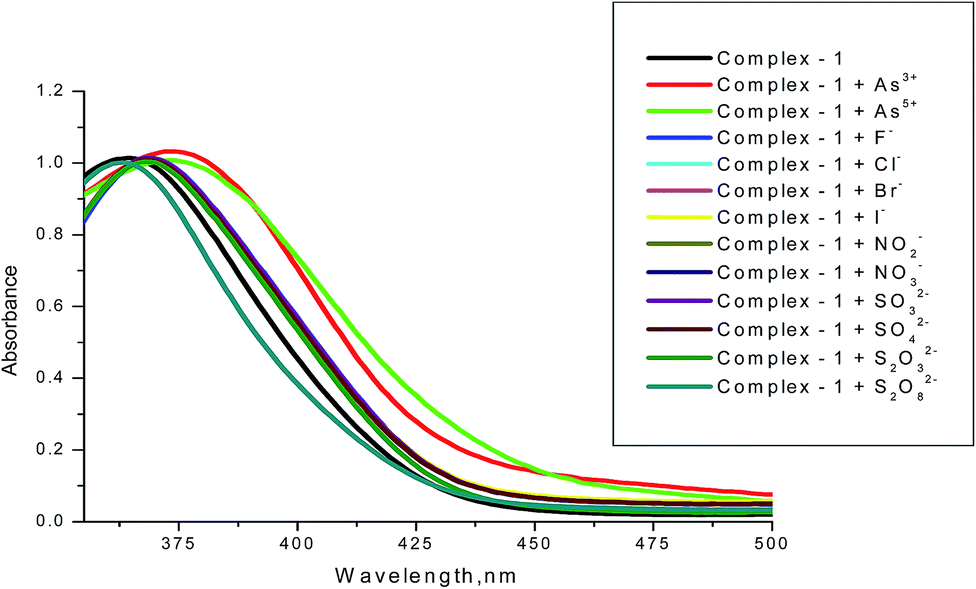

Fig. 6 Absorption spectra of the complex 1 in presence of different anions.

image file: c4ra04531a-f7.tif

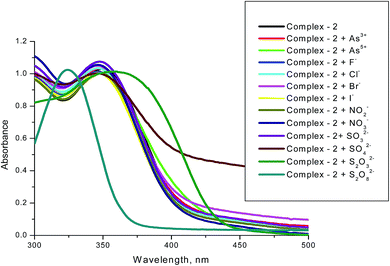

Fig. 7 Absorption spectra of the complex 2 in presence of different anions.

image file: c4ra04531a-f8.tif

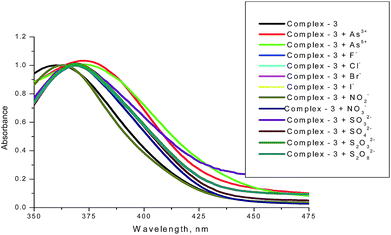

Fig. 8 Absorption spectra of the complex 3 in presence of different anions.

image file: c4ra04531a-f9.tif
Fig. 9 Absorption spectra of complex 2 with increasing S2O82− concentration.

image file: c4ra04531a-f10.tif

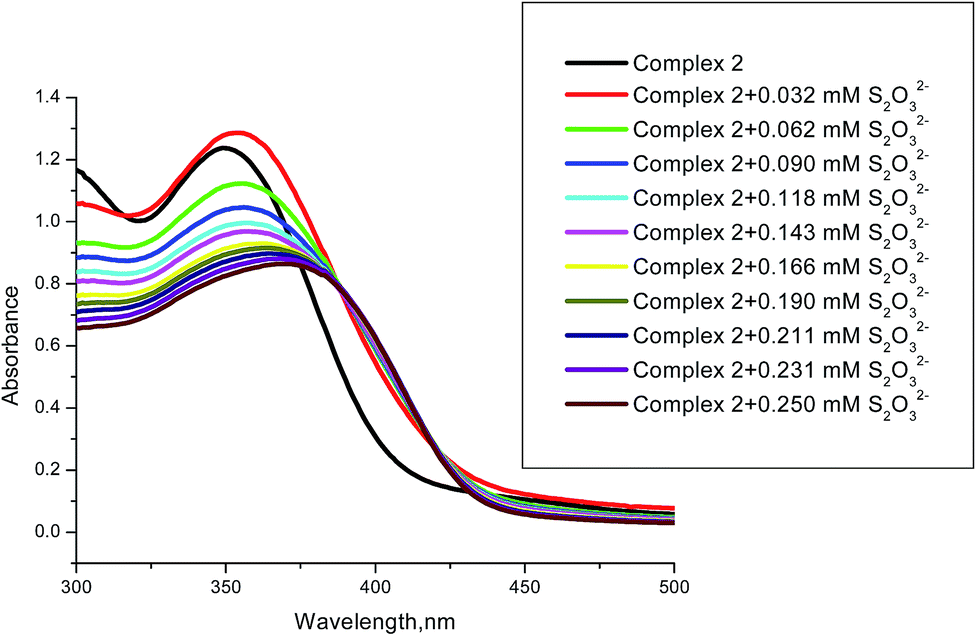

Fig. 10 Absorption spectra of complex 2 with increasing S2O32− concentration.

image file: c4ra04531a-f11.tif

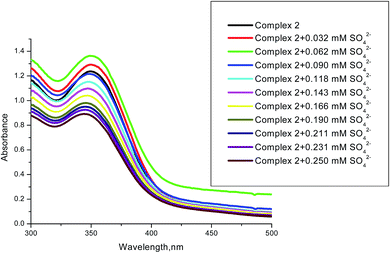

Fig. 11 Absorption spectra of complex 2 with increasing SO42− concentration.

image file: c4ra04531a-f12.tif

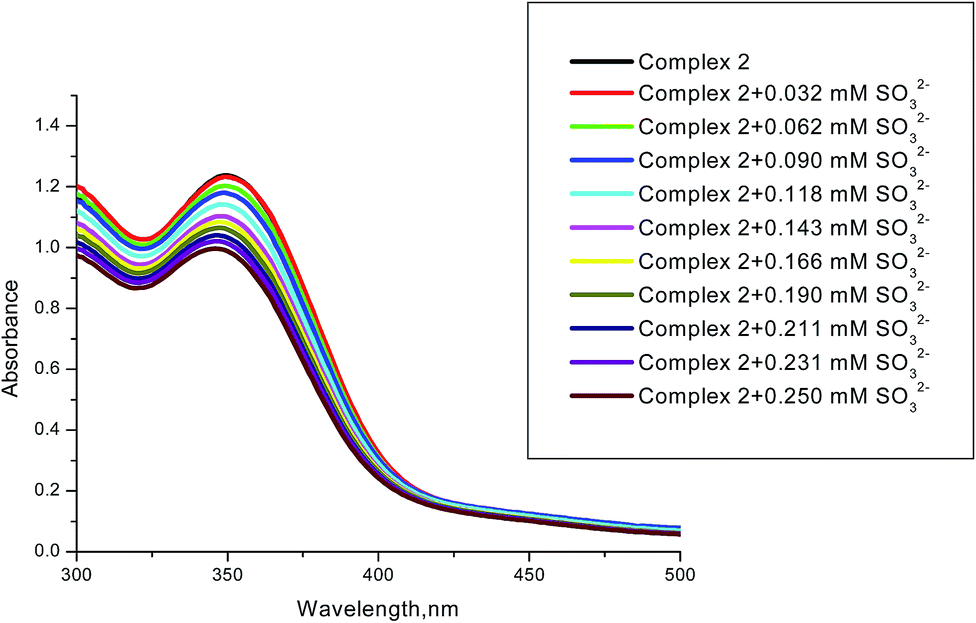

Fig. 12 Absorption spectra of complex 2 with increasing SO32− concentration.

image file: c4ra04531a-f13.tif
Fig. 13 Fluorescence spectra of complex 2 with increasing S2O82− concentration.

image file: c4ra04531a-f14.tif

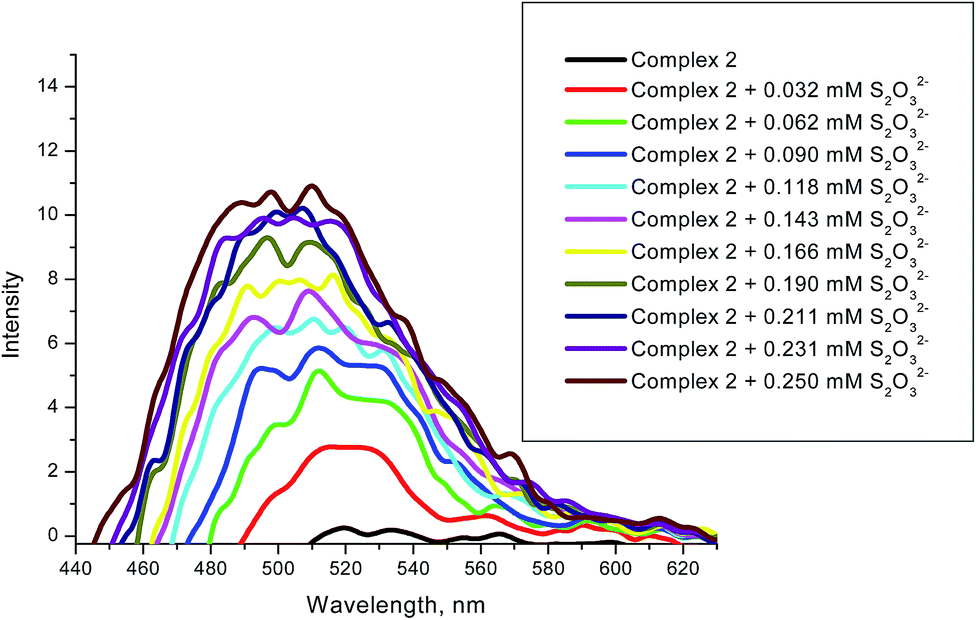

Fig. 14 Fluorescence spectra of complex 2 with increasing S2O32− concentration.

image file: c4ra04531a-f15.tif

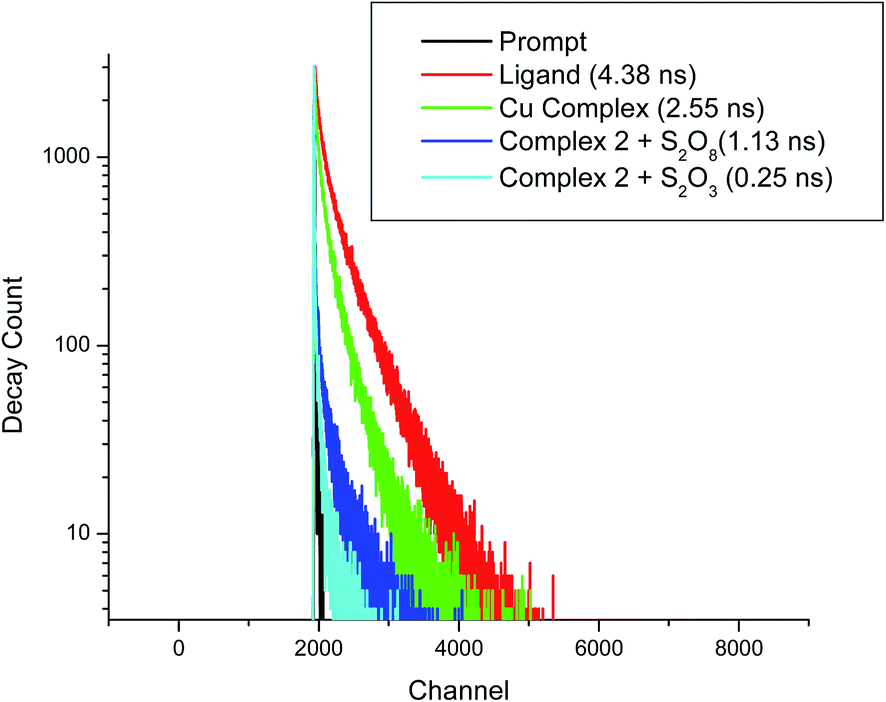

Fig. 15 Emission life times of the fluorescence active compounds in study.

The above redox potentials indicate that only S2O82−/SO42− and S2O32−/S38 systems have higher oxidation potentials compared to the other redox systems. The complex containing Nd as heteroatom was only found susceptible to such attack. It is evident that the complex 2 containing Nd3+ suffers encounters observable spectral changes with S2O82−and S2O32− species which results in a subtle geometrical reorganization of the molecule. Fluorescence activity reappears and the resulting species have different emission life time than the parent compounds. Everything happens only in presence of species like S2O82−and S2O32− having high redox potentials. All the results of absorbance, fluorescence spectra and fluorescence life time measurements indicate that complex 2 containing Nd heteroatom is more prospective towards speciation based anion sensing of sulphur containing anion species S2O82−and S2O32− in particular.

Conclusion

A new application of Schiff base 3d–4f heterometallic complex has been explored. The synthesized Cu–Nd compound was found to be effective in the speciation based anion sensing of sulphur anions. As the S2O82− and S2O32− species have higher redox potentials, they can modify the spectral features of the Schiff-base complex containing Nd as the heteroatom. The observations are in agreement with the single X-ray crystallographic features of the synthesized compound. The results indicate the potentiality of this huge class of heterometallic complexes towards development of analytical procedures in anion sensing applications.

Acknowledgements

S. S. thankfully acknowledges UGC and DST, New Delhi for funding of the total work done in the Dept of Chemistry, A. P. C. College. S. S. also acknowledges DST-FIST for funding of Instruments. K. S. acknowledges UGC (Sanction no. 41-248/2012 (SR)) for funding.

References

  1. R. E. P. Winpenny, Chem. Soc. Rev., 1998, 27, 447–452 RSC.
  2. M. Sakamoto, K. Manseki and H. Okawa, Coord. Chem. Rev., 2001, 219–221, 379–414 CrossRef CAS.
  3. J.-P. Costes, A. Dupuis and J.-P. Laurent, Chem. –Eur. J., 1998, 4, 1616–1620 CrossRef CAS.
  4. J.-P. Costes, F. Dahan, A. Dupuis and J.-P. Laurent, Inorg. Chem., 1996, 35, 2400–2402 CrossRef CAS.
  5. J.-P. Costes, F. Dahan, A. Dupuis and J.-P. Laurent, Inorg. Chem., 1997, 36, 3429–3443 CrossRef CAS PubMed.
  6. J. P. Costes, G. Novotchi, S. Shova, F. Dahan, B. Donnadieu and J. P. Laurent, Inorg. Chem., 2004, 43, 7792 CrossRef CAS PubMed.
  7. C. Novitchi, J. P. Costes and B. Donnadieu, Eur. J. Inorg. Chem., 2004, 1808 CrossRef PubMed.
  8. J. P. Costes, F. Dahan, B. Donnadieu and J. P. Laurent, Eur. J. Inorg. Chem., 2001, 363 CrossRef CAS.
  9. J. P. Costes, J. M. Clemente-Juan, F. Dumestre and J. P. Tuchagues, Inorg. Chem., 2002, 41, 2886 CrossRef CAS PubMed.
  10. R. Koner, H. H. Lin, H.-H. Wei and S. Mohanta, Inorg. Chem., 2005, 44, 3524–3526 CrossRef CAS PubMed.
  11. W.-K. Wong, K.-W. Cheah, H. Liang, W.-Y. Wong, Z. Cai and K.-F. Li, New J. Chem., 2002, 26, 275–278 RSC.
  12. S. Handa, V. Gnanadesikan, S. Matsunaga and M. Shibasaki, J. Am. Chem. Soc., 2007, 129, 4900–4901 CrossRef CAS PubMed.
  13. T. Gao, P.-F. Yan, G.-M. Li, G.-F. Hou and J.-S. Gao, Inorg. Chim. Acta, 2008, 361, 2051–2058 CrossRef CAS PubMed.
  14. R. Koner, G.-H. Lee, Y. Wang, H.-H. Wei and S. Mohanta, Eur. J. Inorg. Chem., 2005, 1500–1505 CrossRef CAS PubMed.
  15. A. Jana, S. Majumder, L. Carrella, M. Nayak, T. Weyhermueller, S. Dutta, D. Schollmeyer, E. Rentschler, R. Koner and S. Mohanta, Inorg. Chem., 2010, 49, 9012 CrossRef CAS PubMed and refs cited therein.
  16. J.-P. Costes, J. M. C. Juan, F. Dahan, F. Dumestre and J.-P. Tuchagues, Inorg. Chem., 2002, 41, 2886–2891 CrossRef CAS PubMed.
  17. D. Cremaschi, C. Porta, G. Meyer and C. Sironi, Eur. J. Physiol., 2001, 442, 409–419 CrossRef CAS.
  18. Y. M. Takabayashi, M. Uemoto, K. Aoki, T. Odake and T. Korenaga, Analyst, 2006, 131, 573–578 RSC.
  19. N. Gayathri and N. Balasubramanian, Analyst, 1999, 27, 174–181 CAS.
  20. D. Markovich, Physiol. Rev., 2001, 81, 1499–1533 CAS.
  21. A. L. Lehninger, Lehninger principles of biochemistry, W.H Freeman, New York, 4th edn, 2005 Search PubMed.
  22. Dictionary of Photography: A Reference Book for Amateur and Professional Photographers, ed. A. L. M. Sowerby, Illife Books Ltd, London, 19th edn, 1961 Search PubMed.
  23. M. Okubo and T. Mori, An isotachophoresis for the microdetermination of potassium persulphate as initiator in emulsion polymerization, Colloid Polym. Sci., 1988, 266, 333–336 CAS.
  24. G. S. Waldo, R. M. K. Carison, J. M. Moldowan, K. E. Peters and J. E. Pennerhahn, Geochim. Cosmochim. Acta, 1991, 55, 801–814 CrossRef CAS.
  25. M. Cuisinier, P. E. Cabelguen, S. Evers, G. He, M. Kolbeck, A. Garsuch, T. Bolin, M. Balasubramanian and L. F. Nazar, J. Phys. Chem. Lett., 2013, 4, 3227–3232 CrossRef CAS.
  26. W. Puacz, W. Szahun1, J. Siepak and T. Sobczyński, Pol. J. Environ. Stud., 2001, 10, 365–370 CAS.
  27. R. M. Duke, E. B. Veale, F. M. Pfeffer, P. E. Kruger and T. Gunnlaugsso, Chem. Soc. Rev., 2010, 39, 3936–3953 RSC.
  28. A. Altomare, M. C. Burla, M. Camalli, G. L. Cascarano, C. Giacovazzo, A. Guagliardi, A. G. G. Moliterni, G. Polidori and R. Spagna, J. Appl. Crystallogr., 1999, 32, 115–119 CrossRef CAS.
  29. T. Gruene, H. W. Hahn, A. V. Luebben, F. Meilleur and G. M. Sheldrick, J. Appl. Crystallogr., 2014, 47, 462–466 CAS.
  30. A. L. Spek, Acta Crystallogr., Sect. D: Biol. Crystallogr., 2009, 65, 148–155 CrossRef CAS PubMed.
  31. L. J. Farrugia, ORTEP3 for Windows, J. Appl. Crystallogr., 1997, 30, 565–566 CrossRef CAS.
  32. M. Maiti, D. Sadhukhan, S. Thakurta, S. Sen, E. Zangrando, R. J. Butcher, R. C. Deka and S. Mitra, Eur. J. Inorg. Chem., 2013, 527–536 CrossRef CAS PubMed.
  33. J. R. Lakowicz, Principles of fluorescence spectroscopy, Springer, 2006, ch. 8 Search PubMed.
  34. M. Yan, D. Wang, G. V. Korshin and M. F. Benedetti, Water Res., 2013, 47, 2603–2611 CrossRef CAS PubMed.
  35. A. Pezzella, A. Iadonisi, S. Valerio, L. Panzella, A. Napolitano, M. Adinolfi and M. d'Ischia, J. Am. Chem. Soc., 2009, 131, 15270–15275 CrossRef CAS PubMed.
  36. Y. M. Hijji, B. Barare, A. P. Kennedy and R. Butcher, Sens. Actuators, B, 2009, 136, 297–302 CrossRef CAS PubMed.
  37. R. Sivakumar, V. Reena, N. Ananthi, M. Babu, S. Anandan and S. Velmathi, Spectrochim. Acta, Part A, 2010, 75, 1146–1151 CrossRef PubMed.
  38. N. N. Greenwood and A. Earnshaw, Chemistry of the Elements, Pergamon Press, New York, 2nd edn, 1989 Search PubMed.

Footnote

Electronic supplementary information (ESI) available. CCDC 973931, 973932 and 973930. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4ra04531a
