Sulfanilic acid-functionalized silica-coated magnetite nanoparticles as an efficient, reusable and magnetically separable catalyst for the solvent-free synthesis of 1-amido- and 1-aminoalkyl-2-naphthols

Abstract

Sulfanilic acid-functionalized silica-coated nano-Fe₃O₄ particles (MNPs–PhSO₃H) have been prepared as a reusable heterogeneous acid catalyst using a facile process. The catalytic performance of this novel material has been studied in the synthesis of 1-amido- and 1-aminoalkyl-2-naphthol derivatives via a one-pot three-component condensation reaction of aldehydes, 2-naphthol, and amides/urea/amines in good to excellent yields, under solvent-free classical heating conditions. The catalyst was easily separated from the reaction mixture with the assistance of an external magnetic field and reused for several consecutive runs without significant loss of its catalytic efficiency. Results obtained from transmission electron microscopy (TEM), scanning electron microscope (SEM), powder X-ray diffraction (XRD) and sample magnetometery (VSM) show that the synthesized magnetic nanocomposites are superparamagnetic with a size range of 15–30 nm.

---

1. Introduction

Multicomponent reactions (MCRs) are of increasing importance in organic synthesis for building diverse and complex organic molecules through tandem carbon–carbon and carbon–heteroatom bond formation.^1–5 Advantages of these reactions include the use of simple procedures, time and energy efficiency, high bond formation yields and low cost.⁶ The development of one-pot MCRs and the improvement of known MCRs are areas of research which have attracted considerable attention in recent years.^7,8 One of these MCRs is the preparation of amidoalkyl naphthols. Amidoalkyl naphthols having 1,3-amino-oxygenated functional groups exist in a variety of biologically significant natural products as well as in drugs including a number of nucleosides, antibiotics and HIV protease inhibitors, such as lipinavir and ritonavir.^9–11 It is worth to noting that 1-amidoalkyl-2-naphthols can be easily converted to 1-aminoalkyl-2-naphthol derivatives, which shows important biological activities like depressor and bradycardiac effect^12,13 by amide hydrolysis reactions. These 1-aminoalkyl alcohol-type ligands have been used for both asymmetric synthesis and catalysis.^14,15 Thus, due to their biological, medicinal and pharmacological importance, many procedures have been developed for the preparation of 1-amidoalkyl-2-naphthols from aldehydes, 2-naphthols, and amides or urea under thermal heating and sonication conditions using catalysts such as pTSA,¹⁶ montmorillonite K10,¹⁷ iodine,¹⁸ Fe(HSO₄)₃,¹⁹ N,N,N′,N′-tetrabromobenzene-1,3-disulphonamide [TBBDA],²⁰ SnCl₄·5H₂O,²¹ H₄SiW₁₂O₄₀,²² dodecylphosphonic acid,²³ cyanuric chloride,²⁴ Bi(NO₃)₃·5H₂O,²⁵ ZrO(OTf)₂,²⁶ P₂O₅,²⁷ thiamine hydrochloride,²⁸ HClO₄–SiO₂,²⁹ cation-exchange resins,³⁰ silica sulfuric acid,³¹ zwitter ionic salts³² and Brønsted acidic ionic liquids.³³ However, some of these methods are not environmentally friendly and suffer from one or more limitations, such as prolonged reaction times, high reaction temperature, low yields of the desired product, tedious work-up, toxicity, and poor recovery and reusability of the catalyst. Therefore, a great demand still exists for versatile, simple, and environmentally friendly processes for the synthesis of 1-amido- or 1-aminoalkyl-2-naphthols under simple and practical conditions.

Organic–inorganic hybrid materials as heterogeneous catalyst have received much recent attention as they permit mutual advantages of both homogeneous as well as heterogeneous catalysts in organic synthesis.^34–37 In this context, the use of nanoparticles as heterogeneous catalyst supports have received increasing attention because their small diameters provide large external surface areas for catalysis, which allows a high dispersion of the active species and provides a large amount of the active and accessible centers.^38–40 However, tedious recovery procedures via filtration or centrifugation and the inevitable loss of solid catalysts in the separation process have limited their application.

In recent years, magnetic nanoparticles (MNPs) (e.g. Fe₃O₄) have been extensively investigated as inorganic catalyst supports in the synthesis of organic–inorganic hybrid catalysts, because of their good stability, easy synthesis and functionalization and high surface area, as well as low toxicity and price.^41,42 An important feature of these nano-catalysts is their separation from the reaction mixture using an external magnet, thereby obviating the need for filtration. However, magnetic nanoparticles can easily aggregate into larger clusters, due to anisotropic dipolar attraction, and thereby lose their dispersibility and catalytic activity.⁴³ In addition, Fe₃O₄ nanoparticles undergo reactions in an acid environment which lead to loss of their magnetic properties, and thus often require coating with a protective shell of silica to form a core-shell (Fe₃O₄@SiO₂) structure. The silica shell can prevent the aggregation of the Fe₃O₄ particles and provide numerous surface Si–OH groups for further modification.^44,45

With the aim of developing a more efficient synthetic process, herein, we report the synthesis of a new silica-coated Fe₃O₄ nanoparticle-supported sulfanilic acid (MNPs–PhSO₃H) and its application as an inexpensive, highly efficient and magnetically recoverable catalyst for the synthesis of 1-amido- or aminoalkyl naphthol via the one-pot three-component reaction of β-naphthol, aldehydes, and amides/urea/amines under solvent-free classical heating conditions.

2. Results and discussion

2.1. Preparation and characterization of the catalyst

The magnetic nanoparticle supported sulfanilic acid catalyst (MNPs–PhSO₃H) was prepared following the procedure shown in Scheme 1. Magnetite (Fe₃O₄) nanoparticles were easily prepared via the chemical co-precipitation of Fe²⁺ and Fe³⁺ ions in basic solution. These were subsequently coated with silica (Fe₃O₄@SiO₂) through the well-known Stober method.⁴⁶ The Fe₃O₄@SiO₂ core–shell structures were then sequentially treated with 3-chloropropyltriethoxysilane (CPTS), which can bind covalently to the free-OH groups at the surface of the particles. Finally, reaction of the 3-chloropropyl-functionalized magnetic silica nanoparticles (Fe₃O₄@SiO₂–Cl) with sulfanilic acid gives the sulfanilic acid-functionalized silica-coated magnetite nanoparticles (MNPs–PhSO₃H).

Scheme 1 Preparation of sulfanilic acid-functionalized silica-coated nano-Fe₃O₄ particles.

The as-prepared catalyst was also characterized by Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), field emission scanning electron microscopy (FE-SEM), transmission electron microscopy (TEM), the energy dispersive X-ray (EDX),vibrating sample magnetometry (VSM), and thermogravimetric analysis (TGA). Fig. 1 shows the FT-IR spectrum of Fe₃O₄, Fe₃O₄@SiO₂, Fe₃O₄@SiO₂–Cl, and MNPs–PhSO₃H nanoparticles in the wavenumber range 4000–400 cm⁻¹. The FT-IR spectrum of the MNPs was similar to those of Fe₃O₄ materials described in the literature. FT-IR spectra of the bare magnetic Fe₃O₄ nanoparticles displayed the characteristic Fe–O absorption around 575 cm⁻¹ (Fig. 1a).

Fig. 1 The comparative FT-IR spectra for (a) Fe₃O₄, (b) Fe₃O₄@SiO₂, (c) Fe₃O₄@SiO₂–Cl and (d) MNPs–PhSO₃H.

Fe₃O₄@SiO₂ shows characteristic IR absorption bands at about 1090, 950, 800 and 465 cm⁻¹ which are attributed to the asymmetric stretching, symmetric stretching, in plane bending and rocking mode of the Si–O–Si group, respectively. These results confirm the presence of SiO₂. The broad peaks in the range 3200–3500 cm⁻¹ and the weak peak at 1620 cm⁻¹ are due to the O–H stretching vibration mode (Si–OH) and twisting vibration mode of H–O–H adsorbed in the silica shell, respectively. The presence of the anchored alkyl groups is confirmed by the weak aliphatic C–H symmetric and asymmetric stretching vibrations at 2926 and 2963 cm⁻¹ in Fig. 1c and d. Thus the above results indicate that the functional groups were successfully grafted onto the surface of the magnetic Fe₃O₄@SiO₂ nanoparticles.

The nanoparticle size and morphology of MNPs–PhSO₃H catalyst were investigated by field emission scanning electron microscopy (FE-SEM) (Fig. 2). As can be seen from Fig. 2, MNPs–PhSO₃H particles have a mean diameter of about 15–35 nm and a nearly spherical shape. The energy dispersive X-ray spectroscopy (EDS) results, obtained from SEM analysis of MNPs–PhSO₃H, are shown in Fig. 3, and clearly show the presence of S in the MNPs–PhSO₃H catalyst. Moreover, the presence of Si, O, and Fe signals indicates that the iron oxide particles are loaded into silica, and the higher intensity of the Si peak compared with the Fe peaks indicates that the Fe₃O₄ nanoparticles were trapped by SiO₂. According to the above analysis, it can be concluded that the MNPs–PhSO₃H have been successfully synthesized. In addition, TEM analysis shows a dark nano-Fe₃O₄ core surrounded by a grey silica shell about 5–10 nm thick and the average size of the obtained particles is 15–30 nm (Fig. 4).

Fig. 2 FE-SEM images of MNPs–PhSO₃H nanoparticles.

Fig. 3 EDS spectra of MNPs–PhSO₃H nanoparticles.

Fig. 4 TEM image of MNPs–PhSO₃H nanoparticles.

The presence as well as the degree of crystallinity of magnetic Fe₃O₄ and the MNPs–PhSO₃H catalyst was obtained from XRD measurements (Fig. 5). The same peaks were observed in the both of the MNPs and MNPs–PhSO₃H XRD patterns, indicating retention of the crystalline spinel ferrite core structure during the silica-coating process. The XRD data of the synthesized magnetic nanoparticles show diffraction peaks at 2θ = 30.4°, 35.7°, 43.3°, 53.9°, 57.3°, 63.0°, and 74.5° which can be assigned to the (220), (311), (400), (422), (511), (440) and (533) planes of Fe₃O₄, respectively, indicating that the Fe₃O₄ particles in the nanoparticles were pure Fe₃O₄ with a cubic spinel structure; these match well with the standard Fe₃O₄ sample (JCPDS card no. 85-1436). The broad peak from 2θ = 20° to 27° (Fig. 2b) is consistent with an amorphous silica phase in the shell of the silica-coated Fe₃O₄ nanoparticles (Fe₃O₄@SiO₂).⁴⁷

Fig. 5 XRD diffraction pattern of Fe₃O₄ MNPs (a), and Fe₃O₄@SiO₂–PhSO₃H MNPs (b).

The (311) XRD peak was used to estimate the average crystallite size of the magnetic nanoparticles by Scherrer's formula (D = 0.9λ/β cos θ), where D is the average crystalline size, λ is the X-ray wave-length (0.154 nm), β denotes the full width in radians subtended by the half maximum intensity width of the (311) powder peak, and θ corresponds to the Bragg angle of the (311) peak in degrees.⁴⁸ From the width of the peak at 2θ = 35.7° (311), the crystallite size of the magnetic nanoparticle is calculated to be 14.7 nm using Scherrer's equation, which is smaller than the size determined by FE-SEM and TEM analysis (Fig. 2 and 4). The observed difference can be attributed to the fact that XRD measurements consider crystallite sizes as sizes of “coherently diffracting domains” of crystals while grains may contain several of these domains.

The stability of the MNPs–PhSO₃H catalyst was determined by thermogravimetric analysis (TGA) and derivative thermo-gravimetry (DTG) (Fig. 6). The magnetic catalyst shows two weight loss steps over the temperature range of TG analysis (Fig. 6). The first stage, including a low amount of weight loss at T < 250 °C, is due to the removal of physically adsorbed solvent and surface hydroxyl groups, and the second step at about 300 °C to nearly 550 °C is attributed to the decomposition of the coating organic layer in the nanocomposite. Therefore, the weight loss between 300–550 °C gives the organic grafting ratios of the magnetic catalyst. The grafted sulfanilic acid on the magnetic Fe₃O₄@SiO₂ nanoparticles was approximately 15.5 wt%. In accordance with this mass loss, it was calculated that 0.72 mmol of sulfanilic acid was loaded on 1 g of MNPs–PhSO₃H catalyst. The weight loss over the range 300–370 °C could be mainly attributed to the evaporation and subsequent decomposition of SO₃H groups. Furthermore, the DTG curve shows that the decomposition of the organic structure mainly occurred at 460 °C. Therefore, the MNPs–PhSO₃H is stable around or below 300 °C. The agreement between the acid amount of MNPs–PhSO₃H (0.65 mmol g⁻¹) measured by back titration using HCl and the organic group loading determined by TGA (0.72 mmol g⁻¹), is clear evidence that the sulfonic acid groups are principally located on the surfaces of Fe₃O₄@SiO₂ nanoparticles, where they are accessible for adsorption and catalytic reaction processes.

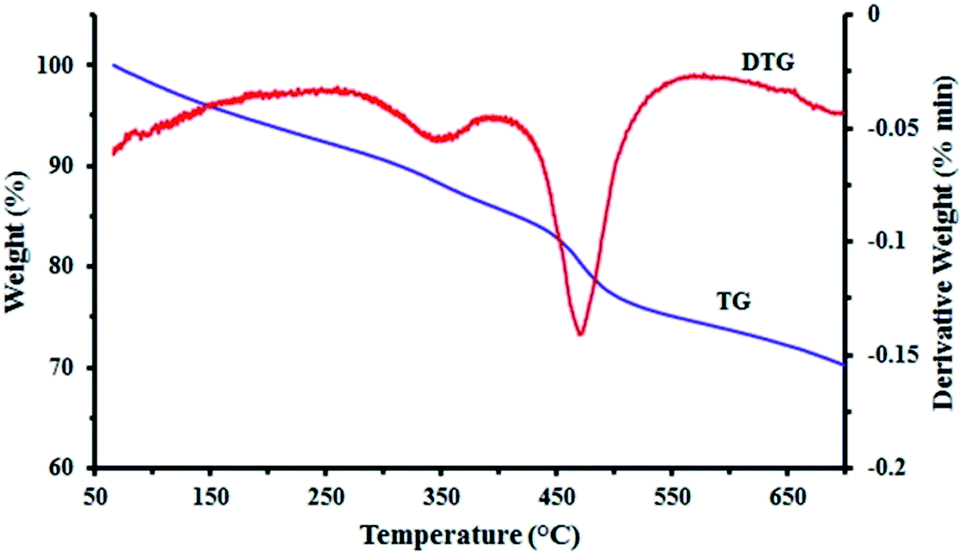

Fig. 6 TG-DTG analyses for MNPs–PhSO₃H nanoparticles.

The magnetic properties of the nanoparticles were characterized using a vibrating sample magnetometer (VSM). Fig. 7 shows the plots of room temperature magnetization (M) versus magnetic field (H) (M–H curves or hysteresis loops) of Fe₃O₄ and MNPs–PhSO₃H nanoparticles. The hysteresis curve allows determination of the saturation magnetization (M_s), remanent magnetization (M_r) and coercivity (H_c). The magnetization of samples could be completely saturated at high fields of up to ±8000.0 Oe and the M_s of samples changed from 57.6 to 38.5 emu g⁻¹, due to the formation of a silica shell around the Fe₃O₄ core. The hysteresis loops show the super-paramagnetic behavior of the Fe₃O₄ and MNPs–PhSO₃H particles in which the M_r and the H_c are close to zero (M_r = 0.85 and 0.45 emu per g, and H_c = 4.90 and 4.0 Oe, respectively).⁴⁹ The strong magnetization of the nanoparticles was also revealed by simple attraction with an external magnet (Fig. 7).

Fig. 7 The magnetic hysteresis loops of Fe₃O₄ MNPs (a), and MNPs–PhSO₃H (b). Left inset: the magnified field from −15 to 15 Oe. Right inset: the picture displays the catalyst was dispersed in liquid and captured by the outer magnet.

2.2. Synthesis of 1-amido or aminoalkyl-2-naphthols using MNPs–PhSO₃H

After the characterization of the MNPs–PhSO₃H catalyst, its role as a catalyst was evaluated for the synthesis of 1-amido- or aminoalkyl-2-naphthols (Scheme 2).

Scheme 2 Synthesis of 1-amido- and 1-aminoalkyl naphthols.

An important feature of these nano-catalysts is simple separation of them using an external magnet, thereby removing the necessity for filtration or centrifugation. In order to optimize the reaction conditions and obtain the best catalytic activity, the reaction of benzaldehyde (1 mmol), β-naphthol (1 mmol), and acetamide (1.2 mmol) was used as a model, and was conducted under different reaction parameters such as solvent and amount of catalyst. Initially, the model reaction was carried out in several solvents as well as under solvent-free conditions, to investigate the efficiency of the catalyst (Table 1). As shown in Table 1, it was found that conventional heating at 120 °C under solvent-free conditions is more efficient than using organic solvents, with respect to reaction time and yield of the desired amidoalkyl naphthol (Table 1, entry 7). Indeed in many cases, solid organic reactions occurred efficiently and more selectively than those of their solution counterparts. To investigate the effect of catalyst loading, the model reaction was carried out in the presence of different amounts of catalyst. The best result was obtained in the presence of just 20 mg of MNPs–PhSO₃H (Table 1, entries 7–9). Moreover, the catalyst is essential and in the absence of the catalyst, only 10% of the corresponding amidoalkyl naphthol was produced even after prolonged reaction times (Table 1, entry 10). The efficiencies of Fe₃O₄, Fe₃O₄@SiO₂ and MNPs–Cl as the catalyst towards the model reaction were compared and the results are depicted in Table 1. It was observed that the MNPs–PhSO₃H was more efficient than the Fe₃O₄, Fe₃O₄@SiO₂ and MNPs–Cl catalysts (entries 11–13).

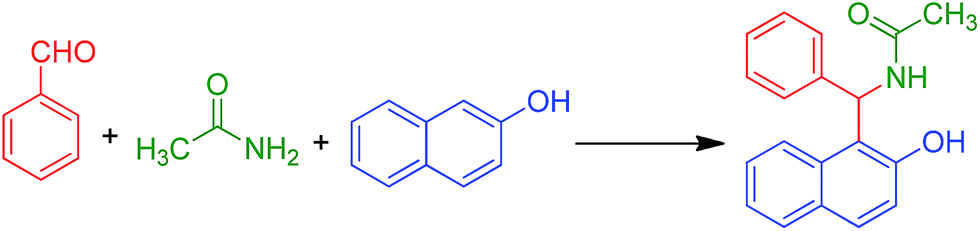

Table 1 Optimization of the conditions for synthesis of N-((2-hydroxynaphthalen-1-yl)(phenyl)methyl)acetamide (Table 2, entry 1)^a

Entry	Catalyst (mg)	Solvent	Condition	Time	Yield^b (%)
a Benzaldehyde (1 mmol), 2-naphthol (1 mmol), acetamide (1.2 mmol).b Isolated yields.
1	MNPs–PhSO3H (20)	THF	R.T.	24 h	20
2	MNPs–PhSO3H (20)	THF	Reflux	12 h	32
3	MNPs–PhSO3H (20)	EtOH	Reflux	12 h	15
4	MNPs–PhSO3H (20)	CH3CN	Reflux	12 h	22
5	MNPs–PhSO3H (20)	n-Hexane	Reflux	12 h	<10
6	MNPs–PhSO3H (20)	—	80 °C	4 h	75
7	MNPs–PhSO3H (20)	—	120 °C	40 min	94
8	MNPs–PhSO3H (10)	—	120 °C	40 min	79
9	MNPs–PhSO3H (40)	—	120 °C	40 min	94
10	—	—	120 °C	4 h	<10
11	Fe3O4 (20)	—	120 °C	3 h	54
12	Fe3O4@SiO2 (20)	—	120 °C	3 h	45
13	MNPs–Cl (20)	—	120 °C	3 h	40

---

In order to determine the generality and efficacy of the catalyst, different kinds of aldehyde carrying either electron-donating or electron-withdrawing groups were reacted with 2-naphthol, and a number of structurally and electronically diverse amides or urea, under the optimized reaction conditions; the respective results are summarized in Table 2. All reactions proceeded efficiently in the presence of catalytic amounts of MNPs–PhSO₃H at 120 °C and the desired products were obtained in good to excellent yields (87–96%) in relatively short reaction times, without formation of any side products such as di-benzoxanthenes, which are normally observed in the presence of strong acids. As can be seen in Table 2, the procedure was highly effective and the nature of substituents on the aromatic ring of aldehydes did not show obvious effects in terms of yields and times under the reaction conditions. Furthermore, when compared to the amides, N-methylurea afforded the corresponding amidoalkyl naphthol using shorter reaction times (Table 2, entries 10–13). The acid sensitive substrate thiophene-2-carbaldehyde gave the expected 1-amidoalky-2-naphthol 5e in very good yield (Table 2, entry 5). However, when some aliphatic aldehydes, such as propionaldehyde and isobutyraldehyde, were used in this protocol under the above optimized conditions, only trace amounts of product were detected.

Table 2 Synthesis of amido or aminoalkyl naphthols in the presence of MNPs–PhSO₃H under solvent-free conditions

Entry	Ar	R or Ar′	Product	Time (min)	Yield^a (%)	M.P. (°C)
						Found	Reported ^Lit.
a Isolated yields.
1	C6H5	CH3	5a	40	94	241–242	238–240^52
2	4-ClC6H4	CH3	5b	30	96	221–223	220–222^52
3	4-BrC6H4	CH3	5c	30	93	226–227	228–230^19
4	4-MeC6H4	CH3	5d	40	89	212–213	214–216^33
5	2-Thiophine	CH3	5e	30	90	220–222	224–225^53
6	C6H5	NH2	5f	25	91	178–179	177–179^25
7	3-MeOC6H4	NH2	5g	45	87	238–240	241–243^54
8	3-NO2C6H4	NH2	5h	25	89	185–186	183–185^52
9	2-ClC6H4	NH2	5i	35	88	152–153	150–152^55
10	C6H5	CH3NH	5j	12	92	192–193	190–191^56
11	3-NO2C6H4	CH3NH	5k	10	94	195–197	191–192^30
12	4-MeC6H4	CH3NH	5l	12	93	175–176	174–176^56
13	4-FC6H4	CH3NH	5m	15	91	174–175	176–177^30
14	C6H5	Ph	5n	25	90	234–235	236^50
15	4-ClC6H4	Ph	5o	30	91	176–177	178–180^52
16	4-BrC6H4	Ph	5p	40	86	183–184	182–184^33
17	3-NO2C6H4	Ph	5q	35	91	232–234	230–233^51
18	C6H5	2-Pyridyl	6r	10	92	174–176	—
19	4-ClC6H4	2-Pyridyl	6s	15	85	181–182	—
20	C6H5	4-Cl-6-Me-2-pyrimidinyl	6t	15	86	160–162	—
21	4-ClC6H4	4-Cl-6-Me-2-pyrimidinyl	6u	20	88	185–186	—
22	2-Cl-6-F- C6H3	4-Cl-6-Me-2-pyrimidinyl	6v	25	81	170–172	—
23	2-ClC6H4	4-Cl-6-Me-2-pyrimidinyl	6w	20	83	182–184	—

---

In order to show the efficiency of this catalytic system further, the synthesis of 1-aminoalky-2-naphthols was investigated in the presence of MNPs–PhSO₃H. As shown in Table 2, treatment of a variety of aldehydes and 2-naphthol with heterocyclic amines such as 2-aminopyridine and 2-amino-4-chloro-6-methylpyrimidine in the presence of catalytic amounts of MNPs–PhSO₃H under the optimized reaction conditions afforded the corresponding 1-aminoalky-2-naphthol derivatives in 81–92% yields (Table 2, entries 18–23). However, all our attempts with the usual aromatic amines such as aniline and p-toluidine failed to yield the corresponding aminoalkyl naphthols. Instead, the Schiff base was prepared from the reaction of these amines and aldehydes under the reaction conditions.

A plausible mechanism for the formation of 1-amido- or 1-aminoalky-2-naphthols catalyzed by MNPs–PhSO₃H, which is supported by the literature,^50,51 is shown in Scheme 3. The MNPs–PhSO₃H catalyst participates in the reaction which activates the carbonyl group of the aldehyde (intermediate I) followed by the nucleophilic addition of β-naphthol to obtain complex II. The removal of water from complex II produces intermediate III as an ortho-quinone methide (o-QM). MNPs–PhSO₃H again activates intermediate III to give IV as a Michael acceptor. The activated o-QM then reacts with amides, amines or urea via a Michael addition to afford the expected amidoalkyl naphthols. The reaction results from amines, which have been presented in Table 2 (entries 18–23), confirm the mechanism. The reaction of usual aromatic amines such as aniline and p-toluidine produced the stable Schiff base and o-QMs were not formed under the reaction conditions. Conversely, the Schiff bases obtained from amides or heterocyclic amines are unstable and can be easily converted to starting material by a hydrolysis reaction. Thus, this reaction can proceed via the o-QMs intermediate.

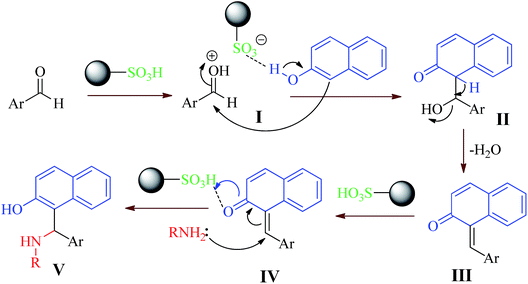

Scheme 3 Possible mechanism for the synthesis of amido or aminoalkyl naphthols using MNPs–PhSO₃H.

To compare the applicability and the efficiency of our catalyst with the reported inorganic or organic catalysts for the synthesis of 1-amidoalkyl-2-naphthols, we have tabulated the results of these catalysts in the condensation reaction of benzaldehyde, β-naphthol and acetamide under optimized conditions in Table 3. This shows that the MNPs–PhSO₃H is a moderately good catalyst for this reaction in terms of short reaction times and simple conditions and it could be considered as one of the best choices as an environmentally benign and user-friendly catalyst. Also, it can be seen that, in addition to having the general advantages attributed to the inherent magnetic properties of nano-catalysts, MNPs–PhSO₃H is an equal or more efficient catalyst for this three-component reaction.

Table 3 Comparison of MNPs–PhSO₃H with other catalysts reported in the literature for the synthesis of N-[phenyl-(2-hydroxynapthalen-1-yl)-methyl] acetamide^a

Entry	Catalyst (amount)	Condition	Time	Yield^b (%)	Ref.
a Reaction conditions: β-naphthol (1 mmol), benzaldehyde (1 mmol), and acetamide (1.2 mmol).b Isolated yields.
1	pTSA (10 mol%)	ClCH2CH2Cl (r.t.)	15 h	89	16
2	Montmorillonite K-10 (0.1 g)	Solvent-free (125 °C)	1.5 h	89	17
3	H4SiW12O40 (5 mol%)	Solvent-free (110 °C)	20 min	92	22
4	[TEBSA][HSO4] (5 mol%)	Solvent-free (120 °C)	10 min	87	33
5	Thiamin HCl (10 mol%)	EtOH (80 °C)	4 h	88	28
6	Sulfamic acid (50 mol%)	Solvent-free (30 °C)	15	88	57
7	Silica sulfuric acid (0.02 g)	Solvent-free (r.t.)	2 h	85	58
8	Fe(HSO4)3 (5 mol%)	Solvent-free (85 °C)	65 min	83	19
9	I2 (5 mol%)	Solvent-free (125 °C)	4.5 h	87	18
10	Molybdophosphoric acid (0.12 g)	Ethylacetate (65 °C)	3.5	94	59
11	K5CoW12O40·3H2O (1 mol%)	Solvent-free (125 °C)	2 h	90	60
12	DPA (10 mol%)	Solvent-free (90 °C)	20 min	88	23
13	MNPs–PhSO3H (0.02 g)	Solvent-free (120 °C)	40	94	This work

---

2.3. Catalyst recovery and reuse

The recovery and reusability of the catalyst are very important for commercial and industrial applications as well as green process considerations. Thus, the recovery and reusability of MNPs–PhSO₃H (20 mg) was investigated in the sequential reaction of 3-nitrobenzaldehdye (1 mmol) with 2-naphthol (1 mmol) and N-methylurea (1.2 mmol) under solvent-free conditions for 10 min at 120 °C. After completion of the reaction, the resulting solidified mixture was diluted with hot THF (10 mL). Then, the catalyst was easily separated using an external magnet, washed with THF, dried under vacuum and reused in a subsequent reaction. Nearly quantitative recovery of catalyst (up to 98%) could be obtained from each run. As seen in Fig. 8, the recycled catalyst could be reused six times without any additional treatment or appreciable reduction in catalytic activity. The recovered catalyst after six runs had no obvious change in structure, as shown by comparison of the FT-IR spectra to that of fresh catalyst (Fig. 9). The consistent structure and activity of recovered and reused MNPs–PhSO₃H catalyst indicates that the reused MNPs–PhSO₃H also shows excellent performance for the synthesis of 1-amidoalkyl-2-napthols.

Fig. 8 Recyclability of MNPs–PhSO₃H in the reaction of 3-nitrobenzaldehdye (1 mmol), 2-naphthol (1 mmol), N-methylurea (1.2 mmol) and catalyst (0.02 g) under solvent-free conditions.

Fig. 9 FT-IR spectra of the fresh catalyst and the six-times reused catalyst.

3. Experimental

All chemicals were purchased from Merck or Fluka chemical companies and used without further purification. Melting points were measured by using capillary tubes on an electro thermal digital apparatus and are uncorrected. Known products were identified by comparison of their melting points and spectral data with those reported in the literature. Thin layer chromatography (TLC) was performed on UV active aluminum-backed plates of silica gel (TLC Silica gel 60 F₂₅₄). FTIR spectra were recorded on a Unicom Galaxy Series FT-IR 5000 spectrophotometer in the region 4000–400 cm⁻¹ using pressed KBr discs. The ¹H and ¹³C-NMR spectra were recorded on a Brucker Avance spectrometer operating at 300 and 75 MHz for ¹H and ¹³C-NMR, respectively in DMSO-d₆ with TMS as an internal standard. X-ray diffraction (XRD) was performed on Philips X-Pert (Cu-Kα radiation, λ = 0.15405 nm) over the range 2θ = 20–80° using 0.04° as the step length. Thermal gravimetric analysis (TGA) and differential thermal gravimetric (DTG) data for MNPs-PhSO₃H were recorded on a Mettler TA4000 System under an N₂ atmosphere at a heating rate of 10 °C min⁻¹. The magnetization and hysteresis loop were measured at room temperature using a Vibrating Sample Magnetometer (Model 7300 VSM system, Lake Shore Cryotronic, Inc., Westerville, OH, USA). The scanning electron microscope measurement was carried out on a Hitachi S-4700 field emission-scanning electron microscope (FE-SEM). Transmission electron microscopy (TEM) measurements were carried out on a Philips CM10 analyzer operating at 150 kV.

3.1. Preparation of the magnetic Fe₃O₄ nanoparticles (MNPs)

Fe₃O₄–MNPs were prepared using simple chemical co-precipitation described in the literature.⁶¹ Briefly, FeCl₂·4H₂O (0.9941 g, 5 mmol) and FeCl₃·6H₂O (2.7029 g, 10 mmol) were dissolved in 100 mL of deionized water in a three-necked round bottomed flask (250 mL). The mixture was heated under N₂ at 80 °C for 1 h, and then 10 mL of concentrated ammonia (25%) were added quickly. The solution was stirred under N₂ for another 1 h and then cooled to room temperature. The black precipitate formed was isolated by magnetic decantation, exhaustively washed with double-distilled water until neutrality, and further washed twice with ethanol and dried at 60 °C under vacuum.

3.2. Synthesis of silica-coated MNPs (Fe₃O₄@SiO₂ MNPs)

The Fe₃O₄@SiO₂ core–shell nanoparticles were prepared according to the Stöber method.⁴⁶ The details are as follows: Magnetic nanoparticles MNPs (1.0 g) were homogeneously dispersed by ultrasonic vibration in a mixture of 40 mL of ethanol, 6 mL of deionised water, and 1.5 mL of 25 wt% concentrated aqueous ammonia solution, followed by the addition of 1.4 mL of tetraethylorthosilicate (TEOS). After stirring for 12 h at room temperature under an N₂ atmosphere, the black precipitate (Fe₃O₄@SiO₂) was collected from the solution using a magnet, and then washed several times with water and ethanol and dried at 25 °C under vacuum.

3.3. Synthesis of 3-chloropropyl-functionalized magnetic silica nanoparticles (Fe₃O₄@SiO₂–Cl MNPs)

Chloropropyl-modified silica-coated magnetic nanoparticles was prepared according to the reported procedure.⁶² In a typical procedure, 1.0 g of Fe₃O₄@SiO₂ MNPs were dispersed in 50 mL of dry toluene using an ultrasonic bath to produce a uniform suspension, to which 2.0 g of 3-chloropropyl-trimethoxysilane (CPTS) was added using a syringe. The resulting mixture was stirred for 48 h at 60 °C under an N₂ atmosphere. Finally, the chloropropyl-functionalized solid Fe₃O₄@SiO₂–Cl MNPs were washed with toluene, separated using a magnet, and dried under vacuum.

3.4. Sulfanilic acid-functionalized silica-coated magnetic nanoparticles (MNPs–PhSO₃H)

The MNPs–PhSO₃H magnetic nanoparticles were prepared according to the method of Adama et al.⁶³ 1 g of Fe₃O₄@SiO₂–Cl nanoparticles were dispersed in 50 mL dry toluene by sonication over 1 h. To this suspension, 2 g (11.5 mmol) of sulfanilic acid was added, followed by 1.6 mL (11.5 mmol) of triethylamine acting as a proton scavenger. Then, the reaction mixture was refluxed for 2 days under nitrogen. The solid material was obtained by magnetic separation and washed with toluene, dichloromethane and finally with acidified ethanol followed by drying at 80 °C for 6 h under vacuum.

3.5. Acidity of MNPs–PhSO₃H

The concentration of sulfonic acid groups was quantitatively estimated by back titration using HCl (0.01 N). 2 mL of KOH (0.01 N) was added to 0.02 g of the magnetic nanoparticles and the mixture was stirred for 30 min. The catalysts were magnetically separated and washed with deionized water. The excess amount of KOH was titrated with HCl (0.01 N) in the presence of phenolphthalein as indicator. Averages of 3 separate titrations were performed to obtain an average value for the acid amount of MNPs–PhSO₃H. The results revealed that the samples of MNPs–PhSO₃H possessed 0.65 mmol g⁻¹ acid amount.

3.6. General procedure for the synthesis of 1-amido or aminoalkyl-2-naphthols

MNPs–PhSO₃H (0.02 g) were added as a catalyst to a mixture of β-naphthol (1 mmol), an aldehyde (1 mmol), and an amide or an amine (1.2 mmol). The mixture was magnetically stirred under thermal solvent-free condition on a preheated oil bath at 120 °C for the appropriate time. After completion of the reaction, as indicated by TLC, the resulting solidified mixture was diluted with hot THF (10 mL) and the catalyst easily separated by an external magnet. The solvent was then evaporated; the remaining solid product was recrystallized from aqueous ethanol.

3.7. Characterization data for new compounds

3.7.1. 1-(Phenyl(pyridin-2-ylamino)methyl)naphthalen-2-ol (6r). IR (KBr): ν_max = 3370, 3061, 1607, 1570, 1512, 1449, 1331, 1275, 1235, 1163, 1063, 999, 812, 747, 696, 637 cm⁻¹; ¹H-NMR (300 MHz, DMSO-d₆): δ = 10.00 (s, 1H), 8.45 (d, J = 8.4, 1H), 7.82–7.75 (m, 3H), 7.36 (t, J = 7.4, 1H), 7.28–7.21 (m, 6H), 7.17–7.13 (m, 6H); ¹³C-NMR (75 MHz, DMSO-d₆): δ = 169.2, 153.1, 153.9, 142.6, 132.3, 129.2, 128.5, 128.4, 127.9, 126.3, 126.0, 125.9, 123.3, 123.2, 122.3, 118.8, 118.7, 118.4, 118.3, 47.7; anal. calcd for C₂₂H₁₈N₂O: C, 80.96; H, 5.56; N, 8.58. Found: C, 80.89; H, 5.61; N, 8.51%.

3.7.2. 1-((4-Chlorophenyl)(pyridin-2-ylamino)methyl)naphthalen-2-ol (6s). IR (KBr): ν_max = 3410, 3063, 1615, 1568, 1516, 1437, 1329, 1273, 1155, 1089, 1013, 955, 885, 820, 768 cm⁻¹; ¹H-NMR (300 MHz, DMSO-d₆): δ = 10.23 (s, 1H), 7.97–7.93 (m, 2H), 7.81–7.76 (m, 2H), 7.41–7.36 (m, 2H), 7.30–7.21 (m, 8H), 6.82 (d, J = 8.4 Hz, 1H), 6.52 (t, J = 6.1 Hz, 1H); ¹³C-NMR (75 MHz, DMSO-d₆): δ = 158.3, 153.0, 147.2, 143.0, 136.8, 132.2, 130.2, 129.2, 128.5, 128.0, 127.7, 126.3, 123.6, 122.4, 119.7, 118.6, 118.4, 112.3, 109, 49.1; anal. calcd for C₂₂H₁₇ClN₂O: C, 73.23; H, 4.75; N, 7.76. Found: C, 73.26; H, 4.81; N, 7.73%.

3.7.3. 1-(((4-Chloro-6-methylpyrimidin-2-yl)amino)(phenyl)methyl)naphthalen-2-ol (6t). IR (KBr): ν_max = 3381, 3063, 2998, 1628, 1572, 1514, 1437, 1360, 1290, 1211, 1132, 895, 814, 742, 698 cm⁻¹; ¹H-NMR (300 MHz, DMSO-d₆): δ = 10.26 (s, 1H), 8.09 (d, J = 7.8, 1H), 7.83–7.76 (m, 3H), 7.45–7.18 (m, 9H), 6.65 (s, 1H), 2.25 (s, 3H); ¹³C-NMR (75 MHz, DMSO-d₆): δ = 170.5, 162.1, 160.6, 153.6, 142.9, 132.7, 129.8, 129.1, 128.8, 128.6, 128.5, 127.2, 126.8, 126.5, 123.1, 119.5, 119.1, 109.5, 50.8, 24.1; anal. calcd for C₂₂H₁₈ClN₃O: C, 70.30; H, 4.83; N, 11.18. Found: C, 70.37; H, 4.93; N, 11.14%.

3.7.4. 1-(((4-Chloro-6-methylpyrimidin-2-yl)amino)(4-chlorophenyl)methyl)naphthalen-2-ol (6u). IR (KBr): ν_max = 3379, 3059, 2992, 1628, 1572, 1516, 1437, 1358, 1289, 1269, 1211, 1092, 1014, 899, 814, 742 cm⁻¹; ¹H-NMR (300 MHz, DMSO-d₆): δ = 10.28 (s, 1H), 8.05 (d, J = 7.4, 1H), 7.82–7.75 (m, 3H), 7.46–7.27 (m, 8H), 6.66 (s, 1H), 2.25 (s, 3H); ¹³C-NMR (75 MHz, DMSO-d₆): δ = 171.0, 161.9, 157.5, 154.5, 153.9, 141.9, 140.2, 132.5, 131.9, 130.8, 130.0, 129.3, 128.6, 128.4, 128.1, 123.3, 118.4, 116.9, 99.4, 50.4, 18.8; anal. calcd for C₂₂H₁₇Cl₂N₃O: C, 64.40; H, 4.18; N, 10.24. Found: C, 64.44; H, 4.23; N, 10.28%.

3.7.5. 1-((2-Chloro-6-fluorophenyl) ((4-chloro-6-methylpyrimidin-2-yl)amino)methyl) naphthalen-2-ol (6v). IR (KBr): ν_max = 3420, 3065, 2996, 1630, 1572, 1518, 1437, 1373, 1290, 1269, 1238, 1175, 1101, 1057, 950, 897, 808, 775, 741 cm⁻¹; ¹H-NMR (300 MHz, DMSO-d₆): δ = 9.91 (s, 1H), 8.10 (d, J = 7.5, 1H), 7.81–7.77 (m, 3H), 7.44–7.08 (m, 7H), 6.63 (s, 1H), 2.23 (s, 3H); ¹³C-NMR (75 MHz, DMSO-d₆): δ = 171.5, 157.7, 154.7, 154.2, 133.6, 132.5, 131.0, 129.8, 129.3, 128.4, 127.4, 126.3, 126.2, 123.0, 122.8, 122.4, 119.0, 115.9, 115.3, 98.7, 48.4, 18.8; anal. calcd for C₂₂H₁₆Cl₂FN₃O: C, 61.70; H, 3.77; N, 9.81. Found: C, 61.66; H, 3.84; N, 9.83%.

3.7.6. 1-(((4-Chloro-6-methylpyrimidin-2-yl)amino)(2-chlorophenyl)methyl)naphthalen-2-ol (6w). IR (KBr): ν_max = 3421, 3057, 2990, 1630, 1572, 1528, 1440, 1359, 1288, 1271, 1211, 1122, 1067, 897, 816, 775, 742 cm⁻¹; ¹H-NMR (300 MHz, DMSO-d₆): δ = 10.04 (s, 1H), 8.12 (s, 1H), 8.01 (d, J = 7.1, 1H), 7.76 (t, J = 7.5, 2H), 7.53 (s, 1H), 7.42–7.15 (m, 8H), 6.61 (s, 1H), 2.22 (s, 3H); ¹³C-NMR (75 MHz, DMSO-d₆): δ = 171.4, 157.6, 154.3, 138.1, 137.0, 132.5, 130.8, 130.1, 129.9, 129.5, 129.2, 128.5, 127.2, 123.2, 122.6, 122.1, 118.9, 115.7, 114.8, 98.8, 49.9, 18.9; anal. calcd for C₂₂H₁₇Cl₂N₃O: C, 64.4; H, 4.18; N, 10.24. Found: C, 64.33; H, 4.24; N, 10.16%.

4. Conclusions

In conclusion, a new magnetic organic–inorganic nanocomposite (MNPs–PhSO₃H) was prepared by a very simple and inexpensive method, and was characterized by FT-IR, XRD, TG-DTG, FE-ESM, EDS, TEM, VSM and acid–base titration. This catalyst has been successfully applied in a one-pot three-component condensation of amide/amine/urea with aldehyde and 2-naphthol under solvent-free conditions to prepare 1-amido or 1-aminoalky-2-naphthols in high yields (up to 96%). High catalytic activity, generality, high yields, short reaction times and the simple experimental procedure combined with the ease of work-up of the product make this method convenient and environmentally benign for synthesis of 1-amido- or 1-aminoalky-2-naphthols. The present method is applicable to a wide variety of aldehydes, and amides or urea or amines for the synthesis of corresponding 1-amido- or 1-aminoalky-2-naphthols. Moreover, the catalyst is stable under the reaction conditions and can be readily separated by use of a magnet and reused without any significant loss of catalytic activity after six runs.
