Cascade OFF–ON–OFF fluorescent probe: dual detection of trivalent ions and phosphate ions

Abstract

A new rhodamine B-based fluorescent probe was developed for the selective cascade signaling of trivalent cations (Fe³⁺, Al³⁺, Cr³⁺) and phosphate anion (PO₄³⁻). Non-fluorescent rhodamine derivatives can selectively detect trivalent cations over some other metal ions in CH₃CN–Tris buffer (1/1, v/v, pH 7.0) solutions, leading to prominent fluorescence OFF–ON switching. The obtained probe–cation complex can subsequently serve as a sensitive and selective chemosensor for PO₄³⁻, exhibiting complete signal quenching (fluorescence ON–OFF switching).

---

Introduction

The fluorogenic sensing of different metal ions has become particularly attractive because of its simplicity, high sensitivity, and instantaneous response.^1–6 Among them, triple-charged metal cation detection is of significant importance because of its crucial influence in a wide range of environmental and human health areas.^7–17 For example, Fe³⁺ ion is an essential element in the human body and acts as a cofactor in several enzymatic reactions;^18–20 whereas the widely existing Al³⁺ ion in the environment is considered to be toxic in biological activities, and responsible for the Parkinson's disease;^21,22 for Cr³⁺, which is also an effective nutrient for the human body, a deviation of its concentration from normal levels can increase the risk of diabetes and cardiovascular diseases.⁴⁰ Simultaneously, the detection of anions through fluorescence emission readouts has also attracted significant attention considering the recognized biological roles played by anions.²³ However, it is difficult to recognize anions in water or in a water mixture media compared with most of the metal cations because anions usually experience competition from the solvent for sensor binding sites.²⁴ Nevertheless, a metal complex may resolve this problem via a simple displacement approach, causing a signal change in the UV-vis or fluorescence spectrum.^25–28 Phosphate anions (PO₄³⁻), both inorganic and organic, have a unique position in nature because they participate in almost all the metabolic processes.^29,30 Moreover, phosphorylated biomolecules play an important role in signal transduction for various biological processes. Human serum contains 0.80–1.45 mM phosphate but higher phosphate levels are directly connected to cardiovascular disease and acute renal failure.³¹

Up till now, even though a large number of fluorescence chemosensors for divalent metal ions and phosphate anions have been reported in the literature, relatively few studies have been devoted to the development of fluorescence sensors which are sensitive to trivalent ions^41–43 and phosphate ions.³⁹ In view of achieving a rapid qualitative analysis of the pollutants, it is highly desirable to design a probe which is capable of simultaneous discrimination of trivalent ions and phosphate ions from other ions.

Herein, we report a simple cascade “OFF–ON–OFF” fluorescent chemosensor for trivalent and phosphate ions based on the equilibrium between spirolactam (non-fluorescent) to the ring-open amide (fluorescent) form of rhodamine chromophore.^4,9,32 In general, the chemosensor showed a specific selectivity toward trivalent ions over other common metal ions, leading to prominent fluorescence OFF–ON switching. The resultant sensor–cation complex could selectively recognize PO₄³⁻ over other anions, exhibiting complete ON–OFF signal quenching.

Experimental

Materials and methods

Rhodamine B was obtained from Aladdin. Phthalic anhydride and hydrazine hydrate were purchased from Sinopharm Chemical Reagent. The solution of metal ions was prepared from their chloride salts of analytical grade. The solvents were used as-received without further purification. Deionized water was used throughout the experiment.

UV-vis spectra were recorded using a SCINCO S-4100. A HORIBA Jobin Yvon SPEX spectrofluorimeter was used for fluorescence measurements. The excitation wavelength was 520 nm and the spectra were recorded in the range of 540–700 nm. Both ¹H NMR (400 MHz) and ¹³C NMR spectra (100 MHz) of the compounds were recorded on a Brurker Dpx spectrometer in CDCl₃ with tetramethylsilane as the internal standard. The high-resolution mass spectra were recorded on a Bruker APEX IV.

Synthetic methodology

Compound L was synthesized in two steps, as shown in Scheme 1. Rhodamine B hydrazide was first synthesized following literature procedures.³² Phthalic anhydride (100 mg, 0.67 mmol) was added to a solution of rhodamine B hydrazide (300 mg, 0.66 mmol), which was dissolved in 40 mL anhydrous toluene. The reaction mixture was heated under microwave irradiation for 30 minutes and allowed to cool to room temperature. After that, the solvent was removed under reduced pressure, and the crude product was purified with a silica gel column using a mixture of petroleum ether and ethyl acetate (2 : 1, v/v) as an eluent to afford a yellow solid in a 30% yield. ¹H NMR (Fig. S1†) (400 MHz, CDCl₃) δ 8.02 (d, J = 7.4 Hz, 1H), 7.75–7.65 (m, 4H), 7.62 (t, J = 7.2 Hz, 1H), 7.56 (t, J = 7.2 Hz, 1H), 7.25 (d, J = 7.5 Hz, 1H), 6.83 (d, J = 8.9 Hz, 2H), 6.40 (d, J = 6.4 Hz, 2H), 6.26 (d, J = 2.3 Hz, 2H), 3.42–3.26 (m, 8H), 1.16 (t, J = 7.0 Hz, 12H). ¹³C NMR (Fig. S2†) (100 MHz, CDCl₃) δ (ppm) 164.07, 153.68, 153.06, 149.47, 148.82, 133.97, 133.40, 130.88, 130.09, 128.32, 124.45, 123.64, 123.40, 107.52, 104.23, 97.01, 73.37, 44.18, 12.47. HRMS (ESI) (Fig. S3†): calcd for C₃₆H₃₅N₄O₄ [M + H⁺]⁺: 587.2658; found: 587.2652.

Scheme 1 Schematic illustration of the synthesis of an RhB-based fluorescence probe L.

Results and discussion

The equilibrium between the non-fluorescent spirolactam form and the fluorescent ring-open amide form of rhodamine derivatives has been proven to be an efficient platform for the construction of fluorescent sensors for numerous heavy metal cations (such as Hg²⁺, Pb²⁺ and Cu²⁺) due to its large absorption coefficient and high fluorescence quantum yield.^33–35 In the current work, this typical ion-recognition mechanism was utilized for the successive detection of trivalent ions and then phosphate ions via fluorescence OFF–ON–OFF switching.

Fluorescence OFF–ON sensing for Fe³⁺, Al³⁺ and Cr³⁺

The detection selectivity of probe L (10 μM) toward Fe³⁺ ions was investigated by monitoring the fluorescence changes upon the addition of 8 equiv. chloride salts of a wide range of cations in CH₃CN–Tris-buffer (1/1, v/v, pH 7.0) media, including Na⁺, K⁺, Mg²⁺, Cu²⁺, Hg²⁺, Cd²⁺, Fe²⁺, Pb²⁺, Zn²⁺, Mn²⁺, Ca²⁺, Fe³⁺, Al³⁺ and Cr³⁺. The fluorescence emission spectra of L were measured in 1.0 cm quartz cells, and the excitation and emission slits were set to 2.0 and 2.0 nm, respectively. As shown in Fig. 1, the sensor itself was almost non-fluorescent due to its ring-closed spirolactam structure. After the addition of Fe³⁺, probe L exhibited a color change from colorless to pink as well as a bright red fluorescence. A strong emission band centered at 586 nm was observed with an extreme fluorescence enhancement compared to the metal-free L. This result indicated that the probe L exhibited a high selectivity toward Fe³⁺ over the monovalent and divalent cations in CH₃CN–Tris-buffer (1/1, v/v, pH 7.0) media.

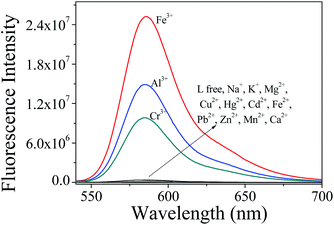

Fig. 1 Fluorescence spectra of L (10 μM) in the presence of various metal ions (80 μM each) in CH₃CN–Tris-buffer (1/1, v/v, pH 7.0), λ_ex = 520 nm.

To further explore the selectivity of the sensor, competitive ions were first added to the detection solution, and then Fe³⁺ ions were added after 20 minutes. As shown in Fig. 2, most of the detection systems exhibited minimum interference in the detection of Fe³⁺; Al³⁺ and Cr³⁺ (80 μM each) also did not induce any obvious interference in the fluorescence sensing of Fe³⁺, indicating that L has a relatively higher binding affinity to Fe³⁺ than Al³⁺ and Cr³⁺. In addition, the association constants were 6.13 × 10⁴ for L–Fe³⁺, 3.14 × 10⁴ for L–Al³⁺ and 2.26 × 10⁴ for L–Cr³⁺, according to the reported work,^44,45 respectively. A similar study was carried out with Al³⁺ and Cr³⁺, and there were no obvious interferences in the presence of Na⁺, K⁺, Mg²⁺, Cu²⁺, Hg²⁺, Cd²⁺, Fe²⁺, Pb²⁺, Zn²⁺, Mn²⁺ and Ca²⁺.

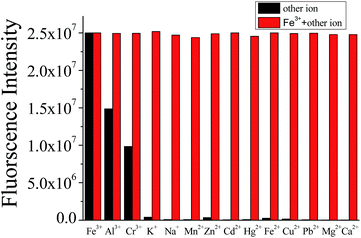

Fig. 2 Change in fluorescence intensity of L (10 μM) in various mixtures of metal ions (the concentration of Fe³⁺ and other metal ions were all 80 μM).

The sensing property of L was investigated in detail utilizing the Fe³⁺ cation. Fig. 3 displays the absorption spectrum changes of L upon Fe³⁺ addition. Sensor L exhibited almost no absorption peak in the visible wavelength due to the spirolactam form of molecule L. However, a new band centered at about 562 nm emerged upon the gradual addition of Fe³⁺, indicating the sensor L–Fe³⁺ complex formation and Fe³⁺-induced spirolactam ring-opening processes. Moreover, the titration solution displayed a characteristic color change of rhodamine derivatives from colorless to pink, indicating that probe L could serve as a “naked-eye” indicator for Fe³⁺ in CH₃CN–Tris-buffer (1/1, v/v) media. With increasing amounts of Fe³⁺, the absorbance increased proportionally and levelled off when the concentration of Fe³⁺ reached 250 μM. When UV-vis titration measurements were carried out with Al³⁺ (Fig. S4†) and Cr³⁺ (Fig. S5†), similar changes were found to those of Fe³⁺, i.e., absorbance increased at first and then levelled off.

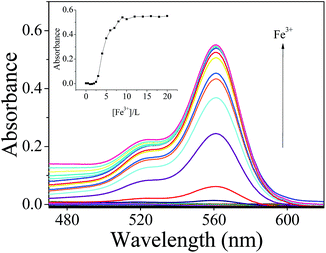

Fig. 3 UV-vis spectra and (inset) absorbance changes (564 nm) recorded for L (25 μM) in CH₃CN–Tris (1/1, v/v) with various amounts of Fe³⁺ ions.

Appropriate pH conditions for the successful operation of the fluorescence sensing were evaluated. Without the addition of the Fe³⁺ ion, the ring opening of the RhB-based sensor L occurred under acidic conditions (pH < 5.0) due to protonation, while no fluorescence change was observed with pH values over 5 (Fig. 4). The gradual addition of Fe³⁺, however, led to an obvious fluorescence enhancement over a wide pH range from 5.0 to 8.0, which was attributed to the similar opening of the spirolactam structure.³⁶ Because the most remarkable Fe³⁺-induced OFF–ON fluorescence changes occurred under the physiological pH window, all the fluorescence measurements were conducted at pH 7.0. Similar phenomenon can also be observed in the fluorescence sensing of Al³⁺ and Cr³⁺, as shown in Fig. S6.†

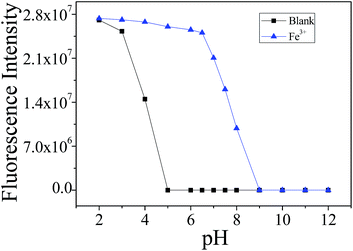

Fig. 4 Fluorescence intensities recorded for L (10 μM, CH₃CN–H₂O 1 : 1, v/v) at various pH values in the (a) absence and (b) presence of 8 equiv. Fe³⁺ (λ_ex = 520 nm, λ_em = 586 nm).

The relative affinities of Fe³⁺ toward sensor L were evaluated from fluorescence spectroscopic titration experiments in CH₃CN–Tris-buffer (1/1, v/v) medium, as shown in Fig. 5. The concentration of L was maintained at 10 μM, while the concentration of Fe³⁺ was varied between 0 and 250 μM. The fluorescence spectra were recorded at an excitation wavelength of 520 nm and emission wavelength of 540–700 nm. For free L, no obvious characteristic emission of rhodamine derivatives was observed. With increasing concentrations of Fe³⁺, the fluorometric titration reaction curve showed a steady and smooth enhancement, which was used as the basis of Fe³⁺-sensing. The recognition interaction was completed immediately after the addition of Fe³⁺, i.e., within 1 min. When the concentration of Fe³⁺ was greater than 200 μM, the fluorescence intensity did not increase any further and a plateau was reached. The inset in Fig. 5 shows the dependence of fluorescence intensity at 586 nm on Fe³⁺ concentration. Plotting fluorescence intensity versus Fe³⁺ concentration (1–4 equiv.) afforded a good linear relationship (R = 0.9844) (Fig. S7†). The detection limit of Fe³⁺ was calculated from the equation DL = (3S_b1 − I)/S instead of DL = 3S_b1/S (ref. 37 and 38) because the intercept is not negligible, where S_b1 is the standard deviation of the blank solution, I is the intercept and S is the slope of the calibration curve. The detection limit of L for Fe³⁺ was 1.10 × 10⁻⁵ M. And the detection limits of L were 3.20 × 10⁻⁷ M (Fig. S8 and S9†) for Al³⁺ and 2.55 × 10⁻⁵ M for Cr³⁺ (Fig S10 and S11†).

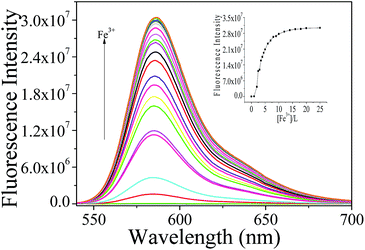

Fig. 5 Fluorescence titrations of L (10 μM) with Fe³⁺ ions in CH₃CN–Tris (1/1, v/v, pH 7.0). Inset: fluorescence emission intensity changes with increasing Fe³⁺ ions (λ_ex = 520 nm, λ_em = 586 nm).

To determine the interaction stoichiometry between sensor L and Fe³⁺, Job's method was employed using an absorbance intensity at 562 nm as a function of molar fraction of L because the total concentration of L and Fe³⁺ ion was located at 50 μM. The maximum absorbance was observed when the molar fraction of L reached 0.50 (Fig. 6), which was indicative of a 1 : 1 stoichiometry complexation between L and Fe³⁺. This result was further confirmed by high-resolution mass spectrum (HR-MS Fig. S12†), in which the peak at m/z 786.0831 (calcd = 786.0811) corresponding to [L + Fe³⁺ + 2H⁺ + 4Cl⁻]⁺ was clearly observed when 5 equiv. of FeCl₃ was added to probe L. Similarly, the stoichiometric ratios were 1 : 1 for Al³⁺ (Fig. S13†) and Cr³⁺ (Fig. S14†). As inferred by FTIR (Fig. S15†), the structure of the L–M³⁺ complex was proposed, as shown in Fig. S16.† When probe L was treated with Fe³⁺, the characteristic amide carbonyl absorption peak at 1631 cm⁻¹ shifted to 1608 cm⁻¹, indicating that the amide carbonyl O of rhodamine B unit was actually involved in the recognition of Fe³⁺, which also agreed with the previously reported work.^46,47

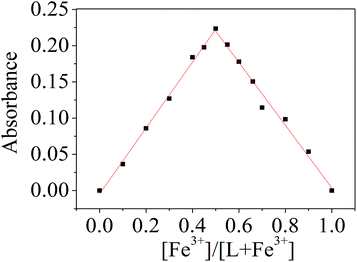

Fig. 6 Job's plot obtained for the determination of binding stoichiometry between L and Fe³⁺ in CH₃CN–Tris (1/1, v/v). The total concentration of L and Fe³⁺ was maintained at 50 μM. Absorbance was measured at 564 nm.

Fluorescence ON–OFF sensing for PO₄³⁻

Interestingly, when the L–Fe³⁺ complex was treated with a sodium salt of PO₄³⁻, the color of the solution changed from pink to colorless, and the emission was completely quenched within 1 min (Fig. 7a), while other anions, such as Cl⁻, Br⁻, I⁻, SO₄²⁻, SO₃²⁻, HPO₄²⁻, H₂PO₄⁻, NO₃⁻, did not show any interference to the detection. This observation suggested that the probe L could not only act as a sensor for Fe³⁺ but also for PO₄³⁻ in a successive manner. Once the Fe³⁺ ion interacted with the sensor L, the spirolactum ring was opened, yielding a high fluorescence emission. However, when treated with the PO₄³⁻ anion, the metal ion was abstracted and the spirolactum ring closed, leading to the absence of fluorescence. The PO₄³⁻ anion-sensing capability of the obtained complex was further investigated in detail with fluorescence titration analysis (Fig. 7b). The titration curve showed an excellent linear decrease, and about 1.0 equiv. of PO₄³⁻ (compared with Fe³⁺) was required to obtain absolute fluorescence quenching. The detection limit was calculated to be 0.20 μM (Fig. S17†) according to the fluorescence titration curve, which reveals a high sensitivity for the analysis of phosphate ion using the L-Fe³⁺ complex. The Al³⁺ complex can also serve as a sensor for PO₄³⁻ via a simple displacement approach because of the strong affinity of PO₄³⁻ to Al³⁺. Moreover, the cascade fluorescence OFF–ON–OFF response can be observed with the alternate addition of Fe³⁺ cation and PO₄³⁻ anion into the detection solution (Fig. S18†), suggesting that the obtained fluorescence probe L can respond to both the cation and anion even when they co-exist in the solution. EDTA was further used to investigate the reversibility of the Fe³⁺ sensing process (Fig. S19†). The results indicate that EDTA could also cause an “ON–OFF” response of the L–Fe³⁺ complex via chelation. After the addition of excess Fe³⁺ to the detection solution, the recovered fluorescence emission can be clearly observed, suggesting that the probe exhibits good detection reversibility.

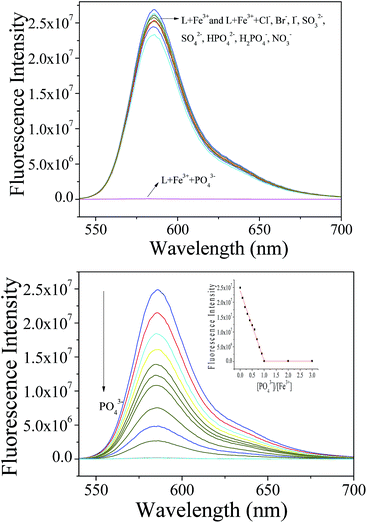

Fig. 7 (a) Fluorescence spectra obtained for L (10 μM) in the presence of Fe³⁺ (80 μM) in CH₃CN–Tris (1/1, v/v) 10 min after the addition of various anions (80 μM each), λ_ex = 520 nm. (b) Fluorescence emission spectra and (inset) variation of fluorescence intensity recorded for L (10 μM) with 8 equiv. Fe³⁺ ions upon gradual addition of PO₄³⁻ (0–30 equiv. for Fe³⁺) in CH₃CN–Tris (1/1, v/v). The spectra were obtained 10 min after PO₄³⁻ addition (λ_ex = 520 nm, λ_em = 586 nm).

Conclusions

In summary, we report the synthesis and characterization of a new probe for the cascade fluorogenic detection of trivalent ions and phosphate ions. The probe L showed excellent “OFF–ON” fluorescence signals with high sensitivity and selectivity in the presence of trivalent ions, whereas it remained silent in the presence of monovalent and divalent cations such as Na⁺, K⁺, Mg²⁺, Cu²⁺, Hg²⁺, Cd²⁺, Fe²⁺, Pb²⁺, Zn²⁺, Mn²⁺, Ca²⁺. A successive “ON–OFF” fluorescence switching was then observed in the presence of PO₄³⁻ in CH₃CN–Tris-buffer (1/1, v/v) media.
