Sporormiellin A, the first tetrahydrofuran-fused furochromone with an unprecedented tetracyclic skeleton from Sporormiella minima

Hui Xiong a, Gao-Keng Xiaoa, Guo-Dong Chen*b, He-Ru Chena, Dan Hua, Xiao-Xia Lia, Shi-Wei Zhongb, Liang-Dong Guoc, Xin-Sheng Yao*a and Hao Gao*a
aInstitute of Traditional Chinese Medicine & Natural Products, College of Pharmacy, Jinan University, Guangzhou 510632, P. R. China. E-mail: tghao@jnu.edu.cn; tyaoxs@jnu.edu.cn; Fax: +86-20-85221559; Tel: +86-20-85221559
bDepartment of Pharmaceutical Engineering, College of Natural Resources and Environment, South China Agricultural University, Guangzhou 510642, P. R. China. E-mail: chgdtong@163.com
cState Key Laboratory of Mycology, Institute of Microbiology, Chinese Academy of Sciences, Beijing 100190, P. R. China

Received 21st March 2014 , Accepted 24th April 2014

First published on 24th April 2014


Abstract

Sporormiellin A (1), the first tetrahydrofuran-fused furochromone with an unprecedented tetracyclic skeleton, has been obtained from the fungal strain Sporormiella minima. The structure with absolute configuration was elucidated by NMR data, X-ray crystallography, and quantum chemical ECD calculations.


2H-Furo[2,3-b]chromen-4(3H)-ones are a subclass of furochromenones with diverse biological activities, such as inhibitory activity on nitric oxide-release,1 anti-α-glucosidase,2 anthelminthic,3 antiplatelet aggregation,4 anti-HIV replication,4 cytotoxic5 and neuroprotective6 activities, and so on. Up to now, around 150 2H-furo[2,3-b]chromen-4(3H)-ones have been reported. Natural 2H-furo[2,3-b]chromen-4(3H)-ones possess a tricyclic skeleton (6/6/5, such as pallidones I and J,7 fukanefurochromones,1 and coniofurol A8) or a benzene-fused tetracyclic skeleton (6/6/5/6, such as aervins A–C,9 ayamenins,10 and euchretins4).

During our ongoing research on bioactive secondary metabolites from fungi,11 a chemical investigation of metabolites from Sporormiella minima (no. 66-3-4-2) isolated from the lichen Nephromopsis pallescens (Schaer.) Y. S. Park was carried out, which led to the isolation of three novel linear pyran–furan fused furochromenones, sporormiellins A–C (1–3), and three biogenetically related compounds, sporormiellones A (4), B (5), and microsphaeropsone A (6) (Scheme 1). Interestingly, sporormiellin A (1) features an unprecedented tetracyclic skeleton core (6/6/5/5) and is the first case of a tetrahydrofuran-fused furochromone. Herein details of the structure elucidation for 1–3 (Fig. 1) are reported. In addition, a plausible biogenetic pathway of 1–3 is proposed.


image file: c4ra02491e-s1.tif

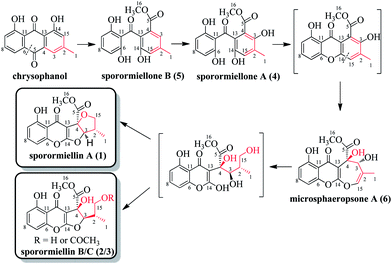

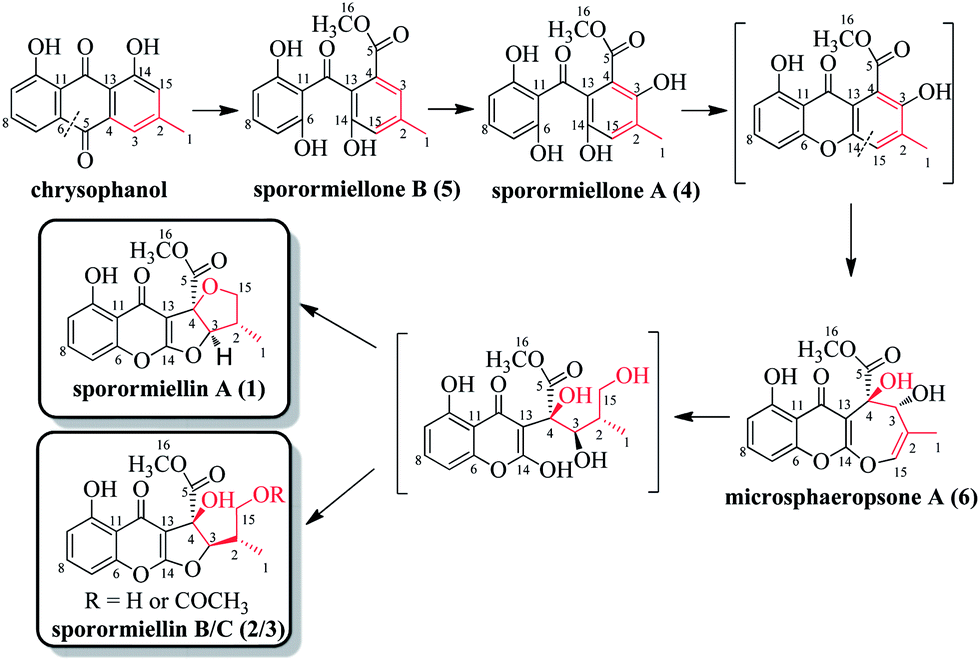

Scheme 1 The plausible biogenetic pathway of 1–3.

image file: c4ra02491e-f1.tif
Fig. 1 The chemical structures of 1–3.

The fermented material (70 g × 20 of rice) of Sporormiella minima (no. 66-3-4-2) was extracted with EtOAc, and the organic solvent was evaporated under vacuum to afford a dry crude extract (30.6 g). The crude extract was then fractionated using silica gel column chromatography (CC) with cyclohexane–MeOH (100[thin space (1/6-em)]:[thin space (1/6-em)]0 and 0[thin space (1/6-em)]:[thin space (1/6-em)]100, v/v) to afford a cyclohexane fraction (C, 17.6 g) and a methanol fraction (W, 12.1 g). The methanol fraction was successively subjected to repeated column chromatography over ODS and reversed-phase HPLC (RPHPLC) to obtain compounds 1–6.

Sporormiellin A (1) was established as C16H14O7 using HRESIMS, with 10 degrees of unsaturation. Analyses of its 1H, 13C and HSQC data (Table 1) revealed one exchangeable proton (δH 12.50), two methyl groups (including one methoxyl), one oxygenated methylene, two sp3 methines (including one oxygenated methine), one sp3 oxygenated quaternary carbon, eight olefinic/aromatic carbons (including three protonated), one ester carbonyl (δC 169.5), and one α,β-conjugated carbonyl (δC 179.5). The 1H-1H COSY experiment revealed two isolated spin-systems (C-1–C-2–C-3/C-15 and C-7–C-8–C-9) as shown in Fig. 2. The HMBC correlations from the exchangeable proton (δH 12.50) to C-9/C-10/C-11, from H-7 (δH 6.87) to C-6/C-9/C-11, from H-8 (δH 7.47) to C-6/C-10, and from H-9 (δH 6.84) to C-7/C-10/C-11 indicated the existence of a 1,2,3-trisubstituted benzene ring in 1. Furthermore, the weak 4JCH HMBC correlations from H-7/H-9 to C-12 suggested the connection of the α,β-conjugated carbonyl (δC 179.5, C-12) to C-11. The methoxyl is connected to C-5 based on the HMBC correlation from H3-16 (δH 3.90) to C-5. Combined with the 1H-1H COSY analysis, the HMBC correlations from H-3 (δH 5.09) to C-1/C-4/C-5/C-15, from H2-15 (δH 3.96, 3.91) to C-1/C-3/C-4, and from H3-1 (δH 1.20) to C-2/C-3/C-15 revealed the existence of a methyl-4-methyltetrahydrofuran-2-carboxylate moiety in 1. By considering the chemical shifts of C-13 (δC 94.6) and C-14 (δC 170.1) (β-oxygenated enone system12) and the unsaturation requirement for 1, the planar structure of 1 was established (Fig. 2), and the assignments of all of the proton and carbon resonances are shown in Table 1.

Table 1 1D and 2D NMR data of 1 in CDCl3 (δ in ppm, J in Hz)
No. δC δH 1H-1H COSY HMBC ROESY
1 15.6 1.20, d (7.3) 2 2, 3, 15 3, 15b
2 39.9 2.64, m 1, 3, 15a,15b
3 97.3 5.09, d (0.9) 2 1, 4, 5, 15 1, 15b
4 89.5
5 169.5
6 153.8
7 106.9 6.87, dd (8.3, 0.6) 8, 9 6, 9, 11, 12
8 134.3 7.47, t (8.3) 7, 9 6, 10
9 113.4 6.84, dd (8.3, 0.6) 8, 7 7, 10, 11, 12
10 161.4
11 109.5
12 179.5
13 94.6
14 170.1
15 73.0 3.96, dd (9.5, 5.0), a 2 1, 3, 4 1, 3
3.91, dd (9.5, 2.8), b 2 1, 3, 4
16 53.5 3.90, s   5
10-OH   12.50, s   9, 10, 11



image file: c4ra02491e-f2.tif

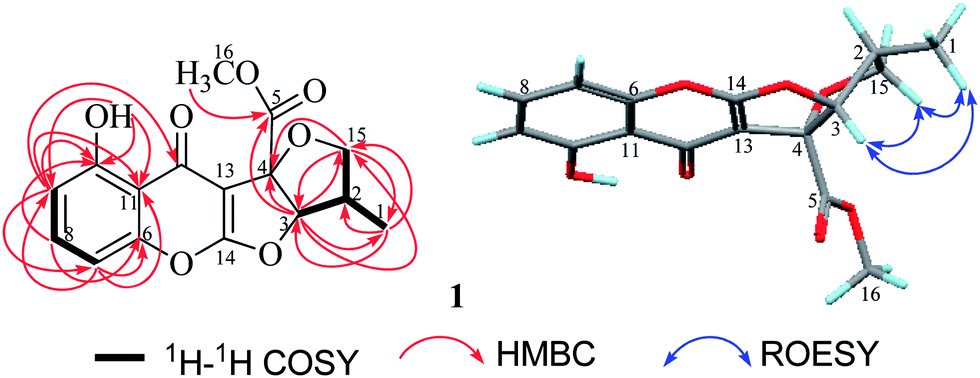

Fig. 2 Key 2D NMR correlations of 1.

In the ROESY experiment, the observed correlations between H3-1 and H-15b, H3-1 and H-3, and H-3 and H-15b showed that H3-1, H-3 and H-15b are on the same face of the tetrahydrofuran ring (Fig. 2). The single-crystal X-ray crystallography of 1 (Fig. 3) confirmed the above deduction, and the absolute configuration of 1 was assigned as 2S,3R,4R. In addition, the conformational analysis of a pair of enantiomers ((2S,3R,4R)-1 and (2R,3S,4S)-1) was carried out using OMEGA version 2.3 via the MMFF94s force field, which provided the five lowest energy conformers which differed in the dihedral angles of C-1–C-2–C-15–H-15a and C-13–C-4–C-5–O (0–5 kcal mol−1). The lowest energy conformers (Fig. 4) were used in the ECD calculations at a [B3P86/6-311++G (2d, p)] level, and the predicted ECD curve of (2S,3R,4R)-1 was similar to the experimental curve (Fig. 5, for details see the ESI), which was consistent with the deduction from the X-ray crystallography analysis.§ Therefore, the absolute configuration of 1 was established as 2S,3R,4R.


image file: c4ra02491e-f3.tif

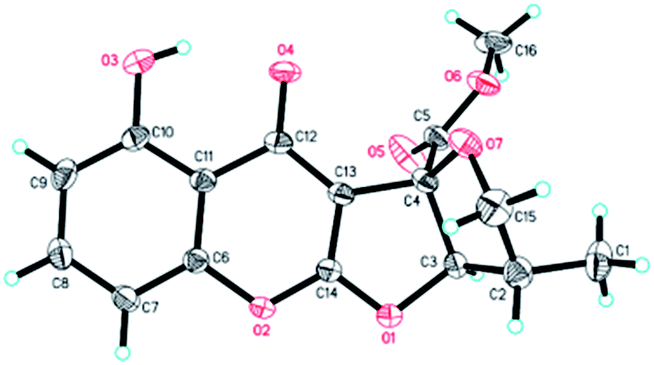

Fig. 3 The X-ray structure of 1.

image file: c4ra02491e-f4.tif

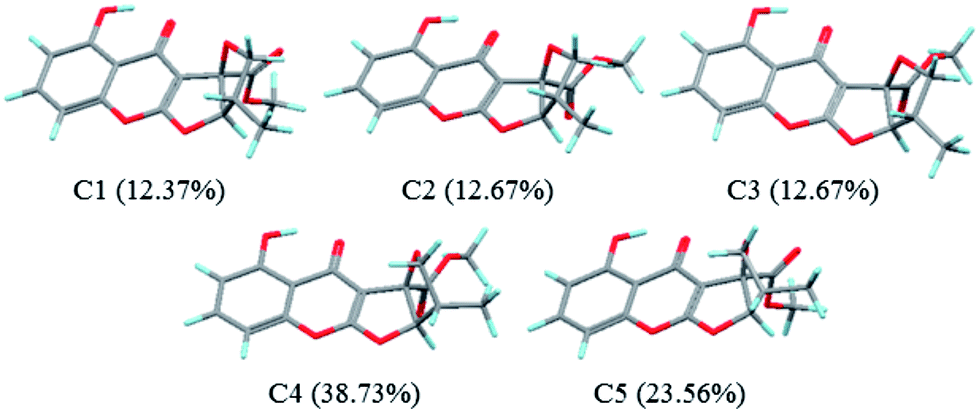

Fig. 4 The most stable conformers of (2S,3R,4R)-1 (the relative populations are in parentheses).

image file: c4ra02491e-f5.tif

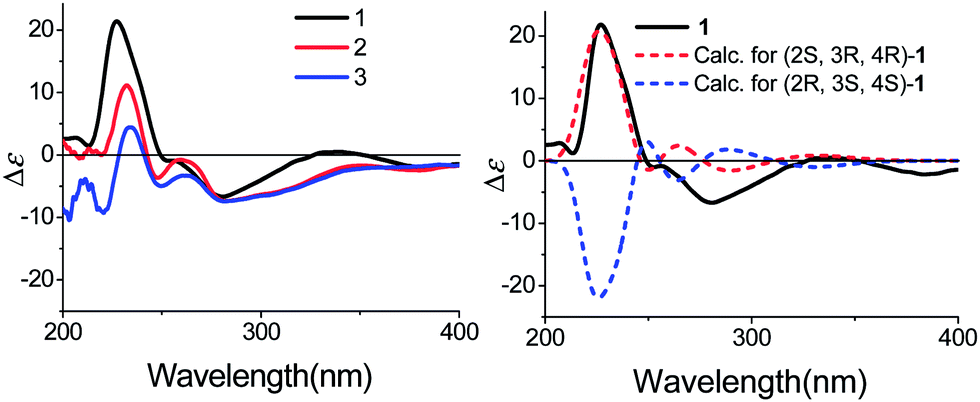

Fig. 5 The experimental ECD spectra of 1–3 and the calculated ECD spectra of (2S,3R,4R)-1 and (2R,3S,4S)-1.

The molecular formula of sporormiellin B (2) (a pale brown oil) was C16H16O8 (9 degrees of unsaturation), established using HRESIMS (m/z 359.0472, [M + Na]+), which was one degree of unsaturation less than 1. In addition, the molecular weight was 18 atomic mass units more than 1, which indicated that one ether ring in 1 should be cleaved by H2O. The comparative analyses of the 1H and 13C NMR data (in CDCl3, Table 2) with those of 1 revealed that 1 and 2 should have a similar furochromenone skeleton and differ in the tetrahydrofuran ring moiety, which was confirmed by the analyses of 1H-1H COSY and HMBC. Furthermore, all of the exchangeable proton signals were detected in DMSO-d6 using NMR spectroscopy (for details see the ESI). Therefore, the deduction was confirmed by the observations of the exchangeable proton signal for 15-OH (δH 4.78) in the 1H NMR spectrum (in DMSO-d6) and the key HMBC correlations (in DMSO-d6) from the exchangeable proton 4-OH (δH 6.30) to C-4/C-5/C-13. Therefore, the planar structure of 2 was established as shown in Fig. 6.

Table 2 NMR data of 2 and 3 in CDCl3 (δ in ppm, J in Hz)
No. 2 3
δC δH δC δH
1 13.4 1.18, d (6.8) 13.4 1.23, d (6.9)
2 34.1 2.61, m 32.1 2.66, m
3 94.4 5.09, d (9.4) 92.4 5.03, d (8.4)
4 78.8   78.5
5 172.6   172.3
6 153.8   153.9
7 107.0 6.87, d (8.3) 107.0 6.88, dd (8.3, 0.6)
8 134.2 7.45, t (8.3) 134.3 7.47, t (8.3)
9 113.2 6.81, d (8.3) 113.3 6.83, dd (8.3, 0.6)
10 161.3   161.4
11 109.5   109.6
12 179.5   179.3
13 98.3   98.3
14 169.8   169.9
15 64.8 3.53, dd (10.2, 7.7), a 65.6 4.16, dd (11.5, 4.5), a
3.78, dd (10.2, 3.5), b 4.07, dd (11.5, 5.6), b
16 54.0 3.90, s 54.3 3.92, s
17     170.5
18     20.7 2.07, s
10-OH   12.46, s   12.38, s



image file: c4ra02491e-f6.tif
Fig. 6 Key HMBC correlations of 2 and 3.

In the selective ge-1D NOESY experiment (in DMSO-d6), an enhancement was observed for H3-16 in the irradiation of H-3, and an enhancement was observed for H-2 in the irradiation of 4-OH, which indicated the cis relationship of H-3 and C-5. Thus, the relative configuration between C-3 and C-4 was the same as that in 1. In the ECD experiment, the ECD curve of 2 was similar to that of 1 (Fig. 5), which indicated that the absolute configurations of C-3 and C-4 in 2 should be same as those in 1.

Furthermore, the derivatization of 2 was carried out. 2 was treated with SOCl2 in CDCl3 for 4 hours at 40 °C, and then the reaction mixture and 1 were compared using HPLC (Fig. 7) (for details see the ESI). The results showed that the peak of the major reaction product prepared from 2 was identical to that of 1 isolated from fungal broth. The derivatization indicated that the configurations of C-2, C-3 and C-4 in 2 were the same as those in 1. Therefore, the absolute configuration of 2 was assigned as 2S,3R,4R.


image file: c4ra02491e-f7.tif

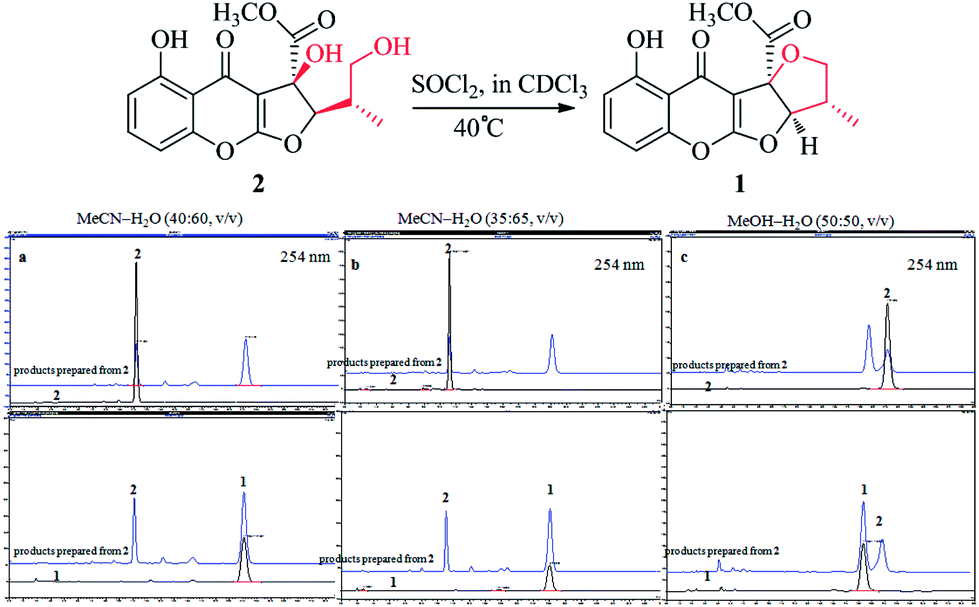

Fig. 7 The products prepared from 2 and 1 were compared using HPLC with three eluting systems ((a) MeCN–H2O (40[thin space (1/6-em)]:[thin space (1/6-em)]60, v/v); (b) MeCN–H2O (35[thin space (1/6-em)]:[thin space (1/6-em)]65, v/v); and (c) MeOH–H2O (50[thin space (1/6-em)]:[thin space (1/6-em)]50, v/v)).

Sporormiellin C (3) was established as C18H18O9 (10 degrees of unsaturation) using HRESIMS (m/z 401.0844 [M + Na]+). The molecular weight of 3 was 42 atomic mass units more than 2, which indicated that 3 may be an acetylated derivative of 2. Except for the signals detected for one ester carbonyl (δC 170.5) and one methyl group (δC 20.7/δH 2.01), the NMR data (in CDCl3) of 3 were similar to the data of 2, which indicated that 3 should also have a furochromenone skeleton. The key HMBC correlations (in DMSO-d6, for details see the ESI) from H2-15 (δH 4.16, 4.07) to the additional ester carbonyl (δC 170.2, C-17) and from the additional methyl protons (δH 2.01, H3-18) to C-17 indicated the existence of an acetyl group and the acetylation at C-15 (Fig. 6).

In the selective ge-1D NOESY experiment (in DMSO-d6), an enhancement was observed for H3-16 in the irradiation of H-3, which indicated the cis relationship of H-3 and C-5. In the ECD experiment, the ECD curve of 3 was similar to that of 2 (Fig. 5), which suggested that the absolute configurations of C-3 and C-4 in 3 should be the same as those in 2.

Since 2 and 3 coexist in Sporormiella minima (no. 66-3-4-2), the configurations of C-2, C-3 and C-4 in 3 should be the same as those in 2. To confirm the deduction, the derivatization of 3 was carried out. The products prepared from 3 and 2 were compared using HPLC (Fig. 8, for details see the ESI). The results showed that the peak of the major product prepared from 3 was identical to that of 2 isolated from fungal broth. Therefore, the absolute configuration of 3 was assigned as 2S,3R,4R, which was the same as that of 2.


image file: c4ra02491e-f8.tif

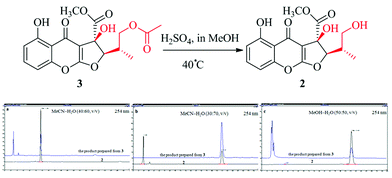

Fig. 8 The products prepared from 3 and 2 were compared using HPLC with three eluting systems ((a) MeCN–H2O (40[thin space (1/6-em)]:[thin space (1/6-em)]60, v/v); (b) MeCN–H2O (30[thin space (1/6-em)]:[thin space (1/6-em)]70, v/v); and (c) MeOH–H2O (50[thin space (1/6-em)]:[thin space (1/6-em)]50, v/v)).

In addition, three biogenetically related compounds, sporormiellones A (4), B (5), and microsphaeropsone A (6)13 were also obtained from the fermented material of Sporormiella minima (no. 66-3-4-2) (Scheme 1). Among them, sporormiellone A (4) is a new benzophenone, whose structure was established using the analysis of 1D and 2D NMR spectra (for details see the ESI). The NMR data of 5 (a known benzophenone) was firstly reported (for details see the ESI), and 5 was named as sporormiellone B.

In summary, sporormiellin A (1) is a new member of the furochromenone class of metabolites, possessing an unprecedented tetrahydrofuran-fused tetracyclic skeleton core (6/6/5/5). On the basis of previous biosynthetic studies of the xanthones from fungi8,13 and the structures of obtained compounds (1–6) reported by us, sporormiellins A–C (1–3) could originate from chrysophanol by oxidative cleavage, ring-expansion, and dehydration/cyclization steps as shown in the hypothetical biosynthetic pathway (Scheme 1).

This work was financially supported by grants from the Ministry of Science and Technology of China (2012ZX09301002003), the National Natural Science Foundation of China (81373306, 81202441), the Guangdong Natural Science Funds for Distinguished Young Scholar (S2013050014287), the program for New Century Excellent Talents in University (NCET-10-0120) from the Ministry of Education of China, and the high-performance computing platform of Jinan University.

Notes and references

  1. T. Motai and S. Kitanaka, J. Nat. Prod., 2005, 68, 1732–1735 CrossRef CAS PubMed.
  2. M. I. Choudhary, I. Baig, M. Nur-e-Alam, S. Shahzad-ul-Hussan, P. Öndognii, M. Bunderya, Z. Oyun and A. Rahman, Helv. Chim. Acta, 2011, 54, 2409–2416 Search PubMed.
  3. W. Xiang, R. T. Li, Y. L. Mao, H. J. Zhang, S. H. Li, Q. S. Song and H. D. Sun, J. Agric. Food Chem., 2005, 53, 267–271 CrossRef CAS PubMed.
  4. W. L. Lo, C. C. Wu, F. R. Chang, W. Y. Wang, A. T. Khalil, K. H. Lee and Y. C. Wu, Nat. Prod. Res., 2003, 17, 91–97 CrossRef CAS PubMed.
  5. X. Z. Wu, Z. J. Song, H. H. Xu, H. Zhang, W. Q. Chen and H. Y. Liu, Fitoterapia, 2012, 83, 732–736 CrossRef CAS PubMed.
  6. Y. J. Shiao, C. N. Wang, W. Y. Wang and Y. L. Lin, Planta Med., 2005, 71, 835–840 CrossRef CAS PubMed.
  7. B. N. Su, Y. Takaishi, G. Honda, M. Itoh, Y. Takeda, O. K. Kodzhimatov and O. Ashurmetov, J. Nat. Prod., 2000, 63, 520–522 CrossRef CAS PubMed.
  8. Y. C. Wang, Z. H. Zheng, S. C. Liu, H. Zhang, E. W. Li, L. D. Guo and Y. S. Che, J. Nat. Prod., 2010, 73, 920–924 CrossRef CAS PubMed.
  9. M. Imran, M. Ibrahim, N. Riaz and A. Malik, Magn. Reson. Chem., 2009, 47, 532–536 CrossRef CAS PubMed.
  10. F. Hanawa, S. Tahara and J. Mizutani, Phytochemistry, 1991, 30, 157–163 CrossRef CAS.
  11. (a) G. D. Chen, Y. J. Li, H. Gao, Y. Chen, X. X. Li, J. Li, L. D. Guo, Y. Z. Cen and X. S. Yao, Planta Med., 2012, 78, 1683–1689 CrossRef CAS PubMed; (b) J. W. He, G. D. Chen, H. Gao, F. Yang, X. X. Li, T. Peng, L. D. Guo and X. S. Yao, Fitoterapia, 2012, 83, 1087–1091 CrossRef CAS PubMed; (c) F. Yang, G. D. Chen, H. Gao, X. X. Li, Y. Wu, L. D. Guo, X. S. Yao and J. Asian, Nat. Prod. Res., 2012, 14, 1059–1063 CAS; (d) G. D. Chen, Y. Chen, H. Gao, L. Q. Shen, Y. Wu, X. X. Li, Y. Li, L. D. Guo, Y. Z. Cen and X. S. Yao, J. Nat. Prod., 2013, 76, 702–709 CrossRef CAS PubMed; (e) Q. C. Zheng, G. D. Chen, M. Z. Kong, J. Y. Cui, X. X. Li, Z. Y. Wu, L. D. Guo, Y. Z. Cen, Y. Z. Zheng and H. Gao, Steroids, 2013, 78, 896–901 CrossRef CAS PubMed; (f) F. Ye, G. D. Chen, J. W. He, X. X. Li, X. Sun, L. D. Guo, Y. Li and H. Gao, Tetrahedron Lett., 2013, 54, 4551–4554 CrossRef CAS PubMed; (g) C. C. Feng, G. D. Chen, X. X. Li, J. S. Tang, X. Z. Liu, Y. Li, X. S. Yao, H. Gao and J. Asian, Nat. Prod. Res., 2013, 15, 921–927 CAS; (h) G. D. Chen, Y. R. Bao, Y. F. Huang, D. Hu, X. X. Li, L. D. Guo, J. Li, X. S. Yao and H. Gao, Fitoterapia, 2014, 92, 252–259 CrossRef CAS PubMed; (i) Q. C. Zheng, M. Z. Kong, Q. Zhao, G. D. Chen, H. Y. Tian, X. X. Li, L. D. Guo, Y. Z. Zheng and H. Gao, Fitoterapia, 2014, 93, 126–131 CrossRef CAS PubMed.
  12. S. B. Tim, S. B. Valerie, G. Michael, E. J. Jeffrey, M. M. William, L. M. Charles and M. I. Chris, J. Org. Chem., 2003, 68, 2014–2017 CrossRef PubMed.
  13. K. Krohn, S. F. Kouam, G. M. Kuigoua, H. Hussain, S. Cludius-Brandt, U. Flörke, T. Kurtán, G. Pescitelli, L. D. Bari, S. Draeger and B. Schulz, Chem.–Eur. J., 2009, 15, 12121–12132 CrossRef CAS PubMed.

Footnotes

Electronic supplementary information (ESI) available: The general experimental procedure, fungus material, extraction and isolation, spectroscopic data of compounds 1–5, single-crystal X-ray data of 1, quantum chemical ECD calculations of 1, derivatizations of 2 and 3, and NMR spectra of compounds 1–5. CCDC 990532. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4ra02491e
These authors have contributed equally to this work.
§ Crystal data for sporormiellin A (1): data were collected using a Sapphire CCD with graphite monochromated Cu Kα radiation, λ = 1.54178 Å at 173.0 (3) K. Crystal data: C16H14O7, M = 318.27, orthorhombic, space group P212121; unit cell dimensions were determined to be a = 7.2831(2) Å, b = 12.4744(3) Å, c = 16.0184(4) Å, α = 90.00°, β = 90.00°, γ = 90.00°, V = 1455.31(6) Å3, Z = 4, Dx = 1.453 g cm−3, F (000) = 664, μ (Cu Kα) = 0.983 mm−1. 11[thin space (1/6-em)]414 reflections were collected until θmax = 62.70°, in which independent unique 2189 reflections were observed [F2 > 4σ (F2)]. The final refinement gave R = 0.0363, RW = 0.0991, S = 1.064, and Flack = −0.1(2). Crystal data of 1 were deposited in the Cambridge Crystallographic Data Centre (CCDC 990532).
