Design and synthesis of non-crystallizable, low-Tg polysiloxane elastomers with functional epoxy groups through anionic copolymerization and subsequent epoxidation

Yang Mengab, Junfeng Chuab, Jiajia Xueab, Chaohao Liuab, Zhen Wangc and Liqun Zhang*ab
aState Key Laboratory of Organic–Inorganic Composites, Beijing University of Chemical Technology, 100029, P. R. China. E-mail: zhanglq@mail.buct.edu.cn; Tel: +86 10 64423312
bKey Laboratory of Beijing City for Preparation and Processing of Novel Polymer Materials, Beijing University of Chemical Technology, 100029, P. R. China. E-mail: zhanglq@mail.buct.edu.cn; Tel: +86 10 64423312
cAVIC Beijing Institute of Aeronautical Materials, 100095, P. R. China. E-mail: jenny.wzh@163.com

Received 16th March 2014 , Accepted 2nd July 2014

First published on 2nd July 2014


Abstract

Although polysiloxane elastomers have many merits, their fast crystallization at low temperature is problematic in some fields. In this study, a novel non-crystallizable, low-Tg epoxidized polysiloxane (ESR) with functional epoxy groups in side chains was designed and synthesized though two steps: (i) the preparation of poly(methylvinylsiloxane) (SR) by anionic ring-opening copolymerization of 2,4,6,8-tetramethyl-2,4,6,8-tetravinyl cyclotetrasiloxane and octamethylcyclotetrasiloxane, and (ii) the subsequent epoxidation of the SR. Reaction kinetic studies demonstrated that the epoxidation of SR was a second-order reaction and more than 90% of the double bonds were converted into epoxy groups during the epoxidation. Despite a slight increase in the Tg of ESRs as the content of epoxy groups increased, the low-temperature performances of ESRs were greatly improved because of the inhibition of the crystallization of polysiloxane chains. Surprisingly, the ESRs also showed higher thermal degradation temperatures than the traditional poly(dimethylsiloxane) did. The excellent low-temperature performance and high degradation temperatures endowed the ESR with great potential as an elastic material in the aerospace industry where materials have to undergo very high and low temperature.


1 Introduction

Polysiloxane elastomers (silicone rubbers) are among inorganic and semi-inorganic polymers having an alternating silicon–oxygen backbone chain with organic side chains.1–3 Polysiloxane elastomers show many excellent properties, such as high flexibility, high thermal stability, optical transparency, biocompatibility, and high gas permeability. Due to these merits, polysiloxane elastomers attract considerable interest, from both industry and academia, and play important roles in the aerospace industry, automobile industry, electronic industry, and biological applications.4–9

Despite having many excellent properties, polysiloxane elastomers show some weaknesses, which affect their practical use in some fields. One major drawback of polysiloxane elastomers is their fast crystallization at low temperature. Although polysiloxane elastomers have very low glass transition temperature (Tg), most of them will become stiff and cannot be used as elastic materials at temperatures far higher than their Tg.10–12 For instance, poly(dimethylsiloxane) (PDMS), the most extensively studied polysiloxane by far, shows its Tg at about −125 °C but its melting point is as high as about −40 °C.13 Because of the crystallization, polysiloxane elastomers cannot make full use of the advantage of their very low Tg and their applications, especially the aerospace where the materials have to undergo very low temperature, are seriously limited. In addition to the crystallization, the low mechanical properties, weak oil resistance, and poor hydrophobicity are also problematic for most of polysiloxane elastomers.14–20 In addition, some properties of polysiloxane elastomers, such as thermal stability, still need to be improved to meet the applied requirements. Therefore, designing new polysiloxane elastomers with high performances is of great importance.

Chemical modification is a useful method to alter and optimize the properties of polymers. Of all the well-known chemical modifications of polymers, epoxidation is one of the most promising and advantageous methods due to its relatively mild reaction conditions and significant improvement in the properties of the polymers.21–24 Epoxidation of polymers is typically performed with organic peracids (such as m-chloroperbenzoic acid and magnesium monoperoxyphthalate) or a combination of a transition metal catalyst and a co-oxidant (such as H2O2 and t-BuOOH).25,26 Theoretically, all polymers containing unsaturated carbon bonds can be epoxidized under appropriate reaction conditions. The introduction of polar, functional epoxy groups into polymer chains can improve the properties of the final polymer, such as oil resistance, damping property, and gas barrier property.27–30 Owing to the formation of hydrogen bonds or covalent bonds between epoxy groups and inorganic fillers (e.g., silica), the presence of epoxy groups can enhance the interaction between polymers and inorganic fillers, leading to a good dispersion of fillers and improved mechanical properties of polymer composites.31,32 Epoxidation of bacterial polyesters carried out by Park et al.33 showed that epoxidation can also affect the thermal properties, such as raising the glass transition temperature, decreasing the melting temperature, and inhibiting crystallization. Moreover, the epoxy groups can react with other groups, such as amino and carboxyl, and endow polymers with great potential for further chemical modification.34,35

Based on the merits of epoxidized polymers, the introduction of epoxy groups into polysiloxane elastomer chains would be meaningful because the epoxy groups would inhibit the crystallization of polysiloxane elastomers and endow the polysiloxane elastomers with reactive groups for further chemical modification. The polar and reactive epoxy groups would be also beneficial for improving the compatibility of polysiloxane with other polar polymers and enhancing the interaction between polysiloxane and fillers. A few studies on the synthesis of silicone–epoxy resins or silicone–epoxy monomers have been reported.36–39 In these studies, the epoxy groups were mainly introduced into silicones by the hydrosilylation at the presence of catalyst, e.g. platinum. The silicones should have Si–H in side or end of the silicone chains, and the molecular weights of the silicones were usually low, resulting in a low molecular weight of the silicone–epoxy products. Yang et al.40 reported a method of synthesizing silicone–epoxy polymer by the condensation of silicone–epoxy monomer and dimethyldiethoxysilane, but the molecular weight of the product was still very low. Eckberg et al.41 prepared a silicone–epoxy polymer by epoxidation of the silicone containing C[double bond, length as m-dash]C groups; however, the silicone containing C[double bond, length as m-dash]C groups still needed to be prepared first by the hydrosilylation. In addition, the above reported silicone–epoxy monomers or linear silicone–epoxy polymers are often used for reins or coatings. The use of silicone–epoxy polymers as elastomers, to our knowledge, has not been reported.

In this study, we bring out a strategy to synthesize epoxidized polysiloxane (ESRs) elastomers, in which we firstly synthesized poly(methylvinylsiloxane) (SRs) via common anionic ring-opening polymerization based on 2,4,6,8-tetramethyl-2,4,6,8-tetravinyl cyclotetrasiloxane and octamethylcyclotetrasiloxane, and then conducted an epoxidization reaction. The peracid, m-chloroperbenzoic acid (MCPBA), was used to synthesize ESR because MCPBA has proved to be very effective for the epoxidation of unsaturated polymers.42–44 Chloroform, because of its solubility in both SR and MCPBA, was selected as the reaction medium for the epoxidation. A series of non-crystallizable, low-Tg epoxidized polysiloxane (ESRs) with high molecular weights were successfully prepared. These ESRs have excellent low-temperature performance and high thermal degradation temperatures.

2 Experimental

2.1 Materials and chemicals

Octamethylcyclotetrasiloxane (D4, C8H24O4Si4, purity ≥ 98%) was purchased from Shanghai Jiubang Chemical Co., Ltd., China. Decamethyltetrasiloxane (C10H30O3Si4, purity ≥ 97%), 2,4,6,8-tetramethyl-2,4,6,8-tetravinylcyclotetrasiloxane (V4, C12H24O4Si4, purity ≥ 97%) and tetramethylammonium hydroxide (TMAOH, C4H13NO, 25% aq. soln.) were purchased from J&K Scientific, Ltd., China. 3-Chloroperbenzoic acid (MCPBA, C7H5ClO3, 75%) was purchased from Aladdin Reagent Co., Ltd., China. D4 and V4 were purified by distillation for two times and other chemicals were used as received without further purification. Polydimethylsiloxane (PDMS) with the vinyl content of 0.15 mol% was purchased from Chenguang Chemical Research Institute, China.

2.2 Synthesis of tetramethylammonium silanolate

To improve the compatibility of the initiator (TMAOH) with the monomers (D4 and V4), tetramethylammonium silanolate containing 1.0 wt% TMAOH was synthesized as initiator from D4 and TMAOH. Into a 100 mL three-neck glass flask equipped with a condenser, a thermometer, and a nitrogen sparging device, 30.0 g of D4 and 1.2 g of TMAOH solution were added. The system was then heated to 50 °C, vacuumized to 0.1 kPa, and dehydrated by nitrogen sparging for 1 h. Then the system was heated to 80 °C to start the reaction and vacuumized to 20.0 kPa to remove the generated H2O. The reaction was terminated after 1 h and the system was then vacuumized to 0.1 kPa until the product became transparent. The chemical equation is shown in Scheme 1 (step 1).
image file: c4ra02293a-s1.tif
Scheme 1 The synthesis route of ESR.

2.3 Synthesis of poly(methylvinylsiloxane)

Into a 100 mL three-neck glass flask equipped with a condenser, a thermometer, and a mechanical agitator, D4, V4, and decamethyltetrasiloxane in given molar ratios (0.95[thin space (1/6-em)]:[thin space (1/6-em)]0.05[thin space (1/6-em)]:[thin space (1/6-em)]0.0006, 0.90[thin space (1/6-em)]:[thin space (1/6-em)]0.10[thin space (1/6-em)]:[thin space (1/6-em)]0.0006, 0.85[thin space (1/6-em)]:[thin space (1/6-em)]0.15[thin space (1/6-em)]:[thin space (1/6-em)]0.0006, and 0.80[thin space (1/6-em)]:[thin space (1/6-em)]0.20[thin space (1/6-em)]:[thin space (1/6-em)]0.0006) were added. After the mixture was heated to 50 °C and vacuumized to 0.1 kPa for 1 h, the tetramethylammonium silanolate (1.0 wt% of the mixture) was added. The system was then purged with high purity nitrogen, stirred at 250 rpm, and heated to 110 °C to start the reaction. After 1.5 h, the reaction was terminated by heating the system to 180 °C, at which the tetramethylammonium silanolate was “decatalyzed” to trimethylamine.45 Then the system was vacuumized to 0.1 kPa to remove the cyclic oligomers and the generated trimethylamine. After 2 hours, a transparent poly(methylvinylsiloxane) (SR) was obtained (see Fig. S1). The products with the molar ratios of D4 to V4 of 0.95[thin space (1/6-em)]:[thin space (1/6-em)]0.05, 0.90[thin space (1/6-em)]:[thin space (1/6-em)]0.10, 0.85[thin space (1/6-em)]:[thin space (1/6-em)]0.15, and 0.80[thin space (1/6-em)]:[thin space (1/6-em)]0.20 were named SR-5, SR-10, SR-15, and SR-20, respectively. For all SRs, the molecular weight was determined by GPC and the practical content of vinyl groups was measured by the bromine-iodometric technique according to GB/T 1676-1981. The chemical equation of the polymerization is shown in Scheme 1 (step 2).

2.4 Epoxidation of poly(methylvinylsiloxane)

A 1.3 equiv. sample (based on the vinyl groups in poly(methylvinylsiloxane)) of MCPBA was added into a 1000 mL round-bottom flask containing 18 g of poly(methylvinylsiloxane) dissolved in 600 mL of chloroform. The reaction was allowed to proceed under constant, gentle stirring at 25 °C for 96 h, and then the solution was slowly poured into 2.4 L of cooled methanol. The precipitated polymer was washed with methanol twice and dried in a vacuum oven at 50 °C for 24 h. Then a transparent epoxidized polysiloxane (ESR) with random structure was obtained (see Fig. S1). The products from the epoxidation of SR-5, SR-10, SR-15, and SR-20 samples were named ESR-5, ESR-10, ESR-15, and ESR-20, respectively. The chemical equation of epoxidation is shown in Scheme 1 (step 3).

2.5 Preparation of crosslinked silica/PDMS composites and silica/ESR composites

The PDMS (or ESR) and additives were mixed by a 6 in. two-roll mill according to the formulation given in Table 1. The compound was cured in a XLB-D 350 × 350 hot press (Huzhou Eastmachinery Co., China) under 15 MPa at 160 °C for its optimum cure time t90, which corresponds to the time when the degree of the crosslinking reaches to 90% (see Fig. S2). The optimum curing time was determined by a disk oscillating rheometer (P3555B2, Beijing Huanfeng Chemical Machinery Experimental Factory, China). During the curing, the peroxide DBPMH was decomposed to form radicals at high temperature. These generated radicals can reacted with the residual –CH[double bond, length as m-dash]CH2 or the –CH3 of the polysiloxane chains to form polysiloxane radicals. The polysiloxane radicals then react with each other to form crosslinks.46
Table 1 The formulation for crosslinked silica/PDMS composites and silica/ESR composites
Ingredients Amountb (phr)
a 2,5-Bis(tert-butylperoxy)-2,5-dimethylhexane (93%).b phr stands for parts per 100 parts of silicone rubber by weight.
PDMS (or ESR) 100
Silica (Degussa A200) 40
Hydroxyl silicone oil 2
DBPMHa 0.1


2.6 Measurements and characterization

2.6.1 Nuclear magnetic resonance (NMR) spectroscopic analysis. 1H NMR spectra and 1C NMR spectra were recorded at a frequency of 400 MHz with CDCl3 as solvent by using a Bruker AV400 NMR spectrometer (Bruker, Germany).
2.6.2 Fourier transform infrared spectroscopy (FTIR) analysis. The FTIR spectra of D4, V4, SR, and ESR were recorded with a resolution of 4 cm−1 and the signal averaged over 32 scans on a Fourier transform infrared spectrometer (Tensor 27, Bruker Optik Gmbh Co., Gemany).
2.6.3 Gel permeation chromatography (GPC). The molecular weights of SR and ESR were determined by GPC measurements on a Waters Breeze instrument equipped with three water columns (Styragel HT3_HT5_HT6E) using tetrahydrofuran as the eluent (1 mL min−1) and a Waters 2410 refractive index detector.
2.6.4 Differential scanning calorimetry (DSC). DSC measurements of SR and ESR were carried out on a Mettler-Toledo differential scanning calorimeter. A polystyrene standard was used for calibration. The samples were accurately weighed and sealed in aluminum crucibles. The samples were cooled to −145 °C at a cooling rate of 10 °C min−1, maintained at −145 °C for 10 min, and then heated to 30 °C at a heating rate of 10 °C min−1.
2.6.5 Thermogravimetric analysis (TGA). Thermogravimetric (TGA) measurements were carried out on a STARe system TGA/DSC1 thermogravimeter (Mettler-Toledo International Inc., Switzerland) with a cooling water circulator. The testing was done under a flowing nitrogen atmosphere (20 mL min−1). All the samples used in the TGA measurements were similar in weight (10 ± 1 mg) and heated from 30 to 800 °C at a heating rate of 10 °C min−1.
2.6.6 Dynamic mechanical properties. Dynamic mechanical properties of ESR composites were measured by a dynamic mechanical analyzer (DMAVA3000, 01 dB Co., Ltd., France). The specimens were 15 mm long, 15 mm wide, and about 1 mm thick. Tension mode was used for DMA test. The temperature dependence of the loss factor tan[thin space (1/6-em)]δ and storage modulus were measured in the range −135 to 30 °C at a frequency of 10 Hz and a heating rate of 3 °C min−1.
2.6.7 Measurement of epoxy value (EV). The epoxy value of ESR (molar content of epoxy groups per 100 g of ESR) was measured by the HCl-THF method. About 0.5 g of ESR was dissolved in 20 mL of THF, and then 10 mL of HCl/THF solution (0.25 mol L−1 of H+) was added into the ESR solution. After 30 min, 5 drops of phenolphthalein indicator were added, and the excess HCl was titrated by NaOH (0.10 mol L−1). The epoxy value (EV, mol 100 g−1) of ESR was calculated by eqn (1):

image file: c4ra02293a-t1.tif(1)
where C is the concentration of NaOH standard solution (mol L−1), V0 is the blank consumption of NaOH standard solution (L), V are the sample consumption of NaOH standard solution (L), and W is the weight of the sample used (g).
2.6.8 Cold-resistance of ESR. The cold-resistance of ESR was determined by cold-resistance-factor tester (RH-7040, Renheng Machinery Plant, Yangzhou, China) according to Chinese standard GB/T 3866-2008. A cylindrical sample (Φ10 mm × 10 mm) of silica/ESR composite was compressed 20% at room temperature and then put into ethanol, which was cooled by dry ice to a setting temperature (−50 °C, −60 °C, and −70 °C). After the sample had been immersed in ethanol for 5 min, the compressive load was removed and the height of the cylindrical sample was measured after 3 min. The cold resistance factor under compression (Kc) was calculated by eqn (2):

image file: c4ra02293a-t2.tif(2)
where h0, h1, and h2 are the height of the sample before compression, the height of the sample after compression, and the height of the sample 3 min after the compressive load is removed, respectively.

3 Results and discussion

3.1 Synthesis and structure of poly(methylvinylsiloxane) (SR)

Poly(methylvinylsiloxane) with different contents of vinyl groups as precursors of ESRs were synthesized by the anionic ring-opening polymerization of D4 and V4 initiated by tetramethylammonium silanolate. Fig. 1 shows the 1H NMR spectrum and 13C NMR spectrum of SR-20. 1H NMR (CDCl3, 400 MHz) δ ppm: 5.90–6.05, 5.74–5.84 (–CH[double bond, length as m-dash]CH2); 0.12–0.16, 0.05–0.09 (–CH3). 13C NMR (CDCl3, 400 MHz) δ ppm: −0.08–0.08 (Si–CH3); 135.8–136.1 (CH2[double bond, length as m-dash]); 131.6–132.0 (–CH[double bond, length as m-dash]).
image file: c4ra02293a-f1.tif
Fig. 1 NMR spectra of poly(methylvinylsiloxane) (SR-20): (a) 1H NMR spectrum and (b) 13C NMR spectrum.

Table 2 shows the number-average molecular weights (Mn), weight-average molecular weights (Mw), and molecular weight distributions of SRs with different molar ratios of V4 to D4. The number-average molecular weights are in the range 200[thin space (1/6-em)]000–300[thin space (1/6-em)]000, which is similar to those of commercially available PDMS. Although anionic ring-opening polymerization method was adopted to synthesize SRs, the molecular weight distributions of SRs are a little broad. As the molar ratio of V4 to D4 increases, the molecular weight distributions of SRs increase from 1.67 to 2.46. The broad molecular weight distributions of SRs could be ascribed to the rearrangement reaction and chain transfer reaction during the polymerization, as shown in Scheme 2.47 In the process of chain growth, the active center can bite back to form different cyclic oligomers (Scheme 2(a)) or attack the other polysiloxane chains to form new active center (Scheme 2(b)), leading to randomization of polysiloxane chains and broad molecular weight distributions.

Table 2 Molecular weights and vinyl contents of various SR samples
Samples D4[thin space (1/6-em)]:[thin space (1/6-em)]V4 (mol/mol) Mn Mw Mw/Mn Vinyl content (mol%)
PDMS 278[thin space (1/6-em)]000 501[thin space (1/6-em)]000 1.80 0.15
SR-5 95[thin space (1/6-em)]:[thin space (1/6-em)]5 269[thin space (1/6-em)]000 449[thin space (1/6-em)]000 1.67 5.4
SR-10 90[thin space (1/6-em)]:[thin space (1/6-em)]10 242[thin space (1/6-em)]000 443[thin space (1/6-em)]000 1.83 10.2
SR-15 85[thin space (1/6-em)]:[thin space (1/6-em)]15 221[thin space (1/6-em)]000 514[thin space (1/6-em)]000 2.46 15.6
SR-20 80[thin space (1/6-em)]:[thin space (1/6-em)]20 228[thin space (1/6-em)]000 533[thin space (1/6-em)]000 2.34 20.1



image file: c4ra02293a-s2.tif
Scheme 2 The (a) rearrangement reaction and (b) chain transfer reaction during the synthesis of SRs.

Additionally, we measured the vinyl content of SR by the bromine-iodometric technique, considering that the practical vinyl content would be different from the theoretical vinyl content because some cyclic oligomers existed at the end of polymerization. Table 2 shows that the measured vinyl content of a SR is higher than the theoretical value calculated from the molar ratio of D4 to V4, but the difference between the measured vinyl content and the theoretical value is very small.

3.2 Synthesis and structure of epoxy-poly(methylvinylsiloxane)

The epoxidation of olefins is typically performed with organic peracids or a combination of a transition metal catalyst and a co-oxidant. In this study MCPBA was used for the epoxidation of SR. Fig. 2 shows the 1H NMR spectrum and 13C NMR spectrum of ESR-20. 1H NMR (CDCl3, 400 MHz) δ ppm: 5.90–6.05, 5.74–5.84 (–CH[double bond, length as m-dash]CH2); 2.84–2.90, 2.63–2.70, 2.09–2.15 (image file: c4ra02293a-u1.tif) 0.05–0.09, 0.09–0.13 (–CH3). 13C NMR (CDCl3, 400 MHz) δ ppm: 29.8–30.0, 43.0–43.2 (image file: c4ra02293a-u2.tif); −1.01–1.05, −0.08–0.08, −1.01–1.05 (Si–CH3). In Fig. 2(a), the resonances at 5.98 and 5.82 ppm assigned to the –CH[double bond, length as m-dash]CH2 protons, become very weak in the 1H NMR spectrum, indicating that most of the vinyl groups have been converted into epoxy groups during the epoxidation. The high conversion of –CH[double bond, length as m-dash]CH2 can be also verified by the change in the signal of the methyl groups: the signal at 0.14 ppm corresponding to the c-type methyl groups (Fig. 1(a)) almost disappears and a new signal at 0.11 ppm assigned to the d-type methyl groups appears in the 1H NMR spectrum of ESR-20 (Fig. 2(a)). In the 13C NMR spectrum of ESR-20 shown in Fig. 2(b), the signals assigned to the epoxy groups appear at 41.0 and 30.0 ppm, but those assigned to the vinyl groups, which should appear at 136.1 and 131.7 ppm (Fig. 1(b)), cannot be seen. The 13C NMR results are consistent with the 1H NMR results, further confirming that most of the vinyl groups have been converted to epoxy groups.
image file: c4ra02293a-f2.tif

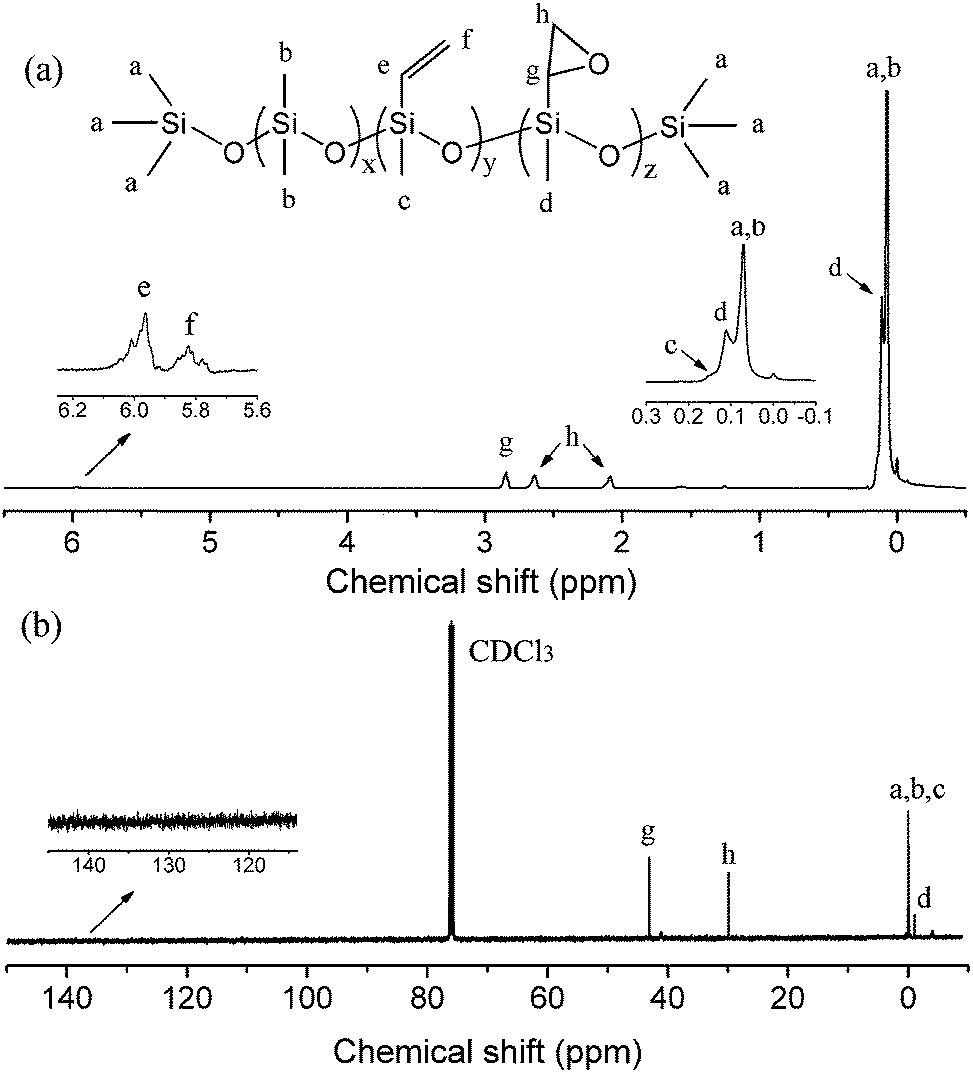

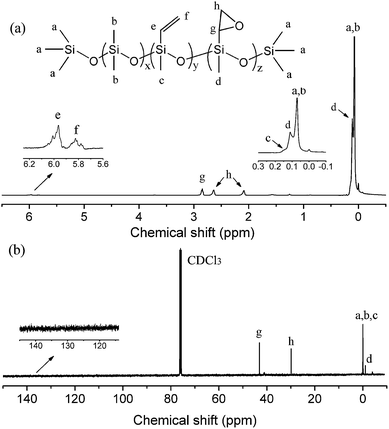

Fig. 2 NMR spectra of epoxy-poly(methylvinylsiloxane) (ESR-20): (a) 1H NMR spectrum and (b) 13C NMR spectrum.

To calculate the epoxidation yield of ESRs with different contents of vinyl groups, two methods—1H NMR and titration—were used. In the 1H NMR method, the unchanged integral of CH3 was selected as the primary integral 1 for all the samples, and the epoxidation yield was calculated from the integrals of the –CH[double bond, length as m-dash]CH2 signals before and after epoxidation (see Fig. S3). In the titration method, the epoxidation yield was calculated from the ratio of measured epoxy values (EV) to theoretical EV. The epoxidation yields, epoxy contents, and EV of the various ESR samples are shown in Table 3. The epoxidation yields calculated by the 1H NMR method and the titration method are similar, and are all higher than 90%. The molecular weights, molecular weight distributions and gel contents of the ESR samples are also listed in Table 3. Compared with those of SR, the molecular weights and molecular weight distributions of the ESR samples do not change much, indicating that there are not many side reactions, such as degradation, during the epoxidation. The gels contents of the ESR samples are very low, demonstrating that there is little crosslinking between the ESR macromolecular chains.

Table 3 Molecular weights and epoxidation yields of various ESR samples
Samples Mn Mw Mw/Mn Gel (%) Epoxidation yield by NMR (%) Epoxidation yield by titration (%) Epoxy contenta (mol%) Epoxy valuea (mol 100 g−1)
a Epoxy content and epoxy value were calculated by titration.
ESR-5 254[thin space (1/6-em)]000 444[thin space (1/6-em)]000 1.75 0 91.4 92.2 4.98 0.066
ESR-10 243[thin space (1/6-em)]000 459[thin space (1/6-em)]000 1.89 0.2 93.3 90.3 9.21 0.120
ESR-15 210[thin space (1/6-em)]000 567[thin space (1/6-em)]000 2.69 0.1 94.1 91.1 14.21 0.191
ESR-20 201[thin space (1/6-em)]000 480[thin space (1/6-em)]000 2.35 0.3 93.0 90.5 18.20 0.238


3.3 FTIR spectra of D4, V4, SR, and ESR

Fig. 3 shows the FTIR spectra of D4, V4, SR-20, and ESR-20. IR (KBr, cm−1): 3056 ([double bond, length as m-dash]C–H, stretching vibration); 2965 (–CH3, stretching vibration); 1598 (C[double bond, length as m-dash]C, stretching vibration); 1408 (Si–C, asymmetric deformation vibration); 1262 (Si–C symmetric deformation vibration); 1087, 1020 (Si–O–Si, stretching vibration); 880 (image file: c4ra02293a-u3.tif, ring vibration); 798 (Si–C, stretching deformation vibration). As can be seen from Fig. 3(d), the absorptions for double bonds are not clear after the epoxidation, illustrating that most of the double bonds have been converted to epoxy groups.
image file: c4ra02293a-f3.tif

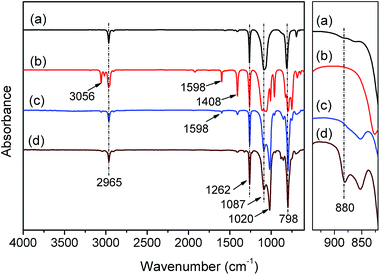

Fig. 3 FTIR spectra of (a) D4, (b) V4, (c) SR-20, and (d) ESR-20.

3.4 Kinetics of double bond conversion

Fig. 4 shows the degree of conversion of the double bonds into epoxy groups as a function of the reaction time for all the SR samples. At the same concentration of SR (3 g 100 mL−1), all the SR samples show the same trend of conversion as a function of reaction time: at the beginning of the epoxidation, all the samples show a high reaction rate because of the high concentrations of double bonds and MCPBA; after 24 h, the reaction rate decreases. Although the concentrations of SR are same, the vinyl contents of the SR samples are different. In other words, the concentrations of carbon double bonds and MCPBA are different at the beginning of epoxidation for different SR samples. Therefore, the epoxidation rates for the SR samples with different contents of vinyl groups should be different.
image file: c4ra02293a-f4.tif

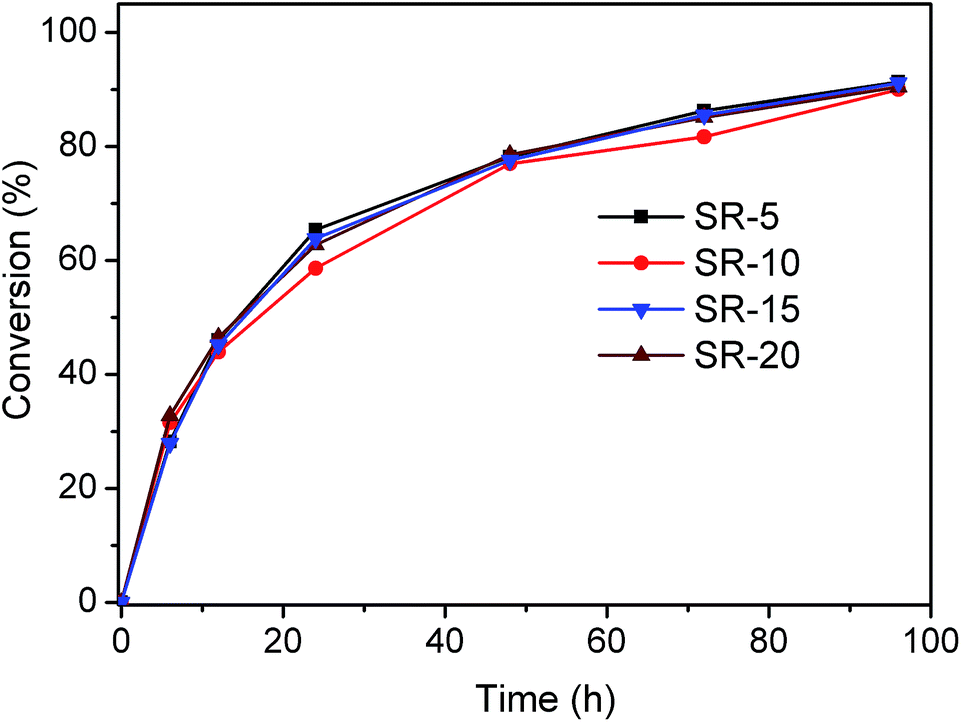

Fig. 4 Epoxidation rate of SR samples with different vinyl contents.

Some studies using MCPBA to prepare epoxides showed that the epoxidation reaction was initially second-order.22,48 Assuming that the epoxidation reaction is second order, we can express the epoxidation rate for SR by eqn (3):


image file: c4ra02293a-t3.tif(3)
where k is the apparent second-order rate constant, and [epoxide], [C[double bond, length as m-dash]C] and [MCPBA] are the concentration of epoxy groups, the concentration of vinyl groups, and the concentration of MCPBA, respectively. If we assume that one mole of carbon double bonds is converted into one mole of epoxy groups and the concentration of epoxy groups is x at time t, eqn (3) can be expressed as

image file: c4ra02293a-t4.tif(4)
where a and b are the initial concentration of carbon double bonds and the initial concentration of MCPBA, respectively. Integration of eqn (4) gives

image file: c4ra02293a-t5.tif(5)

Eqn (5) can be further expressed in terms of the double bond conversion w:


image file: c4ra02293a-t6.tif(6)

Fig. 5 shows the results of Fig. 4 plotted in accordance with eqn (6). For all the SR samples, the plots are linear, illustrating that the epoxidation of SR using MCPBA follows a second-order mechanism. In addition, the SR samples with different contents of vinyl groups show different apparent second-order rate constants (k), and the rate constant decreases with increasing the content of vinyl groups. The difference in k values is probably due to the different chemical structures of the ESRs. The commonly accepted mechanism for epoxy formation is the “butterfly” mechanism, which involves a cyclic polar process where a proton is transferred intramolecularly to the carbonyl oxygen with a concerted attack on the alkene by the hydrogen-bonded peracid.49 The reaction rate depends significantly on the chemical structures of alkene and peracid; the electron-donating groups on the alkene and the electron-withdrawing groups on the peracid can accelerate the epoxidation rate.50 Steric hindrance also plays an important role in the epoxidation rate.51 Because the groups adjacent to the carbon double bonds are similar, the difference in k values should not be ascribed to the electron-donating ability of the adjacent groups but to the steric hindrance. For the SR samples with high contents of vinyl groups, the adjacent vinyl groups and the generated epoxy groups would hinder the epoxidation, resulting in a decrease in epoxidation rate.


image file: c4ra02293a-f5.tif
Fig. 5 Plots of image file: c4ra02293a-t7.tif versus reaction time.

3.5 Thermal transitions of SR and ESR

Thermal properties such as glass transition temperature (Tg) and crystallization are critical for elastomers because a polymer in the crystalline state or a polymer with a Tg higher than the temperature of use is not elastic. Fig. 6 shows the DSC curves of uncured PDMS and uncured SRs with different contents of vinyl groups. Despite showing a very low Tg (about −125.5 °C), PDMS cannot be used as an elastomer at temperatures below −70 °C because of crystallization, as shown Fig. 6(a). Using 61.3 J g−1 as the heat of fusion for PDMS,52 we can calculate from the melting heat (ΔHm) value for PDMS (29.1 J g−1) that the degree of crystallinity for the PDMS used in this study is as high as 47.5%. As the vinyl content increases, the Tg of SR decreases slightly but the melting temperature (Tm) and the ΔHm of SR (see Table S4) decrease significantly. The decrease in the Tm and ΔHm demonstrates that the introduction of vinyl groups into PDMS decreases the regularity of the PDMS chains and affects the crystallization of PDMS. For SR-10, no exothermic peak of crystallization can be seen in the DSC cooling curve (Fig. 6(a)), indicating that the introduction of 10 mol% of vinyl groups into the PDMS side chains inhibits the crystallization thoroughly when the sample is cooled to −150 °C at 10 °C min−1. However, an exothermic peak of cold crystallization ranging from −105 °C to −85 °C appears in the DSC heating curve (Fig. 6(b)) when the sample is heated from −150 °C to 20 °C, implying that the SR-10 is still crystallizable. For SR-15, neither an endothermic peak nor an exothermic peak can be seen in the DSC curve, suggesting that the crystallization of SR is completely inhibited. The very low Tg and noncrystalline behavior demonstrate that SR containing a high content of vinyl groups has excellent low-temperature performance; however, this kind of SR is not an ideal polymer to be used as a low-temperature-resistant material because the large quantity of vinyl groups would adversely affect the thermal stability of the material.
image file: c4ra02293a-f6.tif
Fig. 6 DSC curves of PDMS and SRs with different contents of vinyl groups: (a) DSC cooling curves and (b) DSC heating curves.

When the vinyl groups in SR are converted into epoxy groups, the thermal properties such as glass transition temperatures (Tg) and crystallization show great changes. As shown in Fig. 7(a), when the content of epoxy groups reach 4.98 mol% (ESR-5), no exothermic peak of crystallization can be seen in the DSC cooling curves, indicating that the crystallization of ESR is inhibited when the sample is cooled to −150 °C at 10 °C min−1. However, in the DSC heating curve of ESR-5 (Fig. 7(b)), an exothermic peak corresponding to cold crystallization appears in the range of −105 to 85 °C when the sample is heated from −150 °C to 20 °C, implying that the ESR-5 is still crystallizable. In addition, ESR-5 shows a lower ΔHm (21.2 J g−1) than SR-5 does (see Table S4), suggesting that epoxy groups have a greater impact on the crystallization of PDMS than vinyl groups do, probably because of the larger steric hindrance of epoxy groups than that of vinyl groups. In the ESR samples with contents of epoxy groups higher than 9.21 mol% (e.g., ESR-10), neither an endothermic peak nor an exothermic peak can be seen in the DSC curves. The results from the DSC curve of ESR-10 further confirm that epoxy groups have a greater impact on the crystallization of polysiloxane than vinyl groups do in that an endothermic peak and an exothermic peak can be still seen in the DSC heating curve of SR-10 (Fig. 6(b)).


image file: c4ra02293a-f7.tif
Fig. 7 DSC curves of PDMS and ESRs with different epoxy values: (a) DSC cooling curves and (b) DSC heating curves.

The introduction of epoxy groups into PDMS side chains also has a great impact on the Tg of PDMS. As shown in Fig. 7(b), the Tg increases substantially with increasing content of epoxy groups. Similarly, epoxidation was also reported to increase the Tg s of natural rubber, styrene butadiene rubber, and other polymers such as polyesters.33,39,57 The increase in Tg of ESR is attributed to the polar epoxy groups, which can increase the intramolecular interactions. Fig. 8 shows the plot of Tg versus epoxy content of ESR. The plot is linear and shows that the Tg increases by 0.69 °C as the content of epoxy groups increases 1 mol%. The increase rate of Tg with the content of epoxy groups is close to the that of other polymers reported in the literature.33,57


image file: c4ra02293a-f8.tif
Fig. 8 Plot of Tg against epoxy content of ESR.

Dynamic mechanical analysis (DMA) can measure the phase transitions, such as melting, crystallization, alpha transition (glass), and beta transition of a material by vibrating the material sinusoidally at a constant frequency and small amplitude. For the determination of the phase transitions of materials, DMA is more sensitive than other measurements such as differential scanning calorimetry (DSC) and modulated differential scanning calorimetry (mDSC).53 In this study, DMA was used to further investigate the phase transitions and low-temperature resistance of the crosslinked ESR composites with silica. Fig. 9(a) shows the elastic modulus (E′) of ESR composites with different epoxy contents versus temperature. The E′ of PDMS composite decreases as the temperature increases from −120 °C to −100 °C, and then decreases rapidly as the temperature increases from −50 °C to −40 °C. The changes of E′ in the range of −120 to 100 °C is ascribed to the glass transition, and that in the range of −50 to 40 °C owns to the crystal melting. The change of E′ in the range of −120 to 100 °C is far smaller than that in the range of −50 to 40 °C, implying that PDMS has a very high degree of crystallinity. In addition, E′ can reflect the mechanical properties of PDMS composite; the sharp increase of E′ in the range of −50 to 40 °C means that the PDMS composite becomes very stiff and cannot be used as an elastic material below −50 °C. For ESR-5 composite, a sharp decrease of E′ because of crystal melting can be still seen in the range of −60 to 45 °C. However, the change of E′ is lower than that for PDMS composite, implying a decrease in the degree of crystallinity. For ESR-10 composite, E′ begins to decrease significantly at −115 °C because of glass transition, but then increases at approximately −95 °C owing to cold crystallization. As the temperature reaches −80 °C, the E′ of ESR-10 composite begins to decrease again because of crystal melting. In the DSC curve of ESR-10 (Fig. 7), however, neither an endothermic peak nor an exothermic peak can be seen. Because DMA test was carried out at a constant frequency and a small amplitude, the cold crystallization of ESR-10 during the DMA test was probably induced by stress, which has been reported to accelerate the crystallization of polymers.54–56 At a very low cooling rate, it was found that there is still an exothermic peak in the DSC cooling curve of ESR-10, but the ΔHc is very low, indicating a low degree of crystallinity of ESR-10 (see Fig. S5). For ESR-15 composite, only a sharp decrease of E′ corresponding to glass transition can be seen in Fig. 9(a), demonstrating an amorphous structure for ESR-15. The amorphous structure of ESR-15 can be further confirmed by the DSC cooling curve, in which none of exothermic peaks can be seen even at a very low cooling rate (see Fig. S5). At epoxy contents higher than 14.21 mol%, the temperature corresponding to the sharp decrease of E′ increases because of the increase of Tg of ESR. Generally, the introduction of epoxy groups into the PDMS side chains can improve the low-temperature resistance of PDMS. As the epoxy content increases, the temperature corresponding to crystal melting decreases and the low-temperature resistance increases. Among these ESRs, however, ESR-15 should show the best low-temperature resistance because it is amorphous and has a lower Tg than ESR-20 does.


image file: c4ra02293a-f9.tif

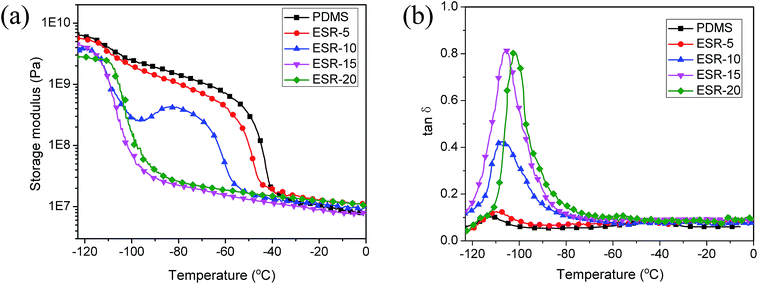

Fig. 9 Dynamic viscoelastic curves of PDMS composites and ESR composites: (a) storage modulus versus temperature; (b) tan[thin space (1/6-em)]δ versus temperature.

A material's tan[thin space (1/6-em)]δ designates the material's ratio of viscous to elastic components and is sometimes called the damping ability of the material.57 Fig. 9(b) shows the tan[thin space (1/6-em)]δ of ESR composites with different epoxy contents versus temperature. Consistent with DSC results, the Tg of ESR composites obtained from the plot of tan[thin space (1/6-em)]δ vs. T increases with increasing epoxy content of ESR. The tan[thin space (1/6-em)]δ of ESR composites in the range −120 to 80 °C increases significantly as the epoxy content of ESR increases. One possible reason for the increase of the tan[thin space (1/6-em)]δ is that the introduction of epoxy groups inhibits the crystallization of PDMS and the PDMS chains constrained by the crystals are able to move to lose energy. Another possible reason is that the epoxy groups on the side chains increase the friction between the macromolecular chains, resulting in an increase of energy loss during the segmental motions in the glass transition region.

Base on the DSC and DMA results, ESRs, especially ESR-15 and ESR-20, show excellent low-temperature performance and can be used as low-temperature-resistant materials. In practical applications, the cold resistance factor under compression (Kc) is often used to evaluate the low-temperature performance of a material. In this study, ESR composites with silica were prepared and the cold-resistance of ESR composites was investigated by using a cold-resistance-factor tester. The results, which are used to evaluate the low-temperature performance of ESR composites, are shown in Fig. 10. The cold resistance factor under compression is a measurement of the elasticity of a material, and the higher the Kc the higher the elasticity of the material. The Kc is influenced significantly by the Tg and crystallinity of the material. If a material has a Tg higher than the test temperature or easily crystallizes at the test temperature, the segmental motions will be inhibited and the material will have a low Kc. As shown in Fig. 10, all the composites have high Kc (>0.9) at room temperature and the difference in Kc between these composites is small, indicating that these composites have similar and very high elasticity. For the PDMS composite, the Kc is still high (Kc = 0.67) at −50 °C, but begins to decrease significantly as the temperature decreases from −50 °C. At −60 °C, the Kc of the PDMS composite decreases to 0.31 because of the crystallization of PDMS. When the temperature decreases to −70 °C, the Kc of PDMS composite is almost 0, demonstrating that the PDMS composite has lost almost all its elasticity as a result of crystallization and cannot be used as an elastic material at temperatures lower than −70 °C. ESR-5 composite shows a better low-temperature performance than PDMS composite does and still remains highly elastic at −60 °C. However, the Kc of ESR-5 composite decreases to only 0.11 at −70 °C, suggesting that the ESR-5 composite has also lost its elasticity at this temperature because of crystallization. The ESR composites with contents of epoxy groups higher than 9.21 mol% show high Kc at −50 °C, −60 °C, and −70 °C. Among these ESR composites (ESR-10, ESR-15, and ESR-20), ESR-10 composite shows the best low-temperature performance according to the Kc value, probably because it has the lowest Tg. As indicated by DMA results, however, ESR-15 composite and ESR-20 composite would show better low-temperature performance than ESR-10 composite does at temperatures lower than −70 °C due to the crystallization of ESR-10 in the temperature range −95 to 80 °C. Because the cold-resistance-factor tester is cooled by dry ice, Kc values at a lower temperature than −70 °C cannot be obtained. Nevertheless, according to DSC and DMA results, we can confirm that these ESR composites, especially ESR-15 composite and ESR-20 composite, can be used as low-temperature-resistant materials at temperatures lower than −70 °C.


image file: c4ra02293a-f10.tif

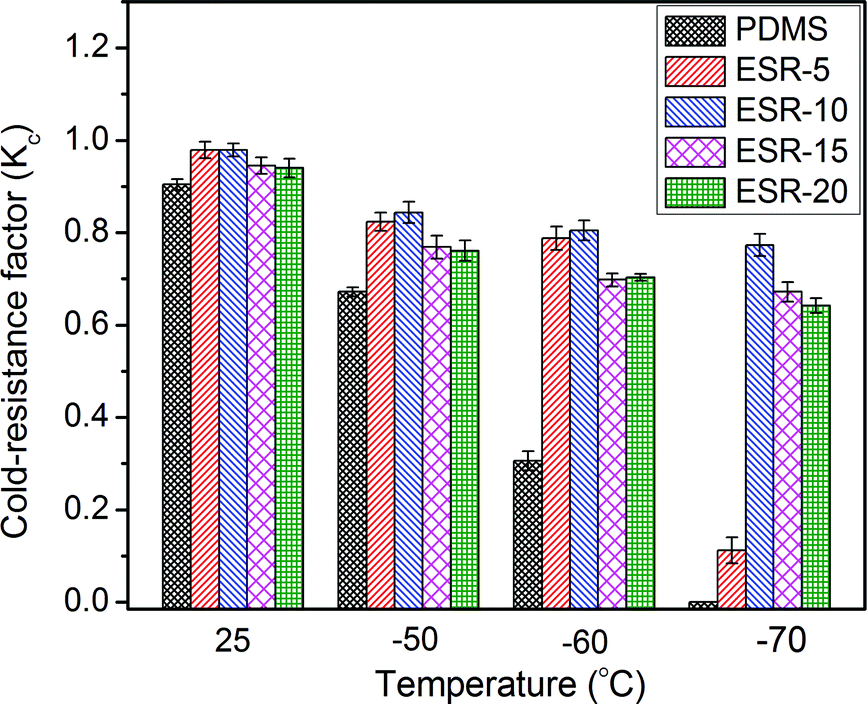

Fig. 10 Cold-resistance factors of PDMS composites and ESR composites at different temperatures.

In this study, we also studied the thermal stability and high-temperature applicability of ESR. Fig. 11 shows the TGA curves of uncured PDMS and uncured ESRs in inert atmosphere. It can be seen from these TGA curves that the thermal stability of ESR increases with increasing the content of epoxy groups. The temperature of 10% weight loss increases by 52 °C when 14.21 mol% of epoxy groups is introduced into the side chains of PDMS.


image file: c4ra02293a-f11.tif

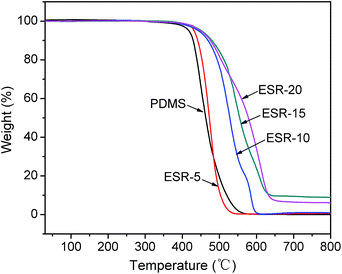

Fig. 11 TGA curves of PDMS and ESRs with different contents of epoxy groups.

The thermal degradation of polysiloxane elastomer end-blocked with (CH3)3Si-groups in inert atmosphere can be explained by a well-known depolymerisation mechanism, as shown in Scheme 3.6 When polysiloxane is heated in an inert atmosphere, silicone d-orbital participation is postulated with siloxane bond rearrangement, leading to the elimination of cyclic oligomers and the shortening of the residual chain length. The trimer cyclic oligomer is the most abundant product, with irregularly decreasing amounts of the tetramer, pentamer, and higher oligomers.58 The transition state can be formed at any point of the silicone rubber chain, and the degradation process can take place continuously until the residual chain is too short to form cyclic oligomers.59,60 Camino et al. suggested that the formation of cyclic transition is the rate-determining step during the thermal degradation.60 In other words, the more easily the cyclic transition state forms, the weaker the thermal stability of silicone rubber is. Obviously, the flexibility of silicone rubber chains is the dominant factor for the thermal degradation. As confirmed by the increase of Tg, the flexibility of PDMS will decrease when polar epoxy groups are introduced into the side chains of PDMS. Therefore, the presence of epoxy groups will inhibit the formation of cyclic transition and increase the thermal degradation temperature. In addition, the steric hindrance of epoxy groups also inhibits the formation of cyclic transition.


image file: c4ra02293a-s3.tif

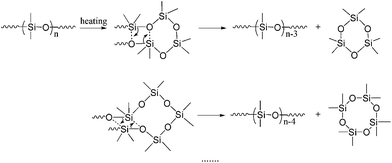

Scheme 3 Molecular mechanism for thermal degradation of polysiloxane.
