Ratiometric fluorescence probes based on a Michael acceptor type of coumarin and their application for the multichannel imaging of in vivo glutathione

Abstract

A series of Michael acceptors based on a coumarin moiety, were developed as fluorescent probes for ratiometric detection of in vivo glutathione. The α,β-unsaturated Michael acceptors were transformed into non-conjugated molecules through the Michael addition of biothiols. The resulting UV-vis and fluorescence spectra of the probes revealed characteristic ratiometric responses, which were successfully applied for the multichannel imaging of in vivo glutathione.

---

Introduction

Biothiols such as cysteine (Cys), homocysteine (Hcy), and glutathione (γ-glutamylcysteinylglycine, GSH) are involved in a myriad of vital cellular processes including redox homeostasis.¹ However, abnormal levels of the biothiols are implicated in many human diseases, such as cancer and AIDS.² Therefore, it is of great importance to detect the levels of biothiols both in vitro and in vivo. In spite of recent advances in the biothiol probes,³ however, there have been developed a few fluorophores that are able to detect the cellular biothiols free of the environmental and operational artifacts. One possible strategy for the artifact-free detection of biothiols is to introduce a self-calibrating module in the probe and to produce a ratiometric response.⁴

Coumarin acts as a versatile scaffold for many fluorophores and was utilized as the Michael acceptors for detection of biothiols, but their ratiometric response in conjunction with reactivity as a Michael acceptor toward thiols has not been systematically studied yet. Herein we report a series of Michael acceptors (1–4) based on a coumarin moiety, which are expected to display ratiometric responses upon reaction with biothiols. The conjugated Michael acceptor type of probes are transformed into the non-conjugated molecules through the Michael addition of biothiols and induce characteristic ratiometric responses capable of the multichannel imaging of GSH in living cells.

Results and discussion

Coumarin aldehyde is a useful compound as the common and versatile reagent of aldol reaction. Whereas coumarin itself exhibits a strong fluorescence, coumarin derivatives possessing a carbonyl group and their vinyl analogues do not display a significant fluorescence. Their weak fluorescence may result from the existence of a quencher carbonyl group, which lowers the lowest unoccupied molecular orbital (LUMO) energy level of the fluorophore in order to absorb the excited electron and prohibits the excited electron from the radiative decay to the highest occupied molecular orbital (HOMO) level of the coumarin unit (Fig. S1†).⁵ For rational design of the biothiol probes, an aldol condensation reaction or Wittig reaction of coumarin aldehyde were simply carried out to afford a variety of electronically tunable conjugate enone fluorophores. A highly nucleophilic thiol group could react with the conjugated enone, which would lead to non-conjugated and fluorescent turn-on coumarin through the Michael addition reaction (Scheme 1).

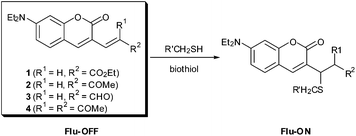

Scheme 1 Plausible fluorescence turn-on mechanism of Michael acceptors upon reaction with a biothiol.

The electronic properties of the probes (1–4) were tunable and readily available through aldol condensation or Wittig reaction of coumarin aldehyde from ester to diketo group (Scheme 2).

Scheme 2 Preparation of probes through an aldol condensation or Wittig reaction.

The chemical reaction of the Michael acceptors with 2-mercaptoethanol (ME), an organic soluble model compound of biothiols, was observed by ¹H NMR spectroscopy. Spectral analysis uncovered the position of the conjugate addition by a thiol group. Upon addition of ME, the spectra of 4 displayed another simple set of spectra within 5 min (Fig. 1). The vinylic proton (H^b) of 4 at 7.45 ppm disappeared with the concomitant appearance of a new peak at 4.49 ppm. On the other hand, relatively small chemical shifts of the aromatic protons indicated that the reaction took place in the peripheral region rather than in the aromatic regions of 4. The spectral analysis revealed the resulting simple set of spectra to be that of the expected Michael product. A similar spectral change was observed in the case of 2 (Fig. S7†).^{6 1}H NMR experiments revealed that the thiol nucleophile, known as a relatively soft nucleophile, attacked the aliphatic vinylic position at the Michael acceptor site, although some hard nucleophiles such as cyanide would attack the aromatic region.⁷

Fig. 1 Partial ¹H NMR spectra of 4 (20 mM) in DMSO-d₆ upon addition of ME (2.5 equiv.). (A) 0 min, (B) 5 min.

As expected, UV-vis spectra exhibited a profound ratiometric change when 2 was treated with GSH. Time-dependent UV-vis spectra of 2 (10 μM) were monitored in the presence of excess GSH (1.0 mM) in 50% DMSO–HEPES buffer (0.1 M HEPES, pH 7.4). While probe 2 showed a UV-vis absorption maximum centered at 458 nm (ε 4.2 × 10⁴ M⁻¹ cm⁻¹), 2–GSH conjugate triggered a noticeable hypsochromic shift (ΔA −59 nm) with an isosbestic point at 416 nm. The rate constant of 2–GSH was calculated as k_obs = 0.07 × 10⁻⁴ s⁻¹ (τ 28 h) at 25 °C under the pseudo first-order reaction conditions.

On the other hand, the more activated Michael acceptor 4 was so rapidly reacted with GSH that the Michael addition reaction was complete within 5 min. Upon addition of 100 equiv. GSH (1.0 mM) to 4 (10 μM) in 50% DMSO–HEPES buffer (0.1 M HEPES, pH 7.4), a prominent hypsochromic shift was observed in the UV-vis spectra. While probe 4 showed a UV-vis absorption maximum centered at 464 nm (ε 4.8 × 10⁴ M⁻¹ cm⁻¹), 4–GSH conjugate triggered a hypsochromic shift (ΔA −58 nm) to λ_max 406 nm (ε 2.7 × 10⁴ M⁻¹ cm⁻¹) with a clear isosbestic point at 423 nm (Fig. 2). The reaction kinetics analysis gave the calculated rate constant of 4-GSH with k_obs 1.2 × 10⁻² s⁻¹ (τ 0.97 min) at 25 °C under the pseudo first-order reaction conditions.

Fig. 2 Time-dependent UV-vis spectral changes upon addition of GSH (100 equiv.) to 10 μM of 4 in DMSO–HEPES buffer (1 : 1, v/v, pH 7.4). Inset: their kinetics.

We noticed that the Michael addition reaction was significantly affected by the substituents of α,β-unsaturated carbonyl compounds and therefore investigated the electronic effects of the Michael acceptors by changing R groups at the α-position of the Michael acceptors. Remarkably, an ester form (1) was not reactive with GSH under the given pseudo first-order reaction conditions. An aldehyde form (3) reacted with GSH faster than 2. The diketo form (4) was observed to be the most accelerated in the Michael reactions owing to the plausible double activation effect of the diketo groups on the conjugate addition reaction (Fig. 3).

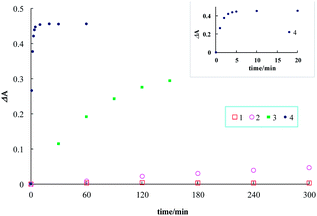

Fig. 3 Reaction kinetics upon addition of GSH (100 equiv.) to 1–4 (10 μM) in DMSO–HEPES buffer (1 : 1, v/v, pH 7.4). Probe 1 (open square), 2 (open circle), 3 (filled square), 4 (filled circle). Inset: magnified kinetics of 4.

The quantum yields were also measured using coumarin 6 as the reference compound⁸ (Table 1). The ester form (1) displayed the most significant value in the quantum yield relative to the other probes, but its reaction with GSH was too slow for the kinetics measurement. The quantum yields of probe–GSH conjugates were approximately evaluated 10 h after the incubation of probe with 100 equiv. of GSH. Though probes 2 and 3 exhibited relatively well enhanced quantum yields with 1.7 and 2.7-fold increases, respectively, a dramatic enhancement was observed with probe 4 + GSH with a 27-fold increase in the quantum yield, which was attributable to the role of the diketo group of 4 as a fluorescence quencher. The diketo group of 4 also played a critical role in the rate acceleration relative to the other probes. Probe 4 was very reactive to GSH with k₂ 12 M⁻¹ s⁻¹ at 25 °C. Probe 3 was relatively reactive to GSH but it was unstable and further oxidized in air. These data were summarized in Table 1. In terms of the quantum yields, reaction rate and stability, 2 and 4 were the most suitable candidates for in vivo GSH imaging.

Table 1 Photophysical properties of the designed molecular probes^a

Entry	Probe	λabs (nm)/ε (10^4 M^−1 cm^−1)	λex^b/λem (nm)	ΦF^c	k2^d (M^−1 s^−1)
a [Probe] = 10 μM and [GSH] = 5 mM in 50% DMSO–HEPES buffer (0.1 M, pH 7.4).b Excitation at an isosbestic point.c Quantum yield measured from coumarin 6 (ΦF 0.78) as a standard.d The second-order rate constant at 25 °C.e No reaction.
1	1	451/4.3	512	0.384	—
2	2	458/4.2	539	0.261	—
3	3	467/5.4	540	0.145	—
4	4	464/4.8	551	0.007	—
5	1 + GSH	—	—	—	NR^e
6	2 + GSH	399/2.8	416/475	0.444	0.007
7	3 + GSH	396/2.2	424/476	0.387	0.41
8	4 + GSH	406/2.7	423/487	0.189	12

---

As observed in the UV-vis spectra, the fluorescence spectra of 4 (λ_ex 423 nm) also exhibited a prominent blue shift (ΔF −64 nm) from λ_max 551 nm to 487 nm upon addition of biothiols (GSH, Hcy and Cys) (Fig. 4A). The fluorescence intensity of 4 was changed from F 0.097 to 5.09 with a 52-fold increase in the presence of 5 mM GSH (Fig. 4B), whereas the other natural amino acids (AAs) with neutral, basic, or acidic side chains did not induce any significant fluorescence changes. The competitive experiments also showed that the fluorescence intensities of 4 + AA could be restored up to the value of 4 + GSH only by the addition of GSH to the mixtures of 4 and the other natural AAs.

Fig. 4 (A) Fluorescence spectral changes of 4 (10 μM) in HEPES (0.1 M, pH 7.4) upon addition of various amino acids (500 equiv.). (B) The competition graphs of GSH over various amino acids (AA, 500 equiv.).

A sensitivity curve of 4 toward GSH was obtained by measuring the emission spectra of 4 (10 μM) in HEPES (0.1 M, pH 7.4) at λ_em 487 nm by varying the concentration of GSH. The fluorescence intensity of 4 increased linearly over the concentration ranges from 0.5 to 10 equiv. of GSH with the limit of detection (LOD) of 5.8 μM GSH at 3σ/m, where σ is a standard deviation of blank measurements without GSH and m is the value of slope from the linear plot of fluorescence intensity of 4 against GSH (Fig. 5).

Fig. 5 Fluorometric determination of limit of detection after the addition of GSH to 4 (10 μM, λ_ex/λ_em 423/487 nm) in HEPES (0.1 M, pH 7.4).

Probe 2 was applied for in vivo imaging of GSH,⁹ which is the most abundant cellular biothiol.¹⁰ For detection of GSH in cells, HeLa cells were treated with 5 μM of 2 for 0.5 h and washed 3 times with PBS. The images of the live cells were taken by using a confocal laser scanning microscope (CLSM). The resulting fluorescence images indicated that probe 2 was clearly expressed in cytoplasm (Fig. 6). Blue and green channel fluorescence images of 2-GSH were monitored by intrinsic cellular GSH. If the cells were pretreated with α-lipoic acid (LPA, 500 μM, 1 day), an enhancer of GSH,¹¹ and then stained with 2 (5 μM, 0.5 h), the fluorescence intensities in the blue (λ_em 405–488 nm) and green (λ_em 488–559 nm) channels were strengthened, while the intensity in the red channel (λ_em 559–700 nm) remained almost constant. Upon treatment of the live cells with a scavenger of GSH, N-ethylmaleimide (NEM, 100 μM, 0.5 h),¹² and then with 2 (5 μM, 0.5 h), strongly red fluorescence images were observable due to the enrichment of GSH-free 2, while the intensities in the blue/green channels were decreasing.

Fig. 6 Confocal laser scanning microscopic images of HeLa cells incubated with 2 (5.0 μM) upon treatment of LPA or NEM.

In the case of probe 4, prominent ratiometric color changes were observed from green to blue by GSH but the color change in the red channel was not as clear as that of 2 (Fig. 7). These CLSM experiments clearly showed that 2 is a powerful fluorescence probe for the multichannel detection of in vivo GSH by ratiometric fluorescence.

Fig. 7 Confocal laser scanning microscopic images of HeLa cells incubated with 4 (5.0 μM) upon treatment of LPA or NEM.

Conclusion

We designed a series of ratiometric fluorescence probes (1–4) based on a coumarin moiety for detection of in vivo GSH. Probes 2 and 4 exhibited rapid and ratiometric fluorescence responses to biothiols, owing to the Michael addition of a thiol group to the enone unit of the probes. The fast and large ratiometric responses of 2 and 4 afforded clear multichannel imaging for celluar GSH. We expect these Michael acceptor type of fluorescent probes to become useful as the ratiometric fluorophores capable of determining the concentration of biothiols in living cells.

Experimental section

All fluorescence and UV-vis absorption spectra were recorded in FP 6500 fluorescence spectrometer and HP 8453 absorption spectrometer, respectively. ¹H/¹³C NMR spectra were recorded at 400/100 MHz NMR spectroscopy. Mass spectra were recorded on G6401A MS-spectrometer. All experiments were carried out with commercially available reagents and solvents, and used without further purification, unless otherwise noted.

UV-vis and fluorescence spectral measurement

A stock solution (10 mM) of 1, 2, 3, and 4 in DMSO was prepared and used by dilution with aqueous DMSO–HEPES or HEPES buffer (0.10 M, pH 7.4). For UV-vis experiment, a sample solution (10 μM) were prepared by mixing 2 μL of the stock solution of probe (10 mM in DMSO) with an appropriate amount of each amino acid and finally diluted with DMSO–HEPES or HEPES buffer to afford the desired concentration of probe and AA. Fluorescence spectra were also measured similarly with a slit width of 3 nm × 3 nm.

Determination of quantum yields

Quantum yields were measured in 50% DMSO–HEPES buffer (0.10 M, pH 7.4) by the relative method using the following equation,
where Φ, F, and A are quantum yield, fluorescence spectral area, and absorbance at the emission wavelength, respectively, while n is the refractive index of the solvent. The subscript “r” denotes the respective values of a reference compound, coumarin 6 (Φ_r 0.78 in ethanol).

Fluorescence imaging of HeLa cells

For detection of biothiols in live cells, HeLa cells were cultured in Dulbecco's modified Eagle's medium (DMEM) supplemented with 100 units per mL penicillin, 100 mg mL⁻¹ streptomycin, and 10% heat-inactivated fetal bovine serum. The cells were seeded on a Ø 35 mm glass-bottomed dish at the density of 0.8 × 10⁵ cells in a culture medium and incubated overnight for live-cell imaging by confocal laser scanning microscopy (CLSM). The HeLa cells were treated with 5 μM 2 (or 4), which is prepared by dilution of 1.0 μL of stock solution of 2 (or 4) (10 mM in DMSO) with 2 mL of 1× PBS and incubated for 0.5 h and washed three times with pre-warmed 1× PBS before imaging by CLSM. In order to reduce the concentration of cellular GSH, HeLa cells were pretreated with NEM (100 μM, 0.5 h) prior to the incubation of 2 (or 4) (5 μM, 0.5 h). To increase the concentration of cellular GSH, the live cells were first incubated with LPA (500 μM, 24 h), followed by 2 (or 4) (5 μM, 0.5 h) and then washed 3 times with pre-warmed 1× PBS before imaging by CLSM at three channels (λ_ex 380 nm, 488 nm, and 555 nm). After imaging the live cells, the mean fluorescence intensities at blue (λ_ex 380 nm), green (λ_ex 488 nm), and red (λ_ex 555 nm) channels were measured in three different fields by ZEN imaging program. In order to reduce errors caused by background images outside of the cells, we also compared the intensity of the background image, but the level of the intensity was very low indicating that it did not seem to affect the mean fluorescence intensities.

Synthesis of 1

7-(Diethylamino)-2-oxo-2H-chromene-3-carbaldehyde (0.096 g, 0.38 mmol)¹³ was dissolved in 3 mL of tetrahydrofuran. (Carbethoxymethylene)triphenylphosphorane (0.158 g, 0.454 mmol) was added to the above solution and then stirred at rt for 12 h. The mixture was evaporated under reduced pressure. Purification by column chromatography (EA–HEX = 1 : 2, v/v) provided the desired product as a yellow solid in 50% yield (0.060 g).

¹H NMR (400 MHz, CDCl₃): δ 7.69 (s, 1H) 7.52 (d, 1H, ³J = 16.0 Hz), 7.29 (d, 1H, ³J = 8.8 Hz), 6.99 (d, 1H, ³J = 16.0 Hz), 6.59 (d, 1H, ³J = 8.8 Hz, ⁴J = 2.4 Hz), 6.47 (d, 1H, ³J = 2.4 Hz), 4.23 (q, 2H, ³J = 7.2 Hz), 3.43 (q, 4H, ³J = 7.2 Hz), 1.31 (t, 3H, ³J = 7.2 Hz), 1.22 (t, 6H, ³J = 7.2 Hz). ¹³C NMR (100 MHz, CDCl₃): δ 167.9, 160.4, 156.7, 151.9, 144.4, 139.5, 130.0, 119.7, 114.9, 109.6, 108.8, 97.2, 60.5, 45.2, 14.5, 12.7 (16 carbon peaks). HRMS (FAB⁺, m-NBA): m/z obsd 316.1545 ([M + H]⁺, calcd 316.1549 for C₁₈H₂₂NO₄).

Synthesis of 2

7-(Diethylamino)-2-oxo-2H-chromene-3-carbaldehyde (0.15 g, 0.60 mmol) was dissolved in 1.8 mL of EtOH. Acetone (0.07 mL, 0.9 mmol) and piperidine (1 drop) were added at rt. The reaction mixture was refluxed for 6 h to afford a red solution, which was filtered and concentrated. Purification by column chromatography (DCM–EA–HEX = 1 : 2 : 7, v/v) furnished the desired product as an orange solid in 10% yield (0.017 g).

¹H NMR (400 MHz, CDCl₃): δ 7.77 (s, 1H) 7.46 (d, 1H, ³J = 16 Hz), 7.31 (d, 1H, ³J = 9.2 Hz), 7.13 (d, 1H, ³J = 16 Hz), 6.61 (dd, 1H, ⁴J = 2.4, ³J = 8.8 Hz), 6.48 (d, 1H, ⁴J = 2.4 Hz), 3.44 (q, 4H, ³J = 7.2 Hz), 2.35 (s, 3H), 1.23 (t, 6H, ³J = 7.2 Hz). ¹³C NMR (100 MHz, CDCl₃): δ 198.7, 160.5, 156.6, 151.7, 144.1, 137.8, 129.9, 127.0, 114.3, 109.5, 108.7, 96.9, 45.0, 28.3, 12.4 (15 carbon peaks). HRMS (FAB⁺, m-NBA): m/z obsd 286.1440 ([M + H]⁺, calcd 286.1443 for C₁₇H₂₀NO₃).

Synthesis of 3

7-(Diethylamino)-2-oxo-2H-chromene-3-carbaldehyde (0.2 g, 0.82 mmol) was dissolved in 10 mL of acetonitrile. (Triphenylphosphoranylidene)acetaldehyde (0.32 g, 1.05 mmol) and triethylamine (0.12 mL, 0.86 mmol) were added to the above solution and then were refluxed for 6 h. As the mixture was changed to red color, it was cooled to rt and then was evaporated under reduced pressure. Recrystallization of the crude product from ethanol afforded the desired product as a reddish solid in 80% yield (0.18 g).

¹H NMR (400 MHz, CDCl₃): δ 9.64 (d, 1H, ³J = 7.7 Hz), 7.83 (s, 1H), 7.45 (d, 1H, ³J = 15.8 Hz), 7.34 (d, 1H, ³J = 8.8 Hz), 7.01 (dd, 1H, ³J = 7.7 Hz, ³J = 15.8 Hz), 6.63 (d, 1H, ³J = 8.8 Hz), 6.49 (s, 1H), 3.47 (q, 4H, ³J = 6.9 Hz), 1.25 (t, 6H, ³J = 6.9 Hz). ¹³C NMR (100 MHz, CDCl₃): δ 194.1, 160.3, 157.1, 152.3, 147.3, 143.8, 130.4, 128.6, 113.9, 109.7, 108.6, 97.0, 45.1, 12.5 (14 carbon peaks). HRMS (FAB⁺, m-NBA): m/z obsd 272.1283 ([M + H]⁺, calcd 272.1287 for C₁₆H₁₈NO₃).

Synthesis of 4

7-(Diethylamino)-2-oxo-2H-chromene-3-carbaldehyde (0.15 g, 0.60 mmol) was dissolved in 1.8 mL of EtOH. Acetylacetone (0.09 mL, 0.9 mmol) and piperidine (2 drops) were added and stirred at rt for 12 h to afford a red solution. The mixture was extracted with DCM. The combined organic layer was washed with H₂O, dried over anhydrous MgSO₄, filtered and concentrated under reduced pressure. Purification by column chromatography (DCM–EA–HEX = 1 : 2 : 7, v/v) furnished the desired product as an orange solid in 48% yield (0.96 g).

¹H NMR (400 MHz, CDCl₃): δ 7.78 (s, 1H) 7.59 (s, 1H), 7.28 (d, 1H, ³J = 9 Hz), 6.60 (dd, 1H, ⁴J = 2.6 Hz, ³J = 9 Hz), 6.46 (d, 1H, ⁴J = 2.6 Hz), 3.45 (q, 4H, ³J = 7 Hz), 2.44 (s, 3H), 2.36 (s, 3H) 1.23 (t, 6H, ³J = 7.2 Hz). ¹³C NMR (100 MHz, CDCl₃): δ 205.5, 197.2, 161.1, 157.0, 152.1, 143.8, 141.7, 133.9, 130.6, 112.5, 109.6, 108.4, 96.9, 45.0, 31.4, 26.1, 12.4 (17 carbon peaks). HRMS (FAB⁺, m-NBA): m/z obsd 328.1544 ([M + H]⁺, calcd 328.1549 for C₁₉H₂₂NO₄).
